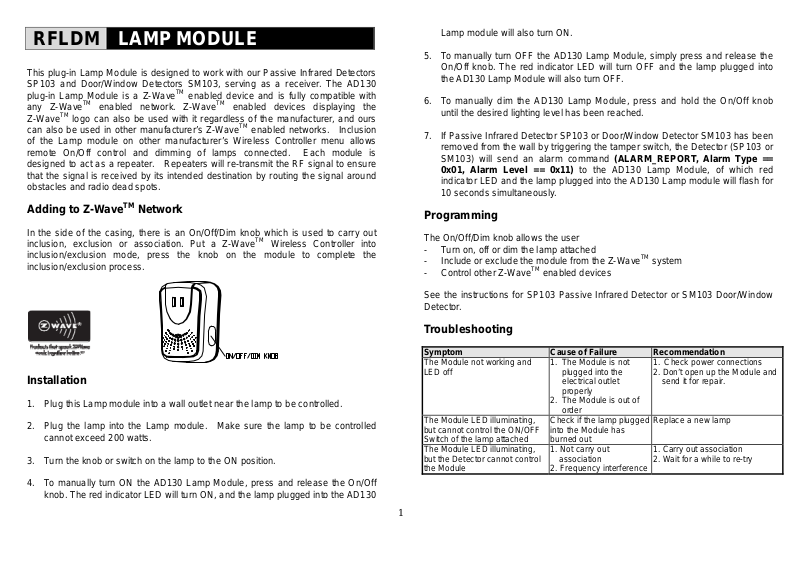

RFLDM LAMP MODULE

This plug-in Lamp Module is designed to work with our Passive Infrared Detectors
SP103 and Door/Window Detectors SM103, serving as a receiver. The AD130
plug-in Lamp Module is a Z-Wave
any Z-Wave
Z-Wave

TM

TM

enabled network. Z-WaveTM enabled devices displaying the

logo can also be used with it regardless of the manufacturer, and ours
can also be used in other manufacturer’s Z-Wave
of the Lamp module on other manufacturer’s Wireless Controller menu allows
remote On/Off control and dimming of lamps connected. Each module is
designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure
that the signal is received by its intended destination by routing the signal around
obstacles and radio dead spots.

Adding to Z-WaveTM Network

In the side of the casing, there is an On/Off/Dim knob which is used to carry out
inclusion, exclusion or association. Put a Z-Wave
inclusion/exclusion mode, press the knob on the module to complete the
inclusion/exclusion process.

Installation

1. Plug this Lamp module into a wall outlet near the lamp to be controlled.

2. Plug the lamp into the Lamp module. Make sure the lamp to be controlled

cannot exceed 200 watts.

3. Turn the knob or switch on the lamp to the ON position.

4. To manually turn ON the AD130 Lamp Module, press and release the On/Off

knob. The red indicator LED will turn ON, and the lamp plugged into the AD130

TM

enabled device and is fully compatible with

TM

enabled networks. Inclusion

TM

Wireless Controller into

Lamp module will also turn ON.

5. To manually turn OFF the AD130 Lamp Module, simply press and release the
On/Off knob. The red indicator LED will turn OFF and the lamp plugged into
the AD130 Lamp Module will also turn OFF.

6. To manually dim the AD130 Lamp Module, press and hold the On/Off knob
until the desired lighting level has been reached.

7. If Passive Infrared Detector SP103 or Door/Window Detector SM103 has been
removed from the wall by triggering the tamper switch, the Detector (SP103 or
SM103) will send an alarm command (ALARM_REPORT, Alarm Type ==
0x01, Alarm Level == 0x11) to the AD130 Lamp Module, of which red
indicator LED and the lamp plugged into the AD130 Lamp module will flash for
10 seconds simultaneously.

Programming

The On/Off/Dim knob allows the user

- Turn on, off or dim the lamp attached

- Include or exclude the module from the Z-Wave

- Control other Z-Wave

TM

enabled devices

TM

system

See the instructions for SP103 Passive Infrared Detector or SM103 Door/Window
Detector.

Troubleshooting

Symptom Cause of Failure Recommendation

The Module not working and
LED off

The Module LED illuminating,
but cannot control the ON/OFF
Switch of the lamp attached
The Module LED illuminating,
but the Detector cannot control
the Module

1. The Module is not
plugged into the
electrical outlet
properly

2. The Module is out of
order

Check if the lamp plugged
into the Module has
burned out

1. Not carry out

association

2. Frequency interference

1. Check power connections

2. Don’t open up the Module and
send it for repair.

Replace a new lamp

1. Carry out association

2. Wait for a while to re-try

1

Specification

This Class B digital apparatus complies with Canadian ICES-003. Cet
appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.

Operating Voltage 120V/60Hz
Maximum Load 300W, for incandescent lamps only
Minimum Load 25W, for incandescent lamps only
Range Minimum 100 feet line of sight
Frequency Range 908.42 MHz

** Specifications are subject to change and improvement without notice. A501110875R

Mobile of end product

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate

this equipment.
This transmitter must not be co-located or operating in conjunction with

any other antenna or transmitter.

IMPORTANT NOTE:

"Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device."
