Cooper Lighting LLC CPK1715 Specifications

Industrial Fluorescent

Energy Solutions

FLUORESCENT HIGH BAYS

FLUORESCENT LOW BAYS

COMPLEX ENVIRONMENT

1

Our world is increasingly recognizing the importance of environmental sustainability and efficiency in building design. While cost containment and productivity gains are universal demands, increasing lighting efficiency requires an understanding of the role lighting plays in the business environment.

Cooper Lighting has always been at the forefront in adopting and adapting to the latest advancements in lighting technology. Over the years, businesses and communities have benefitted from partnering with Cooper Lighting to improve energy efficiency and reduce costs while protecting and enriching the environment.

To those of you considering a more efficient lighting upgrade, this brochure presents a variety of products and provides tips on how to make your retrofit project a success. A Cooper Lighting energy efficient lighting upgrade will reduce your utility bill; improve employee morale and productivity; and help protect and preserve the environment.

2

The Fluorescent Advantage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg. 3

Energy Savings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg. 3

Lamp Life and Lumen Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg. 3

Uniformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg. 3

Instant On/Off and Occupancy Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg. 4

T8 or T5HO? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg. 4

Thermal Performance and Light Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg. 5

Visible Light and the Scotopic/Photopic (S/P) Ratio . . . . . . . . . . . . . . . . . . . . . . . . . .pg. 6

Environmentally Friendly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg. 6

Product Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 7-8

HBI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 9-14

HBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 15-20

I5/I8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 21-24

HBL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 25-30

MBF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 31-32

2HBG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 33-34

HBHD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 35-36

HBHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 37-38

ARCTIC BAY - ABI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 39-40

VT4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 41-42

VT3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 43-44

VT1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 45-46

Lamp Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 47

Emergency Options Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 48

F-Bay Mounting Accessories Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 48

Packaging Options Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 48

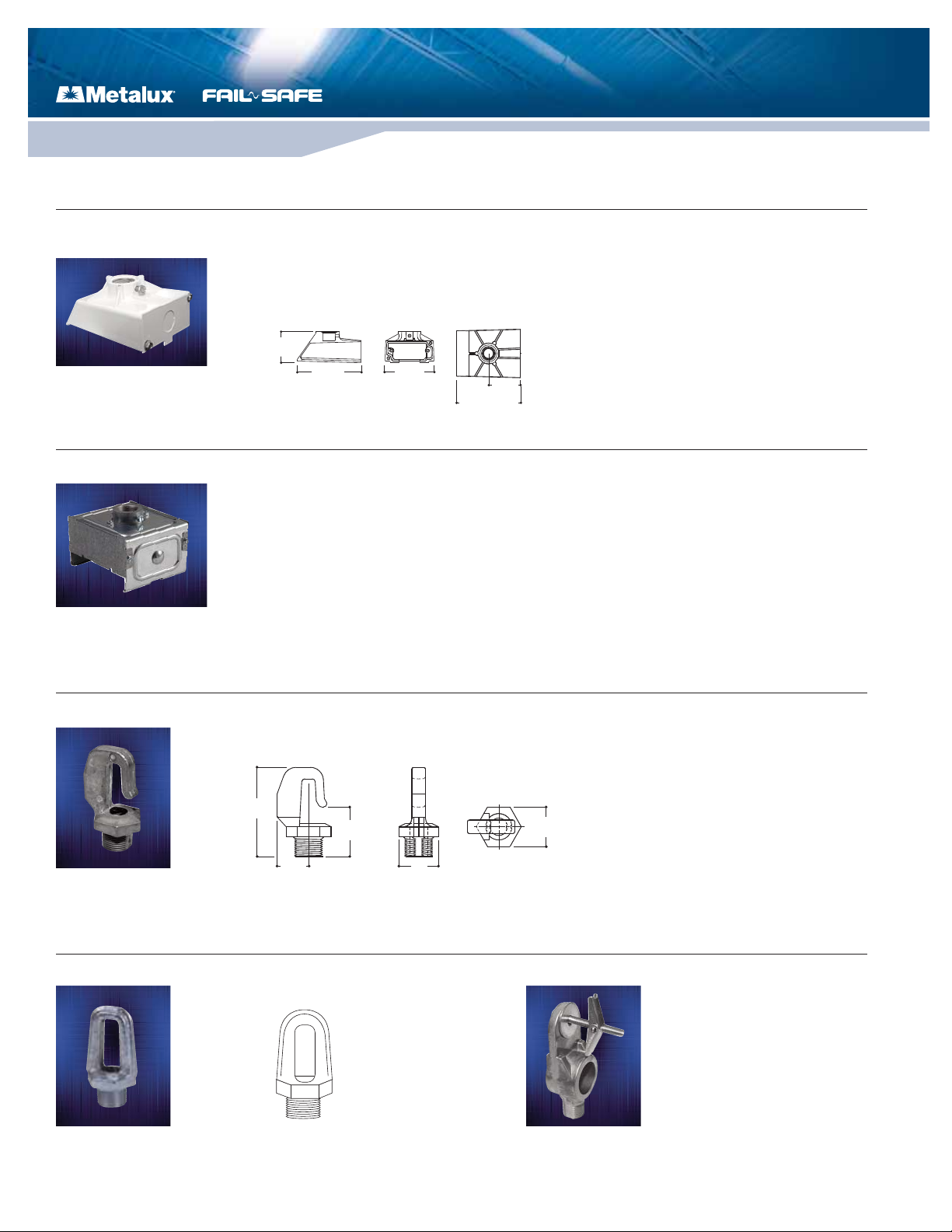

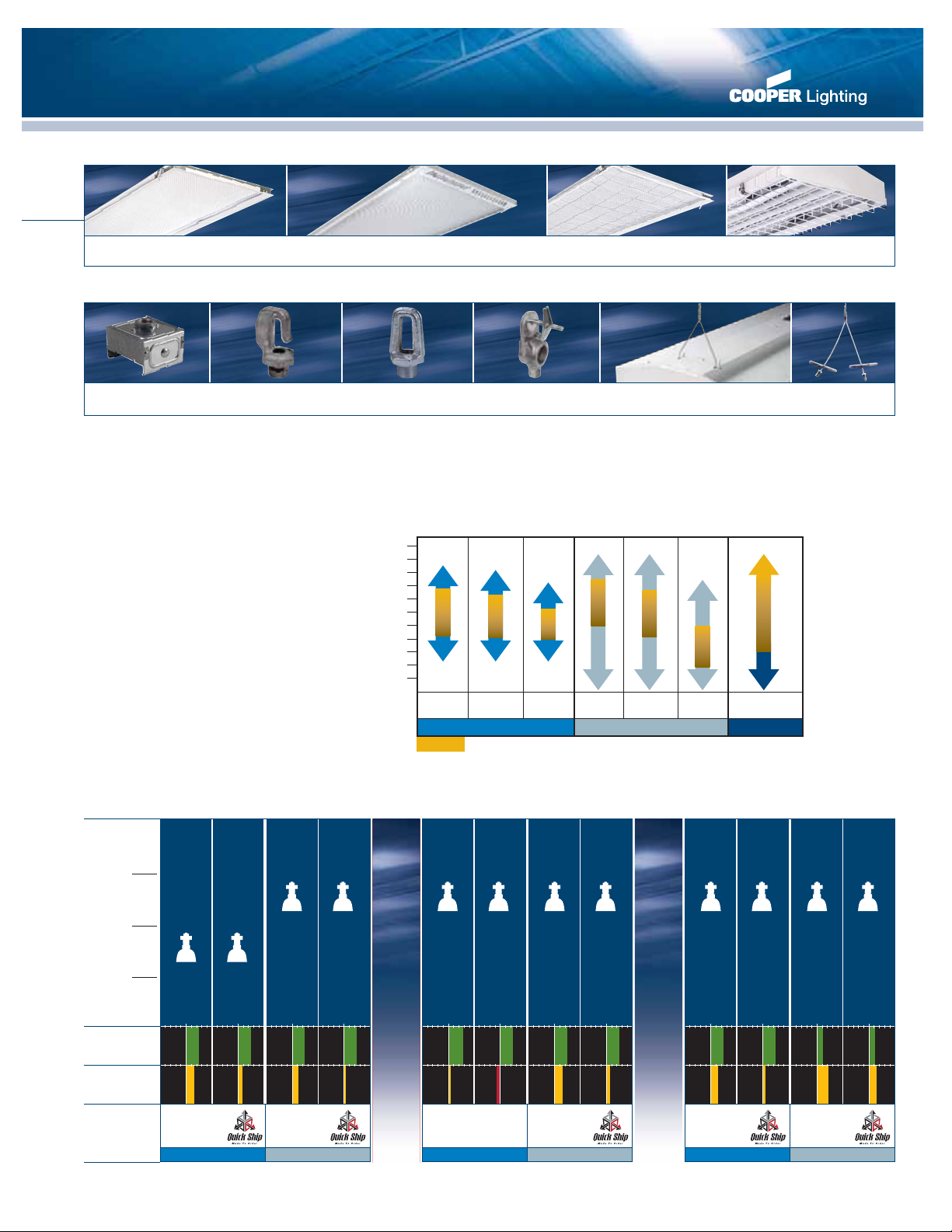

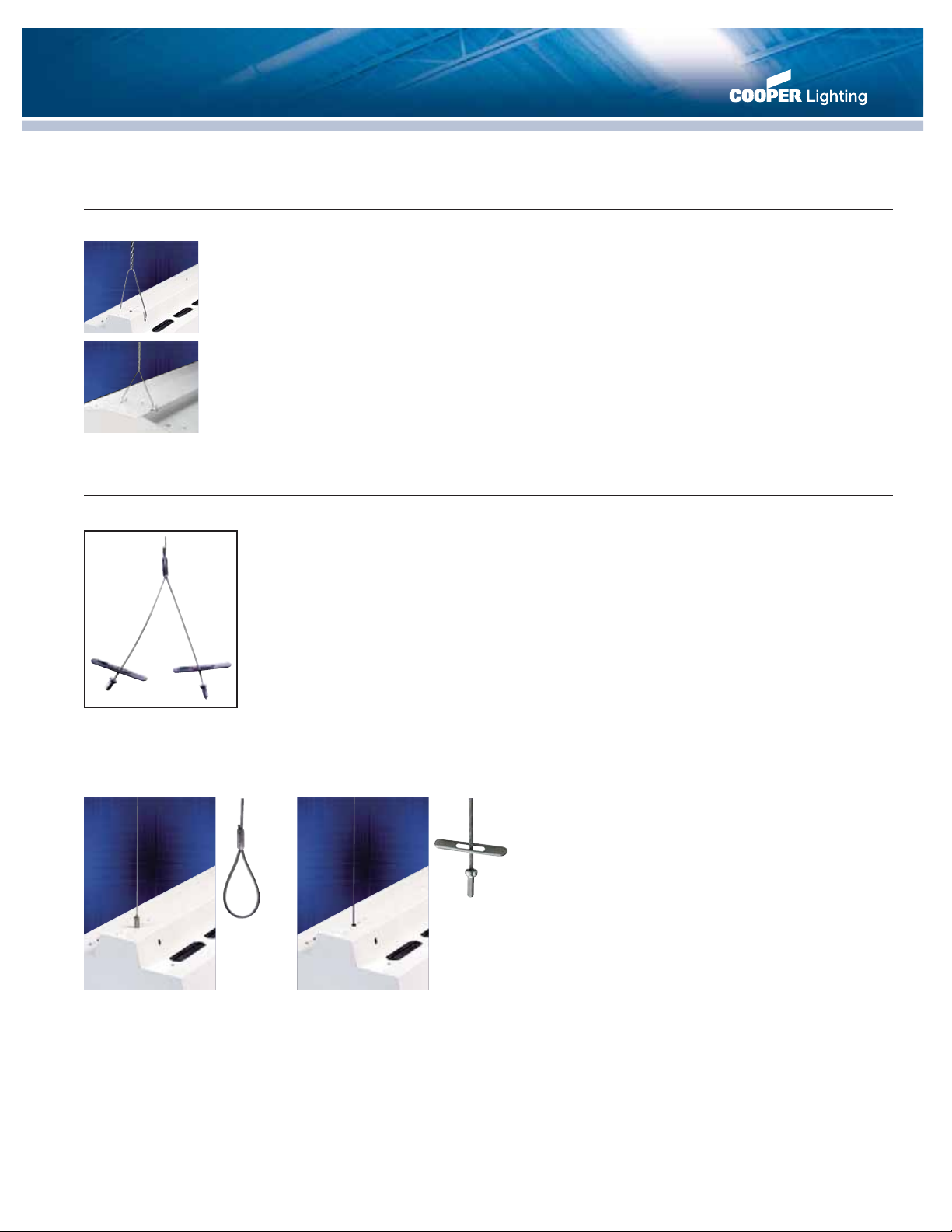

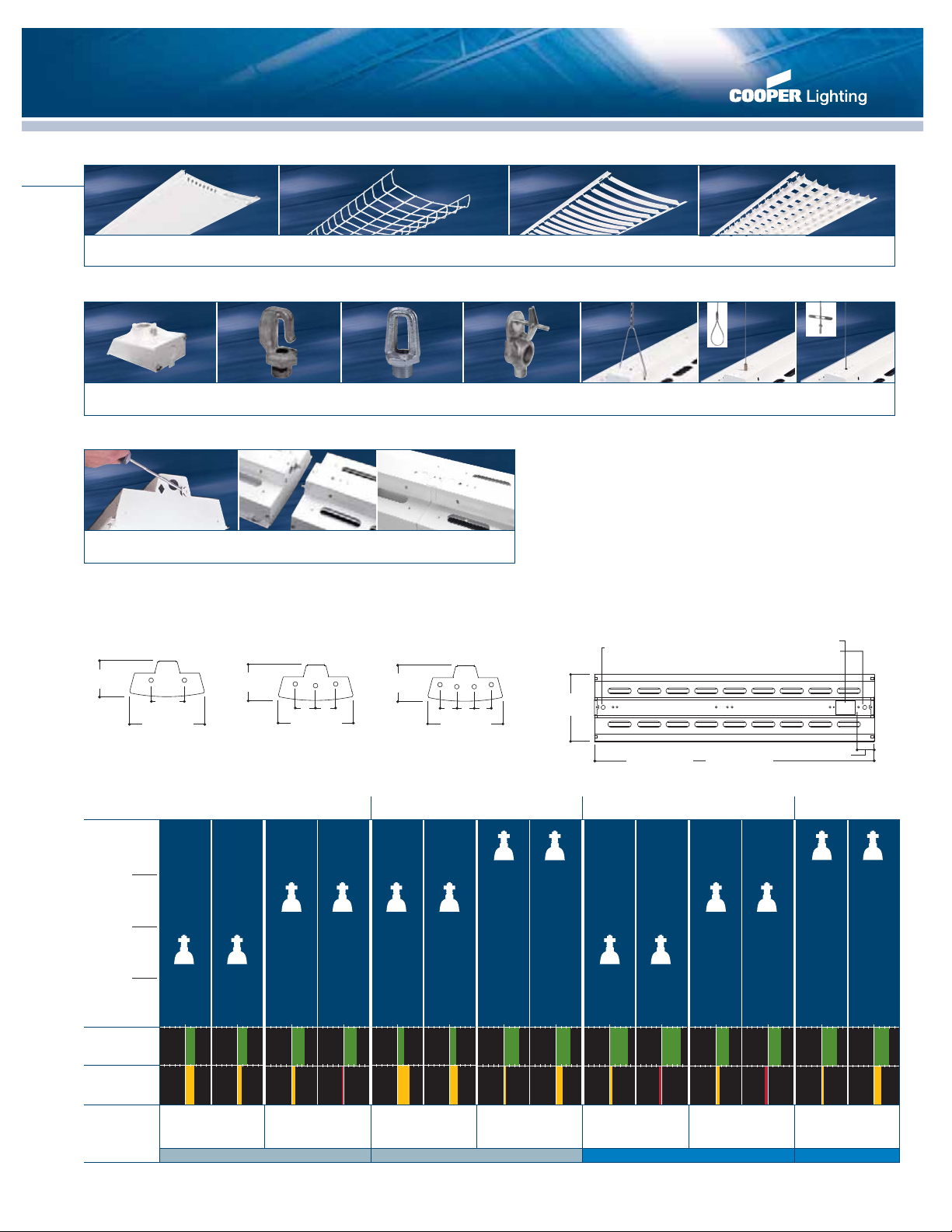

Mounting Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 49-50

Occupancy Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 51

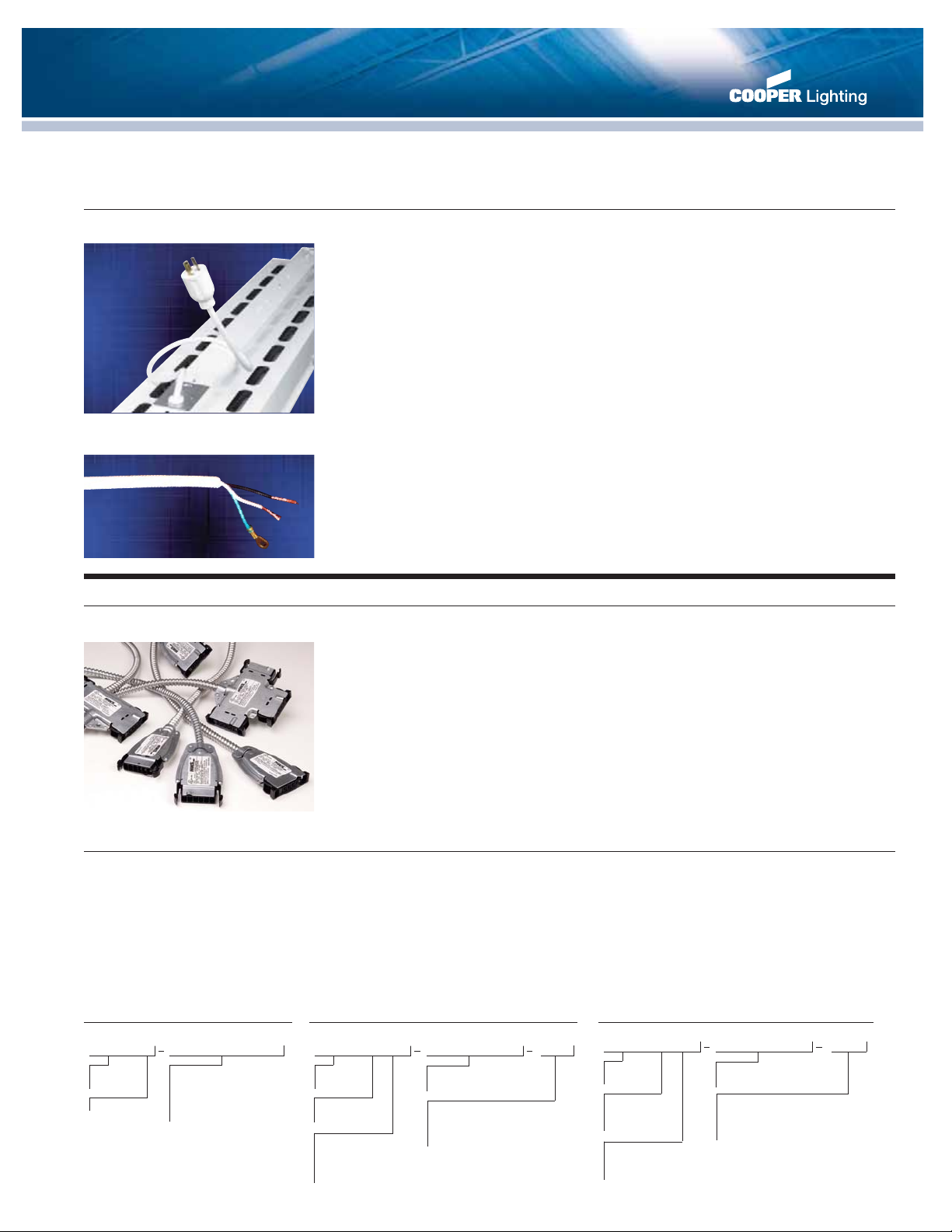

Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 52

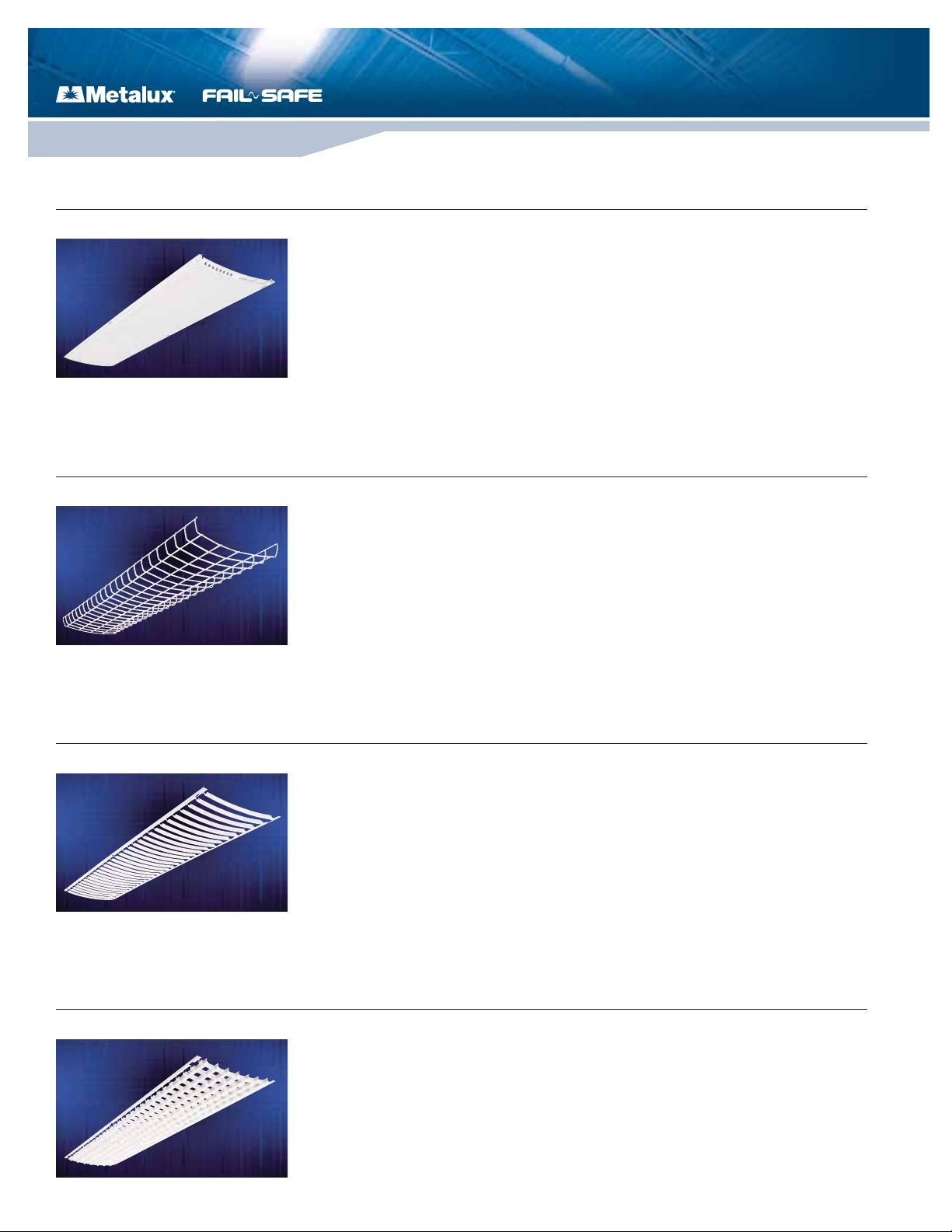

I5/I8 Lens, Door Frames and Wireguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pgs. 53

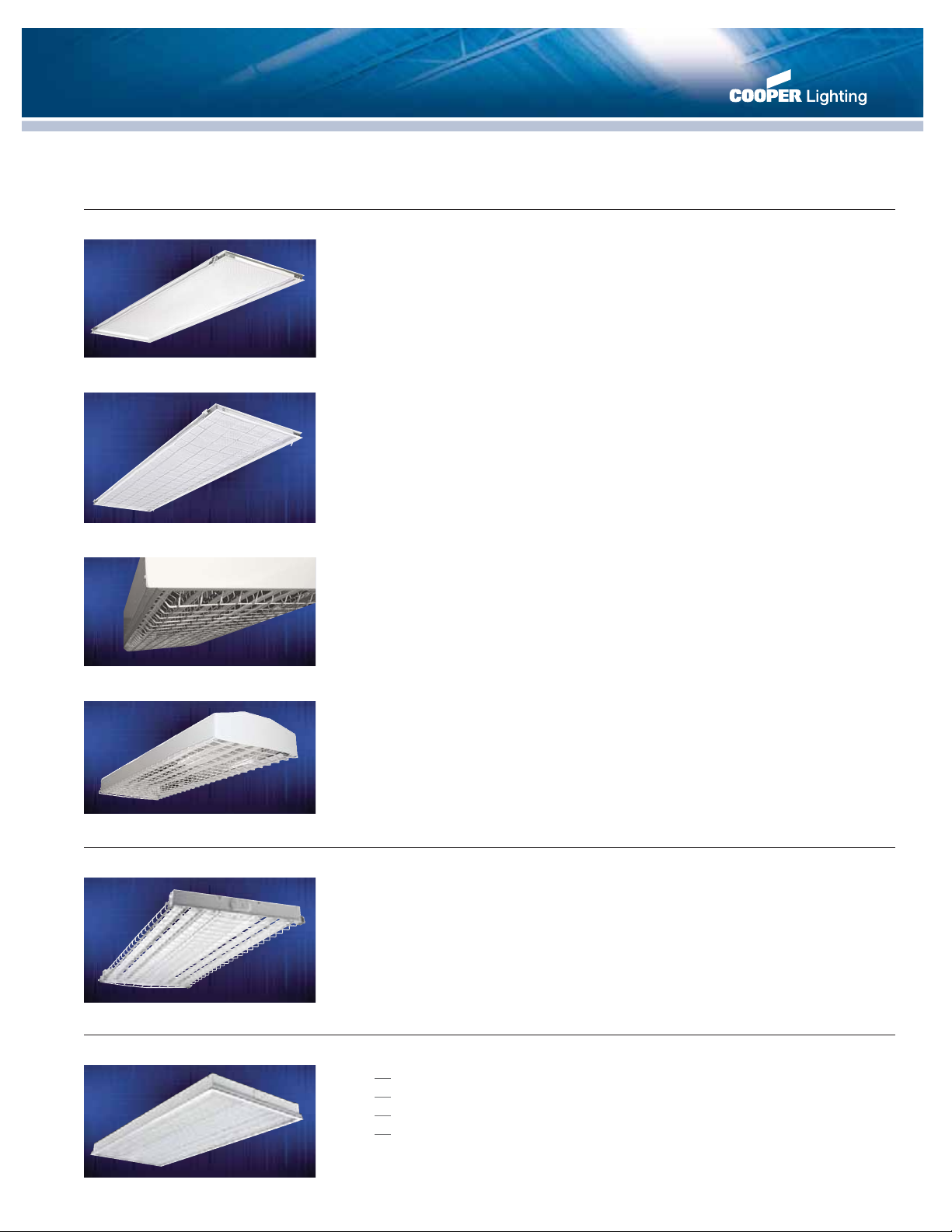

HBI, HBL and HBE Lens, Door Frames and Wireguards . . . . . . . . . . . . . . . . . . . .pgs. 54

The most popular and productive lighting upgrades today involve replacing outdated fluorescent or HID (High Intensity Discharge) lighting systems. High Performance fluorescent lighting systems from Cooper Lighting utilize the latest technologies and design platforms to provide dramatic energy savings and superior performance.

3

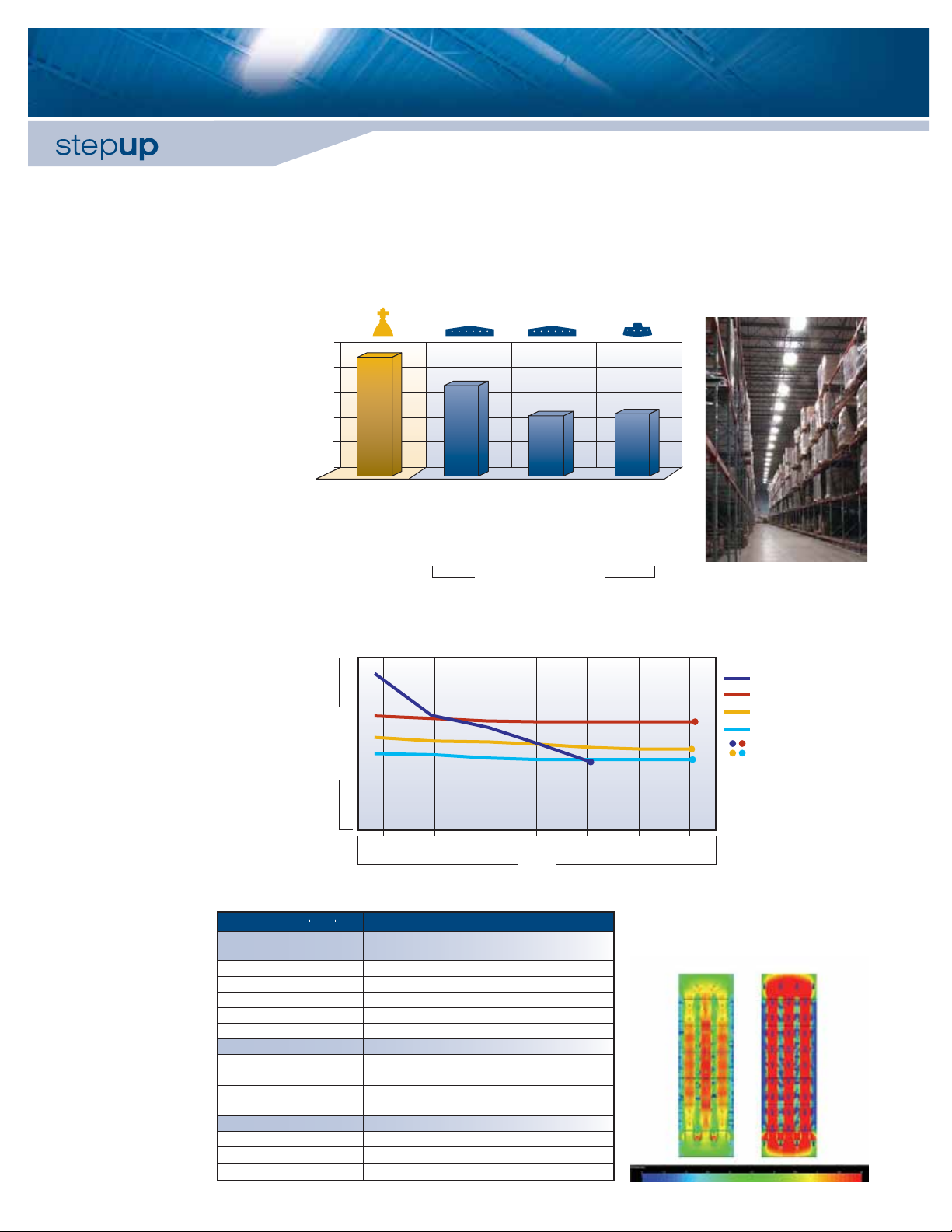

Uniformity

Linear fluorescent systems improve lighting uniformity compared with HID systems.

Energy Savings

Cooper Lighting fluorescent high bays offer dramatic energy savings opportunities over HID Lighting systems and provide quick returns.

400 Watt

High-Bay

Metalux

HBI-632 T8

Lamp Life and Lumen Maintenance

T5 and T8 fluorescent systems provide better maintained light levels over magnetic HID lighting systems with twice the lamp life. Multiple lamped fluorescent luminaires reduce the need for immediate maintenance. With fluorescent systems, the other lamps will stay illuminated when individual lamps extinguish.

500

400

KWH

$0.06 $0.08 $0.10 $0.12

(based on 4000 hrs.)

300

200

100

0

LIGHT OUTPUT

455

400 Watt High Bay

346

221

F-Bay

HBI-654 T5HO

$26.16 $34.88 $43.60 $53.32

ANNUAL ENERGY SAVINGS

F-Bay

HBI-632

$56.16 $74.88 $93.60

$112.32

I5-454 T5HO

Lamp Life & Lumen Maintenance

229

F-Bay

$54.24 $72.32 $90.40

$108.48

400 Watt High Bay T5 HO 6-Lamp T8 HO Ballast 6-Lamp T5 HO 4-Lamp

End of Lamp Life

5000 Initial

Dimensions 160 x 10

400W MH 4-Lamp 54W 6-Lamp 32W Fixture Type High Bay T5HO I5 Series HBI Series

Number of Fixtures 13 13 13 Initial Lumens per Lamp 36000 4400 2850 Initial Lumens per Fixture 36000 17600 17100 Light Loss Factor 0.66 0.855 0.963 Input Wattage 455 229 221 Maintained Average FC 43 33 43 Max FC 47 38 48 Min FC 37 27 36 Average to Min 1.2 1.2 1.2 Max to Min 1.3 1.4 1.3 Vertical Average FC 22 15 20 Max FC 35 23 30 Min FC 12 9 11 Average to Min 2.9 1.7 2.7

10000

15000

HOURS

20000

25000

35000

4

T8 or T5HO?

If your facility currently has T8 or T5HO lamps installed, the decision on lamp choice may be easy and allow for inventory consolidation. Both lamp types provide excellent performance but the attributes of each lamp type vary. Selection of lamp type is an important consideration. The following operating characteristics should be considered when making the selection:

T8 Lighting Systems T5HO Lighting Systems

First Costs

Lamp Replacement Costs

Lumens Per Watt

Application Heights

Ambient Environments

Frequency of Starts

Ballasts Light Level Flexibility

Luminaires in Comparison

Fluorescent High Bay System Comparison

Similar within ranges to T5 systems with lower lamp costs offset by larger luminaire sizes.

Lower cost lamps offset with higher quantity for similar light output

Similar within ranges to T8 systems with higher lamp costs offset by smaller luminaire sizes.

Higher cost lamps offset with lower required quantity for similar light output

91 87

Suitable in wide ranges. Lower lumen output T8’s are ideal for lower mounting heights below 15' while less ideal at mounting heights above 30'.

Suitable in wide ranges. Higher output T5HO lamps are ideal for higher mounting heights where higher lumen values allow for a reduced number of lamps.

Dependent on luminaire. T8 systems achieve maximum output in 78°F (25°C) ambient environments. Starting temperature ranges as low as 0°F (-18°C) dependent on manufacturer of lamp, ballast, age of lamps and luminaire design

Dependent on luminaire. T5HO systems achieve maximum output in 95°F (35°C) ambient environments. Starting temperature ranges as low as -20°F (-29°C) dependent on manufacturer of lamps, ballast, age of lamps and luminaire design

Standard T8 systems with instant start ballasts and frequent on/off cycles can dramatically reduce lamp life. Program Start T8 ballasts should be specified when used with high occurrence of on/off cycles.

Standard Program Start ballast systems are ideal for frequent starts and use with occupancy sensors.

Offered in multiple light output ranges from 71% to 115% of rated lamp life output, allowing for flexibility in application without changing lamp type.

Currently offered in fixed Light output ranges.

Metalux HBI632 using (6) 80+CRI T8 lamps with High Output ballasts.

Metalux I5455 using (4) T5HO 80+CRI lamps.

Net Lumens: 20,000

Wattage: 221 Net Lumens: 20,000 Wattage: 229

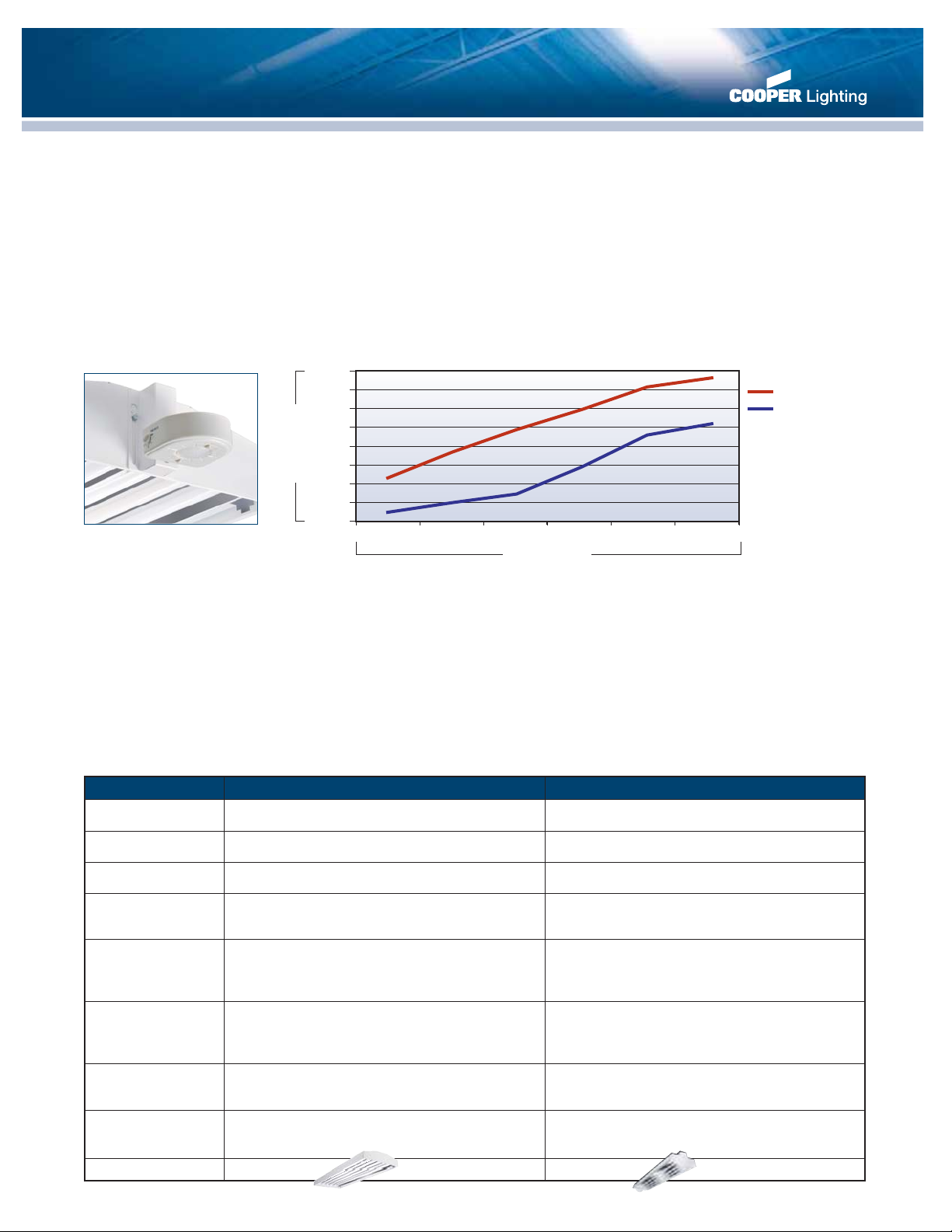

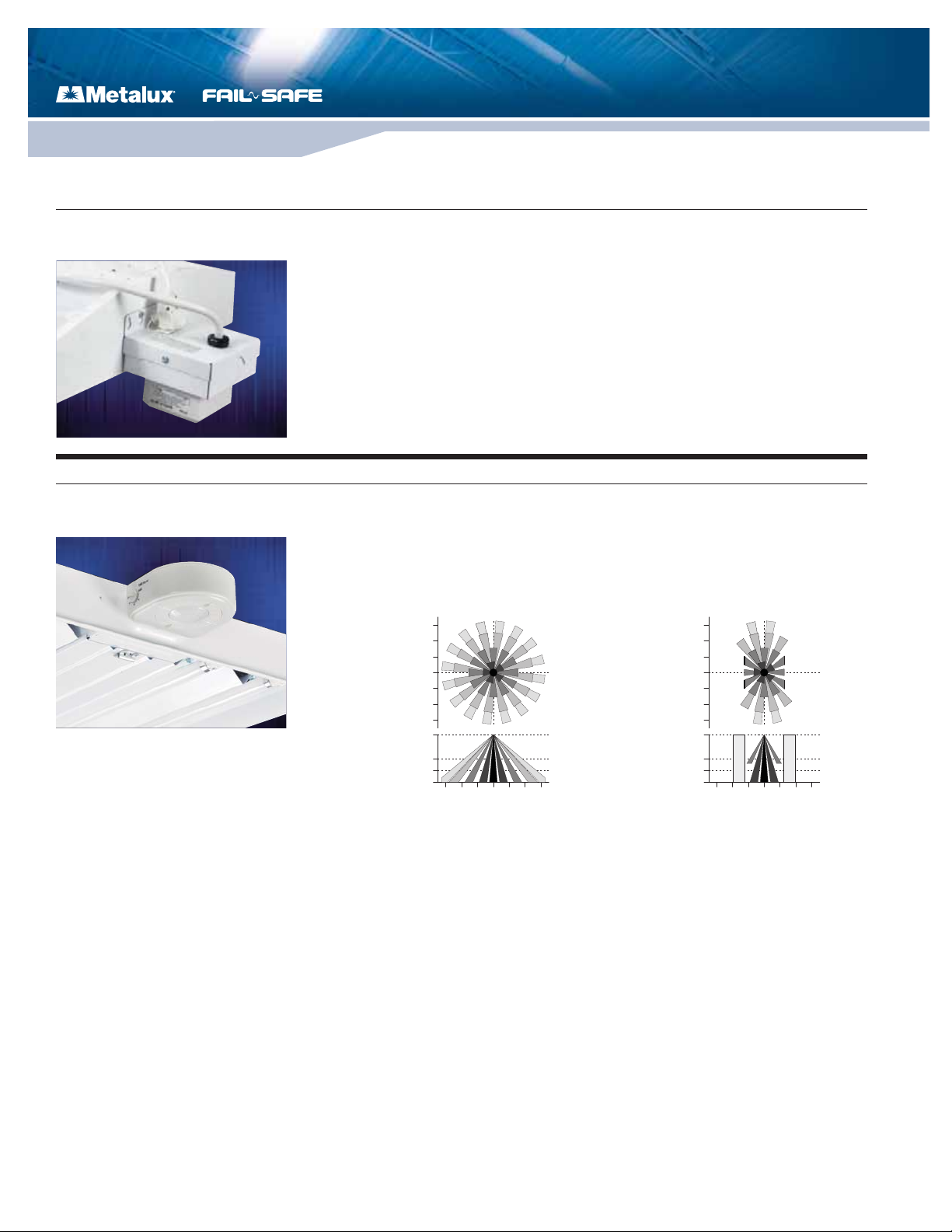

Instant On/Off and Occupancy Sensors

Fluorescent systems can be used with occupancy sensors to provide instant on/off capabilities to maximize energy savings.

When using T8 lamps and occupancy sensors, Cooper Lighting industrial fluorescent luminaires use only softer starting “program start” ballasts to minimize damage to the lamp. Under frequent on/off cycles, program start ballasts will dramatically extend lamp life over “instant start” ballasts. Cooper Lighting does not recommend or warranty instant start ballast and lamps used with motion sensors.

Metalux integral Occupancy Sensors are available in Aisle or 360° distributions.

40000

35000

30000

25000

20000

15000

HRS/LAMP LIFE

10000

5000

0

15 min.

Lamp Life Comparison

30 min.

1 hr.

START FREQUENCY

3 hr.

12 hr.

Program Start Ballasts Instant Start Ballasts

Continuous

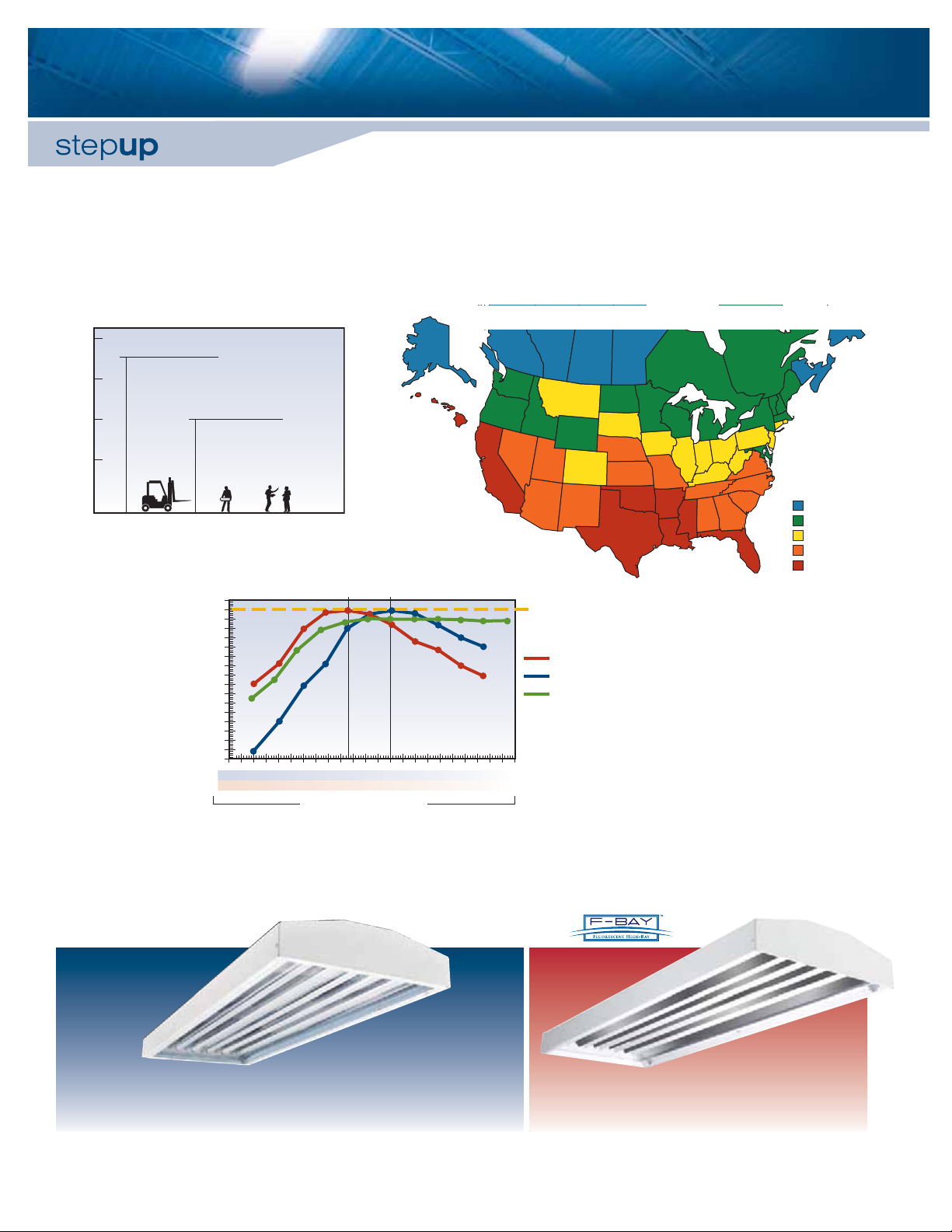

Thermal Performance and Light Output

Unlike HID lamps, T5 and T8 lamps reach optimal light output in specific temperature ranges. In partially or unconditioned spaces, temperatures from floor to ceiling can increase by over 20° in summer months.

5

The Metalux Arctic Bay retains and manages heat allowing it to provide over 70% of light output in freezer applications down to -20°F (-29°C).

Thermally advanced Cooper Lighting industrial products optimize light output of T5HO and T8 lamps for their designed temperature ranges. Choose lamp types that optimize light output for your ambient environment and consider the use of T5HO Amalgam lamps for higher performance over wider temperature ranges.

Metalux’s F-Bay series can be operated in environments up to 149°F (65°C) in open uplight configurations.

0-10 11-40 41-70 71-99 100+

Days over 85°F

Annual Temperature Days Over 85°F (29°C)

COLD HOT

ARCTIC BAY – ABI Series

Partially Conditioned Spaces

40 ft.

35 ft. @ 115°F (46°C)

30 ft.

20 ft.

10 ft.

20 ft. @ 95°F (35°C)

75°F (24°C)

Bare Lamp Output in Ambient Temperatures

95°F

77°F

(35°C)

(25°C)

100

90

80

70

60

50

40

30

20

°C 0 5 10 15 20 25 30 °F 30 40 50 60 70 80 90 100 110 120 130 140

AMBIENT TEMPERATURES

35 40 45

50 55 60

HID

T8

T5

Amalgam

Environmentally Friendly

Cooper Lighting fluorescent luminaires are environmentally friendly. Housings and reflector assemblies are manufactured of recyclable steel and aluminum substrates, while corrugated packaging is both recyclable and optimized in design to reduce waste on the job site.

6

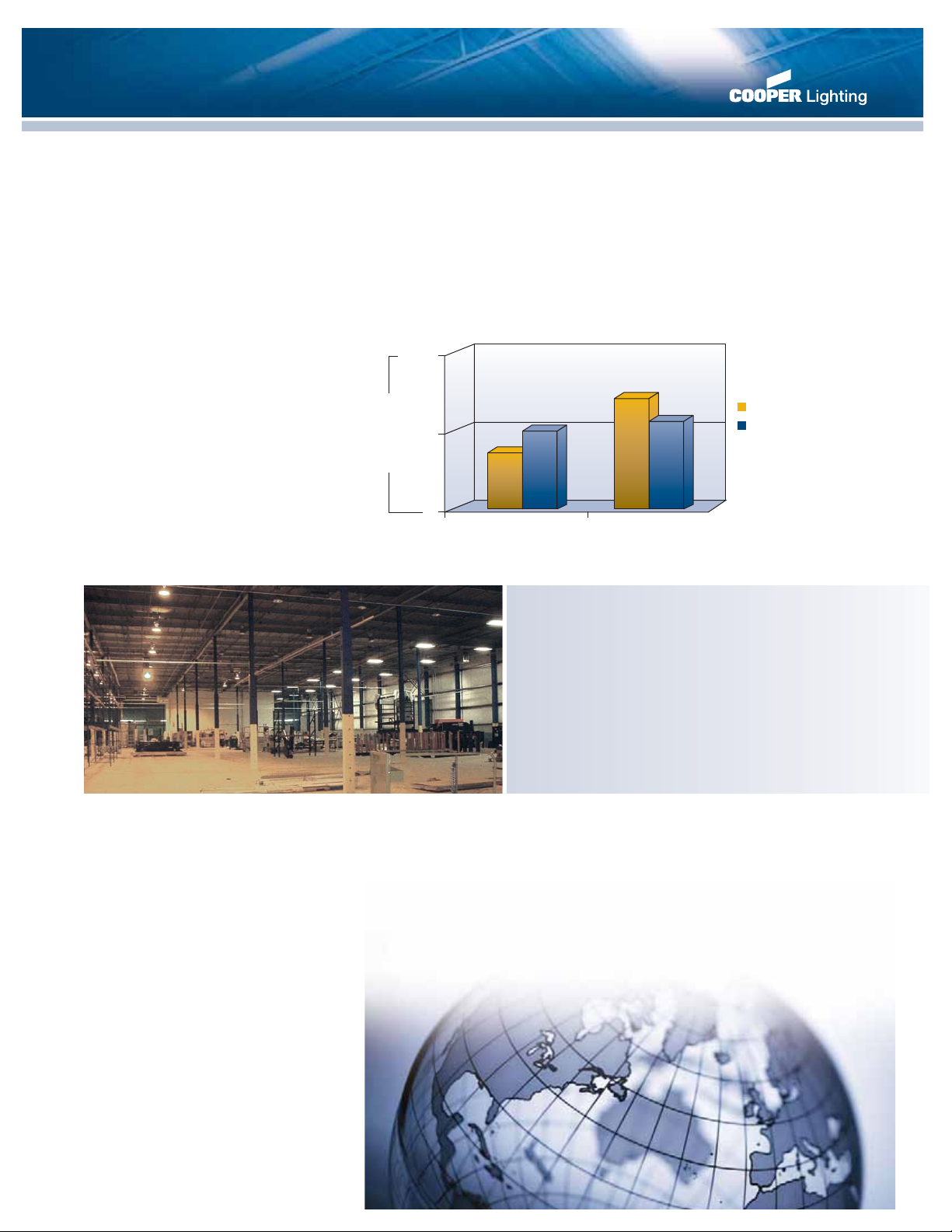

Visible Light and the Scotopic/Photopic (S/P) Ratio

Scotopic/photopic ratios have been developed that attempt to replicate a measurement system more akin to how our eyes perceive brightness. Even though our eyes use both rods and cones to see light, the rods are more sensitive to blue light (scotopic vision) and cones to yellow light (photopic vision). A traditional light meter measures only photopic lumens, which are the stated lumens referenced in lamp catalogs.

The S/P Ratio acts as an adjustment to the existing photopic measurement by multiplying the standard lumens of a source with the S/P ratio or a factor thereof. As a result, an environment illuminated with warmer light sources, such as High Pressure Sodium, may appear darker than an environment illuminated with cooler light sources, like high CCT fluorescent lamps.

50000

25000

0

HBI632 w/80 CRI

5000K Lamps

400W HPS High Bay

Initial System Lumens

S/P Adjusted Initial Lumens

A S/P Comparison of Fluorescent vs. HID

LUMEN OUTPUT

40% MORE

LUMENS

20% LESS

LUMENS

While an increasing number of lighting designers are endorsing the use of S/P ratios, this has not yet been endorsed by the Illuminating Engineering Society (IES). Cooper Lighting provides S/P adjusted lumen values throughout the product specification sections as reference information only and maintains no formal position on its application. Always test proposed products in application to validate results to your expectations

HPS vs. 5000K fluorescent – a visible difference!

The use of low mercury fluorescent lamps also offers an attractive alternative to HID systems. A low mercury T5HO fluorescent lamp can contain as little 1.4 Mg. of mercury compared with up to 70 Mg. for a 400 watt Metal Halide lamp.

Index

pgs. 9-14

7

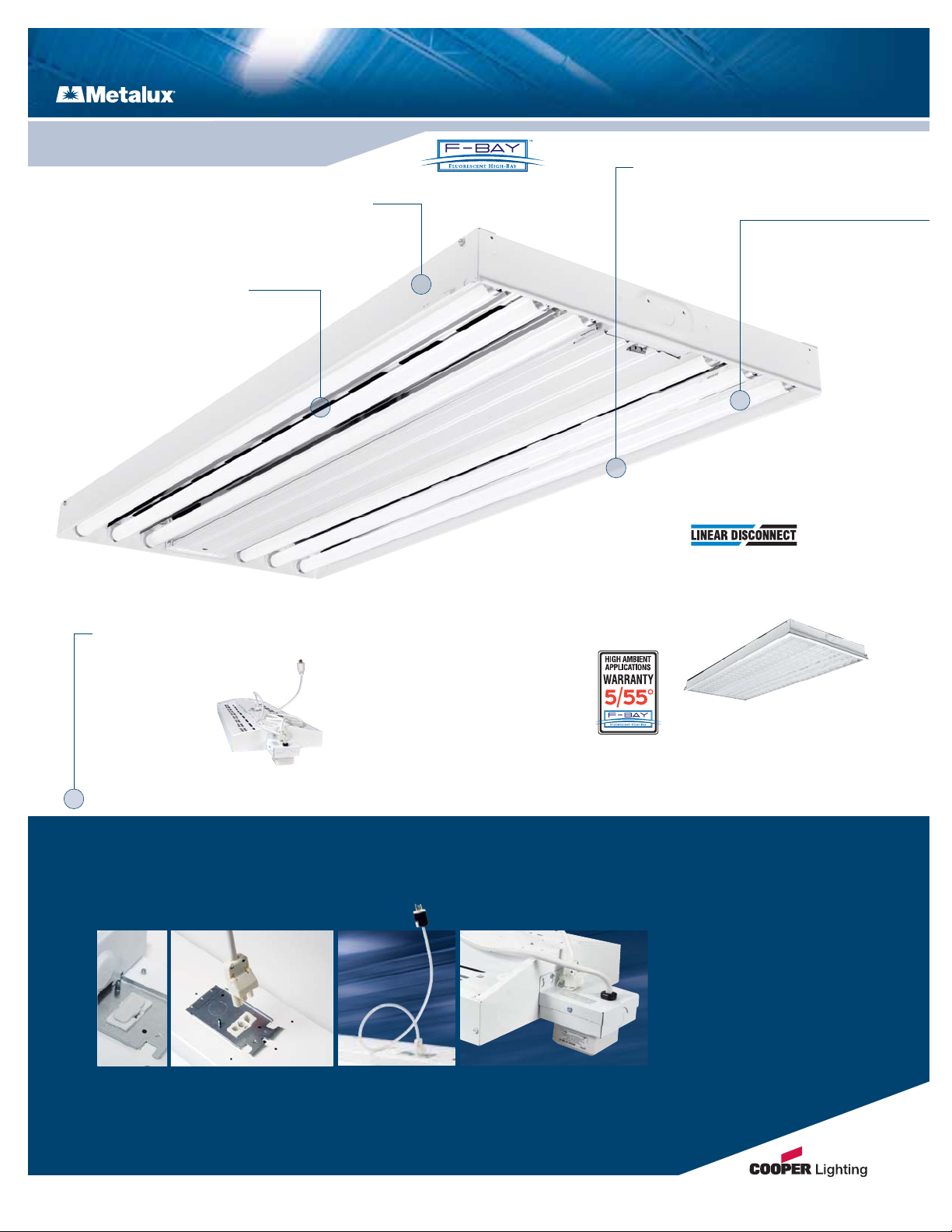

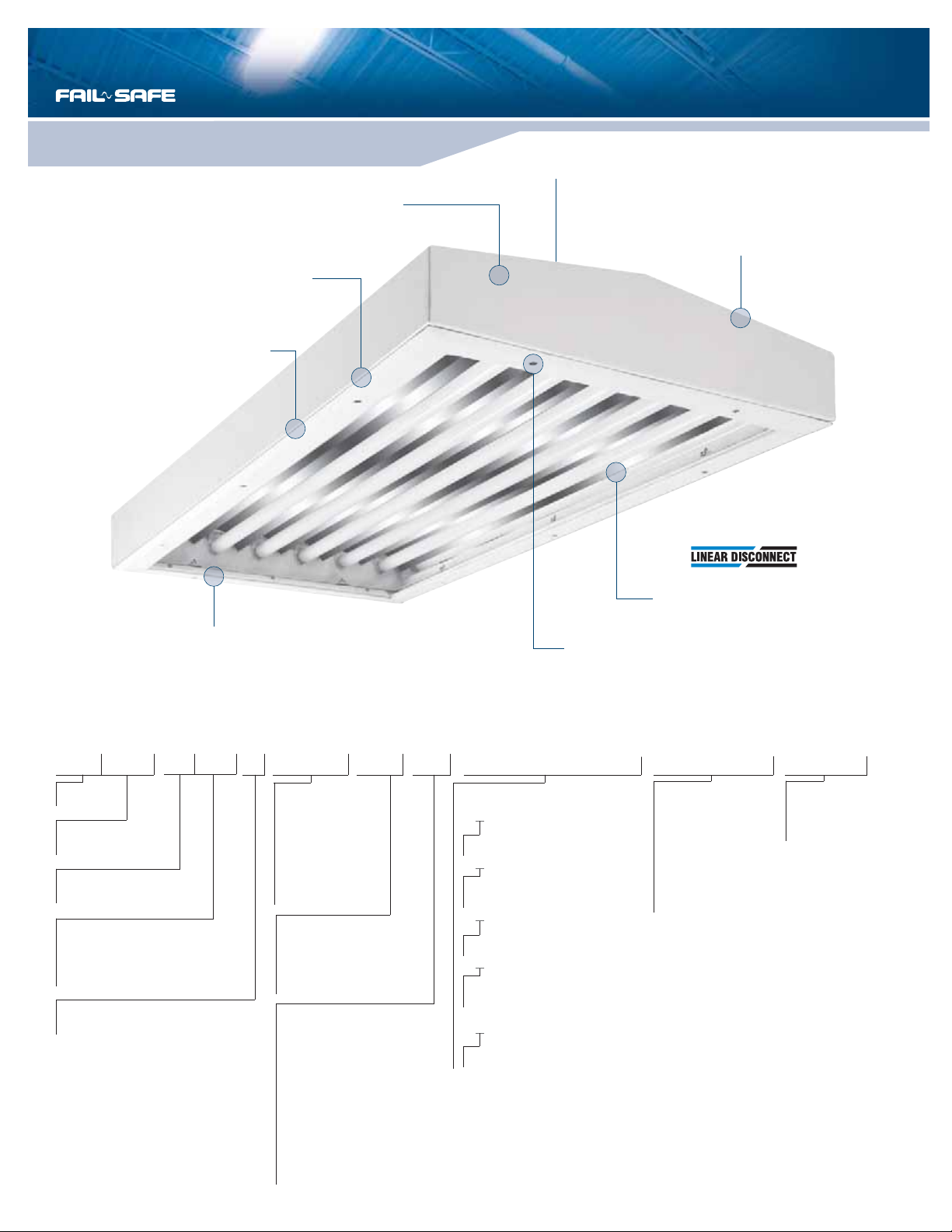

Industry-leading fluorescent high bay, HBI series features specification grade full body housing with three optical distributions narrow, medium and wide - providing structural integrity and optimal performance in conventional HID applications.

HBI: 4, 5, 6 lamp –

T5, T5HO, T8

DescriptionLampingReplaces

Listings & Certification

Mounting

150-400 Watt HPS

175-400 Watt MH

HO, VHO T12 Fluorescent

UL/cUL Listed Damp Location

Modular power receptacle meets UL2459 and NEC 410.73 (G) for make and break under load from outside to the luminaire to speed maintenance

Thermally optimized for environments up to 149°F (65°C) when used with high temperature ballasts in open uplight and downlight configurations

T5 systems are warranted for ambient environments up to 149°F (65°C) in open uplight configurations

T8 Systems are warranted for environments up to 122°F (50°C) in open uplight configurations

HBAYC Chain, Single Point Mount, Y-Toggle , Stem Sets

HBI

pgs. 15-20 pgs. 21-24 pgs. 25-30 pgs. 31-32 pgs. 33-34

HBE

Narrow 11" specification grade body with two optics for medium and wide distribution, and shielding options for industrial and aesthetic upgrades for retail and commercial applications.

4': 2, 3, 4 lamp –

T5, T5HO, T8

8': 4, 6, 8 lamp –

T5, T5HO, T8

150-400 Watt HPS

150-1000 Watt MH

Slimline, HO, VHO T12 Fluorescent

UL/cUL Listed Damp Location

Modular power receptacle meets UL2459 and NEC 410.73 (G) for make and break under load from outside to the luminaire to speed maintenance

Thermally optimized for environments up to 149°F (65°C) when used with high temperature ballasts in open uplight and downlight configurations

T5 systems are warranted for ambient environments up to 149°F (65°C) in open uplight configurations

T8 Systems are warranted for environments up to 122°F (50°C) in open uplight configurations

AYC Chain, Top Connector Box, Loop, Single-Toggle

I5/I8

Open body linear high bay, the HBL series offers energy efficiency and performance in a compact body. Features include three optical distributions, and wireguard.

HBL: 4, 6, 8, 10 lamp –

T5HO, T8

150-1000 Watt HPS

175-1000 Watt MH

HO, VHO T12 Fluorescent

UL/cUL Listed Damp Location

Modular power receptacle meets UL2459 and NEC 410.73 (G) for make and break under load from outside to the luminaire to speed maintenance

Thermally optimized for environments up to 149°F (65°C) when used with high temperature ballasts in open uplight and downlight configurations

T5 systems are warranted for ambient environments up to 149°F (65°C) in open uplight configurations

T8 Systems are warranted for environments up to 131°F (55°C) in open uplight configurations

HBAYC Chain, Single Point Mount, Loop, Y-Toggle

HBL

High performance in a narrow package with three optical distributions – Focus, Task, Normal – providing lower lighting power densities than HID and T12 sources at higher mounting heights. Continuous row installations provide unmatched uniform performance.

4': 1, 2 lamp –

T5HO, T8

8': 2, 4 lamp –

T5HO, T8

150-400 Watt HPS

175-400 Watt MH

HO, VHO T12 Fluorescent

UL/cUL Listed Damp Location

AYC Chain, Y & Single Toggle

MBF

Energy-efficient alternative for recessed grid/lay-in concealed T, and slot grid ceilings and flange trim applications. HBG is available with optional shielding options for a seamless ceiling line.

2HBG: 4, 6 lamp –

T5, T5HO, T8

150-400 Watt HPS

175-400 Watt MH

HO, VHO T12 Fluorescent

UL/cUL Listed Damp Location

Recessed Grid or Flange

HBG

Full body construction in an open body high bay. Standard side rails provide a strong, clean finished frame while still offering energy efficiency and performance in a compact body. Features include lens door or wireguard option.

HBE: 4, 6, 8, 10 lamp –

T5HO, T8

150-1000 Watt HPS

175-1000 Watt MH

HO, VHO T12 Fluorescent

UL/cUL Listed Damp Location

Modular power receptacle meets UL2459 and NEC 410.73 (G) for make and break under load from outside to the luminaire to speed maintenance

Thermally optimized for environments up to 149°F (65°C) when used with high temperature ballasts in open uplight and downlight configurations

T5 systems are warranted for ambient environments up to 149°F (65°C) in open uplight configurations

T8 Systems are warranted for environments up to 131°F (55°C) in open uplight configurations

HBAYC Chain, Single Point Mount, Loop, Y-Toggle

8

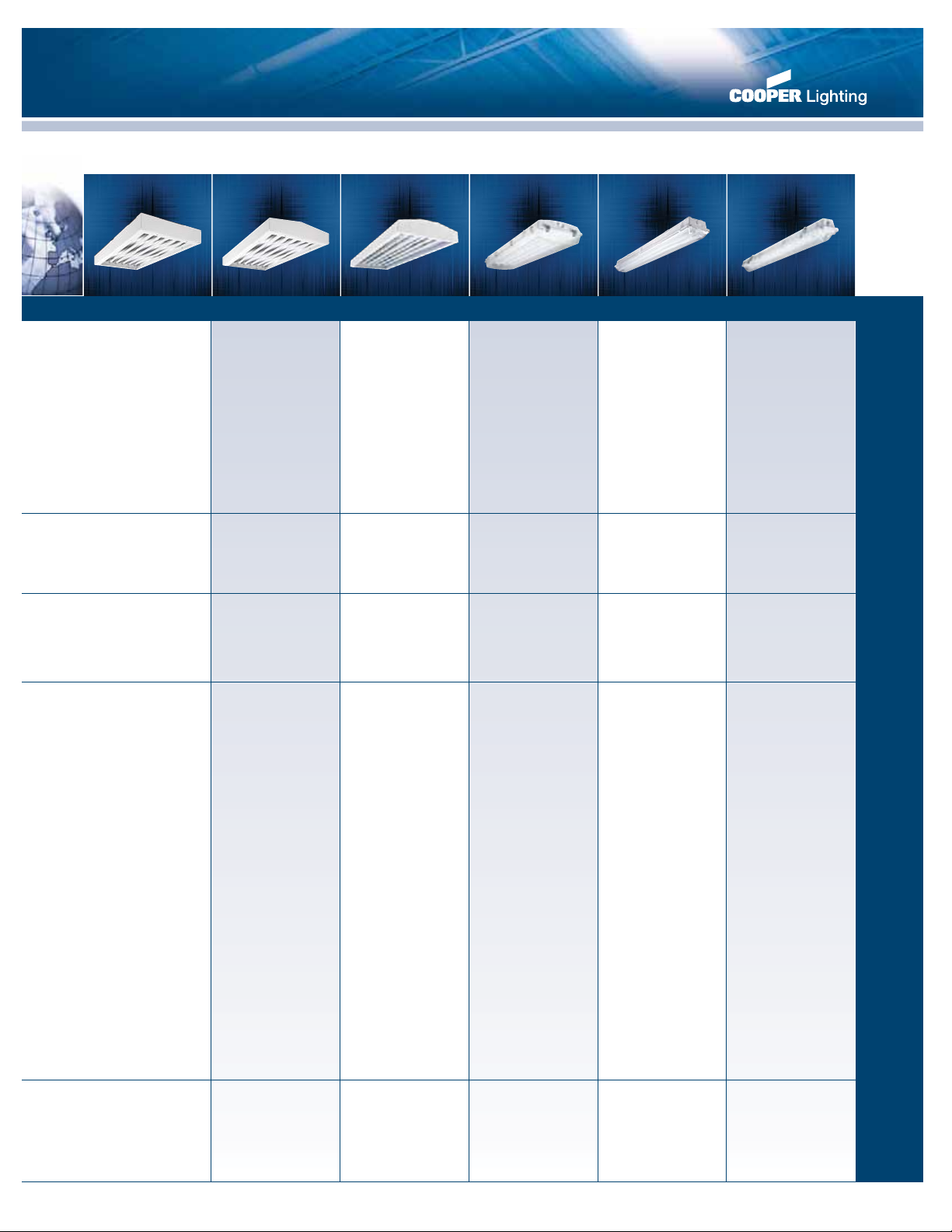

Description

Lamping

Replaces

Listings & Certification

Mounting

pgs. 35-36 pgs. 37-38 pgs. 39-40 pgs. 41-42 pgs. 43-44 pgs. 45-46

Designed for use in high mounting height applications where periodic cleaning with high pressure is required. The HBHD is a surface mounted luminaire with a hole-free design, enclosed and gasketed to provide 800 psi hose down protection.

2HBHD: 4, 6 lamp –

T5, T5HO, T8

150-400 Watt HPS

175-400 Watt MH

HO, VHO T12 Fluorescent

UL/cUL Listed Damp Location

IP65 Compliant

800 PSI

Surface Mount

HBHD

Pendant mount hose down fixture with articulated top for water run-off. Perfect for cleanroom and food processing areas where periodic cleaning is required.

HBHT: 4, 6 lamp –

T5, T5HO, T8

150-400 Watt HPS

175-400 Watt MH

HO, VHO T12 Fluorescent

UL Listed Wet Location

IP65 Compliant

800 PSI

NSF

Chain or Cable Mount, Y-Snap Hook, 3/4" Stem

HBHT

The Arctic Bay's enclosed full body housing and sealed and gasketed door frame provide optimal lamp operation - 70% rated light output down to 15°F (-26°C).

ABI: 4, 5, 6 lamp –

T5HO

150-400 Watt HPS

175-400 Watt MH

HO, VHO T12 Fluorescent

UL/cUL Listed Damp Location

Thermally optimized for environments down to

-20°F (-29°C)

HBAYC Chain, Single Point Mount, Y-Toggle, Stem Sets

Arctic Bay

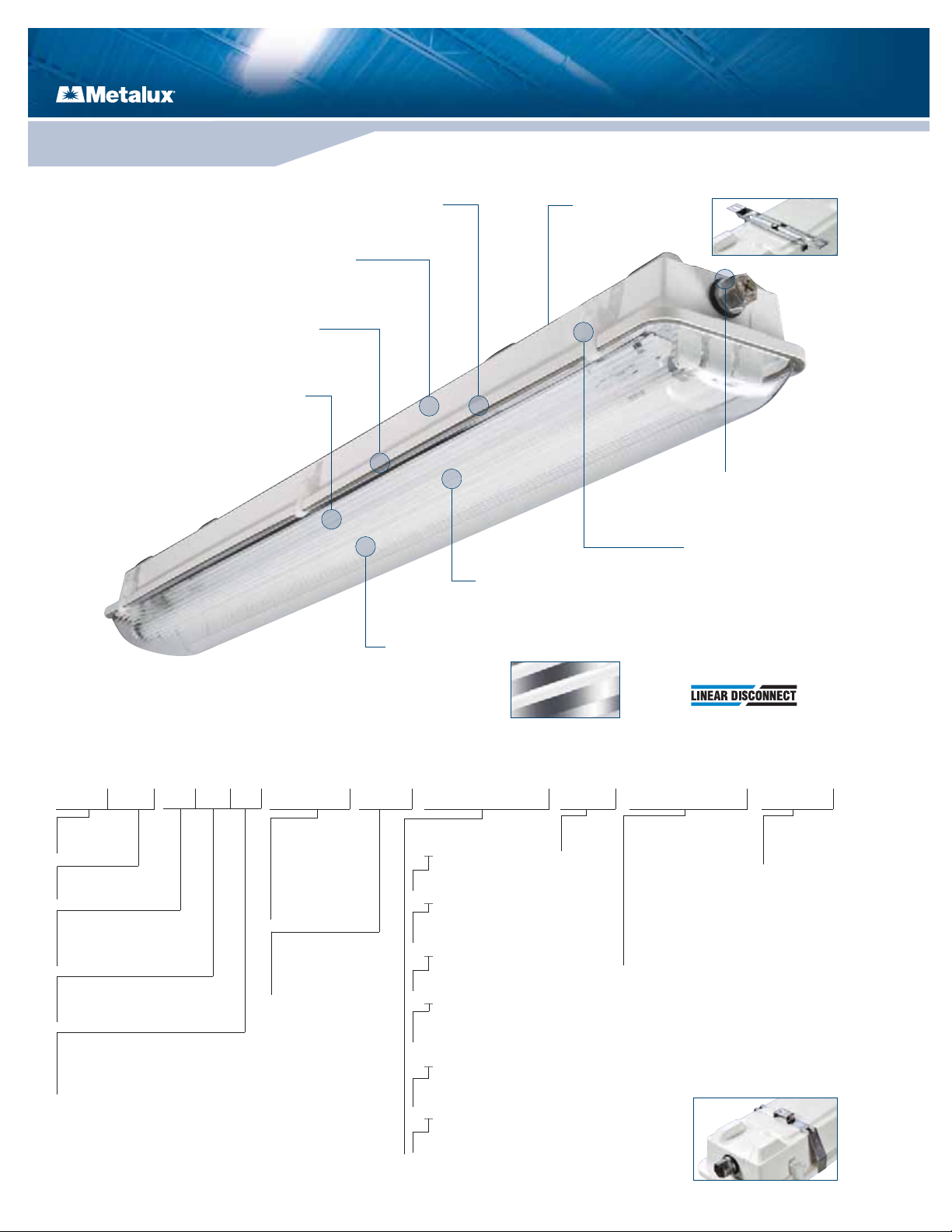

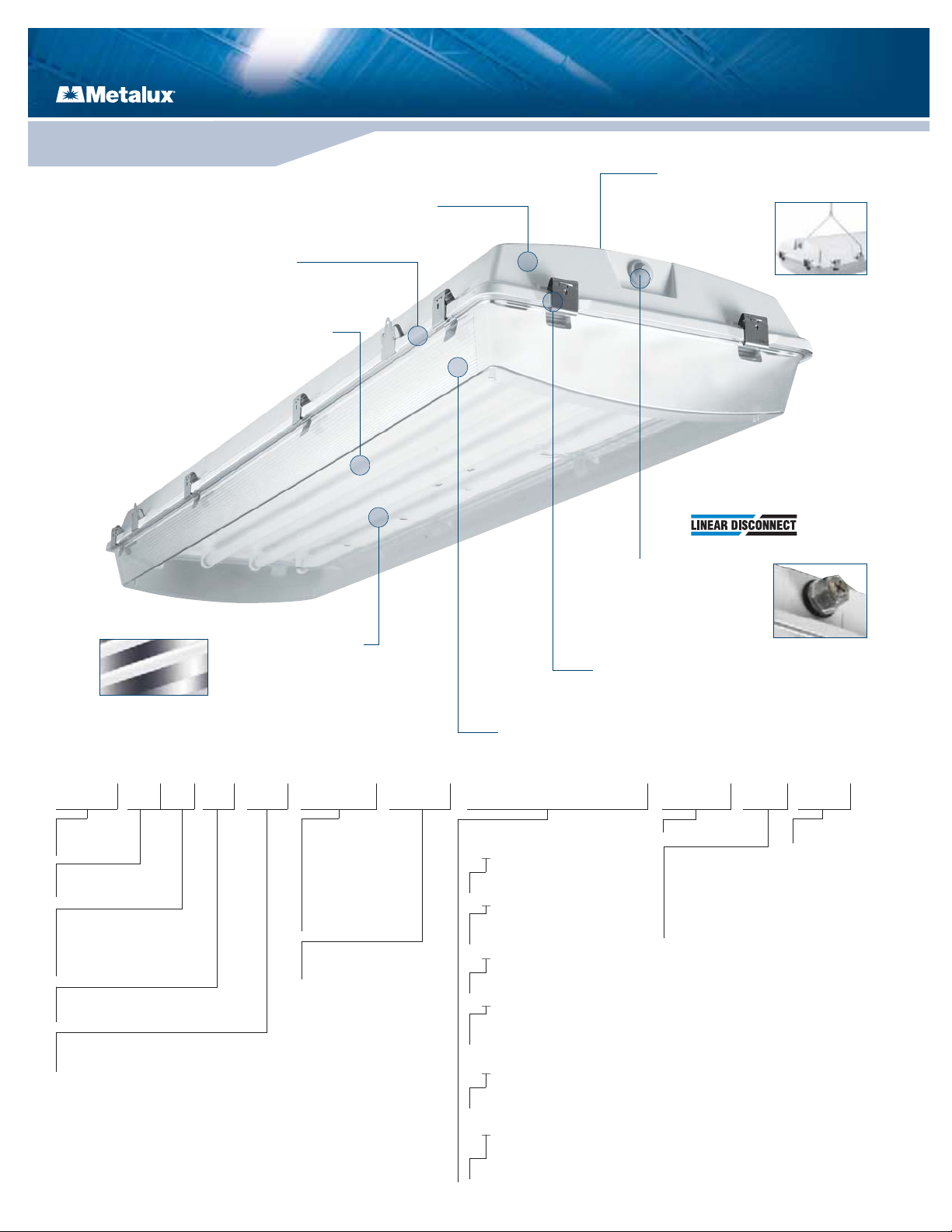

Vaportite high bay featuring T8, T8VHO and T5HO configurations up to six lamps. Rugged and durable, the VT4 has the certifications to meet your energy requirements in the dirtiest environments.

VT4: 4, 6 lamp –

T5HO, T8, T8VHO

150-400 Watt HPS

175-400 Watt MH

HO, VHO T12 Fluorescent

UL/cUL Listed Wet Location

IP65 and IP67 Compliant

NSF

NEMA 4X

Mounting Bail, Y-Toggle, Surface Mount Bracket

VT4

Energy efficient Vaportite fixture featuring T8 and T5HO lamp configurations with two optical distributions. The VT3 features a rugged and durable fiberglass housing and high impact diffuser.

VT3 4': 1, 2, 3 lamp –

T8 and T5HO

50-150 Watt HPS

50-250 Watt MH

Slimline

HO, VHO T12 Fluorescent

UL/cUL Listed Wet Location

IP65 Compliant

NSF

Mounting Bracket Included, VT2 Chain/Set-U, Snap on Bracket (BKS)

VT3

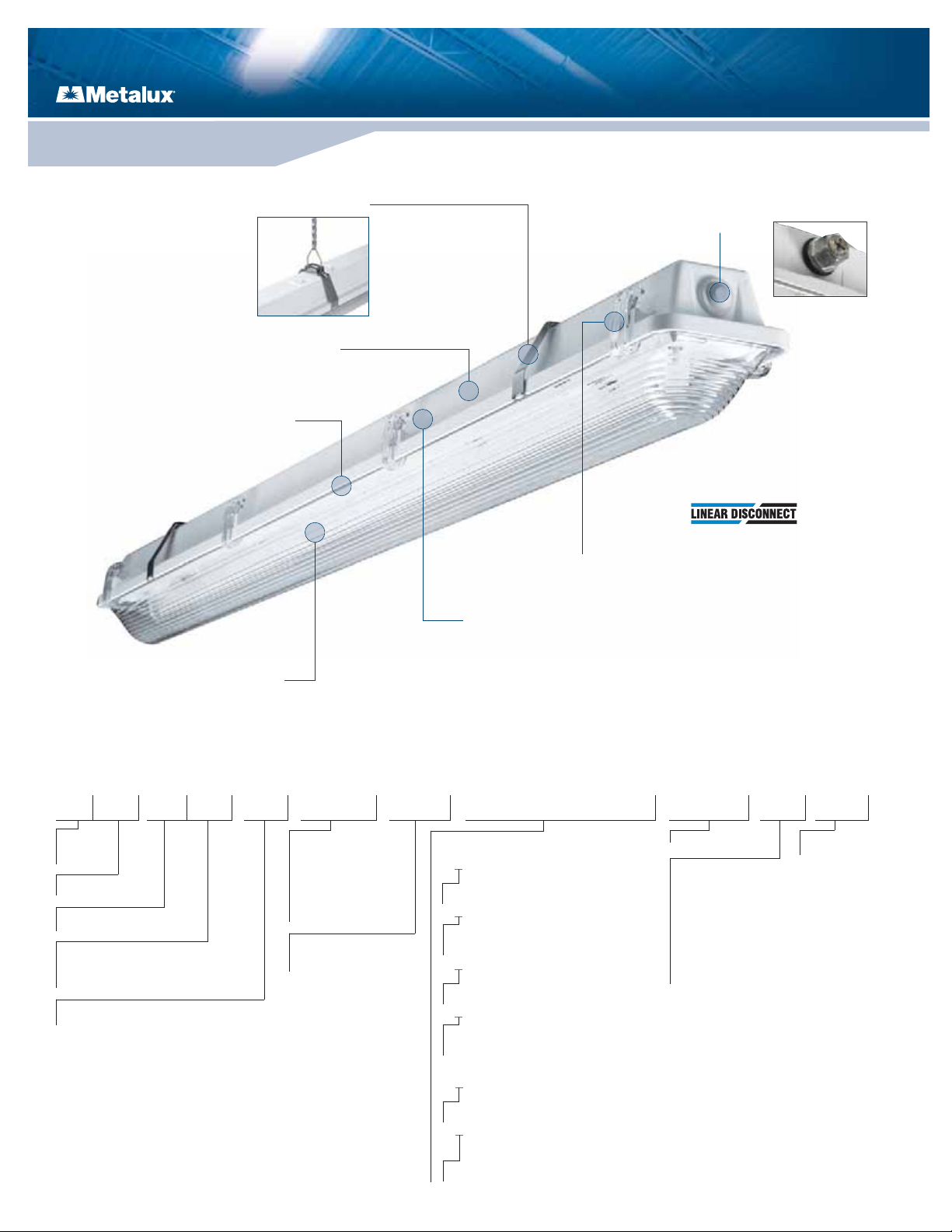

Slim profile Vaportite fixture features T8 and T5 one lamp configurations enclosed in a rugged and durable weatherproof housing and diffuser assembly.

VT1: 1 lamp –

T5, T5HO, and T8

50-100 Watt HPS

50-100 Watt MH

UL/cUL Listed Wet Location

IP65 Compliant

NSF

Mounting Bracket Included or VT2 Chain/Set-U

VT1

VT3 8': 1, 2, 3 lamp –

T8 and T5HO

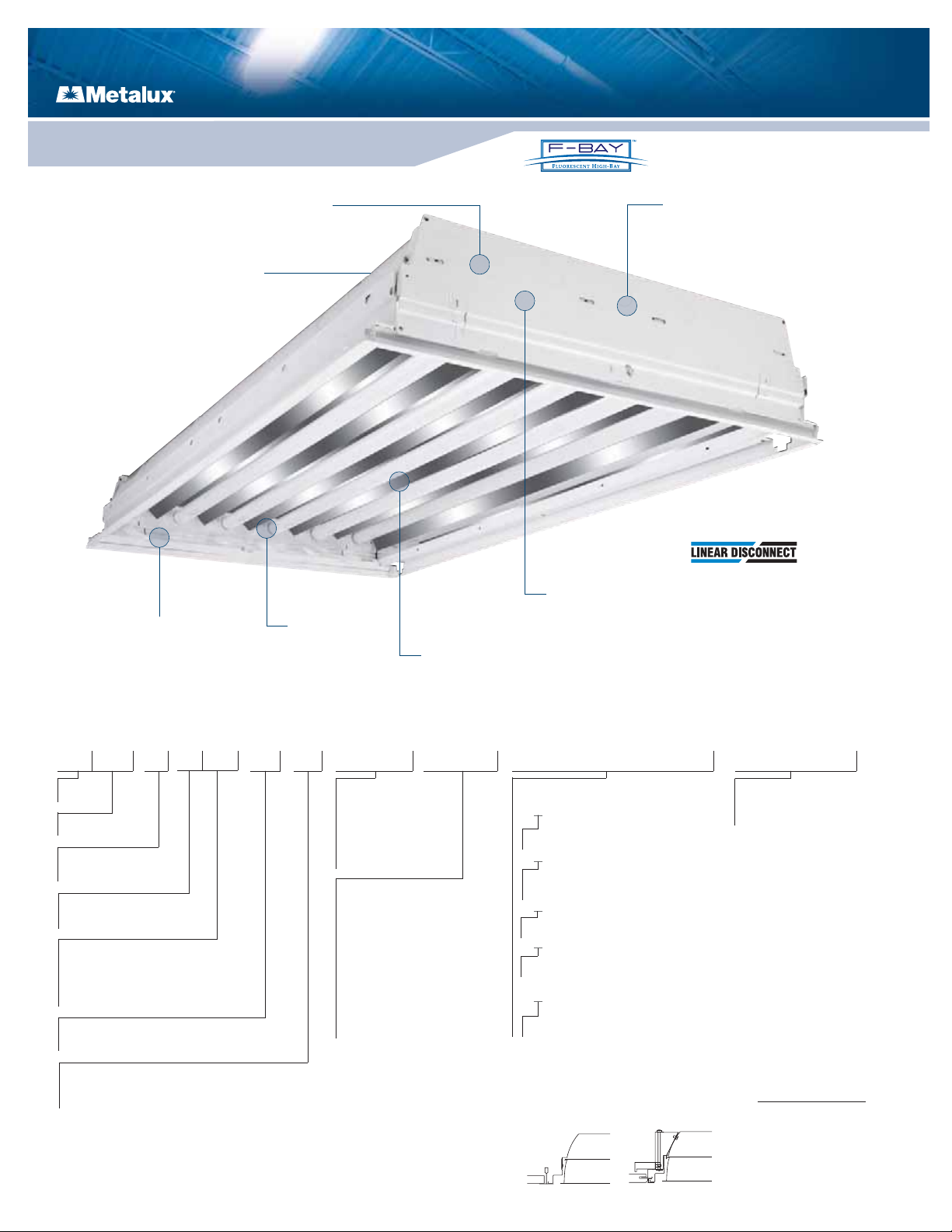

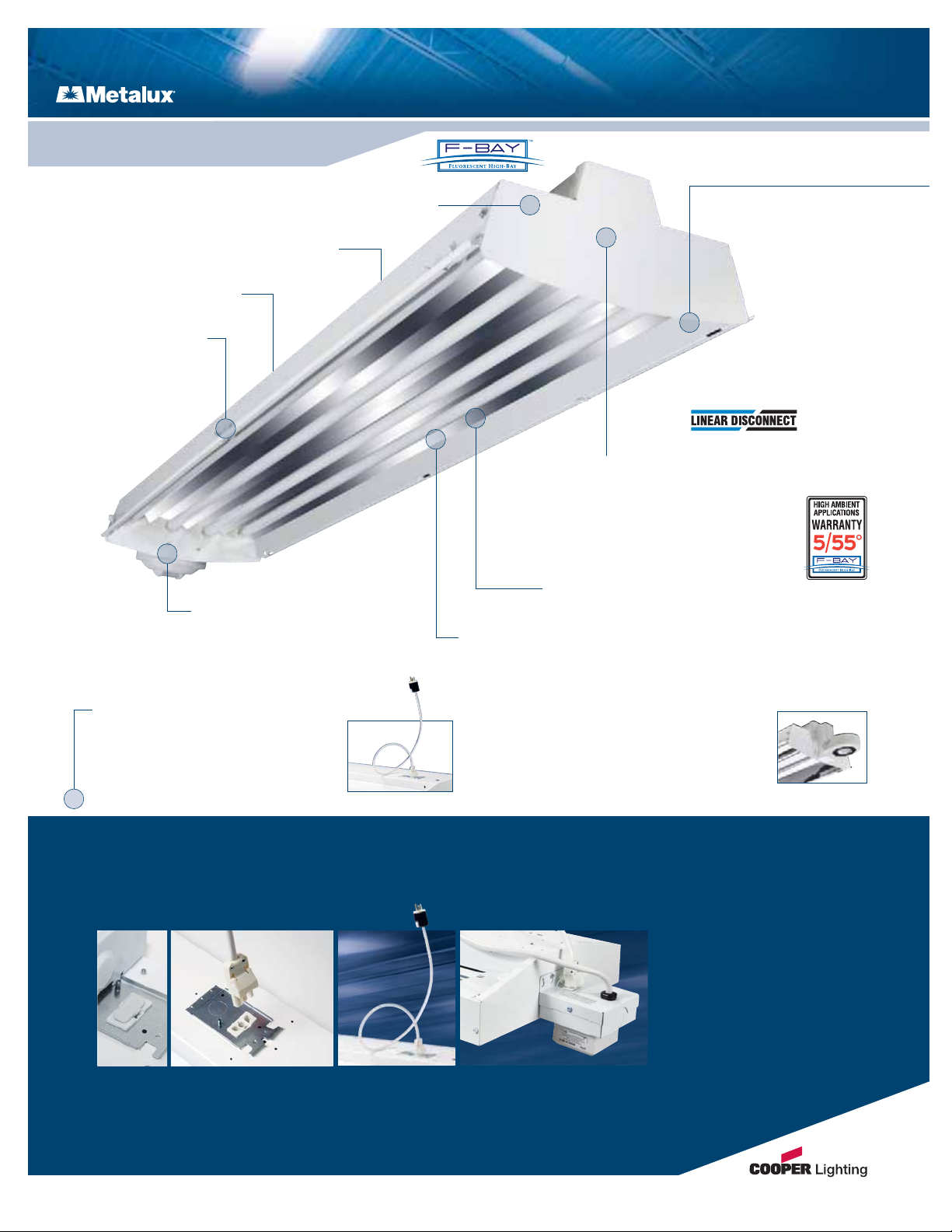

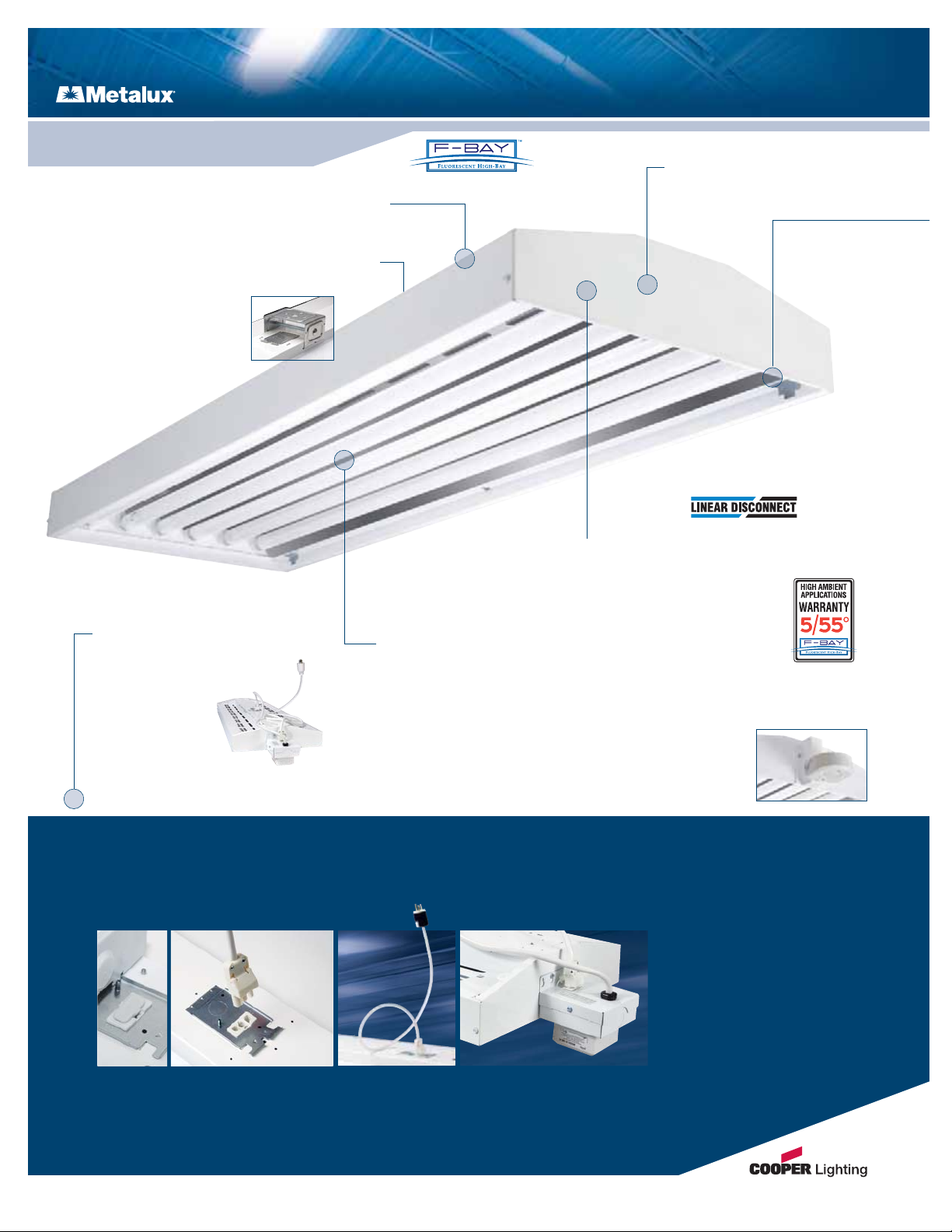

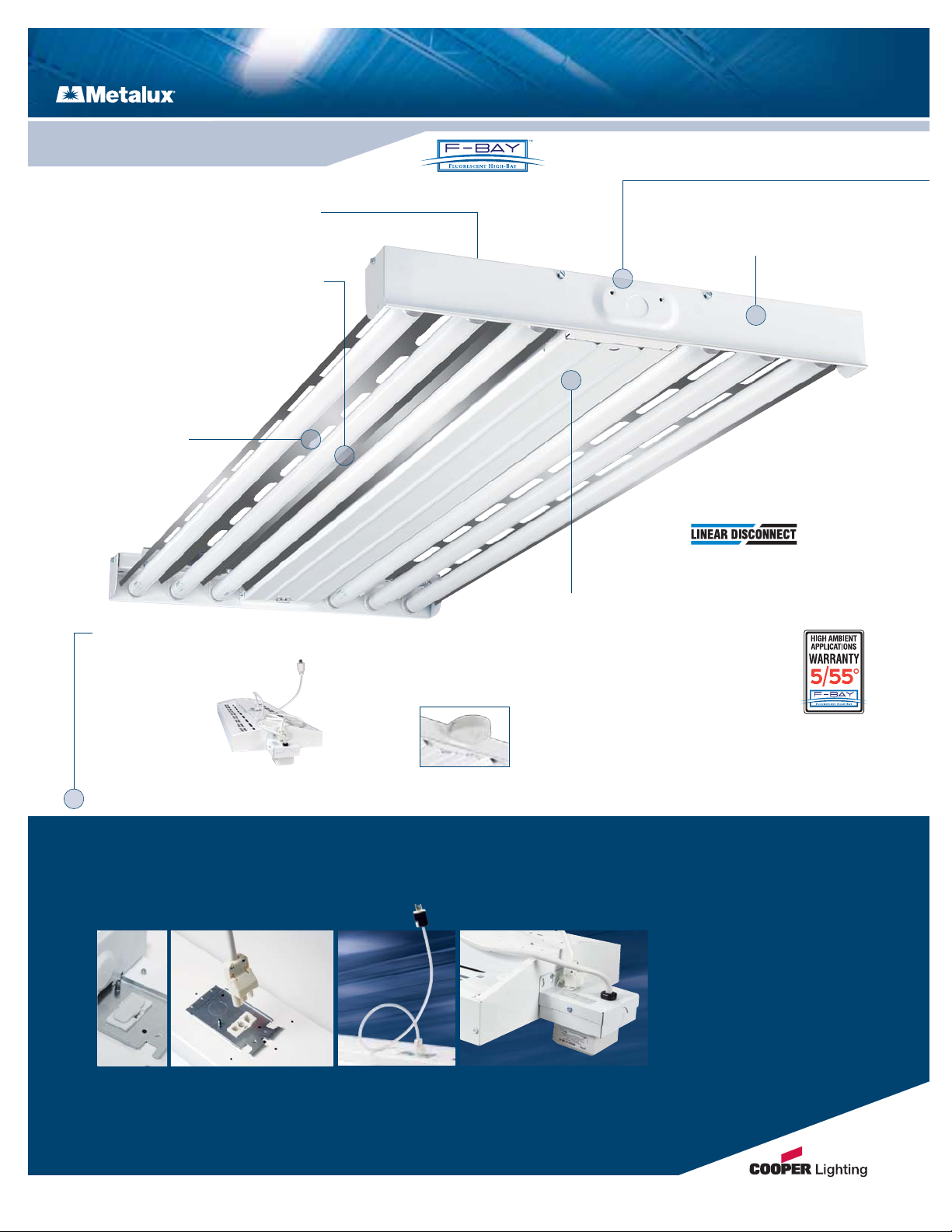

HBI HIGH-BAY INDUSTRIAL LUMINAIRE

Full bodied housing utilizes captive fasteners to protect optical assembly and assure structural integrity.

Integral occupancy sensor available and provides from 600 sq. ft. up to 1250 sq. ft. of coverage in a maximum mounting height of 40'.

Thermally optimized F-Bay is suitable for environments up to 149°F (65°C) when used with high temperature environment ballasts. T5 and T8 systems are warranted for ambient environments up to 149°F (65°C) for three years and 131°F (55°C) for five years in open uplight and downlight configurations.

Die formed reflectors are faceted for 4, 5, and 6 lamp configurations with three optical distributions narrow, medium, and wide. Narrow beam optical modules utilize 95% specular aluminum, the Medium beam utilizes a 95% micro matte aluminum, and the Wide beam uses a high performance 92% reflective polyester powder coated finish.

Modular F-Bay Power Supply

Housing is “Post” painted with a high performance polyester powder coat finish to protect against contaminants and oxidation.

1. Modular Power Supply Receptacle supplied

mounted into fixture Access Plate

2. Modular Power Cord & Plugs in 120, 277, 347,

& 480V configurations for easy plug & power into existing supply

Modular Motion Sensor Option supplied with Mounting Box and Modular Power Supply Receptacle

No internal fixture access required for installation or disconnecting power

Code Compliance

• UL/cUL Certified for Make/Break under load (UL2549)

• Meets NEC requirements for ballast disconnect (NEC 410.73G)

• Allows for addition of Occupancy Sensor without hard connections

• Receptacles complete with insulating/dust cap

Cooper Lighting’s F-Bay Modular Power Supply allows external fixture access for safe and easy servicing. There is no need to remove lamps or reflectors to disconnect fixture power with F-Bay Modular Power Supply. Access to the individual fixture’s power supply allows servicing without turning off all the fixtures disrupting occupants. F-Bay Modular Power Supply is a time saver in installation –

simply plug & power.

12

9

Optional uplight apertures (approximately 8% uplight).

Factory installed code compliant disconnect for safe and convenient means of disconnecting power.

Access plate located in the center of housing for easy access to wiring.

Includes V Hangers for rapid installation!

Cooper Lighting’s modular power receptacle meets UL2459 and NEC

410.73 and is UL/cUL rated for make and break under load from outside the luminaire to speed maintenance.

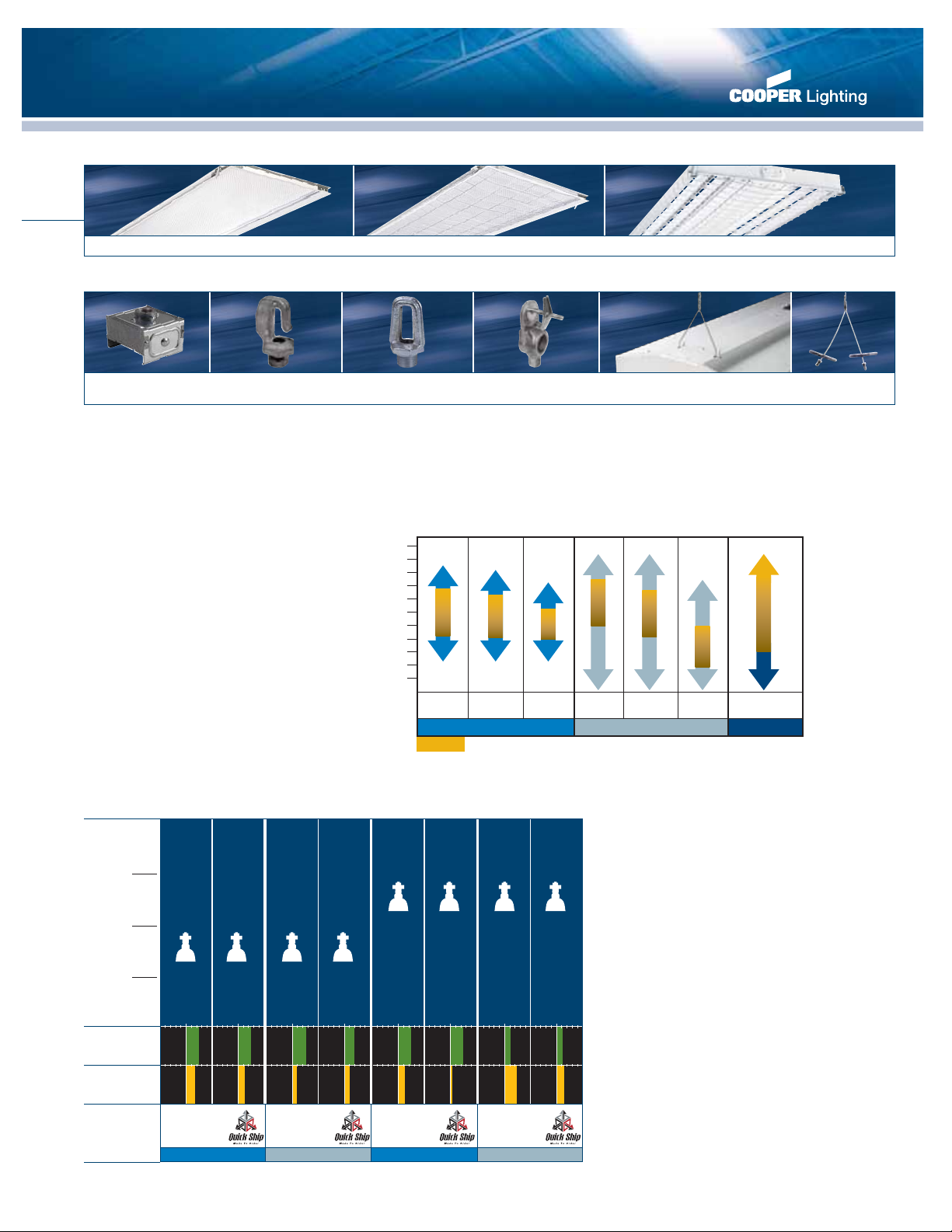

To optimize luminaire performance, HBI series offers a variety of lamp and shielding options. Use the Thermal Optimization chart to determine the options that are appropriate for the ambient environments in which they will be installed.

Thermal Optimization

10

T8 T5T8 T5

40'

30'

20'

10'

Energy

Savings

System Performance

% Light

Gain/Loss

Mounting

Height

Part

Number

50%

30%

51%

19%

250W MH 250W HPS

47%

24%

48%

5%

59%

8%

60%

-15%

400W MH 400W HPS

51%

27%

52%

9%

400W MH 400W HPS

21%

44%

22%

31%

400W MH 400W HPS

HBI432UPL

or

HBI432PSUPL

HBI454T5UPL HBI632UPL

or

HBI632PSUPL

HBI654UPL

% light gain/light loss utilize S/P adjusted lumens.

51%

32%

52%

15%

T8 T5

400W MH 400W HPS 400W MH 400W HPS

HBI532UPL

or

HBI532PSUPL

HBI554UPL

HBI

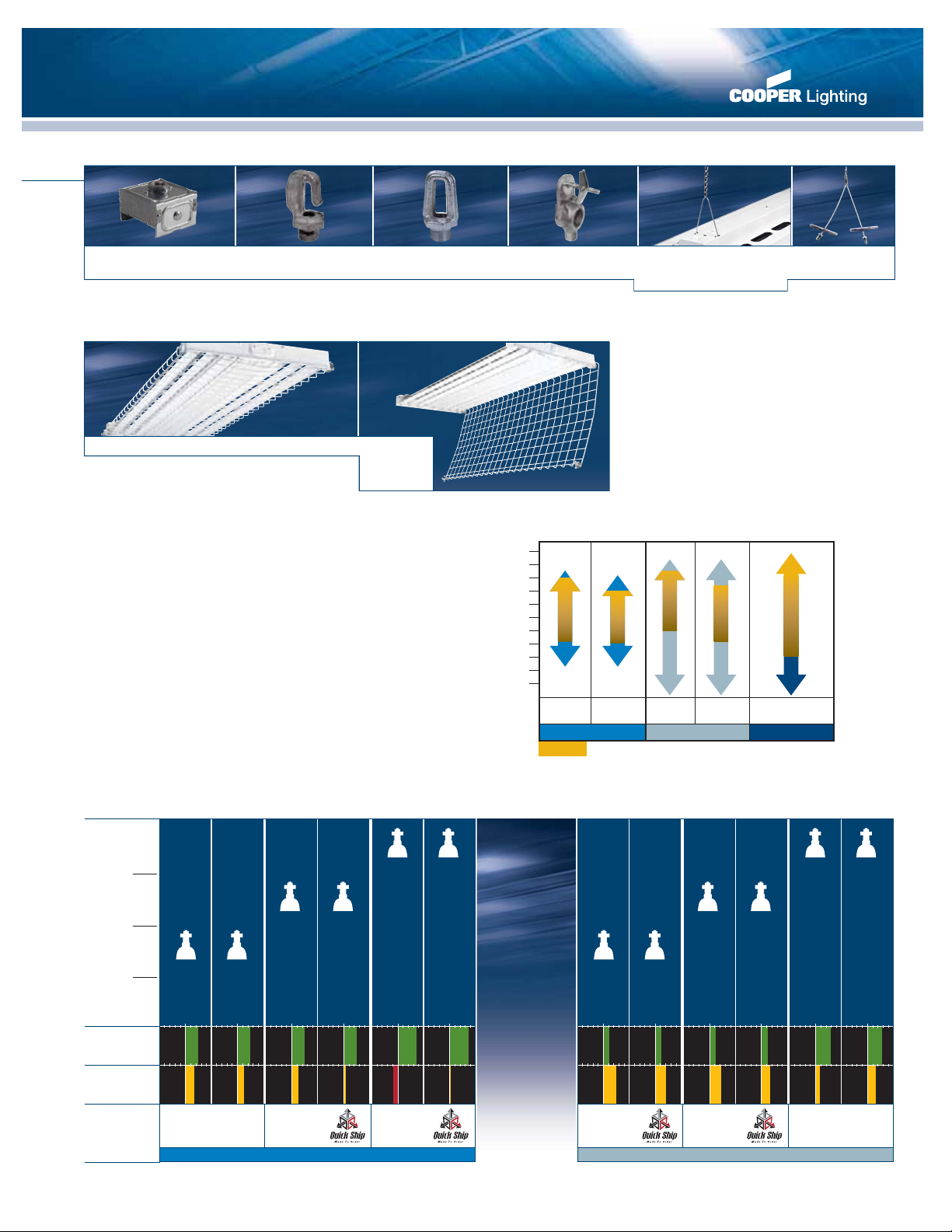

Shielding Options

Prismatic or clear acrylic lens & steel door frame. Optional gasketed door available.

Optional slotted doorframe option (SDF) available with prismatic or clear acrylic lens provides increased efficiency.

Wireguard w/acrylic lens and steel door frame.

Heavy duty stock wireguard (Ideal for gymnasium applications).

FH-1=Fixture Hook 2-1/2" (must be used with HB-SPM)

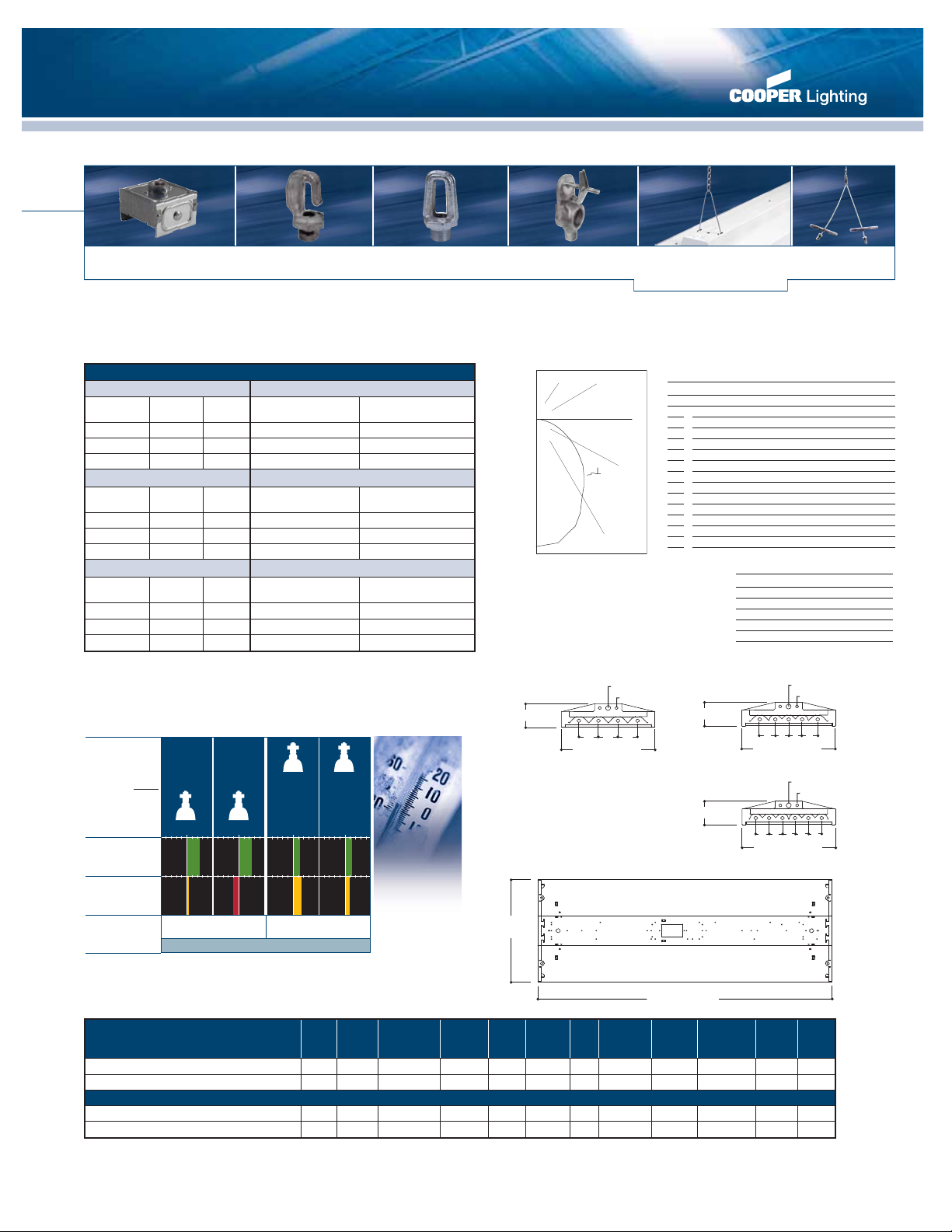

Mounting Accessories

HB-SPM=Single Monopoint

Hanger w/Hub (Galvanized)

FL-1=Fixture Loop 2-1/2" (must be used with HB-SPM)

RH-1=Retrofit Hanger (must be used with HB-SPM)

Y=Mounting Toggle and 10' or 25' cable

HBAYC=Standard V-hook Hanger included (ideal for gymnasium applications)

65.6°C/150°F

57.2°C/135°F

48.9°C/120°F

40.6°C/105°F

32.2°C/90°F

23.9°C/75°F

15.6°C/60°F

7.2°C/45°F

-1°C/30°F

-9.4°C/15°F

-17.8°C/0°F

-15°F

w/Uplight

Vente d

Unvented

wo/Uplight

Operating at approximately 90% or above of rated output

Lensed

Luminaire

T8

Vente d

w/Uplight

Unvented

wo/Uplight

Lensed

Luminaire

w/Uplight

T5HO AmalgamT5HO

Vente d

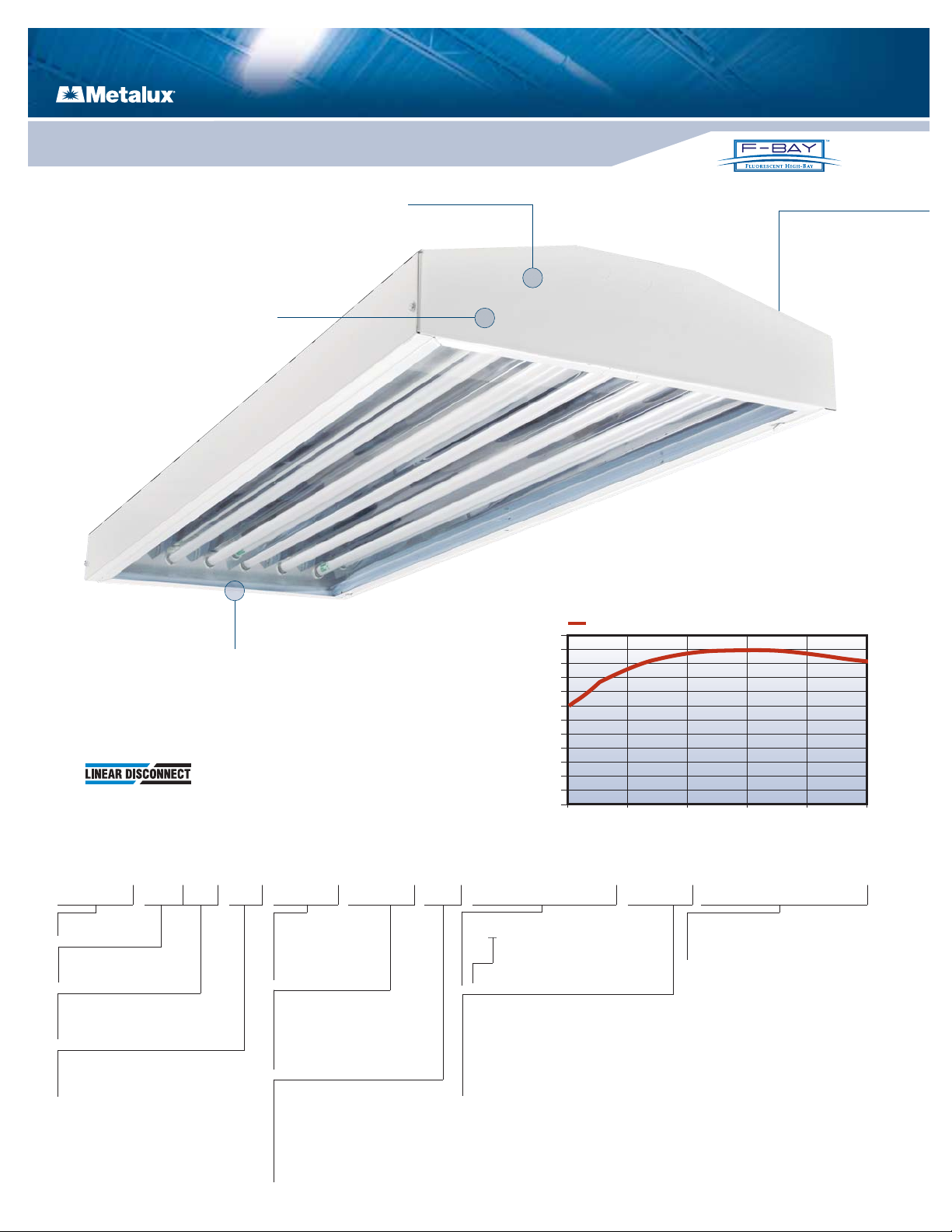

HBI T8 HIGH-BAY INDUSTRIAL LUMINAIRE

11

Lamp Qty 4=4 Lamps 6=6 Lamps

Lamp Type 32=32W T8 Lamps (48")

Family HBI

Ballast Type 4L T8 Systems Blank=(1) 120/277V 4 Lamp T8

Instant Start Electronic, 1.15 BF PS=(1) 120/277V 4 Lamp T8 Electronic Program Rapid Start, 1.15 BF

(9)

6L T8 Systems Blank=(1) 120/277V 6 Lamp High Ballast Factor > 1.15 T8

Instant Start Electronic PS=(2) 120/277V 4L and 2L High Ballast Factor > 1.15 T8 Electronic Program Rapid Start

(9)

Uplight Blank=No Uplight UPL=Uplight

NOTES:

(9)

Recommended when utilizing Motion Sensor option.

(10)

Requires use of Modular cord and plug accessories.

(11)

High lumen (3100 initial) lamps supplied for 4100K.

Lamping Blank=No Lamps L4=Lamps Installed 85+CRI 4100K

(11)

L5=Lamps Installed 85+CRI 5000K L5HL=Lamps Installed 85+CRI 5000K,

High Lumen

Power Receptacle Blank=Standard Wiring to Access

Plate

MP=Modular Power Receptacle

(10)

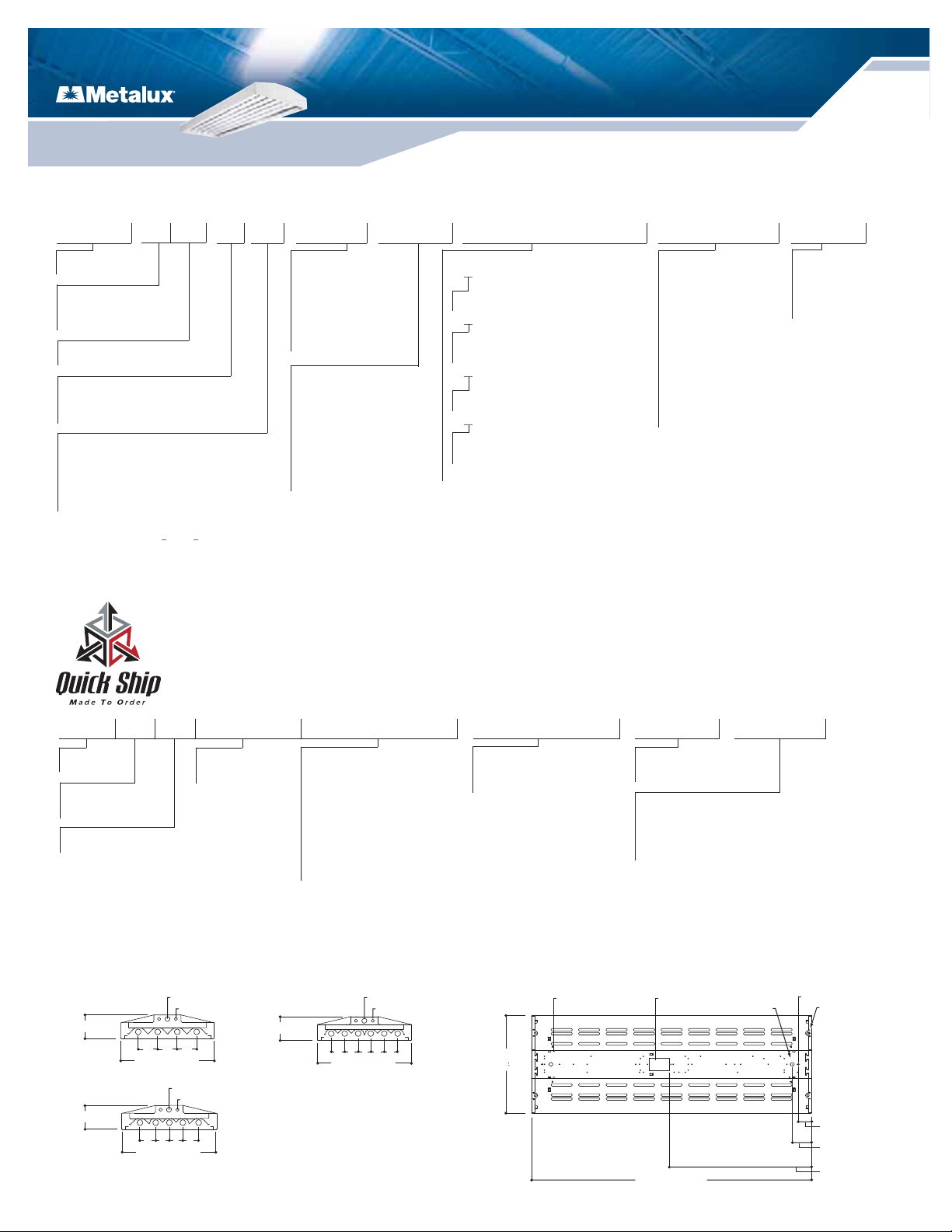

Quick Ship Ordering Information Sample Number: HBI632-MP-UPL-L5

Quick Ship orders ship in 5 days in order quantities not to exceed 200 pieces.

NOTE: Orders received after noon are entered on the following day.

Includes V Hangers for rapid installation

(6)

NOTES:

(1)

Requires use of MC or MPC cord accessories, specify voltage for plugs.

(2)

Voltage must be specified when ordered with plugs or emergency ballasts.

(3)

ER8

and EB8 ballast systems suitable for operation in ambient environments up to 122°F (50°C) in open uplight configuration.

(4)

When ordering MS option, specify UNV (for

120 or 277V), 347 or 480V.

(5)

2/3 lamp ballast configurations in EB8/PLUS only for T8 UNC versions.

(6)

Can be used in high abuse applications such as gymnasiums.

(7)

Dimming ballast must be specified at time of order.

(8)

Two required.

No. of Lamps 4=4 Lamps 5=5 Lamps 6=6 Lamps

Lamp Type 32=32W T8 Lamps (48")

Series HBI=High Bay Industrial

Voltage

(2)

UNV=Universal 120/277

Voltage UNC=Universal 347/480 Voltage

(5)

120V=120 Volt 277V=277 Volt 347V=347 Volt 480V=480 Volt

Shielding Blank=None A=Prismatic Acrylic Lens & Doorframe WG=Wireguard & Doorframe A/WG=Acrylic Lens, Wireguard & Doorframe CL=Clear Acrylic Lens & Doorframe CL/WG=Clear Lens, Wireguard & Doorframe

Distribution N=Narrow Beam (Standard) M=Medium Beam W=Wide Beam

Packaging U=Unit Pack PALC =Palletized

In Carton PAL=Job Pack Out of Carton

Options Lamps Installed L8830=T8 Lamp, 85CRI 3000K L8835=T8 Lamp, 85CRI 3500K L8841=T8 Lamp, 85CRI 4100K L8850=T8 Lamp, 85CRI 5000K HL=Add HL at end of lamp for

high lumen lamps, T8 only

GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed

(2)

Options MP=Modular Power

Receptacle (Used for all Cord or Cord and Plug options)

(1)

NUA=No uplight apertures

in housing. (Cannot be combined w/UPL)

UPL=Uplight Apertures MWS=Modular Wiring System MS=360° or 180° Motion Sensor,

120 through 347, or 480V

(4)

G2=Gasketed Door (Requires Selection of

Lensed Doorframe) SDF=Slotted Doorframe (Requires Selection of Lensed Doorframe)

Accessories (order separately) HB-SPM=Single Monopoint Hanger w/Hub RH-1=Retrofit Hanger FH-1=Fixture Hook FL-1=Fixture Loop Y-TOGGLE-=Y Mounting Toggle, #2 Cable

(8)

(Specify 10' or 30', requires 2 per fixture) HBAYC-CHAIN/SET/U=(2) V-Hook Hangers, 36" Chain Sets w/S-Hooks

MC3=3' Modular Power Cord MPC3=3' Modular Power Cord & Plug (Specify

Voltage)

MC6=6' Modular Power Cord MPC6=6' Modular Power Cord & Plug (Specify

Voltage) MMS=360° or 180° Aisle Motion Sensor with Modular Power Receptacle (120-277V)

(1)

SWG=Heavy Duty Wireguard for Field

Installation

Ordering Information Sample Number: HBI-632-N-UNV-EB82/PLUS-MP-UPL-U Includes V Hangers for rapid installation

(6)

Ballast Type EB8

=T8 Electronic Instant Start.

(3)

Total Harmonic Distortion < 10%

EB8 /PLUS= T8 Electronic Instant Start.

(3)

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

ER8

=T8 Electronic Program Rapid Start.

(3)

Total Harmonic Distortion < 10%

ER8 /PLUS= T8 Electronic Program Start.

(3)

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

DIM=Consult Factory

(7)

No. of Ballast 2 or 3

No. of Ballast 1, 2 or 3

No. of Ballast 2 or 3

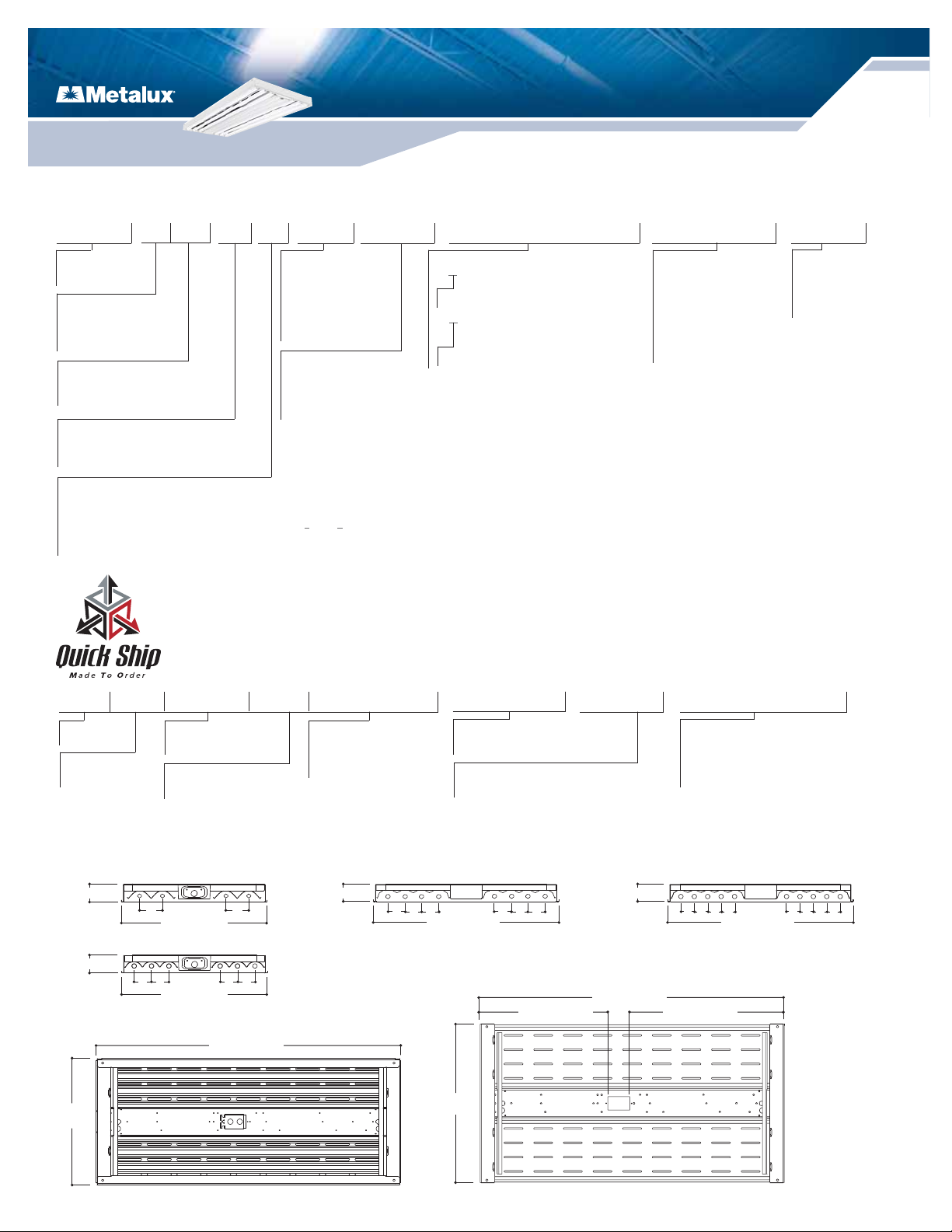

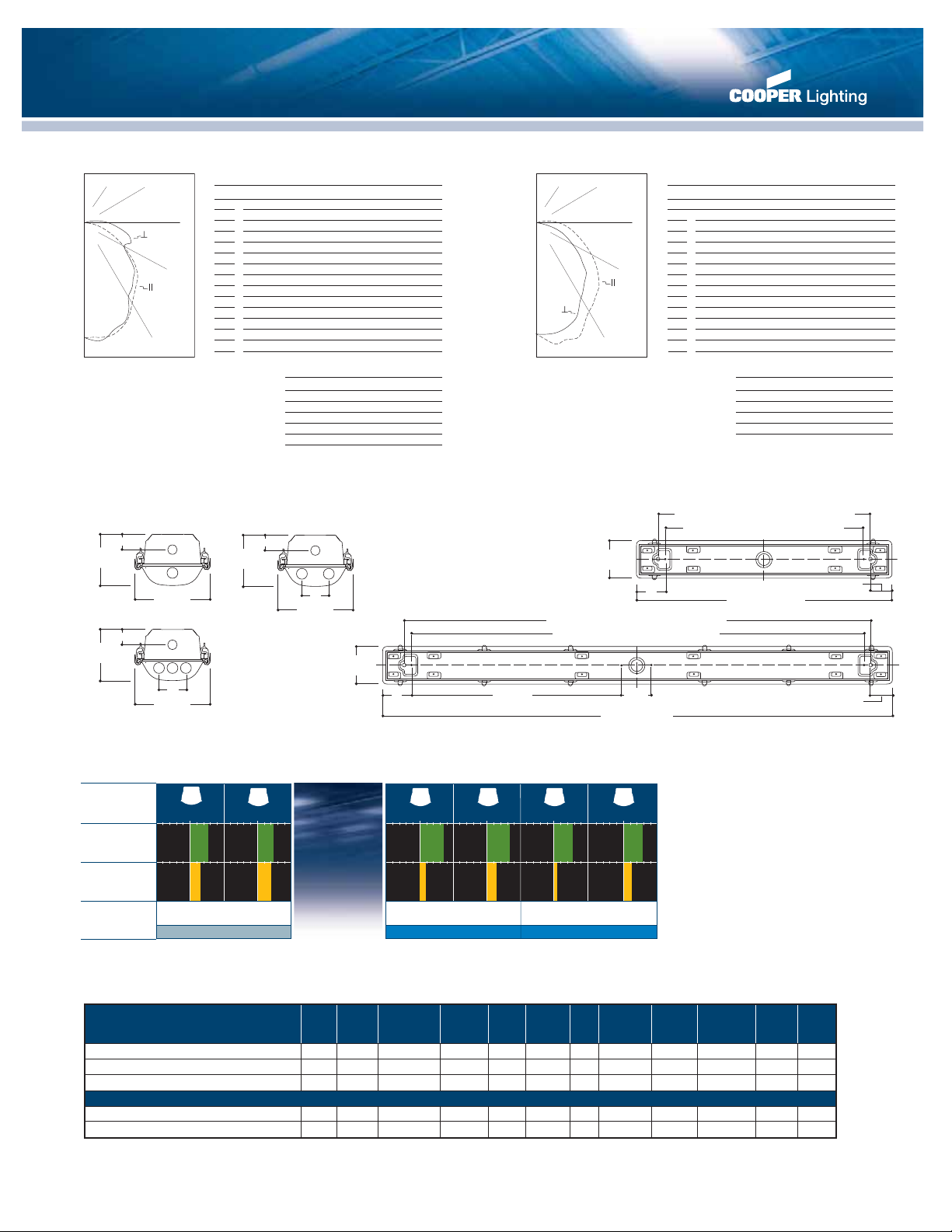

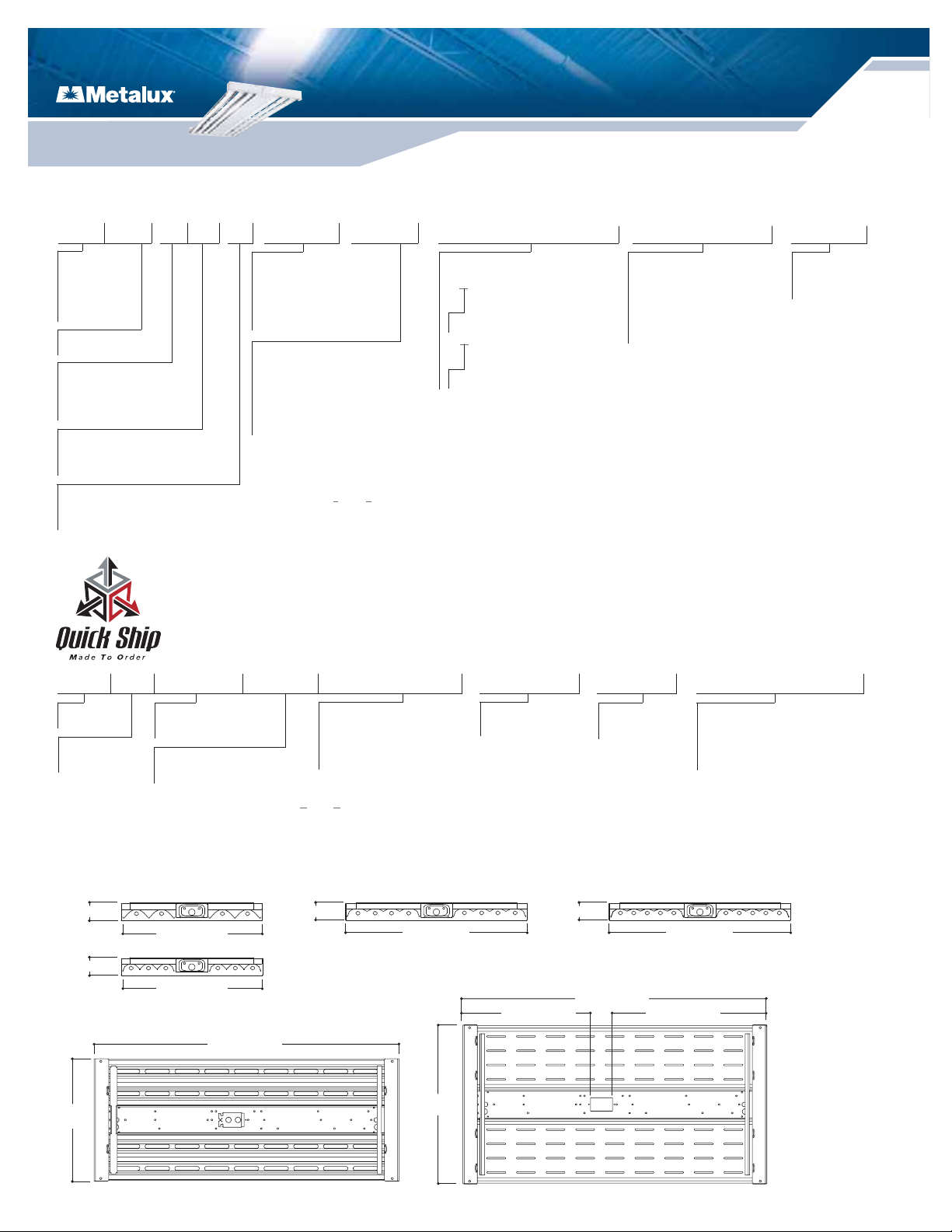

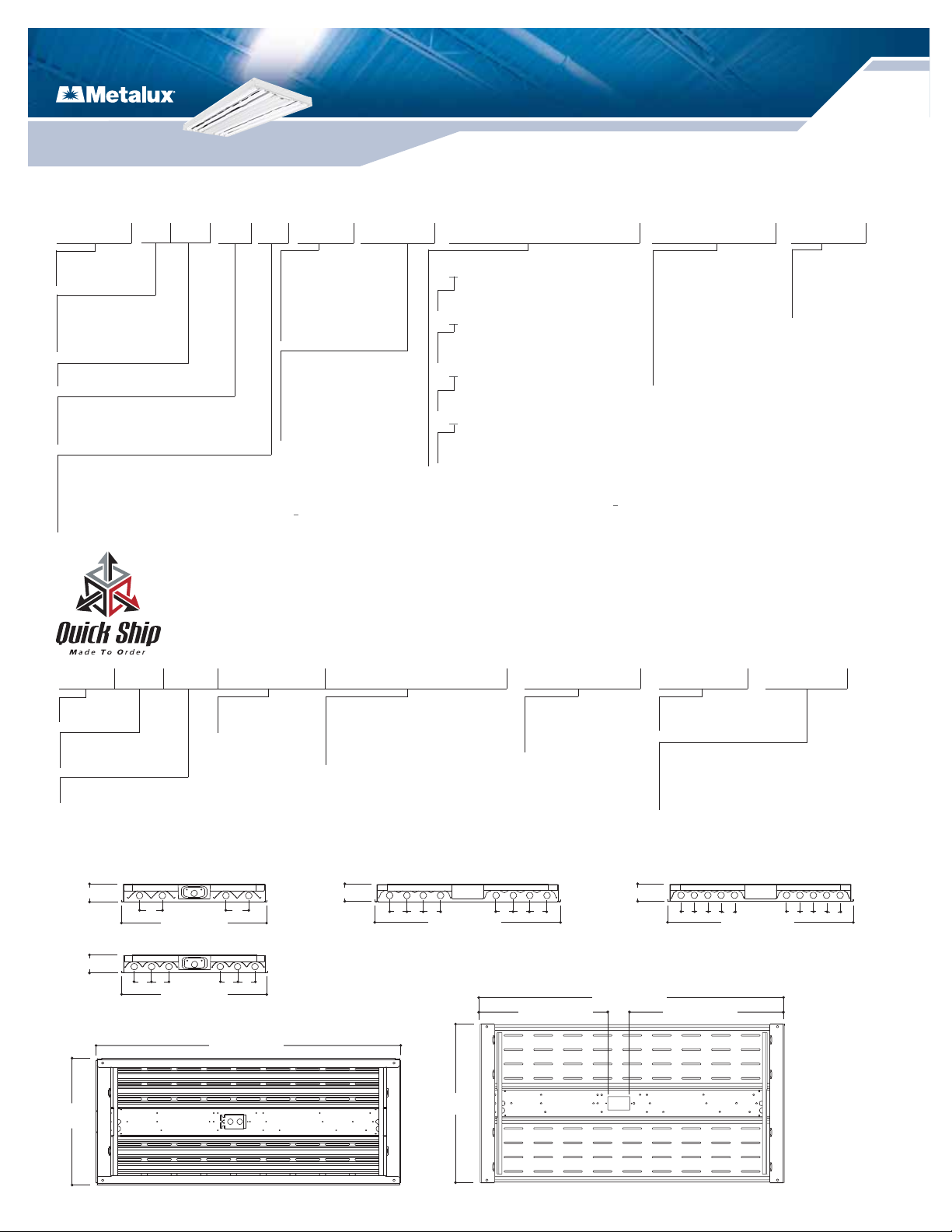

Dimensions

HBI T8 Lamp Configurations

Dimensions for Top View

4-Lamp 6-Lamp

5-Lamp

Distribution Blank=Narrow Beam W=Wide Beam

4-5/16" [109mm]

X=3-1/2"

[89mm]

4-5/16" [109mm]

X=2-13/32"

[61mm]

Y=2-25/32"

[70mm]

7/8" [23mm] K.O.

1/2" [13mm] K.O.

X

X X

16-3/4" [427mm]

7/8" [23mm] K.O.

1/2" [13mm] K.O.

Y

X Y

16-3/4" [427mm]

X

4-5/16" [109mm]

X=1-1/8" [28mm]

Y=2-13/32"

[61mm]

X Y Y

Y Y

16-3/4" [427mm]

7/8" [23mm] K.O.

1/2" [13mm] K.O.

16-3/4"

[427mm]

V-Hook Hanger Location

Access Plate Opening

48-1/8" [1222mm]

7/8" K.O.

1/4" [7mm]

3/8" [10mm]

2-3/8"

[59mm]

3-3/8"

[84mm]

24-3/8"

[621mm]

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

HBI System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

HBI-432-N-UNV-EB81/PLUS-UPL-U 4 3100 94% 90% 1.18 12337 1.95 1.40 17228 148 $2.60 116 HBI-532-N-UNV-EB82/PLUS-UPL-U 5 3100 94% 90% 1.18 15473 1.95 1.40 21607 185 $2.58 117 HBI-632-N-UNV-EB82/PLUS-UPL-U 6 3100 94% 95% 1.18 19496 1.95 1.40 27225 222 $2.34 123

Comparison System

400W Metal Halide High Bay 1 36000 75% 78% 1 21087 1.50 1.22 25826 455 $7.22 44 400W High Pressure Sodium High Bay 1 50000 81% 78% 1 31631 0.62 0.79 24906 464 $7.63 42

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 based on 5000K lamps. 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

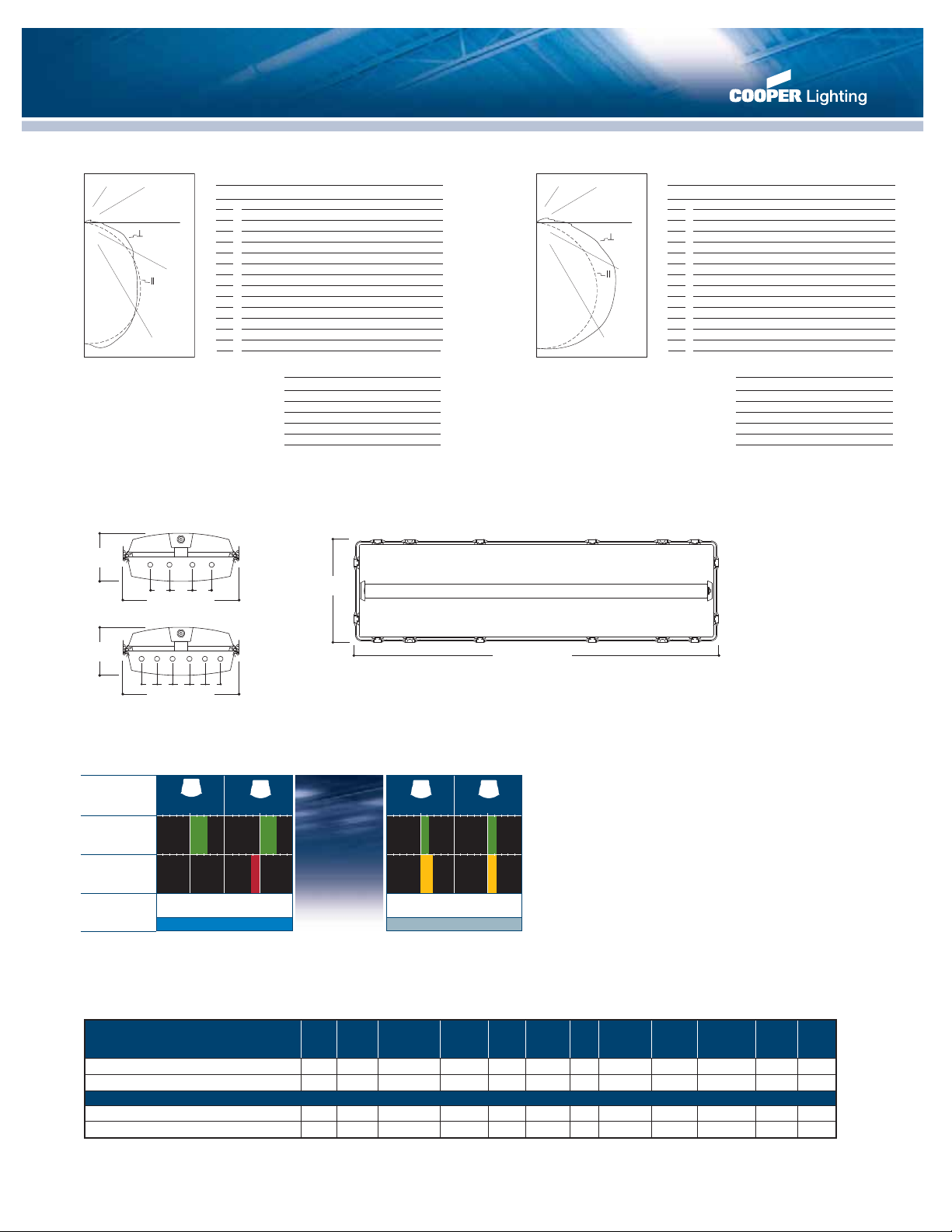

System Performance Table

12

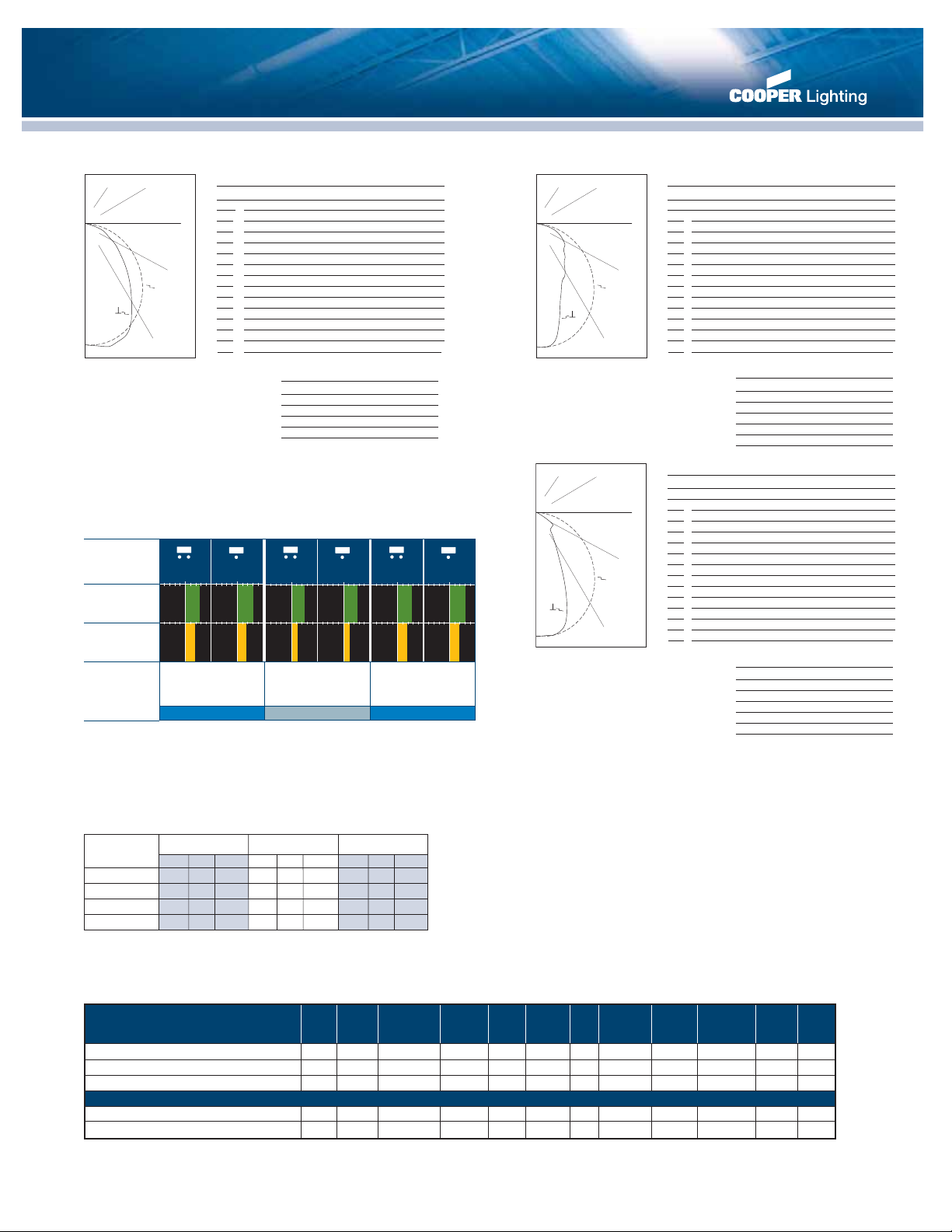

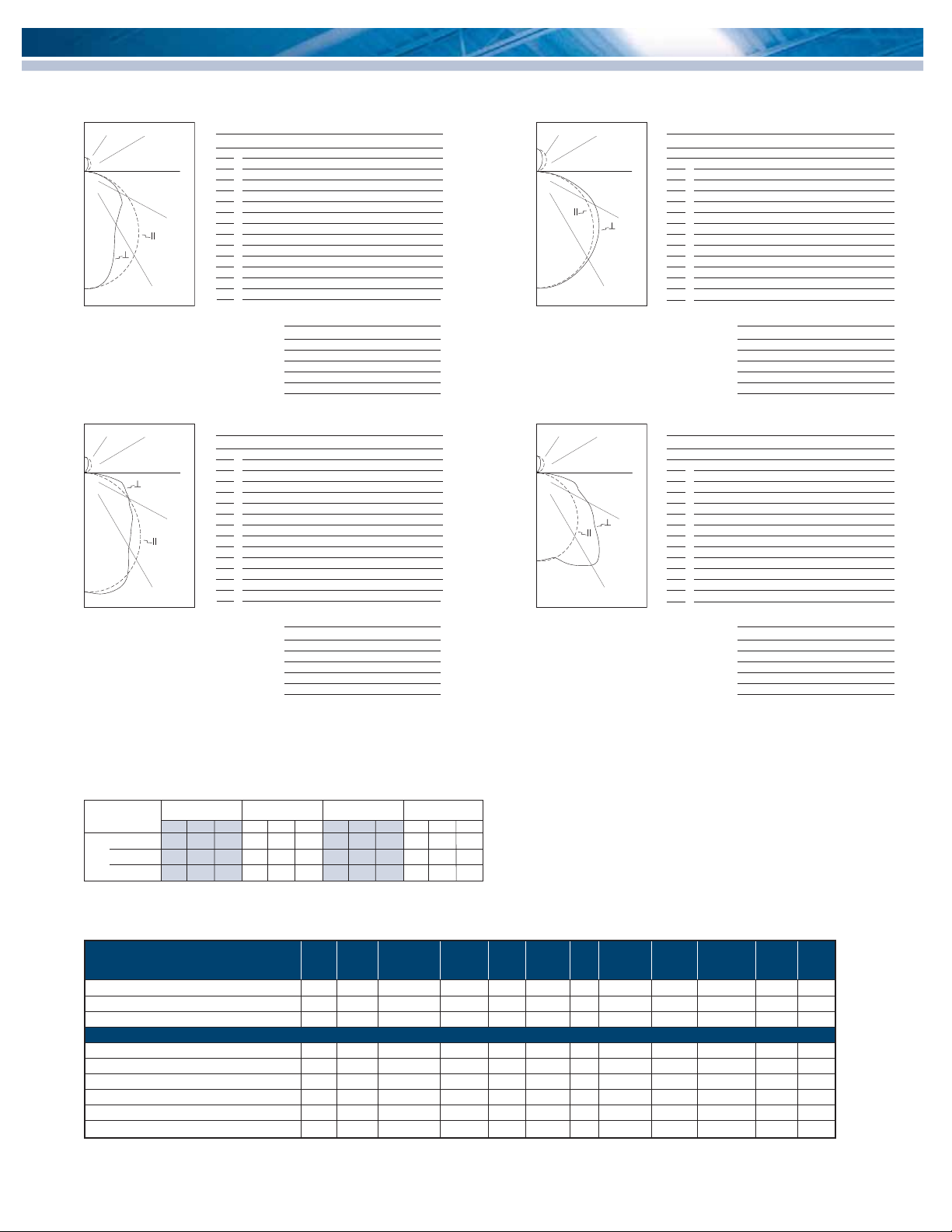

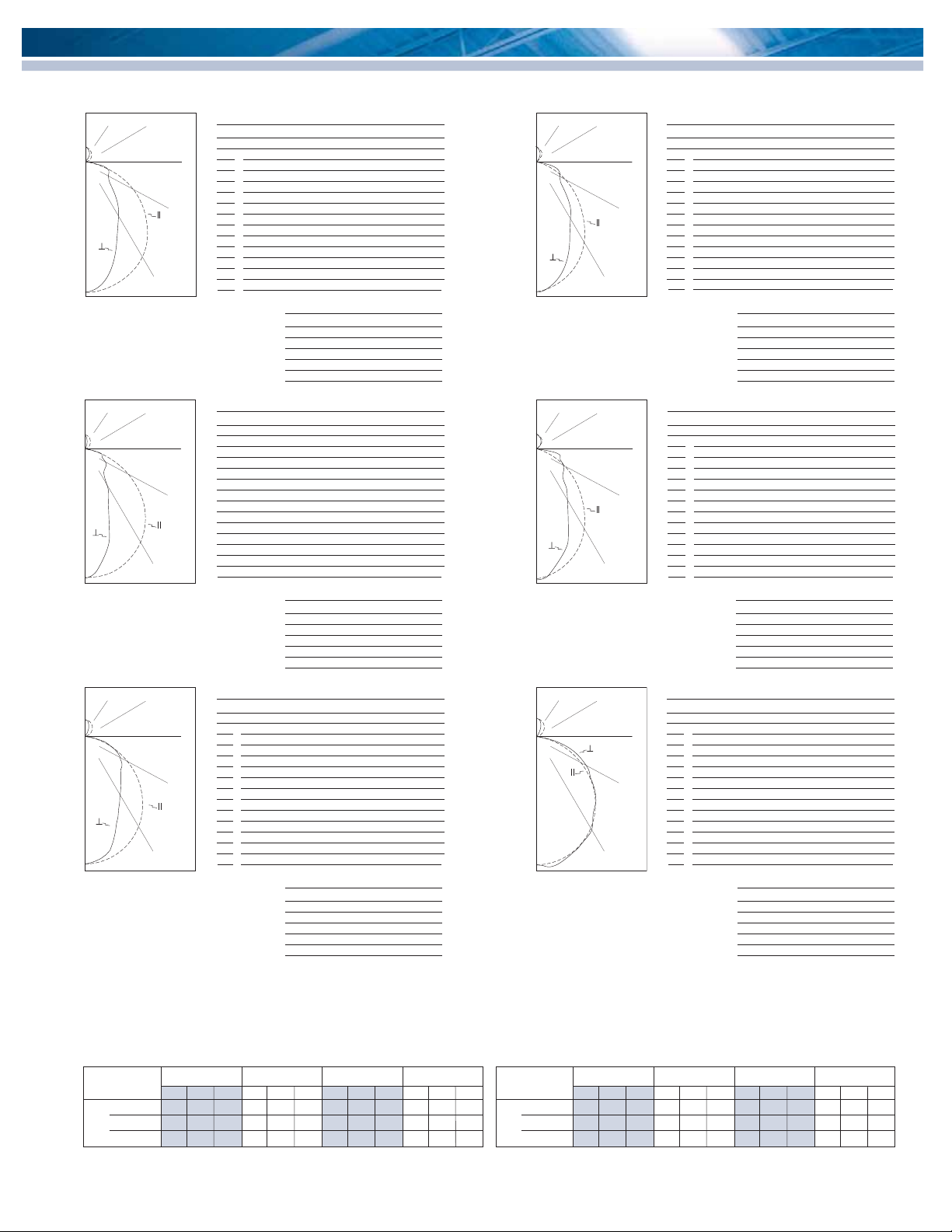

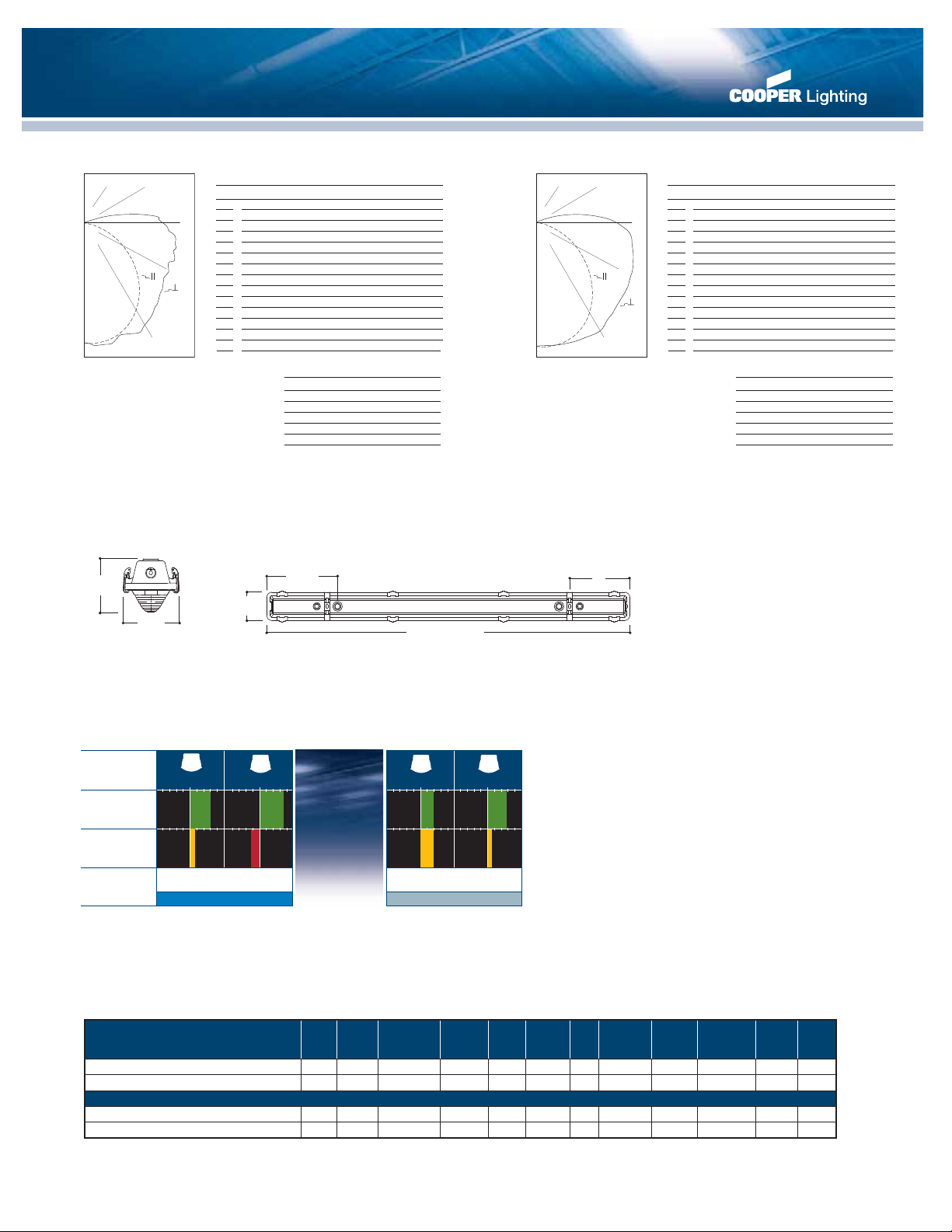

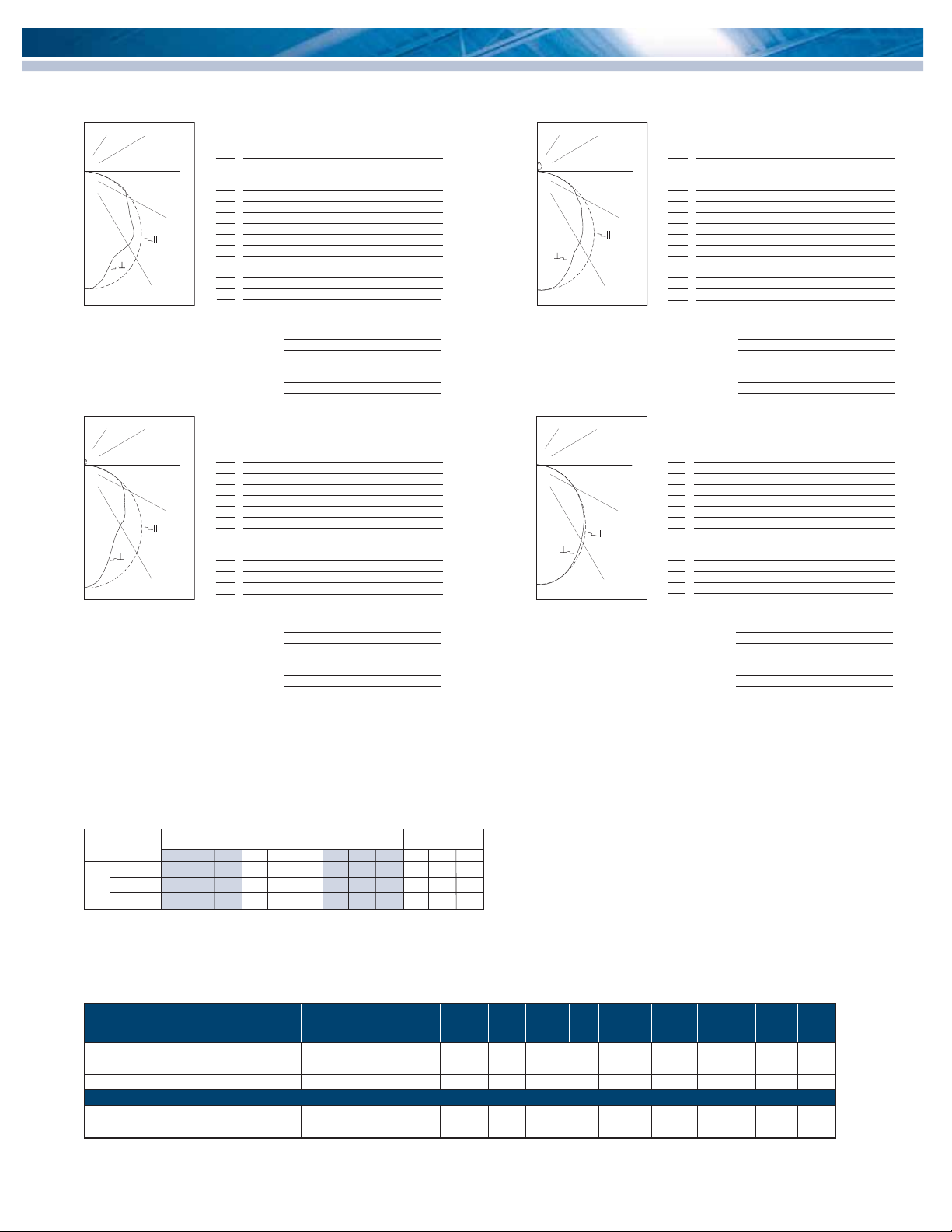

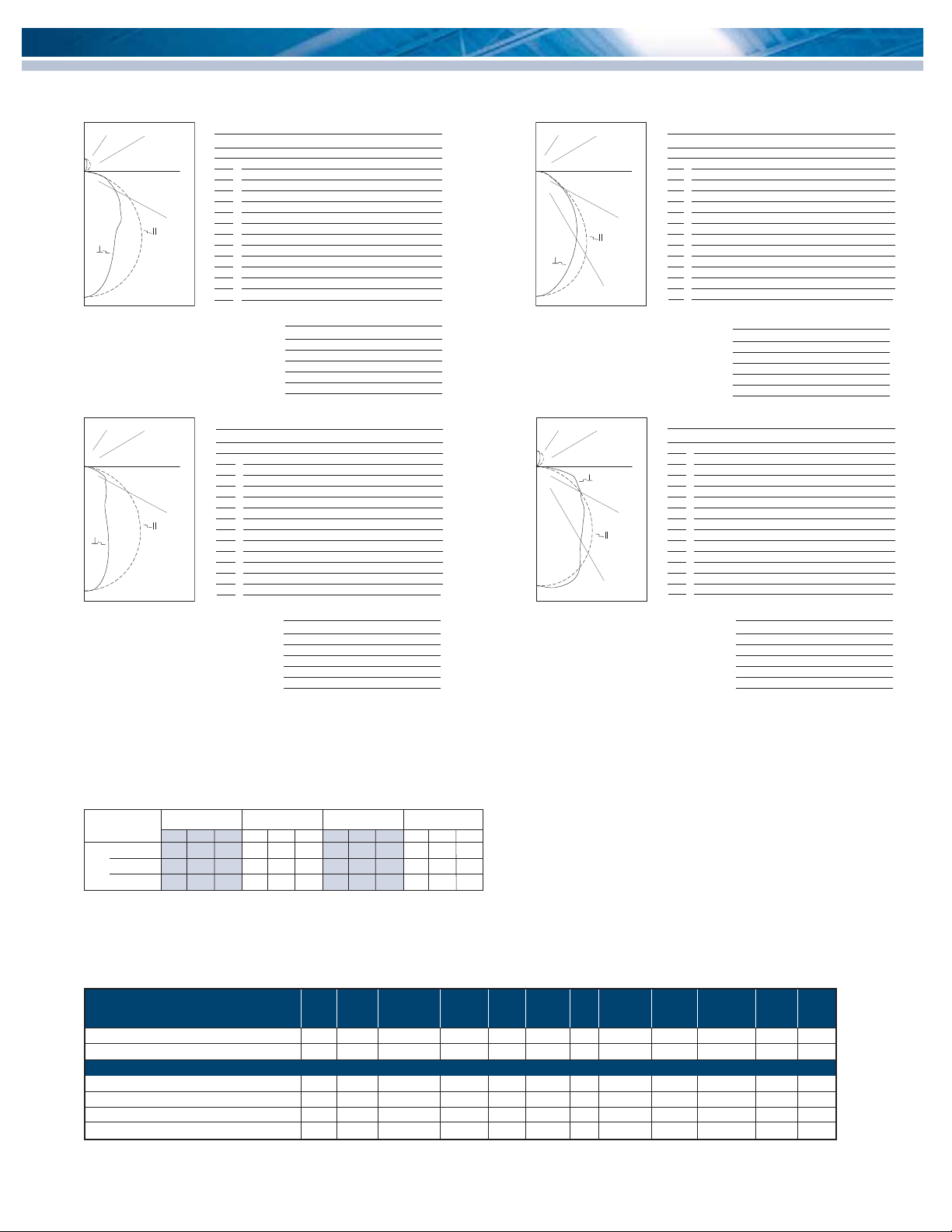

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

107 107 107 107 99 99 99 94 94 94 98 93 90 86 87 84 81 83 81 78 89 81 75 70 76 71 67 73 69 65 81 72 64 58 67 61 56 64 59 55 74 63 56 50 60 53 48 57 52 47 68 57 49 43 54 47 42 51 46 41 63 51 43 38 48 42 37 47 41 36 59 47 39 33 44 38 33 43 37 32 55 43 35 30 41 34 29 39 33 29 51 39 32 27 37 31 27 36 31 26 48 36 29 25 35 29 24 34 28 24

112 112 112 112 103 103103 98 98 98 102 98 94 90 90 87 85 86 84 82 93 85 79 73 79 74 70 75 71 68 85 75 67 61 70 64 59 67 62 57 78 66 58 52 62 55 50 59 54 49 71 59 51 45 56 49 44 54 47 43 66 54 45 39 50 43 38 49 42 38 61 49 40 35 46 36 34 44 38 33 57 44 37 31 42 35 30 41 35 30 53 41 33 28 39 32 28 38 32 27 50 38 30 25 36 30 25 35 29 25

4812 26.4 27.9

7183 42.0 44.5 12252 71.7 75.8 15556 91.0 96.3 16155 94.5 100.0

3999 25.8 28.5

6258 40.4 44.6 10620 68.5 75.8 13640 88.0 97.3 14017 90.4 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

97 97 97 97 90 90 90 86 86 86 89 85 81 78 79 77 74 76 74 72 81 74 69 64 70 65 62 67 63 60 74 65 59 54 62 56 52 59 55 51 68 58 51 46 55 49 45 53 48 44 62 52 45 39 49 43 39 48 43 38 58 47 40 35 45 39 34 43 38 34 54 43 36 31 41 35 30 40 34 30 50 39 32 28 37 31 27 36 31 27 47 36 29 25 34 29 25 34 28 25 44 33 27 23 32 26 22 31 26 22

4135 24.2 29.8

6565 38.4 47.3 11119 65.0 80.0 13891 81.2 100.0 13891 81.2 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

HBI-632-N-UNV-EB82

Electronic Ballasts (6) 32W T8 lamps 2850 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.1 x mounting height Efficiency 91.3% Test Report: HBI632.IES

109 109 109 109 101 101 101 97 97 97 99 94 90 87 89 85 83 85 82 80 90 82 76 70 77 72 68 74 70 66 82 72 64 58 68 62 57 65 60 56 75 64 55 49 60 53 48 58 52 48 69 57 49 42 54 47 42 52 46 41 64 51 43 37 49 42 36 47 41 36 59 46 38 33 44 37 32 43 37 32 55 42 35 29 41 34 29 38 33 29 51 39 31 26 37 31 26 35 30 26 48 36 29 24 35 28 24 34 28 24

4244 24.8 27.2

6874 40.2 44.0 12002 70.2 76.9 15606 91.3 100.0 15606 91.3 100.0

HBI-632-N-UNV-EB82-UPL

Electronic Ballasts (6) 32W T8 lamps 2850 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.1 x mounting height Efficiency 94.5% Test Report: HBI632-UPL.IES

HBI-532-N-UNV-EB82/PLUS-UPL

Electronic Ballasts (5) 32W T8 lamps 3100 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 0.8 x mounting height Efficiency 90.4% Test Report: HBI532-UPL.IES

HBI-632-N-A-UNV-EB82-SDF

Electronic Ballasts (6) 32W T8 lamps 2850 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.1 x mounting height Efficiency 82.1% Test Report: HBI632A-SDF.IES

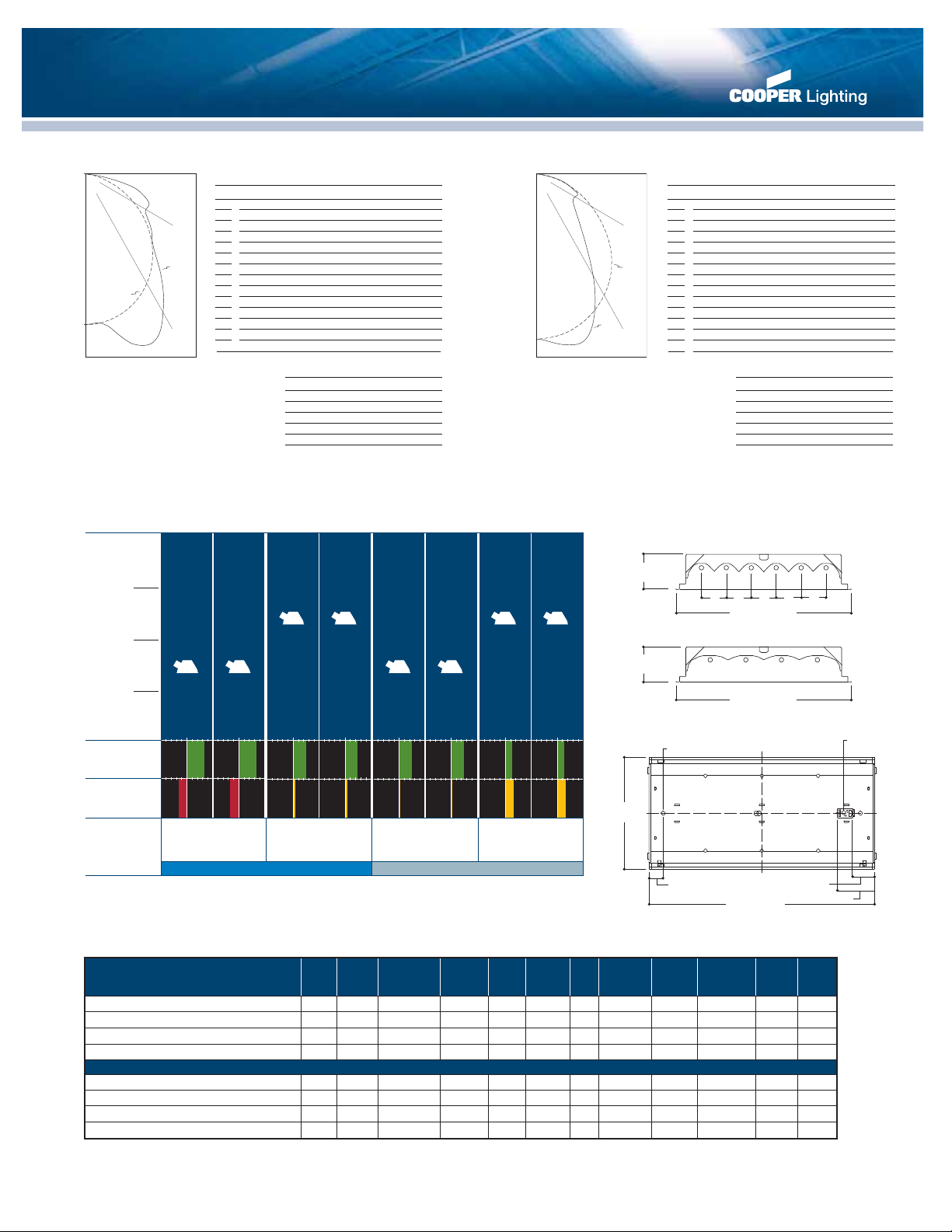

Photometrics

Illuminance Levels (FC) & Watts Per Sq. Ft. (LPD)

Based on 100 ft. x 100 ft. Open Room

HBI632UPL

Spacing

15 ft 20 ft 25 ft 30 ft

on Center Qty FC LPD Qty FC LPD Qty FC LPD Qty FC LPD

20 ft 49 69.0 1.08 25 35.3 0.55 16 22.6 0.35 12 16.9 0.26 25 ft 49 64.0 1.08 25 32.6 0.55 16 20.9 0.35 12 15.7 0.26 30 ft 49 59.0 1.08 25 30.3 0.55 16 19.4 0.35 12 14.5 0.26

Mounting

Height

Choose the spacing and mounting height to determine the average footcandle and watts per square foot values. All the calculations are based on the published IESNA Zonal Cavity Method and associated algorithms. Results are calculated from manufacturer photometric files.

Illuminance Estimator

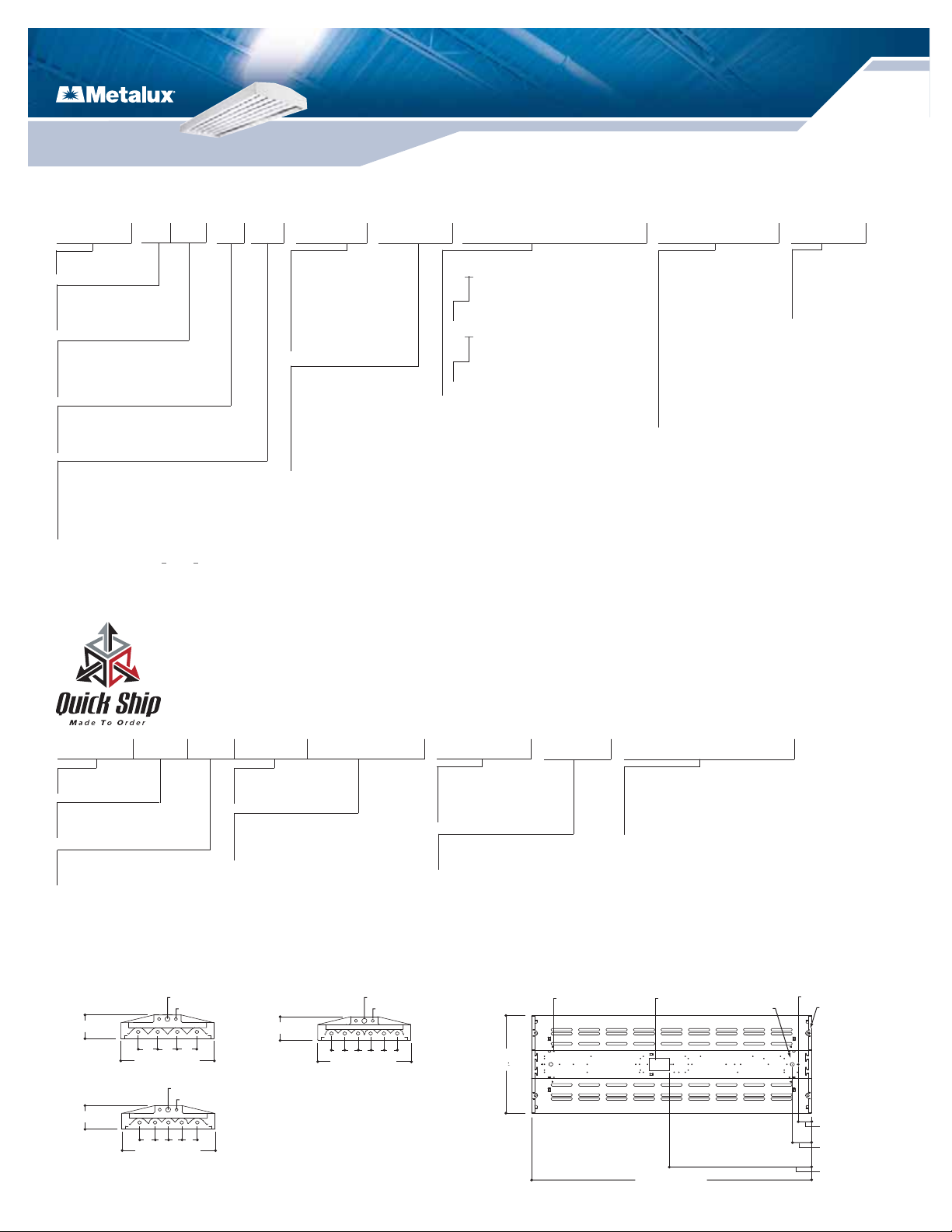

Quick Ship Ordering Information Sample Number: HBI454HCT5-MP-UPL-L5

Quick Ship orders ship in 5 days in order quantities not to exceed 200 pieces.

NOTE: Orders received after noon are entered on the following day.

13

Includes V Hangers for rapid installation

(6)

NOTES:

(1)

Requires use of MC or MPC cord accessories, specify voltage for plugs.

(2)

Voltage must be specified when ordered with plugs or emergency ballasts.

(3)

When

ordering MS option, specify voltage as UNV (for 120 or 277V), 347 or 480V.

(4)

2 lamp ballast configurations only for T5 UNC versions.

(5)

EHT/HT5/HCT5 ballast systems

suitable for ambient environments not to exceed 149°F (65°C) in open uplight configurations and less lens option.

(6)

Can be used in high abuse applications such as

gymnasiums.

(7)

Dimming ballast must be specified at time of order.

(8)

EHT standard with T5HO lamps.

(9)

Two required.

No. of Lamps 4=4 Lamps 5=5 Lamps 6=6 Lamps

Lamp Type 28T5=28W T5 Lamps (48") 49T5=49W T5HO Lamps (48")

(8)

51T5=51W T5HO Lamps (48")

(8)

54T5=54W T5HO Lamps (48")

(8)

Series HBI=HB Industrial

Voltage

(2)

UNV=Universal 120/277

Voltage UNC=Universal 347/480 Voltage

(4)

120V=120 Volt 277V=277 Volt 347V=347 Volt 480V=480 Volt

Shielding Blank=None A=Prismatic Acrylic Lens & Doorframe WG=Wireguard & Doorframe A/WG=Acrylic Lens, Wireguard & Doorframe CL=Clear Acrylic Lens & Doorframe CL/WG=Clear Lens, Wireguard & Doorframe

Distribution N=Narrow Beam (Standard) M=Medium Beam W=Wide Beam

Packaging U=Unit Pack PALC =Palletized

In Carton PAL=Job Pack Out of Carton

Options Lamps Installed L5830=T5 Lamp, 85CRI 3000K L5835=T5 Lamp, 85CRI 3500K L5841=T5 Lamp, 85CRI 4100K L5850=T5 Lamp, 85CRI 5000K

GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed

(2)

Ballast Type EHT

=T5HO Linear Electronic Program Start

High Ambient.

(4) (5) ( 8)

Total Harmonic Distortion < 10%

EBT =T5 Linear Electronic Program Start

(28T5 only) Total Harmonic Distortion < 10%

DIM=Consult Factory

(7)

No. of Ballast 2 or 3

Options MP=Modular Power

Receptacle (USED for all Cord or Cord and Plug options)

(1)

NUA=No uplight apertures

in housing. (Cannot be combined w/UPL)

UPL=Uplight Apertures MWS=Modular Wiring System MS=360° or 180° Motion Sensor,

120 through 347, or 480V

(3)

G2=Gasketed Door (Requires Selection of

Lensed Doorframe) SDF=Slotted Doorframe (Requires Selection of Lensed Doorframe)

Accessories (order separately) HB-SPM=Single Monopoint Hanger w/Hub RH-1=Retrofit Hanger FH-1=Fixture Hook FL-1=Fixture Loop Y-TOGGLE-=Y Mounting Toggle, #2 Cable

(9)

(Specify 10' or 30', requires 2 per fixture) HBAYC-CHAIN/SET/U=(2) V-Hook Hangers, 36" Chain Sets w/S-Hooks

MC3=3' Modular Power Cord MPC3=3' Modular Power Cord & Plug (Specify

Voltage)

MC6=6' Modular Power Cord MPC6=6' Modular Power Cord & Plug (Specify

Voltage) MMS=360° or 180° Aisle Motion Sensor with Modular Power Receptacle (120-277V)

(1)

SWG=Heavy Duty Wireguard for Field

Installation

No. of Lamps 4=4 Lamps 6=6 Lamps

Lamp Type 51=51W T5HO Lamps (48") 54=54W T5HO Lamps (48")

Family HBI

Power Receptacle Blank=Standard Wiring

to Access Plate MP=Modular Power Receptacle

(10)

Ballast Type T5HO Systems HT5=(1) or (2) 120/277V T5 High Ambient

Electronic Program Rapid Start

(8)

Uplight Blank=No Uplight UPL=Uplight

NOTES:

(10)

Requires use of Modular cord and plug accessories.

(11)

For Quick Ship, lamping option only available w/54W lamp type.

Lamping Blank=No Lamps L4=Lamps Installed 85+CRI 4100K

(11)

L5=Lamps Installed 85+CRI 5000K

(11)

L5ES=Energy Saving Lamps Installed

85+CRI 5000K

No. of Ballast 2 or 3

Ordering Information Sample Number: HBI-554T5-N-UNV-EHT2-MP-UPL-U Includes V Hangers for rapid installation

(6)

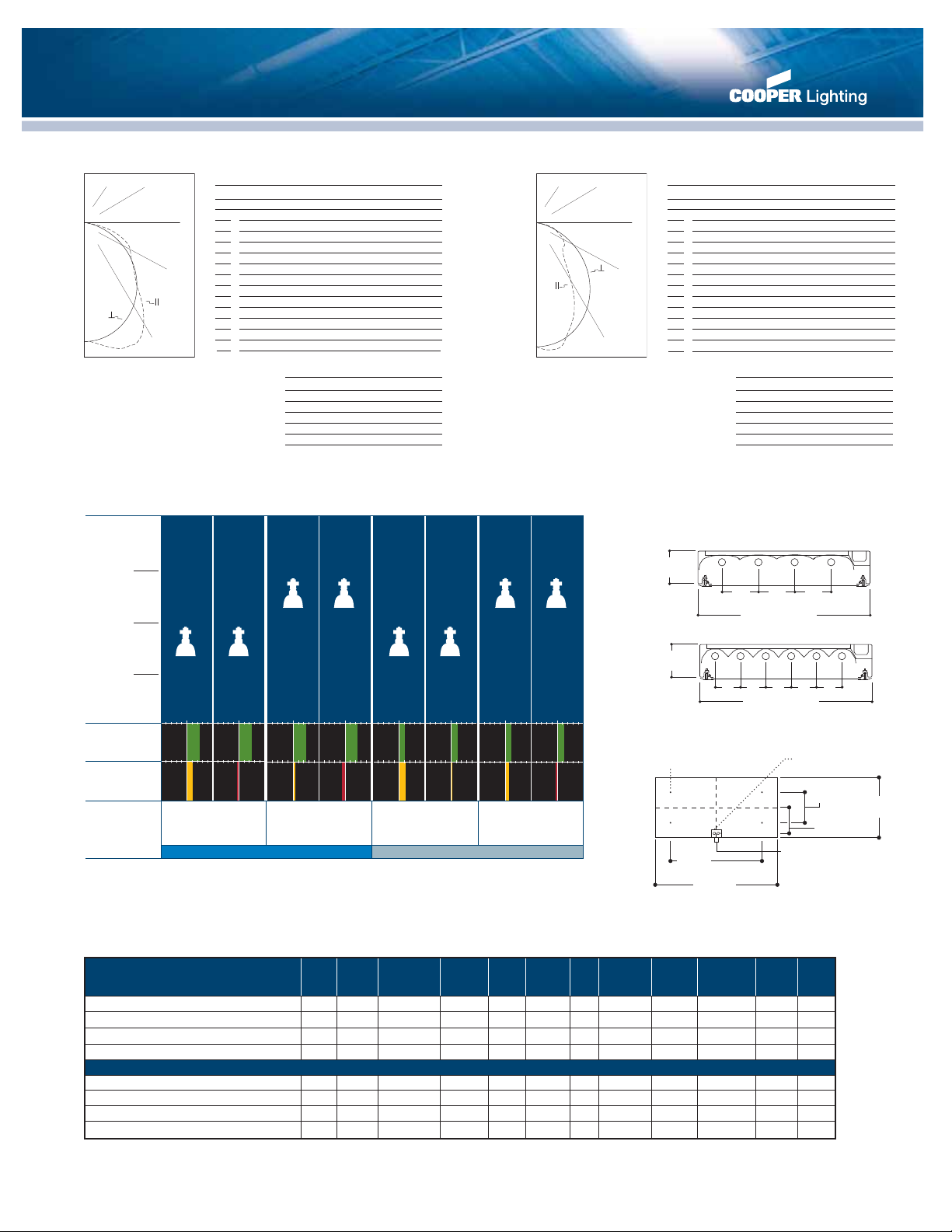

Dimensions

HBI T5 Lamp Configurations

Dimensions for Top View

HBI T5 HIGH-BAY INDUSTRIAL LUMINAIRE

4-Lamp 6-Lamp

5-Lamp

Distribution Blank=Narrow Beam W=Wide Beam

4-5/16" [109mm]

X=3-1/2"

[89mm]

4-5/16" [109mm]

X=2-13/32"

[61mm]

Y=2-25/32"

[70mm]

7/8" [23mm] K.O.

1/2" [13mm] K.O.

X

X X

16-3/4" [427mm]

7/8" [23mm] K.O.

1/2" [13mm] K.O.

Y

X Y

16-3/4" [427mm]

X

7/8" [23mm] K.O.

4-5/16" [109mm]

X=1-1/8" [28mm]

Y=2-13/32"

[61mm]

Y Y

X

Y Y

16-3/4" [427mm]

1/2" [13mm] K.O.

16-3/4"

[427mm]

V-Hook Hanger Location

Access Plate Opening

48-1/8" [1222mm]

7/8" K.O.

1/4" [7mm]

3/8" [10mm]

2-3/8"

[59mm]

3-3/8"

[84mm]

24-3/8"

[621mm]

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 based on 5000K lamps. 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

14

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

HBI System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

HBI-454T5-N-UNV-EHT1-U 4 5000 94% 92% 1.00 17258 1.90 1.38 23789 240 $3.52 99 HBI-554T5-N-UNV-EHT1-U 5 5000 93% 92% 1.00 21344 1.90 1.38 29420 302 $2.62 97 HBI-654T5-N-UNV-EHT2-UPL-U 6 5000 93% 93% 1.00 26059 1.90 1.38 35919 360 $3.43 100

Comparison System

250W Metal Halide High Bay 1 23000 75% 78% 1.00 15000 1.50 1.22 18371 295 $6.59 49 250W High Pressure Sodium High Bay 1 30000 81% 78% 1.00 18978 0.62 0.79 14944 300 $8.23 39 400W Metal Halide High Bay 1 36000 75% 78% 1.00 21087 1.50 1.22 25826 455 $7.22 44 400W High Pressure Sodium High Bay 1 50000 81% 78% 1.00 31631 0.62 0.79 24906 464 $7.63 42

HBI-654T5-N-UNV-EHT2-UPL

Electronic Ballasts (2) F54T5 54W lamps 4400 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 0.9 x mounting height Efficiency 93.3% Test Report: HBI654T5UPL.IES

HBI-654T5-W-UNV-EHT2-UPL

Electronic Ballasts (6) F54T5 54W lamps 4400 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.3 x mounting height Efficiency 92.6% Test Report: HBI654T5WUPL.IES

HBI-454T5-N-UNV-EHT1

Electronic Ballasts (4) F54T5HO 54W lamps 4400 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 0.7 x mounting height Efficiency 91.8% Test Report: HB454T5.IES

HBI-554T5-N-UNV-EHT2

Electronic Ballasts (5) F54T5HO 54W lamps 4400 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 0.8 x mounting height Efficiency 94.8% Test Report: HB554T5.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

110 110 110 110 101 101 101 96 96 96 101 97 93 90 90 87 84 85 83 81 92 85 79 74 79 74 70 75 72 68 85 75 68 62 70 64 60 67 62 58 78 67 59 53 63 56 51 60 55 50 72 60 52 46 56 50 45 54 48 44 66 54 46 41 51 45 40 49 43 39 62 50 42 36 47 40 35 45 39 35 58 45 38 33 43 37 32 42 36 31 54 42 34 29 40 33 29 39 33 29 51 39 32 27 37 31 26 36 30 26

4783 28.5 30.5

7391 44.0 47.1 12178 72.5 77.7 14984 89.2 95.6 15682 93.3 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

109 109 109 109 100 100 100 95 95 95 99 94 90 87 87 84 81 82 80 78 90 82 75 70 75 70 66 72 67 64 81 71 64 57 66 60 55 63 57 53 74 63 54 48 58 52 46 55 50 45 68 56 47 41 52 45 40 50 44 39 63 50 42 36 47 40 35 45 39 34 58 45 37 31 42 35 30 41 34 30 54 41 33 28 39 32 27 37 31 27 50 38 30 25 36 29 24 34 28 24 47 35 27 22 33 26 22 32 26 22

5773 21.9 23.6

9557 36.2 39.1 17462 66.1 71.4 23082 87.4 94.4 24447 92.6 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

113 113 113 113 105 105 105 101 101 101 104 100 96 93 94 91 88 90 88 85 95 88 82 77 83 78 74 80 76 72 87 78 70 65 74 68 63 71 66 62 80 70 62 56 66 60 54 64 58 54 74 63 55 49 60 53 48 58 52 47 69 57 49 43 54 48 42 53 47 42 64 52 44 38 50 43 38 48 42 38 60 48 40 35 46 39 34 45 39 34 56 44 37 32 42 36 31 41 36 31 53 41 34 29 40 33 29 39 33 29

7063 32.1 33.9 10703 48.6 51.3 17136 77.9 82.2 20859 94.8 100.0 20859 94.8 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

109 109 109 109 102102 102 98 98 98 101 98 94 91 92 89 87 88 86 84 93 87 81 77 82 78 74 79 75 72 86 77 71 65 73 68 64 71 66 63 80 70 62 57 66 60 56 64 59 55 74 63 56 50 60 54 49 59 53 49 69 58 50 45 55 49 44 54 48 44 64 53 46 40 51 45 40 50 44 40 60 49 42 37 47 41 36 46 40 36 57 45 38 34 44 38 33 43 37 33 53 42 35 31 41 35 31 40 35 31

6296 35.8 39.0

9157 52.0 56.7 13793 78.4 85.3 16163 91.8 94.2 16163 91.8 100.0

Photometrics

Illuminance Levels (FC) & Watts Per Sq. Ft. (LPD)

Based on 100 ft. x 100 ft. Open Room

HBI654T5UPL

Spacing

15 ft 20 ft 25 ft 30 ft

on Center Qty FC LPD Qty FC LPD Qty FC LPD Qty FC LPD

20 ft 49 83.0 1.76 25 42.4 0.90 16 27.2 0.57 12 20.4 0.43 25 ft 49 77.0 1.76 25 39.4 0.90 16 25.2 0.57 12 18.9 0.43 30 ft 49 72.0 1.76 25 36.7 0.90 16 23.5 0.57 12 17.6 0.43

Mounting

Height

Choose the spacing and mounting height to determine the average footcandle and watts per square foot values. All the calculations are based on the published IESNA Zonal Cavity Method and associated algorithms. Results are calculated from manufacturer photometric files.

Illuminance Estimator

HBE HIGH-BAY EFFICIENCY LUMINAIRE

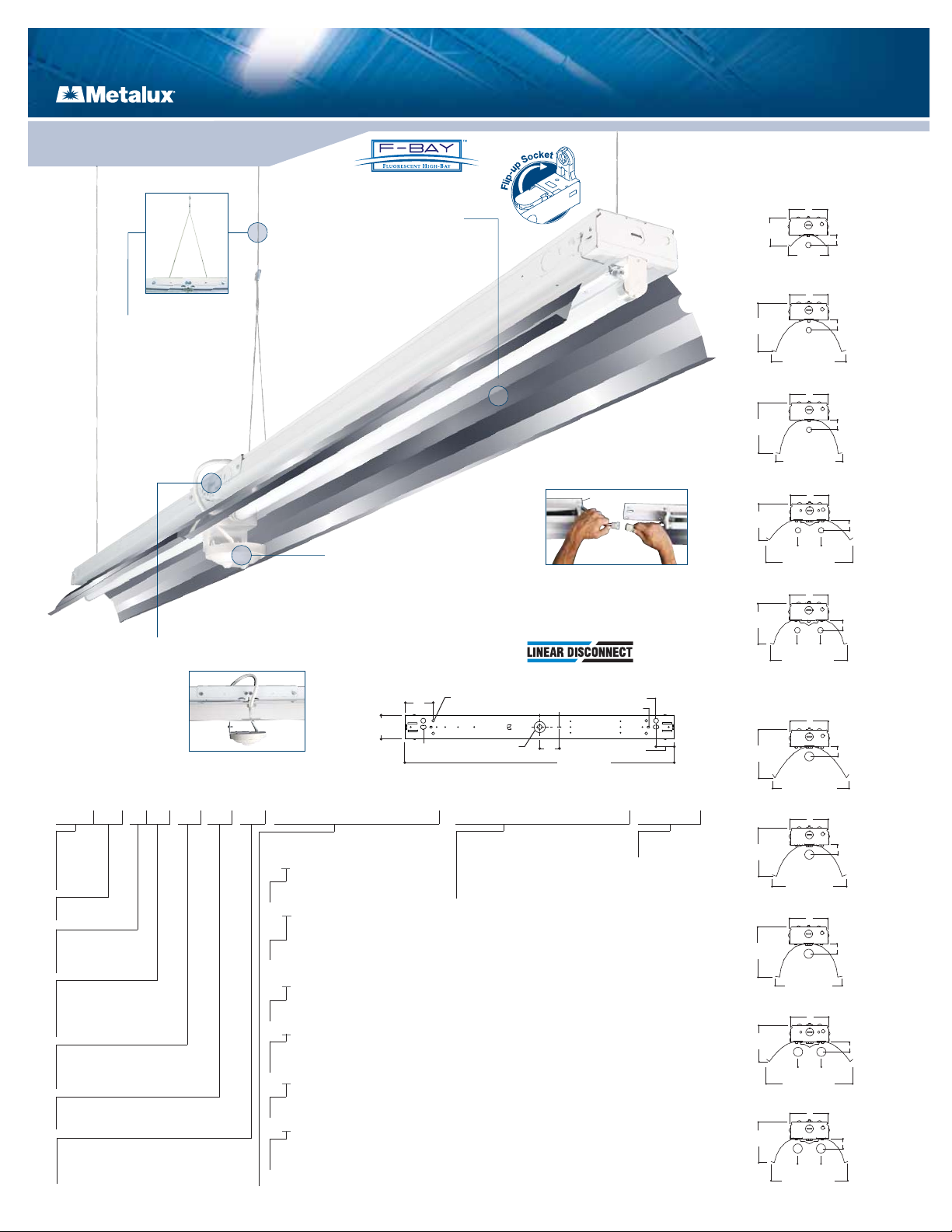

Modular F-Bay Power Supply

1. Modular Power Supply Receptacle supplied

mounted into fixture Access Plate

2. Modular Power Cord & Plugs in 120, 277, 347,

& 480V configurations for easy plug & power into existing supply

Modular Motion Sensor Option supplied with Mounting Box and Modular Power Supply Receptacle

No internal fixture access required for installation or disconnecting power

Code Compliance

• UL/cUL Certified for Make/Break under load (UL2549)

• Meets NEC requirements for ballast disconnect (NEC 410.73G)

• Allows for addition of Occupancy Sensor without hard connections

• Receptacles complete with insulating/dust cap

Cooper Lighting’s F-Bay Modular Power Supply allows external fixture access for safe and easy servicing. There is no need to remove lamps or reflectors to disconnect fixture power with F-Bay Modular Power Supply. Access to the individual fixture’s power supply allows servicing without turning off all the fixtures disrupting occupants. F-Bay Modular Power Supply is a time saver in installation –

simply plug & power.

12

15

Electrostatically applied baked white enamel finish is preceded by a multistage cleaning cycle, iron phosphate coating with rust inhibitor.

Thermally optimized F-Bay is suitable for environments up to 149°F (66°C) when used with high temperature environment ballasts. T5 or T8 systems are warranted for ambient environments up to 149°F (65°C) for three years and 131°F (55°C) for five years in open uplight configurations.

Optional uplight apertures (approximately 7% uplight)

Standard side rails and stiffening brackets provide increased structural rigidity.

Cooper Lighting’s modular power receptacle meets UL2459 and NEC

410.73 and is UL/cUL rated for make and break under load from outside the luminaire to speed maintenance.

Includes V Hangers for rapid installation!

Factory installed code compliant disconnect for safe and convenient means of disconnecting power.

Heavy duty and stock wireguard (Ideal for gymnasium applications).

Shielding Options

Prismatic or clear acrylic lens and door frame.

Wireguard w/acrylic lens and door frame.

To optimize luminaire performance, HBE series offers a variety of lamp and shielding options. Use the Thermal Optimization chart to determine the options that are appropriate for the ambient environments in which they will be installed.

Thermal Optimization

16

T8 T5

40'

30'

20'

10'

Energy

Savings

System Performance

% Light

Gain/Loss

Mounting

Height

Part

Number

50%

35%

51%

25%

51%

24%

52%

400W MH 400W HPS

21%

45%

22%

31%

400W MH 400W HPS

HBE632UPL

or

HBE632PSUPL

HBE654UPL

% light gain/light loss utilize S/P adjusted lumens.

54%

19%

40%

20%

HBE

T8 T5

HBE432UPL

or

HBE432PSUPL

HBE454T5UPL

250W MH 250W HPS

400W MH 400W HPS

5%

FH-1=Fixture Hook 2-1/2"

(must be used with HBL-SPM)

Mounting Accessories

HB-SPM=Single Monopoint

Hanger w/Hub (Galvanized)

FL-1=Fixture Loop 2-1/2" (must be used with HBL-SPM)

RH-1=Retrofit Hanger (must be used with HBL-SPM)

Y=Mounting Toggle and 10' or 25' cable

HBAYC=Standard V-hook Hanger included (ideal for gymnasium applications)

65.6°C/150°F

57.2°C/135°F

48.9°C/120°F

40.6°C/105°F

32.2°C/90°F

23.9°C/75°F

15.6°C/60°F

7.2°C/45°F

-1°C/30°F

-9.4°C/15°F

-17.8°C/0°F

-15°F

Vente d

w/Uplight

wo/Uplight

Operating at approximately 90% or above of rated output

Unvented

T8

Lensed

Luminaire

w/Uplight

T5HO AmalgamT5HO

Vente d

w/Uplight

Unvented

wo/Uplight

Lensed

Luminaire

HBE T8 HIGH-BAY EFFICIENCY LUMINAIRE

17

Lamp Qty 4=4 Lamps 6=6 Lamps

Lamp Type 32=32W T8 Lamps (48")

Family HBE=2' x 4'

Ballast Type T8 Systems Blank=(1) 120/277V 4 or 6 Lamp T8

Instant Start Electronic 1.15 BF PS=(1) or (2) 120/277V T8 Electronic Program Rapid Start 1.15 BF

(7)

Uplight Blank=No Uplight - UPL=Uplight

NOTES:

(1)

Voltage must be specified when ordered with plugs, motion sensor or emergency ballasts.

(2)

When ordering MS option, specify as UNV (for 120 or 277V), 347 or 480V.

(3)

Requires use of MC or

MPC cord accessories, specify voltage for plugs.

(4)

T8 ballast systems suitable for operation in

ambient environments up to 131°F (55°C) in open uplight configuration.

(5)

Can be used in high abuse

applications such as gymnasiums.

NOTES:

(6)

High lumen (3100 initial) lamps supplied for 4100K T8 systems.

(7)

Recommended when

utilizing motion sensor options.

(8)

Requires use of Modular cord and plug accessories.

Lamping Blank=No Lamps L4=Lamps Installed 80+CRI 4100K

(6)

L5=Lamps Installed 80+CRI 5000K L5HL=Lamps Installed 85+CRI 5000K,

High Lumen

No. of Lamps 4=4 Lamps 6=6 Lamps 8=8 Lamps 10=10 Lamps

Lamp Type 32=32W T8 Lamps (48")

Series HBE=High Bay

Efficiency

Voltage

(1)

UNV=Universal

120/277 Voltage UNC=Universal 347/480 Voltage (EB8/PLUS only)

120V=120 Volt 277V=277 Volt 347V=347 Volt

Shielding Blank=None A=Prismatic Acrylic Lens & Doorframe WG=Wireguard & Doorframe CL=Clear Acrylic Lens & Doorframe A/WG=Acrylic Lens, Wireguard & Doorframe CL/WG=Clear Lens, Wireguard & Doorframe

Distribution N=Narrow Beam (Standard) M=Medium Beam W=Wide Beam

Options Blank=Side Rails (Standard) MP=Modular Power

Receptacle (Used for all Cord or Cord and Plug options)

(3)

UPL=Uplight Apertures on

Reflector MWS=Modular Wiring System MS=360° or 180° motion sensor installed, 120V through 347V, or 480V

(2)

Packaging U=Unit Pack PALC =Job Pack

In Carton PAL=Job Pack Out of Carton

Options Lamps Installed L8830=T8 Lamp, 80CRI 3000K L8835=T8 Lamp, 80CRI 3500K L8841=T8 Lamp, 80CRI 4100K L8850=T8 Lamp, 80CRI 5000K HL=Add HL at end of lamp for

high lumen lamps

Accessories (order separately) HBL-SPM=Single Monopoint Hanger w/Hub RH-1=Retrofit Hanger FH-1=Fixture Hook FL-1=Fixture Loop Y-TOGGLE=Y Mounting Toggle, #2 Cable (Specify 10'

or 30', requires 2 per fixture) HBAYC-CHAIN/SET/U=(2) V-Hook Hangers, 36" Chain Sets w/S-Hooks

MC3=3' Modular Power Cord MPC3=3' Modular Power Cord & Plug (Specify Voltage) MC6=6' Modular Power Cord MPC6=6' Modular Power Cord & Plug (Specify Voltage) MMS=360° or 180° Aisle Motion Sensor with

Modular Power Receptacle (120-277V)

(3)

WG/HBL6-4FT-B=4/6 Lamp Wireguard w/Clips WG/HBL8-4FT-B=8 Lamp Wireguard w/Clips

Ballast Type

(4)

EB8 =T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

EB8

/PLUS=T8 Electronic Instant Start.

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

ER8

=T8 Electronic Program Rapid Start.

(7)

Total Harmonic Distortion < 10%

ER8 /PLUS=T8 Electronic Program Start.

(7)

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

Power Receptacle Blank=Standard Wiring to

Access Plate MP=Modular Power Receptacle

(8)

Ordering Information Sample Number: HBE-632-N-UNV-L8850-EB82/PLUS-U Includes V Hangers for rapid installation

(5)

Quick Ship Ordering Information Sample Number: HBE632-UPL-L5

Quick Ship orders ship in 5 days in order quantities not to exceed 200 pieces.

NOTE: Orders received after noon are entered on the following day.

Dimensions

HBE T8 Lamp Configurations

Dimensions for Top View

25-11/32" [644mm]

48-7/16" [1230mm]

20-11/32" [517mm] 24-19/32" [625mm]

4-Lamp 8-Lamp 10-Lamp

6-Lamp

4/6-Lamp

8/10-Lamp

Includes V Hangers for rapid installation

(5)

Distribution Blank=Narrow Beam W=Wide Beam

2-15/32" [63mm]

X=3-1/2"

[89mm]

2-15/32" [63mm]

Y=2-3/8"

[61mm]

20-1/4"

[512mm]

X

20-1/4" [512mm]

Y

20-1/4" [512mm]

X

Y

48-7/16" [1231mm]

2-15/32" [63mm]

X=2-1/4"

[57mm]

X

X X

25-11/32" [644mm]

X

X X

2-15/32" [63mm]

X=1-7/8" [48mm]

X

X 25-11/32" [644mm]

X X

X

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

HBE System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

HBE-632-N-UNV-EB82/PLUS-UPL-U 6 3100 94% 97% 1.18 20095 1.72 1.31 26354 222 $3.35 119 HBE-832-N-UNV-EB82-UPL-U 8 3100 94% 90% 1.18 24730 1.90 1.38 34088 370 $3.27 92

Comparison System

400W Metal Halide High Bay 1 36000 75% 78% 1 21087 1.50 1.22 25826 455 $7.22 44 400W High Pressure Sodium High Bay 1 50000 81% 78% 1 31631 0.62 0.79 24906 464 $7.63 42

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 based on 5000K lamps. 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

HBE-632-N-UNV-EB82-UPL

Electronic Ballasts (6) 32W T8 lamps 3100 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.1 x mounting height Efficiency 97.4% Test Report: HBE632-UPL.IES

115 115 115 115 105 105 105 99 99 99 104 99 95 91 91 88 85 86 84 81 94 86 79 73 79 74 69 75 71 67 86 75 67 60 69 63 58 66 60 56 78 66 58 51 61 54 49 58 52 48 72 59 50 44 55 48 42 52 46 41 66 53 44 38 50 42 37 47 41 36 62 48 40 34 45 38 33 43 37 32 57 44 36 30 41 34 29 40 33 29 54 40 32 27 38 31 26 37 30 26 50 37 30 24 35 29 24 34 28 24

4530 24.4 25.0

7287 39.2 40.2 12794 68.8 70.6 17016 91.5 93.9 18116 97.4 100.0

Photometrics

18

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

109 109 109 109 101 101101 97 97 97 99 94 90 87 88 85 83 85 82 80 90 82 75 70 77 72 68 74 70 66 82 72 64 58 68 61 56 65 60 55 75 63 55 49 60 53 48 58 52 47 69 57 48 42 54 47 41 52 46 41 63 51 43 37 48 41 36 47 41 36 59 46 38 32 44 37 32 43 36 32 55 42 34 29 40 33 29 39 33 28 51 39 31 26 37 30 26 36 30 26 48 36 28 23 34 28 23 33 27 23

7505 24.2 26.5 12316 39.7 43.5 21774 70.2 77.0 28283 91.2 100.0 28283 91.2 100.0

HBE-1032-N-UNV-EB83-U

Electronic Ballasts (10) 32W T8 lamps 3100 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.3 x mounting height Efficiency 91.2% Test Report: HBE1032.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

90 90 90 90 81 81 81 76 76 76 82 79 75 73 72 69 67 67 66 64 75 69 64 59 63 59 56 59 56 54 68 61 55 50 56 51 47 53 49 45 63 54 47 42 50 44 40 47 43 39 58 48 41 37 44 39 35 42 38 34 53 43 37 32 40 35 31 38 34 30 49 39 33 28 37 31 27 35 30 27 46 36 30 25 34 28 24 32 27 24 43 33 27 23 31 26 22 30 25 22 40 31 25 21 29 24 20 28 23 20

107 107 107 107 97 97 97 92 92 92 96 92 88 84 84 81 78 80 77 75 87 79 73 67 73 68 64 69 65 61 79 69 61 55 64 58 53 60 55 51 72 61 53 46 56 50 44 53 48 43 66 54 46 40 50 43 38 48 42 37 61 49 40 34 45 38 33 43 37 32 56 44 36 30 41 34 29 39 33 28 52 40 32 27 37 31 26 36 30 25 49 37 29 24 34 28 23 33 27 23 46 34 26 22 32 25 21 30 25 21

2360 20.7 22.8 3902 34.2 37.8 7150 62.7 69.2 9629 84.5 93.2

10337 90.7 100.0

3859 20.7 27.1

6144 33.0 43.1 10444 56.2 73.2 12958 69.7 90.8 14263 76.7 100.0

HBE-432-W-UPL

Electronic Ballast (4) 32W T8 lamps 2850 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.3 x mounting height Efficiency 90.7% Test Report: HBE432W-UPL.IES

HBE-632-N-A-UNV-EB82

Electronic Ballasts (6) 32W T8 lamps 3100 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.1 x mounting height Efficiency 76.7% Test Report: HBE632-A.IES

Illuminance Levels (FC) & Watts Per Sq. Ft. (LPD)

Based on 100 ft. x 100 ft. Open Room

HBE632NUPL

Spacing

15 ft 20 ft 25 ft 30 ft

on Center Qty FC LPD Qty FC LPD Qty FC LPD Qty FC LPD

20 ft 49 69.0 1.08 25 35.1 0.55 16 22.5 0.35 12 16.8 0.26 25 ft 49 63.0 1.08 25 32.3 0.55 16 20.7 0.35 12 15.5 0.26 30 ft 49 59.0 1.08 25 29.9 0.55 16 19.1 0.35 12 14.3 0.26

Illuminance Estimator

Choose the spacing and mounting height to determine the average footcandle and watts per square foot values. All the calculations are based on the published IESNA Zonal Cavity Method and associated algorithms. Results are calculated from manufacturer photometric files.

Mounting

Height

HBE T5 HIGH-BAY EFFICIENCY LUMINAIRE

19

Ordering Information Sample Number: HBE-654T5-N-UNV-L5850-EBT2-U Includes V Hangers for rapid installation

(4)

Quick Ship Ordering Information Sample Number: HBE654T5-UPL-L5

Quick Ship orders ship in 5 days in order quantities not to exceed 200 pieces.

NOTE: Orders received after noon are entered on the following day.

Lamp Qty 4=4 Lamps 6=6 Lamps

Lamp Type 51=51W T5HO Lamps (48") 54=54W T5HO Lamps (48")

Family HBE

Ballast Type T5HO Systems HT5=(1) or (2) 120/277V T5HO

High Ambient Electronic Program Rapid Start

Uplight Blank=No Uplight UPL=Uplight

NOTES:

(1)

Voltage must be specified when ordered with plugs or emergency ballasts.

(2)

When ordering MS option, specify as UNV (for 120 or 277V), 347 or 480V.

(3)

Requires use

of MC or MPC cord accessories, specify voltage for plugs.

(4)

Can be used in high abuse

applications such as gymnasiums.

(5)

EHT/HT5/HCT5 ballast systems suitable for ambient

environments not to exceed 149°F (65°C) in open uplight configurations and less lens option.

(6)

EHT ballast recommended when using lens option on 8 or 10 lamp configurations.

NOTES:

(7)

Requires use of Modular cord and plug accessories.

(8)

For Quick Ship,

lamping option only available w/54W lamp type.

Lamping Blank=No Lamps L4=Lamps Installed 80+CRI 4100K

(8)

L5=Lamps Installed 80+CRI 5000K

(8)

L5ES=Energy Savings Lamps Installed

80+CRI 5000K

No. of Lamps 4=4 Lamps 6=6 Lamps 8=8 Lamps

(6)

10=10 Lamps

(6)

Lamp Type 49T5=49W T5HO Lamps (48") 51T5=51W T5HO Lamps (48") 54T5=54W T5HO Lamps (48")

Series HBE=High Bay

Efficiency

Voltage

(1)

UNV=Universal

120/277 Voltage UNC=Universal 347/480 Voltage

120V=120 Volt 277V=277 Volt 347V=347 Volt

Shielding

(6)

Blank=None A=Prismatic Acrylic Lens & Doorframe WG=Wireguard & Doorframe CL=Clear Acrylic Lens & Doorframe A/WG=Acrylic Lens, Wireguard & Doorframe CL/WG=Clear Lens, Wireguard & Doorframe

Distribution N=Narrow Beam (Standard) M=Medium Beam W=Wide Beam

Options Blank=Side Rails (Standard) MP=Modular Power

Receptacle (Used for all Cord or Cord and Plug options)

(3)

UPL=Uplight Apertures on

Reflector

MWS=Modular Wiring System MS=360° or 180° motion sensor installed,

120V through 347V, or 480V

(2)

Packaging U=Unit Pack PALC =Job Pack

In Carton PAL=Job Pack Out of Carton

Options Lamps Installed L5830=T5 Lamp, 80CRI 3000K L5835=T5 Lamp, 80CRI 3500K L5841=T5 Lamp, 80CRI 4100K L5850=T5 Lamp, 80CRI 5000K

Accessories (order separately) HBL-SPM=Single Monopoint Hanger w/Hub RH-1=Retrofit Hanger FH-1=Fixture Hook FL-1=Fixture Loop Y-TOGGLE=Y Mounting Toggle, #2 Cable (Specify 10'

or 30', requires 2 per fixture) HBAYC-CHAIN/SET/U=(2) V-Hook Hangers, 36" Chain Sets w/S-Hooks

MC3=3' Modular Power Cord MPC3=3' Modular Power Cord & Plug (Specify Voltage) MC6=6' Modular Power Cord MPC6=6' Modular Power Cord & Plug (Specify Voltage) MMS=360° or 180° Aisle Motion Sensor with

Modular Power Receptacle (120-277V)

(2)

WG/HBL6-4FT-B=4/6 Lamp Wireguard w/Clips WG/HBL8-4FT-B=8 Lamp Wireguard w/Clips

Ballast Type EBT

=T5HO Linear Electronic Program Start.

Total Harmonic Distortion < 10%

EHT

=T5HO Linear Electronic Program Start

High Ambient. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

Power Receptacle Blank=Standard Wiring to Access Plate MP=Modular Power Receptacle

(7)

Dimensions

HBE T5 Lamp Configurations

Dimensions for Top View

25-11/32" [644mm]

48-7/16" [1230mm]

20-11/32" [517mm] 24-19/32" [625mm]

4-Lamp

6-Lamp

8-Lamp 10-Lamp

4/6-Lamp

8/10-Lamp

Includes V Hangers for rapid installation

(4)

Distribution Blank=Narrow Beam W=Wide Beam

2-15/32" [63mm]

X=3-1/2"

[89mm]

2-15/32" [63mm]

Y=2-3/8"

[61mm]

20-1/4"

[512mm]

X

20-1/4" [512mm]

Y

20-1/4" [512mm]

Y

48-7/16" [1231mm]

2-15/32" [63mm]

X

Y

X=2-1/4"

[57mm]

X

X X

25-11/32" [644mm]

X

2-15/32" [63mm]

X X

X=1-7/8" [48mm]

X

X 25-11/32" [644mm]

X X

X

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 based on 5000K lamps. 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

Photometrics

20

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

HBE System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

HBE-454T5-N-UNV-EBT1-U 4 5000 93% 96% 1.00 17856 1.95 1.40 24935 240 $3.21 104 HBE-654T5-N-UNV-EBT2-UPL-U 6 5000 93% 95% 1.00 26366 1.90 1.38 36342 360 $3.35 101

Comparison System

250W Metal Halide High Bay 1 23000 75% 78% 1.00 15000 1.50 1.22 18371 295 $6.59 49 250W High Pressure Sodium High Bay 1 30000 81% 78% 1.00 18978 0.62 0.79 14944 300 $8.23 39 400W Metal Halide High Bay 1 36000 75% 78% 1.00 21087 1.50 1.22 25826 455 $7.22 44 400W High Pressure Sodium High Bay 1 50000 81% 78% 1.00 31631 0.62 0.79 24906 464 $7.63 42

HBE-854T5N-UNV-UPL

Electronic Ballasts (8) F54T5 54W lamps 4400 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.1 x mounting height Efficiency 94.0% Test Report: HBE854-UPL.IES

HBE-654-N-UPL

Electronic Ballasts (6) F54T5 54W lamps 4400 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 0.8 x mounting height Efficiency 94.5% Test Report: HBE654-UPL.IES

HBE-654-N-A

Electronic Ballasts (6) F54T5 54W lamps 4400 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.0 x mounting height Efficiency 67.7% Test Report: HBE654-A.IES

HBE-454-N

Electronic Ballasts (4) F54T5 54W lamps 4400 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 0.7 x mounting height Efficiency 96.0% Test Report: HBE454.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

110 110 110 110 101 101 101 95 95 95 100 95 91 87 87 84 82 83 80 78 91 83 76 71 76 71 67 72 68 64 83 73 65 59 67 61 56 64 59 54 76 65 56 50 60 53 48 57 51 46 70 58 49 43 54 47 41 51 45 40 65 52 44 38 48 42 36 46 40 36 60 47 39 33 44 37 32 42 36 32 56 43 35 30 41 34 29 39 33 28 52 40 32 27 37 31 26 36 30 26 49 37 29 24 35 28 24 33 27 23

8780 24.9 26.5 13886 39.4 42.0 23440 66.6 70.8 30822 87.6 93.1 33096 94.0 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

111 111 111 111 102 102 102 96 96 96 102 98 94 90 90 87 84 85 83 81 93 86 79 74 79 74 70 75 71 68 85 76 68 62 70 64 60 67 62 58 78 67 59 53 63 56 51 60 54 50 72 60 52 46 56 50 45 54 48 44 67 55 47 41 51 45 40 49 43 39 62 50 42 36 47 40 35 45 39 35 58 46 38 33 43 37 32 42 36 31 54 42 35 30 40 33 29 38 33 29 51 39 32 27 37 31 26 36 30 26

7486 28.4 30.0 11514 43.6 46.2 18847 71.4 75.6 23419 88.7 93.9 24939 94.5 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

114 114 114 114 107 107 107 102 102 102 106 102 98 95 96 93 91 92 90 88 97 90 85 80 85 81 77 82 78 75 90 81 74 68 76 71 66 74 69 65 83 73 65 59 69 63 58 67 61 57 77 66 58 52 63 56 51 61 55 51 72 60 52 46 57 51 46 56 50 45 67 55 47 42 53 46 41 52 46 41 63 51 43 38 49 42 38 48 42 37 59 47 40 35 45 39 35 44 39 34 56 44 37 32 42 36 32 42 36 32

6494 36.9 38.4

9416 53.5 55.7 14260 81.0 84.4 16891 96.0 100.0 16891 96.0 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

81 81 81 81 76 76 76 72 72 72 74 72 69 67 67 65 63 65 63 62 69 64 59 56 60 57 54 58 55 53 63 57 52 48 54 50 47 52 49 46 58 51 46 41 48 44 41 47 43 40 54 46 40 36 44 39 36 43 39 35 50 42 36 32 40 35 32 39 35 32 47 38 33 29 37 32 29 36 32 28 44 35 30 26 34 29 26 33 29 26 41 33 27 24 31 27 24 31 27 24 39 30 25 22 29 25 22 29 24 22

6405 24.3 35.8

9927 37.6 55.5 15395 58.3 86.1 17869 67.7 100.0 17872 67.7 100.0

Illuminance Estimator

Choose the spacing and mounting height to determine the average footcandle and watts per square foot values. All the calculations are based on the published IESNA Zonal Cavity Method and associated algorithms. Results are calculated from manufacturer photometric files.

Illuminance Levels (FC) & Watts Per Sq. Ft. (LPD)

Based on 100 ft. x 100 ft. Open Room

HBE654NUPL

Spacing

15 ft 20 ft 25 ft 30 ft

on Center Qty FC LPD Qty FC LPD Qty FC LPD Qty FC LPD

20 ft 49 82.0 1.76 25 41.9 0.90 16 26.8 0.57 12 20.1 0.43 25 ft 49 76.0 1.76 25 38.9 0.90 16 24.9 0.57 12 18.7 0.43 30 ft 49 71.0 1.76 25 36.2 0.90 16 23.2 0.57 12 17.4 0.43

Mounting

Height

I5/I8 HIGH-BAY INDUSTRIAL LUMINAIRE

Surface or suspension mounting (cable, chain, pendant mount or top connector box).

Optical modules are fully enclosed inside housing to protect against damage.

Specification grade full body housing, end plates and socket tracks are die formed 20 gauge cold rolled steel in 4' or 8' lengths.

Die formed reflectors are faceted for 2, 3, 4, 6 and 8 lamp tandem configurations with two optical distributions – medium and wide. Medium beam optical modules utilize 95% specular aluminum while the wide distribution utilizes a high performance 92% reflective polyester powder coated finish.

Latched retention of optics (safety leader restraints) allows for easy access.

Narrow 11" wide housing allows mounting within 12" horizontally from the nearest edge of the sprinkler detector.

Modular F-Bay Power Supply

Integral occupancy sensor available and provides from 600 sq. ft. up to 1250 sq. ft. (MSO) of coverage at a maximum mounting height of 40'.

Thermally optimized F-Bay is suitable for environments up to 149°F (65°C) when used with high temperature environment ballasts. T5 systems are warranted for ambient environments up to 149°F (65°C) for three years and 131°F (55°C) for five years in open uplight configurations. T8 systems are warranted for environments up to 122°F (50°C) for five years.

1. Modular Power Supply Receptacle supplied

mounted into fixture Access Plate

2. Modular Power Cord & Plugs in 120, 277, 347,

& 480V configurations for easy plug & power into existing supply

Modular Motion Sensor Option supplied with Mounting Box and Modular Power Supply Receptacle

No internal fixture access required for installation or disconnecting power

Code Compliance

• UL/cUL Certified for Make/Break under load (UL2549)

• Meets NEC requirements for ballast disconnect (NEC 410.73G)

• Allows for addition of Occupancy Sensor without hard connections

• Receptacles complete with insulating/dust cap

Cooper Lighting’s F-Bay Modular Power Supply allows external fixture access for safe and easy servicing. There is no need to remove lamps or reflectors to disconnect fixture power with F-Bay Modular Power Supply. Access to the individual fixture’s power supply allows servicing without turning off all the fixtures disrupting occupants. F-Bay Modular Power Supply is a time saver in installation –

simply plug & power.

12

21

Modular power receptacle meets UL2459 and NEC

410.73 and is UL/cUL rated for make and break under load from outside the luminaire to speed maintenance.

Optional uplight apertures (approximately 8% uplight).

Factory installed code compliant disconnect for safe and convenient means of disconnecting power.

T8

FH-1=Fixture Hook 2-1/2"

(must be used with TCB)

Mounting Accessories

AYC -Mounting Chain Set

I5/I8 TCB=Top Connector Box

(I5/I8 only)

Asymmetric directional louver can be oriented in either direction for flexibility

Shielding Options

Frosted acrylic or clear lens & frame (use with general distribution reflector, I5 only)

System Performance

Heavy duty wireguard finished in white. Can be used alone or in combination with other shielding

Thin blade white baffle w/23° longitudinal shielding

FL-1=Fixture Loop 2-1/2" (must be used with TCB)

RH-1=Retrofit Hanger (must be used with TCB)

End plates provided with the “Quick-Tab” joining system for ease of row mounting. Blank end plates provided for row ends.

Row Mount

40'

30'

20'

10'

Energy

Savings

% Light

Gain/Loss

Mounting

Height

250W MH 250W HPS

Part

Number

38%

36 %

39%

I5355

17%

50%

16%

52%

I5455

-4%

400W MH 400W HPS

66%

13%

78%

-13%

250W MH 250W HPS

I8-332-EB81/PLUS

51%

15%

51%

-14%

I8-432-EB81/PLUS

I5 I8

Dimensions

I5/I8 Lamp Configurations Dimensions for Top View

2-Lamp

3-Lamp

4-Lamp

LOOP=Loop Hanger,

#2 Cable

T5 T8

22

400W MH 400W HPS

24%

45%

25%

8TI5-354T5-EBT2

31%

58%

9%

58%

8TI5-454T5-EBT3

26%

1000W MH 1000W HPS

T5

8TI5

58%

9%

58%

26%

8TI8-432-EB83/PLUS

8TI8

1000W MH 1000W HPS

% light gain/light loss utilize S/P adjusted lumens.

TOGGLE=Single Toggle, #2 Cable

4-15/16"

[126mm]

4-5/8"

[118mm]

11" [280mm]

4-15/16"

[126mm]

X=2-3/4"

[70mm]

XX

11" [280mm]

4-15/16" [126mm]

X=2-11/32"

[60mm]

11" [280mm]

XX X

[280mm]

11/16" [18mm] K.O. for Cable or Pendant Mounting

11"

Access Plate

11/16" [18mm] K.O. for Cable or Pendant Mounting

I5: 46" [1168mm] 92" [2337mm]

I8: 48" [1219mm] 96" [2438mm]

2-3/4" [70mm]

I5/I8 HIGH-BAY INDUSTRIAL LUMINAIRE

Ordering Information Sample Number: 8TI5-254T5-TBW-120V-EBT1-UPL-U

NOTES:

(1)

Requires use of MC or MPC cord accessories, specify voltage for plugs.

(2)

Use with wide distribution optic

only.

(3)

Voltage must be specified when ordered with plugs, motion sensor or emergency ballasts.

(4)

EBT ballast systems

suitable for operation in ambient environments up to 104°F (40°C).

(5)

ER8 and EB8 ballast systems suitable for operation in

ambient environments up to 122°F (50°C) in open uplight configurations.

(6)

Requires use of MC or MPC cord accessories,

specify voltage for plugs.

(7)

For use with Top Connector Box options. See accessories.

(8)

2 lamp ballast configurations only

in T5 UNC versions. 2/3 lamp ballast configurations in EB/PLUS only for T8 UNC.

(9)

EHT ballast systems suitable for ambient

environments not to exceed 149°F (65°C) in open uplight configurations and less lens option.

(10)

TAP option available with

a maximum of two ballasts, including EM battery pack.

(11)

Not for use in gymnasiums or similar recreational facilities.

(12)

When ordering MS option, specify UNV (for 120 or 277V), 347 or 480V.

No. of Lamps 2=2 Lamps 3=3 Lamps 4=4 Lamps

Lamp Type 28T5=28W T5 Std (4') Lamps 32=32W T8 (4') Lamps 49T5=49W T5HO (4') Lamps 51T5=51W T5HO (4') Lamps 54T5=54W T5HO (4') Lamps

Series I5=T5 Industrial I8=T8 Industrial

Length Blank=4' Length 8T=8' Length

Voltage

(3)

UNV=Universal

120/277 Voltage UNC=Universal 347/480 Voltage

(8)

120V=120 Volt 277V=277 Volt 347V=347 Volt 480V=480 Volt

Shielding Options Blank=Open TBW=Thin White Baffle FL=Frosted Acrylic Lens

& Frame

(2)

CL=Clear Acrylic Lens &

Door Frame ASY= Asymmetric Directional Louver

(2)

WG=Heavy Duty

Wireguard

Distribution Optic Blank=Medium (Specular Aluminum) G=Wide (High Reflectance White)

Mounting Arrangement Blank=Stand Alone R=Continuous Row Mount

Options I5 Lamps Installed L5830=T5 Lamp, 85CRI 3000K L5835=T5 Lamp, 85CRI 3500K L5841=T5 Lamp, 85CRI 4100K L5850=T5 Lamp, 85CRI 5000K I8 Lamps Installed L8830=T8 Lamp, 85CRI 3000K L8835=T8 Lamp, 85CRI 3500K L8841=T8 Lamp, 85CRI 4100K L8850=T8 Lamp, 85CRI 5000K

GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed

(3)

(see table on pg. 48)

Options NUA=No Uplight Apertures In Housing

(Cannot be combined w/UPL)

UPL=Uplight Apertures PI/CPI=Plug-In (1, 2 or 3). See pg. 52 TILW=Tandem Inline Wiring MWS=Modular Wiring System MS=360° or 180° Motion Sensor, 120 through

347, or 480V

(12)

MP=Modular Power Receptacle (Used for

all Cord or Cord and Plug options)

(1)

TAP=Top Access Plate

(10)

TCBP=Top Connector Box Plate

(7)

Packaging U=Unit Pack PAL=Palletized

Out of Carton PALC =Palletized In Carton

Ballast Type T5 Systems EBT

=T5 or T5HO Linear Electronic Program Rapid

Start. Total Harmonic Distortion < 10%

(4)

EHT =T5HO Linear Electronic Start High Ambient.

Total Harmonic Distortion < 10%

(8) (9)

No. of Ballast 1, 2 or 3

T8 Systems EB8

=T8 Electronic Instant Start.

(5)

Total Harmonic Distortion < 10%

EB8 /PLUS= T8 Electronic Instant Start.

(5), (8)

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

ER8 =T8 Electronic Program Rapid Start.

(5)

Total Harmonic Distortion < 10%

ER8 /PLUS=T8 Electronic Program Start.

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

DIM=Dimming (ballast must be specified)

No. of Ballast 1, 2 or 3

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

Accessories (order separately) I5/I8-TCB-KIT-NO-PLATE-U=Top Connector Box

(I5/I8 only)

RH-1=Retrofit Hanger FH-1=Fixture Hook FL-1=Fixture Loop SHK=Hook w/ Safety Screw AYC-CHAIN/SET/U=(2) Hooks, 36" Chain Sets w/S-Hooks

(11)

TOGGLE- =Single Toggle, #2 Cable (Specify 10' or 30') LOOP- =Loop Hanger, #2 Cable (Specify 10' or 30') MC6=6' Modular Power Cord MPC6=6' Modular Power Cord & Plug (Specify Voltage) MMS=360° or 180° Aisle Motion Sensor with Modular

Power Receptacle (120-277V)

(1)

Door Frames (for Field Installation) I5-FRM/LENS=Frosted Acrylic Lens & Frame (I5) I8-FRM/LENS PK=Frosted Acrylic Lens & Frame (I8) I5-FRM/CL PK=Clear Acrylic Lens & Frame (I5) I8-FRM/CL PK=Clear Acrylic Lens & Frame (I8) WG/I5-4FT-B=Heavy Duty Wireguard (I5) WG/I8-4FT-B=Heavy Duty Wireguard (I8) 90800PPK=Thin White Blade Baffle (I5) BAFFLE 4FT I8=Thin White Blade Baffle (I8) 90801PPK=Asymmetrical Directional Louver (I5)

23

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

System Performance Tables

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

No. of Ballast 1, 2 or 3

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

I5 System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

I5355 3 5000 93% 94% 1.00 13113 1.90 1.38 18075 182 $3.43 99 I5455 4 5000 93% 93% 1.00 17298 1.90 1.38 23844 240 $3.30 99 8TI5355 6 5000 93% 94% 1.00 26282 1.90 1.38 36227 360 $3.24 101

Comparison System

250W Metal Halide High Bay 1 23000 75% 78% 1.00 15000 1.50 1.22 18371 295 $6.59 49 250W High Pressure Sodium High Bay 1 30000 81% 78% 1.00 18978 0.62 0.79 14944 300 $8.23 39 400W Metal Halide High Bay 1 36000 75% 78% 1.00 21087 1.50 1.22 25826 455 $7.22 44 400W High Pressure Sodium High Bay 1 50000 81% 78% 1.00 31631 0.62 0.79 24906 464 $7.63 42

8TI5 Comparison System

8TI5-454T5 8 5000 93% 94% 1.00 35042 1.90 1.38 48303 480 $3.22 101

Comparison System

1000W Metal Halide High Bay 1 110000 45% 70% 1.00 36083 1.50 1.22 44192 1085 $5.70 56

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

I8 System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

I8-332-EB8/PLUS 3 3100 94% 94% 1.15 9450 1.95 1.40 13196 101 $2.27 131 I8-432-EB8/PLUS 4 3100 94% 94% 1.15 12600 1.95 1.40 17595 147 $2.47 120

Comparison System

250W Metal Halide High Bay 1 23000 75% 78% 1.00 15000 1.50 1.22 18371 295 $6.59 49 250W High Pressure Sodium High Bay 1 30000 81% 78% 1.00 18978 0.62 0.79 14944 300 $8.23 39 400W Metal Halide High Bay 1 36000 75% 78% 1.00 21087 1.50 1.22 25826 455 $7.22 44 400W High Pressure Sodium High Bay 1 50000 81% 78% 1.00 31631 0.62 0.79 24906 464 $7.63 42

8TI8 System Comparison

8TI8-432-EB8/PLUS 8 3100 94% 94% 1.15 25200 1.95 1.40 35190 302 $2.54 117

Comparison System

1000W Metal Halide High Bay 1 110000 45% 70% 1.00 36083 1.50 1.22 44192 1085 $5.70 56

I5-454T5-UNV-EBT2-UPL

(2) Electronic Ballasts (4) 54W T5 lamps 4400 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 0.8 x mounting height Efficiency 92.8% Test Report: I5-454T5-UNV-EBT2-UPL.IES

I5-454T5-TBW-UNV-EBT2-UPL

(2) Electronic Ballasts (4) 54W T5 4400 lumens Spacing criterion: (II) 1.1 x mounting height, (⊥) 0.9 x mounting height Efficiency 81.2% Test Report: I5-454T5-TBW-UNV-EBT2-UPL.IES

I5-354T5-UNV-EBT2-UPL

(2) Electronic Ballasts (3) F54T5/HO/830K lamps 4400 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 0.7 x mounting height Efficiency 98.2% Test Report: I5-354T5-UNV-EBT2-UPL.IES

I5-354T5-TBW-UNV-EBT2-UPL

(2) Electronic Ballasts (3) F54T5/HO lamps 4400 lumens Spacing criterion: (II) 1.0 x mounting height, (⊥) 0.7 x mounting height Efficiency 94.2% Test Report: I5-354T5-TBW-UNV-EBT2-UPL.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

109 109 109 109 100 100 100 94 94 94 101 97 94 91 90 87 85 85 83 81 93 87 81 77 80 76 73 76 73 70 86 78 71 66 72 67 63 69 65 61 80 70 63 57 65 60 55 63 58 54 73 63 55 50 59 53 48 56 51 47 68 57 49 44 54 47 43 51 46 42 63 52 44 39 49 43 38 47 41 37 59 47 40 34 44 38 34 43 37 33 54 43 35 30 40 34 30 39 33 29 51 39 32 27 37 31 27 36 30 26

5508 31.3 33.7

8329 47.3 51.0 12731 72.3 78.0 15217 86.5 93.2 16330 92.8 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

95 95 95 95 87 87 87 82 82 82 88 85 82 80 78 76 74 74 72 71 82 76 71 67 70 67 63 66 64 61 75 68 63 58 63 59 55 60 57 54 70 61 55 50 57 52 48 55 51 47 64 55 49 44 52 46 42 49 45 41 60 50 44 39 47 42 38 45 40 37 56 46 39 35 43 38 34 41 37 33 52 41 35 31 39 34 30 38 33 29 48 38 31 27 36 30 26 34 29 26 45 35 28 24 33 27 24 32 27 23

4945 28.1 34.6 7390 42.0 51.7 11071 62.9 77.5 13159 74.8 92.1 14293 81.2 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

115 115 115 115 105 105105 99 99 99 107 103

100 97 95 92 90 90 88 86 99 92 86 81 85 81 77 81 77 74 91 83 76 70 77 71 67 73 69 65 85 74 67 61 69 63 59 66 61 57 78 67 59 53 63 56 51 60 55 50 73 61 53 47 57 51 46 55 49 45 68 55 48 42 52 46 41 50 45 40 63 50 43 37 48 41 37 46 40 36 58 46 38 33 44 37 33 42 36 32 54 42 35 30 40 34 29 39 33 29

4637 35.1 35.8 6733 51.0

51.9 10058 76.2 77.6 12070 91.4 93.1 12966 98.2 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

110 110 110 110 100 100 100 94 94 94 102 99 95 92 90 88 86 85 83 82 95 88 83 78 81 77 74 77 74 71 88 79 73 68 73 68 64 70 66 62 81 71 64 59 66 61 57 63 59 55 75 64 57 51 60 54 50 58 52 48 70 59 51 46 55 49 44 53 47 43 65 54 46 41 50 44 40 48 43 39 60 49 42 37 46 40 36 44 39 35 56 45 37 33 42 36 32 41 35 31 53 41 34 29 39 33 29 37 32 28

4535 34.4 36.5 6495 49.2 52.3 9563 72.4 76.9 11373 86.2 91.5 12428 94.2 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

110 110 110 110 100 100 100 95 95 95 101 97 93 90 89 86 83 84 82 80 92 85 79 74 78 74 70 74 70 67 85 75 68 62 69 64 59 66 61 57 78 67 59 53 62 56 51 59 54 49 72 60 52 46 56 49 44 53 48 43 66 54 46 41 51 44 39 48 43 38 62 50 42 36 46 40 35 44 39 34 58 45 38 32 43 36 32 42 35 31 54 42 34 29 39 33 29 38 32 28 51 39 32 27 37 30 26 35 30 26

2530 28.1 29.9 3885 43.2 45.9 6299 70.0 74.4 7803 86.7 92.1 8468 94.1 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

107 107 107 107 98 98 98 92 92 92 98 94 90 87 86 83 81 81 79 77 89 82 76 71 75 71 67 71 68 64 81 72 65 59 66 61 56 63 58 54 74 64 56 50 59 53 48 56 51 46 68 57 49 43 53 46 41 50 45 40 63 51 43 37 48 41 36 46 40 35 59 46 39 33 43 37 32 42 36 31 54 42 35 29 40 33 29 38 32 28 51 39 31 26 37 30 26 35 29 25 48 36 29 24 34 28 23 33 27 23

2861 23.8 26.1 4657 38.8 42.6 8121 67.7 74.2 10169 84.7 92.9 10943 91.2 100.0

I8-332-UNV-EB81-UPL

Electronic Ballast F32T8/TL835 Lamps 3000 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.1 x mounting height Efficiency 94.1% Test Report: I8-332-UNV-EB81-UPL.IES

I8-432-UNV-EB81-UPL

Electronic Ballast F32T8-TL835 lamps 3000 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.3 x mounting height Efficiency 91.2% Test Report: I8-432-UNV-EB81-UPL.IES

24

Photometrics

Illuminance Levels (FC) & Watts Per Sq. Ft. (LPD)

Based on 100 ft. x 100 ft. Open Room

I5454

Spacing

15 ft 20 ft 25 ft 30 ft

on Center Qty FC LPD Qty FC LPD Qty FC LPD Qty FC LPD

20 ft 49 51.0 1.17 25 26.2 0.60 16 16.8 0.38 12 12.6 0.28 25 ft 49 48.0 1.17 25 24.2 0.60 16 15.6 0.38 12 11.7 0.28 30 ft 49 45.0 1.17 25 22.8 0.60 16 14.6 0.38 12 11.0 0.28

Mounting

Height

Illuminance Levels (FC) & Watts Per Sq. Ft. (LPD)

Based on 100 ft. x 100 ft. Open Room

I8432GUPL

Spacing

15 ft 20 ft 25 ft 30 ft

on Center Qty FC LPD Qty FC LPD Qty FC LPD Qty FC LPD

20 ft 49 31.0 0.53 25 15.7 0.27 16 10.1 0.17 12 7.5 0.13 25 ft 49 28.0 0.53 25 14.5 0.27 16 9.3 0.17 12 6.9 0.13 30 ft 49 26.0 0.53 25 13.4 0.27 16 8.5 0.17 12 6.4 0.13

Choose the spacing and mounting height to determine the average footcandle and watts per square foot values. All the calculations are based on the published IESNA Zonal Cavity Method and associated algorithms. Results are calculated from manufacturer photometric files.

Illuminance Estimator

Mounting

Height

HBL HIGH-BAY INDUSTRIAL LUMINAIRE

Stiffening brackets add additional strength and rigidity to channel and reflector.

Integral occupancy sensor available and provides from 600 sq. ft. up to 1250 sq. ft. of coverage in a maximum mounting height of 40'.

Thermally optimized F-Bay is suitable for environments up to 149°F (65°C) when used with high temperature environment ballasts. T5 or T8 systems are warranted for ambient environments up to 149°F (65°C) for three years and 131°F (55°C) for five years in open uplight and downlight configurations.

Die formed reflectors are faceted for 4, 6, 8 and 10 lamp configurations with three optical distributions – narrow, medium and wide.

Modular F-Bay Power Supply

Electrostatically applied baked white enamel finish is preceded by a multistage cleaning cycle, iron phosphate coating with rust inhibitor.

1. Modular Power Supply Receptacle supplied

mounted into fixture Access Plate

2. Modular Power Cord & Plugs in 120, 277, 347,

& 480V configurations for easy plug & power into existing supply

Modular Motion Sensor Option supplied with Mounting Box and Modular Power Supply Receptacle

No internal fixture access required for installation or disconnecting power

Code Compliance

• UL/cUL Certified for Make/Break under load (UL2549)

• Meets NEC requirements for ballast disconnect (NEC 410.73G)

• Allows for addition of Occupancy Sensor without hard connections

• Receptacles complete with insulating/dust cap

Cooper Lighting’s F-Bay Modular Power Supply allows external fixture access for safe and easy servicing. There is no need to remove lamps or reflectors to disconnect fixture power with F-Bay Modular Power Supply. Access to the individual fixture’s power supply allows servicing without turning off all the fixtures disrupting occupants. F-Bay Modular Power Supply is a time saver in installation –

simply plug & power.

12

25

Optional uplight apertures (approximately 7% uplight).

Factory installed code compliant disconnect for safe and convenient means of disconnecting power.

Cooper Lighting’s modular power receptacle meets UL2459 and NEC

410.73 and is UL/cUL rated for make and break under load from outside the luminaire to speed maintenance.

Heavy duty stock wireguard (Ideal for gymnasium applications).

Shielding Options

T8

40'

30'

20'

10'

Energy

Savings

System Performance

% Light

Gain/Loss

Mounting

Height

Part

Number

50%

35%

51%

25%

51%

24%

52%

6%

72%

-18%

73%

4%

250W MH 250W HPS

HBL-T8

HBL-432-N-UPL HBL-632-N-

UPL

HBL-832-N-

UPL

26

% light gain/light loss utilize S/P adjusted lumens.

400W MH 400W HPS

1000W MH 1000W HPS

T5

21%

48%

22%

40%

24%

46%

25%

33%

58%

18%

58%

33%

250W MH 250W HPS

HBL-454T5-N-

UPL

HBL-654T5-N-

UPL

HBL-854T5-N-UPL

400W MH 400W HPS

1000W MH 1000W HPS

Wireguard swings open for easy lamp maintenance.

HBL-T5

To optimize luminaire performance, HBL series offers a variety of lamp and shielding options. Use the Thermal Optimization chart to determine the options that are appropriate for the ambient environments in which they will be installed.

Vented

w/Uplight

Operating at approximately 90% or above of rated output

Unvented

wo/Uplight

Vente d

w/Uplight

Unvented

wo/Uplight

Vented

w/Uplight

T8

T5HO AmalgamT5HO

65.6°C/150°F

57.2°C/135°F

48.9°C/120°F

40.6°C/105°F

32.2°C/90°F

23.9°C/75°F

15.6°C/60°F

7.2°C/45°F

-1°C/30°F

-9.4°C/15°F

-17.8°C/0°F

-15°F

Thermal Optimization

FH-1=Fixture Hook 2-1/2"

(must be used with HBL-SPM)

Mounting Accessories

HBAYC=New Mounting Chain Set

w/V-Hook Hangers (ideal for gymnasium applications)

HBL-SPM=Single Monopoint Hanger w/Hub (Galvanized)

FL-1=Fixture Loop 2-1/2" (must be used with HBL-SPM)

RH-1=Retrofit Hanger (must be used with HBL-SPM)

Y=Mounting Toggle and 10' or 25' cable

HBL T8 HIGH-BAY INDUSTRIAL LUMINAIRE

Ballast Type T8 Systems

(4)

Blank=(1) or (2) 120/277V T8 Instant

Start Electronic, 1.15 BF PS=(1) or (2) 120/277V T8 Electronic Program Rapid Start, 1.15 BF

(7)

Ordering Information Sample Number: HBL-632-N-UNV-EB82-UPL-U Includes V Hangers for rapid installation

(6)

Quick Ship Ordering Information Sample Number: HBL432-MP-UPL-L5

Quick Ship orders ship in 5 days in order quantities not to exceed 200 pieces.

NOTE: Orders received after noon are entered on the following day.

19-17/32" [496mm]

48-7/16" [1230mm]

Dimensions

HBL Lamp Configurations

Dimensions for Top View

4-Lamp

27

No. of Lamps 4=4 Lamps 6=6 Lamps

Lamp Type 32=32W T8

Lamps (48")

Family HBL

Power Receptacle MP=Modular Power

Receptacle

(8)

Uplight Blank=No Uplight UPL=Uplight

NOTES:

(7)

Recommended when using motion sensor options.

(8)

Requires use of Modular cord and plug accessories.

(9)

L5HL (3000 initial) 5000K T8 lamps installed.

Lamping Blank=No Lamps L4=Lamps Installed 85+CRI 4100K L5=Lamps Installed 85+CRI 5000K L5HL=Lamps Installed 85+CRI 5000K,

High Lumen

(9)

No. of Lamps 4=4 Lamps 6=6 Lamps 8=8 Lamps 10=10 Lamps

Lamp Type 32=32W T8 Lamp (48" Long)

Series HBL=Linear High Bay

Width Blank=20" wide

4 & 6 Lamp (nominal)

26" wide 8 & 10 Lamp (nominal)

Voltage

(1)

UNV=Universal 120/277 Voltage UNC=Universal 347/480 Voltage

(EB8/PLUS only)

120V=120 Volt 277V=277 Volt 347V=347 Volt

Distribution N=Narrow Beam (Standard) M=Medium Beam W=Wide Beam

Options UPL=Uplight Apertures on Reflector MP=Modular Power Receptacle

(Used for all Cord or Cord and Plug options)

(2)

MWS=Modular Wiring System

(3)

MS=360° or 180° Motion Sensor installed

(120V through 347V, or 480V)

(1)

Packaging U=Unit Pack PALC =Palletized

In Carton

Options Lamps Installed L8835=T8 Lamp, 85CRI 3500K L8841=T8 Lamp, 85CRI 4100K L8850=T8 Lamp, 85CRI 5000K HL=Add HL at end of lamp for high

lumen lamps, T8 only

GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed

NOTES:

(1)

Voltage must be specified when ordered with plugs or emergency ballasts. For MS option, indicate UNV (for 120V

or 277V), 347V or 480V.

(2)

Requires use of MC or MPC cord accessories, specify voltage for plugs.

(3)

Cannot be combined

with Modular Power Receptacle (MP). For MWS with MP, choose MP in fixture logic and then choose MWS.

(4)

T8 ballast

systems suitable for operation in ambient environments up 131°F (55°C) in uplight configuration.

(5)

Recommended when

using motion sensor options.

(6)

Can be used in high abuse applications such as gymnasiums.

Accessories (order separately) HBL-SPM=Single Monopoint Hanger w/Hub RH-1=Retrofit Hanger FH-1=Fixture Hook FL-1=Fixture Loop Y-TOGGLE=Y Mounting Toggle, #2 Cable (Specify 10' or 30') HBAYC-CHAIN/SET/U=(2) V-Hook Hanger, 36" Chain Sets

w/S-Hooks

MC3=3' Modular Power Cord MPC3=3' Modular Power Cord & Plug (Specify Voltage) MC6=6' Modular Power Cord MPC6=6' Modular Power Cord & Plug (Specify Voltage) MMS=360° or 180° Aisle Motion Sensor with Modular

Power Receptacle (120-277V)

(2)

WG/HBL6-4FT-B=4/6 Lamp Wireguard w/Clips WG/HBL8-4FT-B=8 Lamp Wireguard w/Clips

Ballast Type

(4)

T8 Systems EB8

=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

EB8

/PLUS=T8 Electronic Instant Start.

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

ER8

=T8 Electronic Program Rapid Start.

(5)

Total Harmonic Distortion < 10%

ER8

/PLUS=T8 Electronic Program Start.

(5)

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

6-Lamp

8-Lamp

25-1/4"

[641mm]

48-7/16" [1230mm]

20-11/32" [517mm] 24-19/32" [625mm]

4/6 Lamp

8/10 Lamp

10-Lamp

Includes V Hangers for rapid installation

(6)

Distribution Blank=Narrow Beam W=Wide Beam

2-15/32" [63mm]

19-17/32" [496mm]

2-15/32" [63mm]

25-1/4" [641mm]

2-15/32" [63mm]

25-1/4" [641mm]

Photometrics

28

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

HBL T8 System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

HBL-432-W-UPL 4 3100 94% 90% 1.15 12064 1.72 1.53 18416 147 $2.47 125 HBL-632-N-UPL 6 3100 94% 96% 1.15 18900 1.95 1.40 26393 221 $2.79 119 HBL-832-N-UPL 8 3100 94% 95% 1.15 24128 1.95 1.40 33693 302 $3.02 111

Comparison System

250W Metal Halide High Bay 1 23000 75% 78% 1.00 15000 1.50 1.22 18371 295 $6.59 49 250W High Pressure Sodium High Bay 1 30000 81% 78% 1.00 18978 0.67 0.73 13887 300 $8.85 36 400W Metal Halide High Bay 1 36000 75% 78% 1.00 21087 1.50 1.22 25826 455 $7.22 44 400W High Pressure Sodium High Bay 1 50000 81% 78% 1.00 31631 0.62 0.79 24906 464 $7.63 42 1000W Metal Halide High Bay 1 110000 45% 70% 1.00 36083 1.50 1.22 44192 1085 $5.70 56 1000W High Pressure Sodium High Bay 1 130000 45% 70% 1.00 40950 0.62 0.79 32244 1100 $1560 21

HBL-632-N-UPL Narrow Distribution

(2) Electronic Plus Ballasts (6) F32T8 32W T8 lamps 3100 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.0 x mounting height Efficiency 95.9% Test Report: HBL632NUPL

HBL-632-W-UPL Wide Distribution

(2) Electronic Plus Ballasts (6) F32T8 32W lamps 3100 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.3 x mounting height Efficiency 90.5% Test Report: HBL632WUPL.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

113 113 113 113 104 104 104 99 99 99 103 98 93 89 90 87 84 86 83 81 93 85 78 72 78 73 69 75 70 66 85 74 66 60 69 62 57 66 60 56 77 66 57 50 61 54 49 58 52 47 71 58 50 43 55 47 42 52 46 41 66 53 44 38 49 42 37 47 41 36 61 48 39 33 45 38 33 43 37 32 57 44 35 30 41 34 29 40 33 29 53 40 32 27 38 31 26 37 30 26 50 37 29 24 35 28 24 34 28 24

4562 24.5 25.6

7330 39.4 41.1 12827 69.0 71.9 17094 91.9 95.8 17837 95.9 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

106 106 106 106 97 97 97 91 91 91 96 91 87 83 83 80 77 78 76 73 86 78 72 66 72 67 62 68 63 60 78 68 60 54 62 56 51 59 54 50 71 60 52 45 55 49 43 52 47 42 65 53 45 39 49 42 37 47 41 36 60 48 40 34 44 37 32 42 36 31 56 43 35 29 40 33 28 38 32 28 52 39 31 26 37 30 25 35 29 25 48 36 28 23 34 27 23 32 26 22 45 33 26 21 31 25 20 30 24 20

3714 20.0 22.1

6154 33.1 36.6 11290 60.7 67.1 15508 83.4 92.1 16834 90.5 100.0

HBL-832-M-UPL Medium Distribution

(2) Electronic Ballasts (8) F32T8 32W lamps 3100 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.5 x mounting height Efficiency 96.5% Test Report: HBL832MUPL.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

113 113 113 113 104 104 104 98 98 98 103 98 93 89 89 86 83 84 82 79 93 84 77 71 77 72 67 73 69 65 84 73 65 59 68 61 56 64 59 54 77 65 56 49 60 53 47 57 51 46 70 58 49 42 53 46 40 51 44 39 65 52 43 36 48 41 35 46 39 34 60 47 38 32 43 36 31 41 35 30 56 42 34 28 40 32 27 38 31 27 52 39 31 25 36 29 25 35 29 24 49 36 28 23 33 27 22 32 26 22

5330 21.5 22.3

9071 36.6 37.9 16597 66.9 69.3 22265 89.9 93.0 23941 96.5 100.0

HBL-832-N-UPL Narrow Distribution

(2) Electronic Ballasts (8) F32T8 32W lamps 3100 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.0 x mounting height Efficiency 95.0% Test Report: HBL832NUPL.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

112 112 112 112 102 102 102 97 97 97 101 96 92 88 88 85 82 84 81 79 92 83 77 71 77 71 67 73 68 65 83 73 65 59 67 61 56 64 59 54 76 65 56 50 60 53 48 57 51 46 70 58 49 43 54 46 41 51 45 40 65 52 43 37 48 41 36 46 40 35 60 47 39 33 44 37 32 42 36 31 56 43 35 29 40 33 29 39 33 28 52 40 32 26 37 30 26 36 30 25 49 37 29 24 34 28 23 33 27 23

6045 24.4 25.7

9501 38.3 40.4 16429 66.2 69.7 22053 88.9 93.6 23561 95.0 100.0

Illuminance Levels (FC) & Watts Per Sq. Ft. (LPD)

Based on 100 ft. x 100 ft. Open Room

HBL632NUPL

Spacing

15 ft 20 ft 25 ft 30 ft

on Center Qty FC LPD Qty FC LPD Qty FC LPD Qty FC LPD

20 ft 49 68.0 1.08 25 34.8 0.55 16 22.3 0.35 12 16.7 0.26 25 ft 49 63.0 1.08 25 32.1 0.55 16 20.5 0.35 12 15.4 0.26 30 ft 49 58.0 1.08 25 29.7 0.55 16 19.0 0.35 12 14.2 0.26

Illuminance Estimator

Choose the spacing and mounting height to determine the average footcandle and watts per square foot values. All the calculations are based on the published IESNA Zonal Cavity Method and associated algorithms. Results are calculated from manufacturer photometric files.

Mounting

Height

HBL T5 HIGH-BAY INDUSTRIAL LUMINAIRE

Ordering Information Sample Number: HBL-654T5-N-UNV-EBT2-UPL-U Includes V Hangers for rapid installation

(7)

29

Ballast Type

(3), (6)

T5 Systems EBT

=T5 Linear Electronic Program

Rapid Start.

(2)

Total Harmonic Distortion < 10%

EHT

=T5 Linear Electronic Program Start

High Ambient.

(2), (3)

Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

No. of Lamps 4=4 Lamps 6=6 Lamps 8=8 Lamps 10=10 Lamps

Lamp Type 49T5=49W T5HO (4') Lamps 51T5=51W T5HO (4') Lamps 54T5=54W T5HO Lamp (48" Long)

Series HBL=Linear High Bay

Width Blank=20" wide

4 & 6 Lamp (nominal)

26" wide 8 & 10 Lamp (nominal)

Voltage

(1)

UNV=Universal 120/277 Voltage UNC=Universal

347/480 Voltage

120V=120 Volt 277V=277 Volt 347V=347 Volt

Distribution N=Narrow Beam (Standard) M=Medium Beam W=Wide Beam

Options UPL=Uplight Apertures on Reflector MP=Modular Power Receptacle

(Used for all Cord or Cord and Plug options)

(4)

MWS=Modular Wiring System

(5)

MS=360° or 180° Motion Sensor installed

(120V through 347V or 480V)

(1)

Packaging U=Unit Pack PALC =Palletized

In Carton

Options Lamps Installed L8535=T5HO Lamp, 85CRI 3500K L8541=T5HO Lamp, 85CRI 4100K L8550=T5HO Lamp, 85CRI 5000K

GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed

NOTES:

(1)

Voltage must be specified when or dered with plugs or emergency ballasts. For MS option,

indicate UNV (for 120V or 277V), 347V or 480V.

(2)

EBT ballast systems suitable for operation in

ambient environments up to 104°F (40°C) in uplight configuration.

(3)

EHT/HT5/HCT5 ballast systems

are suitable for ambient environments not to exceed 149°F (65°C) in uplight configurations.

(4)

Requires use of MC or MPC cord accessories, specify voltage for plugs.

(5)

Cannot be combined with Modular Power Receptacle (MP). For MWS with MP, choose MP in fixture logic and then choose MWS.

(6)

Recommended when using motion sensor options or accessories.

(7)

Can be used in

high abuse applications such as gymnasiums.

Accessories (order separately) HBL-SPM=Single Monopoint Hanger w/Hub RH-1=Retrofit Hanger FH-1=Fixture Hook FL-1=Fixture Loop Y-TOGGLE=Y Mounting Toggle, #2 Cable (Specify 10' or 30') HBAYC-CHAIN/SET/U=(2) V-Hook Hanger, 36" Chain Sets

w/S-Hooks

MC3=3' Modular Power Cord MPC3=3' Modular Power Cord & Plug (Specify Voltage) MC6=6' Modular Power Cord MPC6=6' Modular Power Cord & Plug (Specify Voltage) MMS=360° or 180° Aisle Motion Sensor with Modular

Power Receptacle (120-277V)

(4)

WG/HBL6-4FT-B=4/6 Lamp Wireguard w/Clips WG/HBL8-4FT-B=8 Lamp Wireguard w/Clips

19-17/32" [496mm]

48-7/16" [1230mm]

Dimensions

HBL Lamp Configurations

Dimensions for Top View

25-1/4"

[641mm]

48-7/16" [1230mm]

20-11/32" [517mm] 24-19/32" [625mm]

4 & 6 Lamp

8 & 10 Lamp

Ballast Type T5HO Systems T5=(2) 120/277V 4/2 Lamp T5

Electronic Program Rapid Start

(8)

HT5=(2) 120/277V 4/2 Lamp T5 High

Ambient Electronic Program Rapid Start

(9)

Quick Ship Ordering Information Sample Number: HBL454T5-MP-UPL-L5

Quick Ship orders ship in 5 days in order quantities not to exceed 200 pieces.

NOTE: Orders received after noon are entered on the following day.

No. of Lamps 4=4 Lamps 6=6 Lamps

Lamp Type 51=51W T5HO Lamps (48") 54=54W T5HO Lamps (48")

Family HBL

Power Receptacle MP=Modular Power

Receptacle

(10)

Uplight Blank=No Uplight UPL=Uplight

NOTES:

(8)

T5 ballast systems suitable for operation in ambient environments up to 104°F (40°C) in uplight configuration.

(9)

EHT/HT5/HCT5 ballast systems are suitable for ambient environments not

to exceed 149°F (65°C) in uplight configurations.

(10)

Requires use of MC or MPC cord accessories, specify voltage for plugs.

(11)

For Quick Ship, lamping option only available w/54W lamp type.

Lamping Blank=No Lamps L4=Lamps Installed 85+CRI 4100K

(11)

L5=Lamps Installed 85+CRI 5000K

(11)

L5ES=Energy Savings Lamps Installed

85+CRI 5000K

4-Lamp

6-Lamp

8-Lamp

10-Lamp

Includes V Hangers for rapid installation

(7)

Distribution Blank=Narrow Beam W=Wide Beam

2-15/32" [63mm]

19-17/32" [496mm]

2-15/32" [63mm]

25-1/4" [641mm]

2-15/32" [63mm]

25-1/4" [641mm]

Photometrics

30

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

HBL T8 System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

HBL-454T5-N-UPL 4 5000 93% 95% 1.00 17670 1.72 1.31 23174 240 $3.39 96 HBL-654T5-N-UPL 6 5000 93% 97% 1.00 27063 1.90 1.38 37304 360 $3.06 103 HBL-854T5-N-UPL 8 5000 93% 94% 1.00 34968 1.90 1.38 48200 480 $3.23 100

Comparison System

250W Metal Halide High Bay 1 23000 75% 78% 1.00 15000 1.50 1.22 18371 295 $6.59 49 250W High Pressure Sodium High Bay 1 30000 81% 78% 1.00 18978 0.67 0.73 13887 300 $8.85 36 400W Metal Halide High Bay 1 36000 75% 78% 1.00 21087 1.50 1.22 25826 455 $7.22 44 400W High Pressure Sodium High Bay 1 50000 81% 78% 1.00 31631 0.62 0.79 24906 464 $7.63 42 1000W Metal Halide High Bay 1 110000 45% 70% 1.00 36083 1.50 1.22 44192 1085 $5.70 56 1000W High Pressure Sodium High Bay 1 130000 45% 70% 1.00 40950 0.62 0.79 32244 1100 $1560 21

HBL-654T5-N-UPL Narrow Distribution

(2) Electronic Ballasts (6) F54T5 54W lamps 4400 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 0.9 x mounting height Efficiency 97.0% Test Report: HBL654NUPL.IES

HBL-654T5-W-UPL Wide Distribution

(2) Electronic Ballasts (6) F54T5 54W lamps 4400 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.3 x mounting height Efficiency 93.3% Test Report: HBL654WUPL.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

114 114 114 114 103 103 103 97 97 97 104 99 95 92 91 88 85 86 83 81 95 87 80 75 80 75 71 75 71 68 86 77 69 63 70 64 60 67 62 58 79 68 60 54 63 56 51 60 54 50 73 61 53 46 57 50 45 54 48 43 68 55 47 41 51 44 39 49 43 38 63 50 42 36 47 40 35 45 39 34 59 46 38 33 43 36 32 41 35 31 55 42 35 29 40 33 29 38 32 28 52 39 32 27 37 31 26 36 30 26

7354 27.9 28.7 11251 42.6 43.9 18573 70.4 72.5 23479 88.9 91.6 25621 97.0 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

109 109 109 109 98 98 98 92 92 92 99 94 90 86 85 82 79 80 77 75 89 81 74 69 74 69 64 69 65 61 81 71 63 57 64 58 53 60 55 51 74 62 54 47 57 50 45 53 48 43 68 55 47 40 51 44 38 48 42 37 62 50 41 35 46 39 33 43 37 32 58 45 37 31 41 34 29 39 33 29 54 41 33 27 38 31 26 36 30 25 50 37 30 24 35 28 23 33 27 23 47 34 27 22 32 26 21 30 25 21

5401 20.5 21.9

8947 33.9 36.3 16453 62.3 66.8 22065 83.6 89.6 24626 93.3 100.0

HBL-854T5-N-UPL Narrow Distribution

(2) Electronic Ballasts (8) F54T5 54W lamps 4400 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.2 x mounting height Efficiency 94.0% Test Report: HBL854NUPL.IES

HBL-854T5-M-UPL Medium Distribution

(2) Electronic Ballasts (8) F54T5 54W lamps 4400 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.7 x mounting height Efficiency 94.1% Test Report: HBL854MUPL.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

110 110 110 110 101 101 101 95 95 95 100 95 91 87 87 84 82 83 80 78 91 83 76 71 76 71 67 72 68 64 83 73 65 59 67 61 56 64 59 54 76 65 56 50 60 53 48 57 51 46 70 58 49 43 54 47 41 51 45 40 65 52 44 38 48 42 36 46 40 36 60 47 39 33 44 37 32 42 36 32 56 43 35 30 41 34 29 39 33 28 52 40 32 27 37 31 26 36 30 26 49 37 29 24 35 28 24 33 27 23

8780 24.9 26.5 13886 39.4 42.0 23440 66.6 70.8 30822 87.6 93.1 33096 94.0 100.0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

110 110 110 110 101 101 101 95 95 95 100 95 91 87 87 83 81 82 79 77 90 82 75 69 75 70 65 71 66 63 82 71 63 57 65 59 54 62 56 52 74 63 54 47 57 51 45 54 49 44 68 56 47 40 51 44 39 49 42 37 63 50 41 35 46 39 33 44 37 33 58 45 36 30 42 34 29 40 33 29 54 41 32 27 38 31 26 36 30 25 50 37 29 24 35 28 23 33 27 23 47 34 26 21 32 25 21 31 25 20

6859 19.5 20.7 12020 34.1 36.3 22731 64.6 68.6 30614 87.0 92.4 33127 94.1 100.0

Illuminance Estimator

Choose the spacing and mounting height to determine the average footcandle and watts per square foot values. All the calculations are based on the published IESNA Zonal Cavity Method and associated algorithms. Results are calculated from manufacturer photometric files.

Illuminance Levels (FC) & Watts Per Sq. Ft. (LPD)

Based on 100 ft. x 100 ft. Open Room

HBL654NUPL

Spacing

15 ft 20 ft 25 ft 30 ft

on Center Qty FC LPD Qty FC LPD Qty FC LPD Qty FC LPD

20 ft 49 83.0 1.76 25 42.2 0.90 16 27.0 0.57 12 20.2 0.43 25 ft 49 77.0 1.76 25 39.1 0.90 16 25.0 0.57 12 18.8 0.43 30 ft 49 71.0 1.76 25 36.3 0.90 16 23.2 0.57 12 17.4 0.43

Mounting

Height

31

Optional pre-wired factory installed multiple circuit plug-in connectors.

Plug-In Connectors

MBF Ordering Information Sample Number (T5): MBF-154T5-FB-UNV-EBT1-U (T8): MBF-132-NB-UNV-EB81-U

Dimensions

Dimensions for Top View

4'

T8 Lamp Configurations

MBF MICRO-BAY LUMINAIRE

T5 Lamp Configurations

Normal Beam, 1 T8 Lamp

Focus Beam, 1 T8 Lamp

Normal Beam, 2 T8 Lamps

Focus Beam, 1 T5 Lamp

Normal Beam, 1 T5 Lamp

Focus Beam, 2 T5 Lamps

9-5/8" [245mm]

X

X=4-1/4" [108mm]

1-1/8"

[29mm]

4-1/16"

[104mm]

2-9/16"

[66mm]

Normal Beam, 2 T5 Lamps

Focus Beam, 2 T8 Lamps

Task Beam, 1 T5 Lamp

Number of Lamps

(Not included)

1=1 Lamp 2=2 Lamps

Lamp Types 32=32W T8 (48") 49T5=49W T5HO (48") 51T5=51W T5HO (48") 54T5=54W T5HO (48")

Voltage UNV=Universal 120-277 Voltage UNC=Universal 347/480 Voltage

Options GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed (see table on pg. 48)

(2)

Tandem Blank=

4' Length 8T= 8' Length

Series MBF=Micro-Bay

Ballast Type

(1)

T5 Systems EBT

=T5 Linear Electronic Program Rapid

Start. Total Harmonic Distortion < 10%

EHT

=T5 Linear Electronic Program Rapid

Start High Ambient. Total Harmonic Distortion < 10%

(4)

T8 Systems EB8

=T8 Electronic Instant Start.

(5)

Total Harmonic Distortion < 10%

EB8 /PLUS=T8 Electronic Instant Start.

(5)

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

ER8

=T8 Electronic Program Rapid Start.

(5)

Total Harmonic Distortion < 10%

ER8

/PLUS=T8 Electronic Program Start.

(5)

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

DIM=Dimming (ballast must be specified)

No. of Ballast 1 or 2

Options PI/CPI=Plug-In (1, 2 or 3) See pg. 52 C3=3' Power Cord C6=6' Power Cord PC3-=3' Power Cord & Plug (Specify Voltage)

(3)

PC6-=6' Power Cord & Plug (Specify Voltage)

(3)

Packaging U=Unit Pack

Reflector FB=Focus Beam TB=Task Beam (Medium -1 lamp only) NB=Normal Beam

No. of Ballast 1 or 2

Accessories (order separately) AYC-CHAIN/SET/U=(2) Hooks, 36" Chain Sets w/S-Hooks Y-TOGGLE=Y Mounting Toggle, #2 Cable (Specify 10' or 30')

(7)

TOGGLE- =Single Toggle, #2 Cable (Specify 10' or 30') SSF-EXT-LONG-CONN-KIT-U=Rigid Connector Support for

Continuous Channel Installation MB-SENSOR-KIT-CTR/MT-U=Aisle Coverage Motion Sensor, Center Mount Hardware, 120/277V

(3), (6)

MB-SENSOR-KIT-END/MT-U=Aisle Coverage Motion

Sensor, End Mount Hardware, 120/277V

(3), (6)

MB-SENSOR-KIT-CTR/480V-U=Aisle Coverage Motion

Sensor, Center Mount Hardware, 480V MB-SENSOR-KIT-END/480V-U=Aisle Coverage Motion Sensor, End Mount Hardware, 480V ATG-SSF-4-U=Tong Hanger

No. of Ballast 1 or 2

NOTES:

(1)

Products also available in non-US voltages and frequencies for

international markets.

(2)

Voltage to be specified with emergency ballast

option.

(3)

Voltage must be specified when ordered with plugs, motion sensor

or emergency ballasts.

(4)

2 lamp ballast configurations only in UNC versions.

(5)

ER8 and EB8 ballast systems suitable for operation in ambient

environments up to 50°C.

(6)

Must ship separately.

(7)

Use with continuous

row mount at fixture joint only.

No. of Ballast 1 or 2

Specular reflectors for precise light control minimum 95% total reflectivity. Three optical distribution patterns are available:

Focus - SC < .5 Task - .5 < SC ≤ .9 Normal - .9 < SC ≤ 1.2

Integral occupancy sensor available and provides from 600 sq. ft. up to 1250 sq. ft. of coverage in a max. mounting height of 40'.

Suspension is convenient and flexible in continuous row mounted fixtures with the SS Aircraft Cable “Y” Toggle Mounting Kits. Adjustment for luminaire mounting height is provided at luminaire rather than structure.

Rigid Exterior Connector

Rigid exterior connector/ coupling with pre-punched holes facilitates easy installation of sections up to 32' long. (order separately)

Factory installed code compliant disconnect for safe and convenient means of disconnecting power.

8-1/4" [210mm]

X

X=4-1/4" [108mm]

1-3/32"

[28mm]

5-3/8"

[137mm]

Task Beam, 1 T8 Lamp

Cable Mounting Kit

Y=5"

[127mm]

[108mm]

4-1/4"

X=3-1/2"

[89mm]

Y

11/16" x 1" KO (2 Places)

Ceiling Stand-Off Embossments

2" [51mm] KO

Ground Screw

X

7/8" [22mm] K.O. (3)

Hole for Toggle

3-1/4" [83mm]

48" [1220mm]

[80mm]

5-3/8"

[137mm]

X=4-1/4" [108mm]

5-5/8"

[144mm]

X=4-1/4" [108mm]

4-9/16"

[116mm]

X=4-1/4" [108mm]

5-3/8"

[137mm]

X=4-1/4"

[108mm]

3-1/8"

X=4-1/4" [108mm]

X

4-7/16"

[113mm]

X

8-9/32" [211mm]

X

7-11/32" [187mm]

X

2-9/16"

[66mm]

8-9/16" [218mm]

X

8-17/32" [217mm]

1-1/8"

[29mm]

1-1/8"

[29mm]

1-1/8"

[29mm]

1-1/8"

[29mm]

1-3/32"

[28mm]

5-9/16"

[142mm]

X=4-1/4" [108mm]

4-1/16"

[104mm]

X=4-1/4" [108mm]

4-9/16"

[116mm]

X=4-1/4"

[108mm]

X

7-1/2" [191mm]

X

2-9/16"

[66mm]

9-5/8" [245mm]

X

2-9/16"

[66mm]

8-9/16" [218mm]

1-3/32"

[28mm]

1-3/32" [28mm]

1-3/32"

[28mm]

32

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

119 119 119 119 111 111 111 106 106 106 109 105 101 97 99 96 93 95 92 90 100 92 86 81 87 82 78 84 80 76 92 82 74 68 77 71 66 75 70 65 85 73 65 59 70 63 57 67 61 57 78 66 58 51 63 56 50 61 55 50 73 60 52 45 57 50 45 56 49 44 68 55 47 41 53 45 40 51 45 40 63 51 42 37 49 42 36 47 41 36 60 47 39 34 45 38 33 44 38 33 56 43 36 31 42 35 31 41 35 30

2140 34.5 34.5 3197 51.6 51.6 5048 81.4 81.5 6194 99.9 100.0 6194 99.9 100.0

MBF-232-FB-UNV-EB81-U

Electronic Ballast (2) 32W T8 lamps 3100 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 0.7 x mounting height Efficiency 99.9% Test Report: MBF-232FB.IES

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

Photometrics

System Performance

Energy

Savings

% Light

Gain/Loss

Part

Number

56%

38%

61%

MBF-232-FB-EB81

37%

48%

23%

55%

MBF-154T5-FB-EBT1

22%

MBF

T5T8

56%

38%

61%

8TMBF-232-FB-EB81

37%

T8

8TMBF

2 LAMP T12 1 LAMP T12

HO

2 LAMP T12

Illuminance Levels (FC) & Watts Per Sq. Ft. (LPD)

Based on 120 ft. x 10 ft. Aisle

Micro-Bay

Illuminance Estimator

Choose the spacing and mounting height to determine the average footcandle and watts per square foot values. All the calculations are based on the published IESNA Zonal Cavity Method and associated algorithms. Results are calculated from manufacturer photometric files.

1 LAMP T12

HO

1 LAMP T12

HO

2 LAMP T12

% light gain/light loss utilize S/P adjusted lumens.

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

MBF System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

MBF-232-FB-EB81 2 3100 94% 99% 1.00 5770 1.95 1.40 8057 56 $2.25 143 MBF-154-FB-UNV-EBT1 1 5000 93% 98% 1.00 4543 1.90 1.38 6262 46 $3.40 136 8TMBF-232-FB-EB81 2 3100 94% 99% 1.00 11540 1.95 1.40 16114 148 $2.25 109

Comparison System

(2) 34W T12 Strip 2 2750 88% 90% 0.90 3920 1.50 1.22 4801 126 $10.37 31 (1) 96" T12HO Strip 1 8630 58% 90% 0.88 3964 1.50 1.22 4855 145 $12.07 27

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

0-30 0-40 0-60 0-90 0-180

117 117 117 117 109 109 109 105 105 105 108 104 101 97 98 95 93 94 92 90 100 92 86 81 87 82 78 84 80 77 91 82 75 69 78 72 67 75 70 66 84 73 65 59 70 63 58 67 62 57 78 66 58 52 63 56 51 61 55 50 72 60 51 46 57 55 45 56 49 45 67 54 46 41 52 45 40 51 45 40 63 50 42 36 48 41 36 47 41 36 59 46 38 33 44 38 33 43 37 33 55 43 35 30 41 35 30 40 34 30

2057 33.2 33.7 3252 52.4 53.3 5224 84.3 85.6 6100 98.4 100.0 6100 98.4 100.0

MBF-232-NB-UNV-EB81-U

Electronic Ballast (2) 32W T8 lamps 3100 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.1 x mounting height Efficiency 98.4% Test Report: MBF-232NB.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

119 119 119 119 111 111 111 106 106 106 111 108 104 101 101 99 97 97 95 94 103 97 91 87 92 88 84 89 85 82 96 88 81 76 83 78 74 81 76 73 89 80 72 67 76 70 65 73 69 65 83 73 65 60 70 63 59 68 62 58 78 67 59 54 64 58 53 63 57 53 73 61 54 49 59 53 48 58 52 48 69 57 50 44 55 49 44 54 48 44 65 53 46 41 51 45 41 50 45 40 61 49 42 38 48 42 38 47 41 37

2004 44.5 45.6

2847 64.7 64.8

4032 91.6 91.8

4394 99.9 100.0

MBF-154T5-TB-UNV-EBT1-U

Electronic Ballast (1) 54W T5HO Lamp 4400 lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 0.8 x mounting height Efficiency 99.9% Test Report: MBF-154T5TB.IES

20 ft 25 ft 30 ft

Qty FC LPD Qty FC LPD Qty FC LPD MBF-132-FB 20 15.7 0.58 23 15.2 0.67 27 15.3 0.78 MBF-154-FB 13 16.0 0.66 15 15.5 0.76 17 15.1 0.86 MBF-232-FB 22 30.5 1.00 27 30.8 1.23 32 31.0 1.46 MBF-254-FB 14 32.0 1.40 16 30.4 1.60 19 30.8 1.90

Catalog Number

||

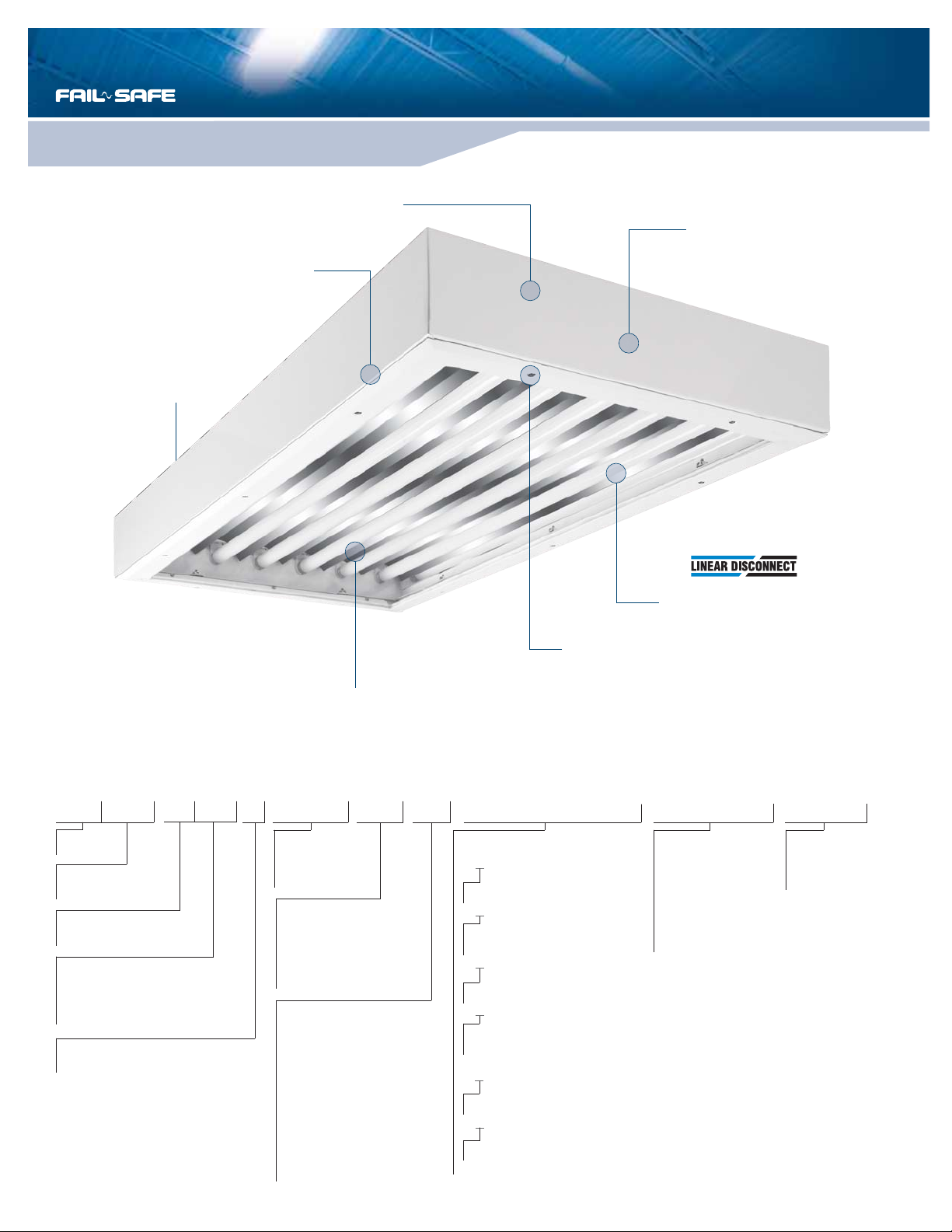

Nominal 6-5/8" deep, para-contoured housing, die formed 20 gauge cold rolled steel.

End plates have integral Grid-Lock feature for safety and convenience. Housing features enable fixture to be converted from Grid to T-Option or vice-versa in the field.

Pressure lock lampholders.

Die formed reflectors are faceted for 4 and 6 lamp configurations with two optical distributions – medium and wide. Medium beam optical modules utilize 95% specular aluminum substrate while the wide distribution utilizes a high performance 92% reflective polyester powder coated finish.

Heavy gauge end plates, securely attached with interlocking tabs and screws.

Recessed mount for in standard grid/lay-in, concealed T, and slot grid ceilings. Flange trim with supporting swing gates conceal the edges of the ceiling opening.

Ordering Information Sample Number: 2HBG-654T5-A-UNV-EBT2-U

Ballast Type T8 Systems EB8

=T8 Electronic Instant Start.

(2)

Total Harmonic Distortion < 10%

EB8 /PLUS=T8 Electronic Instant Start.

(2)

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

ER8

=T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

(2)

ER8 /PLUS=T8 Electronic Program Start. High Ballast Factor >1.15.

(2)

Total Harmonic Distortion < 10%

T5 Systems EBT

=T5 or T5HO Linear Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

No. of Ballast 1 or 2

NOTES:

(1)

Voltage must be specified when ordered with emergency ballasts.

(2)

ER8 and EB8 ballast systems suitable for

operation in ambient environments up to 122°F (50°C) without lens option.

No. of Lamps 4=4 Lamps 6=6 Lamps

Lamp Type 32=32W T8 Lamps (48") 28T5=28W T5 Lamps (48") 49T5=49W T5HO (48") 51T5=51W T5HO (48") 54T5=54W T5HO Lamps (48")

Series HB=High Bay

Width 2=24"

Voltage

(1)

UNV=Universal

120/277 Voltage UNC=Universal 347/480 Voltage (T5 linear only)

120V=120 Volt 277V=277 Volt 347V=347 Volt

Shielding Blank=Open A=Prismatic Acrylic Lens & Steel Door Frame CL=Clear Acrylic Lens & Steel Door Frame

Distribution Optic Blank=Medium (Specular Aluminum) G=Wide (White Painted)

Trim Type G=Grid/Lay-in (Standard) F=Flange Trim

Packaging U=Unit Pack PAL=Job Pack, out of carton PALC =Job Pack, in carton

Options Lamps Installed L8830=T8 Lamp, 85CRI 3000K L8835=T8 Lamp, 85CRI 3500K L8841=T8 Lamp, 85CRI 4100K L8850=T8 Lamp, 85CRI 5000K L5830=T5 Lamp, 85CRI 3000K L5835=T5 Lamp, 85CRI 3500K L5841=T5 Lamp, 85CRI 4100K L5850=T5 Lamp, 85CRI 5000K

GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed

(1)

(see table on pg. 48)

Accessories (order separately) MWS=Modular Wiring System,

(Refer to MWS Catalog Online)

33

G

Grid/Lay-in Standard

F

Aluminum Flange Trim With Supporting Swing Gates

Ceiling Trim Type Type

Exposed Grid G Concealed T G or T Slot Grid G or T Flange F

(Verify compatibility/ consult Pre Sales Technical Support.)

Ceiling Compatibility

Prismatic and clear lens with door frame option.

No. of Ballast 1 or 2

Factory installed code compliant disconnect for safe and convenient means of disconnecting power.

2HBG RECESSED HIGH-BAY INDUSTRIAL LUMINAIRE

System Performance

Dimensions for Top View

40'

30'

20'

10'

Energy

Savings

% Light

Gain/Loss

Mounting

Height

250W MH

Part

Number

68%

-33%

68%

2HBG-432-ER8/PLUS

- 33%

51%

11%

51%

2HBG-632-ER82/PLUS

11%

50%

3%

51%

3%

2HBG-454-EBT1

24%

35%

25%

35%

2HBG-654-EBT2

2HBG

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 based on 4100K lamps. 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

2HBG-632-UNV-EB82

(2) Electronic Ballasts (6) F32T8/TL835 lamps 3000 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.4 x mounting height Efficiency 83.4% Test Report: 2HBG632.IES

2HBG-654T5-UNV-EBT2

(3) Electronic Ballasts (6) F54T5HO/841 lamps 4400 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.1 x mounting height Efficiency 73.5% Test Report: 2HBG654T5.IES

Photometrics

T8 T5

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

99 99 99 99 93 93 93 89 89 89 91 87 83 80 81 79 76 78 76 74 82 76 70 65 71 67 63 68 65 61 75 66 59 54 62 57 53 60 56 52 69 59 51 46 56 50 45 54 48 44 63 53 45 39 50 44 39 48 43 38 58 47 40 34 45 39 34 44 38 34 54 43 36 30 41 35 30 40 34 30 50 39 32 27 37 31 27 36 31 27 47 36 29 24 34 28 24 34 28 24 44 33 26 22 32 26 22 31 26 22

4174 23.2 27.8 6937 38.5 46.2 11814 65.6 78.7 15014 83.4 91.5 15014 83.4 100.0

6821 25.8 35.1 10503 39.8 54.1 16195 61.3 83.4 19412 73.5 100.0 19412 73.5 100.0

88 88 88 88 82 82 82 78 78 78 81 78 75 72 73 71 69 70 68 67 74 68 64 60 65 61 58 62 59 57 68 61 55 51 58 53 50 56 52 49 63 55 48 44 52 47 43 50 46 42 58 49 43 38 47 42 38 45 41 37 54 45 38 34 43 37 34 41 37 33 50 41 35 30 39 34 30 38 33 30 47 37 32 27 36 31 27 35 30 27 44 35 29 25 33 28 25 33 28 25 41 32 27 23 31 26 23 30 26 23

6-lamp

Dimensions

2HBG Lamp Configurations

4-lamp

250W HID

400W MH 400W HID

250W MH 250W HID

400W MH 400W HID

34

% light gain/light loss utilize S/P adjusted lumens.

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

2HBG System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

2HBG-432-ER81/PLUS 4 3100 94% 80% 1.15 10724 1.95 1.40 14975 147 $3.41 94 2HBG-632-EB82/PLUS 6 3100 94% 80% 1.15 16085 1.95 1.40 22462 221 $3.42 94 2HBG-454T5-EBT1 4 5000 93% 80% 1.00 14880 1.90 1.38 20511 240 $4.47 85 2HBG-654T5-EBT2 6 5000 93% 80% 1.00 22320 1.90 1.38 30766 360 $4.50 85

Comparison System

250W Metal Halide High Bay 1 23000 75% 78% 1.00 15000 1.50 1.22 18371 295 $6.59 49 250W High Pressure Sodium High Bay 1 30000 81% 78% 1.00 18978 0.62 0.79 14944 300 $8.23 39 400W Metal Halide High Bay 1 36000 75% 78% 1.00 21087 1.50 1.22 25826 455 $7.22 44 400W High Pressure Sodium High Bay 1 50000 81% 78% 1.00 31631 0.62 0.79 24906 464 $7.63 42

⊥

||

⊥

4-5/8"

[117mm]

X

X=3-1/2" [89mm]

4-5/8"

[117mm]

X

23-3/4" [603mm]

X

23-3/4"

[603mm]

7/8" [22mm] K.O. (2)

3" [77mm]

4-5/8" [119mm]

48" [1217mm]

7-7/8" [201mm]

Access Plate 7/8" [22mm]

High performance white enamel finish improves efficiency and protects against elements. Optional brushed stainless steel finish for corrosive chemical environments.

Sealed housing is enclosed and gasketed to provide 800 psi hose down protection.

UL/cUL and CSA listed for wet locations. Manufactured in compliance with USDA, FDA, NSF and Federal Standard 209E in surface mount applications.

One piece, heavy gauge extruded lens in prismatic clear acrylic.

White, closed cell, Flexiseal™gasketing surrounds perimeter of lens to seal lens to door frame and around perimeter of door to seal door to housing. Another layer seals fixture to ceiling system after installation.

Die formed reflectors are faceted for 4 and 6 lamp configurations with two optical distributions – medium and wide. Medium beam optical modules utilize 95% specular aluminum while the wide distribution utilizes a high performance 95% reflective polyester powder coated finish.

Ordering Information Sample Number: 2HBHD-654T5-A-UNV-EBT2-U

No. of Lamps 4=4 Lamps 6=6 Lamps

Lamp Type 32=32W T8 Lamps (48") 28T5=28W T5 Lamps (48") 49T5=49W T5HO (48") 51T5=51W T5HO (48") 54T5=54W T5HO Lamps (48")

Series HBHD=High Bay

Hose Down

Width 2=24"

Voltage

(1)

UNV=Universal 120/277 Voltage UNC=Universal

347/480 Voltage (T5 linear only)

(2)

120V=120 Volt 277V=277 Volt 347V=347 Volt 480V=480 Volt

Shielding A=Prismatic Acrylic

Lens & Door Frame CL=Clear Acrylic Lens & Door Frame

Distribution Blank=Medium (Specular Aluminum) G=Wide (High Reflectance White)

Options C3=3' Power Cord C6=6' Power Cord PC3-=3' Power Cord & Plug

(Specify Voltage)

(1)

PC6-=6' Power Cord & Plug

(Specify Voltage)

(1)

SSN=Stainless Steel Door/Brushed

304 Finish SHN=Stainless Steel Housing Brushed 304 Finish

Packaging U=Unit Pack PAL=Pallet Pack PALC =Job Pack

In Carton

Options Lamps Installed L8830=T8 Lamp, 85CRI 3000K L8835=T8 Lamp, 85CRI 3500K L8841=T8 Lamp, 85CRI 4100K L8850=T8 Lamp, 85CRI 5000K L5830=T5 Lamp, 85CRI 3000K L5835=T5 Lamp, 85CRI 3500K L5841=T5 Lamp, 85CRI 4100K L5850=T5 Lamp, 85CRI 5000K HL=Add HL at end of lamp for high

lumen lamps, T8 only

GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed

(1)

(see table on pg. 48)

Ballast Type

(1)

T8 Systems EB8

=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

EB8

/PLUS=T8 Electronic Instant Start.

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

ER8

=T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

ER8

/PLUS=T8 Electronic Program Start.

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

T5 Systems EBT

=T5 or T5HO Linear Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

EHT

=T5HO Linear Electronic Start High Ambient.

(2)

Total Harmonic Distortion < 10%

DIM=Dimming (ballast must be specified)

No. of Ballast 1 or 2

No. of Ballast 1, 2 or 3

Product can be surface or suspension mounted.

Captive, flush mounted stainless steel fasteners secure one piece door to housing.

NOTES:

(1)

Voltage must be specified when ordered with

plugs or emergency ballasts.

(2)

2 lamp ballast configura-

tions only in UNC versions.

No. of Ballast 1, 2 or 3

35

No. of Ballast 1 or 2

Factory installed code compliant disconnect for safe and convenient means of disconnecting power.

HBHD HOSEDOWN HIGH-BAY INDUSTRIAL LUMINAIRE

HBHD Lamp Configurations

Dimensions for Top View

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 based on 5000K lamps. 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

70 70 70 70 66 66 66 63 63 63 65 63 61 59 59 57 56 57 55 54 60 56 52 49 53 50 47 51 48 46 55 50 45 42 47 44 41 46 43 40 51 45 40 36 42 39 36 41 38 35 47 40 36 32 39 35 31 37 34 31 44 37 32 28 35 31 28 34 31 28 41 34 29 26 32 28 25 32 28 25 38 31 26 23 30 26 23 29 26 23 36 29 24 21 28 24 21 27 23 21 34 27 22 19 26 22 19 25 22 19

81 81 81 81 76 76 76 72 72 72 75 72 69 66 67 65 63 65 63 61 68 63 58 55 59 56 53 57 54 52 62 56 50 46 52 48 45 51 47 44 57 49 44 39 47 42 38 45 41 38 53 44 38 34 42 37 34 41 37 33 49 40 34 30 38 33 30 37 33 29 45 36 31 27 35 30 26 34 29 26 42 33 28 24 32 27 24 31 27 23 40 31 25 21 29 25 21 29 24 21 37 28 23 19 27 23 19 27 22 19

3768 20.9 30.7

6124 34.0 50.0 10121 56.2 82.6 12258 68.1 91.5 12258 68.1 100.0

5876 22.3 37.6

8802 33.3 56.3 13385 50.7 85.7 15627 59.2 75.3 15627 59.2 100.0

2HBHD-632-CL-UNV-EB82

(2) Electronic Ballasts (6) F32T8/TL835 lamps 3000 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.2 x mounting height Efficiency 68.1% Test Report: 2HBHD632CL.IES

2HBHD-654T5-CL-UNV-EBT2

(2) Electronic Ballasts (6) F54T5HO/841 54W lamps 4400 lumens Spacing criterion: (II) 1.0 x mounting height, (⊥) 1.2 x mounting height Efficiency 52.9% Test Report: 2HBHD654T5CL.IES

Photometrics

1 1/2"

[38mm]

10 3/16" [259mm]

12"

[305mm]

23 11/16"

[602mm]

(2) 7/8" [22mm] KO Gasketed Access Plate

(4) 3/8" [10mm] Dia. Mounting Hole

36"

[914mm]

48"

[1219mm]

4-lamp

6-lamp

System Performance

T8 T5

40'

30'

20'

10'

Energy

Savings

% Light

Gain/Loss

Mounting

Height

250W MH 250W HPS

Part

Number

50%

21%

51%

-2%

51%

9%

52%

-13%

400W MH 400W HPS

22%

26%

24%

4%

250W MH 250W HPS

24%

15%

25%

-6%

400W MH 400W HPS

2HBHD

2HBHD-432-CL-

EB81/PLUS

2HBHD-632-CL-

EB81/PLUS

2HBHD-454-CL-EBT1 2HBHD-654-CL-EBT2

Dimensions

36

% light gain/light loss utilize S/P adjusted lumens.

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

2HBHD System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

2HBHD-432-CL-EB81/PLUS 4 3100 94% 68% 1.15 9128 1.95 1.40 12747 147 $4.71 68 2HBHD-632-CL-EB82/PLUS 6 3100 94% 68% 1.15 13693 1.95 1.40 19121 221 $4.72 68 2HBHD-454T5-CL-EBT1 4 5000 93% 53% 1.00 9839 1.90 1.38 13563 240 $10.21 56 2HBHD-654T5-CL-EBT2 6 5000 93% 53% 1.00 14759 1.90 1.38 20344 360 $10.29 56

Comparison System

250W Metal Halide Encl. & Gasketed High Bay 1 20800 58% 68% 1.00 8179 1.50 1.22 10018 295 $13.90 23 250W High Pressure Sodium Encl. & Gasketed High Bay 1 30000 81% 68% 1.00 16475 0.62 0.79 12973 300 $10.91 29 400W Metal Halide Encl. & Gasketed High Bay 1 36000 58% 68% 1.00 14157 1.50 1.22 17338 455 $12.39 26 400W High Pressure Sodium Encl. & Gasketed High Bay 1 50000 81% 68% 1.00 27459 0.62 0.79 21621 464 $10.13 32

4-1/2"

[115mm]

5"

[127mm]

4-1/2"

[115mm]

X=3-1/2" [89mm]

X

5"

[127mm]

23-11/16" [602mm]

X X

X

23-11/16" [602mm]

5"

[127mm]

X

High performance white enamel finish improves efficiency and protects against elements. Optional brushed stainless steel finish for corrosive chemical environments.

Sealed housing is enclosed and gasketed to provide 800 psi hose down protection and IP65 rating.

UL/cUL and CSA listed for wet locations. IP65 certified.

One piece, heavy gauge extruded lens in prismatic clear acrylic.

White, closed cell, Flexiseal™gasketing surrounds perimeter of lens to seal lens to door frame and door to housing.

Die formed reflectors are faceted for 4 and 6 lamp configurations with two optical distributions – medium and wide. Medium beam optical modules utilize 95% specular aluminum while the wide distribution utilizes a high performance 95% reflective polyester powder coated finish.

Product can be chain, cable or stem mounted.

Captive, flush mounted stainless steel fasteners secure one piece door to housing.

37

Sloped top allows for water runoff during cleaning of fixture. This feature enables this suspension mounted fixture to be installed in cleanroom, food processing and recreational facilities.

Ordering Information Sample Number: 2HBHT-654T5-A-UNV-EBT2

No. of Lamps 4=4 Lamps 6=6 Lamps

Lamp Type 28T5=28W T5 Lamps (48") 32=32W T8 Lamps (48") 49T5=49W T5HO Lamps (48") 51T5=51W T5HO Lamps (48") 54T5=54W T5HO Lamps (48")

Series HBHT=High Bay Hose Down

w/Tented Top

Width 2=24"

Voltage

(1)

UNV=Universal 120/277 Voltage UNC=Universal

347/480 Voltage (T5 linear only)

(2)

120V=120 Volt 277V=277 Volt 347V=347 Volt

Shielding A=Prismatic Acrylic Lens

& Steel Door Frame CL=Clear Acrylic Lens & Steel Door Frame 93=Prismatic Tempered Glass & Steel Door Frame 94=Clear Tempered Glass & Steel Door Frame

Distribution Blank=Medium (Specular Aluminum) G=Wide (High Reflectance White)

Options PM=Pendant Mount Stem

(4)

C3=3' Power Cord

(5)

C6=6' Power Cord

(5)

PC3-=3' Power Cord & Plug

(Specify Voltage)

(1) z(5)

PC6-=6' Power Cord & Plug

(Specify Voltage)

(1) (5)

SSN=Brushed Stainless Steel

Door Finish SHN=Brushed Stainless Steel Housing Finish

Packaging U=Unit Pack PAL=Pallet Pack PALC =Job Pack

In Carton

Options Lamps Installed L8830=T8 Lamp, 85CRI 3000K L8835=T8 Lamp, 85CRI 3500K L8841=T8 Lamp, 85CRI 4100K L8850=T8 Lamp, 85CRI 5000K L5830=T5 Lamp, 85CRI 3000K L5835=T5 Lamp, 85CRI 3500K L5841=T5 Lamp, 85CRI 4100K L5850=T5 Lamp, 85CRI 5000K HL=Add HL at end of lamp for

high lumen lamps, T8 only

GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed

(1)

(see table on pg. 48)

Ballast Type

(1)

T8 Systems EB8

=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

EB8

/PLUS=T8 Electronic Instant Start.

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

ER8

=T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

ER8

/PLUS=T8 Electronic Program Start.

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

T5 Systems EHT

=T5 Linear Electronic Start High Ambient.

(2)

Total Harmonic Distortion < 10%

No. of Ballast 1 or 2

No. of Ballast 1, 2 or 3

NOTES:

(1)

Voltage must be specified when ordered with plugs, motion sensors or emergency ballasts.

(2)

2 lamp

ballast configurations only in UNC versions.

(3)

3/4" stem only, supplied by others. Power supply fed through stem

during installation.

(4)

Always supplied with a 6 ft. 3-wire cord as standard through pendant stem hub.

(5)

Available for

chain or cable mount options only.

No. of Ballast 1 or 2

Factory installed code compliant disconnect for safe and convenient means of disconnecting power.

Accessories (order separately) Y-Hook=(2) Snap Hooks, #2 Cable (Specify 10' or

30'), order 2 per fixture HBHT-Chain/Set=(2) 6ft. Stainless Steel Chains, (4) large S-Hooks

HBHT HOSEDOWN HIGH-BAY INDUSTRIAL LUMINAIRE

HBHT Lamp Configurations

Dimensions for Top View

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 based on 5000K lamps. 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

70 70 70 70 66 66 66 63 63 63 65 63 61 59 59 57 56 57 55 54 60 56 52 49 53 50 47 51 48 46 55 50 45 42 47 44 41 46 43 40 51 45 40 36 42 39 36 41 38 35 47 40 36 32 39 35 31 37 34 31 44 37 32 28 35 31 28 34 31 28 41 34 29 26 32 28 25 32 28 25 38 31 26 23 30 26 23 29 26 23 36 29 24 21 28 24 21 27 23 21 34 27 22 19 26 22 19 25 22 19

81 81 81 81 76 76 76 72 72 72 75 72 69 66 67 65 63 65 63 61 68 63 58 55 59 56 53 57 54 52 62 56 50 46 52 48 45 51 47 44 57 49 44 39 47 42 38 45 41 38 53 44 38 34 42 37 34 41 37 33 49 40 34 30 38 33 30 37 33 29 45 36 31 27 35 30 26 34 29 26 42 33 28 24 32 27 24 31 27 23 40 31 25 21 29 25 21 29 24 21 37 28 23 19 27 23 19 27 22 19

3768 20.9 30.7

6124 34.0 50.0 10121 56.2 82.6 12258 68.1 91.5 12258 68.1 100.0

5876 22.3 37.6

8802 33.3 56.3 13385 50.7 85.7 15627 59.2 75.3 15627 59.2 100.0

2HBHT-632-CL-UNV-EB82

(2) Electronic Ballasts (6) F32T8/TL835 lamps 3000 lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.2 x mounting height Efficiency 68.1% Test Report: 2HBHT632CL.IES

2HBHT-654T5-CL-UNV-EBT2

(2) Electronic Ballasts (6) F54T5HO/841 54W lamps 4400 lumens Spacing criterion: (II) 1.0 x mounting height, (⊥) 1.2 x mounting height Efficiency 52.9% Test Report: 2HBHT654T5CL.IES

Photometrics

4-lamp

6-lamp

System Performance

T8 T5

40'

30'

20'

10'

Energy

Savings

% Light

Gain/Loss

Mounting

Height

250W MH 250W HPS

Part

Number

50%

21%

51%

-2%

51%

9%

52%

-13%

400W MH 400W HPS

22%

26%

24%

4%

250W MH 250W HPS

24%

15%

25%

-6%

400W MH 400W HPS

2HBHT

2HBHT-432-CL-

EB81/PLUS

2HBHT-632-CL-

EB81/PLUS

2HBHT-454-CL-EBT1 2HBHT-654-CL-EBT2

Dimensions

38

% light gain/light loss utilize S/P adjusted lumens.

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

2HBHD System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

2HBHT-432-CL-EB81/PLUS 4 3100 94% 68% 1.15 9128 1.95 1.40 12747 147 $4.71 68 2HBHT-632-CL-EB82/PLUS 6 3100 94% 68% 1.15 13693 1.95 1.40 19121 221 $4.72 68 2HBHT-454T5-CL-EBT1 4 5000 93% 53% 1.00 9839 1.90 1.38 13563 240 $10.21 56 2HBHT-654T5-CL-EBT2 6 5000 93% 53% 1.00 14759 1.90 1.38 20344 360 $10.29 56

Comparison System

250W Metal Halide Encl. & Gasketed High Bay 1 20800 58% 68% 1.00 8179 1.50 1.22 10018 295 $13.90 23 250W High Pressure Sodium Encl. & Gasketed High Bay 1 30000 81% 68% 1.00 16475 0.62 0.79 12973 300 $10.91 29 400W Metal Halide Encl. & Gasketed High Bay 1 36000 58% 68% 1.00 14157 1.50 1.22 17338 455 $12.39 26 400W High Pressure Sodium Encl. & Gasketed High Bay 1 50000 81% 68% 1.00 27459 0.62 0.79 21621 464 $10.13 32

Chain/Cable Mount

Stem Mount

6-1/4"

nom.

5"

[127mm]

6-1/4" nom.

X

49"

nom.

5"

[127mm]

24-1/8" nom.

X X

X

24-1/8" nom.

nom.

49"

12-1/2"

[318mm]

24-1/8"

nom.

5"

[127mm]

24-1/8"

X

nom.

4-1/2" nom.

X=3-1/2"

[89mm]

29"

[737mm]

Enclosed, full bodied housing utilizes captive fasteners to protect optical assembly and assure structural integrity of housing while retaining heat for optimal system performance. Thermally optimized Arctic Bay is suitable for environments down to -20°F (-29°C).

Sealed and gasketed door frame provides a thermal environment for optimal lamp operation. Optional clear or prismatic shielding available.

Housing is “post” painted with a high performance polyester powder coat finish to protect against contaminants and oxidation.

Ordering Information Sample Number: ABI-654T5-UNV-EBT2 Includes V Hangers for rapid installation

(4)

No. of Lamps 4=4 Lamps 6=6 Lamps

Lamp Type 49T5=49W T5HO Lamps (48") 51T5=51W T5HO Lamps (48") 54T5=54W T5HO Lamps (48")

Series ABI=Arctic Bay

Voltage

(2)

UNV=Universal 120/277 Voltage UNC=Universal 347/480 Voltage 120V=120 Volt 277V=277 Volt 347V=347 Volt 480V=480 Volt

Distribution N=Narrow Beam (Standard) M=Medium Beam W=Wide Beam

Options C3=3' White Cord Fixture Attached C6=6' White Cord Fixture Attached MS/OB=360° or 180° Motion Sensor Installed,

Inner Two Lamps Constant On

(3)

MS/IB=360° or 180° Motion Sensor Installed,

Outside Lamps Constant On

(3)

PC3-Voltage=3' Cord/Plug Fixture Attached

(2)

PC6-Voltage=6' Cord/Plug Fixture Attached

(2)

Packaging U=Unit Pack PAL=Palletized Out of Carton PALC =Job Pack In Carton

Options Lamps Installed L5830=T5 Lamp, 85CRI 3000K L5835=T5 Lamp, 85CRI 3500K L5841=T5 Lamp, 85CRI 4100K L5850=T5 Lamp, 85CRI 5000K

GL=Single Element Fuse GM=Double Element Fuse EL=Emergency installed (see table on pg. 48)

(2)

Ballast Type EBTL

=T5 Linear Electronic Program Rapid Start.

Total Harmonic Distortion < 10% Minimum Start Temp. -20°F (-29°C)

No. of Ballast 1, 2 or 3

Shielding Blank=Prismatic Acrylic

Lens w/Gasketed Door Frame CL=Clear Acrylic Lens w/Gasketed Door Frame

The Arctic Bay provides over 70% of it’s rated light output in ambient environments down to -15°F (-26°C). Recommended for use in -20°F (-29°C) to 32°F (0°C) environments.

G

O

Thermal Optimization

39

NOTES:

(1)

Requires use of voltage specific modular cord assembly. See accessories.

(2)

Voltage must be

specified when ordered with plugs, motion sensors or emergency ballasts.

(3)

Specify voltage of ballast as

UNV (120V or 277V), 347V or 480V.

(4)

Can be used in high abuse applications such as gymnasiums.

Accessories (order separately) HBAYC-CHAIN/SET/U=(2) V-Hook Hanger,

36" Chain Sets w/S-Hooks

HB-SPM=Single Monopoint Hanger w/Hub RH-1=Retrofit Hanger FH-1=Fixture Hook FL-1=Fixture Loop Y-TOGGLE=Y Mounting Toggle, #2 Cable

(Specify 10' or 30')

SCA-48=Stem Set Adjustable 48" length SCF-=Stem Set Fixed (specify length) SCS=Stem Set 45° Swivel (specify length)

ARCTIC BAY - ABI Series HIGH-BAY INDUSTRIAL LUMINAIRE

Factory installed code compliant disconnect for safe and convenient means of disconnecting power.

120% 110% 100%

90%

UTPUT

80% 70%

HT

60% 50% 40% 30%

RELATIVE LI

20% 10%

0

ARCTIC BAY

-15°F (-26°C)

-5°F (-20°C) 15°F (-9°C) AMBIENT TEMPERATURE - DEGREE (F)

35°F (1°C)

55°F (12°C)

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 based on 5000K lamps. 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

40

Dimensions

ABI 4-Lamp

ABI 5-Lamp

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

Arctic Bay System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

ABI-454T5-N-CL-UNV-EBTL1 4 5000 93% 73% 1.00 13578 1.90 1.38 18716 229 $5.36 81 ABI-654T5-N-CL-UNV-EBTL2 6 5000 93% 73% 1.00 20367 1.90 1.38 28074 346 $5.40 81

Comparison System

400W Metal Halide High Bay 1 36000 75% 78% 1.00 21087 1.50 1.22 25826 455 $7.22 44 400W High Pressure Sodium High Bay 1 50000 81% 71% 1.00 28755 0.62 0.79 22642 464 $9.24 35

Cooper Lighting recommends the following lamp operation when implementing a control system in colder ambient environments.

Temperature Control Capability

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

78 78 78 78 72 72 72 69 69 69 71 69 66 64 64 63 61 62 60 59 66 61 57 53 57 54 51 55 52 50 60 54 49 45 51 47 44 49 46 43 56 48 43 39 46 42 38 44 41 38 51 44 38 34 42 37 34 40 36 33 48 40 34 30 38 33 30 37 33 30 45 36 31 27 35 30 27 34 30 27 42 33 28 24 32 27 24 31 27 24 39 31 26 22 30 25 22 29 25 22 37 29 24 20 28 23 20 27 23 20

6856 22.9 35.1 10426 34.8 53.4 16414 54.7 84.0 19532 65.1 100.0 19532 65.1 100.0

ABI-654T5-UNV-EBT2-U

Electronic Ballasts (6) F54W T5HO lamps 5000 lumens Spacing criterion: (II) 1.1 x mounting height, (⊥) 1.2 x mounting height Efficiency 65.1% Test Report:

Photometrics

T5

System Performance

30'

20'

Energy

Savings

% Light

Gain/Loss

Mounting

Height

400W MH 400W HPS

Part

Number

50%

3%

51%

ABI-454T5-UNV-EBTL

-21%

24%

35%

25%

ABI-654T5-UNV-EBTL

19%

400W MH 400W HPS

ABI

% light gain/light loss utilize S/P adjusted lumens.

Dimensions for Top View

ABI 6-Lamp

Arctic Bay (ABI) Series

-20°F (-29°C) – 0°F (-18°C) Motion Sensor Options

(# of Lamps Controlled)

Lamp Routine Occasional

Fixture # Lamps Type Use Use

(3)

ABI-454T5 4 Lamp T5HO Not Recommended 2 ABI-554T5 5 Lamp T5HO Not Recommended 2 ABI-654T5 6 Lamp T5HO Not Recommended 2

0°F (-18°C) – 32°F (0°C) Motion Sensor Options

(# of Lamps Controlled)

Lamp Routine Occasional

Fixture # Lamps Type Use

(1)

Use

(2)

ABI-454T5 4 Lamp T5HO 2 ALL ABI-554T5 5 Lamp T5HO 22 ABI-654T5 6 Lamp T5HO 24

32°F (0°C) – 50°F (10°C) Motion Sensor Options

(# of Lamps Controlled)

Lamp Routine Occasional

Fixture # Lamps Type Use

(1)

Use

(2)

ABI-454T5 4 Lamp T5HO 2 ALL ABI-554T5 5 Lamp T5HO 23 ABI-654T5 6 Lamp T5HO 24

NOTES:

(1)

Luminaire achieves 40% or greater of relative light output at the indicated temperature in under 60

seconds.

(2)

Luminaire achieves 40% to 80% of relative light output at the indicated temperature in under 7

minutes.

(3)

Greater than 20 min. lamp options.

FH-1=Fixture Hook 2-1/2" (must be used with HB-SPM)

Mounting Accessories

HBAYC=New Mounting Chain Set

w/V-Hook Hangers (ideal for gymnasium applications)

HB-SPM=Single Monopoint Hanger w/Hub (Galvanized)

FL-1=Fixture Loop 2-1/2" (must be used with HB-SPM)

RH-1=Retrofit Hanger (must be used with HB-SPM)

Y=Mounting Toggle and 10' or 25' cable

4-5/16" [109mm]

X=3-1/2" [89mm]

16-3/4"

[426mm]

X X

16-3/16" [427mm]

7/8" [23mm] K.O.

1/2" [13mm] K.O.

X

4-5/16" [109mm]

X=2-13/32"

Y=2-25/32"

4-5/16" [109mm]

Y=2-13/32"

48-1/8" [1222mm]

[61mm]

[70mm]

X=1-1/8"

[28mm]

[61mm]

X Y

16-3/16" [427mm]

Y Y

16-3/16" [427mm]

7/8" [23mm] K.O.

1/2" [13mm] K.O.

X

Y

7/8" [23mm] K.O.

1/2" [13mm] K.O.

Y Y

X

41

Tethered gear tray for toolless access to ballast compartment and hands-free maintenance.

Polyurethane gasketing is formed in the housing providing a continuous seamless seal for the diffuser.

Sturdy stainless steel cam latches clamp diffuser tightly for a positive seal between housing, gasketing and diffuser.

High impact acrylic or 100% polycarbonate, clear, UV stabilized diffuser.

Optional high performance 95% Specular aluminum reflector.

Fiberglass housing is reinforced polyester and self-extinguishing (ASTM-D635-74) plastic of a permanent pearl gray color.

A watertite hub for 1/2" conduit entry is provided at each end of housing (standard) for continuous feed.

UL Listed for wet locations (standard).UL/cUL Listed, NEMA 4X, NSF Listed, IP65 and IP67 Certified.

Ordering Information Sample Number: VT4-432-M-DR-UNV-EB81-WL-U

Series VT4=Vaportite

4/6 Lamp

Number of Lamps 4=4 Lamps (Not Included) 6=6 Lamps (Not Included)

Wattage (Length) 32=32W T8 (48") 49T5=49W T5HO Lamps (48") 51T5=51W T5HO Lamps (48") 54T5=54W T5HO (48")

(5)

84VHO=84W T8VHO (48")

(6)

Lens DR=Clear Acrylic High Impact (Standard) PC=Polycarbonate, Clear

Voltage

(1)

120V=120 Volt

(32W & 54W only)

277V=277 Volt 347V=347 Volt UNV=Universal Voltage

120/277

(1), (2)

(32W & 54W only) UNC=Universal Voltage 347/480

(2)

WL=Wet Label

GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed

(3)

Options Blank=(2) End Watertite Hubs (all Watertite

Hubs have 1/2" Conduit Entry)

C3=3' Power Cord C6=6' Power Cord PC3-=3' Power Cord & Plug (Specify Voltage)

(4)

PC6-=6' Power Cord & Plug (Specify Voltage)

(4)

VRS-=Vandal Resistant Screws for Latches

Packaging U=Unit Pack

Ballast Type

(4)

T8 Ballasts EB8

=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

EB8

/PLUS=T8 Electronic Instant Start.

High Ballast Factor >1.13. Total Harmonic Distortion < 10%

ER8

=T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

ER8

/PLUS=T8 Electronic Program Start.

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

T5 Ballasts EHT

= T5 Linear Electronic Start High Ambient.

Total Harmonic Distortion < 10%

T8VHO Ballasts EV8

= T8VHO 277-480V Electronic

90°C Rated Instant Start Ballast, 10% THD

No. of Ballast 1 or 2

NOTES:

(1)

Products also available in non-US voltages and frequencies for international markets.

(2)

Not available

when specifying emergencies, voltage must be specific. Exception: EL4 ok with UNV.

(3)

Emergency ballast not

available for T8VHO lamps.

(4)

Voltage must be specified when ordered with plugs, motion or emergency ballasts.

(5)

For ambients greater than 40°C (102°F), for 654T5 configuration, EHT3 is recommended.

(6)

Maximum 4 lamps

when using T8VHO option.

Distribution M=Medium Beam W=Wide Beam (White)

No. of Ballast 1 or 2

No. of Ballast 1, 2 or 3

No. of Ballast 2

Accessories (order separately) Y-TOGGLE=Y Mounting Toggle, #2 Cable

(Specify 10' or 30') VT4-SS-SM=(2) Stainless Steel Surface Mounting Bracket

Factory installed code compliant disconnect for safe and convenient means of disconnecting power.

No holes required for chain/cable mount from supplied mounting bail. (chain/cable is supplied by others, V-hangers included with fixture)

VT4 VAPORTITE INDUSTRIAL

42

System Performance

VT4-654T5-M-DR -UNV-EHT2-WL-U

(2) Electronic Ballast (6) 54W T5HO Lamps 4400 Lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.2 x mounting height Efficiency 84.7% Test Report: VT4654T5M.IES

Photometrics

Dimensions

Energy

Savings

% Light

Gain/Loss

Part

Number

VT4-654-M

51%

1%

52% 24%

25%

24%

VT4-632-M

-23%

400W MH

Lamp

Type

400W HPS

VT4

39%

400W MH 400W HPS

T8 T5

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

100 100 100 100 92 92 92 87 87 87 90 86 82 79 79 76 74 75 73 71 82 75 69 64 69 65 61 66 62 59 75 66 59 53 61 55 51 58 53 49 69 58 51 45 54 48 43 52 47 42 63 52 44 39 49 42 38 46 41 37 58 47 39 34 44 38 33 42 37 32 54 43 35 30 40 34 29 38 33 29 50 39 32 27 37 31 26 35 30 26 47 36 29 24 34 28 24 33 27 23 44 33 26 22 31 25 21 30 25 21

5896 22.3 26.4

9507 36.0 42.5 16197 61.4 72.4 21214 80.4 94.9 22363 84.7 100.0

14-11/16" [373mm]

51-15/16" [1320mm]

4-lamp

6-lamp

Dimensions for Top View

VT4-654T5-W-DR -UNV-EHT2-WL-U

(2) Electronic Ballast (6) 54W T5 Lamps 4400 Lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.5 x mounting height Efficiency 84.7% Test Report: VT4654T5W.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

99 99 99 99 91 91 91 86 86 86 89 84 80 76 77 74 71 73 70 68 80 73 66 61 66 61 57 60 59 55 73 63 56 50 58 52 47 55 50 46 66 56 48 42 51 45 40 48 43 38 61 49 41 35 45 39 34 43 37 33 56 44 36 31 41 34 29 39 33 29 52 40 32 27 37 31 26 35 30 25 48 36 29 24 34 27 23 32 27 22 45 33 26 21 31 25 21 30 24 20 42 31 24 19 29 23 19 27 22 18

4729 17.9 21.1

7935 30.1 35.5 14805 56.1 66.2 20797 78.8 93.0 22369 84.7 100.0

% light gain/light loss utilize S/P adjusted lumens.

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 based on 5000K lamps. 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

VT4 System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

VT4-632-M 6 3100 94% 69% 1.20 14477 1.95 1.40 20267 221 $5.06 91 VT4-654-M 6 5000 93% 85% 1.00 23715 1.90 1.38 32689 346 $3.98 94

Comparison System

400W Metal Halide High Bay 1 36000 75% 78% 1.00 21087 1.50 1.22 25826 455 $7.22 44 400W High Pressure Sodium High Bay 1 50000 81% 78% 1.00 31631 0.62 0.79 24906 464 $7.63 42

6-3/64"

[154mm]

XY X

14-5/8" [372mm]

X=2-13/32"

[62mm]

Y=2-29/32"

[74mm]

6-3/64"

[154mm]

XX

X

14-5/8" [372mm]

XX

X=2"

[51mm]

Ordering Information Sample Number: 8TVT3-254T5DR-UNV-EB82-M4-U

43

Tethered gear tray for tool-less access to ballast compartment and hands-free maintenance.

Polyurethane gasketing is formed in the housing providing a continuous seamless seal for the diffuser.

Sturdy cam latches clamp diffuser tightly for a positive seal between housing, gasketing and diffuser.

High impact lens options to withstand the most demanding environments.

Optional die formed high reflective polyester powder coat or high performance 95% Specular reflector.

Durable fiberglass housing is reinforced polyester and self-extinguishing (ASTM-D635-74) plastic of a permanent pearl gray color.

A watertite hub for 1/2" conduit entry is provided at each end of housing (standard) for continuous feed.

UL Listed for wet locations (standard). UL/CUL Listed. IP65 rated. Optional IP67 rating with 8 latches. NSF listed.

Surface or chain mount from supplied mounting bracket. (chain supplied by others)

Sealed and gasketed enclosure utilizes internal heat for optimal performance in ambient environments down to -20°F (-29°C).

Applications include holding freezers, refrigerated storage, walk-in freezers, food processing and outdoor locations.

Width Blank=4' Length 8T=8' Length

Series VT3=Vaportite (Gasketed

Enclosure)

Number of Lamps

(3)

1=1 Lamp 2=2 Lamps 3=3 Lamps

(Lamps not included)

Lamp Type 32=32W T8 Lamp 28T5=28W T5 Lamp 54T5=54W T5HO Lamp

(3)

Lens DR=Internal Prismatic Lens/15% DR High Impact

Additive (Standard)

DR-50=50% High Impact Additive DR-100%=100% High Impact Additive (Extreme)

Voltage

(1)

120V=120 Volt 277V=277 Volt 347V=347 Volt 480V=480 Volt UNV=Universal

Voltage 120/277V UNC=Universal Voltage 347/480V

(6)

Options GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed

(3) (4)

(see table on pg. 48)

NOTES:

(1)

Ballast type used only if ballast & voltage is chosen.

(2)

Not available when specifying

emergency ballasts, voltage must be specific.

(3)

EHT2 ballasts are recommended for ambient

temperatures above 102°F (40°C) 3 Lamp 54W T5HO configurations.

(4)

Emergency option in

3 lamp version must use remote mount test switch.

(5)

Top Hub required when stem mounting.

(6)

2/3 lamp ballast configurations in EB8/PLUS only for T8 UNC version.

(7)

Use EHT1 ballast in

ambient temperatures below 0°F (-18°C) on 3 Lamp 54W T5HO configurations.

Options 8L=8 Latches (IP67 Rating),

(4' only) RIF1=Radio Interference Suppressor

TH=(2) Top Watertite Hubs

(5)

TEH=(2) Top & (2) End Watertite Hubs

(all Watertite Hubs have 1/2" Conduit Entry)

(5)

BKS=(2) Snap-on Brackets for Stem or Surface

Mount

M4=Specular Reflector SSL=Stainless Steel Latches VRS=Vandal Resistant Screws for Latches

Packaging U=Unit Pack PALC =Job Pack

in Carton

Ballast Type

(1)

T8 Systems EB8

=T8 Electronic Instant Start.

(4)

Total Harmonic Distortion < 10%

EB8 /PLUS=T8 Electronic Instant Start.

(4), (6)

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

ER8

=T8 Electronic Program Rapid Start.

(4)

Total Harmonic Distortion < 10%

ER8 /PLUS=T8 Electronic Program Start.

(4)

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

T5 Systems EBT

=T5 Linear Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

EHT

=T5HO Linear Electronic Program Rapid Start

High Ambient. Total Harmonic Distortion < 10%

No. of Ballast 1 or 2

WL=Wet Location Label

Accessories (order separately) VT2 Stem Bushing=1/2" – 3/8" (Required when

using Stem/Sets, Requires (1) per (Stem/Set) VT2-Chain/Set-U=Chain Hanging Set Includes 6 ft. of chain, 4 large S-Hooks and 4 small S-Hooks. Order Two (2) Kits for each 4' or 8' Fixture

VT2-SS-MBK=Stainless Steel Mounting Bracket VT3-BKS2-PK=(2) Snap-on Brackets for Stem,

Surface or Chain Mount. Adjustable along length of fixture.

No. of Ballast 1 or 2

No. of Ballast

(3), (7)

1 or 2

Factory installed code compliant disconnect for safe and convenient means of disconnecting power.

VT3 VAPORTITE INDUSTRIAL

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 based on 5000K lamps. 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

System Performance

Photometrics

Dimensions

Energy

Savings

% Light

Gain/Loss

Part

Number

VT3-232-EBT1/PLUS-M4

54%

32%

48% 69%

65%

29%

VT3-254T5-UNV-EBT1-M4

41%

57%

9%

57%

23%

VT3-232DR-EB81-M4

175 MH

Lamp

Type

150W HPS

VT3

18%

175 MH 150W HPS 100 MH 100W HPS

T5 T8 T8

44

% light gain/light loss utilize S/P adjusted lumens.

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

VT4 System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

VT3-254T5-UNV-EBT2-M4 2 5000 93% 72% 1.00 6294 1.90 1.38 8686 97 $4.96 89 VT3-232-EB81/PLUS-M4 2 3100 94% 77% 1.15 5136 1.95 1.40 7172 65 $3.77 110 VT3-332-EB81/PLUS-M4 3 3100 94% 75% 1.15 7350 1.95 1.40 10263 101 $4.20 101

Comparison System

175W Metal Halide Garage Light 1 13600 58% 70% 1.00 5474 1.50 1.22 6705 213 $14.52 22 150W High Pressure Sodium Garage Light 1 12900 81% 70% 1.00 7335 0.62 0.79 5776 188 $14.88 22

VT3 Lamp Configurations

Dimensions – Top View

1-Lamp

2-Lamp

3-Lamp

4 Foot

8 Foot

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture 0-30 0-40 0-60 0-90 0-180

85 85 85 85 78 78 78 75 75 75 77 74 70 67 68 66 63 65 63 61 70 64 59 55 60 56 53 57 54 51 65 57 51 46 53 49 45 51 47 44 59 51 44 40 47 42 38 45 41 38 54 45 39 34 42 37 33 40 36 32 50 41 34 30 38 33 29 37 32 28 46 37 30 26 34 29 25 33 28 25 43 33 27 23 31 26 22 30 25 22 39 30 24 20 28 23 19 27 22 19 37 27 21 17 26 21 17 25 20 17

1711 19.4 27.0 2691 30.6 42.5 4531 51.5 71.5 6093 69.2 96.1 6338 72.1 100.0

VT3-254T5DR-UNV-EB81-WL-M4-U

Electronic Ballast (2) 54WT5HO/835 lamps 4400 lumens Spacing criterion: (II) 1.2 x mounting heigh t, (⊥) 1.1 x mounting height Efficiency 72% Test Report: VT3-254T5DR-M4.IES

VT3-332DR-UNV-EB81-WL-M4-U

Electronic Ballasts (3) F32T8/835/RS lamps 2950 lumens Spacing criterion: (II) 1.4 x mounting height, (⊥) 1.4 x mounting height Efficiency 75% Test Report: VT3-332DR-M4.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture 0-30 0-40 0-60 0-90

91 91 91 91 84 84 84 80 80 80 83 79 76 73 73 71 68 70 68 66 76 69 64 59 64 60 56 61 58 55 69 61 55 50 57 52 48 54 50 47 63 54 47 42 51 45 41 48 44 40 58 48 41 35 45 39 34 43 38 34 53 43 36 31 40 34 30 38 33 29 49 38 31 26 36 30 26 35 29 25 45 34 27 23 32 26 22 31 26 22 41 31 24 20 29 23 19 28 23 19 38 28 22 17 26 21 17 25 20 17

1677 18.9 24.5 2729 30.8 39.8 4910 55.5 71.7 6602 74.6 96.4

4-7/8"

[123mm]

X=1-13/32"

[36mm]

4-7/8"

[123mm]

X=1-13/32"

[36mm] Y=2-1/2"

[64mm]

X

6-15/16"

[177mm]

X

Y

6-15/16"

[177mm]

[123mm]

4-7/8"

X=1-13/32"

[36mm] Y=2-1/2"

[64mm]

X

Y

6-15/16"

[177mm]

6-5/8"

[168mm]

X=5-3/8"

[137mm]

X

89-1/2" [2273mm] Optional Back Hub Locations

87-1/8" [2213mm] 1/4" x 28" Stud (4 Places)

40-13/16"

[1037mm]

6-5/8"

[168mm]

X=5-3/8"

[137mm]

5-1/2"

[140mm]

97-7/8" [2486mm]

41-1/2" [1054mm] Optional Back Hub Locations

38-3/4" [984mm] 1/4" x 28" Stud (2 Places)

X

49-13/16" [1265mm]

4-3/16"

[106mm]

4-3/16"

[106mm]

45

Unit has full metal gear tray secured by internal fasteners and tethers providing maximum protection and rigidity.

Polyurethane gasketing is formed in the housing providing a continuous seamless seal for the diffuser.

Sturdy cam latches clamp diffuser tightly for a positive seal between housing, gasketing and diffuser.

High impact lens to withstand the most demanding environments

Fiberglass housing is reinforced polyester and self-extinguishing (ASTM-D635-74) plastic of a permanent pearl gray color.

A watertite hub for 1/2" conduit entry is provided at each end of housing (standard) for continuous feed.

UL Listed for wet locations (standard). UL/cUL Listed. NSF listed, IP65 certified.

Ordering Information Sample Number: VT1-154T5-PCR-UNV-EB81-WL-U

Two stainless steel brackets and chain mount bail included. Adjustable along length of fixture for variable mounting centers. No holes required. (chain or cable provided by others).

Tandem Blank= 4'

Length

Series VT1=Vaportite

Number of Lamps 1=1 Lamp (Not included)

Wattage (Length) 32=32W T8 (48") 28T5=28W T5 (48") 54T5=54W T5HO (48")

Lens PCR=Lineal Ribs Polycarbonate (Standard)

Voltage

(1)

120V=120 Volt 277V=277 Volt 347V=347 Volt UNV=Universal

Voltage 120/277

(2)

UNC=Universal

Voltage 347/480

(2)

WL=Wet Label

GL=Single Element Fuse GM=Double Element Fuse EL=Emergency Installed

Options Blank=(2) End Watertite Hubs (all

Watertite Hubs have 1/2" Conduit Entry)

SSL=Stainless Steel Latches C3=3' Power Cord C6=6' Power Cord PC3-=3' Power Cord & Plug

(Specify Voltage)

(3)

PC6-=6' Power Cord & Plug

(Specify Voltage)

(3)

VRS-=Vandal Resistant Screws for Latches

Packaging U=Unit Pack

Ballast Type

(1)

T8 Systems EB8

=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

EB8

/PLUS= T8 Electronic Instant Start.

High Ballast Factor >1.13. Total Harmonic Distortion < 10%

ER8

=T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

ER8

/PLUS= T8 Electronic Program Start.

High Ballast Factor >1.15. Total Harmonic Distortion < 10%

T5 Systems EBT

= T5 or T5HO Linear Electronic Program

Rapid Start. Total Harmonic Distortion < 10%

EHT

= T5HO Linear Electronic Start High Ambient.

Total Harmonic Distortion < 10%, less than 0°F starting temperature.

No. of Ballast 1

NOTES:

(1)

Products also available in non-US voltages and frequencies for international markets.

(2)

Not available when specifying emergencies, voltage must be specific. Exception: EL4 ok with

UNV.

(3)

Voltage must be specified when ordered with plugs or emergency ballasts.

Accessories (order separately) VT2-Chain/Set-U=Chain Hanging Set

Includes 6 ft. of chain, 4 large S-Hooks and 4 small S-Hooks

Order One (1) Kit for each 4' Fixture

No. of Ballast 1

Factory installed code compliant disconnect for safe and convenient means of disconnecting power.

VT1 VAPORTITE INDUSTRIAL

46

Cost of

1000 S/P

Adj Lmns -

4000 hrs

$0.08 kWh

FOOTNOTES:1 Lumen maintenance is based on lamp manufacturer's stated data combined with estimated dirt depreciation. 2 Design System Lumens is the fixture lumens at 40% of rated lamp life and is

calculated as Quantity of Lamps x Lamp Lumens x Lumen Maintenance x Fixture Efficiency x Ballast Factor. 3 S/P Ratio is the lamp manufacturers stated Scotopic/Photopic Ratio; accepted by some lighting designers to adjust for the relative strengths of scotopic and photopic vision, not yet adopted by IESNA. 4 S/P Adjusted Lumens calculates the brightness perception scotopic/photopic ratio as Design System Lumens x (S/P)^.0.5 based on 5000K lamps. 5 LER (Luminaire Efficiency Ratio) is an accepted method of comparing fixture performance.

System Performance Table

VT1-154T5-PCR-UNV-EBT1-WL-U

Electronic Ballast (1) 54W T5HO Lamp 4400 Lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.5 x mounting height Efficiency 77.6% Test Report: VT154T5PCR.IES

Photometrics

Dimensions

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

90 90 90 90 82 82 82 76 76 76 79 74 70 65 66 63 60 62 59 57 71 63 56 51 57 52 47 53 49 45 64 54 47 41 49 43 38 46 41 37 58 48 40 34 43 37 32 40 35 31 53 42 35 29 38 32 27 36 31 26 49 38 30 25 34 28 24 32 27 23 45 34 27 22 31 25 21 29 24 20 42 31 24 19 29 23 18 27 22 18 39 29 22 17 26 20 17 25 20 16 37 26 20 16 24 19 15 23 18 14

609 13.8 17.8 1019 23.2 29.9 1901 43.2 55.7 3047 69.2 89.3 3413 77.6 100.0

51-21/32" [1312mm]

10-5/64"

[256mm]

4"

[102mm]

X

X=Variable Mounting Location

Along Fixture Length

Lineal Ribbed Lens

Dimensions for Top View

VT1-132-PCR-UNV-EB81-WL-U

Electronic Ballast (1) 32W T8 Lamp 2850 Lumens Spacing criterion: (II) 1.3 x mounting height, (⊥) 1.5 x mounting height Efficiency 74.4% Test Report: VT132PCR.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 50% 30%

rw 70 50 30 10 50 30 10 50 30 10

RCR

0 1 2 3 4 5 6 7 8 9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30 0-40 0-60 0-90 0-180

87 87 87 87 79 79 79 74 74 74 76 71 67 63 64 61 58 60 57 55 68 60 54 49 54 50 45 51 47 43 61 52 45 39 47 41 37 44 39 35 56 46 38 33 41 35 31 39 34 30 51 41 33 28 37 31 26 34 29 25 47 36 29 24 33 27 23 31 26 22 44 33 26 21 30 24 20 28 23 19 40 30 23 18 27 22 18 26 21 17 38 27 21 16 25 20 16 24 19 15 35 25 19 15 23 18 14 22 17 14

372 13.0 17.5

625 21.9 29.5 1186 41.4 56.0 1912 67.1 90.2 2120 74.4 100.0

Design S/P

No. of Lamp Lumen Fixture Ballast System S/P Brightness Adjusted

VT1 System Comparison Lamps Lumens Maintenance

1

Efficiency Factor Lumens2Ratio3Perception Lumens4Wattage LER

5

VT1-132 1 3100 94% 74% 1.15 2840 1.95 1.40 3463 36 $4.50 96 VT1-154 1 5000 93% 77% 1.00 3581 1.90 1.38 4935 54 $4.55 91

Comparison System

70W Metal Halide Canopy 1 5300 58% 78% 1.00 2398 1.50 1.22 2937 90 $12.57 25 100W Metal Halide Canopy 1 8500 81% 78% 1.00 5370 0.62 0.79 4229 129 $12.52 26

System Performance

Energy

Savings

% Light

Gain/Loss

Part

Number

VT1-154

60%

72% 40%

58%

14%

VT1-132

-22%

70 MH

Lamp

Type

100W MH

VT1

40%

70 MH 100W MH

T8 T5

% light gain/light loss utilize S/P adjusted lumens.

15%

4-9/64"

[106mm]

4-3/8"

[112mm]

Options & Accessories

Lamp Options

Brand Lamp HBI HBE I5 I8 MB F

(1)

HBL HBG HBHD HBHT ABI VT4

(1)

VT3

(1)

VT1

(1)

Generic L8730 or L8830 X X X X X X X X X X X

L8735 or L8835 X X X X X X X X X X X

L8741 or L8841 X X X X X X X X X X X

L5830 X X X X X X X X X X X X

L5835 X X X X X X X X X X X X

L5841 X X X X X X X X X X X X

GE LGSP30M/OC8 (GE) X X X X X X X X X X X

LGSP35M/OC8 (GE) X X X X X X X X X X X

LGSP41M/OC8 (GE) X X X X X X X X X X X

LGSPX30M/OC8 (GE) X X X X X X X X X X X

LGSPX35M/OC8 (GE) X X X X X X X X X X X

LGSPX41M/OC8 (GE) X X X X X X X X X X X

LGF28T5M/830 (GE) X X X X X X X

LGF28T5M/835 (GE) X X X X X X X

LGF28T5M/841 (GE) X X X X X X X

LGF51T5WM/830 X X X X X X X X X X X X

LGF51T5WM/835 X X X X X X X X X X X X

LGF51T5WM/841 X X X X X X X X X X X X

LGF54T5M/830 (GE) X X X X X X X X X X X X

LGF54T5M/835 (GE) X X X X X X X X X X X X

LGF54T5M/841 (GE) X X X X X X X X X X X X

Philips LWF32T8M/TL730 (Philips) X X X X X X X X

LWF32T8M/TL735 (Philips) X X X X X X X X

LWF32T8M/TL741 (Philips) X X X X X X

LWF32T8M/TL830 (Philips) X X X X X X X X X

LWF32T8M/TL835 (Philips) X X X X X X X X X

LWF32T8M/TL841 (Philips) X X X X X X X X X

LWF28T5M/830 (Philips) X X X X X X X

LWF28T5M/835 (Philips) X X X X X X X

LWF28T5M/841 (Philips) X X X X X X X

LWF49T5M/830 (Philips) X X X X X X X X X X X X

LWF49T5M/835 (Philips) X X X X X X X X X X X X

LWF49T5M/841 (Philips) X X X X X X X X X X X X

LWF54T5M/830 (Philips) X X X X X X X X X X X X

LWF54T5M/835 (Philips) X X X X X X X X X X X X

LWF54T5M/841 (Philips) X X X X X X X X X X X X

Sylvania LSFO32M/730K (OSI) X X X X X X X X X X X

LSFO32M/735K (OSI) X X X X X X X X X X X

LSFO32M/741K (OSI) X X X X X X X X X X X

LSFO32M/830K (OSI) X X X X X X X X X X X

LSFO32M/835K (OSI) X X X X X X X X X X X

LSFO32M/841K (OSI) X X X X X X X X X X X

LSF28T5M/835 (OSI) X X X X X X X

LSF28T5M/841 (OSI) X X X X X X X

LSF51T5M/830 (OSI) X X X X X X X X X X X X

LSF51T5M/835 (OSI) X X X X X X X X X X X X

LSF51T5M/841 (OSI) X X X X X X X X X X X X

LSF54T5M/830 (OSI) X X X X X X X X X X X X

LSF54T5M/835 (OSI) X X X X X X X X X X X X

LSF54T5M/841 (OSI) X X X X X X X X X X X X

47

NOTES:

(1)

Lamps supplied, not installed.

Emergency Options

Nomenclature Description HBI HBE I5 I8 MBF HBL HBG HBHD HBHT VT4 VT3 ABI

Generic EL4 (350-450 Im) X X X X X X X X X X X

EL8 (600-700 Im) X X X X X X X X X X X

Sure-Lites EL-FBP140X (350-450 Im) X X X X X X X X X X

EL-FBP240U (600-700 Im) X X X X X X X X X X EL-FBP240M (600-700 Im) X X X X X X X X X X EL-FBP240H (1100-1400 Im) X X X X X X X X X X

Bodine EL-B100 (350-450 Im) X X X X X X X X X X

EL-B90 (500-600 Im) X X X X X X X X X X EL-B70A (600-700 Im) X X X X X X X X X X EL-B60 (600-700 Im) X X X X X X X X X X EL-B60U (600-700 Im) X X X X X X X X X X EL-B50 (1100-1400 Im)

(1)

XX XXXXXX XX

EL-B50U (1100-1400 Im)

(1)

XX XXXXXX XX

EL-B50ST (1100-1400 Im)

(1)

XX XXXXXX XX

EL-B50RCT (1100-1400 Im)

(1)

XX XXXXXX XX

Iota EL-I32 (up to 550 Im) X X X X X X X X X X X

EL-I40 (up to 700 Im) X X X X X X X X X X EL-I48 (up to 700 Im) X X X X X X X X X X EL-I320 (1300 Im)

(1)

XXXXXXXXX XX

EL-I880 (2000 Im)

(1)

XXXXXXXXX XX EL-I232 (2 @ 1400 Im) X X X X X X X X X X X EL-ISD80 (1300 Im)

(1) (2)

XXXXXXXXX XX EL-I40DL (up to 700 Im)

(2)

XXXXXXXXX XX EL-I48DL (up to 700 Im)

(2)

XXXXXXXXX XX EL-I80DL (1300 Im)

(2)

XXXXXXXXX XX EL-I232DL (2 @ 1400 Im)

(2)

XXXXXXXXX XX

NOTES:

(1)

For battery wired to two lamps, specify “/2L” after battery description.

(2)

Approved for wet location listing

TCB/RH-1 SPM/RH-1 Fixture FH-1 FH-1 Single “Y” Loop Series AYC HB/AYC FL-1 FL-1 Toggle Toggle Hanger

HBI X X X HBE X X X HBL X X X I5 X X X X I8 X X X X ABI X X X MBF X XX

(3)

VT1 X VT4 X

F-Bay Mounting Accessories

Nomenclature Description HBI HBE I5 I8 MBF HBL HBG HBHD HBHT ABI VT4 VT3 VT1

U Unit Pack XXXX X X X X X X X X X PAL Palletized out of carton on a

25" x 48" pallet, shrink wrapped

PALC Palletized in carton on a

25" x 48" pallet, shrink wrapped

Packaging Options

48

NOTES:

(3)

Continuous row mount only between fixtures.

XXXX X X X X X

XXXX X X X X X X X X

MOUNTING ACCESSORIES DESIGNATION DESCRIPTION

Suitable for conduit mounting or for use with fixture hook, loop or safety hook. Use chain or cable set to meet NEC requirements for single point mounting, as well as to prevent cantilevering and rotation of fixture from one central location.

HB-SPM= Galvanized Single Monopoint Hanging Kit w/Hub (HBI only, supplied separately)

HBL-SPM= Galvanized Single Monopoint Hanging Kit w/Hub (HBE and HBL only, supplied separately)

Single Point Mount

MOUNTING METHODS DESIGNATION DESCRIPTION

Fixture Hook 2-1/2" (must be used with TCB, HB-SPM or HBL-SPM)

FH–1= Fixture Hook

Hook and Safety Hook

MOUNTING METHODS DESIGNATION DESCRIPTION DESIGNATION DESCRIPTION

Fixture Loop 2-1/2" (must be used with TCB, HB-SPM or HBL-SPM)

FL–1= Fixture Loop

Loop

Cast Aluminum Hanger w/Toggle Nut & Carriage Bolt for quick installation (must be used with TCB, HB-SPM or HBL-SPM)

Retrofit Hanger

49

Mounting

Options & Accessories

RH–1= Retrofit Hanger

MOUNTING ACCESSORIES DESIGNATION DESCRIPTION

Suitable for conduit mounting or for use with fixture hook, loop or safety hook. (Recommended for use with chain or cable set to prevent cantilevering and rotation from a central mounting point).

Ideal for Retrofit opportunities that use our I5/I8 luminaires!

I5/I8-TCB-KIT-NO PLATE=Top Connector Box only (no TCBP plate) I5/I8-TCB-KIT=Top Connector Box Kit w/TCBP

Top Connector Box (I5/I8 only)

SIDE

2-5/16"

[59mm]

4-11/16"

[120mm]

FRONT

3-9/16"

[91mm]

TOP

4-11/16" [120mm]

2-11/32" [60mm]

TOP

3-3/8"

[86mm]

1-3/1 6"

[31mm]

1-7/8 "

[48mm]

1"

[26mm]

1-1/2" HEX.

[39mm]

MOUNTING METHODS DESIGNATION DESCRIPTION

(2) sturdy Wire Hooks and 36" Chain Sets w/S-hooks

AYC–Chain/Set–U=Mounting hanger and chain set for I5, I8 and MBF

(3)

AYC Chain Sets

MOUNTING METHODS DESIGNATION DESCRIPTION

10', Y Toggle #2 Cable 25', Y Toggle #2 Cable

Y–Toggle–10=Mounting Toggle and 10' Cable Y–Toggle–25=Mounting Toggle and 25' Cable

“Y” Toggle

MOUNTING METHODS DESIGNATION DESCRIPTION

10' Loop Hanger #2 Cable 30' Loop Hanger #2 Cable 10' Single Toggle #2 Cable 30' Single Toggle #2 Cable

Loop–10 Loop–30 Toggle–10 Toggle–30

Loop Hanger/Single Toggle

Loop Hanger

Single Toggle

50

Mounting

NOTE: Not for use in high abuse areas such as gymnasiums or similar recreational facilities.

HBAYC–Chain/Set–U=Hook style mounting chain set for

HBI, HBE, HBL and ABI

(2) Hook style V-hangers, 36" Chain Sets w/S-hooks

OCCUPANCY SENSORS DESIGNATION DESCRIPTION

Aisle & 360° General Coverage (Modular)

OCCUPANCY SENSORS DESIGNATION DESCRIPTION

Passive Infra-red Sensor with 360° Lens Installed, 180° Lens Included w/Snap-on feature for in-field install.

MS= 360° or 180° Occupancy Sensor (120V-347V or 480V)

51

Occupancy Sensors

Options & Accessories

NOTES:

(1)

One Motion Sensor per fixture required.

(2)

When ordering a Modular Motion Sensor, the fixture must have a Modular Receptacle (MP) and a Modular

Cord or Cord and plug accessory.

Supplied with Mounting Box, Modular Power Supply Receptacle, Motion Sensor w/360° Lens Installed, and (3) Cover Limiting Hoods (Aisle, End of Aisle, and Full Coverage).

MMS= Motion Sensor for Modular Power Supply (120-277V)

(1)

Aisle & 360° General Coverage (Installed)

9.1m (30 ft)

6.1m (20 ft)

360°

Top View

SideView

3m (10 ft)

6.1m (20 ft)

9.1m (30 ft)

6.1m (20 ft)

9.1m (30 ft)

12.2m (40 ft)

0

9.1m

(30 ft)

6.1m

(20 ft)

Top View

SideView

0

9.1m

6.1m

3m

(10 ft)

(20 ft)

(30 ft)

Aisle

9.1m (30 ft)

6.1m (20 ft)

3m (10 ft)

6.1m (20 ft)

9.1m (30 ft)

6.1m (20 ft)

9.1m (30 ft)

12.2m (40 ft)

0

9.1m

(30 ft)

6.1m

(20 ft)

S H E L V E S

(10 ft)

S H E L V E S

0

9.1m

6.1m

3m

(10 ft)

(20 ft)

(30 ft)

POWER CONNECTIONS DESIGNATION DESCRIPTION

Connect directly to F-Bay or Modular Motion Sensor with a 3', 6', 9', 12' or 15' long modular cord & plug set w/NEMA 15 amp twist lock plug.

MPC3=3' Modular Power Cord & Plug (specify voltage for plug)

MPC6=6' Modular Power Cord & Plug (specify voltage for plug)

MPC9=9' Modular Power Cord & Plug (specify voltage for plug)

MPC12=12' Modular Power Cord & Plug (specify voltage for plug)

MPC15=15' Modular Power Cord & Plug (specify voltage for plug)

Modular Cord & Plug

Connect directly to F-Bay or Modular Motion Sensor with a 3', 6', 9', 12' or 15' long 3/16" standard Modular Power Cord.

Modular Cord

POWER CONNECTIONS DESIGNATION DESCRIPTION

MWS is a simple and cost effective modular wiring system consisting of factory assembled components ready to be snapped together into a complete branch circuit wiring system.

With MWS, branch circuit wiring can be installed in minutes instead of hours reducing labor by 80%.

MWS= Modular Wiring System

MWS

52

Power Connections

PI OPTION ORDERING INFORMATION

Catalog Number Number of Circuit Wired Suffix Circuits To Ballast

PI 1 BLK 1 Black PI 2 BLU 2 Blue PI 2 BLK 2 Black

PI 3 RED 3 Red PI 3 BLU 3 Blue PI 3 BLK 3 Black

BLK=Black Hot

PI1= Single

Circuit

NG= No Ground (ground provided by fixture body) WG= With Ground (separate ground wire in harness)

PI1 - Single Circuit Plug-In

SAMPLE NUMBER: PI1BLK-WG

BLK=Black Hot BLU=Blue Hot

PI2=Two

Circuit

NG= No Ground (ground provided by fixture body) WG= With Ground (separate ground wire in harness)

PI2 - Two Circuit Plug-In

SAMPLE NUMBER: PI2BLK-WG

Leave Blank=Single

Neutral

/WHT=White Neutral /GRY=Gray Neutral

Leave Blank=Single Neutral 2NEU=Two Neutrals

BLK=Black Hot BLU=Blue Hot RED=Red Hot

PI3= Three

Circuit

NG= No Ground (ground provided by fixture body) WG= With Ground (separate ground wire in harness)

PI3 - Three Circuit Plug-In

SAMPLE NUMBER: PI3BLK-WG

Leave Blank=Single Neutral /WHT=White Neutral /GRY=Gray Neutral

Leave Blank=Single Neutral 2NEU=Two Neutrals

For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information.

Catalog Numbering System

The PI System is available in sections up to 8' in length for continuous row wiring by simply plugging the sections together. Each PI section is factory wired to the ballast leads. Color coding of wires is as follows:

PI-1 = One Circuit - 2 Wires: one black, one white PI-2 = Two Circuits - 3 Wires: one black, one blue, one white PI-3 = Three Circuits - 4 wires: one black, one blue, one red, one white

When ordering the PI2/PI3 System it is necessary to specify the number of fixtures required for each circuit. All wiring to external feeds, using cord or cord & plug, are responsibility of installing licensed contractor. Cord and cord & plug sets must be ordered separately if PI option is chosen.

MDS6= 6' Modular Power Cord with MWS 27DS18/2G06MP.

MC3=3' Cord MC6=6' Cord MC9=9' Cord MC12=12' Cord MC15=15' Cord

Connect directly to F-Bay or Modular Motion Sensor with a 6' long Cord and MWS Connector.

I5/I8 BAFFLE DESIGNATION DESCRIPTION

In white door frame w/”Herringbone” patterned end rail

I5-FRM/LENS= Frosted Acrylic Lens & Frame (use with general distribution reflector, I5 only)

I8-FRM/LENS= Frosted Acrylic Lens & Frame (use with general distribution reflector, I8 only)

I5-FRM/CL PK= Clear Acrylic Lens & Frame (use with general distribution reflector, I5 only)

I8-FRM/CL PK= Clear Acrylic Lens & Frame (use with general distribution reflector, I8 only)

FROSTED ACRYLIC LENS

I5/I8 LENS DESIGNATION DESCRIPTION

Finished in white. Can be used alone or in combination with other shielding

WG/I5-4FT-B= 4' Heavy Duty Wireguard (for I5) WG/I8-4FT-B= 4' Heavy Duty Wireguard (for I8)

HEAVY DUTY WIREGUARD

I5/I8 WIREGUARD DESIGNATION DESCRIPTION

Thin Blade White Baffle w/23° longitudinal shielding

90800PPK BAFFLE 4FT I5 W/HDW (WHITE)= 4' Thin Blade White Baffle (for I5)

BAFFLE 4FT I8 (WHITE) 11571919= 4' Thin Blade White Blade Baffle (for I8)

TBW

Can be oriented in either direction for flexibility

90801PPK= Asymmetric Directional Louver (use with general distribution reflector)

ASYMMETRIC LOUVER

I5/I8 LOUVER DESIGNATION DESCRIPTION

53

I5/I8 Lens, Door Frames and Wireguards

Options & Accessories

SWG/HBI-4FT-B= Heavy Duty Wireguard for field installation

HBI-FRM/WG PK= Frame and Wireguard for HBI HBI-FRM/LENS/WG PK= Frame and Prismatic Acrylic Lens with Wireguard for HBI HBI-FRM/CL/WG PK= Frame and Clear Lens with Wireguard for HBI

WIREGUARD

HBI-FRM/LENS PK= Prismatic Acrylic Lens & Door Frame for HBI HBI-FRM/CL PK= Clear Acrylic Lens & Door Frame for HBI

HBI LENS & WIREGUARD DESIGNATION

PRISMATIC & CLEAR ACRYLIC LENS

HEAVY DUTY STOCK WIREGUARD

54

HBI, HBL & HBE Lens, Door Frames and Wireguards

WIREGUARD

WG-HBL6-4FT-B= Field Installable, Wireguard for HBL 4 and 6 Lamp WG-HBL8-4FT-B= Field Installable, Wireguard for HBL 8 Lamp

HBL WIREGUARD DESIGNATION

DROP WIREGUARD

HBI-FRM/DROPWG PK= Frame and Drop Wireguard for HBI HBI-FRM/CL/DROPWG PK= Drop Wireguard, Clear Acrylic Lens and Door Frame for HBI

HBE DOOR FRAME

HBE- -FRM/LENS PK= Prismatic Acrylic Lens & Extruded Aluminum Door Frame

(1)

HBE- -FRM/CL PK= Clear Acrylic Lens & Extruded Aluminum Door Frame

(1)

HBE- -FRM/LENS/WG PK= Frame & Prismatic Lens with Wireguard

(1)

HBE- -FRM/CL/WG PK= Frame & Clear Acrylic Lens with Wireguard

(1)

HBE DOOR FRAME DESIGNATION

NOTES:

(1)

Specify “4/6LT” or “8/10LT” when ordering HBE Door Frame accessories.

Printed in USAACF092055

Cooper Industries plc

600 Travis, Ste. 5600 Houston, TX 77002-1001 P: 713-209-8400 www.cooperindustries.com

Cooper Lighting, Metalux and Fail-Safe are valuable trademarks of Cooper Industries in the United States and other countries. You are not permitted to use the Cooper Trademarks without the prior written consent of Cooper Industries.

Cooper Lighting, LLC.

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269

P: 770-486-4800 F: 770-486-4801

www.cooperlighting.com

International Sales, USA

Cooper Lighting, LLC. 1121 Highway 74 South Peachtree City, GA 30269

P: 770-486-4800 F: 770-486-4801

Canada

Cooper Lighting, LLC. 5925 McLaughlin Road Mississauga, Ontario L5R 1B8

P: 905-507-4000 F: 905-568-7049

The Cooper Lighting Family

Halo Metalux Lumark Sure-Lites Neo-Ray Corelite Portfolio Iris Shaper io Lumière Invue McGraw-Edison Streetworks Fail-Safe PDS MWS RSA Ametrix

Domestic Facilities

Cranbury

, New Jersey

Elk Gr

ove Village, Illinois Irving, Texas Ontario, California Peachtree City, Georgia

Canadian Facility

Calgary, Alberta T2E 7V9 Mississauga, Ontario L5R 1B8

Cooper Lighting LLC CPK1715 Specifications

Table of Contents

Lamp Options

Emergency Options

F-Bay Mounting Accessories

Packaging Options

Mounting

Occupancy Sensors

Power Connections

I5/I8 Lens, Door Frames and Wireguards

HBI, HBL & HBE Lens, Door Frames and Wireguards
