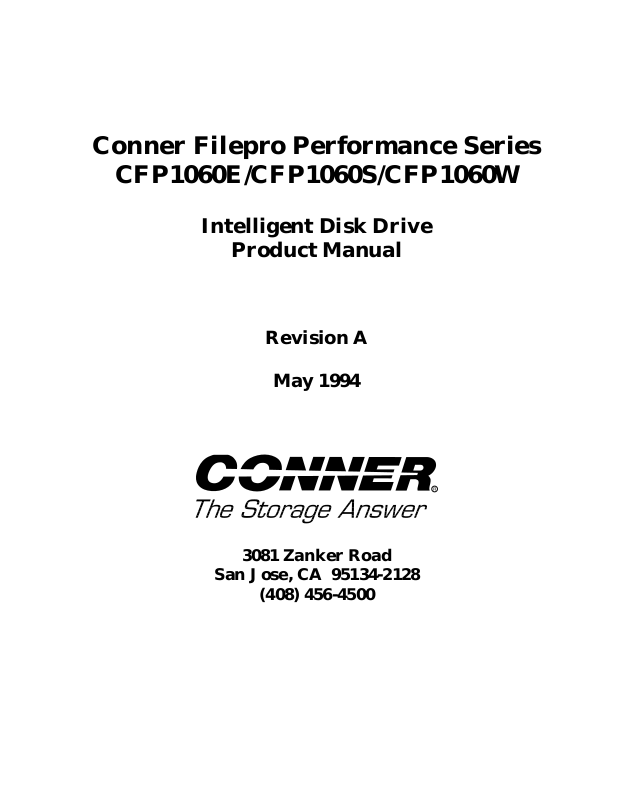

Conner Filepro Performance Series

CFP1060E/CFP1060S/CFP1060W

Intelligent Disk Drive

Product Manual

Revision A

May 1994

3081 Zanker Road

San Jose, CA 95134-2128

(408) 456-4500

Page 2

Page 3

FCC Notice

This equipment generates and uses radio frequency energy and, if not installed and used properly; that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment on and off, you are encouraged to try to correct the interference by one or more of the following measures:

• Reorient the receiving antenna.

• Relocate the computer with respect to the receiver.

• Move the computer into a different outlet so that the computer and receiver are on different branch circuits.

If necessary, you should consult the dealer or an experienced radio/television technician for additional suggestions. You may find the following booklet prepared by the Federal Communications Commission helpful:

How to Identify and Resolve Radio-TV Interference Problems

This booklet (Stock No. 004-000-00345-4) is available from the U.S. Government Printing Office, Washington, DC 20402.

Warning: Changes or modifications made to this equipment which have not been expressly approved by Conner Peripherals, Inc. may cause radio and television interference problems that could void the user's authority to operate the equipment.

Further, this equipment complies with the limits for a Class B digital apparatus in accordance with Canadian Radio Interference Regulations.

Cet appareil numérique de la classe B est conforme au Règlement sur le brouillage radioélectrique, C.R.C., ch. 1374.

Conner and the Conner logo are registered trademarks of Conner Peripherals, Inc. All other trademarks mentioned in this manual are property of their respective owners.

Document No. 501-064 5/94

Page 4

Important Information About This Manual

All information contained in or disclosed by this document is considered proprietary by Conner Peripherals, Inc. By accepting this material, the recipient agrees that this material and the information contained therein are held in confidence and in trust and will not be used, reproduced in whole or in part, nor its contents revealed to others, except to meet the purpose for which it was delivered. It is understood that no right is conveyed to reproduce or translate any item herein disclosed without express written permission from Conner Peripherals, Inc.

Conner Peripherals, Inc. provides this manual "as is," without warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Conner Peripherals, Inc. reserves the right to change, without notification, the specifications contained in this manual.

Conner Peripherals, Inc. assumes no responsibility for the accuracy, completeness, sufficiency, or usefulness of this manual, nor for any problem that might arise from the use of the information in this manual.

Page 5

Table of Contents

1. Overview of the Drives 1

What are the Drives? 1 Features of the Drive 3

What the Drive is Composed Of 4

2. Specifications 9

Specifications in this Chapter 9

Differences Between the Models 1

Mechanical Design Features 4

Drive Assembly Housing 5 Head Positioning Mechanism 6 Read/Write Heads and Disks 6 Data and Power Connections 6

Electrical Design Features 6

Integrated Circuit 6 Circuit Board 6

Firmware 7

Drive Capacity 10

Formatted Capacity 10

Physical Configuration 10

Physical Configuration per Zone 10

Performance Characteristics 11

Seek Times (typical)* 11 Average Latency 11 Rotation Speed (+0.1%) 11 Controller Overhead 11 Start Time(Power Up)* 11 Stop Time at Power Down 11 Interleave 11

Read/Write Characteristics 12

Recording Method 12 Recording Density (maximum) 12 Flux Density (maximum) 12

Host Interface Characteristics 12

Command Set 12 Data Transfer Rate 12 Maximum Synchronous Transfer Offset: 12 Maximum Tagged Command Queue Depth: 12 Buffer Size: 12

Reliability 13

Data Reliability 13 Component Design Life 13 Start/Stop cycles 13 Mean Time Between Failures: 13 Mean Time to Repair 13 Preventive Maintenance 13

Power Requirements (Typical) 14

Minimum/Maximum Voltage: 14

Technical Reference Manual Page i

Page 6

Filepro CFP1060E/CFP1060S/CFP1060W Table of Contents

Environmental Tolerances 15

Magnetic Field: 15

Acoustic Noise: 15 Safety Standards 16 Physical Characteristics - CFP1060E 17 Physical Characteristics - CFP1060S 18 Physical Characteristics - CFP1060W 19

3. How the Drive Operates 21

Functions of the Drive 21 Drive Operational Modes 21 Error Correction 22 Read Retry Operations 22 Downloadable Microcode 23 Buffer Management and Command Execution 24

Read Look Ahead Code 24 Write Caching 26 Tagged Command Queuing 27

Seek Re-ordering 27

Buffer Management 27

4. Installing the Drive 29

Take These Precautions 29 Installing the Drive 29 Installing a CFP1060E 30

Setting the Drive's Jumpers - 1060E 30

Setting the SCSI Bus Address - CFP1060E 30

Disabling Spin-Up at Power On - CFP1060E 31

Delaying Spin Up at Power On - CFP1060E 31 Cabling the Drive - CFP1060E 31 Attaching Power to the Drive - CFP1060E 31 Mounting the Drive - CFP1060E 32

Installing a CFP1060S 33

Setting the Drive's Jumpers - CFP1060S 33

Setting the SCSI Bus Address - CFP1060S 34

Disabling Spin-Up at Power On - CFP1060S 35

Delaying Spin Up at Power On - CFP1060S 35

Disabling the SCSI Bus Parity - CFP1060S 36

Disabling SCSI Bus Terminator Power (TERMPWR) -

CFP1060S 36 Setting the Bus Termination - CFP1060S 37 Cabling the Drive - CFP1060S 38

SCSI Bus Cable 38

Spindle Synchronization 38 Attaching Power to the Drive - CFP1060S 39 Mounting the Drive - CFP1060S 39

Installing a CFP1060W 40

Setting the Drive’s Jumpers - CFP1060W 40

Setting the SCSI Bus Address - CFP1060W 41

Disabling Spin-Up at Power On - CFP1060W 42

Delaying Spin Up at Power On - CFP1060W 42

Disabling the SCSI Bus Parity - CFP1060W 42

Page ii Filepro CFP1060E/CFP1060S/CFP1060W

Page 7

Filepro CFP1060E/CFP1060S/CFP1060W Table of Contents

Disabling SCSI Bus Terminator Power (TERMPWR) CFP1060W 43

Using the J5 Auxiliary Connector 43

- SEL0 43

- XTFAULT 44

- SEL1 44

- VUNIQ 44

- SEL2 44

- SPSYNC 44

- SEL3 45

- XTACTV 45

- GROUND 45 +5 Volts 45

- FAULT 45 Setting the Bus Termination - CFP1060W 46 Cabling the Drive - CFP1060W 47

SCSI Bus Cable 47 Mixing Wide and Narrow SCSI Devices on a SCSI Bus 48

Spindle Synchronization 48 Attaching Power to the Drive - CFP1060W 49 Mounting the Drive - CFP1060W 49

5. Interface Physical Characteristics 51

Electrical Description 51

Output Characteristics 51 Input Characteristics 52

Model-Specific SCSI Physical Characteristics 52 CFP1060E (WIDE, 80-pin Single Connector Attachment [SCA]) 53

External Terminator Power 53 Internal Termination 53 Cable Requirements 53 Connector Requirements 53 Single Connector Attachment (SCA) Signal Definitions 53

Power 53

Spindle Sync 54

LED Out 54

Motor Start Controls 54

SCSI ID Selection 54 Interface Pin Assignments 55 Interface Timing Requirements 56

Model CFP1060S (Narrow, 50-pin SCSI) 57

External Terminator Power 57 Internal Termination 57 Cable Requirements 58 Connector Requirements 59 Interface Pin Assignments 60 Interface Timing Requirements 61

Model CFP1060W (Wide, Unitized SCSI-3 P-Connector) 62

External Terminator Power 62 Internal Termination 62 J5 Auxiliary Connector Signal Characteristics 63 Cable Requirements 63 Connector Requirements 64 Interface Pin Assignments 65

Technical Reference Manual Page iii

Page 8

Filepro CFP1060E/CFP1060S/CFP1060W Table of Contents

Interface Timing Requirements 66

6. SCSI Command Implementation 67

SCSI Command Summary 67 Drive Dependent SCSI Data 68

Format Drive Page - 03H 68 Drive Geometry Page - 04H 70 Notch and Partition Parameters Page - 0CH 71

Page iv Filepro CFP1060E/CFP1060S/CFP1060W

Page 9

Overview of the Drives

Interface

80-pin Single Connector

FAST WIDE

50-pin FAST

68-pin FAST WIDE

What are the Drives?

The CFP1060 series are high performance 3.5-inch low-profile (1.0 inch high)

1.06 Gigabyte (formatted) disk drives. They all offer 9.0 millisecond average seek time for Reading , 9.5 millisecond seek time for Writing, with an average latency of only 5.55 ms. High capacity is achieved by utilizing a zone density recording technique using 9 recording zones at an areal density of 205 Mbits per square inch. These drives feature high performance while maintaining low power consumption to reduce power supply current and system cooling requirements in disk arrays.

They are designed to operate on the Small Computer System Interface (SCSI) and are SCSI-2/3 command compatible. The mechanical and major electronic components are identical between the models and differ only in the host interface implementation:

Drive Model Form Factor

CFP1060E

CFP1060S CFP1060W

For simplicity, we often refer to these drives collectively in this manual as “the drive.”

1 inch high, 3.5 inch

1 inch high, 3.5 inch 1 inch high, 3.5 inch

Differences Between the Models

The three drive models differ only on the host interface implementation:

CFP1060E: SCSI 80-pin Wide Single Connector Attachment (SCA) interface designed for applications such as Redundant Arrays in which the drives are plugged directly into a backplane. The drive also implements a Wide SCSI interface for high interface bandwidth.

CFP1060S: SCSI 50-pin standard interface designed for applications which implement the standard SCSI-2 architecture.

Capacity

1062.3MB

Technical Reference Manual Page 1

CFP1060W: SCSI 68-pin Wide interface designed for applications which require high interface bandwidth and the option of cabled interconnect. The drive utilizes the Unitized Connector defined by the Small Form Factor Committee (refer to SFF-8009). The Unitized Connector combines the SCSI-3 P-

Page 10

Chapter 1 Overview of the Drives

connector Wide interface, the standard 4-pin power and a 2mm pin pitch Auxiliary connector into a single molded assembly.

Page 2 Filepro CFP1060E/CFP1060S/CFP1060W

Page 11

Overview of the Drives Chapter 1

Features of the Drive

The drive provide the following features:

• Automatic Spindle Synchronization

• 512 KB segmentable cache buffer with adaptive cache management

• LRU Cache replacement

• 88 bit Reed-Solomon EDAC with on the fly error correction

• High performance rotary voice coil actuator with embedded servo system

• No thermal recalibration required to maintain performance levels

• High Shock resistance

• Automatic actuator latch against the inner stop upon power down with

dedicated landing zone

• Active Termination with removable Resistor Packs

• Active Negation output drivers for greater interface reliability

• SCSI-2/3 Compatibility

• Dual Microprocessor-controlled diagnostic routines that automatically

execute at start-up

• Sealed HDA

• Automatic error correction

• Down-loadable Code through SCSI Interface

• 1,7 run length limited code

• Programmable Block Size (512-520 in 1 byte increments, 1024-1040 in 2

byte increments)

• Tagged Command Queuing with Seek Re-ordering and Write/Read Coalescing

Technical Reference Manual Page 3

Page 12

Chapter 1 Overview of the Drives

What the Drive is Composed Of

The drive is composed of mechanical, electrical, and firmware elements.

Mechanical Design Features

The drive’s hardware includes the components described in the following sections. Figure 1-1 shows the drive top level assembly.

Figure 1-1 Drive Top Level Assembly

Damper

Head-Disk Assembly

1060-1-1

Printed Circuit Board Assembly Shield

Printed Circuit Board Assembly

Page 4 Filepro CFP1060E/CFP1060S/CFP1060W

Page 13

Overview of the Drives Chapter 1

Drive Assembly Housing

The drive assembly housing, or Head-Disk Assembly (HDA) consists of a die-cast aluminum base on which is mounted a die-cast aluminum cover. Both the base and the cover are coated with a special material designed to seal out contaminants which might degrade head and media reliability. A gasket seals the joint between the base and cover to retard the entry of moisture and environmental contaminants from the assembly.

This assembly, the head-disk assembly, contains an integral 0.3 micron filter, which maintains a clean environment. Critical drive components are contained within this contaminant-free environment. Figure 1-2 shows the HDA and the major assemblies contained within it:

Figure 1-2 Head-Disk Assembly

Disk (1 of 4)

Disk Spacer (1 of 3)

Filter

Top Cover

Disk Clamp

Gasket

Preamplifier/ Flex Circuit Assembly

Head-Stack Assembly

Actuator Magnet Assembly

Spindle Motor

Base Assembly

1060-1-2

Technical Reference Manual Page 5

Page 14

Chapter 1 Overview of the Drives

Drive Motor and Spindle

A brushless DC direct-drive motor assembly is mounted on the drive’s base. The motor rotates the drive’s spindle at 5400 RPM. The motor/spindle assembly is dynamically balanced to provide minimal mechanical runout to the disks. A dynamic brake is used to provide a fast stop to the spindle motor and return the heads to the landing zone when power is removed.

Head Positioning Mechanism

The read/write heads are supported by a mechanism coupled to a rotary voice coil actuator.

Read/Write Heads and Disks

Data is recorded on 95mm diameter disks through 3370-type 50% nano-slider thin film heads with transverse pressure contour (TPC) air bearing surfaces. The TPC air bearing surface allows the head to fly at a uniform height regardless of radial position. This improves data reliability and allows the aerial density to be more uniform with radius. The drive contains four sputtered thin film disks with eight data surfaces and eight read/write heads.

At power-down, the heads are automatically retracted to the inner diameter of the disk and are latched and parked on a landing zone that is inside the data tracks.

Data and Power Connections

Data and power connections to the drive are differ between the drive models. Refer to chapter 4 for information regarding a specific model's requirements.

Electrical Design Features

Integrated Circuit

A single integrated circuit (IC) is mounted within the sealed hard drive assembly in close proximity to the read/write heads. The IC provides head selection, read pre-amplification, and write drive circuitry.

Circuit Board

The drive’s dual-microprocessor-controlled circuit board provides the remaining electronic functions, which include:

• read/write circuitry

• rotary actuator control

• interface control

• spin speed control

• auto-park

• power management

The background processor is a 16-bit Motorola 68HC16. The entire data path between the serializer-deserializer and the interface chip, including the buffer

Page 6 Filepro CFP1060E/CFP1060S/CFP1060W

Page 15

Overview of the Drives Chapter 1

(cache) is 16 bits wide to provide high data throughput. The "Catalina" SCSI interface chip manages a 16-bit to 8-bit conversion prior to transacting data over the SCSI bus for 8-bit narrow SCSI applications.

The data buffer (cache) utilizes a 256K x 16 Dynamic RAM. Data path integrity is ensured by using a 4-byte CRC which is appended to the data upon receipt by the Catalina. This CRC is verified by the "Indy" buffer manager when the data is taken out of the buffer to be written to the disk and the CRC is written with the data. A typical sector data field consists of 512 bytes of data, 4 bytes of CRC and 11 bytes of Error Detection And Correction (EDAC) code. The same CRC checks are performed during an outbound process and the CRC is stripped from the data prior to sending it to the Host.

The SCSI interface functions are managed by a 8-bit Motorola 68HC11 microprocessor. Low SCSI transaction overhead is maintained by automating common SCSI bus phase sequencing using a state machine in the Catalina chip.

Read/Write Channel

The Read/Write channel, in addition to the preamplifier discussed earlier, consists of three integrated circuits:

• Pulse Detector

• Data Separator

• Time base

Firmware

The drive’s firmware can be considered in two parts. The first part principally resides in the ROM for the 68HC16 background processor. This processor is responsible for:

• starting the spindle motor and maintaining precise rotational speed

• controlling track following and actuator motion during seeking

• managing background R/W activity

• power management

• monitoring the overall health of the drive.

The interface processor's control microcode resides in both ROM and RAM. The RAM portion of the microcode can be upgraded in the field with using software. Additional information regarding the RAM code can be found in Chapter 3, page

23. The interface processor firmware functions include:

• reporting drive status and error conditions to the host

• manage operating parameters for the drive

• parsing the Command Descriptor Block and checking for illegal fields

• converting the LBA to CHS and initiating read and write operations to the

background processor

• defect management

• serial port communications

Technical Reference Manual Page 7

Page 16

Chapter 1 Overview of the Drives

Since parsing/decoding of commands and execution of the Read/Write functions are handled by separate processors, command execution can be overlapped in multiple initiator or Tagged Command Queuing environments. Functions such as seek re-ordering and command coalescing can also be overlapped when the drive is operating with a host environment capable of supporting Tagged Command Queuing.

For more information on the drive’s interface implementation and command set, refer to the Ninth Generation SCSI Interface Manual.

Page 8 Filepro CFP1060E/CFP1060S/CFP1060W

Page 17

Specifications

Specifications in this Chapter

This chapter provides the following specifications for the drive:

• drive capacity

• physical configuration

• performance characteristics

• read/write characteristics

• reliability

• power requirements

• environmental tolerances

• safety standards

• physical characteristics

Technical Reference Manual Page 9

Page 18

Chapter 2 Specifications

Drive Capacity

Formatted Capacity

• CFP1060E: 1,060.33MB

• CFP1060S: 1,060.33MB

• CFP1060W: 1,060.33MB

*1MB is equal to 106 or 1,000,000 bytes

Physical Configuration

Specification:

Disk Type Head Type

Actuator Type Number of Disks Data Surfaces Data Heads Servo Tracks per Surface

Track Density @ 0 Bytes per Block

Blocks per Drive (physical)

°Skew

CPF1060E CFP1060S CFP1060W:

Sputtered Thin film Thin Film - TPC

Rotary Voice-Coil 4 8 8 Embedded 2756 3150 TPI 512-520, 1024-1040 2,074,880

Physical Configuration per Zone

Data Rate (Mbits/sec)

Zone 0 (OD) 55.072 884 111 Zone 1 51.304 316 103 Zone 2 48.889 214 99 Zone 3 47.246 147 95 Zone 4 44.242 250 89 Zone 5 41.818 206 84 Zone 6 37.460 361 79 Zone 7 34.242 275 69 Zone 8 (ID) 31.111 103 63

* The physical track configuration contains one spare sector per track.

Page 10 Filepro CFP1060E/CFP1060S/CFP1060W

Data Tracks per Zone per Surface

User Sectors per Track *

Page 19

Specifications Chapter 2

Performance Characteristics

Seek Times (typical)*

• Track to Track: 2.0 msec

• Average (read/write): 9.0/9.5 msec

• Full Track: 16 msec

* The timing is measured from the time the last byte of the command descriptor block is

written to the time seek is initiated by the drive operating at nominal DC input voltage and nominal operating temperature.

** The average seek time is determined by averaging the seek time for a minimum of

1000 seeks of random length over the surface of the disk.

Average Latency

• 5.55 milliseconds

Rotation Speed (+0.1%)

• 5400 RPM

Controller Overhead

• 20 µsec

Start Time(Power Up)*

• 0 RPM to Ready

− Typical: 12 seconds

− Maximum: 20 seconds

* These numbers assume spin recovery is not invoked. If spin recovery is invoked, the

maximum could be 40 seconds. Briefly removing power can lead to spin recovery being invoked.

Stop Time at Power Down

• Typical: 7 seconds

• Maximum: 10 seconds

Interleave

• 1:1

Technical Reference Manual Page 11

Page 20

Chapter 2 Specifications

Read/Write Characteristics

Recording Method

• 1,7 RLL code

Recording Density (maximum)

• 65,131 bits per inch

Flux Density (maximum)

• 48,848 flux reversals per inch

Host Interface Characteristics

Command Set

• SCSI-2 (refer to the Ninth Generation SCSI Technical Reference Manual for command implementation)

Data Transfer Rate

• To/from Buffer, synchronous narrow: 10.0 MByte/second

• To/from Buffer, synchronous wide: 20.0 MByte/second

Maximum Synchronous Transfer Offset:

• 15 bytes/words

Maximum Tagged Command Queue Depth:

• 32 commands

Buffer Size:

• 512 KB, segmentable

Page 12 Filepro CFP1060E/CFP1060S/CFP1060W

Page 21

Specifications Chapter 2

Reliability

Data Reliability

• < 1 non-recoverable error in 10

Component Design Life

• 5 years

Start/Stop cycles

• 10,000 minimum

Mean Time Between Failures:

• 500,000 power-on hours*

* Projected MTBF based on comparison of similar Conner products

Mean Time to Repair

bits read

• 10 minutes, typical

Preventive Maintenance

• None

Technical Reference Manual Page 13

Page 22

Chapter 2 Specifications

Power Requirements (Typical)

+12V DC

Mode

Read/Write Seek (100%)

Seek (30%) Idle Standby Spin-up

Typical conditions are both voltages at nominal value, room temperature (25° C)

ambient to the drive without terminators installed. Maximum power is when the supply voltage is at the worst case condition.

(typical1)

280 mA 685 mA 6.8 W 7.5 W 700 mA 640 mA 11.6 W 13.3 W

310 mA 490 mA 6.2 W 7.0 W 270 mA 510 mA 5.8 W 6.3 W 9 mA 475 mA 2.5 W 2.7 W

1.6 A 800 mA n/a 1.7 A

+5V DC (typical)

Power (typical)

Minimum/Maximum Voltage:

• +5V: +5%

• +12V: +5%

Maximum Peak-to-Peak Allowable Noise (DC to 1 Mhz: equivalent resistive load):

• +5V: 2%

• +12V: 1%

Power (maximum)

Page 14 Filepro CFP1060E/CFP1060S/CFP1060W

Page 23

Specifications Chapter 2

Environmental Tolerances

Temperature:

• Operating: 5° to 55° C

• Non-operating: -40° to 60° C

• Thermal Gradient: 20°

Relative Humidity (non-condensing):

• Operating: 5 to 95%

• Non-operating: 5 to 95%

• Maximum Wet Bulb: 29°C

Altitude (relative to sea level):

• Operating: -200 to 10,000 feet

• Non-operating: 40,000 feet (maximum)

• Altitude Gradient: 1,000 feet/minute

Shock (half-sine pulse, 11 ms duration):

• Operating: 10G peak without non-recoverable errors

• Non-operating: 75G without non-recoverable errors

C per hour maximum

Vibration (swept-sine, one octave per minute):

• Operating

− 5 - 32 Hz: 0.010 inch displacement; peak to peak

− 32 - 400 Hz: 0.5G without non-recoverable errors

• Non-operating

− 5 - 28 Hz: 0.020 inch displacement; double amplitude

− 28 - 400 Hz: 4G peak

Magnetic Field:

• The disk drive will meet its specified performance while operating in the

presence of an externally-produced magnetic field under the following conditions:

Field Frequency Intensity

DC to 700 Khz 700 Khz to 1.5 Mhz

Acoustic Noise:

• The acoustic level will not exceed 37 dBA sound pressure or 43 dBA sound

power in Idle Mode at a distance of 1 meter from the drive.

6 gauss 7 milligauss 3 milligauss

Technical Reference Manual Page 15

Page 24

Chapter 2 Specifications

Safety Standards

The drive is designed to comply with relevant product safety standards, including:

• UL 478, 5th edition, Standard for Safety of Information Processing and

Business Equipment

• UL 1950, Standard for Safety of Information Technology Equipment

• CSA 22.2 #220, Information Processing and Business Equipment

• CSA 22.2 #950, Safety of Information Technology Equipment

• IEC 380, Safety of Electrically Energized Office Machines

• IEC 950, Safety of information Technology Equipment Including Electrical

Business Equipment

• VDE 0805, VDE 0805 TIEL 100, and VDE 0806

• Complies with FCC Class B, Part 15, Subpart J

Page 16 Filepro CFP1060E/CFP1060S/CFP1060W

Page 25

Specifications Chapter 2

Physical Characteristics - CFP1060E

Height:

• 1.0 inch + .020

Width:

• 4.0 inches + .020

Depth:

• 5.75 inches + .020

Weight:

• 1.3 pounds

Figure 2-2 The Drive’s Physical Dimensions

4.000 +0.02

0.41 [10.41] MAXIMUM

Zone

[101.60 +0.51]

.153 +0.016 [3.89 +0.41]

8X 6-32 UNC-2B

1.00 +0.02

[25.40 +0.51]

3.695 [93.85]

2.362 [59.99]

.63 [16.00]

.250 [6.36]

Tolerance: .xxx +.005

4.000 [101.60]

.xx +.020

5.75 + 0.02

146.05 + 0.51

[ ]

.125 +0.010

[3.18 +0.25]

+.00

4.00

-.01

2.623 +0.018

[66.62 +0.46]

+0.00

101.60

[ ]

-0.25

3.750 [95.25]

w/in Zone

LED

4X 6-32 UNC-2B .22 [5.59] MIN FULL THD

1.750 [44.45]

2.375 +0.015

[60.33 +0.38]

.065 +0.018

[1.65 +0.46]

1060-2-2

Technical Reference Manual Page 17

Page 26

Chapter 2 Specifications

Physical Characteristics - CFP1060S

Height:

• 1.0 inch + .020

Width:

• 4.0 inches + .020

Depth:

• 5.75 inches + .020

Weight:

• 1.3 pounds

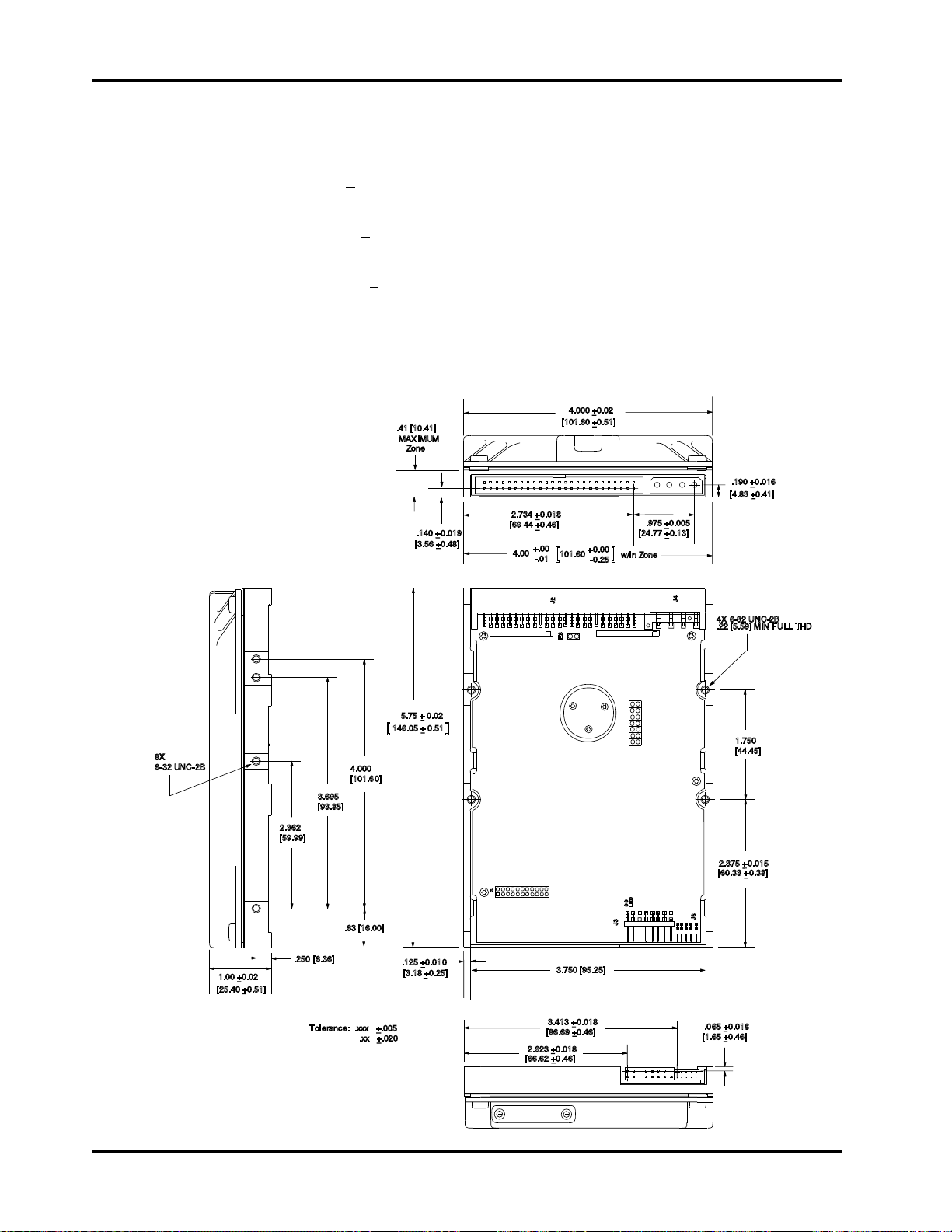

Figure 2-3 The Drive’s Physical Dimensions

4.000 +0.02

+.00

101.60

[ ]

-.01

[101.60 +0.51]

+0.00

-0.25

[24.77 +0.13]

w/in Zone

.975 +0.005

.190 +0.016

[4.83 +0.41]

.41 [10.41]

MAXIMUM

Zone

.140 +0.019

[3.56 +0.48]

2.734 +0.018

[69 44 +0.46]

4.00

8X 6-32 UNC-2B

1.00 +0.02

[25.40 +0.51]

3.695 [93.85]

2.362 [59.99]

.250 [6.36]

Tolerance: .xxx +.005 .xx +.020

4.000 [101.60]

.63 [16.00]

5.75 + 0.02

146.05 + 0.51

[ ]

.125 +0.010

[3.18 +0.25]

3.750 [95.25]

3.413 +0.018

[86.69 +0.46]

2.623 +0.018 [66.62 +0.46]

4X 6-32 UNC-2B .22 [5.59] MIN FULL THD

1.750 [44.45]

2.375 +0.015 [60.33 +0.38]

LED

.065 +0.018

[1.65 +0.46]

1060-2-3

Page 18 Filepro CFP1060E/CFP1060S/CFP1060W

Page 27

Specifications Chapter 2

Physical Characteristics - CFP1060W

Height:

• 1.0 inch + .020

Width:

• 4.0 inches + .020

Depth:

• 5.75 inches + .020

Weight:

• 1.3 pounds

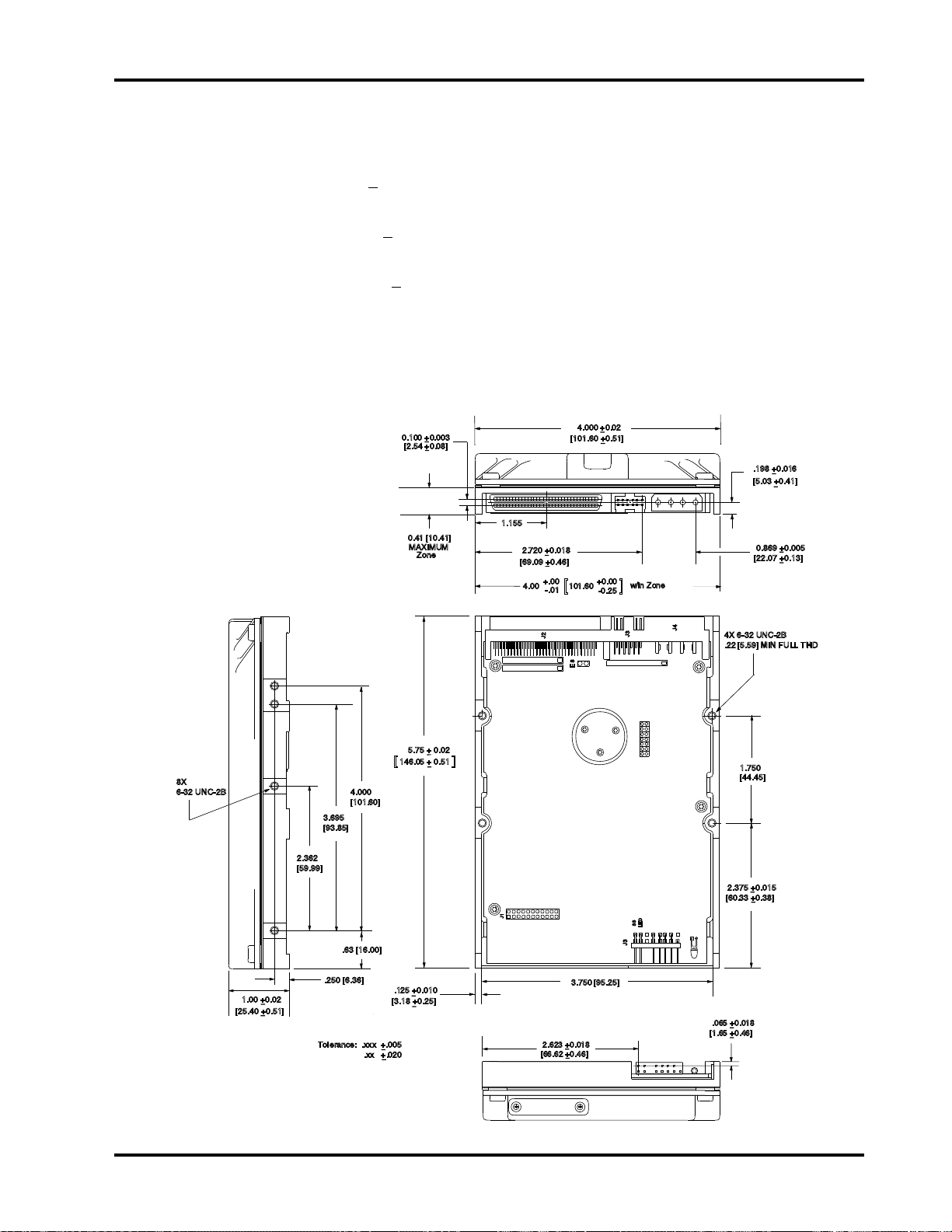

Figure 2-4 The Drive’s Physical Dimensions

8X 6-32 UNC-2B

2.362 [59.99]

3.695 [93.85]

4.000 [101.60]

.63 [16.00]

0.100 +0.003 [2.54 +0.08]

0.41 [10.41]

MAXIMUM

Zone

5.75 + 0.02

146.05 + 0.51

[ ]

1.155

2.720 +0.018

[69.09 +0.46]

+.00

4.00

-.01

4.000 +0.02

[101.60 +0.51]

+0.00

101.60

[ ]

-0.25

w/in Zone

LED

.198 +0.016 [5.03 +0.41]

0.869 +0.005

[22.07 +0.13]

4X 6-32 UNC-2B .22 [5.59] MIN FULL THD

1.750 [44.45]

2.375 +0.015

[60.33 +0.38]

1.00 +0.02

[25.40 +0.51]

1060-2-4

.250 [6.36]

Tolerance: .xxx +.005

.xx +.020

.125 +0.010

[3.18 +0.25]

3.750 [95.25]

2.623 +0.018

[66.62 +0.46]

.065 +0.018

[1.65 +0.46]

Technical Reference Manual Page 19

Page 28

Chapter 2 Specifications

Page 20 Filepro CFP1060E/CFP1060S/CFP1060W

Page 29

How the Drive Operates

Functions of the Drive

This chapter describes certain operational aspects of the drive, including discussions of:

• drive operational modes

• error correction

• read error recovery

• downloadable microcode

• buffer management

Drive Operational Modes

The drive operates in the following modes:

•• Read/Write Mode occurs when data is read from or written to the disk.

•• Seek Mode (100%) occurs when the actuator is in motion.

•• Seek Mode (30%) is based on 1/3 stroke seeks with a 30% seek duty cycle.

•• Idle Mode occurs when the drive is not reading, writing, or seeking. The

motor is up to speed and the Drive Ready condition exists. The actuator is residing on the last-accessed track.

•• Standby Mode occurs when the motor is stopped and the actuator is latched in the landing zone. The drive will enter Standby mode after poweron reset if the Disable Spin jumper is installed or the DSPN bit in MODE SELECT page 0 is set. A STOP UNIT command will also place a drive into Standby Mode. The drive will spin up and go into Idle mode when a START UNIT command is issued or on a timed basis by SCSI ID if the SDLY bit is set in MODE SELECT page 0. Refer to the MODE SELECT and MODE SENSE commands in the Ninth Generation SCSI Interface Manual for additional details.

•• Spin-Up Mode occurs while the drive's spindle motor is being spun up to speed after initial power on or after exiting Standby Mode.

Technical Reference Manual Page 21

Page 30

Chapter 3 How the Drive Operates

Error Correction

The drive uses a Reed-Solomon code to perform error detection and correction. For each 512-byte block, the software error correction polynomial is capable of correcting:

• one error burst of up to 22 bits in length

• two error bursts each up to 11 bits in length

Single bursts of 11 bits or less are corrected on the fly (OTF) with no performance degradation. A larger defect up to 22 bits in length or a second defect of up to 11 bits in length is corrected using firmware within one latency period, after all retries have been exhausted.

The code has the following error detection capability:

• three error bursts each up to 11 bits in length

• a single burst of up to 51 bits in length

Read Retry Operations

The drive retries data field read operations in the following sequence if it detects an error which cannot be corrected on-the-fly. The default retry algorithm repeats eight times for a total of 128 retries or until the data is recovered.

1. Initial read

2. First retry

3. Read retry with data threshold offset +1

4. Read retry with data threshold offset -1

5. Read retry with data window offset +1

6. Read retry with data window offset -1

7. Write Spash

8. Read retry with data threshold offset +2

9. Read retry with data threshold offset -2

10. Read retry with data window offset +2

11. Read retry with data window offset -2

12. Normal read retry

13. Read retry with servo offset +8%

14. Read retry with servo offset -8%

15. Normal read retry

16. Software (2-burst) EDAC correction attempt

If retries are disabled, the drive retries the operation one time before it reports an error.

Page 22 Filepro CFP1060E/CFP1060S/CFP1060W

Page 31

How the Drive Operates Chapter 3

Downloadable Microcode

The SCSI interface code is split into two parts which are designated as ROM or RAM code. The ROM code contains the basic SCSI operating code and code to support commands such as INQUIRY, TEST UNIT READY, REQUEST SENSE, START/STOP UNIT, etc., which may have to be responded to prior to the drive being in a ready state. The part of the interface code referred to as RAM code resides on an area of the disk which is reserved to the drive and is not directly accessible through the interface. This code is referred to as RAM code because it is read from the disk and is loaded into static RAM after power is applied to the disk, as soon as the drive is able to read from the disk.

The RAM code consists of a resident portion which is loaded after a Power On Reset. Two different versions of RAM code overlays also reside on the disk. The read look ahead code overlay is the default and is loaded into RAM during the initial power-on. If a Queue Tag message is received by the drive, the drive will execute the command and while it is in Status Phase, will read the Queuing code overlay from the disk and load it into the RAM. This operation takes about 600 milliseconds, after which the drive will complete the command by sending the status. The drive will continue to operate with Queuing code residing in RAM until the next Power On Reset.

Refer to the next section for a discussion of the buffer management implications for the different RAM codes.

The RAM code may be upgraded on the disk via the factory serial port or through the interface using the WRITE BUFFER command. Refer to the WRITE BUFFER command in the Ninth Generation SCSI Interface Manual for a discussion of the procedure.

Technical Reference Manual Page 23

Page 32

Chapter 3 How the Drive Operates

Buffer Management and Command Execution

The drive contains a 512Kbyte segmentable buffer which is dynamically configured to adapt to the particular drive configuration or operating environment.

Read Look Ahead Code

The Read Retention RAM code executes commands sequentially as they are received from the initiator(s). Commands from multiple initiators may be queued and overlapped so that the subsequent command can be parsed while the current command is being executed.

The drive's 512K byte buffer is configured as four segments. These segments allow the drive to cache sequential data from four separate areas on the disk. This can significantly improve performance in any environment in which multiple disk files are kept open simultaneously and operated upon in some interleaved fashion.

The Look-Ahead RAM code segments the 512 KB buffer into four 130,548 byte (FD

blocks) segments. The remainder of the RAM is used by the

microprocessor as a scratch pad area and for non read or write data information transfers. The buffer block size is equal to the data block size (typically 512 B) plus the 4 bytes of buffer CRC appended to each block. (refer to the Electrical Design Feature section in Chapter 1 for a description of the buffer CRC).

Buffer operations default on Power-up to Read Look Ahead enabled and Write Caching disabled. MODE SELECT page 8, byte 2, bit 0 (RCD), when set to one disables the read look-ahead cache function and bit 2 (WCE), when set to one enables write cache. In addition, MODE SELECT page 8, byte 3 contains two fields which control the retention priority for reads and writes. Refer to the Ninth Generation Disk Drive SCSI Interface Manual for additional details.

When a read command is received by the disk drive, the cache tables are searched to determine if the requested data is contained in any of the four cache segments (a cache hit). If there is no cache hit, the Least Recently Used (LRU) segment is selected and a read from disk is initiated into that segment which is now considered the Active Segment. The retention of data already transferred to the host and read look ahead in the Active Segment buffer is controlled by the state of the Read Retention Priority.

Page 24 Filepro CFP1060E/CFP1060S/CFP1060W

Page 33

How the Drive Operates Chapter 3

Read Retention On (Read Retention Priority = 0 or F):

The interface processor initiates a full segment read of 253 sectors (FD

blocks)

to the background processor. There are three different situations which would be considered a cache hit on a subsequent read.

• Full: All of the data requested is transferred from the buffer segment and

retained.

• Partial: Some but not all of the data is cached in a buffer segment. If the

cached data is in the Active Segment and the remaining data is part of the full segment read, the drive will transfer the requested data from the buffer as the background process fills it. If the cached data is in the Active Segment but the remaining data is not part of the full segment read, the drive will turn off read retention until the next Active Segment miss occurs and issues a new read (forever) to the background process. This allows the drive to adapt to long sequential reads even in read retention mode. If the data is part of an Inactive Segment, a new full segment read is initiated, making this the Active Segment.

• Potential: If none of the data is in the Active Segment, but is part of the

full segment read, the drive will transfer the data as it becomes available.

Read Retention Off (Read Retention Priority = 1): The interface processor initiates a "read forever" command to the background processor and the buffer segment is treated as a circular buffer which is back filled as sectors are transferred to the host. There are three different situations which would be considered a cache hit on a subsequent read.

• Full: All of the requested data is cached in a buffer segment. If it is the

Active Segment, the data will be transferred to the host and refilled with next sequential data. If the data in an Inactive Segment, the data is transferred to the host and retained.

• Partial: This is when some, but not all of the data is cached in a buffer

segment. If the data is in the Active Segment, data is transferred to the host as the background process fills the buffer and the "read forever" is allowed to refill the buffer. If the data in an Inactive Segment, the cached data is transferred and a new read operation is initiated for the remaining data, making this the Active Segment.

• Potential: None of the data is cached. The active segment is checked and if

the requested data is within 63 sectors of being read, the drive will allow the "read forever" operation to continue and the data is transferred to the host when it is available.

Technical Reference Manual Page 25

Page 34

Chapter 3 How the Drive Operates

Write Caching

Write Caching allows multiple write commands operating on sequential blocks to be written to the medium without losing a motor revolution between commands. Write caching is enabled by setting the WCE bit in MODE SELECT page 8 to one. The WCE bit is only valid while the Read Look Ahead code is loaded. The WCE bit is ignored when the Tagged Command Queuing code is in RAM because write coalescing will be active.

The drive will send good status and command complete following the data out phase of a cached write command. The drive will cache writes when the following conditions are met:

• Two or more write commands (Op Code 0A

or 2AH) execute consecutively

without an intervening command.

• The write commands address consecutive logical block ranges.

• At least one logical block of data has been received in the buffer from the

second write command in time to allow the medium to be written before an additional spindle revolution would be required.

• Both writes are from the same initiator.

• Neither write is a linked command.

If the drive encounters an error during a cached write operation, the drive will respond by:

If AWRE (MODE SELECT page 01

) is 0: the drive will report a CHECK

CONDITION on the next command and the response from a REQUEST SENSE will be a deferred error. (Asynchronous event notification is not supported by this drive.) Refer to the Ninth Generation SCSI Interface Manual for additional details.

If AWRE (MODE SELECT page 01

) is set to 1: the drive will attempt to

dynamically reassign the block of data and complete the operation. If the reassignment fails, the drive will continue to reassign the block until all the space in the grown defect list is filled (147 sectors, maximum).

Page 26 Filepro CFP1060E/CFP1060S/CFP1060W

Page 35

How the Drive Operates Chapter 3

Tagged Command Queuing

The drive, operating using the Tagged Command Queuing code, can queue up to 32 commands. Commands in the queue which involve seeks are re-ordered using a Scan (elevator seek methodology). Read and Write commands are coalesced (combined into a single operation to the background processor) to minimize inter processor communication overhead and reduce mechanical motion.

Seek Re-ordering

Seeks are re-ordered using the Scan or what is sometimes referred to as the elevator seek method. Seeks already in the queue are re-ordered so they can be executed sequentially on a sweep toward the inner diameter (ID) or the outer diameter (OD) of the disk. Any new seeks entering the queue ahead of the sweep is ordered for execution during the current sweep. Any new seeks entering the queue behind the current sweep are held for re-ordering during the reverse sweep. When there are no more commands in the queue ahead of the current sweep, the direction of the sweep is reversed.

Seek re-ordering is controlled by Message Code (Simple, Head of Queue or Ordered Queue) during the Message Phase. Re-ordering of seeks issued with a Simple Queue Tag message may also be restricted using the Queue Algorithm Modifier bits in MODE SELECT page 0A

. Refer to the Ninth Generation SCSI

Interface Manual for additional information on Messages and MODE SELECT page 0A

Buffer Management

The 512K byte buffer is treated by the queuing code as two 240KB buffers (F0

sectors) to maximize coalescing. Look ahead reads are performed by the drive when there are no commands in the queue awaiting execution. Look ahead reads are not performed when there are commands in the queue since another command will be waiting for execution as soon as the current command completes and because the queue affords pre-knowledge of subsequent commands instead of having to anticipate them.

Sequential read or write commands are coalesced into single commands to the background processor. On a read operation, the data associated with each queue tag is transmitted to the host as the buffer is filled by the background processor. On write operations, the drive will connect to the initiator(s), transmit the data into the buffer and disconnect; coalescing sequential data in the buffer before initiating the write to the background processor. The drive will reconnect with each of the writes, using the queue tags, completing the command after the data has been written to the disk. This operation provides the performance of write caching without the exposure of completing the command prior to writing the data to the disk.

Technical Reference Manual Page 27

Page 36

Chapter 3 How the Drive Operates

Page 28 Filepro CFP1060E/CFP1060S/CFP1060W

Page 37

Installing the Drive

Take These Precautions

Installing the Drive

To install the drive, you must:

To protect your equipment from electrostatic damage, perform the installation at a static-safe workstation. If one is not available, follow these guidelines:

1. Work in an uncarpeted area.

2. Before removing the equipment from its anti-static bag, discharge static electricity by touching your computer's metal chassis (or any other grounded object) while touching the anti-static bag.

3. Do not touch circuit boards unless instructed to do so.

0170

• set the drive’s jumpers, if desired

• attach a data cable to the drive

• attach power to the drive

• mount the drive

These procedures differ between the various drive models.

Technical Reference Manual Page 29

Page 38

Chapter 4 SCSI Physical Characteristics

Installing a CFP1060E

The following paragraphs describe the installation procedure for a 16-bit Single Connector Attachment (SCA) interface, model CFP1060E drive.

Setting the Drive's Jumpers - 1060E

There are no jumpers to set on the model CFP1060E drive since all the necessary control signals are on the SCA connector. This drive is intended for applications where the drive is configured at the interface when the drive is plugged into the interface connector.

Setting the SCSI Bus Address - CFP1060E

The SCSI bus ID of the drive is set by grounding the Interface bus signals shown below in Table 4-4.

Table 4-4 Setting the SCSI ID

SCSI ID SCSI ID(0) SCSI ID(1) SCSI ID(2) SCSI ID(3)

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

Open Open Open Open

Ground Open Open Open

Open Ground Open Open

Ground Ground Open Open

Open Open Ground Open

Ground Open Ground Open

Open Ground Ground Open

Ground Ground Ground Open

Open Open Open Ground

Ground Open Open Ground

Open Ground Open Ground

Ground Ground Open Ground

Open Open Ground Ground

Ground Open Ground Ground

Open Ground Ground Ground

Ground Ground Ground Ground

Page 30 Filepro CFP1060E/CFP1060S/CFP1060W

Page 39

SCSI Physical Characteristics Chapter 4

Disabling Spin-Up at Power On - CFP1060E

Spin up upon application of power to the drive can be disabled by grounding the RMT_START line on the interface. Disabling spin up on application of power can also be enabled by setting the DSPN bit in MODE SELECT page 00 (Operating Parameters). The Host must issue a START UNIT command to cause the drive to spin up. Refer to the Ninth Generation SCSI Technical Reference Manual for additional information regarding the MODE SELECT and START/STOP UNIT commands.

Table 4-5 Disabling Spin Up at Power On

RMT_START DSPN Result

Ground 0 Spin Disabled Ground 1 Spin Disabled

Open 0 Spin up on Power On Open 1 Spin Disabled

Delaying Spin Up at Power On - CFP1060E

Grounding the DLYD_START signal on the interface delays spin up on power-up by the value of the drive's SCSI ID multiplied by 4 seconds (i.e. SCSI ID 4 will delay 16 seconds). Delaying spin up on application of power can also be enabled by setting the SDLY bit in MODE SELECT page 00 Refer to the Ninth Generation SCSI Technical Reference Manual for additional information regarding the MODE SELECT command.

Table 4-6 Delaying Spin Up at Power On

DLYD_START SDLY Result

Ground 0 Spin Delayed Ground 1 Spin Delayed Open 0 Spin up on Power On Open 1 Spin Delayed

Cabling the Drive - CFP1060E

The drive is intended for direct backplane connection to the SCA connector rather than through cabling.

(Operating Parameters).

Attaching Power to the Drive - CFP1060E

The drive is powered through the SCA connector and is intended for direct backplane connection rather than through cabling.

Technical Reference Manual Page 31

Page 40

Chapter 4 SCSI Physical Characteristics

Mounting the Drive - CFP1060E

The drive is designed to be used in applications where the unit may experience shock and vibrations at greater levels than larger and heavier disk drives will tolerate.

The design features which allow greater shock tolerance are the use of rugged heads and media, a dedicated landing zone, closed loop servo positioning and specially designed motor and actuator assemblies.

Eight side, or four bottom base mounting points are provided to the customer. The drive is mounted using 6-32 UNC -2B X 0.16 maximum insertion length screws. Refer to Figure 2-2 in Chapter 2 for the location of the mounting holes. The system integrator should allow ventilation to the drive to ensure reliable drive operation over the operating temperature range. The drive may be mounted in any orientation.

Page 32 Filepro CFP1060E/CFP1060S/CFP1060W

Page 41

SCSI Physical Characteristics Chapter 4

Installing a CFP1060S

The following paragraphs describe the installation procedure for a 8-bit, 50-pin SCSI-2 interface, model CFP1060S drive.

Setting the Drive's Jumpers - CFP1060S

Figure 4-3 shows you where the drive’s jumpers are located.

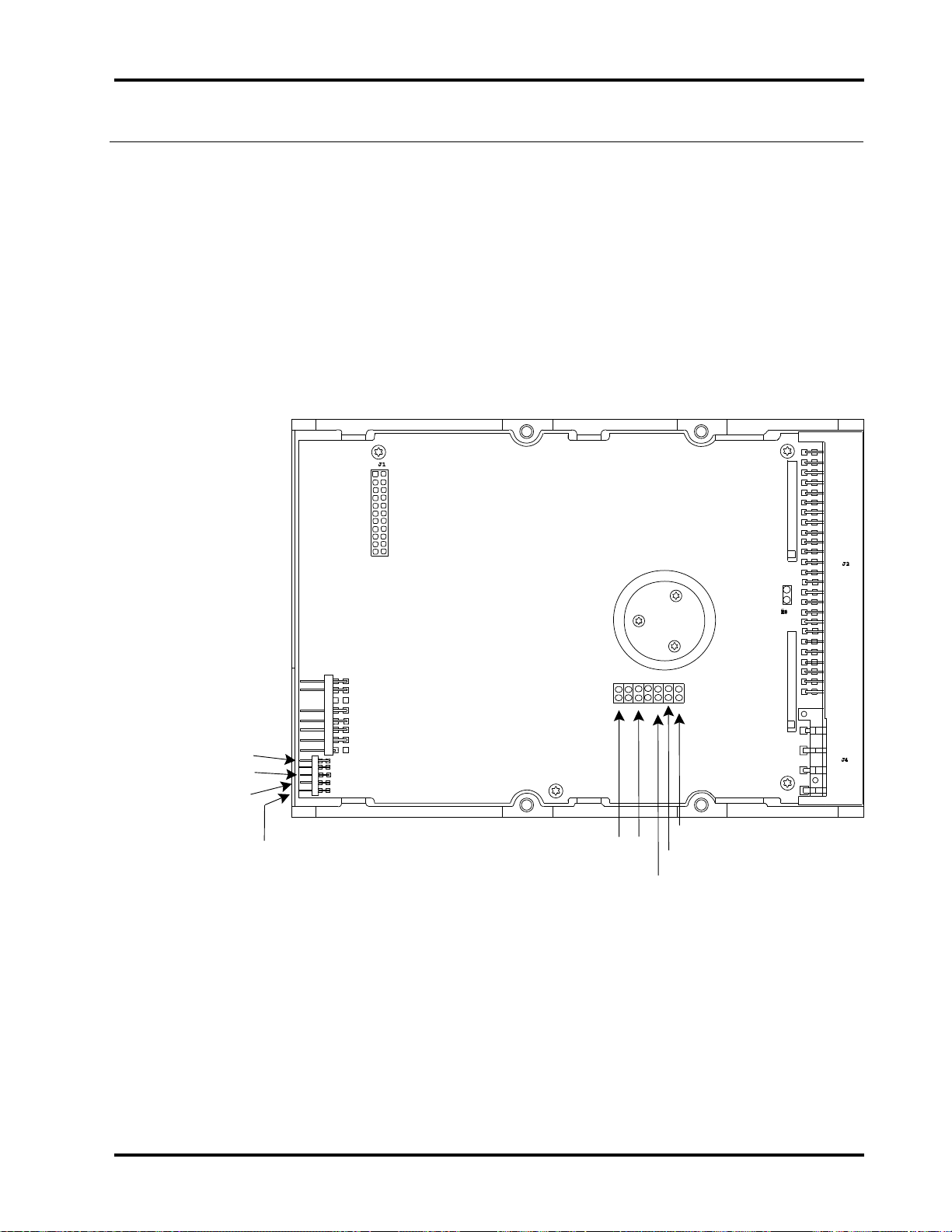

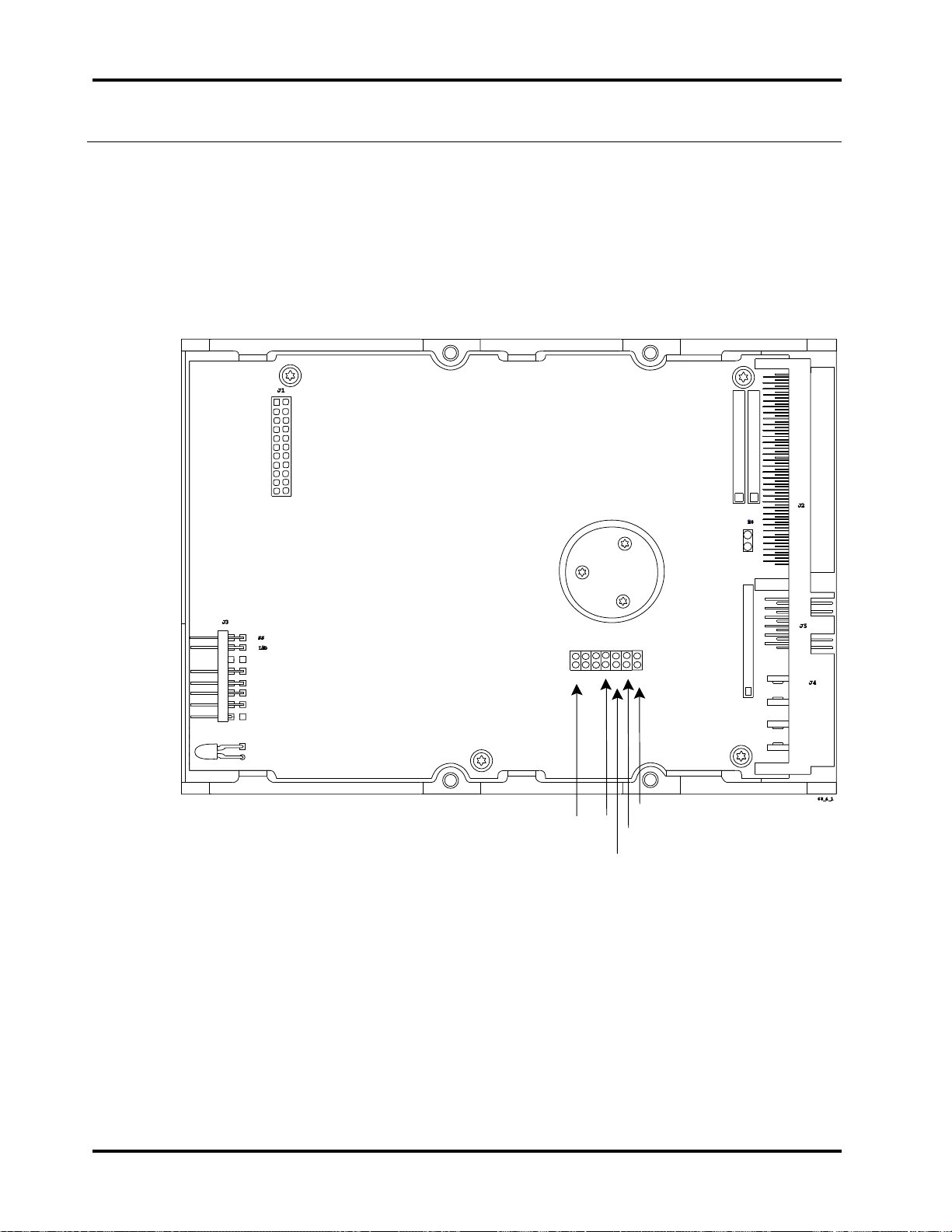

Figure 4-3 Jumper Locations

OE1

:

OE3

OE5, Disable Spin

OE6, LED Driver

SS LED

J6, Header Optional

E1..E3

E4: Reserved

E6 (Delay Spin)

E5 (Disable Spin)

E7 (Disable Parity)

100_4_1

Technical Reference Manual Page 33

Page 42

Chapter 4 SCSI Physical Characteristics

0E2

Out

Setting the SCSI Bus Address - CFP1060S

There are three jumpers available for configuration of the SCSI ID: E1, E2, and E3.

An optional 2mm pin pitch right angle header is located on the front of the PCBA (opposite the SCSI interface connector) which allows changing the SCSI IDs while the drive is mounted in the system. The header includes three pins, 0E1, 0E2 and 0E3 which can alternatively be used to select the SCSI Bus address. This connector may also be used to cable the SCSI ID select to a remote switch. A receptacle connector Amp P/N 111622-1 or equivalent can be used to connect a ribbon cable to this header.

Table 4-6 defines the relationship between the jumpers and the SCSI ID:

Table 4-7 Setting the SCSI ID

Optional header 0E1 Standard E1

Out In Out In Out In Out In

Note: When controlling the SCSI ID remotely, In = Ground or TTL Low and Out = Open or TTL High.

0E3 E3 SCSI ID

Out 0 Out 1 Out 2 Out 3 In 4 In 5 In 6 In 7

Page 34 Filepro CFP1060E/CFP1060S/CFP1060W

Page 43

SCSI Physical Characteristics Chapter 4

Disabling Spin-Up at Power On - CFP1060S

A jumper in the E5 location, disables spin up after power-on for applications where spin up sequencing is necessary. An optional 2mm pin pitch right angle header is located on the front of the PCBA (opposite the SCSI interface connector) which can alternatively be used to disable spin up. Disabling spin up on application of power can also be enabled by setting the DSPN bit in MODE SELECT page 00

(Operating Parameters). The Host must issue a START

UNIT command to cause the drive to spin up. Refer to the Ninth Generation SCSI Technical Reference Manual for additional information regarding the MODE SELECT and START/STOP UNIT commands. Refer to Figure 4-3 for the location of the Disable Spin jumper, E5 or 0E5.

Table 4-8 Disabling Spin Up at Power-On

E5 or 0E5 DSPN Result

In 0 Spin Disabled In 1 Spin Disabled Out 0 Spin up on Power On Out 1 Spin Disabled

Note: In = Ground or TTL Low and Out = Open or TTL High.

Delaying Spin Up at Power On - CFP1060S

A jumper in the E6 location, delays spin up on power-up by the value of the drive's SCSI ID multiplied by 4 seconds (i.e. SCSI ID 4 will delay 16 seconds). Delaying spin up on application of power can also be enabled by setting the SDLY bit in MODE SELECT page 00

(Operating Parameters). Refer to the

Ninth Generation SCSI Technical Reference Manual for additional information regarding the MODE SELECT command. Refer to Figure 4-3 for the location of the Delayed Spin jumper, E6.

Table 4-9 Delaying Spin Up at Power On

E6 SDLY Result

In 0 Spin Delayed In 1 Spin Delayed Out 0 Spin up on Power On Out 1 Spin Delayed

Technical Reference Manual Page 35

Page 44

Chapter 4 SCSI Physical Characteristics

Disabling the SCSI Bus Parity - CFP1060S

SCSI parity is always enabled in both directions, unless the E7 Parity disable jumper is installed. Installing the jumper will cause the drive to ignore SCSI bus Parity In but it will continue to generate SCSI bus Parity Out.

Disabling SCSI Bus Terminator Power (TERMPWR) - CFP1060S

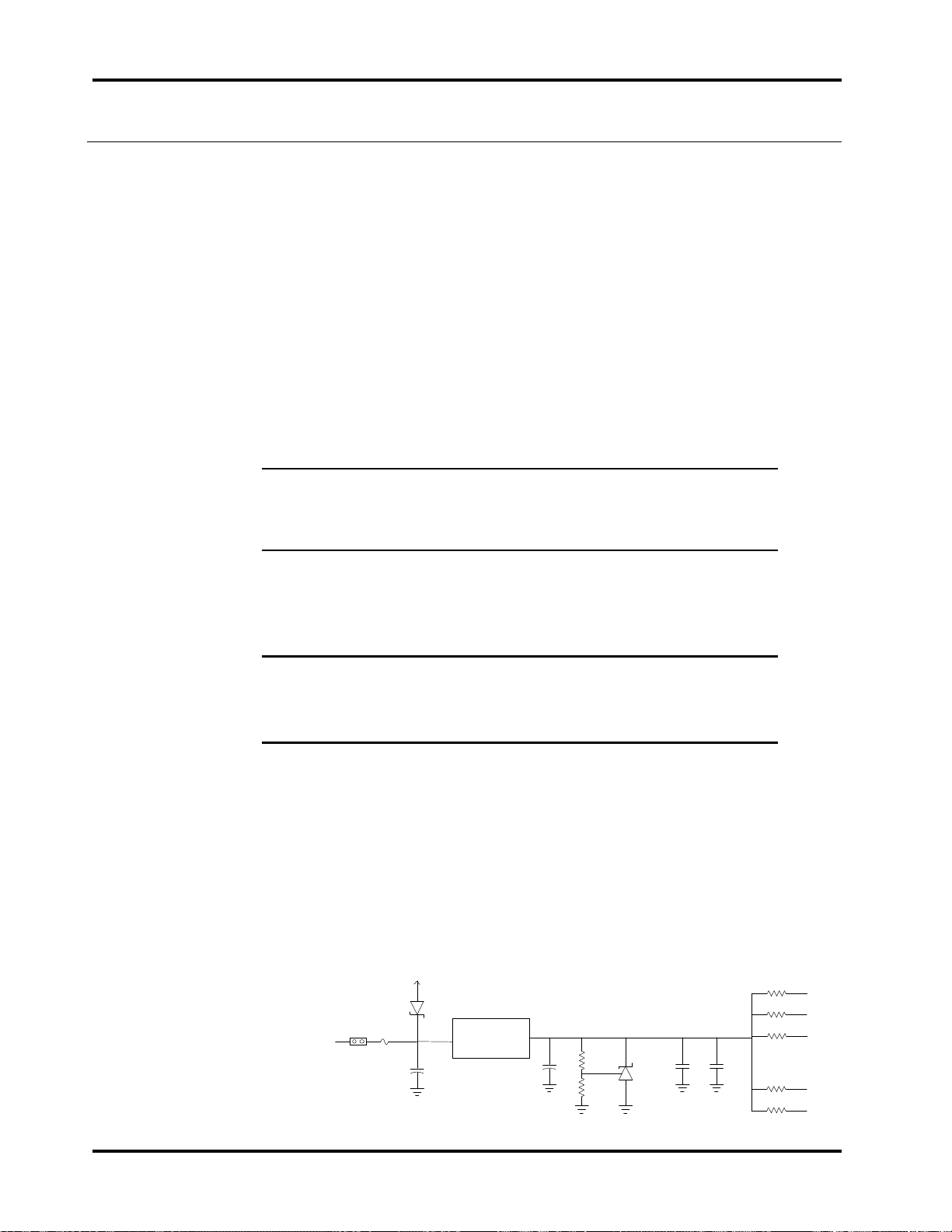

Power to the on-board terminators is provided by the higher of the voltage supplied at Pin #26, J2 or the voltage level at the 5 Volt power input to the drive minus one diode drop. Termination Power to external terminators can be supplied by the drive through Pin #26, J2. The signal output characteristics are described in chapter 5. The TERMPWR line can be disconnected from the drive by removing Jumper E8.

Table 4-10 Disabling SCSI Bus TERMPWR

Jumper E8 Result

In TERMPWR (J2, Pin #26) connected to the drive's

internal termination power.

Out TERMPWR (J2, Pin #26) open circuit.

Page 36 Filepro CFP1060E/CFP1060S/CFP1060W

Page 45

SCSI Physical Characteristics Chapter 4

Setting the Bus Termination - CFP1060S

This drive provides on-board Alternative 2 active termination for the SCSI bus. The termination resistors, which are contained in two Single Inline Packs (SIPs) should be removed from the drive unless it is a SCSI device at the physical end of the bus. Figure 4-4 shows the location of the terminator resistors.

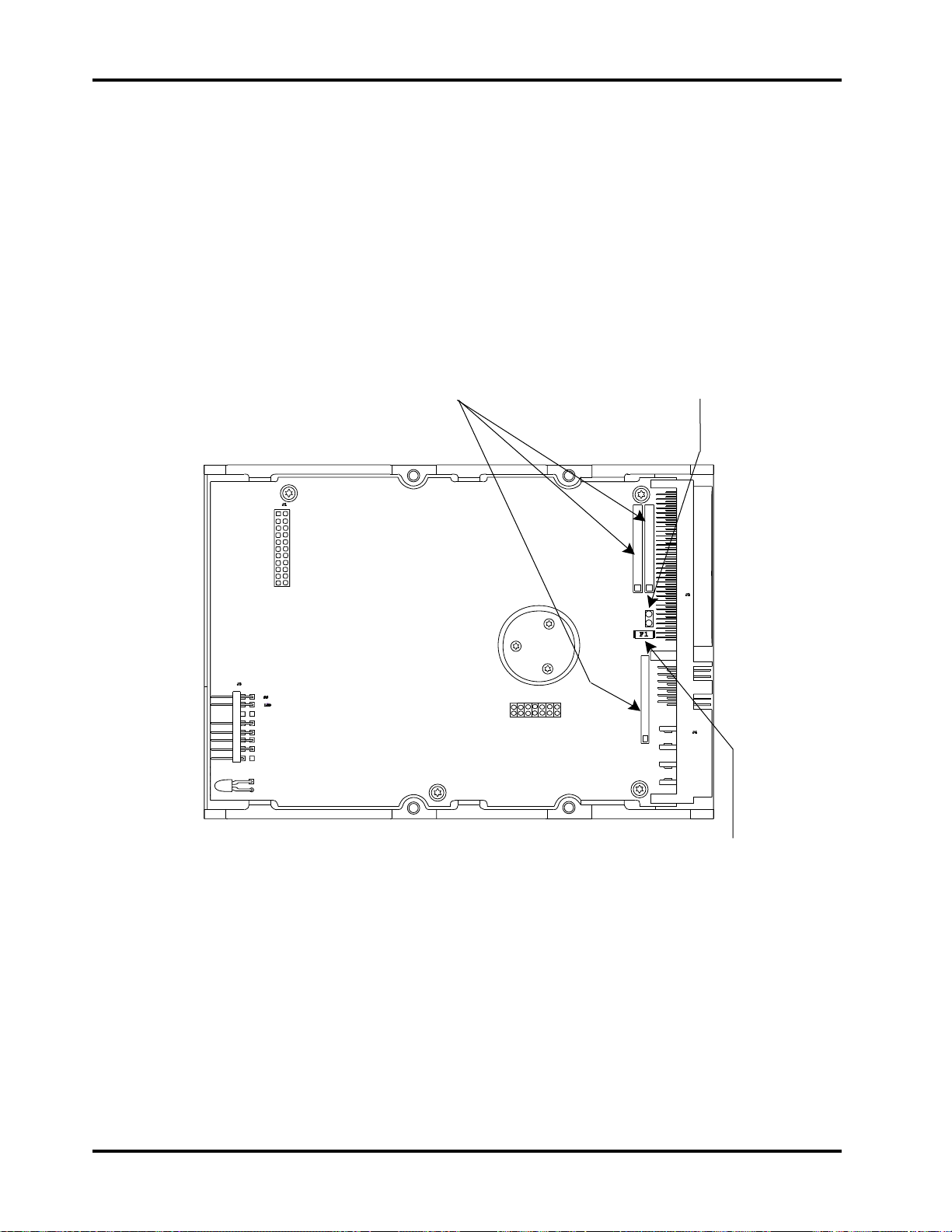

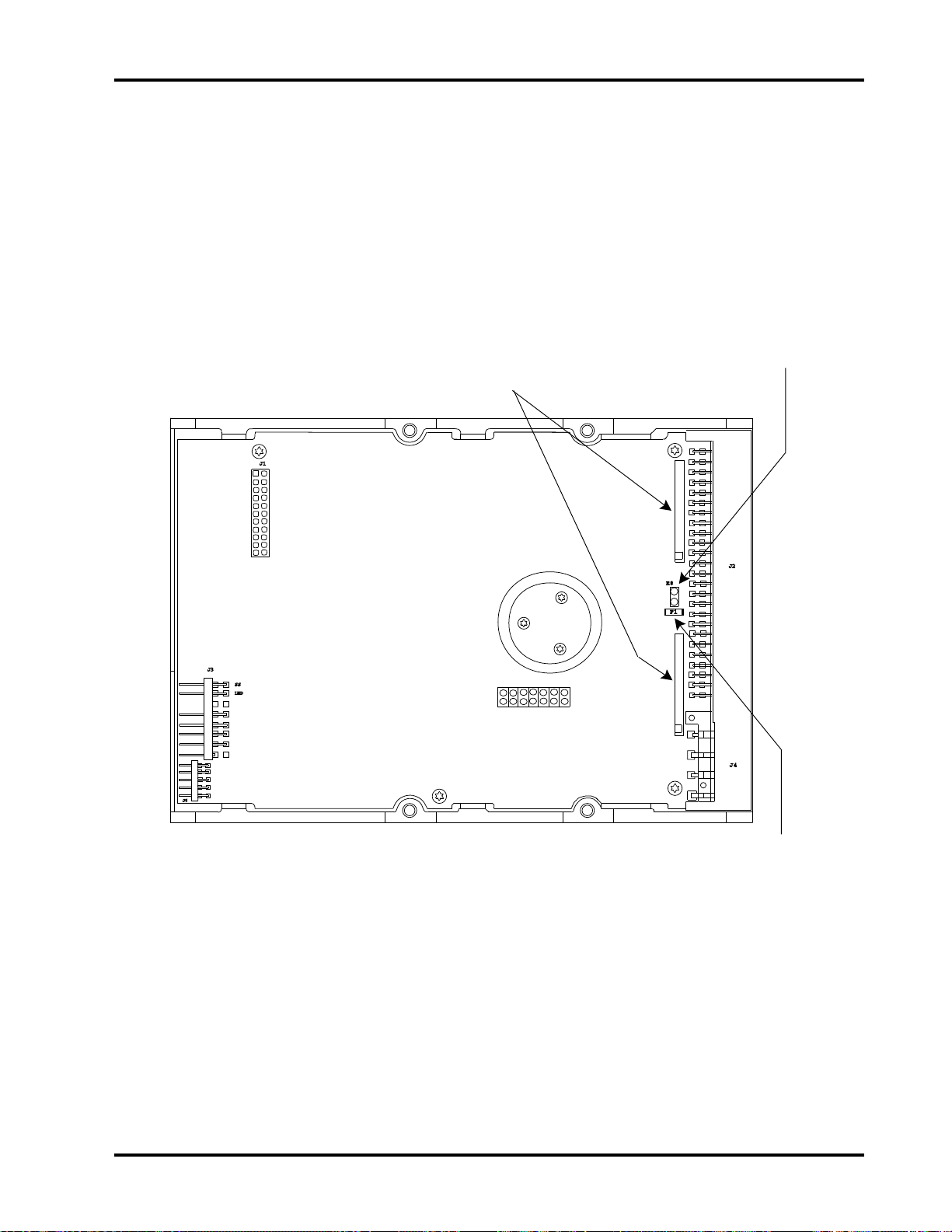

Figure 4-4 Terminator Resistor Locations

Remove to 

SCSI Terminators. Remove in all but the last drive in the chain

Disable TERMPWR Input/Output

SS LED

100_4_2

TERMPWR Fuse

NOTE: The TERMPWR output of the drive is protected by a 1 Ampere fuse. If

external terminators are being powered from the drive and SCSI bus problems are suspected, verify that the fuse is still operational using a meter.

Technical Reference Manual Page 37

Page 46

Chapter 4 SCSI Physical Characteristics

Cabling the Drive - CFP1060S

Connect the SCSI interface cable and the spindle synchronization cable (when needed) as shown in Figure 4-5.

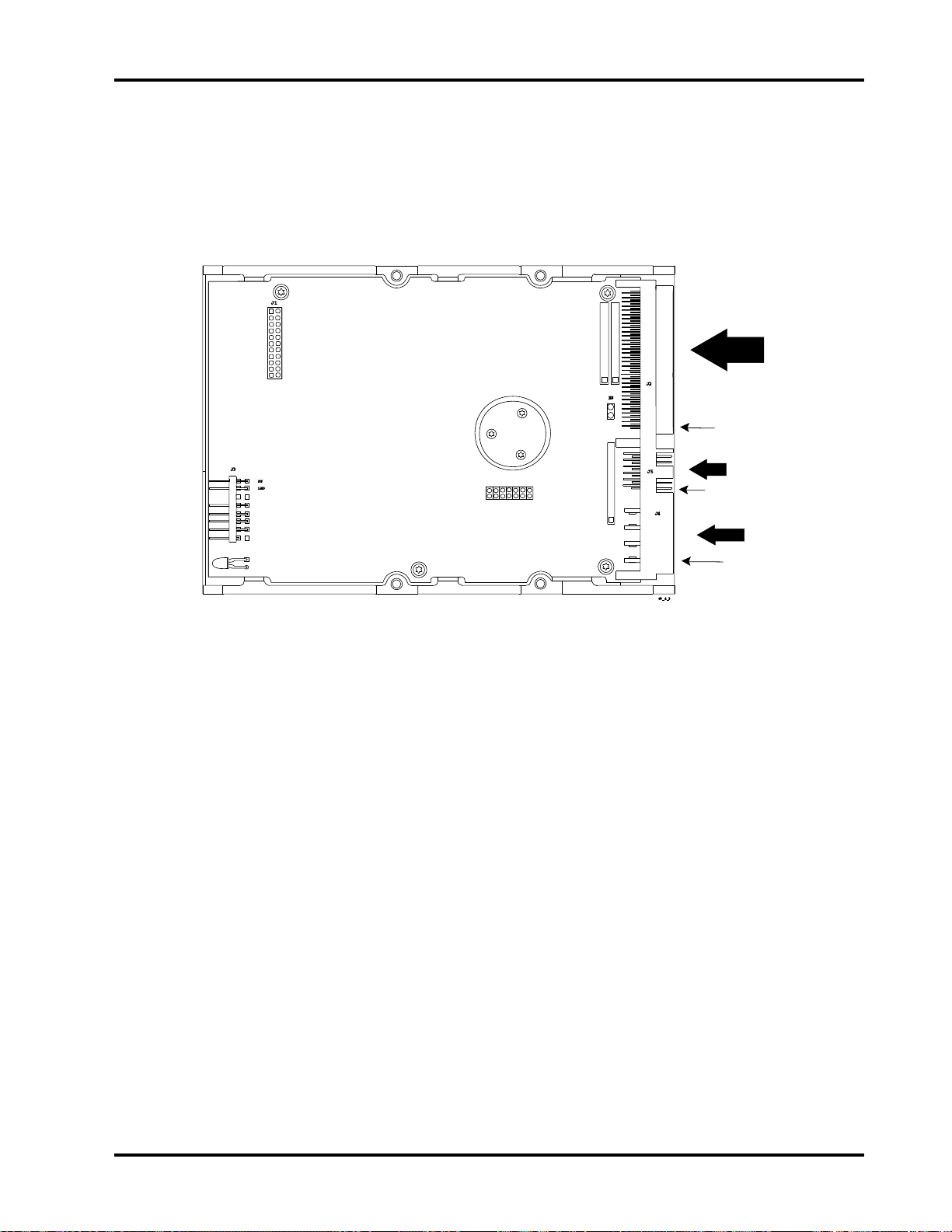

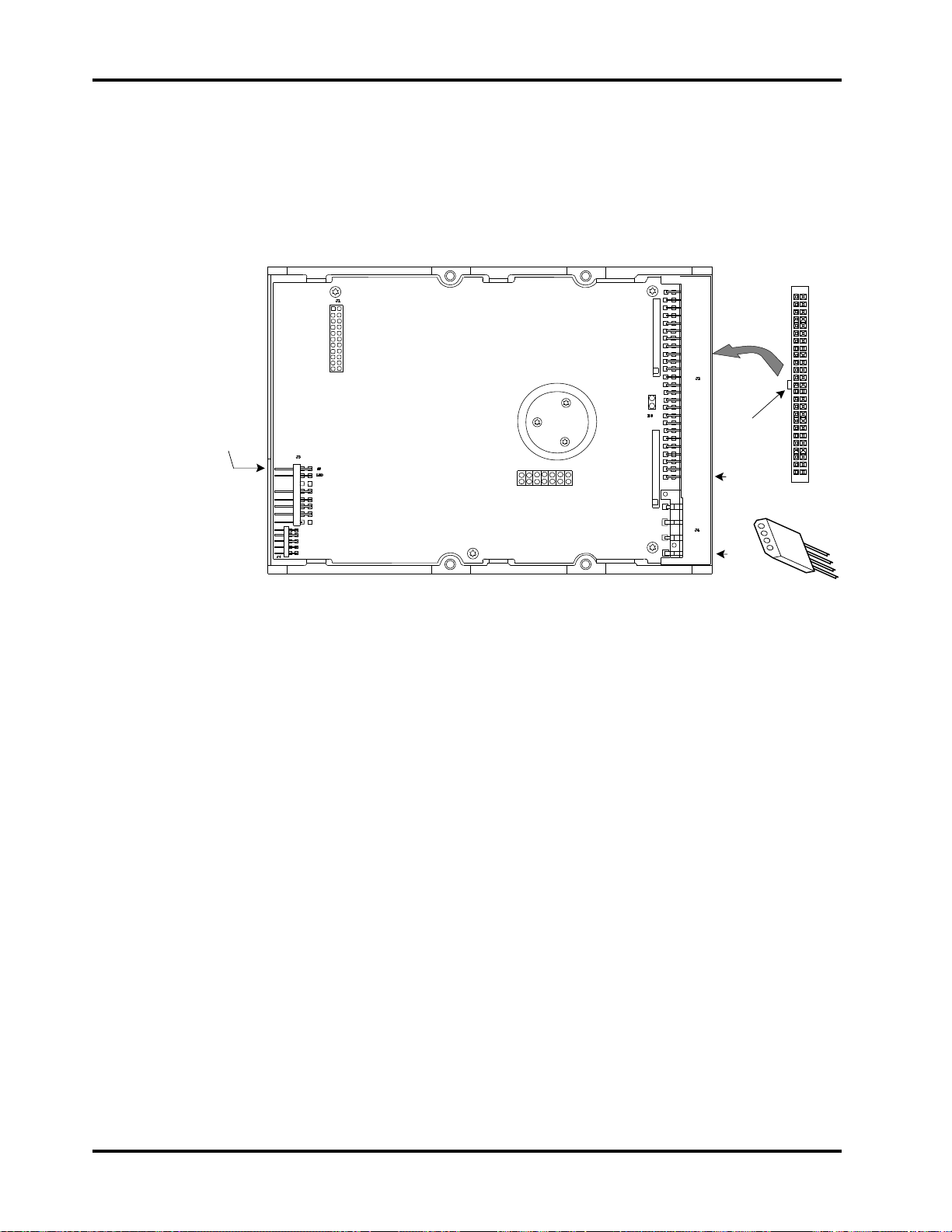

Figure 4-5 Connecting the cabling

50-pin SCSI Interface

Spindle Synchronization Connection

SS LED

Key

Pin 1 (typically indicated by a colored stripe on the cable

Pin 1

100_4_3

4-pin Power Connector

SCSI Bus Cable

The cable and mating connector required to connect the drive to the SCSI bus are described in Chapter 5. In addition, the cable should meet the following guidelines, particularly with FAST SCSI-2 systems:

• Do not route the data cable next to the drive PCB or any other high frequency or large current switching signals. Improper drive operation can result from improper cable routing.

• Cable stubs should not exceed 0.1 meter (4 inches).

• There should be 0.3 meters (12 inches) of cable between drives.

• The total cable length should not exceed 6 meters (20 feet) and may have to

be reduced if a mixture of round and flat cable are used.

• Do not tightly bundle excess flat cable against each other since this promotes cross coupling of signals on the cable. Use spacers to maintain a minimum of

0.050 inches (1.27mm) gap between cable runs.

• Do not clamp the cable tightly against a metal chassis since this will degrade the signal. Use spacers or a non-flammable insulation material to maintain a gap between the chassis and the cable.

Spindle Synchronization

The spindle rotation of up to 35 drives may be synchronized together by daisy chaining pin 1 to pin 1 and pin 2 to pin 2 on connector J3. The spindles are synchronized using a "floating master" concept, where the drives will synchronize to the first drive to reach full speed. The synchronization tolerance is 1%.

Page 38 Filepro CFP1060E/CFP1060S/CFP1060W

Page 47

SCSI Physical Characteristics Chapter 4

Attaching Power to the Drive - CFP1060S

The drive has a 4-pin DC power connector, J4 mounted on the PCB. The recommended mating connector is AMP part number 1-480424-0 utilizing AMP pins, part number 350078-4 or equivalent.

Connect the DC Power cable to the drive as shown in Figure 4-5.

Mounting the Drive - CFP1060S

The drive is designed to be used in applications where the unit may experience shock and vibrations at greater levels than larger and heavier disk drives will tolerate.

Eight side, or four bottom base mounting points are provided to the customer. The drive is mounted using 6-32 UNC -2B X 0.16 maximum insertion length screws. Refer to Figure 2-3 in Chapter 2 for the location of the mounting holes. The system integrator should allow ventilation to the drive to ensure reliable drive operation over the operating temperature range. The drive may be mounted in any orientation.

Technical Reference Manual Page 39

Page 48

Chapter 4 SCSI Physical Characteristics

Installing a CFP1060W

Setting the Drive’s Jumpers - CFP1060W

Figure 4-6 shows you where to access the drive’s jumpers.

Figure 4-6 Jumper Locations

LED

E1. . .E4

E7 (Disable Parity)

68_4_1

E6 (Delay Spin)

E5 (Disable Spin)

Page 40 Filepro CFP1060E/CFP1060S/CFP1060W

Page 49

SCSI Physical Characteristics Chapter 4

Setting the SCSI Bus Address - CFP1060W

There are four jumpers available for configuration of the SCSI ID: E1, E2, E3 and E4.

The 68-pin unified connector includes a standard 2mm pitch auxiliary header which includes pins to allow remote selection of SCSI IDs. A receptacle connector Amp P/N 1-111623-7 or equivalent can be used to connect a ribbon cable to this header.

Table 4-11 defines the relationship between the jumpers or the pins on J5 and the SCSI ID:

Table 4-11 Setting the SCSI ID

SCSI ID E1 / Pin 1 E2 / Pin 3 E3 / Pin 5 E4 / Pin 7

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

Note: Open means open circuit or high impedance. Ground means TTL logic low or logic ground.

Out/Open Out/Open Out/Open Out/Open In/Ground Out/Open Out/Open Out/Open Out/Open In/Ground Out/Open Out/Open In/Ground In/Ground Out/Open Out/Open Out/Open Out/Open In/Ground Out/Open In/Ground Out/Open In/Ground Out/Open Out/Open In/Ground In/Ground Out/Open In/Ground In/Ground In/Ground Out/Open Out/Open Out/Open Out/Open In/Ground In/Ground Out/Open Out/Open In/Ground Out/Open In/Ground Out/Open In/Ground In/Ground In/Ground Out/Open In/Ground Out/Open Out/Open In/Ground In/Ground In/Ground Out/Open In/Ground In/Ground Out/Open In/Ground In/Ground In/Ground In/Ground In/Ground In/Ground In/Ground

Technical Reference Manual Page 41

Page 50

Chapter 4 SCSI Physical Characteristics

Disabling Spin-Up at Power On - CFP1060W

A jumper in the E5 location, disables spin up on power-on for applications where spin up sequencing is necessary. Disabling spin up on application of power can also be enabled by setting the DSPN bit in MODE SELECT page 00

(Operating

Parameters). The Host must issue a START UNIT command to cause the drive to spin up. Refer to the Ninth Generation SCSI Technical Reference Manual for additional information regarding the MODE SELECT and START/STOP UNIT commands. Refer to Figure 4-6 for the location of the Disable Spin jumper E5 and the option header.

Table 4-12 Disabling Spin Up at Power On

E5 DSPN Result

In 0 Spin Disabled In 1 Spin Disabled Out 0 Spin up on Power On Out 1 Spin Disabled

Delaying Spin Up at Power On - CFP1060W

(Operating Parameters). Refer to the

Ninth Generation SCSI Technical Reference Manual for additional information regarding the MODE SELECT command. Refer to Figure 4-6 for the location of the Delayed Spin jumper, E6.

Table 4-13 Delaying Spin Up at Power On

E6 SDLY Result

In 0 Spin Delayed In 1 Spin Delayed Out 0 Spin up on Power On Out 1 Spin Delayed

Disabling the SCSI Bus Parity - CFP1060W

SCSI parity is always enabled in both directions, unless the E7 Parity disable jumper is installed. Setting the jumper will cause the drive to ignore SCSI bus parity in but it will continue to generate SCSI bus parity out.

Page 42 Filepro CFP1060E/CFP1060S/CFP1060W

Page 51

SCSI Physical Characteristics Chapter 4

Disabling SCSI Bus Terminator Power (TERMPWR) - CFP1060W

Power to the on-board terminators is provided by the higher of the voltage supplied at Pins #17, 18, 51 & 52, J2 or the voltage level at the 5 Volt power input to the drive minus one diode drop. Termination Power to external terminators can be supplied by the drive through Pins #17, 18, 51 & 52, J2. The signal output characteristics are described in chapter 5. The TERMPWR line can be disconnected from the drive by removing Jumper E8.

Table 4-14 Disabling SCSI Bus TERMPWR

Jumper E8 Result

In TERMPWR (J2, Pins #17, 18, 51 & 52) connected

to the drive's internal termination power.

Out TERMPWR (J2, Pins #17, 18, 51 & 52) open

circuit.

Using the J5 Auxiliary Connector

External logic cabled to the J5 connector may be used to control certain characteristics of the drive or access signals.

Table 5-15 J5 Auxiliary Connector Signal Definitions

Pin Number Signal Name Pin Number Signal Name

1 3 5 7 9

- SEL0

Bit 0 of the binary coded SCSI ID selection input. This signal has a value of 0 when it is negated and a value of 1 when it is asserted for the purpose of selection or arbitration.

This signal is latched within 250 msec of the application of valid power to the drive or optionally the negation of -RST.

- SEL0

- SEL1

- SEL2

- SEL3

- ENTERM +5V

2 4 6 8 10 12

- XTFALT

- VUNIQ

- SPSYNC

- XTACTV

- GROUND

- FAULT

If SCSI ID SEL0 is intended to be selected, the host must provide a low impedance connection from - SEL (0) to - XTFALT or to ground, while the ID is being latched, through an appropriate means. Refer to chapter 5 for specific electrical characteristics of these signals.

Technical Reference Manual Page 43

Page 52

Chapter 4 SCSI Physical Characteristics

- XTFAULT

This signal is intended to drive an LED to indicate an external fault condition has occurred. This signal is held asserted following the application of power or optionally the negation of -RST during initialization while the SCSI ID is being read. This signal is not supported but meets the requirement of negating the signal while the ID is being read.

- SEL1

Bit 1 of the binary coded SCSI ID selection input. This signal has a value of 0 when it is negated and a value of 2 when it is asserted for the purpose of selection or arbitration.

This signal is latched within 250 msec of the application of valid power to the drive or optionally the negation of -RST.

If SCSI ID SEL 1 is intended to be selected, the host must provide a low impedance connection from - SEL1 to - VUNIQ or to ground, while the ID is being latched, through an appropriate means. Refer to chapter 5 for specific electrical characteristics of these signals.

- VUNIQ

This signal is an open-collector output available for Vendor Unique usage. This signal is not supported but meets the requirement of negating the signal while the ID is being read.

- SEL2

Bit 2 of the binary coded SCSI ID selection input. This signal has a value of 0 when it is negated and a value of 4 when it is asserted for the purpose of selection or arbitration.

This signal is latched within 250 msec of the application of valid power to the drive or optionally the negation of -RST.

If SCSI ID SEL2 is intended, to be selected, the host must provide a low impedance connection from - SEL2 to - SPSYNC or to ground, while the ID is being latched, through an appropriate means. Refer to chapter 5 for specific electrical characteristics of these signals.

- SPSYNC

This signal used to provide a spindle rotation synchronization reference. The pins for all of the drives which are to be synchronized must be connected together. The drives must be of like model to operate. The spindles are synchronized using a "floating master" concept, where the drives will synchronize to the first drive to reach full speed. The synchronization tolerance is 1%.

This signal meets the requirement of negating the signal while the ID is being read.

Page 44 Filepro CFP1060E/CFP1060S/CFP1060W

Page 53

SCSI Physical Characteristics Chapter 4

- SEL3

Bit 3 of the binary coded SCSI ID selection input. This signal has a value of 0 when it is negated and a value of 8 when it is asserted for the purpose of selection or arbitration.

This signal is latched within 250 msec of the application of valid power to the drive or optionally the negation of -RST.

If SCSI ID SEL3 is intended, to be selected, the host must provide a low impedance connection from - SEL3 to - XTACTV or to ground, while the ID is being latched, through an appropriate means. Refer to chapter 5 for specific electrical characteristics of these signals.

- XTACTV

This signal is an open collector output intended to drive an LED to indicate the device is active. This signal is negated while the SCSI ID is being read.

- GROUND

This signal is connected to the drive's logic ground.

+5 Volts

This signal provides 5 volts of DC power to drive LEDs and is current limited by a 120 ohm resistor.

- FAULT

The assertion of this signal will cause the drive to stop any media-altering activity, which may result in the drive asserting -XTFALT or -VUNIQ, or both. This signal is intended to be used as a power failure warning and/or as a write protect input. This signal is not supported by this drive.

Technical Reference Manual Page 45

Page 54

Chapter 4 SCSI Physical Characteristics

Setting the Bus Termination - CFP1060W

This drive provides on board Alternative 2 active termination for the SCSI bus. The termination resistors, which are contained in three Single Inline Packs (SIPs) should be removed from the drive unless it is a SCSI device at the physical end of the bus. Figure 4-7 shows the location of the terminator resistors.

Figure 4-7 Terminator Resistor Locations

SCSI Terminators. Remove in all but the last drive in the chain

SS LED

Remove to  Disable TERMPWR Input/Output

68_4_2

TERMPWR Fuse

Page 46 Filepro CFP1060E/CFP1060S/CFP1060W

Page 55

SCSI Physical Characteristics Chapter 4

Cabling the Drive - CFP1060W

Connect the SCSI interface cable and the spindle synchronization cable (when needed) as shown in Figure 4-8.

Figure 4-8 Connecting the cabling

68-pin SCSI Interface

Pin 1 (typically indicated by a colored stripe on the cable

Connection

SS LED

2-mm Auxiliary Connector

Pin 1

4-pin Power Connection

Pin 1

68_4_3

SCSI Bus Cable

• Do not route the data cable next to the drive PCB or any other high frequency or large current switching signals. Improper drive operation can result from improper cable routing.

• Cable stubs should not exceed 0.1 meter (4 inches).

• There should be 0.3 meters (12 inches) of cable between drives.

• The total cable length should not exceed 3 meters (10 feet) and may have to

be reduced if a mixture of round and flat cable are used.

• Do not tightly bundle excess flat cable against each other since this promotes cross coupling of signals on the cable. Use spacers to maintain a minimum of

0.050 inches (1.27mm) gap between cable runs.

• Do not clamp the cable tightly against a metal chassis since this will degrade the signal. Use spacers or a non-flammable insulation material to maintain a gap between the chassis and the cable.

Technical Reference Manual Page 47

Page 56

Chapter 4 SCSI Physical Characteristics

Mixing Wide and Narrow SCSI Devices on a SCSI Bus

It may sometimes be desirable to attach Narrow SCSI devices such as tape backup devices or CDROMs to the same SCSI Host Bus Adapter being used to control Wide SCSI devices, such as the CFP1060W. Intermixing of both Wide and Narrow SCSI devices on the same bus required special considerations:

• The Narrow SCSI devices must be placed at the physical end of the bus

• The high byte of the SCSI data bus must be terminated at the transition

adapter from the 34-pair wire to the 25-pair wire. Figure 4-9 shows the interconnection.

• The cable impedance of the 34-pair wire and the 25-pair wire should be as closely matched as possible.

• The 68-pair cable with 30 AWG wire uses four wires to carry TERMPWR, which must be joined to wire 26 of the 25-pair wire, if terminator power has to be carried over the cable.

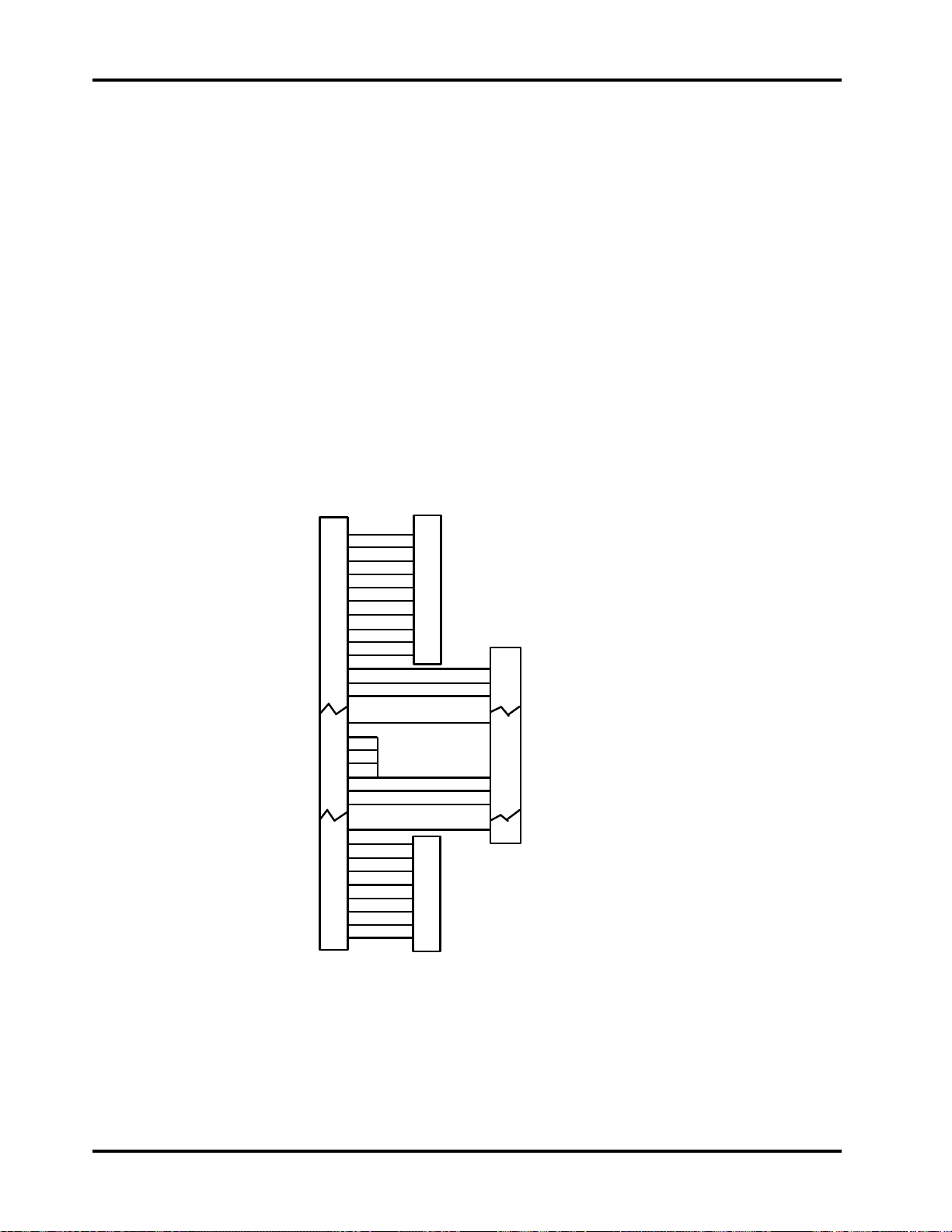

Figure 4-9 Wide-to-Narrow Adapter

P Cable

Ground 1

-DB (12)

Ground

-DB (13)

Ground 5

-DB (14)

Ground 7

-DB (15)

Ground 9

-DB(P1) 10

Ground 11

-DB (0)

Ground 13

Ground 32 TERMPWR TERMPWR TERMPWR TERMPWR Reserved Reserved

-I/O 60

Ground 61

-DB(8) 62

Ground 63

-DB(9) 64

Ground 65

-DB(10) 66

Ground 67

-DB(11) 68

2 3 4

6 8

33 34 35 36 37 38

T E R M

N A T O R

T E R M

N A T O R

A Cable

1 Ground 2 3 Ground

22 Ground 23 24 25 Open 26 27 28

50 -I/O

-DB (0)

Reserved Reserved

TERMPWR Reserved Reserved

Spindle Synchronization

The spindle rotation of up to 35 drives may be synchronized together by daisy chaining pin 1 to pin 1 and pin 2 to pin 2 of each drive on connector J3 or chaining pin 6 of the 2mm option header J5. The spindles are synchronized using a "floating master" concept, where the drives will synchronize to the first drive to reach full speed. The synchronization tolerance is 1%.

Page 48 Filepro CFP1060E/CFP1060S/CFP1060W

Page 57

SCSI Physical Characteristics Chapter 4

Attaching Power to the Drive - CFP1060W

The drive has a 4-pin DC power connector, J4, which is part of the Unified Connector, mounted on the PCB. The recommended mating connector is AMP part number 1-480424-0 utilizing AMP pins, part number 350078-4 or equivalent.

Mounting the Drive - CFP1060W

The drive is designed to be used in applications where the unit may experience shock and vibrations at greater levels than larger and heavier disk drives will tolerate.

Eight side, or four bottom base mounting points are provided to the customer. The drive is mounted using 6-32 UNC -2B X 0.16 maximum insertion length screws. Refer to Figure 2-4 in Chapter 2 for the location of the mounting holes. The system integrator should allow ventilation to the drive to ensure reliable drive operation over the operating temperature range. The drive may be mounted in any orientation.

Technical Reference Manual Page 49

Page 58

Chapter 4 SCSI Physical Characteristics

Page 50 Filepro CFP1060E/CFP1060S/CFP1060W

Page 59

Interface Physical Characteristics

Electrical Description

The paragraphs which follow describe the input and output electrical characteristics of the drive.

Output Characteristics

The output drivers for Data, Parity, REQ and ACK are optionally active negation. When they are set for active negation, they have three states: asserted, negated and high impedance. The remainder of the signals have open collector (drain) outputs. The drivers maintain a high impedance state during power-on and power-off cycles. The driven signals have the following output characteristics when measured at the drive connector:

Table 5-1 Active Negation Driver Output Signal Characteristics

Signal Characteristic Value

Signal Assertion 0.1 VDC to 0.5 VDC at 48 mA Minimum Driver Output Capability 48 mA (sinking) at 0.5 VDC Signal Negation 2.0 VDC to 3.24 VDC at 7 mA

3.0 VDC at 20 mA

Table 5-2 Open Collector Driver Output Signal Characteristics

Signal Characteristic Value

Signal Assertion 0.0 VDC to 0.5 VDC at 48 mA Minimum Driver Output Capability 48 mA (sinking) at 0.5 VDC Signal Negation 2.5 VDC to 5.25 VDC

Technical Reference Manual Page 51

Page 60

Chapter 5 SCSI Physical Characteristics

Input Characteristics

The characteristics of the input receivers and the requirements for each signal received by the drive as measured at the drive connector are shown in table 5-3:

Table 5-3 Drive Input Signal Characteristics

Signal Characteristic Value

Signal Assertion 0.0 VDC to 0.8 VDC Signal Negation 2.0 VDC to 5.25 VDC

Input Load (low level) Input Load (high level)

-20 µA to 0.0 mA at 0.5 VDC

0.0 mA to 20 µA at 2.7 VDC

Model-Specific SCSI Physical Characteristics

The sections which follow describe, for each of the drive models, those SCSI characteristics which vary from model to model. These characteristics include:

• Termination

• Cable requirements

• Connector requirements

• Connector Pin assignments

• Interface Timing requirements

Page 52 Filepro CFP1060E/CFP1060S/CFP1060W

Page 61

SCSI Physical Characteristics Chapter 5

CFP1060E (WIDE, 80-pin Single Connector Attachment [SCA])

External Terminator Power

The interface connector carries both power and ground so a separate TERMPWR interface line is not provided.

Internal Termination

This version of the drive has no on-board termination so the drive must be externally terminated. Alternative 2 active termination is recommended. Alternative 1 passive termination is not suitable for this application.

Cable Requirements

This version of the drive is designed to interface directly to a mating connector which is on a passive back plane or directly into a motherboard. The same guidelines relative to impedance, stub length and distance between stubs apply for SCSI bus signal reliability. These guidelines may not be directly translated to a back plane design so these design rules are to be viewed with respect to the intended purpose of controlling reflections and the propagation of signals down the bus. Since the characteristics for PCB signal traces are affected by trace width, proximity to ground, and trace routing, careful review of the back plane design and analysis of signal quality is highly recommended.

Connector Requirements

The drive's connector will mate with a AMP Champ 2-557103-1 vertical receptacle or the AMP Champ 2-557101-1 right angle receptacle.

Single Connector Attachment (SCA) Signal Definitions

Power

Four +12 Volt signals provide the +12 volt power to the drive. The current return for the +12 volt power is through the +12 Volt Ground signals. The maximum current that can be provided to the drive through the +12 Volt signal pins is 3 Amperes. The supply current and return current must be distributed as evenly as possible among the pins. The maximum current is while the drive motor is starting.

Three +5 Volt signal pins provide +5 volt power to the drive. The current return for the +5 volt power is through the +5 Volt Ground pins. It is expected that the +5 Volt Ground will also establish the digital logic ground for the drive. The maximum current that can be provided to the drive through the +5 Volt signal pins is 2 Amperes. The supply current and return current must be distributed as evenly as possible among the pins.

These specifications refer to the connector's characteristics. Refer to Chapter 2 for the drive's power requirements.

Technical Reference Manual Page 53

Page 62

Chapter 5 SCSI Physical Characteristics

Spindle Sync

The spindle rotation of up to 35 drives may be synchronized together by daisy chaining pin 1 to pin 1 and pin 2 to pin 2 of each drive on connector J3. The spindles are synchronized using a "floating master" concept, where the drives will synchronize to the first drive to reach full speed. The synchronization tolerance is 1%.

Table 5-4 Electrical Characteristics for the Spindle Sync Signal

STATE Current Voltage

High

0 < I

< 20 µA

2.5 V < V

< VCC + 0.3 V

Low

0 < I

< -48 mA -0.1 V < VIL < 0.4 V

LED Out

The LED out signal is driven by the drive when the drive is performing a SCSI operation. The LED out signal is designed to pull down the cathode of an LED. The anode is attached to the proper +5 volt supply through an appropriate current limiting resistor. The LED and the current limiting resistor are external to the drive.

Table 5-5 Output Characteristics of the LED Driver Signal

State Current Drive Available Output Voltage

Drive LED Off Drive LED On

0 < I I

< 100 µA

< -30 mA 0 < VOL < 0.8 Volts

Motor Start Controls

Table 5-6 Electrical Characteristics for RMT_START and DLYD_START

State Current Voltage

Open Ground

0 < I 0 < I

< +100 µA

< -3 mA -0.5 V < VIL < 0.4 V

2.4 V < VIH < VCC + 0.5 V

SCSI ID Selection Table 5-7

Electrical Characteristics for the SCSI ID Signals SCSI ID (0) - (3)

State Current Voltage

Open Ground

0 < I 0 < I

< +100 µA

< -3 mA -0.5 V < VIL < 0.4 V

2.4 V < VIH < VCC + 0.5 V

Page 54 Filepro CFP1060E/CFP1060S/CFP1060W

Page 63

SCSI Physical Characteristics Chapter 5

Interface Pin Assignments

The pin assignments for the interface connector are shown below:

Table 5-8 Interface Signal Definitions

Pin Signal Pin Signal

1 +12 Volt 41 +12 Volt Ground 2 +12 Volt 42 +12 Volt Ground 3 +12 Volt 43 +12 Volt Ground 4 +12 Volt 44 +12 Volt Ground 5 Reserved / NC 45 Reserved / NC 6 Reserved / NC 46 Reserved / NC 7 -DB(11) 47 Ground 8 -DB(10) 48 Ground

9 -DB(9) 49 Ground 10 -DB(8) 50 Ground 11 -I/O 51 Ground 12 -REQ 52 Ground 13 -C/D 53 Ground 14 -SEL 54 Ground 15 -MSG 55 Ground 16 -RST 56 Ground 17 -ACK 57 Ground 18 -BSY 58 Ground 19 -ATN 59 Ground 20 -DB(P0) 60 Ground 21 -DB(7) 61 Ground 22 -DB(6) 62 Ground 23 -DB(5) 63 Ground 24 -DB(4) 64 Ground 25 -DB(3) 65 Ground 26 -DB(2) 66 Ground 27 -DB(1) 67 Ground 28 -DB(0) 68 Ground 29 -DB(P1) 69 Ground 30 -DB(15) 70 Ground 31 -DB(14) 71 Ground 32 -DB(13) 72 Ground 33 -DB(12) 73 Ground 34 +5 Volt 74 +5 Volt Ground 35 +5 Volt 75 +5 Volt Ground 36 +5 Volt 76 +5 Volt Ground 37 SYNC 77 LED 38 RMT_START 78 DLYD_START 39 SCSI ID (0) 79 SCSI ID (1) 40 SCSI ID (2) 80 SCSI ID (3)

Notes:

1. The minus sign (-) indicates active low.

2. Pins marked Reserved are not connected.

Technical Reference Manual Page 55

Page 64

Chapter 5 SCSI Physical Characteristics

Interface Timing Requirements

Unless otherwise noted, the delay-time measurements are calculated from signal conditions existing at the drive's own SCSI bus connector. Normally these measurements (except cable skew delay) can be made without considering delays in the inter-connect system.

Table 5-9 SCSI Bus Timing Values

Timing Value *

Timing Description fast slow asynch

Arbitration Delay Bus Clear Delay Bus Free Delay Bus Set Delay Bus Settle Delay Cable Skew Delay

Data Release Delay Receive Assertion Period Receive Hold Time Receive Negation Period Receive Setup Time Reset Hold Time Selection Abort Time Selection Time-out Delay System Deskew Delay Transmit Assertion Period Transmit Hold Time Transmit Negation Period Transmit Setup Time

2.4

µs 800 ns 800 ns 800 ns 800 ns 800 ns 800 ns

1.8

µs 400 ns 400 ns 400 ns

4ns 4ns 4ns

400 ns 400 ns 400 ns

22 ns 70 ns n/a 25 ns 25 ns n/a 22 ns 70 ns n/a 15 ns 15 ns n/a 25

µs 200

µs

250 ms 250 ms 250 ms

20 ns 45 ns 45 ns 30 ns 80 ns n/a 33 ns 53 ns n/a 30 ns 80 ns n/a 23 ns 23 ns n/a

2.4

1.8

200

µs

µs µs

2.4

1.8

200

µs

µs µs

Notes:

This time does not apply at the SCSI connector of the drive.

This is a recommended time. It is not mandatory.

Page 56 Filepro CFP1060E/CFP1060S/CFP1060W

Page 65

SCSI Physical Characteristics Chapter 5

Model CFP1060S (Narrow, 50-pin SCSI)

External Terminator Power

Power to the on-board terminators is provided by the higher of the voltage supplied at Pin #26, J2 or the voltage level at the 5 Volt power input to the drive minus one diode drop. The diode prevents back flow of current to the drive. Termination Power to external terminators can be supplied by the drive through Pin #26, J2. The TERMPWR line can be disconnected from the drive by removing Jumper E8. Table 5-10 describes the electrical characteristics of the TERMPWR line when it is used to supply power to an external terminator. Table 5-11 describes the required electrical characteristics for any external source of termination power.

Table 5-10 TERMPWR Output Electrical Characteristics

Signal Characteristic Value

Supply voltage 4.06 VDC to 4.56 VDC Minimum source capability: 800 mA (fused at 1000 mA)

Table 5-11 TERMPWR Input Electrical Characteristics

Signal Characteristic Value

Input voltage 4.00 VDC to 5.25 VDC Minimum source capability: 1000 mA (fused at 1000 mA) Sink current: 1.0 mA maximum, excluding

Internal Termination

This drive provides on-board Alternative 2 active termination for the SCSI bus. The termination resistors, which are contained in two Single Inline Packs (SIPs) should be removed from the drive unless it is a SCSI device at a physical end of the bus. The terminator equivalent circuit is shown below for reference:

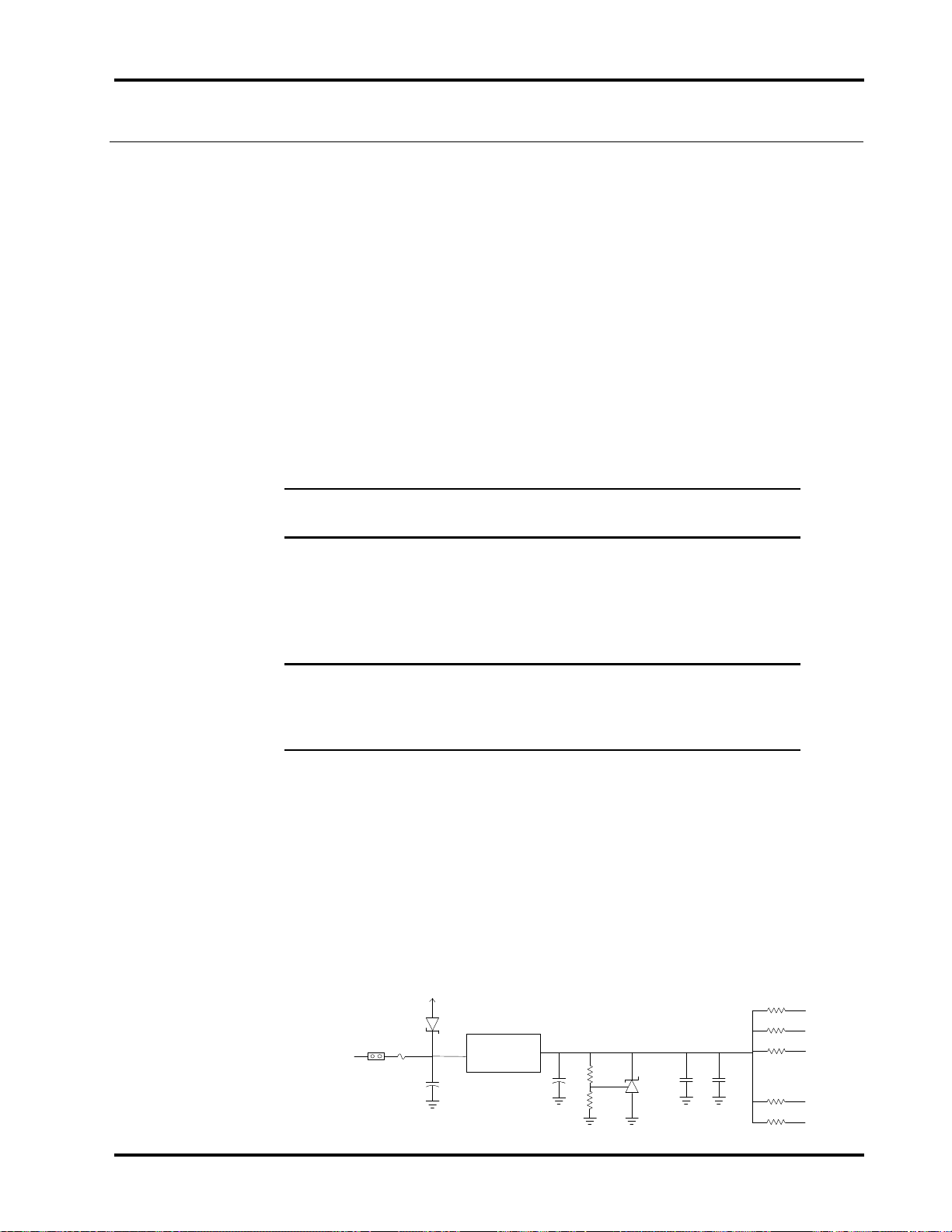

Figure 5-1 Terminator Equivalent Circuit

TERMPWR

+5V

Voltage Regulator

power to the internal terminator.

2.5K

10K

110

: : : : : :

-DB0

-DB1

-DB2

-REQ

-I/O

Technical Reference Manual Page 57

Page 66

Chapter 5 SCSI Physical Characteristics

Cable Requirements

A 50 conductor cable no more than 6 meters (19.68 feet) cumulative length with at least 28 AWG wire size and a characteristic impedance of 70 to 100 ohms (84 ohms nominal) is required. In systems which use the fast synchronous transfer option, the cable should meet the following additional requirements:

Table 5-12 Interface Cable Electrical Characteristics

Specification Value

Signal Attenuation 0.095dB maximum per meter at 5 Mhz Pair-to-Pair Propagation Delay Delta 0.20 ns maximum per meter DC Resistance 0.230 ohms maximum per meter at 20° C

Page 58 Filepro CFP1060E/CFP1060S/CFP1060W

Page 67

SCSI Physical Characteristics Chapter 5

Socket 49

Socket 50

Socket 2

Front view

Contact 50

Socket 1

See Note 1

Contact 1

Contacts for even wires are not shown.

Side view

Back view

Connector Requirements

The connector on the drive is a 50-position header which consists of 2 rows of 25 male pins on 0.100 inch centers. The mating connector is a SCSI-2 Non-shielded Alternative 1, A-cable connector which is shown below:

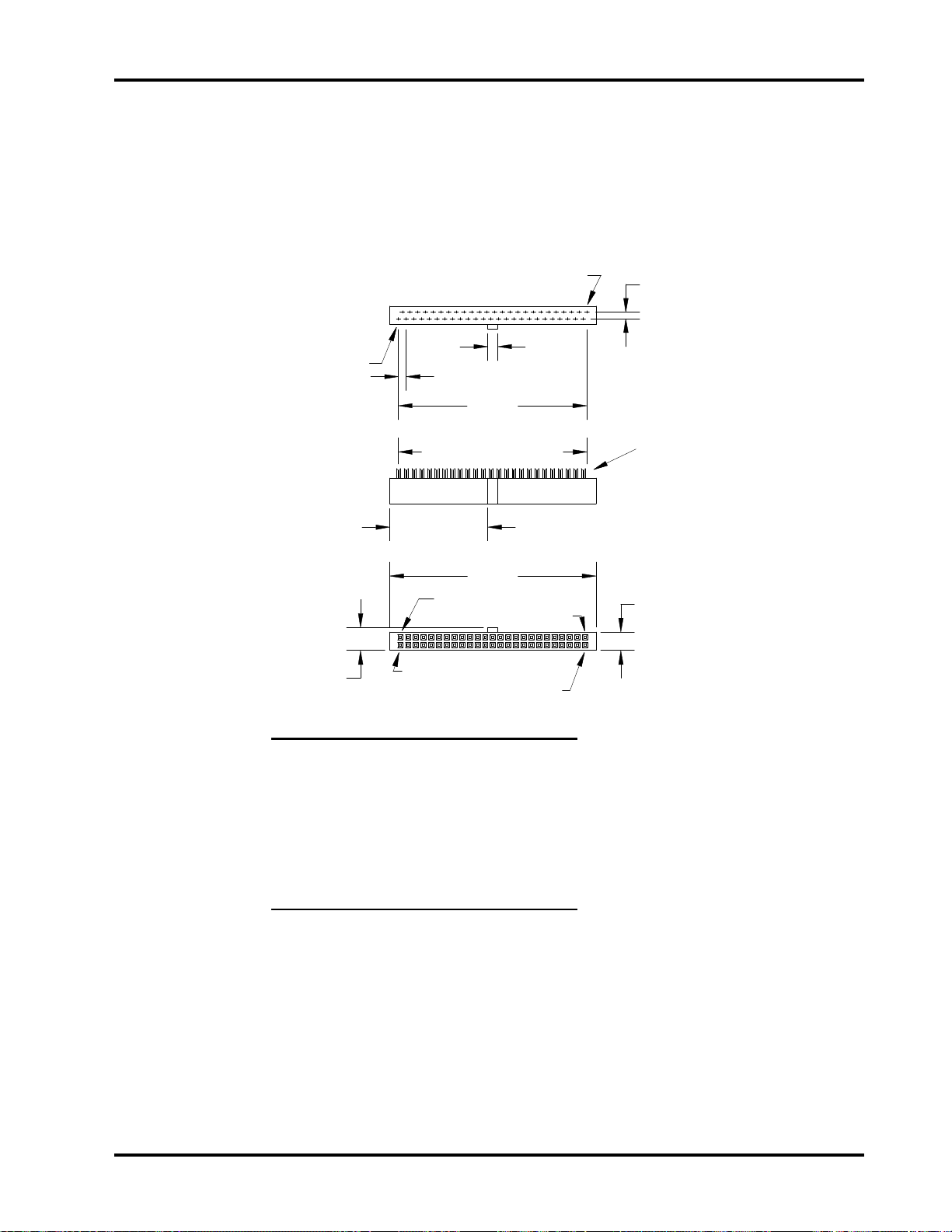

Figure 5-2 A-Cable Connector

Dimensions Millimeters Inches

C1 2.540 0.100 C2 60.960 2.400 C3 2.540 0.100 C4 3.302 0.130 C5 32.385 1.275 C6 68.072 2.680 C7 6.096 0.240 C8 7.620 0.300

Technical Reference Manual Page 59

Notes:

(1) Fifty contacts on 1.27mm (0.05

inch) staggered spacing =

62.23mm (2.450 inch) [ref.]

(2) Tolerances +0.127mm (0.005

inch) noncumulative unless specified otherwise.

(3) Connector cover and strain

relief are optional

Page 68

Chapter 5 SCSI Physical Characteristics

Interface Pin Assignments

The pin assignments for the interface connector are shown below:

Table 5-13 Interface Signal Definitions

Pin Signal Pin Signal

01 03 05 07 09 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49

GND GND GND GND GND GND GND GND GND GND GND RESERVED OPEN RESERVED GND GND GND GND GND GND GND GND GND GND GND

02 04 06 08 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50

-DB0

-DB1

-DB2

-DB3

-DB4

-DB5

-DB6

-DB7

-DBP GND GND RESERVED TERMPWR RESERVED GND

-ATN GND

-BSY

-ACK

-RST

-MSG

-SEL

-C/D

-REQ

-I/O

Notes:

1. The minus sign (-) indicates active low.

2. All odd pins except pin 25 must be connected to ground. Pin 25 is left open.

3. Pins marked Reserved are connected to ground.

Page 60 Filepro CFP1060E/CFP1060S/CFP1060W

Page 69

SCSI Physical Characteristics Chapter 5

Interface Timing Requirements

Table 5-14 SCSI Bus Timing Values

Timing Value *

Timing Description fast slow asynch

Arbitration Delay Bus Clear Delay Bus Free Delay Bus Set Delay Bus Settle Delay Cable Skew Delay

2.4

µs 800 ns 800 ns 800 ns 800 ns 800 ns 800 ns

1.8

µs 400 ns 400 ns 400 ns

4ns 4ns 4ns

400 ns 400 ns 400 ns

22 ns 70 ns n/a 25 ns 25 ns n/a 22 ns 70 ns n/a 15 ns 15 ns n/a 25

µs 200

µs

250 ms 250 ms 250 ms

20 ns 45 ns 45 ns 30 ns 80 ns n/a 33 ns 53 ns n/a 30 ns 80 ns n/a 23 ns 23 ns n/a

2.4

1.8

200

µs

µs µs

2.4

1.8

200

µs

µs µs

Notes:

This time does not apply at the SCSI connector of the drive.

This is a recommended time. It is not mandatory.

Technical Reference Manual Page 61

Page 70

Chapter 5 SCSI Physical Characteristics

Model CFP1060W (Wide, Unitized SCSI-3 P-Connector)

External Terminator Power

Power to the on-board terminators is provided by the higher of the voltage supplied at Pin #17, 18, 51, & 52, J2 or the voltage level at the 5 Volt power input to the drive minus one diode drop. The diode prevents back flow of current to the drive. Termination Power to external terminators can be supplied by the drive through Pin #17, 18, 51, & 52, J2. The TERMPWR line can be disconnected from the drive by removing Jumper E8. Table 5-11 describes the electrical characteristics of the TERMPWR line when it is used to supply power to an external terminator.

Table 5-15 TERMPWR Electrical Output Characteristics

Signal Characteristic Value

Supply voltage 4.06 VDC to 4.56 VDC

(dependent on power supplied to the drive)

Minimum source capability: 1500 mA

Table 5-16 TERMPWR Input Electrical Characteristics

Signal Characteristic Value

Input voltage 4.00 VDC to 5.25 VDC Minimum source capability: 1500 mA (fused at 1500 mA) Sink current: 1.0 mA maximum, excluding

Internal Termination

This drive provides on-board Alternative 2 active termination for the SCSI bus. The termination resistors, which are contained in three Single Inline Packs (SIPs) should be removed from the drive unless it is a SCSI device at a physical end of the bus. The terminator equivalent circuit is shown below for reference:

Figure 5-2 Terminator Equivalent Circuit

TERMPWR

+5V

Voltage Regulator

power to the internal terminator.

2.5K

10K

110

: : : : : :

-DB0

-DB1

-DB2

-REQ

-I/O

Page 62 Filepro CFP1060E/CFP1060S/CFP1060W

Page 71

SCSI Physical Characteristics Chapter 5

J5 Auxiliary Connector Signal Characteristics

Table 5-17 J5 Auxiliary Interface Electrical Characteristics

State Current Voltage

High

0 < I

< 20 µA

2.5 V < V

< VCC + 0.3 V

Low

Cable Requirements

A 68 conductor cable no more than 3 meters (9.84 feet) cumulative length with at least 30 AWG wire size and a characteristic impedance of 70 to 100 ohms (84 ohms nominal) is required. In systems which use the fast synchronous transfer option, the cable should meet the following additional requirements:

Table 5-18 Interface Cable Electrical Characteristics

Specification Value

Signal Attenuation 0.095dB maximum per meter at 5 Mhz Pair-to-Pair Propagation Delay Delta 0.20 ns maximum per meter DC Resistance 0.230 ohms maximum per meter at 20° C

0 < I

< -48 mA -0.1 V < VIL < 0.4 V

Technical Reference Manual Page 63

Page 72

Chapter 5 SCSI Physical Characteristics

Connector Requirements

The connector on the drive is a 68-pin . The mating connector is a SCSI 3 Nonshielded P-cable connector which is shown below:

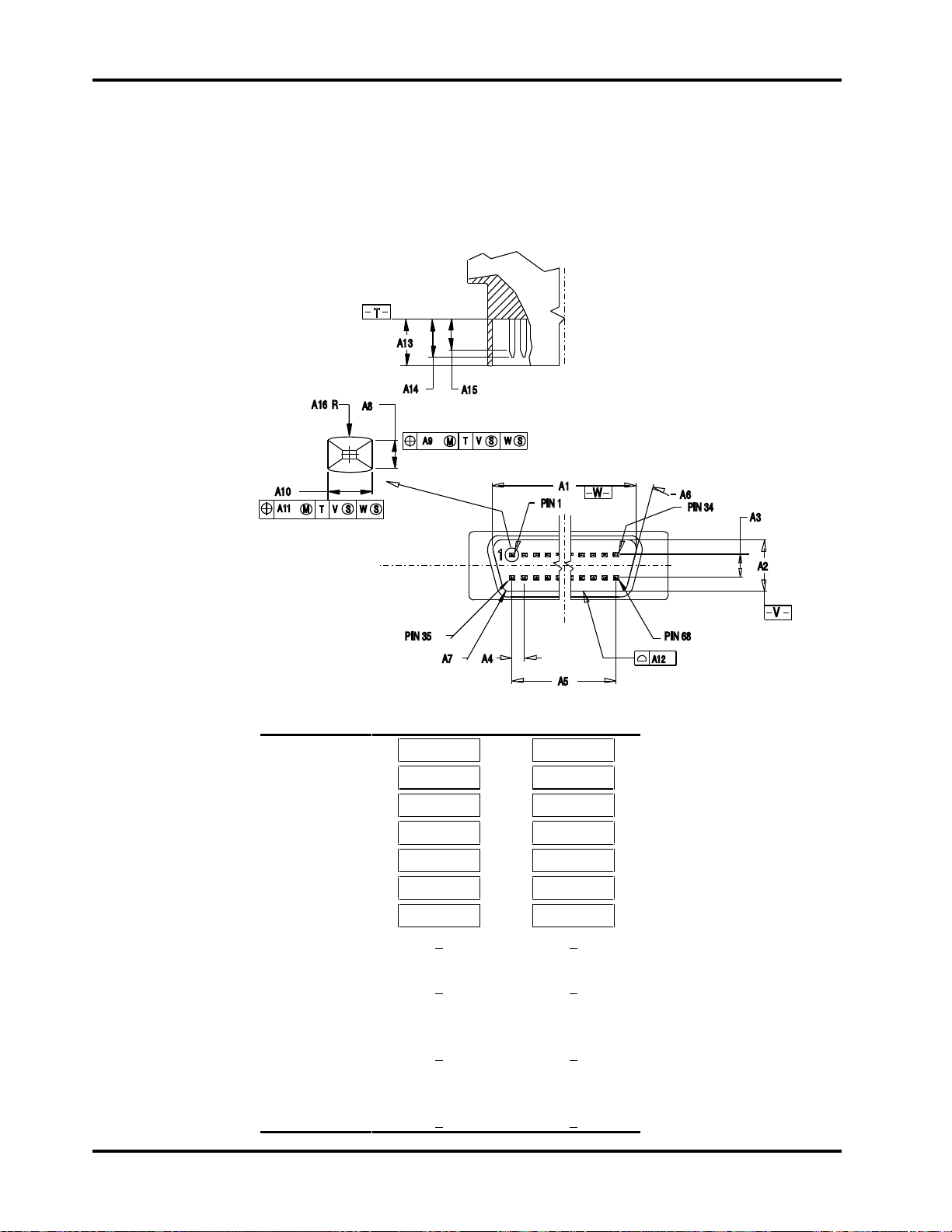

Figure 5-4 P-Cable Connector

68_5_1

DIMENSIONS Millimeters Inches

A1 A2 A3 A4 A5 A6 A7 A8 0.396 + 0.010 0.0156 + 0.0004

A9 0.23 0.009 A10 0.60 + A11 0.23 0.009 A12 0.05 0.002 A13 5.15 + A14 4.39 MAX 0.173 MAX A15 3.02 MIN 0.119 MIN A16 1.02 + 0.25 0.040 + 0.010

46.28

5.69

2.54

1.27

41.91 15°

1.04 R

0.03 0.024 + 0.001

0.15 0.203 + 0.006

1.822

0.224

0.100

0.050

1.650 15°

0.041 R

Page 64 Filepro CFP1060E/CFP1060S/CFP1060W

Page 73

SCSI Physical Characteristics Chapter 5

Interface Pin Assignments

The pin assignments for the interface connector are shown below:

Table 5-19 Interface Signal Definitions

Pin Signal Pin Signal

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

1 2 3 4 5 6 7 8 9

Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground TERMPWR TERMPWR Reserved Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68

-DB(12)

-DB(13)

-DB(14)

-DB(15)

-DB(P1)

-DB(0)

-DB(1)

-DB(2)

-DB(3)

-DB(4)

-DB(5)

-DB(6)

-DB(7)

-DB(P) Ground Ground TERMPWR TERMPWR Reserved Ground

--ATN Ground

-BSY

-ACK

-RST

-MSG

-SEL

-C/D

-REQ

-I/O

-DB(8)

-DB(9)

-DB(10)

-DB(11)

Notes:

1. The minus sign (-) indicates active low.

2. Pins marked Reserved are not connected.

Technical Reference Manual Page 65

Page 74

Chapter 5 SCSI Physical Characteristics

Interface Timing Requirements

Table 5-20 SCSI Bus Timing Values

Timing Value *

Timing Description fast slow asynch

Arbitration Delay Bus Clear Delay Bus Free Delay Bus Set Delay Bus Settle Delay Cable Skew Delay

2.4

µs 800 ns 800 ns 800 ns 800 ns 800 ns 800 ns

1.8

µs 400 ns 400 ns 400 ns

4ns 4ns 4ns

400 ns 400 ns 400 ns

22 ns 70 ns n/a 25 ns 25 ns n/a 22 ns 70 ns n/a 15 ns 15 ns n/a 25

µs 200

µs

250 ms 250 ms 250 ms

20 ns 45 ns 45 ns 30 ns 80 ns n/a 33 ns 53 ns n/a 30 ns 80 ns n/a 23 ns 23 ns n/a

2.4

1.8

200

µs

µs µs

2.4

1.8

200

µs

µs µs

Notes:

This time does not apply at the SCSI connector of the drive.

This is a recommended time. It is not mandatory.

Page 66 Filepro CFP1060E/CFP1060S/CFP1060W

Page 75

SCSI Command Implementation

This section contains a brief summary of the SCSI Interface implemented in the drive. For additional details regarding command descriptions, please refer to the Ninth Generation SCSI Interface Manual.

SCSI Command Summary

Following is a list of commands that the drive supports:

Format Unit 04H Inquiry 12H Mode Select 15H Mode Sense 1AH Read (6) 08H Read Buffer 3CH Read Capacity 25H Read Defect Data 37H Read Extended (10) 28H Read Long 3EH Reassign Blocks 07H Receive Diagnostics 1CH Release 17H Request Sense 03H Reserve 16H Re-zero Unit 01H Seek (6) 0BH Seek Extended (10) 2BH Send Diagnostic 1DH Start/Stop Unit 1BH Test Unit Ready 00H Verify 2FH Write (6) 0AH Write Extended (10) 2AH Write and Verify 2EH Write Buffer 3BH Write Long 3FH

Technical Reference Manual Page 67

Page 76

Chapter 6 SCSI Command Implementation

Drive Dependent SCSI Data

Format Drive Page - 03

The Format Drive page contains parameters which specify the medium format.

Table 6-1 Format Drive Page Format

Bit

76543210

Byte

0 1 2

6 7 8 9

21-23

Rsvd Rsvd Page Code = 03

Page Length = 16

Tracks per Zone (MSB)

(00

)

Tracks per Zone (LSB)

(01

)

Alternate Sectors per Zone (MSB)

(00

)

Alternate Sectors per Zone (LSB)

(01

)

Alternate Tracks per Zone (MSB)

Alternate Tracks per Zone (LSB)

Alternate Tracks per Logical Unit (MSB)

Alternate Tracks per Logical Unit (LSB)

Sectors per Track (MSB)

(00

)

Sectors per Track (LSB)

(40*

)

Data Bytes per Physical Sector (MSB)

(02

)

Data Bytes per Physical Sector (LSB)

(00

)

Interleave (MSB)

(00

)

Interleave (LSB)

(01

)

Track Skew Factor (MSB)

(00

)

Track Skew Factor (LSB)

(05

)

Cylinder Skew Factor (MSB)

(00

)

Cylinder Skew Factor (LSB)

(0C

)

SSEC HSEC

(1)

RMB SURF Reserved

Reserved

* Varies depending on active notch.

Page 68 Filepro CFP1060E/CFP1060S/CFP1060W

Page 77

SCSI Physical Characteristics Chapter 6

Tracks Per Zone: Defines the number of tracks per zone to use in dividing the capacity of the drive for the purpose of allocating alternate sectors. A value of zero means that one zone is defined for the entire drive.

Alternate Sectors Per Zone: Defines the number of spare sectors per zone the drive reserves for defect handling. Not supported. Must be set to zero.

Alternate Tracks Per Logical Unit: Not supported. Must be set to zero.

Sectors Per Track: Defines the number of physical sectors per track. The

number includes the one alternate sector per track the drive allocates. The value reported for the number of sectors per track is dependent on the active notch value.

Data Bytes Per Physical Sector: Defines the number of data bytes per physical sector.

Interleave: Defines the interleave value used by the drive.

Track Skew Factor: Defines the number of physical sectors between the last

logical block of one track, and the first logical block on the next sequential track of the same cylinder.

Cylinder Skew Factor: Specifies the number of physical sectors between the last logical block of one cylinder and the first logical block on the next sequential cylinder.

SSEC (Soft Sector Format): Set to zero to indicate the drive does not support a soft sector format.

HSEC (Hard Sector Format): Set to one to indicate the drive supports a hard sector format.

RMB (Removable Media): Set to zero to indicate the drive does not have removable media.

SURF (Surface Format): The SURF bit is set to zero, meaning the drive allocates progressive addresses to all logical blocks within a cylinder prior to allocating addresses on the next cylinder.

Technical Reference Manual Page 69

Page 78

Chapter 6 SCSI Command Implementation

Drive Geometry Page - 04

Table 6-2 Drive Geometry Page

Bit

76543210

Byte

Rsvd Rsvd Page Code = 04

1 2

Starting Cylinder - Write Precompensation (MSB)

Starting Cylinder - Write Precompensation

Starting Cylinder - Write Precompensation (LSB)

Starting Cylinder - Reduced Write Current (MSB)

Page Length = 16

Number of Cylinders (MSB)

(00

)

Number of Cylinders

(0A

)

Number of Cylinders (LSB)

(C4

)

Number of Heads

(08

)

(00

)

(06

)

(00

)

10 11 12 13 14 15 16 17

Starting Cylinder - Reduced Write Current

Starting Cylinder - Reduced Write Current (LSB)

Drive Step Rate (MSB)

Drive Step Rate (LSB)

Landing Zone Cylinder (MSB)

Landing Zone Cylinder

Landing Zone Cylinder (LSB)

Reserved

RPL (0H)

18 19 20

22-23

Rotational Offset

Reserved

Medium Rotation Rate (MSB)

(15

)

Medium Rotation Rate (LSB)

(18

)

Reserved

* Varies depending on active notch.

Only one copy of this page is maintained. There is only one changeable field, RPL. All other fields are described in the MODE SENSE Command.

Page 70 Filepro CFP1060E/CFP1060S/CFP1060W

Page 79

SCSI Physical Characteristics Chapter 6

RPL (Rotational Position Locking): Enables spindle synchronization. Setting either bit 0 or 1, or both, causes multiple drives which have their spindle synchronization (SS) pins daisy chained together to synchronize their spindles.

Notch and Partition Parameters Page - 0C

The Notch and Partition Parameters Page contains information which pertains to each notch of the drive. Each section of the drive with a different number of logical blocks per cylinder is referred to as a notch or zone. Only one copy of this page is maintained. The only changeable field in this page is Active Notch.

Technical Reference Manual Page 71

Page 80

Chapter 6 SCSI Command Implementation

Table 6-3 Notch and Partition Parameters Page Format

Bit

Byte

76543210

0 1 2

3 4

Rsvd Rsvd Page Code - OC

Page Length = 16

LPN Reserved

(1)

Reserved

Maximum Number of Notches (MSB)

)

(00

Maximum Number of Notches (LSB)

(09

)

Active Notch (MSB)

(00

)

Active Notch (LSB)

(0H) (9*H)

Starting Boundary (MSB)

(00*

)

Starting Boundary

(0A*

)

Starting Boundary

(65*

)

Starting Boundary (LSB)

(00*

)

Ending Boundary (MSB)

(00*

)

Ending Boundary

(0A*

)

Ending Boundary

(CB*

)

Ending Boundary (LSB)

(00*

)

3F Pages Notched (MSB) 38

17 18 19 20 21 22

37 Pages Notched 30 2F Pages Notched 28 27 Pages Notched 20 1F Pages Notched 18 17 Pages Notched 10

Pages Notched

(10

)

Pages Notched (LSB)

(08

)

* Varies depending on active notch.

Page 72 Filepro CFP1060E/CFP1060S/CFP1060W

Page 81

SCSI Physical Characteristics Chapter 6

ND (Notched Drive): If set to zero, the drive is not notched and all other parameters in this page are returned as zeros. If set to one, the drive is notched and this page defines the starting and ending boundaries for each active notch. This parameter is always set to one.

LPN (Logical or Physical Notch): When set to zero, indicates the notch boundaries are physical addresses (i.e., cylinder and head). An LPN bit of one is not supported.

The Maximum Number of Notches field indicates the maximum number of notches supported by the drive.

The Active Notch field indicates which notch is being referred to by this and subsequent MODE SELECT and MODE SENSE commands, until changed by a later MODE SELECT command. Active notches are numbered beginning from one up to the maximum number of notches.

The Starting Boundary field indicates the beginning of the active notch; the three most significant bytes represent the cylinder number and the least significant byte represents the head number.

The Ending Boundary field indicates the ending of the active notch; the three most significant bytes represent the cylinder and the least significant byte represents the head number.

The Pages Notched field is a bit map of the MODE SELECT page codes which indicates the pages containing parameters that are changed for different notches. The most significant bit of this field corresponds to page code 3F and the least significant bit represents page code 0. If a bit is a one, the corresponding MODE SELECT page contains parameters that are changed for different notches. If a bit is a zero, the corresponding MODE SELECT page parameters are constant for all notches.

Technical Reference Manual Page 73
