Page 1
Industrial Rack Mount
Managed PoE Switch
24 - 10/100BASE-TX PoE/PoE Plus Ports
4 - Gigabit RJ45/SFP Ports
User Guide
Page 2
Copyright Notice
Document Number: 2000509 Rev C
Comtrol and RocketLinx are trademarks of Comtrol Corporation.
Microsoft and Windows are trademarks of Microsoft Corporation.
FireFox is a trademark of Mozilla Foundation.
PuTTY is a copyright of Simon Tatham.
Other product names mentioned herein may be trademarks and/or registered trademarks of their respective owners.
Third Edition, October 14, 2014
Copyright © 2010 - 2014. Comtrol Corporation.
All Rights Reserved.
Comtrol Corporation makes no representations or warranties with regard to the contents of this document or to the suitability of the
Comtrol product for any particular purpose. Specifications are subject to change without notice. Some software or features may not be
available at the time of publication. Contact your reseller for current product information.
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user is required to correct the interference at his expense.
The user is cautioned that changes and modifications made to the equipment without approval of the manufacturer could void the user's
authority to operate this equipment.
Page 3
Table of Contents
Introduction .......................................................................................................................................... 7
Hardware Installation ........................................................................................................................9
Connect the Power and Ground................................................................................................................. 9
Connect the Digital Inputs or Relay Output......................................................................................... 11
Mount the ES7528 ........................................................................................................................................ 11
Connect the Ethernet Ports ...................................................................................................................... 12
Connect SFP Transceivers (Combo Ports 25-28) .................................................................................. 13
LED Descriptions......................................................................................................................................... 14
Using PortVision DX .........................................................................................................................15
NetVision ....................................................................................................................................................... 15
PortVision DX Overview ............................................................................................................................ 16
PortVision DX Requirements.................................................................................................................... 16
Installing PortVision DX............................................................................................................................ 17
Configuring the Network Settings .......................................................................................................... 19
Checking the Firmware Version .............................................................................................................. 22
Uploading the Latest Firmware or Bootloader .................................................................................... 23
Uploading Firmware to Multiple ES7528 Switches ............................................................................. 24
Adding a New Device in PortVision DX ................................................................................................. 25
Using Configuration Files ......................................................................................................................... 26
Saving a Configuration File ..................................................................................................................... 26
Loading a Configuration File ................................................................................................................... 26
Using the LED Tracker............................................................................................................................... 27
Customizing PortVision DX ...................................................................................................................... 28
Accessing RocketLinx Documentation from PortVision DX ............................................................. 29
How to Download Documentation ........................................................................................................... 29
How to Open Previously Downloaded Documents .................................................................................. 30
Configuration Using the Web User Interface.............................................................................. 31
Configuration Overview ............................................................................................................................ 31
Web User Interface ................................................................................................................................... 32
Secure Web User Interface....................................................................................................................... 34
Feature Overview ........................................................................................................................................ 37
Basic Settings ............................................................................................................................................... 46
Switch Setting........................................................................................................................................... 46
Admin Password ....................................................................................................................................... 47
IP Configuration ....................................................................................................................................... 48
Time Setting.............................................................................................................................................. 50
Jumbo Frame ............................................................................................................................................ 53
DHCP Server Configuration .................................................................................................................... 54
DHCP Leased Entries .............................................................................................................................. 56
DHCP Relay Agent ................................................................................................................................... 57
Backup and Restore.................................................................................................................................. 58
Backup the Configuration - Local File Method ................................................................................ 59
Restore the Configuration - Local Method ........................................................................................61
Backup the Configuration - TFTP Server Method ........................................................................... 62
Restore the Configuration - TFTP Server Method ........................................................................... 63
Table of Contents RocketLinx ES7528 User Guide: 2000509 Rev. C - 3
Page 4
Table of Contents
Firmware Upgrade ................................................................................................................................... 63
Upgrading Firmware (Local File)...................................................................................................... 64
Upgrading Firmware (TFTP Server)................................................................................................. 65
Load Default.............................................................................................................................................. 65
System Reboot........................................................................................................................................... 65
Port Configuration ...................................................................................................................................... 66
Port Control............................................................................................................................................... 66
Port Status ................................................................................................................................................ 68
Rate Control .............................................................................................................................................. 70
Storm Control............................................................................................................................................ 71
Port Trunking ........................................................................................................................................... 72
Aggregation Setting ........................................................................................................................... 72
Aggregation Status............................................................................................................................. 73
Power over Ethernet................................................................................................................................... 74
PoE Control ............................................................................................................................................... 74
PoE Scheduling ......................................................................................................................................... 77
PoE Status................................................................................................................................................. 78
Network Redundancy................................................................................................................................. 79
STP Configuration .................................................................................................................................... 80
STP Port Configuration ............................................................................................................................ 81
STP Information ....................................................................................................................................... 82
MSTP Configuration................................................................................................................................. 84
MSTP Port Configuration ........................................................................................................................ 87
MSTP Information.................................................................................................................................... 88
Redundant Ring ........................................................................................................................................ 90
Redundant Ring Information ................................................................................................................... 91
VLAN............................................................................................................................................................... 92
VLAN Port Configuration ........................................................................................................................ 93
VLAN Configuration................................................................................................................................. 95
GVRP Configuration................................................................................................................................. 98
VLAN Table .............................................................................................................................................. 99
Private VLAN.............................................................................................................................................. 100
PVLAN Configuration ............................................................................................................................ 100
PVLAN Port Configuration .................................................................................................................... 101
PVLAN Information ............................................................................................................................... 102
Traffic Prioritization ................................................................................................................................ 103
QoS Setting ............................................................................................................................................. 103
CoS-Queue Mapping ............................................................................................................................... 104
DSCP-Queue Mapping ........................................................................................................................... 105
Multicast Filtering .................................................................................................................................... 106
IGMP Snooping....................................................................................................................................... 107
IGMP Query ............................................................................................................................................ 108
Unknown Multicast ................................................................................................................................ 108
GMRP Configuration .............................................................................................................................. 109
SNMP ............................................................................................................................................................ 110
SNMP Configuration .............................................................................................................................. 110
SNMP V3 Profile..................................................................................................................................... 111
SNMP Traps............................................................................................................................................ 112
4 - RocketLinx ES7528 User Guide: 2000509 Rev. C Table of Contents
Page 5
Table of Contents
Security ........................................................................................................................................................ 113
Filter Set (Access Control List) .............................................................................................................. 113
MAC Filter (Port Security) .............................................................................................................. 114
IP Filter............................................................................................................................................. 116
Filter Attach ..................................................................................................................................... 118
802.1x Configuration .............................................................................................................................. 119
802.1x Port Configuration ...................................................................................................................... 120
802.1x Port Status .................................................................................................................................. 122
Warning........................................................................................................................................................ 123
Fault Relay.............................................................................................................................................. 123
Event Selection ....................................................................................................................................... 125
SysLog Configuration ............................................................................................................................. 126
SMTP Configuration............................................................................................................................... 127
Monitor and Diag....................................................................................................................................... 128
MAC Address Table ................................................................................................................................ 128
Port Statistics ......................................................................................................................................... 130
Port Mirroring......................................................................................................................................... 131
Event Log ................................................................................................................................................ 132
Topology Discovery (LLDP) .................................................................................................................... 133
Ping Utility.............................................................................................................................................. 134
Device Front Panel.................................................................................................................................... 135
Save to Flash............................................................................................................................................... 136
Logout........................................................................................................................................................... 136
Configuration Using the Command Line Interface (CLI) ......................................................137
Overview...................................................................................................................................................... 137
Using the Serial Console ........................................................................................................................ 138
Using a Telnet/SSH Console .................................................................................................................. 141
Command Line Interface Introduction ................................................................................................ 142
User EXEC Mode .................................................................................................................................... 143
Accessing the Options for a Command................................................................................................. 143
Privileged EXEC Mode ........................................................................................................................... 145
Global Configuration Mode .................................................................................................................... 146
(Port) Interface Configuration ............................................................................................................... 147
(VLAN) Interface Configuration ............................................................................................................ 148
Command Mode Summary ...................................................................................................................... 148
VTY Configuration Locked (Error Message)....................................................................................... 150
Basic Settings (CLI) .................................................................................................................................. 151
Port Configuration (CLI) ......................................................................................................................... 157
Power over Ethernet (CLI)...................................................................................................................... 161
Network Redundancy (CLI) .................................................................................................................... 166
VLAN (CLI) .................................................................................................................................................. 175
Private VLAN (CLI) ................................................................................................................................... 178
Traffic Prioritization (CLI) ..................................................................................................................... 182
Multicast Filtering (CLI).......................................................................................................................... 185
SNMP (CLI) ................................................................................................................................................. 189
Security (CLI) ............................................................................................................................................. 190
Warnings (CLI) ........................................................................................................................................... 192
Monitor and Diag (CLI) ............................................................................................................................ 195
Saving to Flash (CLI) ................................................................................................................................ 198
Logging Out (CLI)...................................................................................................................................... 198
Service (CLI) ............................................................................................................................................... 198
Table of Contents RocketLinx ES7528 User Guide: 2000509 Rev. C - 5
Page 6
Table of Contents
Complete CLI List............................................................................................................................199
User EXEC Mode ........................................................................................................................................ 199
Privileged EXEC Mode ............................................................................................................................. 200
Global Configuration Mode..................................................................................................................... 205
Port Interface Configuration Mode....................................................................................................... 210
VLAN Interface Configuration Mode.................................................................................................... 212
ModBus TCP /IP Support ...............................................................................................................213
Overview...................................................................................................................................................... 213
Modbus TCP/IP Function Codes ............................................................................................................ 214
Error Checking .......................................................................................................................................... 214
Exception Response .................................................................................................................................. 215
Modbus TCP Register Table.................................................................................................................... 215
CLI Commands for Modbus TCP/IP ...................................................................................................... 222
Technical Support ...........................................................................................................................223
Comtrol SFP Modules ............................................................................................................................... 223
Comtrol Private MIB................................................................................................................................. 223
Comtrol Support ........................................................................................................................................ 223
6 - RocketLinx ES7528 User Guide: 2000509 Rev. C Table of Contents
Page 7
Introduction
The ES7528 is a rack mount high-port density managed PoE switch designed exclusively for highly critical
PoE applications such as real-time IP video surveillance with high-resolution quality and evolving wireless
communication systems such as Wimax and IEEE 802.11 a/b/g/n access points.
The ES7528 provides a total of 28-ports:
• 24 Fast Ethernet PoE injector ports that can deliver 15.4 Watts (IEEE 802.3af) or 32 Watts (high power
PoE IEEE 802.3at)
• 4 Gigabit copper/SFP Combo uplink Ethernet ports
With network redundancy technology, the ES7528 can aggregate up to twelve Fast Ethernet and two Gigabit
rings while providing high-quality data transmission with less than 5ms network recovery time. To ensure
traffic switching without data loss and blocking, the ES7528 provides a 12.8G backplane with an integrated
non-blocking switching function. The ES7528 incorporates LLDP functionality and works with NetVision to
allow administrators to automatically discover devices and efficiently manage the industrial network
performance in large-scale surveillance networks. The ES7528 supports AC and dual 53VDC power inputs
that can be aggregated to provide redundancy. The ES7528 also provides alarm relay output signaling
functionality.
The ES7528 provides advanced Layer 2 management features including IGMP Query/Snooping, DHCP, 256
VLAN, QoS, LACP, LPLD, and the corrosion resistant robust design, the ES7528 is a revolutionary solution
for industrial surveillance applications.
Detailed specifications are available for the ES7528
You can refer to Feature Overview
on Page 37 for web user interface features.
.
RocketLinx ES7528 User Guide: 2000509 Rev. C Introduction - 7
Page 8
Introduction
8 - Introduction RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 9
Hardware Installation
Wire: 12 to 22 AWG
DC Input: 53VDC
You can use the following subsections to install the RocketLinx ES7528:
• Connect the Power
• Connect the Digital Inputs or Relay Output on Page 11
• Mount the ES7528
• Connect the Ethernet Ports
• Connect SFP Transceivers (Combo Ports
• LED Descriptions
Connect the Power and Ground
You can use the following procedure to connect power and the ground to the ES7528. The ES7528 is equipped
with both AC and DC1/DC2 power inputs.
1. Connect the power cord to the AC power input connector.
Note: To reach the maximum total power budget, power inputs must
be aggregated. Refer to the following table for detailed
information.
2. Connect the DC power inputs.
a. Insert positive and negative wires (12-24AWG) into the V+ and V-
contacts.
Note: Power should be disconnected from the power supply before
connecting it to the switch. Otherwise, your screw driver
blade can inadvertently short your terminal connections to
the grounded enclosure.
b. Tighten the wire-clamp screws to prevent the wires from coming loose.
and Ground
on Page 11
on Page 12
25-28) on Page 13
on Page 14
Electrical Specifications Value
IEEE 802.3af 48VDC (46-57VDC)
Power Input Voltage
DC1/DC2
Power Input Voltage PSU/AC power
PoE Output Voltage
PoE Power/Port
(Maximum)
RocketLinx ES7528 User Guide: 2000509 Rev. C Hardware Installation - 9
IEEE 802.3at 53VDC (50-57VDC)
AC and DC1/DC2
aggregated
DC1/DC2 aggregated DC1=DC2†
IEEE 802.3af 44-57VDC
IEEE 802.3at 50-57VDC
IEEE 802.3af 15.4W
IEEE 802.3at 32W
53VDC 8.2A
(maximum)
100-250VAC
47~63Hz
4A
Page 10
Hardware Installation
Electrical Specifications Value
DC1 400W
Power Budget
DC2 400W
PSU/AC Power 300W
Total Power Budget
Minimum Up to 568W
Maximum Up to 720W
Power Consumption Maximum 28W without PD load
† The ES7528 provides redundant or aggregated power inputs, depending on the
voltage of the power input. If there are more than two power inputs connected with
different voltages, the ES7528 is powered from the highest connected voltage
(redundant power). If the voltages of power inputs are the same, the total power
output is aggregated.
For example, to reach 700W, you can aggregate the power inputs accordingly:
• AC = 300W and DC1/2=400W
• DC1 = 350W and DC2/ = 350W
• PWR1 and PWR2 support power redundancy and reverse polarity protection.
• Accepts a positive or negative power source but PWR1 and PWR2 must apply to the same mode.
• If both power inputs are connected, the ES7528 is powered from the highest connected voltage.
• The ES7528 can emit an alarm if PWR1 or PWR2 are no longer receiving power. See the Warning
discussion on Page 123
to configure an alarm.
3. Connect a ground wire between the chassis and earth ground using 12-24AWG wire to ensure that the
ES7528 is not damaged by noise or electrical shock.
a. Loosen the earth ground screw on the back of the ES7528.
b. Insert the ground wire.
c. Tighten the ground screw after the earth ground wire is connected.
10 - Connect the Power and Ground RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 11
Hardware Installation
Wire: 12 to 22 AWG
Digital Output (Relay) 1A/24VDC
Power
Source
Alarm/
PLC Input
-
+
Ground the chassis to earth ground
Temperature: Verify that the rack environment temperature conforms to the
specified operating temperature range. If necessary, refer to the Comtrol web site for
operating temperature ranges.
Mechanical Loading: Do not place any equipment on top of the switch. In a high
vibration environment, additional rack mounting protection is necessary.
Grounding: Rack-mounted equipment should be properly grounded. On the back
panel of the ES7528, there is one earth ground screw. Loosen the earth ground screw
with a screwdriver; then tighten the screw after earth ground wire is connected.
Connect the Digital Inputs or Relay Output
If desired, connect the Digital or Relay Output. The relay contacts are energized, (open) for normal operation
and close for fault conditions. The fault conditions include:
•Dry output
• Power failure
• Ethernet port link break
• Ping failure
• Super ring failure
You can configure the fault relay settings in the ES7528 web user interface (Fault Relay
through the Command Line Interface (Global Configuration Mode
on Page 146).
on Page 123) or
1. Insert the positive and negative wires (12-24 AWG) into V+ and V-.
2. Tighten the wire-clamp screws to prevent the wires from coming loose.
Mount the ES7528
You can use the following procedure to mount the ES7528 into a rack.
1. Attach the brackets to the ES7528 by using the screws provided in the rack mounting kit.
2. Mount the ES7528 in a 19-inch rack by using the four rack-mounting screws provided in the kit.
Note: When installing multiple switches in high temperature environments, reserve 0.5U-1U of free space
between the switches. It is important to disperse the heat generated by the ES7528.
RocketLinx ES7528 User Guide: 2000509 Rev. C Connect the Digital Inputs or Relay Output - 11
Page 12
Hardware Installation
TX D1+ 1
TX D1- 2
RX D2+ 3
RX D2- 6
BI D3+ 4
BI D3- 5
BI D4+ 7
BI D4- 8
1 RX D2+
2 RX D2-
3 TX D1+
6 TX D1-
4 BI D4+
5 BI D4-
7 BI D3+
8 BI D3-

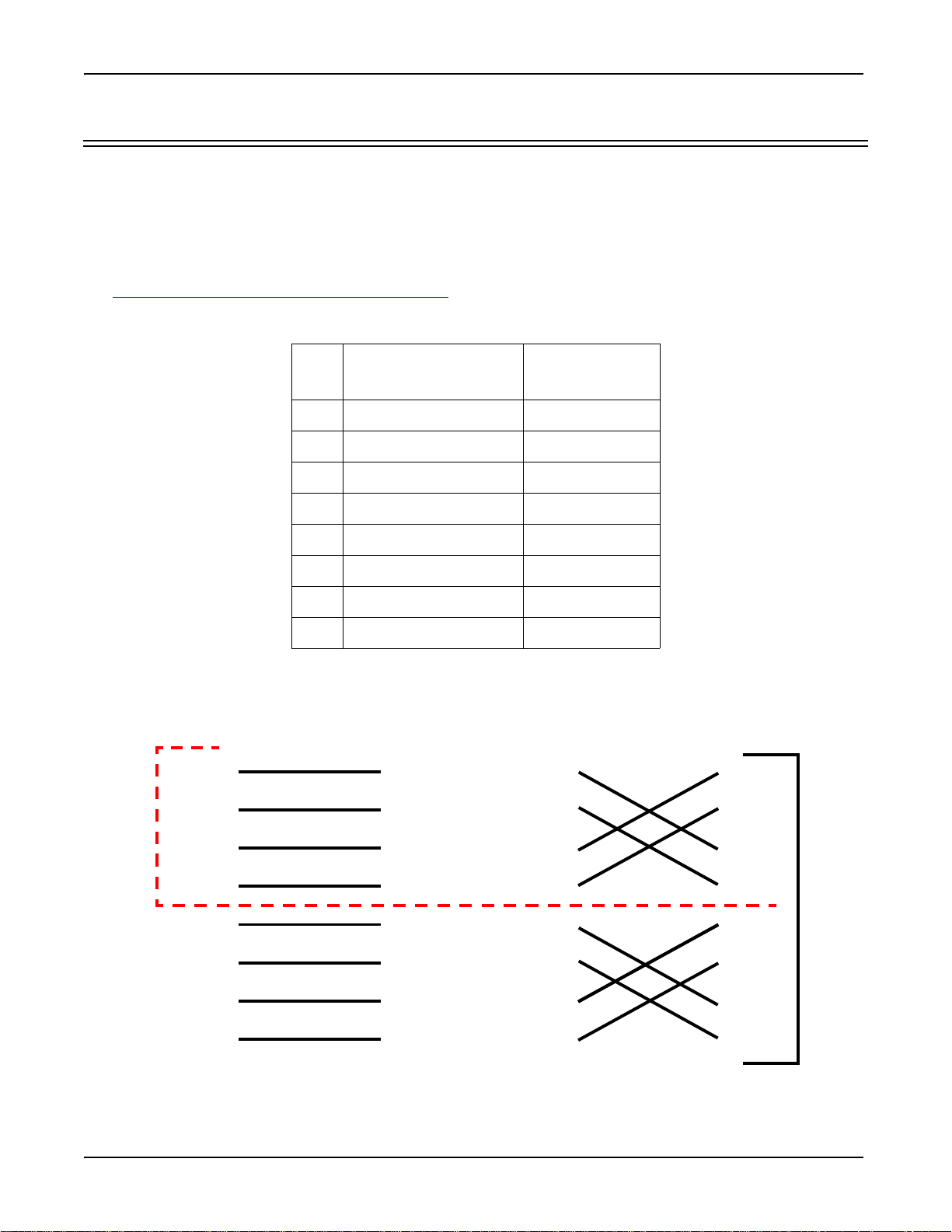

Straight-Through Cabling
TX D1+ 1
TX D1- 2
RX D2+ 3
RX D2- 6
BI D3+ 4
BI D3- 5
BI D4+ 7
BI D4- 8
1 RX D2+
2 RX D2-
3 TX D1+
6 TX D1-
4 BI D4+
5 BI D4-
7 BI D3+
8 BI D3-
Crossover Cabling
10/100BASE-TX
1000BASE-TX
Connect the Ethernet Ports
You can use the following information to connect standard Ethernet cables between the ES7528 Ethernet
ports and the network nodes.
• Ports 1-24 are Fast Ethernet (10/100BASE-TX) PoE ports that are IEEE 802.3af (PoE) and IEEE 802.3at
(PoE Plus) compliant. The ports provide 48VDC at 350mA (maximum 15.4W/port) or provide 53VDC at
606mA (maximum 32W/port). The following table shows the RJ45 PoE pin-out assignment.
• Ports 25-28 are RJ45/SFP Combo Gigabit ports that support Gigabit/1000BASE-SX/LX/LHX/ZD/ZX
See Connect SFP Transceivers (Combo Ports 25-28) on Page 13 for information about SFP installation.
The following table shows the RJ45 PoE pin-out assignment.
.
Pin
10/100BASE-TX PoE
(Alternative A)
1000BASE-TX
1 RX + and Vport - BI_DA+
2 RX - and Vport - BI_DA-
3 TX + and Vport + BI_DB+
4NC BI_DC+
5NC BI_DC-
6 TX - and Vport + BI_DB-
7NC BI_DD+
8NC BI_DD-
All of the Ethernet ports automatically detect the signal from the connected devices to negotiate the link
speed and duplex mode (half- or full-duplex). Auto MDI/MDIX allows you to connect another switch, hub, or
workstation without changing straight-through or crossover cables. Crossover cables cross-connect the
transmit lines at each end to the received lines at the opposite end.
Connect one side of an Ethernet cable into any switch port and connect the other side to your attached device.
12 - Connect the Ethernet Ports RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 13
Hardware Installation
The SFP cage is 2 x1 design.
The LNK/ACT LED is lit when the cable is correctly connected. Always make sure that the cables between
the switches and attached devices (for example, switch, hub, or workstation) are less than 100 meters (328
feet) and meet these requirements.
• 10BASE-T: Category 3 or higher cable
• 100BASE-TX: Category 5 or higher cable
• 1000BASE-TX: Category 5 or higher cable
• IEEE 802.3af: Category 5 cable
• IEEE 802.3at:Category 5e / 6 cable
Connect SFP Transceivers (Combo Ports 25-28)
The ES7528 equips four Gigabit SFP ports
combined with RJ45 Gigabit Ethernet ports
(Ports 25-28). The SFP ports accept standard
mini GBIC SFP transceivers that support
1000BASE-X (1000BASE-SX/LX/LHX/XD/ZX).
To ensure system reliability, Comtrol
recommends using Comtrol certified SFP
Transceivers.
1. Plug the SFP transceiver into the SFP fiber
transceiver.
2. Connect the transmit channel to the receive
channel at each end.
3. Check the direction/angle of the fiber transceiver and the fiber cable.
Note: This is a Class 1 Laser/LED product. Do not stare at the Laser/LED Beam.
The SFP port does not function until the fiber cable is linked to another active device. The SFP and
corresponding RJ45 ports work in an exclusive mode. Traffic sent or received through the SFP module has
priority thus no traffic is sent or received over the corresponding RJ45 connection. To use the RJ45
connection, remove the corresponding SFP.
Multi-Mode cables should not exceed 2KM and Single-Mode cables should not exceed 30km.
RocketLinx ES7528 User Guide: 2000509 Rev. C Connect SFP Transceivers (Combo Ports 25-28) - 13
Page 14
Hardware Installation
LED Descriptions
This subsection provides information about the ES7528 LEDs. You can also refer to Device Front Panel on
Page 135 for information about using the web user interface to remotely view LED information.
LED Name LED On LED Blinking LED Off
DC1 (Power)
DC2 (Power)
Power available
Power not available
Power is off
PSU (AC power) Power available Power not available Power is off
Alarm Alarm activated Alarm not activated
R.S. (Super-Ring
Redundancy
Manager)
Green: Normal Ring
state
Amber: Abnormal Ring
state
Green Flashing: Incorrect
configuration
Amber Flashing: The break has
been detected to be local to one of
Super-Ring not active
the ports
Sys (System) System ready System is uploading firmware or
System not ready
the system is rebooting
LEDs 1-24
Link/Act
Duplex
LEDs G1-G4
Link/Act
Duplex
Green: 100M
Yellow: 10M
Green: Full-Duplex
Duplex:
Full-Duplex
Green (802.3af): 1000M
Blue (802.3at): 1000M
Yellow: 10M
Link/Act:
Green: 1000M
Yellow: 10M or 100M
Not connected
Half-Duplex
Link/Act:
Not connected
Duplex:
Half-Duplex
14 - LED Descriptions RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 15
Using PortVision DX
There are several ways to configure network information. Comtrol Technical Support recommends connecting
the ES7528 to a PC or laptop running Windows
This section shows how to use PortVision DX for initial network configuration and discusses how to:
• Install PortVision DX (Page 17
• Configure the network address (Page 19
• Check the firmware and bootloader version on the ES7528 to verify that the latest versions are loaded
(Page 22
• Download the latest version firmware and bootloader and upload it to the ES7528 (Page 23
• Perform other PortVision DX tasks, such as:
- Adding a new RocketLinx (managed or unmanaged) or a third party device to PortVision DX to
- Using configuration files for use in configuring multiple installations with the same features (Page 26)
- Using the LED Tracker (Page 27)
• Organize how PortVision DX displays your Comtrol Ethernet attached products (Page 26)
• Access the latest documentation for your Comtrol Ethernet attached product
Optionally, you can use the web user interface or the CLI to perform these tasks on the ES7528 using these
subsections:
• IP Configuration
• Firmware Upgrade
• Basic Settings (CLI)
) before configuration
maintain device information on your network (
on Page 48
on Page 63
on Page 151
)
and installing PortVision DX for initial configuration.
)
)
Page 25)
NetVision
NetVision, the configuration utility that only supported RocketLinx has been replaced by PortVision DX,
which supports all Comtrol Ethernet attached products.
If you are familiar with NetVision and wish to use it, NetVision
status, meaning that it is no longer being maintained. If any bugs or issues exist, Technical Support will have
you load and use PortVision DX.
is still available but has been moved to Legacy
RocketLinx ES7528 User Guide: 2000509 Rev. C Using PortVision DX - 15
Page 16
Using PortVision DX
PortVision DX Overview

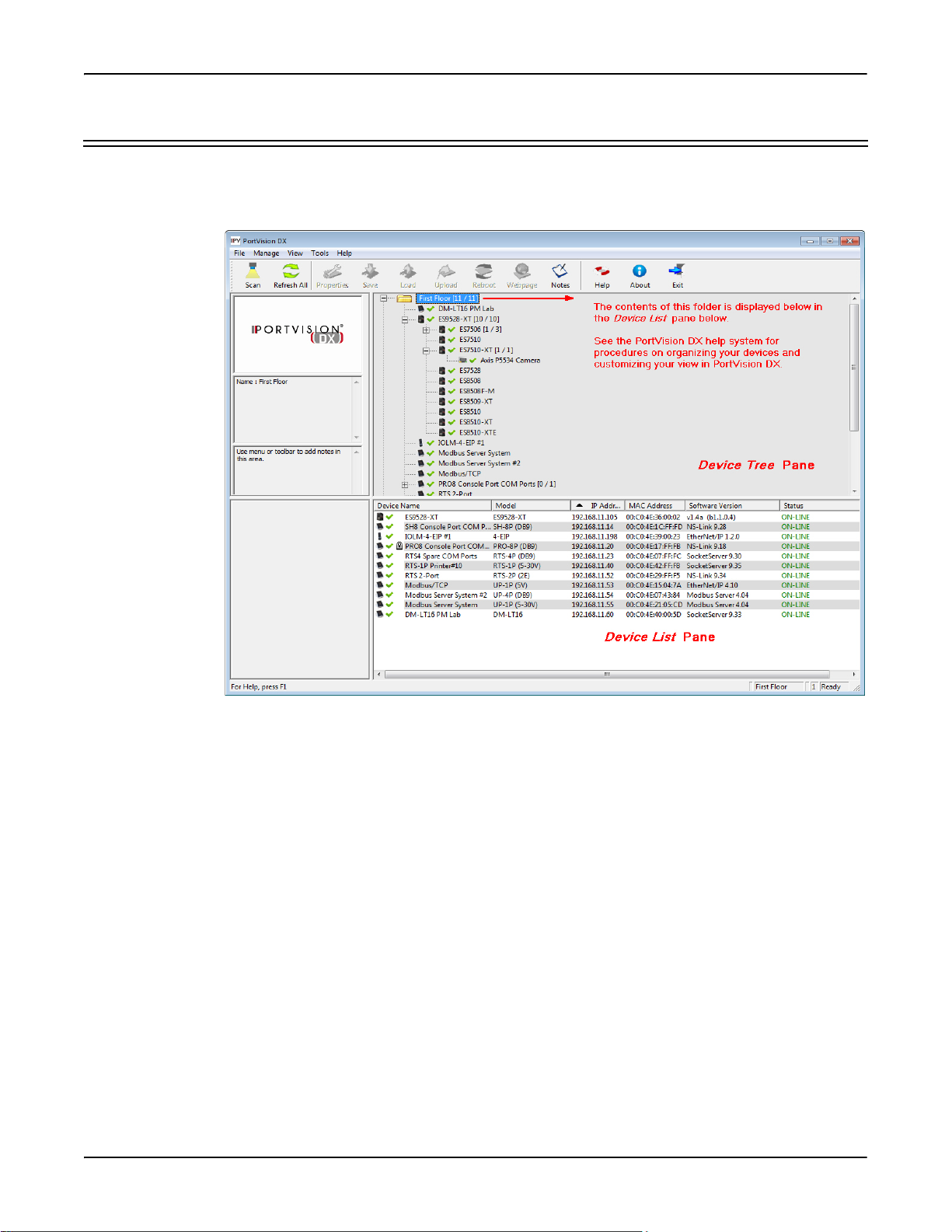

PortVision DX automatically detects Comtrol Ethernet attached products physically attached to the local
network segment so that you can configure the network address, upload firmware, and manage the following
products:
• RocketLinx (managed) switches
• DeviceMaster family
- DeviceMaster PRO
- DeviceMaster RTS
- DeviceMaster Serial Hub
- DeviceMaster 500
•DeviceMaster UP
•DeviceMaster LT
• IO-Link Master family
In addition to identifying Comtrol Ethernet attached products, you can use PortVision DX to display any
third-party switch and hardware that may be connected directly to those devices. All non-Comtrol products
and unmanaged RocketLinx switches are treated as non-intelligent devices and have limited feature support.
For example, you cannot configure or update firmware on a third-party switch.
PortVision DX Requirements
Use PortVision DX to identify, configure, update, and manage the ES7528 on the following Windows operating
systems:
• Windows 8/8.1
• Windows Server 2012
•Windows 7
• Windows Server 2008
•Windows Vista
• Windows Server 2003
•Windows XP
PortVision DX requires that you connect the Comtrol Ethernet attached product to the same network segment
as the Windows host system if you want to be able to scan and locate it automatically during the configuration
process.
16 - PortVision DX Overview RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 17
Using PortVision DX
Installing PortVision DX
During initial configuration, PortVision DX automatically detects and identifies ES7528 switches, if they are
in the same network segment.
Use the Software and Documentation CD that came with the ES7528 to check for the latest version of
PortVision DX or use the link below to download the latest version.
1. Locate PortVision DX using one of the following methods to download the latest version:
• Software and Documentation CD: You can use the CD menu system to check the version on the CD
against the latest released version.
• FTP site subdirectory:
ftp://ftp.comtrol.com/rocketlinx/portvision_dx
Note: Depending on your operating system, you may need to
respond to a Security Warning to permit access.
2. Execute the PortVision_DX[version].msi file.
3. Click Next on the Welcome screen.
.
4. Click I accept the terms in the License Agreement and Next.
5. Click Next or optionally, browse to a different location and
then click Next.
RocketLinx ES7528 User Guide: 2000509 Rev. C Installing PortVision DX - 17
Page 18
Using PortVision DX
6. Click Next to configure the shortcuts.
7. Click Install.
8. Depending on the operating system, you may need to click Ye s to the Do you want to allow the following
program to install software on this computer? query.
9. Click Launch PortVision DX and Finish in the last
installation screen.
10. Depending on the operating system, you may need to click
Ye s to the Do you want to allow the following program to
make changes to this computer? query.
11. Go the next subsection to use PortVision DX to program the
network information.
18 - Installing PortVision DX RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 19
Using PortVision DX
You can save time if you only scan for RocketLinx switches.
Configuring the Network Settings
The ES7528 has the following default values when shipped from the factory:
• IP address: 192.168.250.250
• Subnet mask: 255.255.0.0
• Gateway address: 192.168.250.1
Use the following procedure to change the default network settings on the ES7528 for your network.
1. If necessary, start PortVision DX using the PortVision DX desktop shortcut or from the Start button, click
All Programs > Comtrol > PortVision DX > PortVision DX.
Note: Depending on your operating system, you may need to click Ye s to the Do you want to allow the
following program to make changes to this computer? query.
2. Click the Scan button in the Toolbar.
3. Select the Comtrol Ethernet attached products that you want to locate and then click Scan.
Note: If the Comtrol Ethernet attached product is not on the local segment and it has been programmed
with an IP address, it will be necessary to manually add the Comtrol Ethernet attached product to
PortVision DX.
RocketLinx ES7528 User Guide: 2000509 Rev. C Configuring the Network Settings - 19
Page 20
Using PortVision DX
4. Highlight the ES7528 for which you want to program network information and open the Properties screen
using one of these methods.
• Double-click the ES7528 in the Device Tree or Device List pane.
• Highlight the ES7528 in the Device Tree or Device List pane and click the Properties button.
• Right-click the ES7528 in the Device Tree or Device List pane and click Properties in the popup menu
• Highlight the ES7528, click the Manage menu and then Properties.
20 - Configuring the Network Settings RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 21
Using PortVision DX
5. Optionally, rename the ES7528 in the Device Name field for a PortVision DX friendly name. The default
name displays as Device and the last three sets of hex numbers from the MAC address.
Note: The MAC address and Device Status fields are automatically populated and you cannot change
these values.
6. Optionally, enter the serial number, which is on a label on the ES7528.
7. Select DHCP IP or Static IP for the IP Mode.
• If you select DHCP IP, go to Step 8
.
• If you select Static IP:
- Enter a unique IP address as required for your site.
- Enter a valid Subnet Mask value for your network.
- Enter a valid Default Gateway value for your network.
8. Optionally, select the Network Topology type, which is an informational field.
9. Click Apply Changes to update the network information on the ES7528.
Note: If you are deploying multiple ES7528 switches that share common values, you can save the
configuration file and load that configuration onto other ES7528 switches. See Using Configuration
Files on Page 26 for more information.
10. Click Close to exit the Properties window.
11. You should verify that you have the latest firmware loaded on the ES7528 because a newer version
typically includes feature enhancements and bug fixes. Refer to Checking the Firmware Version
22 and if necessary, Uploading the Latest Firmware
or Bootloader on Page 23.
on Page
12. If you have the latest firmware, you can begin feature configuration, see one of these sections:
• Configuration Using the Web User Interface
• Configuration Using the Command Line Interface (CLI)
on Page 31
on Page 137
• Right-click the ES7528 in the Device List pane and click Webpage in the popup menu.
Note: The default User Name and Password are both admin.
RocketLinx ES7528 User Guide: 2000509 Rev. C Configuring the Network Settings - 21
Page 22
Using PortVision DX
Checking the Firmware Version
Checking your web interface and bootloader versions is easy in PortVision DX.
Comtrol recommends loading the latest firmware and bootloader so that you have all of the latest feature
enhancements and bug fixes.
1. If the ES7528 is not displayed in PortVision DX, click the Scan
button.
2. Select the Comtrol Ethernet attached product type and click the
Scan button.
3. Locate the ES7528 in the Device List pane. Under Software
Version:
• The first number reflects the firmware version.
• The second number displays the bootloader version.
4. Check the Comtrol ftp
site for the latest firmware and bootloader. Simply, click your product type and click
the Software link and check the latest version against the version on the ES7528.
Use the next subsection for procedures to upload the firmware (web interface) and bootloader.
22 - Checking the Firmware Version RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 23
Using PortVision DX
Uploading the Latest Firmware or Bootloader
You can use the following procedure to upload the latest firmware or bootloader.
1. If you have not done so, download the latest firmware and bootloader using the previous subsection.
2. Right-click the ES7528 in the Device List pane that you want to update, click Advanced --> Upload
firmware.
3. Navigate to the location of the firmware files, select the appropriate file, and then click Open.
4. Click Ye s to the Upload Firmware message.
5. Click Ok to the message notifying you that you should
wait to use the ES7528 when the status returns to
ON-LINE.
6. Right-click the ES7528 in the Device List pane and click Refresh. Optionally, you can click the Refresh
button in the Toolbar and that refreshes all devices in PortVision DX.
7. Verify that the version change is reflected in under the Software Version.
RocketLinx ES7528 User Guide: 2000509 Rev. C Uploading the Latest Firmware or Bootloader - 23
Page 24
Using PortVision DX
Uploading Firmware to Multiple ES7528 Switches
You can use this procedure if your ES7528 is connected to the host PC, laptop, or if the ES7528 resides on the
local network segment.
Note: Technical support does not advise uploading bootloader to multiple ES7528 switches. Remember that
uploading firmware reboots the ES7528, which depending on your network connections may cause
firmware uploading to fail on another ES7528.
1. If the ES7528 is not displayed in PortVision DX, click the Scan
button.
2. Select the Comtrol Ethernet attached product type and click the
Scan button.
3. Shift-click the multiple ES7528 switches on the Main screen that
you want to update and use one of the following methods:
•Click the Upload button.
• Right-click and then click Advanced > Upload Firmware.
•Click Advanced >Upload Firmware in the Manage menu.
4. Browse, click the firmware (.bin) file, Open (Please locate the new firmware), and then click Yes (Upload
Firmware).
It may take a few minutes for the firmware to upload onto all of the ES7528 switches. The ES7528 reboots
itself during the upload process.
5. Click Ok to the advisory message about waiting to use the device until the status reads ON-LINE.
In the next polling cycle, PortVision DX updates the Device List pane and displays the new firmware version.
24 - Uploading Firmware to Multiple ES7528 Switches RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 25
Using PortVision DX
Adding a New Device in PortVision DX
You can add a new ES7528 manually, if you do not want to scan the network to locate it or you want to preconfigure an ES7528 before connecting it to the network. Optionally, you can also add unmanaged devices or
RocketLinx switches to maintain information about devices on the network.
See the PortVision DX help system for additional information about adding unmanaged RocketLinx switches
or third party devices or switches.
Use the following procedure to add a remote ES7528 to PortVision DX.
1. Access the New Device window using one of these methods:
•Click Add New > Device in the Manage menu.
• Right-click a folder or a RocketLinx switch in the Device Tree pane and click Add New > Device.
2. Select the appropriate RocketLinx in the Device Type drop list.
3. Select the appropriate model in the Device Model drop list.
4. Enter a friendly device name in the Device Name list box.
5. Optionally, enter the serial number in the Serial Number list box.
RocketLinx ES7528 User Guide: 2000509 Rev. C Adding a New Device in PortVision DX - 25
Page 26
Using PortVision DX
6. Enter the IP Address for the ES7528. It is
not necessary to enter the Subnet Mask and
Default Gateway
7. Click Ok to close the Add New Device
window. It may take a few moments to save
the ES7528.
8. If necessary, click Refresh for the new
RocketLinx to display in the Device Tree or
Device List panes. The RocketLinx shows
OFF-LINE if it is not connected to the local
network or if an incorrect IP address was
entered.
Using Configuration Files
If you are deploying multiple ES7528 switches that share common firmware values, you can save the
configuration file (.dc) from the Main screen in PortVision DX and load that configuration onto other ES7528
switches.
Saving a Configuration File
Use this procedure to save a configuration file.
1. Highlight the ES7528 in the Device List pane and use one of the following methods:
•Click the Save button.
• Right-click and then click Configuration > Save.
2. Browse to the location you want to save the file, enter a file name, and click Save.
3. Click Ok to close the Save Configuration Completed message.
Loading a Configuration File
Use the following procedure to load a previously saved a ES7528 configuration file. Load a configuration file
and apply it to a selected ES7528 switch or switches from the Device List pane.
Use this procedure to load a configuration file using the Device List pane to one or more ES7528 switches.
1. Highlight the device or devices in the Device List pane and use one of the following methods:
•Click the Load button
• Right-click and then click Configuration > Load
2. Click Ye s to the warning that it will take 25 seconds per device and it may also reboot the devices.
3. Browse to the location of the configuration file, click the file name (.dc) and then Open.
4. Close the Load Configuration popup message.
26 - Using Configuration Files RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 27
Using PortVision DX
Using the LED Tracker
RocketLinx managed switches support the LED Tracker feature, which allows you to toggle on/off the LEDs
on a specific device so that you can locate the physical unit.
Use this procedure to toggle the LED Tracker feature on RocketLinx switches.
1. Right-click the ES7528 in the Device List pane, click Tracker, and then click ON.
The ES7528 SYS LED will flash for five seconds.
2. If necessary, you may need to click Tracker and ON several times to catch the flashing SYS LED.
RocketLinx ES7528 User Guide: 2000509 Rev. C Using the LED Tracker - 27
Page 28
Using PortVision DX
Customizing PortVision DX
You can customize how PortVision DX displays the devices. You can even create sessions tailored for specific
audiences. You can also add shortcuts to other applications using Tools > Applications > Customize feature.
The following illustrates how you can customize your view.
See the PortVision DX Help system for detailed information about modifying the view. For example, the above
screen shot illustrates devices layered in folders.
28 - Customizing PortVision DX RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 29
Using PortVision DX
Accessing RocketLinx Documentation from PortVision DX
You can use this procedure in PortVision DX to download and open the previously downloaded documents for
the RocketLinx.
How to Download Documentation
Use this procedure to initially download a document or documents.
1. If necessary, open PortVision DX.
2. Click Help > Documentation.
3. Optionally, click the DOWNLOAD THE CURRENT DOCUMENTATION CATALOG
ONLINE button to make sure that the latest documentation is available to
PortVision DX.
4. Select the product Category from the drop list.
5. Select the document you want to download from the Documentation drop list.
Note: This image may not reflect your RocketLinx.
6. Click the Download the latest edition from the web button.
Note: It may take a few minutes to download, depending on your connection speed. The document opens
automatically after it has downloaded.
7. Click Close if you have downloaded all of the documents that you wanted.
RocketLinx ES7528 User Guide: 2000509 Rev. C Accessing RocketLinx Documentation from PortVision DX - 29
Page 30
Using PortVision DX
How to Open Previously Downloaded Documents
Use the following procedure to access previously downloaded documents in PortVision DX.
Note: Optionally, you can browse to the Program Files (x86) > Comtrol > PortVision DX > Docs subdirectory and
open the document.
1. If necessary, open PortVision DX > Start/Programs > Comtrol > PortVision DX > PortVision DX or use the
desktop shortcut.
2. Click Help > Documentation.
3. Click the Open the local copy of the document button to view the document.
Note: This image may not reflect your RocketLinx.
Note: If the document fails to open, it may be that your browser has been disabled. You can still access the
document by clicking the Browse the folder for already downloaded documentation button and opening
the document with your custom browser.
4. Click Close in the Documentation... popup, unless you want to open or download other documents.
30 - How to Open Previously Downloaded Documents RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 31
Configuration Using the Web User Interface
The ES7528 provides in-band and out-band configuration methods:
• Out-band management means that you configure the ES7528 using the RS-232 console cable and the
Command Line Interface (CLI) to access the ES7528 without attaching an admin PC to the network. You
can use out-band management if you lose the network connection to the ES7528. The CLI and Telnet are
discussed in
• In-band management means that you connect remotely using the ES7528 IP address through the
network. You can remotely connect with the ES7528 embedded Java applet web user interface or a Telnet
console and the CLI. The ES7528 provides HTTP web user interface (
user interface (Page 34) for web management.
Configuration Overview
This subsection discusses a minimum level of configuration required to operate the ES7528.
1. If you have not done so, install the hardware, see Hardware Installation on Page 9.
2. If you are planning on using in-band management, you need to program the ES7528 IP address to meet
your network requirements. The easiest way to configure the IP address is using a Windows system and
PortVision DX, see
3. If you are planning on connecting PDs, see PoE Control on Page 74 to configure the PoE port
characteristics,.
4. Configure other features as desired. You can refer to the Feature Overview on Page 37 to locate
configuration information or use these links:
• Basic Settings on Page 46
• Port Configuration on Page 66
• Power over Ethernet on Page 74
• Network Redundancy on Page 79
• VLAN on Page 92
• Private VLAN on Page 100
• Traffic Prioritization on Page 103
• Multicast Filtering on Page 106
• SNMP on Page 110
• Security on Page 113
• Warning on Page 123
• Monitor and Diag on Page 128
• Device Front Panel on Page 135
• Save to Flash on Page 136
• Logout on Page 136
Configuration Using the Command Line Interface (CLI) on Page 137.
Page 32) and secure HTTPS web
Configuring the Network Settings on Page 19.
RocketLinx ES7528 User Guide: 2000509 Rev. C Configuration Using the Web User Interface - 31
Page 32
Configuration Using the Web User Interface
Web User Interface
The ES7528 web management page was developed with Java. You can use any standard web browser, which
is compatible with the Java Runtime to configure and communicate with the ES7528 from anywhere on the
network.
If you did not program the IP address for your network using PortVision DX (Configuring the Network
Settings on Page 19), you need to change your computer IP address to 192.168.250.x (Network Mask:
255.255.0.0). The default IP address for the ES7528 is 192.168.250.250.
1. If necessary, install the latest version of the Java Runtime Environment.
Note: You will need to update to the latest Java version to run the web interface.
2. Open a command prompt window and ping the IP address for the ES7528 to verify a normal response
time.
3. Launch the web browser on the PC using one of these methods:
• Right-click the ES7528 in PortVision DX and click Webpage.
•Type http://192.168.250.250 (or the IP address of the switch), and then press Enter.
Note: Since Java is constantly updated, the prompts may be different from what the following subsections
display.
Windows XP - Windows Server 2003
If a Warning - Security message appears, click Always trust content from this publisher and then Run when
requested to run the application (IP address).
Windows Vista - Windows 8.1
If necessary, click I accept the risk and want to run this application, and then Run if a security warning popup
message appears.
32 - Web User Interface RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 33
4. Enter the user name, the password, and click OK. The
default user name and password are both admin.
The Welcome page of the web management interface
then appears.
Configuration Using the Web User Interface
5. If you have not done so, you can change the ES7528 IP address to meet your network environment.
a. Double-click Basic Setting.
b. Click IP Configuration.
To use static addressing, enter a valid IP add dress, subnet mask and default gateway.
To use DHCP, click Enable in the DHCP Client drop list.
c. Click Apply.
6. If you are planning on connecting PDs, configure the PoE port characteristics, see PoE Control on Page 74.
You can use the Feature Overview on Page 37 to locate other features that you may want to configure.
RocketLinx ES7528 User Guide: 2000509 Rev. C Web User Interface - 33
Page 34
Configuration Using the Web User Interface
Secure Web User Interface
The ES7528 web user interface also provides secured management through an HTTPS login so that all of the
configuration commands are secure.
If you did not program the IP address for your network using PortVision DX (Configuring the Network
Settings on Page 19), you need to change your computer IP address to 192.168.250.x (Network Mask:
255.255.0.0). The default IP address for the ES7528 is 192.168.250.250.
1. Open a command prompt window and ping the IP address for the ES7528 to verify a normal response
time.
2. Launch the web browser and type https://192.168.250.250 (or the IP address of the ES7528).and then press
Enter.
3. Click Continue to the web site (not recommended).
34 - Secure Web User Interface RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 35
Windows XP and Windows Server 2003
a. Click No when the popup screen
appears and requests you to trust the
secured HTTPS connection distributed
by the ES7528.
b. Click Always trust content from this
publisher and then Run when requested
to run the application (IP address) in
the Warning - Security message.
Windows Vista - Windows 7
a. Click the Continue button.
Configuration Using the Web User Interface
b. If necessary, click Show all content.
c. If desired, click Do not show this again for apps from the publisher and location above and then click Run if
a security warning popup message appears.
RocketLinx ES7528 User Guide: 2000509 Rev. C Secure Web User Interface - 35
Page 36
Configuration Using the Web User Interface
4. Enter the user name and the password and click OK. The default user name and password are both
admin.
The Welco me page of the web management interface then appears.
5. If you have not done so, you can change the ES7528 IP address to meet your network environment.
a. Double-click Basic Setting.
b. Click IP Configuration.
- To use static addressing, enter a valid IP address, subnet mask and default gateway.
- To use DHCP, click Enable in the DHCP Client drop list.
c. Click Apply.
6. If you are planning on connecting PDs, configure the PoE port characteristics, see PoE Control on Page 74.
36 - Secure Web User Interface RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 37
Configuration Using the Web User Interface
Feature Overview
The following table provides detailed information about ES7528 features and provides the location of the
configuration information in the web user interface.
Type Category Details
• System Authentication Control - Enable/Disable
• Authentication Method - RADIUS or Local
802.1x Port-Based
Network Access
Control
Configuration
802.1x Port-Based
Network Access
Control Port
Configuration
802.1x
Configuration on
Page 119
802.1x Port
Configuration on
Page 120
• RADIUS Server - IP Address, Shared Key, Server Port,
and Accounting Port
• Local RADIUS User - User Name, Password, and VID
• Secondary RADIUS Server - IP Address, Shared Key,
Server Port, and Accounting Port
• Local RADIUS User List
Port Configuration
• Port Control - Auto, Forced Authorized, or Force
Unauthorized
• Re-authentication - Enable/Disable
• Maximum Request
• Guest VLAN
• Host Mode - Single/Multi
• Admin Control Direction - Both or In
Timeout Configuration
•Port by Port
• Re-Authentication Periods
• Quiet Period
•Tx Period
• Supplicant Timeouts
• Server Timeouts
•Port by Port
802.1x Port-Based
Network Access
Control Port Status
802.1x Port Status
on Page 122
•Port Control
• Authorize Status
• Authorized Supplicant
• Oper Control Direction
Admin Password
Backup and Restore
CoS-Queuing
Mapping
RocketLinx ES7528 User Guide: 2000509 Rev. C Feature Overview - 37
Admin Password
on Page 47
Backup and
Restore on Page 58
CoS-Queue
Mapping on Page
104
•Admin
Local or TFTP
• CoS 0 through 7
• Queue 0 through 7
• Queue 7 highest priority
Page 38
Configuration Using the Web User Interface
Type Category Details
DHCP Server
Configuration on
Page 54
DHCP Server
Configuration
DHCP Leased
Entries on Page 56
DHCP Relay Agent
on Page 57
• DHCP Server Configuration
- Excluded Addresses and Manual Binding
- Port and IP Address
- Option 82
• DHCP Leased Entries
•DHCP Relay Agent
- Helper Address 1-4
- DHCP Option82 Relay Agent (Circuit ID/Remote ID)
DSCP-Queuing
Mapping
Event Selection
Faul t Relay
DSCP-Queue
Mapping on Page
105
Event Selection on
Page 125
Warning on Page
123
•DSCP 0 through 7
• Queue 0 through 7
• Queue 7 highest priority
• Device Cold Start
• Device Warm Start
• Authentication Failure
• Time Synchronization Failure
• Power 1 Failure
• Power 2 Failure
•AC Failure
• Fault Relay
• Super Ring Topology Change
•SFP Failure
• Port by Port Event Selection
Relay 1- Multi-event
• Power
• Port Link (Port or Ports)
• Ring Failure
• Ping Failure - IP Address
• Ping Reset, IP Address, Reset Time (Sec), and Hold Time
(Sec)
• Dry Output - On Period (Sec) and Off Period (Sec)
Filter Set/Attach
Security on Page
113
• IP Filter ID/Name
• Ingress Ports
• Packet Filtering by MAC or IP
GMRP
Configuration
38 - Feature Overview RocketLinx ES7528 User Guide: 2000509 Rev. C
Multicast Filtering
on Page 106
• Enable/Disable
•Port by Port Basis
Page 39
Type Category Details
GVRP Configuration
GVRP
Configuration on
Page 98
Configuration Using the Web User Interface
•2K Entries
• Enable/Disable GVRP Protocol
• State - Enable/Disable
• Join Timer
• Leave Timer
• Leave All Timer
IGMP Query
IGMP Snooping
IP Configuration
Jumbo Frame
MAC Address Table
(8K)
IGMP Query on
Page 108
IGMP Snooping on
Page 107
Basic Settings on
Page 46
Basic Settings on
Page 46
MAC Address
Table on Page 128
• Version - Version 1, Version 2, or Disable
• Query Intervals
• Query Maximum Response Time
• Enable/Disable
•VID
• Port by Port IGMP Snooping Table
- IP Address
-VID
• IPv4 and IPv6 support
•DHCP
• DNS1 and DNS2
• System MTU 1518 (Range 64-9216)
• Aging Time (Sec)
• Static Unicast MAC Address - MAC Address, VID, and
Port
• Port by Port MAC Address Table View
- Static Unicast
- Dynamic Unicast
- Static Multicast
- Dynamic Multicast
• MSTP Region Configuration - Name and Revision
MSTP Configuration
MSTP
Configuration on
Page 84
• New MST Instance - Instance ID, VLAN Group, and
Instance Priority
• Current MST Instance Configuration - Instance ID,
VLAN Group, and Instance Priority
RocketLinx ES7528 User Guide: 2000509 Rev. C Feature Overview - 39
Page 40
Configuration Using the Web User Interface
Type Category Details
MSTP Information
MSTP Port
Configuration
MSTP Information
on Page 88
MSTP Port
Configuration on
Page 87
• Instance ID
• Root Information
- Root Address
- Root Priority
- Root Port
- Root Path Cost
-Maximum Age
-Hello Time
-Forward Delay
•Port Information
- Role
-Port State
-Path Cost
-Port Priority
- Link Type
-Edge Port
Instance ID
•Port
•Path Cost
• Priority
• Link Type
•Edge Port
Ping Utility
PoE Control
PoE Scheduling
Ping Utility on
Page 134
PoE Control on
Page 74
PoE Scheduling on
Page 77
Target IP Address
• PoE System - Enable/Disable
• DC1 and DC2 Power Budget - Watts, Voltage, and Power
Budget Warning Level
•Port by Port
- PoE - Enable/Disable
- Powering Mode - 802.3af, 802.3at (LLDP), 802.3af (2-
event) or Force
- Power Budget (W)
- Power Priority - Critical, High, Or Low
• PD Status Detection - Enable/Disable
- PD IP Address
- Cycle Time
PoE Ports On/Off on an hourly/daily basis.
40 - Feature Overview RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 41
Type Category Details
PoE Status
PoE Status on Page
78
Configuration Using the Web User Interface
Displays:
• DC1/2 Power (V and W)
• AC Power (V and W)
• Primary/Secondary Power
• Tertiary Power
• Total Power Budget
• Total Output Power
• Power Budget Warning Level
• Utilization
•Event
Port by Port:
•PoE Mode
•Operation Status
•PD Class
• Consumption(W)
•Voltage(V)
• Current(mA)
Port Control
Port Mirror Mode
Port Statistics
Port Control on
Page 66
Port Mirroring on
Page 131
Port Statistics on
Page 130
• Enable/Disable Port State
• Speed/Duplex - Auto-Negotiation, 10 Full/Half, 100 Full/
Half, and 1000 Full (Ports 25-28)
• Flow control - Disable/Symmetric
• User-Defined Description
• Port Mirror Mode - Enable/Disable
•Port by Port
- Source Port - Rx and Tx
- Destination Port - Rx and Tx
Port by Port
•Type
•Link
• State
• Rx and Tx Good
•Rx and Tx Bad
•Rx Abort
• Collision
RocketLinx ES7528 User Guide: 2000509 Rev. C Feature Overview - 41
Page 42
Configuration Using the Web User Interface
Type Category Details
Port Status
Port Status on
Page 68
Aggregation
Port Trunk
Setting on Page 72
Aggregation Status
on Page 73
•Port Type
• Link - Up/Down
• State - Enable/Disable
• Speed/Duplex
•Flow Control
• SFP Vendor, Wavelength, and Distance
• SFP DDM - Temperature, Tx Power, and Rx Power
Aggregation Settings
•Group ID - Trunk 1-8
• Trunk Type - Static or 802.3ad LACP
• Load Balance - MAC hash or IP hash
Aggregation Status by Trunk
•Type
• Aggregated Ports
• Individual Ports
• Link down Ports
PVLAN
Configuration
PVLAN Information
PVLAN Port
Configuration
QoS Setting
Rate Control
PVLAN
Configuration on
Page 100
PVLAN
Information on
Page 102
PVLAN Port
Configuration on
Page 101
QoS Setting on
Page 103
Rate Control on
Page 70
•VLAN ID
• PVLAN Type - None, Primary, Isolated, and Community
• Primary VLAN
• Secondary VLAN
• Secondary VLAN Type
•Ports
Port Configuration
• PVLAN Port Type - Normal, Host, or Promiscuous
•VLAN ID
PVLAN Association
• Secondary VLAN
• Primary VLAN
Queue scheduling
• Use a Round Robin Scheme
• Use Weighted Round Robin Scheme
• Use A Strict Priority Scheme
•
• Ingress Rate (1 Mbps to 100Mbps)
• Egress Rate (1 Mbps to 100Mbps)
42 - Feature Overview RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 43
Type Category Details
Redundant Ring
Redundant Ring
Information
Redundant Ring
on Page 90
Redundant Ring
Information on
Page 91
Configuration Using the Web User Interface
• Ring ID and Name
• Ring Configuration
-ID
-Name
- Version (Super Ring and Rapid Super Ring)
- Device Priority
-Ring Port
- Path Cost
-Ring Port2
- Path Cost
- Rapid Dual Homing
-Ring Status
• 32 Ring ID Maximum (0-31)
• Supports Up To 12 x 100M Rings Plus 2 Gigabit Rings
Aggregation Capability
•Version
• Role
• Status
•RM MAC
•Blocking Port
• Role Transition Count
• Ring State Transition Count
Reset/Reboot
SNMP Configuration
SNMP Traps
SNMP V3 Profile
Load Default on
Page 65
System Reboot on
Page 65
SNMP
Configuration on
Page 110
SNMP Traps on
Page 112
SNMP V3 Profile
on Page 111
• Reset to Factory Default Values
• Reboot from Interface
• V1/V2c Community
• Public - Read Only or Read and Write
• Private - Read Only or Read and Write
• Enable/Disable
• Trap Server - Server IP Address, Community, and
Version (V1 or V2c)
• Trap Server Profile - Displays Server IP, Community, and
Version
SNMP V3
•User Name
• Security Level
• Authentication Level
• Authentication Password
• DES Password
SNMP V3 Users - Displays Profile Information
RocketLinx ES7528 User Guide: 2000509 Rev. C Feature Overview - 43
Page 44
Configuration Using the Web User Interface
Type Category Details
Storm Control
STP Configuration
Storm Control on
Page 71
STP Configuration
on Page 80
Rate Control
• Broadcast Rate (0-262143 Kbits)
• Destination Lookup Failure (DLF) Rate (0-1000000
Kbits)
• Multicast Rate (0-262143 Kbits)
Port Configuration
• Ports 1-28 (Enable/Disable)
• Broadcast Rate
• DLF Rate
• Multicast Rate
• STP, RSTP, MSTP, or Disable
• Bridge Address
• Bridge Priority
•Maximum Age
•Hello Time
•Forward Delay
STP Information
STP Port
Configuration
STP Information
on Page 82
STP Port
Configuration on
Page 81
• Root Information
- Root Address
- Root Priority
- Root Port
- Root Path Cost
-Maximum Age
-Hello Time
-Forward Delay
•Port Information
- Role
-Port State
-Path Cost
-Port Priority
- Link Type
-Edge Port
- Aggregated (D/Type)
Port by Port
•STP State
•Path Cost
• Priority
• Link Type
•Edge Port
SYSLOG Mode
Configuration on
Page 126
44 - Feature Overview RocketLinx ES7528 User Guide: 2000509 Rev. C
SysLog
• Disable, Local, Remote, or Both
• Remote IP Address
Page 45
Type Category Details
System Event Logs
Time Setting
Topology Discovery
Event Log on Page
132
Time Setting on
Page 50
Topology Discovery
(LLDP) on Page
133
Configuration Using the Web User Interface
•Index
•Date
•Time
• Event Log
• IEEE 1588
• Manual or NTP Client
• Time Zone Setting
• Daylight Savings Time
• LLDP - Enable/Disable
• LLDP Configuration - Timer and Hold Time
• LLDP Port State - Local Port, Neighbor ID, Neighbor IP,
and Neighbor VID
Unknown Multicast
Upgrade Firmware
VLAN Configuration
VLAN Port
Configuration
VLAN Table
Unknown
Multicast on Page
108
Firmware Upgrade
on Page 63
VLAN
Configuration on
Page 95
VLAN Port
Configuration on
Page 93
VLAN Table on
Page 99
• Send to Query Ports
• Send to All Ports
• Discard
Local or TFTP
• Tunneling support for 256
• Management VLAN ID
• Static VLAN - ID and Name
• Static VLAN Configuration - VLAN ID, Name, and Ports
(Options: No VLAN, Trunk Link, or Access Link)
•PVID
• Tunnel Mode
•EtherType
• Accept Frame Type
• Ingress Filtering
•VLAN ID
•Name
• Status
•Port by Port
• Email Alert - Enable/Disable
• SMTP Server IP
• Mail Account
• Authentication
•User Name
Warning - SMTP
Configuration
SMTP
Configuration on
Page 127
• Password
• Recipient Email Address 1-4
RocketLinx ES7528 User Guide: 2000509 Rev. C Feature Overview - 45
Page 46
Configuration Using the Web Interface
Basic Settings
The Basic Setting group allows you the ability to configure switch information, IP address, User name/
Password of the system. It also allows you to do firmware upgrade, backup and restore configuration, reload
factory default, and reboot the system.
The following web pages are included in this group:
• Switch Setting on Page 46
• Admin Password on Page 47
• IP Configuration on Page 48
• Time Setting on Page 50
• Jumbo Frame on Page 53
• DHCP Server Configuration on Page 54
• DHCP Leased Entries on Page 56
• DHCP Relay Agent on Page 57
• Backup and Restore on Page 58
• Firmware Upgrade on Page 63
• Load Default on Page 65
• System Reboot on Page 65
Optionally, you can use the CLI for configuration, see Basic Settings (CLI) on Page 151.
Switch Setting
You can assign the System Name, Location, Contact and view ES7528 information.
Switch Setting Page
You can assign a name to the ES7528. You can input up to 64 characters. After you
System Name
configure the name, The CLI system selects the first 12 characters as the name in
CLI system.
System Location You can specify the ES7528 physical location with up to 64 characters.
System Contact
You can specify contact people with up to 64 characters by typing the Administer’s
name, mail address or other information.
The SNMP Object ID of the ES7528. You can follow the path to find its private MIB
System OID
in an MIB browser.
Note: When you attempt to view private MIB, you should first compile private MIB
files into your MIB browser.
System Description Managed Gigabit PoE + Ethernet Switch.
46 - Basic Settings RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 47
Configuration Using the Web Interface
Switch Setting Page (Continued)
Firmware Version Displays the firmware version installed in this ES7528.
Device MAC Displays a unique hardware address (MAC address) assigned at the factory.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136), if you want to maintain these settings
if the ES7528 is powered off.
Admin Password
You can change the user name and the password here to enhance security.
Admin Password Page
Administrator
Name
Password
Confirm
Password
You can enter a new user name here. The default
name is admin.
You can enter a new password here. The default
password is admin.
You need to type the new password again to
confirm it.
RADIUS Server
RADIUS
Server IP
Shared Key
The IP address of the RADIUS server.
The password for communication between switch
and RADIUS Server.
Server Port UDP port of RADIUS server.
Secondary RADIUS Server
RADIUS
Server IP
Shared Key
The IP address of the RADIUS server.
The password for communication between switch
and RADIUS Server.
Server Port UDP port of RADIUS server.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136), if
you want to maintain these settings if the
ES7528 is powered off.
RocketLinx ES7528 User Guide: 2000509 Rev. C Admin Password - 47
Page 48
Configuration Using the Web Interface
IP Configuration
This function allows you to configure the ES7528’s IP address settings.
IP Configuration Page
You can select to Enable or Disable the DHCP Client function. When the DHCP
Client function is enabled, an IP address is assigned to the switch from the
DHCP Client
network’s DHCP server. In this mode, the default IP address is replaced by the
one assigned by DHCP server. If DHCP Client is disabled, then the IP address
that you specified is used.
You can assign the IP address reserved by your network for the ES7528. If the
IP Address
DHCP Client function is enabled, you do not need to assign an IP address to
the ES7528, because it is overwritten by the DHCP server and displays here.
The default IP Address is 192.168.250.250.
48 - IP Configuration RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 49
Configuration Using the Web Interface
IP Configuration Page (Continued)
You can assign the subnet mask for the IP address here. If the DHCP Client
function is enabled, you do not need to assign the subnet mask. The default
Subnet Mask is 255.255.255.0.
Subnet Mask
Note: In the CLI, the enabled bit of the subnet mask is used to represent the
number displayed in the web management interface. For example, 8
represents: 255.0.0.0,16 represents: 255.255.0.0, 24 represents:
255.255.255.0.
You can assign the gateway for the switch here. The default gateway is
Default Gateway
192.168.250.1.
Note: In the CLI, use 0.0.0.0/0 to represent the default gateway.
The Domain Name System (DNS) is a hierarchical naming system built on a
distributed database for computers, services, or any resource connected to the
Internet or a private network. It associates various information with domain
DNS Server 1/2
names assigned to each of the participating entities. Most importantly, it
translates domain names meaningful into the numerical identifiers associated
with networking equipment for the purpose of locating and addressing these
devices worldwide.
You can enter an IPv6 address for the ES7528.
An IPv6 address is represented as eight groups of four hexadecimal digits,
IPv6 Address
each group representing 16 bits (two octets). The groups are separated by
colons (:), and the length of IPv6 address is 128bits.
The 64-bit interface identifier is automatically generated from the MAC
address for the ES7528 using the modified EUI-64 format.
Prefix This IPv6 prefix specifies the size of a network or subnet. The default is 64.
The IPv6 default gateway IP address identifies the gateway (for example, a
IPv6 Default
Gateway
router) that receives and forwards those packets whose addresses are
unknown to the local network. The agent uses the default gateway address
when sending alert packets to the management workstation on a network
other than the local network.
IPv6 Neighbor Table
Neighbor The IPv6 Neighbor Table lists neighbors of the ES7528.
Interface The interface connected to the neighbor.
MAC address This is the MAC address of the neighbor.
State
Remove
This displays the Neighbor Unreachability Detection (NUD) state of the
neighbor entry.
Click the Remove button to remove an IPv6 configuration or IPv6 Neighbor
Table entry.
Reload Click the Reload button to reload IPv6 configuration.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136), if you want to maintain these
settings if the ES7528 is powered off.
RocketLinx ES7528 User Guide: 2000509 Rev. C IP Configuration - 49
Page 50
Configuration Using the Web Interface
Time Setting
Time Setting allows you to set the time manually or through a Network Time Protocol (NTP) server. NTP is
used to synchronize computer clocks on the internet. You can configure NTP settings here to synchronize the
clocks of several switches on the network. The ES7528 also provides Daylight Saving functionality.
Time Setting Page
Time Setting
Source
IEEE 1588
Timezone Setting
Daylight Saving
Time
Apply
Manual Setting: Click Manual Setting to change time as needed. You can also click the Get
Time from PC button to get PC’s time setting for the ES7528.
NTP client: Click Time Setting Source if you want the NTP client to permit the ES7528 to
enable the NTP client service. NTP client is automatically enabled if you change the
Time Setting Source to NTP Client. The system sends a request packet to acquire
current time from the NTP server you assign.
The IEEE 1588 PTP (Precision Time Protocol) supports very precise time
synchronization in an Ethernet network. There are two clocks, master and slave. The
master device periodically launches an exchange of messages with slave devices to help
each slave clock re-compute the offset between its clock and the master's clock.
To enable IEEE 1588, select Enable in the PTP State and choose Auto, Master or Slave
Mode. After the time is synchronized, the system time displays the correct time from
the PTP server.
Select the time zone where the ES7528 is located. The following table lists the time
zones for different locations for your reference. The default time zone is (GMT)
Greenwich Mean Time.
Click the Daylight Saving Time check box and then set the Daylight Saving Time Start and
End times. During Daylight Saving Time, the ES7528 time is one hour earlier than the
actual time.
Click Apply to apply the settings.
Note: You must Save the settings (Page 136), if you want to maintain these settings if
the ES7528 is powered off.
50 - Time Setting RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 51
Configuration Using the Web Interface
Switch(config)# clock timezone
01 (GMT-12:00) Eniwetok, Kwajalein
02 (GMT-11:00) Midway Island, Samoa
03 (GMT-10:00) Hawaii
04 (GMT-09:00) Alaska
05 (GMT-08:00) Pacific Time (US & Canada), Tijuana
06 (GMT-07:00) Arizona
07 (GMT-07:00) Mountain Time (US & Canada)
08 (GMT-06:00) Central America
09 (GMT-06:00) Central Time (US & Canada)
10 (GMT-06:00) Mexico City
11 (GMT-06:00) Saskatchewan
12 (GMT-05:00) Bogota, Lima, Quito
13 (GMT-05:00) Eastern Time (US & Canada)
14 (GMT-05:00) Indiana (East)
15 (GMT-04:00) Atlantic Time (Canada)
16 (GMT-04:00) Caracas, La Paz
17 (GMT-04:00) Santiago
18 (GMT-03:00) NewFoundland
19 (GMT-03:00) Brasilia
20 (GMT-03:00) Buenos Aires, Georgetown
21 (GMT-03:00) Greenland
22 (GMT-02:00) Mid-Atlantic
23 (GMT-01:00) Azores
24 (GMT-01:00) Cape Verde Is.
25 (GMT) Casablanca, Monrovia
26 (GMT) Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London
27 (GMT+01:00) Amsterdam, Berlin, Bern, Rome, Stockholm, Vienna
28 (GMT+01:00) Belgrade, Bratislava, Budapest, Ljubljana, Prague
29 (GMT+01:00) Brussels, Copenhagen, Madrid, Paris
30 (GMT+01:00) Sarajevo, Skopje, Sofija, Vilnius, Warsaw, Zagreb
31 (GMT+01:00) West Central Africa
32 (GMT+02:00) Athens, Istanbul, Minsk
33 (GMT+02:00) Bucharest
34 (GMT+02:00) Cairo
35 (GMT+02:00) Harare, Pretoria
36 (GMT+02:00) Helsinki, Riga, Tallinn
37 (GMT+02:00) Jerusalem
38 (GMT+03:00) Baghdad
39 (GMT+03:00) Kuwait, Riyadh
40 (GMT+03:00) Moscow, St. Petersburg, Volgograd
41 (GMT+03:00) Nairobi
42 (GMT+03:30) Tehran
43 (GMT+04:00) Abu Dhabi, Muscat
44 (GMT+04:00) Baku, Tbilisi, Yerevan
45 (GMT+04:30) Kabul
46 (GMT+05:00) Ekaterinburg
47 (GMT+05:00) Islamabad, Karachi, Tashkent
48 (GMT+05:30) Calcutta, Chennai, Mumbai, New Delhi
RocketLinx ES7528 User Guide: 2000509 Rev. C Time Setting - 51
Page 52
Configuration Using the Web Interface
49 (GMT+05:45) Kathmandu
50 (GMT+06:00) Almaty, Novosibirsk
51 (GMT+06:00) Astana, Dhaka
52 (GMT+06:00) Sri Jayawardenepura
53 (GMT+06:30) Rangoon
54 (GMT+07:00) Bangkok, Hanoi, Jakarta
55 (GMT+07:00) Krasnoyarsk
56 (GMT+08:00) Beijing, Chongqing, Hong Kong, Urumqi
57 (GMT+08:00) Irkutsk, Ulaan Bataar
58 (GMT+08:00) Kuala Lumpur, Singapore
59 (GMT+08:00) Perth
60 (GMT+08:00) Taipei
61 (GMT+09:00) Osaka, Sapporo, Tokyo
62 (GMT+09:00) Seoul
63 (GMT+09:00) Yakutsk
64 (GMT+09:30) Adelaide
65 (GMT+09:30) Darwin
66 (GMT+10:00) Brisbane
67 (GMT+10:00) Canberra, Melbourne, Sydney
68 (GMT+10:00) Guam, Port Moresby
69 (GMT+10:00) Hobart
70 (GMT+10:00) Vladivostok
71 (GMT+11:00) Magadan, Solomon Is., New Caledonia
72 (GMT+12:00) Auckland, Wellington
73 (GMT+12:00) Fiji, Kamchatka, Marshall Is.
74 (GMT+13:00) Nuku'alofa
52 - Time Setting RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 53
Jumbo Frame
The typical Ethernet frame range is from 64 to 1,518 bytes. This is
sufficient for general usages. However, when users want to transmit large
files, the files may be divided into many small size packets. When the
transmission speed becomes slow, long size Jumbo frame may solve the
issue.
The ES7528 allows you configure the size of the Maximum Transmission
Unit (MTU). The default value is 1,518 bytes. You can increase the MTU
size to support jumbo frames on all interfaces by setting the Jumbo Frame
MTU. The maximum Jumbo Frame size is 9,216 bytes. You can freely
change the available packet size.
Jumbo Frame Description
Configuration Using the Web Interface
System MTU
Change the MTU size for all Fast Ethernet interfaces on the switch
stack. The range is 1500 to 1546 bytes; the default is 1518 bytes.
Change the MTU size for all gigabit Ethernet interfaces on the
Jumbo Frame MTU
switch stack. The range is 1500 to 9216 bytes; the default is 1518
bytes.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136), if you want to
maintain these settings if the ES7528 is powered off.
Reset Click to reset the MTU to the default value.
RocketLinx ES7528 User Guide: 2000509 Rev. C Jumbo Frame - 53
Page 54
Configuration Using the Web Interface
DHCP Server Configuration
Use this page to configure DHCP server services.
DHCP Server Configuration Page
DHCP Server
You can select to Enable or Disable the DHCP Server function. The ES7528
assigns a new IP address to link partners.
DHCP Server Configuration
Network Enter the IPv4 address for the DHCP server.
54 - DHCP Server Configuration RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 55
Configuration Using the Web Interface
DHCP Server Configuration Page (Continued)
Subnet Mask Enter the subnet mask for the DHCP server.
Default Gateway Enter the IP gateway address for the DHCP server.
Lease Time Enter the Lease Time in seconds for the client.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136), if you want to maintain these
settings if the ES7528 is powered off.
Excluded Address
You can type a specific address into the IP Address field for the DHCP server
reserved IP address.
IP Address
The IP address that is listed in the Excluded Address List Table is not assigned
to the network device. Add or remove an IP address from the Excluded Address
List by clicking Add or Remove.
Manual Binding
The ES7528 provides an IP address binding and removing function. Enter the
specified IP address, and then click Add to add a new IP address binding rule
IP Address
for a specified link partner, like a PLC, or any device without DHCP client
function.
To remove an IP address from the Manual Binding List, highlight the rule and
click Remove.
The ES7528 provides a MAC address binding and removing function. Enter
the specified MAC address, and then click Add to add a new MAC address
binding rule for a specified link partner, like a PLC, or any device without
MAC Address
DHCP client function.
The MAC address format is xxxx.xxxx.xxxx; for example, 00C0.4E32.0001.
To remove a MAC address from the Manual Binding List, highlight the rule
and click Remove.
Port and IP Address
Port Enter the client port number for the DHCP server.
Enter the client IP address for the DHCP server.
IP Address
After entering the port number and IP address, click Add. To remove a port
and associated IP address, click Remove. Click Reload to reload selected port
and IP address entries.
Option82 IP Address Configuration
IP Address
Option 82 IP Address Configuration: fully supports DHCP relay function.
The IP address of the Option82 IP address configuration.
Circuit ID The Circuit ID of the Option82 IP address configuration.
The Remote ID of the Option82 IP address configuration.
Remote ID
After entering the IP Address, Circuit ID, and Remote ID, click Add.
Click the Remove button to remove selected Option82 IP Address table entries.
Click the Reload button to reload selected Option82 IP Address table entries.
Type This displays string or hex, depending on the type.
RocketLinx ES7528 User Guide: 2000509 Rev. C DHCP Server Configuration - 55
Page 56
Configuration Using the Web Interface
DHCP Leased Entries
The ES7528 provides an assigned IP address.
DHCP Leased Entries Page
Index Index of DHCP leased entries.
Binding Manual or auto binding IP addresses and MAC addresses.
IP Address The IP address of the leased entry.
MAC Address The MAC Address of the leased entry.
Lease Time(s) The lease time of the leased entry (in seconds).
Reload Click to reload DHCP leased entries.
56 - DHCP Leased Entries RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 57
DHCP Relay Agent
This subsection discusses the DHCP Relay Agent page.
Configuration Using the Web Interface
DHCP Relay Agent Page
Relay Agent
You can select to Enable or Disable the DHCP Relay Agent function. The ES7528
assigns a new IP address to link partners.
Relay Policy
Relay policy drop Drops the option 82 field and do not add any option 82 field.
Relay policy keep Keeps the original option 82 field and forwards to server.
Relay policy replace
Replaces the existing option 82 field and adds new option 82 field. (This is the default
setting).
Helper Address 1-4 DHCP Server addresses for the Relay Agent.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136), if you want to maintain these settings if
the ES7528 is powered off.
RocketLinx ES7528 User Guide: 2000509 Rev. C DHCP Relay Agent - 57
Page 58
Configuration Using the Web Interface
DHCP Relay Agent Page (Continued)
DHCP Option82 Relay Agent
Default: Default value of the Circuit-ID.
Port: Port of the switch.
Circuit ID
Circuit ID: The Circuit ID includes information specific to which circuit the request
came in on. It is an identifier that is specific to the relay agent, so the type of circuit
varies depending on the relay agent.
Default: Default value of the Remote-ID.
Remote-ID
IP Address: IP Address of the switch.
Remote ID: The Remote-ID carries information relating to the remote host end of the
circuit, which is the MAC address of the relay.
Backup and Restore
You can use the Backup option to save the current configuration saved in
the ES7528 flash to a PC/laptop or a TFTP server.
This allows you to use the Restore option to restore a configuration file
back to the ES7528 or load the same settings to another ES7528. Before
you can restore a configuration file, you must save the backup
configuration file in the PC or TFTP server. The ES7528 then downloads
this file back into the flash.
The ES7528 configuration file is a standard text file. You can open the file
with WordPad or Notepad. You can also modify the file, add/remove the
configuration settings, and then restore the file back to the ES7528.
There are two modes to backup and restore the configuration file on the
web page:
•Local File
Note: If you have a Windows operating system above Windows XP, you can use the TFTP Server method,
the CLI, PortVision DX, or apply exclusions for Java for the Windows firewall to backup or restore
configuration files.
PortVision DX supports saving and loading configuration files, without any Windows operating
system firewall restrictions.
• TFTP Server
Backup & Restore Page
• Local File: The ES7528 acts as the file server, see Backup the Configuration - Local File
Method on Page 59.
Backup
Configuration
• TFTP Server: The ES7528 acts as a TFTP client, see Backup the Configuration - TFTP
Server Method on Page 62.
Note: Pointing to the wrong file causes the entire configuration to be skipped.
Backup Backup can only backup the configuration file to your PC or a TFTP server.
Restore
Configuration
You can select local file or TFTP server to restore the startup configuration. For procedures,
see Restore the Configuration - Local Method on Page 61 or Restore the Configuration -
TFTP Server Method on Page 63.
Restore Click to restore ES7528 startup configurations to the ES7528.
58 - Backup and Restore RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 59
Configuration Using the Web Interface
Backup & Restore Page (Continued)
• Local File: The ES7528 acts as the file server, see Backup the Configuration - Local File
Method.
Backup
Configuration
• TFTP Server: The ES7528 acts as a TFTP client, see Backup the Configuration - TFTP
Server Method.
Note: Pointing to the wrong file causes the entire configuration to be skipped.
• The ES7528 provides a default configuration file in the ES7528. To load the default configuration file,
you can use the Reset on the Load Default page on Page 65 or the Reload command in the CLI
(Page 155).
• You can use the CLI to view the latest settings running in the ES7528. The information are the settings
you have configured but have not yet saved to the flash. The settings must be saved to the flash in order
to work after a power recycle. Use the running-config command to view the configuration file, see
Show
Running Configuration on Page 155.
• After you save the running-config to flash, the new settings are kept and work after the power is cycled.
Use the show startup-config to view it in the CLI. The Backup command can only backup the
configuration file to your PC or TFTP server.
Backup the Configuration - Local File Method
Use the following procedure to use the Local File method to create a configuration file.
Note: If you have a Windows operating system above Windows XP, you can use the TFTP Server method, the
CLI, PortVision DX, or apply exclusions for Java for the Windows firewall to backup or restore
configuration files.
PortVision DX supports saving and loading configuration files, without any Windows operating system
firewall restrictions.
1. If you have Windows XP, you can skip to Step 2. Windows operating systems above Windows XP must
apply exclusions for Java for the Windows firewall to permit Local File operation.
a. Open the Control Panel and select the System and Security option.
b. Select the Allow an app through Windows Firewall option.
c. Click the Change settings button.
d. Click the Allow another app… button. This will open the Add an app dialog.
e. Click the Browse… button.
f. Navigate to your Java installation folder.
• Windows 64-bit Editions of Windows Java:
- 64-bit versions install in C:\Program Files\Java by default
- 32-bit versions install in C:\Program Files (x86)\Java by default.
• Windows 32-bit Editions of Windows Java, install in C:\Program Files\Java by default. The Java
folder may include multiple Java versions, select the most recent version (located in jre7 at this
point in time).
g. Select java.exe and click the Open button.
This will close the Browse dialog and return you to the Add an app dialog.
h. Click the Add button.
i. Repeat Steps d through h. but select javaw.exe and javaws.exe in Step g.
j. There should be three new entries in your Windows Firewall exception list:
• Java(TM) Platform SE binary
• Java(TM) Platform SE binary
• Java(TM) Web Start Launcher.
You will have to ensure that the Private box is checked for all three.
RocketLinx ES7528 User Guide: 2000509 Rev. C Backup the Configuration - Local File Method - 59
Page 60
Configuration Using the Web Interface
2. Open the web user interface for the ES7528 and open the
Backup and Restore page under Basic Settings.
3. Select Local File for Backup Configuration.
4. Click the Folder icon, browse to the location that you want to
store the backup configuration file, enter a file name, and click
Open.
Note: You cannot use spaces in the path to the target file.
5. Click the Backup button and then click Ok when the Success
Message appears.
60 - Backup the Configuration - Local File Method RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 61
Configuration Using the Web Interface
Restore the Configuration - Local Method
You can use Local File method to restore with a Windows XP system.
Note: If you have a Windows operating system above Windows XP,
you can use the TFTP Server method, the CLI, PortVision DX,
or apply exclusions for Java for the Windows firewall to
backup or restore configuration files.
PortVision DX supports saving and loading configuration
files, without any Windows operating system firewall
restrictions.
1. Open the web user interface for the ES7528 and open the Backup and Restore page under Basic Settings.
2. Select Local File as the Restore Configuration.
3. Click the Folder icon, browse to the location where the
backup configuration file is located., highlight the file,
and click Open.
4. Click the Restore button.
5. Click Ye s to the Confirm Dialog.
6. Click Ok to the Success Message.
RocketLinx ES7528 User Guide: 2000509 Rev. C Restore the Configuration - Local Method - 61
Page 62
Configuration Using the Web Interface
TFTP Server IP Address
Backup the Configuration - TFTP Server Method
If you do not have a TFTP server, you can download one from Comtrol using the Start the TFTP Server
subsection.
Start the TFTP Server
Use this procedure to download either the 32-bit or the 64-bit version from Comtrol.
1. If necessary, download the appropriate .zip file for your operating system from: ftp://ftp.comtrol.com/
contribs/free_3rd_party_utils/tftp_server/ to your system and unzip the file.
2. Execute the TFTP server application, click Allow access, and the TFTP server opens.
3. Leave the TFTP server open and go to Create a Backup File on Page 62..
Note: You will need the TFTP Server IP address in the next
procedure.
Create a Backup File
You must have a TFTP server open.
1. Open the web user interface for the ES7528 and open the
Backup and Restore page under Basic Settings.
2. Select TFTP Server for the Backup Configuration, enter the IP
address of the TFTP server, enter a Backup File Name, and
click the Backup button.
Note: You cannot use spaces in the path to the target file.
3. Click OK to close the popup message.
The backup file is located in the same directory that the TFTP server resides.
62 - Backup the Configuration - TFTP Server Method RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 63
Configuration Using the Web Interface
Restore the Configuration - TFTP Server Method
To restore a configuration file, you must open a TFTP server. If necessary, use Start the TFTP Server on Page
62.
The backup file must be located in the same directory that the TFTP server resides for this procedure to work.
1. Open the web user interface for the ES7528, open the Backup and Restore page under Basic Settings.
2. Select TFTP Server for the Restore Configuration, enter the IP
address of the TFTP server, enter the Backup File Name, and
click the Restore button.
3. Click Ye s to the Confirm Dialog message.
4. Click Ok to the Success Message.
Firmware Upgrade
Use this section to update the ES7528 with the latest firmware. Comtrol provides the latest firmware on the
Comtrol
FTP site. Updated firmware may include new features, bug fixes, or other software changes. Comtrol
Technical Support suggests you use the latest firmware before installing the ES7528 at a customer site.
Note: Optionally, you can use PortVision DX to upload the latest firmware. If you need to upload a new
version of the Bootloader, you must use PortVision DX or the CLI. You cannot use the web user interface
to upload the Bootloader.
Firmware Upgrade Page
System Firmware
Version
System Firmware
Date
Firmware Upgrade
The firmware version on the ES7528.
You should check the version number after the switch reboots.
The build date of the firmware on the ES7528.
• Local File - see Upgrading Firmware (Local File) on Page 64
• TFTP Server - see Upgrading Firmware (TFTP Server) on Page 65
Note: The system is automatically rebooted after you finish upgrading firmware. You should alert the
attached users before updating the firmware that network interruption may occur.
RocketLinx ES7528 User Guide: 2000509 Rev. C Restore the Configuration - TFTP Server Method - 63
Page 64
Configuration Using the Web Interface
Upgrading Firmware (Local File)
You can use this procedure to upgrade the web interface firmware (not Bootloader).
Note: You can also use PortVision DX to upload the web interface firmware. You must use PortVision DX or
the CLI to upload the Bootloader firmware.
1. Windows operating systems after Windows XP: you must add Java to your Windows firewall exclusion
list. See
Step 1 on Page 59 if you need to add Java exclusions for the Windows firewall.
2. Open the web user interface for the ES7528, open the Firmware Upgrade page under Basic Settings.
3. Select Local in the Firmware Upgrade drop list.
4. Click the folder icon, browse to the firmware location,
highlight the .bin file, and click Open.
5. Click the Upgrade button.
6. Click Ye s to the Confirm Dialog message.
7. Click Ok to the Warning Message.
8. Click Ok to close the Success Message.
Note: After the firmware has successfully uploaded, you should close and re-open the browser to clear the Java
Virtual Machine cache.
64 - Upgrading Firmware (Local File) RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 65
Configuration Using the Web Interface
Upgrading Firmware (TFTP Server)
You can use this procedure to upgrade the firmware (not Bootloader) using a Windows operating systems.
Note: You can also use PortVision DX to upload firmware. You must use PortVision DX or the CLI to upload
Bootloader.
1. Open a TFTP server, if necessary, see Start the TFTP Server on Page 62.
2. Place the ES7528 .bin file in the same directory where the TFTP server resides.
3. If necessary, open the web user interface, open the Firmware Upgrade page in the Basic Settings group.
4. Select TFTP Server in the Firmware Upgrade drop list.
5. Enter the IP address of the TFTP server, enter the
firmware file name, and click the Upgrade button.
6. Click Ye s to the Confirm Dialog message.
7. Click Ok to the Warning Message.
8. Click Ok to close the Success Message.
Note: After the firmware has successfully uploaded, you
should close and re-open the browser to clear the
Java Virtual Machine cache.
Load Default
You can reset the ES7528 configuration values to default settings, excluding the network information.
Note: You can also use PortVision DX to reset the switch to the default configuration values (excluding the
network settings.).
1. Click Reset, if you want the ES7528 to reset all configurations to factory default settings.
The system displays a popup message window
after finishing. The default settings work after
rebooting the ES7528.
2. Click Ye s in the popup message to reset the
configuration to the factory defaults.
3. Click OK to the Success Message.
4. Go to the Reboot page, click the Reboot button.
5. Click Ye s to reboot the ES7528.
6. Click OK to the Success Message.
System Reboot
System Reboot allows you to reboot the device. Most feature changes require a switch reboot to take affect.
Note: Before rebooting, remember to click Save to save your settings. Otherwise, the settings you are lost when
the ES7528 is powered off.
1. Click the Reboot button to reboot your ES7528.
2. Click Ye s . The switch reboots immediately.
3. Click Ok.
RocketLinx ES7528 User Guide: 2000509 Rev. C Upgrading Firmware (TFTP Server) - 65
Page 66
Configuration Using the Web Interface
Port Configuration
The Port Configuration group allows you to enable/disable port state, or configure port auto-negotiation,
speed, duplex, flow control, port aggregation settings (port trunking), and rate limit control. It also allows you
to view port status and aggregation information. The following pages are included in this group:
• Port Control
• Port Status on Page 68
• Rate Control
• Storm Control
• Port Trunking
Optionally, you can use the CLI for configuration, see Port Configuration (CLI)
Port Control
Port Control page allows you to enable/disable port state, or configure the port auto-negotiation, speed,
duplex, and flow control.
on Page 70
on Page 71
on Page 72
on Page 157.
Select the port you want to configure and make changes to the port. The following table provides information
about the different port control options.
66 - Port Configuration RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 67
Configuration Using the Web Interface
Technical Tip:
If both ends are not at the same speed, they cannot link with each other. If both ends
are not in the same duplex mode, they are connected by half-duplex mode.
Port Configuration Page
You can enable or disable the state of this port. Once you click
State
Disable, the port stops to link to the other end and stops to forward
any traffic. The default setting is Enable which means all the ports
are workable when you receive the ES7528.
You can configure port speed and duplex mode of each port. Below
are the selections you can choose:
• Fast Ethernet Ports 1~ 24 (fa1~fa24)
- Auto Negotiation (default)
- 10M full-duplex (10 Full)
- 10M half-duplex (10 Half)
- 100M full-duplex (100 Full)
Speed/Duplex
- 100M half-duplex (100 Half)
• Gigabit Ethernet Port 25~28: (gi25~gi28)
- Auto Negotiation (default)
- 10M full-duplex (10 Full)
- 10M half-duplex (10 Half)
- 100M full-duplex (100 Full)
- 100M half-duplex (100 Half)
- 1000M full-duplex (1000 Full)
Symmetric means that you need to activate the flow control
function of the remote network device in order to let the flow
Flow Control
control of that corresponding port on the switch to work.
Disable (default) means that you do not need to activate the flow
control function of the remote network device, as the flow control of
that corresponding port on the switch works.
Description Click this field if you want to enter a port description.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136
), if you want to
maintain these settings if the ES7528 is powered off.
RocketLinx ES7528 User Guide: 2000509 Rev. C Port Control - 67
Page 68
Configuration Using the Web Interface
Port Status
The Port Status page displays the current port status, including Small Form Factory (SFP) fiber transceiver
with Digital Diagnostic Monitoring (DDM) function that provides real time information of SFP transceiver
and allows you to diagnostic the optical fiber signal received and launched.
68 - Port Status RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 69
Configuration Using the Web Interface
Port Status Page
100BASE-TX displays for Fast Ethernet copper ports
Type
100BASE-FX displays for 100BASE-FX Fiber ports
1000BASE-TX displays for Gigabit Ethernet Copper ports
1000BASE-X displays for Gigabit Fiber Ports
Link Shows link status; Up means the link is up and Down means that the link is down.
State
Shows the port state. If the state is enabled it displays Enable. If the port is disabled or
shutdown, it displays Disable.
Speed/Duplex Current working status of the port.
Flow Control The state of the flow control.
SFP Vendor Vendor name of the SFP transceiver that is plugged into the SFP port or ports.
Wavelength The wave length of the SFP transceiver that is plugged into the SFP port or ports.
Distance The distance of the SFP transceiver that is plugged into the SFP port or ports.
Temperature
Tx Power
(dBm)
Rx Power
(dBm)
Displays the current temperature detected and acceptable temperature range for the DDM
SFP transceiver.
Displays the current transmit power detected and acceptable Tx power range for the DDM
SFP transceiver.
Displays the current received power and acceptable Rx power range for the DDM SFP
transceiver.
Scan All Click the Scan All button to scan for all SFPs.
Eject All You can eject one or all of the DDM SFP transceivers. To eject all of the SFPs, click Eject All.
Note: Most of the SFP transceivers provide vendor information that allows the ES7528 to read it. The web
interface can display vendor name, wave length, and distance of all Comtrol SFP transceiver models. If
you see Unknown info, it may mean that the vendor does not provide their information or that the
information of their transceiver cannot be read. If the plugged DDM SFP transceiver is not certified by
Comtrol, the DDM function is not supported, but the communication is not disabled.
RocketLinx ES7528 User Guide: 2000509 Rev. C Port Status - 69
Page 70
Configuration Using the Web Interface
Rate Control
Rate limiting is a form of flow control used to enforce a strict bandwidth limit at a port. You can program
separate transmit (Egress Rule) and receive (Ingress Rule) rate limits at each port, and even apply the limit
to certain packet types as described below. You can increment the volume step by 64Kbps in the blank.
Rate Control Page
The ports support port Ingress and Egress rate control. For example, assume that
Port 1 is 10000 Kbps, you can set it's effective Egress rate at 2000 Kbps, Ingress
rate is 1000 Kbps. The ES7528 performs the Ingress rate by packet counter to meet
the specified rate.
•Ingress
Bandwidth
Ingress rate in Kbps, the rate range is from 1000 Kbps to 1000000 Kbps and
zero means no limit. The default value is no-limit.
•Egress
Egress rate in Kbps, the rate range is from 1000 Kbps to 1000000 Kbps and
zero means no limit. The default value is no-limit. Egress rate limiting has an
effect on all types of packet types, including Unknown Unicast, Multicast, and
Broadcast.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136
), if you want to maintain these settings
if the ES7528 is powered off.
70 - Rate Control RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 71
Configuration Using the Web Interface
Storm Control
The Storm Control is similar to Rate Control. Rate Control filters all the traffic over the threshold you input
by the user interface. Storm Control allows you to define the rate for specific Packet Types.
Storm Control Page
Broadcast
DLF
To enable or disable broadcast storm control on the
corresponding port.
To enable or disable destination lookup failure storm
control on this port.
Multicast To enable or disable multicast storm control on this port.
Rate
Broadcast rate limit range from 0 to 262143 packet/sec
(fast Ethernet maximum is 148810 packet/sec).
These columns allow you to manually assign the limit
rate of the port. The unit is packets per second. The limit
Rate (packet/
sec)
range is from 1 to 262143 packet/sec, zero means no
limit. The maximum available value of Fast Ethernet
interface is 148810, this is the maximum packet number
of the 100M throughput.
Click Apply to apply the settings. It may take some time
and the web user interface may become slow, this is
Apply
normal condition.
Note: You must Save the settings (Page 136
), if you want
to maintain these settings if the ES7528 is
powered off.
RocketLinx ES7528 User Guide: 2000509 Rev. C Storm Control - 71
Page 72
Configuration Using the Web Interface
Port Trunking
Port Trunking allows you to group multiple Ethernet ports in parallel to increase link bandwidth. The
aggregated ports can be viewed as a physical port that has a bandwidth equal to the combined bandwidth of
each trunked port.The member ports of the same trunk group can balance the loading and backup for each
other. The Port Trunking feature is usually used when you need higher bandwidth for the network backbone.
This is an inexpensive way for you to transfer more data.
The aggregated ports can interconnect to the another switch that also supports Port Trunking. Comtrol
supports two types of port trunking:
• Static Trunk
• IEEE 802.3ad
There are some different descriptions for the port trunking. Different manufacturers may use different
descriptions for their products, like Link Aggregation Group (LAG), Link Aggregation Control Protocol,
Ethernet Trunk, or Ether Channel.
When the other end uses IEEE 802.3ad LACP, you should assign IEEE 802.3ad LACP to the trunk. When the
other end uses non-802.3ad, you can then use Static Trunk.
There are two pages for port trunking, Aggregation Setting
on Page 72 and Aggregation Status on Page 73.
Aggregation Setting
Use the Port Trunk - Aggregation Setting page to set up port trunking.
Aggregation Setting Page
The ES7528 can support up to 8 trunk groups. Each trunk group can aggregate up to
Trunk Size
8 members. The ports should use the same speed and duplex. The maximum trunk
size is decided by port volume.
Group ID
Trunk Type
Group ID is the ID for the port trunking group. Ports with same group ID are in the
same group.
Static or 802.3ad LACP. Each trunk group can only support Static or 802.3ad LACP.
Non-active ports cannot be setup here.
There are several load balance types based on dst-ip (Destination IP), dst-mac
Load Balance Type
(Destination MAC), src-dst-ip (Source and Destination IP), src-dst-mac (Source and
Destination MAC), src-ip (Source IP), src-mac (Source MAC).
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136
), if you want to maintain these settings if
the ES7528 is powered off.
72 - Port Trunking RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 73
Configuration Using the Web Interface
Aggregation Status
The Port Trunk - Aggregation Information page shows the status of port aggregation. Once the aggregation
ports are negotiated, you see the following status.
Aggregation Status Page
Group ID Displays Trunk 1 to Trunk 8 set up.
Type
Aggregated Ports
The Type is Static or LACP. Static means that LACP is disabled and
configured statically by the Administrator.
When LACP links, you can see the member ports in the Aggregated
column.
When LACP is enabled, member ports of LACP group that are not
Individual Ports
connected to the correct LACP member ports are displayed in the
Individual column.
Link Down Ports
When LACP is enabled, member ports of LACP group that are not
linked up are displayed in the Link Down column.
There are several load balance types based on dst-ip (Destination IP),
Load Balance
dst-mac (Destination MAC), src-dst-ip (Source and Destination IP),
src-dst-mac (Source and Destination MAC), src-ip (Source IP), src-mac
(Source MAC).
Reload Click Reload to reload aggregation settings.
RocketLinx ES7528 User Guide: 2000509 Rev. C Aggregation Status - 73
Page 74
Configuration Using the Web Interface
DO NOT TOUCH THE DEVICE
SURFACE DURING PoE OPERATION
- HIGH POWER FEEDING.
If Forced mode is selected, power is provided even if no Ethernet cable is plugged in. Only use Forced mode
if you are attaching a device that is capable of receiving power through its Ethernet connection.
Power over Ethernet
Power over Ethernet is one of the key features of the ES7528. The ES7528 is IEEE 802.3af and IEEE 802.3at
compliant. The ES7528 supports up to 24 PoE injectors ports, each port with the ability to deliver 606 mA
current.
The following pages are included in this section:
• PoE Control
• PoE Scheduling on Page 77
• PoE Status
PoE Control
In WiMax systems, wireless applications, and high-end PoE applications, there are various types of powered
devices (PDs). To be compatible with different PDs, the ES7528 is designed with four powering modes,
including:
• IEEE 802.3af mode
• IEEE 802.3at 2-event mode
• IEEE 802.3at LLDP classification mode
• Forced powering mode to meet any PD type
IEEE 802.3at LLDP provides smart power budget control behavior to fulfill the needs of higher end setups
requiring exact high power delivery. By using the ongoing dynamic re-negotiation function of the IEEE
802.3at LLDP, the ES7528 can perform more intelligently by dynamically reallocating power to the PDs. The
ES7528 implements the 2 event and Link Layer Discovery Protocol (LLDP) PoE into the system for efficient
power budget negotiation between the PSE and the PDs.
The ES7528 also provides PD Status Detection. This provides automatic detection of a remote device powered
by the ES7528. If the remote system crashes or is unstable, the ES7528 performs a system reboot by turning
off and on again to trigger the remote device.
on Page 78
74 - Power over Ethernet RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 75
Configuration Using the Web Interface
You can use these steps to configure PoE settings. Refer to the following table if you need more detailed
information.
1. Select Enable in the PoE System drop list.
2. Enter appropriate values for the DC1 and/or DC2 power budgets.
3. Optionally, set a Power Budget Warning Level so that the ES7528 sends a warning event. See SysLog
Configuration on Page 126 or SMTP Configuration on Page 127 for more information.
4. Click Apply.
5. Select Enable for the port or ports that you want to
use as PoE ports.
6. Select the appropriate PoE Mode (Enable, Disable, or
Schedule) for the appropriate ports.
Note: If you select Schedule, you must also configure
the port or ports using PoE Scheduling
on
Page 77.
7. Select the appropriate Powering Mode (802.3af,
802.3at(LLDP), 802.3at(2 event), or Force for the PD
that you plan on attaching to the corresponding
port.
8. Enter a valid Power Budget for the port based on the
attached power supply, if you selected Manual Mode
for the Port Configuration Power Budget.
9. Select an appropriate Power Priority (Critical, High,
or Low).
10. Click Apply.
11. If desired, set up PD Status Detection.
12. You must Save the settings (Page 136
), if you want
maintain these settings if the ES7528 is powered
off.
RocketLinx ES7528 User Guide: 2000509 Rev. C PoE Control - 75
Page 76
Configuration Using the Web Interface
PoE Control
PoE System You can Enable/Disable ports, or set it to scheduling control mode.
DC1/DC2
Power Budget
The output power range is 1-480W.
(W)
Port Configuration
PoE Mode
You can select Disable, Enable, or Schedule for PoE mode for each port. Select Schedule to
enable the port in the PoE Schedule page (Page 77
).
Use this mode to change the Powering Mode to one of the following:
• 802.3af If the PD follows IEEE 802.3af, then the ES7528 delivers
power.
• 802.3at(LLDP) Delivers power to a PD that supports IEEE 802.3at
Powering
Mode
LLDP.
• 802.3at(2-Event) Delivers power to a PD that supports 2-Event.
• Force If Force is enabled, the port directly delivers the power even if
there is no Ethernet cable connected.
Note: Use caution when using For c e mode. Do not connect a standard Ethernet device if
using For c e mode, it will damage the device.
Power Priority
Power Priority lets the PoE port with higher priority to deploy power under the limit power
budget. There are three priorities (Critical, High and Low).
PD Status Detection
PD Status
Detection
Enable/Disable the PD Status Detection function.
IP Address Type in the IP address that you want to detect.
Cycle Time(s) This is the gap per detection in seconds. The range is 10-3600 seconds in multiples of 10.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136
), if you want maintain these settings if the
ES7528 is powered off.
The following illustrates how to configure IEEE 802.3at LLDP. Assume the PD is ready for the configuration
for IEEE 802.3at LLDP, you only need to confirm the ES7528 configuration.
For example, connect the port of the ES7528 to the PD (Port 4), set PoE Mode is Enable and Powering Mode is
802.3at(LLDP). When the ES7528 and the PD are ready to IEEE 802.3at LLDP, IEEE 802.3at LLDP starts
operation. Refer to PoE Status
76 - PoE Control RocketLinx ES7528 User Guide: 2000509 Rev. C
on Page 78, to see the PoE Status page.
Page 77
Configuration Using the Web Interface
PoE Scheduling
The PoE Scheduling control is a powerful function to help you save power and money.
You can schedule a PoE port after the PoE Mode has been set to Schedule in the PoE Control page.
Select the port in the PoE Schedule on drop list. Click time blocks that you want to enable the PoE port and
click.Apply.
RocketLinx ES7528 User Guide: 2000509 Rev. C PoE Scheduling - 77
Page 78
Configuration Using the Web Interface
PoE Status
The PoE Status page shows the operating status of each PoE port. You can use the PoE Control page (Page 74)
if you need to make any changes.
78 - PoE Status RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 79
Configuration Using the Web Interface
Network Redundancy
It is critical for industrial applications that the network remains running at all times. The ES7528 supports:
• Standard Rapid Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP)
The ES7528 supports RSTP versions IEEE 802.1D-2004, IEEE 802.1D-1998 STP, and IEEE 802.1w
RSTP.
• Multiple Spanning Tree Protocol (MSTP)
MSTP implements IEEE 802.1s, which uses RSTP for rapid convergence, enables VLANs to be grouped
into a spanning-tree instance, with each instance having a spanning-tree topology independent of other
spanning-tree instances. This architecture provides multiple forwarding paths for data traffic, enables
load balancing, and reduces the number of spanning-tree instances required to support a large number of
VLANs. MSTP was originally defined in the IEEE 802.1s and later merged into the IEEE 802.1Q-2003
specification.
• Redundant Ring
The Redundant Ring features 0 ms for restore and less than 5 ms for fail over for copper.
• Rapid Dual Homing (RDH)
Advanced RDH technology allows the ES7528 to connect with a core managed switch easily. With RDH
technology, you can also couple several Rapid Super Rings or RSTP groups together, which is also known
as Auto Ring Coupling.
The following pages are included in this group:
• STP Configuration
• STP Port Configuration
• STP Information
• MSTP Configuration
• MSTP Port Configuration
• MSTP Information
• Redundant Ring
• Redundant Ring Information
Optionally, you can use the CLI to configure these features, see Network Redundancy (CLI)
on Page 80
on Page 81
on Page 82
on Page 84
on Page 87
on Page 88
on Page 90
on Page 91
on Page 166.
RocketLinx ES7528 User Guide: 2000509 Rev. C Network Redundancy - 79
Page 80
Configuration Using the Web Interface
STP Configuration
This page allows you to select the STP mode and configure the global
STP/RSTP bridge configuration. Spanning Tree Protocol (STP; IEEE
802.1D) provides a loop-free topology for any LAN or bridged network.
Rapid Spanning Tree Protocol (RSTP; IEEE 802.1w) is an evolution of
the Spanning Tree Protocol (STP), and was introduced with the IEEE
802.1w standard, and provides faster spanning tree convergence after a
topology change. In most cases, IEEE 802.1w can also revert back to
IEEE 802.1D in order to interoperate with legacy bridges on a per-port
basis. The new edition of the IEEE 802.1D standard, IEEE 802.1D-2004,
incorporates the IEEE 802.1t-2001 and IEEE 802.1w standards.
Multiple Spanning Tree Protocol (MSTP; IEEE 802.1s) which uses
RSTP for rapid convergence, enables VLANs to be grouped into a
spanning-tree instance, with each instance having a spanning-tree
topology independent of other spanning-tree instances. This
architecture provides a loop-free topology with load balancing while
reducing the number of spanning-tree instances required to support a large number of VLANs. MSTP was
originally defined in the IEEE 802.1s and later merged into the IEEE 802.1Q-2003 specification.
STP Configuration Page
STP Mode Select STP running protocol STP, RSTP or MSTP or disable STP.
Bridge Configuration
Bridge Address A value used to identify the bridge. This item cannot be modified.
A value used to identify the bridge. The bridge with the lowest value has the
Bridge Priority
highest priority and is selected as the root. Enter a number 0 through 61440 in
increments of 4096.
The number of seconds a bridge waits without receiving Spanning-Tree Protocol
configuration messages before attempting to reconfigure. Enter a number of 6
Max Age
through 40.
Note: 2*(Forward Delay Time-1) should be greater than or equal to the Max Age.
The Max Age should be greater than or equal to 2*(Hello Time + 1).
The number of seconds between the transmissions of Spanning-Tree Protocol
Hello Time
configuration messages. Enter a number of 1 through 10.
Note: 2*(Forward Delay Time-1) should be greater than or equal to the Max Age.
The Max Age should be greater than or equal to 2*(Hello Time + 1).
The number of seconds a port waits before changing from its Spanning-Tree
Protocol learning and listening states to the forwarding state. Enter a number 4
Forward Delay
through 30.
Note: 2*(Forward Delay Time-1) should be greater than or equal to the Max Age.
The Max Age should be greater than or equal to 2*(Hello Time + 1).
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136
), if you want to maintain these
settings if the ES7528 is powered off.
80 - STP Configuration RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 81
Configuration Using the Web Interface
STP Port Configuration
This page allows you to configure the port parameter after you have enabled STP, RSTP, or MSTP.
STP Port Configuration Page
You can enable/disable STP/RSTP/MSTP on a port by port basis.
STP State
You can disable the STP state when connecting a device in order to avoid STP waiting
periods.
Path Cost
Priority
The cost of the path to the other bridge from this transmitting bridge at the specified
port. Enter a number from 1 through 200000000.
Decide which port should be blocked by priority on your LAN. Enter a number from 0
through 240 in increments of 16.
Some of the rapid state transactions that are possible within RSTP are dependent
upon whether the port in question is connected to exactly one other bridge (that is, it
Link Type
is served by a point-to-point LAN segment), or if it is connected to two or more
bridges (that is., it is served by a shared medium LAN segment). This configuration
allows the p2p status of the link to be controlled by an administrator.
Present in implementations that support the identification of edge ports. All ports
directly connected to end stations cannot create bridging loops in the network and
can thus directly transition to forwarding, and skipping the listening and learning
Edge Port
stages.
When a non-bridge device connects an edge port, this port is in a blocking state and
turn to forwarding state in 2*Hello Time seconds. When the bridge device connects
an edge port, this port is a non-edge port automatic.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136
), if you want to maintain these settings if
the ES7528 is powered off.
RocketLinx ES7528 User Guide: 2000509 Rev. C STP Port Configuration - 81
Page 82
Configuration Using the Web Interface
STP Information
The STP Information page allows you to see the ES7528 root information and port status.
STP Information Page
Root Information
Root Address Root bridge address, which is the bridge with the smallest (lowest) bridge ID.
Root Priority
Root bridge priority, the bridge with the lowest value has the highest priority and
is selected as the root.
Root Port Root port of this bridge.
Root Path Cost Root path cost.
Max Age
Hello Time
Forward Delay
The number of seconds a bridge waits without receiving Spanning-Tree Protocol
configuration messages before attempting to reconfigure.
The number of seconds between the transmissions of Spanning-Tree Protocol
configuration messages.
The number of seconds a port waits before changing from its Spanning-Tree
Protocol learning and listening states to the forwarding state.
82 - STP Information RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 83
STP Information Page (Continued)
Port Information
Configuration Using the Web Interface
Port Role
Port State
Path Cost
Port Priority
Descriptive information about the STP/RSTP switch port role. Role: Root,
Designated, Alternate, Backup, Disabled, Unknown.
Descriptive information about the STP/RSTP switch port state. State: Blocking,
Listening, Learning, Forwarding, Disabled, Unknown.
The cost of the path to the other bridge from this transmitting bridge at the
specified port. Path cost range is 1 through 200000000.
Decide which port should be blocked by priority in your LAN. Range is 0 through
240 in increments of 16.
Operational link type. Some of the rapid state transactions that are possible
within RSTP are dependent upon whether the port in question can be concerned
Link Type
to exactly one other bridge (that is, it is served by a point-to-point LAN segment),
or can be connected to two or more bridges (that is, it is served by a shared
medium LAN segment).
Operational edge port state. Present in implementations that support the
identification of edge ports. All ports directly connected to end stations cannot
create bridging loops in the network and can thus directly transition to
Edge Port
forwarding, skipping the listening and learning stages. When the non-bridge
device connects an edge port, this port is in blocking state and turn to forwarding
state in 2*Hello Time seconds. When the bridge device connects an edge port, this
port is a non-edge port automatic.
Reload Click the Reload button to reload STP information.
RocketLinx ES7528 User Guide: 2000509 Rev. C STP Information - 83
Page 84
Configuration Using the Web Interface
MSTP Configuration
Multiple Spanning Tree Protocol (MSTP) is a direct extension of RSTP. It can provide an independent
spanning tree for different VLANs. It simplifies network management, creates a faster convergence than
RSTP by limiting the size of each region, and prevents VLAN members from being segmented from the rest of
the group (as sometimes occurs with IEEE 802.1D STP).
While using MSTP, there are some new concepts of network architecture. A switch may belong to different
groups, act as root or designate switch, or generate BPDU packets for the network to maintain the forwarding
table of the spanning tree. MSTP can also provide load balancing between switches.
One VLAN can be mapped to a Multiple Spanning Tree Instance (MSTI). The maximum number of instances
that the ES7528 supports is 16, with a range from 0-15. The MSTP builds a separate Multiple Spanning Tree
(MST) for each instance to maintain connectivity among each of the assigned VLAN groups. An Internal
Spanning Tree (IST) is used to connect all the MSTP switches within an MST region. An MST Region may
contain multiple MSTP instances.
The following figure shows a MSTP instance with two VLANs. Each instance has a root node and forwarding
paths.
A Common Spanning Tree (CST) interconnects all adjacent MST regions and acts as a virtual bridge node for
communications with STP or RSTP nodes in the global network. MSTP connects all bridges and LAN
segments with a single Common Internal Spanning Tree (CIST). The CIST is formed as a result of the
running spanning tree algorithm between switches that support the STP, RSTP, or MSTP protocols.
The following diagram shows a CST attached to a larger
network. In this network, a Region may have different
instances and its own forwarding path and table, however,
the CST acts as a single bridge.
84 - MSTP Configuration RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 85
This is the MSTP Configuration page.
Configuration Using the Web Interface
MSTP Configuration Page
MST Region Configuration
Region Name A name used to identify the MST Region.
Revision A value used to identify the MST Region.
Apply Click the Apply button to apply the MST Region Configuration.
New MST Instance
A value used to identify the MST instance, valid value are 1 through 15. Instance 0
Instance ID
(CIST, Common Internal Spanning Tree) is a special instance of spanning-tree
known as IST or Internal Spanning Tree (=MSTI00).
VLAN Group
Give a VLAN group to map this MST instance. Use a VLAN number (for example,
10), range (for example:1-10) or mixing format (for example: 2,4,6,4-7,10).
A value used to identify the MST instance. The MST instance with the lowest value
Instance Priority
has the highest priority and is selected as the root. Enter a number 0 through 61440
in increments of 4096.
Add Click the Add button to add the New MST Instance.
RocketLinx ES7528 User Guide: 2000509 Rev. C MSTP Configuration - 85
Page 86
Configuration Using the Web Interface
MSTP Configuration Page (Continued)
Current MST Instance Configuration
A value used to identify the MST instance. Instance 0 (CIST, Common Internal
Instance ID
Spanning Tree) is a special instance of spanning-tree known as IST or Internal
Spanning Tree (=MSTI00).
Provide a VLAN group to map this MST instance. Use the VLAN number, for
VLAN Group
example: 10. You can set a range, for example: 1-10) or set specific VLANs, for
example: 2,4,6,4-7.
A value used to identify the MST instance. The MST instance with the lowest value
Instance Priority
has the highest priority and is selected as the root. Enter a number 0 through 61440
in increments of 4096.
Click the Modify button to apply the current MST instance configuration.
Modify
Note: You must Save the settings (Page 136
if the ES7528 is powered off.
), if you want to maintain these settings
86 - MSTP Configuration RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 87
Configuration Using the Web Interface
MSTP Port Configuration
This page allows you to configure the port settings. Choose the Instance ID that you want to configure.
MSTP Port Configuration Page
Instance
ID
Select an Instance ID to display and modify MSTP instance setting.
Port Configuration
Path Cost
Priority
The cost of the path to the other bridge from this transmitting bridge at the
specified port. Enter a number from 1 through 200000000.
Decide which port should be blocked by priority on your LAN. Enter a number
from 0 through 240 in increments of 16.
Some of the rapid state transactions that are possible within RSTP are
dependent upon whether the port in question is connected to exactly one other
Link Type
bridge (that is, it is served by a point-to-point LAN segment), or if it's
connected to two or more bridges (that is, it is served by a shared medium
LAN segment). This configuration allows the p2p status of the link to be
controlled by an administrator.
Present in implementations that support the identification of edge ports. All
ports directly connected to end stations cannot create bridging loops in the
network and can thus directly transition to forwarding, and skipping the
Edge Port
listening and learning stages. When the non-bridge device connects an edge
port, this port is in a blocking state and turn to forwarding state in 2*Hello
Time seconds. When the bridge device connects an edge port, this port is a
non-edge port automatic.
Click the Apply button to apply the configuration.
Apply
Note: You must Save the settings (Page 136
), if you want to maintain these
settings if the ES7528 is powered off.
RocketLinx ES7528 User Guide: 2000509 Rev. C MSTP Port Configuration - 87
Page 88
Configuration Using the Web Interface
MSTP Information
This page allows you to see the current MSTP information. Choose the Instance ID first. If the instance is not
added, the information remains blank.
88 - MSTP Information RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 89
Configuration Using the Web Interface
MSTP Information Page
Select an instance ID to display MSTP instance information. Instance 0 (CIST,
Instance ID
Common Internal Spanning Tree) is a special instance of spanning-tree
known as IST or Internal Spanning Tree (=MSTI00).
Root Information
Root Address Root bridge address, which is the bridge with the smallest (lowest) bridge ID.
Root Priority
Root bridge priority, the bridge with the lowest value has the highest priority
and is selected as the root.
Root Port Root port of this bridge.
Root Path Cost Root path cost.
Max Age
Hello Time
Forward Delay
The number of seconds a bridge waits without receiving Spanning-Tree
Protocol configuration messages before attempting to reconfigure.
The number of seconds between the transmissions of Spanning-Tree Protocol
configuration messages.
The number of seconds a port waits before changing from its Spanning-Tree
Protocol learning and listening states to the forwarding state.
Port Information
Port Role
Port State
Path Cost
Port Priority
Descriptive information about the MSTP switch port role. Role: Master, Root,
Designated, Alternate, Backup, Boundary, Disabled, Unknown.
Descriptive information about the MSTP switch port state. State: Blocking,
Listening, Learning, Forwarding, Disabled, Unknown.
The cost of the path to the other bridge from this transmitting bridge at the
specified port. Path cost range is 1 through 200000000.
Decide which port should be blocked by priority in your LAN. The range is 0
through 240 in increments of 16.
Operational link type. Some of the rapid state transactions that are possible
within MSTP are dependent upon whether the port in question can be
Link Type
concerned to exactly one other bridge (that is, it is served by a point-to-point
LAN segment), or can be connected to two or more bridges (that is, it is served
by a shared medium LAN segment).
Operational edge port state. Present in implementations that support the
identification of edge ports. All ports directly connected to end stations cannot
create bridging loops in the network and can thus directly transition to
Edge Port
forwarding, skipping the listening and learning stages. When the non-bridge
device connects an edge port, this port is in blocking state and turn to
forwarding state in 2*Hello Time seconds. When the bridge device connects an
edge port, this port is a non-edge port automatic.
Reload Click the Reload button to reload MSTP instance information.
RocketLinx ES7528 User Guide: 2000509 Rev. C MSTP Information - 89
Page 90
Configuration Using the Web Interface
Redundant Ring
The most common industrial network redundancy is to form a ring or loop. Typically, managed switches are
connected in series and the last switch is connected back to the first one. In such connection, you can
implement Redundant Ring technology.
Redundant Ring Page
To create a Redundant Ring enter the Ring ID, which has range from 0 to 31. If the name
New Ring
(Ring ID/Name)
field is left blank, the name of this ring is automatically named with the Ring ID. The
maximum number of rings is 32.
Note: Once a ring is created, you cannot change it.
Ring Configuration
Once a Ring is created, the Ring ID appears, and cannot be changed. In multiple ring
ID
environments, the traffic can only be forwarded under the same Ring ID. Remember to
check the Ring ID when there are more than one ring in existence.
Name
This field shows the name of the Ring. If it is not entered when creating, it is
automatically named by the rule RingID.
Version The version of Ring can be changed here, the choices are Rapid Super Ring or Super Ring.
The switch with highest priority (highest value) is automatically selected as the Ring
Device Priority
Master (RM). When one of the ring ports on this switch becomes a forwarding port and the
other one becomes a blocking port. If all of the switches have the same priority, the switch
with the highest MAC address is selected as the Ring Master.
In a Rapid Super Ring environment, you should have two Ring ports. Whether this switch
Ring Port1
is a Ring Master or not. When configuring Rapid Super Rings, two ports should be selected
to be Ring ports. For a Ring Master, one of the Ring Ports becomes the forwarding port
and the other one becomes the blocking port.
Change the Path Cost of Ring Port1, if this switch is the Ring Master of a Ring, then it
Path Cost
determines the blocking port. The port with higher Path Cost in the two Ring Ports
becomes the blocking port, If the Path Cost is the same, the port with larger port number
becomes the blocking port.
Ring Port2 Assign another port for ring connection.
Path Cost Change the Path Cost of Ring Port2.
90 - Redundant Ring RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 91
Configuration Using the Web Interface
Redundant Ring Page (Continued)
Rapid Dual Homing is an important feature of Rapid Super Ring redundancy technology.
When you want to connect multiple RSR or form redundant topology with other vendors,
RDH allows you to have a maximum of seven multiple links for redundancy without any
Rapid Dual
Homing
problem.
In RDH, you do not need to configure a specific port to connect to other protocol. The RDH
selects the fastest link for the primary link and blocks all the other links to avoid a loop.
If the primary link failed, RDH automatically forwards the secondary link for a network
redundant. If there are more connections, they are standby links and are recovered if
both primary and secondary links are broken.
Ring status To Enable/Disable the Ring, remember to enable the Ring after you add it.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136
), if you want to maintain these settings if the
ES7528 is powered off.
Redundant Ring Information
This page shows Redundant Ring information.
Redundant Ring Information Page
ID The Ring ID.
Version Displays the ring version, this field could be Super Ring or Rapid Super Ring.
Role This ES7528 is the RM (Ring Master) or nonRM (non-ring master).
Status
RM MAC
If this field is Normal it means the redundancy is approved. If any one of the
link in this Ring is broken, then the status is Abnormal.
The MAC address of Ring Master of this Ring, which helps to find the
redundant path.
Blocking Port Shows which is blocked port of RM.
Role Transition Count
Role state Transition
Count
Shows how many times this ES7528 has changed its Role from nonRM to RM
or from RM to nonRM.
Shows how many times the Ring status has been transformed between Normal
and Abnormal state.
Reload Click to reload redundant ring information.
RocketLinx ES7528 User Guide: 2000509 Rev. C Redundant Ring Information - 91
Page 92
Configuration Using the Web Interface
VLAN
A Virtual LAN (VLAN) is a logical grouping of nodes for the purpose of limiting a broadcast domain to specific
members of a group without physically grouping the members. The VLAN allows you to isolate network traffic
so that only members of the VLAN could receive traffic from the same VLAN members. Basically, creating a
VLAN from a switch is the logical equivalent of physically reconnecting a group of network devices to another
Layer 2 switch, without actually disconnecting these devices from their original switches.
The ES7528 supports IEEE 802.1Q VLAN, which is also known as Tag-Based VLAN. This Tag-Based VLAN
allows a VLAN to be created across different switches. IEEE 802.1Q tag-based VLAN makes use of VLAN
control information stored in a VLAN header attached to IEEE 802.3 packet frames. This tag contains a
VLAN Identifier (VID) that indicates which VLAN a frame belongs to. Since each switch only has to check a
frame’s tag, without the need to dissect the contents of the frame, this saves a lot of computing resources
within the ES7528.
The following figure displays an IEEE 802.1Q VLAN.
The ES7528 supports VLAN tunneling (QinQ), which expands the number of VLANs by adding a tag to the
802.1Q packets. The original VLAN is usually identified as Customer VLAN (C-VLAN) and the new VLAN is
Service VLAN(S-VLAN). By adding the additional tag, QinQ increases the possible number of VLANs. After
QinQ is enabled, the ES7528 can reach up to 256x256 VLANs. With different standard tags, it also improves
network security.
VLAN Configuration pages allow you to add and remove a VLAN, configure port Ingress/Egress parameters,
and view the VLAN table. The following pages are included in this group:
• VLAN Port Configuration
• VLAN Configuration
• GVRP Configuration
• VLAN Table
on Page 99
Optionally, you can use the CLI for configuration, see VLAN (CLI)
on Page 93
on Page 95
on Page 98
on Page 175.
92 - VLAN RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 93
Configuration Using the Web Interface
VLAN Port Configuration
The VLAN Port Configuration page allows you to configure VLAN port parameters on a specific port. These
parameters include the port VLAN ID (PVID), Tunnel Mode, Accept Frame Type and Ingress Filtering
VLAN Port Configuration Page
Enter the port VLAN ID (PVID). The PVID allows the switches to identify which port
belongs to which VLAN. To keep things simple, it is recommended that PVID is
PVID
equivalent to VLAN IDs. The values of PVIDs are from 0 to 4,095 (0 and 4,095 are
reserved), 1 is the default value; 2 to 4,094 are valid and available in this column. Enter
the PVID you want to configure.
None - IEEE 802.1Q tunnel mode is disabled.
802.1Q Tunnel: QinQ is applied to the ports which connect to the C-VLAN. The port
receives a tagged frame from the C-VLAN. You need to add a new tag (Port VID) as an SVLAN VID. When the packets are forwarded to the C-VLAN, the S-VLAN tag is
removed. After 802.1Q Tunnel mode is assigned to a port, the egress setting of the port
should be Untag, it indicates that the egress packet is always untagged. This is
configured in the Static VLAN Configuration table (Page 95
Tunnel Mode
802.1Q Tunnel Uplink: QinQ is applied to the ports which connect to the S-VLAN. The
port receives a tagged frame from the S-VLAN. When the packets are forwarded to the
S-VLAN, the S-VLAN tag is kept. After 802.1Q Tunnel Uplink mode is assigned to a port,
the egress setting of the port should be Tag, it indicates that the egress packet is always
tagged. This is configured in the Static VLAN Configuration table (Page 95
example, if the VID of S-VLAN/Tunnel Uplink is 10, the VID of C-VLAN/Tunnel is 5.
The 802.1Q Tunnel port receives Tag 5 from C-VLAN and adds Tag 10 to the packet.
When the packets are forwarded to S-VLAN, Tag 10 is kept.
EtherType
This allows you to define the EtherType manually. This is an advanced QinQ parameter
that allows you to define the transmission packet type.
This defines the accepted frame type of the port. There are two modes you can select:
• Admit All mode means that the port can accept both tagged and untagged packets.
When you select Admit All, untagged frames or Priority-Tagged only frames received
Accept Frame
Type
on this port are accepted and assigned to the PVID for this frame. This control does
not affect VLAN independent BPDU frames, such as Super Ring, STP, GVRP and
LACP. It does affect VLAN dependent BPDU frames, such as GMRP.
• Tag Only mode means that the port can only accept tagged packets.When you select
Tag Only the ES7528 discards untagged frames or Priority-Tagged only frames
received on this port.
).
). For
RocketLinx ES7528 User Guide: 2000509 Rev. C VLAN Port Configuration - 93
Page 94
Configuration Using the Web Interface
VLAN Port Configuration Page (Continued)
Ingress filtering instructs the VLAN engine to filter out undesired traffic on a port.
• When you Enable Ingress Filtering, the port checks whether the incoming frames
belong to the VLAN they claimed or not. The port then determines if the frames can
be processed or not. For example, if a tagged frame from TEST VLAN is received,
Ingress
Filtering
and Ingress Filtering is enabled, the ES7528 determines if the port is on the TEST
VLAN’s Egress list. If it is, the frame can be processed. If it is not, the frame is
dropped.
• When you select Disable, the port accepts all incoming frames regardless of its VLAN
classification. This control does not affect VLAN independent BPDU frames, such as
Super Ring, STP, GVRP and LACP. It does affect VLAN dependent BPDU frames,
such as GMRP.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136
the ES7528 is powered off.
), if you want to maintain these settings if
94 - VLAN Port Configuration RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 95
Configuration Using the Web Interface
VLAN Configuration
Use this page to assign the Management VLAN, create the static VLAN, and assign the Egress rule for the
member ports of the VLAN.
RocketLinx ES7528 User Guide: 2000509 Rev. C VLAN Configuration - 95
Page 96
Configuration Using the Web Interface
VLAN Configuration Page
The management VLAN ID is the VLAN ID of the CPU interface so that only member
Management VLAN
ID
ports of the management VLAN can ping and access the switch. The default
management VLAN ID is 1.
Click Apply after you enter the VLAN ID.
You can assign a VLAN ID and VLAN Name for the new static VLAN.
• VLAN ID: This is used by the switch to identify different VLANs. A valid VLAN ID
is between 1 and 4,094, 1 is the default VLAN.
• VLAN Name: This is a reference for the network administrator to identify different
VLANs. The VLAN name may up to 12 characters in length. If you do not provide a
VLAN name, the system automatically assigns a VLAN name
Static VLAN
• . The rule is VLAN (VLAN ID).
Click Add to create a new VLAN. The new VLAN displays in the Static VLAN
Configuration table. After creating the VLAN, the status of the VLAN remains Unused,
until you add ports to the VLAN.
Note: Before changing the management VLAN ID by web or Telnet, remember that the
port attached by the administrator should be the member port of the management
VLAN; otherwise the administrator cannot access the switch through the
network. The ES7528 supports a maximum of 256 VLANs.
• VLAN ID: The VLAN identifier for this VLAN.
• Name: The name of the VLAN.
• 1 - 28: The corresponding port number on the VLAN.
• -- Not available
• U Untag, indicates that egress/outgoing frames are not VLAN tagged.
Static VLAN
Configuration
• T Tag, indicates that egress/outgoing frames are
•LAN tagged.
•Click Apply to apply the settings.
Note: You must Save the settings (Page 136
if the ES7528 is powered off.
•Click Remove to remove the selected static VLAN.
•Click Reload to reload static VLAN configuration.
), if you want to maintain these settings
The following figure shows a static VLAN configuration table. The new VLAN 3 was created and the VLAN
name is test. Egress rules of the ports are not configured.
96 - VLAN Configuration RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 97
Configuration Using the Web Interface
This figure displays how to configure the Egress rule of the ports.
Use the following steps to configure Egress rules:
1. Select the VLAN ID. The entry of the selected VLAN turns to light blue.
2. Assign Egress rule of the ports to U or T.
3. Press Apply to apply the setting.
If you want to remove one VLAN, select the VLAN entry and then click the Remove button.
RocketLinx ES7528 User Guide: 2000509 Rev. C VLAN Configuration - 97
Page 98
Configuration Using the Web Interface
GVRP Configuration
GARP VLAN Registration Protocol (GVRP) allows you to set-up VLANs automatically rather than manual
configuration on every port on every switch in the network. GVRP conforms to the IEEE 802.1Q specification.
This defines a method of tagging frames with VLAN configuration data that allows network devices to
dynamically exchange VLAN configuration information with other devices.
GARP (Generic Attribute Registration Protocol), a protocol that defines procedures by which end stations and
switches in a local area network (LAN) can register and de-register attributes, such as identifiers or
addresses, with each other. Every end station and switch thus has a current record of all the other end
stations and switches that can be reached. GVRP, like GARP, eliminates unnecessary network traffic by
preventing attempts to transmit information to unregistered users. In addition, it is necessary to manually
configure only one switch and all the other switches are configured accordingly.
GVRP Configuration Page
GVRP Protocol Allows you to Enable/Disable GVRP globally.
State After enabling GVRP globally, you can still Enable/Disable GVRP by port.
Controls the interval of sending the GVRP Join BPDU (Bridge Protocol
Join Timer
Data Unit). An instance of this timer is required on a per-port, per-GARP
participant basis.
Controls the time to release the GVRP reservation after having received the
Leave Timer
GVRP Leave BPDU. An instance of the timer is required for each state
machine that is in the LV state.
Leave All Timer
Controls the period to initiate the garbage collection of registered VLAN.
The timer is required on a per-port, per-GARP participant basis.
Click Apply to apply the settings.
Apply
Note: You must Save the settings (Page 136
), if you want to maintain these
settings if the ES7528 is powered off.
98 - GVRP Configuration RocketLinx ES7528 User Guide: 2000509 Rev. C
Page 99
Configuration Using the Web Interface
VLAN Table
This table displays the current settings of your VLAN table, including VLAN ID, Name, Status, and Egress
rule of the ports.
VLAN Table Page
VLAN ID The ID of the VLAN.
Name The name of the VLAN.
Static means that this is a manually configured static VLAN.
Unused means this VLAN is created by web user interface/CLI and has no
member ports and the VLAN is not workable yet.
Dynamic means this VLAN was learnt by GVRP.
• -- No VLAN setting.
Status
• T A Trunk Link is a LAN segment used for multiplexing VLANs
between VLAN bridges. All the devices that connect to a Trunk Link
must be IEEE 802.1Q VLAN-aware, which sends and receives frames
with IEEE 802.1Q tags.
• U An Access Link is a LAN segment used to multiplex one or more IEEE
802.1Q VLAN-unaware devices into a Port of a VLAN Bridge. Devices
that are connected to an Access Link sends and receives frames without
IEEE 802.1Q tagging, which is the identification of the VLAN it belongs
to.
After creating the VLAN, the status of this VLAN remains in Unused status until you add ports to the VLAN.
RocketLinx ES7528 User Guide: 2000509 Rev. C VLAN Table - 99
Page 100
Configuration Using the Web Interface
Private VLAN
A private VLAN helps to resolve the primary VLAN ID shortage, client ports’ isolation and network security
issues. The private VLAN features provides primary and secondary VLANs within a single switch.
Primary VLAN: The uplink port is usually a member of the primary VLAN. A primary VLAN contains
promiscuous ports that can communicate with Secondary VLANs.
Secondary VLAN: The client ports are usually defined within secondary VLAN. The secondary VLAN includes
Isolated and Community VLANs. The client ports can be isolated VLANs or can be grouped in the same
Community VLAN. The ports within the same community VLAN can communicate with each other, however,
the isolated VLAN ports cannot.
This figure shows a typical private VLAN network. A SCADA/Public Server or NMS workstation is usually
located in a primary VLAN. Client PCs and rings are usually located within the secondary VLAN.
The following web pages are in this group:
• PVLAN Configuration
• PVLAN Port Configuration
• PVLAN Information
Optionally, you can use the CLI for configuration, see Private VLAN (CLI)
on Page 100
on Page 101
on Page 102
on Page 178.
PVLAN Configuration
PVLAN Configuration allows you to assign a private VLAN type. Choose the
private VLAN types for each VLAN you want configure.
Note: You must have previously configured a VLAN in the VLAN Configuration
screen. Refer to VLAN Configuration
on Page 95 for information.
Private VLAN Configuration Page
• Primary VLAN - The uplink port is usually the primary
VLAN. Ports within a primary VLAN can communicate with
ports in a secondary VLAN
• Secondary VLAN - The client ports are usually defined within
VLAN ID
secondary VLAN. The secondary VLAN includes Isolated
VLAN and Community VLANs. The client ports can be
isolated VLANs or can be grouped in the same Community
VLAN. The ports within the same community VLAN can
communicate with each other. However, the isolated VLAN
ports cannot.
100 - Private VLAN RocketLinx ES7528 User Guide: 2000509 Rev. C
