Comtrend WAP 5940 User Manual

261097-022

Wireless Video Bridge

User Manual

Version A1.1, November 1, 2016

WAP-5940

1

Preface

This manual provides information relate d to the installation and operation of this
device. The individual reading this manual is presumed to have a basic
understanding of telecommunications terminolog y and concepts.

If you find the product to be inoperable or malfunctioning, please contact technical
support for immediate service by email at [e-mail]

For product update, new product release, manual revision, or software upgrades,
please visit our website at http://www.comtrend.com

Important Safety Instructions

With reference to u np acking, installation, use, and maintenance o f your electronic
device, the following basic guidelines are recommended:

• Do not use or install this product ne ar water, to avoid fire or shock hazard. For
example, near a ba thtub, k itchen sink or laundry tub, o r near a swimming pool.
Also, do not expose the equipment to rain or damp are as (e.g. a wet basement).

• Do not connect the power supply cord on elevated surfaces. Allow it to lie freely .
There should be no obstructions in its path and no heavy items should be placed
on the cord. In addition, do not walk on, step on, or mistreat the cord.

• Use only the power cord and adapter that are shipped with this device.

• T o safeguard the equipment against overheating, make sure that all openings in

the unit that offer exposure to air are not blocked.

• Avoid using a telephone (othe r than a cordless type) during an electrical storm.
There may be a remote risk of electric shock from lightening. Also, do not use
the telephone to report a gas leak in the vicinity of the leak.

• Never install telephone wiring during stormy weather conditions.

CAUTION:

 To reduce the risk of fire, use only No. 26 AWG or larger

telecommunication line cord.

 Always disconnect all telephone lines from the wall outlet before servicing

or disassembling this equipment.

WARNING

 Disconnect the power line from the device before servicing.
 Power supply specifications are clearly stated in Appendix A -

Specifications.

2

Copyright

Copyright©2016 Comtrend Corporation. All rights reserved. The information
contained herein is proprietary to Comtrend Corporation. No part of this document
may be translated, tr anscribed, re produced, in any fo rm, or by any means without
prior written consent of Comtrend Corporation.

This program is free software: you can redistribute it and/or modify it under the
terms of the GNU General Public License as published by the Free Software
Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY; without even the implied wa rranty of MERCHANTABILITY or FITNESS
FOR A PARTIC ULAR PURPOSE. See the GNU General Public License for more
details.

You should have received a copy of the GNU General Public Lice nse
along with this program. If not, see http://www.gnu.org/licenses/

NOTE: This document is subject to change without notice .

This program is free software: you can redistribute it and/or modify it
under the terms of the GNU General Public Li

Protect Our Environment

This symbol indicates that when the equipment has reac hed the end of
its useful life, it must be taken to a recycling centre and processed
separate from domestic waste.

The cardboard box, the plastic contained in the packaging, and the parts that make
up this router can be recycled in accordance with regionally established regulations.
Never dispose of this electronic equipment along with your household waste ; yo u
may be subject to penalties or sanctions under the law. Instead, please be
responsible and ask for disposal instructions from your local government.

3

Table of Contents

CHAPTER 1 INTRODUCTION ........................................................................................................... 4

CHAPTER 2 INSTALLATION ............................................................................................................. 5

2.1 HARDWARE SETUP ........................................................................................................................... 5

2.2 LED INDICATORS............................................................................................................................. 7

2.3 INITIAL DEVICE SETUP .................................................................................................................... 8

CHAPTER 3 WEB USER INTERFACE............................................................................................ 10

3.1 DEFAULT SETTINGS ....................................................................................................................... 10

3.2 IP CONFIGURATION ........................................................................................................................ 11

3.3 LOGIN PROCEDURE ........................................................................................................................ 12

CHAPTER 4 STATUS .......................................................................................................................... 14

4.1 STATU S - DEVICE ........................................................................................................................... 14

4.2 STATUS – WIRELESS ................................................................................................................ 16

4.2.1 AP Mode ................................................................................................................................ 16

4.2.2 STA Mode ............................................................................................................................... 19

4.3 STATU S – NETWORKING ................................................................................................................. 22

4.4 STATU S – WDS .............................................................................................................................. 24

4.5 STATU S – MBSS ............................................................................................................................ 25

CHAPTER 5 CONFIG ......................................................................................................................... 27

5.1 CONFIG – WIRELESS ...................................................................................................................... 27

5.2 CONFIG – WPS .............................................................................................................................. 32

5.3 CONFIG – MAC FILTER ................................................................................................................. 34

5.4 CONFIG – NETWORKING ................................................................................................................ 36

5.5 CONFIG – WDS ............................................................................................................................. 39

5.6 CONFIG – MBSS ............................................................................................................................ 41

5.7 CONFIG – ACS ............................................................................................................................... 42

CHAPTER 6 TOOLS ........................................................................................................................... 46

6.1 TOOLS – LOG ................................................................................................................................. 46

6.2 TOOLS – ADMIN ............................................................................................................................. 49

6.3 TOOLS – RESTORE ......................................................................................................................... 50

CHAPTER 7 SYSTEM ........................................................................................................................ 51

7.1 SYSTEM – UPGRADE ...................................................................................................................... 51

7.2 SYSTEM – REBOOT ........................................................................................................................ 53

APPENDIX A - SPECIFICATIONS ................................................................................................... 54

APPENDIX B - AP / STATION ........................................................................................................... 55

4

Chapter 1 Introduction

The WAP-5940 is an 802.11ac 4T4R wireless video bridge, with two Giga Ethernet
ports. WAP-5940 performs AP to transmission package TCP/UDP to client, also
supporting station mode, receiving packets and forwarding to the Ethernet port.

WAP-5940 has a high power wireless design which supports 802.1 1ac 5Ghz band
4T4R and is backward compatible 802.11n, 802.11a.

5

Chapter 2 Installation

2.1 Hardware Setup

Follow the instructions below to complete the hardware setup.

BACK PANEL

The figure below shows the back panel of the device.

6

Power ON

Press the power button to the OFF position (OUT). Connect the power adapter to the
power port. Attach the power adapter to a wall outlet or other AC source. Press the
power button to the ON position (IN). If the Power LED displays as expected then
the device is ready for setup (see section 2.2 LED Indicators).

Caution 1: If the device fails to p ower up, or it malfunctions, first verify tha t the

power cords are connected securely and then power it on again. If the
problem persists, contact technical support.

Caution 2: Before servicing or disassembling this equipment, disc onnect all power

cords and telephone lines from their outlets.

Ethernet (LAN) Ports

Use 1000-BASE-T RJ-45 cables to connect two network devices to a Gigabit LAN, or
10/100BASE-T RJ-45 cables for standard network usage. These ports are
auto-sensing MDI/X; so either straight-through or crossover cable can be used.

Reset Button

To reboot the device press the Reset button for 1-5 seconds. Restore the default
parameters of the device by pressing the Reset button for more than 5 seconds.
After the device has rebooted successfully, the front panel should display as
expected (see section 2.2 LED Indicators for details).

WPS Button

Press and release the WPS button to start the WPS connecti on process with the
other device. The connection duration is 2 minutes during which the WPS LED will
blink. If there is no client connection the WPS led will turn off. If connection is
successful the WPS LED will stay on.

AP/Station Switch

Select the desired option.

7

Ethernet connected

Ethernet not connected

Ethernet is transmitting/receiving

Ethernet connected

Ethernet not connected

Ethernet is transmitting/receiving

Wi-Fi enabled

Wi-Fi disabled

When no client connected

No WPS (5G) association process ongoing

WPS (5G) connection in progress

WAP-5940 working in AP mode

WAP-5940 working in Station mode

WAP-5940 working in Station mode

WAP-5940 working in AP mode

2.2 LED Indicators

The front panel LED indicators are shown below a nd explained in the follow ing table.
This information can be used to check the status of the device a nd its connections.

LED Color Mode Description

On Power on

POWER GREEN

Off Power off
On

ETH1 GREEN

ETH2 GREEN

WiFi GREEN

WPS GREEN

Off

Blink

On
Off

Blink

On
Off

Blink

On WPS connection successful

Off

AP GREEN

Station GREEN

Blink

On
Off

On
Off

8

2.3 Initial Device Setup

Device Setup

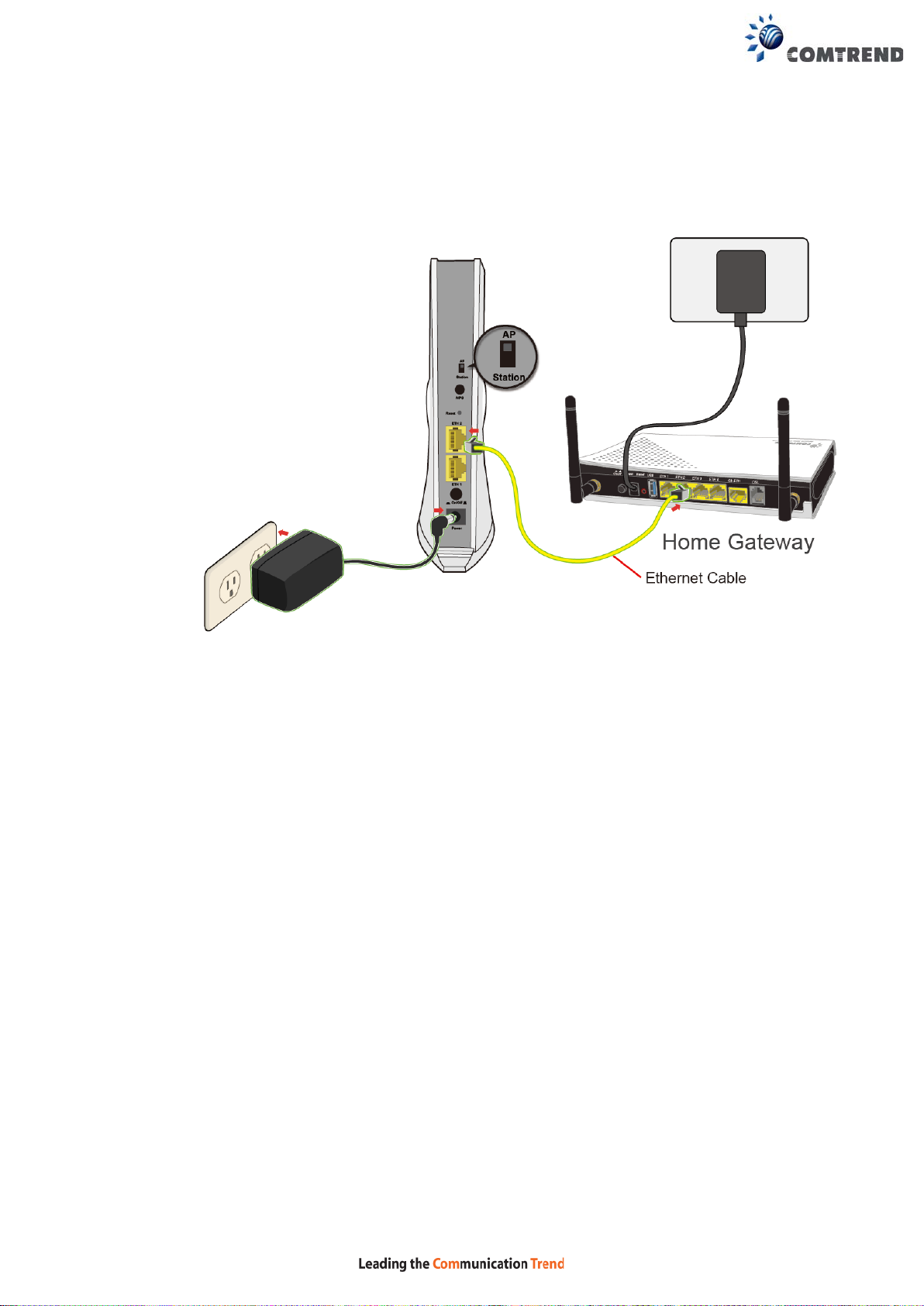

1. Setup the first Wireless Video Bridge by plugging in the po wer adapter and
press the Power Button to the ON position (IN). Set the Wireless Video
Bridge to AP Mode by sliding the AP/Station Switch to the up position.

2. Connect the Wireless Video Bridge to a Network Device (Gateway, Router,
etc.) with an Ethernet (RJ-45) cable. You can use either Ethernet ports of the
Wireless Video Bridge to make this connection.

3. After you select AP mode thus the Ethernet port (ETH1) will be WAN port,
another Ethernet port (ETH2) is LAN side.

9

4. After you select station mo de thus two Ethernet ports (ETH1, ETH2) are LAN
side.

10

Chapter 3 Web User Interface

This section describes how to access the device via the web user interface (WUI)
using an Internet browser such as Internet Explorer (version 6.0 and later).

3.1 Default Settings

The factory default settings of this device are summarized below.

• LAN IP address AP: 10.0.0.2

• LAN IP address STA: 10.0.0.10

• LAN subnet mask: 255.255.255.0

• Administrative access (username: root, password: 12345)

Caution: The LAN setting default is DHCP mode, if a device connects to the DHCP
network, the LAN IP will be changed by the DHCP server ass igned.

Technical Note

During pow er on, the devi ce initializ es all setting s to default valu es. It wi ll then

read the configuration profile from the permanent storage section of flash memory.
The default attributes are overwritten when identical attributes with different values
are configured. The configuration profile in permanent storage can be created via
the web use r interface or t elnet user interfa ce, or other mana gement protocol s.
The factory defau lt configuration can be re stored either by pushing the reset button
for more than ten seconds until the power indicates LED blinking o r by click ing the
Restore Default Configuration option in the Restore Settings screen.

11

3.2 IP Configuration

STATIC IP MODE

In static IP mode, you assign IP settings to your PC manually.
Follow these steps to configure your PC IP address to use subnet 10.0.0.x.

NOTE: The following procedure assumes you are running Windows. However,

the general steps involved are similar for most operating systems (OS).
Check your OS support documentation for further details.

STEP 1: From the Network Connec tions window, open Local Area Connect ion (You

may also acce ss this scre en by double-clicking the Local Area Connection
icon on your taskbar). Click the Properties button.

STEP 2: Select Internet Protocol (TCP/IP) and click the Properties button.
STEP 3: Change the IP address to the 10.0.0.x (10<x<254) subnet with subnet

mask of 255.255.255.0. The screen should now display as shown below.

STEP 4: Click OK to submit these settings.

12

3.3 Login Procedure

Perform the following steps to login to the web user interface.

NOTE: The default settings can be found in section 3.1 Default Settings

STEP 1: Start the Internet browser and enter the default IP address for the device

in the Web address field. For example, if it is the AP device default IP is

10.0.0.2, type http://10.0.0.2

STEP 2: A dialog box will appear, such as the one below. Enter the default

username and password, as defined in section 3.1 Default Settings.

.

Click LOGIN to continue.

13

STEP 3: After successfully logging in for the first time (AP dev ice in th is exam ple),
you will reach the Status - Device screen AP (Access Point) shown here.

14

Gets the software
current system

4.1 Status - Device

This screen shows the status of the device.

Chapter 4 Status

Menu Item Description Options Detail
Device Name Name of the

Comtrend device

Software

version of the

Version

The version number of
the current firmware

15

Uptime Displays the

uptime of the
device

Device Mode AP or STA mode Access Point(AP)

Station(STA)

There are two types of
display, one kind is
minutes and days,
another kind is
XX:XX(hours:minutes)

Device Acts as Access
Point or Station. The
[X] indicates the
current device mode.

16

4.2 Status – Wireless

This screen shows the wireless status of the device in AP mode.

4.2.1 AP Mode

Menu Item Description Options Detail
WiFi Interface Real wireless

device name and
MAC Address in
CPE

Device Mode

AP or STA mode Access Point(AP)

Station (STA)

Device Acts as
Access Point or
Station

17

802.11an supports

802.11a

Wireless Band

Bandwidth Per the 802.11a or

Per 802.11an or

Per the 802.11ac

AP Mac Address
(BSSID)

Channel Available 5Ghz

Current system
Band

802.11an or

802.11ac standard

802.11ac standard

standard
The current

associated BSSID
of the Wi-Fi system

802.11a or

802.11an or

802.11ac

20 MHz

40 MHz 40 MHz operation

80MHz 80 MHz operation

36-48, 149-165 5.150-5.250,

802.11n and is
backward
compatible with

20 MHz operation

In AP mode, it will
be the same as the
Wireless MAC
address

channels based on
region setting

Associated
Devices Count

Packets Received

The connected
devices number

Wireless packets

5.725-5.850 GHz
are the supported
frequency ranges

The number of
devices connecting
to the AP.
Clicking the
“Association Table”
will link to the
Association Table
page and display
information of all
the connected
devices.

Successfully

Bytes Received The total bytes

which are received
successfully

received
successfully

18

Packets
Transmitted
Successfully

Bytes
Transmitted

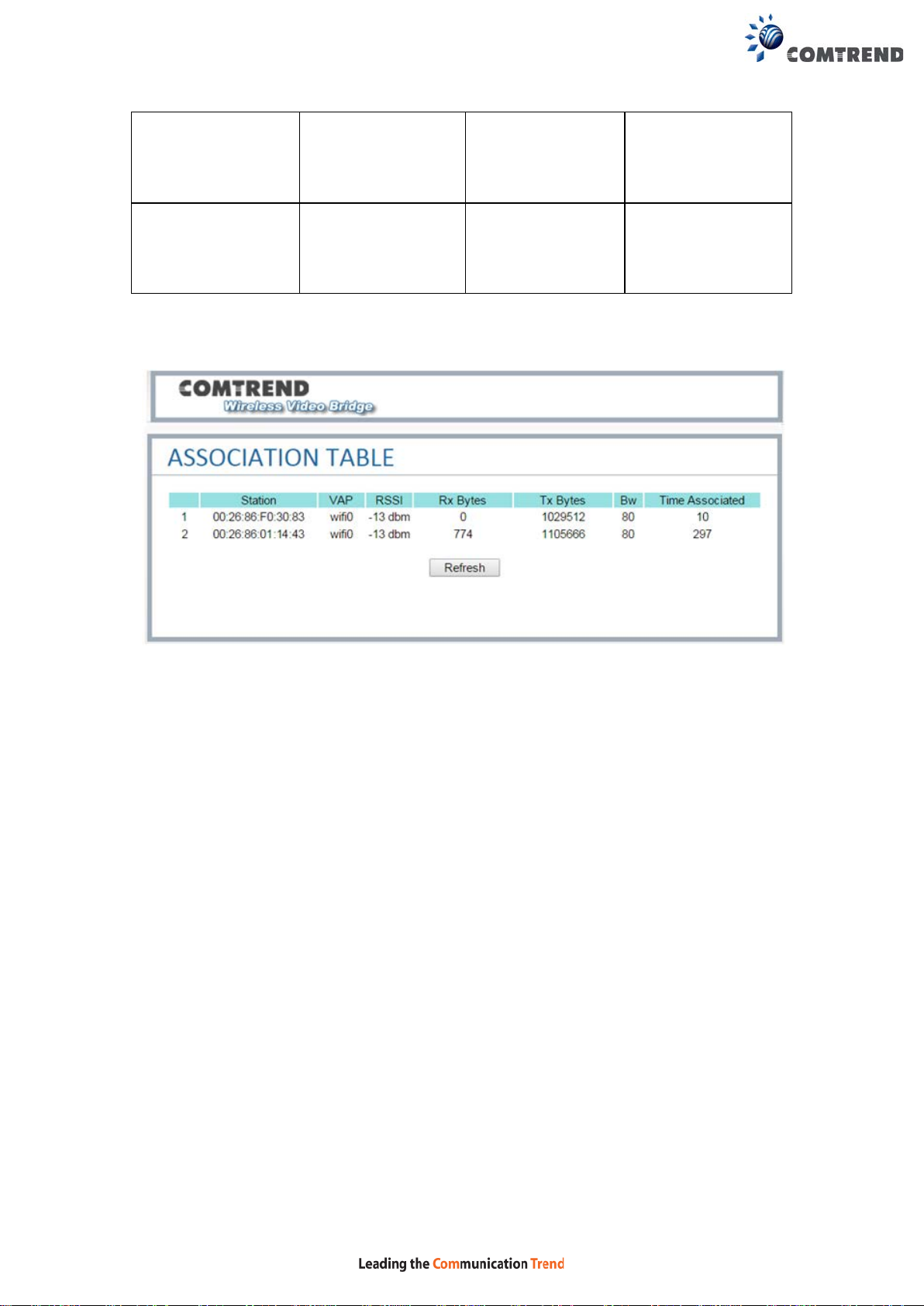

This screen shows the information of all station devices which are connecting with
the wifi0 of the AP.

Wireless packets
transmitted

Total bytes
transmitted
successfully

19

802.11an supports

802.11a

or

4.2.2 STA Mode

This screen shows the wireless status of the device that acts as a STA.
This STA mode is mainly with other client bridge, Not directly used as a client.

Menu Item Description Options Detail
Device Mode

Wireless Band

Bandwidth Per the 802.11a

AP or STA mode Access Point(AP)

Station (STA)

Current system
Band

802.11an or

802.11a or

802.11an or

802.11ac

20 MHz

Device Acts as
Access Point or
Station

802.11n and is
backward
compatible with

20 MHz operation

20

802.11ac standard

Per 802.11an or

802.11ac standard

Per the 802.11ac

standard

AP Mac Address
(BSSID)

Channel Available 5Ghz

Association
Status

The current
associated BSSID
of the Wi-Fi system

channels based on
region setting

The connected
devices number

40 MHz 40 MHz operation

80MHz 80 MHz operation

In AP mode, it will
be the same as the
Wireless MAC
address

36-48, 149-165 5.150-5.250,

5.725-5.850 GHz
are the supported
frequency ranges

The number of
devices connecting
to the AP.
Clicking the
“Association Table”
will link to the
Association Table
page and display
information of all
the connected
devices.

RSSI Received Signal

Strength Indication

Packets Received
Successfully

Wireless packets
which are received
successfully

A measurement of
the power present
in a received radio
signal. The value is
the current RSSI in
dBm for the
association.

21

Bytes Received The total bytes

received
successfully

Packets
Transmitted
Successfully

Bytes
Transmitted

Wireless packets
transmitted

Total bytes
transmitted
successfully

22

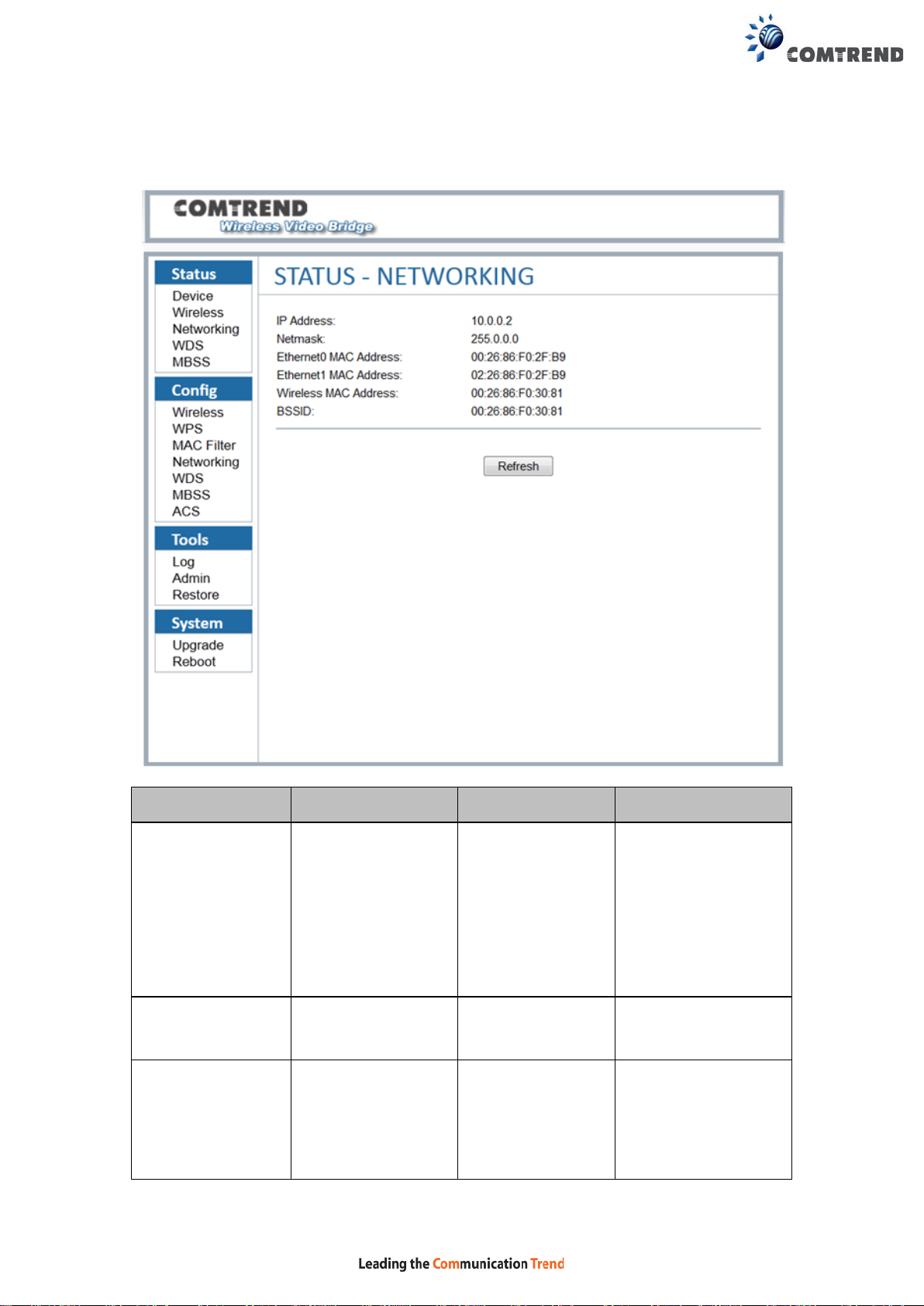

4.3 Status – Networking

This screen shows the status of the networking.

Menu Item Description Options Detail
IP Address The IP Address of

the system

Netmask The netmask of the

IP address

Ethernet MAC
Address

This is the IEEE
compliant MAC
address of the
Ethernet interface

Logged into the web
GUI with this IP
address. It can be
changed in the
Config Networking
page.

The internal network
bridge uses this MAC
address

23

Wireless MAC
Address

BSSID The current

This is the IEEE
compliant MAC
address of the
Wi-Fi interface

associated BSSID
of the Wi-Fi system

The WLAN MAC

address

In AP mode: this will

be the SAME as the
Wireless MAC
address.
In STA mode and
associated to an AP:
this will be the value
of the AP’s MAC
address.
If the STA is not
associated, this will
state:
“Not-Associated”.

24

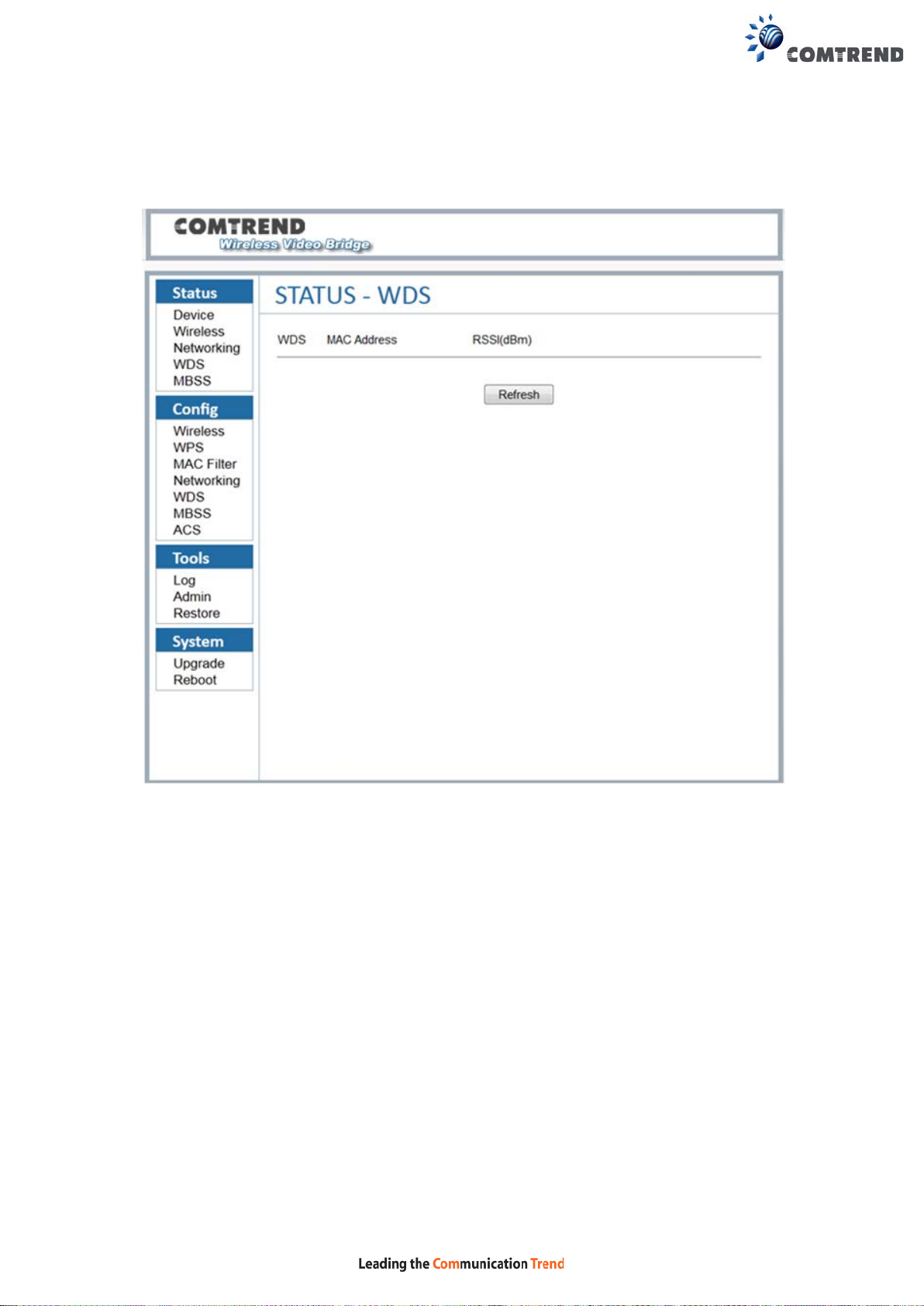

4.4 Status – WDS

This screen shows the status of the WDS links.

This typical WDS link status includes:

• The interface name of the WDS link, the name is managed by the system
automatically, usually it is: WDS0/WDS1/WDS2…so on.

• The WDS peer MAC address of the opposite side, this MAC address is same
as the address which you are using when creating WDS links.

• The WDS link quality.

25

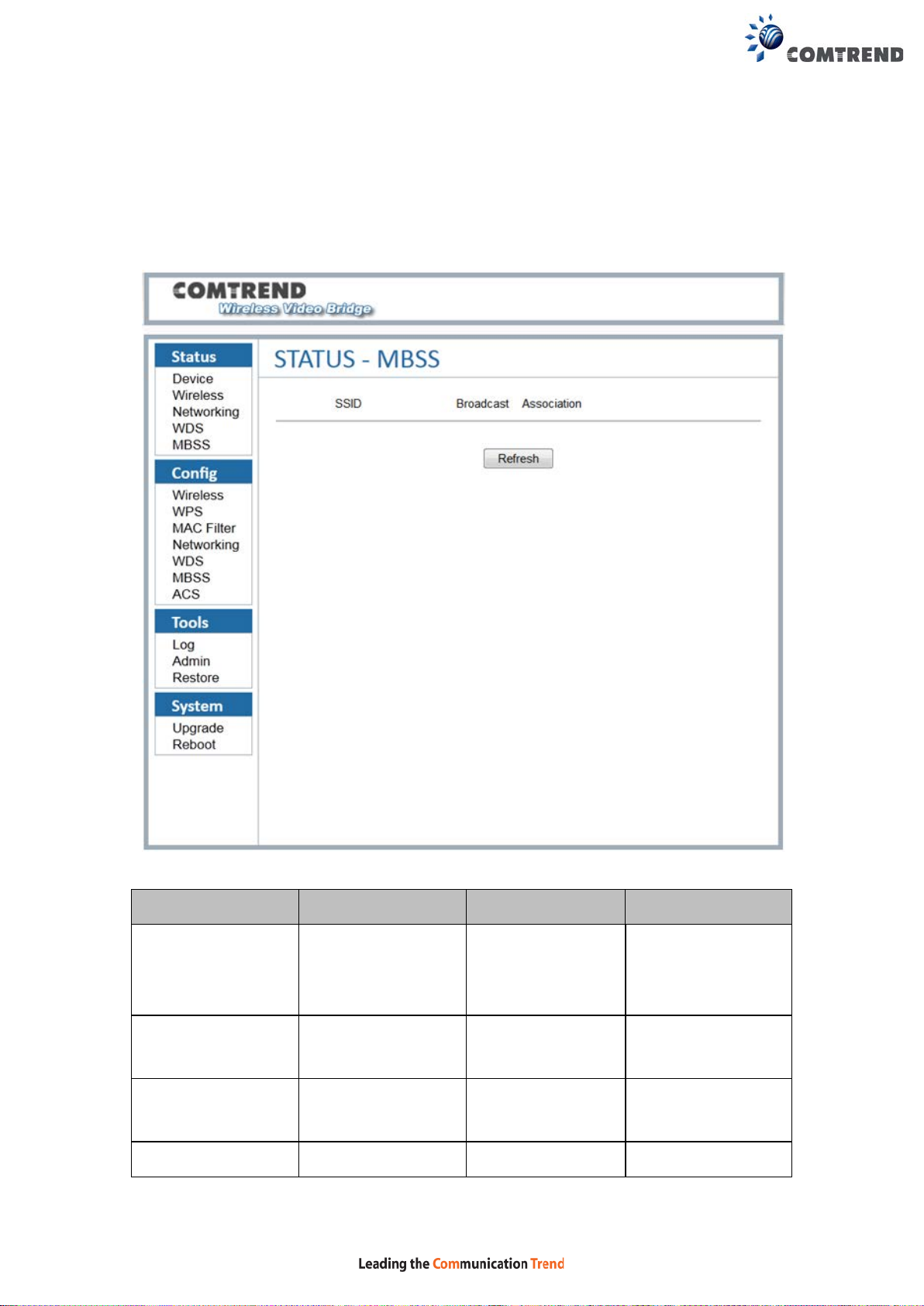

4.5 Status – MBSS

Displays the information of multiple Basic Service Set Identifiers (BSSIDs) created
on the device: SSID, Broadcast, Association count and details of the station
connected. This option is not available if the device is configured as a STA.

instructions on setting up WAP-5940 as a WDS using AP mode, please refer to Appendix B.

For

Menu Item Description Options Detail
SSID SSID of the MBSS

Broadcast

FALSE Wi-Fi devices can’t

Association Associated client >=0 The number of

Enabled or disabled
SSID broadcast

TRUE

This will be the
SSID of the
wireless network.

SSID will be
broadcasted

scan out this SSID

26

number client which are

connected to the
Virtual AP

27

Chapter 5 Config

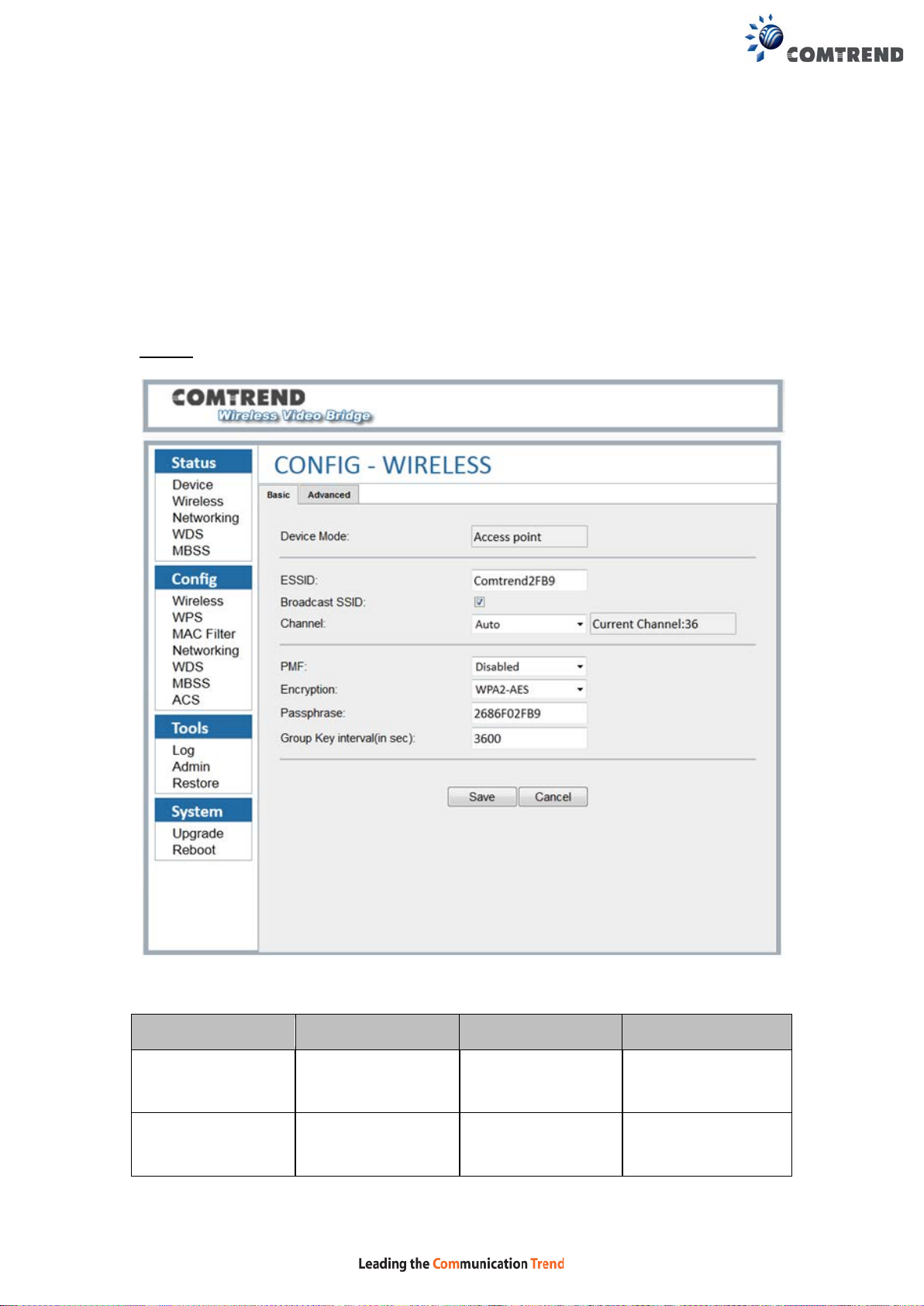

5.1 Config – Wireless

This screen has two tab pages, “Basic” and “Advanced”.

Basic

Menu Item Description Options Detail
Device Mode

Station Device Acts as

AP or STA mode Access Point

Device Acts as
Access Point

Station

28

ESSID SSID of the AP Can be set to

desired SSID
name

Channel Available 5Ghz

channels based on
region setting

PMF Protected

Management
Frames

Encryption 802.11 compliant

authentication and
encryption

NONE-OPEN Disables encryption

36-48, 149-165 5.150-5.250,

Sets the 802.11w /

WPA2/AES

This will be the
SSID of the
wireless network.

5.725-5.850 GHz
are the supported
frequency ranges

PMF capability.
Applies to AP

(OPEN mode)

WPA2 + WPA

(Mixed mode)

WPA2/AES

Enterprise

WPA2 + WPA

Enterprise

Passphrase The current

passphrase.
Applies to AP only.

Group Key
interval(in sec)

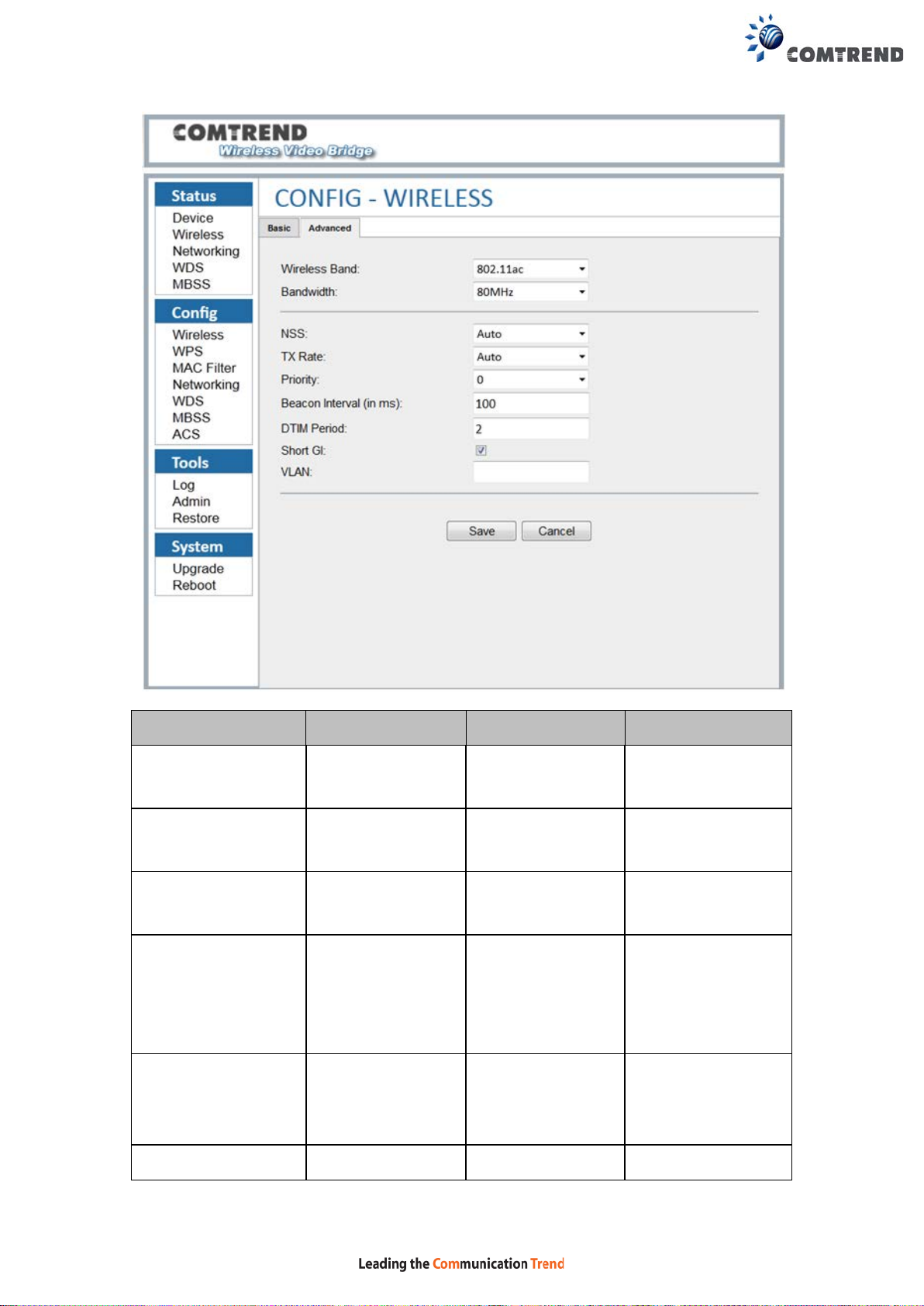

Advanced

Group key renewal
interval for
enterprise se cu rity

Group key interval
needs to be
between 0 and
43200

This is the interval
at which the group
key is renewed for
clients associated
to this SSID

29

Menu Item Description Options Detail
Wireless Band Frequency Band to

be used

802.11an 802.11an 5 GHz

802.11ac 802.11ac 5 GHz

Bandwidth Per the 802.11a or

802.11an or

802.11ac
standard

Per the 802.11an

or 802.11ac
standard

802.11a

20 MHz

40 MHz 40 MHz operation

802.11a 5 GHz
operation

operation

operation
20 MHz operation

Per the 802.11ac 80MHz 80 MHz operation

30

Only Auto option

standard

NSS The maximum

number of spatial
streams

Tx Rate Transmitted data

rate

Auto or MCS0

Auto
1
2
3
4

Not supported for

802.11a standard

~MCS76 for

802.11an
standard

available for

802.11ac
standard when
NSS is set to Auto.
When NSS is not
set to Auto,
MCS0~MCS9
options are
available.

Auto Rate Control,
MCS 0-76

Priority The priority is

used to
differentiate
traffic between
different
SSIDs

Beacon Interval Set the interval of

the beacon

DTIM Period

Delivery Traffic
Indication
Message

0~3

How often the

device sends a
Beacon. The
interval should be
between 25 and

5000. The default
value is 100.

The DTIM period

indicates how often
clients serviced by
the access point

31

should check for
buffered data
awaiting pickup on
the access point.
The value should
between 1 and 15.

Short GI Guard Intervals Checked The 802.11n draft

specifies two guard
intervals: 400ns
(short) and 800ns
(long).
The GI is 400ns.

VLAN Virtual Lan for

different interface

1-4096

32

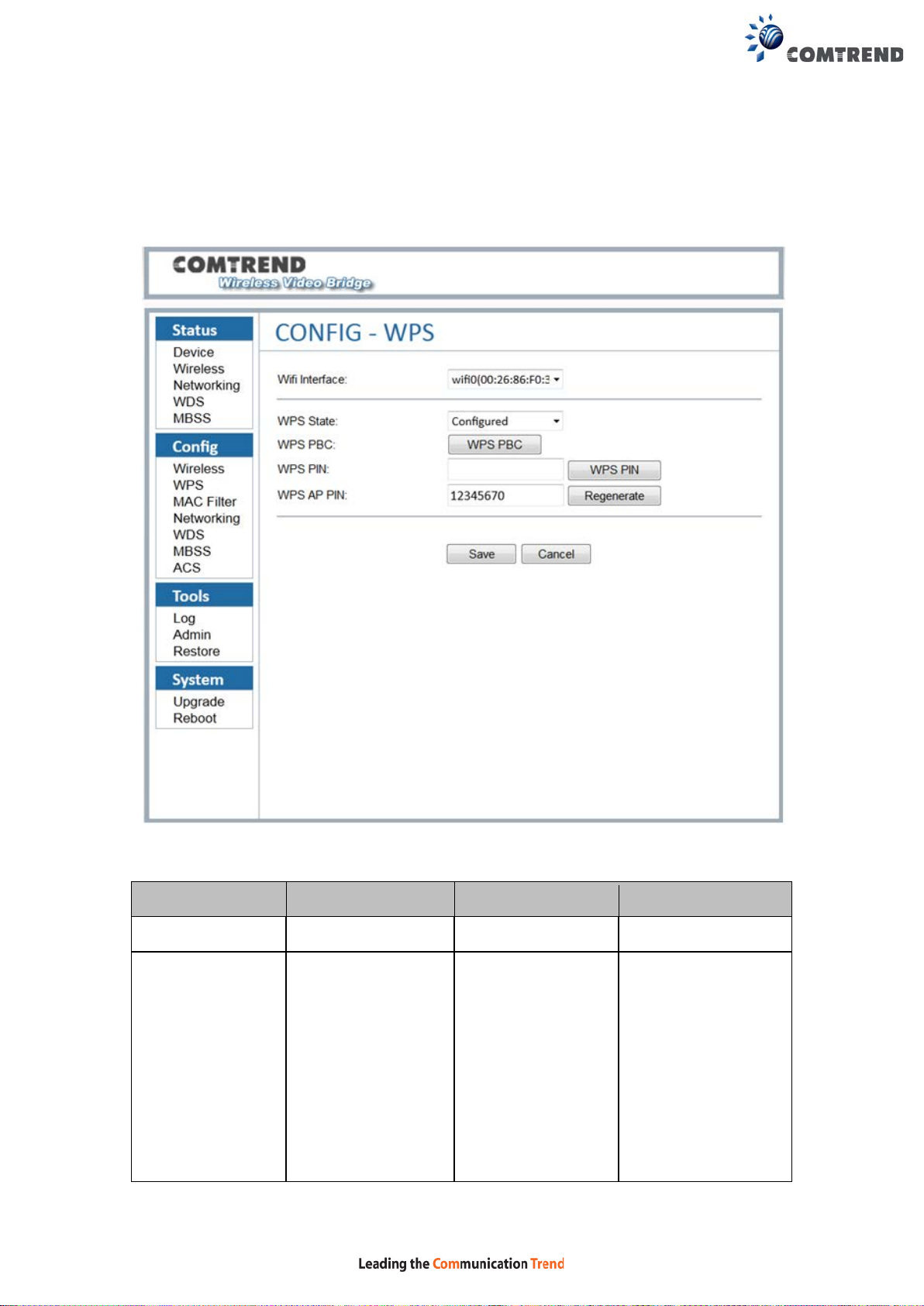

5.2 Config – WPS

Connect to without selecting an SSID and inputting a Passphrase.

Menu Item Description Options Detail
WPS State Set WPS states Disabled WPS disabled
Not configured WPS enabled

User can remot ely
change AP's
wireless
settings…SSID,
Encryption and
Passphrase for
example.

33

Configured User needs to fill

certain parameters
to start WPS
connection

WPS PBC WPS push button Push button to start

WPS connection

WPS PIN For W eb UI pin

WPS pin mode

WPS AP PIN Client must have

Character stri ng This will be the PIN

used for Web UI
WPS pin mode.

same PIN within 2
minutes. It is
recommended to
use the external
WPS push button on
the device.

34

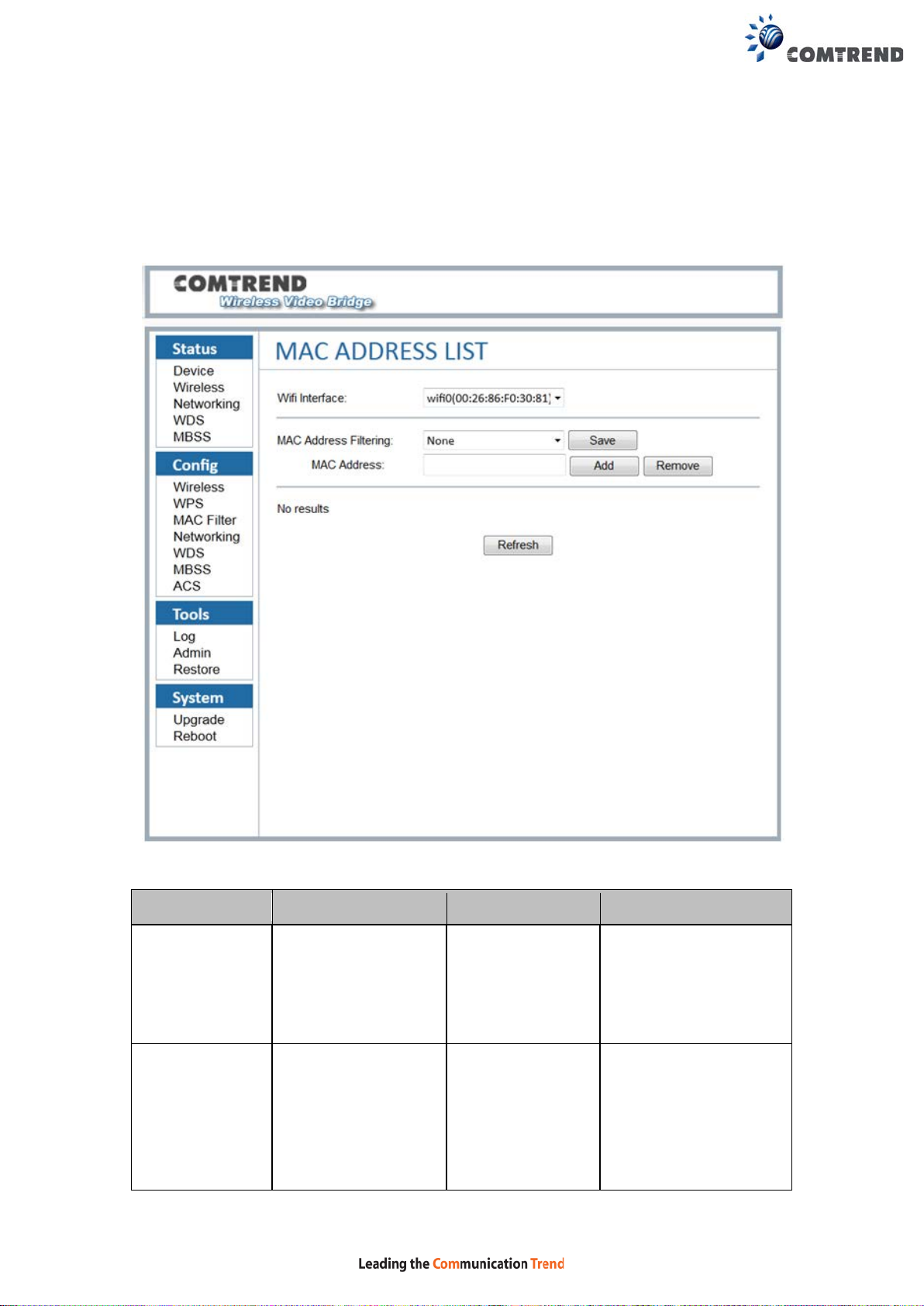

5.3 Config – MAC Filter

This screen shows the MAC addresses filtering configurations that are used for the
AP.

Menu Item Description Options Detail
Wifi Interface Real wireless device

name and MAC
Address in CPE

MAC Address
Filtering

The device filter
MAC address

NONE The AP can block a

selected station from
associating based on
its MAC (hardware
interface) address.

35

“NONE”= Disable MAC
address filtering.

White list mode Accept a client

association request
unless the MAC
address for that client
has been blocked

Black list mode Block a client

association request
unless the MAC
address for that client
has been authorized

MAC Address Verify the MAC

address

MAC Address
List

List the authorized
or denied MAC
addresses

Checks whether the
MAC address can be
validated

According to the MAC

address filter
“Authorize if not
denied” filter lists the
denied MAC
addresses.

“Deny if not
authorized” filter lists
the authorized MAC
addresses.

36

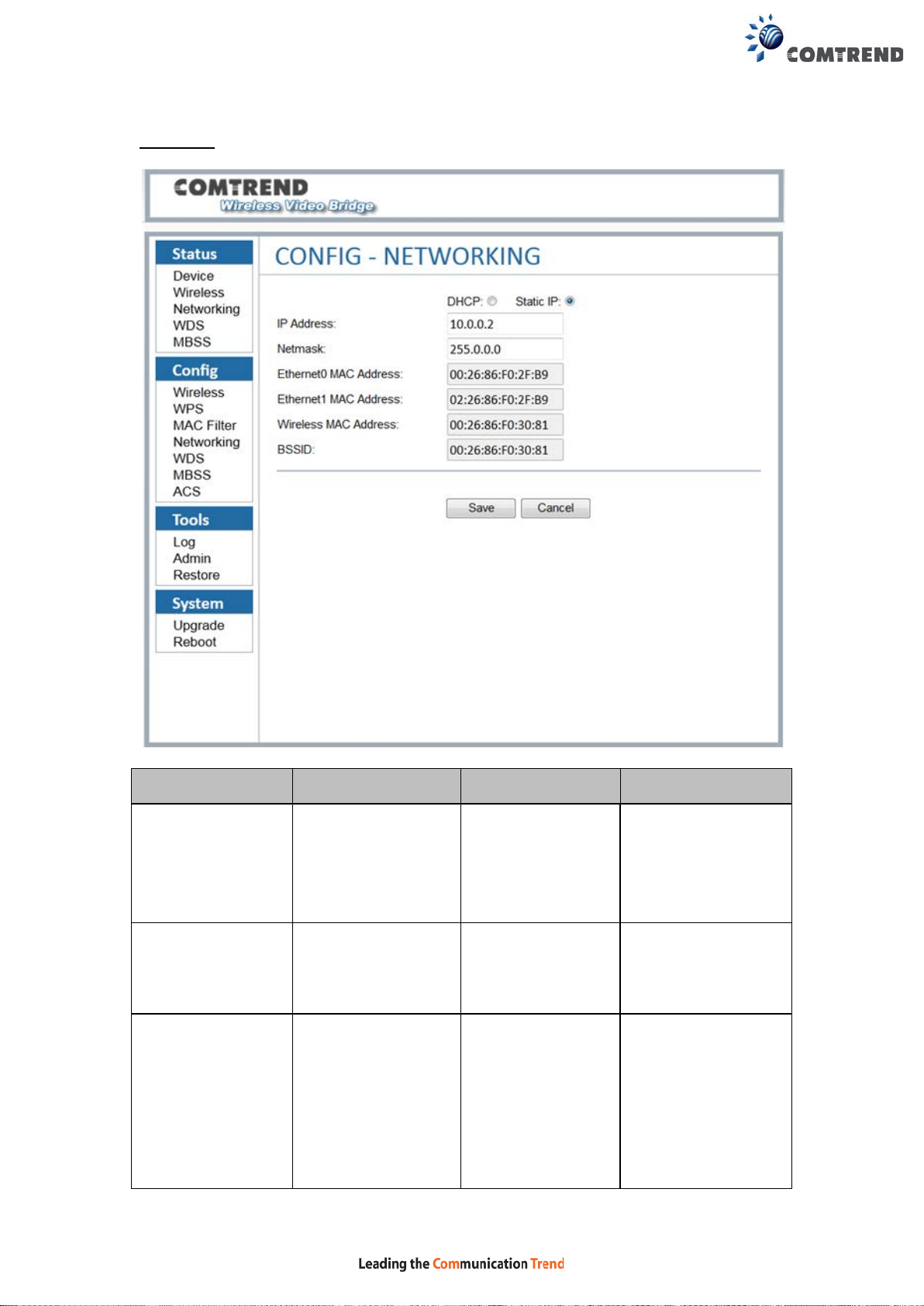

5.4 Config – Networking

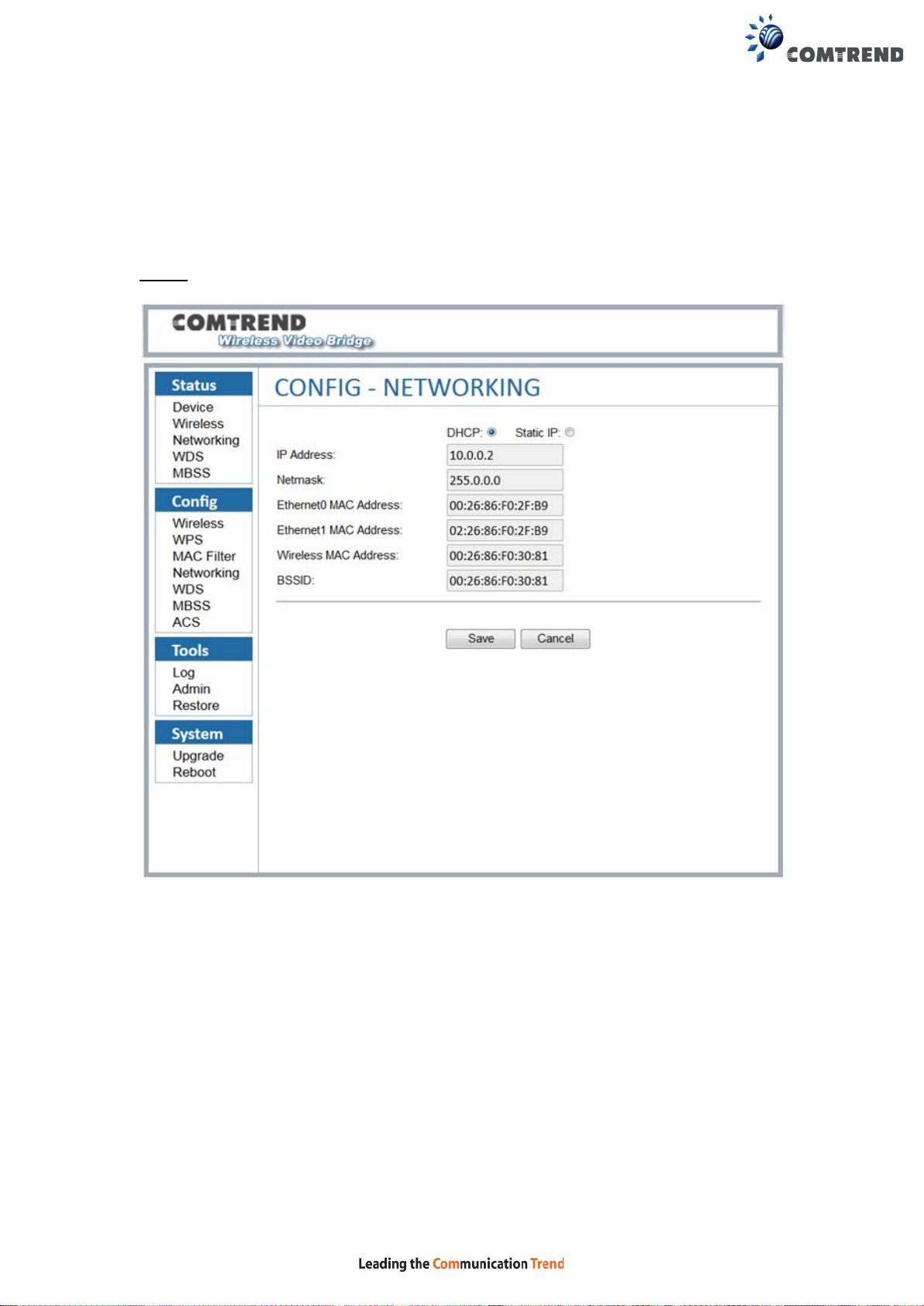

These screens show the networking configuration.

DHCP

37

Static IP

Menu Item Description Options Detail
DHCP or Static

IP

Static IP The device will use

IP Address

Set the network
configuration to
DHCP or Static IP

The IP Address of
the system

DHCP

This can be

The device will try
to get its IP address
with DHCP from a
device like a router

the static IP
address

changed from this
interface, by editing
this field.
If the device is
using DHCP, the IP

38

address is not
allowed to change.

CAUTION: After
selecting “Save”,
the IP Address will
change
IMMEDIATELY. The
Web UI must be
pointed at the new
address in order to
continue your Web
UI Session.

Netmask Netmask of the IP

address

Ethernet MAC
Address

Wireless MAC
Address

BSSID The current

This is the IEEE
compliant MAC
address of the
Ethernet interface

This is the IEEE
compliant MAC
address of the
Wi-Fi interface.

associated BSSID
of the Wi-Fi
system.

The internal
network bridge
uses this MAC
address. This
cannot be changed.

this will be the

The WLAN MAC
address. This
cannot be changed.

SAME as the
Wireless MAC
address.

39

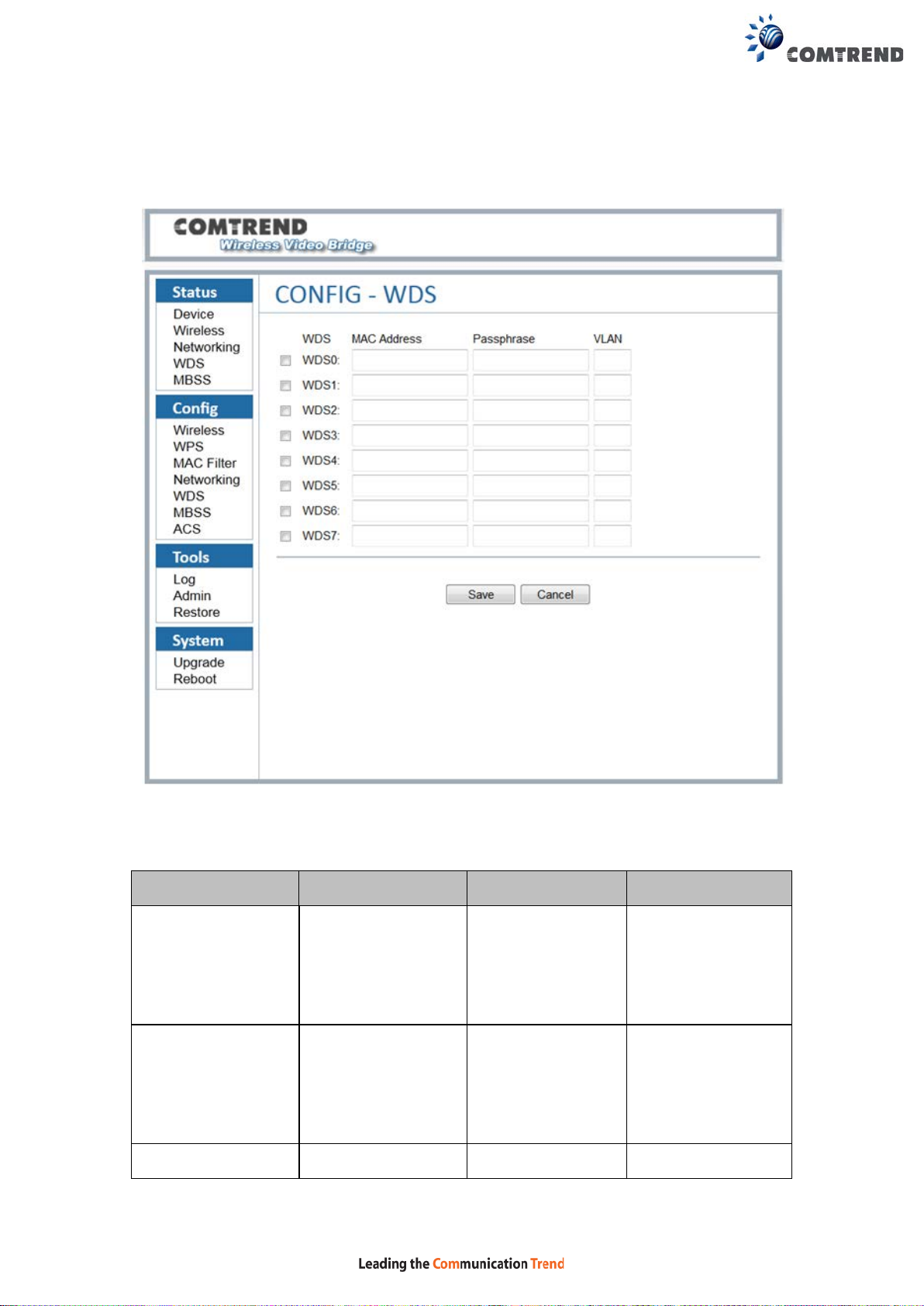

5.5 Config – WDS

This screen shows the configuration of the WDS links .

This option is not available if the device is configured as a STA.

Menu Item Description Options Detail
WDS checkbox To determine if the

WDS link is ena bled

Not Checked The WDS link will

MAC Address 48bit MAC address The WDS peer MAC

Checked

The WDS link will
be stored to a file
after clicking the
Save Button

be discarded after
clicking the Save
Button

40

address on the
opposite side

Passphrase

Empty

VLAN Virtual Lan for

64 ASCII PSK

1-4096

different interface

Wi-Fi devices can
see the SSID in
scan. Now the
passphrase strin g
is displayed as
"*******"
instead.

The WDS link does
not have security

41

5.6 Config – MBSS

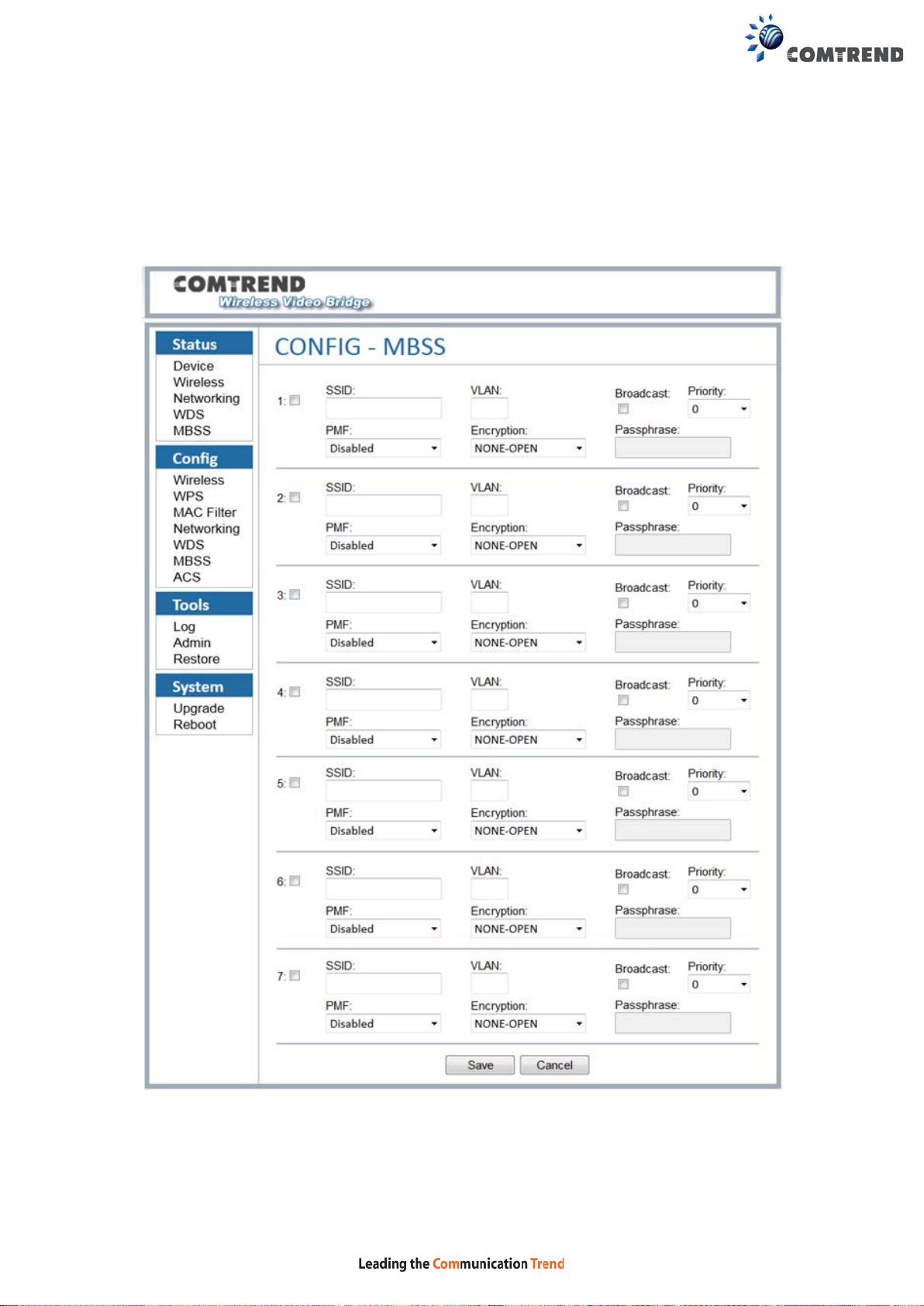

One can create multiple Basic Service Set Identifiers (BSSIDs) on a device initially
configured as an access point (AP). This capability is no t available on a device
configured as a STA. The first step in creating an additional BSSID is to create the
wireless interface device for that BSSID.

42

0 is highest

Menu Item Description Options Detail
SSID SSID of the MBSS This will be the SSID

of the wireless
network.

VLAN Virtual Lan for different

interface

Broadcast Enabled or disabled

SSID broadcast

Unchecked Wi-Fi devices can see

Priority The priority is used to

differentiate traffic
between different
SSIDs

PMF Protected Management

Frames

Encryption 802.11 compliant

encryption

1-4096

Checked

priority.
3 is lowest
priority.

Sets the 802.11w /

NONE-OPEN

SSID will be broadcast

the SSID in scan

PMF capability. Applies
to AP

Disables encryption
(OPEN mode)

WPA2/AES
WPA2+WPA

(mixed mode)

Passphrase The passphrase

applies to this MBSS
SSID

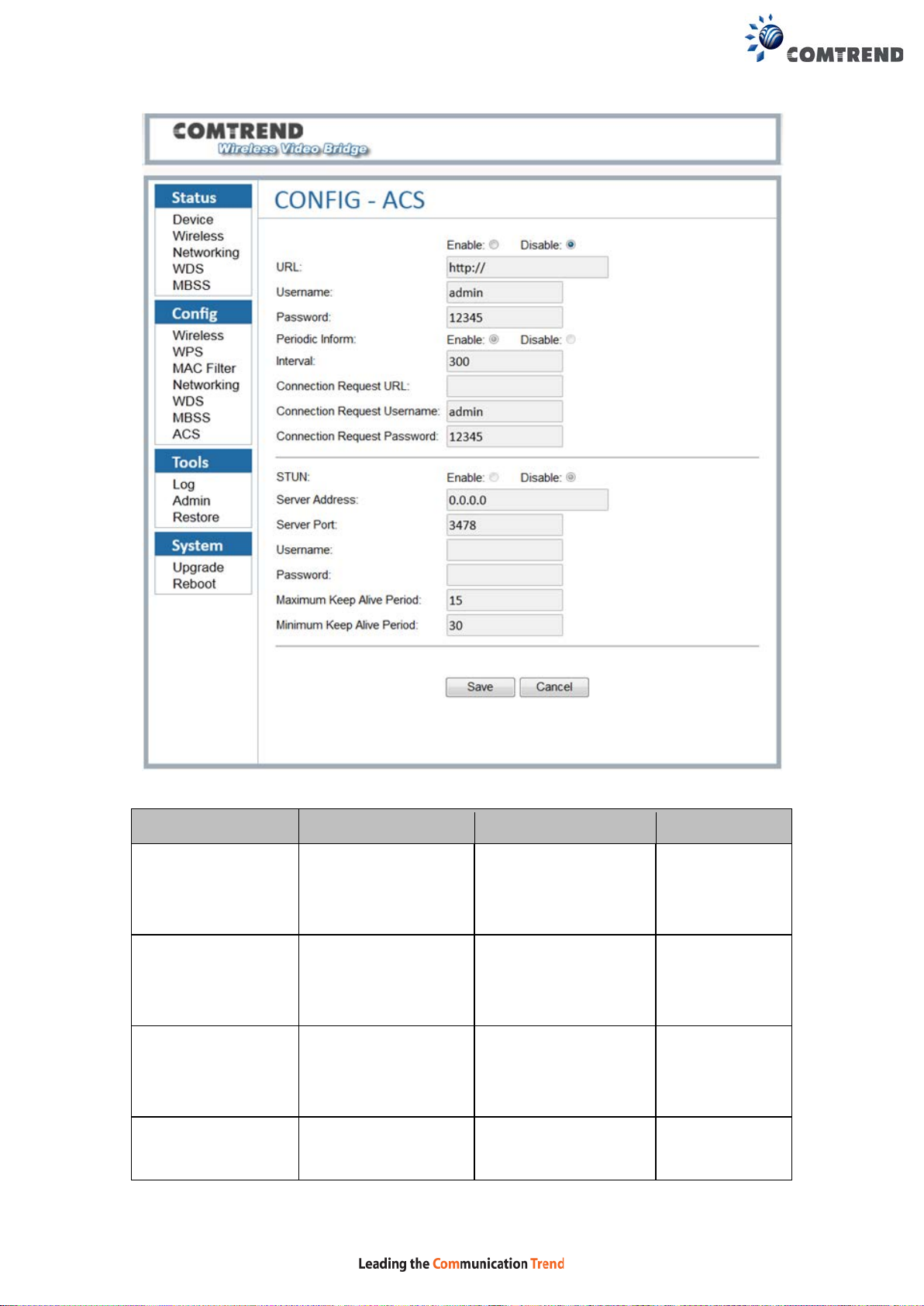

5.7 Config – ACS

WAN Management Protocol CWMP (TR-069) allows an Auto-Configuration Server
(ACS) to perform auto-configur ation, provision, collection, and dia gnostics to this
device. Select desired values and click SAVE to configure TR-069 options.

43

Menu Item Description Options Detail
Enable Enable TR-069

daemon connection
to ACS

Disable Disable TR-069

daemon connection
to ACS

URL IP address and port

the device uses to
connect to the ACS

Username Username used to

authenticate on ACS

Select to enable

Select to disable

44

Password Password used to

authenticate on ACS

Periodic Inform Activate /

Deactivate the info
message to ACS
server

Interval Periodic time

interval of sending
the info message

Connection
Request URL

The path for the

connection from the

ACS to the CPE. It is

recommended to

keep the default
setting.

Connection

Username used to

Unit is

second(s)

Request
Username

Connection
Request
Password

STUN Activate the TR-111

Server Address IP address of device

authenticate an AC S
making a
Connection Request
to the CPE

Password used to
authenticate an AC S
making a
Connection Request
to the CPE

function
Deactivate the

TR-111 function

used to connect to

Select to enable

Select to disable

the ACS which
support STUN

Server Port Port of device used

to connect to the

45

ACS which support
STUN

Username Username used to

authenticate on ACS
which support STUN

Password Password used to

authenticate on ACS
which support STUN

Maximum Keep
Alive Period

Minimum Keep
Alive Period

The maximum
connect duration to
the ACS server

The minimum
connect duration to
the ACS server

Unit is

second(s)

Unit is

second(s)

46

Chapter 6 Tools

6.1 Tools – Log

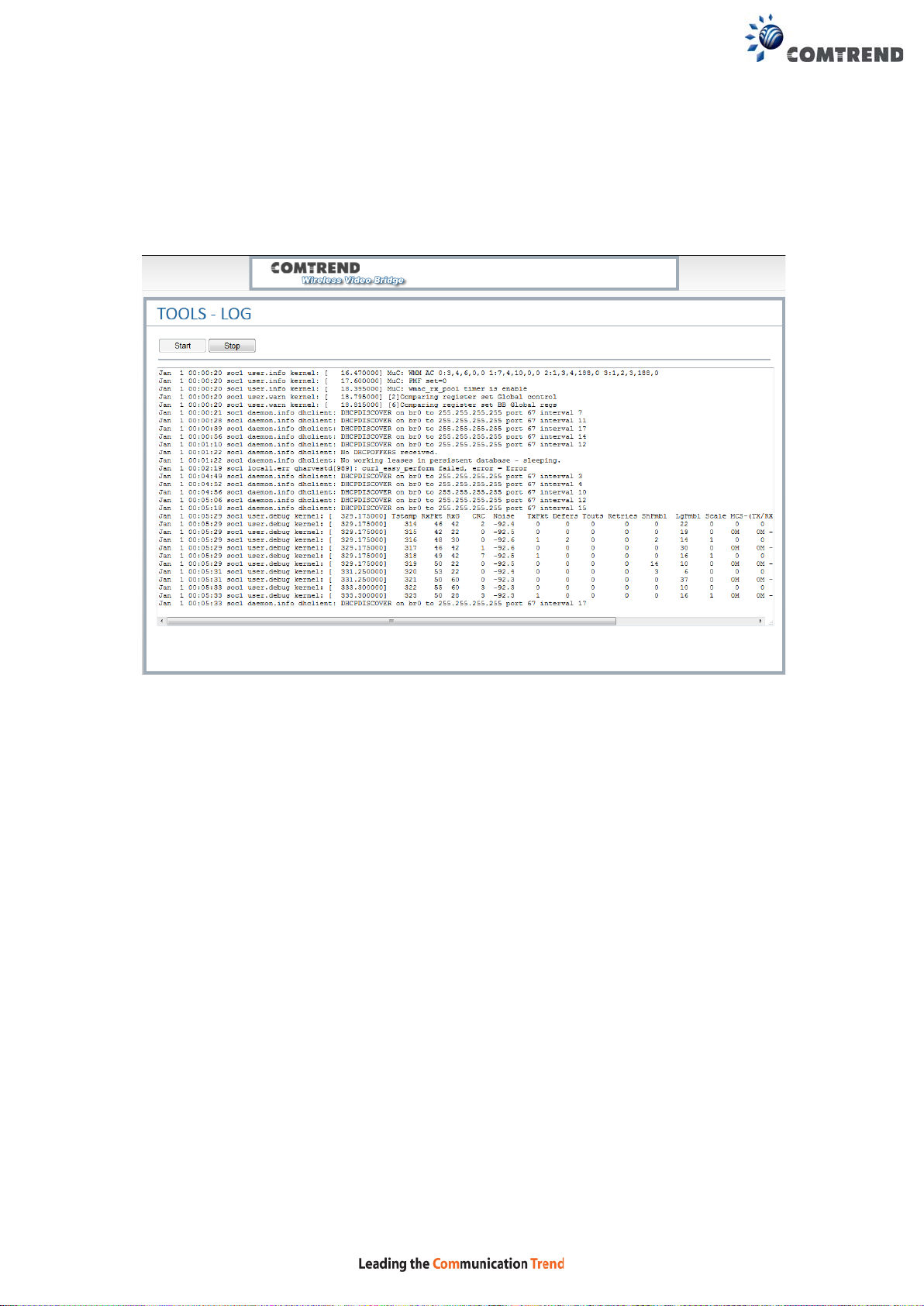

This page has the ability to directly view the PHY statistics of the device.

Pressing the “Start” button will start a 10 second polling log. This data can be useful
to assist in debugging the system.

After selecting “Start”, the p age will look similar to the image above. The logging will
stop after pressing the “Stop” button. If the IP address is c hanged or if the device is
shut off, this page will give an error message if logging was in progress. To recover
the session, please press the “Start” button again.

This interface takes data from an internal OS file, so intermittently; there may be
management messages that show up in this log.

47

Metric Description Comments
Tstamp This is the system time of

the measurement taken
from the internal system
clock

RxPkts

RxGain This is the higher receiver

This represents the
number of packets that
were successfully received
over 1 second intervals.
Each line represents 1
second of time.

gain value that was
recorded on successfully
received packets during
this measurement
interval. If no packets

The maximum value of
RxGain is 62

were received, this may be
an invalid number.

CRC This is the number of CRC

errors received over the 1
second measurement
interval

Noise This is the MAX receiver

noise floor as measured
over this 1 second interval

TxPkts This is the number of

If (CRC/Rx Packets) >
10-20%, then the channel
condition or link quality is
poor. This is possibly due to
interference, another Wi-Fi
network or being too far for
the current configuration to
be reliable.

This value is an internal
noise calculation, no t
external. In normal
operation it will vary
between 20 and 70.

successfully transmitted
packets over the last 1
second interval.

48

Defers This number counts the

number of times an
attempted transmission
was deferred due to the
medium being busy.
This is helpful in
determining if an
environment is very busy.

Tout This is an indicator of Tx

packet timeout

Retries

This counts the number of
transmission retries that
have occurred over the
last one second.

Defers are common in busy
WiFi environments

Timeouts are not common.
The Packet could not find a
time slot to transmit.

On the transmit side, note
that the general packet flow
for error is as follows:

This is primarily due to the
lack of acknowledgements
from the partner device.

ShPre This counts the number of

Short Preamble Detection
Errors

LgPre This counts the number of

Long Preamble Detection
errors

Rate This is a legacy

measurement for rate and
is not currently used

Defer
Retry
Timeout

These are very common in
high throughput condit i ons

The wireless received a
signal which passed the
short preamble, but failed
the more complex long
preamble. These are less
common than short
preamble erro rs.

49

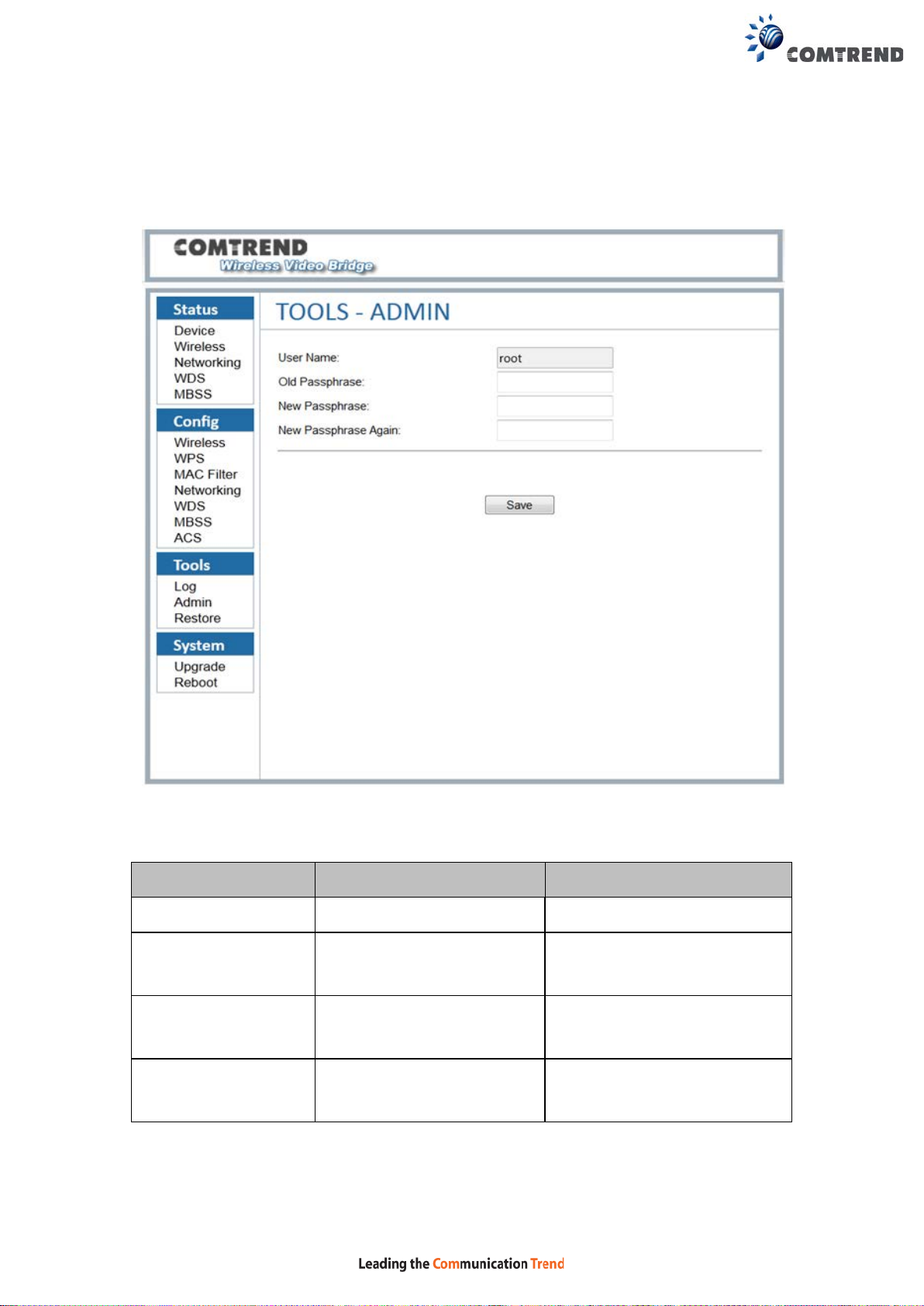

6.2 Tools – Admin

This page is for administration of the use r pa sswords.

Menu Item Description Notes
User Name The user name for login Only for the login privileg e
Old Passphrase Enter the original password

of the user name

New Passphrase Enter the new passphrase

New Passphrase
Again

Enter the new passphrase
again

It should be the same as the
“New Passphrase”

50

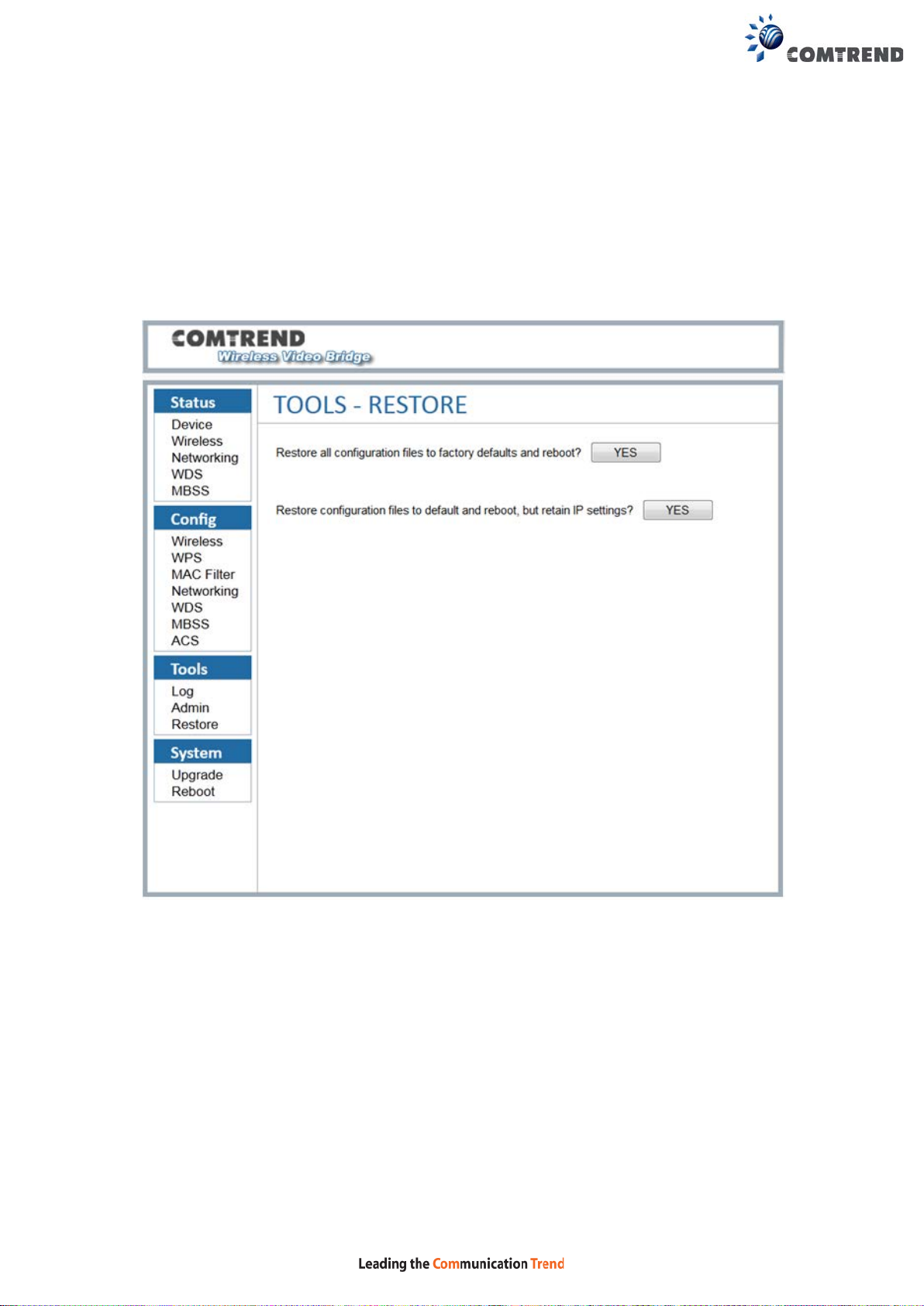

6.3 Tools – Restore

The Tools Restore page is for users to restore all the configurations of the device to
factory defaults. There is also the option to restore the configuration files and reboot
whilst retaining the IP settings.

The Restore function also restores the password of the login user.

51

Chapter 7 System

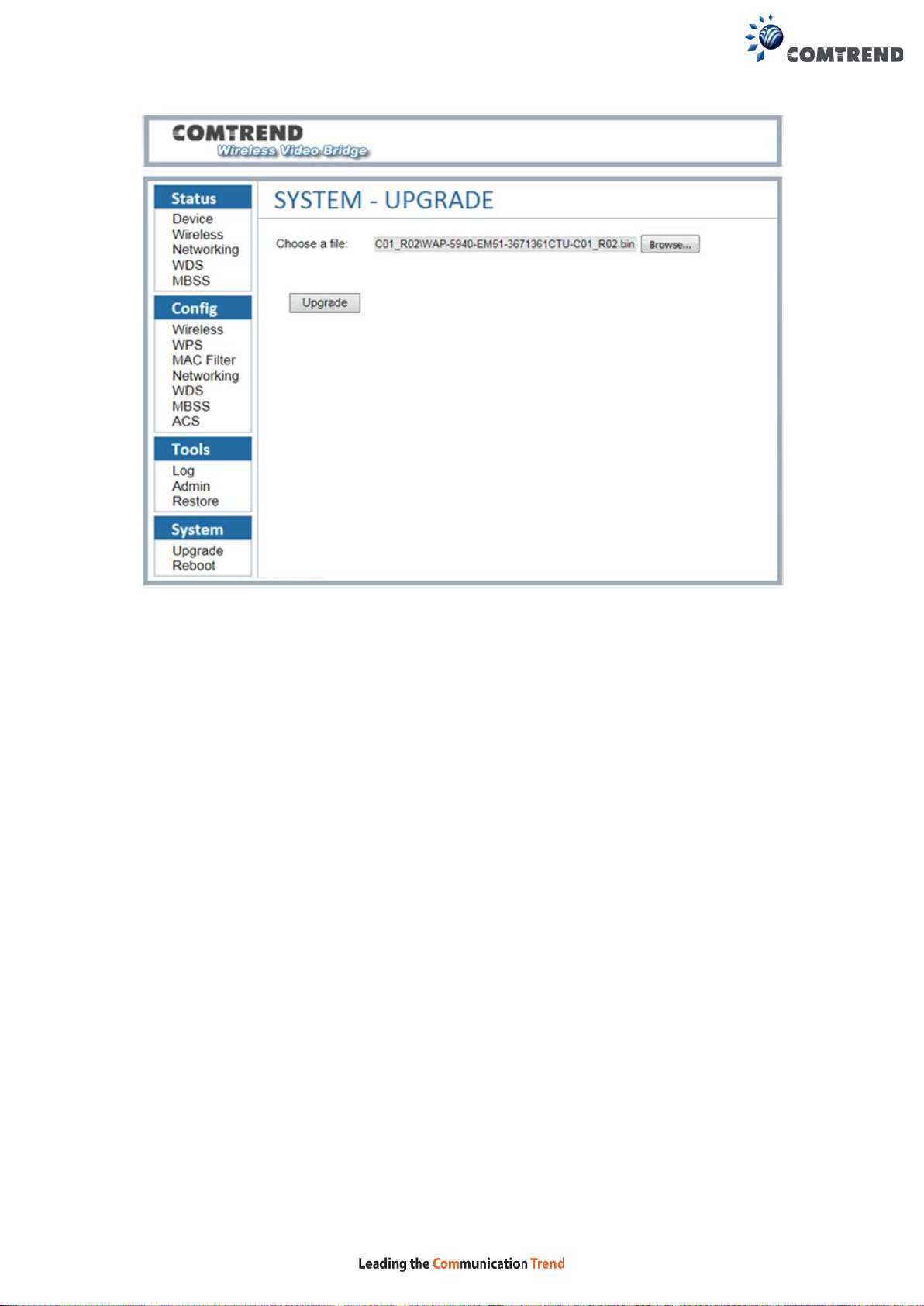

7.1 System – Upgrade

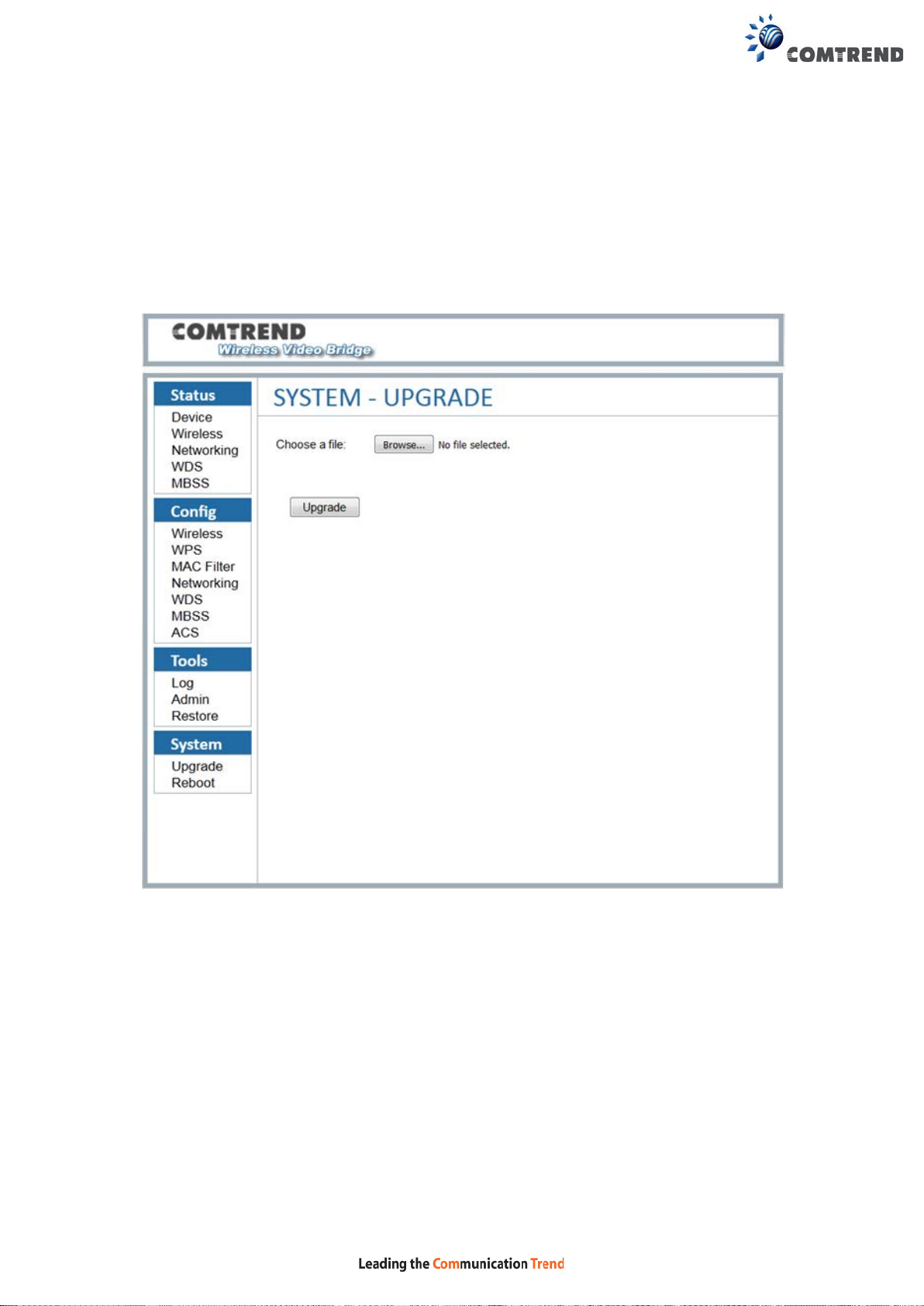

The System Upgrade page is for users to update the firmware on the device.

This pa ge will upload a binar y imag e file . Please use bin file to upgrade which is

named like “WAP-5940-EM51-3671361CTU-CXX_RXX.bin”.

When you select the file and click “Upgr a de”, the “Upgrade” button will be disabled

and the page will display “Loading the image file .... ..Pleas e wa it”, please wait for 2

minutes. Please be patient and do not power off the unit during this process.
Do not close the upgrade webpage.

52

When the firmware has been upgraded successfully, you will be automatically
directed to the reboot page.

53

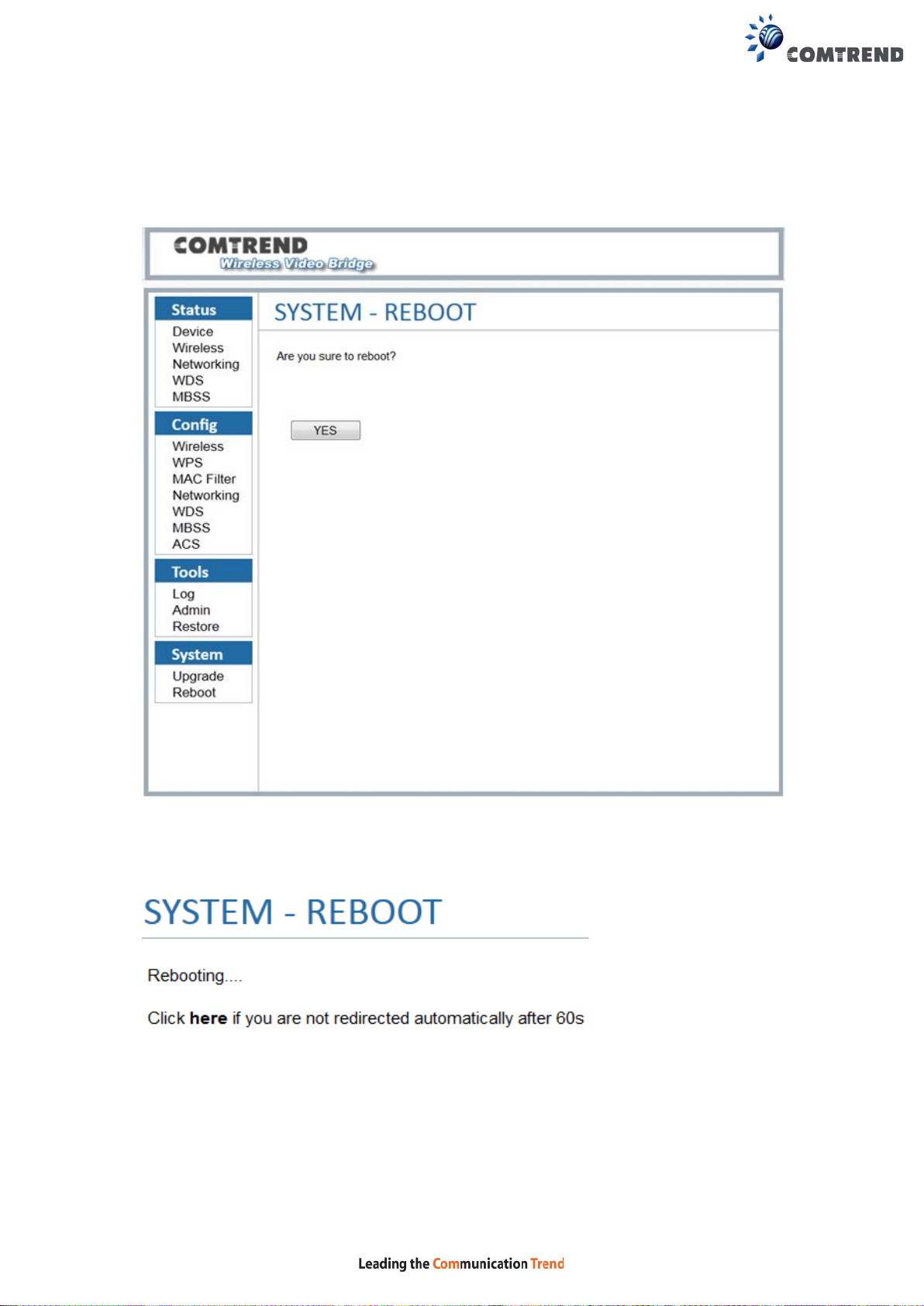

7.2 System – Reboot

The System Reboot page is for users to reboot the device.

54

Appendix A - Specifications

Hardware Interface

• AP/Station Switch x 1

• RJ-45 X 2 for Giga Ethernet port

• Reset Button X 1

• WPS button X 1

• 4x internal MIMO antenna

• Power switch X 1

• Power Jack X 1

Standard

• 802.11a/n/ac

• 802.11i (WEP, WPA/WPA2, RADIUS)

• 802.11d

• 802.11e (WMM, WMM-PS)

• 802.11w

• 802.11h

• 802.11k

• 802.11r

• 802.11s (Draft)

Rates are for 256 QAM

• 80MHz: 1.7Gbps

• 40MHz: 800Mbps

• 20MHz: 346.8Mbps

Environment Conditi o n

Operating temperature .....................................0 ~ 40 degrees Celsius

NOTE: Specifications ar e subject to change without notice.

55

Appendix B - AP / Station

After you select AP mode thus the Ethernet port (ETH1) w ill be WAN port, another
Ethernet port (ETH2) is LAN side.

56

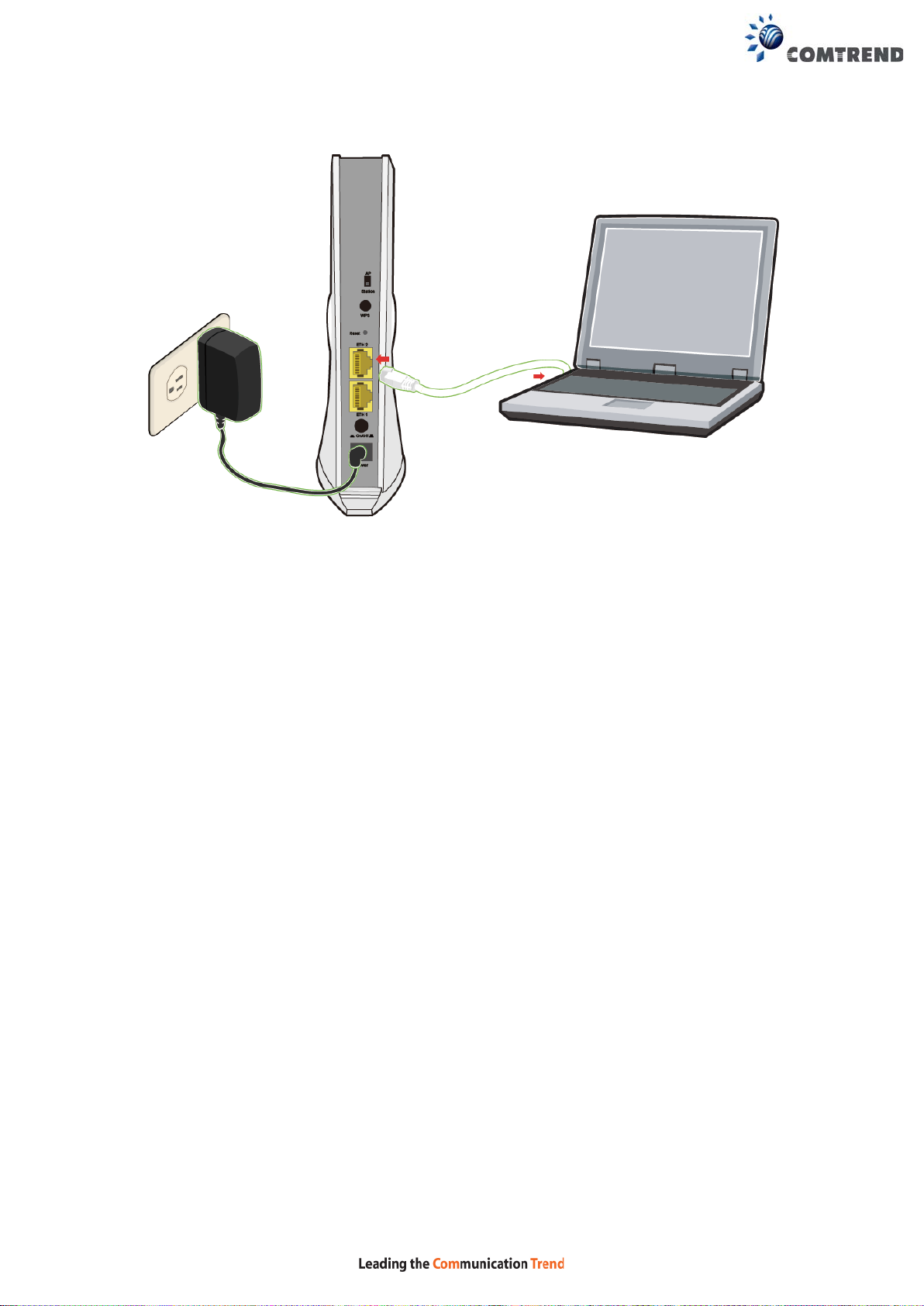

After you select station mode thus two Ethernet ports (ETH1, ETH2) are LAN s ide.

57

Warnings Guide

FCC Statements

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.

IMPORTANT NOTE:
FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20 cm between the radiator
& your body.

ISED Statements

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following
two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired
operation of the device.

Cet appareil est conforme à la norme RSSs Industrie Canada exempts de licence norme(s). Son
fonctionnement est soumis aux deux conditions suivantes:

1. Cet appareil ne peut pas provoquer d’interférences et

2. Cet appareil doit accepter toute interférence, y compris les interferences qui peuvent causer un
mauvais fonctionnement du dispositif.

IMPORTANT NOTE:
IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator & your body.

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de
distance entre la source de rayonnement et votre corps.

58

Users should also be advised that high-power radars are allocated as primary users (i.e. priority users)
of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference
and/or damage to LE-LAN devices.

Other Statements

This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.

The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite systems.
This device is restricted to indoor use.
