Comtrend VR3053 User Manual

VR-3053

Home Gateway

User Manual

261099-049

Version A1.0, June 14, 2019

Preface

This manual provides information related to the installation and operation of this
device. The individual reading this manual is presumed to have a basic
understanding of telecommunications terminology and concepts.

If you find the product to be inoper able or mal functioning, please contact technical
support for immediate service by email at [e-mail]

For product update, new product release, manual revision, or software upgrades,
please visit our website at http://www.comtrend.com

Important Safety Instructions

With reference to unpacking, installation, us e, and maintenance of your electronic
device, the following basic guidelines are recommended:

 Do not use or install this product near wa ter, to avoid fire or shock hazard. For

example, near a bathtub, kitchen sink or laundry tub, or near a swimming pool.
Also, do not expose the equipment to rain or damp areas (e.g. a wet basement).

 Do not connect the power supply cord on elevated surfaces. Allow it to lie freely.

There should be no obstructions in its path and no heavy items should be placed
on the cord. In addition, do not walk on, step on, or mistreat the cord.

 Use only the power cord and adapter that are shipped with this device.
 T o safeguard the equipment against overheating, make sure that all openings in

the unit that offer exposure to air are not blocked.

 Avoid using a telephone (other than a cordless type) during an electrical storm.

There may be a remote risk of electric shock from lightening. Also, do not use
the telephone to report a gas leak in the vicinity of the leak.

 Never install telephone wiring during stormy weather conditions.

CAUTION:

 To reduce the risk of fire, use only No. 26 AWG or larger

telecommunication line cord.

 Always disconnect all telephone lines from the wall outlet before servicing

or disassembling this equipment.

 Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user authority to operate the
equipment.

 Do not stack equipment or place equipment in tight spaces, in dr awers, or

on carpets. Be sure that your equipment is surrounded by at least 2 inches
of air space.

 If this Home Gateway Router cause harm to the telephone network, the

telephone company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice isn't
practical, the telephone company will notify the customer as soon as
possible. Also you will be advised of your right to file a complaint with the
FCC if you believe it is necessary.

1

 To prevent interference with cordless phones, ensure that gateway is at

least 5 feet ( 1.5m )from the cordless phone base station.

 If you experience trouble with this equipment, you disconne ct it from the

network until the problem has been corrected or until you are sure th at
equipment is not malfunctioning.

 If your home has specially wired alarm equipment connected to the

telephone line, ensure the installation of th is equipment does not disable
alarm equipment consult your telephone company or a qualified installer.

WARNING( ATTENTION )

 Disconnect the power line from the device before servicing.
 For indoor use only
 Do NOT open the casing
 Do NOT use near water
 Do NOT insert sharp objects into the RJ-11 jack

 Keep away from the fire
 For use in ventilated environment / space

 Use 26 AWG or larger cable connect to RJ-11 port

 Débranchez l'alimentation électrique avant l'entretien



Cet appareil est conçu pour l'usage intérieur seulement

 N'ouvrez pas le boîtier
 N'utilisez pas cet appareil près de l'eau

 N'insérez pas d'objets tranchants dans la prise
 RJ-11N'approchez pas du feu
 Veuillez utiliser dans un environnement aéré
 Veuillez utiliser fil électrique de 26AWG pour port RJ-11

Power Specifications( Alimentation ) :

Input 12Vdc, 2A

FCC & ISED

User Information

Any changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.

Aucune modification apportée à l’appareil par l’utilisateur , quelle qu’en soit la nature.
Tout changement ou modification peuvent annuler le droit d’utilisation de l’appareil
par l’utilisateur.

2

Note: This equipment has been tested and found to comply with the limits f o r a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from tha t to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.



This Class B digital apparatus complies with Canadian ICES-003.
To reduce potential radio interference to other users, the antenna type and
its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that permitted for successful communication.
This device complies with Part 15 of the FCC Rules and Industry Canada
licence-exempt RSS standard(s).

Operation is subject to the following two conditions :

1. This device may not cause interference, and

2. This device must accept any interference, including interferen ce that may
cause undesired operation of the device.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 Canada.
Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne
et son gain doivent être choisies de façon que la puissance isotrope
rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une
communication réussie.
Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence
norme(s).

Son fonctionnement est soumis aux deux conditions suivantes:

1. Cet appareil ne peut pas provoquer d’interférences et

2. Cet appareil doit accepter toute interférence, y compris les interférences
qui peuvent causer un mauvais fonctionnement du dispositif.

Radiation Exposure

FCC

1. This Transmitter must not be co‐located or operating in conjunction with any
other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.



ISED

This device complies with the ISED radiation exposure limit set forth for an

3

uncontrolled environment. This device should be installed and operated with
minimum distance 20cm between the radiator & your body. This transmitter must
not be co-located or operating in conjunction wi th any other antenna or transmitter.

Cet équipement est conforme avec l'exposition aux r adiations ISED définies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé à une
distance minimum de 20 cm entre le radiateur et votre corps. Cet émetteur ne doit
pas être co-localisées ou opérant en conjonction avec une autre antenne ou
transmetteur.

The Ringer Equivalence Number (REN) indicates the maximum number of devices
allowed to be connected to a telephone interface. The termination of an interface
may consist of any combination of devices subject only to the requirement that the
sum of the RENs of all the devices not exceed five.

4

Copyright

Copyright©2019 Comtrend Corporation. All rights reserved. The information
contained herein is proprietary to Comtrend Corporation. No part of this document
may be translated, transcribed, reproduced, in any form, or by any means without
prior written consent of Comtrend Corporation.

This program is free software: you can redistribute it and/or modify it under the
terms of the GNU General Public License as published by the Free Software
Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS
FOR A PARTICULAR PURPOSE. See the GNU General Public License for more
details.

You should have received a copy of the GNU General Public License
along with this program. If not, see http://www.gnu.org/licenses/

NOTE: This document is subject to change without notice.

Protect Our Environment

This symbol indicates that when the equipment has reached the end of
its useful life, it must be taken to a recycling centre and processed
separate from domestic waste.

The cardboard box, the plastic contained in the packaging, and the parts tha t make
up this router can be recycled in accordance with regionally established regulations.
Never dispose of this electronic equipment along with your household waste; you
may be subject to penalties or sanctions under the law. Instead, please be
responsible and ask for disposal instructions from your local government.

Save Our Environment
When this equipment has reached the end of its useful life, it must be taken to a
recycling centre and processed separately from domestic waste.
The cardboard box, the plastic in the packaging, and the parts that make up this
device can be recycled in accordance with regionally established regulations. Never
dispose of this electronic equipment along with your household waste.
You ma y be subject to penalties or sanctions under the law. Instead, ask for disposal
instructions from your municipal government.
Please be responsible and protect our environment.

5

Table of Contents

CHAPTER 1 INTRODUCTION ........................................................................................................... 8

CHAPTER 2 INSTALLATION ............................................................................................................. 9

2.1 HARDWARE SETUP ........................................................................................................................... 9

2.1.1 Back Panel ............................................................................................................................. 10

2.1.2 Bottom Panel ......................................................................................................................... 12

2.1.3 Front Panel ............................................................................................................................ 13

CHAPTER 3 WEB USER INTERFACE ............................................................................................ 15

3.1 DEFAULT SETTINGS ....................................................................................................................... 15

3.2 IP CONFIGURATION ........................................................................................................................ 16

3.3 LOGIN PROCEDURE ........................................................................................................................ 18

CHAPTER 4 BASIC SETUP ............................................................................................................... 20

4.1 INTERNET ...................................................................................................................................... 21

4.2 WIFI 2.4GHZ ................................................................................................................................. 23

4.3 WIFI 5GHZ .................................................................................................................................... 24

4.4 LAN .............................................................................................................................................. 25

4.4.1 Configuration ........................................................................................................................ 25

4.4.2 Devices Connected ................................................................................................................ 26

4.5 FIREWALL ...................................................................................................................................... 27

4.5.1 Main Firewall ........................................................................................................................ 27

4.5.2 Parental Control .................................................................................................................... 28

CHAPTER 5 ADVANCED SETUP ..................................................................................................... 30

5.1 DSL ............................................................................................................................................... 31

5.1.1 Mode Setting .......................................................................................................................... 31

5.1.2 Status ..................................................................................................................................... 32

5.1.3 ATM Channel ......................................................................................................................... 33

5.2 MULTIPLE BRIDGE ......................................................................................................................... 34

5.2.1 LAN VLAN ............................................................................................................................. 34

5.2.2 Bridges ................................................................................................................................... 34

5.3 MULTICAST ................................................................................................................................... 35

5.4 SYSTEM ......................................................................................................................................... 36

5.4.1 Administration ....................................................................................................................... 36

5.4.2 User Management.................................................................................................................. 37

5.4.3 System Time ........................................................................................................................... 38

5.4.4 System Log ............................................................................................................................. 39

5.4.5 Diagnostics ............................................................................................................................ 40

5.5 DYNAMIC DNS .............................................................................................................................. 42

5.6 WIFI 2.4GHZ ................................................................................................................................. 45

5.6.1 Advanced ............................................................................................................................... 45

5.6.2 SSIDs ..................................................................................................................................... 47

5.6.3 WPS ....................................................................................................................................... 49

5.6.4 MAC Filtering ....................................................................................................................... 51

5.6.5 WDS ....................................................................................................................................... 52

5.6.6 Statistics ................................................................................................................................. 53

5.6.7 Airtime Fairness .................................................................................................................... 55

5.7 WIFI 5GHZ .................................................................................................................................... 58

5.7.1 Advanced ............................................................................................................................... 58

5.7.2 SSIDs ..................................................................................................................................... 60

5.7.3 WPS ....................................................................................................................................... 62

5.7.4 MAC Flitering ....................................................................................................................... 64

5.7.5 WDS ....................................................................................................................................... 66

5.7.6 Statistics ................................................................................................................................. 67

5.7.7 Airtime Fairness ........................................................................................................ ............ 69

5.8 UPNP ............................................................................................................................................ 72

5.9 QUALITY OF SERVICE .................................................................................................................... 73

6



5.9.1 QoS ........................................................................................................................................ 74

5.9.2 QoS Graphs ........................................................................................................................... 77

5.9.3 Queue Stats ............................................................................................................................ 78

5.10 ADVANCED FIREWALL ................................................................................................................. 79

5.10.1Packet Filter ........................................................................................................................ 79

5.10.2URL Filter............................................................................................................................ 81

5.11OAM DIAGNOSTICS .................................................................................................................... 82

5.11.1 ATM OAM F5 Loopback ...................................................................................................... 82

5.12NA T ............................................................................................................................................ 83

5.12.1 DMZ ..................................................................................................................................... 83

5.12.2 Port Mapping ....................................................................................................................... 84

5.12.3 Port T riggering .................................................................................................................... 86

5.13 DEVICE MANAGEMENT ............................................................................................................... 88

5.14 ROUTING ..................................................................................................................................... 90

5.14.1 Static Routing ...................................................................................................................... 90

5.14.2 RIP ....................................................................................................................................... 94

CHAPTER 6 LOGOUT ....................................................................................................................... 95

APPENDIX A – SPECIFICATIO NS .................................................................................................. 96

APPENDIX B - SSH CLIENT ............................................................................................................. 98

7

Chapter 1 Introduction

VR-3053 is a Multi-DSL router using the Intel solution. It not only provides both
ADSL and 35b VDSL but also integrated 5 Giga Ethernet ports and WLAN 802.11n

2.4GHz frequency band and 802.11ac 5GHz Frequency band. Therefore, VR -3053 is
designed for high speed applications. VR-3053 also follows TR-069 making central
management (ACS) very easy.

8

Chapter 2 Installation

2.1 Hardware Setup





Non-stackable

This device is not stackable – do not place units on top of each other, otherwise
damage could occur.

Follow the instructions below to complete the hardware setup.

9

2.1.1 Back Panel

The figure below shows the back panel of the device.

WiFi On/Off

Press and release the WiFi button to enable the WiFi function. To disable WiFi, press
and release the WiFi button.

WPS Button

Press the WPS button less than 2 seconds to enable WPS which will allow 2 minutes
for WiFi connection.

ETH WAN PORT

This port is designated to be used for Ethernet WAN functionality only. Use
1000-BASE-T RJ-45 cables to connect to Gigabit WAN server, or 10/100BASE-T
RJ-45 cables for standard network usage. This ports is auto-sensing MDI/X; so
either straight-through or crossover cable can be used.

LAN (Ethernet) Ports
You can co nnect the router to up to four LAN devices using RJ45 cables. The ports
are auto-sensing MDI/X and either straight -through or crossover cable can be used.

10

DSL

Connect to the DSL port with the DSL RJ11 cable.

Power ON

Press the power button to the OFF positi on (OUT). Connect the power adapter to the
power port. Attach the power adapter to a wall outlet or other AC sour ce. Press the
power button to the ON position (IN). If the Power LED displays as expected then
the device is ready for setup (see section – LED Indicators).

Caution 1: If the device fails to power up, or it malfunctions, first verify that the

power cords are connected securely and then power it on again. If the
problem persists, contact technical support.

Caution 2: Before servicing or disassembling this equipment, disconnect all power

cords and telephone lines from their outlets.

11

2.1.2 Bottom Panel

Reset Button

Restore the default parameters of the device by pressing the Reset button for 10
seconds. After the device has rebooted successfully, the front panel should display
as expected (see section 2.1.3 Front Panel for details).

NOTE: If pressed down for more than 60 seconds, the VR-3053 will go into a

firmware update state (CFE boot mode). The firmware can then be
updated using an Internet browser pointed to the default IP address.

12

2.1.3 Front Panel

The front panel LED indicators are shown below and explained in the fol lowing table.
This information can be used to check the status of the device and i ts connections .

LED Color Mode Function

IP connected and no traffic detected. If an IP or
PPPoE session is dropped due to an idle timeout,

INTERNET

DSL Green

On

Green

Off

Blink

Red On

On
Off

Blink

the light will remain blue.
The light will turn red when it attempts to
reconnect and DHCP or PPPoE fails.

Modem power off, modem in bridged mode or
WAN connection not present.

IP connected and IP Traffic is passing through the
device (either direction)

Device attempted to become IP connected and
failed (no DHCP response, no PPPoE response,
PPPoE authentication failed, no IP address from
IPCP, etc.)

xDSL Link is established.
xDSL Link is not established.

xDSL Link is training or data transmitting.

13

On Ethernet WAN is connected.

ETH WAN Green

5G WiFi Green

2.4G WiFi Green

WPS Green

ETH 1X-4X

Green

Off Ethernet WAN is not connected.

Blink Ethernet WAN is transmitting/ receiving.

On
Off Wi-Fi disabled.

Blink

On
Off

Blink

On
Off No WPS association process ongoing.

Slow
Blink

Fast

Blink

On
Off

Blink

Wi-Fi enabled.

Data transmitting or receiving over WLAN.
Wi-Fi enabled.
Wi-Fi disabled.
Data transmitting or receiving over WLAN.

WPS connection successful. The LED will stay on
for 3 minutes.

WPS connection in progress.

WPS connection unsuccessful. The LED will keep
blinking for 30 seconds.

An Ethernet Link is established.
An Ethernet Link is not established.

Data transmitting or receiving over Ethernet.

Green

POWER

Red On

Note:

A malfunction is any error of internal sequence or state that will prevent the device
from connecting to the DSLAM or passing customer data. This may be identified at
various times such after power on or during operation through the use of sel f testing
or in operations which result in a unit state that is not expected or should not occur.

IP connected (the device has a W AN IP address from IPCP or DHCP and DSL i s up or
a static IP address is configured, PPP negotiation has successfully complete – if
used – and DSL is up ) and no traffic detect ed. If the IP or PPPoE sessi on is dropped
for any other reason, the light is turned off. The light will turn red when it attempts
to reconnect and DHCP or PPPoE fails.

On The device is powered up.
Off The device is powered down.

POST (Power On Self Test) failure or other
malfunction. A malfunction is any error of
internal sequence or state that will prevent the
device from connecting to the DSLAM or passing
customer data.

14

Chapter 3 Web User Interface

This section describes how to access the device via the web user interface (WUI)
using an Internet browser such as Internet Explorer (version 5.0 and later).

3.1 Default Settings

The factory default settings of this device are summarized below.

 LAN IP address: 192.168.1.1
 LAN subnet mask: 255.255.255.0
 Administrative access (username: root, password: 12345)
 User access (username: user, password: user)
 Remote (WAN) access (username: support, password: support)
 WLAN access: enabled

Technical Note

During power on, the device initializes all set tings to default values. It will then

read the configuration profile from the permanent storage section of flash memory .
The default attributes are overwritten when identical attributes with di fferent values
are configured. The configuration profile in permanent storage can be created via
the web user interface or telnet user interface, or other management protocols.
The factory default configuration can be res tored either by pushing the reset button
for more than ten seconds until the power indicates LED blinking or by clicking the
Restore Default Configuration option in the Restore Settings screen.

15

3.2 IP Configuration

DHCP MODE

When the VR-3053 powers up, the onboard DHCP server will switch on. Basically,
the DHCP server issues and reserves IP addresses for LAN devices, suc h as your PC.

To obtain an IP address from the DCHP server, follow the steps provided below.

NOTE: The following procedure assumes you are running Windows. However,

the general steps involved are similar for most operating systems (OS).
Check your OS support documentation for further details.

STEP 1: From the Network Connections window, open Local Area Connection (You

may also access this screen by double-clicking the Local Area Connectio n
icon on your taskbar). Click the Properties button.

STEP 2: Select Internet Protocol (TCP/IP) and click the Properties button.
STEP 3: Select Obtain an IP address automatically as shown below.

STEP 4: Click OK to submit these settings.

If you experience difficulty with DHCP mode, you can try static IP mode instead.

16

STATIC IP MODE

In static IP mode, you assign IP settings to your PC manually.
Follow these steps to configure your PC IP address to use subnet 192.168.1.x.

NOTE: The following procedure assumes you are running Windows. However,

the general steps involved are similar for most operating systems (OS).
Check your OS support documentation for further details.

STEP 1: From the Network Connections window, open Local Area Connection (You

may also access this screen by double-clicking the Local Area Connectio n
icon on your taskbar). Click the Properties button.

STEP 2: Select Internet Protocol (TCP/IP) and click the Properties button.
STEP 3: Change the IP address to the 192.168.1.x (1<x<255) subnet with subnet

mask of 255.255.255.0. The screen should now display as shown below .

STEP 4: Click OK to submit these settings.

17

3.3 Login Procedure

Perform the following steps to login to the web user interface.

NOTE: The default settings can be found in 3.1 Default Settings.

STEP 1: Start the Internet browser and en ter the default IP address for the device

in the Web address field. For example, if the default IP address is

192.168.1.1, type http://192.168.1.1.

NOTE: For local administration (i.e. L AN access), the PC running the browser

must be attached to the Ethernet, and not necessarily to the device.

STEP 2: A dialog box will appear, such as the one below. Enter the default

username and password, as defined in section 3.1 Default Settings.

Click OK to continue.

18

STEP 3: After successfully logging in for the first time, you will reach this screen.

You can also reach this page by clicking on the following icon located at the top of
the screen.

19

Chapter 4 Basic Setup

You can reach this page by clicking on the following icon located at the top of the
screen.

The web user interface window is divided into two frames, the main menu (at left)
and the display screen (on the right). The main menu has several options and
selecting each of these options opens a submenu with more selections.

NOTE: The menu items shown are based upon the configured connection(s) and

user account privileges. For example, if NA T and Firewall are enabled, the
main menu will display the NAT and Security submenus. If either is
disabled, their corresponding menu(s) will also be disabled.

This screen shows hardware, software, IP settings and other related information.

20

4.1 Internet

Click on the internet tab to display the following.

For a tour of the page, please click the question mark icon
right-hand side of this screen.

To add aconnection, click the

button to display the following.

on the upper

Click the Information icon
information on Internet Connections.

on the upper right-hand side of this screen for

21

IPv6 for your reference.

22

4.2 WiFi 2.4GHz

Configure the main wireless LAN interface that operates in the 2.4GHz range. It
offers greater coverage and supports legacy devices.

Click the Information icon
information on 2.4GHZ WiFi Settings.

on the upper right-hand side of this screen for

23

4.3 WiFi 5GHz

Configure the main wireless LAN interface that operates in the 5GHz range. It offers
less interference and is ideal for media streaming and gaming .

Click the Information icon
information on 5GHZ WiFi Settings.

on the upper right-hand side of this screen for

24

4.4 LAN

4.4.1 Configuration

Configuration support to provide IP address to devices connected on the LAN side of
the CPE. Applicable for all wired and wireless devices that requests a dynamic IP
address.

Click the Information icon on the upper right-hand side of this screen for
information on Local Network Settings.

25

4.4.2 Devices Connected

This displays the List of Clients Connected on the LAN Side of the CPE.

MAC Address

MAC address of the device that is connected to the LAN port.

Host Name

Host Name of the device that is connected to the LAN port.

IP Address

IP Address of the device that is connected to the LAN port.

Click the

button to refresh the screen.

26

4.5 Firewall

4.5.1 Main Firewall

The CPE device provides extensive firewall protection against a wide array of
common hacker attacks. This is done by restricting connection parameters to limit
the risk of intrusion. Application layer protocol services can be enabled/disabled
from this page.

Click the Information icon
information on Main Firewall Settings.

on the upper right-hand side of this screen for

27

4.5.2 Parental Control

Access to the internet from LAN Host PCs can be controlled based on MAC addresses
and Time of Day.

Select the default action Permit or Deny and click the

Click the

button to display the following.

button.

28

Click the Information icon
information on Parental Control Rules.

Click the

button to save your Parental Control Rules.

on the upper right-hand side of this screen for

29

Chapter 5 Advanced Setup

You can reach this page by clicking on the following icon located at the top of the
screen.

The web user interface window is divided into two frames, the main menu (at left)
and the display screen (on the right). The main menu has several options and
selecting each of these options opens a submenu with more selections.

30

5.1 DSL

5.1.1 Mode Setting

DSL(Digital Subscriber Line) offers WAN DSL Connectivity on various DSL Modes. Provides
configuration for xDSL modes, various annex modes and upstream and downstream
attributes.

Click the Information icon
information on Mode Setting.

on the upper right-hand side of this screen for

31

5.1.2 Status

Provides the various status and statistics information.

32

5.1.3 ATM Channel

This page Displays all ATM channels configured, and allows users to delete
configured channels. Please avoid deleting ATM channels on which Internet
connections are configured.

VPI/VCI
The Identifier of the Virtual Path and the Virtual Channel for the ATM.

Encapsulation

The encapsulation types are LLC and VCMUX.

Link Type

The link type of the ATM.

AAL

For Types of service: AAL1, AAL2, AAL3 AAL4 and AAL5.

Enable

Displays the status.

Actions

Displays details of actions.

33

5.2 Multiple Bridge

5.2.1 LAN VLAN

Click the Information icon
information on the LAN VLAN Settings.

on the upper right-hand side of this screen for

5.2.2 Bridges

Displays Bridge Interfaces.

Click the Information icon
information on Bridges Settings.

on the upper right-hand side of this screen for

34

5.3 Multicast

This page allows you to configure the Multicast services.

Click the Information icon
information on Multicast Settings.

on the upper right-hand side of this screen for

35

5.4 System

5.4.1 Administration

This page allows users to take configuration backup, restore to previous
configuration or to factory settings, upgrade firmware and reboot device.

Click the Information icon
information on Administration Settings.

on the upper right-hand side of this screen for

36

5.4.2 User Management

Configure new users with add delete and modify options.

Click the

button to display the following.

37

Click the Information icon on the upper right-hand side of this screen for
information on User Management Settings.

5.4.3 System Time

Configuration to enable the device to synchronize the system time with the time
servers.

Click the Information icon
information on System Time Settings.

on the upper right-hand side of this screen for

38

5.4.4 System Log

The CPE device provides customized logging the messages to File, Remote.

Click the Information icon
information on System Log Settings.

on the upper right-hand side of this screen for

39

5.4.5 Diagnostics

Allows diagnosis to be performed on various sub-systems of the CPE.

Click the

Input the IP/Host address and click the
below for ping test result.

button to restart the diagnostic tests.

button start the test. See

40

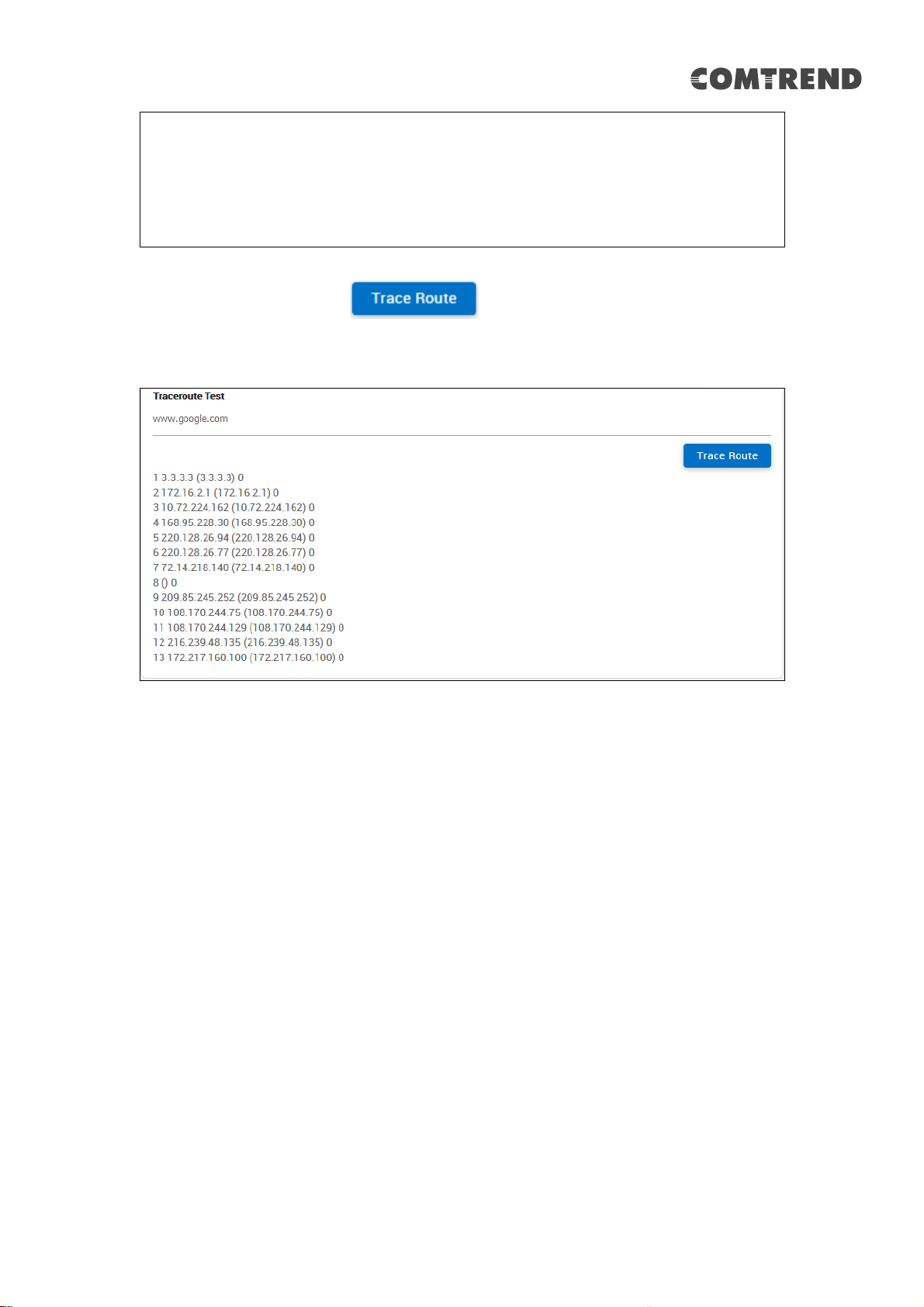

Input the url and click the
trace route result.

button start the test. See below for

41

5.5 Dynamic DNS

Dynamic DNS allows the user to update wa n I P address wi th one or man y dynamic
DNS services. So anyone can access services on computer using DNS-like address.

42

Client Settings

Click the button to display the following.

Click the Information icon
information on Client Settings.

on the upper right-hand side of this screen for

43

Supported Servers

Click the button to display the following.

Click the Information icon
information on Server Settings.

on the upper right-hand side of this screen for

44

5.6 WiFi 2.4GHz

5.6.1 Advanced

Advanced settings for the wireless LAN interfaces that operate in the 2.4GHz r ange.
Typically you shouldn't need to change these settings.

The settings shown above are described below.

45

DTIM
A value between 1~255.

Beacon Interval

100 ms by default.

Power Scale

12/25/50/100 and 100 by default.

Explicit Beamforming

Turned on by default.

Implicit Beamforming

Turned on by default.

LDPC

Turned on by default.

STBC

Turned on by default.

Number of Antennas

Select number of antennas; 1 or 2.

WMM PS

Enabled by default.

46

5.6.2 SSIDs

Configure multiple virtual access points. Typical use is to allow guest access to the
internet while preventing guests from connecting to your main network.

Click the

The settings shown above are described below.

SSID

2.4G SSID.

Security Type

Select the security type from the drop-down menu; WEP, WPA1 or WPA2.

button to display the following.

47

WPS Enabled

Tick the box to enable.

Click the

The settings shown above are described below.

Rekey Interval

button to display the following.

3600 seconds by default.

Passphrase

The password.

AP Isolation

Enable/Disable AP isolation.

Max Connected STAs

The maximum number of STAs that can be connected.

WMM-PS

Enable/disable WMM power save.

Bridge Name

WiFi Bridge Interface Name.

48

5.6.3 WPS

Connect a device by pushbutton or PIN, or connect this AP to an existing network
through WPS.

Click the

Click the button, then press the WPS pus hbutton on the device
you want to connect within two minutes.

To connect a new device by PIN (Personal Identification Number), input the Client
device PIN and Client device MAC address, then click the

button.

button to reset WPS to Unconfigured mode.

49

To add this device to a network, enter the PIN in the box on the managing device.

To create a new PIN, Click the

button.

50

5.6.4 MAC Filtering

Configurations to block devi ces from conn ecting or allow devices to connect, based
on their MAC address.

The settings shown above are described below.

SSID

2.4G SSID.

ACL Mode

Select the access control list mode from the drop-down menu.

To add a filter, click the button to display the following.

Input the MAC address and click the

or box to allow or deny.

51

5.6.5 WDS

Wireless Distribution System.

The settings shown above are described below.

SSID

2.4G Wi-Fi SSID.

WDS Mode

WDS mode setting:
Disabled
Legacy (Just support 802.11g with WEP)
Hybrid (Support both AP and WDS functions.)

Click the

button to save the entry.

52

5.6.6 Statistics

Displays WLAN statistics of the access point and connected devices.

The settings shown above are described below.

SSID

2.4G Wi-Fi SSID.

53

Associated Devices

Heading Description

MAC Address MAC address of the STA
IP Address IP address of the STA
Last Tx PHY Rate Tx PHY Rate of the Wi-Fi connection
Last Rx PHY Rate Rx PHY Rate of the Wi-Fi connection

RSSI (dBm)

Shows RSSI3 and RSSI4 for two antennas

RSSI2 (dBm)
RSSI3 (dBm)
RSSI4 (dBm)

SSID Statistics

Heading Description

ACK Failure Count Number of ACK Failure Count
Aggregated Packet Count Number of Aggregated Packet Count
Broadcast Packets Received Number of Broadcast Packets Received
Broadcast Packets Sent Number of Broadcast Packets Sent
Bytes Received Number of Bytes Received
Bytes Sent Number of Bytes Sent
Discard Packets Received Number of Discard Packets Received
Discard Packets Sent Number of Discard Packets Sent
Errors Received Number of Errors Received
Packets not transmitted due to

Number of Packets not transmitted due to error

error
Failed Retransmission Count Number of Failed Retransmission Count
Multicast Packets Received Number of Multicast Packets Received
Multicast Packets Sent Number of Multicast Packets Sent
Multiple Retry Count Number of Multiple Retry Count
Packets Received Number of Packets Received
Packets Sent Number of Packets Sent
Retransmitted packets Number of Retransmitted packets
Retry Count Number of Retry Count
Unicast Packets Received Number of Unicast Packets Received
Unicast Packets Sent Number of Unicast Packets Sent

54

5.6.7 Airtime Fairness

Check the checkbox

to display the following.

Click the

button to enable airtime fairness for varied wireless clients.

55

The settings shown above are described below.

ATM Distribution Type

 Static: If an STA does not fully use its grant, do not pass it to other STAs.
 Dynamic: If an STA does not fully use its grant, pass the remaining grant to

other STAs.

ATM Algorithm Type

 Global: The grant(weight) allocated to STAs is equally divided between all

STAs.

 Weighted: Each STA or SSID (VAP) has a predefined weight in % of the total

airtime. Weights can be:

 Per AC (Access Category)
 Per STA
 Per SSID
 Per SSID, then per STA

ATM Interval (msecs)

This is basic time frame in milliseconds that is used for ATF calculations.

ATM Free Time (msecs)

This is basic time frame in milliseconds that is subtracted from the ATM Interval.
Default free time interval value is 0ms.

VAP Level Airtime Fairness

Check the checkbox to display the following.

Then click the icon to edit the entry. Cli ck the button to apply your
changes.

56

Station Level Airtime Fairness

Check the checkbox to display the following.

Click the

button to add an entry.

Then click the

icon to edit the entry. Cli ck the button to apply your

changes.

If required, click the

icon to delete an entry.

57

5.7 WiFi 5GHz

5.7.1 Advanced

Advanced settings for the wireless LAN interfaces that operate in the 2.4GHz r ange.
Typically you shouldn't need to change these settings.

The settings shown above are described below.

58

DTIM
A value between 1~255.

Beacon Interval

100 ms by default.

Power Scale

12/25/50/100 and 100 by default.

Explicit Beamforming

Turned on by default.

Implicit Beamforming

Turned on by default.

LDPC

Turned on by default.

STBC

Turned on by default.

Number of Antennas

Select number of antennas; 1 or 2.

WMM PS

Enabled by default.

59

5.7.2 SSIDs

Configure multiple virtual access points. Typical use case is to allow guest access to
the internet while preventing guests from connecting to your main network.

Click the

The settings shown above are described below.

SSID

2.4G SSID.

Security Type

Select the security type from the drop-down menu; WEP, WPA1 or WPA2.

WPS Enabled

button to display the following.

Tick the box to enable.

60

Click the button to display the following.

The settings shown above are described below.

Rekey Interval

3600 seconds by default.

Passphrase

The password.

AP Isolation

Enable/Disable AP isolation.

Max Connected STAs

The maximum number of STAs that can be connected.

WMM-PS

Enable/disable WMM power save.

Bridge Name

WiFi Bridge Interface Name.

61

5.7.3 WPS

Connect a device by pushbutton or PIN, or connect this AP to an existing network
through WPS.

Click the

Click the button, then press the WPS pushbutt on on the device
you want to connect within two minutes.

To connect a new device by PIN (Personal Identification Number), input the Client
device PIN and Client device MAC address, then click the

button.

button to reset WPS to Unconfigured mode.

62

To add this device to a network, enter the PIN in the box on the managing device.

To create a new PIN, Click the

button.

63

5.7.4 MAC Flitering

Configurations to block devi ces from conn ecting or allow devices to connect, based
on their MAC address.

The settings shown above are described below.

SSID

2.4G SSID.

ACL Mode

Select the access control list mode from the drop-down menu.

64

To add a filter, click the button to display the following.

Input the MAC address and click the

or box to allow or deny.

65

5.7.5 WDS

Wireless Distribution System.

The settings shown above are described below.

SSID

2.4G Wi-Fi SSID.

WDS Mode

WDS mode setting:
Disabled
Legacy (Just support 802.11g with WEP)
Hybrid (Support both AP and WDS functions.)

Click the

button to save the entry.

66

5.7.6 Statistics

Displays WLAN statistics of the access point and connected devices.

The settings shown above are described below.

SSID

5G Wi-Fi SSID.

67

Associated Devices

Heading Description

MAC Address MAC address of the STA
IP Address IP address of the STA
Last Tx PHY Rate Tx PHY Rate of the Wi-Fi connection.
Last Rx PHY Rate Rx PHY Rate of the Wi-Fi connection.

RSSI (dBm)

Shows RSSI3 and RSSI4 for two antennas.

RSSI2 (dBm)
RSSI3 (dBm)
RSSI4 (dBm)

SSID Statistics

Heading Description

ACK Failure Count Nu mber of ACK Failure Count
Aggregated Packet Count Number of Aggregated Packet Count
Broadcast Packets Rece ived Number of Broadcast Packets Received
Broadcast Packets Sent Number of Broadcast Packets Sent
Bytes Received Number of Bytes Received
Bytes Sent Number of Bytes Sent
Discard Packets Received Number of Discard Packets Received
Discard Packets Sent Number of Discard Packets Sent
Errors Received Number of Errors Received
Packets not transmitted due

Number of Packets not transmitted due to error
to error

Failed Retransmission

Number of Failed Retransmission Count
Count

Multicast Packets Received Number of Multicast Packets Received
Multicast Packets Sent Number of Multicast Packets Sent
Multiple Retry Count Number of Multiple Retry Count
Packets Received Number of Packets Received
Packets Sent Number of Packets Sent
Retransmitted packets Number of Retransmitted packets
Retry Count Number of Retry Count
Unicast Packets Received Number of Unicast Packets Received
Unicast Packets Sent Number of Unicast Packets Sent

68

5.7.7 Airtime Fairness

Check the checkbox

to display the following.

Click the

button to enable airtime fairness for varied wireless clients.

69

The settings shown above are described below.

ATM Distribution Type

 Static: If an STA does not fully use its grant, do not pass it to other STAs.
 Dynamic: If an STA does not fully use its grant, pass the remaining grant to

other STAs.

ATM Algorithm Type

 Global: The grant(weight) allocated to STAs is equally divided between all

STAs.

 Weighted: Each STA or SSID (VAP) has a predefined weight in % of the total

airtime. Weights can be:

 Per AC (Access Category)
 Per STA
 Per SSID
 Per SSID, then per STA

ATM Interval (msecs)

This is basic time frame in milliseconds that is used for ATF calculations.

ATM Free Time (msecs)

This is basic time frame in milliseconds that is subtracted from the ATM Interval.
Default free time interval value is 0ms.

VAP Level Airtime Fairness

Check the checkbox to display the following.

Then click the icon to edit the entry. Click the button to a pply your
changes.

70

Station Level Airtime Fairness

Check the checkbox to display the following.

Click the button to add an entry.

Then click the
changes.

If required, click the

icon to edit the entry. Cl ick the button to appl y your

icon to delete an entry.

71

5.8 UPnP

Click the radio button to

button to save your choice.

Click the

button to refresh the screen.

to enable UPnP protocol and then click the

72

5.9 Quality of Service

Quality of Service (QoS) settings enables you to manage and optimize the
performance of the applications. It shapes the network traffic and prioritizes the
devices and services by controlling the bandwidth allocation.

73

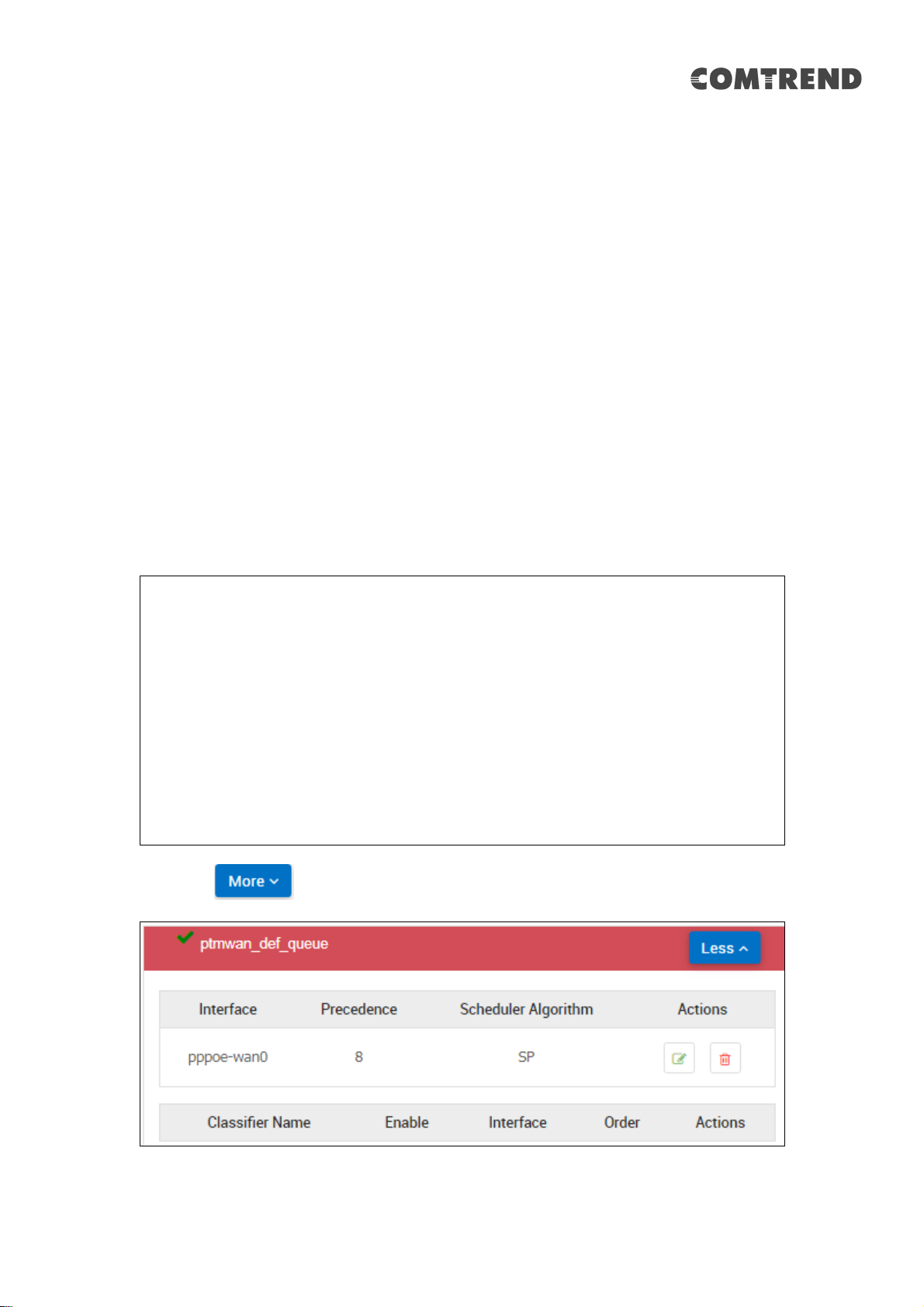

5.9.1 QoS

(QoS) settings enables] you to manage and optimize the performance of the
applications. Select Ingress or Egress from each of the drop-down menus –
LAN, WLAN, DSL, WAN and Eth WAN.

Click the

button to see more detail on each entry.

74

Then click the icon to edit the entry.

If required, click the

Click the

icon to delete an entry.

button to display the following.

Click the Information icon

on the upper right-hand side of this screen for

information on Queue Configuration Settings.

75

Click the button to display the following.

Click the Information icon
information on Classifier Settings.

on the upper right-hand side of this screen for

76

5.9.2 QoS Graphs

This function is not supported on this firmware release.

77

5.9.3 Queue Stats

Shows the statistics of configured queues.

Click the Information icon
information on Quque Statistics info.

on the upper right-hand side of this screen for

78

5.10 Advanced Firewall

This page allows the user to view and configure rules. Please make sure to enable
Firewall and Packet filter feature.

Note: New rules configured will not be applicable to existing running sessions.
Warning: Use this feature judiciously. Incorrect configuration may render device

inaccessible.

5.10.1 Packet Filter

By enabling Packet filter, traffic can be passed or blocked at a network interface
based on source and destination addresses, ports, or protocols.

By default packet filter is disabled. T o filter the tr affic, firewall and packet filter must
be enabled and a rule should be added based on source and destination address,
ports or protocols.

Click the

button to display the following.

79

Click the Information icon
information on Packet Filter settings.

on the upper right-hand side of this screen for

80

5.10.2 URL Filter

This page allows the user to configure URL Filter feature.

Click the Information icon on the upper right-hand side of this screen for
information on Packet Filter settings.

81

5.11 OAM Diagnostics

This page allows user to Test OAM.

5.11.1 ATM OAM F5 Loopback

Click the Information icon
information on ATM OAM F5 Loopback Diagnostic results.

on the upper right-hand side of this screen for

82

5.12 NAT

5.12.1 DMZ

This page allows the user to view and configure the virtual DMZ Host. Such a
configuration opens up the specified host to unrestricted two-way Internet access.

Click the Information icon
information on DMZ settings.

on the upper right-hand side of this screen for

83

5.12.2 Port Mapping

Configure a rule to allow remote computers (for example, computers on the
Internet) to connect to a specific computer or service within a LAN.

Click the

button to display the following.

84

Click the Information icon on the upper right-hand side of this screen for
information on Port Mapping settings.

85

5.12.3 Port Triggering

Port triggering opens an incoming port when the user's computer is using a specified
outgoing port(trigger) for specific traffic.

Click the

button to display the following.

86

Click the Information icon on the upper right-hand side of this screen for
information on Port Trigger settings.

87

5.13 Device Management

The settings shown above are described below.

88

Heading Description

CWMP Enable Shows if enabled or disabled
ACS URL ACS URL
ACS Username Admin by default
ACS Password Admin by default
Connection Request URL Connection Request URL
Connection Request Username Admin by default
Connection Request Password Admin by default

Periodic Inform Enable Periodic Inform Enable
Periodic Inform Interval 300 seconds by default
Periodic Inform Time Periodic Inform Time

CWMP Retry Minimum Wait Interval 5 seconds as default
CWMP Retry Interval Multiplier Max Retry Interval 2000 seconds

If you need to modify the settings, first make the change, and then click the

Click the

Click the

button.

button to refresh to previous settings.

button to send the inform details to the ACS server.

89

5.14 Routing

Web Page to Add/Delete Static Route in the System.

5.14.1 Static Routing

Click the first

button to display the following (IPv4 Static Route).

90

The settings shown above are described below.

Heading Description

Destination IP Address Destination Server or Gateway IP
Destination Subnetmask 255.255.x.x
Gateway IP Address 192.168.1.x
Interface Interface connect to Destination Server or GW (br-lan or

ptm)

91

Click the second

button to display the following (IPv6 Static Route).

92

The settings shown above are described below.

Heading Description

Destination IP Prefix EX: 2001:DB8:3000:0/16
NextHop EX: 2001:DB8:1:1
Interface EX: Ethernet1/0

93

5.14.2 RIP

This page allows to enable or disable RIP and set mode of operation.

Click the Information icon
information on Routing Information Protocol settings.

on the upper right-hand side of this screen for

94

Chapter 6 Logout

To log out from the device simply click the following icon located at the top of your
screen.

Upon successful exit, the following message will be displayed.

95

Appendix A – Specifications

Hardware

．RJ-11 X1 for VDSL2 (35b)/ADSL2+ (Annex A)
．RJ-45 X 4 for GELAN
．RJ-45 X 1 for GEWAN
．Reset button X 1
．WPS button X 1

． Guest WiFi button X 1
．Internal Antenna X 2
． Power switch X 1

ADSL

．G.994
．G.992.1 (G.dmt) Annexes A
．G.992.2 (G.lite) Annexes A
．ANSI T1.413
．G.992.3 (ADSL2) Annexes A
．G.992.5 (ADSL2+) Annexes A

VDSL

．G.993.2(VDSL2) 35b, 30a, 17a, 12a, 12b, 8a, 8b, 8c, 8d
．G.993.5 (G.vector)
．G.998.4 (G.INP)
．SRA (Seamless Rate Adaptation)
．UPBO (Upstream Power Back-off)

Ethernet

． IEEE 802.3, IEEE 802.3u IEEE 802.3ab
． 10/100 /1000 BASE-T, auto-sense
． Support MDI/MDX

Networking Protocols

．RFC 2364 (PPPoA), RFC 2684 (RFC 1483) Bridge/R outer, RFC 2516 (PPPoE); RFC

1577 (IPoA)

．PPPoE Pass-Through, Multiple PPPoE Sessions on Single WAN Interface
．PPPoE Filtering of Non-PPPoE Packets Between WAN and LAN
．Transparent Bridging Between all LAN and WAN Interfaces
．802.1p/802.1q VLAN, DSCP
．IGMP Proxy V1/V2/V3, IGMP Snooping V1/V2/V3, Fast leave
．Static route, RIP v1/v2, ARP, RARP, SNTP
．DHCP Server/Client/Relay, DNS Proxy/ Relay, Dynamic DNS, UPnP, DLNA
．IPv6 Dual Stack, IPV6 Rapid Deployment (6RD)

96

Management

． TR-069/TR-098/TR-104/TR-111/TR-181, SNMP, Telnet, Web- Based

Management, Configuration Backup and Restoration

． Software Upgrade via HTTP, TFTP Server, or FTP Server

Firewall/Filtering

．Stateful Packet Inspection Firewall
．Stateless Packet Filter
．URI/URL Filtering
．TCP/IP/Port/Interface Filtering Rules Support Both Incoming and Outgoing

Filtering

NAT/PAT

．Port Triggering
．Port Forwarding (Virtual Server)
．Symmetric port-overloading NAT, Full-Co ne NAT
．DMZ host
．VPN Pass Through (PPTP, L2TP, IPSec)

Wireless

．IEEE 802.11n, 2.4GHz, 2T2R
Backward compatible with 802.11g/b
2412～2462 MHz
．IEEE 802.11ac,5GHz, 2T2R,
Backward compatible with 802.11n/a
U-NII-1 ( 5150～5250 MHz )
U-NII-3 ( 5725～5825 MHz )

．WPA/WPA-PSK, WPA2/WPA2-PSK with TKIP & AES Security Type
．Multiple SSID
．MAC Address Filtering

Power Supply

．External power adapter: 12Vdc/ 2.0A

Certification

．FCC, UL, IC, cUL standard
Note : Specification are subject to change without note.

Environment

．Operating Temperature: 0°C ~40°C (32°F ~104°F)
．Operating Humidity: 10%~90% non-condensing
．Storage Temperature: -25°C ~65°C (-23°F ~149°F)
．Storage Humidity: 5%~90% non-condensing

Kit Contents

(1*VR-3053, 1*RJ11 cable, 1*RJ45 cable, 1*power adapter, 1*CD-ROM)

NOTE: Specifications are subject to change without notice

97

Appendix B - SSH Client

Unlike Microsoft Windows, Linux OS has a ssh client included . For Wi ndows users,
there is a public domain one called “putty” that can be downloaded from here:

http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html

To access the ssh client you must first enable SSH access for the LAN or WAN from
the Management  Access Control  Services menu in the web user interface.

To access the router using the Linux ssh client
For LAN access, type: ssh -l root 192.168.1.1

For WAN access, type: ssh -l root WAN IP address

To access the router using the Windows “putty” ssh client
For LAN access, type: putty -ssh -l root 192.168.1.1

For WAN access, type: putty -ssh -l root WAN IP address

NOTE: The WAN IP address can be found on the Device Info  WAN screen

98
