CT-820C VoIP Gateway User’s Manual

Version A2.0, December 26, 2007

261053-034

Preface

This manual provides information to network administrators. It covers the

installation, operation and application of this device. The individual reading this

manual is presumed to have a basic understanding of telecommunications.

Technical support

If you find the product to be inoperable or malfunctioning, please contact

technical support for immediate service by email at INT-support@comtrend.com

For product update, new product release, manual revision, or software upgrades,

visit Comtrend Corporation at http://www.comtrend.com

Warning

• Before servicing, disconnect power and telephone lines from the device

• Use an appropriate power supply and a UL Listed telephone line cord

Power specifications are clearly stated in Appendix C: Specifications

contained herein is proprietary to Comtrend Corporation. No part of this

document may be translated, transcribed, reproduced, in any form, or by any

means without prior written permission by Comtrend Corporation.

This document is subject to change without notice.

CHAPTER 1 INTRODUCTION .....................................................................................................4

1.1 FEATURES........................................................................................................................................4

1.2 APPLICATION ...................................................................................................................................5

1.3 LED INDICATORS ............................................................................................................................6

CHAPTER 2 HARDWARE SETUP................................................................................................7

CHAPTER 3 WEB USER INTERFACE........................................................................................8

3.1 DEFAULT SETTINGS .........................................................................................................................8

3.2 TCP/IP SETTINGS............................................................................................................................9

3.3 LOGIN PROCEDURE........................................................................................................................10

CHAPTER 4 DEVICE INFORMATION......................................................................................13

4.1 WAN .............................................................................................................................................14

4.2 STATISTICS.....................................................................................................................................15

4.2.1 LAN Statistics..................................................................................................................15

4.2.2 WAN Statistics.................................................................................................................16

4.3 ROUTE...........................................................................................................................................17

4.4 ARP...............................................................................................................................................18

4.5 DHCP ...........................................................................................................................................19

CHAPTER 5 ADVANCED SETUP ...............................................................................................20

5.1 WAN .............................................................................................................................................20

5.2 LAN..............................................................................................................................................28

5.3 NAT ..............................................................................................................................................29

5.3.1 Virtual Servers................................................................................................................29

5.3.2 Port Triggering...............................................................................................................31

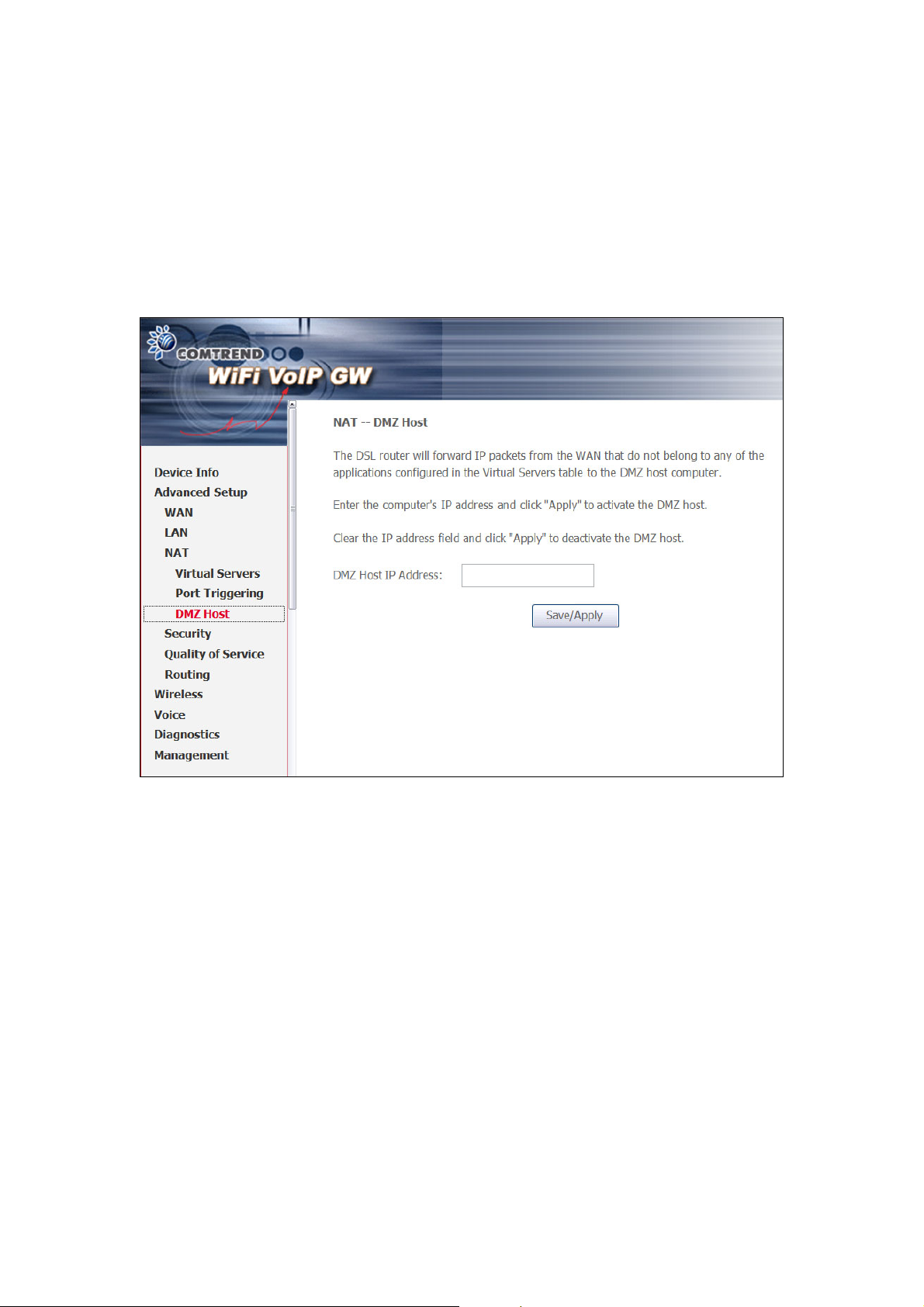

5.3.3 DMZ Host.......................................................................................................................33

5.4 SECURITY ......................................................................................................................................34

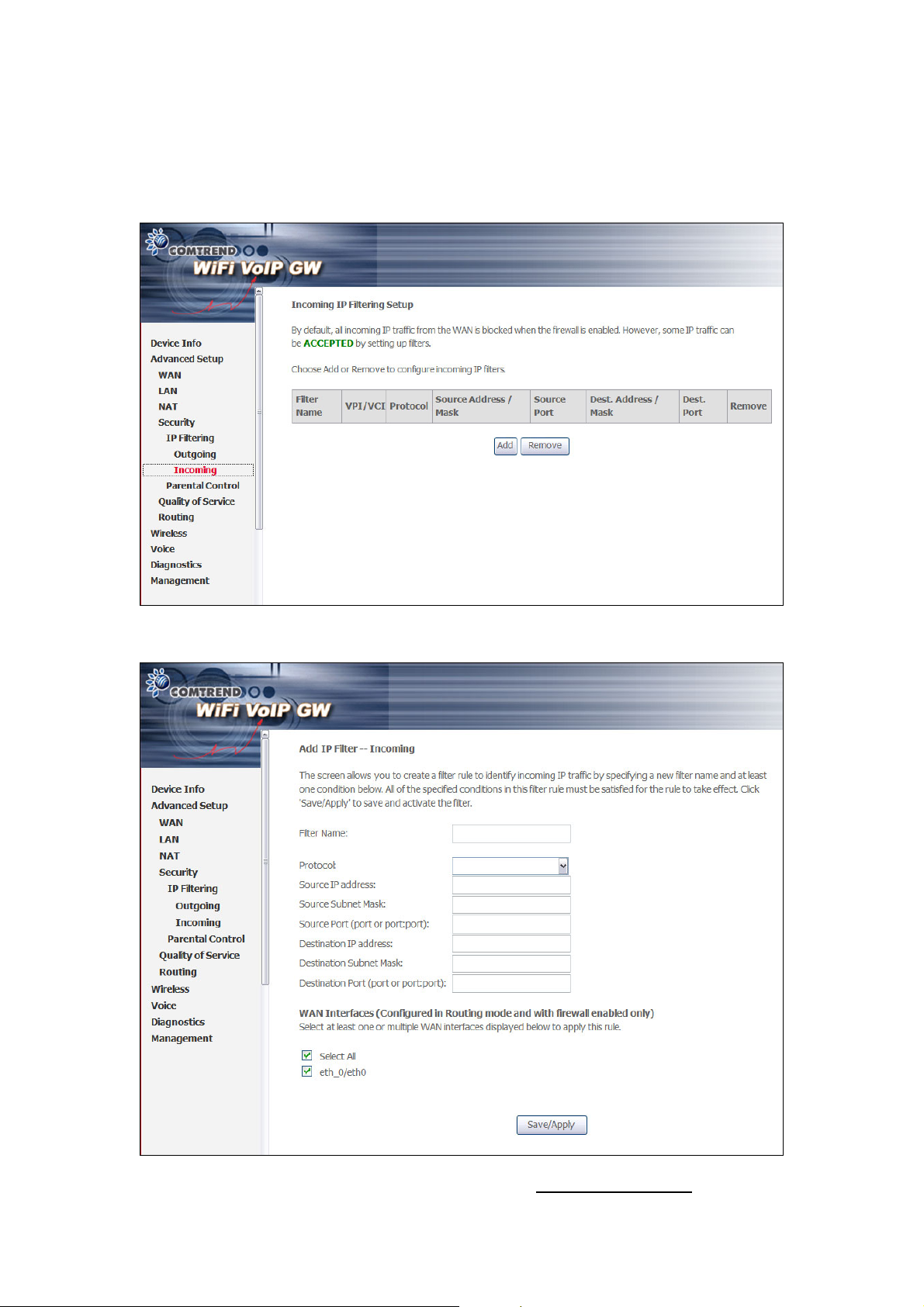

5.4.1 IP Filtering.....................................................................................................................34

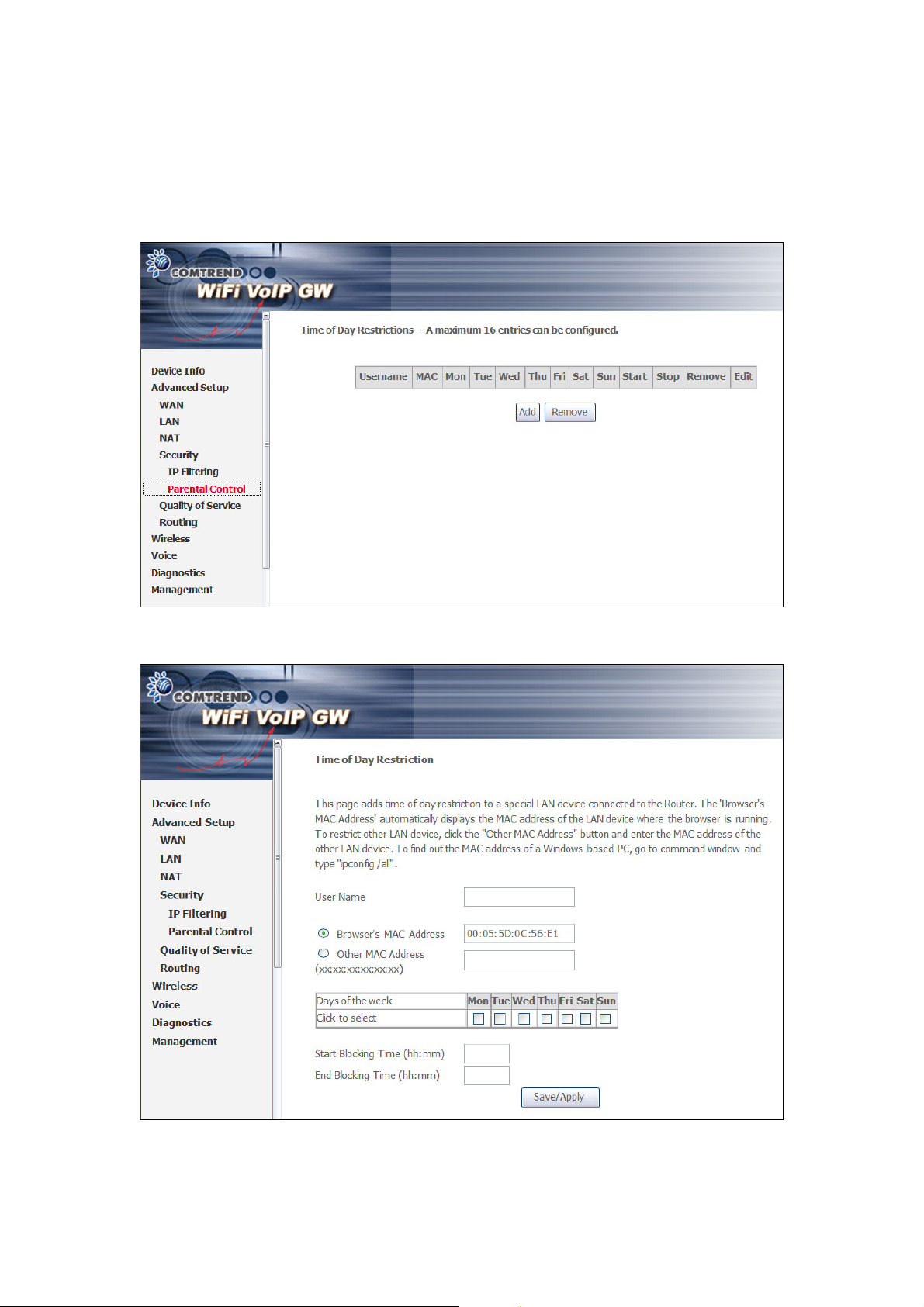

5.4.2 Parental Control.............................................................................................................37

5.5 QUALITY OF SERVICE ....................................................................................................................38

5.6 ROUTING .......................................................................................................................................39

5.6.1 Default Gateway.............................................................................................................39

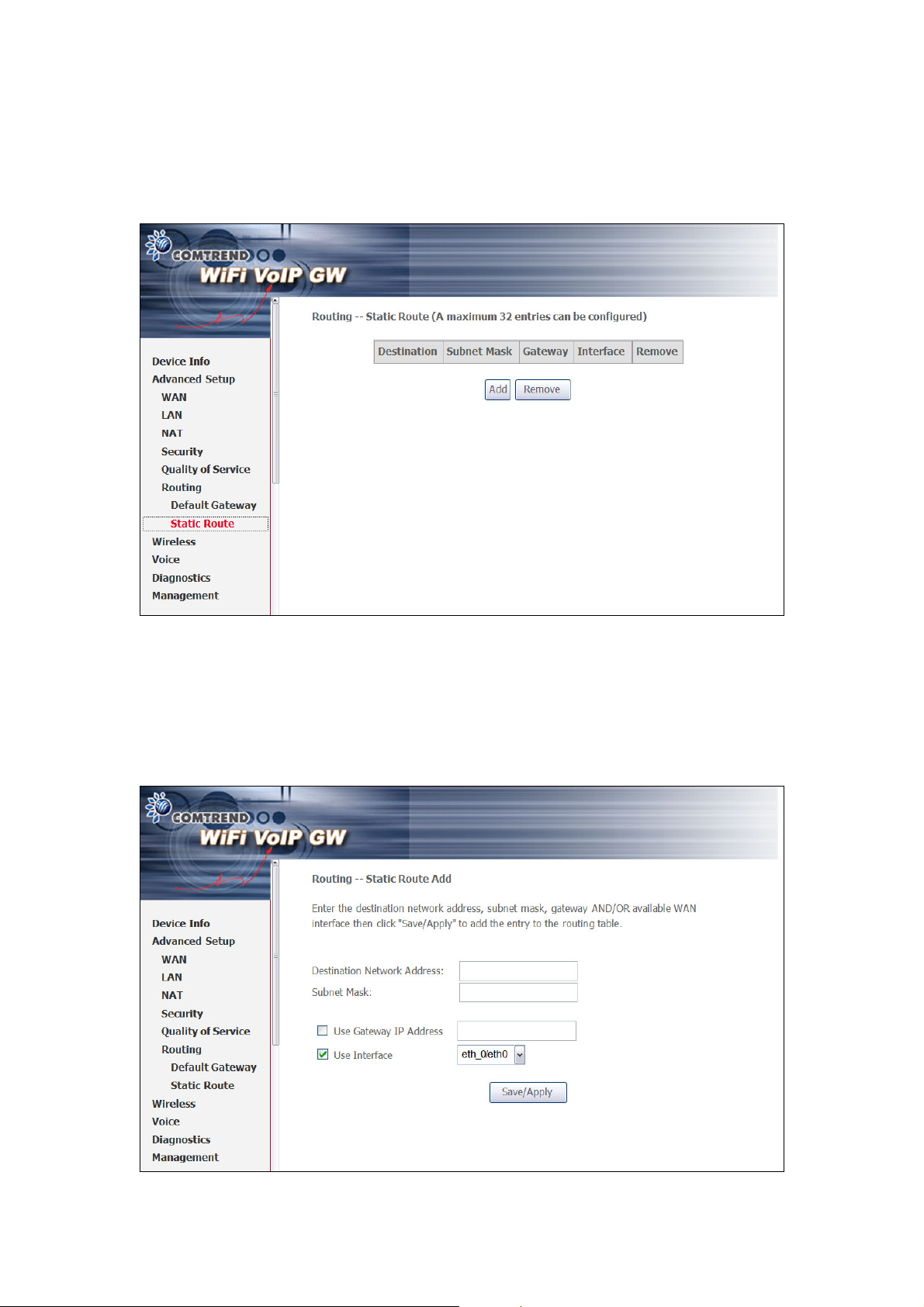

5.6.2 Static Route.....................................................................................................................40

CHAPTER 6 WIRELESS ..............................................................................................................41

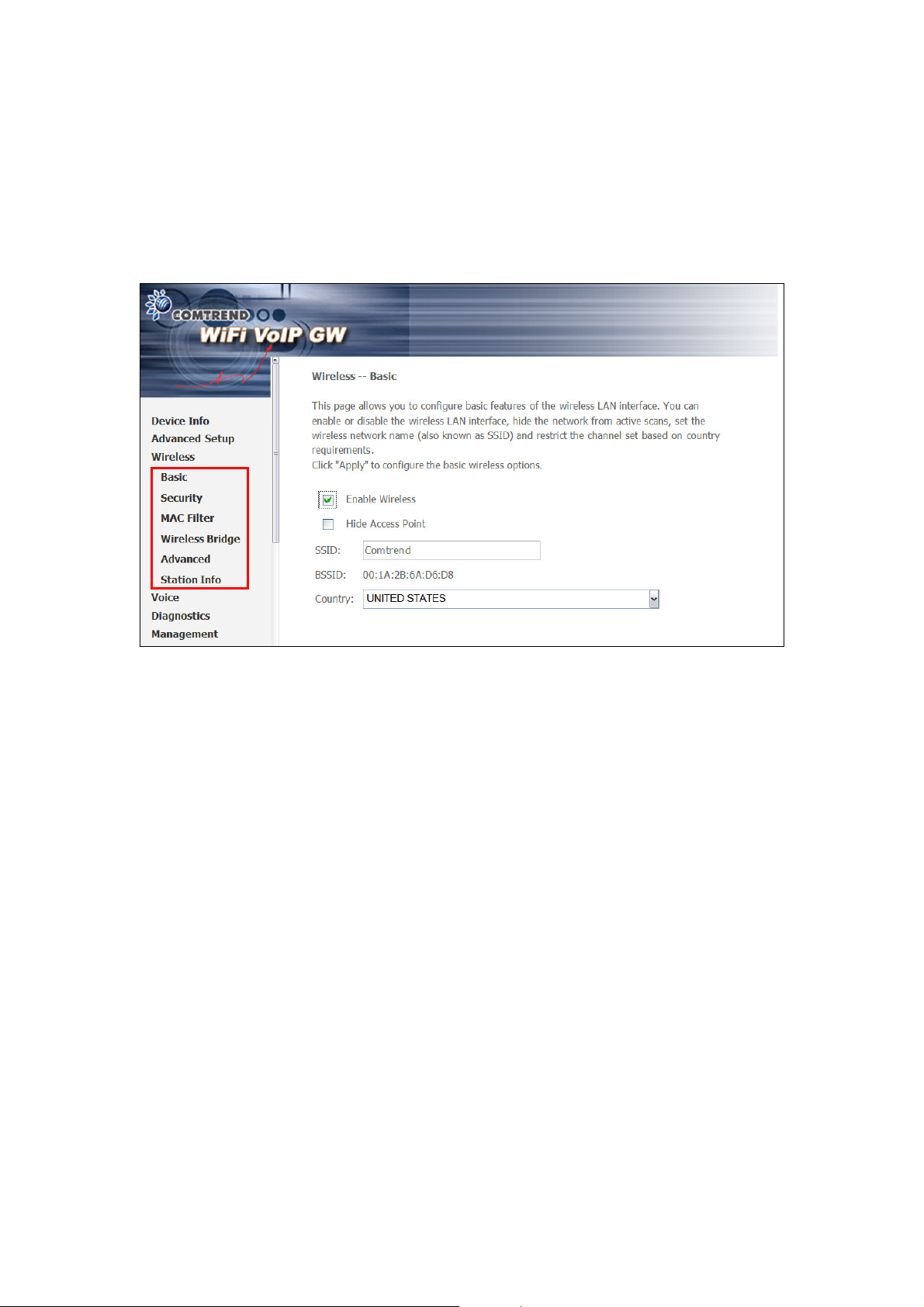

6.1 BASIC ............................................................................................................................................41

6.2 SECURITY ......................................................................................................................................43

6.3 MAC FILTER .................................................................................................................................46

6.4 WIRELESS BRIDGE.........................................................................................................................48

6.5 ADVANCED ....................................................................................................................................49

6.6 STATION INFO ................................................................................................................................52

CHAPTER 7 VOICE......................................................................................................................53

7.1 SIP ................................................................................................................................................53

7.2 DIAL PLAN.....................................................................................................................................58

7.3 TELEPHONE CALLS........................................................................................................................61

CHAPTER 8 DIAGNOSTICS .......................................................................................................63

CHAPTER 9 MANAGEMENT.....................................................................................................65

9.1 SETTINGS..................................................................................................................................65

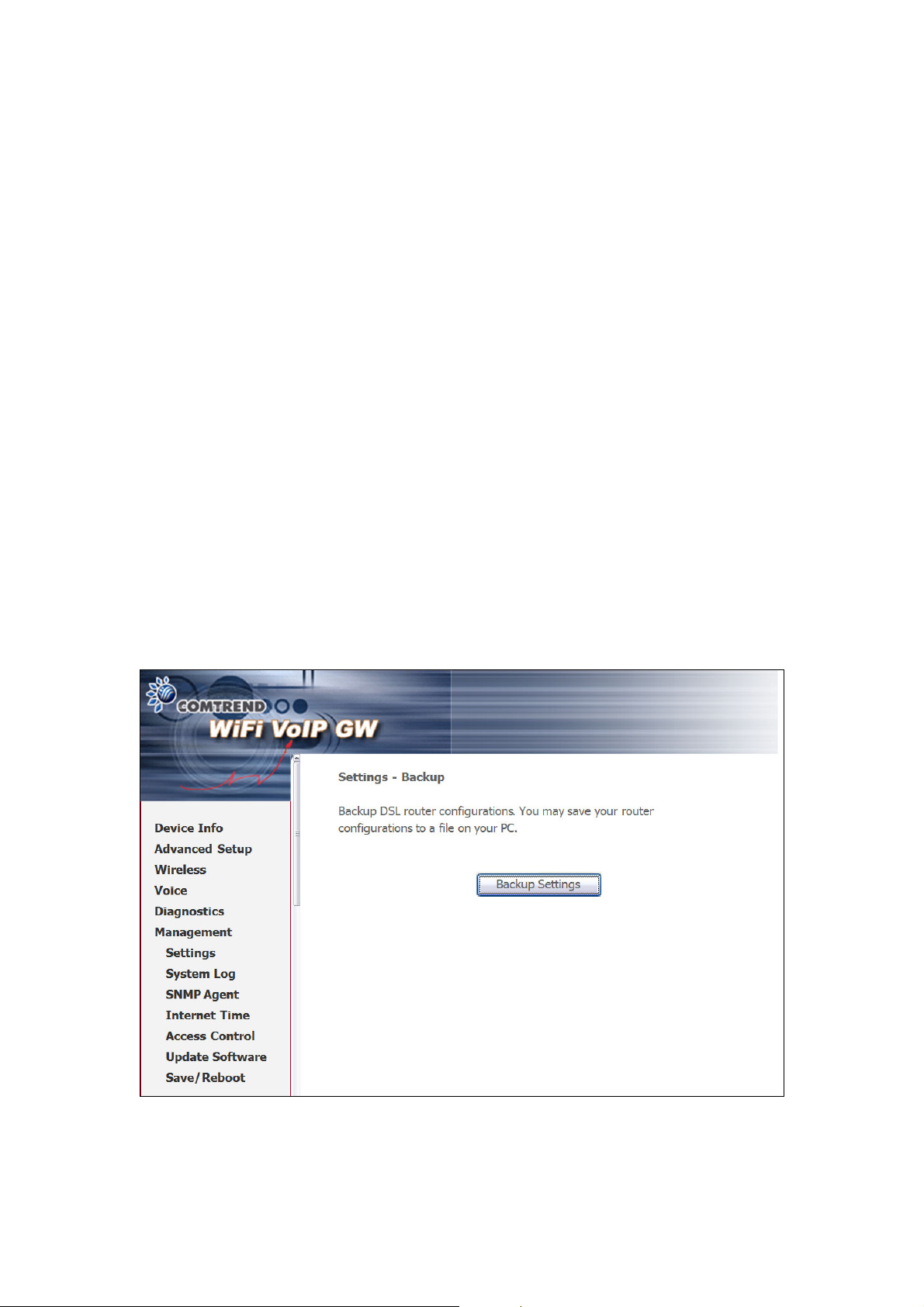

9.1.1 Backup Settings...............................................................................................................65

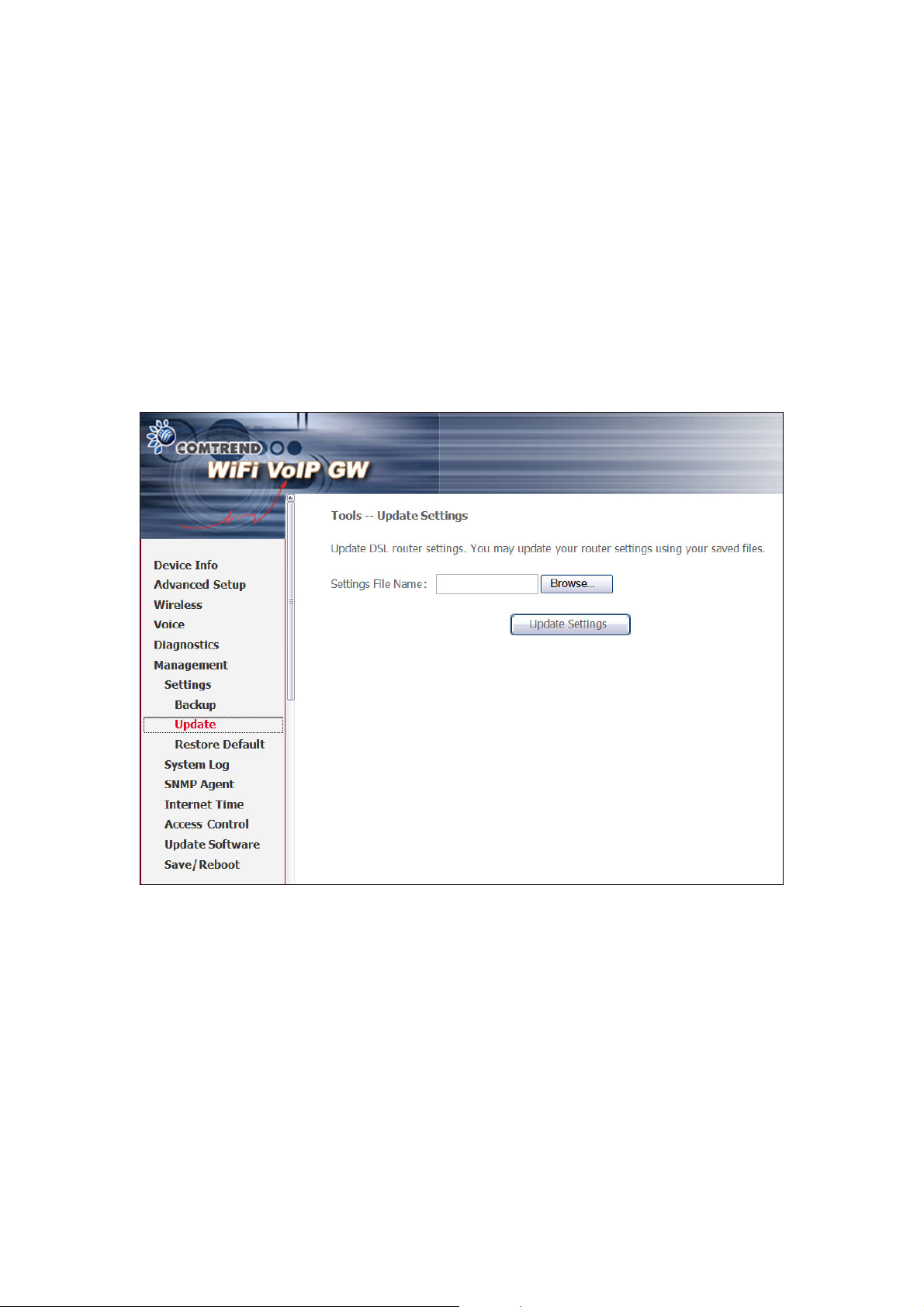

9.1.2 Update Settings...............................................................................................................66

9.1.3 Restore Default...............................................................................................................67

9.2 SYSTEM LOG .................................................................................................................................68

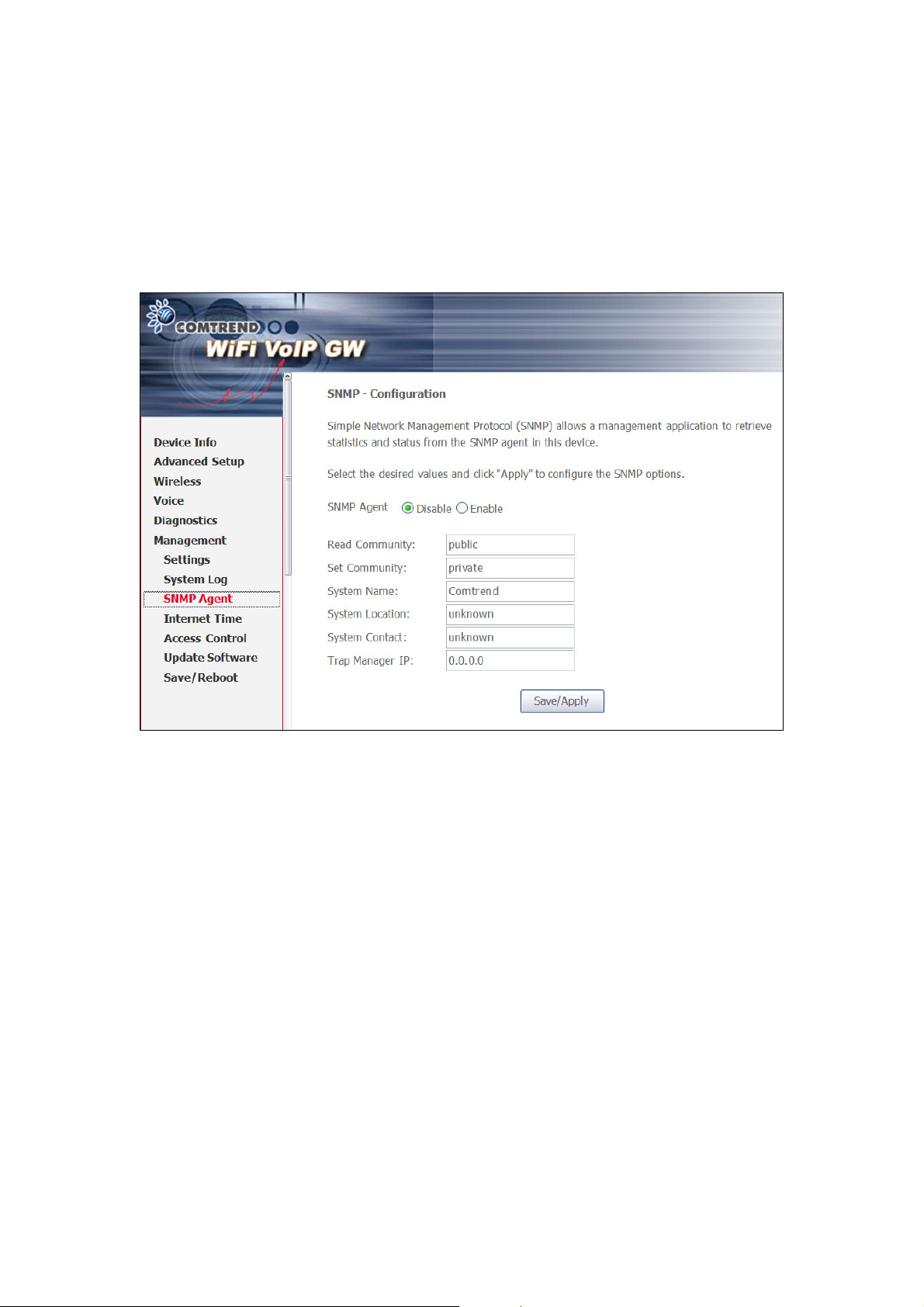

9.3 SNMP AGENT ...............................................................................................................................71

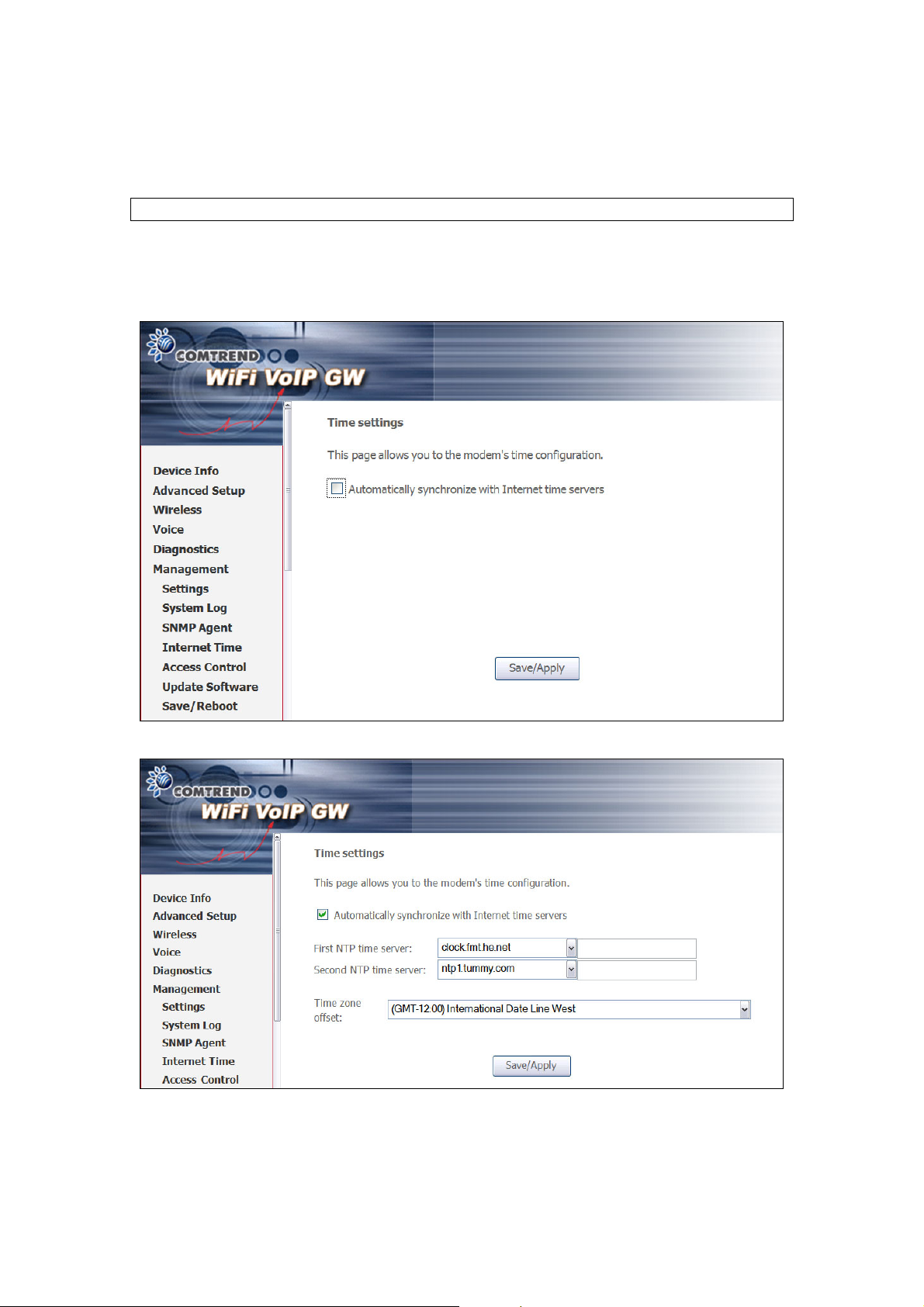

9.4 INTERNET TIME .............................................................................................................................72

9.5 ACCESS CONTROL .........................................................................................................................73

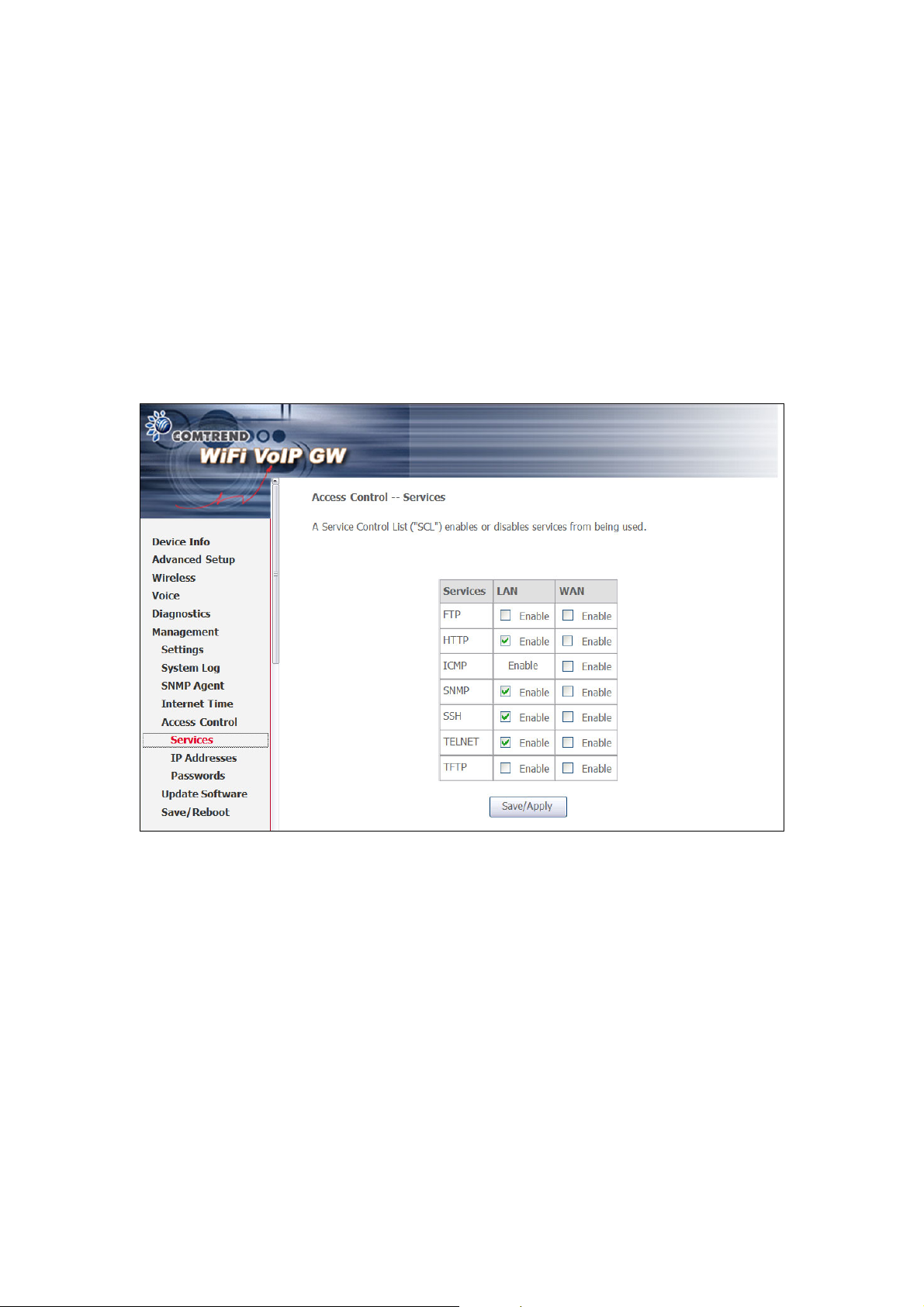

9.5.1 Services...........................................................................................................................73

IP Addresses...................................................................................................................74

9.5.2

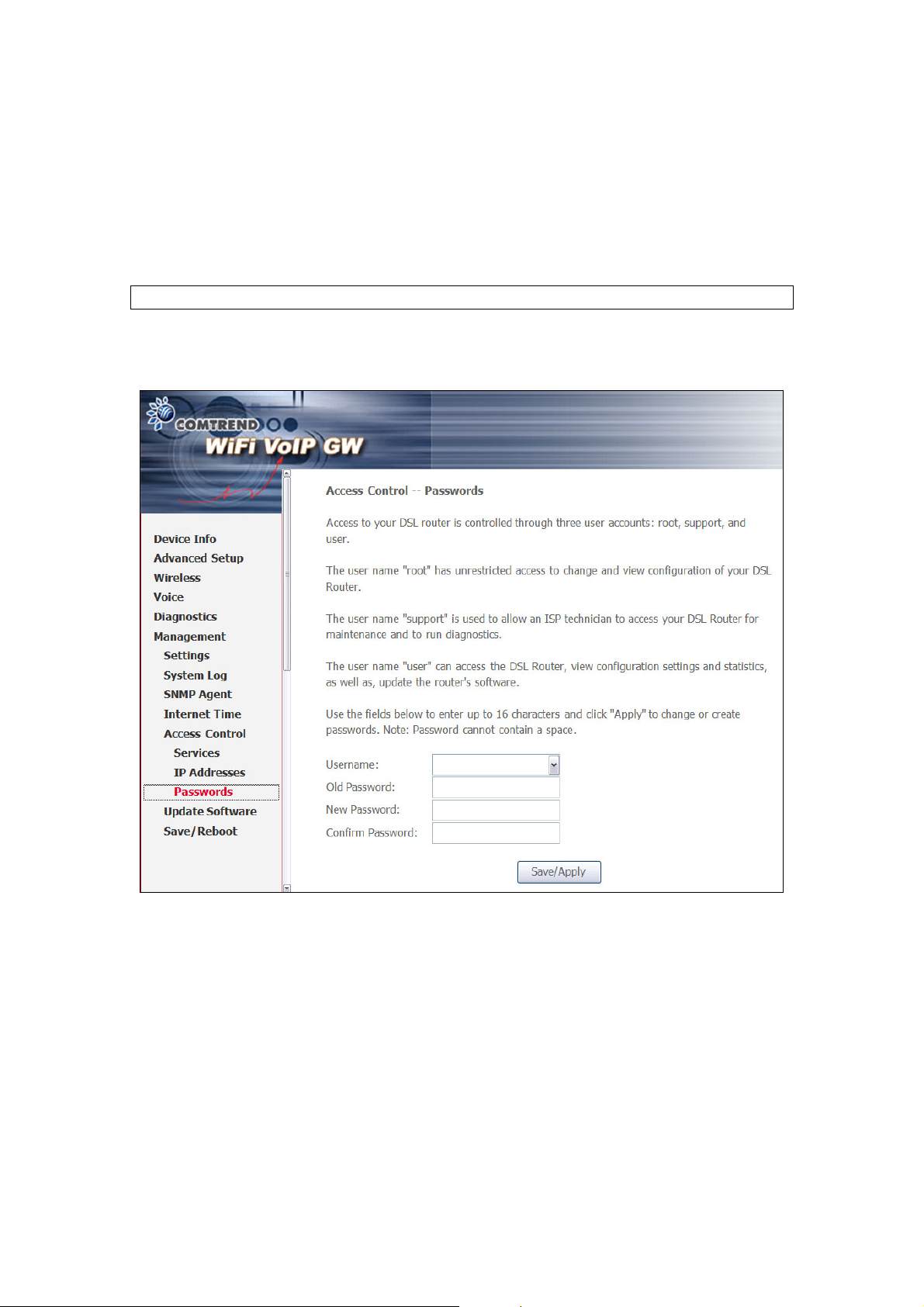

9.5.3 Passwords.......................................................................................................................75

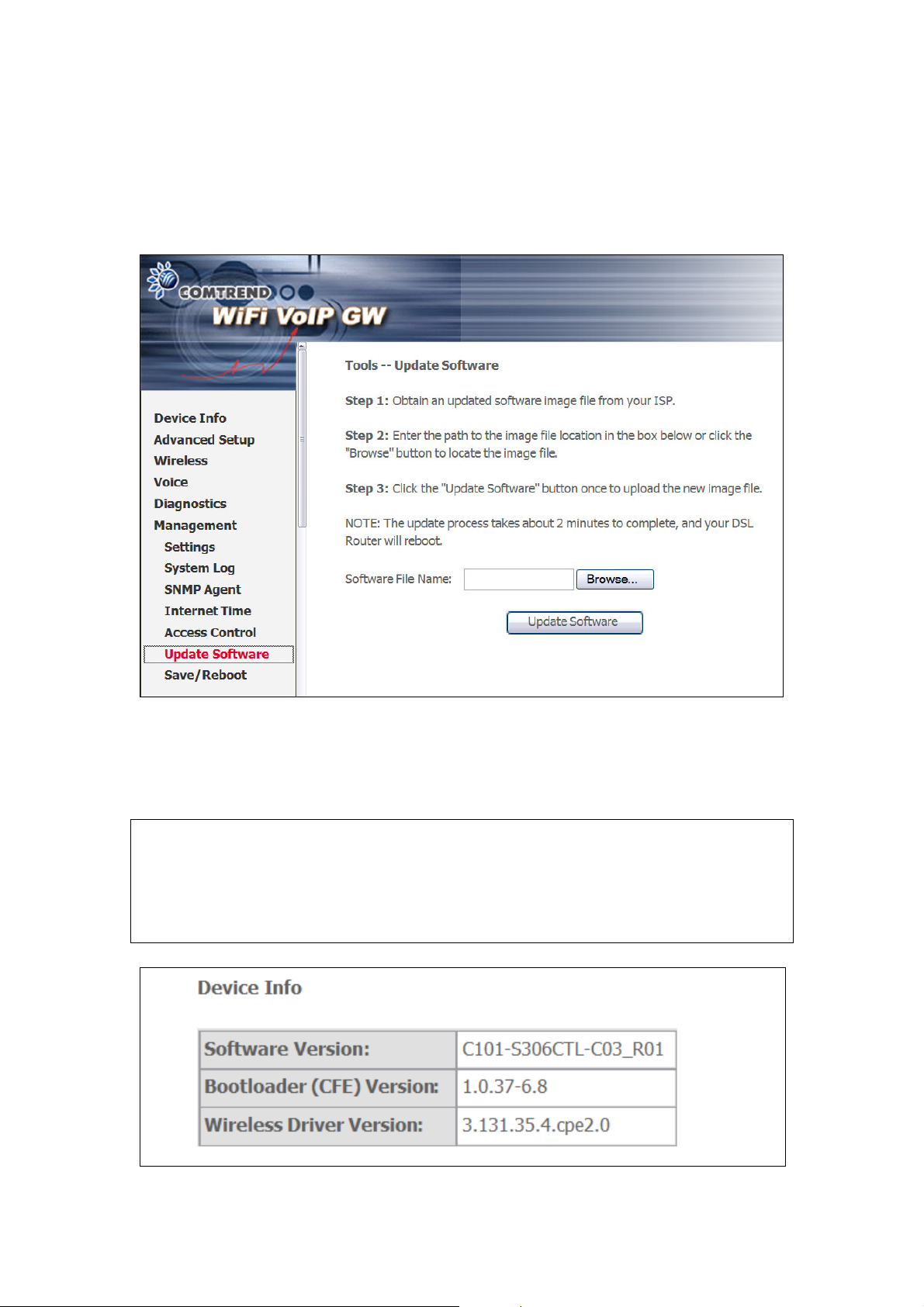

9.6 UPDATE SOFTWARE .......................................................................................................................76

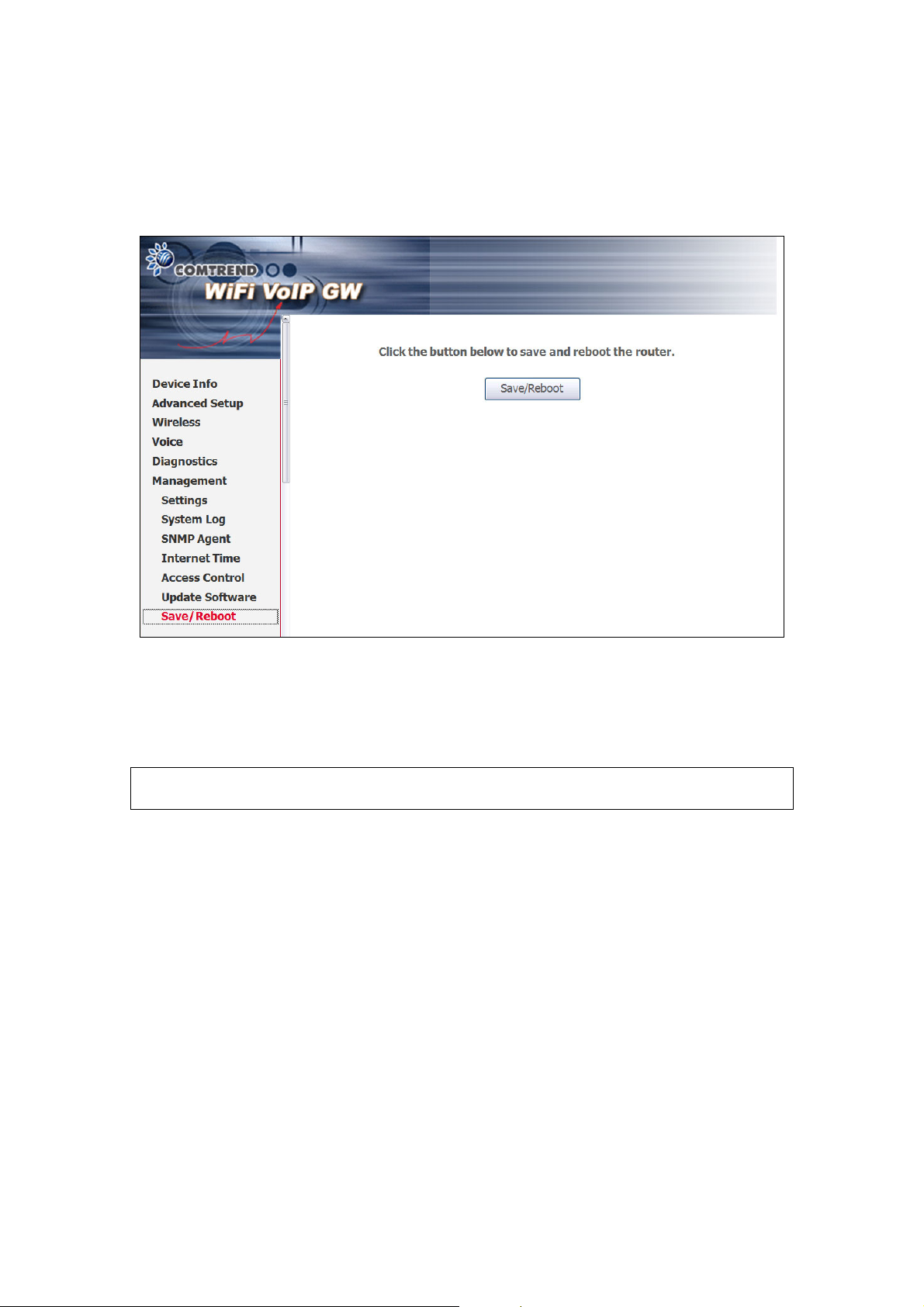

9.7 SA VE AND REBOOT ........................................................................................................................77

APPENDIX A: FIREW ALL................................................................................................................78

APPENDIX B: PIN ASSIGNMENTS.................................................................................................81

APPENDIX C: SPECIFICATIONS....................................................................................................82

APPENDIX D: SSH CLIENT .............................................................................................................84

Chapter 1 Introduction

The CT-820C is a powerful WLAN VoIP Gateway, providing predictable, real-time, toll-quality voice over the Internet. The CT-820C is designed for residential and business users with broadband DSL or cable access, who need to integrate Wi-Fi AP and VoIP technologies. The CT-820C offers users easy access to the Internet via WLAN or Ethernet and provides VoIP via standard analog phones.

1.1 Features

• VoIP and router integrated

• 802.11g/b access point

• VPN passthrough

• QoS for voice

• DNS SRV

• Dial plan

• Call hold

• Call waiting

• Call transfer

• Call forwarding

• 3-way conference

• Direct number dialing

• Supports emergency call

• Day-time parental control

• T.38 fax relay and passthrough

• Caller ID presentation and restriction

• Supports life line: PSTN alive when power off

• Remote administration: automatic firmware upgrade and configuration

Optional

o Centralized configuration and firmware upgrade

via APS (Automatic Provision Server)

1.2 Application

The following diagram depicts the application of the CT-820C.

1.3 LED Indicators

The front panel LED indicators are shown in this illustration and followed by detailed explanations in the table below.

LED Color Mode

POWER

LAN

4x~1x

PHONE1

PHONE2

WLAN

LINE

Green On The device is powered up.

Off The device is powered down.

Green On An Ethernet Link is established.

Off An Ethernet Link is not established.

Green Blink Data transmitting or receiving over LAN.

Green On The FXS phone 1 is off hook.

Off The FXS phone 1 is on hook.

Green On The FXS phone 2 is off hook.

Green On The wireless module is ready and idle.

Off The wireless module is disabled.

Green Blink Data transmitting or receiving over WLAN.

Green On An FXO line is off hook.

Off An FXO line is on hook.

Off

Function

The FXS phone 2 is on hook.

Green On An Ethernet Link is established.

WAN

Off An Ethernet Link is not established.

INTERNET Red On

Device attempted to become IP connected and failed (no DHCP response, no PPPoE response, PPPoE authentication failed, no IP address from IPCP, etc.)

Chapter 2 Hardware Setup

Follow the instructions below to complete the hardware setup.

The diagram below shows the back panel of the device.

Connection to Power

Connect the Power jack to the power cord. Attach the power adapter to the wall outlet or other AC source. At startup, the device will perform a self-test. Wait for a few seconds until the test is finished, then the device will be ready to operate.

Caution 1: If the device fails to power up, or it malfunctions, first verify that

the power supply is connected correctly. Then power it on again. If the problem persists, contact our technical support engineers.

Caution 2: Before servicing or disassembling this equipment always

disconnect all power cords and telephone lines from their outlets.

Wi-Fi antenna

Connection to Phone1/ Phone2 Connect a telephone to either RJ11 port for VoIP service.

Reset Button

Restore the default parameters of the device by holding down the Reset button until the front panel LED indicators start blinking simultaneously (~ 5 seconds). If held down for more than 12 seconds, the device will go into a firmware update state (CFE boot mode). The user can then update the device from any web browser using the default IP address (http://192.168.1.1) without login.

Connection to LAN/WAN ports

Use a RJ45 cable to connect to a network hub or PC. You can connect the device to up to four LAN devices and one WAN device. The ports are auto-sensing MDI/X and either straight-through cable or crossover cable can be used.

Connection to LINE port

If you wish to connect both the router and a telephone, connect the LINE port to a POTS splitter with a RJ11 connection cable.

Connection to WLAN

Attach the Wi-Fi antenna to enable this feature.

Chapter 3 Web User Interface

This section describes how to access the device via the web user interface using an Internet browser such as Microsoft Internet Explorer (version 5.0 and later).

3.1 Default Settings

The following are the default settings for the device.

• Local (LAN access) Username: root , Password: 12345

• Remote (WAN access) Username: support, Password: support

• LAN port IP address: 192.168.1.1

• Remote WAN access: disabled

• NAT and firewall: enabled

• DHCP server on LAN interface: enabled

• WAN IP address: none

Technical Note:

During power on, the device initializes all settings to default values. It will then read the configuration profile from the permanent storage section of flash memory. The default attributes are overwritten when identical attributes with different values are configured. The configuration profile in permanent storage can be created via the web user interface or telnet user interface, or other management protocols. The factory default configuration can be restored either by pushing the reset button for more than five seconds until the power indicates LED blinking or by clicking the Restore Default Configuration option in the Restore Settings screen.

3.2 TCP/IP Settings

DHCP Mode

When the device powers up, the DHCP server (on the device) will start automatically. To set your PC for DHCP mode, check the Internet Protocol properties of your Local Area Connection. You can set your PC to DHCP mode by selecting Obtain an IP address automatically in the dialog box shown below.

STATIC IP Mode

To configure the device manually, your PC must have a static IP address within the 192.168.1.x subnet. Follow the steps below to configure your PC IP address to use subnet 192.168.1.x. The following assumes you are running Windows XP.

STEP 1: From the Network Connections window, open the Local Area Connection.

(You may also access this screen by double-clicking the Local Area Connection icon on your taskbar.) Click the Properties button.

STEP 2: Select Internet Protocol (TCP/IP) and click the Properties

button. The screen should now display as below. Change the IP address to the domain of 192.168.1.x/24 (i.e. subnet mask=255.255.255.0).

STEP 3: Click OK to submit the settings.

3.3 Login Procedure

Perform the following steps to login to the web user interface.

NOTE: The default settings for this device can be found in 3.1 Default

Settings.

STEP 1: Start the Internet browser and enter the default IP address for the

device in the Web address field. For example, if the IP address is

192.168.1.1, type http://192.168.1.1.

NOTE: For local administration (i.e. LAN access), the PC running the browser

must be attached to the Ethernet, and not necessarily to the device. For remote access (i.e. WAN), use the remote username and password.

STEP 2: A dialog box will appear, such as the one below. Enter the default

username and password, as defined in section 3.1 Default Settings.

Click OK to continue.

NOTE: The login password can be changed later (see 9.5.3 Passwords)

STEP 3: After successfully logging in, you will reach this screen.

Chapter 4 Device Information

The web user interface is divided into two window panes, the main menu (at left) and the display screen (on the right). The main menu has the following options: Device Info, Advanced Setup, Wireless, Voice, Diagnostics, Management. Selecting one of these options will open a submenu with more options.

NOTE: The menu options available within the web user interface are based

upon the device configuration and user privileges (i.e. local or remote). For example, in the Advanced Setup menu, if NAT and Firewall are enabled, the main menu will display the NAT and Security submenus. If either is disabled, their corresponding menu will also be disabled.

Device Info is the first selection on the main menu so it will be discussed first. Subsequent chapters will introduce the other main menu options in sequence.

The Device Info submenu (outlined in red in the screenshot below) has the following selections: Summary, WAN, Statistics, Route, ARP, and DHCP.

The Device Info Summary screen (shown above) is the default startup screen.

It provides summary information regarding the device firmware version, TCP/IP settings, and the status of the two VOIP connections.

4.1 WAN

Select WAN from the Device Info submenu to display the configured PVC(s).

The display screen table headings (above) are described in the table below.

Con. ID Shows the connection ID

Category Shows the ATM service classes Service Shows the name for WAN connection Interface Shows connection interfaces Protocol Shows the connection type, such as PPPoE, PPPoA, etc. Igmp Shows the status of the IGMP Proxy function State Shows the connection state of the WAN connection Status Lists the WAN or PVC status (ex: Up/Down or Authentication Failure) IP Address Shows IP address for WAN interface

4.2 Statistics

The Statistics screens show detailed information for LAN or WAN Interfaces.

NOTE: These statistics are updated every 15 seconds.

4.2.1 LAN Statistics

This screen shows statistics for Ethernet and Wireless interfaces on the LAN.

Interface Shows connection interfaces in the following

format: nas_(VPI number_VCI number). These interfaces are devised by the system and not the user.

Received/Transmitted - Bytes

- Pkts

- Errs

- Drops

Rx/TX (receive/transmit) packet in Byte Rx/TX (receive/transmit) packets Rx/TX (receive/transmit) the packets which are errors, Rx/TX (receive/transmit) the packets which are dropped

4.2.2 WAN Statistics

This screen shows statistics for interfaces on the WAN.

Service Shows the service type, as configured by the

administrator

Protocol Shows the connection type, such as PPPoE,

PPPoA, etc.

Interface Shows connection interfaces in the following

format: nas_(VPI number_VCI number). These interfaces are devised by the system and not the user.

Received/Transmitted - Bytes

- Pkts

- Errs

- Drops

Rx/TX (receive/transmit) packet in Byte Rx/TX (receive/transmit) packets Rx/TX (receive/transmit) the packets which are errors, Rx/TX (receive/transmit) the packets which are dropped

4.3 Route

Choose Route to display the routes that the route information has learned.

Field Description

Destination Destination network or destination host Gateway Next hub IP address Subnet Mask Subnet Mask of Destination Flag U: route is up

!: reject route G: use gateway H: target is a host R: reinstate route for dynamic routing D: dynamically installed by daemon or redirect M: modified from routing daemon or redirect

Metric The 'distance' to the target (usually counted in hops). It is not used

by recent kernels, but may be needed by routing daemons. Service Shows the name for WAN connection Interface Shows connection interfaces

4.4 ARP

Click ARP to display the ARP information.

4.5 DHCP

Click DHCP to display the DHCP Leases information.

Chapter 5 Advanced Setup

This chapter explains the setup screens for the following services:

• WAN – Wide Area Network

• LAN – Local Area Network

• NAT – Network Address Translation

• SECURITY

• QUALITY OF SERVICE

• ROUTING

5.1 WAN

Follow the steps on the following pages to configure WAN interfaces. The screen below shows all configured WAN connections. The table below gives more details.

STEP 1: Click the Edit button next to the WAN connection you wish to configure.

Con. ID ID for WAN connection Category ATM service category, e.g. UBR, CBR, … Service Name of the WAN connection Interface Name of the interface for WAN Protocol Shows IPoW or PPPoE modes Igmp Shows enable or disable IGMP proxy State Shows enable or disable WAN connection

STEP 2: The WAN Configuration screen will display as below. Quality of Service

(QoS) is enabled when the box at bottom is checked (;). Click Next.

STEP 3: On this screen, you can choose either PPPoE or IPoE connection types.

Once you have chosen, click Next to proceed.

Important Note:

For PPPoE connections follow Steps 4-6

For IPoE connections follow Steps 7-9

PPPoE –PPP over Ethernet

Step 4: Enter the Username and Password and select the connection options.

Review the descriptions below for more details. Click Next to continue.

PPP Username/PPP Password

The PPP Username and the PPP password requirement are dependent on the particular requirements of the service provider. A maximum of 256 characters is allowed for the PPP user name and a maximum of 32 characters for PPP password.

PPPoE service name

For PPPoE service, PADI requests contain a service name-tag. Some PPPoE servers (or BRAS) of ISP check this service name-tag for connection.

Dial on Demand

The device can be configured to disconnect if there is no activity for a period of time by selecting this check box. When the checkbox is ticked, you must enter the inactivity timeout period. The timeout period ranges from 1 to 4320 minutes.

PPP IP Extension

The PPP IP Extension is a special feature deployed by some service providers. Unless your service provider specially requires this setup, do not select it.

The PPP IP Extension supports the following conditions:

• Allows only one PC on the LAN

• The public IP address assigned by the remote side using the PPP/IPCP

protocol is actually not used on the WAN PPP interface. Instead, it is forwarded to the PC’s LAN interface through DHCP. Only one PC on the LAN can be connected to the remote, since the DHCP server within the device has only a single IP address to assign to a LAN device.

• NAT and firewall are disabled when this option is selected.

• The device becomes the default gateway and DNS server to the PC

through DHCP using the LAN interface IP address.

• The device extends the IP subnet at the remote service provider to the

LAN PC. That is, the PC becomes a host belonging to the same IP subnet.

• The device bridges the IP packets between WAN and LAN ports, unless the

packet is addressed to the device’s LAN IP address.

Use Static IP Address

Unless your service provider specially requires this setup, do not select it. If selected, enter your static IP address in the IP Address field. Also, don’t forget to adjust your TCP/IP Settings as described in subsection 3.2 TCP/IP Settings.

Enable PPP Debug Mode

When this option is selected, the system will put more PPP connection information into the system log. This is for debugging errors and not for normal usage.

Step 5: On this screen you may enable/disable IGMP Multicast and WAN

service. Click Next to continue.

Enable IGMP Multicast checkbox

Tick the checkbox to enable IGMP multicast (proxy). IGMP (Internet Group Membership Protocol) is a protocol used by IP hosts to report their multicast group memberships to any immediately neighboring multicast device’s.

STEP 6: Click Next to display the WAN Setup-Summary screen that presents

the entire configuration summary review. Click Back to modify the settings.

Click Save/Reboot and skip to Step 10.

IPoE – Internet Protocol over Ethernet

STEP 7: The WAN IP Settings screen below allows for configuration of the

connection in DHCP (automatic) or Static IP (manual) modes.

Enter information provided to you by your ISP to configure the WAN IP settings. DHCP mode must be enabled when Obtain an IP address automatically is chosen. Changing the default gateway or the DNS affects the whole system. Where Static mode is selected, the IP address and subnet mask must be entered, however, the Use WAN interface field does not need to be selected.

STEP 8: The next screen combines NAT, IGMP and WAN service selection

options.

Enable NAT

If the LAN is configured with a private IP address, the user should select this checkbox. The user can then configure NAT-related features. If a private IP address is not used on the LAN side, this checkbox should not be selected, so as to free up system resources for improved performance.

Enable Firewall

If the firewall checkbox is selected, the user can configure the device firewall.

Enable IGMP Multicast checkbox

STEP 9: Click Next to display the WAN Setup-Summary screen that presents

the entire configuration summary review. Click Back to modify the settings.

STEP 10: At this point, the device will save the configuration to flash memory

and reboot. The Web UI will not respond until the device is ready. The Web UI should refresh to the default page automatically.

If not, restart the browser and login again, following the steps in

subsection 3.3 Login Procedure.

5.2 LAN

Configure the device IP Address and Subnet Mask for LAN interface. Save button only saves the LAN configuration data. Save/Reboot button saves the LAN configuration data and reboots the device to apply the new configuration.

IP Address: Enter the IP address for the LAN port.

Subnet Mask: Enter the subnet mask for the LAN port.

Enable UPnP: Tick the box to enable.

Enable IGMP Snooping: Enable by ticking the box.

Standard Mode: In standard mode, multicast traffic will flood to all bridge ports

when no client subscribes to a multicast group – even if IGMP snooping is enabled.

Blocking Mode: In blocking mode, the multicast data traffic will be blocked and

not flood to all bridge ports when there are no client subscriptions to any multicast group.

To configure a secondary IP address tick the checkbox shown below.

IP Address: Enter the secondary IP address for the LAN port.

Subnet Mask: Enter the secondary subnet mask for the LAN port.

5.3 NAT

NOTE: To display the NAT function, you must enable NAT in WAN Setup.

5.3.1 Virtual Servers

Virtual Servers allow you to direct incoming traffic from the WAN side (identified by Protocol and External port) to the Internal server with private IP addresses on the LAN side. The Internal port is required only if the external port needs to be converted to a different port number used by the server on the LAN side. A maximum of 32 entries can be configured.

To add a Virtual Server, click the Add button. The following screen will display.

Select a Service Or Custom Server

User should select the service from the list. Or User can enter the name of their choice.

Server IP Address Enter the IP address for the server.

External Port Start Enter the starting external port number (when you select

Custom Server). When a service is selected the port ranges are automatically configured.

External Port End Enter the ending external port number (when you select

Custom Server). When a service is selected the port ranges

are automatically configured. Protocol User can select from: TCP, TCP/UDP or UDP. Internal Port Start Enter the internal port starting number (when you select

Custom Server). When a service is selected the port ranges

are automatically configured Internal Port End Enter the internal port ending number (when you select

Custom Server). When a service is selected the port ranges

are automatically configured.

5.3.2 Port Triggering

Some applications require that specific ports in the device's firewall be opened for access by the remote parties. Port Trigger dynamically opens up the 'Open Ports' in the firewall when an application on the LAN initiates a TCP/UDP connection to a remote party using the 'Triggering Ports'. The device allows the remote party from the WAN side to establish new connections back to the application on the LAN side using the 'Open Ports'. A maximum of 32 entries can be configured.

To add a Trigger Port, click the Add button. The following screen will display.

Select an Application Or

User should select the application from the list.

User can enter the name of their choice. Custom Application Trigger Port Start Enter the starting trigger port number (when you select

custom application). When an application is selected the

port ranges are automatically configured. Trigger Port End Enter the ending trigger port number (when you select

custom application). When an application is selected the

port ranges are automatically configured. Trigger Protocol User can select from: TCP, TCP/UDP or UDP. Open Port Start Enter the starting open port number (when you select

custom application). When an application is selected the

port ranges are automatically configured. Open Port End Enter the ending open port number (when you select

custom application). When an application is selected the

port ranges are automatically configured. Open Protocol User can select from: TCP, TCP/UDP or UDP.

5.3.3 DMZ Host

The device will forward IP packets from the WAN that do not belong to any of the applications configured in the Virtual Servers table to the DMZ host computer.

Enter the computer's IP address and click Apply to activate the DMZ host.

Clear the IP address field and click Apply to deactivate the DMZ host.

5.4 Security

NOTE: The Firewall must be enabled to access this option

5.4.1 IP Filtering

IP filtering allows you to create a filter rule to identify outgoing/incoming IP traffic by specifying a new filter name and at least one condition below. All of the specified conditions in this filter rule must be satisfied for the rule to take effect. Click Save/Apply to save and activate the filter.

Outgoing IP Filter

NOTE: The default setting for all Outgoing traffic is ACCEPTED.

To add a filtering rule, click the Add button. The following screen will display.

Filter Name Type a name for the filter rule. Protocol TCP, TCP/UDP, UDP or ICMP. Source IP address Enter source IP address. Source Subnet Mask Enter source subnet mask. Source Port (port or port:port) Enter source port number or port range. Destination IP address Enter destination IP address. Destination Subnet Mask Enter destination subnet mask. Destination port (port or port:port) Enter destination port number or port

range.

Incoming

NOTE: The default setting for all Incoming traffic is BLOCKED.

To add a filtering rule, click the Add button. The following screen will display.

To configure the parameters, please reference the Outgoing IP Filter

table.

5.4.2 Parental Control

Daytime Parental Control

This feature restricts access of a selected LAN device to an outside network through the router, as per chosen days of the week and the chosen times.

Click Add to display the following screen.

See below for instructions. Click Save/Apply to apply the settings.

User Name: Name of the Filter.

Browser's MAC Address: Displays MAC address of the LAN device on which the

browser is running.

Other MAC Address: If restrictions are to be applied to a device other than the one on which the browser is running, the MAC address of that LAN device is entered.

Days of the Week: Days of the week, when the restrictions are applied.

Start Blocking Time: The time when restrictions on the LAN device

are put into effect.

End Blocking Time: The time when restrictions on the LAN device are lifted.

5.5 Quality of Service

Choose the broadband network environment: Cable or ADSL. Then set the maximum upstream bandwidth rate in Kbps. Click Save or Save/Reboot.

NOTE: To display this function, QoS must be enabled in WAN Setup.

5.6 Routing

This option allows for Default Gateway and Static Route configuration.

5.6.1 Default Gateway

If Enable Automatic Assigned Default Gateway checkbox is selected, this device will accept the first received default gateway assignment from one of the enabled PVC(s). If the checkbox is not selected, enter the static default gateway and/or WAN interface. Click Save/Apply button to save it.

NOTE: After enabling the Automatic Assigned Default Gateway, the device

must be rebooted to activate the assigned default gateway.

5.6.2 Static Route

The Static Route screen lists the configured static routes. Choose Add or Remove to configure the static routes.

Click the Add button and the following screen will display.

Enter the destination network address, subnet mask, gateway AND/OR available WAN interface then click Save/Apply to add the entry to the routing table.

Chapter 6 Wireless

The Wireless menu allow you to enable the wireless capability, hide the access point, set the wireless network name and restrict the channel set.

6.1 Basic

This screen allows you to enable or disable the wireless LAN interface, hide the network from active scans, set the wireless network name (also known as SSID) and restrict the channel set based on country requirements.

Option Description

Enable Wireless A checkbox that enables or disables the wireless LAN

interface. When selected, the Web UI displays Hide Access point, SSID, and County settings. The default is Enable Wireless.

Hide Access Point Select Hide Access Point to protect device access point from

detection by wireless active scans. If you do not want the access point to be automatically detected by a wireless station, this checkbox should be de-selected. The station will not discover this access point. To connect a station to the available access points, the station must manually add this access point name in its wireless configuration. In Windows XP, go to the Network>Programs function to view all of the available access points. You can also use other software programs such as NetStumbler to view available access points.

SSID Sets the wireless network name. SSID stands for Service

Set Identifier. All stations must be configured with the correct SSID to access the WLAN. If the SSID does not match, that user will not be granted access. The naming conventions are: Minimum is one character and maximum number of characters: 32 bytes.

BSSID The BSSID is a 48bit identity used to identify a particular

BSS (Basic Service Set) within an area. In Infrastructure BSS networks, the BSSID is the MAC (Medium Access Control) address of the AP (Access Point) and in Independent BSS or ad hoc networks, the BSSID is generated randomly.

Country A drop-down menu that permits worldwide and specific

national settings. Each county listed in the menu enforces specific regulations limiting channel range: US= worldwide, Japan=1-14, Jordan=10-13, Israel=TBD

6.2 Security

Security options include authentication and encryption services based on the wired equivalent privacy (WEP) algorithm. WEP is a set of security services used to protect 802.11 networks from unauthorized access, such as eavesdropping; in this case, the capture of wireless network traffic. When data encryption is enabled, secret shared encryption keys are generated and used by the source station and the destination station to alter frame bits, thus avoiding disclosure to eavesdroppers.

802.11 supports two subtypes of network authentication services: open system and shared key. Under open system authentication, any wireless station can request authentication. The system that needs to authenticate with another wireless station sends an authentication management frame that contains the identity of the sending station. The receiving station then sends back a frame that indicates whether it recognizes the identity of the sending station.

Under shared key authentication, each wireless station is assumed to have received a secret shared key over a secure channel that is independent from

802.11 wireless network communications channel.

The following screen appears when Security is selected. The Security page allows you to configure security features of the wireless LAN interface. You can set the network authentication method, selecting data encryption, specify whether a network key is required to authenticate to this wireless network and specify the encryption strength.

Option Description

Network Authentication

It specifies the network authentication. When this checkbox is selected, it specifies that a network key be used for authentication to the wireless network. If the Network Authentication (Shared mode) checkbox is not shared (that is, if open system authentication is used), no authentication is provided. Open system authentication only performs identity verifications.

Different authentication type pops up different settings requests.

Choosing 802.1X, enter RADIUS Server IP address, RADIUS Port, RADIUS key and Current Network Key.

Also, enable WEP Encryption and select Encryption Strength.

Select the Current Network Key and enter 13 ASCII characters or 26 hexadecimal digits for 128-bit encryption keys and enter 5 ASCII characters or 10 hexadecimal digits for 64-bit encryption keys.

Choosing WPA, you must enter WPA Group Rekey Interval.

WEP Encryption

Encryption strength

Choosing WPA-PSK, you must enter WPA Pre-Shared Key and Group Rekey Interval.

It specifies that a network key is used to encrypt the data is sent over the network. When this checkbox is selected, it enables data encryption and prompts the Encryption Strength drop-down menu. Data Encryption (WEP Enabled) and Network Authentication use the same key. A session’s key strength is proportional to the number of binary bits comprising the session key file. This means that session keys with a greater number of bits have a greater degree of security, and are considerably more difficult to forcibly decode. This dropdown menu sets either a 64 8-bit (5-character or 10-character hexadecimal or 128 8-bit (13-character or 10-character) key. If you set a minimum 128-bit key strength, users attempting to establish a secure communications channel with your server must use a browser capable of communicating with a 128-bit session key. The Encryption Strength settings do not display unless the network Authentication (shared Mode) check box is selected.

6.3 MAC Filter

This MAC Filter page allows access to be restricted/allowed based on a MAC address. All NICs have a unique 48-bit MAC address burned into the ROM chip on the card. When MAC address filtering is enabled, you are restricting the NICs that are allowed to connect to your access point. Therefore, an access point will grant access to any computer that is using a NIC whose MAC address is on its “allows” list.

Wi-Fi device’s and access points that support MAC filtering let you specify a list of MAC addresses that may connect to the access point, and thus dictate what devices are authorized to access the wireless network. When a device is using MAC filtering, any address not explicitly defined will be denied access.

MAC Restrict mode: Off - disables MAC filtering; Allow – permits access for the specified MAC address; deny; reject access of the specified MAC address, then click the SET button.

To delete an entry, select the entry at the bottom of the screen and then click the Remove button, located on the right hand side of the screen.

To add a MAC entry, click Add and enter MAC address

The following screen will appear. Enter the MAC address and click Save/Apply to add the MAC address to the wireless MAC address filters.

Option Description

MAC Restrict Mode Radio buttons that allow settings of;

Off: MAC filtering function is disabled. Allow: Permits PCs with listed MAC addresses to connect to the access point. Deny: Prevents PCs with listed MAC from connecting to the access point.

MAC Address Lists the MAC addresses subject to the Off, Allow, or Deny

instruction. The Add button prompts an entry field that requires you type in a MAC address in a two-character, 6byte convention: xx:xx:xx:xx:xx:xx where xx are hexadecimal numbers. The maximum number of MAC addresses that can be added is 60.

6.4 Wireless Bridge

This page allows you to configure wireless bridge features of the wireless LAN interface. You can select Wireless Bridge (also known as Wireless Distribution System) to disable access point functionality. Selecting Access Point enables access point functionality. Wireless bridge functionality will still be available and wireless stations will be able to associate to the AP. Select Disabled in Bridge Restrict to disable wireless bridge restriction. Any wireless bridge will then be granted access. Selecting Enabled or Enabled (Scan) enables wireless bridge restriction. Only those bridges selected in Remote Bridges will be granted access.

Mode Options

AP Mode Access Point

Wireless Bridge

Bridge Restrict Enabled

Enabled (Scan) Disabled

6.5 Advanced

The Advanced page allows you to configure advanced features of the wireless LAN interface. You can select a particular channel on which to operate, force the transmission rate to a particular speed, set the fragmentation threshold, set the RTS threshold, set the wakeup interval for clients in power-save mode, set the beacon interval for the access point and set whether short or long preambles are used. Click Apply to configure the advanced wireless options.

Option Description

AP Isolation Select On or Off. By enabling this feature, wireless

clients associated with the Access Point will be able to connect to each other.

Band The new amendment allows IEEE 802.11g units to fall

back to speeds of 11 Mbps, so IEEE 802.11b and IEEE

802.11g devices can coexist in the same network. The two standards apply to the 2.4 GHz frequency band. IEEE 802.11g creates data-rate parity at 2.4 GHz with the IEEE 802.11a standard, which has a 54 Mbps rate at 5 GHz. (IEEE 802.11a has other differences compared to IEEE 802.11b or g, such as offering more channels.)

Channel Drop-down menu that allows selection of specific

channel

Auto Channel Timer (min) Auto channel scan timer in minutes (0 to disable)

54g™ Rate Drop-down menu that specifies the following fixed

rates: Auto: Default. Uses the 11 Mbps data rate when possible but drops to lower rates when necessary. 1 Mbps, 2Mbps, 5Mbps, or 11Mbps fixed rates. The appropriate setting is dependent on signal strength.

Multicast Rate Setting multicast packet transmit rate

Basic Rate Setting basic transmit rate

Fragmentation Threshold A threshold, specified in bytes, that determines

whether packets will be fragmented and at what size. On an 802.11 WLAN, packets that exceed the fragmentation threshold are fragmented, i.e., split into, smaller units suitable for the circuit size. Packets smaller than the specified fragmentation threshold value are not fragmented. Enter a value between 256 and 2346. If you experience a high packet error rate, try to slightly increase your Fragmentation Threshold. The value should remain at its default setting of 2346. Setting the Fragmentation Threshold too low may result in poor performance.

RTS Threshold Request to Send, when set in bytes, specifies the

packet size beyond which the WLAN Card invokes its RTS/CTS mechanism. Packets that exceed the specified RTS threshold trigger the RTS/CTS mechanism. The NIC transmits smaller packet without using RTS/CTS. The default setting of 2347 (maximum length) disables RTS Threshold.

DTIM Interval Delivery Traffic Indication Message (DTIM), also

known as Beacon Rate. The entry range is a value between 1 and 65535. A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages. When the AP has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. AP Clients hear the beacons and awaken to receive the broadcast and multicast messages. The default is 1.

Beacon Interval The amount of time between beacon transmissions.

Each beacon transmission identifies the presence of an access point. By default, radio NICs passively scan all RF channels and listen for beacons coming from access points to find a suitable access point. Before a station enters power save mode, the station needs the beacon interval to know when to wake up to receive the beacon (and learn whether there are buffered frames at the access point). The entered value is represented in ms. Default is

100. Acceptable entry range is 1 to 0xffff (65535)

Maximum Associated Clients Xpress

Technology Xpress Technology is compliant with draft

The maximum number of clients that may connect to the access point. The device supports up to 128.

specifications of two planned wireless industry standards.

54g

Mode Select the mode to 54g Auto for

the widest compatibility. Select the mode to 54g Performance for the fastest performance among 54g certified equipment. Set the mode to 54g LRS if you are experiencing difficulty with legacy 802.11b equipment.

54g Protection In Auto mode the device will use

RTS/CTS to improve 802.11g performance in mixed 802.11g/802.11b networks. Turn protection off to maximize 802.11g throughput under most conditions.

Preamble Type Short preamble is intended for application where

maximum throughput is desired but it doesn’t cooperate with the legacy. Long preamble interoperates with the current 1 and 2 Mbit/s DSSS specification as described in IEEE Std

802.11-1999

Transmit Power The router will set different power output (by

percentage) according to this selection.

6.6 Station Info

This page shows authenticated wireless stations and their status.

BSSID The BSSID is a 48bit identity used to identify a particular

Associated Lists all the stations that are associated with the Access

Point, along with the amount of time since packets were transferred to and from each station. If a station is idle for too long, it is removed from this list.

Authorized Lists those devices with authorized access.

Chapter 7 Voice

This chapter first describes the SIP and Dial Plan configuration screens. The last section (7.3 Telephone Calls) describes how to use the VoIP (Voice over IP) and PSTN (Public Switched Telephone Network) voice services.

7.1 SIP

Session Initiation Protocol (SIP) is a signaling protocol for Internet conferencing, telephony, presence, events notification and instant messaging. It is the Internet Engineering Task Force's (IETF's) standard for multimedia conferencing over IP.

It is designed to address the functions of signaling and session management within a packet telephony network. Signaling allows call information to be carried across network boundaries. Session management provides the ability to control the attributes of an end-to-end call.

Session Initiation Protocol is a peer-to-peer protocol.

There are four components in the SIP standard:

(a) User Agents (UA) - SIP phone clients (hardware or software)

(b) Proxy Server – relays data between UA and external servers

(d) Redirect Server – provides an address lookup service to UA

To access the SIP configuration screen, click SIP from the Voice submenu.

Once the settings are configured click Apply and Save All VoIP Parameters to reset the VoIP service to use the new settings.

This table describes the SIP configuration options shown on the previous page.

Interface name WAN interface name Local Selection Set tone, ring type and physical

characteristics for each specific country. Preferred codec The default is G.711U. Preferred ptime The default is 20. Use SIP proxy A proxy is an intermediary program that

acts as both a server and a client for the

purpose of making requests on behalf of

other clients. Requests are serviced

internally or transferred to other servers. A

proxy interprets and, if necessary, rewrites a

request message before forwarding it.

Input IP address or domain name of the SIP

proxy server, used for VOIP service.

5060 is the default (change based on your

VoIP service provider).

registration to be valid with the Registrar/

Proxy Server. The default is 300 seconds.

SIP domain name Provided by your VoIP service provider.

Use SIP outbound proxy

Select if required by your VoIP provider.

Enable SIP tag matching

Select if required by your VoIP provider. (Uncheck for Vonage Interop). Remote server for SIP log messages

DispName

Enable or disable remote server SIP log

messages.

The caller ID display name. VoIP Phone Number As the modem has two FXS, two phone

numbers can be listed. Auth. ID The authentication username for the

Registrar/Proxy, as assigned by the VOIP

service provider. Auth. Password The authentication password for the

Registrar/proxy, as assigned by the VOIP

service provider. PSTN route rule If PSTN route rule is Auto, an incoming

PSTN call will ring an idle phone, either

Phone1 or Phone2 (if Phone1 is busy).

If PSTN route rule is Fixed, an incoming

PSTN call will attempt to ring only the

assigned phone line (Phone1 or Phone2). Emergency calls Number 1 & 2

Emergency phone numbers.

Landline or VoIP can be selected.

Please Note: These numbers must be

changed to correspond to the emergency

numbers that are used in your location. Max Digits Sets the maximum number of digits for the

phone number. RFC2833 Outband DTMF Enable the special use of RTP packets to

transmit digit events. RTP Payload Type for RFC2833 Payload types are defined in RFC 2833, RTP

Payload for DTMF Digits, Telephony Tones

and Telephony Signals. A payload type is a

number from 96 to 127 that identifies the

type of payload carried in the packet. The

payload type should be identical on the GW

and call agent. Enable Pass '*' Call Feature to Sip Proxy

Only Tick if your VoIP Service Provider

requires this. Enable Internal Call Tick if you would like to intercom your 2nd

VoIP phone. Enable Phone 1/2 Hotline

This setting is used if you require a certain

phone number to always be dialled when

you pickup your VoIP phone on Line 1 or

Line 2. Setting this would mean that you can

not make calls to any other number except

the one programmed in here. FAX mode Choose Force T.38 or Pass through (G711u).

You can plug a fax machine into either

phone port and send or receive faxes.

Note: This depends upon fax compatibility

with your VoIP service provider. Differentiating PSTN & VoIP Ring Tone

When there is an incoming call, you can set

the ring tone you hear to let you know this

call is coming from PSTN or VoIP. Differentiating PSTN & VoIP Dial Tone

When you take your VoIP phone off hook,

you can set the tone sound you hear to let

you know you have selected a VoIP line. It is

advised to have different sounding tone with

the normal PSTN tone as you then know

your VoIP account is active and connected

and you will not make expensive calls on

your normal PSTN account if your VoIP

account is inactive for whatever reason. Enable Trusted IP for SIP

Default is disabled. servers Enable Phone 1/2 Call Waiting Allows you to hear another incoming call

whilst you are on the phone, if call waiting is

enabled on a line, and you hear the call

waiting tone during a call, press flash to

answer the second call. The first call is

automatically placed on hold. To switch

between calls, press flash again. Phone 1/2 Call Forward Feature Allows for the creation of a simple line

rotary phone system equivalent. If you have

2 x VoIP lines and you only want to publish

1 phone number then you should set the

main VOIP number to Phone 1 and create a

Call Forward Type rule to When Busy or No

Answer and type in the 2nd VoIP number into

the Call Forward Phone Number field

(include the STD code).

You would normally disable Call Waiting at

least on Phone 1 so that all your incoming

calls to Phone 1 Forward to Phone 2, when

you are on Phone 1. Please note that you

may not be able to Call Forward from Line 1

to Line 2 and then if Line 2 is also busy to

Call Forward to a 3

party number even if you have correctly setup a rule for Call Forward on Line 2. Success of this operation depends on your VoIP Service Provider’s network ability.

Signaling QoS The function set creates a traffic class rule

to classify the VoIP SIP upstream traffic, assign queuing priority and optionally overwrite the IP header TOS byte.

Enable Differentiated Service

Configuration

When enabled Assign Differentiated Service Code Point (DSCP) Mark will be displayed. When disabled, mark the priority and type of IP service for all SIP upstream traffic.

Assign Differentiated Services

Code Point (DSCP) Mark

The selected Code Point gives the corresponding priority to the packets that satisfies the rules set below.

Media Qos The function set creates a traffic class rule

to classify the VoIP RTP upstream traffic, assign queuing priority and optionally overwrite the IP header TOS byte.

Enable Differentiated Service

Configuration

When enabled Assign Differentiated Service Code Point (DSCP) Mark will be displayed. When disabled, mark the priority and type of IP service for all RTP upstream traffic.

Assign Differentiated Services

Code Point (DSCP) Mark

The selected Code Point gives the corresponding priority to the packets that satisfies the rules set below.

7.2 Dial Plan

With this function you can modify the translation rules for phone numbers. This is can be done by establishing Incoming and Outgoing rules, while the Advance screen provides for even greater customization.

All three screens are similar in design as can be seen in the figures below.

Outgoing

Incoming

Advance

Each screen has the same four buttons at top:

Add

Click this button to go to the add rule screen. Follow the detailed instructions given there. After completing the form click Apply to add a new dial plan rule.

Remove

Select the dial plan rule you wish to delete and click the Remove button.

Modify

Select a dial plan rule and click this button to go to the modify rule screen. Follow the detailed instructions given there. After adjusting the values in the form, click

Apply to change the dial plan rule.

Apply/Save

Use this button to save and apply a new Dial Plan configuration.

CONFIGURATION PARAMETERS

The following table of parameters is included for your reference. For more detailed instructions consult the Add/Modify rules configuration screens.

Index Use this radio button to select a rule for modification or removal Priority All the rules will be applied in order according to their priority.

This field can be set to any number between 0 and 32767 with

lower values indicating higher priority Prefix Prefix digit sequence syntax Destination VoIP or PSTN Mini digit The minimum number of prefix digits Max digit The maximum number of digits Delete digit The number of prefix digits to delete Insert digit The prefix digits to insert Action Allow or Deny the action

EXAMPLE

We will use the Advanced configuration option for our example. To begin, select Advanced from the Dial Plan menu. The user interface should display as below.

Click the Add button to go to the Advance rule add screen, shown below.

For this example, assume that the device needs to convert the following 11 digit dial sequence “123-xxx-xxxxx” into “002-xxx-xxxxx”, where “x” is any number.

Here are the steps involved.

Step 1: Enter any number between 0 and 32767 in the Priority field.

Step 2: In the prefix field enter “123”.

Step 3: Enter “3” in the Mindigit field to limit the prefix minimum to 3 digits.

Step 4: Enter “11” or greater as the MaxDigit value to accept all 11 digits of

the dial sequence.

Step 5: In the DeleteDigit field, enter “3” to delete the “123” prefix

Step 6: Enter “002” in the InsertDigit field to add “002” as the prefix.

Step 7: Click the Apply button to return to the Advance configuration screen.

Step 8: Click Apply/Save to apply this rule to all outgoing calls.

NOTE: This prefix swap example is especially helpful for corporate

environments where the device is dialing through a PBX system.

The Dial Plan function is designed for maximum flexibility for your particular environment. If you have a question contact your ISP for detailed instructions.

7.3 Telephone Calls

To make a call, simply dial the number. The dial plan (i.e. the dialed digits) is normally customized for each installation. The default dial plan delivered by Comtrend allows dialing of 4-digit extensions or direct IP addresses. Shorter extension numbers (e.g. 3-digits) can be dialed by completing the dial string with a final #.

When a Call Server (SIP Proxy Server) is configured into the system, the dialed digits are translated and routed by the Call Server to the correct destination as registered with the Call Server.

If no Call Server is configured, calls can still be made using 4-digit extensions, rather than using full IP addresses. The originator translates the dialed-digits to a destination device as follows:

First Digit: Line identifier (for multi-line gateways)

Remaining digits: Host number part of an IP address. The Network number part is

considered to be the same as the caller’s IP address.

For example, if a caller at address 10.136.64.33/24 dials “2023”, the call will be placed to the second line at address 10.136.64.23. All devices have to be on the same Class C subnet (24 bit subnet mask).

To dial an IP address directly, dial the IP address digits, using keypad * as the dot. Complete the address with a final * or #. When using IP address dialing it is not possible to specify which line at a gateway is called, so the gateway always routes IP-address dialed calls to the first line.

Network busy tone (fast busy) will be played for unknown or unreachable destinations. To answer a call, pick up the phone or press the handsfree button.

Caller ID

The Call Manager delivers Calling Number when placing calls. The calling number is transmitted to the analog line for CLASS recognition.

Call Hold

To put a call on hold, press flash then hang up (optional). To return to the original call, press flash or pick up the phone. The phone will issue a short ring burst every 30 seconds or so while on-hook to remind you that a call is on hold.

Call Transfer

• To transfer a call, press flash then dial the new number.

• To transfer immediately, hang up (blind transfer).

• To transfer with consultation, wait for the party to answer, consult, and

hang up.

• To abort the transfer (if the third party does not answer), press flash to

return to the original call.

Conference Calling

To turn a two-party call into a three-party conference call, press flash and dial the third party. Wait for the party to answer, then press flash.

To drop the third party and return to a two-party call, press flash again. To drop yourself out of the conference, hang up. The call will be transferred (so that the other two parties remain connected to each other). In conference mode, the conference initiator performs the audio bridge/mixing function – there are only two voice streams established.

Call Waiting

If call waiting is enabled on a line, and you hear the call waiting tone during a call, press flash to answer the second call. The first call is automatically placed on hold. To switch between calls, press flash again.

• To disable the call waiting feature, dial *60.

• To enable the call waiting feature, dial *61.

Call forward feature settings (Busy or All) takes priority over the call waiting feature. The call waiting feature is ignored on new incoming calls if there is already a call on hold or in conference.

Call Forward Number

• To set the call forward number, dial *74 then the number. Note that this

does not actually enable forwarding; to do so, select the call forward action as described below.

• To disable all call forwarding features, dial *70

Call Forward No Answer

• To enable call forward on no answer, dial *71. Incoming calls will be

forward if unanswered for 18 seconds.

Call Forward Busy

• To enable call forward if busy, dial *72. Incoming calls will be immediately

forwarded if the phone is off-hook.

Call Forward All

• To enable call forward for all calls, dial *73.

• To disable the “forward all calls” feature, dial *75.

Previous settings for Call Forward Busy or No Answer are not modified.

Call Return

To place a call to the last known incoming caller (unanswered or not), dial *69.

Redial

• To redial the last outgoing number, dial *68.

Chapter 8 Diagnostics

The Diagnostics menu provides feedback on the connection status of the device. The individual tests are listed below. If a test displays a fail status, click Rerun Diagnostic Tests at the bottom of this page to make sure the fail status is consistent. If the test continues to fail, click Help and follow the troubleshooting procedures.

Test Description

LAN Connection

WAN connection

Wireless connection

Ping Default Gateway

Pass: Indicates that the Ethernet interface from your computer is connected to the LAN port of this device.

Fail: Indicates that the device does not detect the Ethernet interface from your computer.

Pass: : Indicates that the WAN interface from the modem (ADSL/cable) is connected to the WAN port of this device.

Fail: Indicates that the device does not detect the WAN interface from the modem (ADSL/cable).

Pass: Indicates that the Wireless interface from your computer is connected to the wireless network.

Down: Indicates that the device does not detect the wireless network.

Pass: Indicates that the device can communicate with the first entry point to the network. It is usually the IP address of the ISP local router.

Fail: Indicates that the device was unable to communicate with the first entry point on the network. It may not have an effect on your Internet connectivity. Therefore if this test fails but you are still able to access the Internet, there is no need to troubleshoot this issue.

Test Description

Ping Primary Domain Name Server

Pass: Indicates that the device can communicate with the primary Domain Name Server (DNS).

Fail: Indicates that the device was unable to communicate with the primary Domain Name Server (DNS). It may not have an effect on your Internet connectivity. Therefore if this test fails but you are still able to access the Internet, there is no need to troubleshoot this issue.

Chapter 9 Management

The Management section of the device supports the following maintenance functions and processes:

• Settings

• System log

• SNMP Agent

• Internet Time

• Access Control

• Update software

• Save/Reboot

9.1 Settings

The Settings screen allows for the backup, retrieval and restoration of settings. Each of these functions is accessed from the Settings submenu and described in more detail in the following discussion.

9.1.1 Backup Settings

Select Backup from the Settings submenu to access the screen shown below. Click the Backup Settings button to save the current configuration settings. You will be prompted to define the location of a backup file to save to your PC.

9.1.2 Update Settings

Select Update from the Settings submenu to access the screen shown below. Enter a previously saved configuration backup file in the Settings File Name field and click the Update Settings button to load it. If you forget the filename and path you can search your PC by clicking on the Browse button.

9.1.3 Restore Default

Select Restore Default from the Settings submenu to access the screen shown below. Click the Restore Default Settings button to restore the device to the default firmware settings. Restoring system settings require a device reboot.

The default settings can be found in section 3.1 Default Settings.

After the Restore Default Configuration button is selected, the following screen appears. Close the device Configuration window and wait for 2 minutes before reopening your web browser. If necessary, reconfigure your PC's IP address to match your new configuration.

After a successful reboot, the browser will return to the Device Info screen. If the browser does not refresh to the default page, close and restart the browser.

NOTE: The Restore Default function has the same effect as the reset button.

The device board hardware and the boot loader support the reset to default button. If the reset button is continuously pushed for more than 5 seconds (and not more than 12 seconds), the boot loader will erase the configuration settings saved on flash memory.

9.2 System Log

The System Log option under Management allows for the viewing of system events and configuration of related options. The default setting for the System Log is enabled. Follow the steps below to enable and view the System Log.

STEP 1: Click Configure System Log to continue.

Step 2: Select from the desired system log options (see table below) and then

click Save/Apply.

Option

Description

Log Indicates whether the system is currently recording events. The user can

enable or disable event logging. By default, it is disabled. To enable it,

click Enable and then Apply button. Log level

Allows you to configure the event level and filter out unwanted events

below this level. The events ranging from the highest critical level

“Emergency” down to this configured level will be recorded to the log

buffer on the CT-820C SDRAM. When the log buffer is full, the newer

event will wrap up to the top of the log buffer and overwrite the old

event. By default, the log level is “Debugging,” which is the lowest

critical level. The following log levels are

• Emergency = system is unstable

• Alert = action must be taken immediately

• Critical = critical conditions

• Error = Error conditions

• Warning = normal but significant condition

• Notice

• Informational

• Debugging = debug-level messages

Emergency is the most serious event level, whereas Debugging is the

least important. For instance, if the log level is set to Debugging, all the

events from the lowest Debugging level to the most critical level

Emergency level will be recorded. If the log level is set to Error, only

Error and the level above will be logged. Display Level

Allows the user to select the logged events and displays on the View

System Log page for events of this level and above to the highest

Emergency level.

Option

Mode Allows you to specify whether events should be stored in the local

3. Click View System Log. The results are displayed in as follows.

Description

memory, or be sent to a remote syslog server, or both simultaneously.

If remote mode is selected, view system log will not be able to display

events saved in the remote syslog server.

When either Remote mode or Both mode is configured, the WEB UI will

prompt the user to enter the Server IP address and Server UDP port.

9.3 SNMP Agent

Simple Network Management Protocol (SNMP) allows a management application to retrieve statistics and status from the SNMP agent in this device.

Select the desired values and click Save/Apply to configure the SNMP options.

9.4 Internet Time

NOTE: Internet Time must be activated to use Parental Control (section 5.4.2)

The Internet Time option under the Management submenu configures the time settings of the device. To automatically synchronize with Internet timeservers, tick the corresponding box displayed on this screen, then click Save/Apply.

On the screen below, choose your Time Zone and click Save/Apply to continue.

Field Descriptions First NTP time server: Select your required server. Second NTP time server: Select second time server if required. Time zone offset: Select your local time zone.

9.5 Access Control

The Access Control option under Management menu bar configures access related parameters in three areas: Services, IP Addresses, and Passwords. Use Access Control to control local and remote management settings for the device.

9.5.1 Services

The Services option limits or opens the access services over the LAN or WAN. These access services are available: FTP, HTTP, ICMP, SSH, TELNET, and TFTP. Enable a service by ticking its checkbox. Click Save/Apply to continue.

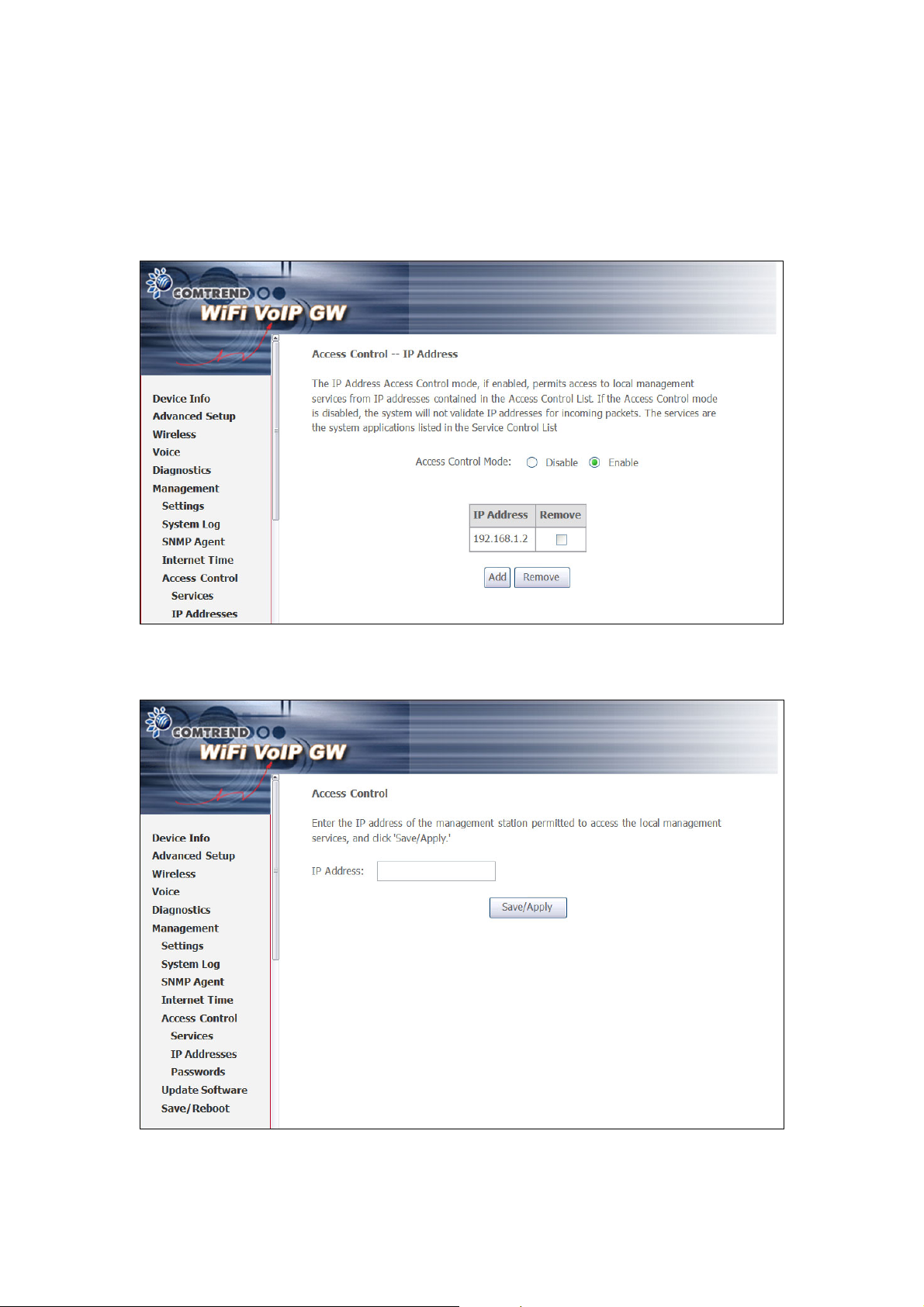

9.5.2 IP Addresses

The IP Addresses option limits local access by IP address. When the Access Control Mode is enabled, only the IP addresses listed here can access the device.

Before enabling Access Control Mode, add IP addresses with the Add button.

On this screen, enter the IP address of a local PC which you wish to give management permissions. Click Save/Apply to continue.

9.5.3 Passwords

The Passwords option configures the user account access passwords for the device. Access to the device is limited to the following three user accounts:

• root is to be used for local unrestricted access control.

• support is to be used for remote maintenance of the device

• user is to be used to view information and update device firmware.

NOTE: Default account passwords can be found in section 3.1 Default Settings

Use the fields in the screen below to select a username and change its password. Passwords must be 16 characters or less. Click Save/Apply to continue.

9.6 Update Software

The Update Software screen allows for firmware updates. Manual device upgrades from a locally stored file can be performed using the following screen.

Step 1: Obtain an updated software image file from your ISP.

Step 2: Enter the path and filename of the firmware image file in the Software

File Name field or click the Browse button to locate the image file.

Step 3: Click the Update Software button once to upload and install the file.

NOTE 1: The update process will take about 2 minutes to complete. The device

will reboot and the browser window will refresh to the default screen upon successful installation.

It is recommended that you compare the Software Version at the top

of the Device Info Summary screen (see screenshot below) with the firmware version installed, to confirm the installation was successful.

9.7 Save and Reboot

The Save/Reboot option saves the current configuration and reboots the device. Close your browser, wait about 2 minutes and then restart the web user interface.

NOTE: It may be necessary to reconfigure your TCP/IP settings to adjust for

the new configuration. For example, if you disable the DHCP server you will need to apply Static IP settings. In this case, see section 3.2 TCP/IP Settings for detailed instructions.

NOTE: If you lose all access to the web user interface, simply press the reset

button on the rear panel for 5-7 seconds to restore to default settings.

Appendix A: Firewall

Stateful Packet Inspection

Refers to an architecture, where the firewall keeps track of packets on each connection traversing all its interfaces and makes sure they are valid. This is in contrast to static packet filtering which only examines a packet based on the information in the packet header.

Denial of Service attack

Is an incident in which a user or organization is deprived of the services of a resource they would normally expect to have.

Various DoS attacks the device can withstand are: ARP Attack, Ping Attack, Ping of Death, Land, SYN Attack, Smurf Attack and Tear Drop.

TCP/IP/Port/Interface Filter

These rules help in the filtering of traffic at the Network layer i.e. Layer 3. When a Routing interface is created "Enable Firewall" must be checked. Navigate to Advanced Setup -> Security -> IP Filtering.

Outgoing IP Filter

Helps in setting rules to DROP packets from the LAN interface. By default if Firewall is Enabled all IP traffic from LAN is allowed. By setting up one or more filters, particular packet types coming from the LAN can be dropped.

Filter Name: User defined Filter Name.

Protocol: Can take on any values from: TCP/UDP, TCP, UDP or ICMP

Source IP Address/Source Subnet Mask: Packets with the particular

"Source IP Address/Source Subnet Mask" combination will be dropped.

Source Port: This can take on either a single port number or a range of port numbers. Packets having a source port equal to this value or falling within the range of port numbers(portX : portY) will be dropped.

Destination IP Address/Destination Subnet Mask: Packets with the particular "Destination IP Address/Destination Subnet Mask" combination will be dropped.

Destination Port: This can take on either a single port number or a range of port numbers. Packets having a destination port equal to this value or falling within the range of port numbers(portX : portY) will be dropped.

Examples:

1. Filter Name : Out_Filter1 Protocol : TCP Source Address : 192.168.1.45 Source Subnet Mask : 255.255.255.0 Source Port : 80 Destination Address : NA Destination Subnet Mask : NA Destination Port : NA

This filter will Drop all TCP packets coming from LAN with IP Address/Sub. Mask 192.168.1.45/24 having a source port of 80 irrespective of the destination. All other packets will be Accepted.

2. Filter Name : Out_Filter2 Protocol : UDP Source Address : 192.168.1.45 Source Subnet Mask : 255.255.255.0 Source Port : 5060:6060 Destination Address : 172.16.13.4 Destination Subnet Mask : 255.255.255.0 Destination Port : 6060:7070

This filter will drop all UDP packets coming from LAN with IP Address/ Subnet Mask 192.168.1.45/24 and a source port in the range of 5060 to 6060, destined to 172.16.13.4/24 and a destination port in the range of 6060 to 7070.

Incoming IP Filtering:

Helps in setting rules to ACCEPT packets from the WAN interface. By default all incoming IP traffic from WAN is Blocked, if the Firewall is Enabled. By setting up one or more filters, particular packet types coming from the WAN can be Accepted.

Filter Name: User defined Filter Name.

Protocol: Can take on any values from TCP/UDP, TCP, UDP or ICMP

Source IP Address/Source Subnet Mask: Packets with the particular

"Source IP Address/Source Subnet Mask" combination will be accepted.

Destination IP Address/Destination Subnet Mask: Packets with the particular "Destination IP Address/Destination Subnet Mask" combination will be accepted.

The WAN interface on which these rules apply needs to be selected by user.

Examples:

1. Filter Name : In_Filter1 Protocol : TCP Source Address : 210.168.219.45 Source Subnet Mask : 255.255.0.0 Source Port : 80 Destination Address : NA Destination Sub. Mask : NA Destination Port : NA

Selected WAN interface: mer_0_35/nas_0_35

This filter will ACCEPT all TCP packets coming from WAN interface mer_0_35/nas_0_35 with IP Address/Sub. Mask 210.168.219.45/16 having a source port of 80 irrespective of the destination. All other incoming packets on this interface are DROPPED.

2. Filter Name : In_Filter2 Protocol : UDP Source Address : 210.168.219.45 Source Subnet Mask : 255.255.0.0 Source Port : 5060:6060 Destination Address : 192.168.1.45 Destination Subnet Mask : 255.255.255.0 Destination Port : 6060:7070

This rule will ACCEPT all UDP packets coming from WAN interface mer_0_35/nas_0_35 with IP Address/Subnet Mask 210.168.219.45/16 and a source port in the range of 5060 to 6060, destined to

192.168.1.45/24 and a destination port in the range of 6060 to 7070. All other incoming packets on this interface are DROPPED.

Parental Control

This feature restricts access of a selected LAN device to an outside Network through the router, as per chosen days of the week and the chosen times.

User Name: Name of the Filter.

Browser's MAC Address: Displays MAC address of the LAN device on which

the browser is running.

Other MAC Address: If restrictions are to be applied to a device other than the one on which the browser is running, the MAC address of that LAN device is entered.

Days of the Week: Days of the week, when the restrictions are applied.

Start Blocking Time: The time when restrictions on the LAN device

are put into effect.

End Blocking Time: The time when restrictions on the LAN device are lifted.

Example:

User Name: FilterJohn Browser's MAC Address: 00:25:46:78:63:21 Days of the Week: Mon, Wed, Fri Start Blocking Time: 14:00 End Blocking Time: 18:00

When this rule i.e. FilterJohn is entered, a LAN device with MAC Address of 00:25:46:78:63:21 will be restricted access to the outside network on Mondays, Wednesdays and Fridays, from 2pm to 6pm. On all other days and time this device will have access to the outside Network.

Appendix B: Pin Assignments

Pin Assignments of the RJ11 Port

Line port (RJ11)

Pin Definition Pin Definition

1 - 4 ADSL_TIP 2 - 5 3 ADSL_RING 6 -

Pin assignments of the LAN Port

LAN Port (RJ45)

Pin Definition Pin Definition

1 Transmit data+ 5 NC 2 Transmit data- 6 Receive data3 Receive data+ 7 NC 4 NC 8 NC

Appendix C: Specifications

WAN Interface

Ethernet x 1

LAN Interface

Ethernet x 4

WLAN

Standard IEEE802.11g, backward compatible with 802.11b

Encryption 64, 128-bit Wired Equivalent Privacy (WEP)

Channels 11 (US, Canada)/ 13 (Europe)/ 14 (Japan)

Data Rate Up to 54Mbps

MAC Address Filtering, WEP, WPA, IEEE 802.1x

10, 25, 50, 100mW @ 22MHz channel bandwidth Output power level can be selected according to the environment

Analog Interface

FXS x 2, FXO x 1 (Life Line)

WAN Connection

PPPoE (RFC 2516), DHCP Client, Static IP

Management

SNMP, SNTP, Telnet, Web-based management, Configuration backup and restoration. Software upgrade via HTTP, TFTP client and server or FTP server.

Centralized configuration and firmware upgrade via APS (optional)

Bridge Functions

Transparent bridging and learning............ IEEE 802.1d

IGMP Proxy .......................................... Yes

IGMP Snooping ..................................... Yes

Routing Functions

Static route, RIP v1/v2, NAT/PAT, DMZ, DHCP Client/Server/Relay, DNS Proxy, DDNS, IGMP proxy, ARP

Security Functions

Authentication protocols......................... PAP, CHAP

VPN..................................................... PPTP/L2TP/IpSec pass-through

Stateful Packet Inspection, Packet filtering, Denial Of Service protection, Traffic Conditioning, WFQ-based Bandwidth Management, HTTP proxy

QoS

L3 policy-based QoS, IP QoS, ToS

Voice Functions

SIP ..................................................... RFC 3261

Codec.................................................. G.711a/u, G.729, ILBC

RTP..................................................... RFC 1889

SDP .................................................... RFC 2327

Caller ID .............................................. ETSI based

Life line/Emergency call .........................Yes

Echo cancellation ..................................G.168

Silence suppression ............................... Yes

T.38/Fax passthrough ............................Yes

DTMF .................................................. RFC2833/in-band

QoS .................................................... Yes

ToS/DSCP bit tagging............................. Yes

Dial Plan .............................................. Yes

Power External power adapter Input: AC100-240V Output: DC12V/1.5A

Environmental Conditions

Operating temperature........................... 0 ~ 50 degrees Celsius

Relative humidity .................................. 5 ~ 90% (non-condensing)

Dimensions

205 mm (W) x 47 mm (H) x 145 mm (D)

NOTE: Specifications are subject to change without notice

Appendix D: SSH Client

Linux OS comes with an ssh client. Microsoft Windows does not have ssh client but there is a public domain one called “putty” that you can download here:

http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html

To access the device using Linux ssh client:

From LAN: Use the device WEB UI to enable SSH access from LAN. (default is enabled) type: ssh -l root 192.168.1.1

From WAN: In the device, use WEB UI to enable SSH access from WAN. type: ssh -l support device-WAN-ip-address

To access the device using the Windows “putty” ssh client:

From LAN: Use the device WEB UI to enable SSH access from LAN (default is enabled) type: putty -ssh -l admin 192.168.1.1

From WAN: In the device, use WEB UI to enable SSH access from WAN. type: putty -ssh -l support device-WAN-ip-address

Comtrend CT-820C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Chapter 1 Introduction

1.1 Features

1.2 Application

1.3 LED Indicators

Chapter 2 Hardware Setup

Chapter 3 Web User Interface

3.1 Default Settings

3.2 TCP/IP Settings

3.3 Login Procedure

Chapter 4 Device Information

4.1 WAN

4.2 Statistics

4.2.1 LAN Statistics

4.2.2 WAN Statistics

4.3 Route

4.4 ARP

4.5 DHCP

Chapter 5 Advanced Setup

5.1 WAN

5.2 LAN

5.3 NAT

5.3.1 Virtual Servers

5.3.2 Port Triggering

5.3.3 DMZ Host

5.4 Security

5.4.1 IP Filtering

5.4.2 Parental Control

5.5 Quality of Service

5.6 Routing

5.6.1 Default Gateway

5.6.2 Static Route

Chapter 6 Wireless

6.1 Basic

6.2 Security

6.3 MAC Filter

6.4 Wireless Bridge

6.5 Advanced

6.6 Station Info

Chapter 7 Voice

7.1 SIP

7.2 Dial Plan

7.3 Telephone Calls

Chapter 8 Diagnostics

Chapter 9 Management

9.1 Settings

9.1.1 Backup Settings

9.1.2 Update Settings

9.1.3 Restore Default

9.2 System Log

9.3 SNMP Agent

9.4 Internet Time

9.5 Access Control

9.5.1 Services

9.5.2 IP Addresses

9.5.3 Passwords

9.6 Update Software

9.7 Save and Reboot

Appendix A: Firewall

Appendix B: Pin Assignments

Appendix C: Specifications

Appendix D: SSH Client
