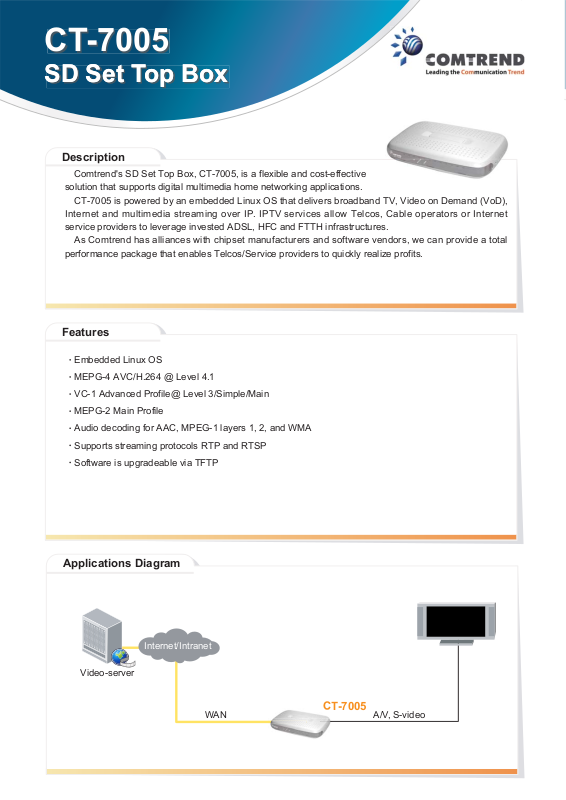

Page 1
CT-7005
SD Set Top BoxSD Set Top Box
Description
Comtrend's SD Set Top Box, CT-7005, is a flexible and cost-effective
solution that supports digital multimedia home networking applications.
CT-7005 is powered by an embedded Linux OS that delivers broadband TV, Video on Demand (VoD),
Internet and multimedia streaming over IP. IPTV services allow Telcos, Cable operators or Internet
service providers to leverage invested ADSL, HFC and FTTH infrastructures.
As Comtrend has alliances with chipset manufacturers and software vendors, we can provide a total
performance package that enables Telcos/Service providers to quickly realize profits.
Features
Embedded Linux OS
MEPG-4 AVC/H.264 @ Level 4.1
VC-1 Advanced Profile@ Level 3/Simple/Main
MEPG-2 Main Profile
Audio decoding for AAC, MPEG-1 layers 1, 2, and WMA
Supports streaming protocols RTP and RTSP
Software is upgradeable via TFTP
Applications Diagram
Video-server
Internet/Intranet
WAN
CT-7005
A/V, S-video
Page 2
CT-7005
SD Set Top BoxSD Set Top Box
Specifications
Hardware
Video Output
NTSC/ PAL TV analog output
480i/480p/576i/576p output formats
Audio Output
Analog Stereo
Interfaces
RJ-45 for WAN 10/100 T auto sensing
RCA composite Video/ Audio output
S-Video output
Video Decoding
MPEG 2 MP decoding SD
H.264 [email protected] decoding SD
VC-1 Advanced Profile@ Level 3/Simple/Main decoding SD
Audio Decoding
MPEG-1 Layers 1, 2 Decode, WMA Decode, AAC Decode
Hard Disk Drive (option)
Dimensions
235mm (W) x 149mm (D) x 43mm (H)
Power
AC 100~240V / 50~60Hz
Software
IPv4, HTTP, DNS Client, DHCP Client, TFTP Client, Telnet Server, ICMP (Ping / Trace route).NTP,PPPOE
Browser
ANT Browser*
Copy Protection
DRM and Macrovision*
Middleware
OSD with VCR trick mode (Play, Pause, FFW, RW, Stop)*
EPG (Electric Program Guide)*
Streaming Protocol
RTP and RTSP*
Multicast Protocol
IGMP V2, V3
* Features are based on the solution of our middleware and video server partners. Custom configurations are available upon customer request.
Note: Specifications are subject to change without notice.
