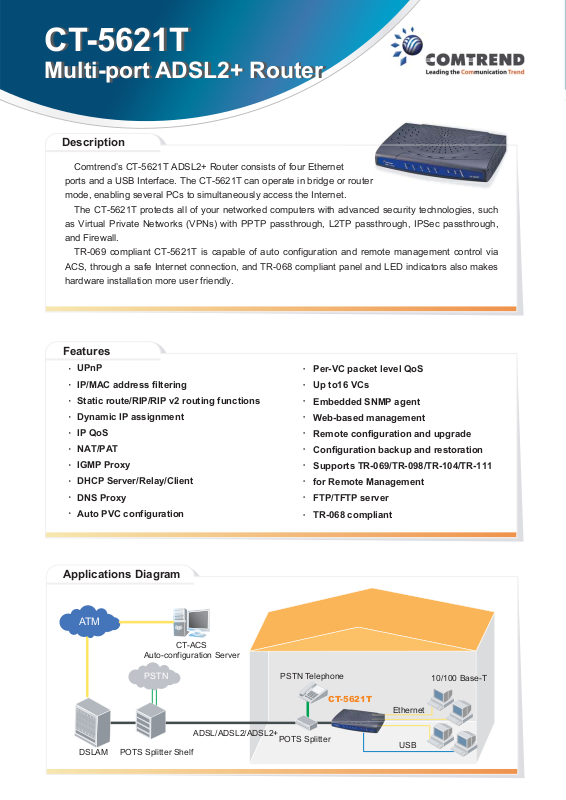

Page 1
CT-5621T
CT-5621T
Multi-port ADSL2+ Router
Multi-port ADSL2+ Router
Description
Comtrend’s CT-5621T ADSL2+ Router consists of four Ethernet
ports and a USB Interface. The CT-5621T can operate in bridge or router
mode, enabling several PCs to simultaneously access the Internet.
The CT-5621T protects all of your networked computers with advanced security technologies, such
as Virtual Private Networks (VPNs) with PPTP passthrough, L2TP passthrough, IPSec passthrough,
and Firewall.
TR-069 compliant CT-5621T is capable of auto configuration and remote management control via
ACS, through a safe Internet connection, and TR-068 compliant panel and LED indicators also makes
hardware installation more user friendly.
Features
UPnP
IP/MAC address filtering
Static route/RIP/RIP v2 routing functions
Dynamic IP assignment
IP QoS
NAT/PAT
IGMP Proxy
DHCP Server/Relay/Client
DNS Proxy
Auto PVC configuration
Applications Diagram
ATM
Per-VC packet level QoS
Up to16 VCs
Embedded SNMP agent
Web-based management
Remote configuration and upgrade
Configuration backup and restoration
Supports TR-069/TR-098/TR-104/TR-111
for Remote Management
FTP/TFTP server
TR-068 compliant
DSLAM
CT-ACS
Auto-configuration Server
PSTN
POTS Splitter Shelf
ADSL/ADSL2/ADSL2+
PSTN Telephone
CT-5621T
POTS Splitter
10/100 Base-T
Ethernet
USB
Page 2
CT-5621T
CT-5621T
Multi-port ADSL2+ Router
Multi-port ADSL2+ Router
Specifications
Hardware Interface
RJ-11x1 for ADSL ; RJ-45 x 1 for LAN ; Reset button x 1 ; Power switch ; 1 x USB device
WAN Interface
ADSL standard ITU-T G.992.5, ITU-T G.992.3, ITU-T G.992.1, ANSI T1.413 Issue 2
G.992.5 (ADSL2+) Downstream : 24 Mbps Upstream : 1.3 Mbps
G.992.3 (ADSL2) Downstream : 12 Mbps Upstream : 1.3 Mbps
G.DMT Downstream : 8 Mbps Upstream : 832 Kbps
Annex M
LAN Interface
Standard IEEE 802.3, IEEE 802.3u
10/100 BaseT Auto-sense
MDI/MDX support Yes
ATM Attributes
RFC 2364 (PPPoA), RFC 2684 (RFC 1483) Bridge/Route; RFC 2516 (PPPoE); RFC 1577 (IPoA)
Support PVCs 16
AAL type AAL5
ATM service class UBR/CBR/VBR
ATM UNI support UNI3.1/4.0
OAM F4/F5 Yes
Management
TR-069, TR-098, TR-104, TR-111, SNMP, Telnet, Web-based management, Configuration
backup and restoration
Software upgrade via HTTP, TFTP server, or FTP server
Bridge Functions
Transparent bridging and learning IEEE 802.1d
VLAN support Yes
Spanning Tree Algorithm Yes
IGMP Proxy Yes
Routing Functions
Static route, RIP, and RIPv2, NAT/PAT, DHCP Server/DHCP Relay, DNS Proxy, ARP
Security Functions
Authentication protocols PAP, CHAP,
TCP/IP/Port filtering rules, Port triggering/Forwarding, Packet and MAC address filtering, access control, SSH
Application Passthrough
PPTP, L2TP, IPSec, VoIP, Yahoo messenger, ICQ, RealPlayer, NetMeeting, MSN, X-box, etc.
Power Supply
External power adapter 100 - 240 Vac
Environment Condition
Operating temperature 0 ~ 50 degrees Celsius
Relative humidity 5 ~ 95% (non-condensing)
Dimensions
205 mm (W) x 47 mm (H) x 145 mm (D)
Kit Weight (1*CT-5621T, 1* RJ-11 cable, 1* RJ-45 cable, 1* USB cable, 1* Power Adapter, 1* CD-ROM)
1.20kg
Note: Specifications are subject to change without notice.
Global contact: sales@comtrend.com
Website: www.comtrend.com
DS_CT5621T_R1.1_112007
