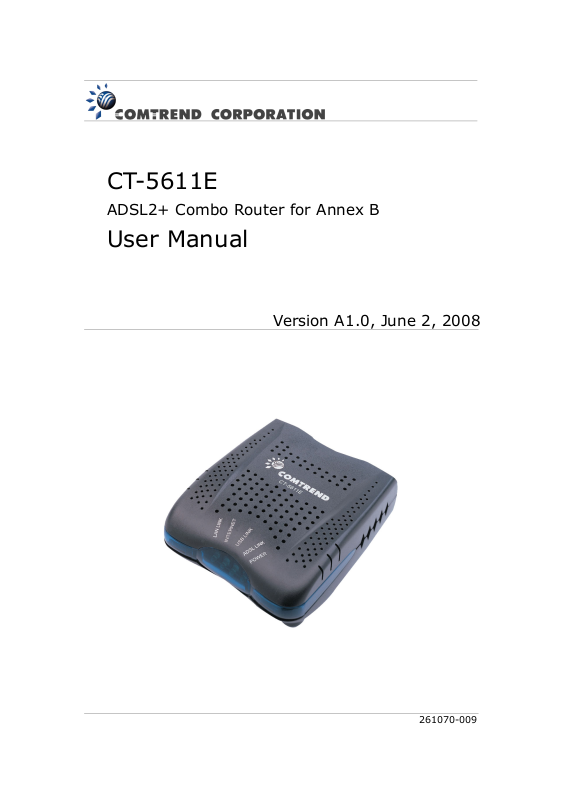

Comtrend CT-5611E User Manual

CT-5611E

ADSL2+ Combo Router for Annex B

User Manual

Version A1.0, June 2, 2008

261070-009

Preface

This manual provides information to network administrators. It covers the

installation, operation and application of this device. The individual reading this

manual is presumed to have a basic understanding of telecommunications.

If you find the product to be inoperable or malfunctioning, please contact

technical support for immediate service by email at INT-support@comtrend.com

For product update, new product release, manual revision, or software upgrades,

visit our website at http://www.comtrend.com

Warning

Before servicing, disconnect power and telephone lines from the device 



Use an appropriate power supply and a UL Listed telephone line cord



Power specifications are clearly stated in Appendix B: Specifications

contained herein is proprietary to Comtrend Corporation. No part of this

document may be translated, transcribed, reproduced, in any form, or by any

means without prior written permission by Comtrend Corporation.

NOTE: This document is subject to change without notice.

CHAPTER 1 INTRODUCTION......................................................................................................4

1.1 FEATURES........................................................................................................................................4

1.2 APPLICATION ...................................................................................................................................4

1.3 LED INDICATORS.............................................................................................................................5

CHAPTER 2 INSTALLATION........................................................................................................6

2.1 HARDWARE INSTALLATION ..............................................................................................................6

2.2 USB DRIVER AUTORUN INSTALLATION...........................................................................................7

2.3 USB DRIVER MANUAL INSTALLA TION (64BIT OS)........................................................................10

CHAPTER 3 WEB USER INTERFACE.......................................................................................15

3.1 DEFAULT SETTINGS .......................................................................................................................15

3.2 IP CONFIGURATION........................................................................................................................15

3.3 LOGIN PROCEDURE........................................................................................................................17

CHAPTER 4 QUICK SETUP.........................................................................................................19

4.1 AUTO QUICK SETUP.......................................................................................................................20

4.2 MANUAL QUICK SETUP .................................................................................................................21

4.2.1 PPP over ATM (PPPoA) and PPP over Ethernet (PPPoE)............................................22

4.2.2 MAC Encapsulation Routing (MER)..............................................................................27

4.2.3 IP Over ATM...................................................................................................................31

4.2.4 Bridging..........................................................................................................................33

CHAPTER 5 DEVICE INFORMATION ......................................................................................35

5.1 WAN .............................................................................................................................................36

5.2 STATISTICS.....................................................................................................................................37

5.2.1 LAN Statistics..................................................................................................................37

5.2.2 WAN Statistics.................................................................................................................37

5.2.3 ATM statistics.................................................................................................................38

5.2.4 ADSL Statistics...............................................................................................................3 9

5.3 ROUTE...........................................................................................................................................42

5.4 ARP...............................................................................................................................................44

5.5 DHCP............................................................................................................................................45

CHAPTER 6 ADVANCED SETUP ................................................................................................46

6.1 WAN .............................................................................................................................................46

6.2 LAN..............................................................................................................................................47

6.3 NAT ..............................................................................................................................................48

6.3.1 Virtual Servers................................................................................................................49

6.3.2 Port T r igger ing...............................................................................................................50

6.3.3 DMZ Host.......................................................................................................................51

6.4 SECURITY ......................................................................................................................................52

6.4.1 MAC Filtering.................................................................................................................52

6.4.2 IP Filtering.....................................................................................................................54

6.4.3 Parental Control.............................................................................................................56

6.5 QUALITY OF SERVICE ....................................................................................................................57

6.6 ROUTING .......................................................................................................................................59

6.6.1 Default Gateway.............................................................................................................59

6.6.2 Static Route.....................................................................................................................59

6.7 DNS............................................................................................................................ ..................60

6.7.1 DNS Server.....................................................................................................................60

6.7.2 Dynamic DNS.................................................................................................................61

6.8 DSL...............................................................................................................................................63

CHAPTER 7 DIAGNOSTICS........................................................................................................64

CHAPTER 8 MANAGEMENT......................................................................................................66

8.1 SETTINGS.......................................................................................................................................66

8.1.1 Backup Settings...............................................................................................................66

8.1.2 Update Settings...............................................................................................................66

8.1.3 Restore Default...............................................................................................................67

8.2

SYSTEM LOG .................................................................................................................................68

8.3 INTERNET TIME .............................................................................................................................70

8.4 ACCESS CONTROL .........................................................................................................................71

8.4.1 Services...........................................................................................................................71

8.4.2 IP Addres s es...................................................................................................................71

8.4.3 Passwords.......................................................................................................................72

8.5 UPDATE SOFTWARE .......................................................................................................................73

8.6 SAVE A N D REBOOT ........................................................................................................................74

APPENDIX A: PIN ASSIGNMENTS.................................................................................................75

APPENDIX B: SPECIFICATIONS....................................................................................................76

APPENDIX C: SECURITY.................................................................................................................78

Chapter 1 Introduction

The CT-5611E ADSL2+ Combo Router for Annex B provides one 10/100 Ethernet Interface and one USB interface. It also offers ADSL connectivity at speeds of up to 24 Mbps. It has full routing capabilities to segment/route IP protocol, and supports advanced security functions.

1.1 Features

• Annex B

• IP filtering

• SPI (Stateful Packet Inspection)

• DoS protection

• Static route

• Dynamic IP assignment

• NAT/PAT

• IGMP Proxy

• DHCP Server/Relay/Client

• DNS Proxy

• Auto PVC configuration

• Up to 8 VCs

• Web-based management

• Remote configuration and upgrade

• Configuration backup and restoration

• FTP/TFTP server

1.2 Application

The following diagram depicts the application of the CT-5611E.

1.3 LED Indicators

The LED indicators labeled in this top-down view are explained in the table below.

LED Color Mode Function

On The router is powered up. POWER Green

Off The router is powered down.

ADSL LINK Green

USB Green

ADSL TR/RX Green

LAN Green

On The ADSL link is established.

Off The ADSL link is not established.

Blink The ADSL link is training.

On A USB link is established.

Off A USB link is not established.

Blink Data transmitting or receiving over USB.

On The ADSL TR/RX link is established.

Off The ADSL TR/RX link is not established.

Blink Traffic is passing through ADSL TR/RX.

On An Ethernet Link is established.

Off An Ethernet Link is not established.

Blink Data transmitting or receiving over LAN.

Chapter 2 Installation

2.1 Hardware Installation

Follow the instructions below to complete the hardware installation.

Connection to LINE - If you wish to connect both the router and a telephone, connect the LINE port to a POTS splitter with a RJ11 connection cable.

Power Button

Reset Button

Connection to LAN

Use RJ45 cable to connect a network hub or PC. The LAN port is auto-sensing MDI/X and either straight-through cable or crossover cable can be used.

Connection to USB

Connect the USB port to a PC with a mini-USB to standard USB cable.

Power ON

Press the power button to the OFF position (OUT). Connect the power adapter to the power port. Attach the power adapter to a wall outlet or other AC source. Press the power button to the ON position (IN). If the Power LED indicator lights up (GREEN) then the device is ready for setup.

Caution 1: If the device fails to power up, or it malfunctions, first verify that

the power cords are connected securely. Then power it on a If the problem persists, contact technical support.

Caution 2: Before servicing or disassembling this equipment always

disconnect all power cords and telephone lines from their outlets.

Reset Button

Restore the default parameters of the device by holding down the Reset button until the front panel LED indicators start blinking simultaneously (~ 5 seconds). After the device has rebooted successfully, and if the connection is established, the LAN, ADSL or USB LEDs will light up, depending on the connection type.

ain.

2.2 USB Driver Autorun Installation

Before connecting the CT-5611E to a PC with USB, the correct drivers must be installed. The auto-run USB driver installation supports Win ME, Win 98, Win 2000, Win XP (32 bit) and Vista (32 bit). For those using Windows XP 64 bit, the driver must be installed manually (please see section 2.3 below for details).

Follow the procedure below to install the standard (32 bit) USB driver

STEP 1: Insert the Installation CD and select Install USB Driver from the

autostart menu options shown below.

STEP 2: The following window will be displayed. Click the Next button to

continue.

STEP 3: When the window displays as below, wait for the drivers to fully install.

STEP 4: Click the Finish button, when the window displays as below.

STEP 5: The installation is complete. You can now connect the device to your PC

using a standard USB cable.

2.3 USB Driver Manual Installation (64bit OS)

Before connecting this router to a PC with USB, the correct drivers must be

installed.

Follow the procedure below to manually install the 64bit USB driver

STEP 1: Connect the USB port to the PC by plugging the flat connector of a

standard USB cable into your PC and plugging the square connector into the device. After a moment, the connection should be detected by your PC and if so the screen will display a notice to that effect, as shown below:

STEP 2: When the window displays as below, select Install from a list or

specific location (Advanced) and then click the Next button.

NOTE: This window won’t display if the USB Driver has been previously

installed. In this case, contact technical support for assistance.

STEP 3: Insert the installation CD.

NOTE: If you see the autostart menu (as shown in step 1 of previous section)

CLICK -

and continue with the manual installation process.

STEP 4: Select the location of the file using the Browse button, as shown above.

Normally, the file is on the CD-ROM shipped with the device.

STEP 5: Locate the Vista folder, and click OK.

STEP 6: When the window displays as below, click the NEXT button and wait.

STEP 7: Click the Finish button when the window displays as below.

STEP 8: Installation is complete.

Chapter 3 Web User Interface

This section describes how to access the device via the web user interface using an Internet browser such as Microsoft Internet Explorer (version 5.0 and later).

3.1 Default Settings

The following are the default settings for the device.

•

Local (LAN) access (username: root , password: 12345)

•

Remote (WAN) access (username: support, password: support)

•

User access (username: user, password: user)

•

LAN IP address: 192.168.1.1

•

WAN IP address: none

•

Remote WAN access: disabled

•

DHCP server: enabled in routing modes (PPPoA/E, IPoA & MER)

•

Firewall and NAT: enabled for PPPoE and PPPoA

disabled for Bridge*, MER and IPoA

* NAT is not available in Bridge mode

This device supports the following connection types.

•

PPP over Ethernet (PPPoE)

•

PPP over ATM (PPPoA)

•

MAC Encapsulated Routing (MER)

•

IP over ATM (IPoA)

•

Bridging

Technical Note:

During power on, the device initializes all settings to default values. It will then read the configuration profile from the permanent storage section of flash memory. The default attributes are overwritten when identical attributes with different values are configured. The configuration profile in permanent storage can be created via the web user interface or telnet user interface, or other management protocols. The factory default configuration can be restored either by pushing the reset button for more than five seconds until the power indicates LED blinking or by clicking the Restore Default Configuration option in the Restore Settings screen.

3.2 IP Configuration

DHCP Mode

When the device powers up, the DHCP server (on the device) will start automatically. To set your PC for DHCP mode, check the Internet Protocol properties of your Local Area Connection. You can set your PC to DHCP mode by selecting Obtain an IP address automatically in the dialog box shown below.

STATIC IP Mode

To configure the device manually, your PC must have a static IP address within the 192.168.1.x subnet. Follow the steps below to configure your PC IP address to use subnet 192.168.1.x. The following assumes you are running Windows XP.

STEP 1: From the Network Connections window, open Local Area Connection

(You may also access this screen by double-clicking the Local Area Connection icon on your taskbar). Click the Properties button.

STEP 2: Select Internet Protocol (TCP/IP) and click the Properties button.

The screen should now display as below. Change the IP address to the domain of 192.168.1.x (1<x<254) with subnet mask of 255.255.255.0.

STEP 3: Click OK to submit the settings.

3.3 Login Procedure

Perform the following steps to login to the web user interface.

NOTE: The default settings can be found in 3.1 Default Settings.

STEP 1: Start the Internet browser and enter the default IP address for the

device in the Web address field. For example, if the default IP address is 192.168.1.1, type http://192.168.1.1.

NOTE: For local administration (i.e. LAN access), the PC running the browser

must be attached to the Ethernet, and not necessarily to the device. For remote access (i.e. WAN), use the IP address shown on the Device

Info - WAN screen and login with remote username and password.

STEP 2: A dialog box will appear, such as the one below. Enter a default

username and password, as defined in section 3.1 Default Settings.

Click OK to continue.

NOTE: The login password can be changed later (see 8.4.3 Passwords)

STEP 3: After successfully logging in for the first time, you will reach this screen.

NOTE1: If a PVC connection already exists then this Quick Setup screen will be

bypassed and the Device Info – Summary screen will display instead.

NOTE2: The selections available on the main menu (onscreen at left) are based

upon the configured connection and user account privileges.

Chapter 4 Quick Setup

After login, the Quick Setup screen will appear as shown.

The Quick Setup screen allows the user to configure the ADSL router for DSL connectivity and Internet access. It also guides the user through the WAN network setup first and then the LAN interface setup. You can either manually customize the router or follow the online instructions to set up the router.

The following configuration considerations apply:

•

The WAN network operating mode operation depends on the service provider’s configuration in the Central Office and Broadband Access Server for the PVC

•

If the service provider provides PPPoE service, then the connection selection depends on whether the LAN-side device (typically a PC) is running a PPPoE client or whether the router is to run the PPPoE client. The router can support both cases simultaneously.

•

If some or none of the LAN-side devices do not run PPPoE client, then select PPPoE. If every LAN-side device is running a PPPoE client, then select Bridge. In PPPoE mode, the router also supports pass-through PPPoE sessions from the LAN side while simultaneously running a PPPoE client fro non-PPPoE LAN devices.

•

NAT and Firewall are always enabled in PPPoE or PPPoA modes, optional for MER or IPoA modes, and always disabled in Bridge mode.

•

Depending on the network-operating mode and NAT and firewall status, the main panel will display or hide the NAT/Firewall menu. For instance, at initial setup, the default network-operating mode is Bridge. The main panel will not show the NAT and Firewall menu.

NOTE: Up to 8 PVC profiles can be configured and saved. To activate a

particular PVC profile, you need to navigate through all the setup screens, click the Save button and reboot the system.

4.1 Auto Quick Setup

This function provides an automated process to quickly setup a WAN connection. The device will auto-detect the best PVC profile available, provided that the ADSL link is up. For manual setup, please skip to 4.2 Manual Quick Setup.

STEP 1: Select Quick Setup to display the DSL Quick Setup screen.

STEP 2: Click Next to start the setup process. Follow the onscreen prompts.

STEP 3: After setup is complete the device will reboot.

NOTE: After the device reboots, the Device Info – Summary screen should

appear. If the browser does not refresh automatically, close it and restart. You will need to login again.

If you encounter any difficulties, be sure to check the IP configuration

and configure as appropriate (see section 3.2 IP Configuration)

4.2 Manual Quick Setup

STEP 1: Select Quick Setup from the main menu and uncheck the DSL Auto-

connect checkbox ; to begin the manual quick setup process.

Uncheck to begin the manual quick setup process and display the following screen.

STEP 2: Adjust the VPI/VCI settings for the connection you wish to establish.

Click Next to continue.

STEP 3: On this screen, you can choose the connection type and select the

appropriate encapsulation mode. The available options are shown.

 PPPoA- VC/MUX, LLC/ENCAPSULATION  PPPoE- LLC/SNAP BRIDGING, VC/MUX  MER- LLC/SNAP-BRIDGING, VC/MUX  IPoA- LLC/SNAP-ROUTING, VC MUX  Bridging- LLC/SNAP-BRIDGING, VC/MUX

NOTE: Please ignore the onscreen reference to 802.1q VLAN tagging; it is a

misprint. This function is not

Click Next to continue…

NOTE: The subsections that follow continue the ATM PVC setup procedure.

Enter the appropriate settings for your service. Choosing different connection types will lead to a different sequence of setup screens.

available for this router.

4.2.1 PPP over ATM (PPPoA) and PPP over Ethernet (PPPoE)

STEP 4: Select PPP over ATM (PPPoA) or PPP over Ethernet (PPPoE) and click

Next. The following screen appears. Enter the Username and

Password and select the connection options you wish. Review the descriptions below for more details. Click Next to continue.

PPP Username/PPP Password

The PPP Username and the PPP password requirement are dependent on the particular requirements of the service provider. A maximum of 256 characters is allowed for the PPP user name and a maximum of 32 characters for PPP password.

PPPoE service name

For PPPoE service, PADI requests contain a service label. Some PPPoE servers (or BRAS) of ISP check this service label to make a connection.

Dial on Demand

The device can be configured to disconnect if there is no activity for a period of time by selecting this check box. When the checkbox is ticked, you must enter the inactivity timeout period. The timeout period ranges from 1 to 4320 minutes.

PPP IP Extension

The PPP IP Extension is a special feature deployed by some service providers. Unless your service provider specifically requires this setup, do not select it.

PPP IP Extension does the following:

•

Allows only one PC on the LAN

•

The public IP address assigned by the remote side using the PPP/IPCP protocol is actually not used on the WAN PPP interface. Instead, it is forwarded to the PC LAN interface through DHCP. Only one PC on the LAN can be connected to the remote, since the DHCP server within the device has only a single IP address to assign to a LAN device.

•

NAT and firewall are disabled when this option is selected.

•

The device becomes the default gateway and DNS server to the PC through DHCP using the LAN interface IP address.

•

The device extends the IP subnet at the remote service provider to the LAN PC. i.e. the PC becomes a host belonging to the same IP subnet.

•

The device bridges the IP packets between WAN and LAN ports, unless the packet is addressed to the device’s LAN IP address.

Use Static IP Address

Unless your service provider specially requires this setup, do not select it. If selected, enter your static IP address in the IP Address field. Also, do not forget to adjust your TCP/IP Settings as described in subsection 3.2 IP

Configuration.

MTU

This option allows us to change the MTU size for WAN interface, PPPoE and PPPoA. The default values are 1492 for PPPoE and 1500 for PPPoA.

STEP 5: This screen allows the user to control IGMP Multicast and WAN Service.

Enable IGMP Multicast checkbox:

Tick the checkbox to enable IGMP multicast (proxy). IGMP (Internet Group Membership Protocol) is a protocol used by IP hosts to report their multicast group memberships to any immediately neighboring multicast routers.

Enable WAN Service checkbox:

Tick this item to enable the ATM service. Untick it to stop the ATM service.

Service Name: This is the WAN Service label.

+ 57 hidden pages
