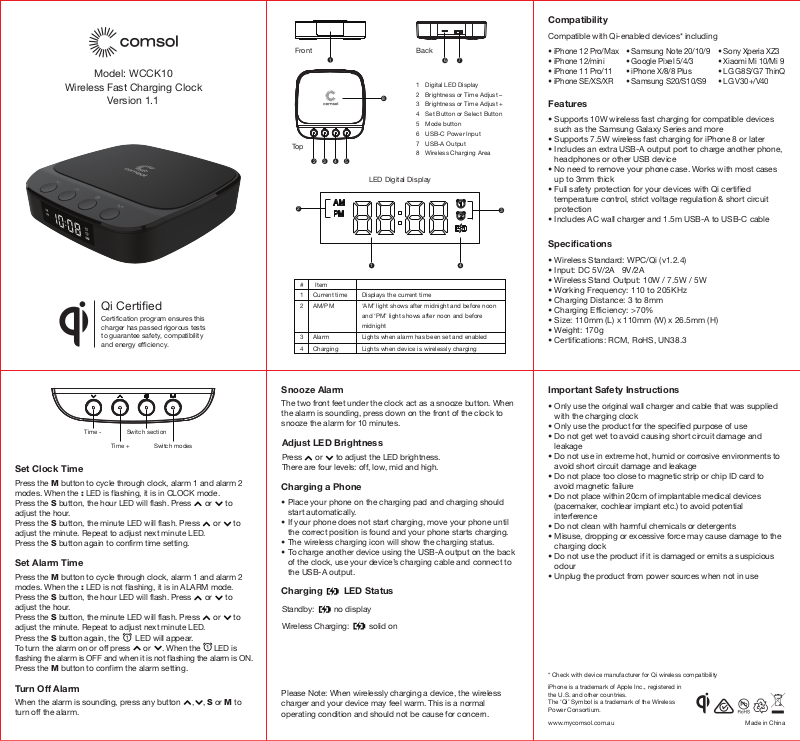

Comsol WCCK10 User Manual
Model: WCCK10
Wireless Fast Charging Clock
Version 1.1
Qi Certified
Certification program ensures this
charger has passed rigorous tests
to guarantee safety, compatibility
and energy efficiency.
Front
1
8
Top
2 3 4 5
LED Digital Display
2
1
# Item
1 Current time Displays the current time
2 AM/PM ‘AM’ light shows after midnight and before noon
and ‘PM’ light shows after noon and before
midnight
3 Alarm Lights when alarm has been set and enabled
4 Charging Lights when device is wirelessly charging
Back
6 7
1
Digital LED Display
2
Brightness or Time Adjust –
3
Brightness or Time Adjust +
4
Set Button or Select Button
5
Mode button
6
USB-C Power Input
7
USB-A Output
8
Wireless Charging Area
4
Compatibility
Compatible with Qi-enabled devices* including
• iPhone 12 Pro/Max
• iPhone 12/mini
• iPhone 11 Pro/11
• iPhone SE/XS/XR
• Samsung Note 20/10/9
• Google Pixel 5/4/3
• iPhone X/8/8 Plus
• Samsung S20/S10/S9
• Sony Xperia XZ3
• Xiaomi Mi 10/Mi 9
• LG G8S/G7 ThinQ
• LG V30+/V40
Features
• Supports 10W wireless fast charging for compatible devices
such as the Samsung Galaxy Series and more
• Supports 7.5W wireless fast charging for iPhone 8 or later
• Includes an extra USB-A output port to charge another phone,
headphones or other USB device
• No need to remove your phone case. Works with most cases
up to 3mm thick
• Full safety protection for your devices with Qi certified
temperature control, strict voltage regulation & short circuit
3
protection
• Includes AC wall charger and 1.5m USB-A to USB-C cable
Specifications
• Wireless Standard: WPC/Qi (v1.2.4)
• Input: DC 5V/2A 9V/2A
• Wireless Stand Output: 10W / 7.5W / 5W
• Working Frequency: 110 to 205KHz
• Charging Distance: 3 to 8mm
• Charging Efficiency: >70%
• Size: 110mm (L) x 110mm (W) x 26.5mm (H)
• Weight: 170g
• Certifications: RCM, RoHS, UN38.3
Time -
Switch section
Time +
Switch modes
Set Clock Time
Press the M button to cycle through clock, alarm 1 and alarm 2
modes. When the : LED is flashing, it is in CLOCK mode.
Press the S button, the hour LED will flash. Press or to
adjust the hour.
Press the S button, the minute LED will flash. Press or to
adjust the minute. Repeat to adjust next minute LED.
Press the S button again to confirm time setting.
Set Alarm Time
Press the M button to cycle through clock, alarm 1 and alarm 2
modes. When the : LED is not flashing, it is in ALARM mode.
Press the S button, the hour LED will flash. Press or to
adjust the hour.
Press the S button, the minute LED will flash. Press or to
adjust the minute. Repeat to adjust next minute LED.
Press the S button again, the LED will appear.
To turn the alarm on or off press or . When the LED is
flashing the alarm is OFF and when it is not flashing the alarm is ON.
Press the M button to confirm the alarm setting.
Turn Off Alarm
When the alarm is sounding, press any button , , S or M to
turn off the alarm.
Snooze Alarm
The two front feet under the clock act as a snooze button. When
the alarm is sounding, press down on the front of the clock to
snooze the alarm for 10 minutes.
Adjust LED Brightness
Press or to adjust the LED brightness.
There are four levels: off, low, mid and high.
Charging a Phone
• Place your phone on the charging pad and charging should
start automatically.
• If your phone does not start charging, move your phone until
the correct position is found and your phone starts charging.
• The wireless charging icon will show the charging status.
• To charge another device using the USB-A output on the back
of the clock, use your device’s charging cable and connect to
the USB-A output.
Charging LED Status
Standby: no display
Wireless Charging: solid on
Please Note: When wirelessly charging a device, the wireless
charger and your device may feel warm. This is a normal
operating condition and should not be cause for concern.
Important Safety Instructions
• Only use the original wall charger and cable that was supplied
with the charging clock
• Only use the product for the specified purpose of use
• Do not get wet to avoid causing short circuit damage and
leakage
• Do not use in extreme hot, humid or corrosive environments to
avoid short circuit damage and leakage
• Do not place too close to magnetic strip or chip ID card to
avoid magnetic failure
• Do not place within 20cm of implantable medical devices
(pacemaker, cochlear implant etc.) to avoid potential
interference
• Do not clean with harmful chemicals or detergents
• Misuse, dropping or excessive force may cause damage to the
charging dock
• Do not use the product if it is damaged or emits a suspicious
odour
• Unplug the product from power sources when not in use
* Check with device manufacturer for Qi wireless compatibility
iPhone is a trademark of Apple Inc., registered in
the U.S. and other countries.
The ‘Qi’ Symbol is a trademark of the Wireless
Power Consortium.
www.mycomsol.com.au
Made in China
