Computer Tech Link CTL9Ln User Manual

Printed on the recyclable paper

Printed in Korea
Part No. 942149020003 - 01

19Inch (V iewable size 18 )

High Resolution Color Monitor

User s Manual

CTL 9 Ln

Introduction

Package 4
Features

5
Safety Information 6
Power Management System

7

Installation

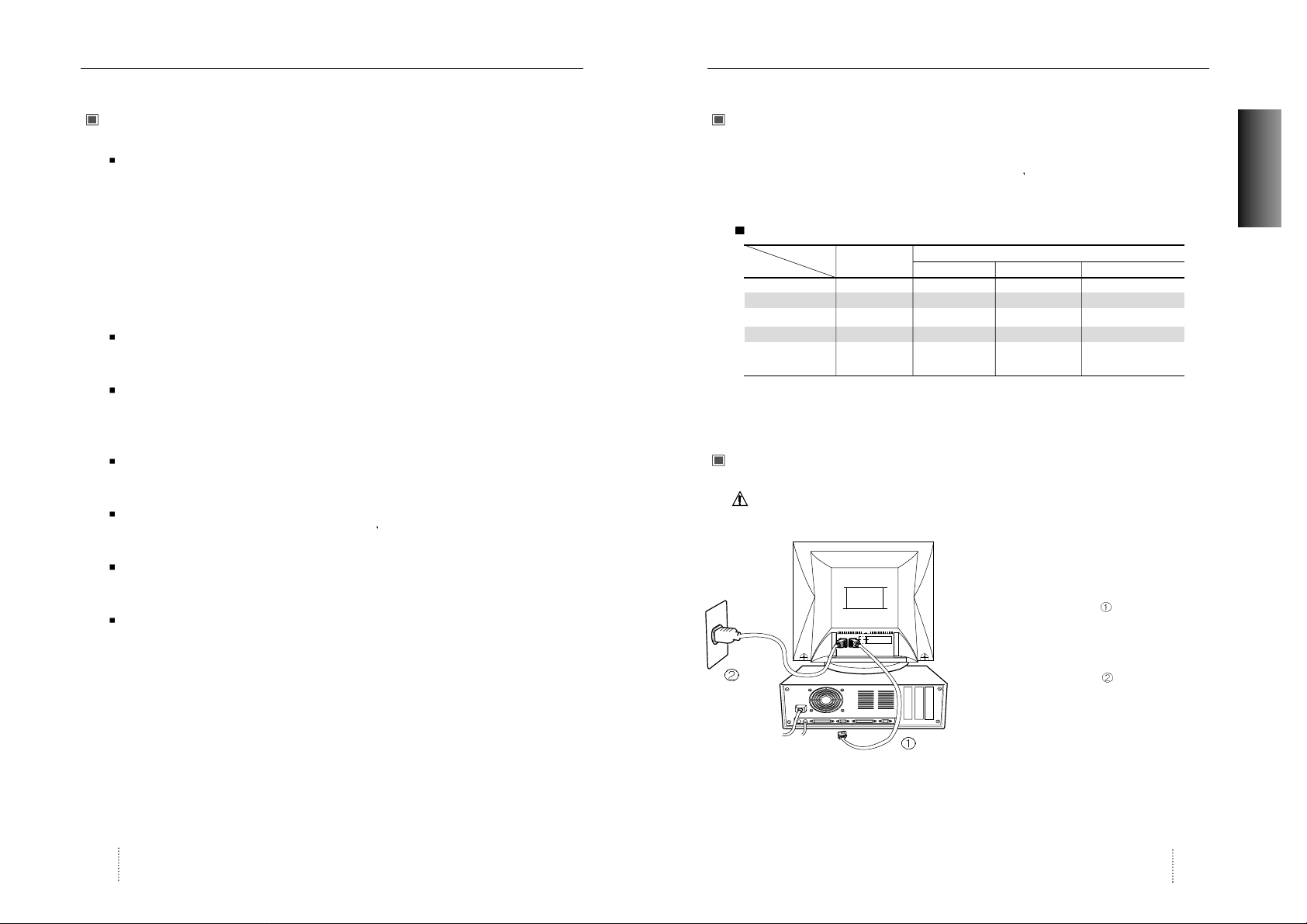

Connection to your computer 7

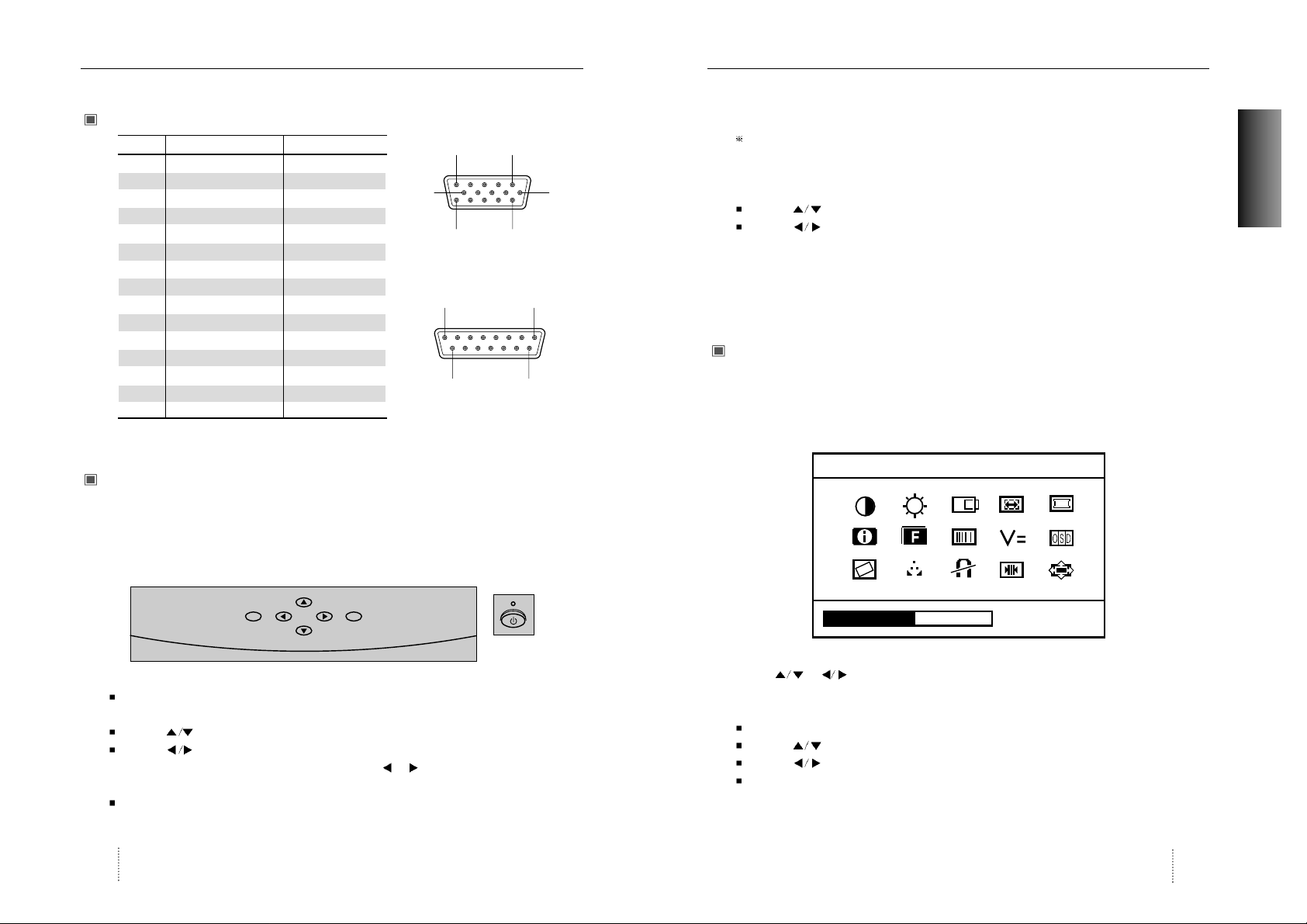

Pin assignment table D-Sub mini 15 pin connector

8

Controls

Function of controls

8

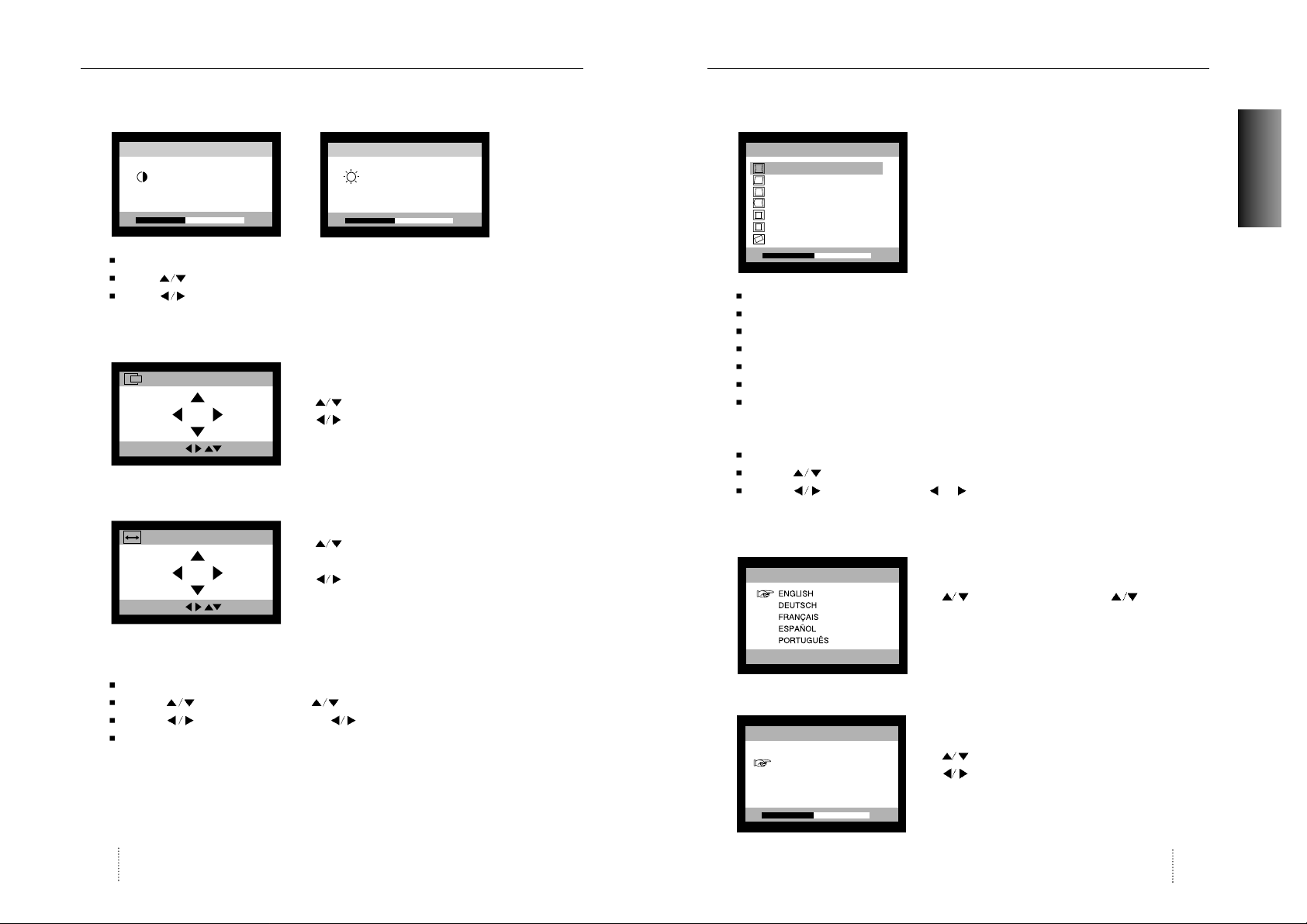

OSD Menu

9

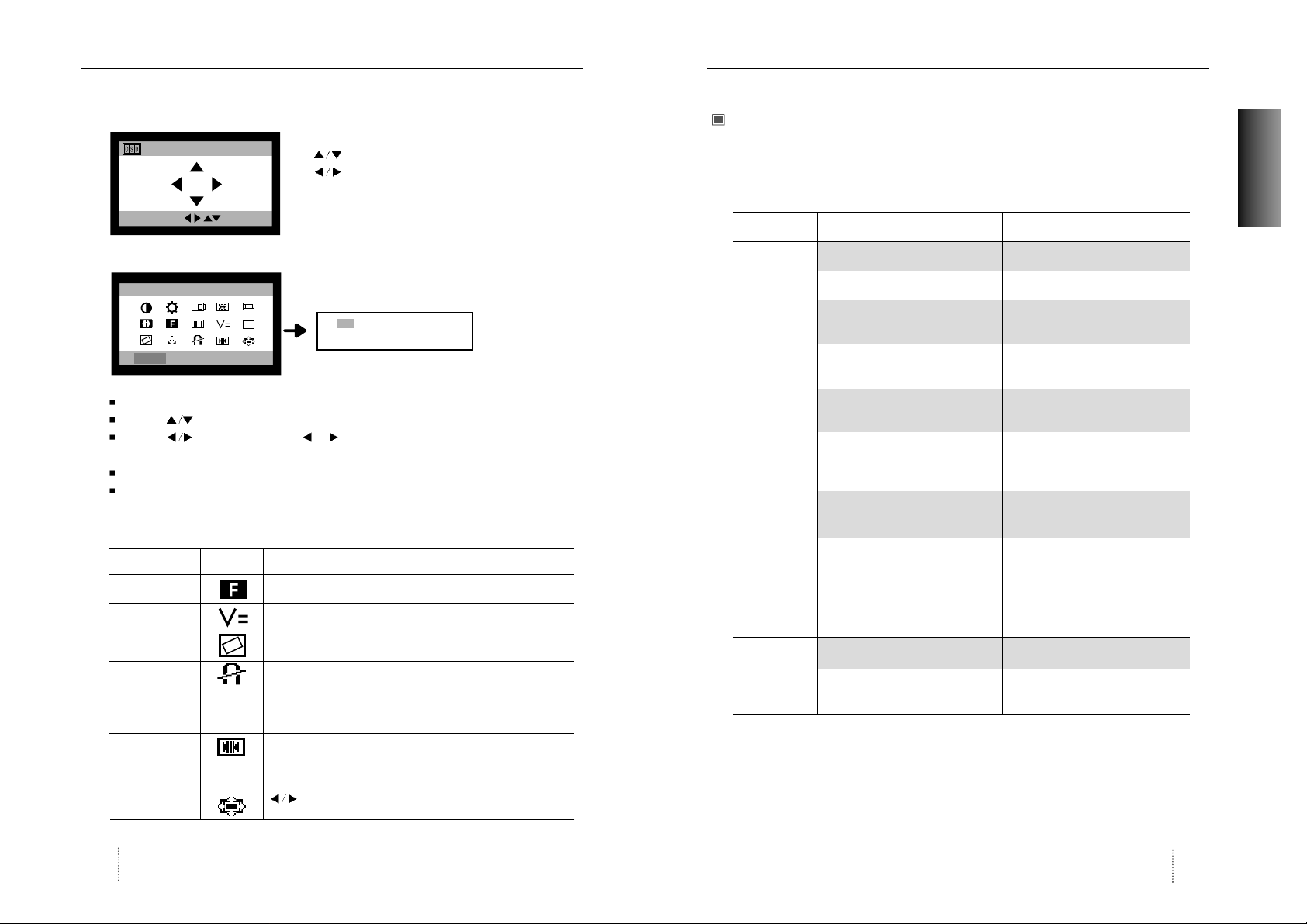

Troubleshooting

Troubleshooting Guide 13

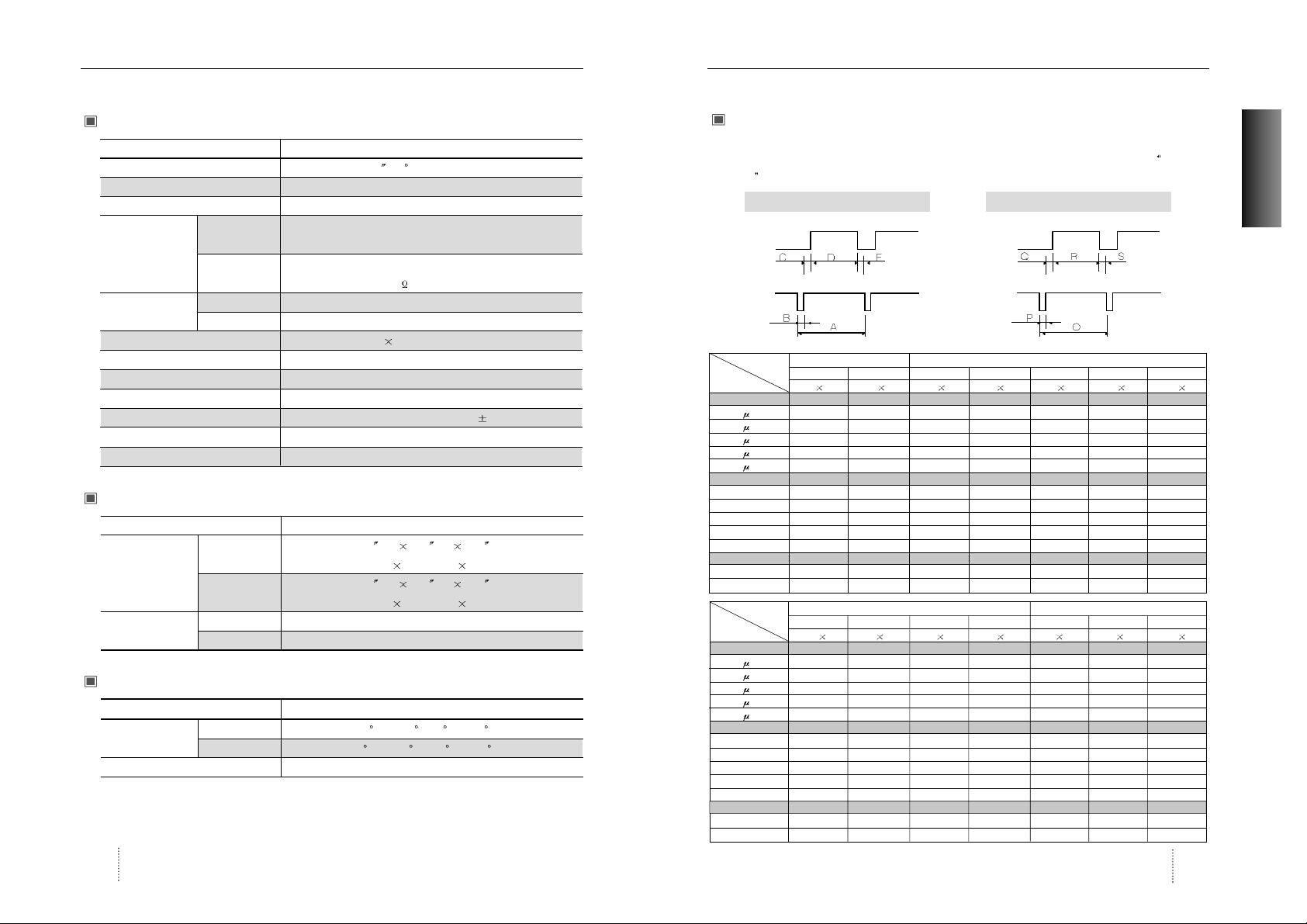

Specifications

Electrical specifications 14
Mechanical specifications

14

Environmental specifications

14

Appendix

Preset timings 15

User’s Manual 3

FCC Information

This equipment has been tested and found to comply with limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful inteference to radio
Communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause unacceptable interference to radio and television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures.

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced Radio/TV technician for help.

DECLARA TION OF CONFORMITY

PRODUCT NAME : 19" COLOR MONITOR
MODEL NAME : CTL 9Ln
MODEL NUMBER : B19BL
FCC RULES : TESTED TO COMPLY WITH FCC PART 15, CLASS B
OPERATING ENVIRONMENT : FOR HOME OR OFFICE USE
FCC COMPLIANCE STATEMENT :
This device complies with part 15 of FCC Rules. Operation is subject to the following two
conditions : (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

Computer Technology Link

9315 SW Nimbus Ave.

Beaverton OR 97008 USA

User’s Manual2

English

Introduction

User’s Manual4

Caution

Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

Warning

If this equipment has more than one interface connector, do not leave cables connected to
unused interfaces.

Canadian Notice

This Class B digital apparatus meets all requirements of the Canadian Interference Causing
Equipment Regulations.

Avis Canadien

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.

Notice

The information contained in this document is subject to change without notice.

Package

First, we would like to thank you for your purchase of this monitor. This monitor is 19inch, high
resolution, color display monitor. This manual covers the use, and points of caution, when
operating this monitor.
Please take the time to read this manual so that you will obtain the best performance and most
use from your monitor. After reading the manual, store it in a safe place for future reference.

This items illustrated below are contained in the carton.
First, be sure that your carton includes the following items.
If any items are missing or damaged, please contact your local dealer or supplier.

- Color Monitor

- AC Power input cable

- User’s Manual (Warranty Registration Card)

Introduction

User’s Manual 5

ENGLISH

Features

19-inch(18 inch visual)high performance display color monitor

Automatically scans frequencies from

- Horizontal frequency: 30 to 96kHz

- Vertical frequency: 47 to 150Hz

Compatible with VGA, SVGA, VESA, MAC Standards and maximum resolution modes up to
1600 1200.

Supports VESA flicker free modes including 85Hz refresh rate.

On Screen menu fingertip control system to visually select and adjust screen images using
6 buttons on front panel and on screen menus.

Power supply operates on AC100~240Volt 50/60Hz for use all over the world.

Equipped with DDC 1/2B for Plug & Play capability.

Equipped with an energy-saving feature.
Power management circuit when signaled by the computer system, will reduce power
consumption when the computer system is not in use.

Monitors with nonglare/antistatic screens are compliant with MPR
1990 Emissions standards and meets requirements for CE Marking.

TCO99 : (option)
