COMPLIES WITH:

ASME A112.18.1-2005

CSA B125.1-05
NSF/ANSI 61/9, ANNEX G
SECTION 116875 OF THE

CALIFORNIA HEALTH & SAFETY CODE

(COMMONLY KNOW AS AB1953)

VERMONT ACT 193

UNIFORM PLUMBING CODE

ADA

SPECIFIER ITEM NO. ________________

CHG PART NO. _______________________

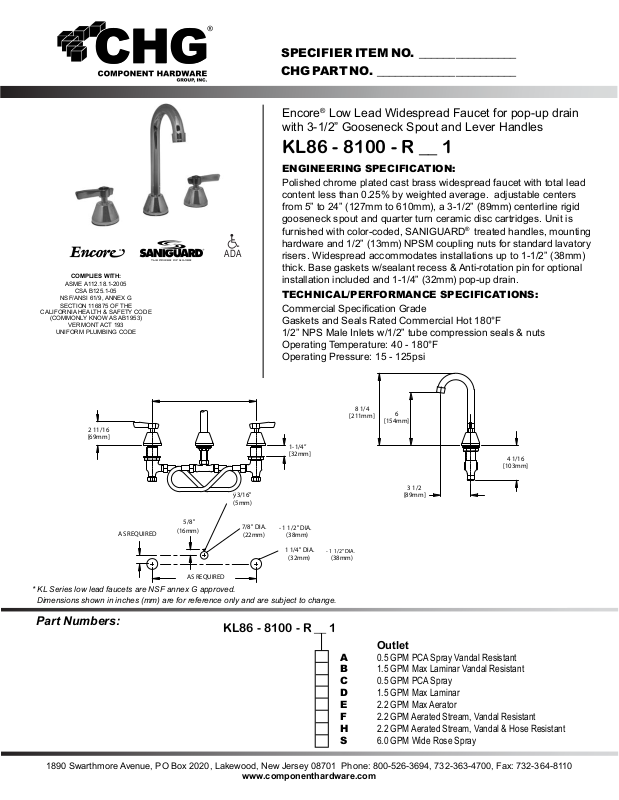

Encore® Low Lead Widespread Faucet for pop-up drain
with 3-1/2” Gooseneck Spout and Lever Handles

KL86 - 8100 - R __ 1

ENGINEERING SPECIFICATION:

Polished chrome plated cast brass widespread faucet with total lead
content less than 0.25% by weighted average. adjustable centers
from 5” to 24” (127mm to 610mm), a 3-1/2” (89mm) centerline rigid
gooseneck spout and quarter turn ceramic disc cartridges. Unit is
furnished with color-coded, SANIGUARD® treated handles, mounting
hardware and 1/2” (13mm) NPSM coupling nuts for standard lavatory
risers. Widespread accommodates installations up to 1-1/2” (38mm)
thick. Base gaskets w/sealant recess & Anti-rotation pin for optional
installation included and 1-1/4” (32mm) pop-up drain.

TECHNICAL/PERFORMANCE SPECIFICATIONS:

Commercial Specication Grade

Gaskets and Seals Rated Commercial Hot 180°F
1/2” NPS Male Inlets w/1/2” tube compression seals & nuts
Operating Temperature: 40 - 180°F
Operating Pressure: 15 - 125psi

* KL Series low lead faucets are NSF annex G approved.

Dimensions shown in inches (mm) are for reference only and are subject to change.

Part Numbers:

1890 Swarthmore Avenue, PO Box 2020, Lakewood, New Jersey 08701 Phone: [phone], Fax: [phone]

KL86 - 8100 - R __ 1

www.componenthardware.com

Outlet

A 0.5 GPM PCA Spray Vandal Resistant
B 1.5 GPM Max Laminar Vandal Resistant
C 0.5 GPM PCA Spray
D 1.5 GPM Max Laminar
E 2.2 GPM Max Aerator
F 2.2 GPM Aerated Stream, Vandal Resistant
H 2.2 GPM Aerated Stream, Vandal & Hose Resistant
S 6.0 GPM Wide Rose Spray
