Component Hardware KL84-8000-SA2 User Manual

SPECIFIER ITEM NO. ________________

®

THE POWER OF SILVER

Certified To NSF/ANSI 61

Section 9-G

LOW
LEAD PLUMBING

A

3-1/2”(89mm)

8-1/2”(216mm)

6”(152mm)

B

8-1/2”(216mm)

12-1/2”(317mm)

9-1/2”(241mm)

C

6”(152mm)
6-1/4”(159mm)
5-1/2”(140mm)

Spout Size

3-1/2”
8-1/2”

6”

AS REQUIRED

AS REQUIRED

1-1/4" DIA. TO 1-1/2" DIA.

(32mm TO 38mm)

7/8" DIA. TO 1-1/2" DIA.

(22mm TO 38mm)

3/16"

(5mm)

5/8”

(16mm)

B

C

A

4-3/16"

(106mm)

1-1/4"

(32mm)

MAXIMUM

THICKNESS

5" TO 24"

(127mm TO 610mm)

2-5/8”

(67mm)

CHG PART NO. _______________________

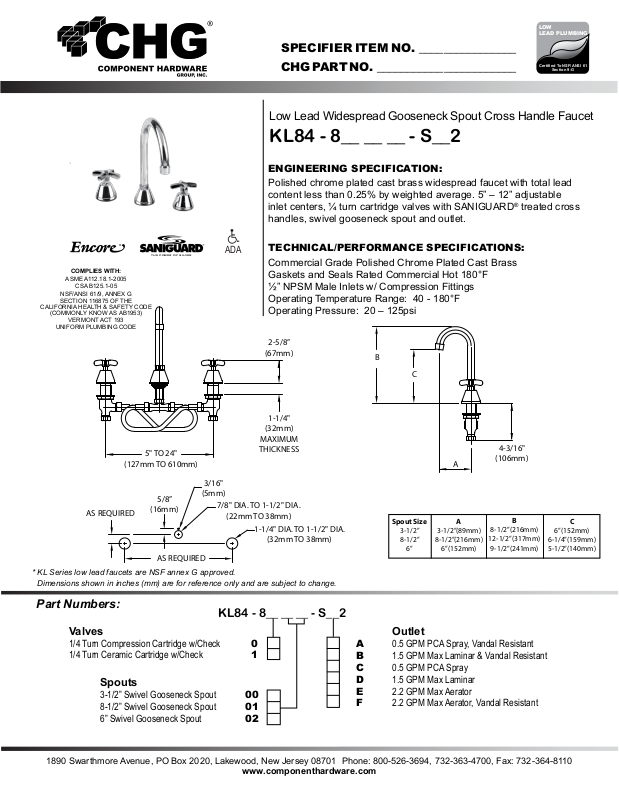

Low Lead Widespread Gooseneck Spout Cross Handle Faucet

KL84 - 8__ __ __ - S__2

ENGINEERING SPECIFICATION:

Polished chrome plated cast brass widespread faucet with total lead
content less than 0.25% by weighted average. 5” – 12” adjustable
inlet centers, ¼ turn cartridge valves with SANIGUARD® treated cross
handles, swivel gooseneck spout and outlet.

®

COMPLIES WITH:

ASME A112.18.1-2005

CSA B125.1-05
NSF/ANSI 61/9, ANNEX G
SECTION 116875 OF THE

CALIFORNIA HEALTH & SAFETY CODE

(COMMONLY KNOW AS AB1953)

VERMONT ACT 193

UNIFORM PLUMBING CODE

ADA

TECHNICAL/PERFORMANCE SPECIFICATIONS:

Commercial Grade Polished Chrome Plated Cast Brass
Gaskets and Seals Rated Commercial Hot 180°F
½” NPSM Male Inlets w/ Compression Fittings
Operating Temperature Range: 40 - 180°F
Operating Pressure: 20 – 125psi

* KL Series low lead faucets are NSF annex G approved.

Dimensions shown in inches (mm) are for reference only and are subject to change.

Part Numbers:

Valves

1/4 Turn Compression Cartridge w/Check 0
1/4 Turn Ceramic Cartridge w/Check 1

Spouts

3-1/2” Swivel Gooseneck Spout 00
8-1/2” Swivel Gooseneck Spout 01
6” Swivel Gooseneck Spout 02

1890 Swarthmore Avenue, PO Box 2020, Lakewood, New Jersey 08701 Phone: [phone], Fax: [phone]

KL84 - 8__ __ __ - S__2

www.componenthardware.com

Outlet

A 0.5 GPM PCA Spray, Vandal Resistant
B 1.5 GPM Max Laminar & Vandal Resistant
C 0.5 GPM PCA Spray
D 1.5 GPM Max Laminar
E 2.2 GPM Max Aerator
F 2.2 GPM Max Aerator, Vandal Resistant
