Component Hardware KC77 - 5146 - NW6 User Manual

SPECIFIER ITEM NO. ________________

®

THE POWER OF SIL V ER

8-1/4"(210mm) - 9-1/2"(241mm)

1/2"NPT

K77-Y010-15
15"(381mm)
SUPPORT ROD
WITH RISER CLAMP

8-1/2"

(217mm)

8"

(203mm)

ADJUSTABLE FROM

3-1/2"(89mm) - 2"(51mm)

16-1/8"

(408mm)

6"

(152mm)

(2) NO. 10 FLAT
HEAD SCREWS

1-1/2"(38mm) O.D.

FLUSH PIPE

2"(51mm) DIA.
FLANGE

2-5/8"

(67mm)

1-7/8"

(48mm)

1-1/4"

(31mm)

4"

(101mm)

1-1/4"

(31mm)

7-1/2"

(191mm)

2-3/4"

(68mm)

2-1/2"

(64mm)

K50-0001-6

6” WRIST BLADE HANDLE

K77-Y001-UTP

6” POLISHED SPOUT

WITHOUT HOSE THREADS

K77-X009

SPOUT ELBOW

K60-Y001-Y101-5

5” EXTENSION NIPPLE

K60-Y114

2-1/2” OFFSET

COUPLING WITH STOPS

* KN88-Y013 SIDE SPRAY DIVERTOR NOT SHOWN

* REPLACEMENT VALVES
KN50-Y006-CCV COLD VALVE CERAMIC
KN50-Y007-CCV HOT VALVE CERAMIC

CHG PART NO. _______________________

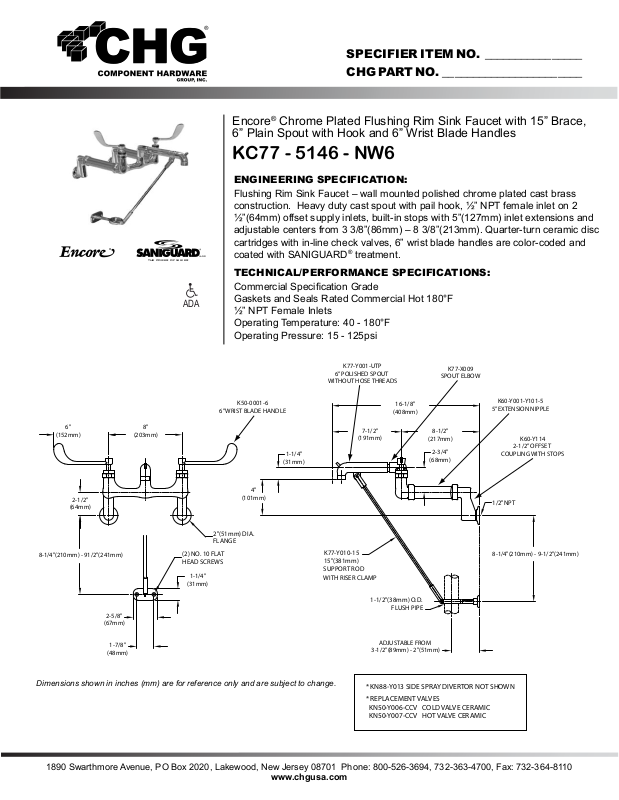

Encore® Chrome Plated Flushing Rim Sink Faucet with 15” Brace,
6” Plain Spout with Hook and 6” Wrist Blade Handles

KC77 - 5146 - NW6

ENGINEERING SPECIFICATION:

Flushing Rim Sink Faucet – wall mounted polished chrome plated cast brass
construction. Heavy duty cast spout with pail hook, ½” NPT female inlet on 2
½”(64mm) offset supply inlets, built-in stops with 5”(127mm) inlet extensions and
adjustable centers from 3 3/8”(86mm) – 8 3/8”(213mm). Quarter-turn ceramic disc

®

ADA

cartridges with in-line check valves, 6” wrist blade handles are color-coded and
coated with SANIGUARD® treatment.

TECHNICAL/PERFORMANCE SPECIFICATIONS:

Commercial Specication Grade

Gaskets and Seals Rated Commercial Hot 180°F
½” NPT Female Inlets
Operating Temperature: 40 - 180°F
Operating Pressure: 15 - 125psi

Dimensions shown in inches (mm) are for reference only and are subject to change.

1890 Swarthmore Avenue, PO Box 2020, Lakewood, New Jersey 08701 Phone: [phone], Fax: [phone]
