WLM MINIPCI SERIES

WLM54G(G)-28dBm(1000mW)

Compex introduces the WLM54G-28dBm wireless 802.11b/

card for high power and long distance Applications ----output power up to
1000mW, enablin
with excellent receiver sensitivity, Compex WLM54G-28dBm is the
miniPCI of choice for lon
reduced due to minor obstructions such as trees or buildings.

Built on Atheros chipsets, Compex WLM54G-28dBm miniPCI networ
adapter can be used for all IEEE802.11b/g compatible WLAN in the

2.4GHz band. It is ideal for integration in a wide range of OEM devices.

a very wide range of wireless coverage. Combined

distance links, or those where signal levels are

miniPCI

Features

2.4GHz IEEE 802.11b/g standard

•

Output power of up to 28dBm (1000mw) @ b/g Band

•

Supports Atheros Proprietary “Super Mode” allowing for 108Mbps Data Speeds

•

Wireless Encryption and Authentication Supported

•

Transmission Power Control (TPC)

•

Extended Distances and High Speeds Due to Better Output Signal Power

•

High Performance with Low Power Consumption

•

Multi-Country Roaming Support (IEEE802.11d)

•

MMCX Antenna Connector

•

Suitable for Embedded System or OEM Project

•

Affordable and Ideal for a Variety of Applications

•

p

/

p

/

p

/

p

/

p

/

p

/

p

/

p

/

p

Technical Specifications

Chipset
Host Interface PCI Interface v2.3 (Type III-B Mini PCI form factor)

Operating
Voltage
Power
Consumption
Antenna
Connector
IEEE 802.11b: 11Mbps 5.5Mbps 2Mbps 1Mpbs

Standards

3.3 VDC

7.5W

MMCX (main), U.FL (aux)

IEEE 802.11g:

54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps

Automatically Fallback to 5.5Mbps, 2Mbps, 1Mbps

WLM54G(G)-28

Atheros 2413

Frequency
Range

Modulation
Techniques
Security 64/128-bit WEP, TKIP, AES, IEEE802.1x authentication

Certificate FCC,CE
ROHS

Compliance
Environment
Specifications
Humidity 5% to 95% (non-condensing)

Dimension 59.6 x 46 x 14 mm
Weight 35 grams

IEEE 802.11b/g

OFMD: BPSK, QPSK, 16 QAM, 64QAM

Yes

Operating: -20ºC to 70ºC
Storage: -65ºC to 100º

2.412GHz ~ 2.462GHz (US & Canada)

2.412GHz ~ 2.472GHz (Europe)

2.412GHz ~ 2.484GHz (Japan)

WLM54G-30 MINIPCI CARD RADIO OPERATING FREQUENCE 2.412~2.484GHz

TX SPECIFICATIONS RX SPECIFICATIONS

Data Rate TX Power Tolerance DataRate Sensitivity Tolerance

1Mbps 30dBm +1.0/-1.5 dB 1Mbps <-90dBm
2Mb

802.11b

802.11g

s 30dBm +1.0

5.5Mb

s 30dBm +1.0

11Mb

s 30dBm +1.0

6Mb

s 30dBm +1.0

9Mb

s 30dBm +1.0

12Mb

s 30dBm +1.0

18Mb

s 30dBm +1.0

24Mb

s 30dBm +1.0

36Mbps 28dBm +1.0/-1.5 dB
48Mbps 27dBm +1.0/-1.5 dB

s 25dBm +1.0/-1.5 dB

54Mb

-1.5 dB

-1.5 dB

-1.5 dB

-1.5 dB

-1.5 dB

-1.5 dB

-1.5 dB

-1.5 dB

802.11b

802.11g

11Mbps <-70dBm

6Mbps <-90dBm

54Mbps <-70dBm

ADJUSTABLE CHANNEL SIZE SUPPORT

G 5MHz 10MHz 20MHz

DRIVER INFORMATION

Driver Linux Madwifi, WindowsXP , Windows 2000

ORDERING CONFIGURATIONS

CODES SPEED CARTON DIMENSIONS

WLM54G-6BA1300P30S Up to 108 Mbps
WLM54G-6BA1100P30S Up to 108 Mbps
WLM54G-6AA1300P30 Up to 54 Mbps
WLM54G-6AA1100P30 Up to 54 Mbps



For 50pcs (pcs/ctn), 0.40m * 0.22m * 0.085m / 0.006 = 1.5KG

For 250pc (pcs/ctn), 0.45m * 0.45m * 0.24m / 0.006 = 8.1KG

Configurations are subjected to change without notice

c

Compliance Information

FCC Compliance Statement: This device complies with Part 15 of the FCC

Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including
interference that may cause undesired operation. This device must accept
any interference received, including interference that may cause
undesired operation.
Product that is a radio transmitter is labeled with FCC ID.

FCC Caution:

(1) Exposure to Radio Frequency Radiation. This equipment must be
installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co­located or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee
of this device could void the user's authority to operate the equipment.

This Transmitter must not be co-located or operating in conjunction with

(3)
any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.

NOTE:
(1) This device is approved for OEM installation with specified antennas as
listed in this Manual. It is the responsibility of the Installer to comply with the
separation distance for satisfying RF exposure compliance.
(2) This device only could work when being installed into “client devices”
which could not transmit automatically, such as Notebook P.C. , with the
software driver limit.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another

transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
WARNING: This Wireless Mini PCI Adapter does not support ad-hoc mode
Function

IMPORTANT NOTE REGARDING ANTENNA USE

Antenna Use (Point to Point)
1x1 Operation

Chain1

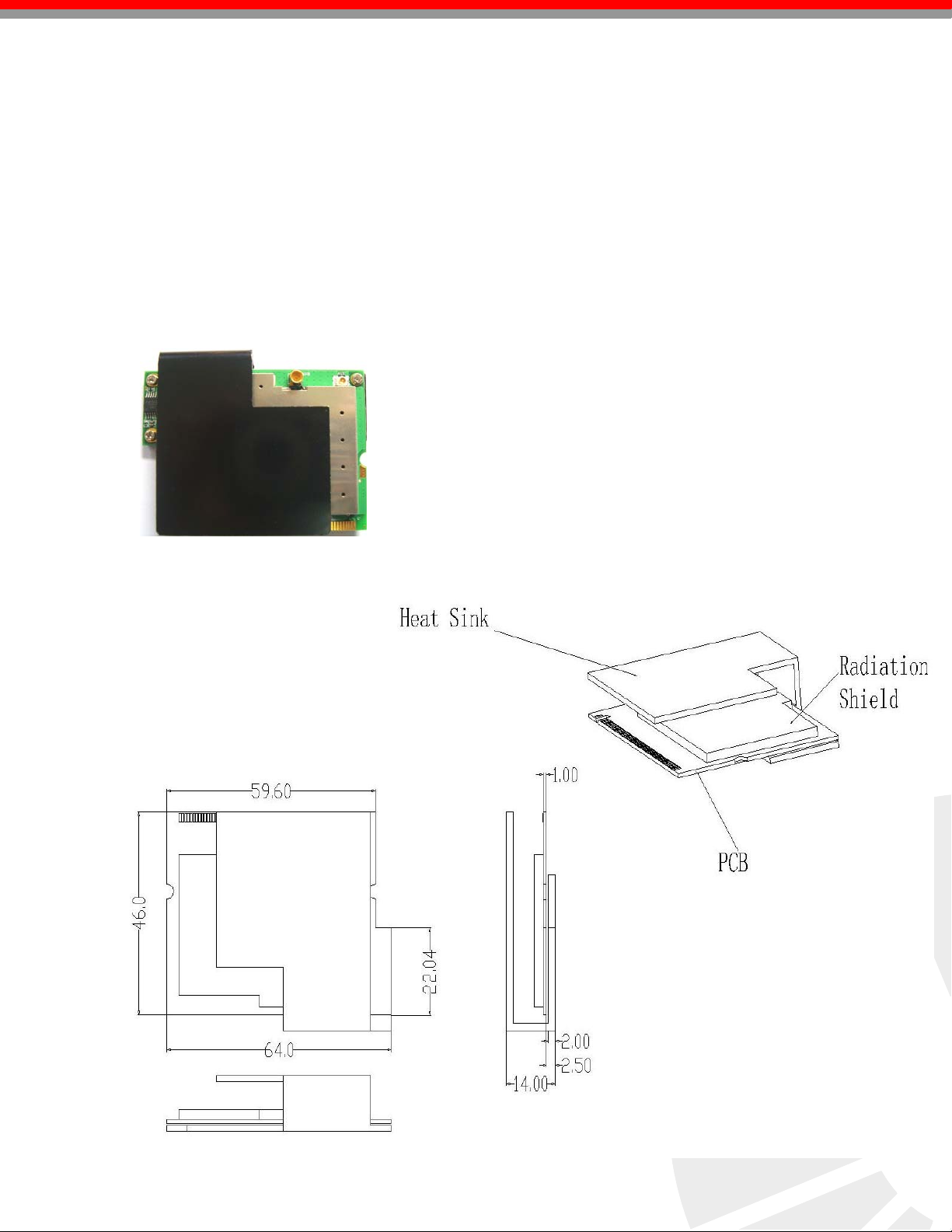

DIMENSIONS

WLM FAMILY SERIES OF MINIPCI

DRAWING

b / g (2.4GHz) a / b / g (2.4/5GHz)

MODEL WLM 54G-20dBM WLM 54G-23dBm WLM 54G-26dBm WLM 54G – 28dBm WLM 54AG – 20dBm WLM 54 AG – 23dBm WLM 54A – 26dBm WLM200NX
CHIPSET AR 2413/2414

SPEED UP TO 54/108Mbps UP TO 54/108Mbps UP TO 54/108Mbps UP TO 54/108Mbps UP TO 54/108Mbps UP TO 54/108Mbps UP TO 108Mbps UP TO 300Mbps

OUTPUT POWER (Average)

802.11a - - - -

802.11b 20dBm@1-11Mbps 23dBm@1-11Mbps 26dBm@1-11Mbps 28dBm@1-11Mbps 20dBm@1-11Mbps 23dBm@1-11Mbps 20dBm@1-11Mbps

802.11g

Modulation
Techniques
Interface PCI Interface v2.3 (Type III-B Mini PCI Form Factor)

Receiver
Sensitivity
Operating
Channels

Power 3.3VDC
Operating

Temperature
Dimensions 6.0cm x 4.5cm

(AR5005G/GS)

20dBm@6-24Mbps 23dBm@6-24Mbps 26dBm@6-24Mbps 28dBm@6-24Mbps 20dBm@6-24Mbps 23dBm@6-24Mbps 20dBm@6-24Mbps
19dBm@36Mbps 22dBm@36Mbps 25dBm@36Mbps 26dBm@36Mbps 18dBm@36Mbps 21dBm@36Mbps 19.5dBm@36Mbps
17dBm@48Mbps 19dBm@48Mbps 24dBm@48Mbps 25dBm@48Mbps 17dBm@48Mbps 19dBm@48Mbps 18.5dBm@48Mbps
16dBm@54Mbps 17dBm@54Mbps 22dBm@54Mbps 23dBm@54Mbps 15dBm@54Mbps 17dBm@54Mbps 17dBm@54Mbps

802.11g < -90dBm @ 6Mbps 802.11b < -92dBm@ 6Mbps 802.11a < -90dBm @ 6Mbps
< -70dBm @ 54Mbps < -87dBm @11Mbps < -70dBm @ 54Mbps
IEEE 802.11g:
11 Channel (US & Canada)
13 Channel (Europe)
14 Channel (Japan)

AR 2413/2414
(AR5005G/GS)

AR 2413/2414
(AR5005G/GS)

AR 2413/2414
(AR5005G/GS)

OFDM and DSSS OFDM: BPSK, QPSK, 16QAM, 64QAM

High Power Cards (26dBm/30dBm) has bigger dimensions.

DSSS: DBPSK, DQPSK, CCK

AR 5413/5414
(AR5006X/XS)

20dBm@6-24Mbps 23dBm@6-24Mbps 26dBm@6-24Mbps 18dBm@6-24Mbps
17dBm@36Mbps 21dBm@36Mbps 24dBm@36Mbps 18dBm@36Mbps
16dBm@48Mbps 19dBm@48Mbps 22Bm@48Mbps 17dBm@48Mbps
13dBm@54Mbps 17dBm@54Mbps 20dBm@54Mbps 16dBm@54Mbps

IEEE 802.11a:
13 Channel (US & Canada)
19 Channel (Europe)
10 Channel (Japan)

-20ºC to 70ºC

AR 5413/5414
(AR5006X/XS)

AR5414(AR5006XS) AR9220

physical data rates

Compex Systems Pte Ltd Compex (CHANGSHU) CO. Ltd Compex (Suzhou) CO. Ltd

135 Joo Seng Road, PM Industrial
Building #08-01,Singapore 368363
Tel: [phone]
Fax: [phone]

Block 8, Haicheng Industrial Square
Changshu Economic Development Zone,
Jiangsu Province, China 215513
Tel: [phone]
Fax: [phone]

No. 12, ChuangTou Industrial Square,
LouFeng North, Suzhou Industrial Park,
Suzhou City, Jiangsu Province, China
Tel: [phone]
Fax: [phone]

Copyright © 2008 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort
is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to
change without notice. Datasheet Version: V 2.0.1
