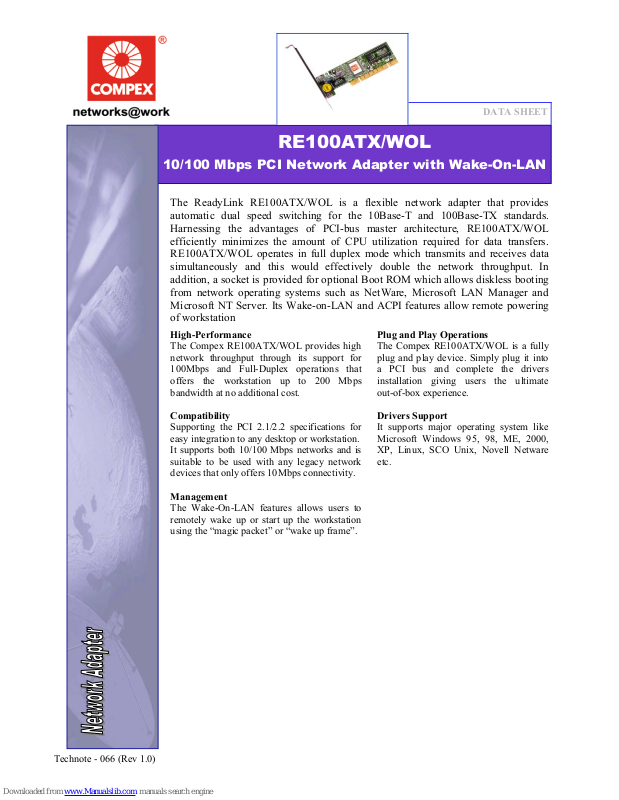

DATA SHEET
RE100ATX/WOL
10/100 Mbps PCI Network Adapter with Wake-On-LAN
The ReadyLink RE100ATX/WOL is a flexible network adapter that provides
automatic dual speed switching for the 10Base-T and 100Base-TX standards.
Harnessing the advantages of PCI-bus master architecture, RE100ATX/WOL
efficiently minimizes the amount of CPU utilization required for data transfers.
RE100ATX/WOL operates in full duplex mode which transmits and receives data
simultaneously and this would effectively double the network throughput. In
addition, a socket is provided for optional Boot ROM which allows diskless booting
from network operating systems such as NetWare, Microsoft LAN Manager and
Microsoft NT Server. Its Wake-on-LAN and ACPI features allow remote powering
of workstation
High-Performance
The Compex RE100ATX/WOL provides high
network throughput through its support for
100Mbps and Full-Duplex operations that
offers the workstation up to 200 Mbps
bandwidth at no additional cost.
Compatibility
Supporting the PCI 2.1/2.2 specifications for
easy integration to any desktop or workstation.
It supports both 10/100 Mbps networks and is
suitable to be used with any legacy network
devices that only offers 10Mbps connectivity.
Management
The Wake-On-LAN features allows users to
remotely wake up or start up the workstation
using the “magic packet” or “wake up frame”.
Plug and Play Operations
The Compex RE100ATX/WOL is a fully
plug and play device. Simply plug it into
a PCI bus and complete the drivers
installation giving users the ultimate
out-of-box experience.
Drivers Support
It supports major operating system like
Microsoft Windows 95, 98, ME, 2000,
XP, Linux, SCO Unix, Novell Netware
etc.
Technote - 066 (Rev 1.0)
10/100 Mbps PCI Network Adapter with WOL
DATA SHEET
Features
and Benefits
Specifications
Feature Benefit
Performance Giving users the best performance at 100 Mbps
Management Wake-On-LAN feature allows remote wake up
Compatibility Support both 10/100 Mbps network operations
Industry Compliance Complies to industry standards like IEEE 802.3
Media
10 Base-T/100 Base-Tx
Bus Interface
32-bit, 33Mhz, PCI
Buffer Memory
2KB Receive, 2KB Transmit
Interrupt Levels
Interrupt Line INTA; conforms to PCI
specifications
Cables and Operating Distances
10 Base-T: Category 3, 4 or 5 UTP up
to 100m (max.)
100 Base-T: Category 5/5e UTP up to
max 100m (max.)
System Requirements
Hardware
PCI 2.1/2.2 compliant clients or desktop
Operating System
Microsoft Windows 95
Microsoft Windows 98
Microsoft Windows ME
Microsoft Windows NT 4.0
Microsoft Windows 2000
Microsoft Windows XP
Linux
SCO Unix
Novell Netware 3.12
Novell Netware 4.0
Novell Netware 5.0
and full-duplex operations that virtually offers
200 Mbps of bandwidth.
of workstations.
for easy integration.
10-Base-T , IEEE 802.3u 100Base-T and IEEE
802.3x Flow Control.
Standards Compliance
PCI 2.1/2.2, PC99/2001, 802.3,
802.3u, 802.3x, PXE, DMI 2.0,
ACPI, WOL
Safety and Electromagnetic
Compatibility
FCC Part 15 Class B, CISPR
PUB. 22, EN55022 Class B,
EN61000-3-2, EN6100-3-3,
EN55024
Operating Requirements
Temperature: 0
Humidity: 10% RH to 80% RH
0
C to 400C
Ordering
10/100 Mbps PCI network adapter with WOL RE100ATX/WOL
Information
Compex Systems Pte Ltd. 135 Joo Seng Road, #08-01 PM Industrial Building, Singapore 368363.
Tel : (65)6286-2086 Fax : (65)6280-9947
Compex Inc, USA. 4051 E. La Palma Ave., Anaheim, CA 92807, USA.
Tel : (714)630-7302 Fax : (714)630-730 2
ReadyLINK Networktechnology GmbH. Albert-Einstein-Straβe, 34/M21, 63322 Rodermark, Germany.
Tel : 49(6074)98017 Fax : 49(6074)90668
To learn more about Compex solutions, visit us at http://www.compex.com.sg or www.cpx.com
Copyright © 2002 Compex Systems. All rights reserved. COMPEX, the COMPEX logo, and ReadyLINK are registered trademarks of
COMPEX Inc. While every effort is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes which
Technote - 066 (Rev 1.0)
may arise. All specification are subject to change without notice.
