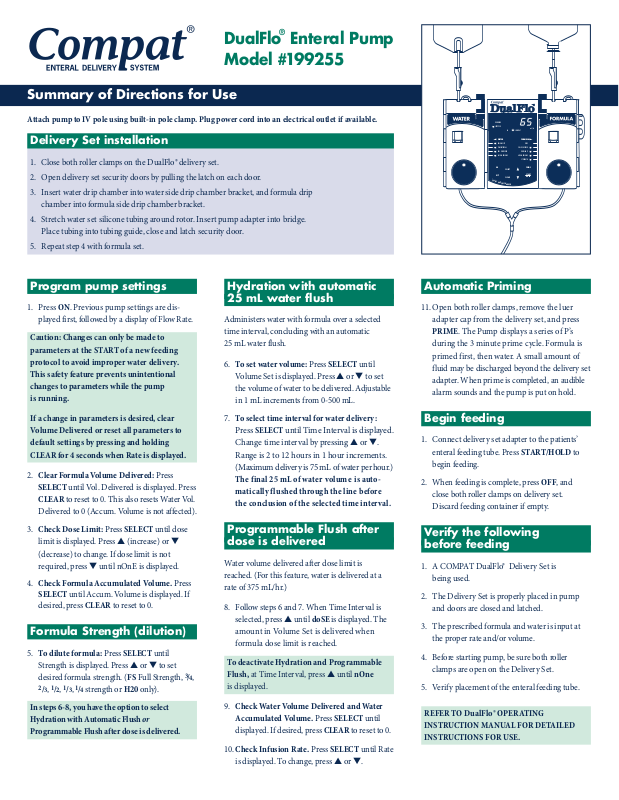

COMPAT 199255 User Manual
Delivery Set installation
1. Close both roller clamps on the DualFlo® delivery set.
2. Open delivery set security doors by pulling the latch on each door.
3. Insert water drip chamber into water side drip chamber bracket, and formula drip
chamber into formula side drip chamber bracket.
4. Stretch water set silicone tubing around rotor. Insert pump adapter into bridge.
Place tubing into tubing guide, close and latch security door.
5. Repeat step 4 with formula set.
Program pump settings
1. Press ON. Previous pump settings are displayed first, followed by a display of Flow Rate.
Caution: Changes can only be made to
parameters at the START of a new feeding
protocol to avoid improper water delivery.
This safety feature prevents unintentional
changes to parameters while the pump
is running.
If a change in parameters is desired, clear
Volume Delivered or reset all parameters to
default settings by pressing and holding
CLEAR for 4 seconds when Rate is displayed.
2.
Clear Formula Volume Delivered:
Press
SELECT
until Vol. Delivered is displayed. Press
CLEAR
to reset to 0. This also resets Water Vol.
Delivered to 0 (Accum. Volume is not affected).
3.
Check Dose Limit:
Press
SELECT
until dose
limit is displayed. Press
L
(increase) or
M
(decrease) to change. If dose limit is not
required, press
M
until nOnE is displayed.
4.
Check Formula Accumulated Volume.
Press
SELECT
until Accum. Volume is displayed. If
desired, press
CLEAR
to reset to 0.
Formula Strength (dilution)
5.
To dilute formula:
Press
SELECT
until
Strength is displayed. Press
L
or Mto set
desired formula strength. (
FS
Full Strength, 3/4
,
2
/3
,1/2
,1/3
,1/4
strength or
H20
only).
In steps 6-8, you have the option to select
Hydration with Automatic Flush or
Programmable Flush after dose is delivered.
Hydration with automatic
25 mL water flush
Administers water with formula over a selected
time interval, concluding with an automatic
25 mL water flush.
6.
To set water volume:
Press
SELECT
until
Volume Set is displayed. Press
L
or Mto set
the volume of water to be delivered. Adjustable
in 1 mL increments from 0-500 mL.
7.
To select time interval for water delivery:
Press SELECT until Time Interval is displayed.
Change time interval by pressing L or M.
Range is 2 to 12 hours in 1 hour increments.
(Maximum delivery is 75 mL of water perhour.)
The final 25 mL of water volume is automatically flushed through the line before
the conclusion of the selected time interval.
Programmable Flush after
dose is delivered
Water volume delivered after dose limit is
reached. (For this feature, water is delivered at a
rate of 375 mL/hr.)
8. Follow steps 6 and 7. When Time Interval is
selected, press
L
until
doSE
is displayed. The
amount in Volume Set is delivered when
formula dose limit is reached.
To deactivate Hydration and Programmable
Flush,
at Time Interval, press Luntil
nOne
is displayed.
9.
Check Water Volume Delivered and Water
Accumulated Volume.
Press
SELECT
until
displayed. If desired, press
CLEAR
to reset to 0.
10.
Check Infusion Rate.
Press
SELECT
until Rate
is displayed. To change, press
L
or M.
DualFlo®Enteral Pump
Model #199255
Summary of Directions for Use
Attach pump to IV pole using built-in pole clamp. Plug power cord into an electrical outlet if available.
Automatic Priming
11.Open both roller clamps, remove the luer
adapter cap from the delivery set, and press
PRIME
. The Pump displays a series of P’s
during the 3 minute prime cycle. Formula is
primed first, then water. A small amount of
fluid may be discharged beyond the delivery set
adapter. When prime is completed, an audible
alarm sounds and the pump is put on hold.
Begin feeding
1. Connect delivery set adapter to the patients’
enteral feeding tube. Press
START/HOLD
to
begin feeding.
2. When feeding is complete, press
OFF
, and
close both roller clamps on delivery set.
Discard feeding container if empty.
Verify the following
before feeding
1. A COMPAT DualFlo® Delivery Set is
being used.
2. The Delivery Set is properly placed in pump
and doors are closed and latched.
3. The prescribed formula and water is input at
the proper rate and/or volume.
4. Before starting pump, be sure both roller
clamps are open on the Delivery Set.
5. Verify placement of the enteral feeding tube.
REFER TO DualFlo® OPERATING
INSTRUCTION MANUAL FOR DETAILED
INSTRUCTIONS FOR USE.
RUNNING
mL/hr
STOPPED
AC
LOW BAT
RATE
VOL. DELIVERED
DOSE LIMIT
ACCUM. VOLUME
VOLUME SET
WATER FORMULA
TIME INTERVAL
VOL. DELIVERED
ACCUM. VOLUME
STRENGTH
ON
SELECT
OFF*
CLEAR
PRIME
START
HOLD
*
E
X
C
E
P
T
B
A
T
T
E
R
Y
C
H
A
R
G
E
R
POSSIBLE CAUSE
•Battery charge is below
performance level
•Formula or water container
is empty
•Occlusion is restricting flow
•Drip chamber not properly
placed in pump
•Drip chamber walls coated with
formula drops or
condensation in sensor path
•Flow sensors housing need
cleaning
•Pump is on hold for more
than 2
1
/2minutes
•Pump has delivered
preset volume
•Door not closed and latched
•No set or improper set loaded
SOLUTION
•Plug cord into AC outlet
•Replace or refill formula or
water container
•Identify point of occlusion and
free up
- Pump Set
• kinked tubing
• blocked tubing
• closed roller clamp
- Feeding tube
- Feeding container
•Assemble properly
•Manipulate chamber to clear
drops or condensation in
sensor path
•Clean with cotton swab dampened with isopropyl alcohol
•Press START/HOLD button
•Clear Volume Delivered and start
a new dose.
•Examine tubing for proper
placement, close door
•Load an appropriate set
•Assemble tubing properly
around pump rotor. Close and
latch door.
TROUBLESHOOTING GUIDE
SITUATION
•Low battery
alarm activated
•FEEd Err
(alarm activated)
•
HoLd Err (Pump
is left on hold)
•
doSE dEL
(Dose Complete)
•
no SEt
(alarm
activated)
DualFlo®Enteral Pump
Model #199255
Troubleshooting
RUNNING
mL/hr
STOPPED
AC
LOW BAT
RATE
VOL. DELIVERED
DOSE LIMIT
ACCUM. VOLUME
VOLUME SET
WATER FORMULA
TIME INTERVAL
VOL. DELIVERED
ACCUM. VOLUME
STRENGTH
ON
SELECT
OFF*
CLEAR
PRIME
START
HOLD
*
E
X
C
E
P
T
B
A
T
T
E
R
Y
C
H
A
R
G
E
R
When turned on, the COMPAT DualFlo® Enteral Feeding Pump is designed to provide audible and visible
alarms under several conditions where desired performance cannot be maintained. Pressing
START/HOLD
after the alarm condition is identified silences the alarm and returns the pump to hold mode. Perform the
necessary procedures to correct the alarm condition. Press
START/HOLD
again to resume normal operation.
Cleaning
Routine cleaning of the COMPAT DualFlo® pump
should be an ongoing process to ensure maximum
performance.
Caution: Always disconnect the pump from
an electrical outlet before cleaning to avoid
electric shock hazard.
Clean the pump housing and rotor regularly
using a cloth or sponge with warm soapy water.
(Prolonged exposure to alcohol, household
detergents or strong cleansers can result in
damage to pump housing).
Clean drip sensors with a cotton swab and
isopropyl alcohol.
Do not autoclave. Do not immerse pump in
cleaning solutions.
Disinfecting
If it is necessary to disinfect the entire pump,
the following is recommended:
General Disinfectants
Cidex® (Arbrook Manufacturing)
pHisohex® (Winthrop-Stearns, Inc. Corp.)
Hibiclens® (Imperial Chemical Industries PLC)
Isopropyl alcohol
AIDS
and Hepatitis Disinfectants
10% concentration of 5.25% sodium hypochlo-
rite (household bleach)
Tuberculosis Disinfectants
70% concentration of isopropyl alcohol
After application of these disinfecting agents,
allow to air dry. These recommendations should
not be substituted for official procedures that
may differ among institutions. To determine the
proper procedure in a particular institution,
contact the Infection Control Department.
NEST-10473-0908
www.nestlenutrition.com/us • 1-800-DEVICE8
Except as noted, all trademarks are owned by Société des Produits Nestlé S.A., Vevey, Switzerland.
Loading...
