Compaq V3500 User Manual

Compaq Presario V3500 Notebook PC

Maintenance and Service Guide

Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel and Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Third Edition: August 2007

First Edition: April 2007

Document Part Number: 448076-003

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description

2 External component identification

Top components ...................................................................................................................... 7

Display components .................................................................................................. 7

Button and speakers .................................................................................................. 8

Keys ........................................................................................................................ 9

Lights ..................................................................................................................... 10

TouchPad ............................................................................................................... 11

Front components ................................................................................................................... 12

Left-side components ............................................................................................................... 13

Rear component ..................................................................................................................... 14

Right-side components ............................................................................................................ 15

Bottom components ................................................................................................................ 16

3 Illustrated parts catalog

Serial number location ............................................................................................................ 17

Computer major components ................................................................................................... 18

Display assembly components ................................................................................................. 25

Door/Cover Kit ...................................................................................................................... 27

Cable Kit .............................................................................................................................. 28

Mass storage devices ............................................................................................................. 29

Miscellaneous parts ................................................................................................................ 30

Sequential part number listing .................................................................................................. 31

4 Removal and replacement procedures

Preliminary replacement requirements ....................................................................................... 38

Tools required ......................................................................................................... 38

Service considerations ............................................................................................. 38

Plastic parts ............................................................................................. 38

Cables and connectors ............................................................................. 39

Drive handling ......................................................................................... 39

Grounding guidelines .............................................................................................. 40

Electrostatic discharge damage .................................................................. 40

Packaging and transporting guidelines ........................................ 41

Workstation guidelines .............................................................. 41

Equipment guidelines ................................................................. 42

Unknown user password .......................................................................................... 43

Component replacement procedures ........................................................................................ 44

Serial number ......................................................................................................... 44

Computer feet ......................................................................................................... 45

Battery ................................................................................................................... 46

Hard drive ............................................................................................................. 47

WLAN module ........................................................................................................ 50

RTC battery ............................................................................................................ 54

Memory module ...................................................................................................... 55

Optical drive .......................................................................................................... 57

Keyboard ............................................................................................................... 59

Switch cover ........................................................................................................... 62

Display assembly .................................................................................................... 64

Top cover ............................................................................................................... 70

TouchPad ............................................................................................................... 73

Wireless switch board ............................................................................................. 75

Modem module ...................................................................................................... 77

Audio board ........................................................................................................... 78

Bluetooth module .................................................................................................... 79

USB board ............................................................................................................. 80

Speaker assembly ................................................................................................... 82

Power connector cable ............................................................................................ 84

System board ......................................................................................................... 85

ExpressCard assembly ............................................................................................. 87

Fan/heat sink assembly ........................................................................................... 90

Processor ............................................................................................................... 93

5 Setup Utility

Starting the Setup Utility .......................................................................................................... 95

Changing the language of the Setup Utility ............................................................................... 95

Navigating and selecting in the Setup Utility .............................................................................. 96

Displaying system information .................................................................................................. 96

Restoring default settings in the Setup Utility .............................................................................. 96

Using advanced Setup Utility features ....................................................................................... 97

Closing the Setup Utility .......................................................................................................... 97

Setup Utility menus ................................................................................................................. 97

6 Specifications

Computer specifications .......................................................................................................... 99

14.1-inch, WXGA, BrightView display specifications ............................................................... 100

Hard drive specifications ...................................................................................................... 101

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive specifications .............................. 102

System DMA specifications .................................................................................................... 103

System interrupt specifications—Intel processors ....................................................................... 104

System interrupt specifications—AMD processors ..................................................................... 105

System I/O address specifications—Intel processors ................................................................. 106

System I/O address specifications—AMD processors ............................................................... 108

System memory map specifications—Intel processors ................................................................ 110

System memory map specifications—AMD processors .............................................................. 111

7 Screw listing

Phillips PM2.0×5.0 captive screw .......................................................................................... 114

Phillips PM2.5×4.0 screw ..................................................................................................... 115

Phillips PM3.0×4.0 screw ..................................................................................................... 117

Phillips PM2.0×3.0 screw ..................................................................................................... 118

Phillips PM2.5×9.0 screw ..................................................................................................... 120

Black Phillips PM2.5×7.0 screw ............................................................................................. 122

Black Phillips PM2.0×5.0 screw ............................................................................................. 124

Black Phillips PM2.5×5.0 screw ............................................................................................. 126

Silver Phillips PM2.0×2.0 screw ............................................................................................ 128

Black Phillips PM2.0×4.0 screw ............................................................................................. 129

Phillips PM2.0×13.0 captive screw ........................................................................................ 130

8 Backup and Recovery

Recovering system information ............................................................................................... 131

Backing up your information ................................................................................... 131

Using system restore points ..................................................................................... 132

Creating recovery discs ......................................................................................... 133

Reinstalling software programs and drivers ............................................................... 134

Performing a recovery ........................................................................................... 135

Deleting the recovery partition on the hard drive ....................................................... 136

Updating reinstalled software ................................................................................. 136

When to back up ................................................................................... 131

Back up suggestions ............................................................................... 132

When to create restore points .................................................................. 132

Create a system restore point ................................................................... 132

Restore to a previous date and time .......................................................... 133

Reinstalling preinstalled programs and drivers ........................................... 134

Reinstalling programs from discs .............................................................. 134

Recovering from the recovery discs ........................................................... 135

Recovering from the partition on the hard drive .......................................... 135

9 Connector pin assignments

Audio-out (headphone) ......................................................................................................... 137

Audio-in (microphone) .......................................................................................................... 137

External monitor ................................................................................................................... 138

RJ-11 (modem) ..................................................................................................................... 139

RJ-45 (network) .................................................................................................................... 139

S-Video-out .......................................................................................................................... 140

Universal Serial Bus .............................................................................................................. 140

10 Power cord set requirements

Requirements for all countries or regions ................................................................................. 141

Requirements for specific countries or regions .......................................................................... 142

11 Recycling

Battery ................................................................................................................................ 143

Display ............................................................................................................................... 143

vii

Index ............................................................................................................................... 149

viii

Product description

Category Description Full-featured

computer models, Intel

Product Name Compaq Presario V3500

Notebook PC

Processors Intel® Core™ 2 Duo processors

2.20-GHz processor, 4-MB L2 cache, 800-MHz front side bus (FSB)

2.00-GHz processor, 2-MB L2

1.86-GHz processor, 1-MB L2

1.50-GHz processor, 2-MB L2

T7300 2.0-GHz processor, 4-

T7100 1.8-GHz processor, 2-

cache, 800-MHz FSB

cache, 533-MHz FSB

cache, 667-MHz FSB

Intel Core Duo processors

MB L2 cache, 800-MHz FSB

√ √ √ √

√ √

Defeatured computer models, Intel

Full-featured computer models, AMD

Defeatured computer models, AMD

T5250 1.5-GHz processor 2-MB

Turion™ TL-62 (2.1-Ghz, 1600-

Turion TL-60 (2.0-Ghz, 1600-

Turion TL-58 (1.9-GHz, 1600-

Turion TL-55 (1.8-GHz, 512-KB

Turion MK-38 (2.2-GHz, 512-

Athlon™ TK-53 (1.7-GHz, 2-GB

L2 cache, 667-MHz FSB

AMD processors

MHz FSB, 1-MB L2 cache)

L2 cache)

MB L2 cache)

L2 cache)

√ √

√√

Category Description Full-featured

computer models, Intel

Defeatured computer models, Intel

Full-featured computer models, AMD

Defeatured computer models, AMD

Sempron™ 3600 (2.0-GHz,

256-KB L2 cache)

Chipset

Northbridge: GM965 √

Southbridge: Intel ICH8m √ √

Northbridge: nVidia MCP67M √ √

Southbridge: nVidia Integrated √ √

Graphics nVidia Discrete PCI Express

Northbridge: Intel PM965 √

× 16 Graphics

nVidia NB8M GS with 64

●

MB of dedicated video memory (8M × 32 GDDR3 × 2 PCs) with 128 MB of video memory when system memory is less than 1 GB (64 MB + 64 MB Turbo Cache)

nVidia NB8M GS with 64

●

MB of dedicated video memory (8M × 32 GDDR3 × 2 PCs) with 256 MB of video memory when system memory is greater than or equal to 1 GB (64 MB + 192 MB Turbo Cache)

√ √

√

System design supports up to 55W GPU requirement.

Mobile Intel Graphics Media Accelerator X3100

Unified Memory Architecture (UMA) with shared video memory:

Up to 64 MB on computers

●

with 512 MB or less of system memory

Up to 128 MB on

●

computers with more than 512 MB of system memory

Memory size is a dynamic change.

UMA nVidia

√

√√

2Chapter 1 Product description

Category Description Full-featured

computer models, Intel

Unified Memory Architecture (UMA) with shared video memory:

Up to 64 MB on computers

●

with 512 MB of system memory

Up to 256 MB on

●

computers with 1024 MB of system memory

Up to 576 MB on

●

computers with more than 2048 MB of system memory

Defeatured computer models, Intel

Full-featured computer models, AMD

Defeatured computer models, AMD

Panel

Memory

Customer-accessible/

Supports up to 4 GB of system

Supports up to 2 GB of system

DDRII PC2-5300 (667-MHz) √ √ √ √

Supports the following

Hard drives

14.1-inch, WXGA with BrightView

2 SODIMM slots √ √ √ √

upgradable

RAM

configuration: 4096 (2048 x 2)

configurations:

2048 (1024 × 2)

●

1536 (1024 + 512)

●

1024 (1024 × 1, 512 × 2)

●

512 (512 × 1)

●

Supports 9.5-mm, 2.5-inch hard drives

√ √ √ √

√ √

√ √ √ √

Serial ATA √ √ √ √

Supports the following drives:

250-GB, 5400-rpm

●

160-GB, 5400-rpm

●

120-GB, 5400-rpm

●

80-GB, 5400-rpm

●

√√√√

Category Description Full-featured

computer models, Intel

Defeatured computer models, Intel

Full-featured computer models, AMD

Defeatured computer models, AMD

Optical drives

Parallel ATA √ √ √ √

12.7-mm tray load √ √ √ √

Supports the following drives:

Diskette drive

Microphone

Audio

Supports Windows Vista®

Presario-branded Altec Lansing

Fixed (removal of 1 screw required)

DVD±RW and CD-RW

●

Super Multi Double-Layer Combo Drive with LightScribe

● DVD±RW and CD-RW

Super Multi Double-Layer Combo Drive

DVD-CD/RW Combo Drive

●

Supports external USB drive only √ √ √ √

2 dual-array microphones with software

HD audio √ √ √ √

Premium Logo requirements

speakers

√ √ √ √

Modem

Supports all world-wide

Modem cable not included √ √ √ √

Ethernet

Ethernet cable not included √ √ √ √

Wireless Integrated wireless local

Intel PRO Wireless 3945

Intel PRO Wireless 4965

56K V.92 data/fax modem √ √ √ √

√ √ √ √

certification requirements

Integrated Marvell E8039 10/100 network interface card (NIC)

area network (WLAN) options by way of wireless module:

802.11a/b/g and 802.11b/g with 2 antennae integrated into the display assembly

802.11a/b/g/n with 3 antennae integrated into the display assembly @ 2.4 and 5.0 GHz

√ √ √ √

√ √

√√

4Chapter 1 Product description

Category Description Full-featured

computer models, Intel

Intel WLAN + Bluetooth® √ √

Defeatured computer models, Intel

Full-featured computer models, AMD

Defeatured computer models, AMD

Broadcom 4321AGN Wi-Fi

Adapter (802.11a/b/g/draft-n) + Bluetooth w/2 antennas

Broadcom 4321AGN Wi-Fi

Adapter (802.11a/b/g/draft-n) w/2 antennas

External media card

Digital Media Slot, supports SD,

Supports miniature versions of

Supports 2nd Mini-PCIe √ √ √ √

Ports

Audio-out (stereo headphone) √ √ √ √

Consumer infrared √ √ √ √

RJ-11 (modem) √ √ √ √

RJ-45 (Ethernet, includes link and

One ExpressCard54 slot √ √ √ √

MMC, SDIO, MS, MSpro, xD

SD, MMC, MS Duo with adapter (adapter is not included)

Audio-in (mono microphone) √ √ √ √

activity lights)

√ √

√ √ √ √

S-Video-out √ √ √ √

USB (3) √ √ √ √

VGA (Dsub 15-pin) √ √ √ √

1394 √ √ √ √

2-pin AC power √ √ √ √

Docking

Keyboard/ pointing devices

TouchPad with 2 buttons and

Power requirements

6-cell 2.55-Ah Li-ion battery √ √ √ √

6-cell 2.20-Ah Li-ion battery √√√√

Expansion port 3 supports HP xb3000 Notebook Expansion Base and HP Notebook QuickDock

14.1-inch keyboard √ √ √ √

four-way scroll (taps enabled as default)

12-cell 2.20-Ah Li-ion battery √ √ √ √

√ √ √ √

Category Description Full-featured

computer models, Intel

Defeatured computer models, Intel

Full-featured computer models, AMD

Defeatured computer models, AMD

65-W AC adapter with localized

cable plug support (2-wire plug with ground pin, supports 2-pin DC connector)

Security

Operating system Preinstalled:

Configurable Windows Vista

Free DOS √ √ √ √

Linux (with 802.11 b/g, Combo

Windows Vista Business (32-bit) √ √ √ √

Windows Vista Home Basic (32-

Windows Vista Premium (32-

Windows Vista Ultimate (64-bit) √ √

Serviceability End-user replaceable

AC adapter √ √ √ √

Security cable slot √ √ √ √

embedded "QuickPlay Direct"

Drive, or DVD +/- RW)

bit)

and 64-bit)

parts:

√ √ √ √

√ √

√

√ √ √ √

Battery (system) √ √ √ √

Hard drive √ √ √ √

Memory module √ √ √ √

Optical drive √ √ √ √

WLAN module √√√√

6Chapter 1 Product description

External component identification

Top components

Display components

Item Component Description

(1)

(2)

*The location of the internal display switch varies by computer model.

Internal microphones (2) (select models only) Record sound.

NOTE: If there is a microphone icon next to each

microphone opening, your computer has internal microphones.

Internal display switch* Turns off the display if the display is closed while the

computer is on.

Top components 7

Button and speakers

Item Component Description

(1)

(2)

(3)

(4)

Power button*

Speakers (2) Produce sound.

Media button Opens the QuickPlay program.

Volume mute button Mutes and restores speaker sound.

When the computer is off, press the button to turn on

●

the computer.

When the computer is on, press the button to initiate

●

Sleep.

When the computer is in the Sleep state, press the

●

button briefly to exit Sleep.

When the computer is in Hibernation, press the button

●

briefly to exit Hibernation.

If the computer has stopped responding and Windows® shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.

To learn more about power settings, select Start > Control

Panel > System and Maintenance > Power Options.

NOTE: If the computer has been set up to require a logon

password, you may be asked to log on to Windows. QuickPlay opens after you log on. Refer to the QuickPlay Help for more information.

(5)

*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help and Support.

Volume scroll zone Adjusts speaker volume. Slide your finger to the left to

8Chapter 2 External component identification

decrease volume and to the right to increase volume. You can also tap the minus sign on the scroll zone to decrease volume, or tap the plus sign on the scroll zone to increase volume.

Keys

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

esc key Displays system information when pressed in combination

with the fn key.

fn key Executes frequently used system functions when pressed in

combination with a function key or the esc key.

Windows logo key Displays the Windows Start menu.

Windows applications key Displays a shortcut menu for items beneath the pointer.

Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.

Function keys Execute frequently used system functions when pressed in

combination with the fn key.

Top components 9

Lights

Item Component Description

(1)

(2)

(3)

(4)

(5)

(6)

(7)

Power lights (2)*

Battery light

Drive light Blinking: The hard drive or optical drive is being accessed.

Caps lock light On: Caps lock is on.

Media button light Blinks once when the media button is pressed.

Volume mute light

Volume down light Blinking: The volume scroll zone is being used to decrease

On: The computer is on.

●

Blinking: The computer is in the Sleep state.

●

Off: The computer is off or in Hibernation.

●

On: A battery is charging.

●

Blinking: A battery that is the only available power

●

source has reached a low battery level or a critical battery level.

Off: If the computer is plugged into an external power

●

source, the light is turned off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.

Blue: Computer sound is turned on.

●

Amber: Computer sound is turned off.

●

speaker volume.

(8)

(9)

*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The power light on the front of the computer is visible whether the computer is open or closed.

Volume up light Blinking: The volume scroll zone is being used to increase

Num lock light On: Num lock is on or the embedded numeric keypad is

10 Chapter 2 External component identification

speaker volume.

enabled.

TouchPad

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

*This table describes factory settings. To view or change pointing device preferences, select Start > Control Panel > Hardware and Sound > Mouse.

TouchPad light

TouchPad* Moves the pointer and selects or activates items on the

TouchPad horizontal scroll zone Scrolls left or right.

Left and right TouchPad buttons* Function like the left and right buttons on an external mouse.

TouchPad vertical scroll zone Scrolls up or down.

TouchPad on/off button Enables/disables the TouchPad.

Blue: TouchPad is enabled.

●

Amber: TouchPad is disabled.

●

screen.

Top components 11

Front components

Item Component Function

(1)

(2)

(3)

(4)

(5)

Wireless switch Turns the wireless feature on or off, but does not create a

wireless connection.

NOTE: To establish a wireless connection, a wireless

network must already be set up.

Wireless light

Consumer infrared lens (select models only) Receives a signal from a remote control device, such as an

Audio-in (microphone) Connects an optional computer headset microphone, stereo

Audio-out (headphone) jack Produces sound when connected to optional powered stereo

Blue: An integrated wireless device, such as a WLAN

●

device, and/or a Bluetooth® device, is turned on.

Amber: An integrated wireless device is turned off.

●

HP Remote Control.

array microphone, or monaural microphone.

speakers, headphones, ear buds, a headset, or television audio.

12 Chapter 2 External component identification

Left-side components

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

(7)

S-Video-out jack Connects an optional S-Video device such as a television,

VCR, camcorder, overhead projector, or video capture card.

External monitor port Connects an external VGA monitor or projector.

Expansion port 3 Connects the computer to an optional docking device or

optional expansion product.

NOTE: The computer has only one expansion port. The

term expansion port 3 describes the type of expansion port.

RJ-45 (network) jack Connects a network cable.

USB ports (1 or 2, depending on computer model) Connects optional USB devices.

1394 port (select models only) Connects an optional IEEE 1394 or 1394a device, such as

Digital Media Slot (select models only) Supports the following optional digital card formats:

a camcorder.

Memory Stick (MS)

●

Memory Stick Pro (MSP)

●

● MultiMediaCard (MMC)

Secure Digital Input/Output (SD I/O)

●

Secure Digital (SD) Memory Card

●

(8)

(9)

xDPicture Card (XD)

●

xD-Picture Card (XD) Type H

●

xD-Picture Card (XD) Type M

●

Digital Media Slot light (select models only) On: A digital card is being accessed.

ExpressCard slot Supports optional ExpressCard/54 cards.

Left-side components 13

Rear component

Item Component Description

(1)

Vent Enables airflow to cool internal

components.

NOTE: The computer fan starts up

automatically to cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

14 Chapter 2 External component identification

Right-side components

Item Component Function

(1)

(2)

(3)

(4)

(5)

Optical drive Reads optical discs, and, on select models, also writes to

optical discs.

USB ports (select models only) Connect optional USB devices.

RJ-11 (modem) jack Connects a modem cable.

Power connector Connects an AC adapter.

Security cable slot Attaches an optional security cable to the computer.

NOTE: The security cable is designed to act as a

deterrent, but may not prevent the computer from being mishandled or stolen.

Right-side components 15

Bottom components

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

Battery bay Holds the battery.

Battery release latch Releases the battery from the battery bay.

Wireless module compartment Contains a WLAN module slot.

NOTE: To prevent an unresponsive system, replace the

wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

Vents (4) Enable airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

Memory module compartment Contains 2 memory module slots.

Hard drive bay Holds the hard drive and the RTC battery.

16 Chapter 2 External component identification

Illustrated parts catalog

Serial number location

When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.

Serial number location 17

Computer major components

Item Description Spare part number

(1) 14.1-inch, WXGA, BrightView display assembly

18 Chapter 3 Illustrated parts catalog

Item Description Spare part number

NOTE: See Display assembly components on page 25 for more display assembly internal

component spare part information.

For use in computer models with Intel or AMD processors 448611-001

For use in defeatured computer models with AMD processors 451163-001

(2) Switch cover (includes power button board and cable, LED board, and LED board cable)

For use in computer models with Intel processors or full-featured models with AMD processors 451313-001

For use in defeatured computer models with AMD processors 417078-001

(3) Keyboards

Belgium 448615-021

Brazil 448615-201

Canadian French 448615-121

Denmark, Finland, Norway, and Sweden 448615-DH1

France 448615-051

Germany 448615-041

Greece 448615-DJ1

Israel 448615-BB1

Italy 448615-061

Latin America 448615-161

The Netherlands and Europe 448615-B31

Portugal 448615-131

Russia 448615-251

Saudi Arabia 448615-171

South Korea 448615-AD1

Spain 448615-071

Switzerland 448615-111

Taiwan 448615-AB1

Thailand 448615-281

Turkey 448615-141

The United Kingdom 448615-031

The United States 448615-001

(4) Top cover (includes TouchPad and cable)

For use only in computer models with Intel processors 448620-001

For use only in full-featured computer models with AMD processors 455857-001

For use only in defeatured computer models with AMD processors 417091-001

(5a) TouchPad

Computer major components 19

Item Description Spare part number

For use only in computer models with Intel processors 451341-001

For use only in computer models with AMD processors 455858-001

(5b) TouchPad bracket (included with top cover)

Modem module (includes modem module cable)

(6a)

(6b) Modem module cable

(7)

Speaker assembly

Door/Cover Kit (see Door/Cover Kit on page 27 for more Door/Cover Kit information)

ExpressCard slot bezel

(8a)

Hard drive cover

(8b)

Memory module compartment cover

(8c)

Wireless module compartment cover

(8d)

ExpressCard assembly

(9)

(10) System boards (include thermal material)

For use only in computer models with Intel processors:

For use only in computer models with AMD processors:

Equipped with discrete graphics subsystems

●

Not equipped with UMA graphics subsystems

●

Full-featured computer models

●

Defeatured computer models

●

431852-001

417089-001

417112-001

448596-001

448598-001

453411-001

453412-001

(11) Wireless switch board (includes wireless switch board cable)

(12) Audio board (includes audio connectors, infrared lens, and audio board cable)

For use only in full-featured computer models 448627-001

For use only in defeatured computer models with AMD processors 459157-001

(13) Processors (include thermal material)

Intel Core Duo processors:

AMD processors:

T7300 (2.0-GHz, 4-MB L2 cache)

●

T7100 (1.8-GHz, 2-MB L2 cache)

●

Turion TL-62 (2.1-GHz, 1-MB L2 cache)

●

Turion TL-60 (2.0-GHz, 1-MB L2 cache)

●

Turion TL-58 (1.9-GHz, 1-MB L2 cache)

●

Turion TL-55 (1.86-GHz, 1-MB L2 cache)

●

Turion MK-38 (2.2-GHz, 512-MB L2 cache)

●

Athlon TK-53 (1.7-GHz, 2-GB L2 cache) 451013-001

●

417092-001

448601-001

448600-001

455809-001

455807-001

448561-001

455808-001

449904-001

20 Chapter 3 Illustrated parts catalog

Item Description Spare part number

● Sempron 3600 (2.0-GHz, 256-KB L2 cache) 450609-001

(14) Fan/heat sink assembly (includes thermal material)

Fan/heat sink mounting bracket (not illustrated)

(15) Bluetooth module (includes Bluetooth module cable)

Bluetooth module cable for use only in computer models with AMD processors (not

illustrated)

(16) Power connector cable

For use in computer models with Intel processors 448629-001

For use in computer models with AMD processors 430462-001

(17) Base enclosure (includes infrared lens and wireless on/off switch)

For use only in computer models with Intel processors 417094-001

For use only in computer models with AMD processors 455850-001

Rubber Feet Kit (not illustrated; includes base enclosure rubber feet and display bezel screw covers)

(18) USB board (includes USB board cable)

For use only in computer models with Intel processors 417085-001

For use only in computer models with AMD processors 455859-001

(19) Batteries

448625-001

417114-001

397923-002

458663-001

417096-001

For use in computer models with Intel or AMD processors:

For use only in computer models with Intel processors:

For use in computer models with AMD processors:

(20) Hard drives (include hard drive bracket)

For use in computer models with AMD processors:

6-cell, 2.55-Ah, Li-ion

●

12-cell, 2.20-Ah, Li-ion

●

6-cell, 2.20-Ah, Li-ion

●

12-cell, 8.80-Ah

●

6-cell, 2.20-Ah

●

For use only in computer models with Intel processors:

250-GB, 5400-rpm

●

160-GB, 5400-rpm

●

120-GB, 5400-rpm

●

80-GB, 5400-rpm

●

250-GB, 5400-rpm

●

441611-001

452056-001

452057-001

455806-001

455804-001

453949-001

452060-001

452059-001

452058-001

455827-001

160-GB, 5400-rpm 453418-001

●

Computer major components 21

Item Description Spare part number

● 120-GB, 5400-rpm 453417-001

(21) RTC battery (includes 2-sided tape)

(22) Memory modules (667-MHz, PC2-5300, 1-DIMM)

For use in computer models with AMD processors:

● 1024-MB 453415-001

(23) WLAN modules

802.11a/b/g/n WLAN modules:

80-GB, 5400-rpm

●

Hard drive hardware kit (contains screws, hard drive bracket, and connector; not illustrated)

For use in computer models with Intel processors:

1024-MB

●

512-MB

●

512-MB

●

For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

●

Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay, the United States, Venezuela, and Vietnam

453416-001

453419-001

417076-001

452062-001

452061-001

453414-001

441086-001

● For use in Japan 441086-291

802.11a/b/g WLAN modules:

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the

●

Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South

●

Korea

For use in Antigua and Barbuda, Argentina, Australia, the Bahamas, Barbados, Brunei,

●

Canada, Chile, the Dominican Republic, Guam, Guatemala, Hong Kong, India, Indonesia, Malaysia, Mexico, New Zealand, Panama, Paraguay, Saudi Arabia, Taiwan, the United States, and Vietnam

For use in Aruba, Austria, Azerbaijan, Bahrain, Belgium, Bermuda, Brazil, Bulgaria, the

●

Cayman Islands, Colombia, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, El Salvador, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Jordan, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, the United Kingdom, and Uzbekistan

For use in Ecuador, Haiti, Honduras, Pakistan, the People's Republic of China, Peru,

●

Qatar, South Korea, Uruguay, and Venezuela

441086-002

441086-003

452063-001

452063-002

452063-001

802.11b/g WLAN module for use in Thailand 409407-004

22 Chapter 3 Illustrated parts catalog

Item Description Spare part number

Broadcom 4311AG 802.11a/b/g modules:

● For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda,

For use in the United States and Canada

●

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

441075-001

441075-002

Broadcom 802.11b/g WLAN modules:

For use in Japan

●

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and

●

the United States

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda,

●

441075-291

441090-001

441090-002

Computer major components 23

Item Description Spare part number

Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

802.11n WLAN modules:

(24) Optical drives (include bezel)

For use in computer models with AMD processors:

For use in Japan

●

For use in the United States and Canada

●

For use in the Argentina, Australia, Belize, Bolivia, Brazil, Chile, Columbia, Costa Rica,

●

Ecuador, El Salvador, Guatemala, Honduras, Hong Kong, Indonesia, Nicaragua, Paraguay, the People's Republic of China, Peru, South Korea, Taiwan, Thailand, Uruguay, Venezuela

For use in Japan

●

For use in computer models with Intel processors:

DVD±RW and CD-RW Super Multi, Double-Layer Combo Drive with LightScribe

●

DVD±RW and CD-RW Super Multi, Double-Layer Combo Drive

●

DVD/CD-RW Combo Drive

●

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe

●

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive

●

DVD/CD-RW Combo Drive

●

Cable Kit (not illustrated; see

Cable Kit on page 28 for more Cable Kit information)

441090-291

436255-001

436256-001

436256-291

452055-001

452054-001

452053-001

455830-002

455829-002

455828-002

430474-001

24 Chapter 3 Illustrated parts catalog

Display assembly components

Item Description Spare part number

(1) Display bezel

For use with computer models with Intel or AMD processors; includes microphone 448613-001

For use only with computer models with AMD processors; does not include microphone 455820-001

(2a) Display inverter (includes Mylar shield)

For use only with computer models with Intel processors 417097-001

For use only with computer models with AMD processors 455821-001

(2b) Display inverter bracket (included with display inverter)

Wireless Antenna Kit

(3)

Antenna, microphone cable kit (not illustrated)

(4) 14.1-inch, WXGA, TFT BrightView display panel (includes display panel cable)

For use only with computer models with Intel processors 448602-001

For use only with computer models with AMD processors 455810-001

Display Hinge Kit

For use only with computer models with Intel processors 417103-001

For use only with computer models with AMD processors 455822-001

417107-001

458658-001

(5a) Left and right display hinges

Display assembly components 25

Item Description Spare part number

(5b) Display switch module

(6) Display Cable Kit (includes microphones and cables)

For use only with computer models with Intel processors 448614-001

For use only with computer models with AMD processors 458656-001

(7) Display enclosure

For use only with computer models with Intel processors 448612-001

For use only with computer models with AMD processors 455818-001

Display Screw Kit (not illustrated; includes screws and rubber screw covers)

For use only with computer models with Intel processors 417105-001

For use only with computer models with AMD processors 455868-001

Rubber display kit (not illustrated)

Display bracket (not illustrated)

431881-001

458654-001

455812-001

26 Chapter 3 Illustrated parts catalog

Door/Cover Kit

Item Description Spare part number

Door/Cover Kit

Wireless module compartment cover (includes 1 captive screw, secured by a C-clip)

(1)

Hard drive cover (includes 2 captive screws, secured by C-clips)

(2)

Memory module compartment cover (includes 2 captive screws, secured by C-clips)

(3)

ExpressCard slot bezel

(4)

417074-001

Door/Cover Kit 27

Cable Kit

Item Description Spare part number

Cable Kit

Power button board cable

(1)

LED board cable

(2)

USB/power connector board cable (includes num lock light)

(3)

Bluetooth module cable

(4)

Modem module cable (includes RJ-11 connector)

(5)

430474-001

28 Chapter 3 Illustrated parts catalog

Mass storage devices

Item Description Spare part number

(1) Hard drives (include hard drive bracket)

For use only in computer models with Intel processors:

For use in computer models with AMD processors:

(2) Optical drives (include bezel and bracket)

For use in computer models with AMD processors:

250-GB, 5400-rpm

●

160-GB, 5400-rpm

●

120-GB, 5400-rpm

●

80-GB, 5400-rpm

●

250-GB, 5400-rpm

●

160-GB, 5400-rpm

●

120-GB, 5400-rpm

●

80-GB, 5400-rpm

●

Hard drive hardware kit (contains screws, hard drive bracket, and connector; not illustrated)

For use only in computer models with Intel processors:

DVD±RW and CD-RW Super Multi, Double-Layer Combo Drive with LightScribe

●

DVD±RW and CD-RW Super Multi, Double-Layer Combo Drive

●

DVD/CD-RW Combo Drive

●

453949-001

452060-001

452059-001

452058-001

455827-001

453418-001

453417-001

453416-001

453419-001

452055-001

452054-001

452053-001

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe

●

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive

●

DVD/CD-RW Combo Drive 455828-002

●

455830-002

455829-002

Mass storage devices 29

Miscellaneous parts

Description Spare part number

AC adapters

90-W PFC AC adapter

65-W PFC AC adapter 417220-001

ATSC/NTSC/PAL TV tuner

ATSC/NTSC TV tuner antenna

Composite audio and S-Video cable

DVB-T tuner

DVB-T antenna adapter

Earbud headset

HP backpack

HP carrying case

HP Remote Control for use with computer models with Intel processors

HP Remote Control for use with computer models with AMD processors

Infrared emitter with cable

Optical wired mouse

RF input adapter cable (without ferrite)

USB digital drive

409515-001

439130-001

439131-001

407939-001

412175-001

412176-001

371693-003

405527-001

418162-001

407313-001

435743-001

439129-001

436238-001

407940-001

364727-002

Windows Vista remote control (fits inside ExpressCard slot)

Windows Vista remote control (does not fit inside ExpressCard slot)

Wireless laser mouse (includes cable adapter)

Power cords:

Argentina

Australia and New Zealand 383496-011

Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway, Portugal, Spain, and Sweden

Brazil 383496-201

Canada, French Canada, Latin America, Thailand, and the United States 383496-001

Denmark 383496-081

India 383496-D61

Israel 383496-BB1

Italy 383496-061

The People's Republic of China 383496-AA1

South Africa 383496-AR1

439128-001

439254-001

430958-001

383496-D01

383496-021

30 Chapter 3 Illustrated parts catalog

Description Spare part number

South Korea 383496-AD1

Switzerland 383496-111

Taiwan 383496-AB1

The United Kingdom and Hong Kong 383496-031

Screw Kit

For use in computers with Intel processors 417109-001

For use in computers with AMD processors 455867-001

Phillips PM3.0×4.0 screw

●

Phillips PM2.5×9.0 screw

●

Phillips PM2.5×7.0 screw

●

Phillips PM2.5×5.0 screw

●

Phillips PM2.5×4.0 screw

●

Phillips PM2.0×13.0 captive screw

●

Phillips PM2.0×9.0 captive screw

●

Phillips PM2.0×8.0 screw

●

Phillips PM2.0×5.0 screw

●

Phillips PM2.0×5.0 captive screw

●

Phillips PM2.0×4.0 screw

●

Phillips PM2.0×3.0 screw

●

Phillips PM2.0×2.0 screw

●

Sequential part number listing

Spare part number

364727-002 USB digital drive

371693-003 USB digital drive

383496-001 Power cord for use in the United States

383496-011 Power cord for use in Australia

383496-021 Power cord for use in Europe

383496-031 Power cord for use in the United Kingdom

383496-061 Power cord for use in Italy

383496-081 Power cord for use in Denmark

383496-111 Power cord for use in Switzerland

Description

Sequential part number listing 31

Spare part number

383496-201 Power cord for use in Brazil

383496-AA1 Power cord for use in the People's Republic of China

383496-AB1 Power cord for use in Taiwan

383496-AD1 Power cord for use in South Korea

383496-AR1 Power cord for use in South Africa

383496-BB1 Power cord for use in Israel

383496-D01 Power cord for use in Argentina

383496-D61 Power cord for use in India

397923-002 Bluetooth module (includes Bluetooth module cable)

405527-001 HP backpack

407313-001 HP Remote Control for use with computers with Intel processors

407939-001 Composite video cable

407940-001 RF input adapter cable (without ferrite)

408479-002 TV tuner remote control for use in Europe, the Middle East, and Africa

408483-001 USB infrared receiver

Description

409407-004 802.11b/g WLAN module for use in Thailand

409515-001 90-W PFC AC adapter

412175-001 DVB-T tuner

412176-001 DVB-T antenna adapter

412176-002 DVB-T antenna and DVB-T antenna adapter

417074-001 Door/Cover Kit (see Door/Cover Kit on page 27) for more Door/Cover Kit information)

417076-001 RTC battery (includes 2-sided tape)

417078-001 Switch cover for use in defeatured computer models with AMD processors (includes power button board and

417085-001 USB board for use only in computer models with Intel processors (includes USB board cable)

417089-001 Speaker assembly

417091-001 Top cover for use in defeatured computer models with AMD processors (includes TouchPad and cable)

417092-001 Wireless switch board (includes wireless switch board cable)

417094-001 Base enclosure for use only in computer models with Intel processors (includes infrared lens and wireless on/off

417096-001 Rubber Feet Kit (includes base enclosure rubber feet and display bezel screw covers)

417097-001 Display inverter for use only in computer models with Intel processors (includes Mylar shield and bracket)

cable, LED board, and LED board cable)

switch)

417103-001 Display Hinge Kit for use in computer models with Intel processors (includes left and right display hinges and

display switch module)

32 Chapter 3 Illustrated parts catalog

Spare part number

417105-001 Display Screw Kit for use only in computer models with Intel processors (includes screws and rubber screw

417107-001 Wireless Antenna Kit

417109-001 Screw Kit for use in computer models with Intel processors

417112-001 ExpressCard assembly

417114-001 Fan/heat sink mounting bracket

417220-001 65-W PFC AC adapter

418162-001 HP carrying case

430462-001 Power connector cable for use in computer models with AMD processors

430474-001 Cable Kit (see Cable Kit on page 28 for more Cable Kit information)

430958-001 Wireless laser mouse (includes cable adapter)

431881-001 Display switch module

431852-001 Modem module (includes modem module cable)

435743-001 HP Remote Control for use with computers with AMD processors

436238-001 Optical wired mouse

Description

covers)

436255-001 WLAN 802.11n module for use in the United States and Canada

436256-001 WLAN 802.11n module for use in the Argentina, Australia, Belize, Bolivia, Brazil, Chile, Columbia, Costa Rica,

Ecuador, El Salvador, Guatemala, Honduras, Hong Kong, Indonesia, Nicaragua, Paraguay, the People's Republic of China, Peru, South Korea, Taiwan, Thailand, Uruguay, Venezuela

439128-001 Windows Vista remote control (fits inside ExpressCard slot)

439129-001 Infrared emitter with cable

439130-001 ATSC/NTSC/PAL TV tuner

439131-001 ATSC/NTSC TV tuner antenna

439254-001 Windows Vista remote control (does not fit inside ExpressCard slot)

441075-001 Broadcom 4311AG 802.11a/b/g WLAN module for use in the United States and Canada

441075-002 Broadcom 4311AG 802.11a/b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola,

Antigua & Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden,

Sequential part number listing 33

Spare part number

441086-001 802.11a/b/g/n WLAN module for use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados,

441086-002 802.11a/b/g/n WLAN module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia,

441086-003 802.11a/b/g/n WLAN module for use in Australia, New Zealand, Pakistan, the People's Republic of China,

441086-291 802.11a/b/g/n WLAN module for use in Japan

441090-001 Broadcom 802.11b/g WLAN module for use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S.

441090-002 Broadcom 802.11b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua &

Description

Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay, the United States, Venezuela, and Vietnam

Cyprus, the Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

and South Korea

Virgin Islands, and the United States

Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

441611-001 6-cell, 2.55-Ah battery for use in computer models with Intel or AMD processors

448561-001 AMD Turion TL-58 processor (1.9-GHz, 1-MB L2 cache)

448596-001 System board for use only with computer models for Intel processors that are equipped with microphones

(includes thermal material)

448598-001 System board for use only with computer models with Intel processors that are not equipped with microphones

448600-001 Intel Core Duo T7100 1.8-GHz processor (2 MB of L2 cache; includes thermal material)

448601-001 Intel Core Duo T7300 2.0-GHz processor (4 MB of L2 cache; includes thermal material)

448602-001 14.1-inch, WXGA, SVA, TFT BrightView display panel for use only in computer models with Intel processors

448611-001 14.1-inch, WXGA, SVA, TFT BrightView display assembly (includes display panel cable)

(includes thermal material)

(includes display panel cable)

34 Chapter 3 Illustrated parts catalog

Spare part number

448612-001 Display enclosure for use in computer models with Intel processors

448613-001 Display bezel for use in computer models with Intel or AMD processors; includes microphone

448614-001 Display Cable Kit for use in computer models with Intel processors (includes microphones and cables)

448615-001 Keyboard for use in the United States

448615-021 Keyboard for use in Belgium

448615-031 Keyboard for use in the United Kingdom

448615-041 Keyboard for use in Germany

448615-051 Keyboard for use in France

448615-061 Keyboard for use in Italy

448615-071 Keyboard for use in Spain

448615-111 Keyboard for use in Switzerland

448615-131 Keyboard for use in Portugal

448615-141 Keyboard for use in Turkey

448615-161 Keyboard for use in Latin America

448615-171 Keyboard for use in Saudi Arabia

Description

448615-201 Keyboard for use in Brazil

448615-251 Keyboard for use in Russia

448615-281 Keyboard for use in Thailand

448615-AB1 Keyboard for use in Taiwan

448615-AD1 Keyboard for use in South Korea

448615-B31 Keyboard for use in the Netherlands and Europe

448615-BB1 Keyboard for use in Israel

448615-DH1 Keyboard for use in Denmark, Finland, Norway, and Sweden

448615-DJ1 Keyboard for use in Greece

448620-001 Top cover for use in computer models with Intel processors (includes TouchPad and cable)

448625-001 Fan/heat sink assembly(includes thermal material)

448627-001 Audio board for use only in full-featured computer models (includes audio connectors, infrared lens, and audio

board cable)

448629-001 Power connector cable for use in computer models with Intel processors

449904-001 Turion MK-38 processor (2.2-GHz, 512-MB L2 cache)

450609-001 AMD Sempron 3600 processor (2.0-GHz, 256-KB L2 cache)

451013-001 Athlon TK-53 processor (1.7-GHz, 2-GB L2 cache)

451163-001 14.1-inch, WXGA, SVA, TFT BrightView display assembly for use only in defeatured computer models with AMD

processors (includes display panel cable)

Sequential part number listing 35

Spare part number

451313-001 Switch cover for use in computer models with Intel processors or full-featured models with AMD processors

451341-001 TouchPad for use only in computer models with Intel processors

452053-001 DVD/CD-RW Combo Drive for use only in computer models with Intel processors (includes bezel and bracket)

452054-001 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive for use only in computer models with Intel

452055-001 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe for use only in computer models

452056-001 12-cell, 8.80-Ah battery for use only in computer models with Intel processors

452057-001 6-cell, 2.20-Ah battery for use only in computer models with Intel processors

Description

(includes power button board and cable, LED board, and LED board cable)

processors (includes bezel and bracket)

with Intel processors (includes bezel and bracket)

452058-001 80-GB, 5400-rpm hard drive for use only in computer models with Intel processors (includes hard drive

452059-001 120-GB, 5400-rpm hard drive for use only in computer models with Intel processors (includes hard drive bracket)

452060-001 160-GB, 5400-rpm hard drive for use only in computer models with Intel processors (includes hard drive bracket)

452061-001 512-MB memory module for use only in computer models with Intel processors (667-MHz, PC2-5300, 1-

452062-001 1024-MB memory module for use only in computer models with Intel processors (667-MHz, PC2-5300, 1-DIMM)

452063-001 802.11a/b/g WLAN module for use in Antigua and Barbuda, Argentina, Australia, the Bahamas, Barbados,

452063-002 802.11a/b/g WLAN module for use in Aruba, Austria, Azerbaijan, Bahrain, Belgium, Bermuda, Brazil,

452063-003 802.11a/b/g WLAN module for use in Ecuador, Haiti, Honduras, Pakistan, the People's Republic of China,

453411-001 System board for use only with full featured computer models with AMD processors

453412-001 System board for use only with defeatured computer models with AMD processors

453414-001 512-MB memory module for use in computer models with AMD processors (667-MHz, PC2-5300, 1-DIMM)

bracket)

DIMM)

Brunei, Canada, Chile, the Dominican Republic, Guam, Guatemala, Hong Kong, India, Indonesia, Malaysia, Mexico, New Zealand, Panama, Paraguay, Saudi Arabia, Taiwan, the United States, and Vietnam

Bulgaria, the Cayman Islands, Colombia, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, El Salvador, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Jordan, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, the United Kingdom, and Uzbekistan

Peru, Qatar, South Korea, Uruguay, and Venezuela

453415-001 1-GB memory module for use in computer models with AMD processors (667-MHz, PC2-5300, 1-DIMM)

453416-001 80-GB hard drive for use in computer models with AMD processors

453417-001 120-GB hard drive for use in computer models with AMD processors

453418-001 160-GB hard drive for use in computer models with AMD processors

453419-001 Hard drive hardware kit for use in computer models with AMD processors (contains screws, hard drive bracket,

and connector)

453949-001 250-GB, 5400-rpm hard drive (includes hard drive bracket)

455804-001 6-cell, 2.20-Ahr battery for use in computer models with AMD processors

455806-001 12-cell, 8.80-Ahr battery for use in computer models with AMD processors

36 Chapter 3 Illustrated parts catalog

Spare part number

455807-001 AMD Turion TL-60 processor (2.0-GHz, 1-MB L2 cache)

455808-001 AMD Turion TL-55 processor (1.86-GHz, 1-MB L2 cache)

455809-001 AMD Turion TL-62 processor (2.1-GHz, 1-MB L2 cache)

455810-001 14.1-inch, WXGA, BrightView display panel for use in computer models with AMD processors (includes display

455812-001 Display bracket

455818-001 Display enclosure for use in computer models with AMD processors

455820-001 Display bezel without microphone for use only in computer models with AMD processors

455821-001 Display inverter for use only in computer models with AMD processors (includes Mylar shield and bracket)

Description

panel cable)

455822-001 Display Hinge Kit for use in computer models with AMD processors (includes left and right display hinges and

455827-001 250-GB hard drive for use in computer models with AMD processors

455828-001 DVD/CD-RW Combo Drive for use in computer models with AMD processors (includes bezel and bracket)

455829-001 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive for use in computer models with AMD processors

455830-002 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe for use in computer models with

455850-001 Base enclosure for use only in computer models with AMD processors (includes infrared lens and wireless on/

455857-001 Top cover for use in full-featured computer models with AMD processors (includes TouchPad and cable)

455858-001 TouchPad for use only in computer models with AMD processors

455859-001 USB board for use only in computer models with AMD processors (includes USB board cable)

455867-001 Screw Kit for use in computer models with AMD processors

455868-001 Display Screw Kit for use only in computer models with AMD processors (includes screws and rubber screw

458654-001 Rubber display kit

458656-001 Display Cable Kit for use in computer models with AMD processors (includes microphones and cables)

display switch module)

(includes bezel and bracket)

AMD processors (includes bezel and bracket)

off switch)

covers)

458658-001 Antenna, microphone cable kit

458663-001 Bluetooth module cable for use only in computer models with AMD processors

459157-001 Audio board for use only in defeatured computer models with AMD processors (includes audio connectors,

infrared lens, and audio board cable)

Sequential part number listing 37

Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

Flat-bladed screwdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

●

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

38 Chapter 4 Removal and replacement procedures

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

Preliminary replacement requirements 39

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you area ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

40 Chapter 4 Removal and replacement procedures

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized

●

equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools

●

and equipment.

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

●

Styrofoam.

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these

●

items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

●

Preliminary replacement requirements 41

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps

●

with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can

●

be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

●

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

42 Chapter 4 Removal and replacement procedures

Unknown user password

If the computer you are servicing has an unknown user password, follow these steps to clear the password.

NOTE: These steps also clear CMOS.

Before disassembling the computer, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the RTC battery (see

Wait approximately 5 minutes.

Replace the RTC battery and reassemble the computer.

Connect AC power to the computer. Do not reinsert any batteries at this time.

Turn on the computer.

All passwords and all CMOS settings have been cleared.

Battery on page 46).

RTC battery on page 54).

Preliminary replacement requirements 43

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 86 screws, in 12 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.

Serial number

Report the computer serial number to HP when requesting information or ordering spare parts. The serial number is located on the bottom of the computer.

44 Chapter 4 Removal and replacement procedures

Computer feet

Description Spare part number

Rubber Feet Kit (includes base enclosure rubber feet and display bezel screw covers) 417096-001

The computer feet are adhesive-backed rubber pads. The feet attach to the base enclosure in the locations illustrated below.

Component replacement procedures 45

Battery

Description Spare part number

For use in computer models with Intel or AMD processors:

6-cell, 2.55-Ah Li-ion battery 441611-001

For use in computer models with Intel processors:

12-cell, 2.20-Ah Li-ion battery 452056-001

6-cell, 2.20-Ah Li-ion battery 452057-001

For use in computer models with AMD processors:

12-cell, 8.80-Ah 455806-001

6-cell, 2.20-Ah 455804-001

Before disassembling the computer, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery:

Turn the computer upside down on a flat surface.

2. Slide the battery release latch (1) to release the battery.

3. Pivot the battery (2) upward and remove it from the computer.

To insert the battery, insert the rear edge of the battery into the battery bay and pivot the front edge downward until the battery is seated. The battery release latch automatically locks the battery into place.

46 Chapter 4 Removal and replacement procedures

Hard drive

NOTE: All hard drive spare part kits include a hard drive bracket.

Description Spare part number

For use in computer models with Intel processors:

250-GB, 5400-rpm 453949-001

160-GB, 5400-rpm 452060-001

120-GB, 5400-rpm 452059-001

80-GB, 5400-rpm 452058-001

For use in computer models with AMD processors:

250-GB, 5400-rpm 455827-001

160-GB, 5400-rpm 453418-001

120-GB, 5400-rpm 453417-001

80-GB, 5400-rpm 453416-001

Hard drive hardware kit (contains screws, hard drive bracket, and connector; not illustrated) 453419-001

Before removing the hard drive, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 46).

Remove the hard drive:

Position the computer with the front toward you.

2. Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the hard drive cover to the

computer.

Component replacement procedures 47

3. Lift the left side of the hard drive cover (2), swing it to right, and remove the cover. The hard drive

cover is included in the Door/Cover Kit, spare part number 417074-001.

4. Remove the two black Phillips PM2.5×4.0 screws (1) that secure the hard drive to the computer.

5. Use the Mylar tab (2) to lift the hard drive (3) until it disconnects from the computer.

Remove the hard drive from the hard drive bay.

7. If it is necessary to replace the hard drive bracket, remove the four Phillips PM3.0×4.0 screws (1)

that secure the hard drive bracket to the hard drive.

48 Chapter 4 Removal and replacement procedures

8. Lift the bracket (2) straight up to remove it from the hard drive.

Reverse this procedure to reassemble and install the hard drive.

Component replacement procedures 49

WLAN module

Description Spare part number

802.11a/b/g/n WLAN modules:

For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay, the United States, Venezuela, and Vietnam

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South Korea 441086-003

For use in Japan 441086-291

802.11a/b/g WLAN modules:

For use in Antigua and Barbuda, Argentina, Australia, the Bahamas, Barbados, Brunei, Canada, Chile, the Dominican Republic, Guam, Guatemala, Hong Kong, India, Indonesia, Malaysia, Mexico, New Zealand, Panama, Paraguay, Saudi Arabia, Taiwan, the United States, and Vietnam

For use in Aruba, Austria, Azerbaijan, Bahrain, Belgium, Bermuda, Brazil, Bulgaria, the Cayman Islands, Colombia, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, El Salvador, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Jordan, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, the United Kingdom, and Uzbekistan

For use in Ecuador, Haiti, Honduras, Pakistan, the People's Republic of China, Peru, Qatar, South Korea, Uruguay, and Venezuela

441086-001

441086-002

452063-001

452063-002

452063-003

802.11b/g WLAN module for use in Thailand

Broadcom 4311AG 802.11a/b/g modules:

For use in the United States and Canada 441075-001

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab

409407-004

441075-002

50 Chapter 4 Removal and replacement procedures

Description Spare part number

Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

For use in Japan 441075-291

Broadcom 802.11b/g WLAN modules:

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States

For use in Japan 441090-291

441090-001

441090-002

802.11n WLAN modules:

For use in the United States and Canada 436255-001

For use in the Argentina, Australia, Belize, Bolivia, Brazil, Chile, Columbia, Costa Rica, Ecuador, El Salvador, Guatemala, Honduras, Hong Kong, Indonesia, Nicaragua, Paraguay, the People's Republic of China, Peru, South Korea, Taiwan, Thailand, Uruguay, Venezuela

For use in Japan 436256-291

436256-001

Before removing the WLAN module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the hard drive cover (see

Battery on page 46).

Hard drive on page 47).

Component replacement procedures 51

Remove the WLAN module:

Position the computer with the front toward you.

2. Loosen the Phillips PM2.0×5.0 captive screw (1) that secures the wireless module compartment cover

to the computer.

3. Lift the right edge of the wireless module compartment cover (2), swing it to the left, and remove the

cover. The wireless module compartment cover is included in the Door/Cover Kit, spare part number 417074-001.

4. Disconnect the two WLAN antenna cables (1) from the WLAN module.

NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The

white WLAN antenna cable is connected to the WLAN module “Aux” terminal.

NOTE: Computer models equipped with an 802.11a/b/g/n WLAN module will have an

additional wireless antenna cable (2), yellow in color.

5. Remove the two Phillips PM2.0×3.0 screws (3) that secure the WLAN module to the computer. (The

edge of the module opposite the slot rises away from the computer.)

52 Chapter 4 Removal and replacement procedures

6. Remove the WLAN module (4) by pulling it away from the slot at an angle.

NOTE: WLAN modules are designed with a notch (5) to prevent incorrect installation into the

WLAN module slot.

Reverse this procedure to install a WLAN module.

Component replacement procedures 53

RTC battery

NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all passwords

and CMOS settings to be cleared.

Description Spare part number

RTC battery (includes 2-sided tape) 417076-001

Before removing the RTC battery, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the hard drive cover (see

Battery on page 46).

Hard drive on page 47).

Remove the RTC battery:

1. Disconnect the RTC battery cable (1) from the system board.

2. Remove the RTC battery (2).

Reverse this procedure to install the RTC battery.

54 Chapter 4 Removal and replacement procedures

Memory module

Description Spare part number

For use in computer models with Intel processors:

1024-MB (667-MHz, PC2-5300, 1-DIMM) 452062-001

512-MB (667-MHz, PC2-5300, 1-DIMM) 452061-001

For use in computer models with AMD processors:

1024-MB (667-MHz, PC2-5300, 1-DIMM) 453415-001

512-MB (667-MHz, PC2-5300, 1-DIMM) 453414-001

Before removing the memory module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 46).

Remove the memory module:

Position the computer with the front toward you.

2. Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the memory module compartment

cover to the computer.

3. Lift the right side of the cover (2), swing it to the left, and remove the cover. The memory module

compartment cover is included in the Door/Cover Kit, spare part number 417074-001.

4. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.

(The edge of the module opposite the slot rises away from the computer.)

Component replacement procedures 55

5. Remove the module (2) by pulling it away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect installation into the

memory module slot.

Reverse this procedure to install a memory module.

56 Chapter 4 Removal and replacement procedures

Optical drive

NOTE: All optical drive spare part kits include an optical drive bezel.

Description Spare part number

For use in computer models with Intel processors:

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe 452055-001

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive 452054-001

DVD/CD-RW Combo Drive 452053-001

For use in computer models with AMD processors:

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe 455830-002

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive 455829-002

DVD/CD-RW Combo Drive 455828-002

Before removing the optical drive, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 46).

Remove the optical drive:

Position the computer with right side toward you.

2. Remove the Phillips PM2.5×9.0 screw (1) that secures the optical drive to the computer.

3. Insert a thin tool, such as a paper clip (2), into the release access. (The optical drive media tray is

partially ejected from the optical drive.)

Component replacement procedures 57

4. Use the media tray frame to remove the optical drive (3).

If it is necessary to replace the optical drive bracket, position the optical drive with the optical drive

bracket toward you.

6. Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical

drive.

7. Remove the optical drive bracket (2).

Reverse the above procedure to reassemble and install the optical drive.

58 Chapter 4 Removal and replacement procedures

Keyboard

For use in: Spare part number For use in: Spare part number

Belgium 448615-021 Portugal 448615-131

Brazil 448615-201 Russia 448615-251

Canadian French 448615-121 Saudi Arabia 448615-171

Denmark, Finland, Norway, and Sweden

France 448615-051 Spain 448615-071

Germany 448615-041 Switzerland 448615-111

Greece 448615-DJ1 Taiwan 448615-AB1

Israel 448615-BB1 Thailand 448615-281

Italy 448615-061 Turkey 448615-141

Latin America 448615-161 The United Kingdom 448615-031

The Netherlands and Europe 448615-B31 The United States 448615-001

448615-DH1 South Korea 448615-AD1

Before removing the keyboard, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 46).

Remove the keyboard:

Turn the computer upside down, with the front toward you.

Component replacement procedures 59

Remove the three Phillips PM2.5×7.0 screws that secure the keyboard to the computer.

Turn the computer display-side up, with the front toward you.

Open the computer as far as possible.

5. Lift the rear edge of the keyboard (1) until it rests at an angle.

6. Release the keyboard (2) by sliding it back to disengage the tabs on the front edge of the keyboard

from the top cover.

7. Swing the rear edge of the keyboard (3) up and forward until it rests on the palm rest.

60 Chapter 4 Removal and replacement procedures

8. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached and

disconnect the keyboard cable (2) from the system board.

Remove the keyboard.

Reverse this procedure to install the keyboard.

Component replacement procedures 61

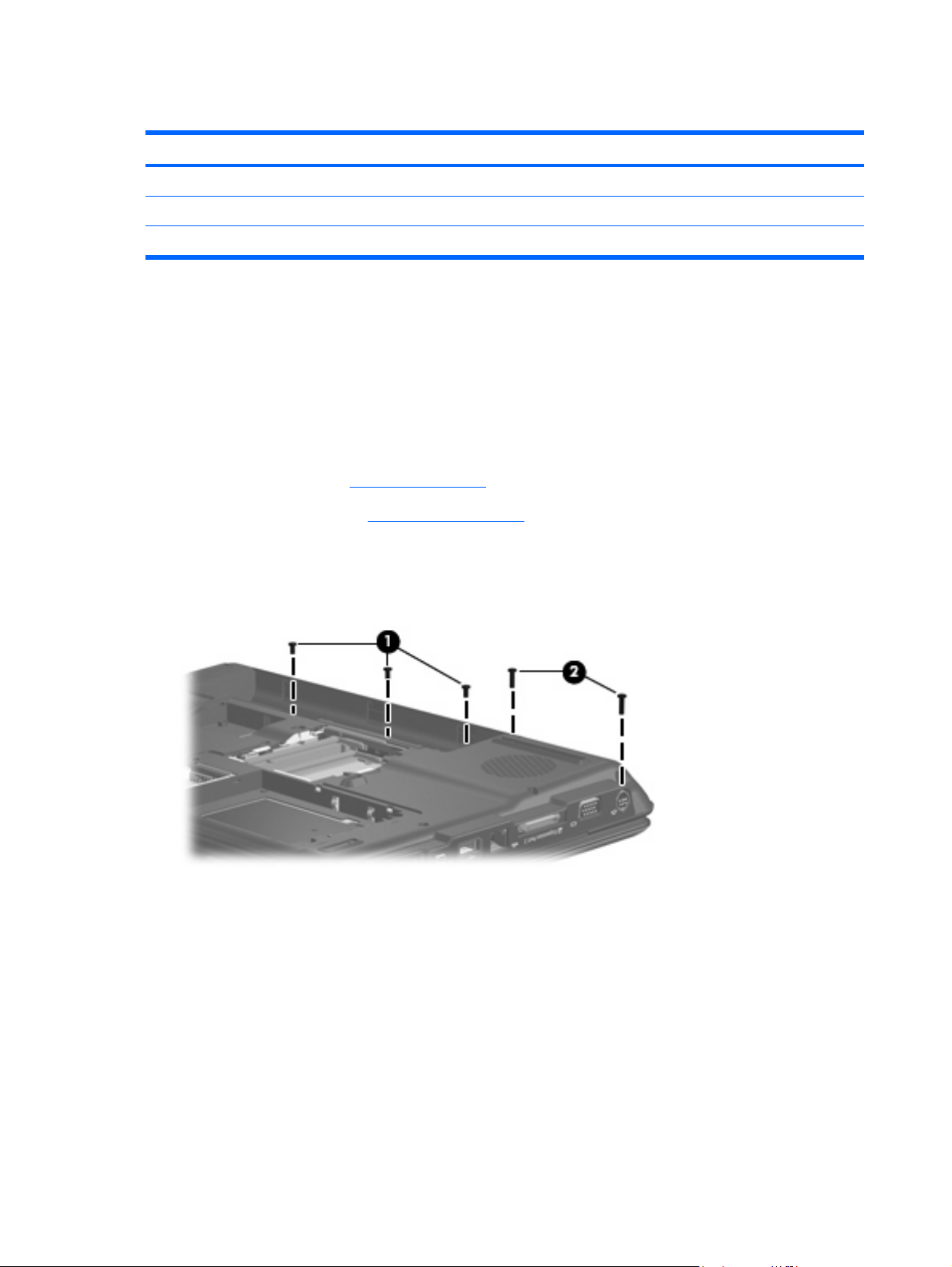

Switch cover

Description Spare part number

Switch cover (includes power button board and cable, LED board, and LED board cable

For use in computer models with Intel processors or full-featured models with AMD processors 451313-001

For use in defeatured computer models with AMD processors 417078-001

Before removing the switch cover, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the keyboard (see

Battery on page 46).

Keyboard on page 59).

Remove the switch cover:

1. Remove the two Phillips PM2.5×9.0 screws (1) and the three black Phillips PM2.0×5.0 screws (2)

that secure the switch cover to the computer.

Turn the computer display-side up, with the front toward you.

Open the computer as far as possible.

4. Disconnect the power button board cable (1) from the system board.

62 Chapter 4 Removal and replacement procedures

5. Release the ZIF connector to which the LED board cable (2) is connected and disconnect the cable

from the system board.

6. Lift the front edge of the switch cover (1) to disengage it from the computer.

7. Remove the switch cover (2).

Reverse this procedure to install the switch cover.

Component replacement procedures 63

Display assembly

Description Spare part number

14.1-inch, WXGA, BrightView display assembly for use in computer models with Intel or AMD processors (includes microphones)

14.1-inch, WXGA, BrightView display assembly for use only in defeatured computer models with AMD processors

448611-001

451163-001

Before removing the display assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Disconnect the wireless antenna cables from the WLAN module (see

Remove the following components:

Keyboard (see

Switch cover (see

Battery on page 46).

WLAN module on page 50).

Keyboard on page 59)

Switch cover on page 62)

Remove the display assembly:

Close the computer and turn it upside down, with the front toward you.

Remove the Phillips PM2.5×9.0 screw that secures the display assembly to the computer.

Turn the computer display-side up, with the front toward you.

Open the display as far as possible.

64 Chapter 4 Removal and replacement procedures

Disconnect the following cables:

(1) Display panel cable

(2) Display switch module cable

(3) Microphone cable

6. Remove the wireless antenna cables (4) from the hole in the system board and the routing

channels (5) built into the top cover.

CAUTION: Support the display assembly when removing the following screws. Failure to support

the display assembly can result in damage to the display assembly and other computer components.

7. Remove the five black Phillips PM2.5×7.0 screws (1) that secure the display assembly to the

computer.

8. Remove the display assembly (2).

Component replacement procedures 65

If it is necessary to replace any of the display assembly internal components, remove the following

screw covers and screws. The display rubber screw covers are included in the Rubber Feet Kit, spare part number 417096-001.

(1) Six rubber screw covers on the display bezel top edge and bottom edge corners

(2) Two rubber screw covers on the display bezel bottom edge

(3) Eight Phillips PM2.5×7.0 screws

NOTE: There are two different sizes of display bezel rubber screw covers. The thicker covers (2)

must be installed in the bottom center screw holes.

10. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display

bezel until the bezel disengages from the display enclosure.

11. Remove the display bezel (3). The display bezel is available using spare part number 448613-001

including microphone for computers with Intel or AMD processors, or 455820-001 not including microphone for computers with AMD processors.

If it is necessary to replace the display inverter, remove the two black Phillips PM2.5×5.0 screws

12.

(1) that secure the inverter to the display enclosure.

66 Chapter 4 Removal and replacement procedures

13. Release the inverter (2) as far as the display panel cable and the backlight cable will allow.

14. Disconnect the display panel cable (3) and the backlight cable (4) from the display inverter. The

display inverter is available using spare part number 417097-001 for computers with Intel processors, 455821-001 for computers with AMD processors.

Remove the inverter and inverter bracket.

15.

16. Remove the black Phillips PM2.5×5.0 screw (1) that secures the inverter to the inverter bracket.

17. Remove the inverter (2) from the bracket.

If it is necessary to replace the display hinges, remove the two black Phillips PM2.5×5.0 screws

18.

(1) that secure each hinge to the display enclosure.

Component replacement procedures 67

19. Remove the display hinges (2) from the display enclosure. The display hinges are available using

spare part number 417103-001 for computers with Intel processors, 455822-001 for computers with AMD processors.

If it is necessary to replace the display switch module, remove the black Phillips PM2.5×5.0

20.

screw (1) that secures the display switch module to the display enclosure.

21. Remove the display switch module (2). The display switch module is included in the Display Hinge

Kit, spare part number 417103-001 for computers with Intel processors, 455822-001 for computers with AMD processors.

68 Chapter 4 Removal and replacement procedures

If it is necessary to replace the display panel, remove the display panel from the display enclosure.

22.

The display panel is available using the spare part number 448602-001 for computers with Intel processors, 455810-001 for computers with AMD processors.

If it is necessary to replace the wireless antenna transceivers and cables, remove the Phillips

23.

PM2.5×4.0 screw (1) that secures each transceiver to the display enclosure.

24. Remove the wireless antenna cables from the clips (2) built into the display enclosure.

25. Detach the wireless antenna transceivers (3) from the display enclosure.

26. Remove the wireless antenna transceivers and cables (4) from the display enclosure. The wireless

antenna transceivers and cables are included in the Wireless Antenna Kit, spare part number 417107-001.

27. If it is necessary to replace the microphone receivers and cables, release the retention tabs (1) built

into the display enclosure that secure the microphone cables to the display enclosure.

28. Remove the microphone receivers (2) from the clips in the display enclosure.

Component replacement procedures 69

29. Remove the microphone cables (3) from the display enclosure. The microphone receivers and cables

Reverse this procedure to reassemble and install the display assembly.

Top cover

are included in the Display Cable Kit, spare part number 448614-001 for computers with Intel processors, 458656-001 for computers with AMD processors.

Description Spare part number

Top cover (includes TouchPad and cable)

For use in computer models with Intel processors 448620-001

For use in full-featured computer models with AMD processors 455857-001

For use in defeatured computer models with AMD processors 417091-001

Before removing the top cover, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

WLAN cover (see

Battery on page 46).

Hard drive on page 47)

WLAN module on page 50)

Optical drive (see

Keyboard (see

Optical drive on page 57)

Keyboard on page 59)

70 Chapter 4 Removal and replacement procedures

Switch cover (see

Switch cover on page 62)

Display assembly (see

Display assembly on page 64)

Remove the top cover:

Turn the computer upside down, with the front toward you.

Remove the seven Phillips PM2.5×9.0 screws that secure the top cover to the computer.

3. Remove the two Phillips PM2.0×3.0 screws (1) and the three Phillips PM2.0×5.0 screws (2) that

secure the top cover to the computer.

Turn the computer right-side up, with the front toward you.

Component replacement procedures 71

5. Release the ZIF connector (1) to which the TouchPad cable is connected and disconnect the cable

(2) from on the system board.

Remove the Phillips PM2.5×9.0 screw that secures the top cover to the computer.

Lift the front edge of the top cover and remove it.

Reverse this procedure to install the top cover.

72 Chapter 4 Removal and replacement procedures

TouchPad

Description Spare part number

TouchPad for use only in computer models with Intel processors (includes TouchPad bracket and TouchPad cable)

TouchPad for use only in computer models with AMD processors (includes TouchPad bracket and TouchPad cable)

451341-001

455858-001

Before removing the TouchPad, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

WLAN cover (see

Optical drive (see

Battery on page 46).

Hard drive on page 47)

WLAN module on page 50)

Optical drive on page 57)

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Keyboard on page 59)

Switch cover on page 62)

Display assembly on page 64)

Top cover on page 70)

Remove the TouchPad:

Turn the top cover upside down, with the front toward you.

2. Remove the five Phillips PM2.0×3.0 screws (1) that secure the TouchPad assembly to the top cover.

Component replacement procedures 73

3. Remove the TouchPad bracket (2) and TouchPad board (3) from the top cover.

4. Remove the two Phillips PM2.0×2.0 screws (1) that secure the TouchPad board to the TouchPad

bracket.

5. Remove the TouchPad board (2) from the TouchPad bracket.

Reverse the above procedure to reassemble and install the TouchPad.

74 Chapter 4 Removal and replacement procedures

Wireless switch board

Description Spare part number

Wireless switch board (includes wireless switch board cable) 417092-001

Before removing the wireless switch board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

WLAN cover (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Battery on page 46).

Hard drive on page 47)

WLAN module on page 50)

Optical drive on page 57)

Keyboard on page 59)

Switch cover on page 62)

Display assembly on page 64)

Top cover on page 70)

Remove the wireless switch board:

1. Disconnect the wireless switch board cable (1) from the system board.

2. Remove the two Phillips PM2.0×3.0 screws (2) t hat secur e the wireless switch board to the computer.

Component replacement procedures 75

3. Remove the wireless switch board (3).

Reverse the above procedure to install the wireless switch board.

76 Chapter 4 Removal and replacement procedures

Modem module

Description Spare part number

Modem module (includes modem module cable) 431852-001

Before removing the modem module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

WLAN cover (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Battery on page 46).

Hard drive on page 47)

WLAN module on page 50)

Optical drive on page 57)

Keyboard on page 59)

Switch cover on page 62)

Display assembly on page 64)

Top cover on page 70)

Remove the modem module:

1. Disconnect the modem module cable (1) from the modem module.

2. Remove the Phillips PM2.0×5.0 screw (2) that secures the modem module to the system board.

Component replacement procedures 77

3. Lift up on the front of the modem module (3) to disconnect it from the system board.

Remove the modem module.

Reverse the above procedure to install the modem module.

Audio board

Description Spare part number

Audio board for use only in full-featured computer models (includes audio connectors, infrared lens, and audio board cable)

Audio board for use only in defeatured computer models with AMD processors (includes audio connectors, infrared lens, and audio board cable)

448627-001

459157-001

Before removing the audio board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

WLAN cover (see

Battery on page 46).

Hard drive on page 47)

WLAN module on page 50)

Optical drive (see

Keyboard (see

Switch cover (see

Optical drive on page 57)

Keyboard on page 59)

Switch cover on page 62)

78 Chapter 4 Removal and replacement procedures

Display assembly (see

Display assembly on page 64)

Top cover (see

Top cover on page 70)

Remove the audio board:

Release the ZIF connector to which the audio board cable is connected and disconnect the cable

(1) from the system board.

2. Remove the Phillips PM2.5×5.0 screw (2) that secures the audio board to the computer.

3. Lift the rear edge of the audio board (3) and swing it forward until the audio connectors disengage

from the base enclosure.

4. Remove the audio board (4).

Reverse the above procedure to install the audio board.

Bluetooth module

Description Spare part number

Bluetooth module (includes Bluetooth module cable) 397923-002

Before removing the Bluetooth module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Component replacement procedures 79

Remove the battery (see

Remove the following components:

Battery on page 46).

Hard drive (see

WLAN cover (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Audio board (see

Hard drive on page 47)

WLAN module on page 50)

Optical drive on page 57)

Keyboard on page 59)

Switch cover on page 62)

Display assembly on page 64)

Top cover on page 70)

Audio board on page 78)

Remove the Bluetooth module:

1. Disconnect the Bluetooth module cable (1) from the system board.

2. Remove the Bluetooth module (2) from the slot built into the base enclosure.

Reverse the above procedure to install the Bluetooth module.

USB board

Description Spare part number

USB board for use only in computer models with Intel processors (includes USB board cable) 417085-001

USB board for use only in computer models with AMD processors (includes USB board cable) 455859-001

80 Chapter 4 Removal and replacement procedures

Before removing the USB board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Wireless module compartment cover (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Remove the USB board:

1. Disconnect the USB board cable (1) from the system board. The USB board cable is included in the

Cable Kit, spare part number 430474-001.

2. Remove the Phillips PM2.5×4.0 screw (2) that secures the USB board to the computer.

3. Lift the USB board (3) straight up to remove it from the computer.

Battery on page 46).

Hard drive on page 47)

WLAN module on page 50)

Optical drive on page 57)

Keyboard on page 59)

Switch cover on page 62)

Display assembly on page 64)

Top cover on page 70)

4. Remove the num lock light (4) from the clip built into the base enclosure.

Reverse this procedure to install the USB board.

Component replacement procedures 81

Speaker assembly

Description Spare part number

Speaker assembly 417089-001

Before removing the speaker assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Wireless module compartment cover (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Battery on page 46).

Hard drive on page 47)

WLAN module on page 50)

Optical drive on page 57)

Keyboard on page 59)

Switch cover on page 62)

Display assembly on page 64)

Top cover on page 70)

Remove the speaker assembly:

1. Disconnect the speaker cable (1) from the system board.

2. Remove the two Phillips PM2.5×4.0 screws (2) that secure the speaker assembly to the computer.

82 Chapter 4 Removal and replacement procedures

3. Lift the speaker assembly (3) straight up to remove it from the computer.

Reverse this procedure to install the speaker assembly.

Component replacement procedures 83

Power connector cable

Description Spare part number

Power connector cable for use in computer models with Intel processors 448629-001

Power connector cable for use in computer models with AMD processors 430462-001

Before removing the power connector cable, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Wireless module compartment cover (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Speaker assembly (see

Battery on page 46).

Hard drive on page 47)

WLAN module on page 50)

Optical drive on page 57)

Keyboard on page 59)

Switch cover on page 62)

Display assembly on page 64)

Top cover on page 70)

Speaker assembly on page 82)

Remove the power connector cable:

1. Disconnect the power connector cable (1) from the system board.

2. Remove the power connector (2) from the clip built into the base enclosure.

Reverse this procedure to install the power connector cable.

84 Chapter 4 Removal and replacement procedures

System board

Description Spare part number

For use only in computer models with Intel processors:

Equipped with microphones 448596-001

Not equipped with microphones 448598-001

For use only in computer models with AMD processors:

Full featured models 453411-001

Defeatured models 453412-001

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

RTC battery (see

●

Memory modules (see

●

WLAN module (see

●

Modem module (see

●

RTC battery on page 54)

Memory module on page 55)

WLAN module on page 50)

Modem module on page 77)

Before removing the system board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Wireless switch board (see

Audio board (see

Bluetooth module (see

Battery on page 46).

Hard drive on page 47)

Optical drive on page 57)

Keyboard on page 59)

Switch cover on page 62)

Display assembly on page 64)

Top cover on page 70)

Wireless switch board on page 75)

Audio board on page 78)

Bluetooth module on page 79)

USB board (see

USB board on page 80)

Component replacement procedures 85

Remove the system board:

1. Disconnect the power connector cable (1) from the system board.

2. Remove the two black Phillips PM2.5×4.0 screws (2) that secure the system board to the computer.

3. Use the optical drive connector (1) to lift the right side of the system board until it rests at an angle.

4. Release the system board (2) by sliding it to the right at an angle until the connectors on the left side

of the system board disengage from the base enclosure.

5. Remove the system board (3).

6. If it is necessary to replace the modem module cable, remove the RJ-11 connector (1) from the clip

built into the base enclosure.

86 Chapter 4 Removal and replacement procedures

7. Remove the modem module cable (2) from the routing channel built into the base enclosure. The

modem module cable is included in the Cable Kit, spare part number 430474-001.

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

ExpressCard assembly (see

●

Fan/heat sink assembly (see

●

Processor (see

●

Processor on page 93)

Reverse the preceding procedure to install the system board.

ExpressCard assembly

Description Spare part number

ExpressCard assembly 417112-001

Before removing the ExpressCard assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

ExpressCard assembly on page 87)

Fan/heat sink assembly on page 90)

Battery on page 46).

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Hard drive on page 47)

Keyboard on page 59)

Optical drive on page 57)

Switch cover on page 62)

Display assembly on page 64)

Component replacement procedures 87

Top cover (see

Top cover on page 70)

Wireless switch board (see

Audio board (see

Bluetooth module (see

USB board (see

System board (see

Audio board on page 78)

USB board on page 80)

System board on page 85)

Wireless switch board on page 75)

Bluetooth module on page 79)

Remove the ExpressCard assembly:

Turn the system board upside down, with the RJ-45 connector toward you.

2. Lift the insulation material (1) from the system board to expose the ExpressCard assembly rear

screws.

3. Remove the four Phillips PM2.0×4.0 screws (2) that secure the ExpressCard assembly to the system

board.

Turn the system board right-side up, with the RJ-45 connector toward you.

88 Chapter 4 Removal and replacement procedures

Remove the ExpressCard assembly from the system board.

Reverse this procedure to install the ExpressCard assembly.

Component replacement procedures 89

Fan/heat sink assembly

Description Spare part number

Fan/heat sink assembly(includes thermal material) 448625-001

NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the right side

and rear panel of the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the computer.

Before removing the fan/heat sink assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Wireless switch board (see

Audio board (see

Bluetooth module (see

USB board (see

System board (see

Hard drive on page 47)

Keyboard on page 59)

Top cover on page 70)

USB board on page 80)

Battery on page 46).

Optical drive on page 57)

Switch cover on page 62)

Display assembly on page 64)

Wireless switch board on page 75)

Audio board on page 78)

Bluetooth module on page 79)

System board on page 85)

90 Chapter 4 Removal and replacement procedures

Remove the fan/heat assembly:

Disconnect the fan cable from the system board.

Turn the system board upside down, with the external monitor port toward you.

3. Loosen the four Phillips PM2.0×13.0 captive screws (1) that secure the fan/heat sink assembly to

the system board.

NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink

assembly and system board components, it may be necessary to move the fan/heat sink assembly from side to side to detach the assembly.

4. Remove the fan/heat sink assembly (2).

NOTE: The thermal material must be thoroughly cleaned from the surface of the fan/heat sink

assembly (1) and the processor (2) each time the fan/heat sink assembly is removed. Thermal pads and thermal paste must be installed on all surfaces before the fan/heat sink assembly is reinstalled. Thermal pads and thermal paste are included with all fan/heat sink assembly, system board, and processor spare part kits.

Component replacement procedures 91

NOTE: The fan/heat sink assembly mounting bracket must be replaced as shown in the following

illustration when installing the fan/heat sink assembly.

The fan/heat sink assembly mounting bracket is available using spare part number 417114-001.

Reverse this procedure to install the fan/heat sink assembly.

92 Chapter 4 Removal and replacement procedures

Compaq V3500 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Product description

External component identification

Top components

Display components

Button and speakers

Keys

Lights

TouchPad

Front components

Left-side components

Rear component

Right-side components

Bottom components

Illustrated parts catalog

Serial number location

Computer major components

Display assembly components

Door/Cover Kit

Cable Kit

Mass storage devices

Miscellaneous parts

Sequential part number listing

Removal and replacement procedures

Preliminary replacement requirements

Tools required

Service considerations

Plastic parts

Cables and connectors

Drive handling

Grounding guidelines

Electrostatic discharge damage

Packaging and transporting guidelines

Workstation guidelines

Equipment guidelines

Unknown user password

Component replacement procedures

Serial number

Computer feet

Battery

Hard drive

WLAN module

RTC battery

Memory module

Optical drive

Keyboard

Switch cover

Display assembly

Top cover

TouchPad

Wireless switch board

Modem module

Audio board

Bluetooth module

USB board

Speaker assembly

Power connector cable

System board

ExpressCard assembly

Fan/heat sink assembly
