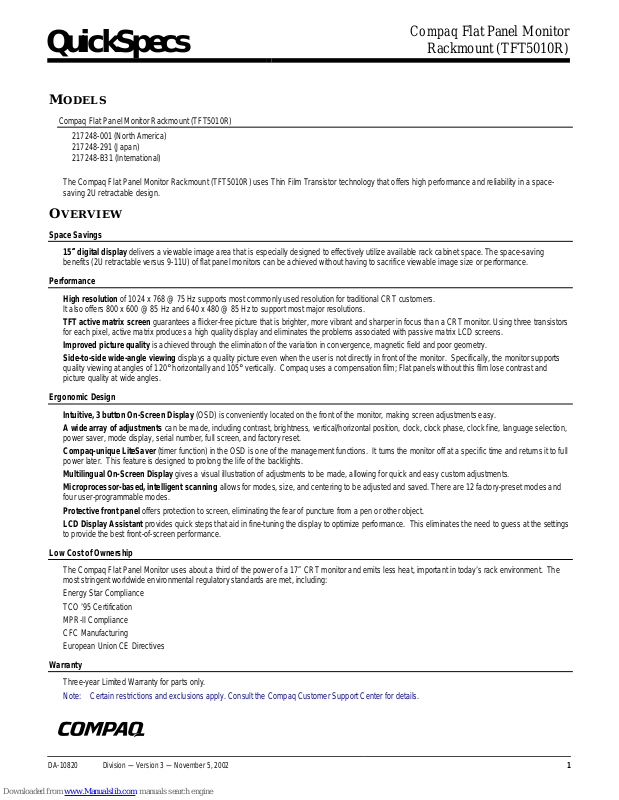

Compaq TFT5010R Quickspecs

Compaq Flat Panel Monitor

QuickSpecs

MODELS

Compaq Flat Panel Monitor Rackmount (TFT5010R)

217248-001 (North America)
217248-291 (Japan)
217248-B31 (International)

The Compaq Flat Panel Monitor Rackmount (TFT5010R) uses Thin Film Transistor technology that offers high performance and reliability in a space­saving 2U retractable design.

OVERVIEW

Space Savings

15″″″″ digital display deliver s a viewable image area that is especially designed to effectively utilize available rack cabinet space. The space-saving

benefits (2U retractable versus 9-11U) of flat panel monitors can be achieved without having to sacrifice viewable image size or performance.

Performance

High resolution of 1024 x 768 @ 75 Hz supports most commonly used resolution for traditional CRT customers.

It also offers 800 x 600 @ 85 Hz and 640 x 480 @ 85 Hz to support most major resolutions.
TFT active matrix screen guarantees a flicker-free picture that is brighter, more vibrant and sharper in focus than a CRT monitor. Using three transistors

for each pixel, active matrix produces a high quality display and eliminates the problems associated with passive matrix LCD screens.

Improved picture quality is achieved through the elimination of the variation in convergence, magnetic field and poor geometry.
Side-to-side wide-angle viewing displays a quality picture even when the user is not directly in front of the monitor. Specifically, the monitor supports

quality viewing at angles of 120° horizontally and 105° vertically. Compaq uses a compensation film; Flat panels without this film lose contrast and
picture quality at wide angles.

Rackmount (TFT5010R)

Ergonomic Desi gn

Intuitive, 3 button On-Screen Display (OSD) is conveniently located on the front of the monitor, making screen adjustments easy.
A wide array of adjustments can be made, including contrast, brightness, vertical/horizontal position, clock, clock phase, clock fine, language selection,

power saver, mode display, serial number, full screen, and factory reset.
Compaq-unique LiteSaver (timer function) in the OSD is one of the management functions. It turns the monitor off at a specific time and returns it to full

power later. This feature is designed to prolong the life of the backlights.

Multilingual On-Screen Display gives a visual illustration of adjustments to be made, allowing for quick and easy custom adjustments.
Microprocessor-based, intelligent scanning allows for modes, size, and centering to be adjusted and saved. There are 12 factory-preset modes and

four user-programmable modes.

Protective front panel offers protection to screen, eliminating the fear of puncture from a pen or other object.
LCD Display Assistant provides quick steps that aid in fine-tuning the display to optimize performance. This eliminates the need to guess at the settings

to provide the best front-of-screen performance.

Low Cost of Ownership

The Compaq Flat Panel Monitor uses about a third of the power of a 17″ CRT monitor and emits less heat, important in today’s rack environment. The
most stringent worldwide environmental regulatory standards are met, including:

Energy Star Compliance
TCO ’95 Certification
MPR-II Compliance
CFC Manufacturing
European Union CE Directives

Warranty

Three-year Limited Warranty for parts only.

Note: Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.

DA-10820 Division — Version 3 — November 5, 2002 1

QuickSpecs

SP ECIFICATIONS

Overall

Graphic Preset Modes

Language Selection
Physical Dimensions

Shipping Dimensions

Picture Tube (diagonal) 15 in Flat Panel
Viewable (diagonal) 15 in digital display
Horizontal Dot Pitch 0.28 mm
Pixel Clock Speed 80 MHz
Input Impedance 75 ohms ± 10%
Horizontal Frequency 31.47 to 60 KHz
Maximum Power Rating 45W
Power Supply ALS Universal/Auto-Sensing

BTU 153.7
1024 x 768 60, 70 and 75 Hz
832 x 764 75 Hz
800 x 600 60, 75 and 85 Hz
720 x 400 70 Hz
640 x 480 60, 75 and 80 Hz
640 x 350 70 Hz
English, Spanish, French, German, Italian and Dutch
Panel, Tray drawer, and Slide Bracket 30.28 x 19.09 x 3.41 in/769.11 x 484.89 x 86.61 mm
Weight 29 lbs/13.15 kg
Package 32.5 x 10.5 x 29.25 in/825.5 x 266.7 x 742.95 mm
Weight 38 lbs./17.24 kg

Compaq Flat Panel Monitor

Rackmount (TFT5010R)

90 to 132/195 to 265 VAC

47.5 to 63 Hz

DA-10820 Division — Version 3 — November 5, 2002 2
