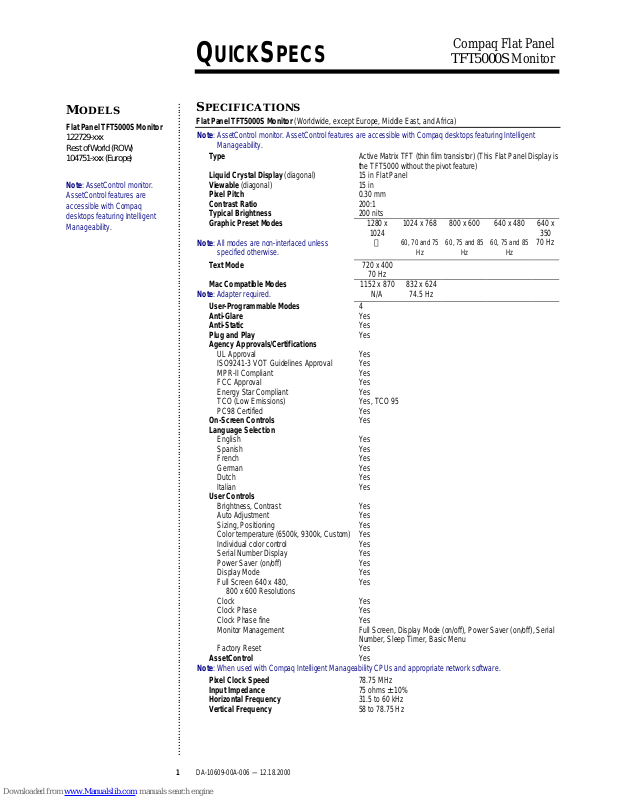

Q
UICKSPECS
1 DA-10609-00A-006 — 12.18.2000
Compaq Flat Panel
TFT5000S Monitor
S
PECIFICATIONS
Flat Panel TFT5000S Monitor (Worldwide, except Europe, Middle East, and Africa)
Note: AssetControl monitor. AssetControl features are accessible with Compaq desktops featuring Intelligent
Manageability.
Type
A
ctive Matrix TFT (thin film transistor) (This Flat Panel Display is
the TFT5000 without the pivot feature)
Liquid Crystal Display (diagonal) 15 in Flat Panel
Viewable (diagonal) 15 in
Pixel Pitch 0.30 mm
Contrast Ratio 200:1
Typical Brightness 200 nits
Graphic Preset Modes 1280 x
1024
1024 x 768 800 x 600 640 x 480 640 x
350
Note: All modes are non-interlaced unless
specified otherwise.
60, 70 and 75Hz60, 75 and 85Hz60, 75 and 85
Hz
70 Hz
Text Mode 720 x 400
70 Hz
Mac Compatible Modes 1152 x 870 832 x 624
Note: Adapter required.
N/A 74.5 Hz
User-Programmable M odes 4
Anti-Glare Yes
Anti-Static Yes
Plug and Play Yes
Agency Approvals/Certifications
UL Approval Yes
ISO9241-3 VOT Guidelines Approval Yes
MPR-II Compliant Yes
FCC Approval Yes
Energy Star Compliant Yes
TCO (Low Emissions) Yes, TCO 95
PC98 Certified Yes
On-Screen Controls Yes
Language Selection
English Yes
Spanish Yes
French Yes
German Yes
Dutch Yes
Italian Yes
User Controls
Brightness, Contrast Yes
Auto Adjustment Yes
Sizing, Positioning Yes
Color temperature (6500k, 9300k, Custom) Yes
Individual color control Yes
Serial Number Display Yes
Power Saver (on/off) Yes
Display Mode Yes
Full Screen 640 x 480,
800 x 600 Resolutions
Yes
Clock Yes
Clock Phase Yes
Clock Phase fine Yes
Monitor Management Full Screen, Display Mode (on/off), Power Saver (on/off), Serial
Number, Sleep Timer, Basic Menu
Factory Reset Yes
AssetControl Yes
Note: When used with Compaq Intelligent Manageability CPUs and appropriate network software.
Pixel Clock Speed 78.75 MHz
Input Impedance 75 ohms ± 10%
Horizontal Frequency 31.5 to 60 kHz
Vertical Frequency 58 to 78.75 Hz
M
ODELS
Flat Panel TFT5000S Monitor
122729-xxx
Rest of World (ROW)
104751-xxx (Europe)
Note: AssetControl monitor.
AssetControl features are
accessible with Compaq
desktops featuring Intelligent
Manageability.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Q
UICKSPECS
2 DA-10609-00A-006 — 12.18.2000
Compaq Flat Panel
TFT5000S Monitor
S
PECIFICATIONS
(continued)
Flat Panel TFT5000S Monitor (Worldwide, except Europe, Middle East, and Africa) (continued)
Note: AssetControl monitor. AssetControl features are accessible with Compaq desktops featuring Intelligent
Manageability.
Power Supply ALS Universal/Auto-Sensing, 90 to 132/195 to 265 VAC, 47 to 63 Hz
Maximum Power Rating > 45W
USB Capabilities No
Synchronized Input TTL separate synchronized
Signal Cable 15-pin miniature D-sub
Protective Panel Optional
Detachable Base Yes
Dimensions ( HxWxD) With base: 15.8 x 8.6 x 15.4 in/ 40.1 x 21.8 x 39.1 cm
Without base: 12.5 x 3.1 x 15.4 in/31.8 x 7.9 x 39.1 cm
Weight With base: 17.6 lbs/7.9 kg
Without base: 12.0 lbs/5.4 kg
Temperature
Operating 41° to 95°F/5° to 35°C
Non-operating –4° to 140°F/–20° to 60°C
Humidity
Operating 20% to 80%
Non-operating 5% to 95%
Warranty Three-year parts, including backlight; first year, on-site labor
Note: Certain restrictions apply. Consult the Compaq Customer Service Support Center for details.
Flat Panel TFT5000S Monitor (Europe, Middle East, Africa model)
Note: AssetControl monitor. AssetControl features are accessible with Compaq desktops featuring Intelligent
Manageability.
Type Active Matrix TFT (thin film transistor) (This Flat Panel Display is
similar to the TFT5000. It does have a pivot feature and similar
but not exact specifications)
Liquid Crystal Display (diagonal) 15 in Flat Panel
Viewable (diagonal) 15 in
Pixel Pitch 0.30 mm
Contrast Ratio 200:1
Typical Brightness 200 nits
Graphic Preset Modes 1280 x 1024 1024 x 768 800 x 600 640 x 480 640 x
350
Note: All modes are non-interlaced unless
specified otherwise.
60, 66 and 70Hz56, 60, 72 and
75 Hz
60, 66, 72 and
75 Hz
70 Hz
Text Mode 720 x 400
70 Hz
Mac Compatible Modes 1152 x 870 832 x 624
Note: Adapter required.
N/A N/A
User-Programmable M odes N/A
Anti-Glare Yes
Anti-Static Yes
Plug and Play Yes
Agency Approvals/Certifications
UL Approval Yes
ISO9241-3 VOT Guidelines Approval Yes
MPR-II Compliant Yes
FCC Approval Yes
Energy Star Compliant Yes
TCO (Low Emissions) Yes, TCO 95
PC98 Certified Yes
Language Selection
English Yes
Spanish Yes
French Yes
German Yes
Dutch Yes
Italian Yes
On-Screen Controls Yes
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Q
UICKSPECS
3 DA-10609-00A-006 — 12.18.2000
Compaq Flat Panel
TFT5000S Monitor
S
PECIFICATIONS
(continued)
Flat Panel TFT5000S Monitor (Europe, Middle East, Africa model) (continued)
Note: AssetControl monitor. AssetControl features are accessible with Compaq desktops featuring Intelligent
Manageability.
User Controls
Brightness, Contrast Yes
Auto Adjustment Yes
Sizing, Positioning Yes
Color temperature (6500k, 9300k, Custom) Yes
Individual color control No
Serial Number Display No
Power Saver (on/off) Yes
Display Mode No
Full Screen 640 x 480,
800 x 600 Resolutions
Yes
Clock Yes
Clock Phase Yes
Clock Phase fine No
Monitor Management Full Screen, Display Mode (on/off), Power Saver (on/off), Serial
Number, Sleep Timer, Basic Menu
Factory Reset Yes
AssetControl Yes
Note: When used with Compaq Intelligent Manageability CPUs and appropriate network software.
Pixel Clock Speed 75 MHz
Input Impedance 75 ohms ± 2%
Horizontal Frequency 31.5 to 60 kHz
Vertical Frequency 58 to 85 Hz
Power Supply ALS Universal/Auto-Sensing, 100 to 200VAC, 47.5 to 63 Hz
Maximum Power Rating > 40W
USB Capabilities No
Synchronized Input TTL separate synchronized
Signal Cable 15-pin miniature D-sub
Protective Panel No
Detachable Base No
Dimensions ( HxWxD) With base: 40.2 x 18 x 39.9 cm
Without base: 38.5 x 7.4 x 39.9 cm
Weight With base 13.2 lbs/5.99 kg
Without base: 12.5 lbs/5.69 kg
Temperature
Operating 49° to 108°F/10° to 35°C
Non-operating –4° to 140°F/–20° to 60°C
Humidity
Operating 20% to 80%
Non-operating 5% to 95%
Warranty Three-year parts, including backlight; first year, on-site labor
Note: Certain restrictions apply. Consult the Compaq Customer Service Support Center for details.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Q
UICKSPECS
4 DA-10609-00A-006 — 12.18.2000
Compaq Flat Panel
TFT5000S Monitor
C
OMPATIBILITY
Portables
Compaq Armada 7800
Compaq Armada 7400
Compaq Armada 6500
Compaq Armada 3500
Compaq Armada 1750
Compaq Armada 1700
Compaq Armada 1500c
Desktops
Compaq Deskpro EN Series Desktop
Compaq Deskpro EN Series Minitower
Compaq Deskpro EN Series Small Form Factor
Compaq Deskpro EP Series
Workstations
Compaq Professional Workstation XP1000
Compaq Professional Workstation AP500
Servers
Compaq ProLiant 7000 Xeon™
Compaq ProLiant 6500 Xeon
Compaq ProLiant 6000 Xeon
Compaq ProLiant 6400R
Compaq ProLiant 5500R Xeon
Compaq ProLiant 5500 Xeon
Compaq ProLiant 3000R Pentium
®
III
Compaq ProLiant 3000 Pentium III
Compaq ProLiant 3000R 6/450
Compaq ProLiant 3000 6/450
Compaq ProLiant 1850R 6/500
Compaq ProLiant 1850R
Compaq ProLiant 1600R 6/500
Compaq ProLiant 1600 6/500
Compaq ProLiant 1600R (100-MHz)
Compaq ProLiant 1600 (100-MHz)
Compaq ProLiant 800 (500-MHz)
SMB
Compaq Prosignia Notebook Family of Personal Computers
Compaq Prosignia Desktop Family of Personal Computers
Compaq Prosignia 740
Compaq Prosignia 720
