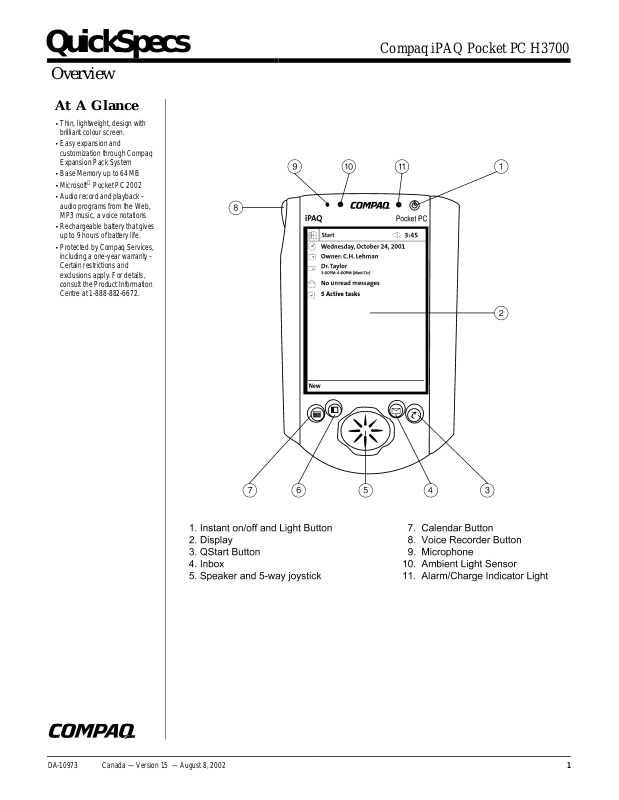

QuickSpecs
Overview
Compaq iPAQ Pocket PC H3700
At A Glance
• Thin, lightweight , design with
brilliant colour screen.
• Easy expansion and
customization through Compaq
Expansion Pack System
• Base Memory up to 64 MB
• Microsoft
• Audio record and playback –
• Rechargeable battery that gives
• Protected by Compaq Ser vices,
Pocket PC 2002
audio programs from the Web,
MP3 music, a voice notations
up to 9 hours of battery life.
including a one-year warranty –
Certain restri ctions and
exclusions appl y. For details,
consult the Product Information
Centre at 1-888-882-6672.
DA-10973 Canada — Version 15 — August 8, 2002 1
QuickSpecs
Compaq iPAQ Pocket PC H3700
Standard Features
Models
Compaq iPAQ Pocket PC H3760 with 64 MB of SDRAM
252936-001 English
Processor
Memory
Interfaces
Navigator Button 1 Five-way joystick – up, down, left, right and push
Side Panel Recorder Button 1
Bottom Panel Reset Switch 1
Stylus Eject Button 1
Infrared Port 1 (115 Kbps)
Speaker 1
Light Sensor 1
Microphone 1
Communications Port 1 (with USB/Serial connectivity)
Stereo Audio Output Jack 1 (standard 3.5 mm)
Cradle Interfaces
Display Colour (4096 colours (12 bit) touch-sensitive reflective thin film transistor (TFT) liquid crystal display (LCD))
Power Supply 950 mAh Lithium Polymer, rechargeable in docking cradle or with AC Adapter
NOTE: Battery life will vary based on an estimated typical use pattern of an average user, the configuration of the
Audio Capabilities
Ergonomic Design Features
206-MHz Intel
64-MB SDRAM, 32-MB Flash ROM Memory
Front Panel Buttons 5 buttons plus five-way joystick; (1 on/off and frontlight button and (2-5)
Connector 1
Cable 1 USB or Serial cable connects to PC – not included
DC Jack connector for AC
Adapter
Stylus Holder 2 holes on left and right front
Stabilizing Arm Release Button 1 Arms engage sides of Pocket PC when no Expansion Pack is in use
Cradle USB cradle included. Serial Cradle not included.
Audio record and playback (play MP3 music or audio programs from the Web)
One-touch instant-record button
AudiblePlayer link on Compaq CD
Integrated speaker, stereo headphone jack
Integrated microphone
Instant-on/off and frontlight
5-way joystick
Touch-sensitive display for stylus or fingertip
5 customizable application launch buttons – Calendar, Contacts, QStart, Qmenu, and Recorder buttons
4 alarm settings
Speaker on front-side of unit
StrongARM SA-1110 32-bit RISC Processor
customizable application buttons)
1
computer and the usage pattern of the individual user. Use of some attachments may significantly
decrease battery life.
DA-10973 Canada — Version 15 — August 8, 2002 2
QuickSpecs
Standard Features
Compaq iPAQ Pocket PC H3700
Software Bundle
Compaq Companio n
Applications
Operating System Microsoft Pocket PC 2002
These are all applications in the Operating System
Powered by Microsoft Windows for Pocket PC 2002 and Microsoft ActiveSync 3.5
Calendar, Contacts, Tasks, Voice Recorder, Notes, Pocket Word (with Spellchecker), Pocket Excel, Pocket
Internet Explorer, Windows Media Player 8 (MP3, audio and video streaming), Calculator, Solitaire, Inbox (with
Spell Checker for email), Microsoft Reader (ebooks), File Explorer, MSN Messenger, Terminal Services Client,
VPN Client, Server Sync client, Infrared Beaming.
These are the extras that Compaq has included in ROM
iPAQ Task Manager (utilities for Backup/Restore to Memory Card, Self Test, Auto Run, Align Screen, Clock,
Expansion pack, File Explorer, Microphone AGC, Power Status, Sounds Memory), iPAQ File Store
These are the extras on the Compaq CD-ROM
Dashboard (enhanced Today Screen application that shows 2 days appointments, program launcher, power
status, iPresenter PowerPoint converter for Pocket PC, StarTap (trial version), Xcellenet Device Management
Agent, Audible Player (Service plan required to download and play Audible content), Compaq Wireless LAN
Drivers, iPAQ Reference Guide on PDF and eBook, Eletel Messaging software.
Microsoft components on Compaq CD-ROM
Microsoft ActiveSync 3.5 (Desktop device synchronization), Connection Wizard (link), Microsoft Money for Pocket
PC (Desktop version required for synchronization between desktop and Pocket PC), Pocket Streets (Desktop
version of MapPoint 2002, Streets and Trips 2002 or AutoRote 2002 required to download Pocket PC 2002
update), Outlook
7.1 for desktop), Microsoft Reader (for the PC), Microsoft Reader Activation Pack (link to activate device and
download free content), Microsoft Reader eBooks (selection of free books for the Pocket PC), AvantGo (link),
MSN Mobile (link).
2002, Internet Explorer 6.0 (for desktop - link), Windows Media Player 8.0 for Pocket PC and
Service and Support One-year Limited Warranty. Optional CarePAQ available for Next Business Day replacement (at additional
charge). Certain restrictions and exclusions apply. For details, consult the Product Information Centre at
1-888-882-6672.
DA-10973 Canada — Version 15 — August 8, 2002 3
QuickSpecs
Options
Compaq iPAQ Pocket PC H3700
Expansion Packs
Expansion Jacket
Style Packs
Memory/Storage
CompactFlash (CF) 64-MB Memory Card
NOTE: CF Card Expansion Pack required.
Power
Synchronization
USB Autosync Cable
Serial Autosync Cable
Communications
Keyboards
Cases
Premier Leather Case
Zippered Leather Case
Rugged Case
Three-Pack of screen protectors for Rugged Case
Other
CF Card Expansion Pack
PC Card Expansion Pack
Dual-Slot PC Card Expansion Pack
Wireless Pack for GSM/GPRS Networks
CF Card Expansion Pack w/Removable Battery
PC Card Expansion Pack Plus
1800mAh Removable Battery for Jackets
920mAh Removable Battery for Jackets
Battery Charger-Removable Adapter
CF/Bluetooth Expansion Jacket (Retail U.S.)
Barcode Scanner Jacket
Barcode Scanner Jacket with Wireless LAN
Cover Pack
CompactFlash (CF) 32-MB Memory Card
AC Adapter
Auto Adapter
Serial Cradle
USB Cradle
WL110 Wireless PC Card (requires PC Card Expansion Pack)
56K V.90 CompactFlash Fax Modem (requires CF Card Expansion Pack)
RS-232 Serial Cable
Foldable Keyboard, U.S.
Micro Keyboard 1.0, U.S.
Executive Leather Case
Expandable Case
Stylus Three-Pack Replacement Kit
Targus Stowaway Portable Keyboard for Compaq iPAQ Pocket PCs (English)
170339-B21
170338-B21
216198-B21
219926-B21
249709-B21
249708-B21
253514-B21
253512-B21
253516-B21
232568-002
253880-B22
264084-B22
249707-B21
104703-004
104703-003
253629-001
253508-B21
176482-B21
176481-B21
191007-B21
191008-B21
191808-001
148908-001
236251-B21
249693-001
268941-001
170340-B21
217883-B21
253504-B21
262207-B21
230465-B21
253517-B21
176184-B21
227262-B21
DA-10973 Canada — Version 15 — August 8, 2002 4
QuickSpecs
Technical Specifications
Compaq iPAQ Pocket PC H3700
System Unit
TFT Colour Display
Rechargeable Battery
AC Adapter
Dimensions (H x W x D )
Weight
Operating Temperature
Operating Humidity
Regulatory Marks
RAM
ROM (Flash)
Number of Colours
Resolution (W x H)
Dot Pitch
Viewable Image (W x H)
Display Type
Battery Life
Dimensions (H x W x D )
Cord Length (approximate)
Power Supply Ratings
5.1 x 3.3 x 0.62 in/12.95 x 8.38 x 1.57 cm
6.3 oz/178 g (including battery)
32° to 104°F/0° to 40°C
10% to 90%
Electrical FCC Class B, VCCI, CE, C-Tick,
Safety CE Marking, C-UL, NOM
64 MB
32 MB
4096
240 x 320
0.24 mm
2.3 x 3 in (3.8 in diagonal)/5.74 x 7.7 cm (9.6 cm diagonal)
Colour (4096 colours (12 bit) reflective thin film transistor (TFT) liquid crystal
display (LCD))
64 MB up to 9 hours, 950 mAh Lithium Polymer rechargeable battery
2.9 x 1.9 x 1.8 in/7.3 x 4.7 x 4.6 cm
6 ft/1.83 m
Voltage Range 100 to 240 V Switching
Input Current 0.3 A
Input Frequency 50 to 60 Hz
Output Voltage 5 VDC
Output Current 2 Amp
