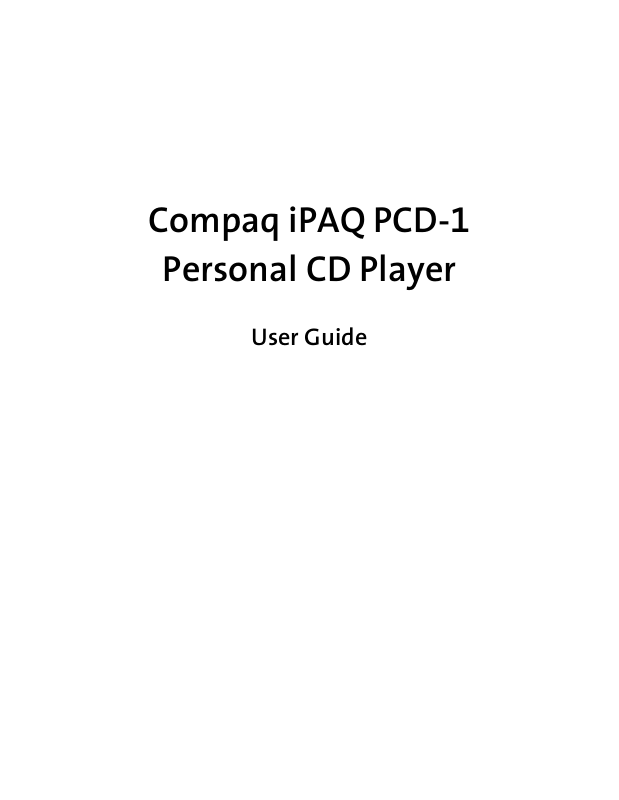

Compaq PCD-1 User Manual

Compaq iPAQ PCD-1

Personal CD Player

User Guide

Notice

COMPAQ and the Compaq logo registered in U.S. Patent and Trademark Office.

iPAQ is a trademark of Compaq Information Technologies Group, L.P.

Microsoft and Windows are trademarks of Microsoft Corporation.

All other product names mentioned herein may be trademarks or registered trademarks of their respective companies.

Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information in this document is subject to change without notice.

The information in this publication is subject to change without notice and is provided “AS IS” WITHOUT WARRANTY OF ANY KIND. THE ENTIRE RISK ARISING OUT OF THE USE OF THIS INFORMATION REMAINS WITH RECIPIENT. IN NO EVENT SHALL COMPAQ BE LIABLE FOR ANY DIRECT, CONSEQUENTIAL, INCIDENTAL, SPECIAL, PUNITIVE, OR OTHER DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF BUSINESS INFORMATION), EVEN IF COMPAQ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE FOREGOING SHALL APPLY REGARDLESS OF THE NEGLIGENCE OR OTHER FAULT OF EITHER PARTY AND REGARDLESS OF WHETHER SUCH LIABILITY SOUNDS IN CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER THEORY OF LEGAL LIABILITY, AND NOTWITHSTANDING ANY FAILURE OF ESSENTIAL PURPOSE OF ANY LIMITED REMEDY.

The limited warranties for Compaq products are exclusively set forth in the documentation accompanying such products. Nothing herein should be construed as constituting a further or additional warranty.

Compaq iPAQ Personal CD Player PCD-1

First Edition (July 2001)

Part Number 253997-001

Setting Up Your Player

Thanks for buying a Compaq iPAQ Personal CD Player PCD-1, and welcome to the world of digital audio.

What is Digital Audio?

Digital audio is a way of compressing recorded sound so that it takes up much less storage space. A song is reduced to about 1/10 its size, allowing you to store much more music on one CD. There are many types of digital audio formats, but MP3 and WMA are two of the most popular.

Why Digital Audio?

Digital CD players provide many benefits:

> Up to 20 hours of music on one CD

> High quality sound

> Organization and personalization of your music

> The ability to take your favorite music with you anywhere!

Is Your PC Ready for Digital Audio?

If you have a multimedia PC with a CD-RW or DVD-RW drive, you are probably ready to create CDs. To use the MusicMatch Jukebox 6.1 software included on the CD with your PCD-1, we recommend the following requirements.

> 233 MHz processor

> Microsoft Windows 95 (with service pack 1), Windows NT 4.0 (with service pack 4),

Windows 98, Windows ME, Windows 2000, or Windows XP

> 100 MB free hard drive space

> CD-RW or DVD-RW drive

> 64 MB RAM

How to Get Help

If you have any trouble setting up your PCD-1 or would just like more information, visit Compaq’s Web site:

http://www.compaq.com/iPAQaudio

Register Your PCD-1

Please register your PCD-1 to receive a more personalized support experience. You may register at Compaq’s Web site:

http://www.compaq.com/go/register

Warranty

Your PCD-1 has a One-Year Limited Warranty. Please see the enclosed Warranty Card for further details.

COMPAQ IPAQ PCD-1 1

What’s in the Box?

Your iPAQ PCD-1 package contains the following components.

Personal CD Player

Headphones

AC power adapter

Two AA rechargeable

batteries

Installation CD

Getting Started guide

Remote control

(with battery)

Installing the Batteries

Your iPAQ Personal CD Player PCD-1 is equipped with rechargeable batteries. You can listen to your favorite music on battery power or you can plug the PCD-1 into a standard electrical outlet.

To install the batteries, just follow these simple steps:

1. Pull out and lift the battery door.

2 COMPAQ IPAQ PCD-1

2. Place the rechargeable batteries that came with your PCD-1 into the battery compartment according to the diagram inside the compartment.

Tip: To recharge the batteries that came with your PCD-1, just plug the PCD-1 into a standard electrical outlet while the batteries are in the battery compartment. The battery icon on the display screen shows the amount of charge held by the batteries (when the PCD-1 is not plugged into an AC electrical outlet).

WARNING: Do not mix rechargeable batteries with non-rechargeable batteries.

Turning On Your PCD-1

To turn on your iPAQ Personal CD Player PCD-1, press the Power button.

When you turn on your PCD-1, the LCD screen briefly displays Compaq iPAQ PCD-1, followed by the message “Reading Disc.” If there is no disc loaded, you will receive the message “No Disc.” If a disc is loaded, you will receive the message “Searching for audio.” If audio files are present, the PCD-1 will list the number of tracks found then begin playing the first track. If no audio tracks are found, it will display the message “No Audio Found.”

COMPAQ IPAQ PCD-1 3

Side Features of Your Player

The left and right sides of your PCD-1 have several important features.

Note that the side features have icons associated with them to help identify their functions.

The Audio Out 1 and Power Supply 5 connections are covered by rubber plugs that must be pulled back to make the connections.

Left side (facing front)

Right side (facing front)

Audio Out - Allows you to plug your PCD-1 into your home stereo system (cable not

supplied).

Earphone Connection - Plug in your headphones here to listen to CDs (headphones

supplied).

WARNING: Permanent hearing loss may occur if headphones are used at high volume.

Power button - Press to turn the PCD-1 on. Hold for two seconds to turn the PCD-1 off.

Norm/Hold Switch - The Norm/Hold switch should be in the Norm position for typical

usage. When the switch is in the Hold position, the front panel buttons are disabled. In the Hold position, you can carry your PCD-1 in a pouch or purse and not worry about accidentally pushing the buttons.

Tip: You must set the Norm/Hold switch to the Normal position to turn on the PCD-1. A “Hold is on!” message is displayed on the screen if the switch is in the Hold position when you press the Power button. After displaying the message, the PCD-1 shuts off.

Power Supply Connection - Plug in your AC power adapter here to run the PCD-1 from a

standard electrical outlet.

Note: Power off your PCD-1 before connecting it to AC power.

4 COMPAQ IPAQ PCD-1

Front Features of Your PCD-1

Your PCD-1 has many outstanding features.

Display Screen - Area where song and

playback information is displayed along with icons and option button labels. Also displays FM radio stations.

Option Buttons - Switch to modes of

operation displayed above the buttons.

Up - Scrolls up through playlists, tracks, and

FM radio station presets.

Play/Pause - Press to play a song. Press

again to pause play.

Rewind/Previous Track - Press and hold to

rewind within a song or scan to previous station in Radio mode. Press once to skip back to the previous track or tune the FM radio station.

Volume Decrease - Press to lower volume

level.

Volume Increase - Press to raise

volume level.

Infrared Receiver - Receives an

infrared signal from the remote control.

Stop - Press to stop play and view

track directory.

Open - Opens the CD door.

Down - Scrolls down through

;

playlists, tracks, and FM radio station presets.

Fast Forward/Next Track - Press

and hold to fast forward within a song or scan to next station in Radio mode. Press once to skip ahead to the next song or tune the FM radio.

COMPAQ IPAQ PCD-1 5

PCD-1 Display Screen

The Display Screen shows icons along the top, a large display area in the center, and option button labels along the bottom.

Display Icons

The following table lists the various display icons you will see along the top of the display screen and explains what they represent.

Play - Indicates that a CD is playing.

Pause - Indicates the CD is paused.

Power - Indicates that the AC power adapter is plugged in.

Battery charge indicator - The number of bars visible indicates the amount of

charge remaining in your PCD-1’s batteries (displays only if batteries are present and the PCD-1 is not plugged in).

Lock - Displays when the Norm/Hold switch is in the Hold position, locking all the buttons on the PCD-1 and the remote control.

Repeat one - Indicates that the current track is set to repeat.

Repeat all - Indicates that all tracks are set to repeat.

Shuffle - Indicates that tracks will be played in a non-sequential order.

Playlist - Indicates the PCD-1 is in Playlist/Track Management mode.

6 COMPAQ IPAQ PCD-1
