Compaq PC938A, Business Desktop dc7100 Series Brochure

Page 1

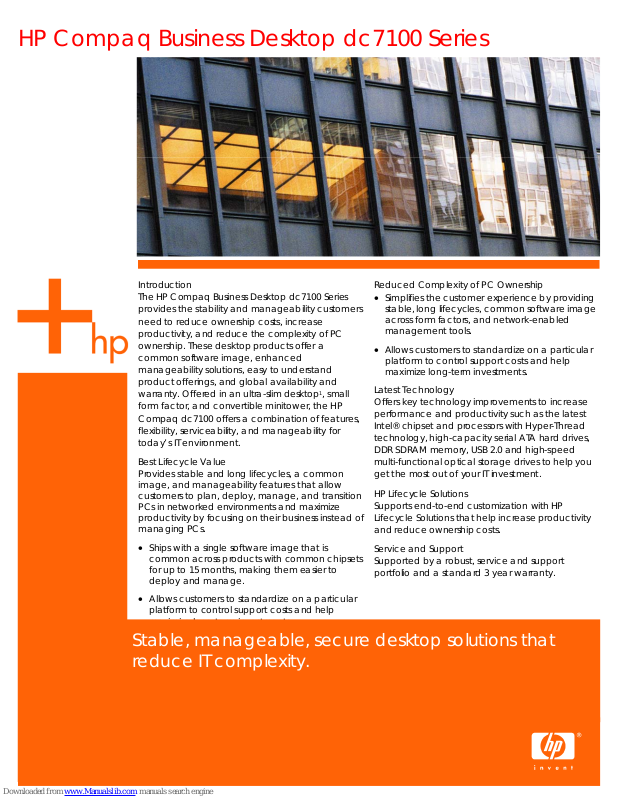

HP Compaq Business Desktop dc7100 Series

Introduction The HP Compaq Business Desktop dc7100 Series provides the stability and manageabili ty custom ers need to reduce ownership costs, increase productivity, and reduce the c o mplexity of PC ownership. These desktop products offer a common software image, enhanced manageability solutions, easy to understand product offerings, and global availability and warranty. Offered in an ultra-slim desktop form factor, and convertible minitower, the HP Compaq dc7100 offers a combination of features, flexibility, serviceability, and manageability for today’s IT environment.

Best Lifecycle Value Provides stable and long lifecycles, a common image, and manageability features that allow customers to plan, deploy, manage, and transition PCs in networked environments and maximize productivity by focusing on their business instead of managing PCs.

, small

Reduced Complexity of PC Ownership

• Simplifies the customer experience by providing

stable, long lifecycles, common software image across form factors, and network-enabled management tools.

• Allows customers to standardize on a particular

platform to control support costs and help maximize long-term investments.

Latest Technology Offers key technology improvements to increase performance and productivity such as the latest Intel® chipset and processors with Hyper-Thread technology, high-capacity serial ATA hard drives, DDR SDRAM memory, USB 2.0 and high-speed multi-functional optical storage drives to hel p you get the most out of your IT investment.

HP Lifecycle Solutions Supports end-to-end customization with HP Lifecycle Solutions that help increase productivity and reduce ownership costs.

• Ships with a single software image that is

common across products with common chipsets for up to 15 months, making them easier to deploy and manage.

• Allows customers to standardize on a particular

platform to control support costs and help maximize long-term investments.

Stable, manageable, secure desktop solutions that reduce IT complexity.

Service and Support Supported by a robust, service and support portfolio and a standard 3 year warranty.

Page 2

HP Compaq Business Desktop dc7100 Series

Form Factor Ultra-slim desktop Small form factor Convertible Minitower

hipset Intel® 915GV

Intel® 915G Intel® 915G

Processor Intel Pentium 4 Processors with Hyper-Thread1 Technology:

Intel Pentium 4 Processor 520 (2.8-GHz, 1 MB L2 cache, 800 MHz FSB) Intel Pentium 4 Processor 530 (3.0-GHz, 1 MB L2 cache, 800 MHz FSB) Intel Pentium 4 Processor 540 (3.2-GHz, 1 MB L2 cache, 800 MHz FSB) Intel Pentium 4 Processor 550 (3.4-GHz, 1 MB L2 cache, 800 MHz FSB) Intel Pentium 4 Processor 560 (3.6-GHz, 1 MB L2 cache, 800 MHz FSB) Intel Celeron D Processors: Intel Celeron D Processor 335 (2.8-GHz, 256K L2 cache, 533 MHz FSB)

emory DDR-Synch DRAM PC3200 (400-MHz) non-ECC (single channel and dual channel configurations available) Hard drive(s) 40 to 160-GB Serial ATA/100 hard drive Removable media

MultiBay: 24X CD-ROM Drive24X/24X/24X/8X DVD-CDRW Combo Drive 8X/24X DVD-ROM

48X Max CD-ROM drive 48X/32X/48X CD-RW drive 16X/40X DVD-ROM with +R Read drive 48X/32X/48X/16X Combo CD-RW/DVD-ROM drive 8X 4.7GB DVD +R/RW drive

1.44MB diskette drive

Expansion bays Internal: 1 3.5 inch

External: 1 Multibay

Expansion slots 1 full-height PCI 2 low profile PCI

Internal: 1 3.5 inch External: 1 5.25 inch and 1 3.5 inch

1 low profile PCI Express x1 1 low profile PCI Express x16 (2 full-height PCI available via optional riser card)

card option, express x1 and x16 slots are not supported.

Note: with riser

Internal: 2 3.5 inch External: 3 5.25 inch and 1 3.5 inch

2 full-height PCI 1 full height PCI Express x1 1 full height PCI Express x16 (2 addtitional full-height PCI optional)

emory slots 3 DIMMs 4 DIMMs 4 DIMMs

raphics Intel integrated Graphics Media Accelerator 900 (integrated with Intel 915 chipset)

udio Integrated Intel Audio with Premier Internal Speaker

ommunication s Integrated Broa dc o m N e t X tr e m e Giga b it Ethernet

Rear I/O ports and connectors

6 USB 2.0, 1 optional serial port, 1 optional parallel port, 2 PS/2, 1 RJ45, 1 VGA, audio in/out

6 USB 2.0, 1 standard serial port, 1 optional serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out

Front I/O ports and connectors 2 USB 2.0, headphone and microphone Input device 2004 standard keyboard, 2-button scroll mouse

perating system Microsoft Windows XP Professional SP1a, Microsoft Windows XP Home SP1a Dimensions (h × w × d) Power 200-watt 240-watt

arranty

HP recommends Microsoft® Windows® XP Professional for Business

© 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Intel and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.

The Hyper-Threading feature is a new technology designed to improve performance of multi-threaded software products; please contact your software provider to

determine software compatibility. Not all customers or software applications wi ll benefit from the use of Hyper-Th reading technology. Visit Hhttp://www.intel.com/info/hyperthreading/

For more information about these desktops, visit www.hp.com/products/desktops

5982-6010EN, 07/2004

2.95" x 12.4" x 13.18" 3.95" x 13.3" x 14.9" 17.65" x 6.6" x 17.8"

340-watt

3/3/3 3/3/3 3/3/3

H for more information.
