Compaq ZE4100, N1010V, 2500, N1050V, ZE4200 User Manual

Please check out our eBay auctions for more great deals on Factory Service Manuals:

HP Pavilion ze5200 Notebook PC HP Pavilion ze4200 Notebook PC HP Pavilion ze4100 Notebook PC Compaq Evo Notebook N1050v Series Compaq Evo Notebook N1010v Series Compaq Presario 2500 Series Mobile PC Compaq Presario 2100 Series Mobile PC Compaq Presario 1100 Series Mobile PC

Technology Code KE

Service Manual

Microsoft and Windows are trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel, Celeron, and Pentium are trademarks of Intel Corporation in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective companies.

HP shall not be liable for technical or editorial errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The information in this document is provided “as is” without warranty of any kind, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, and is subject to change without notice. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

Service Manual First Edition January 2003 Reference Number: N1050v/N1010v/2500/2100/1100/ze5200/ze4200/ze4100 Document Part Number: 319733-001

ii Service Manual

Contents

Product Information...................................................................................................... 1-1

Features .......................................................................................................................................1-15

Operation.....................................................................................................................................1-18

Turning the Notebook On and Off .......................................................................................1-18

Checking the Status of the Notebook ...................................................................................1-19

Using Fn Hot Keys ...............................................................................................................1-20

Resetting the Notebook ........................................................................................................1-21

Specifications ..............................................................................................................................1-22

Internal Design ............................................................................................................................ 1-27

Removal and Replacement............................................................................................ 2-1

Disassembly Flowchart .................................................................................................................2-3

Removing the Battery (User-Replaceable)....................................................................................2-4

Removing a SDRAM Module (User-Replaceable).......................................................................2-5

Removing the Wireless LAN Mini-PCI Card (User-Replaceable) ...............................................2-6

Removing the Hard Disk Drive (User-Replaceable).....................................................................2-7

Replacing Small Parts (User-Replaceable) ...................................................................................2-9

Removing the Keyboard Cover (User-Replaceable)...................................................................2-10

Removing the Speaker Assembly (User-Replaceable)................................................................2-12

Removing the Keyboard (User-Replaceable)..............................................................................2-13

Removing the Switchboard PCA (User-Replaceable) ................................................................2-15

Removing the CD/DVD Drive (User-Replaceable) ....................................................................2-16

Removing the Display Assembly (Authorized Service Providers Only) ....................................2-17

Removing the Top Case (Authorized Service Providers Only) ..................................................2-20

Removing the Floppy Drive (Authorized Service Providers Only) ............................................2-22

Removing the Infrared (I/R) PCA (Authorized Service Providers Only) ...................................2-24

Removing the Heatsink (with Fan) (Authorized Service Providers Only)..................................2-26

Removing the CPU Module (Authorized Service Providers Only) ............................................2-28

Removing the Motherboard (Authorized Service Providers Only).............................................2-30

Replacing Components on a Bottom Case..................................................................................2-34

Repairing the BIOS IC (Authorized Service Providers Only) ....................................................2-36

Removing Other Components (Authorized Service Providers Only) ......................................... 2-38

Troubleshooting and Diagnostics ................................................................................. 3-1

Support by Authorized Service Providers .....................................................................................3-1

Troubleshooting ............................................................................................................................3-2

Checking for Customer Abuse ...............................................................................................3-3

Troubleshooting the Problem .................................................................................................3-3

Verifying the Repair...............................................................................................................3-4

Suggestions for Troubleshooting............................................................................................3-5

Diagnostic Tools .........................................................................................................................3-18

e-Diagtools Diagnostic Program ..........................................................................................3-18

Power-On Self-Test ..............................................................................................................3-19

Sycard PCCtest 450/460 PC Card (Optional).......................................................................3-25

Windows Management Instrumentation (WMI) ..................................................................3-26

BIOS Setup Utility ...............................................................................................................3-26

Service Manual iii

Replaceable Parts........................................................................................................... 4-1

Reference Information .................................................................................................. 5-1

Password Removal Policy............................................................................................................. 5-1

Hewlett-Packard Display Quality Statement.................................................................................5-2

Service Notes and Obsolete Parts .................................................................................................5-4

Figures

Figure 1-1. Front View ......................................................................................................................1-15

Figure 1-2. Back View.......................................................................................................................1-16

Figure 1-3. Bottom View ................................................................................................................... 1-17

Figure 1-4. Resetting the Notebook ................................................................................................... 1-21

Figure 1-5. Replaceable Module Diagram.........................................................................................1-27

Figure 2-1. Disassembly Flow .............................................................................................................2-3

Figure 2-2. Removing the Battery .......................................................................................................2-4

Figure 2-3. Removing an SDRAM Module......................................................................................... 2-5

Figure 2-4. Removing the Mini-PCI Card ...........................................................................................2-6

Figure 2-5. Removing the Hard Disk Drive......................................................................................... 2-7

Figure 2-6. Removing the Hard Disk Drive Tray ................................................................................2-8

Figure 2-7. Removing the Keyboard Cover....................................................................................... 2-11

Figure 2-8. Removing the Speaker Assembly....................................................................................2-12

Figure 2-9. Removing the Keyboard..................................................................................................2-14

Figure 2-10. Removing the Switchboard PCA ..................................................................................2-15

Figure 2-11. Removing the CD/DVD Drive......................................................................................2-16

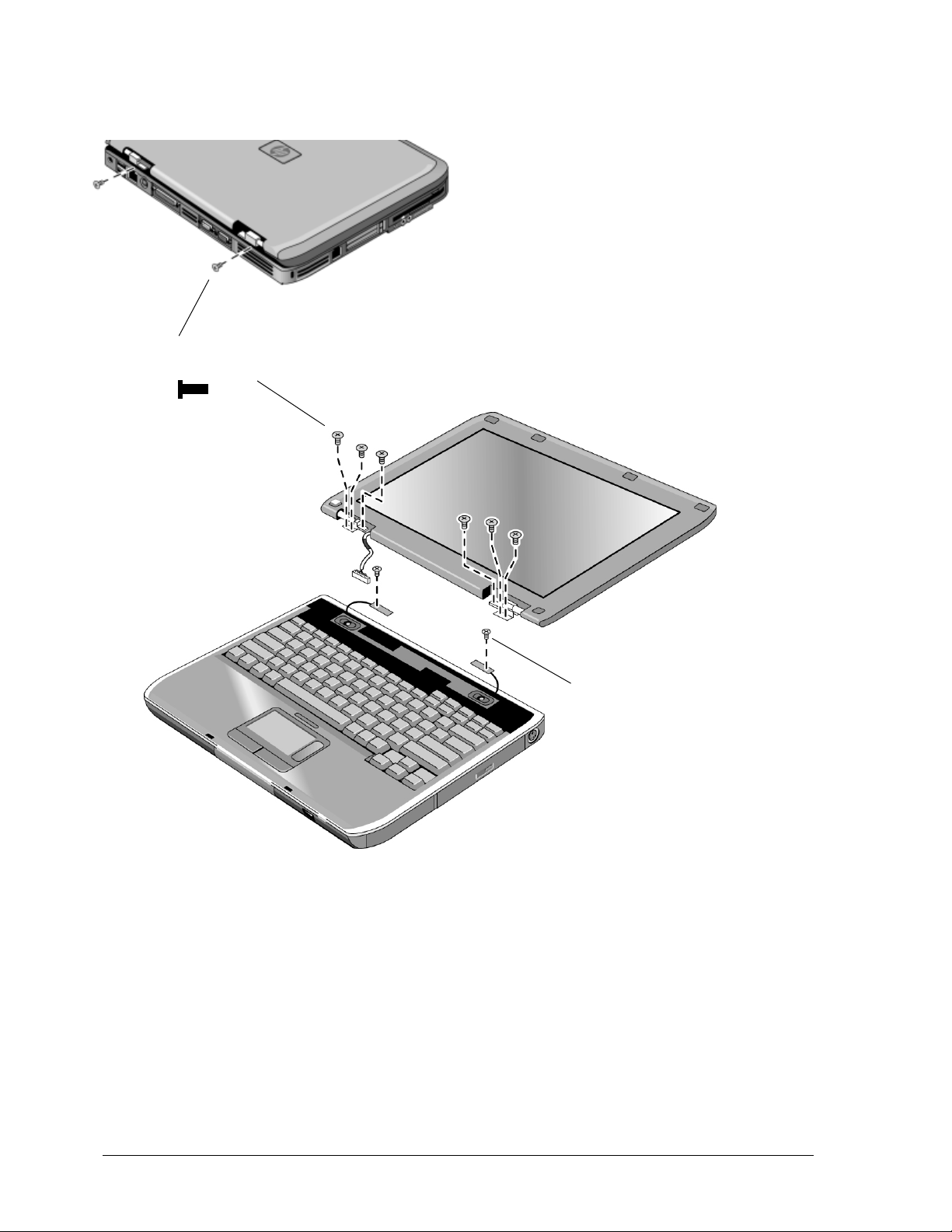

Figure 2-12. Removing the Display Assembly..................................................................................2-18

Figure 2-13. Removing the Top Case ................................................................................................ 2-21

Figure 2-14. Removing the Floppy Drive..........................................................................................2-23

Figure 2-15. Removing the I/R PCA .................................................................................................2-25

Figure 2-16. Removing the Heatsink (with Fan) ...............................................................................2-26

Figure 2-17. Removing the CPU Module .......................................................................................... 2-29

Figure 2-18. Removing the Motherboard ..........................................................................................2-31

Figure 2-19. Example of Serial Number Label.................................................................................. 2-34

Figure 2-20. Replacing the Antennas.................................................................................................2-35

Figure 2-21. Removing a PCMCIA Door..........................................................................................2-35

Figure 2-22. Boot-Block Jumper .......................................................................................................2-37

Figure 3-1. Basic Troubleshooting Steps.............................................................................................3-2

Figure 4-1. Exploded View..................................................................................................................4-2

iv Service Manual

Tables

Table 1-1. Notebook Products .............................................................................................................1-1

Table 1-2. Product Comparisons........................................................................................................ 1-13

Table 1-3. Activating Power Modes ..................................................................................................1-18

Table 1-4. Main Status Lights (front of notebook) ............................................................................1-19

Table 1-5. Keyboard Status Lights.....................................................................................................1-19

Table 1-6. Fn Hot Keys......................................................................................................................1-20

Table 1-7. Specifications....................................................................................................................1-22

Table 1-8. Accessories .......................................................................................................................1-25

Table 1-9. Functional Structure Description......................................................................................1-28

Table 2-1. Removal Cross-Reference ..................................................................................................2-1

Table 2-2. Required Equipment ...........................................................................................................2-2

Table 2-3. Recommended Screw Torque Values.................................................................................2-2

Table 2-4. Replacing Small Parts (User-Replaceable)......................................................................... 2-9

Table 2-5. Removing Components ....................................................................................................2-38

Table 3-1. ASP Support Options..........................................................................................................3-1

Table 3-2. Scope of Diagnostic Tools..................................................................................................3-5

Table 3-3. Troubleshooting Suggestions .............................................................................................3-6

Table 3-4. POST Terminal-Error Beep Codes ...................................................................................3-20

Table 3-5. POST Messages ................................................................................................................3-23

Table 3-6. Sycard PCCtest Commands..............................................................................................3-25

Table 3-7. BIOS Setup Menus and Parameters..................................................................................3-27

Table 4-1. Replaceable Parts................................................................................................................4-3

Table 4-2. Accessory Replaceable Parts ............................................................................................4-11

Table 4-3. Part Number Reference.....................................................................................................4-12

Table 5-1. LCD Guidelines..................................................................................................................5-3

Service Manual v

Introduction

This manual provides reference information for servicing the HP Pavilion ze5200, ze4200, and ze4100 Notebook PCs (technology code KE), Compaq Evo Notebook 1050v and 1010v Series (technology code KE), and Compaq Presario 2500, 2100, and 1100 Series Mobile PCs (technology code KE). It is for use by authorized service personnel while installing, servicing, and repairing these products.

The manual is designed as a self-paced guide that will train you to install, configure, and repair these notebooks. The manual is self-contained, so you can follow it even without having equipment available.

The following table lists other sources of information about the notebook computers and related products.

Source Address or Number Comments

HP Notebook Web Site

HP Business Support Web site

HP Partnership Web site http://partner.americas.hp.com Restricted to authorized resellers only.

HP Asia Pacific Channel Support Centre for DPSP Partners

HP/MCD Web site http://www.mcd.hp.com HP’s internal Web site for division

America Online Keyword: HP Call (800) 827-6364 for membership

CompuServe GO HP Call (800) 524-3388 for membership

HP Support Assist CD-ROM (800) 457-1762 US and Canada.

(801) 431-1587 Outside US and Canada.

Microsoft Windows manual Information about Windows operating

Microsoft Web site http://www.microsoft.com Information and updates for Windows

•

http://www.hp.com/notebooks

•

(http://www.europe.hp.com/notebo

ok, European mirror)

www.hp.com/go/bizsupport

http://www.hp.com.au Restricted to DPSP Partners only.

information.

within the US.

system.

operating systems.

vi Service Manual

Product Information

The following list of HP and Compaq notebook products is current at the time of publication but is subject to change.

Table 1-1. Notebook Products

1

Notebook Product *

CPU **

Display

Hard Drive

CD/DVD Drives

Pavilion ze5200 Notebook PC

DB395A ABA Pentium 4-D 2.0-GHz 14.1-in XGA 40 GB combination

DB396A ABA Pentium 4-D 2.4-GHz 15.0-in XGA 40 GB combination

DB397A ABA Pentium 4-D 2.4-GHz 15.0-in XGA 60 GB combination

DB399A ABA Pentium 4-D 2.0-GHz 15.0-in XGA 40 GB combination

DC603A ABA Pentium 4-D 2.4-GHz 15.0-in XGA 40 GB combination

DC604A ABM Pentium 4-D 2.4-GHz 15.0-in XGA 40 GB combination

DC605A ABM Pentium 4-D 2.8-GHz 15.0-in XGA 60 GB combination

DC671A ABA Pentium 4-D 2.0-GHz 15.0-in XGA 40 GB combination

DC672A ABA Pentium 4-D 2.4-GHz 15.0-in XGA 40 GB combination

DC673A ABC Pentium 4-D 2.4-GHz 15.0-in XGA 40 GB combination

DC673A ABL Pentium 4-D 2.4-GHz 15.0-in XGA 40 GB combination

DC674A ABF Pentium 4-D 2.4-GHz 15.0-in XGA 30 GB combination

DC674A ABU Pentium 4-D 2.4-GHz 15.0-in XGA 30 GB combination

DC679A ABD Pentium 4-D

2.53-GHz

DC714A ABD Pentium 4-D

2.53-GHz

DC752A ABF Pentium 4-D

2.53-GHz

DC752A ABU Pentium 4-D

2.53-GHz

DC752A UUZ Pentium 4-D

2.53-GHz

DC753A ABA Pentium 4-D 2.4-GHz 15.0-in XGA 40 GB combination

15.0-in XGA 30 GB combination

15.0-in XGA 40 GB combination

+ diskette

Standard SDRAM/ Video Mem

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

Communication

iNIC + modem Li ion

iNIC + modem +

802.11b

iNIC + modem Li ion

iNIC + modem +

802.11b

iNIC + modem Li ion

INIC, modem, +

802.11b

iNIC + modem Li ion

INIC, modem, +

802.11b

Battery

Li ion

Service Manual Product Information 1-1

Notebook Product *

Pavilion ze5200 Notebook PC (continued)

DC818A ABU Pentium 4-D

DC818A UUZ Pentium 4-D

DC819A UUZ Pentium 4-D 2.8-GHz 15.0-in SXGA 60 GB combination

DC659A UUZ Pentium 4-D 2.8-GHz 15.0-in XGA 40 GB combination

DC820A ABN Pentium 4-D

Pavilion ze4200 Notebook PC

DB385A ABA Celeron 1.7-GHz 15.0-in XGA 30 GB combination/

DB386A ABA Celeron 1.8-GHz 15.0-in XGA 40 GB combination/

DB953A ABA Celeron 1.6-GHz 14.1-in XGA 20 GB DVD/

DC590A ABA Celeron 1.8-GHz 15.0-in XGA 40 GB combination/

DC591A ABA Celeron 1.6-GHz 14.1-in XGA 20 GB DVD/

DC592A ABA Celeron 1.6-GHz 15.0-in XGA 30 GB combination/

DC594A ABF Celeron 1.6-GHz 14.1-in XGA 20 GB combination

DC595A ABF Celeron 1.8-GHz 15.0-in XGA 30 GB combination

DC596A ABF Celeron 2.0-GHz 15.0-in XGA 40 GB combination

DC596A ABN Celeron 2.0-GHz 15.0-in XGA 40 GB combination

DC597A ABG Celeron 2.0-GHz 14.1-in XGA 30 GB DVD +

DC597A AB1 Celeron 2.0-GHz 14.1-in XGA 30 GB DVD +

DC598A AB1 Pentium 4-M 1.8-GHz 14.1-in XGA 20 GB CD-ROM +

DC599A AB1 Pentium 4-M 1.8-GHz 15.0-in XGA 30 GB combination

DC600A ABG Pentium 4-M 2.0-GHz 15.0-in XGA 40 GB combination

DC600A AB1 Pentium 4-M 2.0-GHz 15.0-in XGA 40 GB combination

DC601A ABM Celeron 2.0-GHz 14.1-in XGA 40 GB combination

DC602A ABA Athlon 1.67-GHz 15.0-in XGA 30 GB combination,

DC709A ABE Athlon 1.53-GHz 14.1-in XGA 20 GB DVD +

DC709A ABH Athlon 1.53-GHz 14.1-in XGA 20 GB DVD +

DC709A ABU Athlon 1.53-GHz 14.1-in XGA 20 GB DVD +

CPU **

2.66-GHz

2.53-GHz

Display

15.0-in XGA 40 GB combination

Hard Drive

CD/DVD Drives

+ diskette

no diskette

+ diskette

diskette

+ diskette

no diskette

diskette

Standard SDRAM/ Video Mem

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

128 MB/16 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

Communication

iNIC + modem Li ion

iNIC + modem +

802.11b

iNIC + modem +

802.11b

iNIC + modem +

802.11b

iNIC + modem Li ion

Battery

Li ion

1-2 Product Information Service Manual

Notebook Product *

Pavilion ze4200 Notebook PC (continued)

DC710A ABE Athlon 1.67-GHz 15.0-in XGA 30 GB combination

DC710A ABH Athlon 1.67-GHz 15.0-in XGA 30 GB combination

DC711A ABE Athlon 1.8-GHz 15.0-in XGA 30 GB combination

DC713A ABD Athlon 1.8-GHz 15.0-in XGA 30 GB combination

DC760A ABG Pentium 4-M 1.9-GHz 14.1-in XGA 40 GB combination

DC761A ABU Celeron 2.0-GHz 15.0-in XGA 30 GB combination

DC761A UUZ Celeron 2.0-GHz 15.0-in XGA 30 GB combination

DC762A ABC Celeron 1.6-GHz 14.1-in XGA 20 GB DVD/

DC762A ABL Celeron 1.6-GHz 14.1-in XGA 20 GB DVD/

DC763A ABC Celeron 1.8-GHz 15.0-in XGA 40 GB combination

DC763A ABL Celeron 1.8-GHz 15.0-in XGA 40 GB combination

DC764A ABA Celeron 1.8-GHz 15.0-in XGA 40 GB combination/

DC765A ABD Pentium 4-M 2.0-GHz 15.0-in XGA 40 GB combination

DC766A ABD Celeron 2.0-GHz 15.0-in XGA 30 GB combination

DC804A ABZ Athlon 1.46-GHz 14.1-in XGA 20 GB combination

DC813A ABF Celeron 1.8-GHz 15.0-in XGA 40 GB combination

DC814A UUZ Pentium 4-M 2.0-GHz 15.0-in XGA 30 GB combination

DC815A UUZ Pentium 4-M 2.0-GHz 15.0-in SXGA 40 GB combination

DC816A UUZ Pentium 4-M 2.2-GHz 15.0-in SXGA 60 GB combination

DC850A ABD Celeron 1.8-GHz 14.1-in XGA 20 GB DVD/no

DD506A ABZ Athlon 1.47-GHz 14.1-in XGA 20 GB DVD/no

DD507A ABH Athlon 1.8-GHz 15.0-in XGA 40 GB combination

DD508A ABH Athlon 1.53-GHz 14.1-in XGA 20 GB combination

DD508A ABU Athlon 1.53-GHz 14.1-in XGA 20 GB combination

DD509A ABH Athlon 1.67-GHz 15.0-in XGA 30 GB combination

DD510A ABN Celeron 2.0-GHz 15.0-in XGA 30 GB combination

CPU **

Display

Hard Drive

CD/DVD Drives

+ diskette

no diskette

+ diskette

no diskette

+ diskette

diskette

+ diskette

Standard SDRAM/ Video Mem

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

128 MB/16 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

Communication

iNIC + modem Li ion

iNIC + modem +

802.11b

iNIC + modem Li ion

Battery

Li ion

Service Manual Product Information 1-3

Notebook Product *

Pavilion ze4200 Notebook PC (continued)

DD511A ABN Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

DD672A AB1 Pentium 4-M 1.9-GHz 15.0-in XGA 30 GB combination

DD673A AB1 Pentium 4-M 2.0-GHz 15.0-in XGA 30 GB combination

DD674A AB1 Pentium 4-M 2.0-GHz 15.0-in SXGA 40 GB combination

DD690A UUZ Celeron 1.6-GHz 14.1-in XGA 20 GB combination

Pavilion ze4100 Notebook PC

F5855 H/ABA Celeron 1.6-GHz 14.1-in XGA 20 GB combination/

F5856 H/ABA Celeron 1.8-GHz 14.1-in XGA 30 GB combination/

F5859 H/ABA Celeron 1.6-GHz 14.1-in XGA 20 GB combination/

F5861 H/ABA Celeron 1.6-GHz 14.1-in XGA 30 GB combination/

F5868 H/ABU Pentium 4-M 1.8-GHz 15.0-in XGA 40 GB combination

F5869 H/ABF Celeron 1.8-GHz 15.0-in XGA 30 GB combination

F5869 H/ABU Celeron 1.8-GHz 15.0-in XGA 30 GB combination

F5870 H/ABF Pentium 4-M 1.7-GHz 15.0-in XGA 30 GB combination

F5870 H/ABU Pentium 4-M 1.7-GHz 15.0-in XGA 30 GB combination

F5871 H/ABA Celeron 1.6-GHz 14.1-in XGA 30 GB combination/

F5873 H/ABF Celeron 1.6-GHz 14.1-in XGA 20 GB combination

F5873 H/ABU Celeron 1.6-GHz 14.1-in XGA 20 GB combination

F5874 H/ABG Celeron 1.7-GHz 14.1-in XGA 20 GB DVD +

F5875 H/ABG Pentium 4-M 1.8-GHz 14.1-in XGA 30 GB combination

F5878 HG/AR9

F5879 HG/AR9

CPU **

Celeron 1.7-GHz 14.1-in XGA 30 GB combination

Pentium 4-M 2.0-GHz 15.0-in XGA 40 GB combination

Display

Hard Drive

CD/DVD Drives

diskette

+ diskette

no diskette

+ diskette

no diskette

+ diskette

diskette

+ diskette

Standard SDRAM/ Video Mem

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

256 MB/32 uma LAN + modem Li ion

512 MB/32 uma LAN + modem Li ion

256 MB/32 uma LAN + modem Li ion

512 MB/uma LAN + modem Li ion

256 MB/uma LAN + modem Li ion

256 MB/32 uma LAN + modem Li ion

256 MB/uma LAN + modem Li ion

128 MB/32 uma LAN + modem Li ion

256 MB/uma LAN + modem Li ion

256 MB/32 uma LAN + modem Li ion

Communication

iNIC + modem Li ion

Battery

1-4 Product Information Service Manual

Notebook Product *

Compaq Evo Notebook N1050v Series

DC749A ABF Celeron 1.6-GHz 14.1-in XGA 30 GB combination

DC749A ABH Celeron 1.6-GHz 14.1-in XGA 30 GB combination

DC750A ABF Pentium 4-M 1.8-GHz 14.1-in XGA 30 GB DVD +

DC750A ABH Pentium 4-M 1.8-GHz 14.1-in XGA 30 GB DVD +

DC751A ABF Pentium 4-M 1.8-GHz 15.0-in XGA 30 GB combination

DC751A ABH Pentium 4-M 1.8-GHz 15.0-in XGA 30 GB combination

DC767T ABD Celeron 1.6-GHz 14.1-in XGA 30 GB combination

DC767T ABE Celeron 1.6-GHz 14.1-in XGA 30 GB combination

DC767T ABF Celeron 1.6-GHz 14.1-in XGA 30 GB combination

DC767T ABH Celeron 1.6-GHz 14.1-in XGA 30 GB combination

DC767T ABU Celeron 1.6-GHz 14.1-in XGA 30 GB combination

DC767T ABZ Celeron 1.6-GHz 14.1-in XGA 30 GB combination

DC768T ABE Pentium 4-M 1.8-GHz 14.1-in XGA 30 GB DVD +

DC768T ABF Pentium 4-M 1.8-GHz 14.1-in XGA 30 GB DVD +

DC768T ABH Pentium 4-M 1.8-GHz 14.1-in XGA 30 GB DVD +

DC768T ABU Pentium 4-M 1.8-GHz 14.1-in XGA 30 GB DVD +

DC768T ABZ Pentium 4-M 1.8-GHz 14.1-in XGA 30 GB DVD +

DC769T ABD Pentium 4-M 1.8-GHz 15.0-in XGA 30 GB combination

DC769T ABE Pentium 4-M 1.8-GHz 15.0-in XGA 30 GB combination

DC769T ABF Pentium 4-M 1.8-GHz 15.0-in XGA 30 GB combination

DC769T ABH Pentium 4-M 1.8-GHz 15.0-in XGA 30 GB combination

DC769T ABU Pentium 4-M 1.8-GHz 15.0-in XGA 30 GB combination

DC769T ABZ Pentium 4-M 1.8-GHz 15.0-in XGA 30 GB combination

DC770T ABD Pentium 4-M 1.8-GHz 14.1-in XGA 30 GB combination

DC770T ABF Pentium 4-M 1.8-GHz 14.1-in XGA 30 GB combination

CPU **

Display

Hard Drive

CD/DVD Drives

+ diskette

diskette

+ diskette

diskette

+ diskette

Standard SDRAM/ Video Mem

256 MB/64 MB integrated

Communication

iNIC + modem Li ion

Battery

Service Manual Product Information 1-5

Notebook Product *

Compaq Evo Notebook N1010v Series

F5771 J/ABJ Celeron 1.6-GHz 14.1-in XGA 20 GB CD +

F5772 J/ABJ Celeron 1.6-GHz 14.1-in XGA 30 GB CD +

Compaq Presario 2500 Series Mobile PC

DB390A ABA Pentium 4-D 2.4-GHz 15.0-in XGA 60 GB combination

DB391A ABA Pentium 4-D 2.4-GHz 15.0-in XGA 40 GB combination

DC606A AB2 Pentium 4-D 2.4-GHz 14.1-in XGA 40 GB DVD +

DC607A ABM Pentium 4-D 2.0-GHz 14.1-in XGA 40 GB combination

DC609A ABM Pentium 4-D 2.6-GHz 15.0-in XGA 60 GB combination

DC715A ABC Pentium 4-D 2.4-GHz 15.0-in XGA 60 GB combination/

DC715A ABL Pentium 4-D 2.4-GHz 15.0-in XGA 60 GB combination/

DC716A ACJ Pentium 4-D

DC716A AKL Pentium 4-D

DC716A UUF Pentium 4-D

DC717A ACJ Pentium 4-D 2.4-GHz 15.0-in XGA 30 GB combination

DC717A AKL Pentium 4-D 2.4-GHz 15.0-in XGA 30 GB combination

DC717A UUF Pentium 4-D 2.4-GHz 15.0-in XGA 30 GB combination

DC718A ABG Pentium 4-D

DC718A UUF Pentium 4-D

DC719A AB1 Pentium 4-D

DC719A AB5 Pentium 4-D

DC720A AB2 Pentium 4-D

DC721A ABG Pentium 4-D

DC722A AB5 Pentium 4-D

DC723A AB0 Pentium 4-D

DC724A AB0 Pentium 4-D

DC725A AB0 Pentium 4-D 2.4-GHz 15.0-in XGA 40 GB combination

DC726A ABO Pentium 4-D 2.4-GHz 14.1-in XGA 30 GB DVD +

CPU **

2.66-GHz

2.80-GHz

2.53-GHz

2.40-GHz

2.53-GHz

Display

15.0-in XGA 40 GB combination

14.1-in XGA 30 GB CD-ROM +

14.1-in XGA 40 GB DVD +

14.1-in XGA 40 GB combination

15.0-in XGA 40 GB combination

15.0-in XGA 30 GB DVD +

Hard Drive

CD/DVD Drives

diskette

+ diskette

diskette

+ diskette

no diskette

+ diskette

diskette

+ diskette

diskette

+ diskette

diskette

Standard SDRAM/ Video Mem

128 MB/uma LAN + modem Li ion

256 MB/uma LAN + modem Li ion

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

Communication

iNIC + modem +

802.11b

iNIC + modem Li ion

iNIC + modem +

802.11b

iNIC + modem +

802.11b

iNIC + modem Li ion

INIC, modem, +

802.11b

INIC, modem, +

802.11b

iNIC + modem Li ion

INIC, modem, +

802.11b

iNIC + modem Li ion

INIC, modem, +

802.11b

iNIC + modem Li ion

Battery

Li ion

1-6 Product Information Service Manual

Notebook Product *

Compaq Presario 2500 Series Mobile PC (continued)

DC727A AB1 Pentium 4-D 2.66-Hz 15.0-in SXGA 40 GB combination

DC728A AB1 Pentium 4-D

DC730A ABF Pentium 4-D

DC731A ABB Pentium 4-D

DC731A ABE Pentium 4-D

DC731A ABF Pentium 4-D

DC731A ABH Pentium 4-D

DC731A ABT Pentium 4-D

DC731A ABV Pentium 4-D

DC731A ABY Pentium 4-D

DC731A ABZ Pentium 4-D

DC731A AB9 Pentium 4-D

DC731A AK7 Pentium 4-D

DC731A AK8 Pentium 4-D

DC732A ABE Pentium 4-D

DC732A UUG Pentium 4-D

DC733A ABU Pentium 4-D

DC734A ABB Pentium 4-D 2.8-GHz 15.0-in XGA 40 GB combination

DC734A ABV Pentium 4-D 2.8-GHz 15.0-in XGA 40 GB combination

DC754 ABB Pentium 4-D

DC754 ABV Pentium 4-D

DC755A ABE Pentium 4-D

DC755A ABZ Pentium 4-D

DC755A UUG Pentium 4-D

DC660 ABU Pentium 4-D

DC817A ABU Pentium 4-D

CPU **

2.40-GHz

2.53-GHz

2.66-GHz

2.53-GHz

2.40-GHz

2.80-GHz

2.53-GHz

Display

15.0-in SXGA 30 GB combination

15.0-in XGA 30 GB combination

15.0-in XGA 40 GB combination

15.0-in XGA 40 GB combination/

15.0-in XGA 40 GB combination

15.0-in XGA 30 GB combination 256 MB/64 MB

15.0-in XGA 60 GB combination 512 MB/64 MB

15.0-in XGA 30 GB combination

Hard Drive

CD/DVD Drives

+ diskette

no diskette

+ diskette

Standard SDRAM/ Video Mem

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

integrated

384 MB/64 MB integrated

Communication

iNIC + modem Li ion

iNIC, modem, +

802.11b

iNIC + modem Li ion

Battery

Li ion

Service Manual Product Information 1-7

Notebook Product *

Compaq Presario 2100 Series Mobile PC

DB381A ABA Athlon 1.53-GHz 14.1-in XGA 40 GB combination/

DB382A ABA Athlon 1.67-GHz 15.0-in XGA 60 GB combination/

DB383A ABA Athlon 1.46-GHz 14.1-in XGA 20 GB combination/

DB954A ABA Celeron 1.6-GHz 14.1-in XGA 30 GB combination/

DC582A ABM Celeron 1.6-GHz 14.1-in XGA 30 GB CDRW +

DC583A ABA Celeron 1.7-GHz 15.0-in XGA 20 GB DVD +

DC584A ABA Celeron 1.8-GHz 15.0-in XGA 40 GB combination/

DC585A AB2 Pentium 4-M 1.9-GHz 14.1-in XGA 40 GB DVD/

DC586A AB5 Pentium 4-M 1.9-GHz 14.1-in XGA 20 GB DVD +

DC587A AB5 Pentium 4-M 2.0-GHz 14.1-in XGA 30 GB combination

DC588A AB0 Pentium 4-M 1.9-GHz 15.0-in XGA 40 GB DVD +

DC589A AB0 Pentium 4-M 2.0-GHz 14.1-in XGA 40 GB DVD +

DC700A ABC Athlon 1.53-GHz 14.1-in XGA 40 GB combination

DC700A ABL Athlon 1.53-GHz 14.1-in XGA 40 GB combination

DC701A ABC Athlon 1.67-GHz 15.0-in XGA 60 GB combination/

DC701A ABL Athlon 1.67-GHz 15.0-in XGA 20 GB combination/

DC702A ABF Athlon 1.53-GHz 14.1-in XGA 20 GB DVD +

DC703A ABE Athlon 1.53-GHz 14.1-in XGA 30 GB combination

DC703A ABF Athlon 1.53-GHz 14.1-in XGA 30 GB combination

DC704A UUF Athlon 1.46-GHz 14.1-in XGA 30 GB CD-ROM +

DC705A ABG Athlon 1.67-GHz 14.1-in XGA 30 GB combination

DC705A UUF Athlon 1.67-GHz 14.1-in XGA 30 GB combination

DC706A ABG Athlon 1.80-GHz 15.0-in XGA 40 GB combination

DC706A UUF Athlon 1.80-GHz 15.0-in XGA 40 GB combination

DC707A ABG Athlon 1.67-GHz 15.0-in XGA 30 GB DVD +

DC708A ABG Athlon 1.53-GHz 14.1-in XGA 30 GB combination

CPU **

Display

Hard Drive

CD/DVD Drives

no diskette

diskette

no diskette

diskette

+ diskette

diskette

+ diskette

no diskette

diskette

+ diskette

diskette

+ diskette

diskette

+ diskette

Standard SDRAM/ Video Mem

512 MB/64 MB integrated

256 MB/64 MB integrated

128 MB/16 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

128 MB/16 MB integrated

256 MB/64 MB integrated

Communication

iNIC + modem Li ion

INIC, modem, +

802.11b

iNIC + modem Li ion

Battery

Li ion

1-8 Product Information Service Manual

Notebook Product *

Compaq Presario 2100 Series Mobile PC (continued)

DC735A ABC Celeron 1.6-GHz 14.1-in XGA 30 MB combination

DC735A ABL Celeron 1.6-GHz 14.1-in XGA 30 MB combination

DC736A AB0 Pentium 4-M 2.0-GHz 14.1-in XGA 40 MB DVD +

DC736A AB2 Pentium 4-M 2.0-GHz 14.1-in XGA 40 MB DVD +

DC737A AB0 Celeron 1.7-GHz 15.0-in XGA 30 MB DVD +

DC738A AB2 Celeron 1.6-GHz 14.1-in XGA 20 MB CD-ROM +

DC738A ACJ Celeron 1.6-GHz 14.1-in XGA 20 MB CD-ROM +

DC738A AKL Celeron 1.6-GHz 14.1-in XGA 20 MB CD-ROM +

DC738A UUF Celeron 1.6-GHz 14.1-in XGA 20 MB CD-ROM +

DC739A ACJ Pentium 4-M 1.8-GHz 14.1-in XGA 30 MB CD-ROM +

DC739A AKL Pentium 4-M 1.8-GHz 14.1-in XGA 30 MB CD-ROM +

DC739A UUF Pentium 4-M 1.8-GHz 14.1-in XGA 30 MB CD-ROM +

DC740A ACJ Pentium 4-M 2.0-GHz 15.0-in XGA 30 MB combination

DC740A AKL Pentium 4-M 2.0-GHz 15.0-in XGA 30 MB combination

DC740A UUF Pentium 4-M 2.0-GHz 15.0-in XGA 30 MB combination

DC741A ACJ Pentium 4-M 2.0-GHz 15.0-in XGA 40 MB combination

DC741A AKL Pentium 4-M 2.0-GHz 15.0-in XGA 40 MB combination

DC741A UUF Pentium 4-M 2.0-GHz 15.0-in XGA 40 MB combination

DC742A ABB Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

DC742A ABH Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

DC742A ABT Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

DC742A ABV Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

DC742A ABY Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

DC742A ABZ Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

DC742A AB9 Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

DC742A AK8 Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

CPU **

Display

Hard Drive

CD/DVD Drives

+ diskette

diskette

+ diskette

diskette

Standard SDRAM/ Video Mem

256 MB/64 MB integrated

128 MB/32 MB integrated

128 MB/16 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

Communication

iNIC + modem Li ion

Battery

Service Manual Product Information 1-9

Notebook Product *

Compaq Presario 2100 Series Mobile PC (continued)

DC742A UUG Celeron 1.6-GHz 14.1-in XGA DVD +

DC743A ABB Li ion

DC743A ABV Celeron 1.8-GHz 15.0-in XGA 20 GB combination

DC743A ABZ Celeron 1.8-GHz 15.0-in XGA 20 GB 256 MB/64 MB

DC743A UUG 256 MB/64 MB

DC744A ABB Celeron 2.0-GHz 30 GB combination

DC744A ABT Celeron 2.0-GHz 15.0-in XGA 30 GB 256 MB/64 MB

DC744A ABV 15.0-in XGA 30 GB combination

DC744A AB7 Celeron 2.0-GHz 15.0-in XGA 30 GB 256 MB/64 MB

DC744A AB9 Celeron 2.0-GHz 15.0-in XGA combination

DC744A AK8

DC744A UUG Celeron 2.0-GHz 15.0-in XGA 30 GB combination

DC745A ABU Celeron 2.0-GHz 15.0-in XGA 30 GB combination/

DC746A ABB Pentium 4-M 2.0-GHz 15.0-in SXGA 40 GB 512 MB/64 MB

DC746A ABE Pentium 4-M 2.0-GHz 15.0-in SXGA 40 GB combination

DC746A ABF Pentium 4-M 2.0-GHz 15.0-in SXGA 40 GB combination

DC746A ABV Pentium 4-M 2.0-GHz 15.0-in SXGA 40 GB combination

DC746A ABY Pentium 4-M 2.0-GHz 15.0-in SXGA 40 GB combination

DC746A AB7 Pentium 4-M 2.0-GHz 15.0-in SXGA 40 GB combination

DC746A AK8 Pentium 4-M 2.0-GHz 15.0-in SXGA 40 GB combination

DC747A ABM Celeron 2.0-GHz 14.1-in XGA 40 GB combination

DC802A ABF Athlon 1.67-GHz 15.0-in XGA 30 GB combination

DC802A ABZ Athlon 1.67-GHz 15.0-in XGA 30 GB combination

DC803A ABF Athlon 1.8-GHz 15.0-in XGA 40 GB combination

DC803A ABZ Athlon 1.8-GHz 15.0-in XGA 40 GB combination

DC805A ABF Pentium 4-M 2.0-GHz 15.0-in SXGA 30 GB combination

CPU **

Celeron 1.8-GHz 15.0-in XGA 20 GB combination

Celeron 2.0-GHz Li ion

Celeron 2.0-GHz 15.0-in XGA 30 GB combination

Display

15.0-in XGA Li ion

Hard Drive

20 GB

30 GB

CD/DVD Drives

diskette

+ diskette

combination + diskette

+ diskette

combination + diskette

+ diskette

combination + diskette

+ diskette

no diskette

combination + diskette

+ diskette

Standard SDRAM/ Video Mem

256 MB/64 MB integrated

integrated

256 MB/64 MB integrated

integrated

256 MB/64 MB integrated

integrated

256 MB/64 MB integrated

integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

Communication

iNIC + modem Li ion

iNIC + modem

iNIC + modem Li ion

iNIC + modem

iNIC + modem Li ion

iNIC + modem

iNIC + modem Li ion

Battery

Li ion

1-10 Product Information Service Manual

Notebook Product *

Compaq Presario 2100 Series Mobile PC (continued)

DC806A ABH Celeron 1.6-GHz 14.1-in XGA 20 GB combination

DC806A AB7 Celeron 1.6-GHz 14.1-in XGA 20 GB combination

DC806A UUG Celeron 1.6-GHz 14.1-in XGA 20 GB combination

DC807A AK8 Celeron 1.8-GHz 14.1-in XGA 20 GB combination

DC808A ABE Celeron 2.0-GHz 15.0-in XGA 30 GB combination

DC808A ABH Celeron 2.0-GHz 15.0-in XGA 30 GB combination

DC808A ABY Celeron 2.0-GHz 15.0-in XGA 30 GB combination

DC808A AB7 Celeron 2.0-GHz 15.0-in XGA 30 GB combination

DC808A AK8 Celeron 2.0-GHz 15.0-in XGA 30 GB combination

DC809A ABB Pentium 4-M 1.8-GHz 15.0-in XGA 30 GB combination

DC809A ABV Pentium 4-M 1.8-GHz 15.0-in XGA 30 GB combination

DC810A AK8 Pentium 4-M 2.0-GHz 15.0-in SXGA 40 GB combination

DC811A ABZ Pentium 4-M 2.2-GHz 15.0-in SXGA 60 GB combination

DC849A AB0 Pentium 4-M 1.8-GHz 14.1-in XGA 30 GB DVD +

DD512A ABH Pentium 4-M 2.0-GHz 15.0-in XGA 40 GB combination

DD513A AK8 Celeron 1.8-GHz 14.1-in XGA 20 GB DVD +

DD514A UUG Celeron 1.6-GHz 15.0-in XGA 20 GB DVD +

DD515A AB0 Pentium 4-M 2.0-GHz 14.1-in XGA 40 GB combination

DD516A AB5 Pentium 4-M 1.8-GHz 14.1-in XGA 20 GB DVD +

DD517A ABA Athlon 1.67-GHz 15.0-in. XGA 30 GB combination,

DD664A ABU Athlon 1.46-GHz 14.1-in. XGA 20 GB DVD +

DD668A ABU Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

DD669A UUG Celeron 1.7-GHz 14.1-in XGA 20 GB DVD +

DD670A AB5 Pentium 4-M 1.8-GHz 15.0-in XGA 30 GB DVD +

DD671A AB5 Pentium 4-M 2.0-GHz 15.0-in XGA 30 GB combination

CPU **

Display

Hard Drive

CD/DVD Drives

+ diskette

diskette

+ diskette

diskette

+ diskette

diskette

no diskette

diskette

+ diskette

Standard SDRAM/ Video Mem

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

512 MB/64 MB integrated

256 MB/64 MB integrated

128 MB/32 MB integrated

256 MB/64 MB integrated

Communication

iNIC + modem Li ion

iNIC + modem +

802.11b

iNIC + modem Li ion

Battery

Service Manual Product Information 1-11

Notebook Product *

Compaq Presario 1100 Series Mobile PC

F5781 H/ABU Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

F5781 H/ABZ Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

F5782 H/ABZ Celeron 1.6-GHz 14.1-in XGA 20 GB combination

F5783 H/ABZ Celeron 1.8-GHz 15.0-in XGA 30 GB combination

F5876 H/ABD Celeron 1.6-GHz 14.1-in XGA 20 GB DVD +

F5877 H/ABD Celeron 1.6-GHz 14.1-in XGA 20 GB combination

F5880 H/ABD Celeron 1.8-GHz 14.1-in XGA 30 GB combination

CPU **

Display

Hard Drive

CD/DVD Drives

diskette

+ diskette

diskette

+ diskette

Standard SDRAM/ Video Mem

256 MB/uma LAN + modem Li ion

Communication

Battery

1-12 Product Information Service Manual

Table 1-2. Product Comparisons

HP Pavilion ze5200 HP Pavilion ze4200

Processor*

Memory

Display

Video

Operating System

Power States

HP Pavilion ze4100 Compaq Evo Notebook N1050v

Processor*

Memory

Display

Video

Operating System

Power States

Pentium 4-D (2.0-, 2.4-, and 2.8-GHz) Pentium 4-M (1.8- and 2.0-GHz)

Celeron (1.6-, 1.7-, 1.8-, and 2.0-GHz) Athlon (1.53-, 1.37-, and 1.80-GHz)

Up to 1 GB (1024 MB) SDRAM using 512 MB modules. At least 512 MB SDRAM preinstalled.

15.0-inch XGA (1024 × 768) or SXGA+ (1400 × 1050) or 14.1-inch XGA (1024 × 768) active-matrix TFT.

ATI Mobility Radeon graphics accelerator with 16, 32, or 64 MB UMA graphics memory, 4x AGP graphics capability.

Windows XP Professional or Home preinstalled.

On, Standby, Hibernate, Off. On, Standby, Hibernate, Off.

Pentium 4-M (1.7-, 1.8-, and 2.0-GHz) Celeron (1.6-, 1.7-, and 1.8-GHz)

Up to 1 GB (1024 MB) SDRAM using 512 MB modules. At least 128 MB SDRAM preinstalled.

15.0-inch XGA (1024 × 768) or SXGA+ (1400 × 1050) or 14.1-inch XGA (1024 × 768) active-matrix TFT.

ATI Mobility Radeon graphics accelerator with 16, 32, or 64 MB UMA graphics memory, 4x AGP graphics capability.

Windows XP Professional or Home preinstalled.

On, Standby, Hibernate, Off. On, Standby, Hibernate, Off.

Up to 512 MB SDRAM using 256 MB modules. At least 128 MB SDRAM preinstalled.

15.0-inch XGA (1024 × 768) or SXGA+ (1400 × 1050) or 14.1-inch XGA (1024 × 768) active-matrix TFT.

ATI Mobility Radeon graphics accelerator with 16, 32, or 64 MB UMA graphics memory, 4x AGP graphics capability.

Windows XP Professional or Home preinstalled.

Pentium 4-M (1.7-, 1.8-, and 2.0-GHz) Celeron (1.6-, 1.7-, and 1.8 GHz)

Up to 1 GB (1024 MB) SDRAM using 512 MB modules. At least 128 MB SDRAM preinstalled.

15.0-inch XGA (1024 × 768) or SXGA+ (1400 × 1050) or 14.1-inch XGA (1024 × 768) active-matrix TFT.

ATI Mobility Radeon graphics accelerator with 16, 32, or 64 MB UMA graphics memory, 4x AGP graphics capability.

Windows XP Professional or Home preinstalled.

Service Manual Product Information 1-13

Compaq Evo Notebook N1010v Compaq Presario 2500

Processor*

Memory

Display

Video

Operating System

Power States

Compaq Presario 2100 Compaq Presario 1100

Processor*

Memory

Display

Video

Operating System

Power States

* Intel Desktop Pentium 4-D, Intel Mobile Pentium 4-M, and Intel Celeron Mobile processors. All models feature HP TopTools, and are ACPI compliant.

Celeron (1.6- and 1.8-GHz) Pentium 4-D (2.0-, 2.4-, and 2.6-GHz)

Up to 512 MB SDRAM using 256 MB modules. At least 128 MB SDRAM preinstalled.

15.0-inch XGA (1024 × 768) or SXGA+ (1400 × 1050) or 14.1-inch XGA (1024 × 768) active-matrix TFT.

ATI Mobility Radeon graphics accelerator with 16, 32, or 64 MB UMA graphics memory, 4x AGP graphics capability.

Windows XP Professional or Home preinstalled.

On, Standby, Hibernate, Off. On, Standby, Hibernate, Off.

Pentium 4-M (1.8-, 1.9-, and 2.0-GHz) Celeron (1.6-, 1.7-, 1.8-, and 2.0-GHz) Athlon (1.46-, 1.53-, and 1.67-GHz)

Up to 1 GB (1024 MB) SDRAM using 512 MB modules. At least 128 MB SDRAM preinstalled.

15.0-inch XGA (1024 × 768) or SXGA+ (1400 × 1050) or 14.1-inch XGA (1024 × 768) active-matrix TFT.

ATI Mobility Radeon graphics accelerator with 16, 32, or 64 MB UMA graphics memory, 4x AGP graphics capability.

Windows XP Professional or Home preinstalled.

On, Standby, Hibernate, Off. On, Standby, Hibernate, Off.

Up to 512 MB SDRAM using 256 MB modules. At least 256 MB SDRAM preinstalled.

15.0-inch XGA (1024 × 768) or SXGA+ (1400 × 1050) or 14.1-inch XGA (1024 × 768) active-matrix TFT.

ATI Mobility Radeon graphics accelerator with 16, 32, or 64 MB UMA graphics memory, 4x AGP graphics capability.

Windows XP Professional or Home preinstalled.

Celeron (1.6- and 1.8-GHz)

Up to 512 MB SDRAM using 256 MB modules. At least 128 MB SDRAM preinstalled.

15.0-inch XGA (1024 × 768) or SXGA+ (1400 × 1050) or 14.1-inch XGA (1024 × 768) active-matrix TFT.

ATI Mobility Radeon graphics accelerator with 16, 32, or 64 MB UMA graphics memory, 4x AGP graphics capability.

Windows XP Professional or Home preinstalled.

1-14 Product Information Service Manual

Features

The following three illustrations show the notebook’s main external features. For an exploded view of the notebook, see page 4-2.

Figure 1-1. Front View

1. Notebook open/close latch.

2. One-touch buttons.

3. Keyboard status lights.

4. Power button. Turns the notebook on and off.

5. Touch pad, scroll pad, click buttons, plus on-off button.

6. Main status lights (left to right): power mode, hard disk activity, battery.

7. Microphone option (not available).

8. Infrared port.*

9. Wireless on-off button and indicator light.*

10. Battery.

11. CD-ROM, DVD, or other drive.

12. PS/2 keyboard or PS/2 mouse port (supports Y adapter).

* on certain models

Service Manual Product Information 1-15

Figure 1-2. Back View

13. AC adapter jack.

14. Two universal serial bus (USB) ports.

15. LAN port.*

16. S-video port.*

17. Parallel port (LPT1). Use this port for a parallel printer or other parallel device.

18. Serial port (COM1). Use this port for a serial mouse, modem, printer, or other serial device.

19. External monitor port.

20. Kensington lock slot (security connector).

21. Modem port.*

22. PCMCIA card and CardBus slot and button.

23. IEEE 1394 port.*

24. Audio jacks (left to right): external microphone, audio out (headphones).

25. Volume controls.*

26. Audio mute button and audio mute light.*

27. Floppy drive.*

* on certain models

1-16 Product Information Service Manual

Figure 1-3. Bottom View

28. Hard disk drive.

29. Battery latch.

30. SDRAM door.

31. Reset button.

32. Port replicator connect.*

33. Mini-PCI door (no user parts inside).

* on certain models

Service Manual Product Information 1-17

Operation

This section gives an overview of the notebook’s operation.

Turning the Notebook On and Off

You can start and stop your notebook using its power button. However, at certain times you might want to use other methods to start or stop the notebook—depending on power considerations, types of active connections, and start-up time.

Note

This manual describes the notebook in its original factory configuration, with all settings at their default values.

Table 1-3. Activating Power Modes

Power mode To enter this mode

On Power mode status light is on.

Standby mode

Saves significant power. Turns off the display and other components. Maintains current session in RAM. Restarts quickly. Restores network connections. Power mode status light blinks.

Hibernation mode Saves maximum power. Saves current session to disk, then shuts down. Restores network connections. Power mode status light is off.

Shut down (off) Saves maximum power. Turns off without saving current session. At startup, resets everything, starts a new session, and restores network connections. Power mode status light is off.

To turn on: Press the power button to restart, or to resume your session from Standby or Hibernation mode.

Press the power button.

Press the power button –or– click Start > Turn Off Computer > Stand By (Windows XP) –or– click Start > Shut Down > Standby (Windows 2000) –or– allow timeout.

Press Fn+F12 –or– click Start > Shut Down > Hibernate (Windows 2000) –or– allow timeout.

Click Start > Turn Off Computer > Turn Off (Windows XP) –or– click Start > Shut Down > Shut down (Windows 2000) –or– press the power button for 4 seconds (only if the Start menu procedure doesn’t work).

1-18 Product Information Service Manual

Checking the Status of the Notebook

The main status lights on the front of the notebook report power status, battery status, and hard disk activity.

Table 1-4. Main Status Lights (front of notebook)

Meaning

Power status

On: notebook is on (even if the display is off). Blinking: notebook is in Standby mode. Off: notebook is off or in Hibernation mode.

Hard disk drive activity

On: notebook is accessing the hard disk drive.

Battery status

Green: The AC adapter is connected and the battery is fully charged. Amber: The AC adapter is connected and the battery is charging. Blinking: The AC adapter is connected and the battery is missing or has a fault. Off: The AC adapter is not connected.

The keyboard status lights, located above the keyboard, indicate the states of the keyboard locks.

Table 1-5. Keyboard Status Lights

Meaning

Caps Lock

Caps Lock is active.

Num Lock

Num Lock is active. (The Keypad Lock must also be on to use the embedded keypad.)

Keypad Lock

The embedded keypad is active (Fn+F8). Num Lock must also be on for the numeric keys; otherwise, cursor control is active (as marked on an external keyboard).

Service Manual Product Information 1-19

Using Fn Hot Keys

The combination of the Fn key plus another key creates a hot key—a shortcut key sequence—for various system controls. To use a hot key, press and hold Fn, press the appropriate second key, then release both keys.

Table 1-6. Fn Hot Keys

Hot Key Effect

Fn+F1 Decreases the display brightness.

Fn+F2 Increases the display brightness.

Fn+F5 Toggles among the built-in display, an external display, and simultaneous display on

both.

Fn+F8 Toggles the built-in keypad on and off. Does not affect an external keyboard. If Num

Lock is on, then the numeric functions are active; otherwise, cursor control is active (as marked on an external keyboard).

Fn+F12 Enters Hibernation mode.

Fn+NumLock Toggles Scroll Lock on and off.

Fn+Page Up Increases the audio volume and cancels the mute setting.

Fn+Page Down Decreases the audio volume.

Fn+Backspace Audio mute.

1-20 Product Information Service Manual

Resetting the Notebook

Occasionally, Windows or the notebook might stop responding, so that you cannot turn the notebook off. If this happens, try the following in the order listed. Press the power button to restart.

• If possible, shut down Windows:

Windows XP: press CTRL+ALT+DEL, and then click Shut Down, Restart.

Windows 2000: press CTRL+ALT+DEL, click Shut Down, and press the power button to restart.

• Press and hold the power button for about four seconds until the display shuts down, and then press the power button again to restart.

• Use a ball-point pen or a straightened paper clip to press the reset button on the bottom of the notebook.

Figure 1-4. Resetting the Notebook

Note

To boot from a CD, insert a bootable CD (such as the Recovery CDs) into the CD/DVD drive, then restart. Press Esc when the HP logo appears, then select the CD/DVD drive as the temporary boot device.

Service Manual Product Information 1-21

Specifications

The following tables list the specifications for the notebook and its accessories. These are subject to change: for the latest versions, see the HP Notebook Web site (www.hp.com/notebooks).

Table 1-7. Specifications

Physical Attributes

Processor and Bus Architecture

Size (14-inch display): 328 × 272 × 33 mm (12.9 × 10.7 × 1.3 in). Size (15-inch display): 328 × 272 × 35 mm (12.9 × 10.7 × 1.4 in). Weight: 2.9 kg (6.5 lb) minimum, depending on configuration.

HP Pavilion ze5200:

2.00-, 2.40-, 2.53-, 2.66-, or 2.80-GHz Intel Desktop Pentium 4 processor-D with Intel Speed Step technology, 512-KB L2 cache, and 1.2- to 1.3-V core low-power processor with 400-MHz processor system bus.

HP Pavilion ze4200:

1.8-, 1.9-, 2.0-, or 2.2-GHz Intel Mobile Pentium 4 processor-M with Intel Speed Step technology, 512-KB L2 cache, and 1.2- to 1.3-V core low-power processor with 400-MHz processor system bus.

or

1.6-, 1.7-, 1.8-, or 2.0-GHz Intel Mobile Celeron processor with 256-KB L2 cache and

1.45-V core low-power processor with 133-MHz processor system bus.

or

1.46-, 1.53-, 1.67-, or 1.80-GHz Athlon processor with 256-KB L2 cache and 1.45-V core low-power processor with 133-MHz processor system bus.

HP Pavilion ze4100:

1.7-, 1.8-, or 2.0-GHz Intel Mobile Pentium 4 processor-M with Intel Speed Step technology, 512-KB L2 cache, and 1.2- to 1.3-V core low-power processor with 400-MHz processor system bus.

or

1.6-, 1.7-, or 1.8-GHz Intel Mobile Celeron processor with 256-KB L2 cache and

1.45-V core low-power processor with 133-MHz processor system bus.

Compaq Evo Notebook N1050:

1.8-GHz Intel Mobile Pentium 4 processor-M with Intel Speed Step technology, 512-KBL2 cache, and 1.2- to 1.3-V core low-power processor with 400-MHz processor system bus.

or

1.6-GHz Intel Mobile Celeron processor with 256-KB L2 cache and 1.45-V core low-power processor with 133-MHz processor system bus.

Compaq Presario 2500:

2.00-, 2.40-, 2.53-, 2.60-, 2.66-, or 2.80-GHz Intel Desktop Pentium 4 processor-D with Intel Speed Step technology, 512-KB L2 cache, and 1.2- to 1.3-V core low-power processor with 400-MHz processor system bus.

1-22 Product Information Service Manual

Processor and Bus Architecture (continued)

Video

Power

Mass Storage

RAM

Audio System

Keyboard and Pointing Device

LAN (certain models)

Compaq Presario 2100:

1.8-, 1.9-, 2.0-, or 2.2-GHz Intel Mobile Pentium 4 processor-M with Intel Speed Step technology, 512-KB L2 cache, and 1.2- to 1.3-V core low-power processor with 400-MHz processor system bus.

or

1.6-, 1.7-, 1.8-, or 2.0-GHz Intel Mobile Celeron processor with 256-KB L2 cache and

1.45-V core low-power processor with 133-MHz processor system bus.

or

1.46-, 1.53-, 1.67-, or 1.80-GHz Athlon processor with 256-KB L2 cache and 1.45-V core low-power processor with 133-MHz processor system bus.

Compaq Evo Notebook N1010v and Presario 1010:

1.6- or 1.8-GHz Intel Mobile Celeron processor with 256-KB L2 cache and 1.45-V core low-power processor with 133-MHz processor system bus.

14.1-inch XGA (1024 × 768), or 15.0-inch XGA (1024 × 768) or SXGA+ (1400 × 1050) active-matrix (TFT) LCD display. Hardware 3D acceleration, hardware DVD acceleration.

External monitors up to 1600 × 1200 resolution, 16M colors, and at least 85 Hz refresh rate (only 60 Hz at 1400 × 1050). Refresh rate and clarity may vary depending on monitor, resolution, and color depth. ATI Mobility Radeon graphics accelerator with 16- or 32-MB DDR graphics memory, 4x AGP graphics capability. Dual display capability (depends on operating system support).

Rechargeable lithium-ion (14.8 Vdc) or nickel-metal-hydride (9.6 Vdc) battery with LED charge-level gauge. Battery life: up to 3 (LiIon) or 2 hours (NiMH) hours typical (varies with model, usage, and power settings). Fast battery recharge: 2 hours when system is off, 3 hours when system is on. Low-battery warning. Suspend/resume capability.

Universal AC adapter: 100–240 Vac (50/60 Hz) input, 19 Vdc output, 75 W.

20- to 40-GB removable hard drive with Ultra-DMA 100 interface.

1.44-MB floppy drive (certain models). 24x CD-ROM, or 8x DVD, or CD-RW, or CD-RW/DVD drive (or higher).

At least 128 MB SDRAM preinstalled.

HP Pavilion ze5200, ze4200, ze4100, Compaq Evo N1050v, Compaq Presario 2500, and Compaq Presario 2100

Two slots for PC2100 DDR-266 SDRAM modules. Up to 1 GB (1024 MB) SDRAM using 512 MB modules.

Compaq Evo N1010v and Presario 1100

Two slots for PC2100 DDR-266 SDRAM modules. Up to 512 MB SDRAM using 256 MB modules.

Stereo sound via two built-in speakers. 3D-enhanced audio. Volume and mute buttons (certain models). Headphone-out and microphone-in.

87/88-key touch-type QWERTY keyboard with 101/102 key emulation. Embedded numeric keypad. 12 function (Fn) keys. 5 user-programmable One-Touch buttons. Touch pad with integrated scroll pad, on-off button and indicator. Left and right click buttons.

Ethernet 10Base-T (10 Mbps) and 100Base-TX (100 Mbps) support. Supports wake-on-LAN, fast IP, DMI, dRMON. MBA (Managed Boot Agent) support for PXE/BINL, NCP/IPX, DHCP.

Service Manual Product Information 1-23

Modem (certain models)

Wireless LAN (certain models)

Input/Output

Expandability

Security Features

Environmental Limits

Major ICs

Software-based modem. Data speed: 56 Kbps (V.92) maximum. Fax speed: 14.4 Kbps, Class 1 and 2. Modulation: V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34, V.90, V.92, X2, Bell 103, Bell 212A. Synchronous transfer: V.80. Compression: V.42bis, MNP5. Error correction: V.42, MNP2-4. Fax: Group 3 fax, Class 1. V.17, V.27ter, V.29, V.21.

Radio: IEEE 802.11b, WECA Wi-Fi compliant, direct-sequence spread-spectrum. Operating frequency: 2.5-GHz ISM band, exact frequencies and channels depend on country. Raw data rate: 1, 2, 5.5, or 11 Mbps. Transmitter output: 15 dBm typical (approx. 30 mW), 16 dBm max (approx. 40 mW). Receiver sensitivity: –84 dBm typical. Range: up to 100 m (300 ft) or more, depending on environment and conditions. On-off button and indicator. Mini-PCI interface.

9-pin, 115,200-bps serial. 25-pin bi-directional ECP/EPP parallel. 15-pin VGA video-out with DDC support. S-video TV out (certain models). PS/2 keyboard/mouse. 4-Mbps IrDA-compliant infrared port (certain models). IEEE-1394 (certain models). Universal serial bus (USB 1.1), two ports.

One or two 16-/32-bit PC Card slots, Type II or III, CardBus enabled. Optional port replicator (certain models).

User and administrator passwords. System password. PC identification displayed at boot. WMI-accessible electronic serial number. Kensington MicroSaver lock slot.

Operating temperature: 5 to 35° C (41 to 95° F). Operating humidity: 20 to 90 percent RH (5 to 35° C). Operating altitude: up to 3000 m (10,000 ft) at 25° C (77° F). Storage temperature: –20 to 50° C (–4 to 122° F).

CPU: Intel Mobile Pentium 4 processor-M. Core logic: ALI 1671/1535+ chipset. Display controller: ATI Mobility Radeon M6-C/P. Audio/Modem controller: Conexant Smart AMC CX20468-21. CardBus controller: TI PC1520. Keyboard/embedded controller: National PC87570. Super I/O: integrated in core logic. IEEE 1394: TI TSB43AB22. LAN: National NS83815.

802.11b wireless LAN: Ambit with Intersil Prism 2.5 chipset.

or

CPU: Intel Mobile Celeron processor. Core logic: VIA Twister-T + VT8231 chipset. Display controller: S3 Savage Pro integrated in core logic. Audio/Modem controller: Conexant Smart AMC CX20468-21. CardBus controller: O2Micro 6912. Keyboard/embedded controller: National PC87570. Super I/O: integrated in core logic. LAN: VIA Phy, MAC integrated in core logic.

802.11b wireless LAN: Ambit with Intersil Prism 2.5 chipset.

1-24 Product Information Service Manual

Table 1-8. Accessories

Accessory Memory

F4694-60901 317434-001

F4695-60901 317435-001

F4696-60901 317436-001

Hard Drives

0950-4193 319412-001

0950-4318

0950-4287

0950-4168

0950-4162 319413-001

0950-4319

0950-4360

0950-4176

0950-4320 319414-001

0950-4288

319415-001

319416-001

320692-001

Description

128MB DDR266B

256MB DDR266B

512MB DDR266B

HDD-20 GB 9.5mm, Hitachi ATA100

HDD-20 GB 9.5mm, IBM ATA100 FDB HDD-20 GB 9.5mm, TOSH ATA100 FDB HDD-30 GB 9.5mm, Hitachi ATA100 HDD-30 GB 9.5mm, IBM (diablo) ATA100

HDD-30 GB 9.5mm, IBM ATA100 FDB (Cascade) HDD-30 GB 9.5mm, TITAN Toshiba ATA100 (TITAN) HDD-30 GB 9.5mm, Toshiba ATA100 HDD-40 GB 9.5mm, IBM ATA100 FDB

HDD-40 GB 9.5mm, Toshiba ATA100 SPS-DRV HD 60 G (4200 rpm)

SPS-DRV HD 60 G (5400 rpm)

SPS-DRV,HD,80GB,4200RPM

Pavilion

ze5200

and

Presario

2500

•

Pavilion

ze4200,

Evo

N1050v,

and

Presario

2100

• • • •

• •

•

Pavilion

ze4200

and

Presario

2100

• • •

•

Evo

N1010v

and

Presario

1100

• •

Pavilion

ze4100

•

Service Manual Product Information 1-25

Accessory Power

Options

F4600-60901

F4809-60901 319411-001

8120-6312 317444-011

8120-6314 Cord, Pwr, Europe #ABB (2w)

317444-002 SPS-CORD-AC PWR 2

317444-061 SPS-CORD-AC PWR 2 WIRE-IT

8120-6316 317444-291

317444-AD1 SPS-CORD-AC PWR 2

8120-8373 317444-AA1

317444-101 SPS-CORD-AC PWR 2

317444-111 SPS-CORD-AC PWR 2

317444-AB1 SPS-CORD-AC PWR 2

8120-8699 317444-031

8120-6313 317444-001

PC Cards

F4640-60978 319468-051

F4640-60977 319468-002

Docking

F4808-60901 Port Replicator Assy

F4808-60902 Simple Port Replicator hp/compaq

Description

AC-Adapter-Ultraslim Delta 75W s/PFC Battery, LiIon 4.4AHr 8 Cell Li-Ion

Cord, Pwr, Austr #ABG (2w)

WIRE-INTL

Cord, Pwr, Japan #ABJ (2w)

WIRE-KOR Cord, Pwr, People’s Republic of

China #AB2 (2w)

WIRE-SWE

WIRE-SWI

WIRE-TAI Cord, Pwr, UK (EPSR) For Hong

Kong (2w)

Cord, Pwr, US #ABA (2w)

Card, mini-PCI-802.11B France

Card, mini-PCI-802.11B worldwide

Pavilion

ze5200

and

Presario

2500

• •

• • • • •

• • •

• •

•

• •

•

• • • •

• • • • •

• •

Pavilion

ze4200,

Evo

N1050v,

and

Presario

2100

Pavilion

ze4200

and

Presario

2100

•

• • •

•

Evo

N1010v

and

Presario

1100

• •

Pavilion

ze4100

1-26 Product Information Service Manual

Internal Design

The motherboard PCA is the central component of the notebook’s design. It plays a role in virtually all system functions. The CPU module and most other subsystems connect to the motherboard.

The following figure shows the connections among the notebook’s replaceable electronic modules. Table 1-9 on page 1-28 lists the roles that these modules play in the notebook’s functional subsystems.

Figure 1-5. Replaceable Module Diagram

Service Manual Product Information 1-27

Table 1-9. Functional Structure Description

Bootup

Processor

Memory

Power

Display

Hard disk

Floppy drive

Keyboard

PS/2 Touchpad

Audio

Status

Serial

Parallel

Infrared

PS/2 port

USB

S-Video

Port Replicator

PCMCIA

Wireless LAN (certain models)

LAN

Modem

CPU module Motherboard Hard disk drive Floppy drive

CPU module Motherboard

Motherboard SDRAM module

Battery Motherboard

Switchboard PCA AC adapter

Motherboard SDRAM module Display assembly

Motherboard Hard disk drive

Motherboard Floppy drive

Motherboard Switchboard PCA Keyboard

Motherboard Top case

Motherboard

Speaker assembly

Motherboard Switchboard PCA Top case

Motherboard I/O controller, serial connector.

Motherboard I/O controller, parallel connector.

Motherboard IR PCA

Motherboard PS/2 connector, keyboard controller.

Motherboard Bus controller (South Bridge), USB connector.

Motherboard I/O controller, S-video connector (certain models).

Motherboard Port replicator logic, port replicator connector (certain models).

Motherboard PCMCIA socket

Mini-PCI Antenna PCAs IR PCA

Motherboard LAN circuitry, bus controller, LAN connector.

Motherboard Modem circuitry (certain models), modem connector.

Main processor (MMO). Primary system circuitry, system BIOS. First source of disk-based startup code. Second source of disk-based startup code.

Main processor, numeric data processor, L1 and L2 cache. Primary system circuitry.

Video RAM (XE4500). Changeable SDRAM (2 slots), video RAM (XE4100).

Power storage. AC adapter socket, reset button, lid switch, power supply, power control circuitry. Power button AC-to-DC converter.

Graphics controller, video RAM. Display output, backlight, power converter for backlight.

Hard disk controller. Hard disk mechanism.

I/O controller, floppy connector. Floppy drive mechanism.

Keyboard BIOS, keyboard controller. Power switch, one-touch buttons Key switches.

Keyboard circuitry, keyboard controller, keyboard BIOS. Touch pad sensor, click buttons, controller (PS/2 output).

Audio controller, audio decoder, speaker amplifier, microphone, external audio jacks, headphone amplifier, audio-off switch. Speakers.

LED circuitry, keyboard controller. Keyboard LEDs. Main status LEDs.

I/O controller. Infrared transmitter/receiver.

PCMCIA controller. PCMCIA connectors.

I/O controller, radio, radio frequency circuitry. Transmit/receive antennas. On/off switch, indicator light.

1-28 Product Information Service Manual

Removal and Replacement

This chapter tells you how to remove and replace the notebook’s components and assemblies. The items marked by

• Assembly, speaker (page 2-12). Battery, CMOS (page 2-36).

• Battery, main (page 2-4).

• Card, wireless LAN mini-PCI (page 2-6).

Case, bottom (page 2-34). Case, top (page 2-20).

• Cover, keyboard (page 2-10). Assembly, display (page 2-17).

• Door, mini-PCI (page 2-9).

• Door, SDRAM (page 2-9).

Doors, PCMCIA (page 2-34).

• Drive, CD/DVD (page 2-16).

• in the following table are user-replaceable.

Table 2-1. Removal Cross-Reference

Drive, floppy (page 2-22).

• Drive, hard disk (page 2-7).

• Feet, rubber (page 2-9).

Heatsink (with fan) (page 2-26).

• Keyboard (page 2-13).

• Module, SDRAM (page 2-5).

Module, CPU (page 2-28). PCA, antennas (page 2-17). PCA, I/R (page 2-24). PCA, motherboard (page 2-30). PCA, switchboard (page 2-13).

• Rubber screw plugs, display (page 2-9).

2

Caution

Always provide proper grounding when performing repairs. Without proper grounding, an electrostatic discharge can damage the notebook and its components.

Notes

Reassembly steps are the reverse of the removal steps. Reassembly notes are included at the end of each section below.

Symbols like these are displayed throughout this chapter to show approximate full-size screw outlines. You can use these to verify the sizes of screws before you install them. Installing a wrong-size screw can damage the notebook. (The symbol at the left represents an M2.5 × 4 mm T-head screw.)

Service Manual Removal and Replacement 2-1

Table 2-2. Required Equipment

• #0 and #1 Phillips screwdrivers, preferably magnetized.

• Small flat-blade screwdriver.

• 5 mm nut driver

Table 2-3. Recommended Screw Torque Values

Screw Thread Size Torque (cm-kgf) Torque (in-lbf)

M2 2,0 – 2,5 1.7 – 2.2

M2.5 (hinges) 3,5 – 4,0 3.0 – 3.4

M2.5 (other) 2,5 – 3,0 2.2 – 2.6

M3 2,5 – 3,0 2.2 – 2.6

Standoff, hex 2,5 – 3,0 2.2 – 2.6

2-2 Removal and Replacement Service Manual

Disassembly Flowchart

The following diagram shows the general “path” you will use when disassembling the notebook to access any particular component.

Figure 2-1. Disassembly Flow

Service Manual Removal and Replacement 2-3

Removing the Battery

(User-Replaceable)

Required Equipment

• None.

Removal Procedure

• Slide the battery’s release latch, then pull the battery out of its compartment.

Figure 2-2. Removing the Battery

2-4 Removal and Replacement Service Manual

Removing a SDRAM Module

(User-Replaceable)

The notebook has no system memory built into its motherboard, but has two slots for SDRAM modules. One slot contains an SDRAM module that was factory installed.

Note

HP Pavilion ze5200, ze4200, ze4100, Compaq Evo Notebook N1050v and N1010v, and Presario 2500, 2100, and 1100 notebooks use only DDR266 SDRAM modules. Using the wrong type of module prevents the notebook from booting.

Caution

Handle the SDRAM module only by its edges and provide proper grounding, or you might damage the module through electrostatic discharge.

Required Equipment

• #1 Phillips screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and then remove the battery.

2.

On the bottom of the notebook, loosen the captive screws holding the SDRAM door, and then remove the door.

3.

Press outward on the latches at the sides of the SDRAM module to release it (the SDRAM module pops up).

4.

Carefully pull the SDRAM module out of the connector.

Figure 2-3. Removing an SDRAM Module

Reassembly Notes

• Carefully press the SDRAM module into the connector at an angle of about 30°, until it is fully

inserted. Then press down on both sides of the SDRAM module until the latches snap closed.

Service Manual Removal and Replacement 2-5

Removing the Wireless LAN Mini-PCI Card

(User-Replaceable)

Certain notebooks include a wireless LAN mini-PCI card under the mini-PCI door on the bottom of the notebook.

Caution

Handle the Mini-PCI card only by its edges and provide proper grounding, or you might damage the card through electrostatic discharge.

Required Equipment

• #0 Phillips screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and then remove the battery.

2.

On the bottom of the notebook, loosen the captive screws holding the Mini-PCI door, and then remove the door.

Caution

Be careful when connecting and disconnecting the antenna cables from the mini-PCI card. Damaged cables or connectors can degrade notebook performance.

3.

Disconnect the two antenna cables from the mini-PCI card.

4.

Press outward on the latches at the sides of the mini-PCI card to release it (the mini-PCI card pops up).

5.

Carefully pull the mini-PCI card out of the connector.

Figure 2-4. Removing the Mini-PCI Card

Reassembly Notes

• Carefully press the mini-PCI card into the connector at an angle of about 30°, until it is fully inserted. Then press down on both sides of the mini-PCI card until the latches snap closed.

2-6 Removal and Replacement Service Manual

Removing the Hard Disk Drive

(User-Replaceable)

Required Equipment

• #1 Phillips screwdriver.

Removal Procedure

Important

If you are installing a new hard disk drive, load the factory software and operating system on the drive as described in “Recovering the Factory Software,” as shown on the next page.

1.

Unplug the AC adapter, if present, and then remove the battery.

2.

On the bottom of the notebook, remove the hard drive rubber screw plugs and retaining screws.

3.

Carefully pull the hard drive out of the notebook.

Screw, M2.5×6mm (2)

Figure 2-5. Removing the Hard Disk Drive

Service Manual Removal and Replacement 2-7

4.

Remove the screws from the drive and drive tray, then lift the drive out of the tray.

5.

Remove the connector from the hard disk drive.

Screw, M3×4mm (4)

Figure 2-6. Removing the Hard Disk Drive Tray

Recovering the Factory Software

The following procedure describes how to recover the notebook’s original software and operating system. This process can take up to 15 minutes to complete. (For more information about recovering the factory software installation, see the readme.txt file in the root directory of the Recovery CDs.)

Caution

Do not interrupt the following process or unplug the AC adapter until the process completes.

1.

Connect the AC adapter to the notebook.

2.

Insert Recovery CD disk 1 into the notebook’s CD/DVD drive. If the notebook is turned off, use a pin or straightened paper clip to press the release switch on the drive door to open it.

3.

Turn on or restart the notebook.

4.

When the HP logo appears, press Esc to display the Boot menu.

5.

Use the arrow keys to select the CD/DVD drive as the first boot device, then press Enter.

6.

When the Recovery CD dialog box appears, follow the displayed instructions. If prompted, accept the recommended partition size.

To create the Utility partition without installing the factory software, click Advanced and select

not to install the operating system.

If the hard disk is partitioned into several logical drives, you can install the factory software on

drive C without affecting other drives. Click Advanced and select to restore only the C partition.

7.

When prompted to reboot the notebook, press Ctrl+Alt+Del and follow any instructions that appear.

2-8 Removal and Replacement Service Manual

Replacing Small Parts

(User-Replaceable)

The user can replace the following small parts.

Table 2-4. Replacing Small Parts (User-Replaceable)

Part Replacement Procedure

Rubber screw plugs, display (on display bezel)

Door, mini-PCI

Door, memory

Feet, rubber (on bottom of notebook)

Rubber cover, docking port (XE4500 only)

Cover, modem port

Insert a small flat-blade screwdriver under the rubber screw plug and pry it loose. To replace, firmly press the adhesive side of the screw plug into the recess.

On the bottom of the notebook, loosen the screws that secure the mini-PCI door to the bottom case and then remove the door.

On the bottom of the notebook, loosen the screws that secure the SDRAM module door to the bottom case and then remove the door.

Insert a small flat-blade screwdriver under the foot and pry it loose. To replace, firmly press the adhesive side of the foot into the recess.

Grasp the rubber docking port cover with your fingers and gently remove it. To replace, firmly press the docking port cover into the opening in the bottom case.

Insert a small flat-blade screwdriver at the top of the cover and gently pry it loose. To replace, insert the cover into the modem port opening.

Service Manual Removal and Replacement 2-9

Removing the Keyboard Cover

(User-Replaceable)

Required Equipment

• #1 Phillips screwdriver.

• Small flat-blade screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and then remove the battery.

2.

Remove the two hinge cover screws that secure the keyboard cover to the rear of the notebook.

3.

Carefully insert a flat-blade screwdriver blade under the keyboard cover near the right end, then near the center, then near the left end, and then gently lift up the center of the cover. Gently pry up the hinge covers if needed, being careful not to damage the plastics or wireless antenna underneath.

Caution

Be careful not to damage the antenna PCA that is connected to the left and right display assembly hinges. Damaging either antenna PCA can degrade notebook performance.

2-10 Removal and Replacement Service Manual

4. If necessary, while holding the center of the cover, carefully insert the flat-blade screwdriver under the right side of the display assembly hinge, gently pry up, and then lift the cover out. This procedure might need to be repeated on the left side of display assembly hinge to completely remove the cover.

Screw, M2.5×4mm (2)

Figure 2-7. Removing the Keyboard Cover

Reassembly Note

• Insert the tabs on the left- and right-center of the panel into the mating slots under the keyboard, and then press the panel into place.

Service Manual Removal and Replacement 2-11

Removing the Speaker Assembly

(User-Replaceable)

Note: The following speaker assembly removal procedures apply only to Compaq Evo Notebook N1010v and Compaq Presario 1100 Series notebooks. The Pavilion ze4100 Series notebook speakers are integrated into the top case. Refer to the “Removing the Top Case” section later in this chapter for procedures on removing the top case and speakers on the Pavilion ze4100 Series notebook.

Required Equipment

• #1 Phillips screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and then remove the battery.

2.

Remove the keyboard cover (page 2-10).

3.

Remove the screw that secures the speaker assembly to the top case.

4.

Disconnect the 4-wire cable from the switchboard PCA.

Screw, M2.5×6mm

Figure 2-8. Removing the Speaker Assembly

2-12 Removal and Replacement Service Manual

Removing the Keyboard

(User-Replaceable)

Required Equipment

• #1 Phillips screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and remove the battery.

2.

Remove the keyboard cover (page 2-10).

3.

Remove the screws that secure the keyboard to the top case.

4.

Lift up on the keyboard at the switchboard PCA end and then pull it toward the display assembly to release the tabs from the top case.

5.

Turn the keyboard over and disconnect the motherboard cable.

6.

Remove the keyboard.

Reassembly Notes

Caution

Do not excessively bend or fold the keyboard cable. Excessive flexing can damage the keyboard cable connectors.

• Lay the keyboard face down on the top case, forward of its normal position, then reconnect the keyboard cable.

• Slide the metal tabs on the bottom of the keyboard into their slots in the top case, then lower the keyboard into place.

Service Manual Removal and Replacement 2-13

Screw, M2.5×4mm (4)

Figure 2-9. Removing the Keyboard

2-14 Removal and Replacement Service Manual

Removing the Switchboard PCA

(User-Replaceable)

Required Equipment

• #1 Phillips screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and then remove the battery.

2.

Remove the keyboard cover (page 2-10).

3.

Disconnect both the 2-wire and 4-wire cables that connect the switchboard PCA to the top case and speaker assembly, respectively.

4.

Remove the screws that secure the keyboard and switchboard PCA to the top case (page 2-13).

5.

Gently lift up on the keyboard, carefully remove the switchboard PCA from the top case, and then disconnect the underside motherboard cable.

Screw, M2.5×4mm

Figure 2-10. Removing the Switchboard PCA

Reassembly Note

• Connect the underside motherboard cable before installing the switchboard PCA.

Service Manual Removal and Replacement 2-15

Removing the CD/DVD Drive

(User-Replaceable)

Required Equipment

• #1 Phillips screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and remove the battery.

2.

Remove these additional assemblies:

• Keyboard cover (page 2-10).

• Keyboard (page 2-13).

3.

Remove the screws that secure the CD/DVD drive to the top case and motherboard.

4.

Place your index finger in the top case opening and push out on the CD/DVD drive to release it from the motherboard.

5.

Remove the CD/DVD drive.

Screw, M2.5×6mm

Screw, M2.5×4mm

Figure 2-11. Removing the CD/DVD Drive

2-16 Removal and Replacement Service Manual

Removing the Display Assembly

(Authorized Service Providers Only)

Required Equipment

• #1 Phillips screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and remove the battery.

2.

Remove the keyboard cover (page 2-10).

3.

Remove the two retaining screws from the rear of the notebook.

4.

Remove the screws from the left and right antenna PCAs. Relocate the antenna PCAs away from the display assembly hinges.

5.

Disconnect the display assembly cable from the motherboard.

6.

Remove the six retaining screws that secure the display assembly to the top case. Note that there is a grounding strap at the left hinge.

7.

Lift the display assembly off of the notebook.

Service Manual Removal and Replacement 2-17

Screws, M2.5×6mm (8)

Screws, silver M2x4mm (2)

Figure 2-12. Removing the Display Assembly

2-18 Removal and Replacement Service Manual

Reassembly Notes

Important

After replacing the display assembly or motherboard, you must use the Service Utilities floppy disk to reprogram the EEPROM on the motherboard for the new display.

1. Download the notebook series service package from the Partnership Web site (see page vi), and create a Service Utilities floppy disk as described in the package’s Readme file.

2. Plug in an AC adapter.

3. Insert the Service Utilities floppy disk in the floppy drive. If the unit has no internal floppy drive, connect a USB floppy drive.

4. Turn on the notebook.

5. When you see the HP logo, press ESC to display the boot menu, then boot from the floppy drive.

6. Select the option to update the display/LCD identification stored on the motherboard.

• Make sure you connect the grounding strap to the left display assembly hinge.

• When connecting the left and right antenna PCAs, make sure they are parallel with the display

assembly hinges.

Service Manual Removal and Replacement 2-19

Removing the Top Case

(Authorized Service Providers Only)

Required Equipment

• #1 Phillips screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and remove the battery.

2.

Remove these additional assemblies:

• Hard disk drive (page 2-6).

• Keyboard cover (page 2-10).

• Speaker assembly (page 2-12).

• Switchboard PCA (page 2-13).

• Keyboard (page 2-13).

• CD/DVD drive (page 2-16).

• Display assembly (page 2-17).

3.

Remove the two screws from the rear of the bottom case.

4.

Remove the screws from the middle and near the back of the top case.

5.

Remove the rubber screw plugs and screws from the bottom case.

6.

Lift the top case off of the notebook and then disconnect the touch pad cable from the motherboard.

2-20 Removal and Replacement Service Manual

Screw, M2.5×4mm

Screw, M2.5×6mm (15)

Screw, M2.5×7mm (2)

Screw, M2.5×4mm

Figure 2-13. Removing the Top Case

Service Manual Removal and Replacement 2-21

Removing the Floppy Drive

(Authorized Service Providers Only)

Required Equipment

• #1 Phillips screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and remove the battery.

2.

Remove these additional assemblies:

• Hard disk drive (page 2-6).

• Keyboard cover (page 2-10).

• Switchboard PCA (page 2-13).

• Keyboard (page 2-13).

• Display assembly (page 2-17).

• Top case (page 2-20).

3.

Remove the screws (right side) that secure the hard disk drive guide to the motherboard. Note that the screws (left side) are missing. These screws were removed during the top case removal procedure.

4.

Disconnect the motherboard cable.

5.

Remove the screws that secure the floppy drive to the motherboard.

6.

Remove the floppy drive.

2-22 Removal and Replacement Service Manual

Screw, M2.5×4mm (2)

Figure 2-14. Removing the Floppy Drive

Reassembly Notes

Caution

Do not excessively bend or fold the floppy drive cable. Excessive flexing can damage the floppy drive cable connections.

• Connect the floppy drive cable to the motherboard prior to replacing the floppy drive and hard disk drive guide.

• When replacing the hard disk drive guide, do not secure the left side to the motherboard. The left side of the guide gets secured during the top case replacement procedure.

Service Manual Removal and Replacement 2-23

Removing the Infrared (I/R) PCA

(Authorized Service Providers Only)

Required Equipment

• #1 Phillips screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and remove the battery.

2.

Remove these additional assemblies:

• Hard disk drive (page 2-6).

• Keyboard cover (page 2-10).

• Switchboard PCA (page 2-13).

• Keyboard (page 2-13).

• Display assembly (page 2-17).

• Top case (page 2-20).

3.

Disconnect the cable from the motherboard.

4.

Remove the screws that secure the I/R PCA to the bottom case.

5.

Remove the I/R PCA.

2-24 Removal and Replacement Service Manual

Reassembly Note

Caution

Use care when handling the I/R PCA cable. Damaging the cable can degrade notebook performance.

• Make sure you route the I/R PCA cable between the left screw hole and the bottom case.

Figure 2-15. Removing the I/R PCA

Screw, M2.5×4mm (2)

Service Manual Removal and Replacement 2-25

Removing the Heatsink (with Fan)

(Authorized Service Providers Only)

Required Equipment

• #0 Phillips screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and remove the battery.

2.

Remove these additional assemblies:

• Hard disk drive (page 2-6).

• Keyboard cover (page 2-10).

• Switchboard PCA (page 2-13).

• Keyboard (page 2-13).

• Display assembly (page 2-17).

• Top case (page 2-20).

3.

Remove all three retaining screws.

4.

Lift up on the heatsink (with fan) and then disconnect the fan cable from the motherboard.

Screw, M2.5×4mm (3)

Figure 2-16. Removing the Heatsink (with Fan)

2-26 Removal and Replacement Service Manual

Caution

Do not spin the fan blades with your finger, or you could damage the fan’s bearings.

Reassembly Notes

• If the thermal pad is damaged, use a sharp knife or scraper to carefully remove it from the heat sink, then attach a new thermal pad.

• Install the heatsink screws in this order:

1. Install all three screws lightly.

2. Fully tighten the screws in the order marked on the heatsink.

Service Manual Removal and Replacement 2-27

Removing the CPU Module

(Authorized Service Providers Only)

Required Equipment

• Small flat-blade screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and remove the battery.

2.

Remove these additional assemblies:

• Hard disk drive (page 2-6).

• Keyboard cover (page 2-10).

• Switchboard PCA (page 2-13).

• Keyboard (page 2-13).

• Display assembly (page 2-17).

• Top case (page 2-20).

• Heatsink (page 2-16).

2-28 Removal and Replacement Service Manual

3. Turn the lock screw one-half turn counterclockwise to release the CPU module (you should hear a light snap). Carefully lift the CPU module off of its socket on the motherboard.

IMPORTANT: See th Caution on the nex page before reinstalling the CPU module!

Figure 2-17. Removing the CPU Module

Reassembly Notes

e

t

Caution

Each time you install a new CPU module, you must also replace the heat sink’s thermal pad to maintain optimum heat transfer. Use a sharp knife or scraper to carefully remove the old thermal pad from the heat sink, then attach the new thermal pad.

• The CPU module is keyed for installation, and can be inserted only one way.

• Carefully insert the CPU module into the motherboard, and turn the lock screw one-half turn

clockwise to secure the CPU module.

• Be sure to replace the thermal pad on the heatsink, as described in the reassembly notes on page 2-27.

Service Manual Removal and Replacement 2-29

Removing the Motherboard

(Authorized Service Providers Only)

Required Equipment

• #1 Phillips screwdriver.

Removal Procedure

Note: Before Replacing the Motherboard

If possible, record the computer’s electronic serial number before you replace the motherboard. You will then store the electronic serial number in the EEPROM on the new motherboard using the Service Utility floppy disk.

1. Download the notebook service package from the Partnership Web site (see page vi), and create a Service Utilities floppy disk as described in the package’s Readme file.

2. Plug in an AC adapter.

3. Insert the Service Utilities floppy disk in the floppy drive.

4. Turn on the notebook. When the HP logo appears (on either the built-in display or the external monitor), press Esc to display the boot menu, then choose Removable Device and boot from the floppy disk.

5. Select the Serial Number option from the boot menu.

6. When prompted, type A for the automatic update option. This stores the current system data from the old motherboard on the floppy disk.

1.

Unplug the AC adapter, if present, and remove the battery.

2.

Remove these additional assemblies:

• Hard disk drive (page 2-6).

• Keyboard cover (page 2-10).

• Keyboard (page 2-13).

• CD/DVD drive (page 2-16).

• Display assembly (page 2-17).

• Top case (page 2-20).

• Heatsink (page 2-16).

• Floppy drive (page 2-17).

2-30 Removal and Replacement Service Manual

Caution: Wireless Models

Be careful when removing and attaching antenna cables. Damage to cables or connectors can degrade performance.

Wireless models only: Remove the mini-PCI door and unplug the two antenna cables from the

3. mini-PCI card. Do not remove the mini-PCI card at this time.

4.

Remove the four screws that attach the motherboard to the bottom case.

5.

From the back of the notebook, remove the six standoffs (two each from the external monitor port, serial port, and parallel port).

6.

Remove the antenna cable from the metal holder on the motherboard.

7.

Carefully lift the motherboard out of the bottom case.

8.

If present, remove the modem port cover.

Standoff, 5mm (6)

Screw, M2.5×4mm (4)

Figure 2-18. Removing the Motherboard

Service Manual Removal and Replacement 2-31

Reassembly Notes

Important

After replacing the display assembly or motherboard, you must use the Service Utilities floppy disk to reprogram the EEPROM on the motherboard for the new display.

1. Download the notebook Series service package from the Partnership Web site (see page vi), and create a Service Utilities floppy disk as described in the package’s Readme file.

2. Plug in an AC adapter.

3. Insert the Service Utilities floppy disk in the floppy drive. If the unit has no internal floppy drive, connect a USB floppy drive.

4. Turn on the notebook.

5. When you see the HP logo, press ESC to display the boot menu, then boot from the floppy drive.

6. Select the option to update the display/LCD identification stored on the motherboard.

• If you are replacing the CPU module, you must also replace the thermal pad on the heat sink (see page 2-28).

Wireless Models Only

• Before installing the motherboard, make sure the round coaxial cables from the antenna PCAs are held in place by the clips in the bottom case.

• Make sure there is sufficient length to the front antenna PCA cables so they can easily be connected to the mini-PCI card.

Reassembly Procedure

Caution

Be extremely careful when replacing the motherboard. The motherboard has EMI springs attached to it that can bend very easily. Bending any EMI spring could cause a motherboard short.

Note: Reprogramming the BIOS IC

A new BIOS IC contains only enough basic programming to enable the notebook to boot. After installing a new motherboard, you must reprogram the BIOS IC, preferably with the latest BIOS—see page 2-35.

2-32 Removal and Replacement Service Manual

1.

Remove the following components from the old motherboard and install onto the new motherboard:

• CPU module

• Wireless LAN mini-PCI card (if present)

• SDRAM modules

2.

Follow the reassembly notes in the section entitled “Removing the Motherboard” on page 2-32.

Note: After Replacing the Motherboard

If present, insert the modem port cover into the modem port opening. Afterwards, you must use the Service Utility floppy disk to store the system data and display information in the EEPROM on the new motherboard. To do so:

1. Plug in an AC adapter.

2. Insert the Service Utilities floppy disk in the floppy drive.

3. Turn on the notebook.

4. If you hear 5 beeps, press F1 to update the display data stored on the motherboard. Let the notebook reboot and go to the next step.

5. Select the Serial Number option from the boot menu.

6. If you successfully stored system data on the floppy disk before removing the old motherboard, type A for the automatic update. This restores the old system data on the new motherboard.

If you did not store system data, type M for the manual update option. Enter the serial number from the bottom of the notebook—you might have to contact an HP support center to do this.

Service Manual Removal and Replacement 2-33

Replacing Components on a Bottom Case

Reassembly Procedure

1.

Transfer the plastic wireless panel, and if present, the docking port cover from the old bottom case to the new bottom case.

2.

Install a new Microsoft Product ID label.

3.

Transfer the old serial number label and install a new overlay, or create a new serial number label using the steps below.

4.

Follow the “Reassembly Notes” on page 2-32.

Installing a New Serial Number Label

Download the latest version of the serial number label template (Microsoft Word format) from the Partnership Web site (see page vi) under Support/Service in Technical Support Information. The latest version includes fields for warranty period and manufacturing location. Store the template with other Word templates on a PC connected to a laser printer.

1.

Open a new document based on the serial label template.

2.

Enter the information from the old serial label, and print the new label on plain white paper. The new label does not have barcodes.

3.

Carefully cut out the new serial label just inside the border and place it into the inner recess in the bottom case. The bottom of the label goes toward the front of the case.

4.

Make sure all regulatory labels that were on the old bottom case are also on the new bottom case.

5.

While holding the paper label in place, attach a serial label overlay into the outer recess. The overlay covers and protects the serial label.

HP Serial Number (S)TW711A1234 1YR

(1P) F2072 W EA MFG# TW711A1234

Made in Taiwan

Figure 2-19. Example of Serial Number Label

2-34 Removal and Replacement Service Manual

Replacing the Left and Right Antennas

If you need to remove or replace an antenna, see the figure below.

Caution

Handle the connector ends of the antennas carefully. Failure to do so could degrade notebook performance.

Handle the antenna routing metal tabs in the bottom case carefully. These tabs can be easily broken.

1.

Carefully remove both antennas from the old bottom case.

2.

Route both antenna cables through the new bottom case as shown below. Make sure you leave enough room at the cable connector end to connect to the mini-PCI card.

Figure 2-20. Replacing the Antennas

Replacing a PCMCIA Door

If you need to remove or replace a PCMCIA door, see the figure below.

Figure 2-21. Removing a PCMCIA Door

Service Manual Removal and Replacement 2-35

Repairing the BIOS IC

(Authorized Service Providers Only)

The notebook’s BIOS IC cannot be replaced separately. If it is defective, you must replace the motherboard. In some cases, however, you might be able to reprogram a malfunctioning BIOS IC using either e-DiagTools for Windows, a BIOS floppy disk, or a Crisis Recovery floppy disk.

If the notebook will boot sufficiently, use e-DiagTools for Windows or a BIOS floppy disk to reprogram the BIOS IC. If you cannot boot the notebook adequately, use a Crisis Recovery floppy disk. See below for instructions for all three methods.

Using e-DiagTools for Windows

Caution

The BIOS update completely replaces the previous BIOS, so follow these directions exactly or you might damage the notebook. The BIOS update also resets the configurations in the BIOS Setup utility—except for BIOS passwords—so record these before performing the update.

Update the notebook’s BIOS as follows:

1.

In Windows, exit any programs that are running.

2.

Undock the notebook if it is docked, and remove any PCMCIA cards from it.

3.

Connect the AC adapter to the notebook.

4.

Connect any cables or equipment needed to connect to the Internet.

5.

Click Start > Programs (or All Programs) > Hewlett-Packard > Notebook > HP e-DiagTools > e-DiagTools for Windows.

6.

Click Update, select Download New and click OK. Follow the instructions that appear. Once the update process begins, do not interrupt it.

The first time you make an Internet connection from this program on a particular unit, click Change Settings in the Connect window to define your connection settings.

7.

When the process completes, press the power button to reset the notebook.

BIOS updates are available from the HP Business Support Web site (www.hp.com/go/bizsupport). Installation utilities and instructions for creating a BIOS floppy disk are provided with the updates.

2-36 Removal and Replacement Service Manual

Using a BIOS Floppy Disk

If you do not have a BIOS floppy disk, download the package from the Partnership Web site (see page vi) under Product Support Information in the Service and Support Library. Follow the instructions for creating the BIOS floppy disk.

Caution

Make sure to use the correct BIOS floppy disk for the notebook model you are repairing. The program does not verify the notebook model, so you could accidentally install the wrong BIOS.

1.

Insert the BIOS floppy disk in the floppy disk drive.

2.

Turn on the notebook and allow it to boot from the BIOS floppy disk.

If the notebook does not turn on at all, do the following to boot from the BIOS floppy disk:

a. Unplug the AC adapter.

b. Press and hold Fn+B

c. Plug in the AC adapter.

d. Release Fn+B.

Note: If the notebook will not boot from the BIOS floppy disk, try plugging the boot-block jumper into the notebook’s parallel port. See the wiring diagram below.

3. The display goes blank for a minute or more while the BIOS is reprogrammed.

Note: If you plugged in a boot block jumper, unplug it before the notebook automatically reboots.

4. After the BIOS reprograms itself, check the BIOS version to make sure it is the latest version. If necessary, download the latest BIOS version and reprogram the BIOS IC.

1

14

13

25

Figure 2-22. Boot-Block Jumper

Service Manual Removal and Replacement 2-37

Removing Other Components

(Authorized Service Providers Only)

Required Equipment

• #0 and #1 Phillips screwdrivers.

• Small flat-blade screwdriver.

Removal Procedure

1.

Unplug the AC adapter, if present, and remove the battery.

2.

Remove the assemblies and follow the additional steps listed in the table below.

Table 2-5. Removing Components

Component Removal Procedure Additional Steps

Battery, CMOS

Case, bottom

Case, top

CD/DVD drive

CPU module

Display assembly

Doors, PCMCIA

Floppy drive

Keyboard cover

(page 2-10). Speaker (page 2-12). Switchboard PCA

(page 2-13). Keyboard (page 2-13). CD/DVD (page 2-16). Display (page 2-17). Top case (page 2-20). Heatsink (page 2-26). Floppy (page 2-22). Motherboard (page 2-30).

See page 2-34.

See page 2-20.

See page 2-16.

See page 2-28.

See page 2-17.

Keyboard cover

(page 2-10). Speaker (page 2-12). Switchboard PCA

(page 2-13). Keyboard (page 2-13). CD/DVD (page 2-16). Display (page 2-17). Top case (page 2-20). Heatsink (page 2-26). Floppy (page 2-22). Motherboard (page 2-30).

See page 2-22.

Reassembly Notes: After replacing the CMOS battery, set the correct time and date using the BIOS Setup utility or Date/Time in the Control Panel.

See page 2-34.

2-38 Removal and Replacement Service Manual

Component Removal Procedure Additional Steps

Guide, HDD

Heatsink (with fan)

Keyboard

Panel, wireless

PCA, I/R

PCA, left and right antennas (wireless models only)

PCA, motherboard

PCA, switchboard

Socket, PCMCIA

Speaker assembly

Keyboard cover

(page 2-10). Speaker (page 2-12). Switchboard PCA

(page 2-13). Keyboard (page 2-13). CD/DVD (page 2-16). Display (page 2-17). Top case (page 2-20).

See page 2-26.

See page 2-13.

Keyboard cover

(page 2-10). Speaker (page 2-12). Switchboard PCA

(page 2-13). Keyboard (page 2-13). CD/DVD (page 2-16). Display (page 2-17). Top case (page 2-20).

See page 2-24.

Keyboard cover

(page 2-10). Speaker (page 2-12). Switchboard PCA

(page 2-13). Keyboard (page 2-13). CD/DVD (page 2-16). Display (page 2-17). Top case (page 2-20). Heatsink (page 2-26). Floppy (page 2-22). Motherboard (page 2-30) Bottom case (page 2-34).

See page 2-30.

See page 2-13.

Keyboard cover

(page 2-10). Keyboard (page 2-13). CD/DVD (page 2-16). Display (page 2-17). Top case (page 2-20). Heatsink (page 2-26). Floppy (page 2-22). Motherboard (page 2-30).

See page 2-12.

When replacing the HDD guide, make sure you only replace the two right screws. Do not replace the two left screws.

Press the tabs on both sides of the panel and then lift it from the bottom case.

Disconnect the front antenna PCA cables from the mini-PCI card (page 2-6).

Be careful not to bend the metal tabs on the bottom case when removing or replacing either of the two antenna PCAs.

1. Remove the two screws attaching the socket to the motherboard.

2. Unplug the PCMCIA socket from the motherboard.

Service Manual Removal and Replacement 2-39

Troubleshooting and Diagnostics

This chapter includes troubleshooting and diagnostic information for testing the functionality of the notebook, and for identifying faulty components:

• ASP support information

• Troubleshooting information

! Checking for customer abuse (page 3-3).

! Troubleshooting the problem (page 3-3).

! Verifying the repair (page 3-4).

! Suggestions for troubleshooting (page 3-5).

3

• Diagnostic tools

! e-Diagtools diagnostic program (page 3-18).

! Power-on self-test (page 3-19).

! Sycard PCCtest 450/460 PC card (page 3-25).

! Windows Management Instrumentation (page 3-26).

! BIOS Setup utility (page 3-26).

Support by Authorized Service Providers

In the U.S., support of notebook computers by Authorized Service Providers (ASPs) is a purchasable option. Standard predefined models and standard special models do not include ASP support. The sales force has the option of creating models with ASP support using the specials process.

The serial number label on the bottom of the notebook indicates the ASP support status for that model. See the following table.

Table 3-1. ASP Support Options

Serial Number Label ASP Support Status

“NoASP” No reimbursement to ASP for parts or labor. However the ASP is authorized to

repair the notebook, and reimbursement can be negotiated directly with the customer.

“ASP” Parts and labor will be reimbursed to the ASP.

In other countries, ASP support is standard in most situations—but you should check the marking on the serial number label to verify the ASP support status for that model.

Service Manual Troubleshooting and Diagnostics 3-1

Troubleshooting

The suggestions in this section can help isolate and repair the cause of a problem. To ensure quality repair, follow the basic troubleshooting steps shown below.

Check the customer’s description of the problem and any supporting information.

Check for customer abuse.

Try to duplicate the customer’s problem.

Troubleshoot the problem using:

- Diagnostic tools.

- Troubleshooting suggestions.

Verify the repair by testing the functionality of the complete unit.

Figure 3-1. Basic Troubleshooting Steps

3-2 Troubleshooting and Diagnostics Service Manual

Checking for Customer Abuse

Some notebooks might appear to have been damaged by customer abuse. Use these guidelines to help determine if this is the case:

• If the shipping box is seriously damaged, customer abuse cannot be declared.

• If the damage could have a cause other than customer abuse, customer abuse cannot be declared.

• If the notebook shows any of the following, customer abuse is declared:

! Missing parts.

! Broken plastic parts.

! Parts not original to the notebook.

! Damaged or missing keys on the keyboard.

Table 3-3 lists additional criteria for determining customer abuse to specific parts of the notebook.

Important

Parts damaged by customer abuse are not covered by the warranty.

Troubleshooting the Problem

Record pertinent information about the notebook:

• Model and serial number.

• Operating system and version.

• Software version (stored in hidden file c:\version.inf).

• BIOS version.

• Accessories and peripherals used.

Analyze the problem:

•

Observe Symptoms. Using the customer’s information, try to duplicate the problem. Determine

how the problem differs from proper behavior. Also, note the functions that do work properly.

• Separate Problems. If there are multiple symptoms, separate them into distinct problems.

Consider Causes. Keep in mind possible causes for each problem. Use the diagnostic tools and

•

troubleshooting suggestions to help find possible causes.

! The e-Diagtools diagnostic program tests most of the notebook’s components using automatic

and interactive tests, and is your primary troubleshooting tool. Other tools include the power-on self-test, WMI/Toptools (if installed), the BIOS Setup utility, and the Sycard PCCtest. Table 3-2 on page 3-5 shows how you can use these tools to isolate the cause of the notebook’s problem.

! The troubleshooting suggestions on page 3-6 include general suggestions for repairing

notebooks that show specific failure symptoms.

Service Manual Troubleshooting and Diagnostics 3-3

Swapping modules that might be defective with others known to be good is generally an ideal way to find the module responsible for the problem. A failure symptom is rarely caused by more than one module, so you will not usually need to replace more than one to correct a particular failure.

After you replace a module, the notebook will normally be in a confused state and lock up when you apply power. If this happens, press the reset button: this turns the notebook off, so that you can restart it in a known state.

Verifying the Repair

Before returning the repaired notebook to the customer, verify the repair by running the following tests:

• e-

Diagtools Basic Diagnostic Test. Run the basic test of the e-Diagtools diagnostic program

(page 3-18).

–and–

•

Function Tests. Run tests that check the repaired function, such as those in e-Diagtools

(page 3-18).

–and–

•

Failed Tests. Run any other tests that failed during troubleshooting.

3-4 Troubleshooting and Diagnostics Service Manual

Suggestions for Troubleshooting

Table 3-2. Scope of Diagnostic Tools

WMI/

Power-On Function e-Diagtools Bootup Processor Memory Fan Batteries

Display Hard disk Floppy drive Keyboard Audio Serial Parallel LAN Modem Wireless Infrared PS/2 port USB Port replicator PCMCIA IEEE 1394 AC adapter

* Test might be available only on certain units.

†

Use an external keyboard to exercise the port. Run the external 101-key test.

Tests Describes Configures Tests Describes Tests Tests Describes Describes Tests Tests (CMOS

Tests Describes Configures Tests Tests Describes Configures Tests* Tests Describes Configures Tests Tests Describes Tests Tests* Describes Configures Tests Describes Configures Tests Describes Configures Configures Configures Describes Configures

†

Tests Describes Configures

Tests Tests Describes Tests Status

Self-Test

battery only)

Configures

Sycard PCCtest 450

Describes

Toptools (if installed) BIOS Setup

Service Manual Troubleshooting and Diagnostics 3-5

If you cannot isolate the cause of a problem using the above diagnostic tools, use the suggestions in the following table to help find the problem.

Table 3-3. Troubleshooting Suggestions

Call Center:

Symptom

To help determine likely causes of a problem, determine which replaceable modules are involved in the system function and what roles they play: see the figure on page 1-27 and the table on page 1-28.

Startup

Does not boot on AC or battery.

Beeps once, spins hard disk, repeats, but does not boot.

Does not boot on battery, but boots on AC.

Does not boot from floppy drive.

Does not boot from CD in CD/DVD drive.

Suggestions

Check power source. Press and hold power button

to turn notebook off, then press power button to turn notebook on.

Unplug AC adapter, remove the battery and any PC cards, press reset button to turn notebook off, then reconnect power and try again.

Do not use touch pad while booting or resuming.

Remove all but one SDRAM module and try again. Reinsert any other SDRAM module and try again.

Make sure at least one SDRAM module is installed.

Make sure battery is properly installed and fully charged. Check battery level on battery LEDs.

Check battery contacts. If available, try another battery.

Make sure floppy disk is bootable.

Use BIOS Setup to check default boot order.

Make sure CD is bootable. Use BIOS Setup to check

default boot order. Restart notebook.

Repair Center: Likely Causes

AC adapter. SDRAM module. CPU module. Switchboard PCA. Motherboard. Display assembly. Hard drive.

SDRAM module.

Battery or contacts. Motherboard.

Floppy disk or floppy drive.

Motherboard.

CD/DVD drive. Motherboard.

Repair Center: Comments

Check AC adapter. Remove all but one SDRAM module and try again.

If power status light does not turn on, reprogram BIOS, replace top case, replace motherboard.

If power status light turns on but display remains off, try external monitor. If monitor shows successful boot, replace display assembly. If monitor shows activity but BIOS does not complete, replace display assembly. If monitor is blank, replace switchboard PCA, replace motherboard.

If power status light and display turn on, BIOS completes, but OS does not start from hard disk or floppy drive, replace CPU module, replace motherboard. If OS starts from floppy drive, reload hard drive, replace hard drive.

Make sure floppy drive is installed and connected correctly.

Make sure CD/DVD is installed and connected correctly.

3-6 Troubleshooting and Diagnostics Service Manual

Call Center:

Symptom

Sluggish startup or shutdown.

Error message such as “Invalid system disk” or “Auto IDE error”.

Password forgotten. Verify proper ownership, then

Power

No power. Make sure charged battery is

Suggestions

Use Tools tab in disk’s Properties sheet to check hard disk. Use Disk Defragmenter to optimize hard disk.

Delete temporary and unneeded files.

Check for disk in floppy drive. Check boot order in BIOS

Setup. Remove and reinstall hard

drive.

follow removal procedure with owner and record appropriate data—see page 5-1.

installed or AC adapter connected.

Try another battery or AC adapter if available.

Repair Center: Likely Causes

Hard drive.

Hard drive contacts. Hard drive.

User must call Technical

AC adapter. Battery. Motherboard.

Repair Center: Comments

If notebook boots from floppy drive, check for corrupt files on hard drive, use Recovery CDs to reinstall factory software onto hard drive, replace hard drive.

Support and provide proof of ownership. Password removal is restricted to certain sites. See page 5-1.

Service Manual Troubleshooting and Diagnostics 3-7

Call Center:

Symptom

Notebook has short operating time when on battery.

Turns off immediately after turning on.

Does not run on battery; empty battery indication.

Beeps repeatedly. Notebook beeps repeatedly

Battery does not charge.

Suggestions

Turn down display brightness.

Check timeout settings in Power in Control Panel.

Check power management settings in BIOS Setup. Try default settings.

Battery gauge might need calibration. Run HP Battery Optimizer from Start menu.

Certain applications can cause excess CPU and power usage. (User can get Intel Power Monitor from www.intel.com and monitor CPU load.)

When playing DVD movies on battery power, use Power Options in Control Panel to select Portable/Laptop power scheme.

When using applications with automatic save feature (such as MS Word), extend save time or disable to reduce hard disk access and power usage.

PCMCIA card use can affect battery life. Some PCMCIA cards draw power even while not in use.

Heavy modem use can affect battery operating time.

Battery may be extremely low. Plug in AC adapter or insert charged battery

Check battery and contacts. Try another battery if available.

when battery is low. Connect AC adapter or replace battery.

Make sure AC adapter has correct power rating.

Make sure AC adapter is connected properly and battery installed properly.

Check battery contacts. If available, try another battery and AC adapter.

Move notebook away from any nearby heat source. Unplug AC adapter and allow battery to cool. Check for blocked air vents.

Repair Center: Likely Causes

Battery. Motherboard.

Battery.

Battery or contacts. Motherboard.

Battery.

Battery or contacts. AC adapter. Motherboard. Heatsink.

Repair Center: Comments

Battery capacity often decreases after a year or more.

Check battery and AC adapter.

Check heatsink.

3-8 Troubleshooting and Diagnostics Service Manual

Call Center:

Symptom

AC adapter does not power notebook.

Battery indicator is inaccurate.

Standby/resume

General problems. Close all applications before

Notebook resumes slowly from Standby mode.

Does not suspend to Standby mode as expected.

Does not automatically enter Hibernation mode as expected.

Suggestions

Try another AC adapter, if available.

Time Remaining is an estimate based on notebook’s power use at that moment. It therefore depends on current task, and assumes power will be used at that rate until battery runs out. So if notebook is currently using good deal of power (such as when reading CD or DVD), Time Remaining likely shows less time than actually remains.

entering (or allowing notebook to enter) Standby or Hibernation mode.

If problem appears after installing new software (including drivers), uninstall that software. Contact software vendor for additional support.

Notebook can take a minute or longer to resume if network card is installed. Blinking cursor appears while system is loading and checking hardware and network connections. When hardware is reinitialized, Windows desktop appears.

Notebook won’t suspend if connection to another computer is active.

If notebook is busy, it normally finishes current operation before suspending.

Make sure hibernate support is enabled in Power in Control Panel. Also, make sure Hibernate timeouts (Power Schemes tab) for AC and battery power are not set to Never.

Repair Center: Likely Causes

AC adapter. Motherboard.

Repair Center: Comments

AC adapter cannot be repaired, and must be replaced.

Service Manual Troubleshooting and Diagnostics 3-9

Call Center:

Symptom

Display

Dark display, no light.

White display. Adjust display brightness. Display assembly.

Erratic display. Display cable

Bright or missing pixels or lines.

Punctured display. Declared to be caused by

Vertical crack near center of display.

Scratched display glass.

Local area of dark or light discoloration visible when display is on.

External display does not work.

Hard disk

Hard disk never spins.

Hard disk makes clunking or scratching noise.

Hard disk makes buzzing or whining noise.

Suggestions

Make sure notebook is turned on and warmed up.

Check power supply. Make sure SDRAM modules

are installed properly. Adjust display brightness. Press Fn+F5 several times. Try external monitor.

See quality statement on page 5-2.

Usually caused by

Declared to be caused by

Caused by excessive

Check connections. Press Fn+F5 several times. Try display on another

computer.

Check power source. Remove and reinstall hard

drive. Check connector.

Back up disk immediately. Was notebook or drive

dropped?

Back up disk immediately. Check hard disk installation. Check for alternate noise

sources, such as PCMCIA drive or fan.

Repair Center: Likely Causes

Display cable connection.

SDRAM modules. CPU module. Display assembly. Motherboard.

Switchboard PCA.

connection. Switchboard PCA. Display assembly. Motherboard.

Display cable

connection.

Display assembly.

closing display with pencil-sized object on keyboard.

pressure applied to area on screen.

External display. Motherboard.

Hard drive or connector.

Motherboard.

Hard drive. Check notebook and drive for

Depends on noise source.

Repair Center: Comments

Check cable connections. Replace SDRAM modules. Make sure CPU module is

installed properly, replace CPU module.

Check display cable connections, replace display assembly.

If external monitor displays no image, replace motherboard.

Check display cable connection.

See quality statement on page 5-2.

customer abuse.

Declared to be caused by customer abuse.

customer abuse.

Declared to be caused by customer abuse.

If drive case is damaged, drive may not operate properly.

evidence of customer abuse.

3-10 Troubleshooting and Diagnostics Service Manual

Call Center:

Symptom

Files corrupted. Run virus scan program.

Disk capacity less than normal.

Disk’s reported capacity is less than actual size

Floppy drive

General problems. No response from floppy

CD/DVD drive

Particular CD or DVD not playing properly.

Cannot read any CD or DVD.

DVD movie stops playing.

Suggestions

Check hard disk using Tools tab in disk’s Properties sheet.

Test hard disk drive with e-Diagtools diagnostics.

Back up files if possible, then use Recovery CDs to reformat hard disk and reinstall factory software.

Check hard disk using Tools tab in disk’s Properties sheet.

Check partitions using Control Panel, Administrative Tools, Computer Management under Storage.

Use Recovery CDs to reformat hard disk and reinstall factory software.

Hard disk allocates approximately 20 MB to diagnostic software. This space is unavailable for other uses, and not included in hard disk capacity reported by Windows.

drive.

Check disk for proper insertion, dirt, or damage. Clean with soft cloth or replace as needed.

If CD was created on CD-RW drive, try using HP certified media. Read and write quality can vary for other media.

Restart notebook. Make sure CD/DVD drive is

installed properly.

DVD may be double-sided. Movie may be paused. Press

Play button.

Repair Center: Likely Causes

Hard drive.

Floppy drive. Motherboard.

CD/DVD drive.

Repair Center: Comments

Make sure floppy drive is installed and connected correctly.

Service Manual Troubleshooting and Diagnostics 3-11

Call Center:

Symptom

Region Code error. DVDs contain embedded

“System Error: Unable to read drive” message.

No DVD or CD-RW software on notebook.

All DVD play is erratic.

Keyboard

Some or all keys do not work properly.

Embedded numeric keypad does not work.

PS/2 keyboard and mouse with Y-adapter do not work.

Suggestions

regional codes that prevent them from playing outside region in which they are sold. This error occurs when trying to play DVD intended for different region.

Important: Most DVD drives allow region code to be changed only a limited number of times (usually no more than four). When this limit is reached, last change is hard-coded on DVD drive, and is permanent. Refer to DVD player software help for details.

Make sure disk is clean, undamaged, and inserted correctly. Clean with soft cloth or replace as needed.

Wait 5 to 10 seconds after closing tray before pressing Play.

Restart notebook.

If software was removed, use the Recovery CDs to reinstall factory software.

Some DVDs include software called “PC Friendly”. This software can cause errors or erratic play. If needed, uninstall PC Friendly and restart notebook.

Check settings in Control Panel.

Press Fn+F8 to activate numeric keypad, and Lock key to turn on number lock.

Avoid touching touch pad while booting or resuming.

Check devices separately. Y-adapter.

Repair Center: Likely Causes

CD/DVD drive. Motherboard.

Keyboard. Motherboard.

PS/2 device. Motherboard.

Repair Center: Comments

HP warranty does not cover expense of correcting this situation.

Make sure CD/DVD drive is installed properly.

Try reinserting ribbon cable in connector on motherboard.

3-12 Troubleshooting and Diagnostics Service Manual

Call Center:

Symptom

Touch pad

General problems. Reset notebook (see

Special touch pad features not working.

Click button does not work.

Memory

Out of memory error.

Notebook does not boot after adding SDRAM.

Audio

No sound audible. Increase sound volume.

Sound does not record.

Suggestions

page 1-21). Check settings in Control

Panel. Make sure touch pad is enabled in Mouse Properties.

By default, touch pad is disabled if external PS/2 mouse is connected, Use BIOS Setup to check settings.

Avoid touching touch pad while booting or resuming.

In Mouse Properties, select Synaptics PS/2 TouchPad driver. (Driver is installed from \hp\drivers\touchpad.)

Top case.

Make sure C drive has adequate free space. Delete temporary and unneeded files.

Use memory troubleshooter in Windows Help.

Not all third-party memory cards have been tested for use with notebook.

Use only DDR-266 SDRAM modules.

Check whether sound is enabled (mute button and software controls).

Check for sound resource conflicts in Device Manager.

Test audio with e-Diagtools diagnostics.

Use an external microphone (internal microphone normally not included).

Check software controls. Test audio with e-Diagtools

diagnostics.

Repair Center: Likely Causes

Top case. Motherboard.

Motherboard.

SDRAM module.

Top case. Speaker assembly. Switchboard PCA. Motherboard.

Switchboard PCA. Motherboard.

Repair Center: Comments

Check operation using headphones or external speakers (switchboard PCA).

Make sure speaker assembly cable is connected.

Service Manual Troubleshooting and Diagnostics 3-13

Call Center:

Symptom

Serial/Parallel/USB

General problems. Check connections.

Modem

General problems. Check settings in Control

Suggestions

Restart notebook. Use troubleshooters in

Windows Help. Check settings in Control

Panel. Check port settings in Device

Manager. Test ports with e-Diagtools

diagnostics. For USB: contact device

vendor and HP Notebook Web site (see page vi) for latest USB drivers.

For USB: if the device is powered by the USB port, try the other port.

Panel. Open hardware Device

Manager. If modem is disabled, try to enable. If modem has a conflict, try disabling another device.

Use analog telephone line (2, 3, or 4 wires), not PBX or digital line. In a hotel, ask for data line.

Try disabling error correction and data compression.

Test modem with e-Diagtools diagnostics.

Repair Center: Likely Causes

Motherboard.

Repair Center: Comments

3-14 Troubleshooting and Diagnostics Service Manual

Call Center:

Symptom

LAN/network

General problems. Check cables and

Infrared

General problems. Infrared is disabled and no

Suggestions

connections. Try connecting notebook to

another network station (if applicable). If green light next to LAN port does not light, LAN cable may not be connected to network or network may be down.

Use networking troubleshooter in Windows Help.

Check settings in Control Panel.

Make sure LAN cable is Category 3, 4, or 5 for 10Base-T operation, or Category 5 for 100Base-TX operation. Maximum cable length is 100 meters (330 feet).

Test LAN with e-Diagtools diagnostics.

drivers installed as shipped. (Drivers are included.)

Make sure line between infrared ports is not blocked, ports face each other squarely and are no more than 1 meter apart. Sunlight, heat from nearby equipment, or other sources of infrared radiation can cause transmission errors.

Open Hardware Device Manager. Try to enable the infrared port.

Remove any PC cards from notebook (possible IRQ conflict).

For fast-IrDA, check for DMA conflict with ECP parallel port.

Repair Center: Likely Causes

Motherboard.

Repair Center: Comments

Service Manual Troubleshooting and Diagnostics 3-15

Call Center:

Symptom

Wireless

General problems. Check TCP/IP setup in

One-Touch button problems

Buttons not working properly.

On-screen display does not appear when button is pressed.

PCMCIA

General problems. Restart notebook.

AC adapter

Does not power notebook.

Motherboard

Evidence of spilled liquid.

Bent or broken connectors, or burnt component.

Motherboard cracked.

Miscellaneous

Clock loses time Plug in AC adapter for 24

Notebook gets abnormally hot.

Suggestions

Control Panel. Check SSID, channel, and

encryption settings.

Make sure correct applications are associated with buttons in One-Touch tab of Keyboard in Control Panel.

Make sure Onscreen Display is enabled in One-Touch tab of Keyboard in Control Panel.

Try card in another computer. If card requires an IRQ, make

sure one is available. In Device Manager, refresh

device list and check for conflicts.

Download current drivers from card manufacturer’s Web site.

Make sure AC adapter has correct power rating.

Try another AC adapter, if available.

Declared to be caused by

hours to charge CMOS battery.

Always set notebook on a flat surface, so air can flow freely around and underneath it

Make sure air vents are not blocked.

Games and other programs that drive CPU usage toward 100% can contribute.

Repair Center: Likely Causes

Mini-PCI card. Antenna PCAs. Motherboard.

Keyboard cover. Switchboard PCA. Motherboard.

PCMCIA socket. Motherboard.

AC adapter. Motherboard.

CMOS battery. Motherboard.

Heatsink. Check heatsink for damage

Repair Center: Comments

Make sure all cables are properly connected to miniPCI card and motherboard. Check for damaged coaxial cables or connectors.

Using a flashlight, look for bent pins inside the PCMCIA socket.

For model XE4500, if only one slot is affected, replace PCMCIA socket. If both slots are affected, replace motherboard.

AC adapter cannot be repaired and must be replaced.

customer abuse.

Charge CMOS battery.

or proper fan operation. Check thermal contact

between CPU and heatsink. Replace thermal pad if needed.

3-16 Troubleshooting and Diagnostics Service Manual

Symptom

Notebook pauses or runs sluggishly.

Notebook still on but stops responding.

Accessories

Port replicator problems.

Call Center: Suggestions

May be normal Windows behavior (background processing can affect response time).

Certain operations (such as virus scanning or file browsers) can affect performance.

Press Ctrl+Alt+Del to see if an application is not responding.

Restart notebook. If hard disk has spun down to

conserve power, it can take several seconds to spin up (you can hear this). Use Control Panel to modify hard disk power settings.

Check for overheating—see previous symptom.

If notebook’s hard drive frequently runs (as indicated by hard drive light on front of notebook) while notebook appears to be paused or running slowly, consider installing additional SDRAM.

Make sure hard drive has adequate free space. Delete temporary and unneeded files.

Press Ctrl+Alt+Del and end any application not responding.

Reset notebook (see page 1-21).

Check notebook’s power supply.

Check settings in BIOS Setup.

Repair Center: Likely Causes

CPU module. Motherboard.

Port replicator. Motherboard.

Repair Center: Comments

If notebook slows after period of continuous activity, check heatsink—see previous symptom.

Port replicator is not repairable, and must be exchanged.

Service Manual Troubleshooting and Diagnostics 3-17

Diagnostic Tools

This section describes the following diagnostic tools you can use for troubleshooting and repairing the notebook:

• Notebook e-Diagtools diagnostic program (below).

• Power-on self-test (page 3-19).

• Sycard PCCtest 450 PC card (page 3-25).

• Windows Management Instrumentation (page 3-26).

• BIOS Setup utility (page 3-26).

e-Diagtools Diagnostic Program

The hardware diagnostic programs provide two levels of testing:

• User-level testing using a basic hardware test.

• Advanced testing using individual hardware tests.

The tests are designed to run after the system reboots, so that the notebook will be in a predictable state during the tests. The tests are non-destructive, and are intended to preserve the state of the notebook. The notebook reboots when you exit the program so drivers can be loaded.

Updating e-Diagtools

You can download the latest version of e-Diagtools using e-Diagtools for Windows.

Running e-Diagtools

The following procedure describes how to run e-Diagtools. The individual steps might differ slightly for different versions of e-Diagtools.

1.

Click Start > Turn Off Computer (or Shut Down), Restart.

2.

When the HP logo appears, press F10 to start the diagnostic test.

The first time you run the program, you are prompted to select the language for the program.

3.

When the menu appears, press F2 to run e-Diagtools.

4.

When the Configuration Description appears, check the list of detected hardware.

5.

Run the basic test. Press F2 to start the basic hardware test. The results appear when the test is complete.

6.

If you intend to exit without running the advanced tests, press F4 to view the Support Ticket. Press F3 to exit e-Diagtools.

7.

Optional: run the advanced tests. Press F2 to open the advanced test screen.

8.

Use the arrow keys and ENTER to select the test you want to run. Tests are listed only for detected hardware.

9.

Press F2 to run the selected tests and add the results to the Support Ticket.

3-18 Troubleshooting and Diagnostics Service Manual

10.

After each run, press F2 to return to the advanced test screen, or press F4 to view the Support Ticket.

11.

12.

13.

14.

To save or print the Support Ticket, click Save As or Print.

e-Diagtools for Windows can also update the version of e-Diagtools on your notebook’s hard disk. In e-Diagtools for Windows, use the e-Diagtools menu.

If you have trouble running e-Diagtools diagnostics from the hard disk, you can also run it from the Recovery CD or DVD. Boot from the CD or DVD and select the diagnostics option.

Interpreting the Results

The e-Diagtools diagnostic program returns test groups, error codes, and suggestions for repair and/or follow-up actions. The basic hardware test shows a recommended replacement part.

To help interpret the results of the e-Diagtools tests, refer to the following:

• e-Diagtools Support Ticket on page 3-19.

Press F3 and then any key to exit and reboot.

Exit.

Optional: open the Support Ticket. In Windows, click Start > All Programs (or Programs) >

Hewlett-Packard > Notebook > HP e-Diagtools > e-Diagtools for Windows.

Click View to display the Support Ticket.

To add information about your problem, click Comments, type the information, and then click OK.

To e-mail the Support Ticket to your support agent, click e-Mail. The first time you make an email connection from this program, click Change Settings in the Connect window and enter the settings recommended by your support agent.

• Replaceable Module Diagram on page 1-27

• Functional Structure Description on page 1-28

This combined information should enable you to determine which of the notebook’s components require service.

Power-On Self-Test

Note

If Quiet Boot is enabled in BIOS Setup (the default setting), press Esc during boot to see POST messages.

When the notebook boots, its system BIOS runs a series of initialization routines and diagnostic tests called POST (Power-On Self-Test). The BIOS will not boot the notebook’s operating system if the system memory, CPU, DMA, or interrupt controller fails the POST diagnostic tests. POST indicates progress by a sequence of codes; if an error occurs, the BIOS displays a message and/or issues a beep code.

Note that not all POST messages indicate a failure in the notebook—some messages are for information only. You should not necessarily interpret the failure of one or more POST tests as a hardware, software, or firmware failure. If POST displays an error message or issues a beep code indicating an error, confirm the problem using other diagnostic tools.

Service Manual Troubleshooting and Diagnostics 3-19

First, confirm the failure by performing a “clean” boot, as described below. Note that if the notebook fails to restart with a clean boot, it requires repair.

1.

Remove all accessories, including SDRAM modules, port replicator, PC cards, printer, external monitor, pointing device, and keyboard.

2.

Provide “clean” AC power—no auto adapter or unusual AC adapter configuration.

3.

Press the reset button to return the notebook to a known state.

4.

Press the power button to start the notebook.

If the BIOS detects a terminal error condition, it halts POST after issuing a beep code and/or displaying a message (see the following table). The beep code indicates the POST routine in which the terminal error occurred.

Table 3-4. POST Terminal-Error Beep Codes

Beep Codes* POST Description

1 One short beep before boot.

1-2 Search for option ROMs. 1-1-1-3 Verify Real Mode. 1-1-1-4 Disable Non-Maskable Interrupt (NMI). 1-1-2-1 Get CPU type. 1-1-2-3 Initialize system hardware. 1-1-2-4 Disable shadow and execute code from ROM. 1-1-3-1 Initialize chipset with initial POST values. 1-1-3-2 Set IN POST flag. 1-1-3-3 Initialize CPU registers. 1-1-3-4 Enable CPU cache. 1-1-4-1 Initialize caches to initial POST values. 1-1-4-3 Initialize I/O component. 1-1-4-4 Initialize local bus IDE. 1-2-1-1 Initialize Power Management. 1-2-1-2 Load alternate registers with initial POST values. 1-2-1-3 Restore CPU control word during warm boot. 1-2-1-4 Initialize PCI Bus Mastering devices. 1-2-2-1 Initialize keyboard controller. 1-2-2-3 BIOS ROM checksum. 1-2-2-4 Initialize cache before memory Auto size. 1-2-3-1 8254 timer initialization. 1-2-3-3 8237 DMA controller initialization. 1-2-4-1 Reset Programmable Interrupt Controller. 1-3-1-1 Test DRAM refresh. 1-3-1-3 Test 8742 Keyboard Controller (on motherboard). 1-3-2-1 Set ES segment register to 4 GB. 1-3-3-1 Auto size DRAM; or wrong type or no RAM installed. 1-3-3-2 Initialize POST Memory Manager. 1-3-3-3 Clear 512 kB base RAM. 1-3-4-1 RAM failure on address line xxxx. 1-3-4-3 RAM failure on data bits xxxx of low byte of memory bus. 1-3-4-4 Enable cache before system BIOS shadow. 1-4-1-1 RAM failure on data bits xxxx of high byte of memory bus. 1-4-1-3 Test CPU bus-clock frequency. 1-4-1-4 Initialize Phoenix Dispatch Manager. 1-4-2-3 Warm start shut down. 1-4-3-1 Shadow system BIOS ROM. 1-4-3-3 Auto size cache. 1-4-4-1 Advanced configuration of chipset registers. 1-4-4-2 Load alternate registers with CMOS values. 2-1-1-2 Initialize extended memory for RomPilot. 2-1-1-3 Initialize interrupt vectors. 2-1-2-2 POST device initialization. 2-1-2-3 Check ROM copyright notice. 2-1-2-4 Initialize I20 support. 2-1-3-1 Check video configuration against CMOS. 2-1-3-2 Initialize PCI bus and devices. 2-1-3-3 Initialize all video adapters in system. 2-1-3-4 QuietBoot start (optional). 2-1-4-1 Shadow video BIOS ROM.

3-20 Troubleshooting and Diagnostics Service Manual

Beep Codes* POST Description

2-1-4-3 Display BIOS copyright notice. 2-1-4-4 Initialize MultiBoot. 2-2-1-1 Display CPU type and speed. 2-2-1-2 Initialize EISA board. 2-2-1-3 Test keyboard. 2-2-2-1 Set key click if enabled. 2-2-2-2 Enable USB devices. 2-2-3-1 Test for unexpected interrupts. 2-2-3-2 Initialize POST display service. 2-2-3-3 Display prompt "Press F2 to enter SETUP". 2-2-3-4 Disable CPU cache. 2-2-4-1 Test RAM between 512 and 640 kB. 2-3-1-1 Test extended memory. 2-3-1-3 2-3-2-1 Jump to UserPatch1. 2-3-2-3 Configure advanced cache registers. 2-3-2-4 Initialize Multi Processor APIC. 2-3-3-1 Enable external and CPU caches. 2-3-3-2 Set up System Management Mode (SMM) area. 2-3-3-3 Display external L2 cache size. 2-3-3-4 Load custom defaults (optional). 2-3-4-1 Display shadow-area message. 2-3-4-3 Display possible high address for UMB recovery. 2-4-1-1 Display error messages. 2-4-1-3 Check for configuration errors. 2-4-2-3 Check for keyboard errors. 2-4-4-1 Set up hardware interrupt vectors. 2-4-4-2 Initialize Intelligent System Monitoring. 2-4-4-3 Initialize coprocessor if present. 3-1-1-1 Disable onboard Super I/O ports and IRQs. 3-1-1-2 Late POST device initialization. 3-1-1-3 Detect and install external RS232 ports. 3-1-1-4 Configure non-MCD IDE controllers. 3-1-2-1 Detect and install external parallel ports. 3-1-2-2 Initialize PC-compatible PnP ISA devices. 3-1-2-3 Re-initialize onboard I/O ports. 3-1-2-4 Configure Motherboard Configurable Devices (optional). 3-1-3-1 Initialize BIOS Data Area. 3-1-3-2 Enable Non-Maskable Interrupts (NMIs). 3-1-3-3 Initialize Extended BIOS Data Area. 3-1-3-4 Test and initialize PS/2 mouse. 3-1-4-1 Initialize floppy controller. 3-1-4-4 Determine number of ATA drives (optional). 3-2-1-1 Initialize hard-disk controllers. 3-2-1-2 Initialize local-bus hard-disk controllers. 3-2-1-3 Jump to UserPatch2. 3-2-1-4 Build MPTABLE for multi-processor boards. 3-2-2-2 Install CD-ROM for boot. 3-2-2-3 Clear huge ES segment register. 3-2-2-4 Fix up Multi Processor table. 3-2-3-2 Check for SMART Drive (optional). 3-2-3-3 Shadow option ROMs. 3-2-4-1 Set up Power Management. 3-2-4-2 Initialize security engine (optional). 3-2-4-3 Enable hardware interrupts. 3-2-4-4 Determine number of ATA and SCSI drives. 3-3-1-1 Set time of day. 3-3-1-3 Check key lock. 3-3-2-1 Initialize typematic rate. 3-3-3-1 Erase F2 prompt. 3-3-3-3 Scan for F2 keystroke. 3-3-4-1 Enter SETUP. 3-3-4-3 Clear Boot flag. 3-4-1-1 Check for errors. 3-4-1-2 Inform RomPilot about the end of POST. 3-4-1-3 POST done - prepare to boot OS. 3-4-2-2 Terminate QuietBoot (optional). 3-4-2-3 Check password (optional). 3-4-2-4 Initialize ACPI BIOS. 3-4-3-2 Prepare Boot. 3-4-3-3 Initialize SMBIOS. 3-4-3-4 Initialize PnP Option ROMs.

Test extended memory address lines.

Service Manual Troubleshooting and Diagnostics 3-21

Beep Codes* POST Description

3-4-4-1 Clear parity checkers. 3-4-4-2 Display MultiBoot menu. 3-4-4-3 Clear screen (optional). 3-4-4-4 Check virus and backup reminders. 4-1-1-1 Try to boot with INT 19. 4-1-1-2 Initialize POST Error Manager (PEM). 4-1-1-3 Initialize error logging. 4-1-1-4 Initialize error display function. 4-1-2-1 Initialize system error handler. 4-1-2-2 PnPnd dual CMOS (optional). 4-1-2-3 Initialize note dock (optional). 4-1-2-4 Initialize note dock late. 4-1-3-1 Force check (optional). 4-1-3-2 Extended checksum (optional). 4-1-3-3 Redirect Int 15h to enable remote keyboard. 4-1-3-4 Redirect Int 13h to Memory Technologies Devices such as ROM, RAM, PCMCIA, and serial disk. 4-1-4-1 Redirect Int 10h to enable remote serial video. 4-1-4-2 Re-map I/O and memory for PCMCIA. 4-1-4-3 Initialize digitizer and display message. 4-2-1-3 Unknown interrupt. 4-3-1-1 Initialize the chipset. 4-3-1-2 Initialize the bridge. 4-3-1-3 Initialize the CPU. 4-3-1-4 Initialize system timer. 4-3-2-1 Initialize system I/O. 4-3-2-2 Check force recovery boot. 4-3-2-3 Checksum BIOS ROM. 4-3-2-4 Go to BIOS. 4-3-3-1 Set Huge Segment. 4-3-3-2 Initialize Multi Processor. 4-3-3-3 Initialize OEM special code. 4-3-3-4 Initialize PIC and DMA. 4-3-4-1 Initialize Memory type. 4-3-4-2 Initialize Memory size. 4-3-4-3 Shadow Boot Block. 4-3-4-4 System memory test. 4-4-1-1 Initialize interrupt vectors. 4-4-1-2 Initialize Run Time Clock. 4-4-1-3 Initialize video. 4-4-1-4 Initialize System Management Manager. 4-4-2-1 Output one beep. 4-4-2-2 Clear Huge Segment. 4-4-2-3 Boot to Mini DOS. 4-4-2-4 Boot to Full DOS.

1 long,

2 short

Improper video configuration (reprogram EEPROM) or external ROM checksum failure.

3-22 Troubleshooting and Diagnostics Service Manual

The following table lists POST messages and explanations for reported problems. If the system fails after you make changes in BIOS Setup, reset the notebook, enter BIOS Setup, and install the defaults or correct the error.

Table 3-5. POST Messages

Message Description

0200 Failure Fixed Disk

0210 Stuck key

0211 Keyboard error

0212 Keyboard Controller Failed

0213 Keyboard locked – Unlock key switch

0220 Monitor type does not match CMOS – Run SETUP

0230 Shadow RAM Failed at offset: nnnn

0231 System RAM Failed at offset: nnnn

0232 Extended RAM Failed at offset: nnnn

0250 System battery is dead – Replace and run SETUP

0251 System CMOS checksum bad – Default configuration used

0260 System timer error

0270 Real time clock error

0271 Check date and time settings

0280 Previous boot incomplete – Default configuration used

0281 Memory Size found by POST differed from CMOS

02B0 Diskette drive A error

02B2 Incorrect Drive A type – run SETUP

02D0 System cache error – Cache disabled

02F0: CPU ID:

Fixed (hard) disk is not working or not configured properly. Make sure the hard disk is installed properly. Run BIOS Setup and make sure the hard disk type is correctly identified.

Stuck key on keyboard.

Keyboard is not working.

Keyboard controller failed the test. might require replacing the motherboard (contains the keyboard controller).

Unlock the system to proceed.

Monitor type is not correctly identified in BIOS Setup.

Shadow RAM failed at offset nnnn of the 64k block at which the error was detected.

System RAM failed at offset nnnn of the 64k block at which the error was detected.

Extended memory is not working or not configured properly at offset nnnn. Update to the latest BIOS version.

CMOS clock battery indicator shows that the CMOS battery is dead. Connect the AC adapter for at least 24 hours, then run BIOS Setup to reconfigure the system.

System CMOS has been corrupted or modified incorrectly, perhaps by an application that changes CMOS data. In response, the BIOS has installed the default Setup values. Use BIOS Setup to modify these values if needed. If the error persists, check the system battery. Connect the AC adapter for at least 24 hours; replace the motherboard.

Timer test failed. Replace the motherboard.

Real-time clock failed the BIOS test. Might require replacing the motherboard.

BIOS found the date or time to be out of range, and reset the real-time clock. You might need to use BIOS Setup to reset the legal date.

Previous POST did not complete successfully. POST loads default values and offers to run BIOS Setup. If the failure was caused by incorrect values that are not corrected, the next boot will likely fail. This error is cleared the next time the system is booted.

Memory size found by POST differed from that specified in CMOS.

Drive A: is present but fails the BIOS POST diskette tests. Make sure the drive is defined with the proper diskette type in BIOS Setup and that the drive is connected correctly.

Type of floppy drive A: not correctly identified in BIOS Setup.

RAM cache failed and BIOS disabled the cache. May require replacing the motherboard. A disabled cache slows system performance considerably.

CPU socket number for Multi-Processor error.

Service Manual Troubleshooting and Diagnostics 3-23

Message Description

02F4: EISA CMOS not writeable

ServerBIOS2 test error: Cannot write to EISA CMOS.

02F5: DMA Test Failed

ServerBIOS2 test error: Cannot write to extended Direct Memory Access (DMA) registers.

02F6: Software NMI Failed

ServerBIOS2 test error: Cannot generate software Non-Maskable Interrupt (NMI).

02F7: Fail-Safe Timer NMI Failed

ServerBIOS2 test error: Fail-safe timer takes too long.

device Address Conflict

Address conflict for the specified device.

Allocation Error for: device

Run ISA or EISA Configuration Utility to resolve a resource conflict for the specified device.

CD ROM Drive

CD-ROM drive identified.

Entering SETUP ...

Starting BIOS Setup.

Failing Bits: nnnn

Hex number nnnn is a map of the bits at the RAM address that failed the memory test. Each 1 (one) in the map indicates a failed bit. See errors 230, 231, or 232 above for offset address of the failure in System, Extended, or Shadow memory.

Fixed Disk n

Fixed disk n (0–3) identified.

Invalid System Configuration Data

Problem with NVRAM (CMOS) data.

I/O device IRQ conflict

I/O device IRQ conflict error.

PS/2 Mouse Boot Summary Screen:

PS/2 mouse installed.

nnnn kB Extended RAM Passed

Where nnnn is the amount of RAM in kB successfully tested.

nnnn Cache SRAM Passed

Where nnnn is the amount of system cache in kB successfully tested.

nnnn kB Shadow RAM Passed

Where nnnn is the amount of shadow RAM in kB successfully tested.

nnnn kB System RAM Passed

Where nnnn is the amount of system RAM in kB successfully tested.

Operating system not found

Operating system cannot be located on drive A: or drive C:. Enter BIOS Setup and see if the hard disk and drive A: are properly identified.

Parity Check 1 nnnn

Parity error found in the system bus. BIOS attempts to locate the address and display it on the screen. Parity is a method for checking errors in binary data. A parity error indicates that data has been corrupted.

Parity Check 2 nnnn

Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen.

Press <F1> to resume, <F2> to Setup, <F3> for previous

Displayed after any recoverable error message. Press <F1> to start the boot process or <F2> to enter BIOS Setup and change the settings. Press <F3> to display the previous screen (usually an initialization error of an Option ROM, such as an add-on card). Write down and follow the information shown on the screen.

Press <F2> to enter Setup

Optional message displayed during POST.

PS/2 Mouse:

PS/2 mouse identified.

3-24 Troubleshooting and Diagnostics Service Manual

System BIOS shadowed

UMB upper limit segment address: nnnn

Video BIOS shadowed

System BIOS copied to shadow RAM.

Displays the address nnnn of the upper limit of Upper Memory Blocks (UMB), indicating released segments of the BIOS that can be reclaimed by a virtual memory manager.

Video BIOS copied to shadow RAM.

Sycard PCCtest 450/460 PC Card (Optional)

The PCCtest 450 and 460 cards (version 1.05) from Sycard Technology are the only recommended diagnostic tools that test the functionality of the PCMCIA slots using a PCMCIA card. Each is a Type II PC card that works with test software to exercise PCMCIA functions. (For details, see the Sycard Technology Web site: http://www.sycard.com).

The PCCtest product contains these components:

• PCCtest 450 or 460 (revision 1.05) PC card.

• PCCtest 450/460 software disk. (Software updates are available at the Sycard Technology

Web site.)

• Configuration headers (PC card/16-bit and CardBus/32-bit) that attach to the card.

You will also need a CardBus extender card (such as the Sycard PCCextend 70) to avoid wear on the Sycard PCMCIA connector.

Use the following tests to check the function of the notebook’s PCMCIA slots. See the Sycard documentation for details about running the tests.

Table 3-6. Sycard PCCtest Commands

Slot

All notebook models

(PCI 1520)

Upper Lower

PCMCIA PC card (16-bit) test

(PC card configuration header) pct450-v-1-b80

pct450-v-0-b80

CardBus (32-bit) test

(CardBus configuration header) testcb-v-1-b80

testcb-v-0-b80

Service Manual Troubleshooting and Diagnostics 3-25

Windows Management Instrumentation (WMI)

The Windows Management Instrumentation is basically sets of rules for accessing information about a notebook. WMI allows an application to determine, for example, the operating system being used, which hardware and software components are in the notebook, and possibly whether any of the components need replacing. A local or remote application can use the WMI interface to check which hardware and software components are installed on your notebook, and might be able to tell how well they are working or if they need replacement.

Installing the WMI Package

The WMI package is either preinstalled on the notebook’s hard disk or can be downloaded from http://www.hp.com/toptools (the contents are the same in both cases). The package must be properly installed before it can be used.

To install the WMI preloaded on the hard disk:

1.

Start Windows, if it is not already running.

2.

Click Start > Programs (or All Programs) > Hewlett-Packard > HP Toptools Agent > Setup.

Using WMI

For a complete description of how to use WMI, see the following documentation provided with the notebook:

• A README.TXT file: click Start > Programs > Hewlett-Packard > HP Toptools Agent > Read me.

• A Windows online help file describing Hewlett-Packard’s implementation of WMI (group and attribute definitions): click Start > Programs Hewlett-Packard > HP Toptools Agent > HP Toptools Help.

Uninstalling the WMI Package

1.

Click Start > Programs (or All Programs) > Hewlett-Packard > HP Toptools Agent > Uninstall WMI.

2.

Restart the notebook.

BIOS Setup Utility

The BIOS Setup utility provides access to the notebook’s basic configuration settings. It is independent of the operating system.

Running the BIOS Setup Utility

1.

Close all applications, then restart the notebook: click Start > Turn Off Computer > Restart. (If necessary, you can press Ctrl+Alt+Del to restart.)

2.

When the HP logo appears, press F2 to enter the BIOS Setup utility.

3-26 Troubleshooting and Diagnostics Service Manual

Compaq ZE4100, N1010V, 2500, N1050V, ZE4200 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Product Information

Features

Operation

Turning the Notebook On and Off

Checking the Status of the Notebook

Using Fn Hot Keys

Resetting the Notebook

Specifications

Internal Design

Removal and Replacement

Disassembly Flowchart

Reassembly Notes

Wireless Models Only

Replacing Components on a Bottom Case

Using e-DiagTools for Windows

Using a BIOS Floppy Disk

Troubleshooting and Diagnostics

Support by Authorized Service Providers

Troubleshooting

Checking for Customer Abuse

Troubleshooting the Problem

Verifying the Repair

Suggestions for Troubleshooting

Diagnostic Tools

e-Diagtools Diagnostic Program

Power-On Self-Test

Sycard PCCtest 450/460 PC Card (Optional)

Windows Management Instrumentation (WMI)

BIOS Setup Utility
