Compaq MV 540 User Manual

MV540

User's Guide

Guia do Usuário

Manuel de l'utilisateur

Guía de Usuario

ABLE OF CONTENTS

INTRODUCTION........................................................................................................................... 2

Features............................................................................................................................................................ 2

GETTING STARTED...................................................................................................................... 3

Attaching the Base Pedestal to Your Monitor...................................................................................................... 3

Installation ........................................................................................................................................................ 4

Speaker Installation ................................................................................................................................... 5

OPERATING YOUR MONITOR ....................................................................................................... 6

Using Your On-Screen Display........................................................................................................................... 7

No Signal Message............................................................................................................................................ 8

Out of Frequency Range.................................................................................................................................... 8

On-Screen Display Functions..................................................................................................................... 9

ENERGY SAVER MODES ............................................................................................................ 10

MONITOR CARE AND MAINTENANCE......................................................................................... 11

TROUBLESHOOTING.................................................................................................................. 12

SHIPPING YOUR MONITOR......................................................................................................... 14

SPECIFICATIONS ....................................................................................................................... 15

APPENDIX ................................................................................................................................. 16

Regulatory Compliance Notices....................................................................................................................... 16

Federal Communications Commission Notice........................................................................................... 16

Modifications........................................................................................................................................... 16

Cables ..................................................................................................................................................... 16

Declaration of Conformity for products marked with the FCC logo - United States only ............................. 16

Canadian Notice....................................................................................................................................... 17

Avis Canadien.......................................................................................................................................... 17

European Union Notice............................................................................................................................. 17

EPA Energy Star Compliance.................................................................................................................... 17

Japanese Notice...................................................................................................................................... 17

German Ergonomics Notice...................................................................................................................... 17

NTRODUCTION

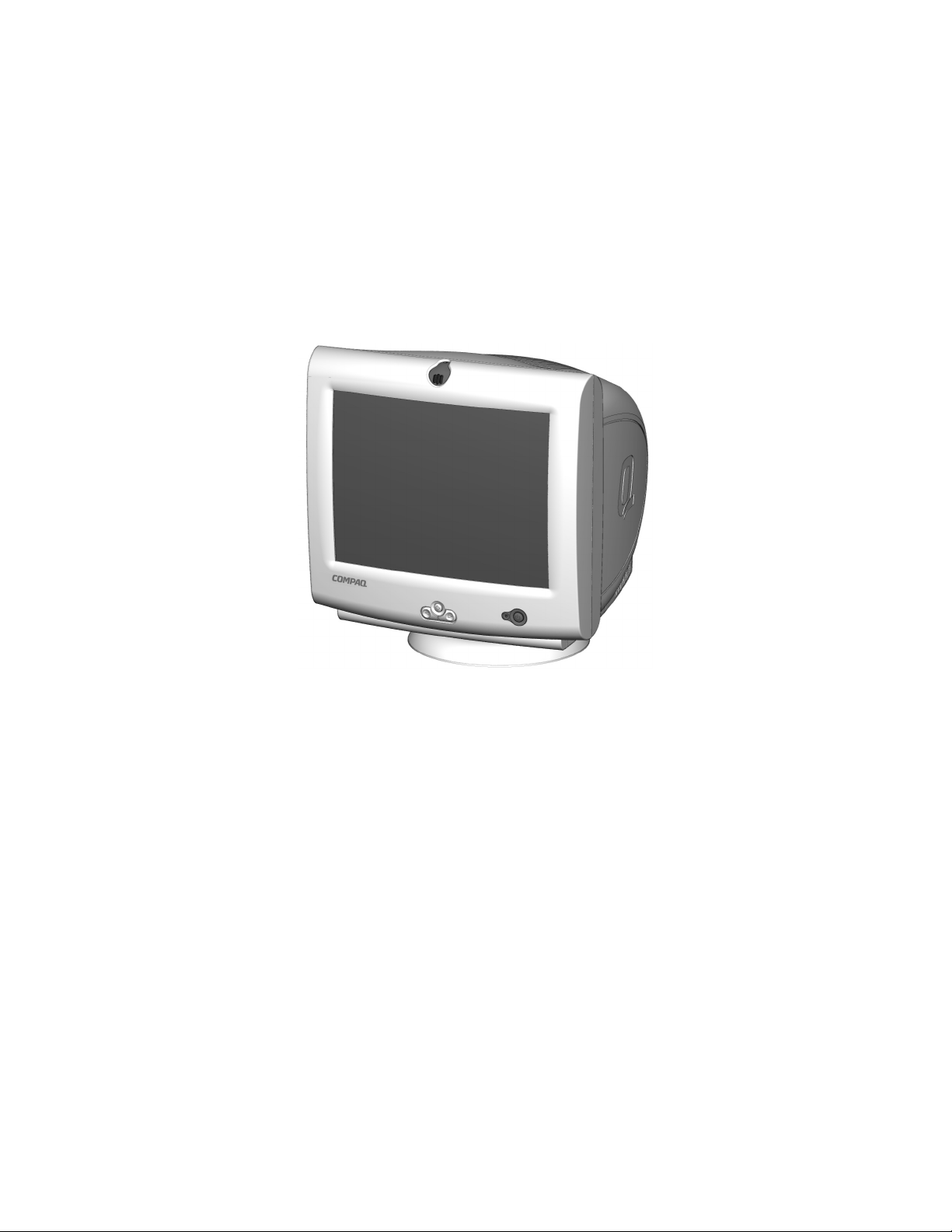

Congratulations on the purchase of your new, easy-to-use Compaq MV540 Color Monitor. The MV540 is a state-of-the-art, high performance monitor featuring a 15-inch (13.8-inch/350.5 mm viewable image area) screen. The user-friendly On-Screen Display allows you to make quick and easy adjustments to your screen image.

Features

• 15-inch monitor with a large, 13.8-inch/350.5 mm viewable image area to comfortably view applications

• .28mm dot pitch to produce crisp, sharp images

• On-screen user controls for easy adjustment of the screen image

• Quick, easy setup

• Energy Star compliant for reduced power consumption

• Integrated microphone for all of your Internet, telephony, and multimedia applications

• Attachable or standalone JBL Platinum Series amplified speakers

− Integrated audio input jack for MP3 players and other portable audio devices

− Integrated headphone jack

ETTING STARTED

Your Compaq MV540 Color Monitor packaging should include the following:

• Monitor

• Power cord

• Microphone cable

• Speakers and speaker power cable or adapter (selected models)

• Speaker stands

• User documentation

• Setup poster

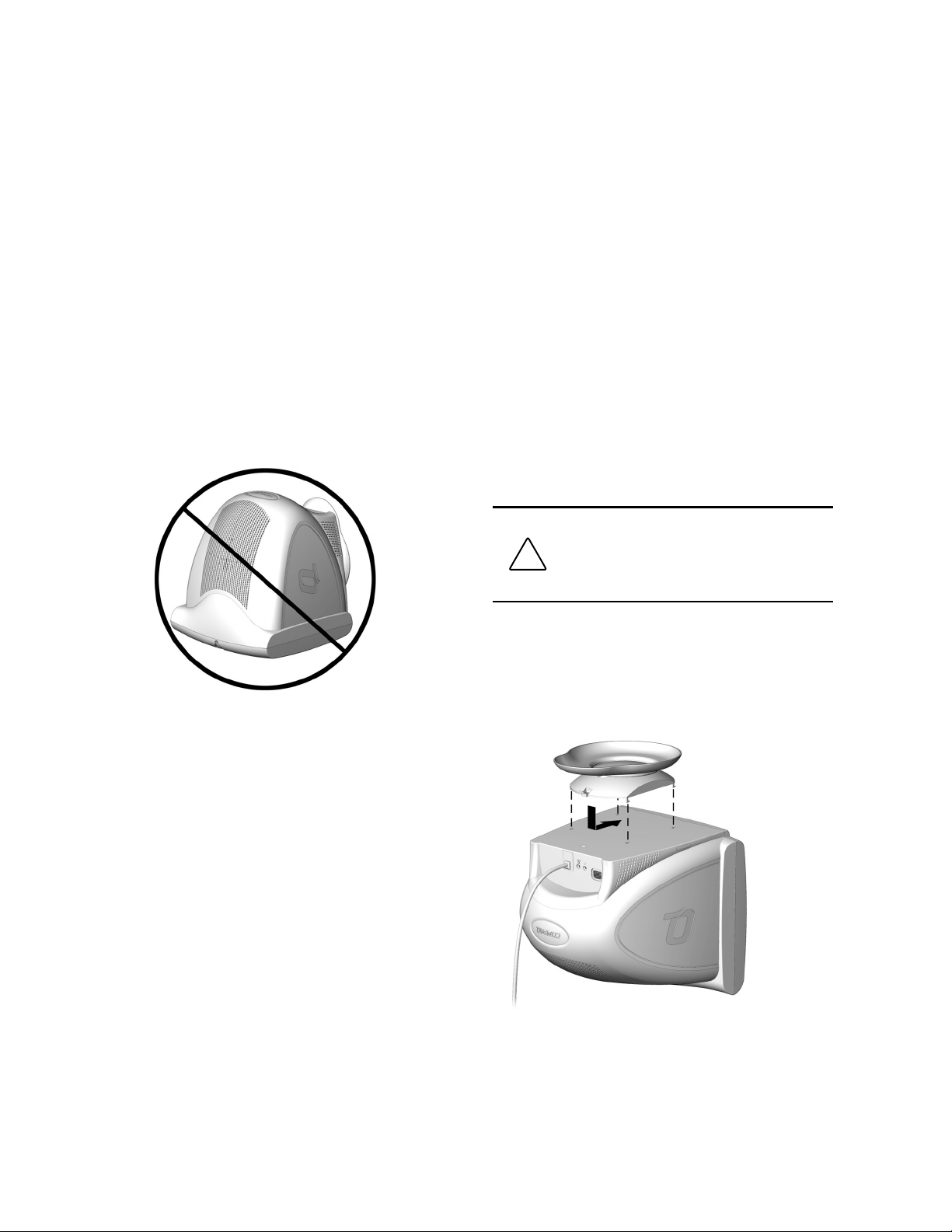

CAUTION

down. Damage could result to the front panel controls or to your monitor screen

::::

Do not place your monitor face

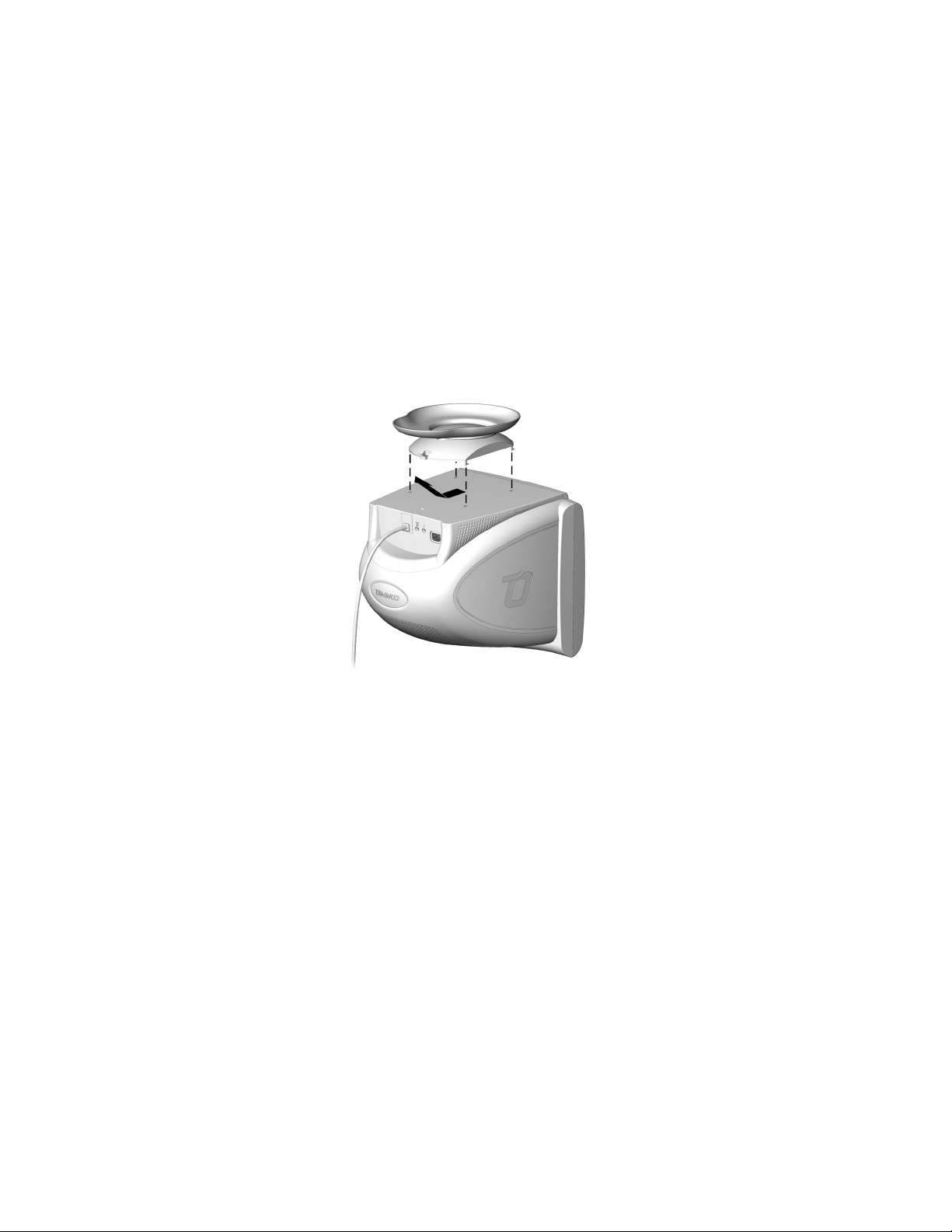

Attaching the Base Pedestal to Your Monitor

For shipping purposes, the base pedestal is not connected to your monitor. To attach it, proceed as follows:

1. Turn your monitor so that it is resting on the top.

2. Place the base pedestal in corresponding slots, then push it toward the front panel until it clicks and secures in place.

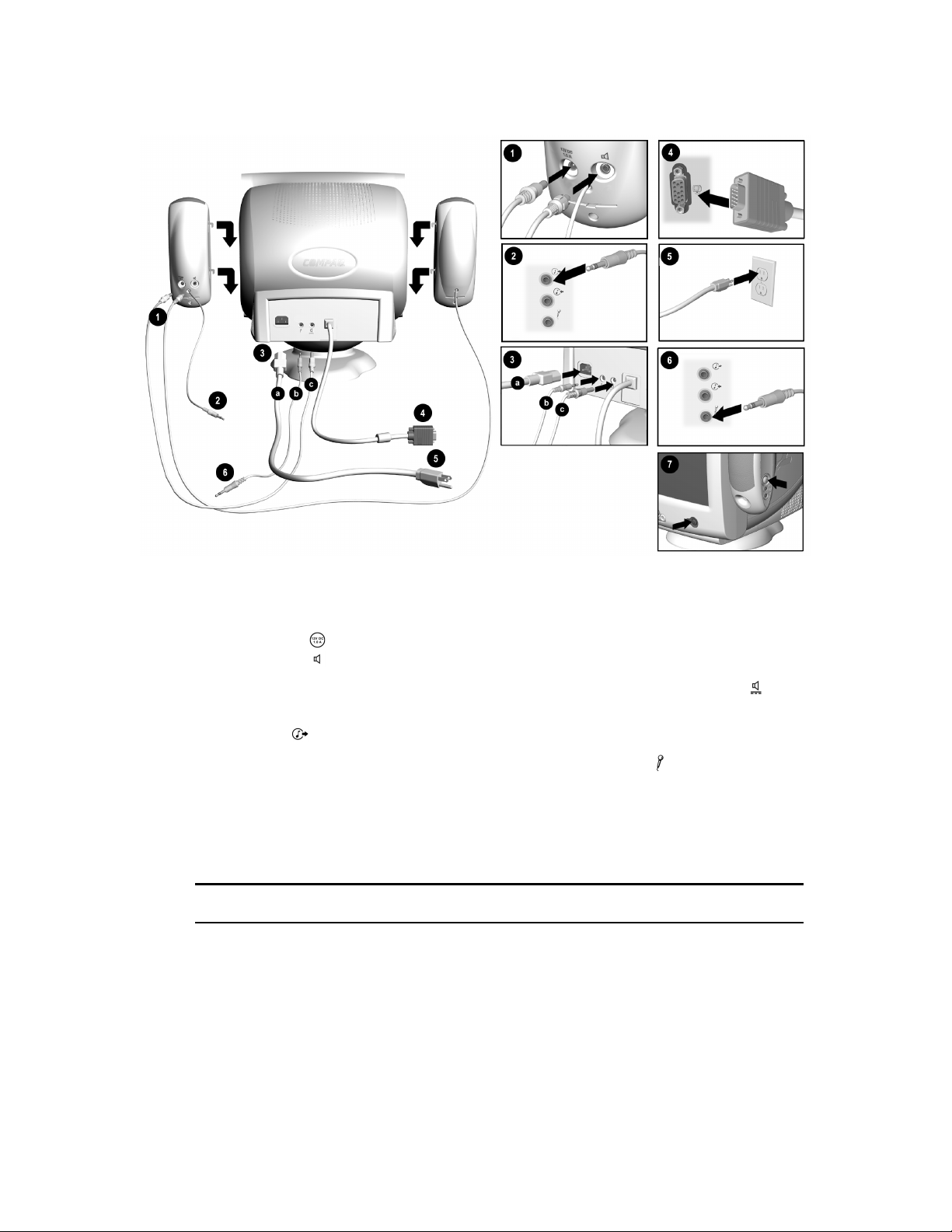

Installation

Before installing your monitor, place it in a convenient, well-ventilated location near your computer, ensure that power to your computer and other peripheral devices is turned off, and proceed as follows:

1. Insert the speaker power cable or adapter plug 1 into the back of the right speaker plug from the left speaker into the socket on the back of the right speaker

. Insert the

2. Insert the other end of the speaker power cable 3

3. Connect the lime green plug from the right speaker 2 to the audio out your computer.

4. Connect the pink end of the microphone cable to the microphone socket your monitor 3 panel of your computer 6.

5. Connect the monitor signal cable from the back of the monitor to the blue socket on the back of the computer 4. Tighten the screws on the end of the connector.

IMPORTANT:

the connector or you may damage the signal cable.

(

Installation instructions continued on next page

bbbb

, then plug the other end of the cable into the microphone connector on the rear

Ensure that the signal cable aligns with the 15-pin connector. Do not force the cable onto

cccc

into the back of the monitor

socket on the back of

on the back panel of

6. Connect the power cord to the back of the monitor 3

aaaa

, then connect the power cord to a power

outlet 5.

WARNING: To reduce the risk of electric shock or damage to your equipment, do not disable the power cord grounding feature. This equipment is designed to be connected to a grounded (earthed) power outlet that is easily accessible to the operator. The grounding plug is an important safety feature.

WARNING: For your safety, be sure that the power outlet you plug your power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, unplug the power cord from the power outlet by grasping the plug firmly. Never pull on the cord.

CAUTION: For the protection of your monitor as well as your computer, connect all power cords for your computer and its peripheral devices (monitor, printer, scanner, and so on) to some form of surge protection such as a power strip or UPS (Uninterruptible Power Supply). Not all power strips provide surge protection; they must be specifically labeled as having this ability. Look for manufacturers that have a Damage Replacement Policy to replace your equipment if their surge protection fails.

7. Install your speakers using one of the methods listed in “Speaker Installation”.

8. Power on your monitor by pressing the power button 7. Power on the speakers by pressing the power button on the side of the right speaker.

If necessary, adjust the front panel controls according to your personal preference. Your monitor installation is now complete.

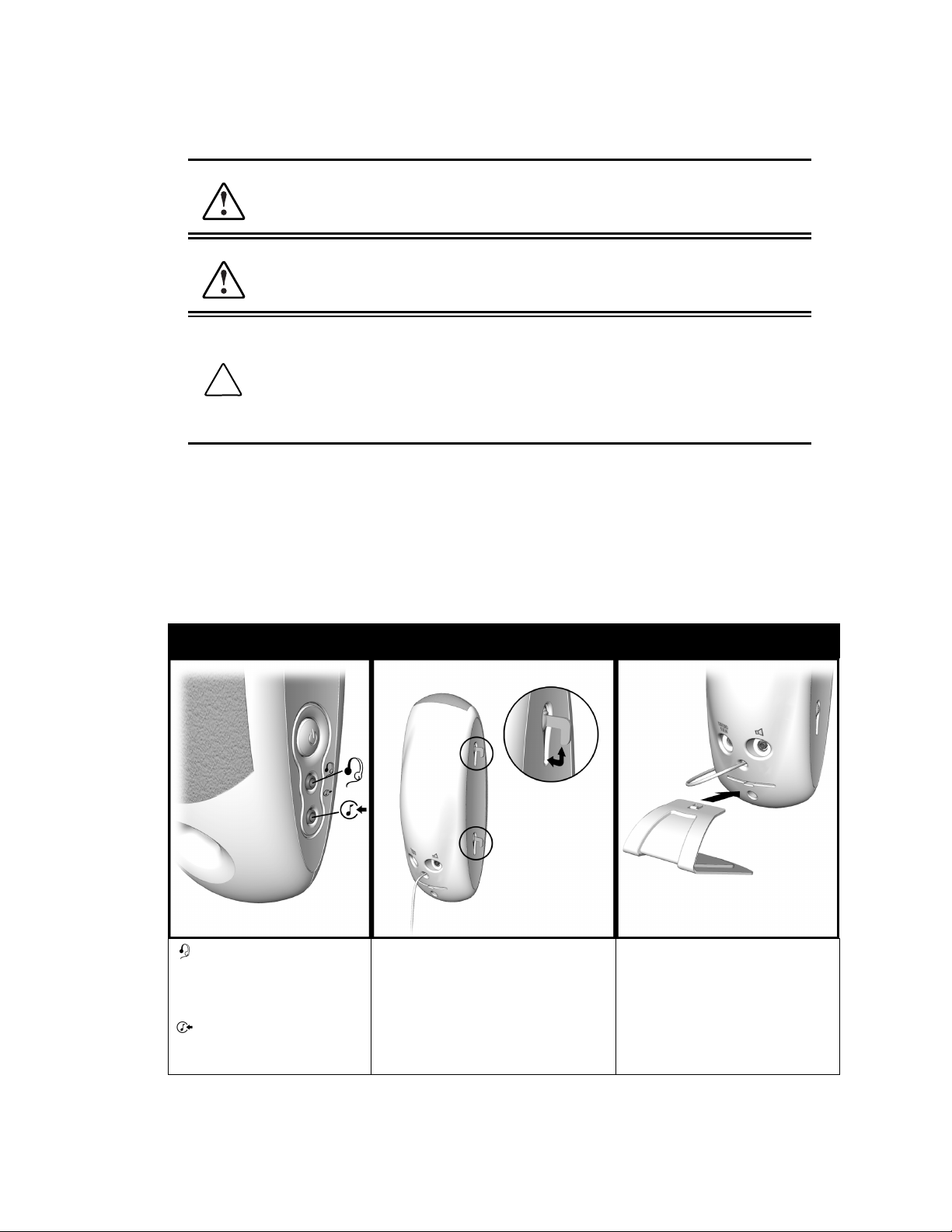

Speaker Installation

Headphone/Audio Input Jacks Retractable Speaker Mechanism Speaker Stand

Insert the headphone connector (headphones not included) into the headphone jack.

Insert one end of the cable from your portable audio device (not included) into the speaker.

1. Rotate the thumbwheel up to extend the hook mechanism.

2. Align the hooks with the slots on the monitor, then gently insert the hooks into the slots and slide down to lock in place.

Insert the speaker stand into the slot on the rear of each speaker.

PERATING YOUR MONITOR

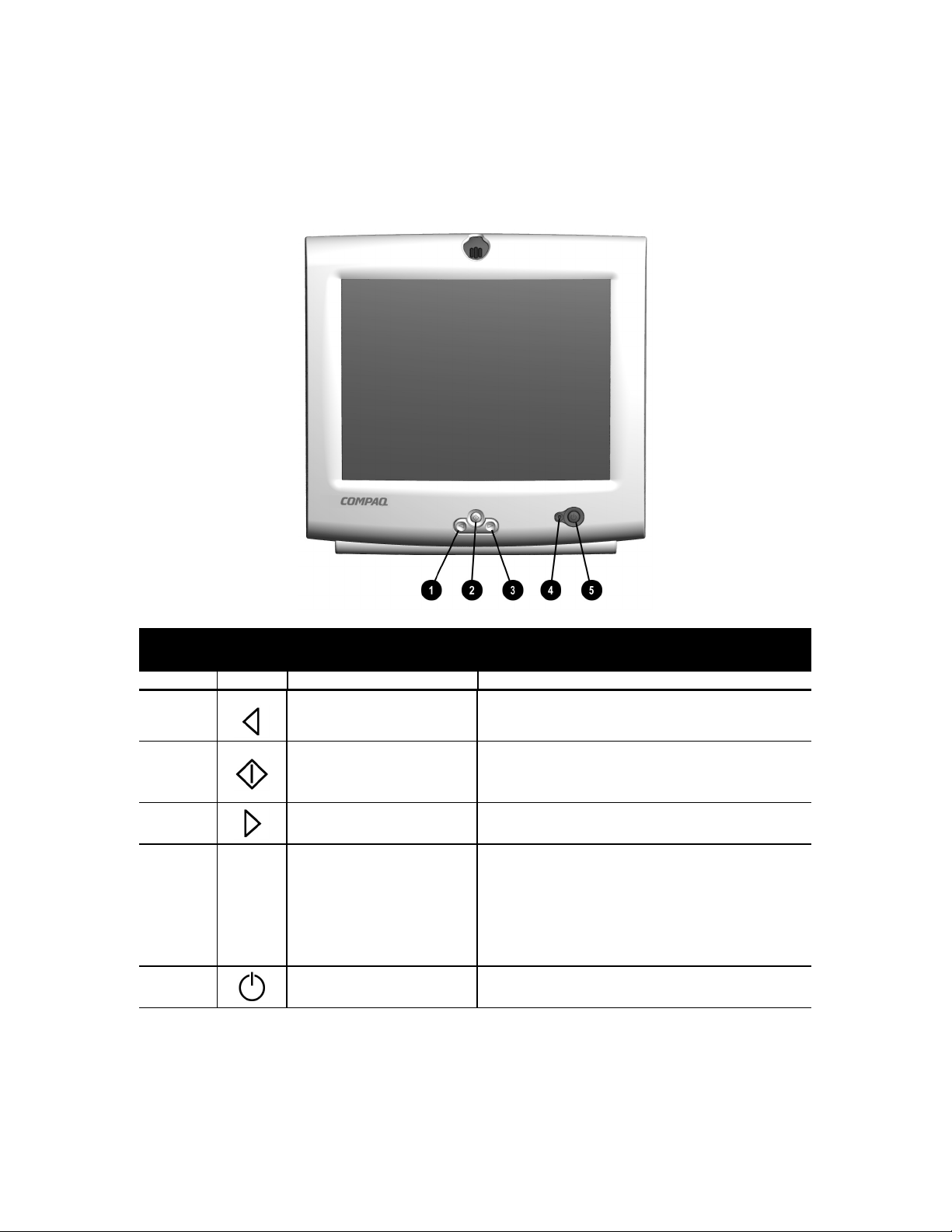

Front Panel Controls

Reference Icon Icon Name Function

Backward button Backward button (left arrow) moves backward through menu

Select button

Forward button Forward button (right arrow) moves forward through menu

Power LED

Power button Turns the monitor on and off.

options or

Launches On-Screen Display

•

Selects functions and adjustments

•

Exits menus and On-Screen Display

•

options or

Green light—indicates power on

•

Yellow light—indicates Standby/Suspend mode

•

Amber light—indicates Sleep mode

•

For more information on power states, see "Energy Saving Modes."

decreases

increases

adjustment levels.

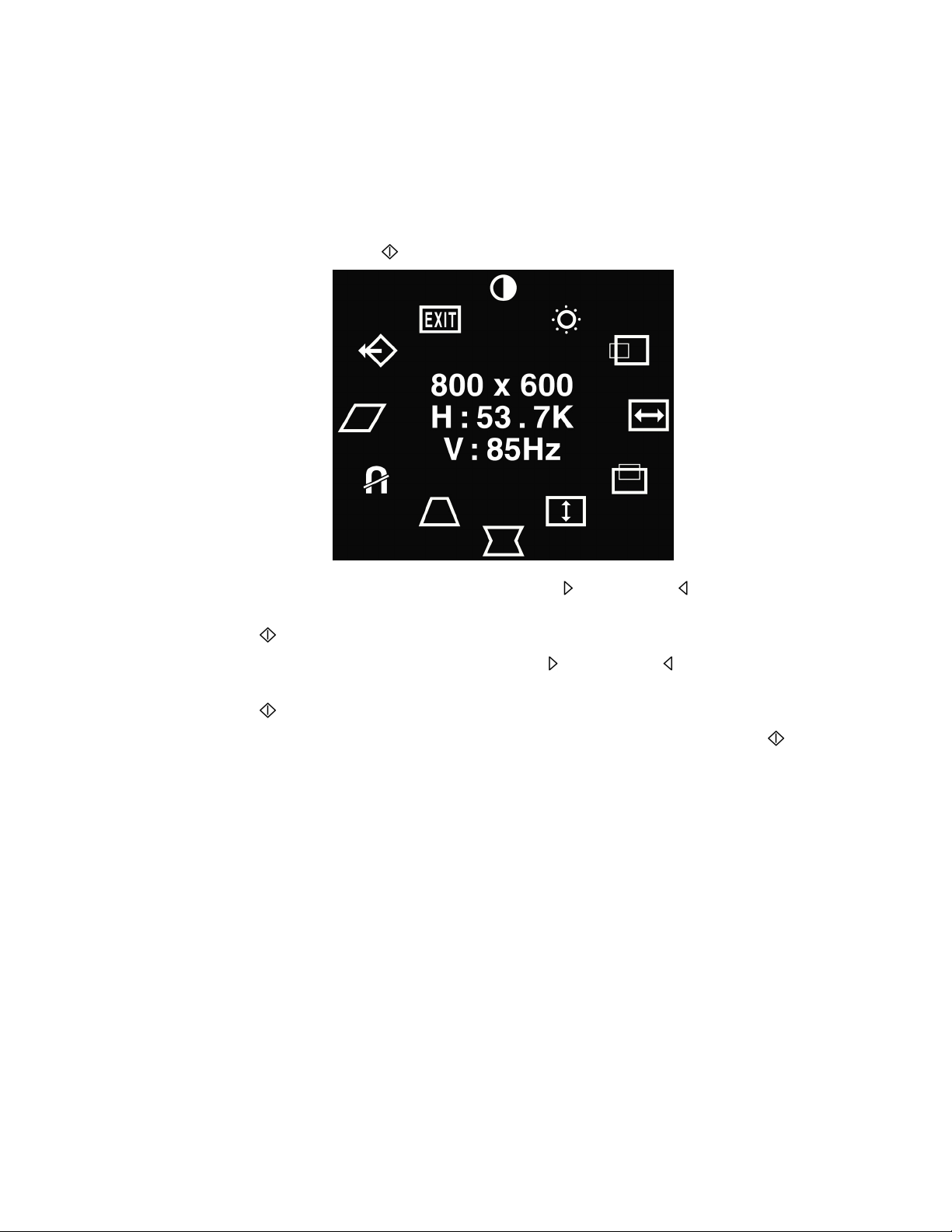

Using Your On-Screen Display

The On-Screen Display (OSD) adjusts the screen image based on your viewing preferences. To access the On-Screen Display, do the following:

1. If your monitor is not already on, press the power button to turn it on. (For the location of front panel control buttons, see “Front Panel Controls” in the previous section).

Select

2. Press the

3. To select a function, press the highlighted.

Select

SelectSelect

button

to display the On-Screen Display menu.

Forward

ForwardForward

Backwar d

Backwar dBackwar d

button until the function is

4. Press

5. An adjustment window is displayed. Use the (Forward) or decrease (Backward) the level of adjustment.

6. Press

7. To exit the On-Screen Display, select the

to choose the function.

to save the new adjustment.

Forward

ForwardForward

Exit

icon, then press the

ExitExit

Backwar d

and

Backwar d

Backwar dBackwar d

Select

SelectSelect

button to increase

button

once.

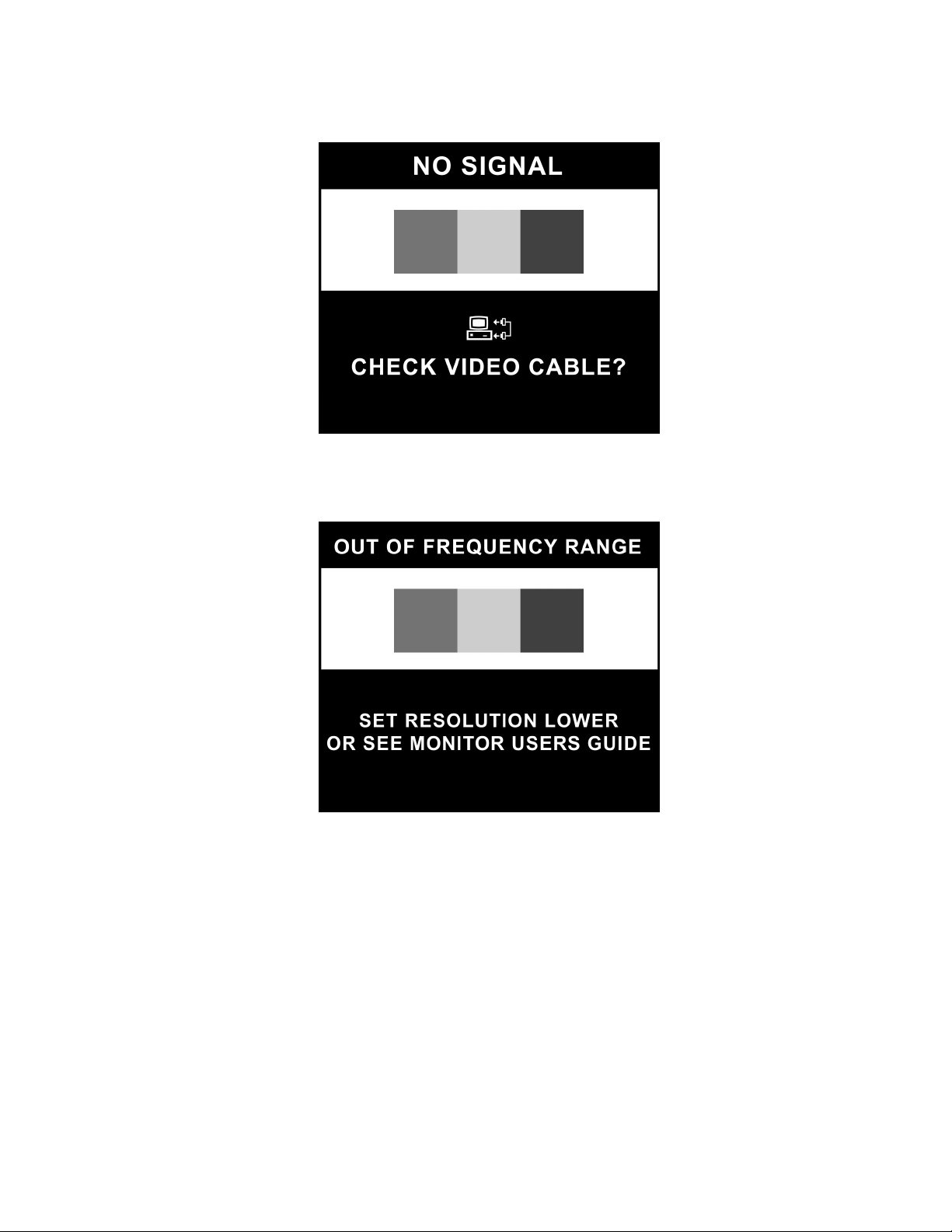

No Signal Message

If a “NO SIGNAL” message displays on your monitor, check to be sure your VGA cable is properly connected, and ensure that your computer is powered on.

Out of Frequency Range

If an “OUT OF FREQUENCY RANGE” message appears on your screen, your video resolution and/or refresh rate are set higher than what your monitor supports. To correct this problem, follow the steps below or contact your Compaq authorized dealer, reseller, or service provider.

1. Restart your computer.

2. Press

3. Change your display settings to a supported setting (see “Specifications”).

4. Restart your computer so that the new settings take effect.

before Microsoft

F6F6

Windows® begins to load so that you can enter Safe Mode.

On-Screen Display Functions

Your On-Screen Display (OSD) menu accesses the following functions:

On-Screen Display Functions

On-Screen Display Function

Contrast Adjusts display contrast

Brightness Adjusts display brightness

H. Position Shifts display right or left

H. Size Increases and decreases display width

V. Position Shifts display up or down

V. Size Increases and decreases display height

Pincushion Adjusts the concave and convex portion of the picture

Trapezoid Adjusts the top and bottom display widths to make them even

Degauss Demagnetizes screen to reduce color impurities

Parallelogram Adjusts the tilt of the display sides to the left or right

Reset Resets monitor to factory default values

Exit Exits OSD menu

NERGY SAVER MODES

Your monitor has been designed to meet strict EPA (Environmental Protection Agency) Energy Star requirements for reduced power consumption and to comply with the VESA Standard Display Power Management Signal. Using a combination of hardware and software functions, this energy-saving feature allows the computer to control your monitor’s power consumption and reduce your monitor’s power state when not in use.

NOTE:

Power consumption does not include the speaker power.

IMPORTANT:

that also has energy saver features.

The following table describes your monitor energy saver levels in each of four power states.

Your monitor’s energy saver feature works only when your monitor is connected to a computer

Power Management States

State LED Color Power

Consumption

STANDBY/

SUSPEND

SLEEP

The energy saver features, of the energy saver utility, are available with the Microsoft® Windows operating system. Some features are also available in DOS. Refer to your computer’s user guide for instructions on setting energy saver features (may also be referred to as power management features).

Green <80 watts Normal operation

Yellow <15 watts Monitor screen is blank. High voltage is off. Heater

Amber <5 watts Monitor screen is blank. High voltage is off. Heater

Description

voltage is reduced. Full power mode returns quickly (approximately 4 seconds).

voltage is off. There is a brief warm-up period before returning to full power mode (approximately 15 seconds).

ONITOR CARE AND MAINTENANCE

To enhance the performance and extend the life of your monitor, use the following guidelines:

• Do not open your monitor cabinet or attempt to service this product yourself. Adjust only those controls that are covered in the operating instructions. If your monitor is not operating properly or has been dropped or damaged, contact your Compaq authorized dealer, reseller, or service provider.

• Place your monitor at least 3 inches (76 mm) away from walls or other enclosures.

• Use only a power source and connection appropriate for your monitor, as indicated on the label on

the back plate.

• When you connect your monitor to an outlet or extension cord, be sure the total ampere rating of the products connected to the outlet does not exceed the current rating of the electrical outlet, and the total ampere rating of the products connected to the cord does not exceed the rating of the cord.

• Install your monitor near an outlet that you can easily reach. Disconnect your monitor by grasping the plug firmly and pulling it from the outlet. Never disconnect your monitor by pulling the cord.

• Turn your monitor off when not in use. You can substantially increase the life expectancy of your monitor by using a screen saver program for brief idle times and turning off your monitor when it is not in use for an extended period of time.

• Unplug your monitor from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. If the screen requires additional cleaning, use an antistatic CRT screen cleaner.

CAUTION:

clean your monitor or the screen. These chemicals may damage the cabinet finish as well as the screen.

• Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or covered. Never push objects of any kind into cabinet slots or other openings.

• Do not place plants on top of your monitor. Water or dirt from the plant may get into the vents.

• Do not drop your monitor or place it on an unstable surface.

• Do not allow anything to rest on the power cord. Do not walk on the cord.

• Keep your monitor in a well-ventilated area, away from excessive light, heat and moisture. Keep

your monitor away from high-capacity transformers, electric motors, and other devices with strong magnetic fields.

• In a two-monitor system, place your monitors as far apart from one another as possible to lessen interference between them.

Do not use benzene, thinner, ammonia, or any other volatile substances to

ROUBLESHOOTING

You may save time and money by solving common monitor problems using the following simple, easyto-apply solutions. If you are unable to solve the problem using these troubleshooting solutions, visit

www.compaq.com/athome

the Compaq website at

www.compaq.com/athome

www.compaq.com/athomewww.compaq.com/athome

or contact your Compaq authorized dealer, reseller,

or service provider.

Problem Possible Cause Solution

Screen is blank Power cord disconnected Connect the power cord

Power switch off Turn on power

Signal cable improperly connected

Screen blanking utility is active Depress any key on the keyboard or move the

Image appears blurred, indistinct, or too dark

Color is abnormal A magnetic object may

Image is too large or too small Horizontal width may need

Image is not centered Horizontal position needs

Brightness and contrast are too low

be nearby

Monitor has been moved or inadvertently bumped

adjustment

Vertical height may need adjustment

adjustment

Vertical position needs adjustment

Connect signal cable properly

mouse

Press to access the On-Screen Display (OSD), then select the brightness and/or contrast icon to adjust to desired levels*

Move the object farther away

Press to access the OSD, then select Degauss

to activate*

Press to access the OSD, then select H. Size to adjust*

Press to access the OSD, then select V. Size to adjust*

Press to access the OSD, then select H. Position

Press to access the OSD, then select V. Position

to adjust*

“No Signal” is displayed on screen

“Out of Range” is displayed on screen

Monitor signal cable is not connected to the computer

Video resolution and/or refresh rate are set higher than what your monitor supports

Connect the 15-pin monitor signal cable to the computer. Be sure that computer power is on.

Restart your computer, press F6 before Microsoft Windows begins to load so that you enter Safe Mode. Change your settings to a supported setting (see “Specifications”). Restart your computer so that the new settings take effect.

*Refer to the “Using Your On-Screen Display” section for detailed instructions. (

continued

)

Troubleshooting

Problem Possible Cause Solution

No speaker power Speaker power plug may have

(continued)

come unplugged

Check all speaker power connections and ensure they are properly connected

Power button on right-side speaker may be off

No sound from speakers Speaker audio plug may have

come unplugged from the back of the computer

Mute button on keyboard may be activated

Volume level may be adjusted too low

No sound from left speaker Speaker connection from left

speaker may have come unplugged

Left speaker balance may need to be adjusted

Integrated microphone is not working

Microphone cable is not connected properly

Push the power button on the right side of the right speaker; power button should illuminate

Make sure your audio input jack (lime green connector) is plugged into the back of your computer

Push the mute button on your keyboard or click on the speaker icon located on your Windows desktop and deselect “Mute”

Increase the volume level by using your keyboard volume control or clicking on the speaker icon located on your Windows desktop and increasing the volume level

Make sure the speaker connection from the left speaker is plugged into the rear of the right speaker

Click on the speaker icon located on your Windows desktop and adjust the Left-Right balance accordingly

Ensure that the microphone cable is connected properly

Monitor is overheating There is not enough ventilation

space to allow proper airflow

Leave at least 3 inches (76mm) of ventilation space surrounding your monitor, and do not place objects on top of your monitor

HIPPING YOUR MONITOR

In the event you need to ship your monitor, keep the original packing box. If you find it necessary to remove the base pedestal for shipping or service reasons, please refer to the

instructions and illustration below for proper removal.

1. Release the catch and slide the base pedestal toward the back of your monitor.

2. Lift the base pedestal up and away from your monitor.

PECIFICATIONS

Compaq MV540 Color Monitor

Monitor Type Color, multi-frequency, digital controls Picture Tube 15-inch Flat Square, Polished or Anti-glare Viewable Image Area 13.8" (350.5mm) Operating Temperature 50°F – 86°F (10°C – 30°C) Relative Humidity 20% – 80% Dot Pitch .28mm Display Resolutions 1024 x 768 800 x 600 800 x 600 720 x 400 640 x 480 640 x 400 Input Impedance 75 +/- 3 % Ohms Horizontal Frequency 30 kHz – 54 kHz Vertical Frequency 50 Hz – 120 Hz Universal Power Supply 90 – 132 V, 50 – 60 Hz

Inrush Current 30 amps @ 120 V

Maximum Power Rating <80 watts Signal Cable 15-pin miniature D-sub Speakers (selected models) Speaker Frequency Response Speaker Watts Microphone Integrated Dimensions (LxWxH) Unpacked 16.3" x 14.5" x 15.6"

Weight Unpacked monitor only Packed in box (Monitor and Speakers) Power Management Yes Energy Star Compliant Yes MPRII Compliant Yes (selected models) TCO99 Compliant Yes (selected models) European Union CE Compliant Yes (selected models) Plug and Play Yes

Refresh Rates 60 Hz (maximum resolution) 85 Hz (maximum flicker-free resolution) 75 and 60 Hz 70 Hz 85, 75 and 60 Hz 70 Hz

190 – 265 V, 50 – 60 Hz

60 amps @ 220 V

Attachable, amplified JBL Platinum Series 100 Hz – 20 kHz 3W RMS per channel max. at 10% THD

(413 mm x 368 mm x 397 mm)

28.7 lb. (13 kg)

38.5 lb. (17.5 kg)

PPENDIX

Regulatory Compliance Notices

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected

• Consult the dealer or an experienced radio or television technician for help

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Compaq Computer Corporation may void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in order to maintain compliance with FCC Rules and Regulations.

Declaration of Conformity for products marked with the FCC logo - United States only

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For questions regarding your product, contact:

Compaq Computer Corporation

P. O. Box 692000, Mail Stop 530113

Houston, Texas 77269-2000

Or, call

1-800-652-6672 (1-800-OK COMPAQ)

For questions regarding this FCC declaration, contact:

Compaq Computer Corporation

P. O. Box 692000, Mail Stop 510101

Houston, Texas 77269-2000

Or, call (281) 514-3333

To identify this product, refer to the Part, Series, or Model number found on the product.

Canadian Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Avis Canadien

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

European Union Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms (in brackets} are the equivalent international standards:

• EN55022 (CISPR 22) - Electromagnetic Interference

• EN50082-1 (IEC801-2, IEC801-3, IEC801-4) - Electromagnetic Immunity

• EN60950 (IEC950) - Product Safety

• EN60555-2 (IEC555-2) - Power Line Harmonics

EPA Energy Star Compliance

Monitors that are marked with the ENERGY STAR Logo meet the requirements of the EPA ENERGY STAR program. As an ENERGY STAR Partner, Compaq Computer Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency. Specific details on using the Energy Saving features can be found in the energy saver or power management section of the computer manual.

Japanese Notice

German Ergonomics Notice

Compaq Computers, when tested with the Compaq Monitors, were evaluated and found compliant to the requirements of ZH 1/618 (German Safety Regulations for Display Work Places in the Office Sector) in the Text Mode (720 × 400) using MS-DOS Version 3.31 (or higher) and BASICA as published by Compaq Computer Corporation.

NDICE

INTRODUÇÃO............................................................................................................................ 20

Recursos......................................................................................................................................................... 20

INICIANDO................................................................................................................................. 21

Montando o Pedestal Base em seu Monitor ..................................................................................................... 21

Instalação ....................................................................................................................................................... 22

Instalação do Auto-falante ....................................................................................................................... 23

COMO OPERAR SEU MONITOR .................................................................................................. 24

Como Usar Seu On-Screen Display.................................................................................................................. 25

Mensagem No Signal ...................................................................................................................................... 26

Mensagem Out of Frequency Range ................................................................................................................ 26

Funções On-Screen Display..................................................................................................................... 27

MODOS DE ECONOMIA DE ENERGIA.......................................................................................... 28

CUIDADOS E MANUTENÇÃO DO MONITOR................................................................................. 29

RESOLUÇÃO DE PROBLEMAS.................................................................................................... 30

TRANSPORTE DO MONITOR ...................................................................................................... 32

ESPECIFICAÇÕES ......................................................................................................................33

APÊNDICE................................................................................................................................. 34

Avisos sobre compatibilidade regulatória......................................................................................................... 34

Aviso do FCC (Federal Communications Commission)............................................................................... 34

Modificações ........................................................................................................................................... 34

Cabos...................................................................................................................................................... 34

Declaration of Conformity for products marked with the FCC logo - United States only ............................. 34

Canadian Notice....................................................................................................................................... 35

Avis Canadien.......................................................................................................................................... 35

European Union Notice............................................................................................................................. 35

EPA Energy Star Compliance.................................................................................................................... 35

Japanese Notice...................................................................................................................................... 35

German Ergonomics Notice...................................................................................................................... 35

NTRODUÇÃO

Parabéns por adquirir seu novo e fácil de usar Monitor Colorido Compaq MV540 O MV540 é um monitor estado da arte e de alto desempenho apresentando uma tela de 15 polegadas (13,8 pol/350,5 mm de área útil vísivel). O On-Screen Display amigável permite que você faça ajustes rápidos e fáceis na imagem de sua tela.

Recursos

• Monitor de 15-pol com uma área de imagem grande, 13,8por/350,5 mm, para exibir confortavelmente suas aplicações.

• Dot pitch .28mm para produzir imagens nítidas e claras.

• Controle de usuário na tela para ajustes fáceis na imagem exibida.

• Configuração fácil e rápida.

• Compatível com Energy Star para consumo reduzido de energia.

• Microfone integrado para todas suas aplicações Internet, de telefonia e multimídia.

• Auto-falantes amplificados JBL Platinum Series anexados ou autônomos.

− Conector de entrada de áudio integrado para MP3 players e outros dispositivos de

áudio portáteis.

− Conector de fone de ouvido integrado.

NICIANDO

A embalagem de seu Monitor Colorido Compaq MV540 deve incluir o seguinte:

• Monitor

• Cabo de alimentação

• Cabo do microfone

• Auto-falantes e cabo de alimentação dos auto-falantes ou adaptador (alguns modelos)

• Bases dos auto-falantes

• Documentação do usuário

• Cartaz de configuração

ATENÇÃO

cabeção para baixo. Pode resultar em danos nos controles do painel frontal ou na tela de seu monitor

Não coloque seu monitor de

: :

Montando o Pedestal Base em seu Monitor

Para fins de transporte, o pedestal da base não vem conectado ao monitor. Para anexá-lo, faça o seguinte:

1. Vire o monitor de cabeça para baixo.

2. Coloque o pedestal da base nas fendas correspondentes e, em seguida, empurrea em direção ao painel frontal até que se encaixe e se trave no lugar.

+ 51 hidden pages
