Compaq MP2810 User Guide

Notice

 2000 Compaq Computer Corporation.

C

OMPAQ and the Compaq logo Registered in U.S. Patent and

Trademark Office.

Microsoft, Windows, and Windows NT are registered trademarks of
Microsoft Corporation in the United States and/or other countries.

All other product names mentioned herein may be trademarks or
registered trademarks of their respective companies.

Compaq shall not be liable for technical or editorial errors or
omissions contained herein. The information in this document is
subject to change without notice and is provided “as is” without
warranty of any kind. The entire risk arising out of the use of this
information remains with the recipient. In no event shall Compaq be
liable for any direct, consequential, incidental, special, punitive, or
other damages whatsoever (including without limitation, damages
for loss of business profits, business interruption, or loss of business
information), even if Compaq has been advised of the possibility of
such damages. The limited warranties for Compaq products are
exclusively set forth in the documentation accompanying such
products. Nothing herein should be construed as constituting a
further or additional warranty.

User’s Guide

Compaq MP2800 Microportable Projector

First Edition October 2000

Published in U.S.A., U.K., Singapore, and Taiwan.

Documentation Part Number 216023-001

Preface

Using This Guide

The User's Guide includes general information about your
projector, troubleshooting and diagnostics, and technical
specifications.

Symbols and Conventions

The following words and symbols mark special messages
throughout this guide:

Text set off in this manner presents clarifying

✎

information, specific instructions, commentary,
sidelights, or interesting points of view.

WARNING: Text set off in this manner indicates that

!

failure to follow directions could result in bodily
harm or loss of life.

CAUTION: Text set off in this manner indicates that

failure to follow directions could result in damage to
equipment or loss of information.

Preface 2

Warning Messages

Before operating the projector, please read the following
messages.

WARNING:

!

n To reduce the risk of harm to your eyes, do not

look directly into the bright light of the
projection lens.

n To reduce the risk of fire or electric shock, do

not expose this product to rain or moisture.

n To reduce the risk of electric shock, do not

disassemble the projector other than to replace
the lamp module.

n To reduce the risk of personal injury, allow the

unit to cool down before changing the lamp, and
always unplug the power cord first.

Preface 3

Chapter 1

Getting Started

Product Features

The Compaq MP2800 Microportable Projector generates crisp,
clear images onto a projection screen by using Digital Light
Processing (DLP) technology. The microportable projector offers
the latest in portable projection technology, including:

n 1024 × 768 native XGA resolution
n Maximum resolution: 1280 x 1024
n HDTV capable 720p and 1080i via DVI port and 1080p via

VGA port

n User replaceable 130 watt high-efficiency, long-life lamp
n Manual 1.2:1 zoom lens
n Electronic scaling to 32X
n Weighs 3.00 pounds (1.36 kg)
n Convenient auto-image adjustment
n 16.7 million displayable colors
n Flash ROM upgradeable
n Connector options:

■ Standard analog VGA

■ Digital DVI

■ S-video (with Multimedia Adapter) [optional use]

■ Composite video (with Multimedia Adapter) [optional use]

n Multimedia Adapter with speaker [optional use]
n Full-featured remote control with remote mouse capabilities

[optional use]

n Multilingual on-screen adjustment menu
n Plug and Play capability
n Projector carrying case
n Compaq Presentation utility allows quick setup with

portable computers

Getting Started 4

n Compaq Projector Display Assistant utility to adjust

screen settings

n Security lock slot

Introduction

Before setting up your Compaq Microportable Projector, be sure

your shipping box includes the following items:

Getting Started 5



Projector and lens cap



10-foot power cable



RS232 (serial) to DVI upgrade adapter



Eight signal cables:

n One VGA signal cable for use with computers, portables, and

some handheld products

n One digital DVI to DVI signal cable for use with compatible

digital sources

n S-video cable (for connecting digital devices such as a DVD

player, camcorder, etc.)

n Composite video cable (for connecting to a videocassette

recorder)

n Audio cables (2; one cable has mini connectors on both ends

and is used to connect the Multimedia Adapter to a
computer; the other cable has two RCA connectors on one
end and a mini connector on the other end and is used to
connect a videocassette recorder to a computer)

n Remote control Y-cable

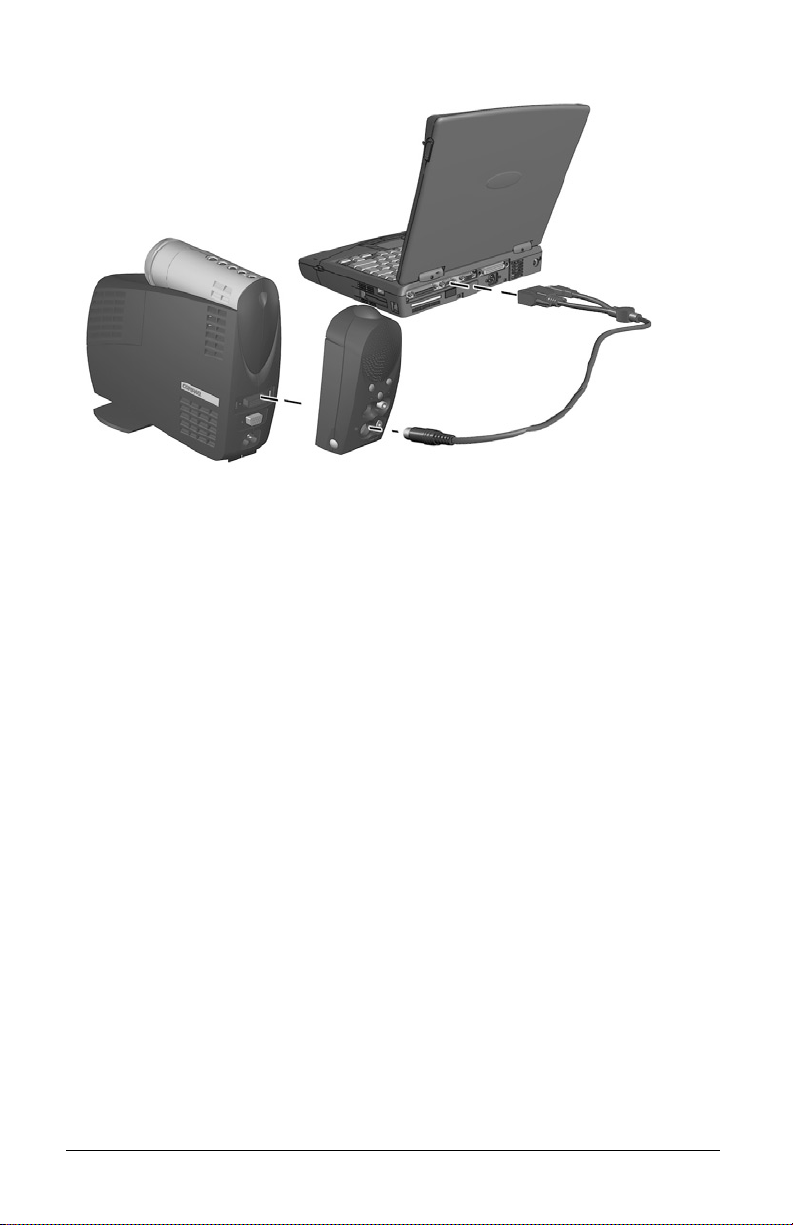

8-pin to USB/RS232 Y-cable used to connect the Multimedia

Adapter to a computer for use with the remote control. When
using the Y-cable, do not connect both the USB and RS232
connectors to a computer at the same time. The USB
connector is the preferred connector.
NOTE: The remote control Page Up and Page Down
functions require an additional driver when used with the
RS232 connector. This driver can be found on the CD-ROM
that came with your projector.

n Component HDTV to VGA cable (optional use)



Compaq Multimedia Adapter (optional use)



Remote control, including two AAA batteries (optional use)



Carrying case



CD-ROM containing the Compaq Presentation utility program,

Compaq Projector Display Assistant utility, RS232 driver, and
the User’s Guide



Two Quick Setup cards and the Agency Regulatory Notices

booklet

Getting Started 6

If your shipping box does not contain all of the listed items, please

r

contact your Compaq authorized dealer, reseller, or service
provider.

Setting Up the Projector

Follow the instructions below and on the following pages to set up

the projector. Separate setup instructions are described for the
following products:

n Portable computers

n Desktop computers

n Compaq PC Companions with VGA capability

n Videocassette recorder, DVD, or camcorder (requires optional

Multimedia Video Adapter)

✎

IMPORTANT: Place the projector on a stable desk or table at a

The projector is hot pluggable and can be connected

to any video input source while the source is in use.

distance not less than 3.74 feet (1.14 meters) and not greater than

32.8 feet (10 meters) from the projection screen.

WARNING: To reduce the risk of electric shock or

!

damage to your equipment:

n Do not disable the power cord grounding plug.

The grounding plug is an important safety
feature.

n Plug the power cord into a grounded (earthed)

electrical outlet that is easily accessible at all
times.

n Disconnect power from the projector by unplug-

ging the power cord from the electrical outlet.

n Do not place anything on power cords or cables.

Arrange them so that no one may accidentally
step on or trip over them. Do not pull on a cord o
cable. When unplugging from the electrical
outlet, grasp the cord by the plug.

Getting Started 7

Balancing the Projector

The projector has a built-in elevator foot used to balance and
elevate the projector. Always balance the projector before
connecting any device to it.

Turn the elevator foot sideways to balance the projector.

WARNING: To reduce the risk of the projector

!

tipping or overturning, always turn the elevator foot
90° from its original position before pressing the
elevator button. Refer to the “Adjusting the Projector
Height” section later in this chapter.

Getting Started 8

Connecting the Projector to a Portable Computer

1. Rotate the elevator foot to balance the projector.

2. Connect one end of the projector signal cable to the projector

and the other end to the VGA connector ➊B or the DVI
connector ➊A on the portable computer and tighten the screws.

✎

3. Connect one end of the power cord ➋ into the back of the

Be sure the signal cable aligns with the connector. Do
not force the cable onto the connector or you may
damage the signal cable or the projector.

projector, and the other end to an electrical outlet that is easily
accessible and close to the projector. The projector will
automatically be placed into Standby mode.

4. Press the blue Standby button on the top of the projector to turn
on the projector first, then turn on the computer.

For security purposes, this projector has been fitted with a

✎

security lock slot ➌ (located on the left, front side) for use
with a security cable lock that can be purchased separately
at most computer stores.

Getting Started 9

Connecting the Projector to a Desktop Computer

1. Rotate the elevator foot to balance the projector.

2. Connect one end of the projector signal cable ➊B to the projector and
the other end to the VGA connector on the desktop computer and
tighten the screws.

✎

✎

3. Connect one end of the power cord ➋ into the back of the

If your computer has a digital connector, connect one end of
the DVI signal cable ➊A to the digital connector on the
projector and the other end to the digital connector on the
computer.

Be sure the signal cable aligns with the connector. Do not force
the cable onto the connector or you may damage the signal
cable or the projector.

projector, and the other end to an electrical outlet that is easily
accessible and close to the projector. The projector will

automatically be placed into Standby mode.

Getting Started 10

4. Press the blue Standby button on the top of the projector to turn on the
projector first, then turn on the computer.

For security purposes, this projector has been fitted with a

✎

security lock slot ➌ (located on the left, front side) for use
with a security cable lock that can be purchased separately at
most computer stores.

Connecting the Projector to a Compaq PC Companion

To connect the projector to a Compaq PC Companion, the PC
Companion must have a male connector adapter and a VGA-out PC
Card with a 15-pin connector.

✎

1. Rotate the elevator foot to balance the projector.

2. Connect one end of the signal cable ➊ to the projector and

✎

The VGA-out PC Card with the 15-pin connector is not
included with the Compaq PC Companion. It is sold
separately. For information on purchasing this card, call your
Compaq authorized dealer or reseller. To locate a reseller near
you, check the “Worldwide Telephone Numbers” booklet that
came with your projector or visit the Compaq website at

http://www.compaq.com.

connect the other end to the VGA-out PC Card. The VGA-out
PC Card may be inserted into the PC slot on the Compaq PC
Companion before or after connecting the signal cable.

Be sure the signal cable aligns with the connector. Do not
force the cable onto the connector or you may damage the
signal cable or the projector.

Getting Started 11

3. Connect one end of the power cord ➋ into the back of the
projector, and the other end to an electrical outlet that is easily
accessible and close to the projector. The projector will
automatically be placed into Standby mode.

4. Press the blue Standby button on the top of the projector to turn on the
projector first, then turn on the computer.

✎

Getting Started 12

For security purposes, this projector has been fitted with a
security lock slot ➌ (located on the left, front side) for use
with a security cable lock that can be purchased separately
at most computer stores.

Connecting the Projector to Other Video Sources

The optional Compaq Multimedia Adapter must be used to connect
the projector to a camcorder, DVD player, or videocassette
recorder. This adapter converts signals from the camcorder, DVD
player, or videocassette recorder for compatibility with the
projector.

Refer to Chapter 3, “Using the Compaq Multimedia Adapter,” for
information on attaching and using the Compaq Multimedia
Adapter.

Powering On the Projector

Follow these instructions to power on the projector:

1. Make sure the computer and projector power cords and the
signal cable are securely connected.

✎

2. Remove the lens cap by squeezing the tabs ➊ and pulling the

3. Press the blue Standby button ➌ on the top of the projector and

When the projector has warmed up, the Compaq startup screen

Make sure the projector is perpendicular to
the projection screen.

lens cap straight out ➋.

allow the projector to warm up for one to two minutes.

displays and the LED on the

Standby button turns green.

Getting Started 13

4. Turn on the video source (computer, PC Companion,
videocassette recorder, etc.) and launch the software application
being used to display images on the projection screen.
If applicable, press the Function key on the computer
designated for external display.

If there is a long delay between the time the startup screen

✎

displays and the time the presentation software is launched,
the lamp may shut off and the projector will automatically
go into standby mode. If this happens, press the
button to power on the lamp.

When the startup screen disappears, the video from the

✎

attached computer displays. If there is no incoming video,
the “Check Video Cable” message will display on the
projection screen.

Standby

Getting Started 14

Powering Off the Projector

1. Press the Standby button ➊ to turn off the projector lamp.

The message “Going to Standby” displays and the LED on the

Standby button blinks amber.

IMPORTANT: Allow the projector to cool down for about

five to ten minutes before turning it off.

2. Disconnect the power cord from the electrical outlet and the

projector ➋.

CAUTION: After the projector is turned off, wait at least
one minute before turning the projector back on. Failure to
follow this caution can result in damage to the projector.

Getting Started 15

Adjusting the Projected Image

There are three ways to adjust the projected image:

n Adjusting the projector height

n Adjusting the projector focus

n Adjusting the projector zoom

Adjusting the Projector Height

The projector has a built-in elevator foot that can raise the projector
approximately 1 inch (2.54 cm). To adjust the height:

1. Ensure the foot is turned 90° to balance the projector.

2. Raise the projector to the desired display angle, then press the

elevator button ➊ to release the elevator foot ➋.

Getting Started 16

3. To lower the display angle, press the elevator button again and

press down on the projector to lower it.

CAUTION: Failure to press the elevator button
before adjusting the elevator foot can result in
damage to the elevator mechanism.

Adjusting the Projector Focus

To focus the projected image, rotate the focus ring ➊ until the
image is clear. The projector will focus at distances from 3.74 (1.14
meters) to 32.8 feet (10 meters).

If vertical bars appear on the display after adjusting the focus, press

Resync button ➋ to automatically synchronize and track the

the
display. If the button does not correct the display, use the Digital
Conversion feature in the on-screen menu to manually adjust the
synchronization and tracking. Refer to the “Adjusting the On­Screen Menus” section in Chapter 2.

Getting Started 17

Adjusting the Projector Zoom

To adjust the size of the projected image, rotate the zoom lever until
the projected image is the desired size.

Getting Started 18

Image Size Adjustment

Distance 3.74 ft.

(1.14m)

Diagonal 1.87 ft.

(.57m)

Width 1.51 ft.

(.46m)

Height 1.12 ft.

(.34m)

Distance 3.74 ft.

(1.14m)

Diagonal 2.26 ft.

(.69m)

Width 1.80 ft.

(.55m)

Height 1.35 ft.

(.41m)

6.54 ft.
(2m)

3.31 ft.
(1.01m)

2.66 ft.
(.81m)

2.00 ft.
(.61m)

6.54 ft.
(2m)

4.00 ft.
(1.22m)

3.18 ft.
(.97m)

2.40 ft.
(.73m)

Projected image sizes at minimum zoom ➊

9.84 ft.
(3m)

5.02 ft.
(1.53m)

4.00 ft.
(1.22m)

3.02 ft.
(.92m)

13.12 ft.
(4m)

6.69 ft.
(2.04m)

5.35 ft.
(1.63m)

4.00 ft.
(1.22m)

16.40 ft.
(5m)

8.37 ft.
(2.55m)

6.69 ft.
(2.04m)

5.02 ft.
(1.53m)

19.69 ft.
(6m)

10.07 ft.
(3.07m)

8.04 ft.
(2.45m)

6.04 ft.
(1.84m)

22.97 ft.
(7m)

11.75 ft,
(3.58m)

9.38 ft.
(2.86m)

7.05 ft.
(2.15m)

26.25 ft.
(8m)

13.42 ft.
(4.09m)

10.76 ft.
(3.28m)

8.07 ft.
(2.46m)

Projected image sizes at maximum (1.2) zoom ➋

9.84 ft.
(3m)

6.00 ft.
(1.83m)

4.82 ft.
(1.47m)

3.61 ft.
(1.10m)

13.12 ft.
(4m)

8.04 ft.
(2.45m)

6.43 ft.
(1.96m)

4.82 ft.
(1.47m)

16.40 ft.
(5m)

10.04 ft.
(3.06m)

8.04 ft.
(2.45m)

6.04 ft.
(1.84m)

19.69 ft.
(6m)

12.07 ft.
(3.68m)

9.65 ft.
(2.94m)

7.25 ft.
(2.21m)

22.97 ft.
(7m)

14.11 ft.
(4.30m)

11.29 ft.
(3.44m)

8.46 ft.
(2.58m)

26.25 ft.
(8m)

16.11 ft.
(4.91m)

12.89 ft.
(3.93m)

9.68 ft.
(2.95m)

29.53 ft.
(9m)

15.12 ft.
(4.61m)

12.11 ft.
(3.69m)

9.06 ft.
(2.76m)

29.53 ft.
(9m)

18.14 ft.
(5.53m)

14.50 ft.
(4.42m)

10.89 ft.
(3.32m)

32.81 ft.
(10m)

16.80 ft.
(5.12m)

13.45 ft.
(4.10m)

10.07 ft.
(3.07m)

32.81 ft.
(10m)

20.18 ft.
(6.15m)

16.14 ft.
(4.92m)

12.11 ft.
(3.69m)

If the projector is used at the maximum distance in this chart,

✎

the display may appear to be dimmer than usual.

Getting Started 19

Using the Compaq Presentation Utility

The Compaq Presentation utility included on the CD-ROM is for
use with portable computers. The purpose of the Presentation utility
is to disable power management features of the portable computer
while the Compaq Microportable Projector is connected to it. The
utility also disables the computer’s screen savers and auto-suspend
feature while the utility is running.

A graphical user interface (GUI) is required to control the
projector’s resolution settings and the enabled/disabled status. The
Compaq Presentation utility supports the following GUI operating
systems: Microsoft Windows 95, Windows 98, Windows NT 4.0,
and Windows 2000.

To install the Presentation utility onto a portable computer:

1. Insert the CD-ROM into the computer’s CD-ROM drive. The
CD-ROM menu will automatically launch on the screen.

2. From the launch menu, click “Install SoftwareàInstall
Presentation Utility” and follow the on-screen instructions.

3. Select Next in the dialog box to install the program. The
Presentation utility installs on the hard drive and you are
prompted to restart the computer. Upon restart, a program icon
(yellow beam of light containing a Q) is placed in the Windows
system tray.

4. Double-click the program icon to launch the Presentation
Properties dialog box.

5. Set the Presentation Mode Duration time in the dialog box.

The dialog box has default settings enabled to turn off the

computer’s power management features and screen saver
features.

6. Select OK from the dialog box to execute the settings. The
software dialog box closes and the computer is ready to
continue with the presentation.

When the installation is complete, the appropriate language is
installed on the computer based on the computer’s operating system
language. If the computer’s operating system language is not
included as one of the installation languages, then, by default, the
English version will install on the computer.

Getting Started 20

Using the Compaq Projector Display Assistant Utility

The Compaq Projector Display Assistant utility included on the
CD-ROM is an adjustment tool for improving the display quality of
the projector. Adjustments need to be made when the projector is
first attached to a computer or when a different display mode is
selected for the first time. This utility can be run directly from the
CD-ROM or copied to a directory on the computer hard drive and
run from there.

To run the Projector Display Assistant utility for Microsoft
Windows 95, Windows 98, Windows NT 4.0, or Windows 2000:

1. Insert the CD-ROM into the computer’s CD-ROM drive. The
CD-ROM menu will automatically launch on the screen.

2. From the launch menu, click “Install SoftwareàInstall
Compaq’s Projector Display Assistant” and follow the on­screen instructions.

Getting Started 21

Chapter 2

Using the Projector

Identifying the Projector Buttons

Using the Projector 22

Symbol Control Function

y











Standby button

Select button

−

Minus button

+

Plus button

Resync button

R

Powers the projector lamp on and
off. The Standby LED changes
color modes to indicate the
following operating modes:

1. Flashing amber indicates the
projector is going into standby
mode and cannot be restarted
until the LED glows amber
steadily.

2. All five LED buttons rapidly
flashing amber indicate the
lamp has overheated and the
projector has automaticall
down.

1. Launches first, second, and

third-level on-screen menus.

2. Exits the on-screen menus.

Selects and adjusts the on-screen
scroll down menu functions.

Selects and adjusts the on-screen
scroll up menu functions.

Automatically synchronizes the
projector to track the input source.

shut

IMPORTANT: To use standby mode, press the Standby button
and, after a six to ten-second delay, the unit enters Standby mode
and the projector lamp turns off. A “Going to Standby” message
appears on the screen for the duration of the six to ten-second delay.
When the message disappears from the screen, there is a 45-second
delay before the lamp can be turned back on. Wait 45 seconds to
allow the lamp to cool before pressing the

Standby button again.

Using the Projector 23

Introducing the Analog On-Screen Menu

The adjustments for screen settings are located in the on-screen
menu and can be viewed in one of the available languages.

Analog On-Screen Menu Adjustments

To display the analog on-screen menu, press the Select button.
The following menu shows the functions at each level:

Main Menu Menu Level 2 Menu Level 3

Brightness
Contrast
Position

Zoom Zoom

Keystone

Color (Color temperature)

Digital
Conversion

Adjustment scale
Adjustment scale
Horizontal Position

Vertical Position
Save and Return
Cancel

Panning Left-Right
Panning Up-Down
Save and Return
Cancel

Adjustment scale
Dark - Light

Save and Return
Cancel

Custom Color
Saturation
Save and Return
Cancel
Clock
Clock Phase
Save and Return
Cancel

Adjustment scale
Adjustment scale

Adjustment scale
Adjustment scale
Adjustment scale

Adjustment scale
Adjustment scale

Adjustment scale
Adjustment scale

Continued

Using the Projector 24

Analog On-Screen Menu (continued)

y

y

Main Menu Menu Level 2 Menu Level 3

Language

Menu Location

HDTV Setup

Management

Factory Reset
Exit

Deutsche
English
Espanol
Francais
Italiano
Nederlands
Japanese
S. Chinese
Save and Return
Up-Down
Left-Right
Save and Return
Cancel
HDTV Fill Screen

HDTV Fill to Aspect Ratio

Save and Return
Cancel
Power Saver
Lamp Hours
Reset Lamp Hours
Flip Image Horizontal

Serial Number
Master Reset
Save and Return
Cancel
Confirm Reset

Adjustment scale
Adjustment scale

YPrPb
RGB
YPrPb
RGB

On-Off

hours - 5 digits

Displa
Confirmation

Vertical
Both
Save and Return
Cancel

Serial Number

Displa
Confirmation

Using the Projector 25

Adjusting the On-Screen Menus

To launch and make adjustments to the Main and Video on-screen
menus:

1. Press the

Select button ➊ on the projector panel or the remote

control. The Main menu will display on the projection screen.

2. To select a function, press the

Minus (-) button ➋ to scroll

down the Display menu. To reverse the scroll direction, press

Plus (+) button ➌.

the

3. Highlight the function to be adjusted and press the

Select

button ➊ again.

The bar on the bottom of the on-screen menu shows the

✎

current operating resolution.

For example, to select the
➋ until

Position is highlighted, then press the Select button ➊ to

display the level 2 menu for

Position function, press the Minus button

Position. The level 2 menu displays

expanded menu items.

Using the Projector 26

4. To make a selection from the level 2 menu, press the Minus (-)
button to scroll down the level 2 menu, or press the

Plus (+)

button to reverse the scroll direction.

5. Highlight the selection and press the

Select button to confirm

the selection. The level 3 menu displays.

6. Level 3 for
Use the

Position functions display the adjustment scales.

Minus button to decrease and the Plus button to

increase the screen Horizontal and Vertical positions.

✎

Some menu functions display adjustment scales in the level

2 menu, while others display adjustment scales in the level
3 menu.

7. After making the adjustment, select
any changes made, select

Cancel instead of Save and Return.

Save and Return. To void

8. To exit from the on-screen menu, select Exit from the Main
menu. If the display is a second or third-level menu, select

and Return

or Cancel, then select Exit from the Main menu.

Save

Explaining Functions in the Analog On-Screen Menu

■ Brightness and Contrast—Adjusts the displayed image brightness

and contrast ranges from 0 to 100.

✎

An example of a standard setting is to set the contrast level

to 67 and the brightness level to 50.

■ Position—Fine-tunes the horizontal and vertical positions of the

display.

■ Zoom—Magnifies an image up to a factor of 32 on the projection

screen (zooms in to a specific area on the screen, and pans left,
right, up, and down).

Using the Projector 27

■ Keystone—Adjusts image distortion at the top and bottom widths

of the screen caused by tilting the projector.

■ Picture—Adjusts the gamma value or degree of contrast of

darkness or light for the projected image.

■ Color—Adjusts color balance to compensate for ambient

conditions using three submenus:

■ Factory default.

■ Custom Color—Modifies the color temperature balance.

■ Saturation—Magnifies the color intensity.

■ Digital Conversion—Improves picture stability of user modes by

adjusting:

■ Clock—Increase/decrease the value to stretch or shrink the

image on the screen.

■ Clock Phase—Increase/decrease the value to minimize

video distortion or video jitter.

✎

If the projector image becomes distorted when adjusting the

Clock and Clock Phase values, continue adjusting the values
until the distortion disappears. To restore the factory
settings, select Factory Reset in the on-screen menu, or press
the

Resync button.

■ Language—Allows the user to change the On-Screen display to

one of the languages in their native spelling. The current
language is highlighted. Select another language to display all
menu functions in that language.

■ Menu Location—Positions the on-screen menu at a convenient

location on the projector screen; positions the menu up or down,
left or right.

■ HDTV Setup—Allows the user to stretch the format to fill the

screen or to use the original aspect ratio and fill the screen, using
HDTV (High Definition Television) format. Refer to the
“HDTV” section later in this chapter for more information.

■ Management—Allows the user to control power saver

characteristics of the display, or to view the cumulative lamp
hours, reset the lamp hour timer, view the unit’s serial number, or
perform a Master Reset.

Using the Projector 28

■ Factory Reset—Resets the current operating option to its original

factory setting.

Special On-Screen Messages

Special on-screen messages will appear on the projection display to

identify the following conditions:

■ Check Video Cable: Indicates the video cable may not be

plugged into the projector or the selected video input is not
accurate.

■ Input Signal Out of Range—Indicates the projector is unable to

access the appropriate input signal.

■ 2 Inputs Active - Remove One—The projector has two data

inputs: one is an analog D-Sub input and the other is a digital
DFP input. This message indicates that both inputs are active
simultaneously and the user should detach one of them.

NOTE: This message appears only when the Multimedia Adapter

is not attached to the projector.

■ Going to Standby—Indicates the projector is entering a sleep

mode or is powering off the lamp.

■ Lamp May Fail Soon, Replacement Suggested—Indicates the

lamp is approaching failure. The message will remain on the
screen for five seconds or until the on-screen menu
is pressed.

Select button

When the Multimedia Adapter is attached to the projector, the

following messages, in addition to the previous messages, will
appear on the projection display to identity the following
conditions:

■ Analog, Use Source to Change Input—Indicates analog and

video inputs are connected. Since the projector will default to
display analog, you must press the

Source button to switch to

video.

■ Composite Video, Use Source to Change Input—Indicates

composite video or other inputs (excluding HDTV) are present.
Composite video is the default setting unless HDTV is
connected. Press the

Using the Projector 29

Source button to change the setting.

■ S-video, Use Source to Change Input—Indicates S-video with

other inputs are active. Press the

Source button to change the

setting.

■ HDTV, Use Source to Change Input—Indicates HDTV input is

connected along with other inputs. If HDTV is connected, HDTV
is the default setting. Press the

Source button to switch to video.

HDTV (Optional Use)

The Compaq Microportable Projector is capable of displaying
various High Definition TV display modes. The Multimedia
Adapter is not required to take advantage of this functionality.

A variety of sources can be used to provide HDTV data to the
projector for display. Some of these sources are:

■ Digital-VHS (D-VHS) player

■ HDTV-DVD player

■ Satellite Dish HDTV receiver

■ A variety of DTV tuners (to receive programming over the

airwaves)

Most of these sources will provide an analog component video
output, a standard VGA output, or a standard digital DVI output.
The color information can be either in YPrPb (default) format or
RGB format. The user can switch between these using the analog
on-screen menu adjustments by selecting “HDTV Setup.” Refer to
“Analog On-Screen Menu Adjustments” earlier in this chapter for
more information.

The projector is capable of processing HDTV data provided either
on the standard VGA connector or the DVI interface. Use the
Component HDTV to VGA cable that came with your projector to
convert component outputs to VGA format.

The following modes are supported on the DVI interface:

■ HD0

■ 640 x 480p

■ 704 x 480p

■ 1280 x 720p

■ HD1

■ 1920 x 1080i

Using the Projector 30

When displaying HDTV content, it is recommended that you
display it in its native 16:9 widescreen mode. For this, you may
need to select the HDTV Fill to Aspect Ratio mode on the projector
to preserve the height-to-width relationship of the material. Note
that in this mode, you will have black stripes on top and bottom of
the projected image, just as you see on a standard TV set when
viewing widescreen content.

A desktop or portable computer can also be used to generate a
HDTV video stream. Capable computers should be able to
read/acquire the HDTV data and blend it into the desktop graphics.
The composite image is then sent to the projector for display. In this
case, the projector displays the image at the standard 4:3 aspect
ratio, just as it would any other computer graphics mode. The
projector processes the data as it comes from the computer.

The largest display mode available using the DVI interface is
1280 x 1024 at 75 Hz. The largest display mode available using the
VGA interface is 1280 x 1024 at 75 Hz.

When displaying HDTV content in a window as part of your
desktop environment, it is recommended to project it in the
computer’s native 4:3 mode since the computer has already
embedded the HDTV video stream in widescreen format within the
window. To do so, you may need to select the Fill to Screen mode
on your projector to preserve the height-to-width relationship of the
material.

Regardless of the source, the HDTV formats are generally of higher
resolution than that of the projector (XGA, or 1024 x 768).
Therefore, the projector will normally downscale the HDTV data to
fit the complete image within the displayable 1024 x 768 resolution.

Using the Projector 31

Chapter 3

Using the Compaq Multimedia Adapter

The Compaq Multimedia Adapter (optional use) is specifically
designed to fit the Compaq Microportable Projector. This adapter
enables signals from camcorders, DVD players, or videocassette
recorders to be shown through the projector. To connect the
projector to an external camcorder, stand-alone DVD player, or
videocassette recorder, you need to connect the Compaq
Multimedia Adapter to the projector.

Identifying the Multimedia Adapter Components

Using the Compaq Multimedia Adapter 32

Item Component Function





















Infrared Receiver Interprets signals received

from the remote control

Volume + Increases volume

Video LED When lit, indicates video input
S-Video port Connects camcorders or DVD

players

8-pin connector Connects back to the computer

allowing remote mouse
functionality

Release buttons Use to release adapter from

projector
Speaker Provides audio performance
Volume − Decreases volume
Source button Selects between all sources
Computer LED When lit, indicates computer

input
Video/RCA port Connects video equipment
Audio-in jack Connects audio equipment,

videocassette recorders, and

DVD players, allowing sound to

be played.

Using the Compaq Multimedia Adapter 33

Attaching the Multimedia Adapter to the Microportable Projector

1. Insert the hook on top of the Multimedia Adapter into the upper



on the projector by inserting and pushing upward.

slot

2. Insert the adapter plug into the digital connector
of the projector.

When the adapter is activated, one of the LEDs  on

✎

the Multimedia Adapter turns green.



on the back

Using the Compaq Multimedia Adapter 34

Connecting a Camcorder, Videocassette Recorder, or DVD Player to the Compaq Multimedia Adapter

1. Use an RCA cable to connect a videocassette recorder to the
video connector ➊ on the Multimedia Adapter. To play audio
through the Multimedia Adapter, connect an audio cable to the
source audio-out jack and the audio-in jack on the Multimedia
Adapter ➋.

Use an S-video cable to connect a camcorder or DVD player to

the S-video connector ➌ on the Multimedia Adapter.

2. Connect one end of the power cord ➍ into the back of the
projector and the other end to an electrical outlet that is easily
accessible and close to the projector.

3. Press the
different input sources.

The Compaq Multimedia Adapter can remain attached to the
projector, or it can be removed and stored in the carrying case.

Source button ➎ on the Multimedia Adapter to select

Using the Compaq Multimedia Adapter 35

Connecting a Video Player

If your video player uses a round, one-prong composite video

✎

connector, use the RCA video cable.

If your video player uses a round, four-prong S-video
connector, use the S-video cable.

Both cables are included with the Compaq Multimedia
Adapter.

1. Plug the RCA video cable into the video-out port on the video
player and the video port on the video adapter. If you are using
the S-video cable, connect it to the S-video out connector on the
video player and the S-video port on the video adapter.

2. Turn on the projector first, then the video player.

3. Press the
to switch the projector signal from data to video. The data mode
receives computer inputs and the video mode receives video
input such as a TV tuner, videocassette recorder, or camera.

With the Compaq Multimedia Adapter attached, the projector is
compatible with major video standards such as NTSC, PAL, and
SECAM. Use the on-screen menu to adjust the video performance
manually or press the

Source button on the back of the Multimedia Adapter

Resync button to optimize it automatically.

Using the Compaq Multimedia Adapter 36

Video On-Screen Menu Adjustments

When the Multimedia Adapter is attached to the projector and the
video source is selected, an alternate video on-screen menu can be
displayed on the projected screen. This menu includes some
selections that are relevant to the functions of the Multimedia
Adapter.

To display the video on-screen menu:

1. Attach the Multimedia Adapter to the projector.

2. Attach a video source to the projector.

3. Set the

4. Press the

Source button on the adapter or remote control to video.

Select button on the projector or the Menu button on

the remote control to display the following menu:

Video Menu Video Menu Level 2 Video Menu Level 3

Brightness
Contrast
Zoom

Keystone
Color (Color temperature)

Tint
Sharpness

Language Deutsche

Adjustment scale
Adjustment scale
Zoom

Panning left-right
Panning up-down
Save and return
Cancel

Adjustment scale

Custom color
Saturation
Save and return

Cancel
Adjustment scale
Adjustment scale

English

Espanol

Francais

Italiano

Nederlands

Japanese

Save and Return

Adjustment scale
Adjustment scale
Adjustment scale

Adjustment scale
Adjustment scale

Continued

Using the Compaq Multimedia Adapter 37

Video On-Screen Menu (continued)

y

y

Video Menu Video Menu Level 2 Video Menu Level 3

Audio Mute

Volume

Bass

Treble

Cancel

Save and return

Source S-Video

Composite

Analog

HDTV

Save and return

Menu Location Up-down

Left-right

Save and return

Cancel

Management Power saver

Lamp hours

Reset lamp hours

Standby lamp delay

Flip image

Serial number

Master reset

Save and return

Cancel

Factory reset Confirm reset
Exit
Current mode

On - Off
Adjustment scale
Adjustment scale
Adjustment scale

Adjustment scale
Adjustment scale

On-off

hours - 5 digits

Displa
Confirmation
Delay adjustment

Horizontal - vertical ­both

serial number

Displa
Confirmation

To make adjustments to the video on-screen menu, follow the steps
in “Adjusting the On-Screen Menus” in Chapter 2.

Explaining Functions in the Video On-Screen Menu

In addition to the analog on-screen menu functions, the video on­screen menu includes the following additional functions:

n Tint-adjusts screen image tint.
n Sharpness-adjusts screen image sharpness.
n Audio-adjusts the audio controls for the Multimedia Adapter

speaker.

n Source-selects between composite, S-video, DVI, analog, and

HDTV input.

Using the Compaq Multimedia Adapter 38

Chapter 4

Using the Remote Control

The remote control (optional use) has many convenient features. It
combines the functions of the projector buttons with some of the
most widely used functions of the computer mouse.

Before using the remote control, be sure steps 1 through 4 have
been completed under “Powering On the Projector.”

The remote control operates only when the

✎

Compaq Multimedia Adapter is connected to the projector.

WARNING: To reduce the risk of injury to the eyes, do
not look directly into the remote control laser light and do
not point the laser light into anyone’s eyes. The remote
control is equipped with a Class II laser that emits radiation.

Using the Remote Control 39

Identifying the Remote Control Components

Item Component Function










LED Glows green when the remote

control is operating

Mouse ball Controls the on-screen cursor

and alternate left-mouse
functions

System on/Standby button Turns the projector on and off

OR powers the projector into
and out of Standby mode

SCE—Source button Selects the input source

Page up button Scrolls projected image up

Continued

Using the Remote Control 40

Remote Control components (continued)

Item Component Function























Laser pointer Allows laser pointer

Zoom in button Zooms in to a specific area on

Zoom out button Zooms out to include a larger

On-screen menu button Launches the video on-screen

Right mouse button Controls right mouse functions

Page down button Scrolls projected image down

Mute button Mutes or silences the speaker

Volume + Increases speaker volume

Volume − Decreases speaker volume

Resync button Resynchronizes the projector

On-screen menu
adjustments

On-screen menu
adjustments

Left mouse trigger Controls left mouse functions

+

-

functionality

the screen

screen area

Menu

on the Multimedia Adapter

with the input source

Adjusts the video on-screen
menu up

Adjusts the video on-screen
menu down

Follow the instructions in the “Adjusting the On-Screen

✎

Menus” section in Chapter 2 to make adjustments to the
video on-screen menu.

Using the Remote Control 41

Remote Control Functions

The remote control performs the following functions:

n Duplicates the functions of the projector buttons including

adjusting the on-screen buttons.

n Controls the computer connected to the projector by navigating

through the computer directories and opening and closing files.

IMPORTANT: To operate a computer using the remote control,
the remote control Y-cable (included with the Multimedia Adapter)
must be used. Connect the 8-pin connector cable to the appropriate
connector on the Multimedia Adapter and connect the USB
connector to the USB connector on the computer (preferred) or the
RS232 connector to the serial connector on the computer. Do not
connect both the USB and RS232 connectors to the computer.

NOTE: The remote control Page Up and Page Down functions
require an additional driver when used with the RS232 connector.
This driver can be found on the CD-ROM that came with your
projector.

Using the Remote Control 42

Microsoft Windows 95 (OSR Version 2.1), Windows 98,

✎

and Windows 2000 support USB connection. Microsoft
Windows NT does not currently support USB
connection.

Using the Remote Control 43

Chapter 5

Care and Maintenance

This section explains how to care for and maintain your Compaq
projector during normal everyday use.

Protecting the Projector

To protect your projector from overheating and other types of
damage, follow these suggestions:

■ Use only a power source and connection appropriate for this

projector as indicated on the marking label.

■ Do not overload an electrical outlet, power strip, or convenience

receptacle. The overall system load must not exceed 80 percent
of the branch circuit rating. If an extension cord or power strip is
used, make sure that the cord or strip is rated for the product and
that the total ampere ratings of all products plugged into the
extension cord or power strip do not exceed 80 percent of the
extension cord or strip ampere ratings limit.

■ Install the projector near an outlet that you can easily reach.

Disconnect the product by grasping the plug firmly and pulling it
from the outlet. Never disconnect it by pulling the cord.

■ Unplug the projector from the wall outlet before cleaning. Do not

use liquid cleaners or aerosol cleaners.

■ Slots and openings in the cabinet are provided for ventilation.

These openings must not be blocked or covered. Never push
objects of any kind into cabinet slots or other openings.

■ Do not drop the projector or place it on an unstable surface.

■ Do not expose this product to rain or moisture.

■ Do not allow anything to rest on the power cord. Do not walk on

the cord.

■ Do not allow the projector to be exposed to high temperatures.

Care and Maintenance 44

■ Do not open the projector or attempt to service this product for

any other reason than to replace the lamp module. Adjust only
those controls that are covered by the operating instructions. If
the projector is not operating properly or has been dropped or
damaged, contact your Compaq authorized dealer, reseller, or
service provider.

Cleaning the Lens

To minimize the risk of damaging or scratching the lens surface,
this cleaning procedure has been developed. The first
recommendation is to remove any dust particles from the lens by
blowing them off with clean, dry, deionized air. However, this may
not be a convenient method, and an alternate method is described
below.

To clean the lens, use only a clean cloth and follow these steps:

CAUTION: Do not spray any type of fluid or cleaner
directly on the lens surface. Do not use liquid cleaners.

1. Wipe the lens in a single direction with a clean, dry cloth. Do
not wipe back and forth across the lens surface.

2. If the cloth is dirty or smears the lens, wash the cloth. If the
cloth is still dirty after washing it or the fabric is damaged,
replace it.

Do not use fabric softener when washing a cleaning cloth

✎

or softener sheets when drying the cloth.

Care and Maintenance 45

CAUTION: Do not store a cleaning cloth in contact
with the lens for a long time as doing so may
contaminate the lens with dye from the cloth. The cloth
can be contaminated if left in the open air.

Replacing the Projector Lamp Module

WARNING: When the lamp reaches its end of life, it

!

may pop or rupture. To reduce the risk of personal
injury, be careful when removing the lamp cover as
broken glass may be present. Never open the lamp cover
while the projector is operating or when the lamp is hot.

The projector will alert you when the lamp approaches its failure
mode or end of life. When the message “Lamp May Fail Soon ­Replacement Suggested” displays on the projection screen, you
should change the lamp as soon as possible. Contact your local
Compaq authorized dealer, seller, or reseller to purchase a spare
lamp or have the lamp changed. You can also purchase a lamp
directly through

www.compaq.com.

Care and Maintenance 46

Follow these steps to replace the projector lamp module:

Turn off the power to the projector by pressing the blue Standby

1.
button ➊.

2. Allow the projector to cool down for at least 30 minutes.

WARNING: The lamp assembly operates at a very

!

high temperature. To reduce the risk of personal injury,
allow the projector to cool down for at least 30 minutes
before opening the lamp cover. Never open the lamp
cover while the projector is operating or when the lamp
is hot.

3. Disconnect the power cord .

Care and Maintenance 47

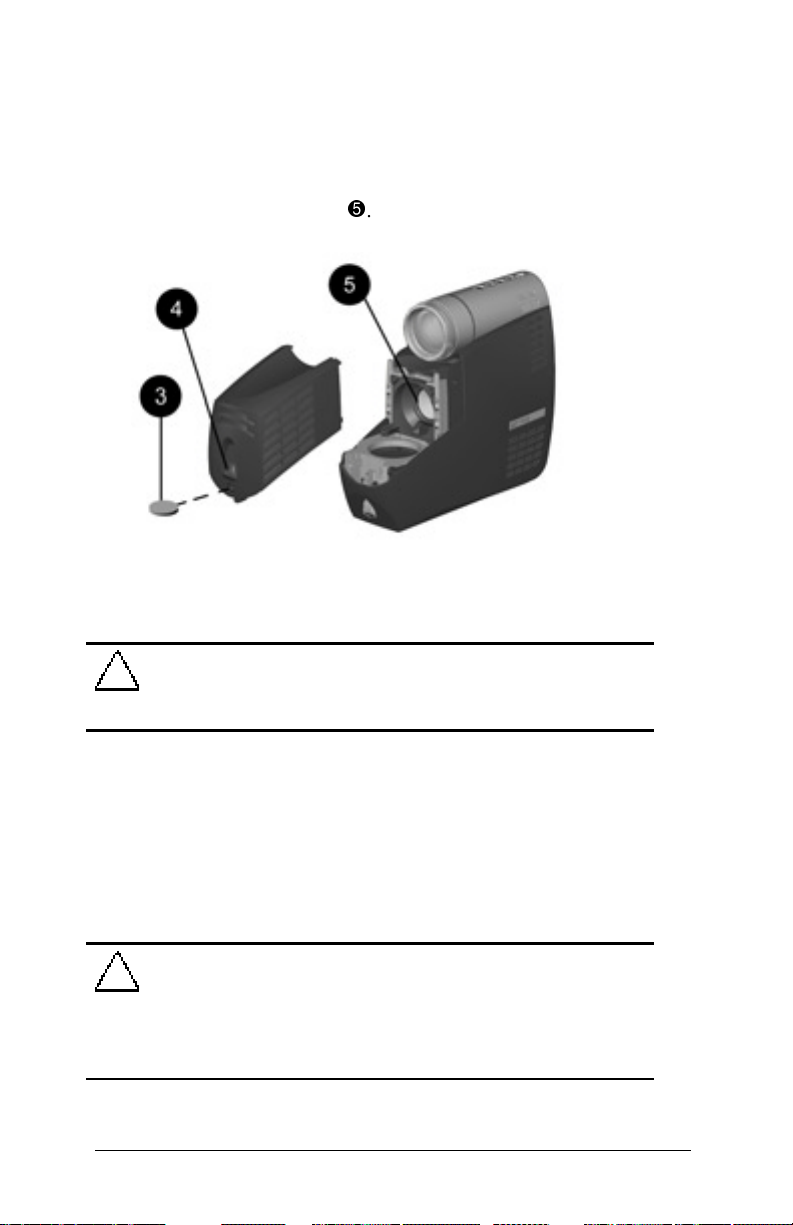

4. Use a coin to loosen the screw ➌ on the lamp module.

5. On the front of the lamp module, slide up the release latch ➍ to
disengage it from the projector base.

6. Pull out the lamp module

WARNING: To reduce the risk of personal injury, do

!

not drop the lamp module or touch the glass bulb. The
glass may shatter and cause an injury if it is dropped.

Reverse the previous steps to replace the lamp module.



.

After replacing the lamp module, remember to reset the

✎

lamp hours in the on-screen menu.

CAUTION: The lamp contains < 0.125 percent
mercury by weight. If the projection lamp breaks, the
mercury may be released into the atmosphere. Please
follow applicable federal, state, and local regulations
for disposal and/or recycling.

Care and Maintenance 48

Chapter 6

Troubleshooting

Problem Solution

Image does not appear on the
projection screen

Scrolling, cut-off, or incorrect
image displayed

1. Make sure the projector is

2. Ensure the lens cap has been

3. Press the Standby button again.

4. Ensure that the power cable is

5. Ensure the pins on the connectors

6. Turn off or disable the portable or

7. Ensure the projection lamp has

8. Ensure your portable computer’s

1. Press the Resync button.

2. Turn everything off; then power on

3. If the above steps do not correct

powered on.

removed.

securely connected.

are not crooked or broken.

desktop computer screen saver
function.

been securely installed.

external video port is turned on.
Toggle the

Activate CRT/LCD “ON’ at the
same time. To identify any
alternate function keys to be used,
refer to your portable computer’s
user manual.

the projector first and power on the
portable or desktop computer
second.

the display image, adjust the
resolution of the portable or
desktop computer to 1024 × 768.

Fn + F4 function keys.

Continued

Troubleshooting 49

Troubleshooting (continued)

Problem Solution

Portable computer or PC
Companion screen is not
displaying the presentation

Portable computer:

Most portable computers have a
monitor loop-through or simultaneous
viewing function. Press the Fn +F4
function keys on the portable
computer to switch the image from the
portable screen to the projection
screen or to toggle through the
following three options:

1. LCD: Output displays only on the
portable screen.

2. CRT: Output displays only on the
projection screen.

3. CRT/LCD: Output displays on the
portable screen and the projection
screen.

Activate CRT/LCD “ON’ at the same
time. To identify any alternate function
keys to be used, refer to your portable
computer’s user manual.

Mac PowerBooks:

1. To control video mirroring, click
Control PanelàDisplay, then set
Video Mirroring to ON for both
internal and external viewing.

2. Set Video Mirroring OFF for

image on external monitor only or
internal only, depending on
monitor selection in Monitors.

Image is flickering or unstable

Press the Resync button on the
projector panel to adjust the tracking.
If that does not stop the flickering,
adjust the Clock Phase function in
the analog on-screen menu.

Continued

Troubleshooting 50

Troubleshooting (continued)

Problem Solution

Image is out of focus 1. Adjust the Focus Ring on the

projection lens.

2. Make sure the projection screen is
within the required distance (3.74
to 32.8 feet, 1.14 to 10 meters)
from the projector.

3. Check the projection lens to see if
it needs cleaning. Follow the
“Cleaning the Lens” procedures in
Chapter 5 to clean the lens.

Projected colors do not match
computer or camcorder color

Black or gray border visible
outside the usable area of the
projection screen

Only the Compaq startup
screen displays

1. Adjust the Brightness, Contrast,
or Color functions in the analog or
video on-screen menu.

2. Make sure the pins on the cable
connectors are not bent or
broken.

The black border surrounding the
active area of the projection screen is
part of the total projected image;
however, it is an inactive area and
cannot display any part of the image.
This black border reduces the amount
of extraneous light, producing a
cleaner, sharper image.

1. Check that the cables are
connected securely.

2. Verify that the proper input source
is connected.

3. Make sure your portable
computer's external video port is
activated.

Continued

Troubleshooting 51

Troubleshooting (continued)

Problem Solution

A blue screen displays on the
projection screen when a
videocassette recorder is
connected to the projector.

Lamp shuts off 1. If all five LEDs flash amber, the

Lamp burns out or makes a
popping sound

Multimedia Adapter speaker
does not operate.

Check the videocassette recorder Play
or TV/Video buttons. If that does not
work, refer to your videocassette
recorder manual.

projector has overheated and will
automatically shut down. Wait
five to ten minutes until the LED
buttons stop flashing and the
Standby button turns amber
before restarting the projector
again.

2. A minor power surge may cause
the lamp to shut off. Wait a few
minutes, then turn it back on.

When the lamp reaches its end of life,
it will burn out and may make a loud
popping sound. If this happens, the
projector will not turn back on until the
lamp module has been replaced.
Contact your local Compaq authorized
dealer, seller, or reseller to purchase a
replacement lamp module. To replace
the lamp, follow the procedures in the
"Replacing the Projector Lamp
Module" section of Chapter 5.

1. Make sure the audio cable is
correctly connected to the
Multimedia Adapter and the
audio source.

2. Make sure the audio source is
operating properly.

3. Make sure the Mute button is off.

Continued

Troubleshooting 52

Troubleshooting (continued)

Problem Solution

Remote control does not
operate

Remote mouse does not
operate computer.

Compatibility issues with
equipment attached to the
projector.

Image size is too small/large. Adjust the manual zoom until the

1. The two AAA batteries may need
to be replaced.

2. Verify that the batteries are
installed properly.

1. Make sure the Y-cable is
connected to both the computer
and the Multimedia Adapter. Do
not connect both the USB and
RS232 connectors to the computer
at the same time. The USB
connector is the preferred
connector.

2. If the RS232 connection is being
used, the remote control does not
function until the serial port is
initialized. You may need to
restart the computer to initialize
the serial port. The remote control
Page Up and Page Down
functions require an additional
driver when used with the RS232
connector. This driver can be
found on the CD-ROM that came
with your projector.

Refer to Appendix B “Flash ROM
Upgrade” for more information.

If this does not resolve the problem,
contact your Compaq authorized
service provider or call Compaq
Customer Support for help. Refer to
the “Worldwide Telephone Numbers”
booklet included in the projector
documentation kit for a complete list of
customer support numbers to call.

image is the desired size.

Troubleshooting 53

Appendix A

Agency Regulatory Notices

Federal Communications Commission Notice

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment

and the receiver.

■ Connect the equipment into an outlet on a

circuit different from the circuit that the
receiver is connected.

■ Consult the dealer or an experienced radio or

television technician for help.

Modifications

The FCC requires the user to be notified that if any changes or

modifications are made to this device, not expressly approved
by Compaq Computer Corporation, this may void the user’s
authority to operate the equipment.

Agency Regulatory Notices 54

Cables

Connections to this device must be made with shielded cables

with metallic RFI/EMI connector hoods to maintain
compliance with FCC Rules and Regulations.

Declaration of Conformity for Products Marked

with the FCC Logo—United States Only

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.

For questions regarding your product, contact:

Compaq Computer Corporation
P.O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000

Or, call 1-800-652-6672 (1-800-OK COMPAQ)

For questions regarding this FCC declaration, contact:

Compaq Computer Corporation
P.O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000

Or, call [phone]

To identify this product, refer to the Part, Series, or Model

number found on the product.

Canadian Notice

This Class B digital apparatus meets all requirements of the

Canadian Interference-Causing Equipment Regulations.

Avis Canadien

Cet appareil numérique de la classe B respecte toutes les

exigences du Règlement sur le matériel brouilleur du Canada.

Agency Regulatory Notices 55

European Notice

Products with the CE Marking comply with both the EMC

Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European
Community.

Compliance with these directives implies conformity to the

following European norms:

■ EN55022 (CISPR 22) - Radio Frequency

Interference

■ EN50082-1 (IEC801-2, IEC801-3, IEC801-4) -

Electromagnetic Immunity

■ EN60950 (IEC950) - Product Safety

Japanese Notice

Power Cords

The projector power supply is provided with Automatic Line
Switching (ALS). This feature allows the projector to operate
on input voltages between 100-120V or 200-240V.

The power cord set (flexible cord or wall plug) received with
the projector meets the requirements for use in the country
where you purchased the equipment.

If you need to obtain a power cord for a different country, you
should purchase a power cord that is approved for use in that
country.

Agency Regulatory Notices 56

The power cord must be rated for the product and for the
voltage and current marked on the product’s electrical ratings
label. The voltage and current rating of the cord should be
greater than the voltage and current rating marked on the
product. In addition, the diameter of the wire must be a
minimum of 0.75 mm

2

or 18AWG, and the length of the cord
must be between 6 feet (1.8 m) and 12 feet (3.6 m). If you have
questions about the type of power cord to use, contact your
Compaq authorized service provider.

A power cord should be routed so that it is not likely to be
walked on or pinched by items placed upon it or against it.
Particular attention should be paid to the plug, electrical outlet,
and the point where the cord exits from the product.

Agency Regulatory Notices 57

Appendix B

Flash ROM Upgrade

The Compaq Microportable Projector can be upgraded by
flashing the ROM (Read Only Memory) resident on the
projector. This will be available from Compaq in the future
only if necessary.

NOTE: Before attempting these steps, make sure the projector
is turned off.

The Flash ROM upgrade provides the following functions:

■ Implements new features on the projector

■ Provides upgrades to existing features

■ Resolves compatibility issues.

Locate the following items in the Compaq Microportable

Projector shipping box:

■ DVI to DVI signal cable

■ RS232 to DVI upgrade adapter

Flash ROM Upgrade 58

Complete the following steps to upgrade the projector’s ROM:

1. Connect one end of the cable to the DVI connector on the

projector and the other end to the RS232 (serial) connector
on the computer.

2. Power on the computer and monitor only (if applicable).

3. Access the Compaq website at:

http://www.compaq.com

4. Follow the steps outlined on the website.

5. Power on the projector.

6. Wait about two minutes to allow the Flash Upgrade

program to complete the upgrade, then the projector will
automatically reset and be ready to use.

Flash ROM Upgrade 59

Appendix C

Specifications

Compaq Microportable Projector

Projection panel XGA 1024 × 768 × 1
Lamp type 130 watt High Brightness Lamp
Image size See the Image Size Adjustment table.
Avg. lamp life in hours 1,500 hours
Projection distance 4.92 to 32.8 feet (1.14 to 10 meters)
Maximum weight

(unpacked)
Maximum dimensions 2.5 in (w) × 7.1 in (h) × 8.38 in (d)
Maximum graphics

resolution
Displayable colors 16.7 million colors
Horizontal frequencies 15-80 kHz Analog

Vertical frequencies 48 - 85 Hz Analog

Required Environmental Temperatures for the Following Altitudes:
Sea Level

Operating Temperature
Storage Temperature

2,500 - 5,000 Feet

Operating Temperature
Storage Temperature

5,000 - 10,000 Feet

Operating Temperature
Storage Temperature

Humidity (Non-Condensing)

Operating

Non-Operating
Power Source 90 - 265 VAC, 50-60 Hz
Power Consumption < 185 watts
Input Terminal One 15-pin D-type VGA connector with one cable

3.0 lbs (without cables)

SXGA 1280 x 1024 at 75 Hz

15-80 kHz Digital

48 - 75 Hz Digital

50 to 104°F

-22 to 149°F

50 to 95°F

-22 to 149°F

50 to 82°F

-22 to 149°F

20 to 80%
5 to 95%

included

One DVI connector with one cable included

10 to 40°C

-40 to 65°C

10 to 35°C

-40 to 65°C

10 to 28°C

-40 to 65°C

Specifications 60

Preset Display Resolutions Table

This projector automatically recognizes the preset display
resolutions listed in the following table.

Display Resolutions

Preset Modes Resolutions

1. Industry Standard 640 × 350 at 31.5 kHz/70 Hz

2. VESA Standard 640 × 350 at 37.8 kHz/85 Hz

3. Industry Standard 640 × 480 at 37.8 kHz/72 Hz

4. VESA Standard 640 × 480 at 37.5 kHz/75 Hz

5. VESA Standard 640 × 480 at 43.3 kHz/85 Hz

6. Industry Standard 720 × 400 at 31.5 kHz/70 Hz

7. VESA Standard 720 × 400 at 37.9 kHz/85 Hz

8. VESA Standard 800 × 600 at 35.1 kHz/56 Hz

9. VESA Standard 800 × 600 at 37.8 kHz/60 Hz

10. VESA Standard 800 × 600 at 48 kHz/72 Hz

11. VESA Standard 800 × 600 at 46.9 kHz/75 Hz

12. VESA Standard 800 × 600 at 53.7 kHz/85 Hz

13. Macintosh-compatible 832 × 624 at 49.7 kHz/75 Hz

14. Macintosh-compatible 1152 × 870 at 68.7 kHz/75 Hz

15. VESA Standard 1024 × 768 at 35.5 kHz/43.4 Hz

16. VESA Standard 1024 × 768 at 48.4 kHz/60 Hz

17. VESA Standard 1024 × 768 at 56.4 kHz/70 Hz

18. VESA Standard 1024 × 768 at 60 kHz/75 Hz

19. VESA Standard 1024 × 768 at 68.7 kHz/85 Hz

20. VESA Standard 1280 × 1024 at 64 kHz/60 Hz

21. VESA Standard 1280 × 1024 at 80 kHz/75 Hz

22. VGA Compatibility 640 × 480 at 31.5 kHz/60 Hz

23. HDTV 720P (Progressive) 1280 x 720 at 45 kHz/60 Hz

24. HDTV 1080I (Interface) 1920 x 1080 at 33.8 kHz/30 Hz

Specifications 61
