User’s Guide
Compaq MP1400 Microportable Projector
Second Edition (June 2000)
Part Number 177284-002
Compaq Computer Corporation
ONTENTS
C
preface
SING THIS GUIDE
U
Symbols and Conventions.................................................................vi
Warning Messages ...........................................................................vii
Chapter 1
ETTING STARTED
G
Product Features..............................................................................1-1
Introduction.....................................................................................1-2
Setting Up the Projector..................................................................1-3
Balancing the Projector...............................................................1-5
Connecting the Projector to a Portable Computer......................1-6

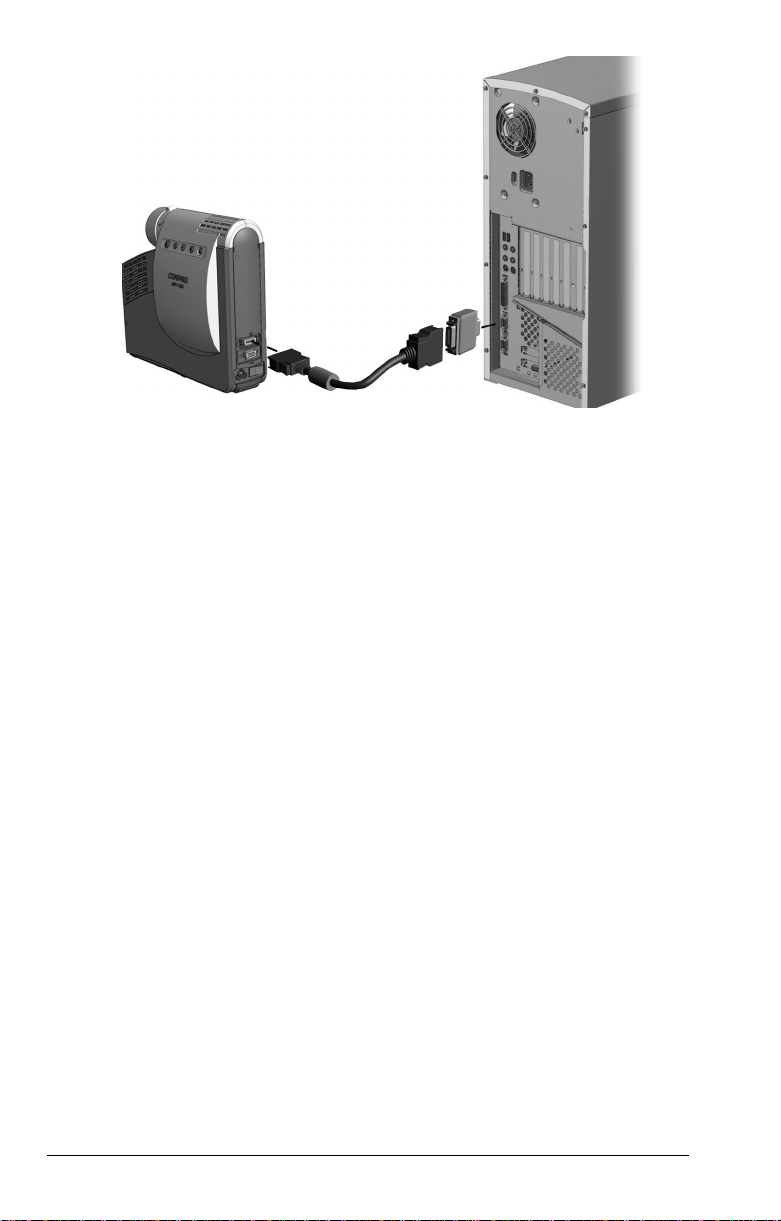

Connecting the Projector to a Desktop Computer......................1-7
Connecting the Projector to a Compaq PC Companion .............1-9
Connecting the Projector to Other Video Sources....................1-10
Powering On the Projector............................................................1-11
Powering Off the Projector ...........................................................1-12
Adjusting the Projected Image......................................................1-13
Adjusting the Projector Height .................................................1-13

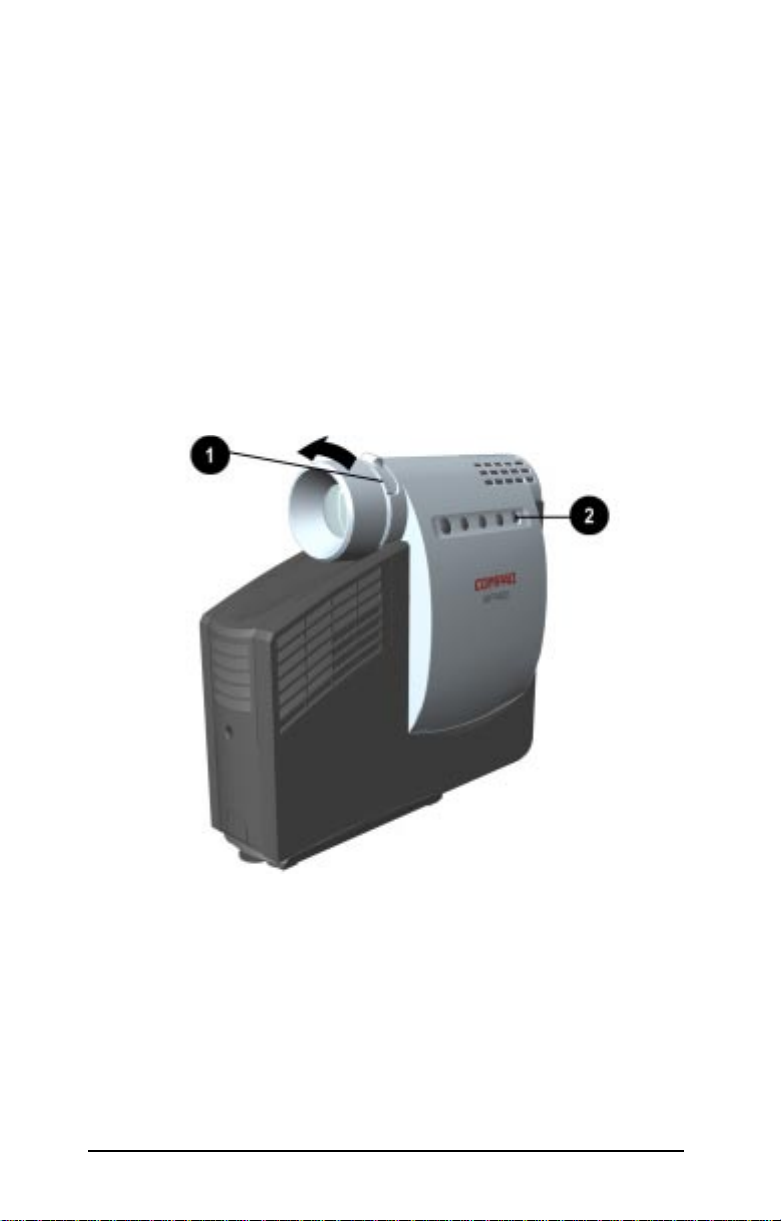

Adjusting the Projector Focus...................................................1-15
Image Size Adjustment.............................................................1-16
Using the Compaq Presentation Utility.........................................1-17
Using the Compaq Projector Display Assistant............................1-18
Chapter 2
SING THE PROJECTOR
U
Identifying the Projector Buttons....................................................2-1
Introducing the On-Screen Menu....................................................2-2
Analog On-Screen Menu Adjustments.......................................2-2
Adjusting the On-Screen Menus..............................................2-4
Explaining Functions in the On-Screen Menu.........................2-5
Special On-Screen Messages......................................................2-7
Contents iii
Chapter 3
SING THE OPTIONAL COMPAQ MULTIMEDIA ADAPTER
U
Identifying the Multimedia Adapter Components..........................3-1

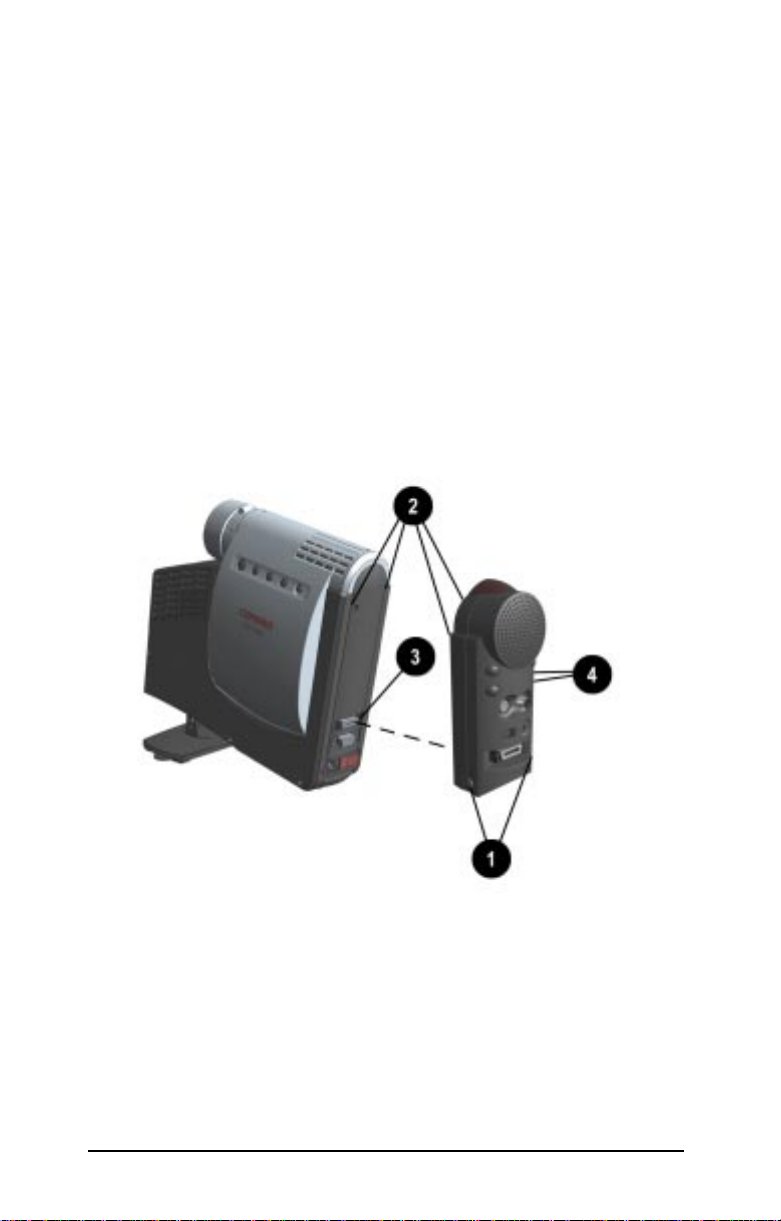

Attaching the Optional Multimedia Adapter to the Projector...3-3
Connecting a Camcorder, VCR, or DVD Player to
the Optional Multimedia Adapter...............................................3-4
Connecting a Video Player.........................................................3-6
Video On-Screen Menu Adjustments.........................................3-6
Explaining Functions in the Video On-Screen Menu..............3-8
Chapter 4
SING THE OPTIONAL REMOTE CONTROL
U
Identifying the Remote Control Buttons.........................................4-1
Calibrating the Mouse ................................................................4-3
Remote Control Functions..........................................................4-4
Picture-in-Picture On-Screen Menu Adjustments......................4-5
Explaining Functions in the PIP On-Screen Menu..................4-7
Chapter 5
ARE AND MAINTENANCE
C
Protecting the Projector ..................................................................5-1
Cleaning the Lens ...........................................................................5-3
Replacing the Projector Lamp Module...........................................5-4
iv Contents
appendix A
ROUBLESHOOTING
T
Solving Display Problems..............................................................A-1
Solving Lamp Problems.................................................................A-5
Solving Miscellaneous Problems...................................................A-6
appendix B
GENCY REGULATORY NOTICES
A
Federal Communications Commission Notice...............................B-1
Modifications.............................................................................B-1
Cables .........................................................................................B-1
Declaration of Conformity for Products Marked
with the FCC Logo—United States Only..................................B-2
Canadian Notice.........................................................................B-2
Avis Canadien............................................................................B-2
European Notice.........................................................................B-3
Japanese Notice..........................................................................B-3
PECIFICATIONS
S
Specifications.................................................................................B-4
Preset Display Resolutions Table ..............................................B-5
Power Cords...............................................................................B-6
appendix C
LASH
F
ROM U
PGRADE
Contents v
preface
Using This Guide
The User's Guide includes general information about your projector,
troubleshooting and diagnostics, and technical specifications.
Symbols and Conventions
The following words and symbols mark special messages throughout this guide:
WARNING:
!
failure to follow directions could result in bodily harm or
loss of life.
CAUTION:
failure to follow directions could result in damage to
equipment or loss of information.
Text set off in this manner presents clarifying information,
✎
specific instructions, commentary, sidelights, or interesting
points of view
Text set off in this manner indicates that
Text set off in this manner indicates that
.
Preface vi
Warning Messages
Before operating the projector, please read the following messages.
!
WARNING:
To reduce the risk of harm to your eyes, do not look
directly into the bright light of the projection lens.
To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture.
To reduce the risk of electric shock, do not
disassemble the projector other than to replace the
lamp module.
To reduce the risk of personal injury, allow the unit to
cool down before changing the lamp, and always
unplug the power cord first.
vii Preface
Chapter 1
Getting Started
Product Features
The Compaq MP1400 Microportable Projector generates crisp,
clear images onto a projection screen by using Digital Light
Processing (DLP) technology. The features include:
■
800 × 600 native SVGA resolution
■
Maximum input resolution: 1024 × 768 (XGA)
■
User replaceable 120-watt high-efficiency, long-life lamp
■
Electronic zoom to 32×
■
Standard VGA analog connection
■
All digital DFP connection
■
Convenient auto-image adjustment
■
16.7 million displayable colors
■
Multilingual on-screen adjustment menu
■
Plug and Play capability
■
Flash ROM upgradeable
■
Compaq Presentation utility for ease of use in setting up the
projector with portable computers
■
Compaq Projector Display Assistant utility to adjust screen
settings
■
Carrying case and projector carrying handle included
■
Security lock slot
■
Optional multimedia adapter and remote control
MP1400 Microportable Projector 1-1
Introduction
Before setting up your Compaq MP1400 Microportable Projector,
be sure your shipping box includes the following items:
1
Projector and lens cap
2
10-foot power cable
3
Two signal cables
One VGA signal cable for use with computers,
■
portables, and some handheld products
One DFP (digital flat panel) to DVI (digital video
■
information) upgrade cable for use with compatible
digital sources
4
One RS232 (serial) to DVI upgrade adapter
5
Carrying case and separate projector carrying
handle
6
Phillips screwdriver
1-2 MP1400 Microportable Projector
7
Quick Setup card and other documentation
8
CD-ROM containing the Compaq Presentation utility
program, Compaq Projector Display Assistant utility,
User’s Guide
and a
If your shipping box does not contain all of the listed items, please
contact your Compaq authorized dealer, reseller, or service
provider.
in ten languages
Setting Up the Projector
To set up the projector, follow the instructions below and on the
following pages. Separate setup instructions are described for the
following products:
■
Portable and desktop computers
■
Handheld computers with VGA capability
■
VCR, DVD, or camcorder (requires optional Multimedia
Adapter)
The projector is hot pluggable and can be connected, while
✎
powered on, to these products while they are powered on.
IMPORTANT:
distance not less than 3.3 feet and not greater than 35 feet (1 meter
to 10.8 meters) from the projection screen.
MP1400 Microportable Projector 1-3
Place the projector on a stable desk or table at a
WARNING:
!
damage to your equipment:
Do not disable the power cord grounding plug. The
grounding plug is an important safety feature.
Plug the power cord into a grounded (earthed)
electrical outlet that is easily accessible at all times.
Disconnect power from the projector by unplugging
the power cord from the electrical outlet.
Do not place anything on power cords or cables.
Arrange them so that no one may accidentally step
on or trip over them. Do not pull on a cord or cable.
When unplugging from the electrical outlet, grasp
the cord by the plug.
To reduce the risk of electric shock or
1-4 MP1400 Microportable Projector
Balancing the Projector
The projector has a built-in elevator foot used to balance and
elevate the projector. Always balance the projector before
connecting anything to it.
To balance the projector, turn the foot sideways.
WARNING:
!
overturning, always turn the elevator foot 90 degrees
from its original position when the projector is being set
up or before pressing the elevator button.
MP1400 Microportable Projector 1-5
To reduce the risk of the projector tipping or
Connecting the Projector to a
Portable Computer
1. Rotate the elevator foot to balance the projector.
2. Connect one end of the projector signal cable to the
projector and the other end to the VGA connector
the DFP connector
tighten the screws. Use the VGA cable OR the DFP
cable; do not connect both cables.
Be sure the signal cable aligns with the connector. Do not
✎
force the cable onto the connector or you may damage
the signal cable or the projector.

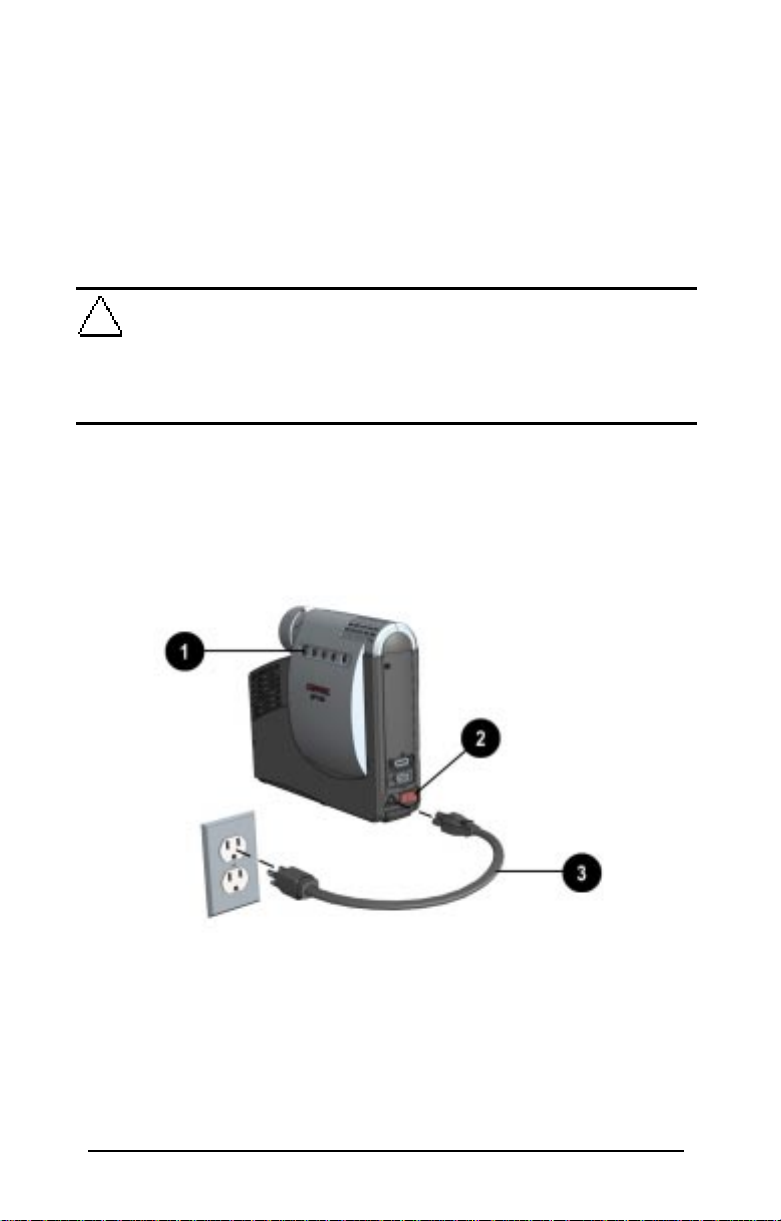

3. Connect one end of the power cord 2 into the back
of the projector, and the other end to an electrical
outlet that is easily accessible and close to the
projector.
1
on the portable computer and
A
1
or
B
4. Turn on the projector first, then turn on the
computer.
For more information on setting up the projector with a portable
✎
computer, see the white paper included on the CD-ROM.
1-6 MP1400 Microportable Projector
Connecting the Projector to a Desktop Computer
1. Rotate the elevator foot to balance the projector.
2. Connect one end of the projector signal cable
the projector and the other end to the VGA connector
on the desktop computer and tighten the screws.
If your computer has a digital connector, connect one end of
✎
the digital flat panel (DFP) signal cable
connector on the projector and the other end to the digital
connector on the computer. Connect either the VGA cable
OR the DFP cable; do not connect both cables.
Be sure the signal cable aligns with the connector. Do not
✎
force the cable onto the connector or you may damage the
signal cable or the projector.
3. Connect one end of the power cord 2 into the back
of the projector, and the other end to an electrical
outlet that is easily accessible and close to the
projector.
4. Turn on the projector first, then turn on the computer.
1
1
to the digital
A
to
B
MP1400 Microportable Projector 1-7
For security purposes, this projector has been fitted with a
✎
security lock slot 3 (located on the left, front side) for use with
a security cable lock that can be purchased separately at most
computer stores.
1-8 MP1400 Microportable Projector
Connecting the Projector to a Compaq PC Companion
To connect the projector to a Compaq PC Companion, the PC
Companion must have a male connector adapter and a VGA-out PC
Card with a 15-pin connector.
The VGA-out PC Card with the 15-pin connector is not included
✎
with the Compaq PC Companion. It is sold separately. For
information on purchasing this card, call your Compaq authorized
dealer, or reseller. To locate a reseller near you, call Compaq at 1800-AT-COMPAQ or visit the Compaq web site at
http://www.compaq.com/products.
1. Connect one end of the signal cable 1 to the
projector and connect the other end to the VGA-out
PC Card. The VGA-out PC Card may be inserted into
the PC slot on the Compaq PC Companion before or
after connecting the signal cable.
2. Connect one end of the power cord 2 into the back
of the projector, and the other end to an electrical
outlet that is easily accessible and close to the
projector.
MP1400 Microportable Projector 1-9
Be sure the signal cable aligns with the connector. Do not
✎
force the cable onto the connector or you may damage the
signal cable or the projector.
3. Turn on the projector first, then turn on the
computer. Refer to the “Powering On the Projector”
section later in this chapter for instructions on
turning on the projector.
Connecting the Projector to Other Video Sources
To connect the projector to a camcorder, DVD player, or VCR, the
optional Compaq Multimedia Adapter must be connected to the
projector. The optional Compaq Multimedia Adapter has been
specifically designed to fit the Compaq MP1400 Microportable
Projector. This adapter converts signals from the camcorder, DVD,
or VCR, for compatibility with the projectors.
The optional Compaq Multimedia Adapter is not included
✎
with the Compaq MP1400 Microportable Projector. It is sold
separately and includes a remote control. For information on
purchasing the optional Multimedia Adapter and remote
control, call your Compaq authorized dealer, or reseller. To
locate a reseller near you, call 1-800-AT-COMPAQ or, to
purchase directly from Compaq, visit the Compaq web site
at http://www.Compaq.com/products/projectors.
For information on attaching and using the optional Compaq
Multimedia Adapter, refer to Chapter 3, “Using the Optional
Multimedia Adapter.”
1-10 MP1400 Microportable Projector
Powering On the Projector
Follow these instructions to power on the projector:
1. Ensure that the power cord and signal cable are
securely connected.
Make sure the projector is perpendicular to the projection
✎
screen.
2. Remove the lens cap 1 from the projector by pulling
it straight out.
3. Turn on the Main power switch 2 on the back of the
projector and allow the projector to warm up for one
to two minutes.
When the projector has warmed up, the Compaq startup
✎
screen displays, and the LED on the
green.
STANDBY
button 3 turns
MP1400 Microportable Projector 1-11
4. Power on your source (computer, PC Companion, or
VCR, etc.) and launch the software application
being used to display images on the projection
screen. If applicable, press the Function key on the
computer designated for external display.
If there is a long delay between the time the startup screen
✎
displays and the time the presentation software is launched,
the lamp may shut off and the projector will automatically
go into standby mode. If this happens, press the
button 3 to power on the lamp.
When the startup screen disappears, the video from the
✎
attached computer displays. If there is no incoming video, the
“Check Video Cable” message will display on the projection
screen.
Powering Off the Projector
Follow these instructions to power off the projector.
Standby
1. Press the
lamp.
The message “Going to Standby” displays, and the LED on the
Standby
IMPORTANT:
minutes before turning it off.
CAUTION:
before turning the projector back on. Failure to follow this caution
can result in damage to the projector.
button blinks amber.
Allow the projector to cool down for about five
2. Turn off the Main power switch on the back of the
projector.
3. Disconnect the power cord from the electrical outlet
and the projector.
After the projector is turned off, wait at least one minute
1-12 MP1400 Microportable Projector
Standby
button to turn off the projector
Adjusting the Projected Image
There are two ways to adjust the projected image:
Adjusting the projector height
Adjusting the projector focus
Adjusting the Projector Height
This projector has a built-in elevator foot that can raise the
projector approximately one inch. To adjust the height:
1. Ensure the foot is turned sideways to balance the
projector.
MP1400 Microportable Projector 1-13
2. Raise the projector to the desired display angle, then
press the elevator button 1 on the front of the
projector to release the foot 2.
3. To lower the display angle, press the elevator button
on the front of the projector again and press down on
the projector to lower it.
WARNING:
!
overturning, always turn the elevator foot 90 degrees
from its original position before pressing the elevator
button.
To fine-tune the leveling of the projector, rotate the knobs
✎
on either side of the foot and adjust the leveling.
1-14 MP1400 Microportable Projector
To reduce the risk of the projector tipping or
3
Adjusting the Projector Focus
To focus the projected image, rotate the focus ring 1 until the
image is clear. The projector will focus at distances from 3.3 feet to
35.64 feet (1 meter to 10.8 meters).
If vertical bars appear on the display after adjusting the focus, press
the
Resync
display. If the button does not correct the display, use the Digital
Conversion feature in the on-screen menu to manually adjust the
synchronization and tracking (refer to the “Analog On-Screen Menu
Adjustments” section in Chapter 2).
button 2 to automatically synchronize and track the
MP1400 Microportable Projector 1-15
Image Size Adjustment
Screen
Diagonal
Screen
Width
Screen
Height
Projection
Distance
If the projector is used at the maximum distance indicated in this
✎
chart, the display may appear to be dimmer than usual.
1-16 MP1400 Microportable Projector
33.0" 43.9" 65.9" 87.9" 109.8" 131.8" 153.8" 175.8" 197.7" 219.7"
26.4" 35.2" 52.7" 70.3" 87.8" 105.5" 123.0" 140.6" 158.1" 175.8"
19.8" 26.3" 39.5" 52.7" 65.9" 79.1" 92.3" 105.5" 118.7" 131.8"
4.9' 6.6' 9.8' 13.1' 16.4' 19.7' 23.0' 26.2' 29.5' 32.8'
Using the Compaq Presentation Utility
The Compaq Presentation utility included on the CD-ROM is for
use with portable computers only. The purpose of the Presentation
utility is to disable power management features of the portable
computer while the Compaq MP1400 Microportable Projector is
connected to it. The utility also disables the computer’s screen
savers and auto-suspend feature.
A graphical user interface (GUI) is required to control the MP1400
Projector’s resolution settings and the enabled/disabled status. The
Compaq Presentation utility supports the following GUI operating
systems: Microsoft Windows 95, Windows 98, Windows 2000, and
Windows NT 4.0.
To install the Compaq Presentation utility onto a portable computer:
1. Insert the CD-ROM into the computer’s CD drive.
The CD-ROM menu will automatically launch on the
screen.
2. From the launch menu, click on
Software
and follow the on-screen instructions.
3. Select
The Compaq Presentation utility installs on the hard
drive and prompts you to restart the computer. Upon
restart, a program icon (displaying a yellow beam of
light) is placed in the Windows system tray.
4. Double-click the program icon to launch the
Presentation Properties dialog box.
5. Set the Presentation Mode Duration time in the
dialog box or accept the default settings to turn off
the computer’s power management features and
screen saver features.
6. Select OK from the dialog box to execute the
settings. The software dialog box closes, and the
computer is ready to continue with the presentation.
MP1400 Microportable Projector 1-17
Install Compaq Presentation Utility
in the dialog box to install the program.
Next
Install
The Presentation utility is provided on the CD-ROM in the
following languages: English, Dutch, French, German, Italian, and
Spanish. When setup begins, the appropriate language is installed
on the computer according to the language of the computer’s
operating system. If the computer’s operating system language is
not included as one of the six languages above, then, by default, the
English version will install on the computer.
Using the Compaq Projector Display Assistant
The Compaq Projector Display Assistant utility included on the
CD-ROM is an adjustment tool for improving the display quality of
the MP1400 projector. Adjustments need to be made when the
projector is first attached to a computer or when a different display
mode is selected for the first time. This utility can be run directly
from the CD-ROM or copied to a directory on the computer hard
drive and run from there.
To run the Projector Display Assistant for Microsoft Windows 95,
Windows 98, Windows 2000, or Windows NT 4.0:
1. Insert the CD-ROM into the computer’s CD drive.
The CD-ROM menu will automatically launch on the
screen.
2. From the launch menu, click on
Software
Assistant
1-18 MP1400 Microportable Projector
Install Compaq’s Projector Display
and follow the on-screen instructions.
Install
Chapter 2
Using the Projector
Identifying the Projector Buttons
Symbol Control Function
1
2
MP1400 Microportable Projector 2-1
Standby button
and LED
Select button 1. Launches first, second, and third-level on-
Powers the projector lamp on and off.
The Standby LED changes color to indicate the
following operating modes:
1. Green glow indicates power is on.
2. Amber glow indicates warm-up or suspend
modes.
3. Flashing amber indicates the projector is
going into standby mode and cannot be
restarted until the LED glows amber steadily.
4. All five LED buttons rapidly flashing amber
indicates the lamp has overheated and the
projector has automatically shut down.
screen menus.
2. Exits the on-screen menus.
Projector Buttons
(Continued)
Symbol Control Function
−
3
4
5 R
Minus button Selects and adjusts the on-screen menu functions.
+
Plus button Selects and adjusts the on-screen menu functions.
Resync button Automatically synchronizes the projector to track
the input source.
IMPORTANT:
6- to 10-second delay, the unit enters standby mode and the projector lamp
turns off. A “Going to Standby” message appears on the screen for the
duration of the 6- to 10-second delay. When the message disappears from
the screen, there is a 45-second delay before the lamp can be turned back
on. Wait 45 seconds to allow the lamp to cool before pressing the
button again.
To use standby mode, press the
Standby
button and, after a
Introducing the On-Screen Menu
The adjustments for screen settings are located in the on-screen
menu and can be viewed in one of seven available languages.
Analog On-Screen Menu Adjustments
To display the Analog on-screen menu, press the
the projector. The following table shows the functions at each level:
Analog Menu Analog Menu Level 2 Analog Menu Level 3
Brightness Adjustment scale
Contrast Adjustment scale
Position Horizontal Position
Vertical Position
Save and Return
Cancel
Zoom Zoom
Panning Left-Right
Panning Up-Down
Save and Return
Cancel
Keystone Adjustment scale
Picture Dark—Light
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Select
button on
Standby
Continued
2-2 MP1400 Microportable Projector
Analog On-Screen Menu
(Continued)
Color (Color Temperature)
Custom Color
Saturation
Save and Return
Cancel
Digital
Conversion
Clock
Clock Phase
Save and Return
Cancel
Language Deutsche
English
Espanol
Francais
Italiano
Nederlands
Brazilian Portuguese
Save and Return
Menu Location Up-Down
Left-Right
Save and Return
Cancel
Management Power Saver
Lamp Hours
Reset Lamp Hours
Flip Image Horizontal
Serial Number
Master Reset
Save and Return
Cancel
Factory Reset Confirm Reset
Exit
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
On-Off
Display hours - 5 digits
Confirmation
Vertical
Both
Save and Return
Cancel
Display Serial Number
Confirmation
MP1400 Microportable Projector 2-3
Adjusting the On-Screen Menus
To launch and make adjustments to the on-screen menus:
1. Press the
panel or, if you are using the optional remote control,
press the
projection screen.
2. To select a function, press the
scroll down the Display menu. To reverse the scroll
direction, press the
3. Highlight the function to be adjusted and press the
Select
remote control, press the
Menu
button 1 again or, if you are using the optional
button 1 located on the projector
Select
button. The menu will display on the
(-) button 2 to
Minus
(+) 3 button.
Plus
button.
Menu
The bar on the bottom of the on-screen menu shows the current
✎
operating resolution.
2-4 MP1400 Microportable Projector
For example, to select the
2
until
Position
display the level 2 menu for
expanded menu items.
is highlighted, then press the
4. To make a selection from the level 2 menu, press the
Minus
press the
direction.
Position
(-) button to scroll down the level 2 menu, or
Plus
function, press the
Select
Position.
(+) button to reverse the scroll
The level 2 menu displays
Minus
button 1 to
button
5. Highlight the selection and press the
confirm the selection. The level 3 menu displays.
6. Level 3 for
scales. Use the
button to increase the screen Horizontal and Vertical
positions.
Some menu functions display adjustment scales in the level 2
✎
menu, while others display adjustment scales in the level 3
menu.
7. After making the adjustment, select
Return.
8. To exit from the on-screen menu, select
Main menu. If the display is a second- or third-level
menu, select
Exit
The on-screen menu is easy to use; just follow the instructions on
the screen.
Position
To void any changes made, select
Save and Return
from the Main menu.
functions display the adjustment
button to decrease and the
Minus
Save and
or
Cancel,
Select
Exit
button to
Plus
Cancel.
from the
then select
Explaining Functions in the On-Screen Menu
■
Brightness and Contrast—Adjusts the displayed image
brightness and contrast ranges from 0 to 100.
An example of a standard setting is to set the contrast level to
✎
67 and the brightness level to 50.
MP1400 Microportable Projector 2-5
■
Position—Fine-tunes the horizontal and vertical positions of
the display.
■
Zoom—Magnifies an image up to a factor of 32 on the
projection screen (zooms in to a specific area on the screen, and
pans left, right, up, and down).
■
Keystone—Adjusts image distortion at the top and bottom
widths of the screen caused by tilting the projector.
■
Picture—Adjusts the gamma value or degree of contrast of
darkness or light for the projected image.
■
Color—Adjusts color balance to compensate for ambient
conditions using three submenus:
❏
(Color Temperature)—The factory default.
❏
Custom Color—Modifies the color temperature balance.
❏
Saturation—Magnifies the color intensity.
■
Digital Conversion—Improves picture stability of user modes
by adjusting:
❏
Clock—Increase/decrease the value to stretch or shrink the
image on the screen.
❏
Clock Phase—Increase/decrease the value to minimize
video distortion or video jitter.
If the projector image becomes distorted when adjusting the
✎
Clock and Clock Phase values, continue adjusting the values
until the distortion disappears. To restore the factory settings,
select
Factory Reset
Resync
■
Language—Allows the user to change the on-screen display to
button on the projector.
in the on-screen menu, or press the
one of seven languages in their native spelling. The current
language is highlighted. Select another language in which to
display all menu functions.
■
Menu Location—Positions the on-screen menu at a convenient
location on the projector screen; positions the menu up or
down, left or right.
2-6 MP1400 Microportable Projector
■
Management—Allows the user to control power saver
characteristics of the display, or to view the cumulative lamp
hours, reset the lamp hour timer, view the unit’s serial number,
or perform a Master Reset.
■
Factory Reset—Resets the current operating option to its
original factory setting.
Special On-Screen Messages
The following on-screen messages will appear on the projection
display to identify the following conditions:
■
Check Video Cable—
Indicates the video cable may not be
plugged into the projector or the selected video input is not
accurate.
■
Input Signal Out of Range—
Indicates the projector is unable
to access the appropriate input signal.
■
2 Inputs Active - Remove One—
The projector has two data
inputs: one is an analog D-Sub input, and the other is a digital
DFP input. This message indicates that both inputs are active
simultaneously and the user should detach one of them.
■
Going to Standby—
Indicates the projector is entering a sleep
mode or is powering off the lamp.
■
Lamp May Fail Soon, Replacement Suggested—
Indicates
the lamp is approaching failure. The message will remain on
the screen for five seconds or until the on-screen menu
button is pressed.
Select
MP1400 Microportable Projector 2-7
When the optional Compaq Multimedia Adapter is attached to the
projector, the following messages, in addition to the previous
messages, will appear on the projection display to identify the
following conditions:
■
Analog, Use Source to change input
—
Indicates Analog and
DVI inputs are both connected. Since the projector will default
to display Analog, you must use the
Source
button to switch to
DVI.
■
DVI, Use Source to change input
—
Indicates DVI along with
other video sources and/or analog sources are present. Analog
is the default setting. Use the
■
Analog, Use PIP for picture-in-picture or use Source to
—
change input
Indicates Analog plus video and DVI are
Source
button to switch to DVI.
present. Audio is the default setting. Use PIP for picture-inpicture, or change setting using the
■
Composite Video, Use Source to change input
Source
button.
—
Indicates
Composite Video or other inputs present. Default is Composite
Video. Use the
■
S-Video, Use Source to change input
Source
other inputs are active. Use the
button to change the setting.
—
Indicates S-video with
Source
button to change the
setting.
2-8 MP1400 Microportable Projector
Chapter 3
Using the Optional Compaq Multimedia Adapter
Identifying the Multimedia Adapter Components
Item Component Function
1 Infrared Receiver Interprets signals received from the
2 Speaker Provides audio performance
3 Volume +
4 S-Video connector Connects camcorders or DVDs
5 8-pin connector Connects back to computer allowing
6 DVI connector Connects digital equipment
7 Source button Selects between two video or
MP1400 Microportable Projector 3-1
/
− Increases/Decreases volume
remote control
remote mouse functionality
two computer inputs
Continued
Multimedia Adapter Components
Item Component Function
8 Video LED When lit, indicates video input
9 Computer LED When lit, indicates computer input
: Video/RCA connector Connects video equipment
; Audio-in connector Connects audio equipment,
< Install buttons Use to install adapter on projector
The optional Compaq Multimedia Adapter is not included
✎
with the Compaq MP1400 Microportable Projector. It is sold
separately and includes an optional remote control. For
information on purchasing the optional Multimedia Adapter
and remote control, call your Compaq authorized dealer, or
reseller. To locate a reseller near you, call 1-800-ATCOMPAQ or, to purchase directly from Compaq, visit the
Compaq web site at
http://www.compaq.com/products/projectors.
(
Continued)
videocassette recorders and DVD
players, allowing sound to be
played.
3-2 MP1400 Microportable Projector
Attaching the Optional Multimedia Adapter
to the Projector
1. Push in the two buttons 1 on the bottom sides of the
optional Multimedia Adapter.
2. Insert the hooks on top of the optional Multimedia
Adapter into the upper slots 2 on the projector by
inserting and pushing upward, then insert the adapter
plug into the digital connector 3 on the back of the
projector.
3. Release the buttons on the sides of the optional
Multimedia Adapter to complete the connection.
When the adapter is activated, one of the LEDs 4 on the
✎
Multimedia Adapter turns green.
MP1400 Microportable Projector 3-3
Connecting a Camcorder, VCR, or DVD Player
to the Optional Multimedia Adapter
A rubber boot cover protects the DFP (digital) connector on
✎
the projector. Be sure to remove the cover before connecting
the Multimedia Adapter to the projector and replace the cover
when the projector is not in use to prevent electrostatic
discharges from damaging the connector.
1. Use an RCA cable to connect a VCR to the video
connector 1 on the optional Multimedia Adapter.
Use an S-video cable to connect a camcorder or DVD
player to the S-video connector 2 on the optional
Multimedia Adapter.
2. Connect one end of the power cord 3 into the back
of the projector and the other end to an electrical
outlet that is easily accessible and close to the
projector.
3. To connect the multimedia adapter speaker for
sound, connect the RCA audio cable 4 to the audioin port on the optional Multimedia Adapter and the
audio-out port on the VCR, camcorder, or DVD
player. If you are not using the speaker at this time,
skip to the next step.
3-4 MP1400 Microportable Projector
4. Press the
Source
button 5 on the Multimedia
Adapter to toggle and select between the connected
input sources.
The optional Compaq Multimedia Adapter can remain attached to
the projector, or it can be removed and stored in the carrying case.
MP1400 Microportable Projector 3-5
Connecting a Video Player
If your video player uses a round, one-prong composite video
✎
connector, use the RCA video cable. If your video player uses
a round, four-prong S-video connector, use the S-video cable.
Both cables are included with the optional Compaq
Multimedia Adapter.
1. Plug the RCA video cable into the video-out port on
the video player and the video port on the video
adapter. If you are using the S-video cable, connect it
to the S-video out connector on the video player and
the S-video port on the video adapter.
2. Turn on the projector first, then the video player.
3. Push the
multimedia adapter to toggle and switch the projector
signal from data (computer icon) to video (TV icon).
The data mode receives computer inputs, and the
video mode receives video input such as a TV tuner,
VCR, video, or camera.
With the optional Compaq Multimedia Adapter attached, the
projector is compatible with major video standards such as NTSC,
PAL, and SECAM. Use the on-screen menu to adjust the video
performance manually, or press the
panel to optimize it automatically.
Source
button on the back of the
Resync
button on the projector
Video On-Screen Menu Adjustments
When the optional Multimedia Adapter is attached to the projector
and the video source is selected, an alternate video on-screen menu
can be displayed on the projected screen. This menu includes some
selections that are relevant to the multimedia functions of the video
adapter.
To display the Video on-screen menu:
1. Attach the optional Compaq Multimedia Adapter to
the projector.
2. Attach a video source to the projector.
3-6 MP1400 Microportable Projector
3. Set the
Source
button on the optional multimedia
adapter or optional remote control to video.
4. Press the
button on the projector or the
Select
button on the optional remote control to display the
following menu.
Video Menu Video Menu Level 2 Video Menu Level 3
Brightness Adjustment scale
Contrast Adjustment scale
Zoom Zoom
Panning Left-Right
Panning Up-Down
Save and Return
Cancel
Keystone Adjustment scale
Color (Color Temperature)
Custom Color
Saturation
Save and Return
Cancel
Tint Adjustment scale
Sharpness Adjustment scale
Language Deutsche
English
Espanol
Francais
Italiano
Nederlands
Brazilian Portuguese
Save and Return
Audio Mute
Volume
Bass
Treble
Cancel
Save and Return
Source S-Video
Composite
DVI
Analog
Save and Return
Menu Location Up-Down
Left-Right
Save and Return
Cancel
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
On - Off
Adjustment Scale
Adjustment Scale
Adjustment Scale
Adjustment Scale
Adjustment Scale
Menu
Continued
MP1400 Microportable Projector 3-7
Video On-Screen Menu
Management Power Saver
Factory Reset Confirm Reset
Exit
Current Mode
(Continued)
Lamp Hours
Reset Lamp Hours
Standby Lamp Delay
Flip Image Horizontal - Vertical - Both
Serial Number
Master Reset
Save and Return
Cancel
On-Off
Display hours - 5 digits
Confirmation
Delay adjustment
Display Serial Number
Confirmation
To make adjustments to the Video on-screen menu, follow the steps
in “Adjusting the On-Screen Menu” in Chapter 2, “Using the
Projector.”
Explaining Functions in the Video On-Screen Menu
In addition to the Analog on-screen menu functions, the Video onscreen menu includes the following additional functions:
■
Tint—Adjusts screen image tint
■
Sharpness—Adjusts screen image sharpness
■
Audio—Adjusts the audio controls for the speaker on the
multimedia adapter
■
Source—Selects between composite, S-video, DVI, and analog
input
3-8 MP1400 Microportable Projector
Chapter 4
Using the Optional Remote Control
Identifying the Remote Control Buttons
Item Component Function
1 LED Glows green when the remote is
2 Standby button Powers the projector into and out
3 SCE—Source button Selects the input source
4 Laser Activates laser pointer for use in
5 Mouse ball
MP1400 Microportable Projector 4-1
operating
of Standby mode
presentations
1. Controls the on-screen cursor
and alternate left-mouse
functions
2. Calibrates the mouse ball for
pointing performance
Continued
Remote Control Buttons
Item Component Function
6 Left Mouse button Controls left mouse functions
7 Right Mouse button Controls right mouse functions
8 Page Up/Down buttons Scrolls up/down projected image
9 Zoom In/Out buttons Zooms in to a specific area on
: PIP (Picture-in-Picture)
; On-screen Menu button Launches the Video on-screen
< Resync button Resynchronizes the projector
= On-screen Menu
> Mute button Silences the speaker
? Volume +
!
button
Adjustments +/−
WARNING:
not look directly into the laser light on the remote
control and do not point the laser light into anyone’s
eyes. This remote control is equipped with a Class II
laser that emits radiation.
(Continued)
the screen, and zooms out to
include a larger screen area
Displays an inset video picture
from an alternate source
connected to the projector
menu
with the input source
Adjusts the Video on-screen
menu
/
− Increases/decreases speaker
To reduce the risk of injury to the eyes, do
volume
The optional remote control operates only when the optional
✎
Compaq Multimedia Adapter is connected to the projector.
The optional remote control is not included with the
✎
Compaq MP1400 Microportable Projector. The optional remote
control is included with the optional Compaq Multimedia
Adapter kit, which is sold separately. For information on
purchasing the optional Compaq Multimedia Adapter kit, call
your Compaq authorized dealer, or reseller. To locate a reseller,
call Compaq at 1-800-AT-COMPAQ or, to buy directly from
Compaq, visit the Compaq web site at
http://www.compaq.com/products/projectors.
4-2 MP1400 Microportable Projector
Calibrating the Mouse
The mouse ball should be calibrated the first time the optional
remote control is used or when the batteries are changed to adjust or
fine-tune the mouse pointing performance.
To calibrate the mouse ball on the remote control:
1. Ensure that the projector, multimedia adapter, and remote
control are powered on.
2. Press down on the top of the mouse ball and hold it down
until it clicks,
3. Then move the mouse ball around in as large a circle as
possible.
MP1400 Microportable Projector 4-3
Remote Control Functions
The optional remote control performs the following functions:
■
Duplicates the functions of the projector buttons, including
adjusting the on-screen menus
Controls the computer connected to the projector by navigating
through the computer directories, and opening and closing files
IMPORTANT:
pin to-USB/RS232- cable (included in the optional Multimedia
Adapter kit) must be used. Connect the 8-pin connector cable to the
appropriate connector on the multimedia adapter and connect the
USB connector to the USB connector on the computer (preferred)
the RS232 connector to the serial connector on the computer. Do
or
not connect
To operate a computer using the remote control, an 8-
the USB and RS232 connectors to the computer.
both
Microsoft Windows 95 (OSR Version 2.1), Windows 98, and
✎
Windows 2000 support USB connection; Microsoft
Windows NT does not currently support USB connection.
4-4 MP1400 Microportable Projector
Picture-in-Picture On-Screen Menu Adjustments
When the optional Multimedia Adapter is attached to the projector,
a data source is connected, and the S-video and Composite
connectors are attached to input sources, a second alternate Picturein-Picture (PIP) on-screen menu displays on the projector screen.
The PIP on-screen menu includes functions that are relevant to the
PIP function only.
PIP is functional only with a VGA and S-video or
Composite video input.
✎
To display the PIP on-screen menu:
1. Attach the optional Mutimedia Adapter to the projector.
2. Connect both the S-Video and Composite input connectors
to input sources.
3. Press the PIP button on the optional remote control or the
button on the projector panel.
Select
To make adjustments to the PIP on-screen menu, follow the
steps in “Adjusting the On-Screen Menu” in Chapter 2.
✎
PIP Menu PIP Menu Level 2 PIP Menu Level 3
Brightness Adjustment scale
Contrast Adjustment scale
Zoom Zoom
Panning Left-Right
Panning Up-Down
Save and Return
Cancel
Keystone Adjustment scale
Picture Dark—Light
Color (Color Temperature)
Custom Color
Saturation
Save and Return
Cancel
MP1400 Microportable Projector 4-5
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Continued
PIP On-Screen Menu
Digital
Conversion
Language Deutsche
Audio Mute
Source S-Video
PIP On—Off
Menu Location Up-Down
Management Power Saver
Factory Reset Confirm Reset
Exit
Current Mode
(Continued)
Clock
Clock Phase
Save and Return
Cancel
English
Espanol
Francais
Italiano
Nederlands
Brazilian Portuguese
Save and Return
Volume
Bass
Treble
Cancel
Save and Return
Composite
DVI
Analog
Save and Return
Location
Source
Save and Return
Left-Right
Save and Return
Cancel
Lamp Hours
Reset Lamp Hours
Standby Lamp Delay
Flip Image Horizontal
Serial Number
Master Reset
Save and Return
Cancel
Adjustment scale
Adjustment scale
On—Off
Adjustment scale
Adjustment scale
Adjustment scale
(Toggles 5 locations)
Composite, S-Video
Adjustment scale
Adjustment scale
On-Off
Display hours - 5 digits
Confirmation
Delay adjustment
Vertical
Both
Save and Return
Cancel
Display Serial Number
Confirmation
4-6 MP1400 Microportable Projector
Explaining Functions in the PIP On-Screen Menu
While the PIP on-screen menu includes most of the analog
on-screen functions, it also includes the additional functions:
■
Audio—Adjusts the audio controls for the speaker on the
multimedia adapter.
■
Source—Selects between composite, S-video, DVI, and analog
input.
■
PIP—Turns PIP on/off; changes the PIP location on the
projected image; and selects the input source.
MP1400 Microportable Projector 4-7
Chapter 5
Care and Maintenance
This chapter explains how to care for and maintain your Compaq
projector during normal everyday use.
Protecting the Projector
To protect your projector from overheating and other types of
damage, follow these suggestions:
■
Use only a power source and connection appropriate for this
projector as indicated on the marking label.
■
Do not overload an electrical outlet, power strip, or
convenience receptacle. The overall system load must not
exceed 80 percent of the branch circuit rating. If an extension
cord or power strip is used, make sure that the cord or strip is
rated for the product and that the total ampere ratings of all
products plugged into the extension cord or power strip do not
exceed 80 percent of the extension cord or strip ampere ratings
limit.
■
Install the projector near an outlet that you can easily reach.
Disconnect the product by grasping the plug firmly and pulling
it from the outlet. Never disconnect it by pulling the cord.
■
Unplug the projector from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners.
■
Slots and openings in the cabinet are provided for ventilation.
These openings must not be blocked or covered. Never push
objects of any kind into cabinet slots or other openings.
■
Do not drop the projector or place it on an unstable surface.
■
Do not expose this product to rain or moisture.
MP1400 Microportable Projector 5-1
■
Do not allow anything to rest on the power cord. Do not walk
on the cord.
■
Do not open the projector or attempt to service this product for
any other reason than to replace the lamp module. Adjust only
those controls that are covered by the operating instructions. If
the projector is not operating properly or has been dropped or
damaged, contact your Compaq authorized dealer, reseller, or
service provider.
5-2 MP1400 Microportable Projector
Cleaning the Lens
To minimize the risk of damaging the coating or scratching the lens
surface, this cleaning procedure has been developed. The first
recommendation is to remove any dust particles from the lens by
blowing them off with clean, dry, deionized air. However, this may
not be a convenient method, and an alternate method is described
below using the cloth included with the projector.
To clean the lens, use the
projector and follow these steps:
CAUTION:
directly on the lens surface. Do not use liquid cleaners on
the cloth as this may contaminate the cloth. Do not directly
touch the lens surface.
1. Wipe the lens in a single direction with the clean,
lint-free, dry cloth. Do not wipe back and forth across
the lens surface.
2. If the cloth is dirty or smears the lens, wash the
cloth. If the cloth is still dirty after washing it or the
fabric is damaged, replace it.
Do not
✎
sheets when drying the cloth.
use fabric softener when washing the cloth or softener
CAUTION:
for a long time as doing so may contaminate the lens with
dye from the cloth. Keep the cloth in its case when it is not
being used. The cloth can be contaminated if left in the
open air or in a lab coat pocket.
clean
Do not spray any type of fluid or cleaner
Do not store the cloth in contact with the lens
cloth that was included with the
MP1400 Microportable Projector 5-3
Replacing the Projector Lamp Module
When the projector lamp reaches its end of life, it may pop when it
burns out. The lamp will need to be replaced before the projector
can be used again.
When the lamp reaches its end of life, it may pop
WARNING:
!
or rupture. To reduce the risk of personal injury, be careful
when removing the lamp cover as broken glass may be
present. Never open the lamp cover while the projector is
operating or when the lamp is hot.
The projector will alert you when the lamp approaches its failure
mode or end of life. When the message “Lamp May Fail Soon Replacement Suggested” displays on the projection screen, you
should change the lamp as soon as possible.
Contact your local Compaq authorized dealer, seller, or reseller to
purchase a replacement lamp or have the lamp changed. To locate a
reseller near you, call 1-800-AT-COMPAQ. To purchase the lamp
directly from Compaq, visit the Compaq web site at
http://www.Compaq.com/products/projectors.
5-4 MP1400 Microportable Projector
To replace the projector lamp module, follow these steps:
1. Turn off the power to the projector by pressing the
Standby button 1.
2. Allow the projector to cool down for at least 30
minutes.
WARNING:
!
temperature. To reduce the risk of personal injury, allow the
projector to cool down for at least 30 minutes before opening
the lamp cover. Never open the lamp cover while the projector
is operating or when the lamp is hot.
3. Turn off the main power switch 2.
4. Disconnect the power cord 3.
The lamp assembly operates at a very high
MP1400 Microportable Projector 5-5
5. Use the provided Phillips screwdriver to remove the
screw 4 from the lamp cover.
6. Remove the cover 5.
7. On the left side of the lamp module, push the
electrical connector 6 up to disengage it from the
projector base.
8. Remove the three screws 7 from the lamp module.
9. Pull out the lamp module 8.
WARNING:
!
the lamp module or touch the glass bulb. The glass may
shatter and cause an injury if it is dropped.
To replace the lamp module, reverse the previous steps.
After replacing the lamp module, remember to reset the lamp
✎
hours in the on-screen menu.
IMPORTANT:
weight. If the projection lamp breaks, the mercury may be released
into the atmosphere. Please follow applicable federal, state, and
local regulations for disposal and/or recycling.
5-6 MP1400 Microportable Projector
To reduce the risk of personal injury, do not drop
This lamp contains < 0.125 percent mercury by
appendix A
Troubleshooting
Solving Display Problems
Image does not appear on
the projection screen
1. Make sure the projector is
powered on.
2. Ensure the lens cap has been
removed.
3. Ensure your portable computer’s
external video port is turned on.
Toggle the
keys. To identify any alternate
function keys to be used, refer to
your portable computer’s user
manual.
4. Press the
projector panel.
5. Ensure that the power cable is
securely connected.
6. Ensure the pins on the
connectors are not crooked or
broken.
7. Turn off or disable the portable or
desktop computer screen saver
function. Compaq recommends
installing the Compaq
Presentation Utility to disable
computer screen savers.
Fn + F4
Resync
function
button on the
8. Ensure the projection lamp has
been securely installed.
Continued
Troubleshooting A-1
Solving Display Problems
(
Scrolling, cut-off, or
incorrect image displayed
Portable computer or PC
Companion screen is not
displaying the presentation
Continued)
1. Press the
Resync
projector panel.
2. Turn everything off; first power
on the portable or desktop
computer, then power on the
projector.
3. If the above steps do not correct
the display image, adjust the
resolution of the portable or
desktop computer to 800 × 600.
button on the
Portable computer:
Most portable computers have a
monitor loop-through or simultaneous
viewing function. Press the Fn +
F4
function keys on the portable
computer to switch the image from
the portable screen to the projection
screen or to toggle through the
following three options:
1. LCD: Output displays only on the
portable screen.
2. CRT: Output displays only on the
projection screen.
3. CRT/LCD: Output displays on the
portable screen and the
projection screen.
Activate CRT/LCD “ON” at the same
time. To identify any alternate
function keys to be used, refer to
your portable computer’s user
manual.
Continued
A-2 Troubleshooting
Solving Display Problems
Portable computer or PC
Companion screen is not
displaying the presentation
(continued)
(Continued)
Mac PowerBooks:
Image is flickering or
unstable
Image is out of focus
1. To control video mirroring, click
Control PanelDisplay, then set
Video Mirroring to ON for both
internal and external viewing.
2. Set Video Mirroring OFF for
image on external monitor only or
internal only, depending on
monitor selection in Monitors.
Press the
Resync
button on the
projector panel to adjust the tracking.
If that doesn't stop the flickering,
adjust the Clock Phase function in the
on-screen menu.
1. Adjust the Focus Ring on the
projection lens.
2. Make sure the projection screen
is within the required distance
(3.3 - 35 feet/1 - 10.8 meters)
from the projector.
3. Check the projection lens to see
if it needs cleaning. Follow the
“Cleaning the Lens” procedures
in Chapter 5, “Care and
Maintenance.”
Continued
Troubleshooting A-3
Solving Display Problems
Projected colors do not
match computer or
camcorder color
(
Continued)
1. Adjust the Brightness, Contrast,
or Color functions in the onscreen menu.
2. Make sure the pins on the cable
connectors are not bent or
broken.
3. If this does not resolve the
problem, contact your Compaq
authorized service provider or
call Compaq Customer Support
for help. (Refer to the
Customer Support
Contacting
manual
included with the projector
documentation kit for a complete
list of customer support
numbers.)
Black or gray border visible
outside the usable area of
the projection screen
Only the Compaq startup
screen displays
Blue screen displays on the
projection screen when a
VCR is connected to the
projector
The black border surrounding the
active area of the projection screen is
part of the total projected image;
however, it is an inactive area and
cannot display any part of the image.
1. Check that the cables are
connected securely.
2. Verify that the proper input
source is connected.
3. Make sure your portable
computer's external video port is
activated.
Check the Play button or TV/Video
button on the VCR. If that doesn’t
work, refer to your VCR manual.
A-4 Troubleshooting
Solving Lamp Problems
Lamp shuts off
Lamp burns out or makes a
popping sound
1. If all five projector panel buttons
flash amber, the projector has
overheated and will automatically
shut down. Wait 5-10 minutes
until the buttons stop flashing
and the
amber before restarting the
projector again.
2. A minor power surge may cause
the lamp to shut off. Turn the
projector off. Wait a few minutes,
then turn it back on.
When the lamp reaches its end of life,
it will burn out and may make a loud
popping sound. If this happens, the
projector will not turn back on until
the lamp module has been replaced.
For information on purchasing a
replacement lamp module, call your
Compaq authorized dealer, seller, or
reseller. To locate a reseller near you,
call 1-800-AT-COMPAQ. To purchase
directly from Compaq, visit the
Compaq web site at
http://www.compaq.com/products/
projectors.
Standby
button turns
To replace the lamp, follow the
procedures in the “Replacing the
Projector Lamp Module” section in
Chapter 5, “Care and Maintenance
Troubleshooting A-5
.”
Solving Miscellaneous Problems
Multimedia speaker doesn’t
function
PIP doesn’t operate
Remote control doesn’t
operate
Remote mouse doesn’t
function
1. Make sure the RCA audio cable is
correctly connected to the
Multimedia Adapter and the
audio source.
2. Check the audio source to be
sure it’s operating.
3. Make sure the
Check the cable connections. If there
is a digital source connected, PIP will
not operate. PIP is always the inset
picture; data will always be the larger
screen.
1. The three AAA batteries may
need to be replaced.
2. Be sure the optional Multimedia
Adapter is properly attached to
the projector.
Make sure the USB cable is
connected to the USB slots on the
Multimedia Adapter and the
computer.
button is off.
Mute
Compatibility issues with
equipment attached to the
projector
A-6 Troubleshooting
Upgrade the projector ROM using the
Flash ROM download kit included in
the Compaq MP1400 Microportable
Projector’s packing box. For more
information, refer to Appendix C,
“Flash ROM Upgrade.”
If this does not resolve the problem,
contact your Compaq authorized
service provider or call Compaq
Customer Support for help. (Refer to
Contacting Customer Support
the
manual included in the projector
documentation kit for a complete list
of customer support numbers to call.)
appendix B
Agency Regulatory Notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and the
■
receiver.
Connect the equipment into an outlet on a circuit different
■
from the circuit that the receiver is connected.
Consult the dealer or an experienced radio or television
■
technician for help.
Modifications
The FCC requires the user to be notified that if any changes or
modifications are made to this device, not expressly approved by
Compaq Computer Corporation, this may void the user’s
authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables
with metallic RFI/EMI connector hoods to maintain compliance
with FCC Rules and Regulations.
Agency Regulatory Notices B-1
Declaration of Conformity for Products Marked
with the FCC Logo—United States Only
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
For questions regarding your product, contact:
Compaq Computer Corporation
P.O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call 1-800-652-6672 (1-800-OK COMPAQ)
For questions regarding this FCC declaration, contact:
Compaq Computer Corporation
P.O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call (281) 514-3333
To identify this product, refer to the Part, Series, or Model
number found on the product.
Canadian Notice
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
B-2 Agency Regulatory Notices
European Notice
Products with the CE Marking comply with both the EMC
Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compliance with these directives implies conformity to the
following European norms:
EN55022 (CISPR 22) - Radio Frequency Interference
■
EN50082-1 (IEC801-2, IEC801-3, IEC801-4) -
■
Electromagnetic Immunity
EN60950 (IEC950) - Product Safety
■
Japanese Notice
Agency Regulatory Notices B-3
Specifications
Compaq MP1400 Microportable Projector
Projection Panel
Lamp Type
Image Size
Avg. Lamp Life in Hours
Projection Distance
Maximum Weight
(Unpacked)
Maximum Dimensions
W × H × D 3 in × 8 in × 9 3/8 in
Maximum Graphics
Resolution
Displayable Colors
Horizontal Frequencies
Analog signals
Digital signals
Vertical Frequencies
Analog signals
Digital signals
Required Environmental Temperatures for
the Following Altitudes:
Sea Level
Operating Temperature
Storage Temperature
2,500 - 5,000 Feet
Operating Temperature
Storage Temperature
5,000 - 10,000 Feet
Operating Temperature
Storage Temperature
Humidity (Non-Condensing)
Operating
Non-Operating
Power Source
Power Consumption
Input Terminal
SVGA 800 × 600 × 1
120 watt High Brightness Lamp
See the Image Size Adjustment table.
1,500 hours
3.3 feet - 35.64 feet 1 meter - 10.8 meters
4.2 lbs (without cables) 1.9 kg
1024 × 768 compression
16.7 million colors
15 - 69 kHz
15 - 60 kHz
48 - 85 Hz
48 - 75 Hz
50 to 104°F
-22 to 149°F
50 to 95°F
-22 to 149°F
50 to 82°F
-22 to 149°F
20 to 80%
5 to 95%
90 - 265 VAC, 50-60 Hz
< 185 watts
One 15-pin D-type connector with one cable included
One Digital FP connector with one cable included
10 to 40°C
-40 to 65°C
10 to 35°C
-40 to 65°C
10 to 28°C
-40 to 65°C
B-4 Agency Regulatory Notices
Preset Display Resolutions Table
This projector automatically recognizes the preset display
resolutions listed in the following table.
Display Resolutions
Preset Modes Resolutions
1. Industry Standard 640 × 350 at 31.5 kHz/70 Hz
2. VESA Standard 640 × 350 at 37.8 kHz/85 Hz
3. Industry Standard 640 × 480 at 31.5 kHz/60 Hz
4. Industry Standard 640 × 480 at 37.8 kHz/72 Hz
5. VESA Standard 640 × 480 at 37.5 kHz/75 Hz
6. VESA Standard 640 × 480 at 43.3 kHz/85 Hz
7. Industry Standard 720 × 400 at 31.5 kHz/70 Hz
8. VESA Standard 720 × 400 at 37.9 kHz/85 Hz
9. VESA Standard 800 × 600 at 35.1 kHz/56 Hz
10. VESA Standard 800 × 600 at 37.8 kHz/60 Hz
11. VESA Standard 800 × 600 at 48 kHz/72 Hz
12. VESA Standard 800 × 600 at 46.9 kHz/75 Hz
13. VESA Standard 800 × 600 at 53.7 kHz/85 Hz
14. Macintosh-compatible 832 × 624 at 49.7 kHz/75 Hz
15. VESA Standard 1024 × 768 at 35.5 kHz/43.4 Hz
16. VESA Standard 1024 × 768 at 48.4 kHz/60 Hz
17. VESA Standard 1024 × 768 at 56.4 kHz/70 Hz
18. VESA Standard 1024 × 768 at 60 kHz/75 Hz
19. VESA Standard 1024 × 768 at 68.7 kHz/85 Hz
20. Macintosh-compatible 1152 × 870 at 68.7 kHz/75 Hz
Agency Regulatory Notices B-5
Power Cords
The projector power supply is provided with Automatic Line
Switching (ALS). This feature allows the projector to operate on
input voltages between 100-240V.
The power cord set (flexible cord or wall plug) received with the
projector meets the requirements for use in the country where you
purchased the equipment.
If you need to obtain a power cord for a different country, you
should purchase a power cord that is approved for use in that
country.
The power cord must be rated for the product and for the voltage
and current marked on the product’s electrical ratings label. The
voltage and current rating of the cord should be greater than the
voltage and current rating marked on the product. In addition, the
diameter of the wire must be a minimum of 0.75 mm
and the length of the cord must be between 6 feet (1.8 m) and
12 feet (3.6 m). If you have questions about the type of power
cord to use, contact your Compaq authorized service provider.
A power cord should be routed so that it is not likely to be walked
on or pinched by items placed upon it or against it. Particular
attention should be paid to the plug, electrical outlet, and the
point where the cord exits from the product.
2
or 18AWG,
B-6 Agency Regulatory Notices
appendix C
Flash ROM Upgrade
The Compaq MP1400 Microportable Projector can be upgraded
by flashing the ROM (Read Only Memory) on the projector.
Before attempting these steps, make sure the projector is
NOTE:
turned off.
The Flash ROM upgrade provides the following functions:
Implements new features on the projector.
■
Provides upgrades to existing features.
■
Resolves compatibility issues.
■
First, locate the following items in the Compaq MP1400
Microportable Projector shipping box:
DFP to DVI cable
■
RS232 to DVI upgrade adapter
■
To upgrade the projector’s ROM, complete the following steps:
1. Connect the DFP end of the cable to the DFP connector on
the projector and the DVI end of the cable to the input end of
the Flash ROM RS232 adapter.
2. Connect the other end of the Flash ROM RS232 adapter to
the RS232 (serial) connector on the computer.
Flash ROM Upgrade C-1
3. Power on the computer and monitor only.
4. Access the Compaq Web site at
http://www.Compaq.com/Support.
5. Follow the steps outlined on the Web site.
6. Power on the projector.
7. Wait about two minutes to allow the Flash Upgrade program
to complete the upgrade, then the projector will
automatically reset and be ready to use.
C-2 Flash ROM Upgrade
W
elcome to Using this Guide
Go to Using this Guide
(this section)
Previous Page
Next Page
Click a subject in the bookmarks on the left side of the screen to jump to that subject.
Click any blue text to jump to information on that topic.
Click the Go Back Arrows (
) in the task bar to return to the previous page.
Loading...
