QuickSpecs

Overview

What's New

• Designed for maximum

applicatio n performance and user workloa d, the ML530 Generation 2 ( G2) offers customers th e first 2P expansion server with Mirrored Memory

• Intel

Xeon™ Processors with

400MHz system bus

• 512-KB level 2 cache per

processor

• Enterprise Class chipset:

ServerWorks GC HE

• PC 1600 ECC SDRAM

memory expandable to 16GB (Advanced ECC memory standard)

• 2:1 interleaved memory

• Seven 64-Bit/100MHz PCI-X

slots; 4 Hot Plug Slots

• Two Ultra3/Ultra4-ready SCSI

Drive Cages standard support up to 12 1″ hot plug hard drives

• Internal mass storage

capacity up to 1 TB (12 x 72.8 GB + 2 x 72.8 GB 1″ hot plug drives) with optional ML5xx Internal Two Bay Hot Plug Wide Ultra2/Ultr a3 SC SI Driv e Cage (with fan)

• Compaq Advance d Memor y

Protection inc luding Mirrored Memory and Onli ne Spare Memory

• 600-Watt Hot Plug Power

Supply with optional 1+1 redundancy

• Hot Plug Syst em Fans with

optional redundancy

• Embedded Compaq NC3163

Fast Ethernet NIC PCI 10/100 WOL (Wake On LAN) and PXE support.

• Integrated D ual Channel Wide

Ultra3 SCSI Adapter

• Protected by HP Services,

including a t hree-year, Next Business Day on-site, limited, Global warra nty and extend ed Pre-Failure War ranty that covers processors, memory and disk driv es — Certain restrictions and exclusions apply. Consul t the Customer Support Center at 1-800-34 51518 for detai ls.

Compaq ProLiant ML530

Generation 2 (G2)

DA-11359 North Americ a — Version 7 — June 27, 2002 1

QuickSpecs

Standard Features

Compaq ProLiant ML530

Generation 2 (G2)

Processor

Cache Memor y

Upgradabili ty

Chipset

Memory

Network Con troller

Expansion Slots

Storage Con troller

Storage

Intel Xeon 2.40 GHz/512 KB Processor (with 400 MHz system bus)

Note: 1P Models ship with one processor standard. 2P Models ship with two processors standard.

512-KB level 2 cache per processor

Upgradable to dual processing

Note: 1P Models only.

Enterprise Class chipset: ServerWorks GC HE

Note: For more information regarding ServerWorks, please see the following URL:

http://www.serverworks.com/products/overview.html

Standard 1024 MB (2 x 512 MB) PC1600-MHz Registered ECC SDRAM Maximum 16,384 MB

Embedded Compaq NC3163 Fast Ethernet NIC PCI 10/100 with full WOL (Wake On LAN) and PXE support

7 PCI-X Slots PCI Voltage: 64-bit/100-MHz PCI-X (Hot Plug) 4 3.3 Volt or universal cards 64-bit/100-MHz PCI-X (Non-Hot Plug) 3 3.3 Volt or universal cards

Integrated Dual Channel Wide Ultra3 SCSI Adapter

Diskette Drives 1.44 MB CD-ROM 40x IDE CD-ROM Drive Hard Drives None Internal Storage 1.019 TB (with optional ML5xx Internal Two Bay Hot Plug Wide

Ultra2/Ultra3 SCSI Drive Cage (with fan) (12 x 72.8-GB 1″ + 2 x 72.8GB 1″)

Half Height Bays 2 bays for optional tape backup, DVD, or SCSI devices

Interfaces

Graphics

Form Factor

Parallel 1 Serial 2 Pointing Device (Mouse) 1 Graphics 1 Keyboard 1 Network RJ-45 1 USB 2

Note: Please see the following URL for additional information regarding

USB support:

www.compaq.com/products/servers/platforms/usb-support.html.

External SCSI 1

Integrated Rage XL Video Controller with 8 MB SDRAM Video Memory

Tower or Rack (7U)

DA-11359 North Americ a — Version 7 — June 27, 2002 2

QuickSpecs

Standard Features

Compaq ProLiant ML530

Generation 2 (G2)

ProLiant Essentials Foundation Pack Software

Insight Manager 7™ Insight Manager 7 helps maximize system uptime and performance and reduces

Compaq Management Agents The Compaq Management Agents

SmartStart™ SmartStart is a tool that simplifies server setup, providing a rapid way to deploy

ActiveUpdate ActiveUpdate is a web-based application that keeps IT managers directly

ROMPaq and configuration utilities

Compaq Survey Utility and diagnostics utilities

Optional ProLiant Essentials Value Packs

, support software,

the cost of maintaining the IT infrastructure by providing proactive notification of problems before those problems result in costly downtime and reduced productivity. Insight Manager 7 is easy to set up and provides rapid access to detailed fault and performance information gathered by the Compaq Management Agents. One-click-access to the Remote Insight Lights Out Edition board allows systems administrators to take full gr aph ica l control of ProLiant servers in remote locations or lights-out data centers. Finally, Insight Manager 7 in concert with the Compaq Version Control Agents and Compaq Version Control Repository Manager enables systems administrators to version manage and update system software across groups of ProLiant servers.

(http://www.compaq.com/products/servers/management/agents.html) form the foundation for Compaq's Intelligent Manageability strategy. They provide direct, browser-based access to in-depth instrumentation built into Compaq servers, workstations, desktops, and portables, and send alerts to Insight Manager 7 and other management consoles in case of subsystem or environmental failures. For additional information about the Compaq Management Agents and other management product from Compaq, please visit the management website at

http://www.compaq.com/manage.

reliable and consistent server configurations. For more information, please visit the SmartStart website at http://www.compaq.com/smartstart.

SmartStart version supported (minimum): SmartStart 5.40

connected to HP for proactive notification and delivery of the latest software updates.

The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options.

The most advanced configuration analysis, reporting and troubleshooting utilities used by Compaq and at your fingertips.

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

• Rapid Deplo and provisioning, enabling companies to quickly and easily adapt to changin business demands.

• Workload Management Pack – provides easier management of complex environments, improving overall server utilization and enabling Windows 2000 on a single multiprocessor ProLiant Server.

Note: For more information re

following URL: http://www.compaq.com/proliantessentials. Note: This Web site is available in English only.

ment Pack – an automated solution for multi-server deployment

customers for the first time to confidently deploy multiple applications

arding ProLiant Essentials Software, please see the

Industry Standard Compliance

DA-11359 North Americ a — Version 7 — June 27, 2002 3

ACPI 1.0b Compliant PCI 2. 2 Compliant PCI-X 1.0 Compliant WOL Support Microsoft Novell

Logo certifications

certified

QuickSpecs

Standard Features

Compaq ProLiant ML530

Generation 2 (G2)

Availability

• Compaq Advanced Memory Protection Technology – delivers unsurpassed memory protection and server availability:

• Advanced ECC Memory

ECC protection provides the ability to detect and corre ct single bit memory errors while Advanced ECC extends this coverage to include protection against multiple simultaneous errors on a DIMM. Advanced ECC detects and corrects 4bit memory errors that occur within a single DRAM chip on a DIMM. Advanced ECC algorithms work in combination with industry standard ECC DIMMS.

Advanced Memory Protection Configurations

• Online Spare Memory

Offers a higher level of memory protection than Advanced ECC alone. The system is configured with a spare bank of memory. If the number of single-bit correctable errors on a bank exceeds the pre-defined error threshold, the failing bank will fail over to the Online Spare bank without intervention or server interruption. The failed memory can then be replaced at the user’s convenience during a scheduled maintenance window.

• Single-Board Mirrored Memory

Single-board mirrored memory provides a higher level of availability than Advanced ECC and Online Spare Memory because it protects against multi-bit errors. Single-board Mirrored Memory uses a single memory board that is configured with a mirrored/redundant set of memory. The system writes to both sets of memory, but reads from one. If a memory bank has a multi-bit error or full DIMM failure, the system simply reads from the mirrored bank instead. This process occurs without intervention or server interruption, and the failed DIMM can be replaced during a regularly scheduled shutdown.

Note: All Compaq Advanced Memory Protection modes are configured in the ROM-Based Setup Utility (R BSU)

and viewable through Compaq Insight Manager 7 (CIM 7) and the Integrated Management Log (IML).

• PCI-X Hot Plug Technology (Four 64bit/100MHz PCI-X hot plug slots available)

• One 600W Hot Plug Power Supply standard

• Two Hot Plug System Fans standard

Manageability

Insight Manager 7 Redundant ROM Remote Flash RO M Utility Remote Insight Lights-Out Edition (optional) Automatic Server Recovery-2 (ASR-2) Integrated Management Log Server Health Logging Drive Parameter Tracking (with Smart Array Controller) Dynamic Sector Repairing (with Smart Array Controller) Pre-Failure Warranty (covers processors, hard drives and memory)

DA-11359 North Americ a — Version 7 — June 27, 2002 4

QuickSpecs

Standard Features

Compaq ProLiant ML530

Generation 2 (G2)

Security

Power Supply

System Fans

Required Cabl ing

OS Support

Power-on password Hot plug keyboard password Diskette drive control Diskette boot control QuickLock, Network Server Mode Parallel and serial interface control Administrator's password Disk configuration lock

One 600W Hot Plug Power Supply standard

• Optional 2nd Power Supply for 1+1 redundancy.

Note: Redundant Hot Plug Power Supplies standard on 2P servers. Note: North American variants ship with IEC320-C13 to Nema 5-15P detachable power cord. (rack models only)

Two Hot Plug System Fans standard

• Optional Hot Plug Redundant Fan kit includes two more

Note: Hot Plug Redundant Fans standard on 2P servers.

For required cabling information, refer to the Compaq website at

http://www.compaq.com/products/servers/proliantML530.

Note: This web site is available in English only.

Microsoft Windows Microsoft Windows NT Enterprise Edition Microsoft Windows 2000 Novell NetWare® 5.1 SCO® UnixWare LINUX® (RedHat®, SuSE®) Sun® Solaris Intel Platform Edition Microsoft .Net Caldera® OpenUnix 8 OS/2 e-Business

NT® Server

Note: For a more complete and up-to-date listing of supported OS’s and versions, please visit our OS Support

Matrix at: ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf

Note: For an up-to-date listing of the latest drivers available for the Compaq ProLiant ML530 G2, please see:

http://www.compaq.com/support/files/server/us/index.html.

DA-11359 North Americ a — Version 7 — June 27, 2002 5

QuickSpecs

Standard Features

Compaq ProLiant ML530

Generation 2 (G2)

Rack Airflow Req uirements

Installation of Compaq servers into T hird Party Round Hole Racks

• Rack 9000 and 10000 series Cabinets

The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The Compaq 9000 Series Rack and the new 10000 Series Racks provides enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

• Rack 7000 series Cabinets

When installing a server with processors running at speeds of 550 MHz or greater in Compaq Rack 7000 series racks with glass doors (165753-001 (42U), and 163747-001 (22U)), the new processor technolo requires the installation of Compaq’s new High Airflow Rack Door Inserts (327281-B21 (42U), 327281B22 (42U 6 pack), or 157847-B21 (22U)) to promote enhanced airflow for maximum cooling.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

o Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow

5,350 sq cm (830 square inches) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).

o Side: The clearance between the installed rack component and the side panels of the rack must be

a minimum of 7 cm (2.75 inches)

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

Note: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with

the server, or to the server documentation located in the Support section at the following URL:

http://www5.compaq.com/products/servers/proliantml530/index.html

If a Third Party rack is used, an additional rack kit will need to be used with the rack kit that comes with the server (optional Third Party Rack Kit (PN: 274739-B21)). The optional Third Party Rack Kit ships with all the necessary brackets, hardware, and installation instructions.

Installation of Compaq servers into T elco Racks

Service and Support

If a Telco is used, an additional rack kit and brackets will need to be used with the rack kit that comes with the server (optional Third Party Rack Kit (PN: 274739-B21)). Please see the following URL to purchase the brackets (rack kit and brackets come with all necessary brackets, hardware, and installation instructions:

http://www.racksolutions.com/compaq/products.htm

HP Services provides a three-year, limited warranty, including Pre-Failure Warranty (coverage of hard drives, memory and processors) fully supported by a worldwide network of resellers and service providers. HP technical assistance is available 7x24, toll free in the United States and Canada. Telephone support services ma under warranty or available for an additional fee.

Note: Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

A full range of CarePaq packaged hardware and software services:

− Installation and start up

− Extended coverage hours and enhanced response times

− System management and performance services

− Availability and recovery services

Note: For more information, customer/resellers can contact http://www.compaq.com/services. Please see the following URL regarding Warranty Information For Your Compaq Products:

http://www.compaq.com/support/warranty_upgrades/web_statements/176738.html

For additional information regarding Worldwide Limited Warranty and Technical Support, please see the following URL: ftp://ftp.compaq.com/pub/supportinformation/ejourney/176738.pdf

Note: Certain restrictions and exclusions apply. Consult the Customer Support Center at 1-800-345-1518 for details.

be covered

DA-11359 North Americ a — Version 7 — June 27, 2002 6

QuickSpecs

Models

Compaq ProLiant ML530

Generation 2 (G2)

ML530T02 X2400-512KB, 1024MB, 1P

180285-001

ML530T02 X2400-512KB, 1024MB, 2P

226608-001

Processor Processor System Bus Processor Memory

Memory

Network Controller Storage Controller

Hard Drives Internal Storage Power Supplies System Fans Drive Cages Optical Drive Form Factor

Processors Processor System Bus Processor Memory

Memory

Network Controller Storage Controller

Hard Drives Internal Storage Power Supplies Fans Drive Cages Optical Drive Form Factor

One Intel Xeon 2.40 GHz Processor standard (up to 2 supported) 400 MHz system bus

512-KB level 2 cache per processor 1024 MB (Standard) 16,384 MB (Maximum) PC1600 Advanced ECC SDRAM; 2:1

interleaved memory

Note: Maximum memory achieved using 2048 MB DIMMs.

Embedded Compaq NC3163 Fast Ethernet NIC PCI 10/100 with WOL (Wake On LAN)

Integrated Dual Channel Wide Ultra3 SCSI Adapter None ship standard 12 1″ hot plug hard drive bays standard One 600W Hot Plug Power Supply Hot Plug System Fans Two 6 x 1″ Drive Cages standard 40x or higher IDE CD-ROM Drive Tower (7U)

Two Intel Xeon 2.40 GHz Processors standard 400 MHz system bus 512-KB level 2 cache per processor

1024 MB (Standard) 16,384 MB (Maximum) PC1600 Advanced ECC SDRAM; 2:1 interleaved memory

Note: Maximum memory achieved using 2048 MB DIMMs.

Embedded Compaq NC3163 Fast Ethernet NIC PCI 10/100 with WOL (Wake On LAN)

Integrated Dual Channel Wide Ultra3 SCSI Adapter None ship standard 12 1″ hot plug hard drive bays standard Redundant 600W Hot Plug Power Supplies (1+1 redundancy) Redundant Hot Plug Fans Two 6 x 1″ Drive Cages standard 40x or higher IDE CD-ROM Drive Tower (7U)

ML530R02 X2400-512KB, 1024MB, 1P

180286-001

DA-11359 North Americ a — Version 7 — June 27, 2002 7

Processor(s) Processor System Bus Processor Memory

Memory 1024 MB (Standard) 16,384 MB (Maximum) PC1600 Advanced ECC SDRAM; 2:1

Network Controller Embedded Compaq NC3163 Fast Ethernet NIC PCI 10/100 with WOL (Wake On Storage Controller

Hard Drives Internal Storage Power Supplies System Fans Drive Cages Optical Drive Form Factor

One Intel Xeon 2.40 GHz Processor standard (up to 2 supported) 400 MHz system bus 512-KB level 2 cache per processor

interleaved memory

Note: Maximum memory achieved using 2048 MB DIMMs.

LAN) Integrated Dual Channel Wide Ultra3 SCSI Adapter None ship standard 12 1″ hot plug hard drive bays standard One 600W Hot Plug Power Supply Hot Plug System Fans Two 6 x 1″ Drive Cages standard 40x or higher IDE CD-ROM Drive Rack (7U)

QuickSpecs

Models

Compaq ProLiant ML530

Generation 2 (G2)

ML530R02 X2400-512KB, 1024MB 2P

226609-001

Processor(s) Processor System Bus

Cache Memory Memory

Network Controller Storage Controller

Hard Drives Internal Storage Power Supplies

Fans Drive Cages Optical Drive Form Factor

Two Intel Xeon 2.40 GHz Processors standard 400 MHz system bus 512-KB level 2 cache per processor

1024 MB (Standard) 16,384 MB (Maximum) PC1600 Advanced ECC SDRAM; 2:1 interleaved memory

Note: Maximum memory achieved using 2048 MB DIMMs.

Embedded Compaq NC3163 Fast Ethernet NIC PCI 10/100 with WOL (Wake On LAN)

Integrated Dual Channel Wide Ultra3 SCSI Adapter None ship standard 12 1″ hot plug hard drive bays standard Redundant 600W Hot Plug Power Supplies (1+1 redundancy) Redundant Hot Plug System Fans

Two 6 x 1″ Drive Cages standard 40x or higher IDE CD-ROM Drive Rack (7U)

DA-11359 North Americ a — Version 7 — June 27, 2002 8

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

Options

ProLiant Essentials Value Pack Software

Processor Intel Xeon 2.40 GHz/512 KB Processor Option Kit

Memory (DIMMs; 2:1 interleaved) 512 MB (2 x 256 MB) PC1600 ECC SDRAM Memory Kit

Intel Xeon 2.40 GHz/512 KB Processor Option Kit 191224-B21ProLiant ML530 G2 Unique 512 MB (2 x 256 MB) PC1600 ECC SDRAM Memory Kit 187418-B21 1024 MB (2 x 512 MB) PC1600 ECC SDRAM Memory Kit 187419-B21 2048 MB (2 x 1024 MB) PC1600 ECC SDRAM Memory Kit 187420-B21 4096 MB (2 x 2048 MB) PC1600 ECC SDRAM Memory Kit 187421-B21 ProLiant ML5xx G2Tower to Rack Conversion Kit 253699-B21 ProLiant ML5xx G2 Rack to Tower Conversion Kit 271258-B21 Hot Plug Redundant Power Supply

Note: One 600 Watt Hot Plug Power Supply ships standard with the ProLiant ML530

Generation 2 (G2). A second one is required for redundancy.

Rapid Deployment Pack, 1 User, V1.1

Note: This license allows 1 server to be managed and deployed via the Deployment

Server.

Rapid Deployment Pack, 10 Users, V1.1

Note: This license allows 10 servers to be managed and deployed via the Deployment

Server.

ProLiant Essentials Workload Management Pack (Featuring Compaq Resource Partitioning Manager version 1.1)

Note: For more information regarding ProLiant Essentials Software, please see the

following URL: http://www.compaq.com/proliantessentials.

1024 MB (2 x 512 MB) PC1600 ECC SDRAM Memory Kit 2048 MB (2 x 1024 MB) PC1600 ECC SDRAM Memory Kit

4096 MB (2 x 2048 MB) PC1600 ECC SDRAM Memory Kit

Note: The ML 530 G2 will support 4096MB option kits when 2048-MB DIMMs are available.

236845-001

267196-B21

269817-B21

266988-B21

191224-B21

187418-B21 187419-B21 187420-B21 187421-B21

USB Options Enhanced USB Keyboard (Carbon)

USB Floppy USB Mouse

Note: This is a Third Party Option Note: Please see the following URL for additional information regarding USB support:

http://www.compaq.com/products/servers/platforms/usb-support.html.

Optical Drives

Internal Storage ML5xx Internal Two Bay Hot Plug Wide Ultra2/Ultra3 SCSI Drive Cage (with fan)

Hard Drives

12X DVD-ROM Drive Option Kit (Carbon)

Note: The DVD-ROM drive is supported in the CD-ROM bay and in the removable

media bay. If placed in the removable media bay, it requires the 2-Device IDE

cable (PN 260626-B21).

2-Device IDE Cable

Note: This Drive Cage has one 1″ drive bay and one 1.6″ drive bay.

Wide Ultra3 SCSI – Universal Hot Plug

72.8-GB Wide Ultra3 SCSI 10,000 rpm Drive (1″)

36.4-GB Wide Ultra3 SCSI 10,000 rpm Drive (1″)

18.2-GB Wide Ultra3 SCSI 10,000 rpm Drive (1″)

36.4-GB Wide Ultra3 SCSI 15,000 rpm Drive (1″)

18.2-GB Wide Ultra3 SCSI 15,000 rpm Drive (1″)

222726-008 230330-B25 195255-B25

217053-B21

260626-B21

244058-B21

232432-B22 176496-B22 142673-B22 232916-B22 188122-B22

DA-11359 North Americ a — Version 7 — June 27, 2002 9

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

Storage Controllers Smart Array 431 Controller

Smart Array 532 Controller Smart Array 5302/32 Controller Smart Array 5302/64 Controller Smart Array 5304/128 Controller Smart Array 5302/128 Controller Smart Array 5304/256 Controller Smart Array 5312 Controller 128-MB Cache Module for Smart Array 5302 Controller

Advanced Data Guarding Module for Smart Array 5302 Controller 199371-B21 Ultra3 Channel Expansion Module for Smart Array 5300 Controller

256-MB Battery-Backed Cache Module

Note: This 256-MB Battery-Backed Cache Module supports the Smart Array 5300

series controllers, MSA 1000 and the Smart Array Cluster Storage

64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

Communications

Compaq NC3123 Fast Ethernet NIC PCI 10/100 WOL Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Port 10/100 Compaq NC3135 Fast Ethernet Module Dual 10/100 Upgrade Module for NC3134 and

NC3131 Compaq NC6132 Gigabit Module 1000 SX Upgrade Module for NC3134 and NC3131 Compaq NC6133 Gigabit Module 1000LX Upgrade Module for NC3134 and NC3131 Compaq NC3133 Fast Ethernet Module 100FX Upgrade Module for NC3134 and

NC3131 Compaq NC6136 Gigabit Server Adapter, 64-bit/66 MHz, PCI, 1000 SX Compaq NC7132 10/100/1000-T Upgrade Module for NC3134 and NC3131 Compaq NC7770 PCI-X Gigabit Server Adapter

127695-B21 225338-B21 166207-B21 124992-B21 158939-B21 283552-B21 283551-B21 238633-B21

153506-B21

153507-B21 254786-B21

154457-B21 129803-B21

174830-B21 138603-B21 138604-B21

338456-B23 338456-B24 338456-B25

203539-B21 153543-B21 244948-B21

Redundant Options Hot Plug Redundant Fan Kit

Hot Plug Redundant Power Supply

Note: One 600 Watt Hot Plug Power Supply ships standard with the ProLiant ML530

Generation 2 (G2). A second one is required for redundancy.

Management Options Remote Insight Lights-Out Edition II

Compaq Remote Insight Lights-Out Edition

Security Compaq AXL300 Accelerator PCI Card for ProLiant Servers

Monitors Flat Panel TFT8030 Color Monitor Two-Tone

TFT8020 18″ Flat Panel Monitor (opal, bulked packed 2 monitor heads per box) Flat Panel TFT7020 Color Monitor Two-Tone Flat Panel TFT5030 Color Monitor Two-Tone (Carbon/Silver) Flat Panel TFT5015 Color Monitor (Opal) Flat Panel TFT5015 Color Monitor Two-Tone (Carbon/Silver) P1220 CRT Monitor Two-Tone (Carbon/Silver) P920 CRT Monitor Two-Tone (Carbon/Silver) P720 CRT Monitor Two-Tone (Carbon/Silver) V720 CRT Monitor (Opal) V570 Color Monitor Two-Tone (Carbon/Silver)

S920 Color Monitor (Opal) S920 Color Monitor Two-Tone (Carbon/Silver) V570 Color Monitor

128284-B21 236845-001

227251-001 157866-001

227933-B21

234362-001 173610-001 253216-001 228134-001 234043-001 234044-001

244374-xxx 244375-xxx 244373-xxx 232943-xxx 228113-xxx 240325-xxx 240326-xxx

228114-xxx

DA-11359 North Americ a — Version 7 — June 27, 2002 10

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

Monitors (continued) S720 Color Monitor (Opal) (Lite-On)

S720 Color Monitor Two-tone (Carbon/Silver) (Lite-On) TFT5010R Flat Panel Monitor

C R T C o d e K e y Dash # Description

-001 NA Kit with US Power Cord

-002 Carbon model with US Power Cord

-003 Touch Screen model with US Power Cord

-004 NAFTA model with US Power Cord (Made in Mexico)

-006 GSA model with US Power Cord

-007 NH MPR model with US power cord (Made in Mexico)

-B24 TCO model without power cord (D igital Classic)

Note: All models above are NH

Tape Drives

Note: In order to install certain tape drives internally, you may need to remove the rails that come standard on the

drives and then re-insert the screws in the mounting holes.

Internal and External DAT Tape Drives

Internal 12/24-GB DAT Drive (opal) 295513-B22

Note: Please see the 12/24-GB DAT Drive QuickSpecs for additional options such as cassettes and for an up-to-

date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10239_na/10239_na.HTML

Internal 20/40-GB DAT DDS-4 Tape Drive 157769-B21 External 20/40-GB DAT DDS-4 Tape Drive (Opal) 157770-001 Internal 20/40-GB DAT, Hot Plug (Carbon) 215488-B21 3U Rackmount Tape Drive Kit 274338-B21

Note: Please see the 20/40-GB DAT Tape Drive QuickSpecs for additional options such as host bus adapters,

controllers, cassettes, and for an up-to-date listing of the latest O/S Support details, please see the

following:

http://www5.compaq.com/products/quickspecs/10426_na/10426_na.HTML

239286-xxx 239287-xxx

217248-001

Internal and External AIT Tape Driv es

Internal AIT 35-GB, LVD Tape Drive (Carbon) External AIT 35-GB, LVD Tape Drive (Carbon)

Internal AIT 35-GB, LVD, Hot Plug (Carbon)

Note: Please see the AIT 35-GB, LVD Tape Drive QuickSpecs for additional options such as adapters, controllers,

and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10712_na/10712_na.HTML

Internal AIT 50-GB Tape Drive (Opal) 157766-B21 External AIT 50-GB Tape Drive (Opal) 157767-001 Internal AIT 50-GB, Hot Plug (Carbon) 215487-B21 Rackmount AIT 50-GB, 3U (Single Drive) 274333-B21 3U Rackmount Tape Drive Kit 274338-B21

Note: Please see the AIT 50-GB Tape Drive QuickSpecs for additional options such as adapters, controllers, and

cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10425_na/10425_na.HTML

Internal AIT 100-GB Tape Drive (Carbon) 249189-B21 External AIT 100-GB Tape Drive (Carbon) 249160-001 Internal AIT 100-GB, Hot-Plug (Carbon) 249161-B21

Note: Please see the AIT 100-GB Tape Drive QuickSpecs for additional options such as adapters, controllers, and

cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11062_na/11062_na.HTML

216884-B21 216885-001 216886-B21

DA-11359 North Americ a — Version 7 — June 27, 2002 11

QuickSpecs

Options

Tape Drives (continued) Internal and External DLT/SDLT Tape Drives

Internal 20/40-GB DLT Drive (opal) External 20/40-GB DLT Drive (opal)

Note: Please see the 20/40-GB DLT Drive QuickSpecs for additional options such as data and cleaning

cartridges, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10234_na/10234_na.HTML

Internal 40/80-GB DLT Enhanced Drive (Opal) External 40/80-GB DLT Enhanced Drive (Opal) Rackmount DLT 40/80, 3U (Single Drive) Rackmount DLT 40/80, Dual-Drive, 3U (Two Drives) Rackmount DLT 40/80 Tape Array III, 5U (Four Drives)

Note: Please see the 40/80-GB DLT Drive QuickSpecs for additional options such as host bus adapters,

controllers, cassettes, and for an up-to-date listing of the latest O/S Support details, please see the

following:

http://www5.compaq.com/products/quickspecs/10658_na/10658_na.HTML

Internal and External DLT/SDLT Tape Drives

SDLT 110/220 Internal, All (Opal) SDLT 110/220 External, (Opal) SDLT 110/220, 3U Rackmount SDLT 110/220, Dual Drive, 3U Rackmount SDLT 110/220 Tape Array III, 5U Rackmount

Internal and External DLT/SDLT Tape Drives

Rackmount SDLT 110/220, 3U (Single Drive) Rackmount SDLT 110/220, Dual-Drive, 3U (Two Drives) Rackmount SDLT 110/220 Tape Array III, 5U (Four Drives)

Note: Please see the SDLT 110/220-GB Tape Drive QuickSpecs for additional options such as adapters,

controllers, and media, and for an up-to-date listing of the latest O/S Support details, please see the

following:

http://www5.compaq.com/products/quickspecs/10772_na/10772_na.HTML

Compaq ProLiant ML530

Generation 2 (G2)

340743-B22 340744-B22

146196-B21 146197-B22 274332-B21 274335-B21 274337-B21

192106-B21 192103-001 274331-B21 274334-B21 274336-B21

274331-B21 274334-B21 274336-B21

External SuperLoader

DLT1 1280 SuperLoader

Note: Please see the StorageWorks DLT1 1280 SuperLoader QuickSpecs for additional options and for an up-

to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11330_na/11330_na.HTML

Internal and External DAT Autoloader

20/40-GB DAT DDS-4 8 Cassette Autoloader, Internal 20/40-GB DAT 8 Cassette Autoloader External

Note: Please see the 20/40-GB DAT DDS-4 8 Cassette Autoloader QuickSpecs for additional options such as

adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please

see the following:

http://www5.compaq.com/products/quickspecs/10518_na/10518_na.HTML

268664-B21

166504-B21 166505-001

DA-11359 North Americ a — Version 7 — June 27, 2002 12

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

Tape Drives (continued)

Tape Automation

Rackmount Tape Drive Kits

3U Rackmount Kit

Note: The 3U Rackmount Kit (PN 274338-B21) can support up to (2) full-height or (4)

half-height tape drives and compatible with multiple Single-Ended and LVD SCSI

Tape Drives including the 12/24- GB DAT, 20/40-GB DAT, 20/40-GB DAT DDS-4

8 Cassette Autoloader, AIT 35-GB LVD, AIT 50 GB, 20/40-GB DLT, 40/80-GB

DLT, and the SDLT 110/220-GB Tape Drives.

5U Rackmount Kit

Note: The 5U Rackmount Kit (PN 274339-B21) can support up to (4) full-height tape

drives and is compatible with all Compaq DLT/SDLT tape drives including the

20/40-GB DLT, 35/70-GB DLT, 40/80-GB DLT, and the SDLT 110/220-GB tape

drives. Note: Please see the Rackmount Tape Drive Kits QuickSpecs for additional information regarding these kits,

please see the following:

http://www5.compaq.com/products/quickspecs/10854_na/10854_na.HTML

Rackmount Tape Drive Cable Kits

LVD Cable Kit, VHDCI/HD68

Note: For use with the 3U RM Storage Enclosure and DLT Tape Array III only.

LVD Cable Kit, HD68/HD68

Note: For use with the 3U RM Storage Enclosure and DLT Tape Array III only.

SSL2020 Automated AIT Mini-Library

SSL2020 AIT Mini-Library 1 drive, 20 slot Table Top SSL2020 AIT Mini-Library 2 drive, 20 slot Table Top SSL2020 AIT Mini-Library 1 drive, 20 slot Rackmount SSL2020 AIT Mini-Library 2 drive, 20 slot Rackmount SSL2020 AIT Library Pass Thru with Transport SSL2020 AIT Library Pass Thru Extender AIT 50-GB Drive Add-On LVD Drive for SSL2020 AIT Library 175197-B21

Required Adapters/Controllers for SSL2020 AIT Mini-Library

64-Bit/66-Mhz Dual Channel Wide Ultra3 SCSI Adapter SAN Access Module for Smart Array 5302 Controller Smart Array 5302/FC Controller

Note: Please see the SSL2020 Automated AIT Tape Library Solution QuickSpecs for additional information

including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete

solution at:

http://www5.compaq.com/products/quickspecs/10580_na/10580_na.HTML

274338-B21

274339-B21

168048-B21

242381-B21

175195-B21 175195-B22 175196-B21 175196-B22 175312-B21 175312-B22

129803-B21 216687-B21 216688-B21

MSL5026DLX DLT Library

MSL5026DLX, 1 40/80-GB DLT, LVD Table Top MSL5026DLX, 2 40/80-GB DLT, LVD Table Top MSL5026DLX, 1 40/80-GB DLT, LVD Rackmount MSL5026DLX, 2 40/80-GB DLT, LVD Rackmount

MSL5026SL SDLT Library

MSL5026SL Library, SDLT 110/220, 1 Drive, LVD, Table Top MSL5026SL Library, SDLT 110/220, 2 Drives, LVD, Table Top MSL5026SL Library, SDLT 110/220, 1 Drive, LVD, Rackmount MSL5026SL Library, SDLT 110/220, 2 Drives, LVD, Rackmount MSL5K Field Upgrade SDLT 110/220 Drive, LVD

Note: Please see the StorageWorks MSL5026DLX or MSL5026SL Library QuickSpecs for additional information

including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete

solution at:

http://www5.compaq.com/products/quickspecs/10860_na/10860_na.HTML

DA-11359 North Americ a — Version 7 — June 27, 2002 13

231821-B21 231821-B22 231891-B21 231891-B22

231822-B21 231822-B22 231892-B21 231892-B22 231823-B22

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

Tape Automation (continued)

Departmental Ta pe Library MSL5052SL SDLT Library

MSL5052, 0 Drive, LVD, Rackmount MSL50502SL, SDLT, 110/220, 2 Drives, LVD, Table Top MSL50502SL, SDLT, 110/220, 2 Drives, LVD, Rackmount MSL5K Field Upgrade SDLT 110/220 Drive, LVD

Note: Please see the StorageWorks MSL5052SL Library QuickSpecs for additional information including Upgrade

Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11061_na/11061_na.HTML

Required Adapters for MSL5000 series Libraries

64-Bit/66-Mhz Dual Channel Wide Ultra3 SCSI Adapter

Enterprise 9000 System Library ESL9198SL

ESL9198 Enterprise Library LVD, 0 Drives ESL9198SL Enterprise Library, LVD 4 110/220 SDLT Drives

ESL9198SL Enterprise Library, LVD 8 110/220 SDLT Drives ESL9000 Field Upgrade SDLT 110/220, LVD Drive (ESL9198SL, ESL9326SL,

ESL9595SL only)

Note: Please see the StorageWorks ESL9198SL Enterprise Library QuickSpecs for additional information

including Tape Drives, Cartridges, Controllers, and SCSI Cables and additional options needed for a complete solution at:

http://www5.compaq.com/proudcts/quickspecs/10867_na/10867_na.HTML

ESL9595SL

ESL9595SL Enterprise Library, 400 slot, 2 Drive ESL9595SL Enterprise Library, 400 slot, 16 Drive ESL9595SL Enterprise Library, 500 slot, 2 Drive ESL9595SL Enterprise Library, 500 slot, 16 Drive ESL9595SL Enterprise Library, 595 slot, 2 Drive ESL9595SL Enterprise Library, 595 slot, 16 Drive ESL9595 500 Slot Upgrade ESL9595 595 Slot Upgrade

ESL9000 Field Upgrade SDLT 110/220, LVD Drive (ESL9198SL, ESL9326SL,

ESL9595SL only)

Note: Please see the StorageWorks ESL9595SL Enterprise Library QuickSpecs for additional information

including Tape Drives, Cartridges, Controllers, and SCSI Cables and additional options needed for a complete solution at:

http://www5.compaq.com/proudcts/quickspecs/11332_na/11332_na.HTML

255102-B21 249490-B21 249191-B21 231823-B22

129803-B21

194993-B21 234618-B21 234618-B22 234617-B21

274672-B21 274672-B22 281627-B22 281627-B24 281628-B25 281628-B26 274674-B21 274674-B22 234617-B21

ESL9326SL

ESL9326SL Enterprise Library LVD 0 Drives ESL9326SL Enterprise Library LVD 6 110/220 DSLT Drives ESL9326SL Enterprise Library LVD 8 110/220 DSLT Drives ESL9326SL Enterprise Library LVD 16 110/220 DSLT Drives ESL9000 Field Upgrade SDLT 110/220, LVD Drive (ESL9198SL, ESL9326SL,

ESL9595SL only)

Note: Please see the StorageWorks ESL9326SL Enterprise Library QuickSpecs for additional information

including Tape Drives, Cartridges, Controllers, and SCSI Cables and additional options needed for a complete solution at:

http://www5.compaq.com/proudcts/quickspecs/10868_na/10868_na.HTML

DA-11359 North Americ a — Version 7 — June 27, 2002 14

234488-B21 234615-B21 234615-B22 234615-B26 234617-B21

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

Cluster Options Compaq ProLiant Cluster HA/F100 for MSA1000

Compaq ProLiant Cluster HA/F200 for MSA1000

Note: For additional information regarding the Compaq ProLiant Cluster for HA/F100, HA/F200 for MSA1000

please see the following QuickSpecs at:

http://www5.compaq.com/products/quickspecs/11035_na/11035_na.html

Compaq ProLiant Cluster HA/F100 for Windows NT and 2000 Advanced Server Compaq ProLiant Cluster HA/F200 Upgrade Kit (NT 4.0EE to W2K AS) Compaq ProLiant Cluster HA/F200 for Windows NT and 2000 Advanced Server

Note: For additional information regarding the Compaq ProLiant Cluster for HA/F100, HA/F200 for Windows NT

and 2000 Advanced Server please see the following QuickSpecs at:

http://www5.compaq.com/products/quickspecs/10777_na/10777_na.html

External Storage – Tower and Rack

StorageWorks Modular Data Router

StorageWorks Enclosure Model 4314T (tower) StorageWorks Enclosure Model 4314R (rack-mountable) StorageWorks Enclosure Model 4354R (rack-mountable)

Note: The StorageWorks Enclosure 4300 Family support the Wide Ultra2/Ultra3 1″ Hot Plug Hard Drives.

StorageWorks Enclosure 4200 Redundant Power Supply Option StorageWorks Enclosure 4200 Ultra3 Single Bus I/O Module Option StorageWorks Enclosure 4200 Ultra3 Dual Bus I/O Module Option StorageWorks Enclosure Tower to Rack Conversion Kit

StorageWorks Modular Data Router (MDR) (1FC x 2 HVD SCSI) StorageWorks Modular Data Router (MDR) (1FC x 2 LVD SCSI)

Note: The Modular Data Router supports connections with any Compaq Hub, FC-AL Switch or SAN fabric

switches. Connections are also supported for the SSL2020, TL891DLX, TL895, ESL9198DLX, and

ESL9326DX. Please see the StorageWorks Modular Data Router QuickSpecs for additional supported

options please see the following:

http://www5.compaq.com/products/quickspecs/10660_na/10660_na.HTML

252408-B21 252409-B21

309816-B21 176848-B22 380357-B23

190210-001 190209-001 190211-001

119826-B21 190212-B21 190213-B21 150213-B21

163082-B21 163083-B21

MSA1000

StorageWorks RAID Array 4100 StorageWorks Raid Array 4100 (rack)

MSA 1000 MSA 1000 Controller MSA Fibre Channel I/O Module MSA1000 Fabric Switch MSA 1000 Fibre Channel Adapter (FCA) 2101

Note: Please see the StorageWorks by Compaq Modular SAN Array 1000 QuickSpecs for additional

options and configuration information at:

http://www5.compaq.com/products/quickspecs/11033_na/11033_na.HTML

Fibre Channel Storage Hub 7 Compaq Storage Hub 7 Universal Rack Mount Kit Fibre Channel Host Adapter Redundancy Kit

StorageWorks Raid Array 4000 Redundant Array Controller StorageWorks Fibre Channel Ar bitrated Loop Switch 8 StorageWorks Fibre Channel Ar bitrated Loop 3-Port Expansion Module StorageWorks Fibre Channel SAN Switch 8-EL StorageWorks Fibre Channel SAN Switch 16-EL

Fibre Channel SAN Switch 8-port with Fabric Operating Software Fibre Channel SAN Switch 16-port with Fabric Operating Software GBIC-SW Connector Kit (two each) GBIC-LW Connector Kit (two each) Fibre Channel Connection Kit, 3 SW GBICS, 2 Cables Fibre Channel Connection Kit, 2 SW GBICS, 2 Cables Fibre Channel Short Wave GBIC Fibre Channel Long Wave GBIC

201723-B21 218231-B21 218960-B21 218232-B21 245299-B21

146013-001 234453-001 136127-B21 174681-B21 223187-B21 177862-B21 177863-B21 176219-B21 212776-B21 158222-B21 158223-B21 234459-B21 340412-B21 380579-B21 380596-B21 380561-B21 127508-B21

DA-11359 North Americ a — Version 7 — June 27, 2002 15

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

StorageWorks RAID Array 4100

(continued)

StorageWorks Modular Array 8000/Enterprise Modular Array 12000

StorageWorks Enterprise Modular Array 16000 FC

2-meter Multi-Mode Fibre Channel Cable 5-meter Multi-Mode Fibre Channel Cable 15-meter Multi-Mode Fibre Channel Cable 30-meter Multi-Mode Fibre Channel Cable 50-meter Multi-Mode Fibre Channel Cable

Note: Please see the StorageWorks RAID Array 4100 QuickSpecs for FC Hubs, FC switches, software support,

host adapters/controllers, disks, and options for complete solutions at:

http://www5.compaq.com/products/quickspecs/10435_na/10435_na.HTML

EMA12000 D14 60 Hz EMA12000 S14 60 Hz MA8000 60 Hz EMA12000 Blue 60 Hz

Note: Options include controller, solution kits, ACS. MA8000/EMA12000 includes controller shelf, drive shelves

and cabinet. Packaging upgrade to RA8000/ESA12000. Note: Please see the StorageWorks MA8000/EMA12000 QuickSpecs for FC Hubs, FC switches, platform

software, host adapters, disks and options for complete solutions at:

http://www5.compaq.com/products/quickspecs/10545_na/10545_na.HTML

EMA16000 D14 60 Hz (opal) EMA16000 S14 60 Hz (opal)

Note: Models include: Dual HSG80 controllers in each Model 2200 enclosure (2 pairs per single bus configuration,

4 pairs per dual bus configuration) with 1 GB cache per controller pair, and 12 14-bay drive enclosures with

redundant power supplies. Configure-to-Order (CTO) builds are available. Options include ACS, platform

kits and SANworks software. Note: Please see the StorageWorks EMA16000 QuickSpecs for FC switches, platform software, host adapters,

disks and options for complete solutions at:

http://www5.compaq.com/products/quicksepcs/10812_na/10812_na.HTML

234457-B21 234457-B22 234457-B23 234457-B24 234457-B25

175990-B21 175991-B21 175992-B21 175993-B21

238792-B21 238791-B21

StorageWorks Options

Compaq UPS Power Cord Reference Guide

Uninterruptible Power Systems Tower

Uninterruptible Power Systems – Rack

Fibre Channel SAN Switch/8 with Fabric Operating Software Fibre Channel SAN Switch/16 with Fabric Operating Software

StorageWorks SAN Switches Integrated/32 StorageWorks SAN Switches Integrated/64 StorageWorks Fibre Channel SAN Switches 8-EL StorageWorks Fibre Channel SAN Switches 16-EL

Please see the Compaq UPS Power Cord Reference Guide for that lists cable descriptions, requirements, and specifications for Compaq UPS units.

http://www.compaq.com/support/techpubs/user_reference_guides/104077-002.html.

UPS T1000 XR UPS T1500 XR UPS T2200 XR Low Voltage UPS T2200 XR High Voltage UPS T2200 XR

UPS R1500 XR (100 to 127) UPS R3000 XR (120V) UPS R3000 XR (208V) Rack-Mountable UPS R6000 (208V) UPS R12000 XR, N+x

158222-B21 158223-B21

230616-B21 230617-B21 176219-B21 212776-B21

204155-001 204155-002 204451-001 204451-002 204451-B31

204404-001 192186-001 192186-002 347207-001 207552-B22

DA-11359 North Americ a — Version 7 — June 27, 2002 16

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

UPS Options

SNMP Serial Port Card

Note: Supports UPS XR series only.

Six Port Card

Note: Supports UPS XR series only.

High to Low Voltage Transformer (250VA)

Note: Supports R6000 UPS series only. 2.5 amps @ 125 Volts max output across two

Nema 5-15.

Extended Runtime Module, T1000 XR

Note: two ERM maximum

Extended Runtime Module, T1500 XR/T2200 XR

Note: two ERM maximum

Extended Runtime Module, R1500 XR

Note: 2U each, two ERM maximum

Extended Runtime Module, R3000 XR

Note: 2U each, one ERM maximum

Extended Runtime Module, R6000

Note: 3U each, two ERM maximum

Extended Runtime Module, R12000 XR, 4U SNMP-EN Adapter

Note: Supports R6000 UPS series only.

Multi-Server UPS Card

Note: Supports R6000 UPS series only.

Scalable UPS Card

Note: Supports R6000 UPS series only.

192189-B21

192185-B21

388643-B21

218967-B21

218969-B21

218971-B21

192188-B21

347224-B21

217800-B21 347225-B21

123508-B21

123509-B21

Rack-Mountable PDUs – 1U/0U

(Up to 12 outlets)

Dual Input PDUs, 1U/0U

(Up to 12 outlets)

Modular PDUs 1U/0U

(Up to 32 outlets)

Power Distribution Unit-16A (200 to 240V)

Note: Requires input power cord (340653-001) when attached to high voltage R3000

XR (192186-002)

Power Distribution Unit-24A (200 to 240V)

Note: L6-30 input

Power Distribution Unit-40A (200 to 240V)

Note: Hardwire input required

Power Distribution Unit-24A (100 to 127V)

Note: L5-30 input Note: Please see the following Power Distribution Unit (Zero-U/1U PDU) QuickSpecs for additional options

including cables:

http://www5.compaq.com/products/quickspecs/10838 na/10838 na.HTML

Dual Input Power Distribution Unit-24A High Voltage

Note: Please see the following Power Distribution Unit (Zero-U/1U PDU) QuickSpecs for additional options

including cables:

http://www5.compaq.com/products/quickspecs/10838 na/10838 na.HTML

Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC)

Note: L5-30 input

Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC)

Note: L6-30 input Note: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for

additional options including cables

http://www5.compaq.com/products/quickspecs/11041 na/11041 na.HTML

207590-B21

207590-D72

207590-B23

207590-D71

191186-001

252663-D71

252663-D72

Rack Builder Compaq Rack Builder for configuration assistance at http://www.compaq.com/rackbuilder/.

Rack Conversion Kit ProLiant ML5xx G2Tower to Rack Conversion Kit

ProLiant ML5xx G2 Rack to Tower Conversion Kit

DA-11359 North Americ a — Version 7 — June 27, 2002 17

253699-B21 271258-B21

QuickSpecs

)

Options

Compaq ProLiant ML530

Generation 2 (G2)

Compaq Rack 10000 Series

(Graphite Metallic)

Compaq Rack 9000 Series (Opal)

Compaq Rack 10842 (42U, 800mm wide) – Pallet (Graphite) Compaq Rack 10647 (47U) – Pallet (Graphite) Compaq Rack 10647 (47U) - Crated (Graphite) Compaq Rack 10642 (42U) – Pallet Compaq Rack 10642 (42U) – Shock Pallet Compaq Rack 10642 (42U) – Crated Compaq Rack 10636 (36U) - Pallet (Graphite) Compaq Rack 10636 (36U) - Shock Pallet (Graphite) Compaq Rack 10636 (36U) - Crate (Graphite) Compaq Rack 10622 (22U) – Pallet Compaq Rack 10622 (22U) – Shock Pallet Compaq Rack 10622 (22U) – Crated

Note: -B21 (pallet) used to ship empty racks shipped on a truck

-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels

-B23 (crated) used for air shipments of empty racks

Compaq Rack 9142 (42U) – Pallet Compaq Rack 9142 (42U) – Shock Pallet Compaq Rack 9142 (42U) – Cr ated Compaq Rack 9136 (36U) – Pallet Compaq Rack 9136 (36U) – Shock Pallet Compaq Rack 9136 (36U) – Cr ated Compaq Rack 9122 (22U) – Pallet Compaq Rack 9122 (22U) – Shock Pallet Compaq Rack 9122 (22U) – Cr ated Compaq Rack 9842 (800mm wide, 42U) - Pallet

Note: -B21 (pallet) used to ship empty racks shipped on a truck

-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels

-B23 (crated) used for air shipments of empty racks

257415-B21 245161-B21 245161-B22 245161-B21 245161-B22 245161-B23 245162-B21 245162-B22 245162-B23 245163-B21 245163-B22 245163-B23

120663-B21 120663-B22 120663-B23 120664-B21 120664-B22 120664-B23 120665-B21 120665-B22 120665-B23 222192-B21

Rack Options for Compaq Rack 10000 Series

Rack Blanking Panels – Graphite (Multi) 253214-B26 Rack Blanking Panels – Graphite (1U)

Note: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (1U).

Rack Blanking Panels – Graphite (2U)

Note: The Rack Blanking Panels (PN 253214-B22) contains 10 each of (2U).

Rack Blanking Panels – Graphite (3U)

Note: The Rack Blanking Panels (PN 253214-B23) contains 10 each of (3U).

Rack Blanking Panels – Graphite (4U)

Note: The Rack Blanking Panels (PN 253214-B24) contains 10 each of (4U).

Rack Blanking Panels – Graphite (5U)

Note: The Rack Blanking Panels (PN 253214-B25) contains 10 each of (5U).

800mm Wide Stabilizer Kit (Graphite)

Note: Supported by the Rack 10842 cabinet only.

600mm Stabilizer Kit – Graphite 246107-B21 Baying Kit for Rack 10000 series (Carbon) 248929-B21 42U Side Panel – Graphite Metallic 246099-B21 110V Fan Kit (Graphite)

Note: Roof Mount Includes power cord withIEC320-C13 to Nema 5-15P.

220V Fan Kit (Graphite)

Note: Roof Mount Includes power cord with IEC320-C13 to Nema 6-15P.

36U Side Panel - Graphite Metallic (for 10636 Rack only) 246102-B21 47U Side Panel - Graphite Metallic (for 10647 Rack only) 255486-B21 9000/10000 Series Offset Baying Kit

Note: This kit can be used to connect 9000 and 10000 series racks in 42U height together. Kit contents include hardware for connecting racks and a panel to cover the 100mm gap at the rear of the two racks.

253214-B21 253214-B22 253214-B23 253214-B24 253214-B25

255488-B21

257413-B21

257414-B21

248931-B21

DA-11359 North Americ a — Version 7 — June 27, 2002 18

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

Rack Options for Compaq Rack 9000 Series

Baying/Coupling Kit 42U Side Panel

Note: The 42U Side Panel (PN 120670-B21) supports the Compaq Rack 9142 and

Compaq Rack 9842.

36U Side Panel

Note: The 36U Side Panel (PN 120671-B21) supports the Compaq Rack 9136.

800mm Stabilizer Option Kit (Opal)

Note: The 800mm Stabilizer Kit (PN 234493-B21) supports the Rack 9842 only

600mm Stabilizer Option Kit 9142 Extension Kit

Note: The 9142 Extension Kit (PN 120679-B21) supports the Compaq Rack 9142 only.

9142 Split Rear Door (Opal)

Note: The 9142 Split Rear Door (PN 254045-B21) supports the 600 mm wide, 42U

9000 series rack.

9136 Extension Kit 9142 Short Rear Door

Note: The 9142 Short Rear Door (PN 218217-B21) supports the Compaq Rack 9142

only.

9136 Short Rear Door 9122 Short Rear Door (Opal) 218219-B21

Rack Blanking Panel (Multi)

Note: Kit includes four panels in 1U, 2U, 4U, and 8U.

Rack Blanking Panels (1U)

Note: The Rack Blanking Panels (PN 189453-B21) contains 10 each of (1U).

Rack Blanking Panels (2U)

Note: The Rack Blanking Panels (PN 189453-B22) contains 10 each of (2U).

Rack Blanking Panels (3U)

Note: The Rack Blanking Panels (PN 189453-B23) contains 10 each of (3U).

Rack Blanking Panels (4U)

Note: The Rack Blanking Panels (PN 189453-B24) contains 10 each of (4U).

Rack Blanking Panels (5U)

Note: The Rack Blanking Panels (PN 189453-B25) contains 10 each of (5U).

9000/10000 Series Offset Baying Kit

120669-B21 120670-B21

120671-B21 234493-B21

120673-B21 120679-B21

254045-B21

218216-B21 218217-B21

218218-B21

169940-B21 189453-B21 189453-B22 189453-B23 189453-B24 189453-B25 248931-B21

Rack Options for Compaq Rack 7000 Series

Rack Options for Compaq Rack 7000, 9000 and 10000 Series

DA-11359 North Americ a — Version 7 — June 27, 2002 19

High Air Flow Rack Door Insert for 7122 High Air Flow Rack Door Insert for 7142 High Air Flow Rack Door Insert for 7142 (6 pack) Compaq Rack Extension Kit for 7142

Monitor Utility Shelf Compaq Networking Cable Management Kit Compaq Networking Recessed Rail Management Kit Ballast Option Kit Rack Rail Adapter Kit (25″ depth) 100kg Sliding Shelf 234672-B21 Monitor/Utility Shelf - Graphite Depth Adjustable Fixed Rail Cable Management D-Rings Kit Console Management Controller (CMC) Option Kit Console Management Controller (CMC) Sensors Option Kit Console Management Controller (CMC) Locking Option Kit Console Management Controller (CMC) Smoke Sensors Option Kit

157847-B21 327281-B21 327281-B22 154392-B21

303606-B21 292407-B21 292406-B21 120672-B21 120675-B21

253449-B21 332558-B21 168233-B21 203039-B21 203039-B22 203039-B23 203039-B24

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

Rack Options for Compaq Rack 7000, 9000 and 10000 Series

(continued)

Rack Options for Third Party Rack

Server Console Switch 1 x 2 port (100-230 VAC) Server Console Switch 1 x 4 port (100-230 VAC) Server Console Switch 1 x 8 port (100-230 VAC) Server Console Switch 2 x 8 port (100-230 VAC) Server Console Switch 2 x 8 port (48VDC) 400542-B21

KM 9 PIN Adapter (4 Pack) 149361-B21 CPU to Server Console Cable, 12′ 110936-B21 CPU to Server Console Cable, 20′ 110936-B22 CPU to Server Console Cable, 40′ 110936-B23 CPU to Server Console Cable, 3′ 110936-B24 CPU to Server Console Cable, 7′ 110936-B25 CPU to Server Console Cable (Plenum Rated) 20′ 149363-B21 CPU to Server Console Cable (Plenum Rated) 40′ 149364-B21 Switch Box Connector Kit (115V) 144007-001 Switch Box Connector Kit (230V) 144007-002 TFT5600 RKM (Rack-mount Keyboard Monitor) 221546-001 Keyboard with Hot Keys and Trackball 158649-001 PCI KVM Management Card Kit

PCI KVM Remote Card Kit Local Access Cable Kit 1U Rack Keyboard Drawer Keyboard/Monitor/Mouse extension cables

Third Party Rack Kit

Note: This supports the ProLiant ML530 Generation 2 (G2)

120206-001 400336-001 400337-001 400338-001

232983-B21 232984-B21 232985-B21 338056-B21

169989-001

274739-B21

Service and Support Offerings (CarePaq Services)

Hardware Services 4-Hour On-site Service

4-Hour On-site Service, 9-Hour x 5-Day Coverage, 3 Years (2-5-2 Part Number for US) 4-Hour On-site Service, 9-Hour x 5-Day Coverage, 3 Years (2-5-2 Part Number for

Canada) 4-Hour On-site Service, 9-Hour x 5-Day Coverage, 3 Years (6-3 Part Number for US)

4-Hour On-site Service, 24 Hour x 7 Day Coverage, 3 Years (2-5-2 for Canada) 4-Hour On-site Service, 24-Hour x 7-Day Coverage, 3 Years (2-5-2 Part Number for

US)

Installation & Start-up Services

Hardware Installation (2-5-2 Part Number for US) Hardware Installation (2-5-2 Part Number for Canada) Hardware Installation (6-3 Part Number for US) Pre-installation planning; unpack equipment, install most current Compaq HW options

internal to server at same time of server installation; assemble & test; basic user information provided; Install & configure basic functionality of Win NT Operating System plus up to 2 days start-up activity, configure print & network access services, and orientation (2-5-2 Part Number for U.S.)

FM-MI4HR-36

FP-MI4HR-36

401783-002

FP-MI724-36

FM-MI724-36

FM-MIINS-IN

FP-MIINS-IN

401793-002

FP-MSTAR-03

FM-MSTEC-03

DA-11359 North Americ a — Version 7 — June 27, 2002 20

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

Service and Support Offerings (CarePaq Services) (continued)

Installation & Start-up Services (continued)

Pre-installation planning; unpack equipment, install most current Compaq HW options internal to server at same time of server installation; assemble & test; basic user information provided; Install & configure basic functionality of Win NT Operating System plus up to 2 days start-up activity, configure print & network access services, and orientation (6-3 Part Number for U.S.) Pre-installation planning; unpack equipment, install most current Compaq HW options internal to server at same time of server installation; assemble & test; basic user information provided; Install & configure basic functionality of Novell NetWare Operating System plus up to 2 days start-up activity, configure print & network access services, and orientation (2-5-2 Part Number for U.S.) Pre-installation planning; unpack equipment, install most current Compaq HW options internal to server at same time of server installation; assemble & test; basic user information provided; Install & configure basic functionality of Novell NetWare Operating System plus up to 2 days start-up activity, configure print & network access services, and orientation (2-5-2 Part Number for Canada) Pre-installation planning; unpack equipment, install most current Compaq HW options internal to server at same time of server installation; assemble & test; basic user information provided; Install & configure basic functionality of Novell NetWare Operating System plus up to 2 days start-up activity, configure print & network access services, and orientation (6-3 Part Number for U.S.)

CarePaq Priority Services for ProLiant Servers – Priority Level

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Next Available Specialist (2-5-2 Part Number for U.S.)

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for Novell NetWare Operating System, Next Available Specialist (2-5-2 Part Number for U.S.)

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for Novell NetWare Operating System, Next Available Specialist (2-5-2 Part Number for Canada)

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for Novell NetWare Operating System, Next Available Specialist (6-3 Part Number for U.S.)

CarePaq Priority Services for ProLiant Servers – Priority 24 Level

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Next Available Specialist (2-5-2 Part Number for U.S.) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Next Available Specialist (6-3 Part Number for U.S.) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Novell NetWare Operating System, Next Available Specialist (2-5-2 Part Number for U.S.) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Novell NetWare Operating System, Next Available Specialist (6-3 Part Number for U.S.)

240015-002

FP-NSTAR-03

FM-NSTEC-03

240010-002

FP-M01C3-36

FM-M01E3-36

239936-002

FP-N01C3-36

FM-N01E3-36

239976-002

FP-M02C3-36

239938-002

FP-N02C3-36

239978-002

DA-11359 North Americ a — Version 7 — June 27, 2002 21

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

Service and Support Offerings (CarePaq Services) (continued)

CarePaq Priority Services for ProLiant Servers - Priority Silver

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr response, Monday – Friday, 8AM – 5PM local time, 2-hr response after hours for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Technical Account Manager, Technical Newsletter, SW activity review, proactive patch notification, 1 System Healthcheck per year (2-5-2 Part Number for Canada)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System (2-5-2 Part Number for U.S.)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System (6-3 Part Number for U.S.)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr response, Monday – Friday, 8AM – 5PM local time, 2-hr response after hours for Novell NetWare Operating System, Technical Account Manager, Technical Newsletter, SW activity review (2-5-2 Part Number for U.S.)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Novell NetWare Operating System (2-5-2 Part Number for U.S.)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Novell NetWare Operating System (2-5-2 Part Number for Canada.)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Novell NetWare Operating System (6-3 Part Number for U.S.)

CarePaq Priority Services for ProLiant Servers – Priority Gold

FP-M04C3-36

FM-M04E3-36

239940-002

FP-M24C3-36

FM-M24E3-36

239942-002

FP-N04C3-36

FM-N04E3-36

239980-002

FP-N24C3-36

FM-N24E3-36

239982-002

FP-M08C3-36

FM-M08E3-36

DA-11359 North Americ a — Version 7 — June 27, 2002 22

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

Service and Support Offerings (CarePaq Services) (continued)

CarePaq Priority Services for ProLiant Servers – Priority Gold (continued)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30 minute response (critical), 1-hr response (non-critical), for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Technical Account Manager, Technical Newsletter, SW activity review, proactive revision management, Upgrade impact planning, 2 System Healthcheck per year (6-3 Part Number for U.S.) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System (2-5-2 Part Number for U.S.) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System (2-5-2 Part Number for Canada) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System (6-3 Part Number for U.S.) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30 minute response (critical), 1-hr response (non-critical), for Novell NetWare Operating System, Technical Account Manager, Technical Newsletter, SW activity review, Upgrade impact planning (2-5-2 Part Number for U.S.) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30 minute response (critical), 1-hr response (non-critical), for Novell NetWare Operating System, Technical Account Manager, Technical Newsletter, SW activity review, Upgrade impact planning (2-5-2 Part Number for Canada) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30 minute response (critical), 1-hr response (non-critical), for Novell NetWare Operating System, Technical Account Manager, Technical Newsletter, SW activity review, Upgrade impact planning (6-3 Part Number for U.S.) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Novell NetWare Operating System (2-5-2 Part Number for U.S.) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Novell NetWare Operating System (2-5-2 Part Number for Canada) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Novell NetWare Operating System (6-3 Part Number for U.S.)

CarePaq Priority Services for ProLiant Servers – Priority Gold Executive

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30 minute response (critical), 1-hr response (non-critical), for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Technical Account Manager, Technical Newsletter, SW activity review, proactive revision management, Upgrade impact planning, 2 System Healthcheck per year (2-5-2 Part Number for U.S.)

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System (2-5-2 Part Number for U.S.)

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System (2-5-2 Part Number for Canada) 24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System (6-3 Part Number for U.S.) 24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30 minute response (critical), 1-hr response (non-critical), for Novell NetWare Operating System, Technical Account Manager, Technical Newsletter, SW activity review, Upgrade impact planning (2-5-2 Part Number for U.S.)

239944-002

FP-M28C3-36

FM-M28E3-36

239946-002

FP-N08C3-36

FM-N08E3-36

239984-002

FP-N28C3-36

FM-N28E3-36

239986-002

FP-M09C3-36

FM-M09E3-36

239948-002

FP-M29C3-36

FM-M29E3-36

239950-002

FP-N09C3-36

DA-11359 North Americ a — Version 7 — June 27, 2002 23

QuickSpecs

Options

Compaq ProLiant ML530

Generation 2 (G2)

(CarePaq Services) (continued)

CarePaq Priority Services for ProLiant Servers – Priority Gold Executive (continued)Service and Support Offerings

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30 minute response (critical), 1-hr response (non-critical), for Novell NetWare Operating System, Technical Account Manager, Technical Newsletter, SW activity review, Upgrade impact planning (2-5-2 Part Number for Canada.)

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Novell NetWare Operating System (2-5-2 Part Number for U.S.)

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Novell NetWare Operating System (2-5-2 Part Number for Canada)

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Novell NetWare Operating System (6-3 Part Number for U.S.)

Note: For more information, customer/resellers can contact http://www.compaq.com/services.

FM-N09E3-36

239988-002

FP-N29C3-36

FM-N29E3-36

239990-002

DA-11359 North Americ a — Version 7 — June 27, 2002 24

Compaq ProLiant ML530

yEmptyEmptyEmptyEmptyEmptyOp

yEmpty

QuickSpecs

Generation 2 (G2)

Memory

Compaq ProLiant ML530 Generation 2 (G2)

ADVANCED ECC MEMORY STANDARD

1024 MB (2 x 512-MB) PC1600- ECC SDRAM installed

ADVANCED ECC MEMORY STANDARD PLUS OPTIONAL MEMORY

Up to 13,312-MB memory is available with the optional installation of PC1600- ECC SDRAM memory kits

ADVANCED ECC MEMORY STANDARD REPLACED WITH OPTIONAL MEMORY

Up to 16,384-MB of memory is available with the removal of the standard 1024-MB of memory and the optional installation of PC1600-MHz ECC SDRAM memory kits.

Note: This chart does not represent all possible memory configurations.

Bank A Bank B Bank C Bank D

Standard 1024 MB 512 MB 512 MB Empt

tional 13,312 MB 512 MB 512 MB 2048 MB 2048 MB 2048 MB 2048 MB 2048 MB 2048 MB

Maximum 16384 MB 2048 MB 2048 MB 2048 MB 2048 MB 2048 MB 2048 MB 2048 MB 2048 MB

Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8

OPTIONAL COMPAQ ADVANCED MEMORY PROTECTION CONFIGURATIONS

Note:

-Online Spare Memory: Bank D is the Online Spare Bank.

-Mirrored Memory: Bank C mirrors Bank A, Bank D mirrors Bank B. Note: This chart does not represent all possible memory configurations.

Bank A Bank B Bank C Bank D

Online 2560MB 512 MB 512 MB 256 MB 256 MB Empt

Mirrored 3072MB 512 MB 512 MB 256 MB 256 MB 512 MB 512 MB 256 MB 256 MB

Following are memory options available from Compaq:

• 512-MB (2 x 256 MB) PC1600 Advanced ECC SDRAM Memory Option Kit 187418-B21

• 1024-MB (2 x 512 MB) PC1600 Advanced ECC SDRAM Memory Option Kit 187419-B21

• 2048-MB (2 x 1024 MB) PC1600 Advanced ECC SDRAM Memory Option Kit 187420-B21

• 4096-MB (2 x 2048 MB) PC1600 Advanced ECC SDRAM Memory Option Kit 187421-B21

Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8

512 MB 512 MB

DA-11359 North Americ a — Version 7 — June 27, 2002 25

QuickSpecs

Storage

Compaq ProLiant ML530

Generation 2 (G2)

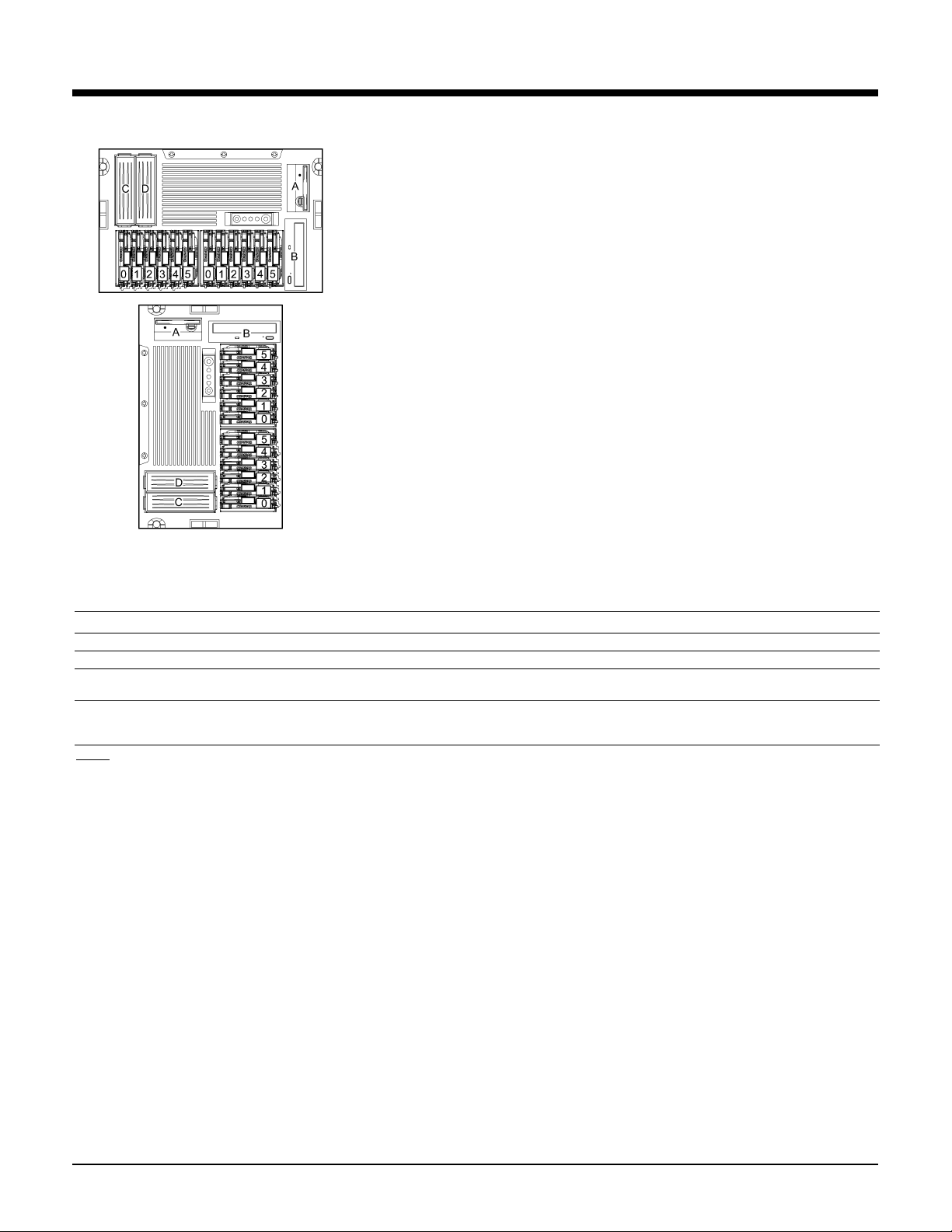

0 - 11 Two 6 x1 inch Wide Ultra3/Ultra4 SCSI Hard Drive Cages

A 1.44 MB Diskette Drive B 40x IDE CD-ROM

C, D Two available half height bays for tape backup, DVD, or SCSI storage

0 - 11 Two 6 x1 inch Wide Ultra3/Ultra4 SCSI Hard Drive Cages

A 1.44 MB Diskette Drive B 40x IDE CD-ROM

C, D Two available half height bays for tape backup, DVD, or SCSI storage

DRIVE SUPPORT

Quantity Supported

Removable Media

1.44-MB Diskette Drive Up to 1 A Integrated IDE CD-ROM Drive Up to 1 B Integrated IDE DVD-ROM Drive Option Kit Up to 1 B, C, D Integrated IDE

Hard Drives

Wide Ultra3 Hot Plug Drives

1-inch

72.8-GB 10,000 rpm

36.4-GB 10,000 rpm

18.2-GB 10,000 rpm

36.4-GB 15,000 rpm

18.2-GB 15,000 rpm

Up to 12 Up to 14 (with

optional ML5xx Internal Two Bay Hot Plug Wide Ultra2/Ultra3 SCSI Drive Cage (with Fan)

Position Supported Controller

0-11 0-11, C, D

Integrated Dual Channel Wide Ultra3 SCSI Adapter Smart Array 431 Controller Smart Array 532 Controller Smart Array 5302/32 Controller Smart Array 5302/64 Controller Smart Array 5302/128 Controller Smart Array 5304/128 Controller Smart Array 5304/256 Controller Smart Array 5312 Controller 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

DA-11359 North Americ a — Version 7 — June 27, 2002 26

QuickSpecs

Storage

DRIVE SUPPORT (continued)

Quantity Supported

External Storage

StorageWorks Enclosure 4300 Family

(supports Ultra2/Ultra3 drives only)

StorageWorks Raid Array 4100 Kit Up to 10

MSA 1000 Please see the MSA

MSA 1000: http://www5.compaq.com/products/quickspecs/11033_div/11033_div.HTML

Up to 24 External Smart Array 431 Controller

(with optional StorageWorks Hubs or Switches)

1000 QuickSpecs below to determine configuration requirements

Position Supported Controller

External 64-bit/66-MHz Fibre Channel Host Adapter

External Please see the MSA 1000 QuickSpecs (URL below) for the latest list o

Compaq ProLiant ML530

Generation 2 (G2)

Smart Array 532 Controller Smart Array 5302/32 Controller Smart Array 5302/64 Controller Smart Array 5302/128 Controller Smart Array 5304/128 Controller Smart Array 5304/256 Controller Smart Array 5312 Controller 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

supported HBA’s

Maximum Storage Capacity – (Ultra2/Ultra3 Drive Cages, Two Bay ML5xx Drive Cage, & StorageWorks Enclosure) Internal External Total

Maximum Storage Capacity (Ultra2/Ultra3 Drive Cages, Two Bay ML5ss Drive Cage, & RAID Array 4100) Internal External 8.736 TB (10 RAID Array 4100 each with 12 x 72.8-GB Wide Ultra3 1″ Drives) Total 9.755 TB

Tape Drives

Note: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:

http://www5.compaq.com/products/quickspecs/North_America/10233.html

Note: For an up-to-date listing of the latest O/S Support details for each of the Tape Storage Systems listed below, please see the following:

http://www5.compaq.com/products/quickspecs/North_America/10809.html

Internal AIT 100-GB, Hot Plug Internal AIT 50-GB, Hot Plug Internal AIT 35-GB, LVD Hot Plug Internal 20/40-GB DAT Drive, Hot Plug

Internal 20/40-GB DAT DDS-4 Internal 12/24-GB DAT 20/40-GB DDS-4 8 Cassette Autoloader

1.019 TB (14 x 72.8-GB Wide Ultra3 1″ Dri ves )

24.460 TB (24 StorageWorks Enclosures each with 14 x 72.8-GB Wide Ultra3 1″ Drives)

25.480 TB

1.019 TB

Quantity Supported

Up to 5 2-11 Smart Array 532

Up to 2 C,D 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

Up to 2 C,D Integrated Dual Channel Wide Ultra3 Adapter

Position Supported Controller

Smart Array 5302/32 Controller Smart Array 5302/64 Controller

Smart Array 5302/128 Controller Smart Array 5304/128 Controller

Smart Array 5304/256 Controller Smart Array 5312 Controller 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

*Note: The Smart Array 532 Controller does not support the AIT 100-

GB Hot Plug Tape Drive.

64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

DA-11359 North Americ a — Version 7 — June 27, 2002 27

Compaq ProLiant ML530

QuickSpecs

Generation 2 (G2)

Storage

DRIVE SUPPORT (continued)

Quantity Supported

Tape Drives (continued)

SDLT 110/220-GB, Internal Internal 40/80-GB DLT

Internal 20/40-GB DLT Internal AIT 100-GB Tape Drive

Internal AIT 50-GB Tape Drive Internal AIT 35-GB LVD External AIT 100-GB Tape Drive External AIT 50-GB Tape Drive External AIT 35-GB LVD SDLT 110/220-GB, External Up to 2 External

External 40/80-GB DLT External 20/40-GB DLT

TA1000 AIT Tape Array Up to 1 External Compaq Wide-Ultra SCSI-3 Adapter

SSL2020 AIT Mini-Library Up to 5 External 64-Bit Dual Channel Wide Ultra2 SCSI Adapter MSL5026DLX (40/80GB DLT-based)

MSL5026SL (SDLT-based) Library DLT1 1280 SuperLoader Up to 2 drives External 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

ESL9198SL ESL9326SL ESL9595SL

ESL9198SL: http://www5.compaq.com/products/quickspecs/10867_div/10867_div.HTML ESL9326SL: http://www5.compaq.com/products/quickspecs/10868_div/10868_div.HTML ESL9595SL: http://www5.compaq.com/products/quickspecs/11332_div/11332_div.HTML

Up to 1 C,D 1C + D

Up to 2 C,D Integrated Dual Channel Wide Ultra3 Adapter

Up to 2 External Integrated Dual Channel Wide Ultra3 Adapter

Up to 3 External

2 drives per SCSI channel

Please see the ESL Library QuickSpecs below to determine configuration requirements

Position Supported Controller

64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter Integrated Dual Channel Wide Ultra3 Adapter

(two bays)

External 64-Bit Dual Channel Wide Ultra2 SCSI Adapter

External 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter Integrated Dual Channel Wide Ultra3 Adapter

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-Bit Dual Channel Wide Ultra2 SCSI Adapter 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

DA-11359 North Americ a — Version 7 — June 27, 2002 28

QuickSpecs

Power Specifications

POWER SPECIFICATIONS

Part Number Spare Kit Operational Input Voltage Range (V rms) Frequency Range (Nominal) (Hz)

Compaq ProLiant ML530

Generation 2 (G2)

230822-001 231782-001 90 to 264 47 to 63 (50/60)

Nominal Input Volt age (Vrms)

Max Rated Output Wattage Rating Nominal Input Current (A rms) Max Rated Input Wattage Rating (Watts) Max. Rated VA (Volt-Amp) Efficiency (%) Power Factor Leakage Current (mA) Maximum Inrush Current (A peak) Maximum Inrush Current duration (mS)

SYSTEM SPECIFICATIONS

ML530 G2Fully Configured

Fully Loaded System Input Wattage (W) Fully Loaded System Thermal (BTU-Hr) System Leakage with all power supplies loaded (mA) System Inrush Current with all power supplies loaded (A)

Power cord requirements

100 115 208 220 230 240

600 600 600 600 600 600

9.3 7.9 4.1 3.9 3.7 3.5 909 896 845 845 845 833 928 914 862 862 862 850

66 67 71 71 71 72

0.98

0.31 0.36 0.65 0.69 0.72 0.75

5.5 6 12.5 13 14 15

Processor Memory HDD PCI PS

216127 2

920 907 893 880 867 855

3139 3091 3045 3000 2957 2915

0.63 0.72 1.30 1.38 1.44 1.5 11 12 25 26 28 30

Nema 5-15P to IEC320-C13 Option no/Spare no: See Power Cord chart IEC320-C13 to IEC320-C14 Option no/ Spare no: 142259-001/142258-B21

Notes: ActiveAnswers Power Calculation Power calculator is LIVE on ActiveAnswers website. This is an external link. Follow this link:

http://activeanswers.compaq.com/aaconfiguratorcode/configurationUi.asp?HTMLFilename=Mainselections&UiLocalization= UnitedStates&DisplayCountry=United%20States

To drill down to calculators:

- Click on: “ProLiant Servers”

- Click on the Server of interest. Example: ML530 G2

- Click on: “Power Calculator” link. (You may need to scroll down to see it)

Power Cord 163719-002

DA-11359 North Americ a — Version 7 — June 27, 2002 29

QuickSpecs

Technical Specifications

Compaq ProLiant ML530

Generation 2 (G2)

Dimensions (HxWxD) 12.1 x 19.0 x 27.44 in/30.7 x 48.3 x 69.7 cmSystem Unit Tower Weight 100 lb/45.36 kg

No hard drives installed, one power supply Input Requirements Rated Input Voltage 100 to 127 VAC/200 to 240 VAC

Rated Input Frequency 47 to 63 Hz Input Power 690W @ 110 VAC Rated Input Current 7.6A

BTU Rating 2400 BTU/hr SCSI Connectors

(per power supply) Acoustic Noise Idle

Two internal HD68 connectors (supporting Wide Ultra3/Ultra4) One external VHDCI connector (supporting Wide Ultra3/Ultra4)

One SCSI knockout Rated Steady-State Power 600WPower Supply Output Power Maximum Peak Power

(Fixed Disk Drives Spinning)

(BELS) 6.7

WAd

Operating (Random Seeks to Fixed Disks)

(BELS) 6.8

WAd

Dimensions (HxWxD) 12.1 x 19.0 x 26.34 in/30.7 x 48.3 x 66.9 cmSystem Unit Rack Weight 100 lb/45.36 kg

No hard drives installed, one power supply Input Requirements Rated Input Voltage 100 to 127 VAC/200 to 240 VAC

Rated Input Frequency 47 to 63 Hz Input Power 690W @ 110 VAC/670W @ 220 VAC Rated Input Current 7.6A

BTU Rating 2400 BTU/hr SCSI Connectors

(per power supply)

Maximum Wet Bulb Temperature

Acoustic Noise Idle

Two internal HD68 connectors (supporting Wide Ultra3/Ultra4) One external VHDCI connector (supporting Wide Ultra3/Ultra4)

One SCSI knockout Rated Steady-State Power 600WPower Supply Output Power Maximum Peak Power

101.7° F/38.7° C

(Fixed Disk Drives Spinning)

(BELS) 6.7

WAd

Operating (Random Seeks to Fixed Disks)

(BELS) 6.8

WAd

DA-11359 North Americ a — Version 7 — June 27, 2002 30

QuickSpecs

Technical Specifications

Compaq ProLiant ML530

Diskette Size 3.5 in1.44-MB Diskette Drive LED Indicators (front panel) Green Read/Write Capacity per

Diskette (high/low density) Drive Supported One Drive Height One-third Drive Rotation 300 rpm Transfer Rate (high/low) 500/250 Kb/s Bytes/Sector 512 Sectors/Track (high/low) 18/9 Tracks/Side (high/low) 80/80 Access Times Track-to-Track (high/low) 3/6 ms

Cylinders (high/low) 80/80 Read/Write Heads Two

1.44 MB/720 KB

Average (high/low) 169/94 ms Settling Time 15 ms Latency Average 100 ms

Generation 2 (G2)

Hard Drives

72.8 GB10K Capacity 72837.2 MBHot Plug Wide Ultra3 SCSI 232432-B22 Height 1.0 in/25.4 mm

Width Interface Transfer Rate

Synchronous (Maximum)

Seek Time

(typical reads, including settling)

Physical Configuration

Operating Temperature

36.4 GB 10K Capacity 36419.2 MB 176496-B22 Height

Width Interface

Transfer Rate

Synchronous (Maximum)

Seek Time

(typical reads, including settling)

Physical Configuration

Operating Temperature

4.0 in/101.6 mm Wide Ultra3 SCSI

160 MB/s

Single Track 0.3 ms Average 4.5 ms Full-Stroke Rotational Speed Bytes/Sector 512

Logical Blocks 41° to 131°F/5° to 55°C

1 in/25.4 mm

4.0 in/101.6 mm Wide Ultra3 SCSI 160 MB/s

Single Track Average Full-Stroke Rotational Speed Logical Blocks

50° to 95° F/10° to 35° C

11 ms 10,000 rpm

142,264,000

0.9 ms

5.7 ms 13 ms 10,000 rpm

71,132,000

DA-11359 North Americ a — Version 7 — June 27, 2002 31

QuickSpecs

Technical Specifications

Hard Drives (continued)

18.2 GB 10K Capacity 18209.3 MBHot Plug Wide Ultra3 SCSI

142673-B22

36.4 GB 15K Capacity 36419.2 MB 232916-B22 Height

Height Width 4.0 in/101.6 mm

Interface Transfer Rate

Synchronous (Maximum)

Seek Time

(typical reads, including settling)

Physical Configuration

Operating Temperature

Width 4.0 in/101.6 mm Interface Transfer Rate

Synchronous (Maximum)

Seek Time

(typical reads, including settling)

Physical Configuration

Operating Temperature

1 in/25.4 mm

Wide Ultra3 SCSI 160 MB/s

Single Track Average Full-Stroke Rotational Speed Logical Blocks

50° to 95° F/10° to 35° C

1 in/25.4 mm

Wide Ultra3 SCSI 160 MB/s

Single Track Average Full-Stroke Rotational Speed Bytes/Sector

Logical Blocks 50° to 95° F/10° to 35° C

Compaq ProLiant ML530

Generation 2 (G2)

0.9 ms

5.5 ms 12 ms 10,000 rpm 35,566,080

0.4 ms

3.8 ms 7 ms 15,000 rpm 512

71,132,000

18.2 GB 15K

188122-B22

DA-11359 North Americ a — Version 7 — June 27, 2002 32

Capacity Height

Width Interface

Transfer Rate

Synchronous (Maximum)

Seek Time

(typical reads, including settling)

Physical Configuration

Operating Temperature

18209.3 MB 1 in/25.4 mm

4.0 in/101.6 mm Wide Ultra3 SCSI 160 MB/s

Single Track 0.7 ms Average 3.9 ms Full-Stroke 12 ms Rotational Speed 15,000 rpm Logical Blocks 35,565,080

50° to 95° F/10° to 35° C

QuickSpecs

Technical Specifications

Compaq ProLiant ML530

Generation 2 (G2)

40X Max IDE CD-ROM Drive

Disk

Block Size Mode 1 2,048 bytes

Interface IDE (ATAPI) Access Times

(typical)

Audio Output Level Line-Out 0.7 VRMS at 47 kOhms Data Transfer Rate Sustained 150 KB/s (1X audio)

Cache Buffer 128 KB Start-up Time

(typical)

Stop Time < 4 seconds Laser Parameters Type Semiconductor Laser GaA1As

Operating Conditions

Dimensions (HxWxD, maximum) 1.7 x 5.85 x 8.11 in/4.29 x 150 x 208 cm

Applicable Disk CD-ROM, CD-XA, CD-DA (Mode 1, Mode 2, Form 1 and 2)

Photo CD (Single and Multi-session) Mixed Mode (Audio and Data combined) CD-R

Capacity 540 MB (Mode 1, 12 cm)

650 MB (Mode 2, 12 cm)

Mode 2 2,340 bytes, 2,336 bytes CD-DA 2,352 bytes CD-XA 2,328 bytes

Random 100 ms Full-Stroke 150 ms

Burst 16.67 Mbytes/sec

< 7 seconds

Wave Length 780 ± 25 nm Temperature 41° to 113° F/5° to 45° C

Humidity 10% to 80%

Weight 2.09 lb/0.95 kg

Integrated Dual Channel Wide Ultra3 SCSI Adapter

Compaq NC3163 Fast Ethernet NIC Embedded 10/100 WOL

(Wake On LAN)

Drives Supported Up to 15 SCSI devices per channel Data Transfer Method 64-bit PCI bus-master

SCSI Channel Transfer Rate 160 MB/s per channel Maximum Transfer Rate per

PCI Bus (peak) SCSI Termination Active Termination

SCSI Connectors 1 external, 2 internal (68-pin)

Network Interface 10Base-T/100Base-TX Compatibility IEEE 802.3/802.3u compliant Data Transfer Method 32-bit bus-master PCI

Network Transfer Rate

Connector 10Base-T Categories 3, 4 or 5 UTP; up to 328 feet Cable Support 100Base-TX Category 5 UTP; up to 328 feet (100 meters)

267 MB/s

10Base-T (Half-Duplex) 10Base-T (Full-Duplex) 20 Mb/s

100Base-TX (Half-Duplex) 100 Mb/s 100Base-TX (Full-Duplex) 200 Mb/s

10 Mb/s

(100 meters)

DA-11359 North Americ a — Version 7 — June 27, 2002 33

QuickSpecs

Technical Specifications

Compaq ProLiant ML530

Generation 2 (G2)

Video Controller

Smart Array 5312 Controller

Controller Chip ATI RAGE XL Video DRAM 8 MB Video SDRAM

Data Transfer Method 32-bit PCI Support Resoluti on Supported Color Depths:

640 x 480 16.7M, 64K, 256, 16 800 x 600 16.7M, 64K, 256, 16 1024 x 768 16.7M, 64K, 256, 16 1152 x 864 16.7M, 64K, 256, 16 1280 x 1024 16.7M, 64K, 256, 16 1600 x 1200 64K, 256, 16

Connector

Data Compatible with all Smart Array Controllers

Instant Upgrades to other Smart Array Controllers

Consistent Software Manageability Tools

PCI Bus 64-bit, 133MHz PCI-X PCI Peak Data Transfer Rate 1066 MB/s SCSI Protocols Supported Ultra3, Ul tra2 SCSI Peak Data Transfer Rate 320 MB/s total, 160 MB/s per channel Channels 2, 4 SCSI Ports (external/internal) 2 channel model: 2/2 Drives Supported (maximum) 28 Cache 128-MB battery-backed read-write (optional 256-MB upg rade avail able) RAID Support 0, 1, 1+0, 5 Logical Drives (maximum) 32 Online Configuration Yes Online Capacity Expansion Yes Logical Drive Capacity

Extension Online Stripe Size Migration Yes Online RAID Level Migration Yes Online Spare Support Yes Automatic Data Recovery Yes Drive Roaming Yes Redundant Controllers No

VGA

Yes Yes Yes

Yes

DA-11359 North Americ a — Version 7 — June 27, 2002 34

QuickSpecs

Technical Specifications

Compaq ProLiant ML530

Generation 2 (G2)

Smart Array 5300 Controller

Data Compatible with all Smart Array Controllers

Instant Upgrades to other Smart Array Controllers

Consistent Software Manageability Tools

PCI Bus 64-bit, 66MHz PCI Peak Data Transfer Rate 533 MB/s SCSI Protocols Supported Ultra3, Ul tra2, Wide-Ul t ra SCSI Peak Data Transfer Rate 640 MB/s total, 160 MB/s per channel Channels 2, 4 SCSI Ports (external/internal) 2 channel model: 2/2

Drives Supported (maximum) 56

Note: Drives Supported (maximum) is based on use of StorageWorks Enclosure 4200 family. (14 hard disk drive

enclosure)

Cache 256, 128, 64 or 32-MB battery backed read-write RAID Support 0, 1, 1+0, 5, Advanced Data Guarding

Note: For customers who have purchased the SA-5304/128 a quick firmware upgrade to enable the technology is

available from http://www.compaq.com/smartarray.

Note: RAID Support: Advanced Data Guarding (RAID ADG) is available with 128-MB versions of the SA-5300

only.

Logical Drives (maximum) 32 Online Configuration Yes Online Capacity Expansion Yes Logical Drive Capacity

Extension Online Stripe Size Migration Yes Online RAID Level Migration Yes Online Spare Support Yes Automatic Data Recovery Yes Drive Roaming Yes Redundant Controllers No

Yes Yes Yes

4 channel model: 4/2

Yes

DA-11359 North Americ a — Version 7 — June 27, 2002 35

QuickSpecs

Technical Specifications

Compaq ProLiant ML530

Generation 2 (G2)

Smart Array 532 Controller

Data Compatible with all Smart Array Controllers

Instant Upgrades to other Smart Array Controllers

Consistent Software Manageability Tools

PCI Bus 64-bit, 66 MHz PCI Peak Data Transfer Rate 533 MB/s SCSI Protocols Supported Ultra3, Ul tra2 SCSI Peak Data Transfer Rate 160 MB/s Channels 2 SCSI Ports (external/internal) 1/1 Drives Supported (maximum) 14

Note: Drives Supported (maximum) is based on use of StorageWorks Enclosure 4300 family (14 hard disk drive

enclosure).

Cache 32-MB cache engine RAID Support 0, 1, 1+0, 5 Logical Drives (maximum) 32 Online Configuration Yes Online Capacity Expansion Yes Logical Drive Capacity

Extension Online Stripe Size Migration Yes Online RAID Level Migration Yes Online Spare Support Yes Automatic Data Recovery Yes Drive Roaming Yes Redundant Controllers No

Yes Yes Yes

Yes

DA-11359 North Americ a — Version 7 — June 27, 2002 36

QuickSpecs

Technical Specifications

Compaq ProLiant ML530

Generation 2 (G2)

Smart Array 431 Controller

Data Compatible with all Smart Array Controllers

Instant Upgrades to other Smart Array Controllers

Consistent Software Manageability Tools

PCI Bus 64-bit, 66 MHz PCI Peak Data Transfer Rate 533 MB/s SCSI Protocols Supported Ultra3, Ul tra2, Wide-Ul t ra SCSI Peak Data Transfer Rate 160 MB/s Channels 1 SCSI Ports (external/internal) 1/1 Drives Supported (maximum) 14

Note: Drives Supported (maximum) is based on use of StorageWorks Enclosure 4200/4300 family (14 hard disk

drive enclosure).

Cache 16-MB cache engine RAID Support 0, 1, 1+0, 5 Logical Drives (maximum) 32 Online Configuration Yes Online Capacity Expansion Yes Logical Drive Capacity

Extension Online Stripe Size Migration Yes Online RAID Level Migration Yes Online Spare Support Yes Automatic Data Recovery Yes Drive Roaming Yes Redundant Controllers No

Yes Yes Yes

Yes

64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

Drives Supported Up to 14 SCSI devices Storage Capacity 254.8 GB

Data Transfer Method 64-bit/66-MHz PCI bus-master Maximum SCSI Channel

Transfer Rate Maximum Transfer Rate per

PCI Bus (peak) SCSI Protocols Wide Ultra3 SCSI

Electrical Protocol Low Voltage Differential (LVD) SCSI Termination Active Termination External SCSI Connectors One 68-Pin Wide Ultra SCSI-3 connector Internal SCSI Connectors Two 68-Pin Wide Ultra SCSI-3 connectors (one LVD and one SE)

160 MB/s per channel 532 MB/s per channel

Wide Ultra2 SCSI Wide-Ultra SCSI-3 Fast-Wide SCSI-2 Fast SCSI-2

One 50-Pin Narrow Ultra connector

DA-11359 North Americ a — Version 7 — June 27, 2002 37

QuickSpecs

Technical Specifications

Compaq ProLiant ML530

Generation 2 (G2)

64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

Compaq Rack 10842

(42U)(optional)

Drives Supported Up to 28 SCSI devices (14 per channel) Storage Capacity 509.6 GB

Data Transfer Method 64-bit/66-MHz PCI bus-master Maximum SCSI Channel

Transfer Rate Maximum Transfer Rate per

PCI Bus (peak) SCSI Protocols Wide Ultra3 SCSI

Electrical Protocol Low Voltage Differential (LVD) SCSI Termination Active Termination External SCSI Connectors Two 68-Pin VHDCI connectors Internal SCSI Connectors Two 68-Pin Wide Ultra SCSI-3 connectors

Dimensions

Height Depth 39.691 in/100.82 cm 48 in/121.92 cm Graphite Metallic – doors Width 31.5 in/ 80.01cm 43.5 in/110.49 cm Carbon – frame

Weight 295 lb/133.8 kg 335lb/151.95 kg

160 MB/s per channel 532 MB/s per channel

Wide Ultra2 SCSI Wide-Ultra SCSI-3 Fast-Wide SCSI-2 Fast SCSI-2

One 50-Pin Narrow Ultra connector

Total Cabinet

78.7 in/199.9 cm

Shipping

85in/215.9 cm

Color

Compaq Rack 10647

(47U)(optional)

Compaq Rack 10642

(42U)(optional)

Compaq Rack 10636

(36U)(optional)

Compaq Rack 10622

(22U)(optional)

Dimensions

Height Depth 39.691 in/100.82 cm 48 in/121.92 cm Graphite Metallic – doors Width 24 in/60.96 cm 32 in/81.28 cm Carbon – frame Weight 245 lb/111 kg 284 lb/129 kg

Dimensions

Height Depth 39.691 in/100.82 cm 48 in/121.92 cm Graphite Metallic – doors Width 24 in/ cm 32 in/81.28 cm Carbon – frame Weight 253 lb/114.84 kg 325 lb/147.52 kg

Dimensions

Height Depth 39.691 in/100.82 cm 48 in/121.92 cm Width 24 in/60.96 cm 32 in/81.28 cm Carbon – frame Weight 220 lb/100 kg 272 lb/123 kg

Dimensions

Height Depth 39.691 in/100.82 cm 48 in/121.92 cm Graphite Metallic – doors Width 24 in/60.96 cm 32 in/81.28 cm Carbon – frame Weight 176 lb/79.89 kg 225 lb/102.13 kg

Total Cabinet

89.96 in/228.5 cm

Total Cabinet

78.7 in/199.90 cm

Total Cabinet

68.6 in/174.24 cm

Total Cabinet

43 in/109.22 cm

Shipping

95.47 in/242.49 cm

Shipping

86.22 in/219 cm

Shipping

75.25 in/191.14 cm

Shipping

52.25 in/132.72 cm

Color

Graphite Metallic – doors

Color

DA-11359 North Americ a — Version 7 — June 27, 2002 38

QuickSpecs

Technical Specifications

Compaq ProLiant ML530

Generation 2 (G2)

Compaq Rack 9842

(42U)(optional)

Compaq Rack 9142

(42U)(optional)

Compaq Rack 9136

(36U)(optional)

Compaq Rack 9122

(22U)(optional)

Dimensions

Height Depth 35.8 in/90.932 cm 48 in/121.92 cm Opal

Width 31.5 in/80.01 cm 38.8 in/98.55 cm Weight 374 lb/170 kg 440 lb/200 kg

Dimensions

Height Depth 35.8 in/90.932 cm 48 in/121.92 cm Opal Width 23.7 in/60.2 cm 32 in/81.28 cm Weight 253 lb/114.84 kg 325 lb/147.52 kg

Dimensions

Height Depth 35.8 in/90.932 cm 48 in/12.192 cm Opal

Width 23.7 in/60.2 cm 32 in/81.28 cm Weight 165 lb/75 kg 234 lb/106 kg

Dimensions

Height Depth 35.8 in/90.932 cm 48 in/121.92 cm Opal Width 24 in/60.96 cm 32 in/81.28 cm Weight 176 lb/79.89 kg 225 lb/102.13 kg

Total Cabinet

78.7 in/199.9 cm

Total Cabinet

78.7 in/199.9 cm

Total Cabinet

68.6 in/174.24 cm

Total Cabinet

43 in/109.22 cm

Shipping

86.22 in/219 cm

Shipping

83.38 in/211.79 cm

Shipping

75.25 in/191.14 cm

Shipping

52.25 in/132.72 cm

Color

© 2002 Compaq Information Technologies Group, LP. Compaq, the Compaq logo, ActiveAnswers, ActiveUpdate, CarePaq, Insight Manager, ProLiant, ROMPaq, SANworks, SmartStart and StorageWorks are trademarks of Compaq Information Technologies Group, L.P. in the U.S. and/or other countries. Microsoft, Windows, Windows 2000, BackOffice, and Windows NT are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel, Pentium and Xeon are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Novell and NetWare are registered trademarks or tr ademarks of Novell, Inc., in the U.S. and/or other countries. SuSE and its logo are registered trademarks or trademarks of SuSE AG in the U.S. and/or other countries. Linux is a registered trademark or trademark of Linus Torvalds in the U.S. and/or other countries. UnixWare is a registered trademark or trademark of The Open Group in the U.S. and/or other countries. Caldera and SCO are registered trademarks or trademarks of Caldera International, Inc. in the U.S. and/or other countries RedHat is a registered trademark or trademark of RedHat Inc., in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective companies.

Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for Compaq products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.

DA-11359 North Americ a — Version 7 — June 27, 2002 39

Compaq ML530 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Standard Features

Models

Options

Memory

Storage

Power Specifications

Technical Specifications
