AVIO Intelligent Projector iP-60E

A Proposal for New
Presentations

Intelligent Projector

User’s Manual

iP-60E

7000547-R01C



Information on the included manuals

These manuals have been prepared to allow you to take full advantages of the set’s
functions.
Select the manual suited to your purpose.

⦁ iP-60E manual (this manual)

Includes information on the operation and handling of the projector.

⦁ iP Viewer Software Quick Reference

Includes a concise description of handling of the “iP Viewer” presentation software.

⦁ iP Viewer Software Manual (PDF format)

Includes more detailed instructions than the Quick Reference. Select according to

your purpose.

A Proposal for New
Presentations

Intelligent Projector

User’s Manual

iP-60E

English

E-2

Thank you for your purchase of an AVIO product.
Please read this manual carefully in order to use the projector properly.
After reading this, please keep it in a safe place together with the warranty sheet.

Features of the iP-60E

• Very versatile five-in-one projector. A projector for the multimedia age.

1. Projection of documents, catalogs, and other printed materials. Printed materials can be projected directly without the

creation of OHP film.

2. Projection of personal computer screen images

Detailed presentations can be made using a personal computer.

3. The video images of video tape decks, DVDs and other equipment can be projected. This permits the creation of pre-

sentations that are visually appealing.

4. Projection images can be imported to a personal computer connected via USB.

5. An image that has been scanned to a personal computer can be written on as one pleases using a tablet or another de-

vice and while doing so the image can be projected.

• Easily understood, simple operation for everyone

One button operation simply switches the projection of printed material, personal computer screen, and video image.

• Designed for a conservation of resources which offers excellent cost performance

The creation of OHP film is not required. This allows a reduction of wasteful time and costs.

• Super-thin, stylish body

The iP-60E features a super-thin body for a projector having a built-in OHP function which reflects the advanced technology

inherent in the design. Offers an easy fit when in use or when stored.

• Expressive color pictures

High-resolution, single-board CCD camera is built in. It provides faithful and clear reproduction of the detailed neutral tones

of color documents with its full-color 16.77 million colors.

• Enlarged display without changing the screen size

When projecting documents having small characters that were not created for presentations, such as catalogs and word-

processed documents, the iP-60E can enlarge the document without changing the screen size to provide an easy-to-view
display.

• Provided with display functions for compressed or enlarged PC screen

Screens of resolution more than 1024  768 dots are displayed compressed to 1024  768 dots without any loss in char-

acter quality. Such as 640  480 resolution screens can also be enlarged to 1024  768 dots.

About Trademarks

IBM and PC/AT are trademarks or registered trademarks of International Business
Machines Corporation.
Macintosh and Power Book are trademarks of Apple Computer Inc.
Windows is a trademark of U.S. Microsoft Corporation.

Warnings and Safety Precautions

Warning Symbols
To alert the user to important safety precautions, the following symbols are used
in this manual and on the product. Make sure you understand what these sym­bols mean before operating the projector.

WARNING Death or serious injury may result if this warning is ignored.

CAUTION Injury or damage to the equipment may result if this warning is ignored.

NOTE This indicates an item that you should take care of when handling your projector.

This symbol alerts the user to high voltage that could cause electric shock.

E-3

Safety Precautions

WARNING

If a fault occurs:

●

• If you detect smoke, or a strange smell or sound, immediately disconnect the power cable.
It is dangerous to continue using the projector after a fault occurs. Return the projector to the dealer where it was pur-

chased for repair.

Avoid placing the projector near dangerous substances.

●

• Make sure that no metallic or flammable material can get into the projector through the air vents.

• Do not place any objects containing water on top of or next to the projector.

If foreign matter gets inside the projector:

●

• If foreign matter such as water or metal gets inside, immediately disconnect the power cable.
It is dangerous to continue using the projector when foreign matter gets inside. Return the projector to the dealer where it

was purchased for servicing.

Do not remove the cabinet.

●

• Do not remove the cabinet. There are high-voltage components inside and touching these parts could cause electric
shock, or damage the equipment.

Handle the power cable safely.

●

• Do not place any heavy objects on top of the power cable.

Damage to the power cable can cause wire breakage, fire, or electric shock.

• Do not pull the power cable when disconnecting the power plug.

Pulling the cable may break the wires or cause fire or electric shock. Always hold the plug itself when pulling it out of the

power outlet.

• Do not damage the power cable. If the power cable is damaged (e.g. the core is exposed or cut), contact the sales office
of purchase. (charged) it could cause fire or electric shock if you continue using the damaged power cable.

• Do not peep into the lens.

• Do not peep into the lens of the projector during operation. The powerful rays passing through the lens could damage the
eyes.

• Do not put the projector in unstable places.

• Do not put the projector in unstable places such as on unstable desks or slopes.

Doing so could cause the projector to drop or turn over, resulting in injury.

• Do not use any voltages other than specified.

• Do not use any voltages other than specified. Doing so could cause fire or electric shock.

• Do not beat the glass surface

• Do not beat the glass surface over the scanner. Doing so may break the glass, resulting in injury.

• Do not touch the air vents or lamp cover

• The air vents, lamp cover, and peripheral surfaces may be high temperature during operation or just after the light is
turned off.

Do not touch those for a long time.

• Do not block the lens front

• Do not block the lens front during operation.

The powerful rays passing through the lens may cause fire or burns if you put anything in front of the lens or block the

lens with your hand during operation.

Warning

Please check the rating of the power cable.
Prior to using a power cable, please make sure that the cable is fully compliant with the power ratings and the type of the plug in
the area and, if not, purchase proper power cable for the area. Do not use the cables for 120V rating to 220V power source.
Using improper cable may cause re or electrical shock to human body.

E-4

Safety Precautions

CAUTION

• Installation

• Avoid installing the projector in places where it may be exposed to:

- Strong vibrations

- Soot or steam

- Direct sunlight or near a heater (35°C/95°F or higher)

- High humidity or dust

- Extreme cold (0°C/32°F or lower)

- Strong magnetic or electric field generated from a nearby appliance

- Wobbling on an unstable surface

• Do not block the air vents.

• Do not block the air vents with cloth or an object.

When you put anything around the unit, be sure to ensure a space of 10 cm/4 inches or more between the unit and the

air vent. Be sure to prevent paper or cloth from blocking the air vent at the bottom of the unit. If blocked, the internal tem­perature may increase, resulting in malfunctions.

• Do not bump the projector.

• Avoid bumping the projector when moving or handling. Shocks can cause damage.

• Care of the projector

• To prevent risk of accidents, always disconnect the power plug before cleaning the projector.

• Clean the lens surface with a commercial blower or lens cleaning paper.

Wiping with tissue paper or a handkerchief can damage the lens.

• To clean the cabinet, operation panel, and glass surface, wipe gently with a soft cloth. For particularly dirty spots, soak
the cloth in a neutral detergent mixed in water, wring out well and wipe off the dirt, then use a dry cloth to wipe dry.

• Do not wipe the projector with any volatile solvent such as benzine or thinner.

Solvents can cause surface deformation or flaking of the paint.
If using an impregnated cloth, follow the instructions of the cloth.

• Avoid scratching the glass surface.

• Take care not to scratch the glass surface of the scanner with hard or pointed objects.

Scratches on the glass may distort the projected image.

• Battery

• When inserting battery in the remote control, note the polarity (plus and minus signs) and insert correctly as indicated. In­serting a battery in a wrong direction can cause rupture or leakage, and could result in fire and injury or soil the surround­ing area.

• Do not use coin battery other than the type specified for the equipment. Incorrect battery usage could result in rupture or
leakage, and could cause fire and injury.

• Do not heat, break open, burn, or immerse the battery. Battery rupture or leakage could cause fire and injury.

• Servicing and cleaning

• Have the internal components cleaned by a retailer about once a year. There is a risk of fire or faulty operation if the
inside of the projector gets dusty and is not cleaned for a long time. For best results, the projector should be serviced be­fore the wet season brings damp conditions. Cleaning charges are at the discretion of the retailer.

• If not using the projector for a long period:

• If you do not plan to use the projector for a long time, disconnect the power cord for safety.

• Disposal

• Follow the recommendations of your local authority when disposing of the projector.

• Transporting the projector

• Use the special packaging when transporting the projector. The manufacturer cannot accept responsibility in the event of
damage or accident if other packaging is used.

• Use the special packaging no more than two times. Repeated usage reduces the shock absorbency of the packaging and
can lead to damage or accident.

• Contact the retailer if you require new packaging.

E-5

Safety Precautions

• Lamp implosion

• A DC type Super High pressure lamp is used in this projector and it is rare for the lamp to explode during use. The unit is
also designed to forcibly turn off the lamp because there is a high possibility that the lamp will break if it is used beyond
the lamp usage of 1500 hours (Refer to pages E-42 and E-44).

Note the following things

• A sound occurs because the internal pressure of the Super High pressure lamp gets extremely high.

The unit is designed so that no pieces of glass come out of it when the lamp explodes.

• However, the gas inside of the lamp can escape and looks like white smoke.

It will not cause any fire.

Remedy

• If a lamp explodes in a product, there will be pieces of lamp inside. Do not replace the lamp. Return the product to the
sales office or agent of purchase.

Even though the lamp has exploded, never try to replace the lamp by yourself. The lamp pieces could cause injury.

• Replacing the lamp

• Be sure to turn the lamp off and disconnect the power cable when the fan stops, and wait an hour or more before replac
ing the lamp.

Replacing the lamp during operation or just after the power is turned off may cause burns due to heat.
Refer to “Lamp Unit Replacement” on page E-42 for the procedure.

• Replacing / cleaning the air filter

• Be sure to disconnect the power cable when the cooling fan stops before removing the air filter.

Removing the air filter while the cooling fan is rotating could cause a accident.
Refer to “Cleaning the Air Filter” on page E-45 for the procedure.

• Avoiding malfunctions and accidents

• Adjust the Adjustable feet to keep the projector horizontally.

Using the projector in a tilted status may cause injury if it rolls over. Refer to
“Adjusting the Tilt” on page E-22 for the adjusting procedure.

• Do not do the followings

• Do not put anything heavy on the projector.

• Do not step on the projector, rack, or stand. Do not hold or hang on the projector.

Doing so could cause the projector to roll over or break, resulting in injury.
Especially be careful if small children are near.

• Do not use the rack unless the casters are locked when placing the projector on a rack with casters.

Doing so may cause the projector to move or roll over, resulting in injury.

• Do not turn the lamp on/off within one minute after it is turned off/on. Extremely high voltage is generated in the lamp just
after it is turned on. Turning the lamp on/off too frequently could cause the lamp to deteriorate or break, resulting in mal­functions of the projector.

• Do not project an image with the lens cap attached.

• The cover that is attached to the bottom of the projector is strictly intended for maintenance purposes and should not be
opened by anyone except for service personnel

• Do not hold the projector by the focus adjustment ring. Doing so will cause an accident or damage.

• Moving the projector

• Be sure careful of the glass surface at moving the projector while holding the handles.

• If the document cover is not inserted enough, it may get loose and fall off while you carry it.

• Care of the power cable and plug

• Do not put the power cable near a heater.

Doing so could cause the sheath of the cable to melt down, resulting in fire or electric shock.

• Do not connect or disconnect the power cable with wet hands. Doing so could cause electric shock.

• Be sure to pull out the power cable and disconnect any cable connections between units and release the anti-theft lock
before moving the projector.

Moving the projector with cables connected may cause fire or electric shock if the cables are damaged.

• If you do not plan to use the projector for a long time, disconnect the power cable for safety.

• DO NOT REMOVE ANY SCREWS except the lamp cover screw and two lamp unit screws. Otherwise you could re
ceive an electric shock.

• Light Polarizing Element

Light polarizing elements such as the light source lamp and the liquid crystal panel are parts that have a service life. When
used for a long time, repair and replacement will be necessary. Please contact a customer support center for details.

-

-

E-6

Table of Contents

Safety Precautions ................................................. E-3

A Check of the Supplied Items

and the Names of the Parts .............................. E-7

Supplied Parts Check ............................................... E-7

Names and Functions of the Parts (Projector) .........E-8

Names and Functions of the Parts (Input/Output Connectors)
Names and Functions of the Parts (Operation Panel)
Names and Functions of the Parts (Remote Control)

Operation of the Remote Control ............................ E-13

Battery Replacement .............................................. E-13

Procedure Up to Projection ................................. E-14

Projection Distance and Screen Size ................. E-15

Connections with the Personal Computer

Basic Connections .................................................. E-16

Connections with Personal Computers .................E-16

Personal Computer Input Connector ...................... E-17

When the Image of the Personal Computer

Screen Is Not Projected ................................... E-18

Table of Supported Input Signals

(Personal Computer Video Input Connector) .... E-19

................... E-16

...... E-10

............ E-11

............ E-12

Method of OHP Operation .................................... E-30

Attaching the Document Cover ............................... E-30

Preparation of the Projection Document ................. E-30

Reading Size of Projection Documents .................. E-30

Menu Configuration .............................................. E-31

Menu Operation Method ...................................... E-32

Names and Functions of the Buttons Used

in Menu Operation ........................................ E-32

Names and Functions of the Menu Parts ............... E-32

Method of Menu Operation ..................................... E-33

Menu Description .................................................E-35

Pointer · Screen ....................................................... E-35

Image adjustment ................................................... E-36

Settings ................................................................... E-38

Maintenance .......................................................... E-40

Fault Protection ......................................................E-40

Replacement of the Lamp Unit ............................... E-42

Cleaning the Air Filter ............................................. E-45

Troubleshooting ................................................... E-46

Connections with Video Equipment ................... E-20

Connection of the Power Cable and

On/Off Switching ............................................. E-21

Switch On the Power .............................................. E-21

Switch Off the Power .............................................. E-21

Adjustment of the Projection Image ................... E-22

Adjusting the Projection Image ............................... E-22

Making Focus/Zoom Adjustments .......................... E-22

Adjusting the Tilt (Slant) .........................................E-22

Regular Operation ................................................ E-23

Select the Input ....................................................... E-23

Changing the Orientation of the Projection Image .. E-23

Enlarging and Reducing the Projection Image ....... E-24

Adjusting the size of the projected image ............... E-25

Adjusting the Brightness ......................................... E-26

Capturing the Projection Image/ Still Image Display

Viewing OHP History Images ................................. E-27

Transferring Captured Images ................................ E-28

Adjusting the Volume .............................................. E-28

Displaying the Pointer ............................................. E-29

Deleting the Projection Image and Audio ............... E-29

..... E-26

Repair Service ....................................................... E-47

Specifications ....................................................... E-48

E-7

User's manual

A Check of the Supplied Items and the Names of the Parts

Supplied Parts Check

Please check that the supplied parts are included.

iP-60E Projector

Remote control

Lens cap

Battery (AA x 2)

Power cable (3 m)

PC connection cable (2 m)

iP-60E User’s Manual

iP Viewer Software Quick Reference

E-8

󲻃

A Check of the Supplied Items and the Names of the Parts

7mm

3mm

Names and Functions of the Parts (Projector)

Handle

• Extended
Press lightly on the left side
of the handle and it rotates
180˚ and comes out.

Remote control IR sensor

• Retracted
Rot at e th e h an dle wh ile
pressing on its right side to
store it.

Document cover

The document or printed material to be read
is placed under this cover.
See Page E-30.

Operation panel

The buttons used for regular operation are
located here. See Page E-11.

Speaker

Air Vent A (air filter)

(side of main unit)
Ai r is taken in throu gh t his
vent. An air filter is provided
to prevent dust from getting
inside the projector.
See page E-45.

Tilt foot

Focus adjustment ring

Turn this to adjust the focus.
See Page E-22.

Projection lens

The image is projected from
here.
* Be sure to remove the lens

cap before projecting.

Zoom lever

Turn this to adjust the screen size. See Page E-22.

NOTE
About the anti-theft lock

Lens cap

Theft prevention lock

Please see the Note below.

Tilt adjustment lever

Press here to adjust the tilt foot. See Page
E-22.

Tilt foot

This foot is used to adjust the vertical angle
of the projection as well as the left-right bal­ance. Turning it to the left extends it and turn­ing it to the right shortens it. See Page E-22.

The anti-theft lock is compatible with Kensington security cable lock.
Contact the following for more information about the products.

Kensington Technology Group
2000 Alameda de las Pulgas
Second Floor
San Mateo, California 94403-1289, U.S.A.
Phone: [phone]
Fax: [phone]
URL: http://www.kensington.com

E-9

A Check of the Supplied Items and the Names of the Parts

Document reading area

The document or printed material that you wish to
project in the OHP mode is placed here.
See Page E-30.

Scanner

Place documents or printed matter here to
project images when OHP is selected.
See page E-30.

Remote control IR sensor

Tilt foot

Speaker (1W Stereo)

Power input connector

Plug in t he p owe r cab l e
here. See Page E-21.

Tilt foot

Air Vent B

Air is discharged from the inside to
the outside through this vent.

Lamp unit cover (Underneath projector)

The projection lamp unit is located inside.
See Page E-42.

Input/Output connector panel

The connectors for th e personal
computer, video, and other connec­tions are located here.
See Page E-10.

E-10

TEST

PC AUDIO

IN2

PC AUDIO

IN1

PC AUDIO

OUT

S-VIDEO

VIDEO

RGB-OUT

RGB-IN 2

RGB-IN 1

V

L R

USB

A Check of the Supplied Items and the Names of the Parts

Names and Functions of the Parts (Input/Output Connectors)

1

1. PC Video Input

Input terminal for the PC analog RGB signals. Two per-

sonal computers can be connected. See Page E-16.

2 3 5

6

5. Test (maintenance) connector

This special connector is used at the time of maintenance

and factory tests. It cannot be used for other connections.

7 8 9

4

2. PC Audio Input

Audio input terminal for a PC (stereo compatible). Two per-

sonal computers can be connected. See Page E-16.

3. RGB Video Output

When OHP is selected, OHP images are output. When

PC/VIDEO input is selected, input PC video is output as it
is. During standby, RGB-IN1 images that are input from the
personal computer are output directly. See Page E-16.

4. USB connector

This connector is used for USB connections with a per-

sonal computer.

Please see the "iP Viewer Software Program Operating In-

structions".

6. Audio Output

Audio output terminal for projector.
This terminal outputs audio (either from the PC or video

source) that is currently being input. In the standby mode,
PC audio is output. When OHP input is selected, PC audio
is output.

See Page E-16.

7. S-VIDEO Input

Input terminal for video source (Y/C).
See Page E-20.

8. Video Source Video Input

Input terminal for video source (NTSC/PAL/SECAM).
See Page E-20.

9. Video Source Audio Input

Audio input terminals for a video source (stereo compatible).
See Page E-20.

E-11

󲻃

A Check of the Supplied Items and the Names of the Parts

Names and Functions of the Parts (Operation Panel)

4 3 2

5

6

71 8

1. POWER Button

Switches the power of the projector on or off (standby

mode).

• Only this button is effective when the projection lamp is
off.

See Page E-21.

2. ON/STANDBY LED

Lit red during standby and lit green when the projection

lamp is on. See Page E-21.

3. LAMP/COVER LED

Lit green during projection. Lit red when the air filter or

lamp unit cover is not in place.

• At the time of the projection lamp lighting operation, the
LED flashes for about 6 seconds and then lights green.

• The LED will be lit red when there has been a lamp
lighting error.

• When the projection lamp is off, the LED flashes green
for 60 seconds and then goes off. (When the projection
lamp is off, the flashing interval will be longer than with
other flashing conditions. )

• When the projection lamp has been used in excess of
1,400 hours, the LED flashes red; when use exceeds
1,500 hours the LED is lit a steady red.

See Page E-40.

4. TEMP LED

When the internal temperature has risen excessively, the

LED flashes red for 10 seconds, then is lit a steady red.
See Page E-40.

11

9

10

12

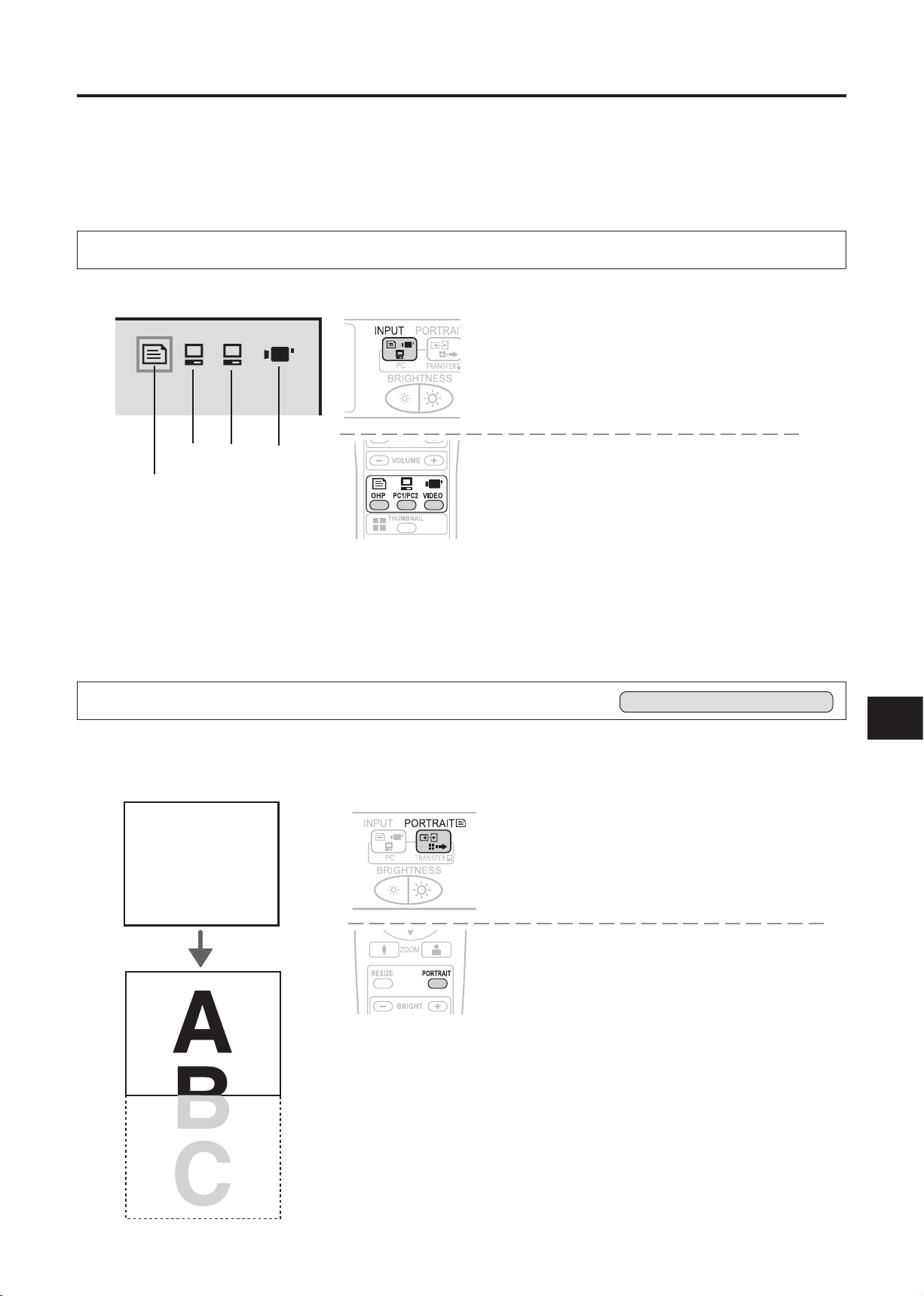

5. INPUT SELECT Buttons

These buttons select the input source.
OHP
See Page E-23.

6. PORTRAIT/TRANSFER Button



During PC selection: When a USB cable is connected,

7. BRIGHTNESS Buttons

These buttons adjust the brightness of the projection

screen. See Page E-26.

8. SCROLL Buttons

Sets the selection of the item or the adjustment value at

the menu screen. Moves the zoom position during a zoom
display. Moves the pointer when the pointer is being dis­played.

See Pages E-24, 25, 28, 29 and 32.

9. FREEZE/CAPTURE Button

Makes the projection screen image into a still image. In the

OHP mode, the image is stored in internal memory as a
thumbnail.

See Page E-26.

PC1 → PC2 → VIDEO → OHP →...

→

During OHP selection: The orientation of the projection
screen will be changed. The changed screen will be dis­played adjusted to its width. See Page E-23, or the image
can be transferred by holding the button down for a long
time. See Page E-28.

the images stored internally are transferred to the person­al computer. See Page E-26, 28.

LED List

ON/STANDBY

Off

Red

Green

Green

Red

Red

Green
Green

LED State

LAMP/COVER

Off
Off

Flashing green

Green

Red

Off

Flashing red

Green

TEMP

Off
Off

Off

Off

Off

Red

Off

Flashing red

Significance

AC power OFF
Standby
Standby to start of projection
End of projection to standby
Projecting
Fan cover open
Lamp cover open
Lamp burned out
Lamp usage exceeds 1,500 hours
Temperature fault
Fan fault
Lamp usage exceeds 1,400 hours
Abnormal temperature warning

Normal
condition

Power
has been
switched
OFF be­cause of the
alarm

Alarm
sounding

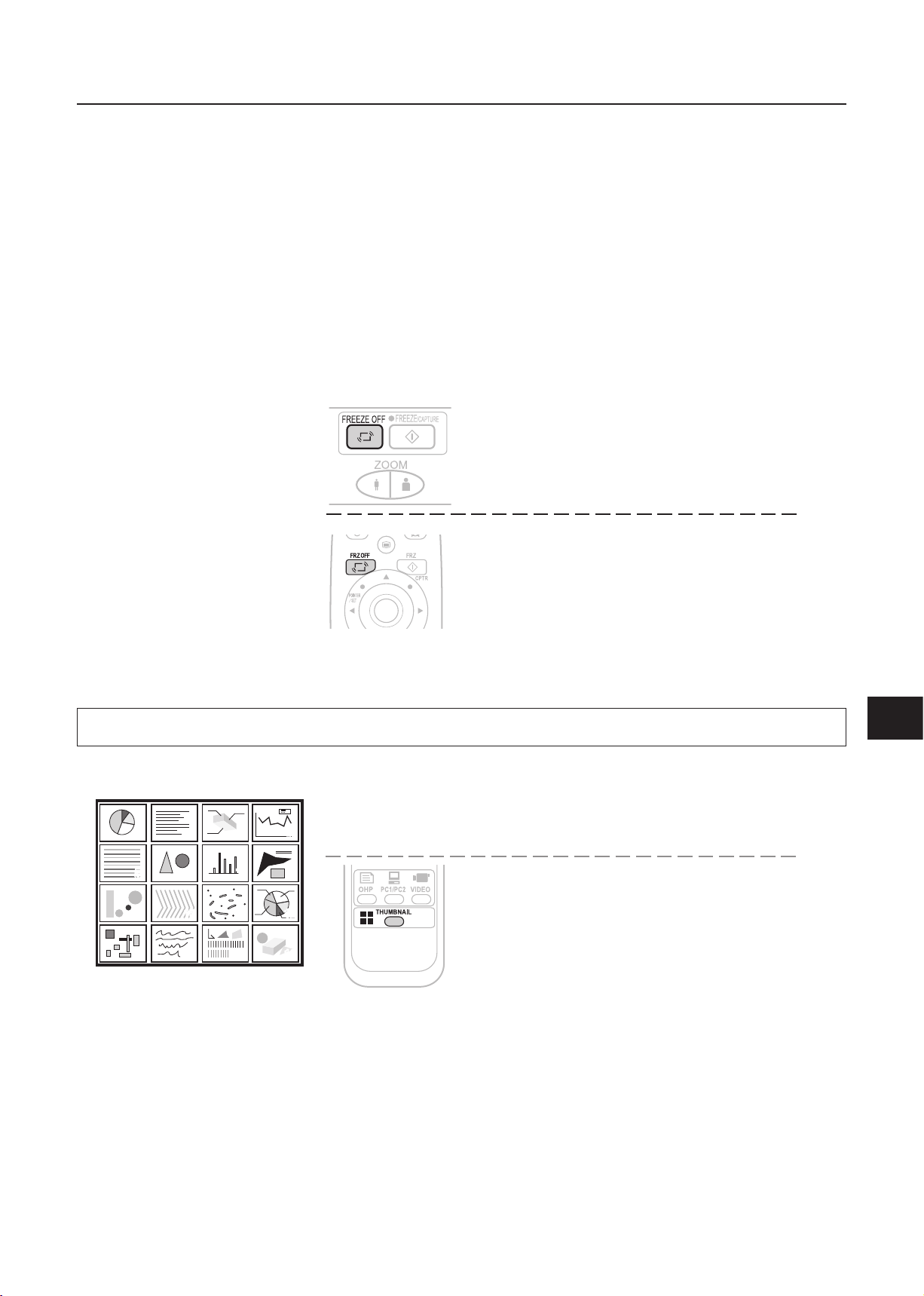

10. FREEZE OFF Button

Cancels the still image mode.
This is used when checking the projection screen while

moving the document.

See Page E-27.

11. FREEZE LED

This LED is lit green during the still image display and is lit

orange at the time the display is frozen (or captured). The
LED goes off when the still image condition is cancelled.

12. ZOOM Buttons

These buttons adjust the magnification of the projection

screen. See Page E-24.

E-12

A Check of the Supplied Items and the Names of the Parts

Names and Functions of the Parts (Remote Control)

6. SET/POINTER Button

During menu display, this button advances the menu to

the next level. This button finalizes the setting at the time
of item selection. See Pages E-29 and 32. This button
displays a pointer when the menu screen is not displayed.
Press this button one more time to make the pointer disap­pear.

7. SCROLL Buttons

Sets the selection of the item or the adjustment value at

the menu screen. Moves the zoom position during a zoom
display. Moves the pointer when the pointer is being dis­played.

See Pages E-24, 25, 28, 29 and 32.

8. ZOOM Buttons

These buttons adjust the magnification of the projection

screen.

See Page E-24.

11

1

2

3

4

6

5

7

8

9

10

12

14

13

15

16

1. POWER Button

Switches the power of the projector on or off (standby

mode).

• Only this button is effective when the projection lamp is
off.

See Page E-21.

2. MUTE Button

Temporarily blanks the projection screen without switching

off the lamp. One more press causes the screen to return
immediately.

See Page E-29.

3. MENU Button

Switches on or off the display of the menu screen.
See Page E-32.

4. FREEZE OFF Button

Cancels the still image mode.
This is used when checking the projection screen while

moving the document.

See Page E-27.

5. FREEZE/CAPTURE Button

Makes the projection screen image into a still image. In the

OHP mode, the image is stored in internal memory as a
thumbnail.

See Page E-26.

9. RESIZE Button

• Press to change the size of the projected image when
OHP is selected.

• Press to do automatic synchronous adjustments when
PC is selected.

See Page E-25.

10. PORTRAIT Button

Selects the orientation of the projection screen. The display

of the switched screen is adjusted to match the width.

See Page E-23.

11. BRIGHTNESS Buttons

These buttons adjust the brightness of the projection

screen.

See Page E-26.

12. VOLUME Buttons

These buttons adjust the volume when the PC or video is

selected.

See Page E-28.

13. OHP Button

Switches the projector to OHP input. See Page E-23.

14. PC1/PC2 Button

Switches the projector to PC input. See Page E-23.

15. VIDEO Button

Switches the projector to video input. See Page E-23.

16. THUMBNAIL Button

Displays the captured still image as a thumbnail.
See Page E-27.

E-13

A Check of the Supplied Items and the Names of the Parts

Operation of the Remote Control

• Please use the remote control within a range of about 7 m from the remote control IR sensor of the projector (located at
both the front and rear) and within an angle of 10 degrees to the left and 10 degrees to the right. Note that this distance
may be shorter depending on battery consumption.

• The remote control will not function when there is an obstacle located between the remote control and the remote control
IR sensor of the projector.

Battery Replacement

1. Remove the battery compartment cover by

pushing in the claw and lifting the cover up.

CAUTION

2. Install two batteries in the battery compart

ment, making sure that they are aligned as

indicated by the (+) and (–) marks.

3. Return the battery compartment cover to its

original position.

Handling of the Remote Control

• Do not subject the remote controller to such severe impact as dropping it on the floor. Doing so may
damage it and cause it to cease functioning.

• Keep the remote sensor away from water. Wipe the remote controller immediately if it gets wet.

• Avoid heat or hot water. Remove the dry cells when you are not using the remote controller for a long
period of time.

• Do not mix new and old dry cells, or use different types of dry cells at the same time.

• Do not disassemble or heat batteries, or throw them into a fire.

• Follow your local government's disposal instructions for used dry cells.

• The remote controller may not work when it is used near inverter-driven equipment.

• The remote controller may not work or may work ineffectively when it is used near inverter-driven fluo
rescent lighting.

• Please handle the remote control with care, since there are some operations available only with it.

-

-

NOTE:

• When replacing the batteries, buy AA batteries.

• Ni-Cad batteries or other chargeable batteries cannot be used. Use manganese batteries or alkaline batteries.

E-14

Procedure Up to Projection

Consideration of placement location and screen size

1

Determine the screen and projector setup location.
Set the projector on a strong and stable, level platform.

See Page E-15 for information about the projection distance and screen size.

Connections with input equipment

2

Connect your personal computer/video equipment.

Connections with the Personal Computer → See Page E-16
Connections with the Video Equipment → See Page E-20

Connect the power cable and switch on the power

3

Switch On the Power → See Page E-21
Switch Off the Power → See Page E-21

Switch on the power of the personal computer or video equipment

4

Properly adjust the projection image to the screen

5

Tilt foot

See Page E-15

→

Perform the tilt adjustment of the projector to provide the desired projection height.

The tilt adjustment allows the position of the projection image to be raised and lowered. The adjustment angle is from 0 de­grees to 7 degrees.
Tilt adjustment → See Page E-22

Select the input equipment

6

See Page E-23

→

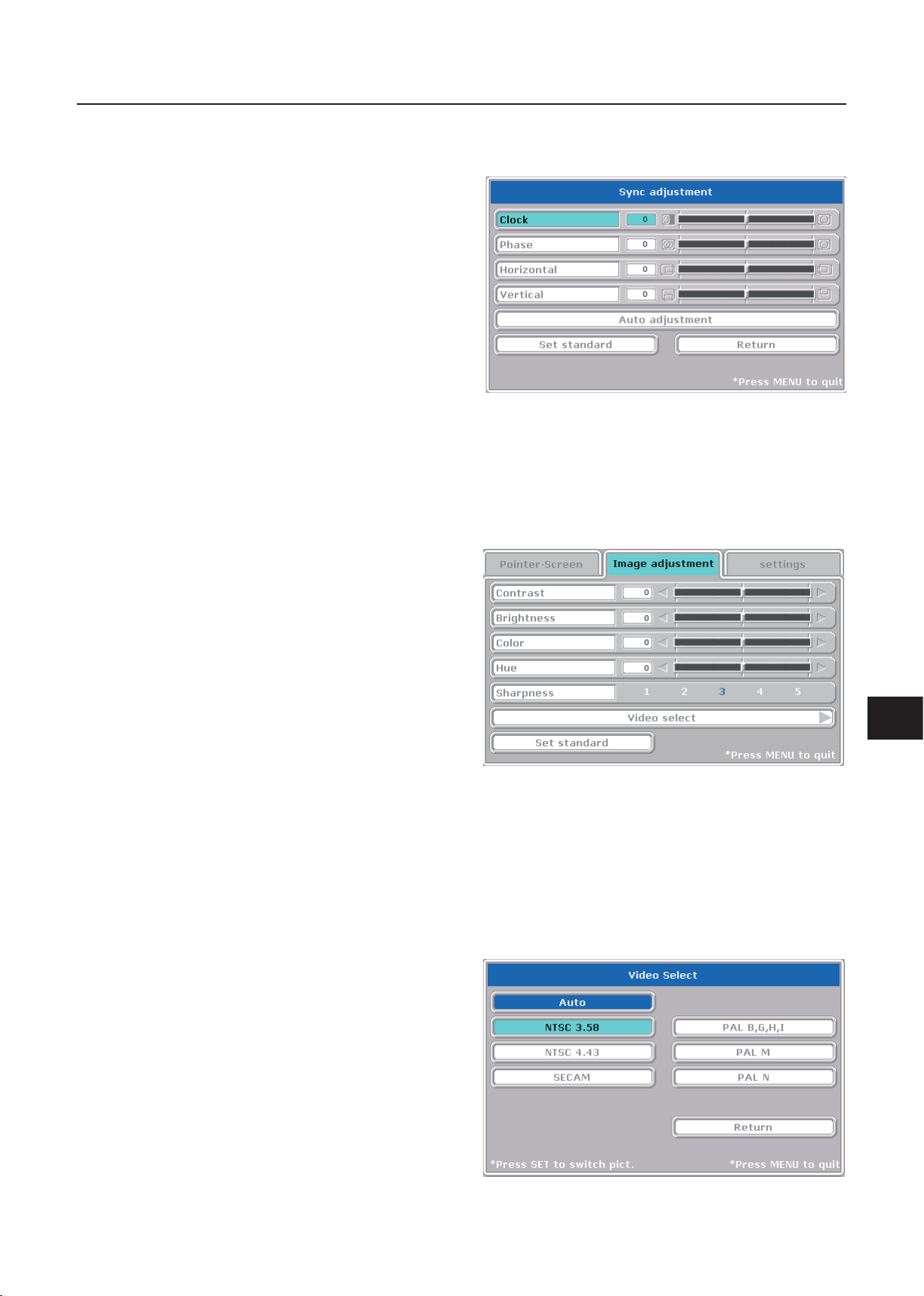

Adjust the image or video

7

Adjust the image to provide the optimum condition, as required.

See Page E-36

→
