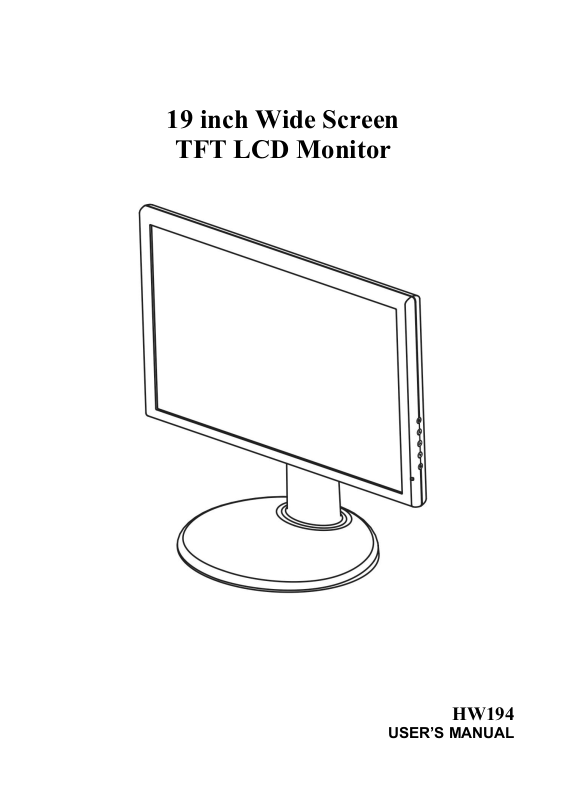

Compaq HW194 User Manual

19 inch Wide Screen

TFT LCD Monitor

HW194

USER’S MANUAL

User’s Manual

Before operating the monitor, please read this manual thoroughly. This manual should be
retained for future reference.

FCC Class B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

The device complies with Parts 15 of the FCC Rule. Operation is subject to the following
two conditions﹕ (1) this device may not cause harmful interference﹔ and (2) this device

must accept any interference received, including interference that may cause undesired
operations.

CANADA

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulation.

This device complies with requirement of EMC directive 89/336/EEC with regard to
Electromagnetic Compatibility, and 73/23/EEC and 93/68/EEC with regard to Low Voltage
directive.

Socket-outlet shall be near the equipment and shall be accessible.

2

User’s Manual

Recycling Information

We, Hanns.G care very much about our environment protection strategy and firmly believe
that it helps us have healthier earth via appropriate treatment and recycling of industrial
technology devices at the end-of-life.
These devices contain recyclable materials, which can be re-decomposed and re-integrated
into brand-new marvels. On the contrary, other material can be classified to hazardous and
poisoned substances. We strongly encourage you to contact the provided information to
recycle this product.

For more information, please visit

www.hannsg.com

3

User’s Manual

TABLE OF CONTENTS

SAFETY NOTICE ........................................................................................... 5

PRECAUTIONS ......................................................................................... 5

SPECIAL NOTES ON LCD MONITORS ................................................... 6

BEFORE YOU OPERATE THE MONITOR.................................................... 7

FEATURES ................................................................................................ 7

CHECKING THE CONTENTS OF THE PACKAGE .................................. 7

INSTALLATION INSTRUCTIONS ............................................................. 8

POWER...................................................................................................... 8

MAKING CONNECTIONS ......................................................................... 9

ADJUSTING THE VIEWING ANGLE ...................................................... 10

ROTATING THE MONITOR..................................................................... 10

SCREEN HEIGHT ADJUSTMENT

.......................................................... 11

OPERATING INSTRUCTIONS..................................................................... 12

GENERAL INSTRUCTIONS.................................................................... 12

FRONT PANEL CONTROL ..................................................................... 13

HOW TO ADJUST A SETTING ............................................................... 14

PLUG AND PLAY .................................................................................... 17

TECHNICAL SUPPORT (FAQ).................................................................... 18

Q & A FOR GENERAL PROBLEMS....................................................... 18

ERROR MESSAGE & POSSIBLE SOLUTIONS .................................... 19

APPENDIX ................................................................................................... 20

SPECIFICATIONS ................................................................................... 20

4

User’s Manual

SAFETY NOTICE

1. The changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply
with the emission limits.

3. The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modification to this equipment. It is the responsibilities of the user to
correct such interference.

WARNING:

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously
high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to
qualified personnel only.

PRECAUTIONS

• Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry

tub, swimming pool or in a wet basement.

• Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can

injure a person and cause serious damage to the appliance. Use only a cart or stand
recommended by the manufacturer or sold with the monitor. If you mount the monitor on
a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit
instructions.

• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To

ensure reliable operation of the monitor and to protect it from overheating, be sure these
openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or
similar surface. Do not place the monitor near or over a radiator or heat register. Do not
place the monitor in a bookcase or cabinet unless proper ventilation is provided.

• The monitor should be operated only from the type of power source indicated on the

label. If you are not sure of the type of power supplied to your home, consult your dealer
or local power company.

• Unplug the unit during a lightening storm or when it will not be used for long period of

time. This will protect the monitor from damage due to power surges.

• Do not overload power strips and extension cords. Overloading can result in fire or

electric shock.

• Never push any object into the slot on the monitor cabinet. It could short circuit parts

causing a fire or electric shock. Never spill liquids on the monitor.

• Do not attempt to service the monitor by yourself; opening or removing covers can

expose you to dangerous voltages and other hazards. Please refer all servicing to
qualified service personnel.

• To ensure satisfactory operation, use the monitor only with UL listed computers which

have appropriate configured receptacles marked between 100 - 240V AC, Min. 5A.

• The wall socket shall be installed near the equipment and shall be easily accessible.

5

User’s Manual

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitor and do not indicate a problem.

• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn

off the Power Switch and then turn it on again to make sure the flicker disappears.

• You may find slightly uneven brightness on the screen depending on the desktop pattern

you use.

• The LCD screen has effective pixels of 99.99% or more. It may include blemishes of

0.01% or less such as a missing pixel or a pixel lit all of the time.

• Due to the nature of the LCD screen, an afterimage of the previous screen may remain

after switching the image, when the same image is displayed for hours. In this case, the
screen is recovered slowly by changing the image or turning off the Power Switch for
hours.

• If the screen suddenly flashes erratically or the backlighting fails, please contact your

dealer or service center for repair. Do not attempt to repair the monitor yourself.

6
