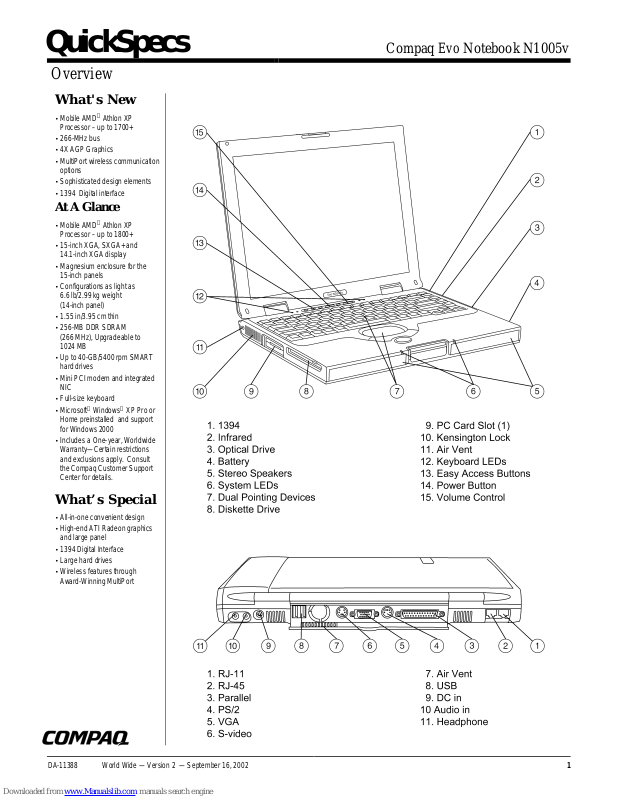

QuickSpecs
Overview
Compaq Evo Notebook N1005v
What's New
• Mobile AMD
Processor – up to 1700+
• 266-MHz bus
• 4X AGP Graphics
• MultiPort wireless communication
options
• Sophisticated design elements
• 1394 Digital inter face
At A Glance
• Mobile AMD
Processor – up to 1800+
• 15-inch XGA, SXGA+ and
14.1-inch XGA display
• Magnesium enclosure for the
15-inch panels
• Configurations as light as
6.6 lb/2.99 kg weight
(14-inch panel)
• 1.55 in/3.95 cm t hin
• 256-MB DDR SDRAM
(266 MHz), Upgradeable to
1024 MB
• Up to 40-GB/5400 rpm SMART
hard drives
• Mini PCI modem and integrated
NIC
• Full-size keyboard
• Microsoft
Home preinstalled and support
for Windows 2000
• Includes a One-y ear, Worldwide
Warranty—Certain restrictions
and exclusions appl y. Consult
the Compaq Customer Support
Center for details .
Athlon XP
Athlon XP
Windows XP Pro or
What’s Special
• All-in-one convenient design
• High-end ATI Radeon graphics
and large panel
• 1394 Digital Inter face
• Large hard drives
• Wireless features through
Award-Winning MultiPort
DA-11388 World Wide — Version 2 — September 16, 2002 1
QuickSpecs
Standard Features
Compaq Evo Notebook N1005v
Processor and Panel
One of the following:
Memory
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend Compaq
Communications 10/100 NIC is integrated on the system board (LOM)
NOTE: Designed only to allow faster downloads from V.92 compliant sources. Maximum achievable download
NOTE: Modem availability is subject to country regulatory approval
Keyboard 102-key compatible keyboard with isolated, inverted-T cursor control keys, and right-control key, special feature
Easy Access Internet
Buttons
Pointing Device
PC Card Slots One Type II PC Card Slot which supports both 32-bit CardBus
Storage Primary Hard Dive 40-GB 4200 RPM
Diskette Drives 1.44 MB Floppy Drive
Optical Drives DVD/CD-RW Combo Drive
15-inch color TFT SXGA+ with 1400 x 1050 resolution (up to 16.7M colors internal)
15-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)
14.1-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)
AMD Athlon XP 1800+ (Quanti speed architecture running at 1.53 GHz) with 256-KB L2 cache
AMD Athlon XP 1700+ (Quanti speed architecture running at 1.47 GHz) with 256-KB L2 cache
AMD Athlon XP 1600+ (Quanti speed architecture running at 1.40 GHz) with 256-KB L2 cache
AMD Athlon XP 1500+ (Quanti speed architecture running at 1.30 GHz) with 256-KB L2 cache
AMD Athlon XP 1500+ (Quanti speed architecture running at 1.30 GHz) with 256-KB L2 cache
NOTE: Mobile AMD Athlon XP supports enhanced AMD’s PowerNow™ technology.
Standard/Maximum
branded memory to ensure compatibility.
Type III Mini PCI 56K (V.92) modem
transmission rates currently do not reach 56 KB/s, and will vary with line conditions.
hotkeys for instant access to power conservation, toggle between internal and external, or simultaneous displays,
and control brightness and contrast.
The Evo Notebook N1005v features three Easy Access Buttons (EAB) designed to increase customer
productivity by providing one-touch access to helpful Compaq information, favorite Internet destinations, or default
e-mail application. The EAB portion of the keyboard deck also includes dedicated hardware volume control and a
quick-launch button for CD/DVD play.
TouchPad with 4-way scroll
128 MB (266 MHz) DDR SDRAM
256 MB (266 MHz) DDR SDRAM
512 MB (266 MHz) DDR SDRAM
1024 MB (266 MHz) DDR SDRAM
30-GB 4200 RPM
20-GB 4200 RPM
8X DVD-ROM Drive or
24X CD-ROM Drive
and 16-bit PC Cards
DA-11388 World Wide — Version 2 — September 16, 2002 2
QuickSpecs
Standard Features
Compaq Evo Notebook N1005v
Multimedia JBL Pro Speakers with bass reflex and 16-bit stereo sound
Interfaces PC Card One Type II
Enhanced Parallel EPP/ECP 1
S-Video 1
VGA 1
1394 1
Headphone/Line-out 1
Microphone in 1
DC Power 1
RJ-11 (modem) 1
RJ-45 (NIC) 1
Infrared Port 1 (4 Mb/s support)
USB Port 2
LED status indicators 6
Graphics ATI Radeon IGP video graphics with user configurable 16-, 32- or 64-MB VRAM video memory for increased
Display (External)
Display (Internal)
Operating System Microsoft Windows XP Pro or Home preinstalled with support for Windows
Software
Dedicated Hardware volume controls
Headphone-out port
Microphone in port
Software MPEG1 support, MPEG2 and DVD
8X DVD/CD-RW Combination Drive (on select models)
8X DVD-ROM Drive with movie playback software (on select models)
24X CD-ROM Drive (on select models)
S-video Port
IEEE 1394 Port
4X AGP graphics
(IrDA 4 MB compliant. IR performance will vary depending on performance of IR
peripherals and application used.)
color depth and graphics performance
Up to 32-bit per pixel color depth
Supports 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1400 x 1050, 1600 x 1200 resolutions up to 160-Hz
refresh rate, dependent upon monitor capability, resolution and color depth settings
15-inch color TFT SXGA+ with 1400 x 1050 resolution (up to 16.7M colors internal)
15-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)
14.1-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)
Diagnostics for Microsoft Windows
DVD Playback Software
Compaq Power Management
Compaq Security Management
Safety and Comfort Guide
Acrobat
Reference Guide
Norton Internet Security
Compaq Easy Access Button Software
Reader
DA-11388 World Wide — Version 2 — September 16, 2002 3
QuickSpecs
Standard Features
Compaq Evo Notebook N1005v
System Recovery
Security Configuration Control Hardware
Power Supply
Battery The Evo Notebook N1005v provides up to three hours of battery life using the standard 8-cell Lithium-Ion battery.
NOTE: Actual results may vary with product model, configuration, and individual usage. Compaq results of 3:01
NOTE: This test was performed without independent verification by eTesting Labs Inc. eTesting Labs Inc. makes
Power Conservation Hibernation
MultiPort
Service and Support Compaq Services includes a one-year, Worldwide Limited Warranty, pick-up or carry in; upgraded warranty and
NOTE: Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.
Each unit is shipped with a series of CD’s kit for quick OS recovery (erases hard disk and restores manufacturer
installed image) and software recovery (installs only selected standard software).
Memory Change Alert
Ownership Tag
Set-up Password
Power-On Password
Enabled for PC SmartCard options
Kensington Lock
External AC adapter, 6-foot/1.8-meter power cord included. Total length including External AC adapter is 12
feet/3.66 meter
(hr:min) were achieved running the Business Winstone 2001 Battery Mark 1.0.1 on a N1005v with a
AMD Athlon XP 1600+ CPU, 15-inch XGA panel, 128-MB RAM, 20-GB HDD, 8X DVD, 8-cell Lithium-Ion
battery, and NIC/modem. System parameters were set according to eTesting Labs’ recommendations:
panel brightness 50%, power management timers turned off.
no representations or warranties as to the result of the test. BatteryMark is a trademark of Ziff Davis
Publishing Holdings Inc., and affiliate of eTesting Labs Inc., in the U.S. and other countries.
Instant-on via Standby
Pop-ups with three presets
One custom level of power conservation
ACPI compliant
MultiPort is a flexible, innovative solution providing customers the ability to connect to their choice of wireless
standards such as 802.11b or Bluetooth™. This can be achieved by simply changing out the high-performance
wireless module, which is integrated in the top of the notebook. The award-winning MultiPort offers a cost
effective means to migrate to future wireless standards as they become available.
toll-free 7 x 24 hardware technical phone support is available.
DA-11388 World Wide — Version 2 — September 16, 2002 4
QuickSpecs
Standard Features
Compaq Evo Notebook N1005v

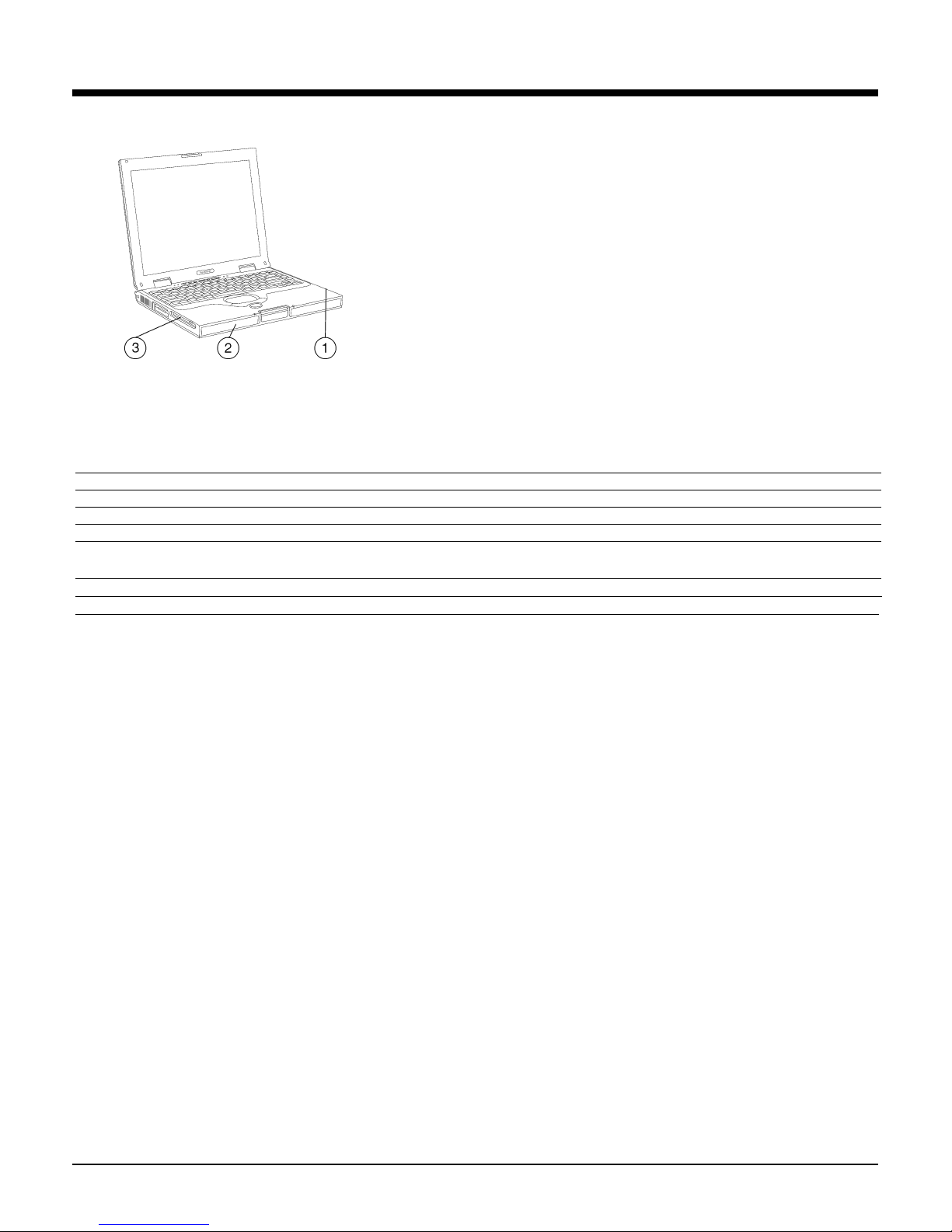

Naming Convention
The Etymology of a Model name:
DA-11388 World Wide — Version 2 — September 16, 2002 5
QuickSpecs
Standard Features
MODELS
Compaq Evo Notebook N1005v
N1005VA147X520DC25E0
N1005VA147X530DC250
Display
Processor
Cache Memory
Memory
Optical Drive
Hard Drive
Communications
Graphics
Video Memory
Audio
Operating System
Pointing Device Touchpad
Display
Processor
Cache Memory
Memory
Optical Drive
Hard Drive
Communications
Graphics
Video Memory
Audio
Operating System
Pointing Device Touchpad
15-inch color TFT XGA
Athlon XP 1700+ (1.4 GHz)
256-KB L2 Cache
Standard 256 MB (133 MHz) DDR SDRAM
Maximum 1024 MB (133 MHz) DDR SDRAM
DVD
20-GB SMART
Type III Mini PCI 56K (V.92) modem, (LOM) integrated 10/100 NIC
ATI Mobility Radeon
16-MB shared VRAM memory
JBL Pro Speakers with bass reflex and 16-bit stereo sound
Microsoft Windows XP PRO
15-inch color TFT SX GA+
Athlon XP 1800+ (1.53 GHz)
256-KB L2 Cache
Standard 256 MB (133 MHz) DDR SDRAM
Maximum 1024 MB (133 MHz) DDR SDRAM
DVD/CD-RW
30-GB SMART
Type III Mini PCI 56K (V.92) modem, (LOM) integrated 10/100 NIC
ATI Mobility Radeon
16-MB shared VRAM memory
JBL Pro Speakers with bass reflex and 16-bit stereo sound
Microsoft Windows XP PRO
DA-11388 World Wide — Version 2 — September 16, 2002 6
QuickSpecs
Compaq Evo Notebook N1005v
Options
Memory 512-MB (266 MHz) DDR SDRAM Memory Upgrade 269087-B25
256-MB (266 MHz) DDR SDRAM Memory Upgrade 269086-B25
128-MB (266 MHz) DDR SDRAM Memory Upgrade 269085-B25
Monitors TFT8030 Flat Panel Color 18-inch (carbon/silver) 234362-xxx
TFT7020 Flat Panel Color 17-inch with integrated speakers (carbon/silver) 253217-xxx
TFT5015 Flat Panel Color 15-inch (carbon/silver) 234044-xxx
TFT5030 Flat Panel Color 15-inch (carbon/silver) 228134-xxx
V720 17-inch CRT (carbon/silver) 232944-xxx
S720 17-inch CRT (carbon/silver) 239287-xxx
V570 15-inch CRT (carbon/silver) 228113-xxx
Other Storage Devices
Connectivity
Wireless Connectivity 802.11b MultiPort Wireless LAN module 233412-001
CDPD WWAN PC Card (U.S. Only) 238111-001
Expansion Bases Targus USB Port Replicator 239172-001
Power Evo Notebook N1005v 8-cell primary battery (4 Ah) 291369-B21
Common Power Solutions External Battery Charger 265603-xxx
AC Adapter 65W 265602-xxx
Auto Power Adapter/Charger 65W 265649-B25
Aircraft Power Adapter 386504-B21
AC Line Cord (10-ft/3.1 m) 217932-xx2
Input Devices External Enhanced III Keyboard (carbon) 118003-008
Compaq 2 Button Mouse (carbon) 103180-B21
USB 2 Button Scroll Mouse (carbon) 195255-B25
External 10-Key Numeric Keypad (carbon) 294317-B21
USB EZ Access Keyboard 222726-xxx
Wireless Keyboard and Mouse 251385-xx8
IBM
1-GB Microdrive (PC card Device) 217390-B25
USB Disk-on-Key – 8 MB 249552-B25
USB Diskette Drive 230330-B25
Compaq Type III Mini PCI 56K (V.90) Modem 225640-B31
Compaq Type III Mini PCI 56K (V.90) Modem plus 10/100 NIC Combo 225642-B31
100BaseTX Ethernet Upgrade 225435-001
1394 PC Card 177593-B25
NOTE: Designed only to allow faster downloads from V.90 compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions.
Bluetooth MultiPort module 228057-B21
Compaq WL110 Wireless LAN PC Card 191808-B21
Compaq WL510 Wireless Enterprise Access Point 216709-001
Compaq WL410 Wireless SMB Access Point 191811-001
Compaq WL310 Home Office Access Point 191813-001
Compaq Range Extender Antenna 230268-B21
DA-11388 World Wide — Version 2 — September 16, 2002 7
QuickSpecs
Compaq Evo Notebook N1005v
Options
Security Biometric PC Card 146805-B25
Security Cable Lock 294316-B21
Compaq Smart Card PC Card Reader 135646-B25
Useful Accessories Compaq iPAQ Microportable Projector MP1200 261966-xxx
Compaq iPAQ Microportable Projector MP3800 262839-xxx
Compaq iPAQ Microportable Projector MP4800 257524-xxx
Lamp Module L20 for MP1200 266631-B24
Lamp Module L30 for MP3800 266633-B24
Home Theatre Kit HT150 for MP3800 292187-B24
Carrying Case for MP1200 295731-B24
Lamp Replacement Kit for MP1600 118052-001
Lamp Module for MP1800, MP1400 189789-001
Lamp Module for MP2800, MP2810 215464-001
Home Theater Kit HT110 for MP1410 246161-001
Multimedia Adapter & Remote Control Kit MMA110 for MP1410 246162-001
Multimedia Adapter & Remote Control Kit for MP1400, MP1800 174963-001
Deluxe Carrying Case for MP Series projectors 253364-001
Lamp Module for MP1410, MP1810 253365-001
Lamp Module L90 for MP4800 257892-001
Home Theater Kit HT180 for MP1200, MP4800 281729-001
CeilingMount Kit CM10 for MP1200, MP4800 281730-001
hp digital projector sb21 L1510A
hp digital projector xb31 L1511A
Ceiling Mount Kit for xb31 L1513A
M1-A to component/USB video cable for sb21, xb31 L1523A
M1-D to DVI/USB cable for sb21, xb31 L1529A
Lamp Module for sb21 L1515A
Lamp Module for xb31 L1516A
DA-11388 World Wide — Version 2 — September 16, 2002 8
QuickSpecs
Compaq Evo Notebook N1005v
Memory
Compaq Evo N1005v
STANDARD MEMORY PLUS OPTIONAL MEMORY
Support for up to 1024 MB of DDR SDRAM memory is available with the installation of optional DDR SDRAM Memory Kits.
Memory Slot 1 Slot 2
256 MB 256 MB -384 MB 256 MB 128 MB
512 MB 512 MB -768 MB 512 MB 256 MB
1024 MB 512 MB 512 MB
NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory
modules, we strongly recommend using only Compaq branded memory modules to ensure compatibility.
Following are memory options available from Compaq:
• 512-MB (266 MHz) DDR SDRAM Memory Upgrade 269087-B25
• 256-MB (266 MHz) DDR SDRAM Memory Upgrade 269086-B25
• 128-MB (266 MHz) DDR SDRAM Memory Upgrade 269085-B25
DA-11388 World Wide — Version 2 — September 16, 2002 9
QuickSpecs
p
Storage
Compaq Evo Notebook N1005v
1.
2.
3. Dedicated Disk Drive
Dedicated Optical Drive
Primary Hard Drive
RIVE SUPPORT
D
System Drive S upport Quantity
1.44-MB Diskette Drive 1 Dedicated Disk Drive
DVD/CD-RW Combo Drive 1 Dedicated O
DVD-ROM Drive 1 Dedicated Optical Drive
CD-ROM Drive 1 Dedicated Optical Drive
Hard Drives
40-GB SMART Hard Drive 1 Dedicated Hard Drive Bay
30-GB SMART Hard Drive 1 Dedicated Hard Drive Bay
20-GB SMART Hard Drive 1 Dedicated Hard Drive Bay
Supported
Drive Bay
Supported
tical Drive
DA-11388 World Wide — Version 2 — September 16, 2002 10
QuickSpecs
Technical Specifications
Compaq Evo Notebook N1005v
System Unit
Dimensions (H x W x D ) 15-inch and 14.1-inch TFT panel
displays
Weight 14.1-inch LCD,,CD-RW, DVD or
CD-ROM, 1 SODIMM
15-inch LCD, CD-RW, DVD or
CD-ROM, 1 SODIMM
NOTE: * = Weight varies by configuration.
Stand-Alone Power
Requirements
Power Supply
Temperature
Relative Humidity
Shock
Vibration
Maximum Altitude
(unpressurized)
Nominal Operating Voltage
(Li-Ion)
Average Operating Power 15.8 W
Peak Operating Power 38W
Power in suspend mode < 800 mW
Power in hibernation mode < 100 mW
Rated Input Voltage 90 to 264 VAC (auto-switching)
Rated Input Current < 60 W
Rated Frequency 50 to 60 Hz
Operating
Non-operating
Operating 10% to 90% relative humidity, non-condensing
Non-operating
Operating 10 G, 11 ms, half-sine
Non-operating 60 G, 11 ms, half-sine
Operating 0.5 G zero-to-peak, 10 to 500 Hz, 0.25 oct/min
Non-operating 1.0 G, zero-to-peak, 10 to 500 Hz, 0.5 oct/min
Operating 0 to 10,000 ft/0 to 3,048 m
Non-operating 0 to 30,000 ft/0 to 9,144 m
1.55 x 12.89 x 10.53 in/3.95 x 32.75 x 26.75 cm
6.60 lb/2.99 kg
6.87 lb/3.12 kg
14.4 V (8-cell)
50° to 95° F/10° to 35° C
14° to 140° F/–10° to 60° C
5% to 90% relative humidity, 101.6° F/38.7° C
Maximum wetbulb temperature
sweep rate
sweep rate
DA-11388 World Wide — Version 2 — September 16, 2002 11
QuickSpecs
Technical Specifications
Compaq Evo Notebook N1005v
14.1-Inch Color TFT XGA Display
15-Inch Color TFT SXGA+ Display
Dimensions (H x W)
Diagonal Size
Mounting
Number of Colors
Contrast Ratio
Brightness
Pixel Resolution
Backlight
Character Display
Total Power Consumption
Dimensions (H x W)
Diagonal Size
Mounting
Number of Colors
Contrast Ratio
Brightness
Pixel Resolution
Backlight
Character Display
Total Power Consumption
11.24 x 8.43 in/28.6 x 21.4 cm
14.1 in/35.7 cm
Internal Panel Supports, Side Mounted
Up to 16.8M
150:1
150nt typ
Pitch 0.264 x 0.264 mm
Format 1024 x 768
Configuration RGB stripe
Edge Lit
80 x 25
4.2 W
11.8 x 9 in/30.4 x 22.8 cm
15 in/38 cm
Internal Panel Supports, Side Mounted
Up to 16.8M
150:1
150nt typ
Pitch 0.218 x 0.218 mm
Format 1280 x 1024
Configuration RGB stripe
Edge Lit
80 x 25
5.75 W
DA-11388 World Wide — Version 2 — September 16, 2002 12
QuickSpecs
Technical Specifications
Compaq Evo Notebook N1005v
15-Inch Color TFT XGA Display
Hard Drives
40 GB
Dimensions (H x W)
Diagonal Size
Mounting
Number of Colors
Contrast Ratio
Brightness
Pixel Resolution
Backlight
Character Display
Total Power Consumption
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
11.8 x 9 in/30.4 x 22.8 cm
15 in/38 cm
Internal Panel Supports, Side Mounted
Up to 16.8M
150:1
150nt typ
Pitch 0.297 x 0.297 mm
Format 1024 x 768
Configuration RGB stripe
Edge Lit
80 x 25
5 W
40 GB
0.374 in/9.5 mm
2.75 in/70 mm
ATA-5
Synchronous (maximum) 100 MB/s (Drive Capability)
Security ATA Security
Single Track 3 ms
Average 13 ms
Maximum 25 ms
4200 rpm
78,140,160
41° to 131° F/5° to 55° C
DA-11388 World Wide — Version 2 — September 16, 2002 13
QuickSpecs
Technical Specifications
Compaq Evo Notebook N1005v
Hard Drives (continued)
30 GB
20 GB
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
30 GB
0.374 in/9.5 mm
2.75 in/70 mm
ATA-5
Synchronous (maximum) 100 MB/s (Drive Capability)
Security ATA Security
Single Track 2.5 ms
Average 12 ms
Maximum 23 ms
4200 rpm
~ 58,605,120
41° to 131° F/5° to 55° C
20 GB
0.374 in/9.5 mm
2.75 in/70 mm
ATA-5
Synchronous (maximum) 100 MB/s (Drive Capability)
Security ATA Security
Single Track 2.5 ms
Average 12 ms
Maximum 23 ms
4200 rpm
~39,070,080
41° to 131° F/5° to 55° C
DA-11388 World Wide — Version 2 — September 16, 2002 14
QuickSpecs
Technical Specifications
Compaq Evo Notebook N1005v
Diskette Drive
External AC Adapter
Lithium-Ion Battery Pack (8-cell )
Diskette Size
Activity Indicator
Height
Bytes per Sector
Sectors per track
Tracks per side
Read/Write heads
Access Times
Weight
Power Supply (Input)
Dimensions (L x W x D)
Weight
Energy
Temperature
3.5 in
On system
0.5 in/12.7 mm
512
High density 18 (1.44 MB)/15 (1.2 MB)
Low density 9
High density 80 (1.44 MB)/80 (1.2 MB)
Low density 80
2
Track-to track (high/low) 3 ms/6 ms
Average (high/low) 94 ms/174 ms
Settling time 15 ms
Latency average 100 ms
0.6 lb/0.272 kg
Operating Watts 65
Operating Voltage 110 to 240 VAC RMS
Operating Current 1.7 A RMS
Operating Frequency Range 47 to 63 Hz AC
Maximum Transient 4/50 kV
4.95 x 3.46 x 0.8 in/12.5 x 8.8 x 2 cm
0.96 lb/0.43 kg
Voltage 14.8 V
Amp-hour capacity Minimum 3.7 Ah
Typical 3.9 Ah
Watt-hour capacity Minimum 53.2 Wh
Typical 56.1 Wh
Operating
Non-operating
32° to 108° F/0° to 42° C
32° to 140° F/0° to 60° C
DA-11388 World Wide — Version 2 — September 16, 2002 15
QuickSpecs
Technical Specifications
Compaq Evo Notebook N1005v
DVD/CD-RW Drive
DVD-ROM Drive
Center Hole Diameter
Disk Diameter
Disk Thickness
Track Pitch
Access Times
(typical reads, including settling)
Audio Output Level
Cache Buffer
Data Transfer Rate
(typical, including settling)
Audio Output Level
Cache Buffer
Start-up Time
Stop Time
Center Hole Diameter
Disc Diameter
Disc Thickness
Track Pitch
Access Times
(typical reads, including settling)
Cache Buffer
Data Transfer Rate
(typical, including settling)
Start-up Time
Stop Time
15 mm
12 cm, 8 cm
1.2 mm
1.6 µm
Random CD < 120 ms
Full-Stroke CD < 175 ms
0.7-0.9 Vrms
2 Mbytes (minimum)
CD-ROM, CD-R Read Speed 3600 Kb/s
DVD-ROM Read Speed 8100 Kb/s
CD-R, CD-RW Write Speeds Sustained 1200 KB/s (8X CLV)
Single < 7 seconds (typical)
Multi-Session < 30 seconds (typical)
< 3 seconds (typical)
0.59 in/1.5 cm
12 cm/8 cm
1.2 mm
0.74 µm
Random (typical) < 125 ms DVD Media
Full-Stroke (typical) < 225 ms DVD Media
Random (typical) < 100 ms CD Media
Full-Stroke (typical) < 175 ms CD Media
512 KB/s (minimum)
Max 24X CD 3600 KB/s (150 KB/s at 1X CD rate)
Max 8X DVD 10,800 KB/s (1352 KB/s at 1X DVD rate)
Normal PIO Mode 4
(single burst)
< 12 seconds
< 3 seconds
16.6 MB/s
DA-11388 World Wide — Version 2 — September 16, 2002 16
QuickSpecs
Technical Specifications
Compaq Evo Notebook N1005v
24X CD-ROM Drive
802.11b MultiPort Module
Applicable Disk CD-ROM (Mode 1, 2 and 3), CD-XA ready (Mode 2, Form 1 and 2), CD-I ready
(Mode 2, Form 1 and 2), CD-R (read only), CD Plus, Photo CD (Single and
Multi-session), CD-Extra, Video CD, CD-WO (fixed packets only), CD-Bridge
Center Hole Diameter
Disk Diameter
Disk Thickness
Track Pitch
Access Times
(typical reads, including settling)
Audio Output Level
Cache Buffer
Data Transfer Rate
(typical, including settling)
Start-up Time
Stop Time
Form Factor Compaq ″MultiPort″
Weight 0.22 lb/100 g (maximum)
Operating Temperature Operating 14° to 149° F/–10° to 65° C
Storage Temperature Non-operating –40° to 176° F/–40° to 80° C
Humidity Operating 10 to 90%
Non-operating 5 to 95%
Altitude Operating 0 to 15,000 ft/4,572 m
Non-operating 0 to 40,000 ft/12,192 m
Plug and Play USB 1.1 compliant
Microsoft Windows Plug and Play compliant
RF Network Standa rd IEEE 802 Part 11b (802.11b)
Frequency Band 2,4000 to 2.4835 GHz
2,4465 to 2.4835 GHz (France)
2,4000 to 2,4697 GHz (Japan)
Number of Selectable
Sub-channels
Data Rates 1, 2, 5.5, 11 Mbps
Antenna type Internally integrated within module (with special polarization diversity)
WEP Security 64-bit encryption keys compliant to IEEE 802.11
128-bit encryption key compliant to IEEE 802.11
Ability to enter keys manually or via pass-phrase
Network Architecture Models Ad-hoc (Peer to Peer)
Infrastructure (Access Points Required)
0.59 in/15 mm
12 cm, 8 cm
0.047 in/1.2 mm
1.6 µm
Random < 110 ms
Full-Stroke < 220 ms
Line-out 0.7-0.9 Vrms
128 KB
CD-ROM 3600 KBs/Maximum
< 10 seconds
< 5 seconds
Worldwide Certification
United States (FCC) 11
France (FR) 4
Japan (JP) 14
Other countries 13
DA-11388 World Wide — Version 2 — September 16, 2002 17
QuickSpecs
Technical Specifications
Compaq Evo Notebook N1005v
802.11b MultiPort Module
(continued)
Modulation Technique Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK
Receiver Sensitivity –
Bit Error Rate (1E-5)
2 Mbps: -91 dBm
1 Mbps: -94 dBm
Maximum Receive Level –4 dBm
Output Power (approximately) 18 dBM
Operating Voltage 5V power operation
Power Management Keystroke Fn+F2 Power On/Off control
Power Consumption Transfer mode: < 600 mA, maximum
Receive mode: > 400 mA, maximum
Standby mode: > 1 mA, maximum
Transmit Power 10 to 100mW
Power Saving Option 802.11 Compliant Power Saving
Power Saving Mode selectable through the configuration utility
ACPI compliant power management
Media Access Protocol CSMA/CA (Collision Avoidance) with ACK
OS Support Microsoft Windows 98/98SE
Microsoft Windows 2000
Microsoft Windows Millennium
Microsoft Windows XP Home
Microsoft Windows XP Pro
Protocols Supported TCP/IP
IPX/SPX
UDP
LED Activity Flashing LED – AP Search Mode
Solid LED – On
LED Off – Power Off
11 Mbps: -85 dBm
5.5 Mbps: -87 dBm
It is preferable to have the user configurable output power to save battery life for
laptop users or in high AP coverage areas
DA-11388 World Wide — Version 2 — September 16, 2002 18
QuickSpecs
Technical Specifications
Compaq Evo Notebook N1005v
Throughput, Data Rate and Operating
Distance
Bluetooth MultiPort Module
Throughput Data Rate Operating Distance
> 4.5 Mbps 11 Mbps • 1000 feet – Open sight
• 100 feet – Closed space
(Steel Space)
> 2 Mbps 5.5 Mbps • 1100 feet – Open sight
• 200 feet – Closed space
(Steel Space)
> 700 Kbps 1 Mbps • 1200 feet – Open sight
• 300 feet – Closed space
(Steel Space)
Form Factor Compaq ″MultiPort″
Bluetooth 1.1 Compliant
Dimensions 2.2 x 6.6 x 0.55 in/5.6 x 16.7 x 1.4 cm
Weight 0.22 lb/100 g (maximum)
Temperature Operating 50° to 104°F/10° to 40°C
Non-operating –4° to 140°F/–20° to 60°C
Humidity Operating 10 to 90%
Non-operating 5 to 95%
Altitude Operating 0 to 10,000 ft/3,048 m
Non-operating 0 to 30,000 ft/9,144 m
Plug and Play USB 1.1 compliant
Microsoft Windows Plug and Play compliant
Frequency Band 2,4000 to 2.4835 GHz
Number of Available Channels 79 (1 MHz) available channels
Data Rates and throughput 1 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 723.2 kbps/57.6 kbps asymmetric or 433.9
kbps symmetric
Antenna type Internally integrated within module (with special polarization diversity)
Range 328 ft/100 m
Profile Support General Access Profile
Service Discovery Application Profile
Serial Port Profile
Generic Object Exchange Profile
File Transfer Profile
Synchronization Profile
Dial-Up Networking Profile
LAN Access Profile
Object Push Profile
DA-11388 World Wide — Version 2 — September 16, 2002 19
QuickSpecs
Technical Specifications
Compaq Evo Notebook N1005v
Bluetooth MultiPort Module
(continued)
Synchronization:
File Transfer:
Access Point:
Certifications All necessary regulatory approvals for countries we support including:
Usage Models Service Discovery
(determine what Bluetooth devices are within range and support authorization)
PDAs to PCs
Portable to Desktop
File and directory browsing and navigation on another Bluetooth device.
File copying
Object manipulation – including add, delete, create new folders etc.
Wireless link to Corporate LAN using several Bluetooth devices sharing the same
Corporate email, network neighborhood, access to LAN applications, file transfer, ftp,
Internet browsing, etc, using TCP/IP
Wireless link to WAN thru cell phone
GSM/SMS, PCS, PHS, DECT, RAM, ARDIS, CDPD, etc.
Agnostic to WAN technology
Send/receive SMS messages
Wireless link to Printer
Adhoc peer to peer networking (two computers) or Personal Area Networking (PAN)
using NDIS (< 7 computers)
Adhoc Bluetooth Pico-networking (point to multi-point)
Object Push – Business card or appointment exchange
Transmit Power < 20 dBM (Bluetooth Class 1)
Receive Sensitivity Better than –70 dBM at 0.1 % raw bit error rate
Link Topology Point to Point, Multipoint Pico Nets up to 7 slaves
Security Full support of Bluetooth Security Provisions
Network Architecture Models Ad-hoc (Peer to Peer)
Infrastructure (Access Points Required)
Power Requirement Peak < 1500 mW
Average < 500 mW
Standby < 250 mW
Power Management Microsoft Windows ACPI, and USB Bus Support
Ke ystrokes Fn+F2 Power On/Off control
Self configurable to optimize power conservation in all operating modes, including
Standby, Hold, Park, and Sniff
OS Support Microsoft Windows 98/98SE
Microsoft Windows 2000
Microsoft Windows Millennium
Microsoft Windows XP Home
Microsoft Windows XP Pro
Protocols Supported TCP/IP
IPX/SPX
UDP
LED Activity Solid Blue LED – On
LED Off – Power Off
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
DA-11388 World Wide — Version 2 — September 16, 2002 20
QuickSpecs
Technical Specifications
Compaq Evo Notebook N1005v
Type III Mini PCI 56K (V.92)
Modem
Form Factor Mini-PCI Type III per Specification
Power Management Support APM Revision 1.2, ACPI, Compaq Power Management Extensions for Microsoft
Windows NT
Approvals/Certifications UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15
Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark,
Other Countries
Data Mode Capabilities V.92 (a-law,mu-law)
V.90 (a-law, mu-law)
V.8bis
V.80
V.44 bis, MNP5 (compression)
V42.bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
V.34 (file date: 10/96)
Optional symbol rates:
2800, 3429
Asymmetric Symbol rates
Synchronous primary channe l data signaling rates:
3600, 31200
Automatic rate re-negotiation
V.32bis
V.32
V.23
V.22bis
V.22
V.21
Bell 212A
Bell 103J
Fax Mode Capabilities TIA-578-S (Class 1)
T.30, T.4 (Group 3)
V.17
V.29
V.27ter
V.21 Channel 2
Command Set V.250 (Partial)
TIA-602
Identification: +GMI, +GMM, +GMR
Port control: +IPR, +ICF, +IFC, +LIRR
Modulation: +MS, +MR, +MA
Error control: +ES, +ER, +EB, +ESR, +ETBM
Data compression: +DS, +DR
V.251
DA-11388 World Wide — Version 2 — September 16, 2002 21
QuickSpecs
Technical Specifications
Compaq Evo Notebook N1005v
Integrated 10/100 NIC
NIC Device Driver Name
Data Link Layers
Ethernet Features
Software support
Protocol support
Intel PRO/100 P Mobile Combo Adapter
IEEE 802.2 LLC
SNAP
10 Mbps Ethernet: IEEE 802.3 standard 10BASE-T
100 Mbps Ethernet: IEEE 802.3u standard 100BASE-TX
Full Duplex at 10 and 100Mbps
Auto-Negotiation
Wake on LAN from all power managed states, including soft off (S5)
Boot on LAN from OFF
Lower Power State on Link Loss
IBM LAN Server Version 1.2, 1.3, 2.0, 4.0
Microsoft NT 3.51, NT 4.0. Microsoft Windows 2000
Novell Netware 3.1x, 4.x, 5.x
TCP/IP
Novell IPX/SPX and Microsoft compatible
Novel IPX ODI
Microsoft NetBEUI
IBM DLC
Compaq PCs use genuine Microsoft Windows
http://www.microsoft.com/piracy/howtotell
©2002 Compaq Information Technologies Group, L.P. All rights reserved. Compaq, the Compaq logo, Evo, Armada, Deskpro, iPAQ, and ProLiant are
trademarks of Compaq Information Technologies Group, L.P. in the U.S. and/or other countries. Microsoft, Windows, and Windows NT are registered
trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Pentium, the Intel Inside Logo, and SpeedStep are trademarks of Intel
Corporation in the U.S. and/or other countries. BatteryMark is a trademark of Ziff Davis Publishing Holdings Inc., and affiliate of eTesting Labs Inc., in the U.S.
and other countries. IBM and Microdrive are registered trademarks or trademarks of IBM Corporation in the U.S. and/or other countries. Novell and Netware
are registered trademarks or trademarks of Novell Inc., in the U.S. and/or other countries. Bluetooth is a trademark of Bluetooth SIG, Inc., in the U.S. and
other countries. All other product names mentioned herein may be registered trademarks or trademarks of their respective companies.
Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information is provided ″as is″ without warranty of any kind and
is subject to change without notice. The warranties for Compaq products are set forth in the express limited warranty statements accompanying such
products. Nothing herein should be construed as constituting an additional warranty.
DA-11388 World Wide — Version 2 — September 16, 2002 22
Loading...
