Compaq CRT Monitor s7500, MV7500, CV7500 Service Manual

COLOR MONIT OR

SER VICE MANUAL

Website:http://biz.LGservice.com

E-mail:http://www.LGEservice.com/techsup.html

CAUTION

BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Coloreal

T
M

MODEL: S7500 (PE1165T), S7500 (PE1165),

MV7500 (PE1165U), MV7500 (PE1165),
CV7500 (PE1165U)

CHASSIS NO. : CA-1 10

F ACTORY MODEL: CQ771G

*( ) ID LABEL Model No.

1. PICTURE TUBE

Size : 17 inch
DefIection Angle : 90°
Neck Diameter : 29.1 mm
Dot Pitch : 0.28 mm
Face Treatment : Anti-Glare
Diagonal Inch : 16.06"

2. SIGNAL

2-1. Horizontal & Vertical Sync

1) Input Voltage Level: Low=0~1.2V, High=2.5~5.5V

2) Sync Polarity : Positive or Negative

2-2. Video Input Signal

1) Voltage Level : 0 ~ 0.7 Vp-p
a) Color 0, 0 : 0 Vp-p
b) Color 7, 0 : 0.467 Vp-p
c) Color 15, 0 : 0.7 Vp-p

2) Input Impedance : 75 Ω

3) Video Color : R, G, B Analog

4) Signal Format : Refer to the Timing Chart

2-3. Signal Connector

3 row 15-pin Connector (Attached)

2-4. Scanning Frequency

Horizontal : 30 ~ 70 kHz
Vertical : 50 ~ 140 Hz

3. POWER SUPPLY

3-1. Power Range

AC 100~240V , 50/60Hz, 2.0A

3-2. Power Consumption

4. DISPLAY AREA

4-1. Active Video Area :

• Max Image Size - 326.7 x 245.5 mm (12.86" x 9.67")

• Preset Image Size - 312 x 234 mm (12.28" x 9.21")
4-2. Display Color : Full Colors
4-3. Display Resolution : 1280 x 1024 / 60Hz

(Non-Interlace)

4-4. Video Bandwidth : 110 MHz

5. ENVIRONMENT

5-1. Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

(Ambient)

5-2. Relative Humidity : 8%~ 80%

(Non-condensing)

5-3. Altitude : 5,000 m

6. DIMENSIONS (with TILT/SWIVEL)

Width : 404.0 mm (15.90 inch)
Depth : 438.5 mm (17.26 inch)
Height : 426.0 mm (16.77 inch)

7. WEIGHT (with TILT/SWIVEL)

Net Weight : 15.1 kg (33.29 lbs.)
Gross Weight : 17.8 kg (39.24 lbs.)

CONTENTS

- 2 -

SPECIFICATIONS ................................................... 2

SAFETY PRECAUTIONS ........................................ 3

TIMING CHART ....................................................... 4

OPERATING INSTRUCTIONS ................................ 5

WIRING DIAGRAM ................................................. 6

BLOCK DIAGRAM ................................................... 7

DESCRIPTION OF BLOCK DIAGRAM.....................8

ADJUSTMENT ...................................................... 10

TROUBLESHOOTING GUIDE .............................. 12

EXPLODED VIEW...................................................22

REPLACEMENT PARTS LIST ............................... 24

PIN CONFIGURATION........................................... 29

PACKING AND ACCESSORIES............................ 31

SCHEMATIC DIAGRAM......................................... 32

PRINTED CIRCUIT BOARD................................... 34

SPECIFICATIONS

MODE

FULL POWER

STAND-BY

SUSPEND

POWER OFF

POWER CONSUMPTION

less than 100 W

less than 5 W
less than 5 W
less than 5 W

LED COLOR

GREEN
AMBER
AMBER

OFF

SAFETY-RELATED COMPONENT WARNING!

There are special components used in this color monitor
which are important for safety. These parts are marked

on the schematic diagram and the replacement

parts list. It is essential that these critical parts should be

replaced with the manufacturer's specified parts to
prevent X-radiation, shock, fire, or other hazards. Do not
modify the original design without obtaining written
permission from manufacturer or you will void the original
parts and labor guarantee.

CAUTION:

No modification of any circuit should be
attempted.
Service work should be performed only after
you are thoroughly familiar with all of the
following safety checks and servicing
guidelines.

SAFETY CHECK

Care should be taken while servicing this color monitor
because of the high voltage used in the deflection circuits.
These voltages are exposed in such areas as the
associated flyback and yoke circuits.

FIRE & SHOCK HAZARD

An isolation transformer must be inserted between the

color monitor and AC power line before servicing the
chassis.

• In servicing, attention must be paid to the original lead
dress specially in the high voltage circuit. If a short
circuit is found, replace all parts which have been
overheated as a result of the short circuit.

• All the protective devices must be reinstalled per the
original design.

• Soldering must be inspected for the cold solder joints,
frayed leads, damaged insulation, solder splashes, or
the sharp points. Be sure to remove all foreign
materials.

IMPLOSION PROTECTION

All used display tubes are equipped with an integral
implosion protection system, but care should be taken to
avoid damage and scratching during installation. Use only
same type display tubes.

X-RADIATION

The only potential source of X-radiation is the picture tube.
However, when the high voltage circuitry is operating
properly there is no possibility of an X-radiation problem.
The basic precaution which must be exercised is keep the
high voltage at the factory recommended level; the normal
high voltage is about 25.5kV. The following steps describe
how to measure the high voltage and how to prevent X­radiation.

Note : It is important to use an accurate high voltage

meter calibrated periodically.

• To measure the high voltage, use a high impedance
high voltage meter, connect (–) to chassis and (+) to
the CDT anode cap.

• Set the brightness control to maximum point at full
white pattern.

• Measure the high voltage. The high voltage meter
should be indicated at the factory recommended level.

• If the meter indication exceeds the maximum level,
immediate service is required to prevent the possibility
of premature component failure.

• To prevent X-radiation possibility, it is essential to use
the specified picture tube.

CAUTION:

Please use only a plastic screwdriver to protect yourself
from shock hazard during service operation.

SAFETY PRECAUTIONS

- 3 -

TIMING CHART

- 4 -

VIDEO

SYNC

C

E

D

F

AB

H – 37.500 26.667 20.317 6.349 2.032 3.810 0.508

V – 75.000 13.333 12.800 0.533 0.080 0.427 0.027

H – 31.469 31.778 25.422 6.356 3.813 1.907 0.636

V – 59.940 16.683 15.253 1.430 0.064 1.048 0.318

H – 43.269 23.112 17.778 5.334 1.556 2.222 1.556

V – 85.008 11.764 11.093 0.671 0.069 0.579 0.023

H – 31.470 31.778 25.422 6.356 3.813 1.907 0.636

V + 70.080 14.269 12.711 1.558 0.064 1.080 0.414

H + 46.880 21.330 16.160 5.170 1.620 3.230 0.320

V + 75.010 13.331 12.798 0.533 0.064 0.448 0.021

H + 53.674 18.631 14.222 4.409 1.138 2.702 0.569

V + 85.061 11.756 11.178 0.578 0.056 0.503 0.019

H + 60.023 16.660 13.003 3.657 1.219 2.235 0.203

V + 75.029 13.328 12.795 0.533 0.050 0.466 0.017

H + 68.677 14.561 10.836 3.725 1.061 2.201 0.508

V + 84.997 11.765 11.183 0.582 0.044 0.523 0.015

H + 63.98 15.63 11.85 3.78 1.04 2.30 0.44

V + 60.02 16.661 16.005 0.656 0.047 0.594 0.015

Mode

H/V

Sort

1

2

3

4

5

6

7

8

9

<< Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >>

Sync

Polarity

Frequency

Total Period

(E)

Video Active

Time (A)

Sync Duration

(D)

Blanking Time

(B)

Back Porch

(F)

Front Porch

(C)

640x480

75Hz

640x480

85Hz

720x400

70Hz

800x600

75Hz

800x600

85Hz

1024x768

75Hz

1024x768

85Hz

1280x1024

60Hz

640x480

60Hz

Resolution

- 5 -

OPERATING INSTRUCTIONS

C

o

l

o

r

e

a

l

T

M

FRONT VIEW REAR VIEW

AC Power Socket

Signal Connector

See Front Control Panel

Front Control Panel

1. Power/LED

Controls power to the monitor.
The LED on the power button is illuminated when the
power is on.

2. Right Adjustment

Moves clockwise through menu options or increases
adjustment levels.

3. Left Adjustment

M

oves counter-clockwise through menu options or

decreases adjustment levels.

4. Select

Launches on-screen displays, selects functions and
adjustments, and exits menus and On-Screen Display.

5. Hot Key

Left Adjustment
Just select left adjustment key without OSD display.
Contrast menu display.

Right adjuatment
Just select right adjustment key with OSD display.
Brightness menu display.

Power ON/OFF Button

2

3

4

1

Coloreal

T

M

WIRING DIAGRAM

- 6 -

P501

P201

P405

P301

P302

P303

P702

P701

T1

P402

P902

S

+

S

Signal
Cable

AC
Socket

FBT

BLOCK DIAGRAM

- 7 -

MENU

POWER

POWER INPUT

100~240VAC

(50/60Hz)

Line

Filter

Degaussing

Circuit

< OSD Control >

SMPS

TRANS

(T901)

SMPS

CONTROL

(IC901)

DPM

CONTROL

CIRCUIT

Voltage

Regulating

Circuit

80V

50V 15V

6.3V

TILT

Control

Circuit

6.3V

15V

E

2

PROM

(IC402)

H POSITION

BRIGHTNESS

CONTRAST

H SIZE

V POSITION

V SIZE

SPCC

TRAPEZOID

PIN BALANCE

PARALLELOGRAM

ROTATION

DEGAUSS

COLOR TEMPERADURE

FACTORY RECALL

EXIT

5V

OSD IC

(IC301)

NT6872

H-Sync Sig

V-Sync Sig

I

2

C DATA(SDA)

I

2

C CLOCK(SCL)

VIDEO

LM1269

PRE-AMP

(IC302)

Signal

Cable

R

G

B

VIDEO

LM2467

LM2480

CUT OFF IC

(IC304)

MAIN AMP

(IC303)

5V

5V

H/V Sync Processor

( IC701 )

TDA4857

V-OUT

( IC601)

TDA4866

H-OUT

( Q706)

H-Linearity

Correction

DC/DC Converter

X-RAY

Protection

Circuit

FBT

( T701 )

Dynamic

Focus

Circuit

Auto

Beam

Limit

Vertical Blanking,

Brightness Control

- 160V

40V

400V

STEP UP

15V

D/D Feed Back

15V

MICOM

(IC401)

SCL / SDA

H/V Sync,

PWM Control

15V

5V

15V

80V

15V

50V

DY CDT

Heater ( 6.3V )

I

2

C

I

2

C

I

2

C

H/V

Sync

G

1

Screen(G2)

Dynamic Focus

Static Focus

H.V

R/G/B

Drive/Contrast

Cut-Off

H-DRV

B-DRV

B+

15V

TILT

COIL

DEGAUSSING

COIL

I

2

C

Vout 1

Vout 2

+

C

o

lo

re

a

l

T

M

DESCRIPTION OF BLOCK DIAGRAM

- 8 -

1. Line Filter & Associated Circuit.

This is used for suppressing noise of power input line
flowing into the monitor and/or some noise generated in
this monitor flowing out through the power input line.
That is to say, this circuit prevents interference between
the monitor and other electric appliances.

2. Degauss Circuit & Coil.

The degauss circuit consists of the degaussing coil, the
PTC(Positive Temperature Coefficient) thermistor(TH901),
and the relay(RL901). This circuit eliminates abnormal
color of the screen automatically by degaussing the
shadow mask in the CRT during turning on the power
switch. When you need to degauss in using the monitor,
select DEGAUSS on the OSD menu.

3. SMPS(Switching Mode Power Supply).

This circuit is working of 90~264V AC(50/60Hz).
The operation procedure is as follows:

1) AC input voltage is rectified and smoothed by the bridge
diodes (D900) and the capacitor (C908).

2) The rectified voltage(DC) is applied to the primary coil
of the transformer(T901).

3) The control IC(IC901) generates switching pulse to turn
on and off the primary coil of the transformer (T901)
repeatedly.

4) Depending on turn ratio of the transformer, the
secondary voltages appear at the secondary coils of the
transformer(T901).

5) These secondary voltages are rectified by each
diode(D941, D942, D951, D961, D962, D971) and operate
other circuit. (horizontal and vertical deflection, video
amplifier, ...etc.)

4. Display Power Management Circuit.

This circuit control power consumption of the monitor by
detecting H and V sync signal. There are off mode. When no
horizontal or vertical sync signal input, the circuit consists of
Q941 and Q951 becomes off mode. It’s power consumption
is below 5W.

5. X-ray Protection.

If the high voltage of the FBT reaches up to 29kV (abnormal
state), IC401(MICOM) pin 35 Sensing from FBT directly.
Then MICOM control IC701 (Deflection controller) to stop
Horizontal drive pulse and stop Horizontal Deflection.

6. Micom(Microprocessor) Circuit.

The operating procedure of Micom(Microprocessor) and
its associated circuit is as follows:

1) H and V sync signal is supplied from the signal cable.

2) The Micom(IC401) distinguishes polarity and
frequency of H and V sync.

3) The Micom sets operating mode and offers the
controlled data. (H-size, H-position, V-size, ... etc.)

4) The controlled data of each mode is stored in itself.

5) User can adjust screen condition by each OSD
function. The data of the adjusted condition is stored
in EEPROM(IC402).

7. Horizontal and Vertical Synchronous Processor.

This circuit generates the horizontal drive pulse and the
vertical drive pulse by taking sync-signal from the Signal­Cable. This circuit consists of the TDA4857(IC701) and
the associated circuit.

8. D/D(DC to DC) Converter.

This circuit supplies DC voltage to the horizontal deflection
output circuit by increasing DC 50V which is the
secondary voltage of the SMPS in accordance with the
input horizontal sync signal.

9. Side-Pincushion & Trapezoid Correction Cirucit.

This circuit improves the side-pincushion and the
trapezoid distortion of the screen by mixing parabola and
saw-tooth wave to output of the horizontal deflection D/D
converter which is used for the supply voltage(B + ) of the
deflection circuit.

10. Horizontal Deflection Output Circuit.

This circuit makes the horizontal deflection by supplying
the saw-tooth current to the horizontal deflection yoke.

11. High Voltage Output & FBT(Flyback Transformer).

The high voltage output circuit is used for generating pulse
wave to the primary coil of the FBT(Flyback Transformer) .
A boosted voltage(about 25.5KV) appears at the
secondary of the FBT and it is supplied to the anode of the
CDT. And there are another output voltages such as the
dynamic focus and the screen voltage(G2).

12. H-Linearity Correction Circuit.

This circuit corrects the horizontal linearity for each
horizontal sync frequency.

13. Vertical Output Circuit.

This circuit takes the vertical ramp wave from the
TDA4857(IC701) and performs the vertical deflection by
supplying the saw-tooth current from the TDA4866(IC601)
to the vertical deflection yoke.

14. Dynamic Focus Output Circuit.

This circuit takes the horizontal and the vertical parabola
waves from the TDA4857(IC701) and amplifies it to
maintain constant focus on center and corners in the
screen.

- 9 -

15. H& V Blanking and Brightness Control.

Blanking circuit eliminates retrace line by supplying
negative pulse to the G1 of the CRT. And Brightness
circuit is used for control of the screen brightness.

16. Image Rotation (Tilt) Circuit.

This circuit corrects the tilt of the screen by supplying the
image rotation signal to the tilt coil which is attached near
the deflection yoke of the CRT.

17. OSD Circuit

This circuit is used for performing the OSD(On-Screen­Display) function.
When a user selects the OSD Select/Adjustment control,
the adjustment status displays on the screen.

18. Video Pre-Amp Circuit.

This circuit amplifies the analog video signal from 0-0.7V
to 0-4V. It is operated by taking the clamp, R, G, B drive
and contrast signal from the Micom(IC401).

19. Video Output Amp Circuit.

This circuit amplifies the video signal which comes from
the video pre-amp circuit and amplified it to applied the
CRT cathode.

- 10 -

ADJUSTMENT

GENERAL INFORMATION

All adjustment are thoroughly checked and corrected
when the monitor leaves the factory, but sometimes
several adjustments may be required.
Adjustment should be following procedure and after
warming up for a minimum of 30 minutes.

• Alignment appliances and tools.

- IBM compatible PC.

- Programmable Signal Generator.
(eg. VG-819 made by Astrodesign Co.)

- EPROM or EEPROM with saved each mode data.

- Alignment Adaptor and Software.

- Digital Voltmeter.

- White Balance Meter.

- Luminance Meter.

- High-voltage Meter.

AUTOMATIC AND MANUAL DEGAUSSING

The degaussing coil is mounted around the CDT so that
automatic degaussing when turn on the monitor. But a
monitor is moved or faced in a different direction, become
poor color purity cause of CDT magnetized, then

press

DEGAUSS on the OSD menu.

ADJUSTMENT PROCEDURE & METHOD

-Install the cable for adjustment such as Figure 1and run

the alignment program on the DOS for IBM compatible PC.

-Set external Brightness and Contrast volume to max position.

1. Adjustment for B+ Voltage.

1) Display cross hatch pattern at Mode 8.

2) Check C999 (+) voltage to 50± 0.5Vdc.

2. Adjustment for High-Voltage.

1) Display cross hatch pattern at Mode 8.

2) DIST.ADJ→CTRL PWM → High Voltage Command.

3) Adjust High Voltage to 25.5kV

±

0.3 kVdc.

4) Press Enter Key.

3. Adjustment for Factory Mode (Preset Mode).

1) Display cross hatch pattern at Mode 1.

2) Run alignment program for CQ771G on the IBM
compatible PC.

3) EEPROM → ALL CLEAR → Y(Yes) command.

<Caution> Do not run this procedure unless the
EEPROM is changed. All data in EEPROM (mode
data and color data) will be erased.

4) Power button of the monitor turn off → turn on.

5) COMMAND→PRESET START→Y(Yes) command.

6) DIST. ADJ. → CTRL PWM → TILT command.

7) Adjust tilt as arrow keys to be the best condition.

8) DIST. ADJ. → BALANCE command.

9) Adjust parallelogram as arrow keys to be the best
condition.

10)

Adjust balance of pin-balance as arrow keys to be

the best condition.

11)

DIST. ADJ. → FOS. ADJ command.

12)

Adjust V-SIZE as arrow keys to 234±2mm.

13)

Adjust V-POSITION as arrow keys to center of the
screen.

14)

Adjust H-SIZE as arrow keys to 312±2mm.

15)

Adjust H-POSITION as arrow keys to center of the
screen.

16)

Adjust S-PCC (Side-Pincushion) as arrow keys to be
the best condition.

17)

Adjust TRAPEZOID as arrow keys to be the best
condition.

18)

Save of the Mode 1.

19)

Display from Mode 1 to 8 and repeat above from
number 12) to 19)

20)

PRESET EXIT → Y (Yes) command.

4. Adjustment for White Balance and Luminance.

1) Set the White Balance Meter.

2) Press the DEGAUSS on the OSD menu for
demagnetization of the CDT.

3) COLOR ADJ. → LUMINANCE command of the
alignment program.

4) Set Brightness and Contrast to Max position.

5) Display color 0,0 pattern at Mode 8.

6) COLOR ADJ.→ BIAS ADJ.→ COLOR No. → 1
command of the alignment program.

7) Check whether green color or not at R-BIAS and G­BIAS to min position and B-BIAS to 127(7F) and
Sub-Brightness to 177(B1) position. Adjust G2
(screen) command to 0.4

±

0.05FL of the raster

luminance.

8) Adjust R-BIAS and G-BIAS command to x=0.283

±

0.005 and y=0.298

±

0.005 on the White Balance

Meter with PC arrow keys.

9)

Adjust SUB-Brightnesscommand to 0.5±0.1FL of the
raster luminance.

10)

Adjust repeat number 8).

11)

After push the “ENTER” key.

11-1)

COMMAND → PRESET START → Y(Yes) command.

12)

Display color 15,0 full white pattern at Mode 8.

13)

DRIVE ADJ.→ No 1. command.

- 11 -

14)

Set Brightness is cut-off(0.06FL) and Contrast to
Max position.

15)

Set SUB-CONTRAST Max 127(7F) (decimal) position.

16)

Set B-DRIVE to 90(5A); LG CDT at DRIVE of the

alignment program.

(TECO CDT: B-DRIVE 100(64))

17-1)

Adjust R-DRIVE and G-DRIVE command to white
balance x=0.283

±

0.003 and y=0.298±0.003 at Full-

White on the White Balance Meter with PC arrow keys.

17-2)

Display color 15,0 window pattern 5Box 50x50mm at
mode 8.

18)

Adjust SUB-CONTRAST command to 50±1FL at
B/Raster 0.06FL.

19)

Display color 15,0 full white patten at Mode 8.

20)

Set Brightness and Contrast to Max position.

21)

COLOR ADJ. → LUMINANCE → ABL command.

22)

Adjust ABL to 33±1FL of the luminance at B/Raster 0.06FL.

23)

After push the “ENTER” key, and “COMMAND →
PRESET EXIT → Y(Yes)” command.

24)

Exit from the program.

5. Input EDID Data.

1) Display color 15,0 cross hatch pattern at Mode 8.

2) EEPROM → Write EDID command and confirm
“EDID Write OK!!” message of monitor.

3) Exit from the alignment program.

4) Power switch OFF/ON for EDID data save.

6. Adjustment for Focus.

1) Set the Brightness and Contrast to max position.

2) Display cross hatch with quadrant text pattern in full
screen at Mode 8.

3) Adjust two Focus control on the FBT that focus
should be the best condition.

- 12 -

TROUBLESHOOTING GUIDE

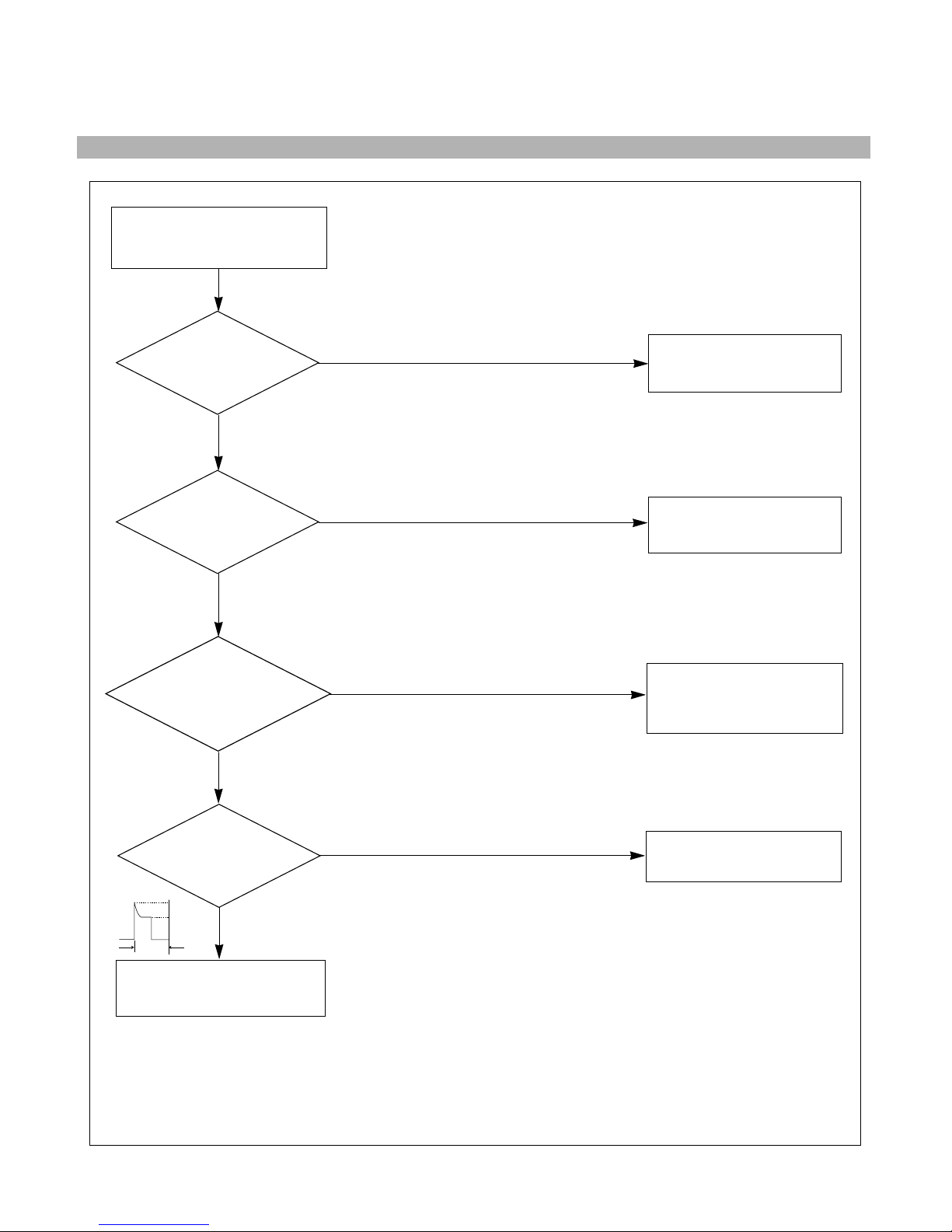

1. NO POWER

NO POWER

(POWER INDICATOR OFF)

TROUBLE IN
D900

TROUBLE IN FUSE
(F901)

TROUBLE IN
IC901

TROUBLE IN
D941, D942, D951,
D961, D962, D971

TROUBLE IN

Q903, Q952,

Q951, Q942, Q941

CHECK

FUSE OK?

CHECK

C908 VOLTAGE?

(AC120V: 160VDC,

AC220V: 304VDC)

NO

YES

YES

YES

YES

NO

NO

NO

CHECK

IC901 PIN 6

WAVEFORM

(SQUARE WAVE

COMES OUT?)

CHECK

D941, D942, D951, D961,

D962, D971
VOLTAGE?

- 13 -

2. NO CHARACTER

NO CHARACTER

CHECK

IC302

PIN 9(5V) ?

CHECK

IC302 PIN 5, 6, 7?

CHECK

IC302 PIN 20, 19, 18 ?

CHECK

IC303

PIN 1, 2, 3 ?

CHECK

IC303 PIN 4 (80V)

PIN 8 (12V) ?

TROUBLE IN
P302 5V LINE

TROUBLE IN
PC SIGNAL,
P301 SIGNAL CABLE

TROUBLE IN
IC302

TROUBLE IN
P303 12V LINE/

80V LINE

TROUBLE IN IC303

NO

YES

NO

NO

YES

YES

YES

YES

NO

NO

CHECK

R, G, B CATHODE

VOLTAGE?

TROUBLE IN
R341~R343,
R331~R333, L311~L313,
D307~D312

TROUBLE IN

CRT SOCKET

YES

NO

- 14 -

3. NO RASTER

NO VIDEO

(POWER INDICATOR ON)

CHECK

POWER INDICATOR

GREEN or AMBER?

CHECK

D712 ANODE

(-157V)?

CHECK

G1VOLTAGE?

(-55V~-150V)

TROUBLE IN
D712

TROUBLE IN
Q799

DPM MODE
(NO H and/or V SYNC)

AMBER

NO

GREEN

YES

NO

CHECK

CDT HEAT

VOLTAGE? (6.3V)

TROUBLE IN
D941, Q942, Q941

YES

NO

TROUBLE IN

CDT

YES

- 15 -

4. NO HORIZONTAL DEFLECTION

NO H-DEFLECTION

(ONE VERTICAL LINE)

CHECK

Q706?

CHECK

B+ VOLTAGE

(50V)?

CHECK

T701(FBT) PIN 2

(31KHZ 60V,

69KHZ 140V) ?

CHECK

Q701 COLLECTOR

WAVEFORM?

TROUBLE IN
Q706

TROUBLE IN
50V LINE

TROUBLE IN
Q719, Q720, D710

TROUBLE IN
Q701

TROUBLE IN
T701, P701

NO

NO

YES

YES

YES

YES

NO

NO

0V

T

- 16 -

5. TROUBLE IN H-LINEARITY

UNBALANCED OF H-LIN.

CHECK

IC401

PIN 5, 6, 7 ?

CHECK

Q711~Q716?

CHECK

L703?

TROUBLE IN
IC401 (MICOM)

TROUBLE IN
Q711 ~ Q716

TROUBLE IN
L703

TROUBLE IN
C722, C723, C726, C729

NO

NO

NO

YES

YES

YES

Cs SIGNAL TABLE

HORIZONTAL

FREQUENCY(fH)

30K ~ 33.9K
34K ~ 38.9K
39K ~ 43.9K
44K ~ 47.9K
48K ~ 51.9K
52K ~ 57.9K
58K ~ 61.9K
62K ~ 65.9K
66K ~ 70K

Cs1

L

L
H
H
H
H
H
H
H

Cs3

L
L

L
H
H

L

L
H
H

Cs0
255

155
130
100

85
70
60
60
30

Cs2

L

H

L
L

L
H
H
H
H

- 17 -

6. NO VERTICAL DEFLECTION

NO V-DEFLECTION

(ONE HORIZONTAL LINE)

CHECK

IC601 PIN 3

(15V)?

CHECK

IC601 PIN 7

(40V)?

CHECK

IC701 PIN 12, 13?

TROUBLE IN
R603 15V LINE

TROUBLE IN
HIGH-VOLTAGE OUT
CIRCUIT(FBT),
D721, R606

TROUBLE IN
IC701

TROUBLE IN
IC601, V-CIRCUIT

NO

NO

YES

YES

YES

NO

3V

- 18 -

7. TROUBLE IN OSD

TROUBLE IN
OSD PERIPHERAL
CIRCUIT

NO OSD

TROUBLE IN
5V LINE

TROUBLE IN
IC601 PIN8 (V-FBP),
T701 40V LINE (H-FBP)

TROUBLE IN
IC302, IC301

TROUBLE IN
IC301, IC302

NO

YES

DC 5V

YES

YES

YES

NO

NO

NO

Pin 5

5V

Pin 10

5V

H+V

5V

H+V

CHECK

IC301 B

+

(5V)

?

CHECK

IC301 PIN 12

WAVEFORM ?

(ENTER BUTTON MUST BE PRESSED.)

CHECK

IC301 PIN 5, 10

WAVEFORM?

CHECK

IC301 PIN 13, 14, 15 ?

- 19 -

8. TROUBLE IN DPM

CHECK

IC401 (MICOM)

PIN 31, 32 (H/V INPUT)

SIGNAL?

CHECK

IC401 PIN 13

WAVEFORM?

CHECK

IC401 (MICOM)

PIN 2, 3 ?

CHECK

B+LINE

(6.3V,15V, 80V) ?

CHECK PC,
(PC IS NOT GOING INTO
DPM OFF MODE)

TROUBLE IN
X401

TROUBLE IN
IC401 (MICOM)

TROUBLE IN
Q941, Q942, Q951, Q952,

TROUBLE IN PC

OFF MODE FAILURE

INPUT H/V SYNC SIGNAL

H/V SYNC

(NO OFF MODE.)

NO

NO

NO

NO (DPMF: 0V)

DPM TABLE

Mode

Item

NORMAL

STAND-BY

SUSPEND

OFF

LED
GREEN
AMBER
AMBER
AMBER

YES

YES

SEE DPM TABLE

YES

YES

5V

24MHz

DPMF

H

L
L
L

- 20 -

9. NO DEGAUSSING

CHECK

IC401 PIN 19

(0V)?

CHECK

Q953 COLLECTOR

VOLTAGE?

CHECK

P902 ?

CHECK
RL901?

TROUBLE IN
IC401 (MICOM)

TROUBLE IN
Q953

TROUBLE IN
P902

TROUBLE IN
RL901

TROUBLE IN
TH901,
DEGAUSSING COIL

NO DEGAUSSING

DC 15V

NO

NO

NO

NO

YES

YES

YES

YES

(DEGAUSS ON THE OSD MENU MUST BE PRESSED.)

- 21 -

10. NO TILT (NO ROTATION)

NO TILT (NO ROTATION)

TROUBLE IN
IC401 (

MICOM)

TROUBLE IN
15V LINE, 6.3V LINE

TROUBLE IN
Q501~Q503

TROUBLE IN
P501, TILT COIL, D521

NO

YES

YES

YES

CHECK

15V LINE

AND 6.3V LINE ?

CHECK

Q503 EMITTER

VOLTAGE ?

NO

NO

CHECK

IC401 PIN21

WAVE FORM ?

EXPLODED VIEW

- 22 -

8

B

A

2

1

4

3

11

11

6

7

5

10

12

13

9

EXPLODED VIEW PARTS LIST

Ref. No.

1

2

3

4
5
6
7
8

9
10
11
12
13

A

B

Part No.

3091TKC078A
3091TKC078B

6318L17006A
6318E17002A
6318E17002B
6318E17002C
6318E17002D
6318E17002E
6318E17002F
6318L17005A
6318L17005B
6318L17005C
6318L17007A

6318L17007B
3809TKC044A
3809TKC044B
3043TKK093C

339-002K

6140TC3004A

6174T11003E
6620TKB002B
6850TA9004C
4950TKS196A
4810TKK195A
6871TST292B

6401TZZ022B

3313T17258B

3313T17258D

6871TMT300B
6871TMT300D

- 23 -

Description

CABINET ASSEMBLY, CQ771G COMPAQ C072 TCO99 S7500 (PE1165T)
CABINET ASSEMBLY, CQ771G COMPAQ 072 MPR-II S7500(PE1165), CV7500(PE1165U), MV7500(PE1165U, PE1165)
CDT(CIRC), M41LFQ803X 55NLUD LG-PHILIPS 70KHZ 29.1MM FST TCO S7500 (PE1165T); Northern Hemisphere
CDT(CIRC), M41LRS102XX112 (Z) TECO 70KHZ 29.1MM FST MPR-II S7500 (PE1165); Northern Hemisphere
CDT(CIRC), M41LRS102XX112 (EZ) TECO 70KHZ 29.1MM FST TCO S7500 (PE1165T); Northern Hemisphere
CDT(CIRC), M41LRS102XX112 (NS)(Z) TECO 70KHZ 29.1MM CV7500, MV7500(PE1165U); Northern Hemisphere
CDT(CIRC), M41LRS102XX112 (QZ) TECO 70KHZ 29.1MM FST MPR-II S7500 (PE1165); Equatorial
CDT(CIRC), M41LRS102XX112 (NS)(QZ) TECO 70KHZ 29.1MM FST- MV7500(PE1165U); Equatorial
CDT(CIRC), M41LRS102XX112 (SZ) TECO 70KHZ 29.1MM FST MPR-II MV7500, S7500(PE1165); Southern Hemisphere
CDT(CIRC), M41LFQ803X55NLAA LG-PHILIPS 70KHZ 29.1MM FST MPR-II S7500(PE1165); Northern Hemisphere
CDT(CIRC), M41LFQ803X 55QLAA LG-PHILIPS 70KHZ 29.1MM FST MPR-II S7500(PE1165); Equatorial
CDT(CIRC), M41LFQ803X 55SLAA LG-PHILIPS 70KHZ 29.1MM

FST MPR-II

S7500, MV7500(PE1165); Southern Hemisphere

CDT(CIRC), M41LFQ503X 55NLLD LG-PHILIPS 70KHZ 29.1MM FST CV7500, MV7500(PE1165U); Northern Hemisphere
CDT(CIRC), M41LFQ503X 55QLLD LG-PHILIPS 70KHZ 29.1MM FST MV7500(PE1165U);Equatorial
BACK COVER ASSEMBLY, CQ771G C043 TCO99 COMPAQ S7500 (PE1165T)
BACK COVER ASSEMBLY, CQ771G C043 MPR-II COMPAQ

S7500(PE1165), CV7500(PE1165U), MV7500(PE1165U, PE1165)

TILT SWIVEL ASSEMBLY, CQ771G T062 B054 HF350U
SCREW ASSEMBLY, TAPTITE P TYPE D5.0 L25.0 MSWR/FZMY
COIL,DEGAUSSING, 1090MM 16.5OHM 0.4MM 110T 17" WITH EARTH
FBT (FLY BACK TRANSFORMER), 1054A,CB777G LG-PHILIPS 17" T701
SOCKET(CIRC),POWER, SA-4S HUA JIE AC UNIVERSAL 3PIN BLACK SC901
CABLE,D-SUB, UL 2990-9C(7.5) AT 1870MM COMPAQ BK EQ770G DM
METAL, FRAME BOTTOM CQ77XG
BRACKET, CQ77XG SUPPORTER CDT
PWB(PCB) ASSEMBLY,SUB, CQ771G(NT) CONTROL TOTAL COMPAQ CA-110
SPEAKER ASSEMBLY, CQ771G FOR COMPAQ(259139-001) SPK ASSY(L/R) BLACK MV7500(PE1165U)
MAIN TOTAL ASSEMBLY, CQ771G(NT,LG) COMPAQ CA-110 LG-PHILIPS CDT
MAIN TOTAL ASSEMBLY, CQ771G(NT,TECO) COMPAQ CA-110 TECO CDT
PWB(PCB) ASSEMBLY,MAIN, CQ771G(NT) KXLGMT(LG) COMPAQ CA-110 TOTAL LG-PHILIPS CDT
PWB(PCB) ASSEMBLY,MAIN, CQ771G(NT) KXLBNT(TECO) COMPAQ CA-110 TOTAL TECO CDT

- 24 -

DATE: 2002. 04. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C201 0CN1040K949 0.1M 50V Z F TA52
C301 181-288N MKT 100V 103JTR PHS86103
C302 0CE107CF638 100UF SHL,SD 16V M FM5 TP 5
C303 0CK1040K945 0.1UF 50V Z F TR
C304 181-288N MKT 100V 103JTR PHS86103
C305 0CE107CF638 100UF SHL,SD 16V M FM5 TP 5
C306 181-288N MKT 100V 103JTR PHS86103
C307 0CN5610K519 560P 50V K B TA52
C308 0CN1040K949 0.1M 50V Z F TA52
C309 0CK1040K945 0.1UF 50V Z F TR
C310 181-288B MKT 100V 104JTR PHS26104
C311 0CK1040K945 0.1UF 50V Z F TR
C312 0CN1040K949 0.1M 50V Z F TA52
C313 0CK1040K945 0.1UF 50V Z F TR
C314 0CC4700W405 47PF 500V J SL TP
C315 0CE476CF638 47UF SHL,SD 16V M FM5 TP 5
C316 0CK1010W515 100P 500V K B TS LPD CDT
C316 0CK1020W515 1000P 500V K B TS TECO CDT
C317 0CN1040K949 0.1M 50V Z F TA52
C318 0CK1040K945 0.1UF 50V Z F TR
C319 0CN1040K949 0.1M 50V Z F TA52
C320 0CK1040K945 0.1UF 50V Z F TR
C321 0CE475CK638 4.7UF SHL,SD 50V M FM5 TP 5
C322 0CN6810K519 680P 50V K B TA52
C323 0CE476CF638 47UF SHL,SD 16V M FM5 TP 5
C324 0CK1040K945 0.1UF 50V Z F TR
C325 181-288D MKT 100V 473JTR PHS26473
C326 0CE106CN638 10UF SHL,SD 100V M FM5 TP 5
C327 181-288B MKT 100V 104JTR PHS26104
C328 0CE106CN638 10UF SHL,SD 100V M FM5 TP 5
C329 181-288B MKT 100V 104JTR PHS26104
C330 181-288B MKT 100V 104JTR PHS26104
C331 181-288G MKT 100V 334JTR PHS26334
C332 181-288G MKT 100V 334JTR PHS26334
C333 181-288G MKT 100V 334JTR PHS26334
C334 181-288B MKT 100V 104JTR PHS26104
C335 181-288B MKT 100V 104JTR PHS26104
C336 181-288E MKT 100V 474JTR PHS 26474
C337 0CK5610K515 560P 50V K B TS
C338 0CK10302940 0.01M 2KV Z F S
C339 0CK4710W515 470P 500V K B TS
C340 0CK1040K945 0.1UF 50V Z F TR
C341 0CK10302940 0.01M 2KV Z F S
C342 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C343 0CC1000W105 10PF 500V D SL TR
C346 0CK10302940 0.01M 2KV Z F S
C351 0CC0400K115 4P 50V D NP0 TS
C352 0CC0400K115 4P 50V D NP0 TS
C353 0CC0400K115 4P 50V D NP0 TS
C354 0CC0400K115 4P 50V D NP0 TS
C355 0CC0400K115 4P 50V D NP0 TS
C356 0CC0400K115 4P 50V D NP0 TS
C358 0CK8210K515 820P 50V K B TS

DATE: 2002. 04. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C372 0CK1040K945 0.1UF 50V Z F TR
C401 0CN1040K949 0.1M 50V Z F TA52
C402 0CE476CF638 47UF SHL,SD 16V M FM5 TP 5
C403 0CK1040K945 0.1UF 50V Z F TR
C404 0CC1800K415 18P 50V J NPO TP
C405 0CC1800K415 18P 50V J NPO TP
C406 0CK1010K515 100PF 50V K B TR
C407 0CK1010K515 100PF 50V K B TR
C408 0CK1040K945 0.1UF 50V Z F TR
C409 0CC5600K415 56P 50V J NP0 TP
C410 0CK1010K515 100PF 50V K B TR
C411 0CK1040K945 0.1UF 50V Z F TR
C412 0CK1040K945 0.1UF 50V Z F TR
C413 0CK1040K945 0.1UF 50V Z F TR
C414 0CK1040K945 0.1UF 50V Z F TR
C501 0CE106CF638 10UF SHL,SD 16V M FM5 TP 5
C599 0CE225CK638 2.2UF SHL,SD 50V M FM5 TP 5
C601 0CE477EH618 470UF KMG 25V M FL TP 5
C602 181-288B MKT 100V 104JTR PHS26104
C603 0CE476CK638 47UF SHL,SD 50V M FM5 TP 5
C604 181-288T MKT 100V 223KTR PHS85223
C605 0CK1020W515 1000P 500V K B TS
C701 0CQ5621N419 5600P 100V J POLY NI TP
C702 0CZZTFT001M ECQB1H103JM3 103J 50V TP5.0 MA
C703 0CZZTFT001Z ECQB1H104JM3 104J 50V TP5.0 MA
C704 0CQ8221N519 0.0082U 100V K POLY NI TP
C705 0CE476CF638 47UF SHL,SD 16V M FM5 TP 5
C706 0CZZTFT001Z ECQB1H104JM3 104J 50V TP5.0 MA
C707 0CZZTFT002B ECQV1H154JZ3 154J 50V TP5.0 MA
C708 0CE227CH638 220UF SHL,SD 25V M FM5 TP 5
C709 181-288P MKT 100V 153JTR PHS86153
C710 0CK1040K945 0.1UF 50V Z F TR
C711 0CQ5621N419 5600P 100V J POLY NI TP
C712 0CE475CK638 4.7UF SHL,SD 50V M FM5 TP 5
C713 0CQ1031N419 0.01U 100V J POLY NI TP
C716 0CK2710K515 270P 50V K B TS
C717 0CE105CN638 1UF SHL,SD 100V M FM5 TP 5
C718 181-288D MKT 100V 473JTR PHS26473
C719 0CZZTAB001A SM-BP(P)/BP 10UF 50V 13*25 BK5
C720 0CK22101515 220P 1KV K B TP5
C721 181-477M 822J 19.5*12.0*7.0*7.5 250V J
C722 181-303G 334J 31.0*22.0*15.0*20.0 250V
C723 181-305C 154J 19.0*14.0*8.0*10.0 250V J LPD CDT
C723 181-305E MPP 250V 224J S=10.0 TECO CDT
C724 0CN1040K949 0.1M 50V Z F TA52
C726 181-482H 364J 18.0*19.0*12.0*7.5 250V J
C727 0CN1040K949 0.1M 50V Z F TA52
C728 0CQ5621N419 5600P 100V J POLY NI TP
C729 181-305L 684J 26.0*19.0*12.5*15.0 250V
C730 0CN1040K949 0.1M 50V Z F TA52
C731 0CBZTBU004H 5600PF D 2.5KV H M/PP NI FM20 LPD CDT
C731 0CBZTBU004G 622J 29.0*21.0*10.0*20.0 2.5KV TECO CDT
C732 0CQ1031N419 0.01U 100V J POLY NI TP
C733 0CBZTBU003H 362J 20.0*12.0*7.0*10.0 800V J

REPLACEMENT PARTS LIST

CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,

READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.

* NOTE : S SAFETY Mark

AL ALTERNATIVE PARTS

CAPACITORS

DATE: 2002. 04. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C737 0CKZTTA002N 100PF K 2KV R TP5.0
C738 0CKZTTA003D SC SAMWHA 250V 1000F M TAPING
C739 0CE226CK638 22UF SHL,SD 50V M FM5 TP 5
C740 0CE227EL630 220UF KMG 63V M FM5 BULK
C741 0CZZTFT002B ECQV1H154JZ3 154J 50V TP5.0 MA
C742 0CZZTFT001R ECQB1H223JM3 223J 50V TP5.0 MA
C743 0CK3310W515 330P 500V K B TS
C744 0CE107CP630 100UF SHL 160V M FM5 BULK
C745 0CK5610W515 560P 500V K B TS
C746 0CK33101515 330P 1KV K B TS
C747 0CK3320W515 3300P 500V K B TS
C748 0CZZTFT002B ECQV1H154JZ3 154J 50V TP5.0 MA
C749 0CE2256R638 2.2000UF SMS 250V M FM5 TP5
C750 0CK1040K945 0.1UF 50V Z F TR
C751 181-288N MKT 100V 103JTR PHS86103
C752 0CQ4721N419 0.0047U 100V J POLY NI TP5
C754 0CC4700W405 47PF 500V J SL TP
C755 181-288B MKT 100V 104JTR PHS26104
C767 0CK10301510 0.01M 1KV K B S
C771 0CK10301510 0.01M 1KV K B S
C773 0CE107CH638 100UF SHL,SD 25V M FM5 TP 5
C774 181-288B MKT 100V 104JTR PHS26104
C775 0CK2210K515 220P 50V K B TS
C781 0CK1030K945 0.01UF 50V Z F TR
C801 0CK1040K945 0.1UF 50V Z F TR
C802 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C805 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C810 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C821 0CK1040K945 0.1UF 50V Z F TR
C822 0CN1040K949 0.1M 50V Z F TA52
C901 0CBZTBU002B BULK PCX2 335 474K
C902 0CBZTBU002A BULK PCX2 335 224K
C903 0CKZTTA003A SC E 222M 10.0FF7 250V TP7.5 S
C904 0CKZTTA003A SC E 222M 10.0FF7 250V TP7.5 S
C905 0CE476EK638 47UF KMG 50V M FM5 TP 5
C906 0CK3320K515 3300P 50V K B TS
C908 181-124R 220UF SMG(25.4*40) 400V M VNSN
C909 181-304T 273J 19.5*14.0*8.5*10.0 400V J
C910 0CK33101515 330P 1KV K B TS
C911 0CQ1021N419 1000P 100V J POLY NI TP
C912 0CKZTTA003D SC SAMWHA 250V 1000F M TAPING
C913 0CKZTTA003D SC SAMWHA 250V 1000F M TAPING
C914 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.5 S
C914 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.5 S
C915 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.5 S
C915 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.5 S
C941 0CE108EF630 1000UF KMG 16V M FM5 BULK
C942 0CE107CF638 100UF SHL,SD 16V M FM5 TP 5
C943 0CKZTTA002A 220PF K 1KV R TP5.0
C944 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.5 S
C944 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.5 S
C945 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.5 S
C945 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.5 S
C951 0CE228EH630 2200UF KMG 25V M FM5 BULK
C952 0CE227CH638 220UF SHL,SD 25V M FM5 TP 5
C953 0CE107CF638 100UF SHL,SD 16V M FM5 TP 5
C954 0CE108ED618 1000UF KMG 10V M FL TP 5
C971 0CE476EN618 47UF KMG 100V M FL TP 5
C999 0CE337EN630 330UF KMG 100V M FM5 BULK

DATE: 2002. 04. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

D201 0DL305029BA LTL-305DJ-0C2 TP LITEON GREEN/
D301 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D302 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D303 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D304 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D305 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D306 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D307 0DS124409AA 1SS244 TP ROHM KOREA
D308 0DS124409AA 1SS244 TP ROHM KOREA
D309 0DS124409AA 1SS244 TP ROHM KOREA
D310 0DS124409AA 1SS244 TP ROHM KOREA
D311 0DS124409AA 1SS244 TP ROHM KOREA
D312 0DS124409AA 1SS244 TP ROHM KOREA
D313 0DS124409AA 1SS244 TP ROHM KOREA
D314 0DS124409AA 1SS244 TP ROHM KOREA
D315 0DS124409AA 1SS244 TP ROHM KOREA
D316 6210TCE003J BAS2550T BO SUNG 2550MM AXIAL5
D317 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D401 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D402 0DD140009AA EK14 V(1) TP SANKEN E/EO-TMD 4
D403 0DRGS00149A 1N5817 GENERAL SEMICONDUCTOR T
D512 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D701 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D702 0DS124409AA 1SS244 TP ROHM KOREA
D704 0IPMGSK004A STR-G8644D(LF1140) SANKEN 5P S
D705 0DR140059DA 1N4005TB52 TP LITEON DO41 600V
D706 0DR359150AA BY359F-1500 BK PHILIPS SOD10
D709 0DR400409AB UF4004 TP G.I DO204AL 400V 1A
D710 0DR320400AA S3L20U-4004P15 BK SHINDENGEN N
D711 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D712 0DR100009CA RGP10G TP GULF SEMICONDUCTOR L
D714 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D715 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D716 0DR140059DA 1N4005TB52 TP LITEON DO41 600V
D717 0DR140059DA 1N4005TB52 TP LITEON DO41 600V
D718 0DR140059DA 1N4005TB52 TP LITEON DO41 600V
D719 0DR100009DA RGP10J TP GULF SEMICONDUCTOR L
D720 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D721 0DR100009CA RGP10G TP GULF SEMICONDUCTOR L
D723 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D724 0DR140059DA 1N4005TB52 TP LITEON DO41 600V
D725 0DS124409AA 1SS244 TP ROHM KOREA
D730 971-0016 TIN HDC 0.60H
D735 0DR140059DA 1N4005TB52 TP LITEON DO41 600V
D741 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D767 0DR100009DA RGP10J TP GULF SEMICONDUCTOR L
D768 971-0016 TIN HDC 0.60H
D801 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D802 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D821 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D900 0DD360000DA D3SBA60 BK SHINDENGEN 600V 2
D902 0DR153979AA 1N5397GP TP G.I DO201AD 600V 1
D903 0DR100009CA RGP10G TP GULF SEMICONDUCTOR L
D905 0DD400709CB UF4007 TP G.I DO204AL 1000V 1
D906 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D908 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D941 0DRGS00330A RGP15D(L-5700) GENERAL SEMICON
D942 0DRGS00089A SB1H100 GENERAL SEMICONDUCTOR
D951 0DR540400AA UF5404L BK G.I DO201AD 400V 3A
D952 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D961 0DRGS00090A 31GF6L-5701 GENERAL SEMICONDUC

- 25 -

DIODEs

DATE: 2002. 04. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

D962 0DRGS00090A 31GF6L-5701 GENERAL SEMICONDUC
D971 0DR100009DA RGP10J TP GULF SEMICONDUCTOR L
ZD201 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD202 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD203 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD301 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD302 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD401 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD402 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD404 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD405 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD406 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD407 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD410 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD411 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD701 0DZ110009CF GDZJ11B TP GRANDE DO34 0.5W 11
ZD702 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD705 0DZ510009BE GDZ5.1B TP GRANDE DO34 500MW 5
ZD901 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD902 0DZ510009BE GDZ5.1B TP GRANDE DO34 500MW 5

IC301 0IPRPNV008A NT68272-20018 NOVATEK 16,DIP S
IC302 0IPRPNS003A LM1269NA NATIONAL SEMICONDUCTO
IC303 0IPRPNS004A LM2467TA NATIONAL SEMICONDUCTO
IC304 0IPRPNS005A LM2480NA NATIONAL SEMICONDUCTO
IC401 0IZZTSZ176A SS 42PIN ST COMPAQ 4KEY CA-110
IC402 0ISG240860A M24C08-BN6 8DIP BK 8K SERIAL I
IC403 0IKE704200H KIA7042AP TO-92 TP 4.2 VOLT.
IC601 0IPH486600C TDA4866J 9P ST VERTICAL OUTPUT
IC701 0IPRPPH008A TDA4857PS(V2) PHILIPS SDIP32 S
IC901 0IPMGSK004A STR-G8644D(LF1140) SANKEN 5P S

L301 0LA0560K119 0.56UH K 2.3*3.4 TP
L302 0LA0560K119 0.56UH K 2.3*3.4 TP
L303 0LA0560K119 0.56UH K 2.3*3.4 TP
L304 0LA1000K119 100UH K 2.3*3.4 TP
L311 0LA0680K119 0.68UH K 2.3*3.4 TP
L312 0LA0680K119 0.68UH K 2.3*3.4 TP
L313 0LA0680K119 0.68UH K 2.3*3.4 TP
L501 0LA1000K119 100UH K 2.3*3.4 TP
L502 0LA1000K119 100UH K 2.3*3.4 TP
L702 6140TBZ025C DR14*20 150UH 0.12*25MM 51T H­L703 6140TYZ011A DR 14*15-C5.2 14*9T 4.5UH 0.12
L705 6140TBZ026C DR15*18-C9.8 100UH 0.1*30MM 40
L901 6200TLS004B SQE2424 15MH 0.55MM 70T CB775C
FB201 6210TCE003J BAS2550T BO SUNG 2550MM AXIAL5
FB301 6210TCE003F BRD3580B BO SUNG 3580MM RADIAL
FB302 6210TCE003J BAS2550T BO SUNG 2550MM AXIAL5
FB303 6210TCE003J BAS2550T BO SUNG 2550MM AXIAL5
FB304 6210TCE003J BAS2550T BO SUNG 2550MM LPD CDT
FB304 971-0016 TIN HDC 0.60H TECO CDT
FB305 6210TCE003J BAS2550T BO SUNG 2550MM AXIAL5
FB306 6210TCE003N BRD3565B BO SUNG 3565MM RADIAL
FB308 6210TCE003G BRS3550B BO SUNG 3550MM RADIAL
FB309 971-0016 TIN HDC 0.60H
FB310 6210TCE003A BRD3510B BO SUNG 3510MM RADIAL
FB311 6210TCZ001J BAS3550T0(125-022J) BO SUNG RH
FB312 6210TCZ001J BAS3550T0(125-022J) BO SUNG RH

DATE: 2002. 04. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

FB313 6210TCZ001J BAS3550T0(125-022J) BO SUNG RH
FB314 6210TCE003J BAS2550T BO SUNG 2550MM AXIAL5
FB401 6210TCE003J BAS2550T BO SUNG 2550MM AXIAL5
FB402 6210TCE003J BAS2550T BO SUNG 2550MM AXIAL5
FB403 6210TCE003J BAS2550T BO SUNG 2550MM AXIAL5
FB701 6210TCE003J BAS2550T BO SUNG 2550MM AXIAL5
FB703 6210TCE003B BRS3580B BO SUNG 3580MM RADIAL
FB705 6210TCE003L BAS3580T BO SUNG 3580MM AXIAL5
FB901 6210TCE003P BRS2550B BO SUNG 2550MM RADIAL
FB904 6210TCE003K BAS3550T BO SUNG 3550MM AXIAL5
FB913 6210TCE003P BRS2550B BO SUNG 2550MM RADIAL
FB921 6210TCE003A BRD3510B BO SUNG 3510MM RADIAL
FB922 6210TCE003H BAS3510T BO SUNG 3510MM AXIAL5
FB923 6210TCE003F BRD3580B BO SUNG 3580MM RADIAL
FB951 6210TCE003J BAS2550T BO SUNG 2550MM AXIAL5

Q501 0TR320209AA KTC3202-Y(KTC1959) TP KEC TO92
Q502 0TR127009AA KTA1270-Y(KTA562TM) TP KEC TO9
Q503 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92
Q701 0TR200009AB KTC200-Y TP KEC TO92 NPN
Q706 0TR580301AA FAIRCHILD KSC5803(TBTU) ST TO­Q707 0TR127009AA KTA1270-Y(KTA562TM) TP KEC TO9
Q708 0TR127009AA KTA1270-Y(KTA562TM) TP KEC TO9
Q709 0TR141300AB KTD1413 BK KEC TO220I S NPN
Q710 0TR440009CA KSP44 TP SAMSUNG
Q711 0TF630000CA IRFS630A BK SAMSUNG 200V 6.5A
Q712 0TF630000CA IRFS630A BK SAMSUNG 200V 6.5A
Q713 0TF630000CA IRFS630A BK SAMSUNG 200V 6.5A
Q714 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92
Q715 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92
Q716 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92
Q719 0TF630000CA IRFS630A BK SAMSUNG 200V 6.5A
Q720 0TR390409CA 2N3904 TP SAMSUNG TO92 NPN
Q722 0TR319809AB KTC3198-GR(KTC1815) TP KEC TO9
Q723 0TR126609AA KTA1266-Y(KTA1015) TP KEC TO92
Q799 0TR920009AB KSP92 TP SAMSUNG TO92 HIGH VOL
Q821 0TR216101AA KTD2161-Y ST KEC TO220AB NPN T
Q903 0TRFC10003A FAIRCHILD KSD882Y-S ST TO126 4
Q903 4921TKK356B KSD882 C009A CQ771G NT
Q941 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92
Q942 0TR928009AB KSA928A-Y TP SAMSUNG TO92L PNP
Q951 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92
Q952 0TR928009AB KSA928A-Y TP SAMSUNG TO92L PNP
Q953 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92

R201 0RD1001Q609 1K 1/4W(3 5% TA52
R202 0RD1100Q609 110 1/4W(3 5% TA52
R203 0RD1001Q609 1K 1/4W(3 5% TA52
R204 0RD1100Q609 110 1/4W(3 5% TA52
R205 0RD9100Q609 910 1/4W(3 5% TA52
R206 0RD6800Q609 680 1/4W(3 5% TA52
R210 0RD2200Q609 220 1/4W(3 5% TA52
R211 0RD2200Q609 220 1/4W(3 5% TA52
R301 0RD0752Q609 75 1/4W(3 5% TA52
R302 0RD0752Q609 75 1/4W(3 5% TA52
R303 0RD0752Q609 75 1/4W(3 5% TA52
R304 0RN1202F409 12K 1/6W 1% TA52
R305 0RD5601Q609 5.60K 1/4W(3 5% TA52

- 26 -

TRANSISTOR

COILs & COREs

RESISTORs

ICs

DATE: 2002. 04. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R306 0RD5601Q609 5.60K 1/4W(3 5% TA52
R307 0RD1004Q609 1M OHM 1/4 W (3.4) 5% TA52
R310 0RD1002Q609 10K 1/4W(3 5% TA52
R311 0RD1502Q609 15K 1/4W(3 5% TA52
R312 0RD1001Q609 1K 1/4W(3 5% TA52
R314 0RD1000Q609 100 1/4W(3 5% TA52
R315 0RD1000Q609 100 1/4W(3 5% TA52
R316 0RD1000Q609 100 1/4W(3 5% TA52
R317 0RD1000Q609 100 1/4W(3 5% TA52
R318 0RD1000Q609 100 1/4W(3 5% TA52
R319 0RD1000Q609 100 1/4W(3 5% TA52
R320 0RD2001Q609 2K 1/4W(3 5% TA52
R321 0RD2200Q609 220 1/4W(3 5% TA52
R322 0RD2200Q609 220 1/4W(3 5% TA52
R323 0RD2200Q609 220 1/4W(3 5% TA52
R324 0RD2200Q609 220 1/4W(3 5% TA52
R327 0RD1001Q609 1K 1/4W(3 5% TA52
R328 0RD1001Q609 1K 1/4W(3 5% TA52
R329 0RD1001Q609 1K 1/4W(3 5% TA52
R330 0RD1000Q609 100 1/4W(3 5% TA52
R331 0RD1500Q609 150 1/4W(3 5% TA52
R332 0RD1500Q609 150 1/4W(3 5% TA52
R333 0RD1500Q609 150 1/4W(3 5% TA52
R334 0RD3303Q609 330K 1/4W(3 5% TA52
R335 0RD3303Q609 330K 1/4W(3 5% TA52
R336 0RD3303Q609 330K 1/4W(3 5% TA52
R337 0RD1000Q609 100 1/4W(3 5% TA52
R340 0RN1002F409 10K 1/6W 1 TA52
R341 0RD0332A609 33 OHM 1/2 W (7.0) 5% TA52
R342 0RD0332A609 33 OHM 1/2 W (7.0) 5% TA52
R343 0RD0332A609 33 OHM 1/2 W (7.0) 5% TA52
R344 0RD0332Q609 33 1/4W(3 5% TA52
R345 0RD0332Q609 33 1/4W(3 5% TA52
R346 0RD0332Q609 33 1/4W(3 5% TA52
R347 0RD1200Q609 120 1/4W(3 5% TA52
R348 0RC9104A609 9.1M OHM 1/2 W(7.0) 5% TA52
R388 0RD1000Q609 100 1/4W(3 5% TA52
R389 0RD1000Q609 100 1/4W(3 5% TA52
R390 0RD1000Q609 100 1/4W(3 5% TA52
R401 0RD1000Q609 100 1/4W(3 5% TA52
R402 0RD1002Q609 10K 1/4W(3 5% TA52
R403 0RD2200Q609 220 1/4W(3 5% TA52
R404 0RD1000Q609 100 1/4W(3 5% TA52
R405 0RD1000Q609 100 1/4W(3 5% TA52
R406 0RD2001Q609 2K 1/4W(3 5% TA52
R407 0RD2001Q609 2K 1/4W(3 5% TA52
R408 0RD3302Q609 33K 1/4W(3 5% TA52
R409 0RD1300Q609 130 1/4W(3 5% TA52
R410 0RD1300Q609 130 1/4W(3 5% TA52
R412 0RD2001Q609 2K 1/4W(3 5% TA52
R413 0RD1001Q609 1K 1/4W(3 5% TA52
R414 0RD1001Q609 1K 1/4W(3 5% TA52
R415 0RD1001Q609 1K 1/4W(3 5% TA52
R416 0RD1801Q609 1.80K 1/4W(3 5% TA52
R417 0RD1001Q609 1K 1/4W(3 5% TA52
R418 0RD3901Q609 3.90K 1/4W(3 5% TA52
R419 0RD1002Q609 10K 1/4W(3 5% TA52
R421 0RD1002Q609 10K 1/4W(3 5% TA52
R422 0RD1001Q609 1K 1/4W(3 5% TA52
R423 0RD5600Q609 560 1/4W(3 5% TA52
R430 0RD1000Q609 100 1/4W(3 5% TA52
R431 0RD1000Q609 100 1/4W(3 5% TA52

DATE: 2002. 04. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R432 0RD1000Q609 100 1/4W(3 5% TA52
R433 0RD1202Q609 12K 1/4W(3 5% TA52
R434 0RD1202Q609 12K 1/4W(3 5% TA52
R445 0RD1002Q609 10K 1/4W(3 5% TA52 TECO CDT
R446 0RD1002Q609 10K 1/4W(3 5% TA52 LPD CDT
R501 0RD0102A609 10 OHM 1/2 W (7.0) 5% TA52
R508 0RD4702Q609 47K 1/4W(3 5% TA52
R515 0RD1502Q609 15K 1/4W(3 5% TA52
R597 0RD3902Q609 39K 1/4W(3 5% TA52
R598 0RD6801Q609 6.80K 1/4W(3 5% TA52
R599 0RD0202Q609 20 1/4W(3 5% TA52
R601 0RD1001Q609 1K 1/4W(3 5% TA52
R602 0RD1001Q609 1K 1/4W(3 5% TA52
R603 0RN0390H609 0.39 1/2W 5 TA52
R604 0RD0111A609 1.1 OHM 1/2 W (7.0) 5% TA52
R605 0RD0102A609 10 OHM 1/2 W (7.0) 5% TA52
R606 0RD1000A609 100 OHM 1/2 W (7.0) 5% TA52
R607 0RN5101F409 5.10K 1/6W 1% TA52
R608 0RD2700A609 270 OHM 1/2 W (7.0) 5% TA52 LPD CDT
R608 0RD2000A609 200 OHM 1/2 W (7.0) 5% TA52 TECO CDT
R610 0RD1101Q609 1.1K OHM 1/4 W (3.4) 5% TA52
R612 0RN5101F409 5.10K 1/6W 1% TA52
R613 0RD1801Q609 1.80K 1/4W(3 5% TA52
R700 0RX0221K607 2.2 OHM 2 W 5% TA62
R701 0RD1500A609 150 OHM 1/2 W (7.0) 5% TA52
R702 0RD5601Q609 5.60K 1/4W(3 5% TA52
R703 0RD0272Q609 27 OHM 1/4 W (3.4) 5% TA52
R704 0RD3601Q609 3.60K 1/4W(3 5% TA52
R705 0RD1602Q609 16K 1/4W(3 5% TA52
R706 0RN2701F409 2.70K 1/6W 1% TA52
R707 0RN3301F409 3.30K 1/6W 1% TA52
R708 0RN1001F409 1K 1/6W 1% TA52
R709 0RD2202Q609 22K 1/4W(3 5% TA52
R710 0RD1000Q609 100 1/4W(3 5% TA52
R711 0RD1000Q609 100 1/4W(3 5% TA52
R712 0RD5100Q609 510 1/4W(3 5% TA52
R713 971-0016 TIN HDC 0.60H
R714 0RN1501F409 1.5K 1/6W 1 TA52
R714-1 0RN3001F409 3K 1/6W 1% TA52
R714-2 0RN6200F409 620 1/6W 1% TA52
R715 0RD2702Q509 27K OHM 1/4 W(3.4) 2% TA52
R716 0RD1004Q609 1M OHM 1/4 W (3.4) 5% TA52
R717 0RD6801Q609 6.80K 1/4W(3 5% TA52
R718 971-0016 TIN HDC 0.60H
R719 0RD4701Q609 4.70K 1/4W(3 5% TA52
R720 0RC1205Q609 12M OHM 1/4 W(3.4) 5% TA52
R721 0RD1001Q609 1K 1/4W(3 5% TA52
R723 0RD1001Q609 1K 1/4W(3 5% TA52
R724 0RD1001Q609 1K 1/4W(3 5% TA52
R725 0RD1001Q609 1K 1/4W(3 5% TA52
R726 0RD5102A609 51K OHM 1/2 W (7.0) 5% TA52
R727 0RD1001Q609 1K 1/4W(3 5% TA52
R728 0RX0242K665 24 OHM 2 W 5% SF LPD CDT
R728 0RX0202K665 20 OHM 2 W 5% SF TECO CDT
R729 0RD3000A609 300 OHM 1/2 W (7.0) 5% TA52
R730 0RB0150K665 0.15 OHM 2 W 5% SF
R731 0RD1002Q609 10K 1/4W(3 5% TA52
R732 0RD6802Q509 68K OHM 1/4 W (3.4) 2% TA52
R733 0RD1002Q609 10K 1/4W(3 5% TA52
R734 0RD0222A609 22 OHM 1/2 W (7.0) 5% TA52
R735 0RD1001Q609 1K 1/4W(3 5% TA52
R736 0RX1501K665 1.5K OHM 2 W 5% SF

- 27 -

DATE: 2002. 04. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R737 0RN0560H609 0.56 1/2W 5 TA52
R738 0RN0560H609 0.56 1/2W 5 TA52
R740 0RD0271A609 2.7 OHM 1/2 W (7.0) 5% TA52
R741 0RD1000Q609 100 1/4W(3 5% TA52
R742 0RD4702Q609 47K 1/4W(3 5% TA52
R743 0RD2701Q509 2.7K OHM 1/4 W(3.4) 2% TA52
R744 0RX3900J609 390 OHM 1 W 5% TA52
R745 0RD4702Q609 47K 1/4W(3 5% TA52
R746 0RD2201Q609 2.20K 1/4W(3 5% TA52
R747 0RD3001Q609 3K 1/4W(3 5% TA52
R748 0RD4702Q609 47K 1/4W(3 5% TA52
R749 0RD2201Q609 2.20K 1/4W(3 5% TA52
R750 0RD3001Q609 3K 1/4W(3 5% TA52
R751 0RX3900J609 390 OHM 1 W 5% TA52
R752 0RD2201Q609 2.20K 1/4W(3 5% TA52
R753 0RD3001Q609 3K 1/4W(3 5% TA52
R754 0RX4300K607 430 OHM 2 W 5% TA62
R755 0RD0471Q609 4.70 1/4W(3 5% TA52
R756 0RD2202A609 22K OHM 1/2 W (7.0) 5% TA52
R757 0RD0222A609 22 OHM 1/2 W (7.0) 5% TA52
R758 0RN1303F409 130K 1/6W 1% TA52
R759 0RD1202Q509 12K OHM 1/4 W (3.4) 2% TA52 LPD CDT
R759 0RD1302Q509 13K OHM 1/4 W (3.4) 2% TA52 TECO CDT
R760 0RD5103Q609 510K 1/4W(3 5% TA52
R761 0RD3001Q609 3K 1/4W(3 5% TA52
R762 0RD3001Q609 3K 1/4W(3 5% TA52
R763 0RD3001Q609 3K 1/4W(3 5% TA52
R764 0RD6201Q609 6.20K 1/4W(3 5% TA52
R766 0RD0752Q609 75 1/4W(3 5% TA52
R768 0RD6803A609 680K OHM 1/2 W (7.0) 5% TA52
R771 0RD3301Q609 3.30K 1/4W(3 5% TA52
R772 0RD2702Q509 27K OHM 1/4 W(3.4) 2% TA52
R773 0RD4302A609 43K OHM 1/2 W(7.0) 5.00% TA52 LPD CDT
R773 0RD2402A609 24K OHM 1/2 W (7.0) 5% TA52 TECO CDT
R775 0RD4701Q609 4.70K 1/4W(3 5% TA52
R778 0RD4301Q609 4.30K 1/4W(3 5% TA52
R779 0RD4701Q609 4.70K 1/4W(3 5% TA52
R782 0RD3301A609 3.3K OHM 1/2 W(7.0) 5.00% TA52
R784 0RD1000Q609 100 1/4W(3 5% TA52
R789 0RD6800Q609 680 1/4W(3 5% TA52
R793 0RD4702Q609 47K 1/4W(3 5% TA52
R797 0RD1501Q609 1.50K 1/4W(3 5% TA52
R798 0RD2001Q609 2K 1/4W(3 5% TA52
R799 0RD1502Q609 15K 1/4W(3 5% TA52
R801 0RD1802Q609 18K 1/4W(3 5% TA52 LPD CDT
R801 0RD1602Q609 16K 1/4W(3 5% TA52 TECO CDT
R802 0RD3302Q609 33K 1/4W(3 5% TA52
R803 0RD2001Q609 2K 1/4W(3 5% TA52
R805 0RD2001Q609 2K 1/4W(3 5% TA52
R806 0RD4702Q609 47K 1/4W(3 5% TA52
R808 0RD6802Q609 68K 1/4W(3 5% TA52
R809 0RMZTWD001G RWR SMART 1OHM 5 W 5% PD TYPE
R813 0RD4302A609 43K OHM 1/2 W(7.0) 5.00% TA52
R814 0RD1002Q609 10K 1/4W(3 5% TA52
R816 0RN3601F409 3.6K 1/6W 1 TA52
R818 0RN2202F409 22K 1/6W 1% TA52
R819 0RD4702Q609 47K 1/4W(3 5% TA52
R821 0RD3001Q609 3K 1/4W(3 5% TA52
R822 0RX0122K607 12 OHM 2 W 5% TA62
R823 0RX0122K665 12 OHM 2 W 5% SF
R824 0RX0122K665 12 OHM 2 W 5% SF
R831 0RD1002Q609 10K 1/4W(3 5% TA52

DATE: 2002. 04. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R901 0RD4703A609 470K OHM 1/2 W (7.0) 5% TA52
R903 0RD5600A609 560 OHM 1/2 W (7.0) 5% TA52
R904 0RX1503K607 150K OHM 2 W 5% TA62
R905 0RD2201Q609 2.20K 1/4W(3 5% TA52
R906 0RD6200Q609 620 1/4W(3 5% TA52
R907 0RN0220H609 0.22 1/2W 5% TA52
R908 0RN0220H609 0.22 1/2W 5% TA52
R910 0RX9102J609 91K OHM 1 W 5% TA52
R911 0RD5602Q609 56K OHM 1/4 W(3.4) 5.00% TA52
R912 0RX9102J609 91K OHM 1 W 5% TA52
R925 0RB0120K607 0.12 OHM 2 W 5% TA62
R941 0RN0220H609 0.22 1/2W 5% TA52
R944 0RD4700A609 470 OHM 1/2 W (7.0) 5% TA52
R945-1 0RD4701Q609 4.70K 1/4W(3 5% TA52
R951 0RN0220H609 0.22 1/2W 5% TA52
R952 0RD4702A609 47K OHM 1/2 W (7.0) 5% TA52
R953 0RX4700J609 470 OHM 1 W 5% TA52
R954 0RD4701Q609 4.70K 1/4W(3 5% TA52
R955 0RD4701Q609 4.70K 1/4W(3 5% TA52
R956 0RD4702Q609 47K 1/4W(3 5% TA52
R957 0RD0472A609 47 OHM 1/2 W (7.0) 5% TA52
R960 0RD2200A609 220 OHM 1/2 W (7.0) 5% TA52
R967 971-0016 TIN HDC 0.60H

F901 0FZZTTH001D TIME LAG HBC 3.15A/250V,215 3.
J27 0RD0471Q609 4.70 1/4W(3 5% TA52
J59 0RD1000Q609 100 1/4W(3 5% TA52
J99 0RD1001Q609 1K 1/4W(3 5% TA52
J103 0RD1501Q609 1.50K 1/4W(3 5% TA52
RL901 6920TBB005A ALA2PF12 MATSUSHITA 250V 5A 12
SC301 6620TBD004A GZS10-2-101 DUOLING(SANLING) 1
SC901 6620TKB002B SA-4S HUA JIE AC UNIVERSAL 3PI
SG301 6918TRT005A SSG-102-A0,1KV SMART RADIAL TA
SG302 6918TRT005A SSG-102-A0,1KV SMART RADIAL TA
SG303 6918TRT005A SSG-102-A0,1KV SMART RADIAL TA
SG304 6918TRT005A SSG-102-A0,1KV SMART RADIAL TA
SG305 6918TRT005A SSG-102-A0,1KV SMART RADIAL TA
SG701 6918TRT005A SSG-102-A0,1KV SMART RADIAL TA
SW201 140-058D SKHV10911A LGEC NON 12 20 HORI
SW202 140-058D SKHV10911A LGEC NON 12 20 HORI
SW203 140-058D SKHV10911A LGEC NON 12 20 HORI
SW204 140-058D SKHV10911A LGEC NON 12 20 HORI
T1 6631T11005D 1P W-T 520MM UL 1015 AWG 22 CB
T701 6174T11003E “1054A,CB777G LG-PHILIPS 17”””
T702 6170TCZ006A EE2218 2.3 MH D/FOCUS(CB775C),
T703 6170TCZ001D EI2218 4.0MH H-DRIVE,EB770G
T901 6170TMZ132A EER3541 150UH V-16PIN EB770G S
TH901 6322B00002B MZ72-9RM290V GAOLI 9OHM 20% 2P
TH902 6322TA080BA SCK-084 THINKING 8 ohm 15% 264
X401 6202TTB003B HC-49/U HARMONY RADIAL 12MHZ 3

- 28 -

OTHERs

PIN CONFIGURATION

- 29 -

TDA4866J Current Driven Vertical Deflection Booster

SYMBOL

INA
INB
V

P

OUTB
GND
OUTA
V

FB

GUARD
FEEDB

PIN

1
2
3
4
5
6
7
8
9

TDA4866J

Pin Configuration

1

9

Vin

4

1

2

5

3

START

O.V.P

LATCH

DRIVE

Vth1

Vth2

O.S.C

ERROR AMP

GND

O.C.P/F.B

S

D

+

+

+

REG.

STR-G8644D

Block Diagram

1

2

3

4

5

6

7

8

9

V3
GND

IN

V3

OUT

V2

OUT

V1

OUT

V2

IN

V1

IN

V

CC

V

BB

LM2469 Monolothic Triple 9nS high Gain

CRT Driver

Connection Diagram

1

9

M24C08 Serial I2C BUS EEPROM

SYMBOL

E0-E2
SDA
SCL

WC
Vcc
Vss

DESCRIPTION

Chip Enable Input
Serial Data Address Input/Output
Serial Clock

Write Control
Supply Voltage
Ground

1

PSDIP8 (BN)

0.25mm Frame

8

1

1

SO8 (MN)
150mil Width

TSSOP8 (DW)
169mil Width

8

8

Logic Dirgram

1

INA

2

INB

3

Vp

4OUTB
5GND

TDA4866J

6

OUTA

7

V

FB

8

GUARD

9

FEEDB

- 30 -

TDA4857 Autosync Deflection Controller

TDA4857

1
2
3
4

5
6
7
8

9
10
11
12
13
14
15
16

23
22

25
24

21
20
19
18
17

32
31
30
29
28
27
26

VREF
VAGC

SGND
VCAP

VSMOD
i.c
SDA
SCL
HUNLOCK

FOCUS
HSMOD
HPLL2
HCAP
HREF
HBUF
HPLL1

EWDRV

VOUT2

XSEL

VCC

VOUT1

VSYNC

HSYNC

CLBL

PGND

HFLB

XRAY

BOP

BSENS

BIN

BDRV

HDRV

SYMBOL

HFLB
XRAY
BOP
BSENS
BIN
BDRV
PGND
HDRV
XSEL
Vcc
EWDRV
VOUT2
VOUT1
VSYNC
HSYNC
CLBL

DESCRIPTION

Horizontal Flyback Input
X-ray Protection Input
B+ Control OTA Output
B+ Control Comparator Input
B+ Control OTA Input
B+ Control Driver Output
Power Ground
Horizontal Driver Output
Select Input for X-ray reset
Supply Voltage
EW Waveform Output
Vertical Output 2 (Ascending Sawtooth)
Vertical Output 1 (Descending Sawtooth)
Vertical Synchronization Input
Horizontal / Composite Synchronization Input
Video Clamping Pulse / V-Blanking Output

PIN

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

SYMBOL

HUNLOCK
SCL
SDA
i.c
VSMOD
VAGC
VREF
VCAP
SGND
HPLL1
HBUF
HREF
HCAP
HPLL 2
HSMOD
FOCUS

DESCRIPTION

H-Synchronization Unlock/Protection/V-Blanking Output
I2C-Bus Clock Input
I

2

C-Bus Data Input
Internally connected; nite 1
Input for EHT Compensation (Via V-Size)
External Capacitor for V-Amplitude Control
External Resistor for Vertical Oscillator
External Capacitor for Vertical Oscillator
Signal Ground
External Filter for PLL1
Buffered F/V Voltage Output
Reference Current for Horizontal Oscillator
External Capacitor for Horizontal Oscillator
External Filter for PLL2 / Soft Start
Input for EHT Compensation (Via H-Size)
Output for Vertical Focus

PIN

17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

Pin Configuration

1

32

TDA4857

PACKING AND ACCESSORIES

- 31 -

USER MANUAL

POWER CORD

ADAPTER SPEAKER

SPEAKER

KIT MANUAL

USER MANUAL

POWER CORD

Model Name:
S7500 (PE1165T),
S7500 (PE1165),
CV7500 (PE1165U)

Model Name:
MV7500 (PE1165U),
MV7500 (PE1165)

IIC-SDA
IIC-SCL
DDC-SDA
DDC-SCL

- 32 -

- 33 -

SCHEMATIC DIAGRAM

NOTICE

Since this is a basic schematic diagram.
The value of components and some partial connection are
sucject to be changed for improvement without notice.

- 34 -

- 35 -

PRINTED CIRCUIT BOARD

3. MAIN BOARD (Component Side)

4. MAIN BOARD (Solder Side)

1. CONTROL BOARD (Component Side)

2. CONTROL BOARD (Solder Side)

Apr. 2002

P/NO : 3828TSO048C Printed in Korea
