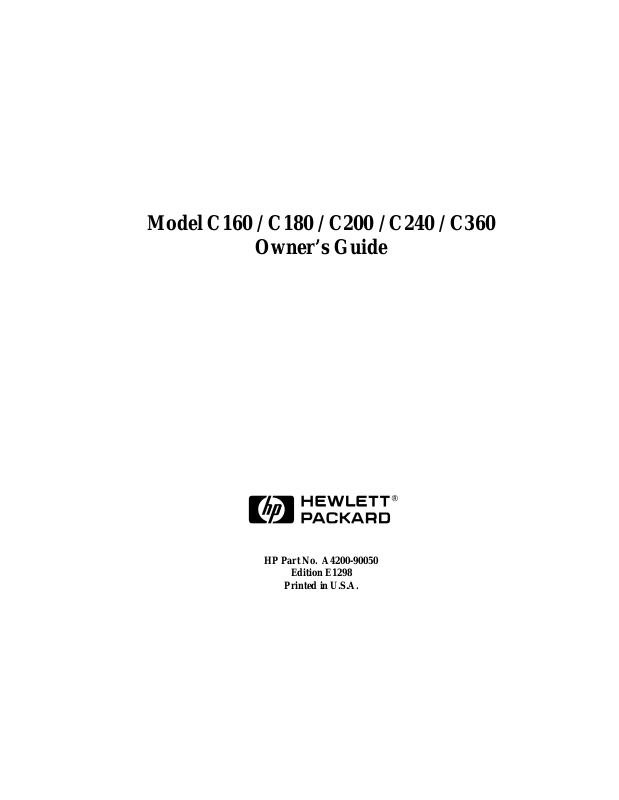

Compaq C160, C200, C240 User Manual

Model C160 / C180 / C200 / C240 / C360

Owner’s Guide

HP Part No. A4200-90050

Edition E1298

Printed in U.S.A.

Printing History First Printing: December 1998

UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company Limited.

NOTICE

The information contained in this document is subject to change without notice.

HEWLETT-PACKARD WARRANTY STATEMENT

HP PRODUCT DURATION OF WARRANTY

C160/C180/C200/C240/C360 one year

1. HP warrants HP hardware, accessories and supplies against defects in materials and workmanship for the period speciﬁed above. If HP receive notice of such defects during the warranty period, HP will, at its option, either repair or replace products which prove to be defective. Replacement products may be either new or like-new.

2. HP warrants that HP software will not fail to execute its programming instructions, for the period speciﬁed above, due to defects in material and workmanship when properly installed and used. If HP receives notice of such defects during the warranty period, HP will replace software media which does not execute its programming instructions due to such defects.

3. HP does not warrant that the operation of HP products will be uninterrupted or error free. If HP is unable, within a reasonable time, to repair or replace any product to a condition as warranted, customer will be entitled to a refund of the purchase price upon prompt return of the product.

4. HP products may contain remanufactured parts equivalent to new in performance or may have been subject to incidental use.

5. The warranty period begins on the date of delivery or on the date of installation if installed by HP. If customer schedules installation or causes installation by HP to be delayed more than 30 days after delivery , warranty begins on the 31st day from delivery.

6. Warranty does not apply to defects resulting from (a) improper or inadequate maintenance or calibration, (b) software, interfacing, parts or supplies not supplied by HP, (c) unauthorized modiﬁcation or misuse, (d) operation outside of the published environmental speciﬁcations for the product, or (e) improper site preparation or maintenance.

7. TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTIES ARE EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HP SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.

8. HP will be liable for damage to tangible property per incident up to the greater of $300,000 or the actual amount paid for the product that is the subject of the claim, and for damages for bodily injury or death, to the extent that all such damages are determined by a court of competent jurisdiction to have been directly caused by a defective HP product.

9. TO THE EXTENT ALLOWED BY LOCAL LAW , THE REMEDIES IN THIS WARRANTY STATEMENT ARE CUSTOMER'S SOLE AND EXCLUSIVE REMEDIES. EXCEPT AS INDICATED ABOVE, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR LOSS OF DATA OR FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.

FOR CONSUMER TRANSACTIONS IN AUSTRALIA AND NEW ZEALAND: THE WARRANTY TERMS CONTAINED IN THIS STATEMENT , EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTOR Y RIGHTS APPLICABLE T O THE SALE OF THIS PRODUCT TO YOU.

iii

This document contains proprietary information that is protected by copyright. All rights reserved. No part of this document may be photocopied, reproduced or translated to another language without the prior written consent of Hewlett-Packard Company.

RESTRICTED RIGHTS LEGEND. Use, duplication, or disclosure by government is subject to restrictions as set forth in subdivision (c) (1) (ii) of the Rights in Technical Data and Computer Software Clause at DFARS

252.227.7013. Hewlett-Packard Co., 3000 Hanover St., Palo Alto, CA

94304. 10 9 8 7 6 5 4 3 2 1

Preface xiii

Contents

Audience xiv

Safety and Regulatory Statements xiv

Release Document(s) xiv

Related Manuals xv

Revision History xv

Documentation Conventions xvi

Problems, Questions, and Suggestions xvii

1 Product Information

Product Description 3

System Unit Front Panel Controls 5

System Power Switch 5 Power LED 6 System LEDs 6 Audio Controls 7 Storage Device Controls and Features 8

CD-ROM Drive 8 DDS Tape Drive 10 Floppy Disk Drive 12

System Unit Rear Panel Connectors 13

Pullout Card 14 Security Loop 14 Audio Connectors 15 PS/2 Keyboard and Mouse Connectors 17 HP Parallel I/O Connector 17

802.3 Network Connectors 17 Serial Input/Output Connectors 18

Contents

SCSI Connectors 19 TOC Button 19 Power Cord Connector 19

Monitors 20

Keyboard 21

Pointing Devices 21

Operating System Overview 22

2 Using Your CD-ROM Drive

CD-ROM Drive and CD-ROM Media Descriptions 25

CD-ROM Drive 25

Controls and Features 26

CD-ROM Media 28

Caring for CD-ROM Discs 28

Operating the CD-ROM Drive 29

Loading and Unloading a CD-ROM in the Disc Tray 29

Disc Tray Description 29 Loading a CD-ROM Disc in a Horizontally Mounted Drive 30 Unloading a CD-ROM Disc in a Horizontally Mounted Drive 31 Loading a CD-ROM Disc in a Vertically Mounted Drive 32 Unloading a CD-ROM Disc in a Vertically Mounted Drive 34

Verifying the CD-ROM Drive Operation 35

Mounting and Unmounting a CD-ROM Disc 36

Mounting a CD-ROM Disc Using SAM 36 Unmounting a CD-ROM Disc Using SAM 38 Reading the Busy Light 39

Troubleshooting 41

Contents

3 Using Your Digital Data Storage (DDS) Tape Drive

DDS Tape Drive and Data Cassette Descriptions 45

DDS Drive 45

Storage Capacities 45 Controls and Indicators 46 LEDs 47 LED Warning Conditions 48

Data Cassettes 49

Media Life 49 Cleaning the Tape Heads 50 Media Restrictions 50

Setting the Write-Protect Tab on a Data Cassette 51

Operating the DDS Tape Drive 52

Loading and Unloading a Data Cassette 52 Verifying the DDS Tape Drive Operation 53 Using Device Files 54 Archiving Data 55 Writing to a Data Cassette 55 Restoring Files from a Data Cassette to Your System 56 Listing the Files on a Data Cassette 56 Further Command Information 57

Troubleshooting 58

Ordering Information 58

4 Using Your 3.5-Inch Floppy Disk Drive

Using the Floppy Diskette 61

Setting the Write-Protect Tab on a Diskette 61 Inserting and Removing a Diskette 62

Operating the Floppy Drive 63

Verifying the Floppy Drive Conﬁguration 63

vii

Contents

Using Device Files 64 Formatting a New Diskette 65 Transferring Data To and From a Floppy Diskette 66 Saving Files to a Floppy Diskette 66 Restoring Files from a Floppy Diskette to Your System 66 Listing the Files on a Floppy Diskette 67 For More Information 68 Conﬁguring the Floppy Driver 69

Troubleshooting 70

Ordering Information 70

5 Solving Problems

Common Problems and Solutions 73

Problems with Powering Up the System 73 Problems Loading and Booting the Operating System 74 Problems with the 802.3 Network 75 Problems Using a Hard Disk Drive 76 Problems Using the CD-ROM Drive 77 Problems Using the DDS Tape Drive 78 Problems Using the Floppy Disk Drive 79

LED Error Codes 80

Dealing with a Boot Failure 83

Running System Veriﬁcation Tests 84

A Safety and Regulatory Statements

Declaration of Conformity 1 89

Declaration of Conformity 2 90

viii

Contents

Special Video Conﬁguration Statements 91

For EN55022 or CISPR 22 Applications: 91 For FCC Applications: 91

Emissions Regulations 92

Federal Communications Commission (FCC) 92 VCCI Class B ITE (Japan) 93 Korea RRL (EMI Class A) 93

Emissions Regulations Compliance 93

Acoustics 94

Regulation On Noise Declaration For Machines -3. GSGV 94

Electrostatic Discharge (ESD) Precautions 94

Safety Statement 95

Laser Safety Statement (U.S.A. Only) 96

Visible LEDs 96

Warnings and Cautions 97

B Changing Your Workstation’s Hardware Conﬁguration

Checking the SCSI IDs 101

Preparing Your Workstation 103

Installing Storage Devices 105

Preparing to Install Your Storage Device 106

Conﬁguring your Storage Device 106 Determining Your Storage Devices Position 106 Storage Device Cable Routing 108

Removing the Storage Tray 108 Installing a CD-ROM or a DDS-Format Tape Drive 109 Installing a Floppy Drive 111

Contents

Installing a Hard Disk Drive in Position 1 113 Installing a Hard Disk Drive in Position 3 or Position 4 115 Replacing the Storage Tray 118 Conﬁguring a Hard Disk Drive 120

Removing the Main Tray Assembly 122

Replacing the Main Tray Assembly 124

Installing Additional Memory 126

Installing the EGRAM (Enhanced Graphics RAM) Module (C160/C180) 130

Installing an EISA, PCI, or GSC Option Board 136

Graphics Adapter Considerations 137

Special Video Conﬁguration Statements 137 Graphics Paths 138 Graphics Conﬁguration Restrictions 139

Installing the Option Board 141

Replacing the Battery 146

Changing Your Monitor Type 148

Setting the Monitor Type from the Boot Console Interface 148 Setting the Monitor Type at Power On 148 Changing the Console to External Terminal 149

C SCSI Connections

SCSI Bus Differences 153

SCSI Restrictions 156

Cables 156 Connectors and Terminators 158 SCSI Conﬁguration Constraints 159

Narrow, Single-ended SCSI Bus Conﬁguration Constraints 159 Fast, Wide, Differential SCSI Bus Conﬁguration Constraints 160

Contents

Ultra, Wide-SE SCSI Bus Conﬁguration Constraints 160

Determining SCSI Bus Length 161

Narrow, Single-Ended SCSI Bus Length 161 Fast, Wide Differential SCSI Bus Length 163 Ultra, Wide, Single-Ended SCSI Bus Length 165

Assigning SCSI Device IDs 167

Narrow Single-Ended SCSI Device IDs 168 Fast, Wide Differential SCSI IDs (C160/C180/C200 Upgrades) 170 Ultra, Wide SCSI IDs 171

Connecting to the SCSI Ports 172

System SCSI Port Connection 172

D The Boot Console Interface

Boot Console Interface Features 177

Accessing the Boot Console Interface 182

Booting Your Workstation 183

Searching for Bootable Media 185

Resetting Your Workstation 186

Displaying and Setting Paths 187

Displaying and Setting the Monitor Type 189

The Monitor Command 189 Displaying the Current Monitor Conﬁguration 190 Setting the Monitor Type 191 Setting the Monitor Type at Power On 193 Changing the Console to External Terminal 194

Displaying the Current Memory Conﬁguration 195

Memory Information Sample 1 196

Contents

Memory Information Sample 2 197

Displaying the Status of the System I/O 198

Setting the Auto Boot and Auto Search Flags 199

Displaying and Setting the Security Mode 201

Displaying and Setting the Fastboot Mode 202

Displaying the LAN Station Address 203

Conﬁgure and Display LAN Settings 204

Displaying System Information 206

Displaying PIM Information 207

xii

Preface

This owner’s guide describes how to use your HP 9000 C Class workstation. This manual assumes that you have installed your workstation as described

in the C Class Hardware Installation Card.

xiii

Audience

This guide is intended for HP 9000 Model C160/C180/C200/C240/C360 workstation users.

Safety and Regulatory Statements

See Appendix A in the back of this manual for safety and regulatory statements that apply to this workstation.

Release Document(s)

Please refer to the Release Document(s) you received with your system or system software for additional information that we may not have been able to include in this guide at the time of its publication.

xiv

Related Manuals

Refer to the following manuals for more information:

• C Class Hardware Installation Card (A4200-90012)

• Using Your HP Workstation (A2615-90003)

• Installing and Updating HP-UX (B2355-90050)

• Configuring HP-UX for Peripherals (B2355-90053)

• HP Visual User Environment User’s Guide (B1171-90079)

• Managing Clusters of HP 9000 Computers: Sharing the HP-UX File System (B2355-90038)

To order manuals, please contact your local sales ofﬁce.

Revision History

The revision history for each edition of the manual is listed below:

HP Part No. Edition Revision History A4200-90050 E1298 First printing

Documentation Conventions

Unless otherwise noted in the text, this guide uses the following symbolic conventions.

user-supplied values Italic words or characters in for-

mats and command descriptions represent values that you must supply.

sample user input In examples, information that the

user enters appears in color.

output

Information that the system displays appears in

face.

this type-

literal values Bold words or characters in for-

mats and command descriptions represent commands or keywords that you must use literally. Pathnames are also in bold.

KEY Text with a line above and a line

below denotes a key on your keyboard, or a key or button which is drawn on your workstation’s graphic display.

(In this manual we refer to the Enter key . On your keyboard the key may be labeled either Enter or Return.)

xvi

Problems, Questions, and Suggestions

If you have any problems, questions, or suggestions with our hardware, software, or documentation, please call 1-800-633-3600 (US & Canada) or contact the HP Response Center for your country.

xvii

xviii

Product Information

This chapter introduces the HP 9000 Model C160/C180/C200/C240/C360 workstations, including their controls and indicators. This chapter discusses the following topics:

• Product description

• System unit front panel controls

• System unit rear panel connectors

• Monitors

• Keyboards

• Operating system overview

Product Information

Product Description

The Model C160/C180/C200/C240/C360 workstations contain the following key features:

• Processor Performance

160 MHz (Model C160) 180 MHz (Model C180) 200 MHz (Model C200) 236 MHz (Model C240) 367 MHz (Model C360)

• Operating System: Native HP-UX

HP-UX 10.20 (Model C160) HP-UX 10.20 (Model C180) HP-UX 10.20 with Additional Core Enhancements (ACE 9707) (Models C200

/C240)

HP-UX 10.20 with ACE 9806 and IPR 9812 (Model C360)

• User Interface

HP VUE version 3.0 graphical user interface HP CDE graphical user interface

• Compatibility

Source and binary code compatible with the Series 700 product family

• Optional Graphics

Fast 2D color graphics; choice of 1 to 4 displays HP VISUALIZE-8/24 - Accelerated 8-plane or 24-plane 3D graphics HP VISUALIZE-48 - 24/24 image planes, 8 overlay planes,

24-bit Z buffer 3D graphics

HP VISUALIZE-48XP - Advanced, 24/24 image planes, 8 overlay planes,

24-bit Z buffer 3D graphics

HP VISUALIZE-EG, FX2, FX4, FX6 - Advanced graphics

• Memory

32 MB to 1.5 GB main memory in pairs of 16 MB, 32 MB, 64 MB or 128 MB modules Six pairs maximum

Product Information

Product Description

• Internal Storage Devices Fast, Wide Differential SCSI Hard Disk Drives (C160/C180)

Ultra, Wide Single-Ended (C200/C240/C360)

1-inch Low Profile Drive (up to two)

1.6-inch Full Height Drive (one)

Single-Ended SCSI Removable Media

CD-ROM Drive or

2.0/4.0 GB, 4-mm DDS Tape Drive 4/8 GB, DDS2 DAT Drive (C200/C240/C360) 12/24 GB, DDS3 DAT Drive (C200/C240/C360)

3.5-inch Floppy Disk Drive (not a SCSI Device)

• Standard Network Ethernet IEEE 802.3 AUI

RJ45, UTP Twisted Pair 10Base-T, 100Base-T (C200/C240/C360 only)

• Standard I/O One Single-Ended, 8-bit , 5 MB/sec synchronous, 1.5 MB/sec asynchronous

ALT-1, 50-pin, high density SCSI connector One Fast, Wide (for hard disk drives) 20 MB/sec synchronous 68-pin, high density SCSI connector (C160/C180) One Ultra, Wide, Single-Ended SCSI connector (C200/C240/C360) Two Serial Interfaces RS232C, 9-pin male One Parallel Interface, Centronics, BUSY handshake, 25-pin female 16 Bit Audio Line-in and Line-out connectors Two PS/2 ports (keyboard and mouse) One HP-HIL connector (C160/C180 only)

• EISA/GSC 4 slots total: 1 GSC/PCI, 1 GSC/EISA/PCI and 2 GSC/EISA (C160/180)

4 slots total: 3 GSC/PCI, 1 GSC/EISA/PCI (C200/C240/C360)

• Keyboards PS/2 Keyboard (mouse)

or ITF Keyboard (also known as HP HIL) (HP HIL mouse)(C160/C180 only)

System Unit Front Panel Controls

Figure 1 shows the location of the system unit front panel controls.

Removable

Storage Devices

Power Switch

Power LED

System LEDs

Mute

Product Information

Volume

Headset

Mic

Figure 1 System Unit Front Panel Controls

System Power Switch

Use the power switch to power the system unit on and off.

NOTICE: There is no need to manually shut down the HP-UX operating system on

your workstation before powering it off. When you turn off the power switch, your workstation automatically shuts down the operating system before terminating the power.

NOTICE: The C200/C240/C360 when turned off and plugged in will draw 30 watts

of power and the cooling fan may turn on.

Product Information

System Unit Front Panel Controls

Power LED

The power LED is located on the left side of the front panel on the disk tray . It lights when the system unit power is on and ﬂashes until the OS is booted. Once the OS is booted, the LED remains on without ﬂashing, indicating that a soft shutdown is enabled.

System LEDs

The Model C160/C180/C200/C240/C360 workstations have four diagnostic LEDs located next to the system power LED.

For more information on the error codes displayed by the diagnostic LEDs, see “LED Error Codes” in the chapter, “Solving Problems”.

LED 4 - System Heartbeat

LED 3 - SCSI Bus Activity

LED 2 - Network Transmit

LED 1 - Network Receive

System Unit Front Panel Controls

Audio Controls

Next to the system LEDs are the following audio controls:

Product Information

Headset Jack

Volume Control Adjusts the audio output volume

Mic Jack Accommodates microphones

Mute Button Turns off the audio output to line

Accommodates mini-headphones with a 3.5 mm diameter miniature stereo plug.

to the headset or lineout.

with a 3.5 mm diameter miniature stereo plug.

out and speaker only.

The volume control, headset jack, and microphone jack features of the CDROM are supported through applications only.

For more information on the features and electrical speciﬁcations, see the section titled “Security Loop,” later in this chapter.

Product Information

System Unit Front Panel Controls

Storage Device Controls and Features

The Model C160/C180/C200/C240/C360 workstations allow up to two of the following internal storage devices: CD-ROM drive, DDS tape drive, or ﬂoppy drive. The following sections describe the controls and features of these devices.

NOTICES: You may not have two of the same type of device. For example, you can

have a CD-ROM device and a ﬂoppy device, but not two CD-ROMs. Due to space limitations, a DDS-format tape drive and a CD-ROM drive

cannot both be mounted in the system at the same time.

CD-ROM Drive

Figure 2 shows the operating controls and features of the CD-ROM drive, and Table 1 describes them.

Headphone Jack

Volume Control

Disk Tray

Busy Indicator

Figure 2 CD-ROM Drive Controls and Features

Emergency Eject

Eject Button

Table 1 CD-ROM Drive Controls and Features

Control/Feature Purpose

Busy Indicator Lights during a data access oper-

ation and blinks during a data transfer. The indicator blinks initially and then stays lit when there is one of the following:

• A defective disc

• A disc insertion error (for example, an upside-down disc)

• No disc present

Eject Button Press to open the disc tray and

insert or remove a disc. When the drive is in use, press the eject button for more than one second to open the disc tray.

Product Information

System Unit Front Panel Controls

Emergency Eject Remove the Phillips-type screw

and insert the end of a paper clip to open the disc tray when the workstation does not have power.

Disc Tray Holds the CD-ROM disc. This

type of CD-ROM drive does not use a disc caddy. The disc tray does not open if the workstation power is off.

Headphone Jack Used to connect headphones

with a 1/8-inch connector.

Volume Control Volume control for the head-

phone jack.

Product Information

System Unit Front Panel Controls

DDS Tape Drive

Your DDS tape drive is either a DDS-DC (early or later model) or a DDS-2 tape drive with a 3.5-inch form factor, data compression, and a single-ended SCSI interface. Both drives incorporate data compression capability and are high-capacity, high transfer-rate devices for data storage on tape. With compression, the DDS-DC drives can store up to 4 GB of data on a 90 meter tape and the DDS-2 drive can store up to 8 GB of data on a 120 meter tape.

Figure 3, Figure 4, and Figure 5 show the LEDs, and eject button of the DDS-format tape drives.

Cassette LED Drive LED Eject Button

Figure 3 DDS-DC (Early Model) Drive Controls and Indicators

Tape Clean

DCLZ

Tape LED Clean/Attention LED Eject Button

Figure 4 DDS-DC (Later Model) Drive Controls and Indicators

Tape Clean

Tape LED Clean/Attention LED Eject Button

Figure 5 DDS-2 Drive Controls and Indicators

Table 2 DDS Tape Drive Controls and Features

Control/Feature Purpose

Eject Button Push the eject button to remove tape

cassettes from the drive.

Product Information

System Unit Front Panel Controls

Drive LEDs The DDS drive LEDs light and ﬂash

to indicate drive status and error conditions.

Product Information

System Unit Front Panel Controls

Floppy Disk Drive

Figure 6 shows the operating controls and features of the ﬂoppy drive, and Table 3 describes them.

Eject ButtonDrive LED

Figure 6 Floppy Drive Controls and Features

Table 3 Floppy Drive Controls and Features

Control/Feature Purpose

Eject Button Push the eject button to

remove ﬂoppy diskettes from the drive.

Drive LED The ﬂoppy drive LED

ﬂashes to indicate the drive is in use.

+ 212 hidden pages
