MAINTENANCE AND SERVICE GUIDE
COMPAQ ARMADA 1100 FAMILY OF PERSONAL COMPUTERS
First Edition (June 1996)
Spare Part Number 262489-001
Document Part Number 262471-001
Preface
This Maintenance and Service guide is a troubleshooting guide that can be
used for reference when servicing the Compaq Armada 1100 Family of
Personal Computers. Additional information is available in the SERVICE
QUICK REFERENCE GUIDE and in QUICKFIND.
Compaq Computer Corporation reserves the right to make changes to the
Compaq Armada 1100 Family of Personal Computers without notice.
Symbols
The following symbols and words mark special messages throughout this
guide:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Text set off in this manner indicates that failure to follow directions in
the warning could result in bodily harm or loss of life.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Text set off in this manner indicates that failure to follow directions
could result in damage to equipment or loss of data.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
IMPORTANT: Text set off in this manner presents clarifying information or
specific instructions.
NOTE: Text set off in this manner presents commentary, sidelights, or
other points of information.
Technician Notes
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Only authorized technicians trained by Compaq should attempt to repair
this equipment. All troubleshooting and repair procedures are detailed to
allow only subassembly/module level repair. Because of the complexity of
the individual boards and subassemblies, no one should attempt to make
repairs at the component level or to make modifications to any printed
wiring board. Improper repairs can create a safety hazard. Any indication
of component replacement or printed wiring board modifications may void
any warranty or exchange allowances.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
To properly ventilate your system, you must provide at least 3 inches
(7.62 cm) of clearance on the front and back of the computer.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The computer is designed to be electrically grounded. To ensure proper
operation, plug the AC power cord into a properly grounded electrical outlet only.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Serial Number
The serial number is displayed on the bottom of the CPU next to the memory
compartment cover.
Locating Additional Information
The following documentation is available to support these products:
o Quick Setup
o Reference Guide
o Introducing Microsoft Windows 95
o Compaq Service Quick Reference Guide
o Service Training Guides
o Compaq Service Advisories and Bulletins
o Compaq QuickFind
o Technical Reference Guide
Chapter 1 - Product Description
Computer Features and Models
The Compaq Armada 1100 Family of Personal Computers is a line of
full-featured, Pentium-based portable computers. The following models are
available:
o Compaq Armada 1110
o Compaq Armada 1120 and Armada 1125
o Compaq Armada 1120T
This chapter describes the model offerings and features of the computers.
Models
The Compaq Armada 1100 Family of Personal Computers is available in the
models shown in Table 1-1.
Table 1-1. Compaq Armada 1100 Family Models
===========================================================================
Model Processor Display Hard Drive
===========================================================================
Armada 1110 75-MHz Pentium 10.4-inch CSTN 810 MB
--------------------------------------------------------------------------Armada 1120 100-MHz Pentium 10.4-inch CSTN 810 MB
Armada 1125
--------------------------------------------------------------------------Armada 1120T 100-MHz Pentium 10.4-inch CTFT 810 MB
===========================================================================
Standard Features
The computers have the following standard features:
o 75 or 100-MHz Pentium processors
o 8 MB of dynamic random access memory (DRAM), expandable to 24 MB
o 810 MB hard drive
o 10.4-inch Color Super Twist Nematic (CSTN) or 10.4-inch Color Thin Film
Transistor (CTFT) VGA displays
o Nickel metal hydride (NiMH) battery pack
o Full-size 101-key compatible keyboard, including 12 function keys and
embedded numeric keypad
o Integrated trackball
o Operates from an internal battery pack or an AC adapter that is
compatible with domestic or international power sources
o Power management and security features
o Two PCMCIA standard device sockets that will accommodate Types I, II,
and III PC Cards
o Rear panel ports provide connectors for parallel and serial ports, video
out, and keyboard/mouse port
Software Fulfillment
Backup software may be ordered directly from Compaq Computer Corporation
through the Compaq Order Center. In Europe backup software may be ordered
using the Software Diskette Order Form which is included in the For
Help... booklet. Both the model and serial numbers of the computer are
needed to identify the specific software available.
For technical questions about software for the computer, contact a Compaq
Technical Support Engineer. The model and serial numbers of the computer
should be available before making the call.
Security Features
The computer has the following security features:
o Ability to secure the computer to an immovable object with an optional
cable lock.
o Ability to establish power-on and setup passwords.
o Ability to disable the following devices from the Security menu in
Computer Setup: serial port, parallel port, PC Card slots, diskette
drive, diskette drive boot ability.
Power Management
The computer supports three power management modes:
o Local Standby: The ability to send individual subsystems into reduced
power modes after predetermined periods of inactivity.
o Global Standby: The ability to place all subsystems in a reduced power
mode after a predetermined period of inactivity.
o Hibernation: The ability to save the system configuration and user data
to the hard disk, for restoration at a later time.
The OFF and ON states also involve power management. In the OFF state, the
computer appears to be consuming no power; however, as long as there is a
battery capable of supplying current, some components will be powered up,
performing housekeeping tasks and waiting to be awakened. In the ON state,
all systems are powered up and the unit is completely functional.
Computer Options
The options for the computer that are available from Compaq are described
in the following sections.
System Memory Options
The system memory options that are available from Compaq for the computers
are 8 and 16 MB memory expansion boards. The memory expansion boards are
70-ns Fast Page Mode DRAM SODIMMs, without parity. Maximum memory is 24 MB
of DRAM.
The expansion memory connector is a 144-pin SODIMM socket. Either parity
or non-parity SODIMMs may be used, but parity checking will not be enabled
by the memory controller.
Miscellaneous Options
The following options for the computer are also available from Compaq:
o AC Adapter
o Automobile Adapter
o Extended Life NiMH battery pack
o Slipcase
o AC power cords for international travelers
AC Adapter
The AC adapter supplies DC voltage to the system converter to operate
and/or charge the installed battery pack. The adapter provides sufficient
power to charge the battery pack in 1.5 hours or less with the system off,
or in 3.5 hours or less with the system on. The AC adapter power
specifications are presented in Chapter 7.
Automobile Adapter
The automobile adapter is used to charge the computer while traveling in
an automobile. The Auto Adapter power specifications are presented in
Chapter 7.
Nickel Metal Hydride Battery Pack
Nickel metal hydride battery packs are available for use with the Compaq
Armada 1100 Family of Personal Computers.
External Computer Components
The external computer components are shown and described in this section.
Front and Left Side Components
The front and left side external components are shown in the following
figure and described in this section:
[1] Handle bracket (2)
[2] Keyboard tilt feet
[3] Diskette drive
[4] PC Card slots
[5] Display latches (2)
[6] PC Card release levers
[7] Battery compartment button
Rear Components
The rear components are shown in the following figure and identified in
this section:
[1] Power connector
[2] Parallel connector
[3] Serial connector
[4] Keyboard/mouse connector
[5] External monitor connector
Bottom Components
The bottom external components are shown in the following figure and are
identified in this section:
[1] Battery compartment
[2] Memory compartment
Status Panel Lights
The status panel lights are shown in the following figure and are
identified in this section:
[1] Power/standby
[2] Battery charge
[3] Hard drive
[4] Diskette drive
[5] Battery gauge
[6] Caps Lock
[7] Scroll Lock
[8] Num Lock
System Design
This section provides an overview of the system design.
System Board and Processor
The OPTi-designed Viper-N Chipset provides PCI bus, ISA bus, cache
controller, memory controller, and peripherals controller:
o OPTi 82C557M System Controller
o OPTi 82C556M Data Buffer Controller
o OPTi 82C558E Integrated Peripherals Controller
The computer supports a 75-MHz (P54C) CPU at 50-MHz bus speed, and a
100-MHz (P54LM) CPU at 66-MHz bus speed. Bus speed and processor core
voltage are configurable through resistor values at manufacturing. The
processor is soldered to the system board and is not removable.
System Memory Options
The main memory subsystem supports a standard 8 MB DRAM, expandable to a
maximum of 24 MB. The standard memory is soldered onto the system I/O
board. Expansion memory is available in 8 or 16 MB increments.
Diskette Drive
The computer uses a standard 3.5-inch, 1.44 MB diskette drive. The system
supports a single diskette drive in the computer.
Hard Drive
The computer supports an IDE hard drive. Cable select technology is
employed for device 0/device 1 selection. The hard drive mounts to the
system board with a hard drive bracket and connects directly to the system
board. A screw secures the hard drive bracket in place.
Computer Design Overview
This section presents a brief design overview of the computer. See Chapter
3 for an overview of the system unit and the display assembly from the
perspective of replacing components in the field. All replacement parts
are listed in Chapter 3, and removal and replacement procedures are
presented in Chapter 5.
The computer is a traditional clam shell design with a display unit and a
system unit. The computer opens to reveal a backlighted LCD display and a
full-sized keyboard. The display is designed to open to 135o.
System Unit
The major components of the system unit are: the CPU cover, keyboard,
system board with processor, hard drive, diskette drive, memory expansion
board, battery pack and compartment, integrated trackball assembly,
Real-Time Clock battery, and PC Card (PCMCIA) ejector rails and
components.
Display Unit
The standard video subsystem consists of one of the following internal LCD
displays:

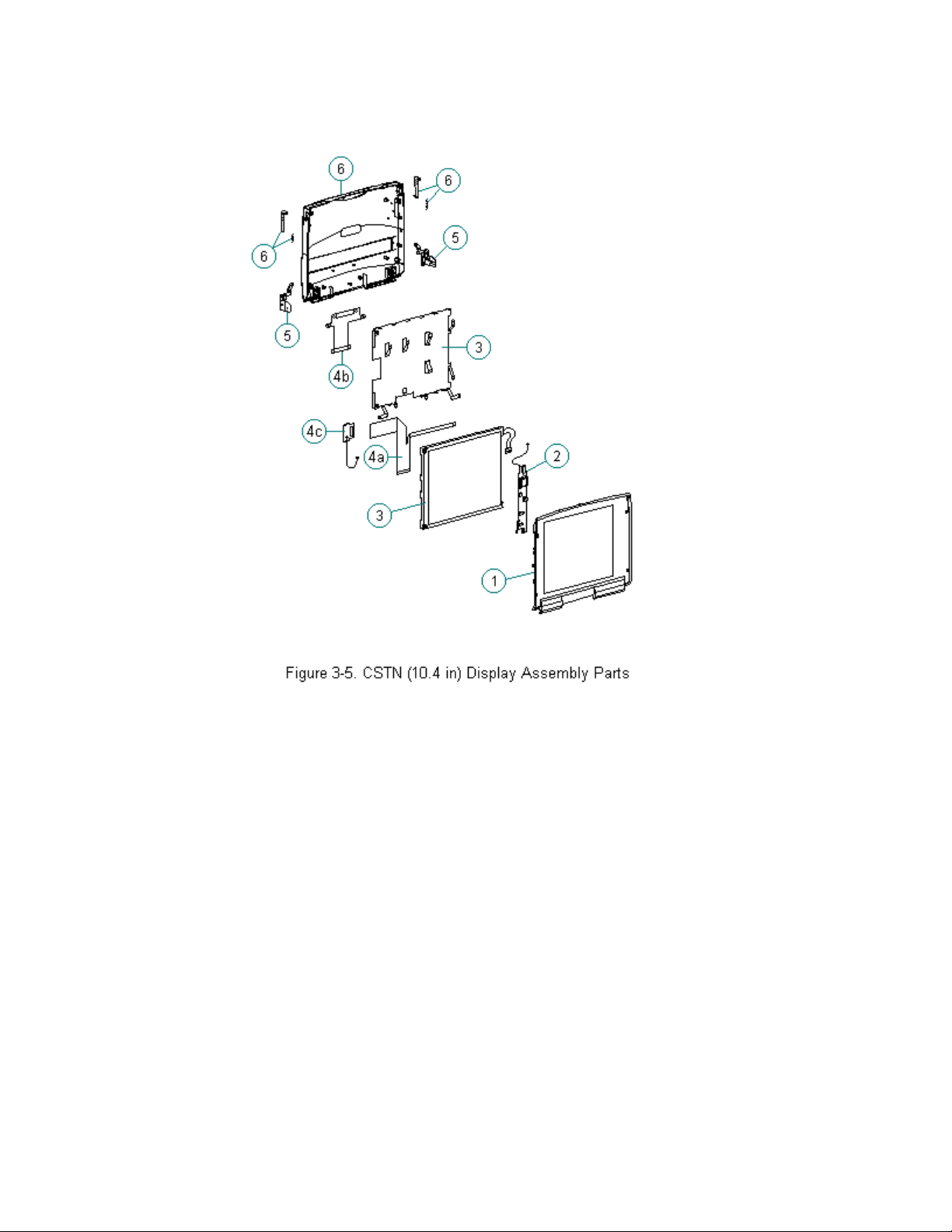

o 10.4-inch VGA CSTN display panel
o 10.4-inch VGA CTFT display panel
In addition, the video subsystem consists of:
o Cirrus Viking PCI Bus Graphics Accelerator with 1 MB EDO (two 70-ns
256kx 16) VRAM
o An inverter to supply AC power to the LCD backlight system
o A standard external VGA connector for use with CRTs and other VGA
compatible displays; also supported: external SVGA (maximum resolution
1024 x 768 x 256)
o A flex cable connecting the system board to the LCD display and the
inverter
o 48 KB of video ROM integrated into system ROM
Chapter 2 - Troubleshooting
Introduction
This chapter contains troubleshooting information for the computer. The
basic steps in troubleshooting include:
1. Completing the preliminary steps listed in Section 2.1.
2. Running the Power-On Self-Test (POST) as described in Section 2.4.
3. Running the Computer Checkup (TEST) as described in Section 2.5.
4. Performing the recommended actions described in the diagnostic tables
in Section 2.7 if you are unable to exercise POST or Computer Checkup
or if the problem persists after running POST and Computer Checkup.
Adhere to the following guidelines when troubleshooting:
o Complete the recommended actions in the order in which they are given.
o Repeat POST and Computer Checkup after each recommended action until the
problem is resolved and the error message does not return.
o Once the problem is resolved, do not complete the remaining recommended
actions.
o Refer to Chapter 5 for any removal and replacement procedures that are
recommended.
Preliminary Steps
IMPORTANT: Use the AC adapter when running POST, Computer Setup, or
Computer Checkup. A low battery condition could initiate
Standby and interrupt the test.
Before running POST and Computer Checkup, complete the following steps:
1. If a power-on password has been established, type the password and
press Enter.
NOTE: The key icon appears on the status display when the computer is
turned on to indicate that QuickLock/QuickBlank has been initiated.
Type the power-on password to exit QuickLock/QuickBlank. If the
password is unknown, it must be cleared (see Section 2.2).
2. Run Computer Setup (Section 2.3).
3. Use the Hotkeys to adjust the brightness (Fn+F9) and contrast (Fn+F10)
to the center of their ranges and leave the display open. On models
with color TFT displays, contrast is not adjustable.
4. Turn off the computer and all external devices.
5. Disconnect any external devices that you do not want to test. If you
want to use the printer to log error messages, leave it connected to
the computer.
NOTE: If a problem only occurs when an external device is connected to the
computer, the problem could be with the external device or its
cable. Isolate the problem by running POST with and without the
external device connected.
6. Use Advanced Diagnostics and loopback plugs in the serial and parallel
connectors if you plan to test these ports. To run Advanced
Diagnostics, complete the following steps:
a. Insert the Diagnostics diskette into the diskette drive and turn on
the computer.
b. At the Welcome Screen, enter Ctrl+A.
c. Press Enter to accept OK.
d. Select Computer Checkup (TEST).
e. Select Prompted Diagnostics after "Identifying System Hardware"
completes.
f. Select Interactive Testing and follow the displayed instructions.
7. Ensure that the battery pack is installed in the computer and the AC
adapter is connected to the computer and plugged into an AC power
source.
After completing the preliminary steps, run POST (Section 2.4) and
Computer Checkup (Section 2.5).
Running Computer Setup
The ROM-based Computer Setup displays the current system configuration and
allows you to set system and power management parameters. These parameters
are stored in CMOS, and a backup copy is saved in a parameter block in
system flash ROM.
You can access Computer Setup by pressing F10 when the prompt appears
after you turn on the computer. The following configuration parameters can
be changed in Computer Setup:
o Power conservation (when)
o Power conservation (level)
o Hibernation on/off
o Hibernation settings
o Warning beep
o Setup password
o Diskette drive disable
o Serial ports disable
o Parallel port disable
o PC Card slots disable
o Resume password on/off
o Boot memory test
o Keyboard numlock
o Boot sequence
o Boot display
o Serial port settings
o Parallel port settings
o Power-on password
o Diskette drive boot disable
To run Computer Setup, complete the following steps:
Computer Setup automatically recognizes and configures the system for new
Compaq devices. It does this without prompting you for information about
the devices. However, if you add a memory expansion board, a prompt
appears the next time you turn on the computer, notifying you of the new
memory configuration.
The first Computer Setup screen displays current settings for the system,
ports, and devices. The status bar at the bottom of the screen gives
instructions for navigating and choosing options. The status bar also
displays descriptions as you highlight menus and menu options.
NOTE: If the main system board is replaced, the serial number on this
screen changes to 0 (zero).
Select one of the menus from the menu bar at the top of the screen to view
or to change the following configuration settings:
o Initialization startup preferences
o Ports, including serial and parallel
o Power, including Power Management and Hibernation
o Security, including setup and power-on passwords and device disabling
Initialization Menu
Select the Initialization menu to change the initialization (startup)
settings for running the POST memory tests, numlock on or off, the
drive boot sequence, and the active display.
Ports Menu
Select the Ports menu to change the default input/output (I/O) addresses
and interrupt requests (IRQs) for serial and parallel ports.
NOTE: If you select conflicting settings for the ports, the system
automatically changes one of the settings.
Power Menu
Select the Power menu to enable or disable Power Management, low-battery
warning beeps, and an external energy-saving monitor. The factory default
settings are:
o Power Management Enabled While on Battery
o Conservation Level Medium
o Low-Battery Warning Beeps Enabled
o External Energy Saving Monitor Disabled
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
If you disable Power Management or Hibernation, you must take immediate
action to resolve a low-battery condition to prevent losing unsaved
information.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
If you elect to disable the low-battery warning beeps, a low-battery
condition is indicated only by a blinking battery light. If you disable
Power Management or Hibernation, information in memory is not
automatically saved during a critical low-battery condition.
If you enable the selection for an external energy-saving monitor, it
enters low-power mode when the screen timeout occurs. If you enable this
selection and do not have an energy-saving monitor, the screen display may
become distorted.
Under Power Management, you can select whether to enable Power Management
while on AC or battery power, only while on battery power, or never
(disabled).
If you enable Power Management, you can select from four conservation
levels: high, medium, none (drain), or custom. The conservation level sets
the timeouts for Standby, Hibernation, drives, and screens. A timeout is a
period of inactivity after which power is turned off to the system or
component.
o High: Provides the maximum amount of power conservation and the maximum
battery operating time from a single charge.
o Medium (default): Provides a balance between performance and battery
life.
o Custom: Conserves power according to specified timeout settings.
o None (Drain): Provides no power conservation features; the system runs
at full speed.
Security Menu
Select the Security menu to set, change, or delete the setup and power-on
passwords and to enable/disable QuickLock/QuickBlank, power-on password
from Standby, diskette drives, ports, and PC Card slots.
Setup Password
Use the Setup password to protect the system configuration from
unauthorized changes. After you establish the setup password, you cannot
change the system configuration until you enter the setup password.
IMPORTANT: Type carefully because the password does not display as you
type it. If you choose to, you can use the same password for
setup and for power-on.
The next time you press F10 (after POST) to run Computer Setup, a password
prompt appears on the screen. If you enter the password incorrectly, you
are prompted to reenter the password.
If you forget the setup password, you cannot change the system
configuration until the computer memory is cleared of the password. Refer
to Section 2.2 in this guide for procedures for clearing the password.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Record your setup password and put it in a safe place. If you forget your
setup password, you cannot reconfigure the computer until the computer
memory is cleared of the password.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Power-On Password
The power-on password prevents use of the computer until the password is
entered. After you establish the power-on password, you must enter it
whenever you turn on the computer.
IMPORTANT: Type carefully because the password does not display as you
type it. If you choose to, you can use the same password for
setup and for power-on.
You can also select to require the power-on password when exiting Standby.
The next time you start the computer or exit Standby, a password prompt
appears. If you enter the password incorrectly, you are prompted to
reenter the password.
If you forget the power-on password, you cannot use the computer until the
computer memory is cleared of the password. Refer to Section 2.2 in this
guide for procedures for clearing the password.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Record the power-on password and put it in a safe place. If you forget
your power-on password, you cannot use the computer until the computer
memory is cleared of the password.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
QuickLock/QuickBlank
Enabling QuickLock/QuickBlank allows you to temporarily disable the
keyboard and clear the screen until the power-on password is entered.
After you have enabled QuickLock/QuickBlank, you can initiate it at any
time by pressing the Fn+F6 hotkey.
When QuickLock/QuickBlank is initiated, the key icon on the status panel
turns on. Type the power-on password on the blank screen to exit
QuickLock/QuickBlank.
Disabling Devices
The Security Menu provides a way to disable the following devices:
o Serial port
o Parallel port
o PC Card slots
o Diskette drive
Disabling these devices prevents the unauthorized transfer of data using
the devices. To reenable a device, deselect the Disable option and restart
the computer.
Exit Menu
The Exit menu has four options:
o Save and Exit: Saves configuration changes, but some changes do not take
effect until the computer is restarted.
o Exit (No Save): Exits and does not save the changes you have made.
o Restore Factory Defaults: Replaces the current configuration settings
with the original factory default settings.
POST Error Messages
This chapter contains typical error messages that you may encounter during
the power-on self-test (POST). POST is a series of tests that run every
time you turn on the computer. POST verifies that the system is configured
and functioning properly. A successful POST is followed by one or two
short beeps.
If you receive an error message listed on the following pages, follow the
recommended action. If you receive an error message that is not listed,
run Computer Checkup from the Diagnostics diskette. Information about
running Computer Checkup is presented later in this chapter.
If POST detects an error, one of the following events occurs:
o A message with the prefix "WARNING" appears informing you where the
error occurred. The system pauses until you press F1 to continue.
o A message with the prefix "FATAL" appears informing you where the error
occurred. After the message, the system emits a series of audible beeps.
The system then stops.
o The system emits a series of audible beeps. The system then stops.
Warning messages indicate a potential problem exists such as a system
configuration error. When F1 is pressed, the system should resume. You
should be able to correct problems that produce WARNING messages.
IMPORTANT: When a WARNING message includes the prompt to "RUN SCU," run
Computer Setup. (Computer Setup replaces the SCU utility.)
Fatal errors emit a beep and may display a FATAL message. Fatal errors
indicate severe problems, such as a hardware failure. Fatal errors do not
allow the system to resume. Some of the Fatal error beep codes are listed
at the end of this section.
Table 2-1. Warning Messages
===========================================================================
Message Description
===========================================================================
Clock not ticking correctly The real time clock is not ticking.
--------------------------------------------------------------------------CMOS checksum invalid, run CMOS RAM information has been corrupted and
SCU needs to be reinitialized by running Computer
Setup.
--------------------------------------------------------------------------CMOS failure, run SCU CMOS RAM has lost power and needs to be
reinitialized by running Computer Setup.
--------------------------------------------------------------------------Floppy controller failed The diskette drive controller failed to
respond to the reset command. Power down the
system and check all appropriate connections.
If the diskette drive controller continues to
fail, you may need to replace the system
board.
--------------------------------------------------------------------------Floppy disk track 0 failed The diskette drive cannot read track 0 of the
diskette in the drive. Try another diskette.
If the problem persists, you may need to
replace the diskette drive.
--------------------------------------------------------------------------Floppy information invalid, The drive parameters stored in CMOS RAM do
run SCU not match the diskette drives detected in the
system. Run Computer Setup
--------------------------------------------------------------------------Hard disk controller error The hard drive controller failed to respond
to the reset command. Check the drive
parameters. Power down the system and check
all appropriate connections.
--------------------------------------------------------------------------Hardware information does The video adapter type specified in CMOS RAM
not match video card, run does not match the installed hardware. Run
SCU Computer Setup
--------------------------------------------------------------------------Keyboard controller failure The keyboard failed the self-test command.
--------------------------------------------------------------------------Keyboard failure The keyboard failed to respond to the RESET
ID command.
--------------------------------------------------------------------------No interrupts from Timer 0 The periodic timer interrupt is not
occurring.
--------------------------------------------------------------------------RAM parity error at A RAM parity error occurred at the specified
location xxxx (hex) location.
--------------------------------------------------------------------------ROM at xxxx (LENGTH yyyy) An illegal adapter ROM was located at the
with nonzero checksum (zz) specified address. An external adapter (such
as a video card) may be causing the conflict.
--------------------------------------------------------------------------Time/Date corrupt - run SCU The time and date stored in the real time
clock have been corrupted, possibly by a
power loss. Run Computer Setup.
--------------------------------------------------------------------------Unexpected amount of The amount of memory detected by POST does
memory, run SCU not match the amount specified in CMOS RAM.
Run Computer Setup.
--------------------------------------------------------------------------Hard disk xx failure A failure or an error occurred when trying to
(or error) access the hard drive.
===========================================================================
Table 2-2. Fatal Error Messages
===========================================================================
Message Description Beep Code
===========================================================================
CMOS RAM test failed A walking bit test of CMOS RAM
location 0E (Hex) - 3F (Hex) failed. 3
--------------------------------------------------------------------------DMA controller faulty A sequential read/write of the
transfer count and transfer address
registers within the primary and
secondary DMA controllers failed. 4
--------------------------------------------------------------------------Faulty DMA page
registers A walking bit read/write of the 16 DMA
controller page registers starting at
location 80 Hex failed. 0
--------------------------------------------------------------------------Faulty refresh
circuits A continuous read/write test of port
61h found that bit 4 (Refresh Detect)
failed to toggle within an allotted
amount of time. 1
--------------------------------------------------------------------------Interrupt controller
failed A sequential read/write of various
Interrupt Controller registers failed. 5
--------------------------------------------------------------------------ROM checksum incorrect A checksum of the ROM BIOS does not
match the byte value at F000:FFFF. 2
--------------------------------------------------------------------------RAM error at location
xxxx RAM error occurred during memory test. None
--------------------------------------------------------------------------Parity error at
unknown location Parity error occurred. None
===========================================================================
The following table lists some of the Fatal Error beep codes, along with
the beep sequence (short, long, pause) and the meaning of the beeps.
Table 2-3. Fatal Error Beep Codes
===========================================================================
Beep Code Beep Sequence Explanation Remedy
===========================================================================
0 S-S-S-P-S-S-L-P The DMA page
registers are faulty. Replace system board.
1 S-S-S-P-S-L-S-P The refresh circuitry
is faulty. Replace system board.
2 S-S-S-P-S-L-L-P The ROM checksum is 1. Flash the ROM
incorrect. 2. Replace system
board.
3 S-S-S-P-L-S-S-P The CMOS RAM test
failed. Replace system board.
4 S-S-S-P-L-S-L-P The DMA controller is
faulty. Replace system board.
5 S-S-S-P-L-L-S-P The interrupt
controller failed. Replace system board.
6 S-S-S-P-L-L-L-P The keyboard
controller failed. Replace system board.
7 S-S-L-P-S-S-S-P Graphics adapter is
faulty. Replace system board.
8 S-S-L-P-S-S-L-P Internal RAM is
faulty. Replace processor
board.
--------------------------------------------------------------------------S = Short, L = Long, P = Pause
===========================================================================
Compaq Diagnostics
Run the Compaq Diagnostics utilities diskette when you want to view or
test system information and installed or connected devices. The
Diagnostics menu includes the following utilities:
o Computer Checkup (TEST)
o View System Information (INSPECT)
o Prepare Computer for a Compaq Service Call (RemotePaq)
If you have a problem you cannot solve, run the Diagnostics utilities
before you call for support. Run Computer Checkup and select to save the
device list to a file and to print or to save the log of errors. Run the
View System Information (INSPECT) utility and select to print or to save
that information. Have the files or the printed information available when
you call for support.
Computer Checkup (TEST)
Computer Checkup (TEST) determines whether the various computer components
and devices are recognized by the system and are functioning properly. You
can display, print, or save the information generated by Computer Checkup.
Follow these steps to run Computer Checkup:
1. Plug the computer into an external power source. (A low battery
condition could interrupt the program.)
2. Turn on the external devices that you want to test. Connect the printer
if you want to print a log of error messages.
3. Insert the Compaq Diagnostics diskette in drive A.
4. Turn on or restart the computer. The computer starts from drive A, and
the Diagnostics Welcome screen appears.
5. Press Enter to continue. The Diagnostics menu appears.
6. Select Computer Checkup from the Diagnostics menu. A Test Option menu
appears.
7. Select "View the Device List" from the Test Option menu. A list of the
installed Compaq devices appears.
8. If the list of installed devices is correct, select OK. The Test Option
menu appears.
NOTE: If the list is incorrect, ensure that any new devices are
installed properly.
9. Select one of the following from the Test Option menu:
o Quick Check Diagnostics. Runs a quick, general test on each device
with a minimal number of prompts. If errors occur, they display when
the testing is complete. You cannot print or save the error
messages.
o Automatic Diagnostics. Runs unattended, maximum testing of each
device with minimal prompts. You can choose how many times to run the
tests, to stop on errors, or to print or save a log of errors.
o Prompted Diagnostics. Allows maximum control over testing the
devices. You can choose attended or unattended testing, decide to
stop on errors, or choose to print or save a log of errors.
10. Follow the instructions on the screen as the devices are tested. When
testing is complete, the Test Option menu appears.
11. Exit the Test Option menu.
12. Exit the Diagnostics menu.
View System Information (INSPECT)
The View System Information (INSPECT) utility provides information about
the computer and installed or connected devices. You can display, print,
or save the information.
Follow these steps to run INSPECT from the Compaq Diagnostics diskette:
1. Turn on the external devices that you want to test. Connect the printer
if you want to print the information.
2. Insert the Compaq Diagnostics diskette into drive A.
3. Turn on or restart the computer. The computer starts from drive A, and
the Diagnostics Welcome screen appears.
4. Press Enter to continue. The Diagnostics menu appears.
5. Select View System Information (INSPECT) from the Diagnostics menu.
6. Select the item you want to view from the following list:
===========================================================================
System Memory
===========================================================================
ROM Audio
Keyboard Operating system
System ports System files
System storage Windows files
Graphics
===========================================================================
7. Follow the instructions on the screen to cycle through the screens, to
return to the list and choose another item, or to print the
information.
RemotePaq
This utility is only available in certain geographical areas and requires
a modem. It allows a Compaq reseller or service provider to automatically
run diagnostics on the computer.
To run RemotePaq, follow these steps:
1. Insert the Compaq Diagnostics diskette into drive A.
2. Turn on or restart the computer. The computer starts from drive A, and
the Diagnostics Welcome screen appears.
3. Press Enter to continue. The Diagnostics menu appears.
4. Select Prepare Computer for a Compaq Service Call (RemotePaq).
5. Follow the instructions on screen.
Diagnostic Error Codes
Diagnostic error codes occur if the system recognizes a problem while
running the Compaq Diagnostic program. These error codes help identify
possibly defective subassemblies.
Tables 2-4 through 2-13 list possible error codes, a description of the
error condition, and the action required to resolve the error condition.
IMPORTANT: Retest the system after completing each step. If the problem
has been resolved, do not proceed with the remaining steps.
For assistance in the removal and replacement of a particular subassembly,
see Chapter 5, "Computer Removal and Replacement Procedures."
Table 2-4. Processor Test Error Codes
===========================================================================
Error Code Description Recommended Action
===========================================================================
101 - xx CPU test failed The following applies to error codes
101 - xx through 113 - xx:
103 - xx DMA page registers
test failed Replace the system board and retest.
104 - xx Interrupt controller
master test failed
105 - xx Port 61 error
106 - xx Keyboard controller
self-test failed
107 - xx CMOS RAM test
failed
108 - xx CMOS interrupt test
failed
109 - xx CMOS clock test
failed
110 - xx Programmable timer
load data test
failed
113 - xx Protected mode test
failed
--------------------------------------------------------------------------114 - 01 Speaker test failed 1. Check system configuration.
2. Verify cable connections to speaker.
3. Replace the system board and retest.
===========================================================================
Table 2-5. Memory Test Error Codes
===========================================================================
Error Code Description Recommended Action
===========================================================================
200 - xx Memory machine ID The following steps apply to error
test failed codes 200 - xx and 202 - xx:
202 - xx Memory system ROM 1. Flash the system ROM and retest.
checksum failed 2. Replace the system board and retest.
--------------------------------------------------------------------------203 - xx Write/Read test The following steps apply to error
failed codes 203 - xx through 215 - xx:
204 - xx Address test failed 1. Remove the memory module and retest.
2. Install a new memory module and
211 - xx Random pattern test retest.
failed
214 - xx Noise test failed
215 - xx Random address test
failed
===========================================================================
Table 2-6. Keyboard Test Error Codes
===========================================================================
Error Code Description Recommended Action
===========================================================================
300 - xx Failed ID Test The following steps apply to error
codes 300 - xx through 304 - xx:
301 - xx Failed Self-test/ 1. Check the keyboard connection. If
Interface Test disconnected, turn off the computer
and connect the keyboard.
2. Replace the keyboard and retest.
302 - xx Failed Individual 3. Replace the system board and retest.
Key Test
304 - xx Failed Keyboard
Repeat Test
===========================================================================
Table 2-7. Parallel Printer Test Error Codes
===========================================================================
Error Code Description Recommended Action
===========================================================================
401 - xx Printer failed or The following steps apply to error
not connected codes 401 - xx through 403 - xx:
402 - xx Failed Port Test 1. Connect the printer.
2. Check power to the printer.
403 - xx Printer pattern test 3. Install the loopback connector and
failed retest.
4. Check port and IRQ configuration.
5. Replace the system board and retest.
===========================================================================
Table 2-8. Diskette Drive Test
===========================================================================
Error Code Description Recommended Action
===========================================================================
600 - xx Diskette ID drive The following steps apply to error
types test failed codes 600 - xx through 698 - xx:
601 - xx Diskette format 1. Replace the diskette media and
failed retest.
2. Check and/or replace the diskette
602 - xx Diskette read test power and signal cables and retest.
failed 3. Replace the diskette drive and
retest.
603 - xx Diskette write, 4. Replace the system board and
read, compare test retest.
failed
604 - xx Diskette random
read test failed
605 - xx Diskette ID media
failed
606 - xx Diskette speed test
failed
609 - xx Diskette reset
controller test
failed
610 - xx Diskette change
line test failed
697 - xx Diskette type error
698 - xx Diskette drive speed
not within limits
--------------------------------------------------------------------------699 - xx Diskette drive/media 1. Replace media.
ID error 2. Run the Configuration and
Diagnostics Utilities.
===========================================================================
Table 2-9. Serial Test Error Codes
===========================================================================
Error Code Description Recommended Action
===========================================================================
1101 - xx Serial port test 1. Check port configuration
failed 2. Replace the system board and retest.
===========================================================================
Table 2-10. Hard Drive Test Error Codes
===========================================================================
Error Code Description Recommended Action
===========================================================================
1701 - xx Hard drive format The following steps apply to error
test failed codes 1701 - xx through 1736 - xx:
1702 - xx Hard drive read test 1. Run the Diagnostics Utilities
failed and verify drive type.
2. Replace the hard drive and retest.
1703 - xx Hard drive write/ 3. Replace the system board and
read/compare test retest.
failed
1704 - xx Hard drive random
seek test failed
1705 - xx Hard drive
controller test
failed
1706 - xx Hard drive ready
test failed
1707 - xx Hard drive
recalibration test
failed
1708 - xx Hard drive format
bad track test
failed
1709 - xx Hard drive reset
controller test
failed
1710 - xx Hard drive park
head test failed
1715 - xx Hard drive head
select test failed
1716 - xx Hard drive
conditional format
test failed
1717 - xx Hard drive ECC *
test failed
1719 - xx Hard drive power
mode test failed
1724 - xx Network preparation
test failed
1736 - xx Drive monitoring
test failed
--------------------------------------------------------------------------* ECC = Error Correction Code
===========================================================================
Table 2-11. Video Test Error Codes
===========================================================================
Error Code Description Recommended Action
===========================================================================
501 - xx Video controller The following apply to error codes
test failed 501 - xx through 516 - xx:
502 - xx Video memory test 1. Disconnect external monitor and test
failed with internal LCD display.
2. Replace the display assembly and
503 - xx Video attribute test retest.
failed 3. Replace the system board and retest.
504 - xx Video character set
test failed
505 - xx Video 80 x 25
mode 9 x 14
character cell test
failed
506 - xx Video 80 x 25 mode
8 x 8 character
cell test failed
507 - xx Video 40 x 25 mode
test failed
508 - xx Video 320 x 200
mode color set 0
test failed
509 - xx Video 320 x 200
mode color set 1
test failed
510 - xx Video 640 x 200
mode test failed
511 - xx Video screen memory
page test failed
512 - xx Video gray scale
test failed
514 - xx Video white screen
test failed
516 - xx Video noise pattern
test failed
--------------------------------------------------------------------------Error Code Description Recommended Action
--------------------------------------------------------------------------2402 - xx Video memory test The following steps apply to error
failed codes 2402 - xx through 2456 - xx:
2403 - xx Video attribute test 1. Run the Configuration and
failed Diagnostics Utilities.
2. Replace the display assembly and
2404 - xx Video character set retest.
test failed 3. Replace the system board and retest.
2405 - xx Video 80 x 25 mode
9 x 14 character
cell test failed
2406 - xx Video 80 x 25 mode
8 x 8 character
cell test failed
2408 - xx
2409 - xx Video 320 x 200
mode color set 1
test failed
2410 - xx Video 640 x 200
mode test failed
2411 - xx Video screen
memory page test
failed
2412 - xx Video gray scale
test failed
2414 - xx Video white screen
test failed
2416 - xx Video noise
pattern test
failed
2418 - xx ECG/VGC memory
test failed
--------------------------------------------------------------------------Error Code Description Recommended Action
--------------------------------------------------------------------------2419 - xx ECG/VGC ROM checksum The following steps apply to error
test failed codes 2402 - xx through 2456 - xx:
2421 - xx ECG/VGC 640 x 200 1. Run the Diagnostics Utilities.
graphics mode test 2. Disconnect external monitor and
failed retest with internal LCD monitor.
3. Replace the display assembly and
2422 - xx ECG/VGC 640 x 350 retest.
16 color set test 4. Replace the system board and retest.
failed
2423 - xx ECG/VGC 640 x 350
64 color set test
failed
2431 - xx 640 x 480 graphics
test failure
2432 - xx 320 x 200 graphics
(256 color mode)
test failure
2448 - xx Advanced VGA
Controller test
failed
2451 - xx 132-column Advanced
VGA test failed
2456 - xx Advanced VGA 256
Color test failed
--------------------------------------------------------------------------2458 - xx Advanced VGA BitBLT Replace the system board and retest.
test
2468 - xx Advanced VGA DAC
test
2477 - xx Advanced VGA data
path test
2478 - xx Advanced VGA BitBLT
test
2480 - xx Advanced VGA
Linedraw test
===========================================================================
Table 2-12. Audio Test Error Codes
===========================================================================
Error Code Description Recommended Action
===========================================================================
3206 - xx Audio System Replace the system board and retest.
Internal Error
===========================================================================
Table 2-13. Pointing Device Interface Test Error Codes
===========================================================================
Error Code Description Recommended Action
===========================================================================
8601 - xx Mouse test failed The following steps apply to 8601 - xx
and 8602 - xx:
8602 - xx Interface test
failed 1. Replace the Pointing Device and
reset.
2. Replace the system board and retest.
===========================================================================
Troubleshooting without Diagnostics
This section provides information about how to identify and correct some
common hardware, memory, and software problems. It also explains several
types of common messages that may be displayed on the screen. The
following pages contain troubleshooting information on:
o Audio
o Memory
o Battery/Battery gauge
o PC Card
o Diskette/Diskette drive
o Power
o Hard drive
o Printer
o Hardware installation
o Screen (LCD and CRT)
o Keyboard (Numeric keypad)
o Software
o Pointing device
Solving Minor Problems
Some minor problems and possible solutions are outlined in the following
tables. If the problem appears related to a software application, check
the documentation provided with the software.
Solving Audio Problems
Some common audio problems and solutions are listed in the following
table.
Table 2-14. Solving Audio Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
Computer beeps once This is typical; it No action is required.
after you turn it indicates successful
on. completion of the Power-On
Self-Test (POST).
--------------------------------------------------------------------------Computer does not Speaker volume is off or If the speaker icon is
beep after the has been turned down. not displayed on the
Power-On Self-Test status panel, Press
(POST). Fn+F5 to turn the
speaker on, then adjust
the volume.
Beeps have been turned Run Computer Setup and
off. turn on beeps.
===========================================================================
Solving Battery and Battery Gauge Problems
Some common causes and solutions for battery problems are listed in the
following table. The "Solving Power Problems" section in this chapter also
may be applicable.
Table 2-15. Solving Battery and Battery Gauge Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
Computer won't turn Battery is discharged. Connect the computer to
on when battery pack an external power
is inserted and source and charge the
power cord is battery pack.
unplugged.
Replace the battery pack
with a fully charged
battery pack.
Check the battery
connectors on the system
board to verify they are
evenly spaced and that
they are not bent or
broken.
--------------------------------------------------------------------------Computer is beeping Battery charge is low. Immediately save any open
and battery light file(s). Then do any one
is blinking. of the following:
o Connect the computer to
an external power
source to charge the
battery pack.
o Initiate Standby and
replace the battery
pack with a fully
charged battery pack.
o Turn the computer off
or initiate Hibernation
until you can find
another power source or
charge the battery
pack.
--------------------------------------------------------------------------Computer battery Low battery beeps Run Computer Setup to
light blinks to were turned off. turn on the low battery
indicate low battery warning beeps.
condition, but
computer does not
beep.
Volume is turned off or Press Fn+F5 to turn the
turned down too low. speaker on and then
adjust the volume.
--------------------------------------------------------------------------Problem Probable Cause Solution(s)
--------------------------------------------------------------------------Battery light Battery pack is already No action is necessary.
doesn't light and charged.
battery pack won't
fast charge.
Battery pack was exposed Allow time for the
to temperature extremes. battery pack to return to
room temperature.
Battery pack is at end Replace battery pack.
of its life.
--------------------------------------------------------------------------You have to set the Auxiliary battery charge Provide power to the
date and time every is low, or the auxiliary computer (AC or battery).
time you turn on battery is at end of its
the computer. life. Replace the RTC (lithium)
battery.
--------------------------------------------------------------------------Battery charge does Battery is being exposed Keep the battery pack
not last as long as to high temperatures or within the recommended
expected. extremely cold temperature ranges:
temperatures.
Operating: 50oF to 104oF
(10oC to 40oC)
Storage: -4oF to 86oF
(-20oC to 30oC).
Recharge the battery
pack.
Battery has partially Recharge the battery.
self-discharged. Discharge the battery
completely and then
recharge it.
Power management is Set a power management
disabled. level in Computer Setup.
An external device or Turn off or disconnect
PC Card is draining the external devices when not
battery. using them.
--------------------------------------------------------------------------Battery pack is Normal warming has No action is required.
warm to the touch occurred due to
after charging. charging.
--------------------------------------------------------------------------Battery gauge is The battery pack is new Fully charge the battery
inaccurate. or has not been used for pack until the battery
a long period. light on the computer
turns off.
Condition the battery
pack by fully charging,
then fully discharging,
and then fully
recharging. If condition
persists, replace the
battery. If the battery
gauge is still
inaccurate, replace the
system board.
--------------------------------------------------------------------------Battery pack Power management is Enable power management
operating time is turned off or disabled. in Computer Setup and in
far less than the Windows Power Properties.
documented The power management icon
average operating should be visible on the
time. status panel.
An external device or Turn off or disconnect
PC Card is draining the external devices when not
battery. using them.
Battery pack has Condition the battery
partially self- pack by fully charging,
discharged. fully discharging, then
fully recharging it.
To maintain the charge,
leave battery packs in
the computer when it is
connected to external
power.
If the computer is
disconnected from
external power for more
than two weeks, remove
battery packs from the
computer to reduce the
discharge rate.
--------------------------------------------------------------------------Problem Probable Cause Solution(s)
-------------------------------------------------------------------------- Battery pack is being Keep the battery pack
exposed to high within the recommended
temperatures or temperature ranges.
extremely cold
temperatures. operating: 50oF to 104oF
(10oC to 40oC)
storage: -4oF to 86oF
(-20oC to 30oC ).
Recharge the battery
pack.
===========================================================================
Solving Diskette and Diskette Drive Problems
Some common causes and solutions for diskette and diskette drive problems
are listed in the following table.
Table 2-16. Solving Diskette and Diskette Drive Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
Diskette drive icon Diskette drive is not Remove the diskette drive
does not turn on. installed properly. and install it properly.
--------------------------------------------------------------------------Diskette drive icon Diskette is damaged. Run SCANDISK on the
stays on. diskette. At the system
prompt, enter SCANDISK A:
Diskette is incorrectly Remove diskette and
inserted. reinsert.
Software program is Check the program
damaged. diskettes.
--------------------------------------------------------------------------Diskette drive Diskette is Disable the diskette's
cannot write to a write-protected. write-protect feature or
diskette. use a diskette that is
not write-protected.
Computer is writing to Check the drive letter in
the wrong drive. the path statement.
Not enough space is left Use another diskette.
on the diskette.
Drive error has Run Computer Checkup
occurred. from the Compaq
Diagnostics diskette.
Diskette is not Format the diskette. At
formatted. the system prompt, enter
FORMAT A:
--------------------------------------------------------------------------Diskette drive The wrong type of Use the type of diskette
cannot read a diskette is being used. required by the drive.
diskette.
Diskette has a bad Copy files to hard drive
sector. or another diskette.
Reformat bad floppy.
Drive error has Run Computer Checkup
occurred. from the Compaq
Diagnostics diskette.
Diskette is not Format the diskette. At
formatted. the system prompt, enter
FORMAT A:
--------------------------------------------------------------------------Cannot boot from Bootable diskette is not Put the bootable diskette
diskette in drive A in drive A.
Diskette Boot is Run Computer Setup and
disabled in Computer enable Diskette Boot on
Setup. the Initialization menu.
===========================================================================
Solving Hard Drive Problems
Some common causes and solutions for hard drive problems are listed in the
following table.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
To prevent loss of information, always maintain an up-to- date backup of
your hard drive at all times, in case of errors or failures.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Table 2-17. Solving Hard Drive Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
Reading hard drive System entered Give the system time to
takes an unusually Hibernation due to restore the previously
long time after low-battery condition saved data to its exact
restarting the and is now exiting from state before Hibernation.
computer. it.
--------------------------------------------------------------------------Hard drive error Hard drive has bad Run Computer Checkup from
occurs. sectors or has failed. the Compaq Diagnostics
diskette.
See POST error messages.
===========================================================================
Solving Hardware Installation Problems
Some common causes and solutions for hardware installation problems are
listed in the following table.
Table 2-18. Solving Hardware Installation Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
A new device is not Cable(s) of new external Ensure that all cables
recognized as part device are loose or are properly and securely
of the computer power cables are connected.
system. unplugged.
Power switch of new Turn off the computer,
external device is not turn on the external
turned on. device, then turn on the
computer to integrate
the device with the
computer system.
Device is not seated Turn off the computer
properly. and reinsert the device.
===========================================================================
Solving Keyboard/Numeric Keypad Problems
Some common causes and solutions for keyboard/numeric keypad problems are
listed in the following table.
Table 2-19. Solving Keyboard/Numeric Keypad Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
Embedded numeric Num Lock function is not Press the Fn+NumLk keys
keypad on computer enabled. to enable the Num Lock
keyboard is function and embedded
disabled. numeric keypad. The Num
Lock icon on the status
panel turns on.
--------------------------------------------------------------------------Embedded numeric External numeric keypad Disconnect the external
keypad is disabled is connected to the numeric keypad from the
and Num Lock computer. computer.
function is on.
--------------------------------------------------------------------------Keyboard is locked. You initiated QuickLock. Enter your password to
exit QuickLock.
===========================================================================
Solving Pointing Device Problems
Some common causes and solutions for trackball and mouse problems are
listed in the following table.
Table 2-20. Solving Pointing Device Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
External pointing The device driver is not Install the device driver
device does not installed in Windows. in Windows.
work.
--------------------------------------------------------------------------Integrated pointing An external pointing Initiate Standby and
device does not device is connected disconnect the external
work. and the system has pointing device.
disabled the internal
pointing device.
===========================================================================
Solving Memory Problems
Some common causes and solutions for memory problems are listed in the
following table.
Table 2-21. Solving Memory Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
Memory count during Optional memory Ensure that the optional
Power-On Self-Test expansion card is memory expansion card is
(POST) is incorrect. installed incorrectly, installed correctly.
is incompatible with the
computer, or is
defective.
--------------------------------------------------------------------------"Out of Memory" System ran out of memory Check the application
message is displayed for the application. documentation for
on the screen or memory requirements.
insufficient memory Install additional
error occurs during memory.
operation.
Too many TSR (terminate Remove from memory any
and stay resident) TSR applications that
applications are you do not need.
running.
===========================================================================
Solving PC Card Problems
Some common causes and solutions for PC Card problems are listed in the
following table.
Table 2-22. Solving PC Card Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
PC Card error The PC Card slot is Run Computer Setup and
messages appear when disabled. enable the PC Card slots
the computer is on the Security Menu.
turned on.
When turned on, the Card is not inserted Ensure the card is
computer does not properly. inserted in the correct
beep when a PC orientation.
Card is inserted.
PC Card beeps are Double-click the PC Card
disabled. icon in the Control
Panel, click the Global
Settings tab, the enable
PC Card sound effects.
Speaker is turned off. Press Fn+F5 to turn the
speaker on.
PC Card drivers are not Double click the Add New
installed. Hardware icon in the
Control Panel for
installation
instructions.
If PC Card or drivers are
not compatible with
Windows 95, install
drivers and use the PC
Card in MS-DOS mode.
The PC Card slots are Run Computer Setup and
disabled. then select the Security
menu to enable PC Card
slots.
Card or card driver is Contact your Compaq
not supported. authorized service
provider for a list of
PC Cards tested
successfully in Compaq
PC Card platforms.
--------------------------------------------------------------------------The PC Card drivers The PC Card slot is Run Computer Setup and
(Socket Services, disabled. select the Security menu
Card Services, Card to enable PC Card slots.
ID) fail with error
messages when the
computer is turned
on.
--------------------------------------------------------------------------PC Card modem, fax, Card is not fully Ensure the card is
or network card inserted into the slot inserted in the correct
does not work. or is not inserted orientation.
properly.
Telephone cord is not Check and secure
plugged in all the way. telephone connection.
Necessary drivers are Install drivers.
not installed (turned
on).
--------------------------------------------------------------------------PC Card modem or fax You are trying to access Right click My Computer
card does not work. the card using the wrong on the Windows desktop.
COM port. Left click Properties,
then Device Manager,
and double-click Port
Settings to view the
COM port settings.
The card conflicts with
a serial device.
The card is not Use supported cards
supported. only.
--------------------------------------------------------------------------Modem network PC Network driver is not Install driver.
Card does not work. installed or is not set
up properly.
Telephone cord is not Verify telephone
properly connected. connection.
--------------------------------------------------------------------------Memory or storage SRAM and flash memory Install driver.
card does not work. cards require the memory
card driver to be loaded
(turned on).
Flash memory cards
require the Microsoft
FlashFile System to be
loaded.
Hard drives on flash
mass storage cards
require the PC Card ATA
driver to be loaded.
You are trying to Double-click My Computer
access the hard drive to verify the drive
card using the wrong letter assigned to the
drive letter. card.
The card is not Check the list of PC
supported. Cards tested successfully
in Compaq PC Card
platforms.
===========================================================================
Solving Power Problems
Also see "Solving Battery and Battery Gauge Problems" in this chapter.
Table 2-23. Solving Power Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
Computer won't turn Computer is not Insert battery or connect
on and battery pack connected to a power an external power source.
is not inserted. source.
Power cords to the Ensure that power cords
external power source connecting the computer
are unplugged. and the external power
source are plugged in
properly.
System board is 1. See section
defective. "Measuring Power
Signals" to check for
proper voltages.
2. Replace system board
and restart.
--------------------------------------------------------------------------Computer turned off System initiated Replace the battery pack
while it was left Hibernation due to a with a fully charged
unattended and the critical low-battery battery pack or connect
power icon is off. condition. the computer to an
external power source.
Then turn on the
computer.
System initiated Turn on the computer.
Hibernation after a
preset timeout.
--------------------------------------------------------------------------Computer initiated The unit temperature was Computer is in an
Standby exceeded. exceedingly hot
automatically or environment. Let the
turned off computer cool down.
automatically.
===========================================================================
Measuring Power Signals
The following power signals can be measured on the top side of the PCA.
===========================================================================
VDD (+5V) Across Tantalum CAPs C574, C573
--------------------------------------------------------------------------+3.3V Across Tantalum CAPs C578, C575
--------------------------------------------------------------------------VCPU (3.3V on -001
and 2.9V on -002) Across Tantalum CAPs C572, C571, C570, and C569
--------------------------------------------------------------------------VBAT At Fuse F1
--------------------------------------------------------------------------+12V Across CAP C522, near PCMCIA connector
===========================================================================
VCC1 can be measured at Pin 28 of U539.
Solving Printer Problems
If you experience problems printing, run a printer self-test. Refer to the
documentation provided with your printer for instructions. If the
self-test fails, it is a printer-specific problem. Also refer to the
printing section of your application documentation.
Table 2-24. Solving Printer Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
Printer will not The signal cable may not Ensure that the signal
turn on. be connected properly, cable is properly
or the printer is connected and that the
unplugged. power cord is connected
to the electrical outlet.
--------------------------------------------------------------------------Printer will not Printer is not turned on Turn the printer on and
print. or is off line. set it to online.
The device drivers for Refer to the printer
your application are not documentation to Install
installed. the correct printer
driver.
Printer that is set up Connect the printer to
for a network is not the network.
connected to the
network.
Printer cable is too Replace the cable.
long, unshielded, or
defective.
Paper tray is empty. Fill the paper tray with
paper and set the
printer to on line.
---------------------------------------------------------------------------
Printer prints Correct printer drivers Refer to the printer
garbled are not installed. documentation to Install
information. the correct printer
driver.
Cable is not connected Ensure that the printer
properly. signal cable is properly
connected to the
computer.
Cable is defective. Replace the printer
cable and retest.
===========================================================================
Solving Screen Problems
This section lists some common causes and solutions for computer display
and external monitor problems.
IMPORTANT: Verify that the display jumpers are set properly for the
display before proceeding with any troubleshooting.
You can perform a monitor self-test on an external VGA color or monochrome
monitor by disconnecting the monitor from the computer. To do so, complete
the following steps:
1. Turn off the monitor.
2. Turn off the computer.
3. Disconnect the monitor signal cable from the computer.
4. Turn on the monitor and allow it to warm up for one minute.
The screen should be white. A narrow black border may also appear on
the left and right sides of the display. Either of these displays
indicates that the monitor is working properly.
Table 2-25. Solving Screen Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
Characters are dim. The brightness or Adjust the control(s) on
contrast (if applicable) the right side of the
control is not set computer display.
properly.
Computer screen is in Tilt the display or move
direct light. computer.
--------------------------------------------------------------------------Screen is blank. You initiated QuickLock/ Enter the password to
QuickBlank. exit QuickLock/
QuickBlank.
You may have another Press any key and/or
screen blanking utility enter your password.
installed.
Screen save was Press any key or click
initiated after the the mouse.
Power Management timeout
period of inactivity
If an STN screen is Use the control on the
used, brightness/ display to adjust the
contrast needs brightness/contrast.
adjusting.
Standby was initiated. Press the standby button
to exit Standby.
--------------------------------------------------------------------------Computer screen is Display was switched to Press the Fn+F4 hotkey to
blank and the screen the external monitor. display information on
on an external the computer screen.
monitor displays
information.
--------------------------------------------------------------------------Garbled characters You are using 800 x 600 Restart your computer. If
on internal display or higher resolution on simultaneous display is
or flashing internal external display and desired, use 640 x 480
display when have toggled back to resolution.
connected to internal display, which
external monitor. only supports 640 x 480
resolution.
--------------------------------------------------------------------------The image on the You are using an This is typical; no
external monitor external monitor and action is required.
does not fill the simultaneously
screen. displaying an image on
the computer display.
--------------------------------------------------------------------------Small red, green, or Small spots, called This is typical; no
blue spots appear on on-pixels, often appear action is required.
the computer TFT on TFT screens. Compaq
display. limits the number of
these on-pixels to
0.003 percent of the
approximately 1 million
transistors that are on
a 10.4-inch display.
===========================================================================
Solving Software Application Problems
Most software application or installation problems occur as a result of
one or more of the following:
o The application was not installed correctly.
o The CONFIG.SYS file was not configured correctly.
o Memory was not allocated correctly.
o The AUTOEXEC.BAT file was not edited correctly.
o A conflict exists between applications.
Table 2-26. Solving Software Application Problems
===========================================================================
Problem Probable Cause Solution(s)
===========================================================================
Cannot use an The application has not Run the program with the
application. been added to the PATH full path name.
statement.
--------------------------------------------------------------------------Insufficient memory System ran out of memory Check the application
to run application. for the application. documentation for memory
requirements.
Install additional
memory.
Too many TSR (terminate Remove from memory any
and stay resident) TSR applications that you
applications are do not need.
running.
===========================================================================
Chapter 3 - Illustrated Parts
Introduction
This chapter provides an illustrated parts breakdown and a reference for
spare part numbers for the Compaq Armada 1100 Family of Personal
Computers.
The computer combines a display assembly and system unit module. The
display and system unit module are joined together by clutches on either
side, which are secured by screws in the chassis and display enclosure,
and which allow the display to open and close. The system unit module is
secured to the CPU base by screw locks in the rear and screws in the
bottom of the system unit enclosure. The display assembly is secured by
screws installed in the front bezel of the display enclosure.
System Unit Module Overview
The system unit module (Figure 3-2) contains the following major
components:
o Hard drive - The hard drive mounts to the system chassis with a hard
drive bracket and connects directly to the system board with no
intervening cables. The hard drive bracket attaches to the hard drive
with four screws. The drive is protected by an insulator between the
system board and the drive.
o Memory expansion board - System memory can be upgraded with an optional
memory expansion board. An expansion board is added or replaced from the
bottom of the computer through the memory compartment cover. The memory
expansion board connects directly to the system board with one
connector.
o Battery pack - The nickel metal hydride battery pack is accessed through
the battery compartment.
o Integrated trackball assembly - The optical trackball is centrally
located at the bottom of the keyboard assembly. The assembly consists of
the trackball, retaining ring, and connector. The trackball assembly
connects directly to the system board and is secured by two screws.
o System board with processor - The system board is mounted directly to
the system chassis. All removable components connected to the system
board, except for the PC Card rails, EMI clip, and heatspreader must be
removed prior to removing the system board. The processor is soldered to
the system board and is not removable. It is covered by a heatspreader
designed to dissipate heat generated by the processor. There is a
bottom heatsink on the chassis, beneath the system board and the
processor. A spare parts kit containing a replacement system board comes
with the processor and heatspreader built on it. A chassis spare parts
kit includes the bottom heatsink.
o PC Card rails - The PC Card rails are replaceable and are secured by two
screws from the bottom of the system board and a clip on top of the
rails. The header attaches directly to the system board and cannot be
removed. The top and bottom PC Card ejection levers are replaceable.
o Real-Time Clock Battery - The battery is located in the left corner at
the rear of the computer.
o Diskette drive - The diskette drive attaches to the system board by a
bracket and three screws; the bracket also attaches to the heatspreader
with two screws. The drive is connected by a diskette drive cable and
LIF connector. The bracket attaches to the drive with four screws. The
drive is protected by an insulator between the system board and the
drive.
The memory expansion board and battery pack are accessed from the bottom
of the computer. To service the remaining system unit module components,
the keyboard assembly must be removed. A complete list of replaceable
parts is included in Table 3-1.
Display Assembly Overview
All display assemblies (Figure 3-3) include the following replaceable
parts:
o Bezel
o Enclosure latches
o Liquid crystal display (LCD) panel
o Shield
o Enclosure
o Display cable
o Display ground cable
o Inverter board
o Clutches
The display cable is a prefolded, flex cable that connects to the display
inverter board with a low insertion force (LIF) connector. The other end
of the display cable is exposed at the bottom of the display enclosure and
connects to the system board with a zero insertion force (ZIF) slide
connector. The cable connects to the display panel directly on the CTFT
model and through a crossover PCA on the CSTN models.
The display ground cable connects to the display shield on one end, and
the other end clips to the flex ground bracket located above the serial
port between the system board and system chassis.
The display inverter board is aligned to the right of the display
enclosure with pins. One end connects to the display cable; the other end
connects to the backlight cable of the LCD panel.
To replace the display assembly, the assembly must be removed from the
system unit module. This is done by removing the keyboard assembly,
disconnecting the display cable and display ground cable from the system
unit module, removing the tilt feet and handle brackets, removing the rear
clutch screws, and lifting off the display assembly.
To service display components, do not remove the display assembly from the
system unit module (unless replacement of the display enclosure or clutch
is required). Access display components (inverter board or latches) by
removing the bezel secured with four screws on the front of the display.
System Unit Module Parts
Table 3-1. System Unit Module
===========================================================================
Description Spare Part Number Notes
===========================================================================
1. Base enclosure 262492-001 Includes:
a. PC Card eject levers and
pin
b. bottom PC Card door and
spring
c. battery latch button and
spring
d. handle bracket, screws,
and washers
e. battery shield, insulator
f. tilt foot and screws
g. battery clip
h. battery warning label *
i. lock plate *
j. label - A2860E, Service *
k. label - AY2860F,
Service *
---------------------------------------------------------------------------
2. System board Includes:
- with 75 MHz a. heatspreader plate
processor 262406-001 b. diskette drive and hard
drive insulators *
- with 100 MHz c. EMI gasket *
processor 262407-001 d. heatspreader clip *
e. heatspreader screws *
---------------------------------------------------------------------------
3. Diskette drive
bracket 189240-001
---------------------------------------------------------------------------
4. Diskette drive 147963-001 Includes:
a. label *
b. battery clip, spring,
spacer assembly *
c. sleeve, 4x4 floppy *
---------------------------------------------------------------------------
5. Real-time clock Includes Read this First
battery 117099-001 card *
---------------------------------------------------------------------------
6. Optical trackball 189197-001
---------------------------------------------------------------------------
7. PC Card ejection Includes the following:
assembly 189242-001 a. rails
b. clip
c. screws *
---------------------------------------------------------------------------
8. Chassis 262493-001 Includes:
a. bottom heatsink assembly
b. battery clip *
---------------------------------------------------------------------------
9. Clutches 147858-001 Includes:
a. Left and right clutches
b. handle bracket screws and
washers
c. tilt foot screws
---------------------------------------------------------------------------
10. Hard drive 810 MB 262468-001
---------------------------------------------------------------------------
11. Hard drive bracket 147872-001
---------------------------------------------------------------------------
12. Trough 189262-001
---------------------------------------------------------------------------
13. Left and right 189262-001 See Table 3-11 for contents
clutch ground (Miscellaneous of Miscellaneous/hardware kit
clips hardware kit)
---------------------------------------------------------------------------
14. Memory expansion
board *
8 MB 220584-001 Includes Tamper Evident
16 MB 220585-001 labels *
---------------------------------------------------------------------------
15. NiMH battery Includes Battery
pack * 190626-001 Installation card *
---------------------------------------------------------------------------
16. Screws kit *
(See Table 3-12
for contents and
where used
matrix.) 147885-001
--------------------------------------------------------------------------* Not Shown
===========================================================================
Color STN (10.4 in) Display Assembly Parts
Table 3-2. CSTN (10.4 in) Display Assembly
===========================================================================
Spare Part
Description Number Notes
===========================================================================
1. Display bezel 189246-001
---------------------------------------------------------------------------
2. Backlight inverter Includes Caution, High
board 189135-001 Voltage label
---------------------------------------------------------------------------
3. Display panel 262466-001 Includes:
shield
display shipping box assembly,
Read This First card, and
cable depressor *
---------------------------------------------------------------------------
4. Display cables Includes:
with XOVER board 262494-001 a. display cable
b. display ground cable
c. XOVER board
---------------------------------------------------------------------------
5. Display clutch Includes screws and washers
(left and right) 147858-001 for handle bracket, and
screws for tilt feet *
---------------------------------------------------------------------------
6. Display enclosure 189245-001 Includes:
left and right latches,
springs, left and right
display clutches
logos (for Armada 1100 and
Contura 400), pad for
Sharp CSTN (for use with
Contura 400 CSTN), and
bezel screws *
---------------------------------------------------------------------------
7. Screw kit * 147885-001
(See Table 3-12
for contents and
where used matrix.)
--------------------------------------------------------------------------* Not Shown
===========================================================================
Color TFT (10.4 in) Display Assembly Parts
Table 3-3. CTFT (10.4 in) Display Assembly
===========================================================================
Spare Part
Description Number Notes
===========================================================================
1. Display bezel 189244-001
---------------------------------------------------------------------------
2. Backlight inverter Includes Caution, High
board 189136-001 Voltage label *
---------------------------------------------------------------------------
3. Display panel 189114-001 Includes:
shield
display shipping box assembly *
---------------------------------------------------------------------------
4. Display cables 189247-001 Includes:
with XOVER board a. display cable (CTFT)
b. display ground cable
c. display cable (CSTN)
d. XOVER board for CSTN *
---------------------------------------------------------------------------
5. Display clutch Includes screws and washers
(left and right) 147858-001 for handle bracket, and screws
for tilt feet *
---------------------------------------------------------------------------
6. Display enclosure 189243-001 Includes:
left and right latches,
springs, left and right display
clutches
logos (for Armada 1100 and
Contura 400), and bezel
screws *
---------------------------------------------------------------------------
7. Screw kit * 147885-001
(See Table 3-12
for contents and
where used matrix.)
--------------------------------------------------------------------------* Not Shown
===========================================================================
Keyboards
Table 3-4. Armada 1100 Notebook Keyboards
===========================================================================
Description All Models
===========================================================================
1. CPU cover includes: 147860-001
a. PC Card door
b. light deflector
c. spring *
---------------------------------------------------------------------------
2. U.S. 147875-001
---------------------------------------------------------------------------
3. U.K. 147875-003 *
---------------------------------------------------------------------------
4. German 147875-004 *
---------------------------------------------------------------------------
5. French 147875-005 *
---------------------------------------------------------------------------
6. Italian 147875-006 *
---------------------------------------------------------------------------
7. Spanish 147875-007 *
---------------------------------------------------------------------------
8. Danish 147875-008 *
---------------------------------------------------------------------------
9. Norwegian 147875-009 *
---------------------------------------------------------------------------
10. Swedish/Finnish 147875-010 *
---------------------------------------------------------------------------
11. Swiss 147875-011 *
---------------------------------------------------------------------------
12. French Canadian 147875-012 *
---------------------------------------------------------------------------
13. Portuguese 147875-013 *
---------------------------------------------------------------------------
14. Latin American 147875-016 *
---------------------------------------------------------------------------
15. Belgian 147875-018 *
---------------------------------------------------------------------------
16. Japanese 147875-019 *
---------------------------------------------------------------------------
17. Hangeul 147875-033 *
---------------------------------------------------------------------------
18. Brazilian 147875-035 *
--------------------------------------------------------------------------* Not Shown
===========================================================================
Table 3-5. Optional Enhanced Keyboards
===========================================================================
Description All Models
===========================================================================
1. Enhanced III - Domestic 140536-101
2. Enhanced III - U.K. 140536-103
3. Enhanced III - German 140536-104 *
4. Enhanced III - French 140536-105 *
5. Enhanced III - Italian 140536-106 *
6. Enhanced III - Spanish 140536-107 *
7. Enhanced III - Danish 140536-108 *
8. Enhanced III - Norwegian 140536-109 *
9. Enhanced III - Swedish/Finnish 140536-110 *
10. Enhanced III - Swiss 140536-111 *
11. Enhanced III - French Canadian 140536-112 *
12. Enhanced III - Portuguese 140536-113 *
13. Enhanced III - Turkish 140536-114 *
14. Enhanced III - Greek 140536-115 *
15. Enhanced III - Latin American 140536-116 *
16. Enhanced III - Arabic 140536-117 *
17. Enhanced III - Belgian 140536-118 *
18. Enhanced III - Japanese 140536-119 *
19. Enhanced III - BHCSY ** 140536-120 *
20. Enhanced III - Hungarian 140536-121 *
21. Enhanced III - Polish 140536-122 *
22. Enhanced III - Slovakian 140536-123 *
23. Enhanced III - Russian 140536-124 *
24. Enhanced III - Czech 140536-129 *
25. Enhanced III - Thai 140536-130 *
26. Enhanced III - Beijing 140536-132 *
27. Enhanced III - Hangeul 140536-133 *
28. Enhanced III - Taipei 140536-134 *
29. Enhanced III - Brazil 140536-135 *
-------------------------------------------------------------------------- * Not Shown
** Bosnia - Herzegovina, Croatia, Slovenia, and Yugoslavia
===========================================================================
Cables
Table 3-6. Cables
===========================================================================
Description Spare Part Number
===========================================================================
1. Display cables
a. CTFT display cable 189247-001
b. CSTN display cable 189247-001, 262494-001
c. XOVER board for CSTN 189247-001, 262494-001
d. Ground cable 189247-001, 262494-001
---------------------------------------------------------------------------
2. Diskette cable 147866-001
===========================================================================
AC Adapter and Power Cord
Table 3-7. AC Adapter and Power Cord
===========================================================================
Description Spare Part Numbers
===========================================================================
1. AC adapter 147679-002
2. Power cord (U.S./Canada) 197230-001
3. Power cord (U.K.) 197232-001 *
4. Power cord (Europe) 197231-001 *
5. Power cord (Japan) 197233-001 *
6. Power cord (Australia) 197234-001 *
7. Power cord (Korea) 262488-001 *
--------------------------------------------------------------------------* Not shown
===========================================================================
Memory Expansion Boards
Table 3-8. Memory Boards
===========================================================================
Description Spare Part Numbers
===========================================================================
Memory expansion boards
1. 8 MB 220584-001
2. 16 MB 220585-001
===========================================================================
Slipcase
Table 3-9. Slipcase
===========================================================================
Description Spare Part Number
===========================================================================
Slipcase 194162-001
===========================================================================
Automobile Adapter
Table 3-10. Automobile Adapter
===========================================================================
Description Spare Part Number
===========================================================================
Automobile Adapter 218079-001
===========================================================================
Miscellaneous CPU Kits
Table 3-11. Miscellaneous CPU Kits
===========================================================================
Description Spare Part Number
===========================================================================
Miscellaneous/hardware 189262-001
Includes:
Tilt feet
Trough
Battery latch
PCMCIA door
Foot shoulder screws
Battery tray assembly
Extension spring (battery eject button,
display latches)
Lock plate
Flex ground bracket
Keyboard ground clips
Left and right clutch ground clips
Handle bracket
Memory assembly door
PC Card ejection levers and pin
--------------------------------------------------------------------------System clock battery 117099-001
--------------------------------------------------------------------------Handle 147678-001
--------------------------------------------------------------------------Keyboard warning labels 189288-001
--------------------------------------------------------------------------Logos 189292-001
--------------------------------------------------------------------------Memory door 169713-001
--------------------------------------------------------------------------Anti-skid feet 147859-001
--------------------------------------------------------------------------RomPaq upgrade 181088-001
--------------------------------------------------------------------------Trackball removal tool 147779-001
--------------------------------------------------------------------------Country kit - domestic retail 262538-001
--------------------------------------------------------------------------Miscellaneous screws kit (See Table 3-12
for contents and where used matrix.) 147885-001
--------------------------------------------------------------------------Shipping carton, (Quantity = 5) 262485-001
--------------------------------------------------------------------------Shipping carton with buns, (Quantity = 1) 262486-001
===========================================================================
Computer Miscellaneous Screws Kit
Table 3-12a. Computer Miscellaneous Screws Kit Contents and Use
===========================================================================
Description Spare Part Number
===========================================================================
Screws and Fasteners Kit 147885-001
===========================================================================
Table 3-12b. Computer Miscellaneous Screws Kit Contents and Use
===========================================================================
Description: M2.0
Type: Fillister
Where Used: PCMCIA header
Drive: T8
Quantity Required: 2
--------------------------------------------------------------------------Description: M2.0
Type: Fillister
Where Used: PCMCIA rails
Drive: T8
Quantity Required: 2
--------------------------------------------------------------------------Description: M3.0
Type: Truss
Where Used: Heatspreader to system board
Drive: T8
Quantity Required: 3
--------------------------------------------------------------------------Description: M2.5 x 5.0
Type:
Where Used: Diskette drive bracket to system board
Drive: SL/T8
Quantity Required: 3
--------------------------------------------------------------------------Description: M2.5 x 5.0
Type:
Where Used: PCA
Drive: SL/T8
Quantity Required: 6
--------------------------------------------------------------------------Description: M2.5 x 5.0
Type:
Where Used: Display assembly - internal
Drive: SL/T8
Quantity Required: 6
--------------------------------------------------------------------------Description: M2.5 x 5.0
Type:
Where Used: Bezel
Drive: SL/T8
Quantity Required: 4
--------------------------------------------------------------------------Description: M2.5 x 5.0
Type:
Where Used: Lower clutch
Drive: SL/T8
Quantity Required: 4
---------------------------------------------------------------------------
Description: M2.5 x 5.0
Type:
Where Used: Trackball assembly to base
Drive: SL/T8
Quantity Required: 2
--------------------------------------------------------------------------Description: M2.5 x 5.0
Type:
Where Used: Hard drive bracket to system chassis
Drive: T8
Quantity Required: 1
--------------------------------------------------------------------------Description: M2.5 x 4.0
Type:
Where Used: CPU cover to keyboard
Drive: SL/T8
Quantity Required: 7
--------------------------------------------------------------------------Description: M2.5 x 24.0
Type:
Where Used: Bottom of unit
Drive: SL/T8
Quantity Required: 7
--------------------------------------------------------------------------Description: M2.5
Type: Shoulder
Where Used: Handle Bracket to clutch/through CPU base
Drive: T8
Quantity Required: 2
--------------------------------------------------------------------------Description: M3.0
Type: Truss
Where Used: Hard drive bracket to hard drive
Drive: T8
Quantity Required: 4
--------------------------------------------------------------------------Description: M3.0
Type: Truss
Where Used: Diskette drive bracket to diskette drive
Drive: T8
Quantity Required: 2
--------------------------------------------------------------------------Description: M2.6
Type: Fillister
Where Used: Diskette drive bracket to diskette drive
Drive: T8
Quantity Required: 4
--------------------------------------------------------------------------Description:
Type: Screw lock
Where Used: Back of unit
Drive: 3/16" Hex
Quantity Required: 6
--------------------------------------------------------------------------Description: M3.0
Type: Truss
Where Used: Panel Display
Drive: T8
Quantity Required: 4
--------------------------------------------------------------------------Description: M2.5 x 10.0
Type: Truss
Where Used: Heatspreader to chassis
Drive: T8
Quantity Required: 1
===========================================================================
Documentation
Table 3-13. Documentation
===========================================================================
Description Spare Part Numbers
===========================================================================
Maintenance and Service Guide 262489-001
Illustrated Parts Map 262490-001
Armada 1100 Family Reference Guide
and Quick Setup 262539-001 *
--------------------------------------------------------------------------* To order these documents in other languages, use the following
extensions: -041 German, -051 French, -061 Italian, -101 Swedish, -331
Dutch, -081 Danish, -351 Finnish, -091 Norwegian, -161 Latin American
Spanish, -201 Brazilian Portuguese, -191 Japanese, and -AD1 Hangeul.
===========================================================================
Chapter 4 - Removal and Replacement Preliminaries
Introduction
This chapter provides general service information for the Compaq Armada
1100 Family of Personal Computers.
Adherence to the procedures and precautions described in this chapter is
essential for proper service.
Electrostatic Discharge
A sudden discharge of static electricity from a finger or other conductor
can destroy static-sensitive devices or microcircuitry. Often the spark is
neither felt or heard, but damage occurs. An electronic device exposed to
electrostatic discharge (ESD) may not be affected at all and will work
perfectly throughout a normal cycle. Or it may function normally for a
while, then degrade in the internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but
in many cases, the discharge contains enough power to alter device
parameters or melt silicon junctions.
Generating Static
Table 4-1 shows how different activities generate static electricity and
at different electrostatic voltage levels.
Table 4-1. Typical Electrostatic Voltages
===========================================================================
-- Relative Humidity -Event 10% 40% 55%
===========================================================================
Walking across carpet 35,000 V 15,000 V 7,500 V
--------------------------------------------------------------------------Walking across vinyl floor 12,000 V 5,000 V 3,000 V
--------------------------------------------------------------------------Motions of bench worker 6,000 V 800 V 400 V
--------------------------------------------------------------------------Removing DIPS from plastic
tubes 2,000 V 700 V 400 V
--------------------------------------------------------------------------Removing DIPS from vinyl
trays 11,500 V 4,000 V 2,000 V
--------------------------------------------------------------------------Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
--------------------------------------------------------------------------Removing bubble pack from
PCBs 26,000 V 20,000 V 7,000 V
--------------------------------------------------------------------------Packing PCBs in foam-lined
box 21,000 V 11,000 V 5,000 V
--------------------------------------------------------------------------NOTE: 700 volts can degrade a product.
===========================================================================
Preventing Electrostatic Damage to Equipment
Many electronic components are sensitive to ESD. Circuitry design and
structure determine the degree of sensitivity. The following proper
packaging and grounding precautions are necessary to prevent damage:
o Protect all electrostatic parts and assemblies with conductive or
approved containers or packaging.
o Keep electrostatic-sensitive parts in their containers until they arrive
at static-free stations.
o Place items on a grounded surface before removing them from their
container.
o Always be properly grounded when touching a sensitive component or
assembly.
o Place reusable electronic-sensitive parts from assemblies in protective
packaging or conductive foam.
Use transporters and conveyors made of antistatic belts and metal roller
bushings. Mechanized equipment used for moving materials must be wired to
ground and proper materials selected to avoid static charging. When
grounding is not possible, use an ionizer to dissipate electric charges.
Removing Batteries
Compaq recommends that you remove all batteries from the computer before
beginning the disassembly procedures. Failure to do so could cause damage
to computer components.
Preventing Damage to Drives
To prevent static damage to hard drives, use the following precautions:
o Handle drives gently, using static-guarding techniques.
o Store drives in the original shipping containers.
o Avoid dropping drives from any height onto any surface.
o Handle drives on surfaces that have at least one inch of shock proof
foam.
o Always place drives with the PCB assembly side down on the foam.
Grounding Methods
The method for grounding must include a wrist strap or a foot strap at a
grounded workstation. When seated, wear a wrist strap connected to a
grounded system. When standing, use footstraps and a grounded floor mat.
Table 4-2. Static-Shielding Protection Levels
===========================================================================
Method Voltages
===========================================================================
Antistatic Plastic 1,500
Carbon-Loaded Plastic 7,500
Metallized Laminate 15,000
===========================================================================
Grounding Workstations
To prevent static damage at the workstation, use the following
precautions:
o Cover the workstation with approved static-dissipative material. Provide
a wrist strap connected to the work surface and properly grounded tools
and equipment.
o Use static-dissipative mats, heel straps, or air ionizers to give added
protection.
o Handle electrostatic sensitive components, parts, and assemblies by the
case or PCB laminate. Handle them only at static-free workstations.
o Avoid contact with pins, leads, or circuitry.
o Turn off power and input signals before inserting and removing
connectors or test equipment.
o Use fixtures made of static-safe materials when fixtures must directly
contact dissipative surfaces.
o Keep work area free of non-conductive materials such as ordinary plastic
assembly aids and Styrofoam.
o Use field service tools, such as cutters, screwdrivers, vacuums, that
are conductive.
o Use a portable field service kit with a static dissipative vinyl pouch
that folds out of a work mat. Also use a wrist strap and a ground cord
for the work surface. Ground the cord to the chassis of the equipment
undergoing test or repair.
Grounding Equipment
Use the following equipment to prevent static electricity damage to the
equipment:
Wrist Straps are flexible straps with a minimum of 1 megohm +/- 10%
resistance to the ground cords. To provide proper ground, a strap must be
worn snug against the skin. On grounded mats without banana-plug
connectors, connect a wrist strap with alligator clips.
Heel straps/Toe straps/Bootstraps can be used at standing workstations and
are compatible with most types of boots and shoes. On conductive floors or
dissipative floor mats, use straps on both feet with a minimum of 1 megohm
resistance between operator and ground. To be effective, the conductive
strips must be worn in contact with the skin.
Recommended Materials and Equipment
Other materials and equipment that are recommended for use in preventing
static electricity include:
o Antistatic tape
o Antistatic smocks, aprons, or sleeve protectors
o Conductive bins and other assembly or soldering aids
o Conductive foam
o Conductive table-top workstations with ground cord of 1 megohm of
resistance
o Static dissipative table or floor mats with hard tie to ground
o Field service kits
o Static awareness labels
o Wrist straps and footwear straps providing 1 megohm +/- 10% resistance
o Material handling packages
o Conductive plastic bags
o Conductive plastic tubes
o Conductive tote boxes
o Metal tote boxes
o Opaque shielding bags
o Transparent metallized shielding bags
o Transparent shielding tubes
Service Considerations
Listed below are some of the considerations that should be kept in mind
during the disassembly and assembly of the computer.
Tool Requirements
o Torx T-8 screwdriver
o Flat-bladed screwdriver
o Tool kit, Compaq part number 100767-001 (includes case utility tool,
connector removal tool, and loopback plugs)
o 3/16-inch hex socket wrench
o Preloaded application diskettes (Compaq Order Center, 1-800-952-7689)
Cables and Connectors
Apply only the tension required to seat or unseat the cables during
insertion or removal from connectors. Handle cables by the connector or
pull tabs whenever possible. In all cases, avoid bending, twisting, or
tearing the cables, and ensure that cables are placed in such a way that
they cannot be caught or snagged by parts being removed or replaced.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
When servicing these computers, ensure that cables are placed in their
proper location during the reassembly process. Improper cable placement
can cause severe damage to the unit.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Serial Number
The computer serial numbers should be provided to Compaq whenever
requesting information or ordering spare parts. The serial number is
located on the bottom of the CPU next to the memory compartment cover.
Chapter 5 - Computer Removal and Replacement Procedures
Introduction
This chapter provides complete removal and replacement procedures for the
computer.
Serial Number
The computer serial number should be reported to Compaq when requesting
information or ordering spare parts. The serial number is displayed on the
bottom of the CPU, next to the memory compartment cover [1].
Disassembly Sequence Chart
Use the following chart to determine the section number and disassembly
sequence for removing components from the computer.
5.3 |-- Preparing the Computer
| |--AC Adapter
| |--Diskette
| |--Battery pack
| |--PC Card
|
5.4 |-- Handle bracket
|
5.5 |-- Tilt
|
5.6 |-- Memory expansion board
|
5.7 |-- Keyboard assembly
| |-- Keyboard
| |-- CPU cover
| |-- Top PC Card (PCMCIA) door and spring
|
5.8 |-- Battery compartment components
| |-- Battery compartment
| |-- Anti-skid pad
| |-- Battery release spring and button
|
5.9 |-- Hard drive
|
5.10 |-- Real-time clock battery
|
5.11 |-- Integrated optical trackball assembly
|
5.12 |-- Diskette drive assembly
| |-- Diskette drive
| |-- Diskette drive bracket
|
5.13 |-- System board
|
5.14 |-- PC Card (PCMCIA) assembly
|
5.15 |-- PC Card ejection levers and pin
|
5.16 |-- PC Card doors and springs
|
5.17 |-- System chassis
| |-- Trough
|
5.18 |-- CPU base
| |-- Battery shield clip
| |-- Lock provision plate
| |-- Anti-skid pads
|
5.19 |-- Display assembly components
| |-- Bezel
| |-- Latches
| |-- Inverter board
|
5.20 |-- Color STN (10.4") display
| |-- LCD panel
| |-- Shield
| |-- Display cable
| |-- Display ground cable
|
5.21 |-- Color TFT (10.4") display
| |-- LCD panel
| |-- Display cable
| |-- Shield
| |-- Display ground cable
|
5.22 |-- Display enclosure
|
5.23 |-- Clutches and ground clips
Preparing the Computer
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Ensure that the power cord is disconnected from the electrical outlet and
that the battery pack is removed from the computer before beginning
replacement procedures. Failure to disconnect power could result in serious
injury or damage to the equipment.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Static electricity can damage electronic components. Before beginning these
procedures, make sure you are grounded (discharged of static electricity)
by briefly touching a grounded, unpainted, metal object or surface.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Before beginning the removal and replacement procedures, follow these steps
to disconnect all power to the computer and remove the diskette or PC
(PCMCIA) Card, if installed:
1. Save all files and exit all applications.
2. Turn off the computer. To turn off the computer when in Windows
applications, click Shut Down from the Start menu. When the
power/standby indicator light goes off, the computer has been
successfully shut down. In case of a severe system lock- up, when the
mouse doesn't work and Ctrl+Alt+Del is not recognized by the unit,
press Ctrl+Alt + the power button to shut down the unit. This method
can also be used if you are in DOS mode (an option chosen from the Shut
Down menu). In this instance, Shut Down is not available because
Windows isn't running.
3. Disconnect all external equipment.
4. Disconnect the AC Adapter from the electrical outlet (Figure 5-2).
5. Disconnect the AC Adapter power cord from the computer (Figure 5-3).
6. Eject the diskette (Figure 5-3).
7. Open the battery compartment by lifting up the front of the computer
[1] and sliding the battery compartment release button to the right
[2]. The battery compartment opens slightly. Lower the compartment [3]
(Figure 5-4).
8. Remove the battery pack (Figure 5-5).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Metal objects can damage the battery pack and the connectors inside the
compartment. To prevent damage, do not let metal objects touch any of the
connectors. Do not place any objects other than the battery pack in the
battery compartment.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
9. Close the empty battery compartment.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
When installing a battery pack, do not drop it into the compartment. There
are pressure sensitive contacts at the bottom of the compartment that can
be damaged or crushed, resulting in intermittent charging, power, or loss
of functionality. To install a battery pack, open the battery compartment,
hold the unit at a 45- degree angle, and gently slide the battery pack into
the compartment.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
10. Remove any installed PC Cards by pulling the top or bottom PC Card
release lever to the left to release the card. (PC Card release levers
are located on the front of the computer on the left side.) Gently
grasp the card and pull it out (Figure 5-6).
Handle Bracket
This procedure is necessary if replacing the handle bracket or if
separating the display assembly from the system unit module.
Removing the Handle Bracket
To remove the handle bracket, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
2. Close the computer and turn it topside down.
3. Move the tilt foot toward the front of the computer, exposing the
handle bracket screw on either side of the computer (Figure 5-7).
4. Remove the screw and washer from each handle bracket. These screws are
not reusable and must be discarded.
5. Remove the handle bracket (Figure 5-8).
6. To install the handle bracket, reverse the previous steps. Discard the
old screws and replace with new screws.
Tilt Feet
This procedure is necessary if replacing the tilt feet or if separating the
display assembly from the system unit module.
Removing the Tilt Feet
To remove the tilt feet, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
2. Remove the tilt foot screw (Figure 5-9). Screws from the tilt feet are
not reusable and must be discarded.
3. Remove the tilt foot (Figure 5-9).
4. To install the tilt foot, reverse the previous steps. Discard the old
screws and replace with new screws.
Memory Expansion Board
This section contains removal and replacement procedures for the memory
compartment cover and the memory expansion board.
The memory compartment cover and the bottom of the CPU base are embossed
with arrows and two icons that indicate whether the memory compartment
cover is unlocked [1] or locked [2] (Figure 5-10).
Removing and Replacing the Memory Compartment Cover
To remove the memory compartment cover, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
2. Close the computer and turn it topside down.
3. Slide the memory compartment cover toward the rear of the computer and
lift up (Figure 5-11).
IMPORTANT: Be sure to maintain the same orientation of the cover to the
computer when removing and replacing.
4. To replace the memory compartment cover, reverse the previous steps.
Removing the Memory Expansion Board
To remove the memory expansion board, follow these steps:
1. Remove the memory compartment cover. Refer to "Removing and Replacing
the Memory Compartment Cover" in this section.
2. Press in on one of the small tabs holding the board in place [1], let
the board pop up, then pull it slightly up and out [2] (Figure 5-12).
Replacing the Memory Expansion Board
To replace the memory expansion board, follow these steps:
1. Angle in the board [1] (Figure 5-13).
2. Press down [2], so that the small tabs snap into place and hold the
board (Figure 5-13).
3. Replace the memory compartment cover. Refer to "Removing and Replacing
the Memory Compartment Cover" in this section.
Keyboard Assembly
This section contains removal and replacement procedures for the following
keyboard assembly components:
o CPU cover
o Keyboard
o Top PC Card door and spring
NOTE: The bottom PC Card door and spring are part of the CPU base.
Removing the Keyboard Assembly
To remove the keyboard assembly, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
2. Close the computer and turn it topside down.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Screws in the computer are not interchangeable. As you remove screws, place
them with the components you removed. Damage may occur if you insert the
screws in the wrong place.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
3. Remove the seven screws from the bottom of the computer (Figure 5-14).
4. Carefully turn the computer topside up and open the display to its
fully opened position (135-degree angle) (Figure 5-15).
5. Using the case utility tool, lift up the outside rear corners of the
keyboard assembly to release the keyboard snaps [1], and tilt the
keyboard assembly toward you to release the keyboard connector [2]
(Figure 5-16).
IMPORTANT: When using the case utility tool, use care to keep it out of the
diskette drive area.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The computer becomes top-heavy when the keyboard assembly is removed and
the display is opened. To prevent damage to the display and the computer,
be sure to support the computer when opening the display.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
6. Remove the keyboard assembly by lifting it up [1] and off the front of
the computer [2] (Figure 5-17).
7. Position the display to a 90-degree angle (Figure 5-18).
Removing the CPU Cover
To remove the CPU cover for replacement, follow these steps.
1. Remove the keyboard assembly from the computer. Refer to "Removing the
Keyboard Assembly" in this section.
2. Turn the keyboard assembly topside down.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Note the position of the screws removed from the bottom of the keyboard
assembly. The remaining screws holes are for the screws that go through the
keyboard assembly to the CPU base.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
3. Remove the seven screws on the bottom of the keyboard assembly (Figure
5-19).
IMPORTANT: There is a light deflector located in the status panel. When
removing the CPU cover from the keyboard, the light deflector
will come loose. Be sure to replace it in the status panel when
replacing the CPU cover to the keyboard.
4. Separate the CPU cover from the keyboard (Figure 5-19).
5. To replace the CPU cover, reverse the previous steps.
IMPORTANT: A set of warning labels can be ordered as a spare parts kit
(spare part number 189288-001). Install the label in the upper
right-corner of the cover. This label contains a warning message
to prevent physical discomfort and harm. Installation of this
label is essential.
Removing the Top PC Card (PCMCIA) Door and Spring
To remove the top PC Card door and spring from the keyboard assembly,
follow these steps:
1. Remove the keyboard assembly from the computer. Refer to "Removing the
Keyboard Assembly" in this section.
2. Turn the keyboard assembly topside down.
3. To remove the PC Card door from the keyboard assembly, unsnap the PC
Card door [1] from the posts, and remove the door (Figure 5-20).
4. Remove the spring [2] from the PC Card door (Figure 5-20).
Replacing the Top PC Card (PCMCIA) Door and Spring
To replace the top PC Card door and spring to the keyboard assembly, follow
these steps:
1. Install the PC Card spring on the door post, ensuring that the bent arm
of the spring is placed against the rib on the PC Card door (Figure
5-21).
2. Install the PC Card door, ensuring that the spring is placed between
the post [1] and the rib [2] (Figure 5-22).
Replacing the Keyboard Assembly
To install a new keyboard assembly or replace the existing keyboard
assembly in the computer, follow these steps:
1. Open the display to its fully opened position of 135-degrees (Figure
5-23).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The computer becomes top-heavy when the keyboard assembly is removed and
the display is opened. Supporting the computer with the hands when it is in
the fully opened position prevents damage to the display and the computer.
Whenever hand support is removed, open the display assembly to a 90-degree
angle.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
2. Angle the front end of the keyboard assembly into place at the front
edge of the system unit module.
3. Ensure that the front plastic seams of the keyboard assembly and the
front of the system unit module are aligned and flush with each other.
4. Carefully lower the rear of the keyboard assembly to the system unit
module and press the outside rear corners until the keyboard assembly
snaps into place.
5. Verify the alignment of the keyboard assembly to the computer base.
Check the seams between the front and side edges of the computer base
and the keyboard assembly. If the seam is uneven, remove the keyboard
assembly and correctly align the tabs and recesses.
6. Press firmly in the center of the keyboard assembly below the status
panel [1] to connect the keyboard connector [2] to the system board [3]
(Figure 5-24).
Battery Compartment Components
This section contains removal procedures for the following battery
compartment components:
o Battery compartment
o Anti-skid pad
o Battery release button spring
o Battery release button
Removing the Battery Compartment
To remove the battery compartment components, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
2. Turn the computer topside down.
3. Gently squeeze in the sides of the compartment, rocking it back and
forth, then lifting it up from the bottom of the base (Figure 5-25).
4. To replace the battery compartment, reverse the previous steps.
Attaching the Anti-Skid Pads
If installing a new battery compartment, two anti-skid pads must be
attached to the bottom of the battery compartment. To attach the anti-skid
pads, follow these steps:
1. Peel off the top layer of one of the anti-skid pads to expose the
adhesive.
2. With the adhesive-side down, place the anti-skid pad into the raised
oval outline on the battery compartment (Figure 5-26).
Removing the Battery Release Spring and Button
To remove the battery release spring and button, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The computer becomes top-heavy when the keyboard assembly is removed and
the display is opened. To prevent damage to the display and the computer,
ensure that the display assembly is opened to a 90-degree angle.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
2. Remove the keyboard assembly (Section 5.7).
3. From the battery enclosure, remove the battery release button spring by
unhooking the spring from the clip on the CPU base [1], then releasing
it from the hook on the battery release button [2] (Figure 5-27).
4. Rotate the battery release button counterclockwise, until it bows
chassis (Figure 5 29)
slightly, and lift it up to clear the hook on the computer base (Figure
5-28).
5. To replace the battery release button and spring, reverse the previous
steps.
Hard Drive
This section contains removal procedures for the following hard drive
components:
o Hard drive
o Hard drive bracket
Removing the Hard Drive
To remove the hard drive, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
2. Remove the keyboard assembly (Section 5.7).
3. Remove the screw that secures the hard drive bracket to the system
-
4. Grasp the hard drive bracket and slide it toward the front of the
computer to disconnect the hard drive from the system board . Then lift
it up and out of the system chassis (Figure 5-30).
Removing the Hard Drive Bracket
g
g
1. Remove the keyboard assembly (Section 5.7).
2. Remove the hard drive and bracket. Refer to "Removing the Hard Drive" in
this section.
3. Remove the four screws from the sides of the hard drive bracket and
separate the bracket from the hard drive (Figure 5-31).
4. To replace the hard drive bracket, reverse the previous steps. For
proper alignment, replace the rear screws first.
Replacing the Hard Drive
To replace the hard drive, follow these steps:
1. Set the hard drive and bracket in place and slide it back to connector
ure 5-32).
(Fi
2. Replace the screw that connects the hard drive and bracket to the
system chassis (Figure 5-33).
Real-Time Clock Battery
To remove the real-time clock battery, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The computer becomes top-heavy when the keyboard assembly is removed and
the display is opened. To prevent damage to the display and the computer,
ensure that the display assembly is opened to a 90-degree angle.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
2. Remove the keyboard assembly (Section 5.7).
3. Remove the real-time clock battery from the system board by inserting a
non conductive probe into the battery holder and pushing back on the
battery to release it (Figure 5-34).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Do not touch the bottom of the battery during replacement.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
4. To replace the real-time clock battery, reverse the previous steps.
Integrated Optical Trackball Assembly
To remove the integrated optical trackball assembly, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The computer becomes top-heavy when the keyboard assembly is removed and
the display is opened. To prevent damage to the display and the computer,
ensure that the display assembly is opened at a 90-degree angle.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
2. Remove the keyboard assembly (Section 5.7).
3. Remove the screws from the front right-hand corner and the left rear
corner of the trackball assembly (Figure 5-35).
Loading...
