Compaq 705 User Manual
MODELS
Compaq Microcom 705
Corporate Communicator
294700-001
The Compaq Microcom 705
Corporate Communicator is
the first affordable, high
volume, Desktop CTI
(Computer Telephony
Integration) card and
software available for
Compaq and non-Compaq
commercial platforms.

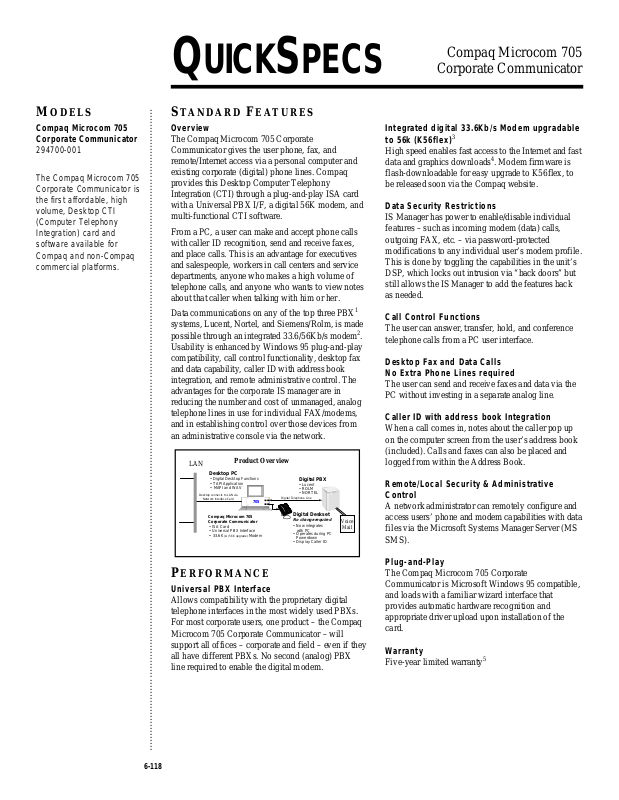

QUICKSPECS
.
.
STANDARD FEATURES
.
.
.
.
.
Overview
.
.
.
.
The Compaq Microcom 705 Corporate
.
.
.
Communicator gives the user phone, fax, and
.
.
.
.
remote/Internet access via a personal computer and
.
.
.
.
existing corporate (digital) phone lines. Compaq
.
.
.
provides this Desktop Computer Telephony
.
.
.
.
Integration (CTI) through a plug-and-play ISA card
.
.
.
.
with a Universal PBX I/F, a digital 56K modem, and
.
.
.
multi-functional CTI software.
.
.
.
.
.
From a PC, a user can make and accept phone calls
.
.
.
.
with caller ID recognition, send and receive faxes,
.
.
.
.
and place calls. This is an advantage for executives
.
.
.
and salespeople, workers in call centers and service
.
.
.
.
departments, anyone who makes a high volume of
.
.
.
.
telephone calls, and anyone who wants to view notes
.
.
.
about that caller when talking with him or her.
.
.
.
.
.
Data communications on any of the top three PBX
.
.
.
.
systems, Lucent, Nortel, and Siemens/Rolm, is made
.
.
.
.
possible through an integrated 33.6/56Kb/s modem2.
.
.
.
Usability is enhanced by Windows 95 plug-and-play
.
.
.
.
compatibility, call control functionality, desktop fax
.
.
.
.
and data capability, caller ID with address book
.
.
.
integration, and remote administrative control. The
.
.
.
.
advantages for the corporate IS manager are in
.
.
.
.
reducing the number and cost of unmanaged, analog
.
.
.
telephone lines in use for individual FAX/modems,
.
.
.
.
and in establishing control over those devices from
.
.
.
.
an administrative console via the network.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
LAN
Desktop connects to LAN via
Network Interface Card
PERFORMANCE
Universal PBX Interface
Allows compatibility with the proprietary digital
telephone interfaces in the most widely used PBXs.
For most corporate users, one product – the Compaq
Microcom 705 Corporate Communicator – will
support all offices – corporate and field – even if they
all have different PBXs. No second (analog) PBX
line required to enable the digital modem.
Product Overview
Desktop PC
• Digital Desktop Functions
• TAPI Application
• MAPI and WAV
Compaq Microcom 705
Corporate Communicator
• ISA Card
• Universal PBX Interface
• 33.6K
(w/ 56K upgrade)
Modem
Digital PBX
• Lu cen t
• ROLM
• NORTEL
Digital Telephone Line
705
Digital Deskset
No change required
• Now integrates
with PC
•
Operates during PC
Powerdown
• Display Caller ID
Voice
Mail
Compaq Microcom 705
Corporate Communicator
Integrated digital 33.6Kb/s Modem upgradable
to 56k (K56flex)
High speed enables fast access to the Internet and fast
data and graphics downloads4. Modem firmware is
flash-downloadable for easy upgrade to K56flex, to
be released soon via the Compaq website.
Data Security Restrictions
IS Manager has power to enable/disable individual
features – such as incoming modem (data) calls,
outgoing FAX, etc. – via password-protected
modifications to any individual user’s modem profile.
This is done by toggling the capabilities in the unit’s
DSP, which locks out intrusion via “back doors” but
still allows the IS Manager to add the features back
as needed.
1
Call Control Functions
The user can answer, transfer, hold, and conference
telephone calls from a PC user interface.
Desktop Fax and Data Calls
No Extra Phone Lines required
The user can send and receive faxes and data via the
PC without investing in a separate analog line.
Caller ID with address book Integration
When a call comes in, notes about the caller pop up
on the computer screen from the user’s address book
(included). Calls and faxes can also be placed and
logged from within the Address Book.
Remote/Local Security & Administrative
Control
A network administrator can remotely configure and
access users’ phone and modem capabilities with data
files via the Microsoft Systems Manager Server (MS
SMS).
Plug-and-Play
The Compaq Microcom 705 Corporate
Communicator is Microsoft Windows 95 compatible,
and loads with a familiar wizard interface that
provides automatic hardware recognition and
appropriate driver upload upon installation of the
card.
Warranty
Five-year limited warranty
3
5
6-118
QUICKSPECS (cont’d)
.
.
SPECIFICATIONS
.
.
.
.
.
Compliance
.
.
.
K56flex (Flash upgradeable to the ITU standard,
.
.
.
.
V.90)
.
.
.
.
.
Full ITU-T compliance V.34+, V.34, V.32, V.32bis,
.
.
.
.
V.22, V.22bis, V.23, Bell 103, Bell 212A
.
.
.
.
.
.
.
Digital PBX Systems Support
.
.
.
.
.
Lucent: System 75 & 85, Definity G1/G2/G3
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
: Meridian 1 & (select) SL1 PBX
Nortel
Siemens/ROLM: 8000, 9000, 9751 CBX
Proprietary Digital telephone models
supported:
Nortel (Meridian): 2006, 2112, 2008, 2317, 2009,
and 2616
Lucent: 7402 Plus, 7410D, 7403D, 7410 Plus,
7404D, 7434D, 7405D, 7444, 7406D, 7406 BIS,
7406 Plus, 7407D, 7407 Plus, 7407D Enhanced
ROLM: 120,240, 312, 400, and 624
(NOTE: All phone lines as active and operational
during power down of the PC.)
Error Correction
V.42, MNP 1-4
Data Compression
V.42bis/MNP 5
Fax Modulation
V.17
V.21 (Group III Compatible)
V.29
V.27Ter
Certifications
FCC part 68 and part 15, Class B
Industry Canada CS-03
UL
CUL
Operating System Support
Microsoft Windows 95
Microsoft Windows NT (Future software upgrade
release, to be available via flash upgrade)
Temperature Range
Operating: -10° to 40°C / 14° to 104°F
Shipping: -30° to 60°C / -22° to 140°F
Humidity: up to 90% (noncondensing)
Compaq Microcom 705
Corporate Communicator
Kit Contents
Plug-and-Play CTI card
Quick Install Guide
Online User’s Guide and Application Software CD
Two 9-ft. phone cables: RJ-45 and RJ-11
Warranty and Quality cards
Requirements
IBM-compatible PC running Windows 95
Pentium 90 or higher processor
Minimum 16 MB memory
Available ISA card slot and one free IRQ
Digital line service from the PBX.
1
Private Branch Exchange- A private telephone switching system
usually located on the customers’ premi ses.
2
Initial shipments of the Compaq Microcom 705 Corpo rat e
Communicator will perform at up to 33.6 Kb/s, and will be
upgradable to 56Kflex via flash ROM, soon to be available for
download from the Compaq website.
3
The K56flex protocol is designed only to allow faster downloads
from K56flex compliant digital sources. Maximum achievable
download transmission rates may not reach 56Kb/s and will vary
with line conditions.
4
Actual transmission rates will vary with line conditions.
5
Certain restrictions and exclusions apply. Contact 800-OKCOMPAQ for details.
