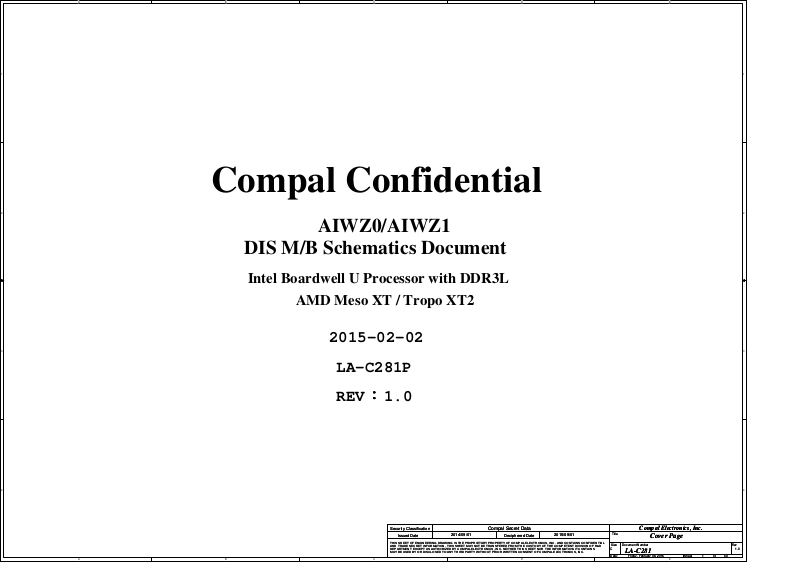

Compal Confidential
2
2
AIWZ0/AIWZ1
DIS M/B Schematics Document
Intel Boardwell U Processor with DDR3L
AMD Meso XT / Tropo XT2
2015-02-02
3
LA-C281P
：：：：
REV
1.0
3
4
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
A
B
C
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
D
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
LA-C281
LA-C281
LA-C281
Cover Page
Cover Page
Cover Page
E
1 50Friday, February 06, 2015
of
1 50Friday, February 06, 2015
of
1 50Friday, February 06, 2015
of
4
1.0
1.0
1.0
Page 2
A
WWW.AliSaler.Com
B
C
D
E

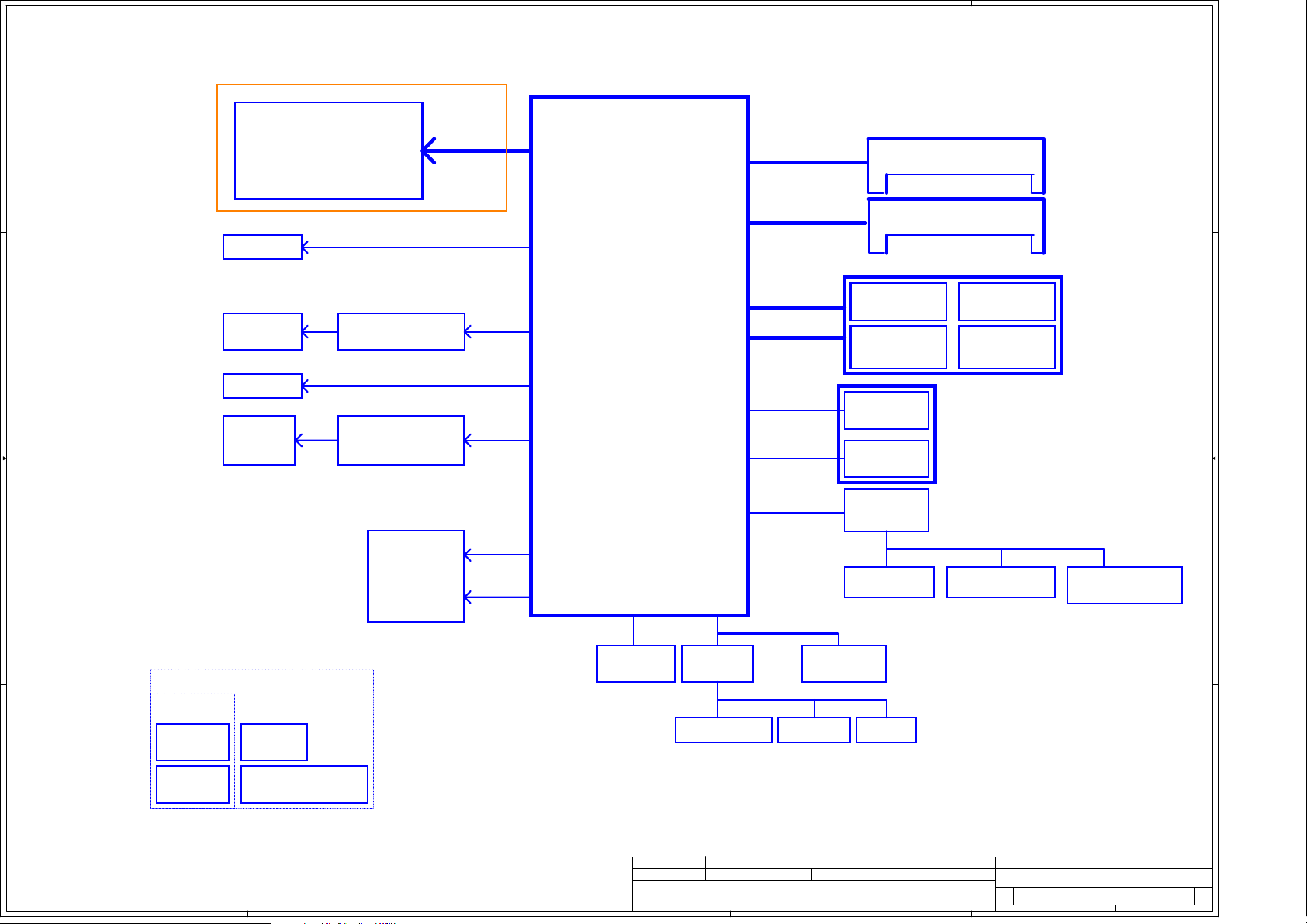

For DIS
1 1
AMD Meso XT S3( 25W~35W)
VRAM(DDR3L) 2GB/4GB
AMD Tropo XT2 M2 (Max. 40W)
VRAM(DDR3L) 2GB/4GB
PCIe X4
Gen2)
(
Memory Bus
DDR3L 1600MHz (1.35V)
A-ch DDR3L-SO-DIMM X1
Memory Bus
DDR3L 1600MHz (1.35V)
Page25
eDP Panel
eDP X1
(2 Lanes)
Intel Broadwell U
Page27
CRT Translator
2
Page26
CRT Conn.
HDMI Conn.
Realtek
R
TD2168-CG
Page34
LAN
PCIe Port 0
RJ45 Conn.
3
Realtek
R
GIGA
Page29
TL8111H
NGFF Conn.
WLAN / BT
PCIe Port 1
DDI X1
(2 Lanes)
DDI X1
(4 Lanes)
P
CIe X1
(1 Lanes)
PCIe X1
(
1 Lanes)
USB2.0 X1
(1 Lanes)
15W
1168pin BGA
USB3.0 x3
USB2.0 x5
SATA X1
SATA X1
A
ZALIA
B-ch DDR3L-SO-DIMM X1
eft USB3.0 x2
Int. Camera Card Reader
Normal Camera (USB2.0)
Camera (USB3.0)
3D
Option
HDD Conn.
SATA Port 0
ODD Conn.
SATA Port 1
Audio Codec
Realtek
A
LC3240
Int. MIC Conn. Int. Speaker Conn.
Right USB2.0 x1L
Realtek
TS5170-GR
R
Page28
Page35
Audio Combo Jacks
HP & MIC
2
3
LPC BUS
Sub-borad
15"
SPI ROM
8MB
EC
Nuvoton
N
PCE288N
Page08 Page33
TCM
Nationz
32H320TC
Z
Option
Page30
14"
Power/B
ODD/B
Thermal Sensor Touch Pad Int. KBD
O
ption
IO/B
4
A
Digital MIC
15" 3D camera only
4
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
B
C
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
D
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
MB Block Diagram
MB Block Diagram
MB Block Diagram
E
2 50Friday, February 06, 2015
of
2 50Friday, February 06, 2015
of
2 50Friday, February 06, 2015
of
1.0
1.0
1.0
Page 3
1

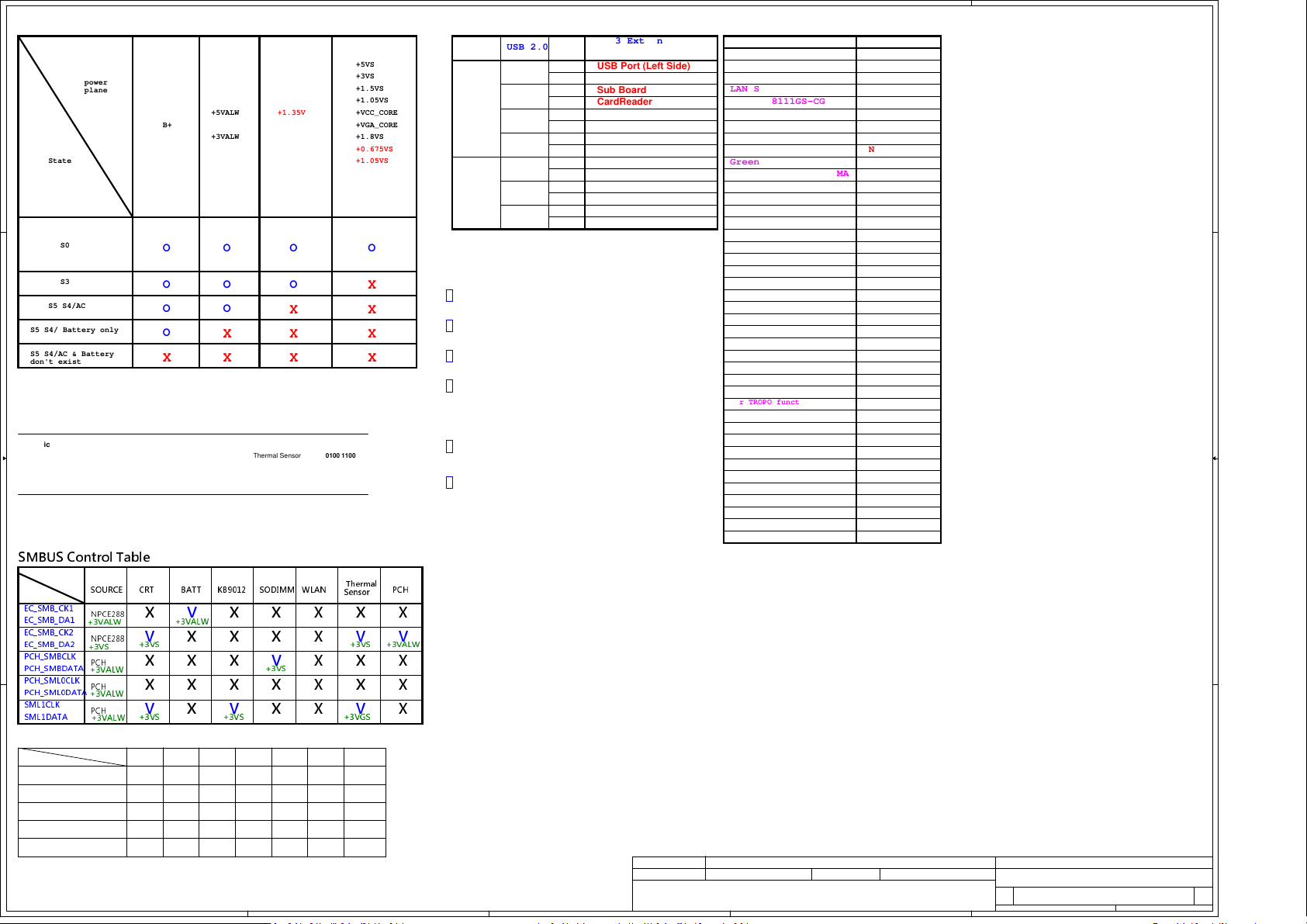

Voltage Rails
power
plane
A A
State
S0
S3
S5 S4/AC
S5 S4/ Battery only
B
S5 S4/AC & Battery
don't exist
B+
O
O
O
O
X
+5VALW
+3VALW
O
O
O
X
EC SM Bus1 address
Device
Smart Battery
Address
0001 011x
PCH SM Bus address
DDR_JDIMM1
DDR_JDIMM2
AddressDevice
1010 000x A0h
1010 010x A4h
+1.35V
O O
O
X
EC SM Bus2 address
Device
Thermal Sensor
AMD-GPU SM Bus address
Internal thermal sensor
+5VS
+3VS
+1.5VS
+1.05VS
+VCC_CORE
+VGA_CORE
+1.8VS
+0.675VS
+1.05VS
Address
0100 1100
AddressDevice
0100 0001 41h
2
USB Port Table
USB 2.0
EHCI1
EHCI1
Port
UHCI0
UHCI1
UHCI2
UHCI3
UHCI4
UHCI5
UHCI6
X
XX
X
XXX
UC1
SA000089A60
I7-5500U
S IC FH8065801620004 SR23W F0 2.4G C38!
I7_5500@
UC1
SA000089970
I5-5200U
S IC FH8065801620204 SR23Y F0 2.2G C38!
I5_5200@
UC1
SA000089880
I3-5010U
S IC FH8065801620406 SR23Z F0 2.1G C38!
I3_5010@
UC1
SA000083EH0
I3-5005U
S IC FH8065801884006 SR244 F0 2G C38!
I3_5005@
ZZZ
DAZ1BK00101
PCB AIWZ0 LA-C281P LS-C281P/C282P 02
Z14@
PCB AIWZ0 LA-C281P LS-C281P/C282P 02
ZZZ
DAZ1BJ00101
PCB AIWZ1 LA-C281P LS-C281P/C282P/C283P/C285P/C286P 02
Z15@
PCB AIWZ1 LA-C281P LS-C281P/C282P/C283P/C285P/C286P 02
3
3 External
0
1
2
3
4
5
6
7
8
9
10
11
12
13
USB Port
USB Port (Left Side)
USB Port (Left Side)
Sub Board
CardReader
Touch Screen
Camera
Bluetooth (NGFF)
BOM Structure Table
Item BOM Structure
AIWZ0 (14") Z14@
USB3.0
USB3.0
LAN RTL8111GS-CG
WLAN Support ISCT
WLAN No Support ISCT NOISCT@
For No Green CLK
Green CLK IC For DIS
Green CLK IC For UMA
For TROPO DIS pop
For TROPO DIS unpop
For UMA
3D Camera
Camera CMOS@
HDMI
NO keyboard backlight
Keyboard backlight KBL@
HDMI Royalty 45@
Connector
Un-pop component for EMI
Un-pop component for ESD
pop component for EMI
pop component for ESD
Un-pop for TPM
pop for TPM
VRAM indentify
For TROPO function
ADB function
NO ADB function
CPU_SA000083E30
CPU_SA000083C10
CPU_SA000083A10
CPU_SA000083D30
CPU_SA00007UG00
CPU_SA00007UH00
4
Z15@AIWZ1 (15")
Z17@AIWZ0 (17")
SWITCH@LAN Switch mode
8111GLDO@
ISCT@
GCLK@For Green CLK
NOGCLK@
GCLKDIS@
GCLKUMA@
PX@For system DIS
DIS@
@DIS@
UMA@
3DCMOS@
HDMI@
NOKBL@
ME@
@EMI@
@ESD@
EMI@
ESD@
TPM@
NOTPM@
X76@
TROPO@
ADB@
NOADB@
QGZ3@
QH17@
QFSY@CPU_SA00007AM00
QH15@
QH18@
QGHA@
QGHB@
QGH9@CPU_SA00007U900
5
B
SMBUS Control Table
C
SOURCE
EC_SMB_CK1
EC_SMB_DA1
EC_SMB_CK2
EC_SMB_DA2
PCH_SMBCLK
PCH_SMBDATA
PCH_SML0CLK
PCH_SML0DATA
SML1CLK
SML1DATA
STATE
Full ON
S1(Power On Suspend)
D
S3 (Suspend to RAM)
S4 (Suspend to Disk)
S5 (Soft OFF)
NPCE288
+3VALW
NPCE288
+3VS
PCH
+3VALW
PCH
+3VALW
PCH
+3VALW
SIGNAL
CRT
VX X
X
X
X
X
X
V
+3VS
X
+3VALW
XX
V
X X
HIGH
HIGH
HIGH
LOWLOW
+3VS
ONONON
ON
ON
ON
ON
+3VS
SLP_S4#SLP_S3# +V+VALWSLP_S5# Clock+VS
HIGHHIGH
HIGH HIGH HIGH
LOW HIGH
LOW
1
SODIMMKB9012BATT WLAN
X
X
X
X
V
+3VS
X X
XX
X
XV
ON
OFFLOW LOW
OFF
ON
OFF
OFF
OFF
Thermal
Sensor
X
V
+3VS
X
V
+3VGS
ONON
LOW
OFF
OFF
OFF
2
PCH
X
V
+3VALW
X
X
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
4
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Notes List
Notes List
Notes List
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
LA-C281
LA-C281
LA-C281
5
3 50Friday, February 06, 2015
of
3 50Friday, February 06, 2015
of
3 50Friday, February 06, 2015
of
C
D
1.0
1.0
1.0
Page 4

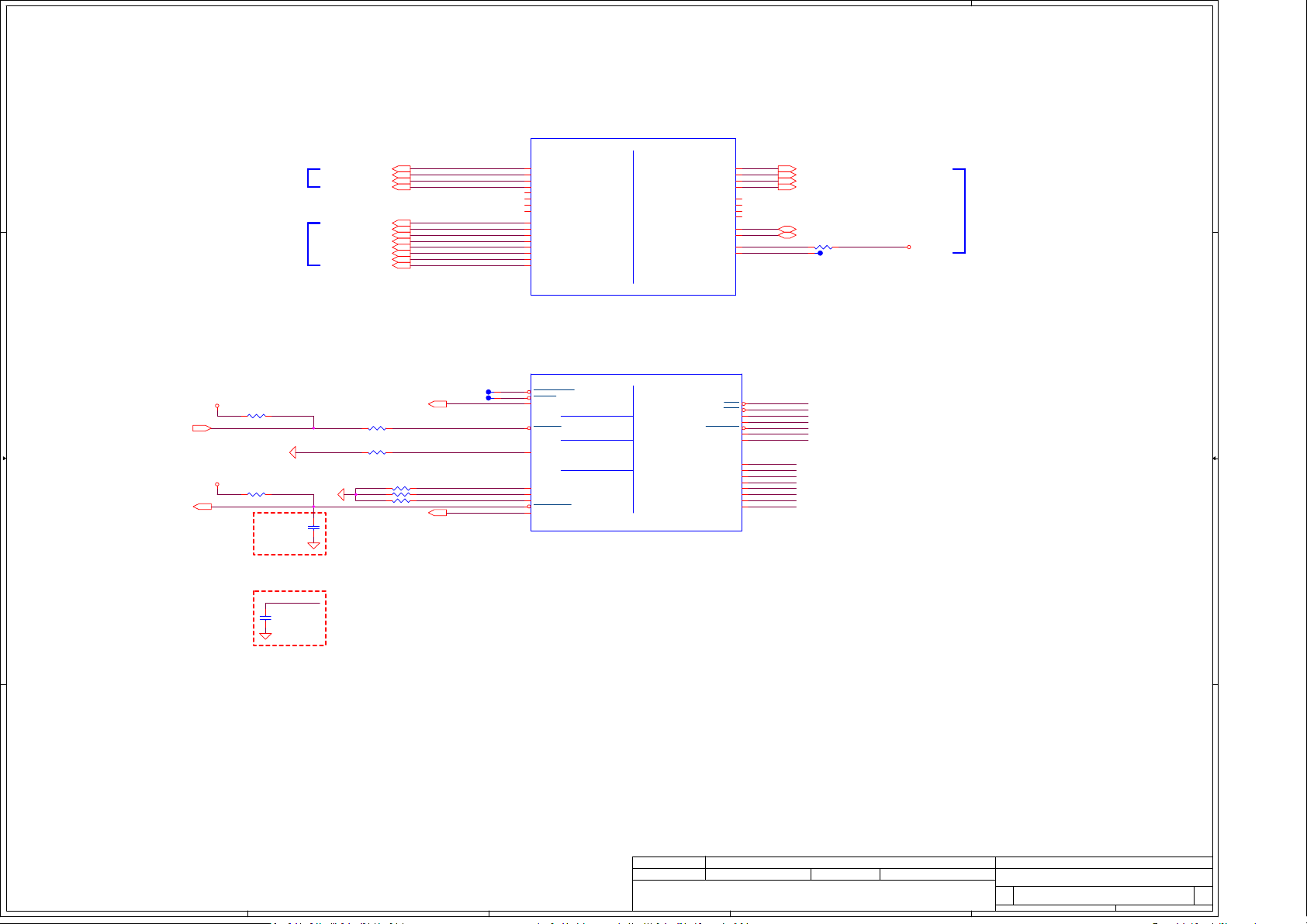

5
WWW.AliSaler.Com
4
3
2
1
D D
CPU_DP1_N0<19>
C
+1.05VS
H_PROCHOT#<25>
+1.35V
DIMM_DRAMRST#<15,16>
B
2
1
R2 62_0402_5%
2
1
R6 470_0402_5%
C238
100P_0402_50V8J
ESD@
CPU_DP1_P0<19>
CPU_DP1_N1<19>
CPU_DP1_P1<19>
HDMI_TX2-_CK<18>
HDMI_TX2+_CK<18>
HDMI_TX1-_CK<18>
HDMI_TX1+_CK<18>
HDMI_TX0-_CK<18>
HDMI_TX0+_CK<18>
HDMI_CLK-_CK<18>
HDMI_CLK+_CK<18>
1
R3 56_0402_5%
1
R4 10K_0402_5%
R5 200_0402_1%
R7 120_0402_1%
R8 100_0402_1%
1
2
HDMI_TX2-_CK
HDMI_TX2+_CK
HDMI_TX1-_CK
HDMI_TX1+_CK
HDMI_TX0-_CK
HDMI_TX0+_CK
HDMI_CLK-_CK
HDMI_CLK+_CK
T2
H_PECI<25>
2
2
2
1
2
1
2
1
DDR_PG_CTRL<15>
T3
H_PROCHOT#_R
H_CPUPWRGD
SM_RCOMP0
SM_RCOMP1
SM_RCOMP2
DIMM_DRAMRST#
DDR_PG_CTRL
UC1A
C54
DDI1_TXN0
C55
DDI1_TXP0
B58
DDI1_TXN1
C58
DDI1_TXP1
B55
DDI1_TXN2
A55
DDI1_TXP2
A57
DDI1_TXN3
B57
DDI1_TXP3
C51
DDI2_TXN0
C50
DDI2_TXP0
C53
DDI2_TXN1
B54
DDI2_TXP1
C49
DDI2_TXN2
B50
DDI2_TXP2
A53
DDI2_TXN3
B53
DDI2_TXP3
BDW-ULT-DDR3L-IL_BGA1168
@
UC1B
D61
PROC_DETECT
K61
CATERR
N62
PECI
K63
PROCHOT
C61
PROCPWRGD
AU60
SM_RCOMP0
AV60
SM_RCOMP1
AU61
SM_RCOMP2
AV15
SM_DRAMRST
AV61
SM_PG_CNTL1
BDW-ULT-DDR3L-IL_BGA1168
BDW_ULT_DDR3L(Interleaved)
1 OF 19
BDW_ULT_DDR3L(Interleaved)
MISC
THERMAL
PWR
DDR3L
2 OF 19
C45
EDP_TXN0
B46
EDP_TXP0
A47
EDP_TXN1
B47
EDP_TXP1
C47
EDP_TXN2
C46
EDP_TXP2
A49
JTAG
EDP_TXN3
EDP_TXP3
EDP_AUXN
EDP_AUXP
EDP_RCOMP
EDP_DISP_UTIL
PROC_TCK
PROC_TMS
PROC_TRST
PROC_TDI
PROC_TDO
PRDY
PREQ
BPM#0
BPM#1
BPM#2
BPM#3
BPM#4
BPM#5
BPM#6
BPM#7
B49
A45
B45
D20
A43
J62
K62
E60
E61
E59
F63
F62
J60
H60
H61
H62
K59
H63
K60
J61
EDPDDI
EDP_TXN0 <17>
EDP_TXP0 <17>
EDP_TXN1 <17>
EDP_TXP1 <17>
EDP_AUXN <17>
EDP_AUXP <17>
1 2
EDP_COMP
R1 24.9_0402_1%
CPU_INV_PWM
XDP_PRDY#
XDP_PREQ#
XDP_TCK
XDP_TMS
XDP_TRST#
XDP_TDI
XDP_TDO
XDP_BPM#0
XDP_BPM#1
XDP_BPM#2
XDP_BPM#3
XDP_BPM#4
XDP_BPM#5
XDP_BPM#6
XDP_BPM#7
T1
+VCCIOA_OUT
H_CPUPWRGD
1
C237
100P_0402_50V8J
2
ESD@
C
B
A
5
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
4
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
BDW MCP(1/11) DDI,MSIC,XDP
BDW MCP(1/11) DDI,MSIC,XDP
BDW MCP(1/11) DDI,MSIC,XDP
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
LA-C281
LA-C281
LA-C281
Date: Sheet
Date: Sheet
Date: Sheet
1
4 50Friday, February 06, 2015
of
4 50Friday, February 06, 2015
of
4 50Friday, February 06, 2015
of
1.0
1.0
1.0
Page 5

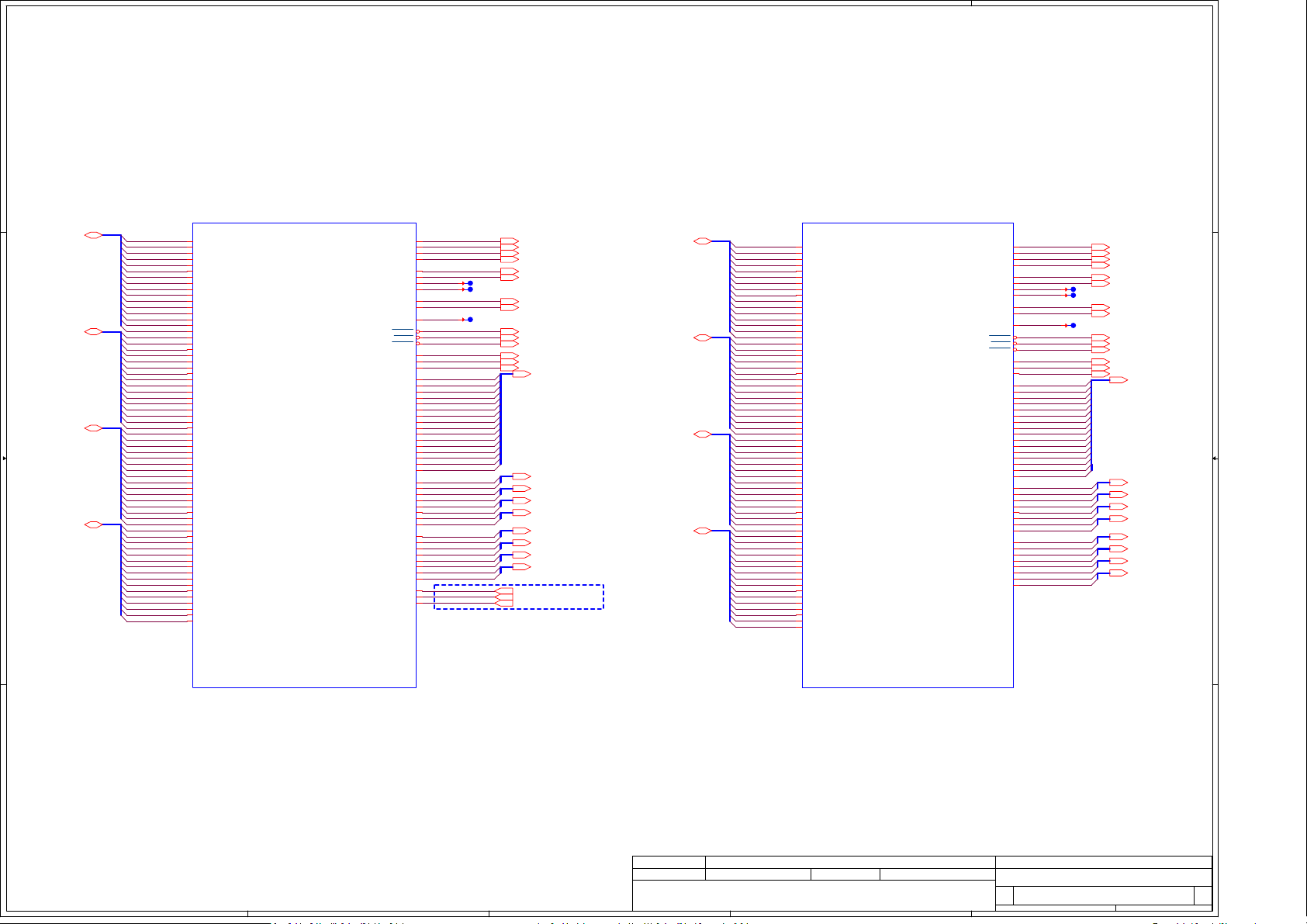

5
4
3
2
1
D D
BDW_ULT_DDR3L(Interleaved)
DDR CHANNEL A
SA_CLK#0
SA_CLK0
SA_CLK#1
SA_CLK1
SA_CKE0
SA_CKE1
SA_CKE2
SA_CKE3
SA_CS#0
SA_CS#1
SA_ODT0
SA_RAS
SA_WE
SA_CAS
SA_BA0
SA_BA1
SA_BA2
SA_MA0
SA_MA1
SA_MA2
SA_MA3
SA_MA4
SA_MA5
SA_MA6
SA_MA7
SA_MA8
SA_MA9
SA_MA10
SA_MA11
SA_MA12
SA_MA13
SA_MA14
SA_MA15
SA_DQSN0
SA_DQSN1
SA_DQSN2
SA_DQSN3
SA_DQSN4
SA_DQSN5
SA_DQSN6
SA_DQSN7
SA_DQSP0
SA_DQSP1
SA_DQSP2
SA_DQSP3
SA_DQSP4
SA_DQSP5
SA_DQSP6
SA_DQSP7
SM_VREF_CA
SM_VREF_DQ0
SM_VREF_DQ1
AU37
M_CLK_DDR#0
AV37
M_CLK_DDR0
AW36
M_CLK_DDR#1
AY36
M_CLK_DDR1
AU43
DDR_CKE0_DIMMA
AW43
DDR_CKE1_DIMMA
AY42
AY43
AP33
DDR_CS0_DIMMA#
AR32
DDR_CS1_DIMMA#
AP32
AY34
DDR_A_RAS#
AW34
DDR_A_WE#
AU34
DDR_A_CAS#
AU35
DDR_A_BS0
AV35
DDR_A_BS1
AY41
DDR_A_BS2
AU36
DDR_A_MA0
AY37
DDR_A_MA1
AR38
DDR_A_MA2
AP36
DDR_A_MA3
AU39
DDR_A_MA4
AR36
DDR_A_MA5
AV40
DDR_A_MA6
AW39
DDR_A_MA7
AY39
DDR_A_MA8
AU40
DDR_A_MA9
AP35
DDR_A_MA10
AW41
DDR_A_MA11
AU41
DDR_A_MA12
AR35
DDR_A_MA13
AV42
DDR_A_MA14
AU42
DDR_A_MA15
AJ61
DDR_A_DQS#0
AN62
DDR_A_DQS#1
AV57
DDR_A_DQS#2
AV53
DDR_A_DQS#3
AW30
DDR_A_DQS#4
AV26
DDR_A_DQS#5
AW22
DDR_A_DQS#6
AV18
DDR_A_DQS#7
AJ62
DDR_A_DQS0
AN61
DDR_A_DQS1
AW57
DDR_A_DQS2
AW53
DDR_A_DQS3
AV30
DDR_A_DQS4
AW26
DDR_A_DQS5
AV22
DDR_A_DQS6
AW18
DDR_A_DQS7
AP49
+SM_VREF_CA
AR51
+SM_VREF_DQ0
AP51
+SM_VREF_DQ1
T13
T9
T12
M_CLK_DDR#0 <15>
M_CLK_DDR0 <15>
M_CLK_DDR#1 <15>
M_CLK_DDR1 <15>
DDR_CKE0_DIMMA <15>
DDR_CKE1_DIMMA <15>
DDR_CS0_DIMMA# <15>
DDR_CS1_DIMMA# <15>
DDR_A_RAS# <15>
DDR_A_WE# <15>
DDR_A_CAS# <15>
DDR_A_BS0 <15>
DDR_A_BS1 <15>
DDR_A_BS2 <15>
DDR_A_MA[0..15] <15>
DDR_A_DQS#[0..1] <15>
DDR_A_DQS#[2..3] <15>
DDR_A_DQS#[4..5] <15>
DDR_A_DQS#[6..7] <15>
DDR_A_DQS[0..1] <15>
DDR_A_DQS[2..3] <15>
DDR_A_DQS[4..5] <15>
DDR_A_DQS[6..7] <15>
+SM_VREF_CA <15>
+SM_VREF_DQ0 <15>
+SM_VREF_DQ1 <16>
UC1D
DDR_B_D[0..15]<16>
DDR_B_D[16..31]<16>
DDR_B_D[32..47]<16>
DDR_B_D[48..63]<16>
DDR_B_D0
DDR_B_D1
DDR_B_D2
DDR_B_D3
DDR_B_D4
DDR_B_D5
DDR_B_D6
DDR_B_D7
DDR_B_D8
DDR_B_D9
DDR_B_D10
DDR_B_D11
DDR_B_D12
DDR_B_D13
DDR_B_D14
DDR_B_D15
DDR_B_D16
DDR_B_D17
DDR_B_D18
DDR_B_D19
DDR_B_D20
DDR_B_D21
DDR_B_D22
DDR_B_D23
DDR_B_D24
DDR_B_D25
DDR_B_D26
DDR_B_D27
DDR_B_D28
DDR_B_D29
DDR_B_D30
DDR_B_D31
DDR_B_D32
DDR_B_D33
DDR_B_D34
DDR_B_D35
DDR_B_D36
DDR_B_D37
DDR_B_D38
DDR_B_D39
DDR_B_D40
DDR_B_D41
DDR_B_D42
DDR_B_D43
DDR_B_D44
DDR_B_D45
DDR_B_D46
DDR_B_D47
DDR_B_D48
DDR_B_D49
DDR_B_D50
DDR_B_D51
DDR_B_D52
DDR_B_D53
DDR_B_D54
DDR_B_D55
DDR_B_D56
DDR_B_D57
DDR_B_D58
DDR_B_D59
DDR_B_D60
DDR_B_D61
DDR_B_D62
DDR_B_D63
AP58
AR58
AM57
AK57
AL58
AK58
AR57
AN57
AP55
AR55
AM54
AK54
AL55
AK55
AR54
AN54
AK40
AK42
AM43
AM45
AK45
AK43
AM40
AM42
AM46
AK46
AM49
AK49
AM48
AK48
AM51
AK51
AM29
AK29
AL28
AK28
AR29
AN29
AR28
AP28
AN26
AR26
AR25
AP25
AK26
AM26
AK25
AL25
AR21
AR22
AL21
AM22
AN22
AP21
AK21
AK22
AN20
AR20
AK18
AL18
AK20
AM20
AR18
AP18
SB_DQ0
SB_DQ1
SB_DQ2
SB_DQ3
SB_DQ4
SB_DQ5
SB_DQ6
SB_DQ7
SB_DQ8
SB_DQ9
SB_DQ10
SB_DQ11
SB_DQ12
SB_DQ13
SB_DQ14
SB_DQ15
SB_DQ16
SB_DQ17
SB_DQ18
SB_DQ19
SB_DQ20
SB_DQ21
SB_DQ22
SB_DQ23
SB_DQ24
SB_DQ25
SB_DQ26
SB_DQ27
SB_DQ28
SB_DQ29
SB_DQ30
SB_DQ31
SB_DQ32
SB_DQ33
SB_DQ34
SB_DQ35
SB_DQ36
SB_DQ37
SB_DQ38
SB_DQ39
SB_DQ40
SB_DQ41
SB_DQ42
SB_DQ43
SB_DQ44
SB_DQ45
SB_DQ46
SB_DQ47
SB_DQ48
SB_DQ49
SB_DQ50
SB_DQ51
SB_DQ52
SB_DQ53
SB_DQ54
SB_DQ55
SB_DQ56
SB_DQ57
SB_DQ58
SB_DQ59
SB_DQ60
SB_DQ61
SB_DQ62
SB_DQ63
DDR_A_D[0..15]<15>
DDR_A_D[16..31]<15>
C
DDR_A_D[32..47]<15>
DDR_A_D[48..63]<15>
B
DDR_A_D0
DDR_A_D1
DDR_A_D2
DDR_A_D3
DDR_A_D4
DDR_A_D5
DDR_A_D6
DDR_A_D7
DDR_A_D8
DDR_A_D9
DDR_A_D10
DDR_A_D11
DDR_A_D12
DDR_A_D13
DDR_A_D14
DDR_A_D15
DDR_A_D16
DDR_A_D17
DDR_A_D18
DDR_A_D19
DDR_A_D20
DDR_A_D21
DDR_A_D22
DDR_A_D23
DDR_A_D24
DDR_A_D25
DDR_A_D26
DDR_A_D27
DDR_A_D28
DDR_A_D29
DDR_A_D30
DDR_A_D31
DDR_A_D32
DDR_A_D33
DDR_A_D34
DDR_A_D35
DDR_A_D36
DDR_A_D37
DDR_A_D38
DDR_A_D39
DDR_A_D40
DDR_A_D41
DDR_A_D42
DDR_A_D43
DDR_A_D44
DDR_A_D45
DDR_A_D46
DDR_A_D47
DDR_A_D48
DDR_A_D49
DDR_A_D50
DDR_A_D51
DDR_A_D52
DDR_A_D53
DDR_A_D54
DDR_A_D55
DDR_A_D56
DDR_A_D57
DDR_A_D58
DDR_A_D59
DDR_A_D60
DDR_A_D61
DDR_A_D62
DDR_A_D63
AH63
AH62
AK63
AK62
AH61
AH60
AK61
AK60
AM63
AM62
AP63
AP62
AM61
AM60
AP61
AP60
AY58
AW58
AY56
AW56
AV58
AU58
AV56
AU56
AY54
AW54
AY52
AW52
AV54
AU54
AV52
AU52
AY31
AW31
AY29
AW29
AV31
AU31
AV29
AU29
AY27
AW27
AY25
AW25
AV27
AU27
AV25
AU25
AY23
AW23
AY21
AW21
AV23
AU23
AV21
AU21
AY19
AW19
AY17
AW17
AV19
AU19
AV17
AU17
UC1C
SA_DQ0
SA_DQ1
SA_DQ2
SA_DQ3
SA_DQ4
SA_DQ5
SA_DQ6
SA_DQ7
SA_DQ8
SA_DQ9
SA_DQ10
SA_DQ11
SA_DQ12
SA_DQ13
SA_DQ14
SA_DQ15
SA_DQ16
SA_DQ17
SA_DQ18
SA_DQ19
SA_DQ20
SA_DQ21
SA_DQ22
SA_DQ23
SA_DQ24
SA_DQ25
SA_DQ26
SA_DQ27
SA_DQ28
SA_DQ29
SA_DQ30
SA_DQ31
SA_DQ32
SA_DQ33
SA_DQ34
SA_DQ35
SA_DQ36
SA_DQ37
SA_DQ38
SA_DQ39
SA_DQ40
SA_DQ41
SA_DQ42
SA_DQ43
SA_DQ44
SA_DQ45
SA_DQ46
SA_DQ47
SA_DQ48
SA_DQ49
SA_DQ50
SA_DQ51
SA_DQ52
SA_DQ53
SA_DQ54
SA_DQ55
SA_DQ56
SA_DQ57
SA_DQ58
SA_DQ59
SA_DQ60
SA_DQ61
SA_DQ62
SA_DQ63
BDW_ULT_DDR3L(Interleaved)
DDR CHANNEL B
SB_CK#0
SB_CK0
SB_CK#1
SB_CK1
SB_CKE0
SB_CKE1
SB_CKE2
SB_CKE3
SB_CS#0
SB_CS#1
SB_ODT0
SB_RAS
SB_WE
SB_CAS
SB_BA0
SB_BA1
SB_BA2
SB_MA0
SB_MA1
SB_MA2
SB_MA3
SB_MA4
SB_MA5
SB_MA6
SB_MA7
SB_MA8
SB_MA9
SB_MA10
SB_MA11
SB_MA12
SB_MA13
SB_MA14
SB_MA15
SB_DQSN0
SB_DQSN1
SB_DQSN2
SB_DQSN3
SB_DQSN4
SB_DQSN5
SB_DQSN6
SB_DQSN7
SB_DQSP0
SB_DQSP1
SB_DQSP2
SB_DQSP3
SB_DQSP4
SB_DQSP5
SB_DQSP6
SB_DQSP7
AM38
AN38
AK38
AL38
AY49
AU50
AW49
AV50
AM32
AK32
AL32
AM35
AK35
AM33
AL35
AM36
AU49
AP40
AR40
AP42
AR42
AR45
AP45
AW46
AY46
AY47
AU46
AK36
AV47
AU47
AK33
AR46
AP46
AM58
AM55
AL43
AL48
AN28
AN25
AN21
AN18
AN58
AN55
AL42
AL49
AM28
AM25
AM21
AM18
M_CLK_DDR#2
M_CLK_DDR2
M_CLK_DDR#3
M_CLK_DDR3
DDR_CKE2_DIMMB
DDR_CKE3_DIMMB
DDR_CS2_DIMMB#
DDR_CS3_DIMMB#
DDR_B_RAS#
DDR_B_WE#
DDR_B_CAS#
DDR_B_BS0
DDR_B_BS1
DDR_B_BS2
DDR_B_MA0
DDR_B_MA1
DDR_B_MA2
DDR_B_MA3
DDR_B_MA4
DDR_B_MA5
DDR_B_MA6
DDR_B_MA7
DDR_B_MA8
DDR_B_MA9
DDR_B_MA10
DDR_B_MA11
DDR_B_MA12
DDR_B_MA13
DDR_B_MA14
DDR_B_MA15
DDR_B_DQS#0
DDR_B_DQS#1
DDR_B_DQS#2
DDR_B_DQS#3
DDR_B_DQS#4
DDR_B_DQS#5
DDR_B_DQS#6
DDR_B_DQS#7
DDR_B_DQS0
DDR_B_DQS1
DDR_B_DQS2
DDR_B_DQS3
DDR_B_DQS4
DDR_B_DQS5
DDR_B_DQS6
DDR_B_DQS7
M_CLK_DDR#2 <16>
M_CLK_DDR2 <16>
M_CLK_DDR#3 <16>
M_CLK_DDR3 <16>
DDR_CKE2_DIMMB <16>
DDR_CKE3_DIMMB <16>
T10
T11
DDR_CS2_DIMMB# <16>
DDR_CS3_DIMMB# <16>
T14
DDR_B_RAS# <16>
DDR_B_WE# <16>
DDR_B_CAS# <16>
DDR_B_BS0 <16>
DDR_B_BS1 <16>
DDR_B_BS2 <16>
DDR_B_MA[0..15] <16>
DDR_B_DQS#[0..1] <16>
DDR_B_DQS#[2..3] <16>
DDR_B_DQS#[4..5] <16>
DDR_B_DQS#[6..7] <16>
DDR_B_DQS[0..1] <16>
DDR_B_DQS[2..3] <16>
DDR_B_DQS[4..5] <16>
DDR_B_DQS[6..7] <16>
C
B
BDW-ULT-DDR3L-IL_BGA1168
A
5
3 OF 19
BDW-ULT-DDR3L-IL_BGA1168
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
4
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
4 OF 19
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
BDW MCP(2/11) DDRIII
BDW MCP(2/11) DDRIII
BDW MCP(2/11) DDRIII
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
LA-C281
LA-C281
LA-C281
Date: Sheet
Date: Sheet
Date: Sheet
1
5 50Friday, February 06, 2015
5 50Friday, February 06, 2015
of
of
5 50Friday, February 06, 2015
of
A
1.0
1.0
1.0
Page 6

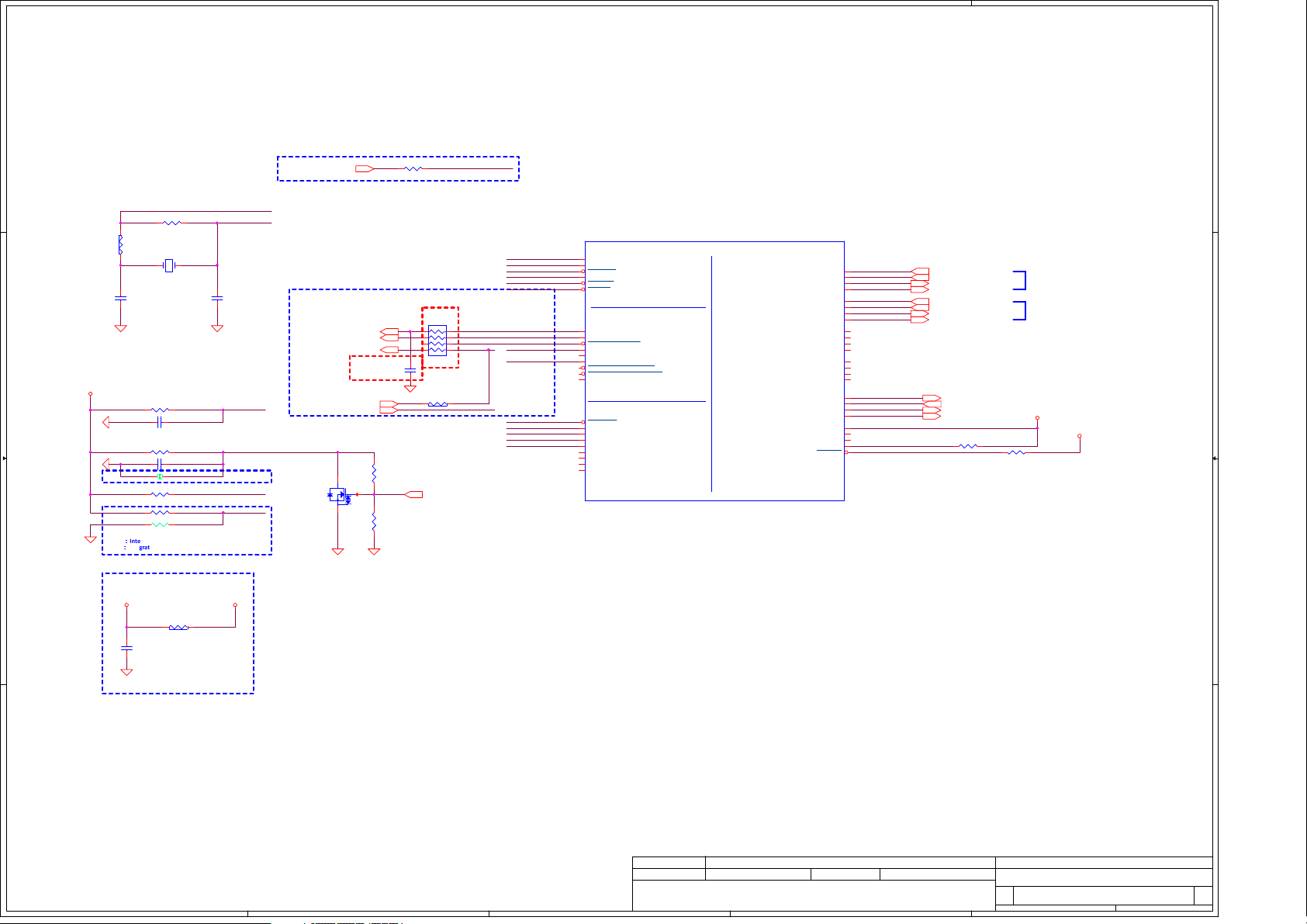

5
WWW.AliSaler.Com
D D
4
3
2
1
2
1
ME_EN<25>
HDA_SDIN0<27>
1
3
22P_0402_50V8J
2
1
2
G
1
2
RG3 0_0402_5%GCLK@
1
@EMI@
C227
2
R11 0_0402_5%@
R509
@
0_0402_5%
R80
10K_0402_5%
RP1
EMI@
1
2
3
4
33_0804_8P4R_5%
1
EC_CLEAR_CMOS <25>
CPU_RTCX1_GCLK<28>
2
PCH_RTCX1
PCH_RTCX2
1
C2
12P_0402_50V8J
NOGCLK@
2
PCH_SRTCRST#
SM_INTRUDER#
PCH_INTVRMEN
+RTCBATT
PCH_RTCRST#
2N7002K_SOT23-3
HDA_BITCLK_AUDIO<27>
HDA_SYNC_AUDIO<27>
HDA_SDOUT_AUDIO<27>
D
Q27
S
1 2
R9 10M_0402_5%
R10
0_0402_5%
C1
12P_0402_50V8J
NOGCLK@
C
+RTCVCC
B
NOGCLK@
@
Y1
1 2
32.768KHZ_12.5PF_9H03200042
1
2
R12 20K_0402_5%
C3 1U_0402_6.3V6K
R14 20K_0402_5%
C4 1U_0402_6.3V6K
CLRP2 SHORT PADS
R15 1M_0402_5%
R16 330K_0402_5%
R17 330K_0402_5%@
：：：：
：：：：
+RTCVCC
1
2
1
NOGCLK@
1
1
1
1
1
1
1
1
R19 0_0402_5%@
C5
1U_0402_6.3V6K
2
2
2
2
2
2
2
2
2
W=20mils
1
8
7
6
5
HDA_SDOUT
2
HDA_SDIN0
PCH_RTCX1
PCH_RTCX1
PCH_RTCX2
SM_INTRUDER#
PCH_INTVRMEN
PCH_SRTCRST#
PCH_RTCRST#
HDA_BIT_CLK
HDA_SYNC
HDA_RST#
HDA_SDIN0
HDA_SDOUT
PCH_JTAG_TRST#
PCH_JTAG_TCK
PCH_JTAG_TDI
PCH_JTAG_TDO
PCH_JTAG_TMS
UC1E
AW5
RTCX1
AY5
RTCX2
AU6
INTRUDER
AV7
INTVRMEN
AV6
SRTCRST
AU7
RTCRST
AW8
HDA_BCLK/I2S0_SCLK
AV11
HDA_SYNC/I2S0_SFRM
AU8
HDA_RST/I2S_MCLK
AY10
HDA_SDI0/I2S0_RXD
AU12
HDA_SDI1/I2S1_RXD
AU11
HDA_SDO/I2S0_TXD
AW10
HDA_DOCK_EN/I2S1_TXD
AV10
HDA_DOCK_RST/I2S1_SFRM
AY8
I2S1_SCLK
AU62
PCH_TRST
AE62
PCH_TCK
AD61
PCH_TDI
AE61
PCH_TDO
AD62
PCH_TMS
AL11
RSVD
AC4
RSVD
AE63
JTAGX
AV2
RSVD
BDW-ULT-DDR3L-IL_BGA1168
BDW_ULT_DDR3L(Interleaved)
RTC
AUDIO SATA
JTAG
5 OF 19
SATA_RN0/PERN6_L3
SATA_RP0/PERP6_L3
SATA_TN0/PETN6_L3
SATA_TP0/PETP6_L3
SATA_RN1/PERN6_L2
SATA_RP1/PERP6_L2
SATA_TN1/PETN6_L2
SATA_TP1/PETP6_L2
SATA_RN2/PERN6_L1
SATA_RP2/PERP6_L1
SATA_TN2/PETN6_L1
SATA_TP2/PETP6_L1
SATA_RN3/PERN6_L0
SATA_RP3/PERP6_L0
SATA_TN3/PETN6_L0
SATA_TP3/PETP6_L0
SATA0GP/GPIO34
SATA1GP/GPIO35
SATA2GP/GPIO36
SATA3GP/GPIO37
SATA_IREF
RSVD
RSVD
SATA_RCOMP
SATALED
J5
H5
B15
A15
J8
H8
A17
B17
J6
H6
B14
C15
F5
E5
C17
D17
V1
U1
V6
AC1
A12
L11
K10
C12
U3
PCH_GPIO34
SATA_ODD_PRSNT
PCH_GPIO36
PCH_GPIO37
SATA_RCOMP
PCH_SATALED#
SATA_PRX_DTX_N0 <20>
SATA_PRX_DTX_P0 <20>
SATA_PTX_DRX_N0 <20>
SATA_PTX_DRX_P0 <20>
SATA_PRX_DTX_N1 <20>
SATA_PRX_DTX_P1 <20>
SATA_PTX_DRX_N1 <20>
SATA_PTX_DRX_P1 <20>
PCH_GPIO34 <9>
SATA_ODD_PRSNT <8>
PCH_GPIO36 <8>
PCH_GPIO37 <9>
2
1
R13 3.01K_0402_1%
1
R18 10K_0402_5%
C
+1.05VS_ASATA3PLL
+3VS
2
B
A
5
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
4
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
BDW MCP(3/11) RTC,SATA,XDP
BDW MCP(3/11) RTC,SATA,XDP
BDW MCP(3/11) RTC,SATA,XDP
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
LA-C281
LA-C281
LA-C281
Date: Sheet
Date: Sheet
Date: Sheet
1
6 50Friday, February 06, 2015
of
6 50Friday, February 06, 2015
of
6 50Friday, February 06, 2015
of
1.0
1.0
1.0
Page 7

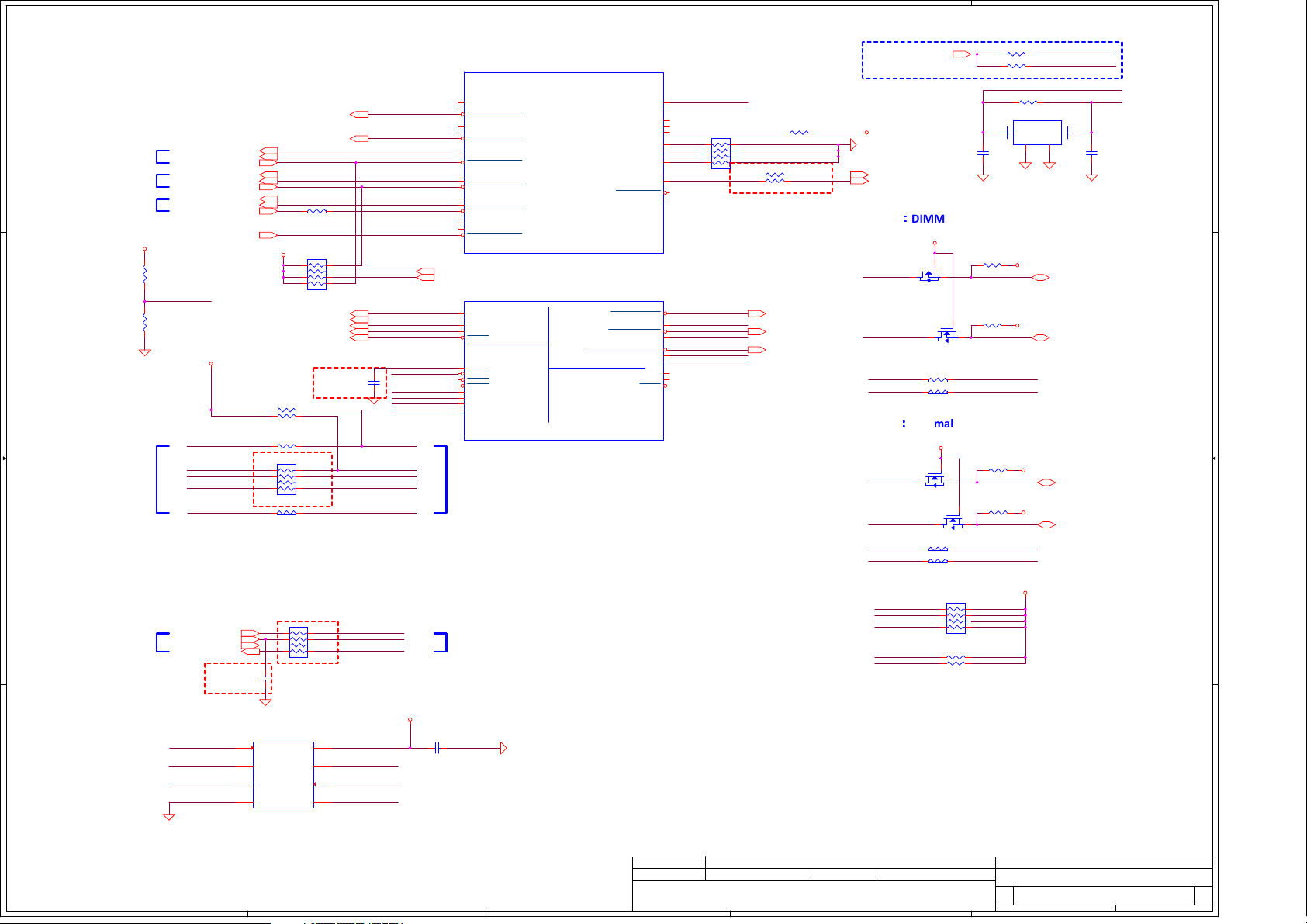

5
4
3
2
1
1 2
C6
NOGCLK@
1
5
4
2
2
2
1
@
5
4
2
2
@
RP7
8
1
7
2
6
3
5
4
2.2K_0804_8P4R_5%
2
1
2
1
RG9 0_0402_5%GCLK@
1 2
RG11 0_0402_5%@
R21 1M_0402_5%NOGCLK@
24MHZ_12PF_7V24000020
1
1
1
2
R27 2.2K_0402_5%
1 2
R29 2.2K_0402_5%
2
1
PCH_SMB_DATA
PCH_SMB_CLK
R37 2.2K_0402_5%
1
R39 2.2K_0402_5%
1
EC_SMB_DA2
EC_SMB_CK2
2
Y2
2
2
+3VALW
+3VS
+3VS
GND
2
+3VS
+3VS
NOGCLK@
UC1F
C43
CLKOUT_PCIE_N0
C42
CLKOUT_PCIE_P0
U2
PCIECLKRQ0/GPIO18
B41
CLKOUT_PCIE_N1
A41
CLKOUT_PCIE_P1
Y5
PCIECLKRQ1/GPIO19
C41
CLKOUT_PCIE_N2
B42
CLKOUT_PCIE_P2
AD1
PCIECLKRQ2/GPIO20
B38
CLKOUT_PCIE_N3
C37
CLKOUT_PCIE_P3
N1
PCIECLKRQ3/GPIO21
A39
CLKOUT_PCIE_N4
B39
CLKOUT_PCIE_P4
U5
PCIECLKRQ4/GPIO22
B37
CLKOUT_PCIE_N5
A37
CLKOUT_PCIE_P5
T2
PCIECLKRQ5/GPIO23
BDW-ULT-DDR3L-IL_BGA1168
PCH_GPIO32 <8>
EC_SCI# <9,25>
UC1G
AU14
LAD0
AW12
LAD1
AY12
LAD2
AW11
LAD3
AV12
LFRAME
AA3
SPI_CLK
Y7
SPI_CS0
Y4
SPI_CS1
AC2
SPI_CS2
AA2
SPI_MOSI
AA4
SPI_MISO
Y6
SPI_IO2
AF1
SPI_IO3
BDW-ULT-DDR3L-IL_BGA1168
1
@EMI@
C225
2
PCH_SPI_WP#
PCH_SPI_HOLD#
PCH_SPI_CLK
PCH_SPI_SI
PCH_SPI_SO
PCH_SPI_CS0#
PCH_SPI_CS0#_R
PCH_SPI_CLK_R
PCH_SPI_SI_R
PCH_SPI_SO_R
PCH_GPIO18
PCH_GPIO19
GPUCLK_REQ#_R
PCH_GPIO23
PCH_GPIO32
EC_SCI#
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_FRAME#
PCH_SPI_CLK
PCH_SPI_CS0#
PCH_SPI_SI
PCH_SPI_SO
PCH_SPI_WP#
PCH_SPI_HOLD#
D D
UMA@
R26
10K_0402_5%
GPUCLK_REQ#_R
PX@
R28
10K_0402_5%
CLK_PCIE_LAN#<26>
CLK_PCIE_LAN<26>
LANCLK_REQ#<26>
CLK_PCIE_WLAN#<21>
CLK_PCIE_WLAN<21>
WLANCLK_REQ#<21>
CLK_PCIE_GPU#<30>
CLK_PCIE_GPU<30>
GPUCLK_REQ#<31>
PCH_GPIO23<9>
+3VALW
PCH_SPI_WP#_R
PCH_SPI_HOLD#_R
PCH_SPI_CLK_R
PCH_SPI_SI_R
PCH_SPI_SO_R
PCH_SPI_CS0#_R
EC_SPI_CS0#<25>
EC_SPI_CLK<25>
EC_SPI_MOSI<25>
EC_SPI_MISO<25>
22P_0402_50V8J
@EMI@
+3VS
1
2
1 2
C
B
PCH_GPIO18<9>
PCH_GPIO19<9>
1 2
R25 0_0402_5%@
+3VS
1
2
3
4
2
1
R34 1K_0402_1%
2
1
R35 1K_0402_1%
2
1
R36 33_0402_5%
RP5
EMI@
8
1
7
2
6
3
5
4
33_0804_8P4R_5%
2
1
R38 0_0402_5%@
RP8
1
2
3
4
33_0804_8P4R_5%
1
C226
2
RP4
8
7
6
5
10K_0804_8P4R_5%
LPC_AD0<22,25>
LPC_AD1<22,25>
LPC_AD2<22,25>
LPC_AD3<22,25>
LPC_FRAME#<22,25>
22P_0402_50V8J
EMI@
8
7
6
5
BDW_ULT_DDR3L(Interleaved)
CLOCK
SIGNALS
6 OF 19
BDW_ULT_DDR3L(Interleaved)
LPC
SMBUS
C-LINKSPI
7 OF 19
XTAL24_IN
XTAL24_OUT
RSVD
RSVD
DIFFCLK_BIASREF
TESTLOW_C35
TESTLOW_C34
TESTLOW_AK8
TESTLOW_AL8
CLKOUT_LPC_0
CLKOUT_LPC_1
CLKOUT_ITPXDP
CLKOUT_ITPXDP_P
SMBALERT/GPIO11
SMBCLK
SMBDATA
SML0ALERT/GPIO60
SML0CLK
SML1ALERT/PCHHOT/GPIO73
SML0DATA
SML1CLK/GPIO75
SML1DATA/GPIO74
CL_CLK
CL_DATA
CL_RST
A25
XTAL24_IN
B25
XTAL24_OUT
K21
M21
C26
XCLK_BIASREF
5
4
C35
RP3 10K_0804_8P4R_5%
3 6
C34
AK8
AL8
AN15
AP15
B35
A35
AN2
AP2
AH1
AL2
AN1
AK1
AU4
AU3
AH3
AF2
AD2
AF4
2
1 8
CLKOUT_LPC0
CLKOUT_LPC1
PCH_GPIO11
SMBCLK
SMBDATA
FW_UPDATE
SML0CLK
SML0DATA
PCH_GPIO73
SML1CLK
SML1DATA
7
1 2
R22 3.01K_0402_1%
2
1
R23 22_0402_5%EMI@
2
1
R58 22_0402_5%
TPM@
PCH_GPIO11 <9>
FW_UPDATE <17>
PCH_GPIO73 <9>
CPU_XTAL24_GCLK<28>
+1.05VS_AXCK_LCPLL
CK_LPC_KBC <25>
CK_LPC_TPM <22>
SMBDATA
2N7002EDW_SOT363-6
SMBCLK
SMBDATA
SMBCLK
SML1DATA
2N7002EDW_SOT363-6
SML1CLK
SML1DATA
SML1CLK
SMBDATA
SMBCLK
SML1CLK
SML1DATA
SML0CLK
SML0DATA
15P_0402_50V8J
：：：：
+3VS
@
2
Q1A
6
@
Q1B
3
2N7002EDW_SOT363-6
1
R31 0_0402_5%@
1
R33 0_0402_5%@
：：：：
+3VS
@
Q2A
6
Q2B
3
2N7002EDW_SOT363-6
1
R41 0_0402_5%@
1
R42 0_0402_5%@
R46 499_0402_1%
R47 499_0402_1%
XTAL24_IN
XTAL24_OUT
1
3
3
GND
4
PCH_SMB_DATA <15,16>
PCH_SMB_CLK < 15,16>
EC_SMB_DA2 <19,22,25,31>
EC_SMB_CK2 <19,22,25,31>
XTAL24_IN
XTAL24_OUT
1
C7
15P_0402_50V8J
NOGCLK@
2
C
B
U1
PCH_SPI_CS0#_R
PCH_SPI_SO_R
PCH_SPI_WP#_R
A
5
1
CS#
2
SO
3
IO2
4
VSS
GD25B64BSIGR_SO8
SCLK
8
+3V_ROM
VCC
7
PCH_SPI_HOLD#_R
IO3
6
PCH_SPI_CLK_R
5
PCH_SPI_SI_R
SI
+3VALW
@
2
1
C8 0.1U_0201_10V6K
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
4
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
BDW MCP(4/11) CLK,SPI,SMBUS
BDW MCP(4/11) CLK,SPI,SMBUS
BDW MCP(4/11) CLK,SPI,SMBUS
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
LA-C281
LA-C281
LA-C281
Date: Sheet
Date: Sheet
Date: Sheet
1
7 50Friday, February 06, 2015
of
7 50Friday, February 06, 2015
of
7 50Friday, February 06, 2015
of
1.0
1.0
1.0
Page 8

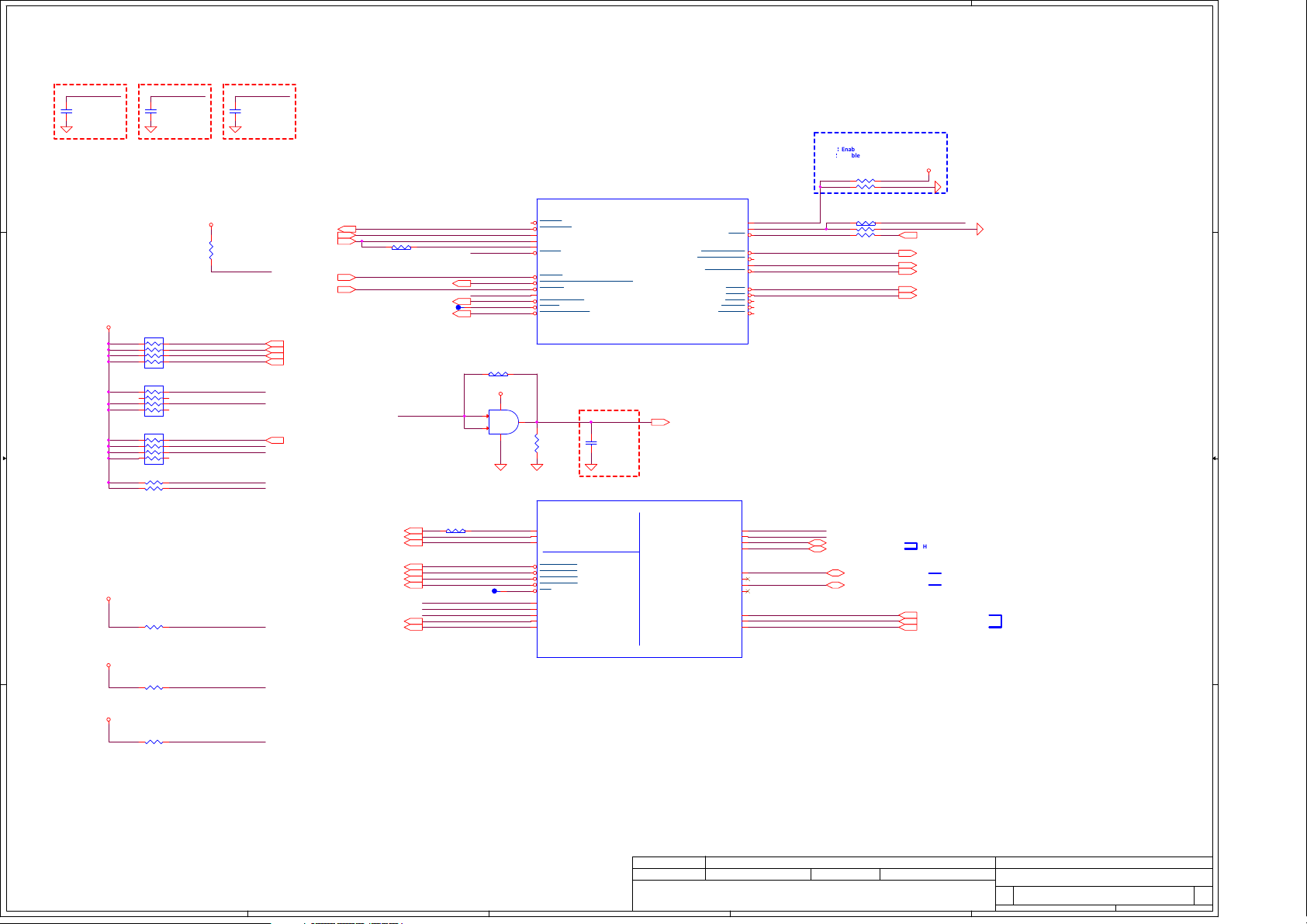

5
WWW.AliSaler.Com
4
3
2
1
+3VALW
1
R54
10K_0402_5%
2
SERIRQ
PCH_GPIO36
TPMPD#
SATA_ODD_PRSNT
PCH_GPIO54
PCH_GPIO52
PCH_GPIO68
DGPU_PWROK
PCH_GPIO55
DDI1_CTRL_CK
DDI1_CTRL_DATA
PCH_PCIE_WAKE#
SYS_RESET#
1
ESD@
C246
100P_0402_50V8J
2
AC_PRESENT
SYS_RESET#<9>
SYS_PWROK<25>
PCH_PWROK<25>
EC_RSMRST#<25>
PBTN_OUT#<25>
SERIRQ <9, 22,25>
PCH_GPIO36 <6>
TPMPD# <9>
SATA_ODD_PRSNT <6>
PCH_GPIO68 <9>
DGPU_HOLD_RST#<30>
INVPWM<17>
ENBKL<17,25>
PCH_ENVDD<17>
DGPU_PWROK<46>
DGPU_PWR_EN<25,32,43,46>
WLBT_OFF#<9,21>
PCH_GPIO51<9>
PCH_GPIO53<9>
1
R55 0_0402_5%@
2
PCH_GPIO30<9>
PCH_GPIO72<9>
T15 @
PCH_GPIO29<9>
CPU_PLT_RST#
U74AHC1G08G-AL5-R_SOT353-5
0_0402_5%
1
R63
@
PCH_GPIO55
PCH_GPIO52
PCH_GPIO54
PCH_GPIO51
PCH_GPIO53
SYS_RESET#
SYS_PWROK
PCH_PWROK
APWROK_R
CPU_PLT_RST#
EC_RSMRST#
PCH_GPIO30
PBTN_OUT#
AC_PRESENT
PCH_GPIO72
PCH_GPIO29
2
R59 0_0402_5%@
@
U3
2
1
2
EDP_BKCTL
T16 @
：：：：
：：：：
1 2
R49 330K_0402_5%
1
R50 330K_0402_5%@
1
R53 0_0402_5%@
2
R57 100K_0402_5%
1
R216 0_0402_5%@
HDMICLK_NB <18>
HDMIDAT_NB <18>
DDI1_AUX_DN <19>
DDI1_AUX_DP <19>
UC1H
AK2
SUSACK
AC3
SYS_RESET
AG2
SYS_PWROK
AY7
PCH_PWROK
AB5
APWROK
AG7
PLTRST
AW6
RSMRST
AV4
SUSWARN/SUSPWRDNACK/GPIO30
AL7
PWRBTN
AJ8
ACPRESENT/GPIO31
AN4
BATLOW/GPIO72
AF3
SLP_S0
AM5
SLP_WLAN/GPIO29
BDW-ULT-DDR3L-IL_BGA1168
1
+3VS
5
P
B
4
Y
1
A
G
R60
3
100K_0402_5%
2
UC1I
B8
EDP_BKLCTL
A9
EDP_BKLEN
C6
EDP_VDDEN
U6
PIRQA/GPIO77
P4
PIRQB/GPIO78
N4
PIRQC/GPIO79
N2
PIRQD/GPIO80
AD4
PME
U7
GPIO55
L1
GPIO52
L3
GPIO54
R5
GPIO51
L4
GPIO53
SYSTEM POWER MANAGEMENT
1
C119
10P_0402_50V8J
2
@
eDP SIDEBAND
PCIE
BDW_ULT_DDR3L(Interleaved)
8 OF 19
BDW_ULT_DDR3L(Interleaved)
DISPLAY
DSWVRMEN
DPWROK
CLKRUN/GPIO32
SUS_STAT/GPIO61
SUSCLK/GPIO62
SLP_S5/GPIO63
SLP_S4
SLP_S3
SLP_A
SLP_SUS
SLP_LAN
PCIRST# < 21,22,25,26,30>
DDPB_CTRLCLK
DDPB_CTRLDATA
DDPC_CTRLCLK
DDPC_CTRLDATA
DDPB_AUXN
DDPC_AUXN
DDPB_AUXP
DDPC_AUXP
DDPB_HPD
DDPC_HPD
EDP_HPD
WAKE
AW7
AV5
AJ5
V5
AG4
AE6
AP5
AJ6
AT4
AL5
AP4
AJ7
B9
C9
D9
D11
C5
B6
B5
A6
C8
A8
D6
DSWODVREN
PCH_DPWROK
PCH_PCIE_WAKE#
PCH_GPIO32
SUSCLK
PM_SLP_S5#
PM_SLP_S4#
PM_SLP_S3#
DDI1_CTRL_CK
DDI1_CTRL_DATA
DDI1_AUX_DN
DDI1_AUX_DP
2
2
1
2
+RTCVCC
EC_RSMRST#
PCIE_WAKE# <21,25, 26>
PCH_GPIO32 <7>
SUSCLK <21>
PM_SLP_S5# <25>
PM_SLP_S4# <25>
PM_SLP_S3# <25>
DDI1_HPD < 19>
TMDS_B_HPD <18>
EDP_HPD <17>
SYS_PWROK EC_RSMRST#
12
ESD@
C239
D D
C
B
100P_0402_50V8J
+3VS
+3VALW
12
ESD@
C240
100P_0402_50V8J
RP10
8
1
7
2
6
3
5
4
10K_0804_8P4R_5%
RP11
8
1
7
2
6
3
5
4
10K_0804_8P4R_5%
RP12
8
1
7
2
6
3
5
4
10K_0804_8P4R_5%
2
1
R61 2.2K_0402_5%
2
1
R62 2.2K_0402_5%
2
1
R67 1K_0402_5%
C
B
+3VS
2
1
R223 10K_0402_5%
+3VS
2
1
R225 10K_0402_5%
A
5
DGPU_PWR_EN
DGPU_HOLD_RST#
BDW-ULT-DDR3L-IL_BGA1168
4
9 OF 19
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
BDW MCP(5/11) PM,GPIO,DDI
BDW MCP(5/11) PM,GPIO,DDI
BDW MCP(5/11) PM,GPIO,DDI
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
LA-C281
LA-C281
LA-C281
Date: Sheet
Date: Sheet
Date: Sheet
1
8 50Friday, February 06, 2015
of
8 50Friday, February 06, 2015
of
8 50Friday, February 06, 2015
of
A
1.0
1.0
1.0
Page 9

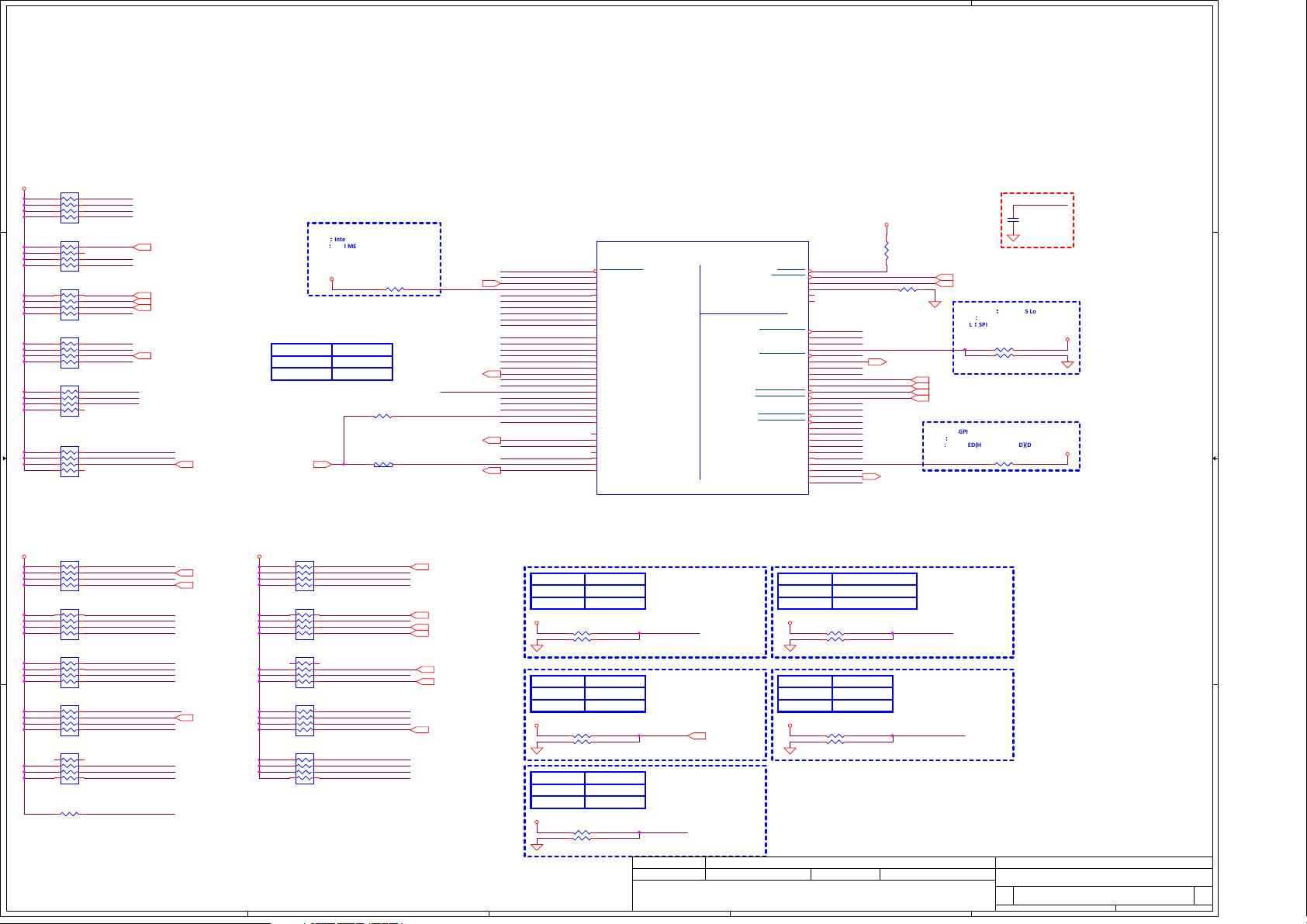

5
D D
4
3
2
1
+3VALW
C
B
A
+3VS
1
2
3 6
4
1 8
2
3
4
1
2
3
4
1
2
3
4
8
7
6
5
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
R76 1K_0402_5%@
RP13
8
7
PCH_GPIO47
PCH_GPIO24
5
PCH_GPIO28
10K_0804_8P4R_5%
RP14
@
7
6
5
10K_0804_8P4R_5%
RP15
8
7
6
5
10K_0804_8P4R_5%
RP16
@
8
7
6
5
10K_0804_8P4R_5%
RP9
@
1
2
3
4
10K_0804_8P4R_5%
RP23
8
7
6
5
10K_0804_8P4R_5%
RP17
8
7
6
5
10K_0804_8P4R_5%
RP19
@
8
7
6
5
10K_0804_8P4R_5%
RP21
@
8
7
6
5
10K_0804_8P4R_5%
RP24
@
8
7
6
5
10K_0804_8P4R_5%
RP26
8
7
6
5
10K_0804_8P4R_5%
2
EC_SCI#_2
PCH_GPIO11
PCH_GPIO26
PCH_GPIO58
PCH_GPIO44
PCH_GPIO59
PCH_GPIO8
PCH_GPIO43
PCH_GPIO57
PCH_GPIO56
PCH_GPIO14
PCH_GPIO46
PCH_GPIO27
PCH_GPIO25
PCH_GPIO29
PCH_GPIO17
PCH_GPIO23
KB_RST#
SYS_RESET#
PCH_GPIO65
PCH_GPIO5
PCH_GPIO67
PCH_GPIO64
UART0_RTS
UART0_CTS
UART0_TX
UART0_RX
PCH_GPIO2
PCH_GPIO53
PCH_GPIO84
PCH_GPIO3
PCH_GPIO85
PCH_GPIO0
PCH_GPIO89
HDA_SPKR
5
PCH_GPIO11 <7>
USB_OC1# <10,24>
PCH_GPIO30 <8>
PCH_GPIO72 <8>
PCH_GPIO43 <10>
PCH_GPIO29 <8>
PCH_GPIO23 <7>
SYS_RESET# <8>
PCH_GPIO53 <8>
EC_SCI#<7,25>
+3VS
RP18
1
2
3
4
10K_0804_8P4R_5%
RP20
1
2
3
4
10K_0804_8P4R_5%
RP22
1
2
3
4
10K_0804_8P4R_5%
RP2
8
7
6
5
10K_0804_8P4R_5%
RP25
@
1
2
3
4
2.2K_0804_8P4R_5%
：：：：
：：：：
+3VALW
8
7
6
5
8
7
6
5
@
8
7
6
5
1
2
3
4
8
7
6
5
1
R69
@
1K_0402_1%
2
1
R90 0_0402_5%
@
2
1
R66 0_0402_5%@
WLBT_OFF#
PCH_GPIO50
PCH_GPIO33
PCH_GPIO76
PCH_GPIO34
PCH_GPIO16
PCH_GPIO37
Speaker_JBL
PCH_GPIO19
3DCMOS_ON#
PCH_GPIO18
PCH_GPIO87
PCH_GPIO83
PCH_GPIO90
PCH_GPIO51
PCH_GPIO69
PCH_GPIO4
PCH_GPIO7
PCH_GPIO6
4
2
PCH_GPIO12<10>
TPMPD#<8>
Speaker_JBL
PCH_GPIO10<10>
HDA_SPKR<27>
WLBT_OFF# <8,21>
PCH_GPIO34 <6>
PCH_GPIO37 <6>
Speaker_JBL <27>
PCH_GPIO19 <7>
PCH_GPIO18 <7>
PCH_GPIO51 <8>
PCH_GPIO76
PCH_GPIO8
PCH_GPIO15
PCH_GPIO16
PCH_GPIO17
PCH_GPIO24
PCH_GPIO27
PCH_GPIO28
PCH_GPIO26
PCH_GPIO56
PCH_GPIO57
PCH_GPIO58
PCH_GPIO59
PCH_GPIO44
PCH_GPIO47
TPMPD#
DGPU_PRSNT#
PCH_GPIO50
PCH_GPIO13
PCH_GPIO14
PCH_GPIO25
EC_SCI#_2
PCH_GPIO46
PCH_GPIO33
PCH_GPIO38
EC_SCI#_1
+3VS
R282 10K_0402_5%
R283 10K_0402_5%
+3VS
R286 10K_0402_5%
R287 10K_0402_5%
+3VS
R291 10K_0402_5%
R292 10K_0402_5%
NOISCT@
1
1
ISCT@
3DCMOS@
1
1
CMOS@
TPM@
1
1
NOTPM@
P1
AU2
AM7
AD6
Y1
T3
AD5
AN5
AD7
AN3
AG6
AP1
AL4
AT5
AK4
AB6
U4
Y3
P3
Y2
AT3
AH4
AM4
AG5
AG3
AM3
AM2
P2
C4
L2
N5
V2
2
2
2
2
2
2
+1.05VS
UC1J
BMBUSY/GPIO76
GPIO8
LAN_PHY_PWR_CTRL/GPIO12
GPIO15
GPIO16
GPIO17
GPIO24
GPIO27
GPIO28
GPIO26
GPIO56
GPIO57
GPIO58
GPIO59
GPIO44
GPIO47
GPIO48
GPIO49
GPIO50
HSIOPC/GPIO71
GPIO13
GPIO14
GPIO25
GPIO45
GPIO46
GPIO9
GPIO10
DEVSLP0/GPIO33
SDIO_POWER_EN/GPIO70
DEVSLP1/GPIO38
DEVSLP2/GPIO39
SPKR/GPIO81
BDW-ULT-DDR3L-IL_BGA1168
PCH_GPIO13
PCH_GPIO73
BDW_ULT_DDR3L(Interleaved)
GPIO
10 OF 19
PCH_GPIO73 <7>
CPU/
MISC
SERIAL IO
THRMTRIP
RCIN/GPIO82
SERIRQ
PCH_OPI_RCOMP
RSVD
RSVD
GSPI0_CS/GPIO83
GSPI0_CLK/GPIO84
GSPI0_MISO/GPIO85
GSPI0_MOSI/GPIO86
GSPI1_CS/GPIO87
GSPI1_CLK/GPIO88
GSPI1_MISO/GPIO89
GSPI_MOSI/GPIO90
UART0_RXD/GPIO91
UART0_TXD/GPIO92
UART0_RTS/GPIO93
UART0_CTS/GPIO94
UART1_RXD/GPIO0
UART1_TXD/GPIO1
UART1_RST/GPIO2
UART1_CTS/GPIO3
I2C0_SDA/GPIO4
I2C0_SCL/GPIO5
I2C1_SDA/GPIO6
I2C1_SCL/GPIO7
SDIO_CLK/GPIO64
SDIO_CMD/GPIO65
SDIO_D0/GPIO66
SDIO_D1/GPIO67
SDIO_D2/GPIO68
SDIO_D3/GPIO69
+3VS
+3VS
D60
H_THERMTRIP#
V4
T4
SERIRQ
AW15
PCH_OPIRCOMP
AF20
AB21
R6
PCH_GPIO83
L6
PCH_GPIO84
N6
PCH_GPIO85
L8
PCH_GPIO86
R7
PCH_GPIO87
L5
3DCMOS_ON#
N7
PCH_GPIO89
K2
PCH_GPIO90
J1
K3
J2
G1
K4
PCH_GPIO0
G2
PCH_GPIO1
J3
PCH_GPIO2
J4
PCH_GPIO3
F2
PCH_GPIO4
F3
PCH_GPIO5
G4
PCH_GPIO6
F1
PCH_GPIO7
E3
PCH_GPIO64
F4
PCH_GPIO65
D3
PCH_GPIO66
E4
PCH_GPIO67
C3
PCH_GPIO68
E2
PCH_GPIO69
1
R73 10K_0402_5%UMA@
1
R74 10K_0402_5%PX@
Z14@
1
R288 10K_0402_5%
1
R289 10K_0402_5%
Z15@
1K_0402_1%
2
2
2
2
1
R68
2
R70
PCH_GPIO68 <8>
1
3DCMOS_ON# <17>
PCH_GPIO38
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
2
49.9_0402_1%
UART0_TX <21>
UART0_RX <21>
UART0_CTS <21>
UART0_RTS <21>
：：：：
：：：：
DGPU_PRSNT#
PCH_GPIO1
H_THERMTRIP#
1
@
C241
100P_0402_50V8J
2
KB_RST# <25>
SERIRQ <8,22,25>
：：：：
：：：：
：：：：
1
R71 1K_0402_1%@
1
R72 1K_0402_1%
1
R75 1K_0402_1%@
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
+3VS
2
2
+3VS
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
BDW MCP(6/11) GPIO,LPIO
BDW MCP(6/11) GPIO,LPIO
BDW MCP(6/11) GPIO,LPIO
LA-C281
LA-C281
LA-C281
1
C
B
A
1.0
1.0
9 50Friday, February 06, 2015
9 50Friday, February 06, 2015
9 50Friday, February 06, 2015
1.0
of
of
of
Page 10

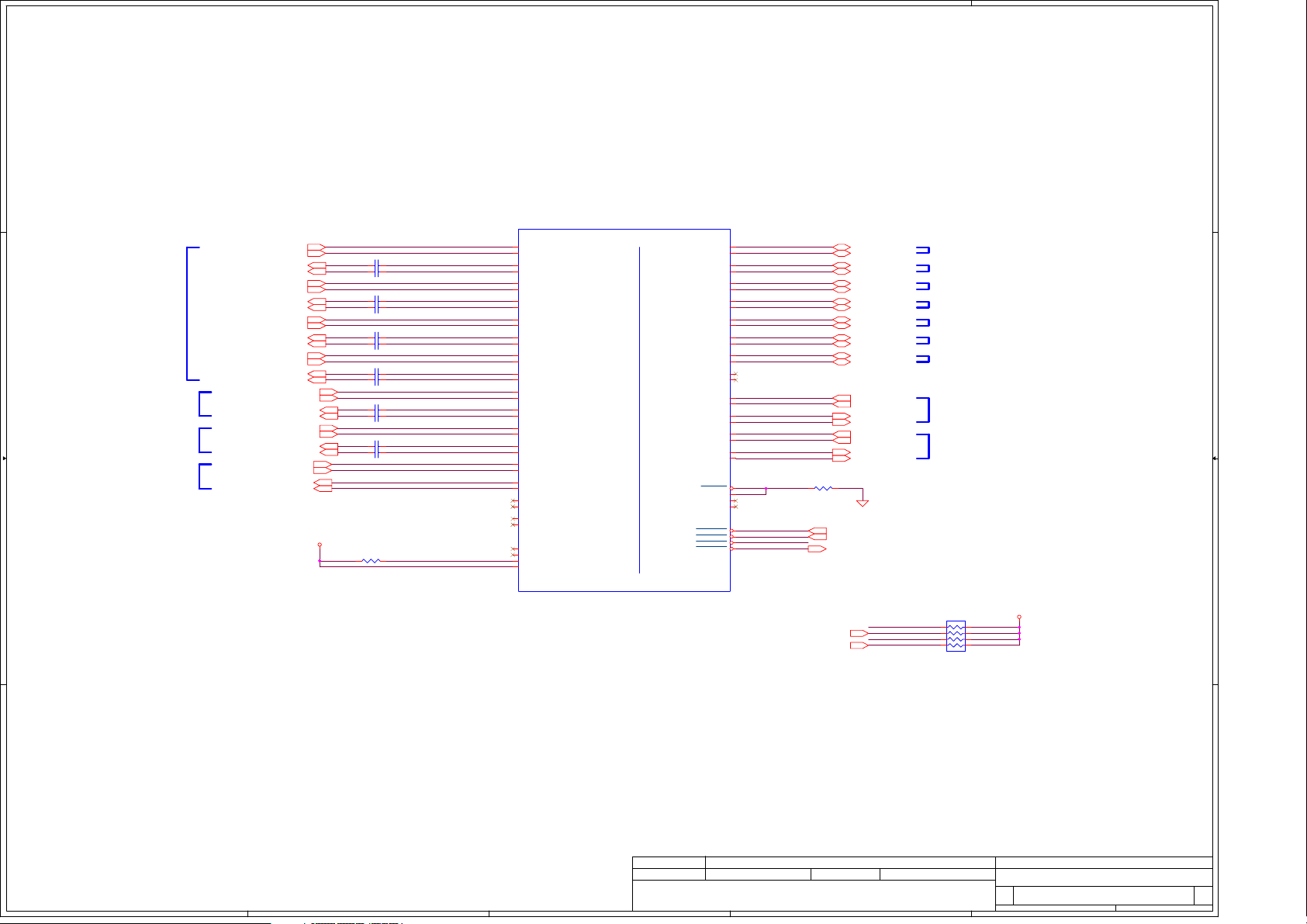

5
WWW.AliSaler.Com
D D
4
3
2
1
UC1K
PCIE_CRX_GTX_N0<30>
PCIE_CRX_GTX_P0<30>
PCIE_CTX_GRX_N0<30>
PCIE_CTX_GRX_P0<30>
PCIE_CRX_GTX_N1<30>
PCIE_CRX_GTX_P1<30>
C
B
PCIE_CTX_GRX_N1<30>
PCIE_CTX_GRX_P1<30>
PCIE_CRX_GTX_N2<30>
PCIE_CRX_GTX_P2<30>
PCIE_CTX_GRX_N2<30>
PCIE_CTX_GRX_P2<30>
PCIE_CRX_GTX_N3<30>
PCIE_CRX_GTX_P3<30>
PCIE_CTX_GRX_N3<30>
PCIE_CTX_GRX_P3<30>
PCIE_PRX_DTX_N3<26>
PCIE_PRX_DTX_P3<26>
PCIE_PTX_C_DRX_N3<26>
PCIE_PTX_C_DRX_P3<26>
PCIE_PRX_DTX_N4<21>
PCIE_PRX_DTX_P4<21>
PCIE_PTX_C_DRX_N4<21>
PCIE_PTX_C_DRX_P4<21>
USB3_RX3_N<17>
USB3_RX3_P<17>
USB3_TX3_N<17>
USB3_TX3_P<17>
C10 0.1U_0201_10V6KPX@
C11 0.1U_0201_10V6KPX@
C12 0.1U_0201_10V6KPX@
C13 0.1U_0201_10V6KPX@
C14 0.1U_0201_10V6KPX@
C15 0.1U_0201_10V6KPX@
C16 0.1U_0201_10V6KPX@
C17 0.1U_0201_10V6KPX@
+1.05VS_AUSB3PLL
R78 3.01K_0402_1%
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
C22 0.1U_0201_10V6K
2
1
C23 0.1U_0201_10V6K
2
1
C18 0.1U_0201_10V6K
2
1
C19 0.1U_0201_10V6K
2
1
PCIE_PTX_DRX_N5_L0
PCIE_PTX_DRX_P5_L0
PCIE_PTX_DRX_N5_L1
PCIE_PTX_DRX_P5_L1
PCIE_PTX_DRX_N5_L2
PCIE_PTX_DRX_P5_L2
PCIE_PTX_DRX_N5_L3
PCIE_PTX_DRX_P5_L3
PCIE_PTX_DRX_N3
PCIE_PTX_DRX_P3
PCIE_PTX_DRX_N4
PCIE_PTX_DRX_P4
PCIE_RCOMP
F10
PERN5_L0
E10
PERP5_L0
C23
PETN5_L0
C22
PETP5_L0
F8
PERN5_L1
E8
PERP5_L1
B23
PETN5_L1
A23
PETP5_L1
H10
PERN5_L2
G10
PERP5_L2
B21
PETN5_L2
C21
PETP5_L2
E6
PERN5_L3
F6
PERP5_L3
B22
PETN5_L3
A21
PETP5_L3
G11
PERN3
F11
PERP3
C29
PETN3
B30
PETP3
F13
PERN4
G13
PERP4
B29
PETN4
A29
PETP4
G17
PERN1/USB3RN3
F17
PERP1/USB3RP3
C30
PETN1/USB3TN3
C31
PETP1/USB3TP3
F15
PERN2/USB3RN4
G15
PERP2/USB3RP4
B31
PETN2/USB3TN4
A31
PETP2/USB3TP4
E15
RSVD
E13
RSVD
A27
PCIE_RCOMP
B27
PCIE_IREF
BDW-ULT-DDR3L-IL_BGA1168
BDW_ULT_DDR3L(Interleaved)
PCIE USB
11 OF 19
USB2N0
USB2P0
USB2N1
USB2P1
USB2N2
USB2P2
USB2N3
USB2P3
USB2N4
USB2P4
USB2N5
USB2P5
USB2N6
USB2P6
USB2N7
USB2P7
USB3RN1
USB3RP1
USB3TN1
USB3TP1
USB3RN2
USB3RP2
USB3TN2
USB3TP2
USBRBIAS
USBRBIAS
RSVD
RSVD
OC0/GPIO40
OC1/GPIO41
OC2/GPIO42
OC3/GPIO43
AN8
AM8
AR7
AT7
AR8
AP8
AR10
AT10
AM15
AL15
AM13
AN13
AP11
AN11
AR13
AP13
G20
H20
C33
B34
E18
F18
B33
A33
AJ10
AJ11
AN10
AM10
AL3
AT1
AH2
AV3
USBRBIAS
USB_OC0#
USB_OC1#
PCH_GPIO42
PCH_GPIO43
USB20_N0 <24>
USB20_P0 <24>
USB20_N1 <24>
USB20_P1 <24>
USB20_N2 <24>
USB20_P2 <24>
USB20_N3 <24>
USB20_P3 <24>
USB20_N4 <17>
USB20_P4 <17>
USB20_N5 <17>
USB20_P5 <17>
USB20_N6 <21>
USB20_P6 <21>
USB3_RX1_N <24>
USB3_RX1_P <24>
USB3_TX1_N <24>
USB3_TX1_P <24>
USB3_RX2_N <24>
USB3_RX2_P <24>
USB3_TX2_N <24>
USB3_TX2_P <24>
2
1
R77 22.6_0402_1%
USB_OC0# <24>
USB_OC1# <9,24>
PCH_GPIO43 <9>
PCH_GPIO10<9>
PCH_GPIO12<9>
USB_OC0#
PCH_GPIO42
RP27
1
2
3
4
10K_0804_8P4R_5%
+3VALW
8
7
6
5
C
B
A
5
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
4
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
BDW MCP(7/11) PCIE,USB
BDW MCP(7/11) PCIE,USB
BDW MCP(7/11) PCIE,USB
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
LA-C281
LA-C281
LA-C281
Date: Sheet
Date: Sheet
Date: Sheet
1
10 50Friday, February 06, 2015
10 50Friday, February 06, 2015
of
10 50Friday, February 06, 2015
of
of
1.0
1.0
1.0
Page 11

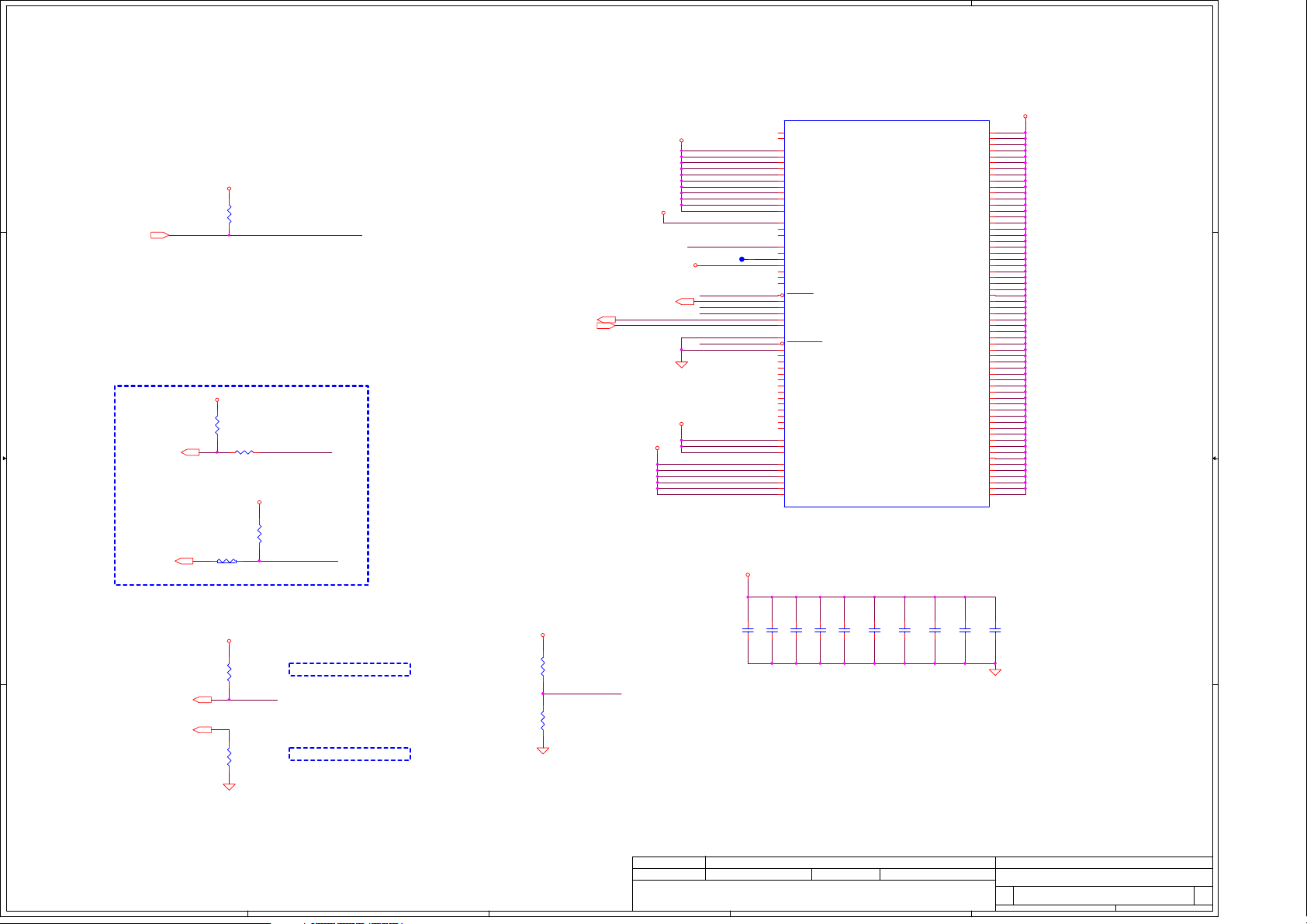

5
4
3
2
1
D D
+1.05VS
12
R79
+1.05VS
1
12
R81
75_0402_5%
R84
@
10K_0402_5%
R82
43_0402_1%
2
1
+1.05VS
2
1
2
VCCST_PWRGD<25>
C
VR_SVID_ALRT#<47>
B
VR_SVID_DAT<47>
H_CPU_SVIDALRT#
R83
130_0402_1%
H_CPU_SVIDDATA
VCCST_PWRGD
VR_ON<47>
VGATE<47>
+CPU_CORE
VR_SVID_CLK<47>
+CPU_CORE
+1.35V
+VCCIOA_OUT
+1.05VS
VCCSENSE
H_CPU_SVIDALRT#
H_CPU_SVIDDATA
VCCST_PWRGD
CPU_PWR_DEBUG
T17
+1.35V
UC1L
L59
RSVD
J58
RSVD
AH26
VDDQ
AJ31
VDDQ
AJ33
VDDQ
AJ37
VDDQ
AN33
VDDQ
AP43
VDDQ
AR48
VDDQ
AY35
VDDQ
AY40
VDDQ
AY44
VDDQ
AY50
VDDQ
F59
VCC
N58
RSVD
AC58
RSVD
E63
VCC_SENSE
AB23
RSVD
A59
VCCIO_OUT
E20
VCCIOA_OUT
AD23
RSVD
AA23
RSVD
AE59
RSVD
L62
VIDALERT
N63
VIDSCLK
L63
VIDSOUT
B59
VCCST_PWRGD
F60
VR_EN
C59
VR_READY
D63
VSS
H59
PWR_DEBUG
P62
VSS
P60
RSVD_TP
P61
RSVD_TP
N59
RSVD_TP
N61
RSVD_TP
T59
RSVD
AD60
RSVD
AD59
RSVD
AA59
RSVD
AE60
RSVD
AC59
RSVD
AG58
RSVD
U59
RSVD
V59
RSVD
AC22
VCCST
AE22
VCCST
AE23
VCCST
AB57
VCC
AD57
VCC
AG57
VCC
C24
VCC
C28
VCC
C32
VCC
BDW-ULT-DDR3L-IL_BGA1168
BDW_ULT_DDR3L(Interleaved)
HSW ULT POWER
12 OF 19
+CPU_CORE
C36
VCC
C40
VCC
C44
VCC
C48
VCC
C52
VCC
C56
VCC
E23
VCC
E25
VCC
E27
VCC
E29
VCC
E31
VCC
E33
VCC
E35
VCC
E37
VCC
E39
VCC
E41
VCC
E43
VCC
E45
VCC
E47
VCC
E49
VCC
E51
VCC
E53
VCC
E55
VCC
E57
VCC
F24
VCC
F28
VCC
F32
VCC
F36
VCC
F40
VCC
F44
VCC
F48
VCC
F52
VCC
F56
VCC
G23
VCC
G25
VCC
G27
VCC
G29
VCC
G31
VCC
G33
VCC
G35
VCC
G37
VCC
G39
VCC
G41
VCC
G43
VCC
G45
VCC
G47
VCC
G49
VCC
G51
VCC
G53
VCC
G55
VCC
G57
VCC
H23
VCC
J23
VCC
K23
VCC
K57
VCC
L22
VCC
M23
VCC
M57
VCC
P57
VCC
U57
VCC
W57
VCC
C
B
2.2U_0402_6.3V6M
+CPU_CORE
1
R85
100_0402_1%
2
1
2
VCCSENSE
R88
100_0402_1%
VCCSENSE< 47>
VSSSENSE<13,47>
A
5
4
+1.05VS
@
2
1
2
1
R86
150_0402_1%
CPU_PWR_DEBUG
R87
@
10K_0402_5%
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
3
1
2
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2.2U_0402_6.3V6M
2.2U_0402_6.3V6M
C24
1
2
2.2U_0402_6.3V6M
@
C26
C25
1
1
2
2
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
10U_0603_6.3V6M
C27
1
C28
2
2
10U_0603_6.3V6M
10U_0603_6.3V6M
10U_0603_6.3V6M
1
1
C30
C29
2
2
10U_0603_6.3V6M
10U_0603_6.3V6M
1
C31
2
@
1
1
C33
C32
2
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
BDW MCP(8/11) Power
BDW MCP(8/11) Power
BDW MCP(8/11) Power
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
LA-C281
LA-C281
LA-C281
Date: Sheet
Date: Sheet
Date: Sheet
1
A
1.0
1.0
11 50Friday, February 06, 2015
11 50Friday, February 06, 2015
11 50Friday, February 06, 2015
1.0
of
of
of
Page 12

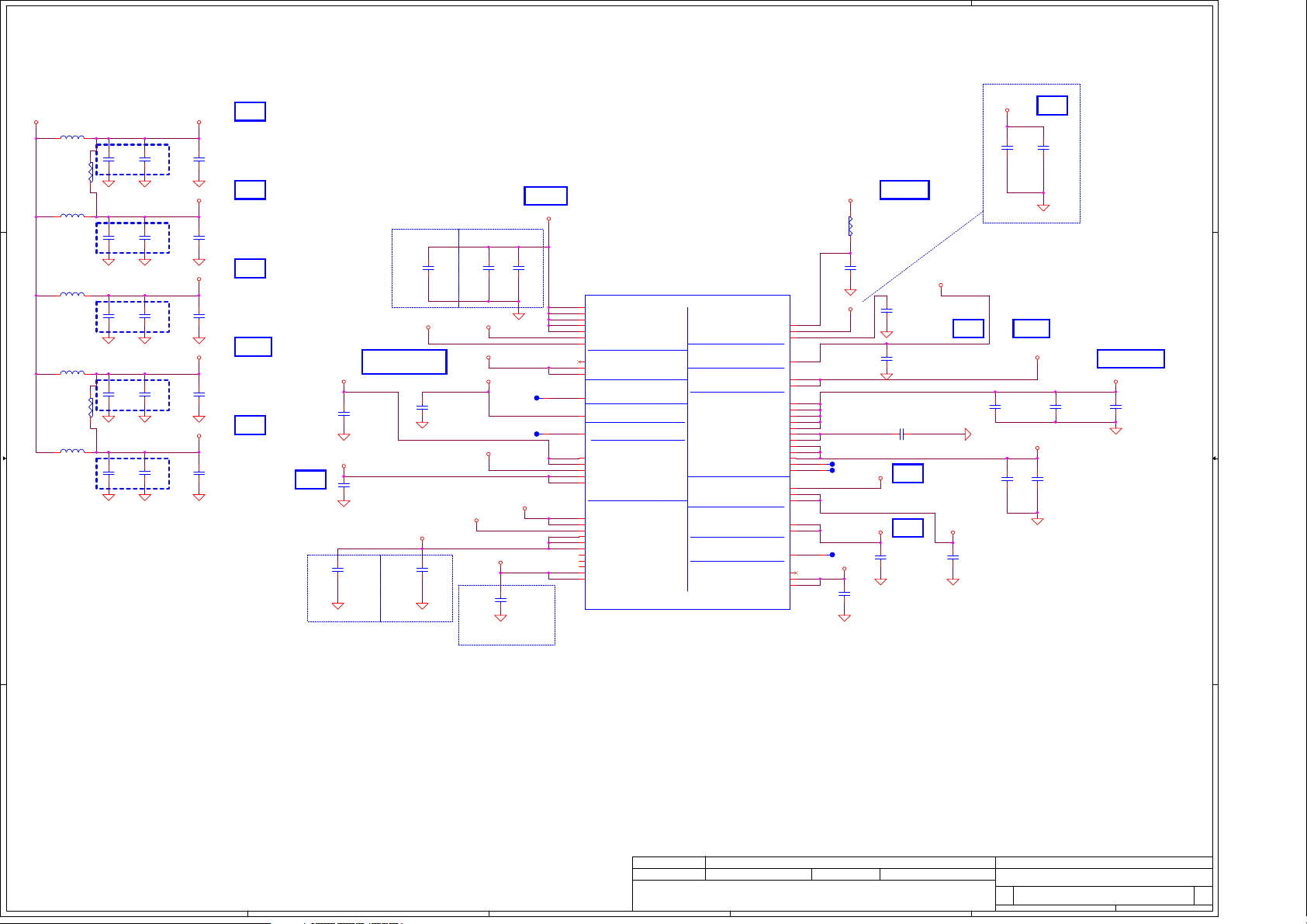

5
WWW.AliSaler.Com
4
3
2
1
1
C69
0.1U_0201_10V6K
2
+RTCVCC
1
2
1
C36
1U_0402_6.3V6K
2
1
C41
1U_0402_6.3V6K
2
1
C46
1U_0402_6.3V6K
2
1
C53
1U_0402_6.3V6K
2
1
C62
1U_0402_6.3V6K
2
41mA
42mA
57mA
200mA
31mA
+1.05VS_ASATA3PLL
VCCHDA=11mA
VCCDSW3_3= 114mA
+3VALW
Close to AH10
2
C55
1U_0402_6.3V6K
@
1
+3VS
Close to V8
1
41mA
C63
22U_0603_6.3V6M
2
1
C66
1U_0402_6.3V6K
2
Close to R21 Close to J17
C42
1
1U_0402_6.3V6K
@
2
Close to AH14
2
C54
1U_0402_6.3V6K
1
+1.05VS_AXCK_LCPLL
+1.05VS
1
C67
1U_0402_6.3V6K
2
Close to K9, L10Close to M9
C44
C43
1
1
1U_0402_6.3V6K
2
2
+1.05VS_AUSB3PLL
+1.05VS_APLLOPI
+3VALW
T18@
T19@
+3VALW
+1.05VS_AXCK_DCB
+3VALW
1
C70
22U_0603_6.3V6M
2
Close to AC9,AA9,
AE20,AE21
1838mA
1U_0402_6.3V6K
+1.05VS
UC1M
K9
VCCHSIO
L10
VCCHSIO
M9
VCCHSIO
N8
VCC1_05
P9
VCC1_05
B18
VCCUSB3PLL
B11
VCCSATA3PLL
Y20
RSVD
AA21
VCCAPLL
W21
VCCAPLL
J13
DCPSUS3
AH14
VCCHDA
AH13
DCPSUS2
AC9
VCCSUS3_3
AA9
VCCSUS3_3
AH10
VCCDSW3_3
V8
VCC3_3
W9
VCC3_3
J18
VCCCLK
K19
VCCCLK
A20
VCCACLKPLL
J17
VCCCLK
R21
VCCCLK
T21
VCCCLK
K18
RSVD
M20
RSVD
V21
RSVD
AE20
VCCSUS3_3
AE21
VCCSUS3_3
BDW-ULT-DDR3L-IL_BGA1168
BDW_ULT_DDR3L(Interleaved)
HSIO
OPI
USB3
HDA
VRM
GPIO/LPC
LPT LP POWER
13 OF 19
RTC
SPI
CORE
THERMAL SENSOR
SERIAL IO
SUS OSCILLATOR
USB2
VCCSUS3_3
VCCRTC
DCPRTC
VCCSPI
VCCASW
VCCASW
VCC1_05
VCC1_05
VCC1_05
VCC1_05
VCC1_05
DCPSUSBYP
DCPSUSBYP
VCCASW
VCCASW
VCCASW
DCPSUS1
DCPSUS1
VCCTS1_5
VCC3_3
VCC3_3
VCCSDIO
VCCSDIO
DCPSUS4
RSVD
VCC1_05
VCC1_05
AH11
AG10
AE7
Y8
AG14
AG13
J11
H11
H15
AE8
AF22
AG19
AG20
AE9
AF9
AG8
AD10
AD8
J15
K14
K16
U8
T9
AB8
AC20
AG16
AG17
+3VALW
1
2
1
2
+RTCVCC
+VCCRTCEXT
+PCH_VCCDSW
T20 @
T21 @
T22@
+1.05VS
C71
1
1U_0402_6.3V6K
2
63/62mA
R89
0_0603_5%@
C45
1U_0402_6.3V6K
1
C49
0.1U_0201_10V6K
2
1
C50
0.1U_0201_10V6K
2
1
C59 1U_0402_6.3V6K
+1.5VS
3mA
+3VS
17mA
C68
1U_0402_6.3V6K
1
2
+3VALW
@
2
+3VS
D D
C
B
@
L1
2.2UH_LQM2MPN2R2NG0L_30%
1 2
0_0402_5%
L2
2.2UH_LQM2MPN2R2NG0L_30%
1
L3
2.2UH_LQM2MPN2R2NG0L_30%
1
@
L4
2.2UH_LQM2MPN2R2NG0L_30%
1
0_0402_5%
L5
2.2UH_LQM2MPN2R2NG0L_30%
1
1
12
R271
2
@
2
1
2
2
1
2
2
1
1
R272
2
@
2
2
1
2
47U_0805_6.3V6M
C34
22U_0603_6.3V6M
C39
47U_0805_6.3V6M
C47
22U_0603_6.3V6M
C51
22U_0603_6.3V6M
C60
+1.05VS_AUSB3PLL+1.05VS
22U_0603_6.3V6M
1
C35
@
@
2
+1.05VS_ASATA3PLL
47U_0805_6.3V6M
1
C40
@
2
+1.05VS_APLLOPI
22U_0603_6.3V6M
1
@
@
C48
2
+1.05VS_AXCK_DCB
47U_0805_6.3V6M
1
C52
@
@
2
+1.05VS_AXCK_LCPLL
47U_0805_6.3V6M
1
C61
@
2
1
C37
1U_0402_6.3V6K
2
658mA18mA
+1.05VS
C56
1U_0402_6.3V6K
+1.05VS
C64
1U_0402_6.3V6K
1
2
1
2
<1mA
1
C38
2
C65
22U_0603_6.3V6M
0.1U_0201_10V6K
@
1
C57
1U_0402_6.3V6K
2
@
1741/1632mA
+1.05VS
1
C58
10U_0603_6.3V6M
2
C
B
A
5
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
4
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
BDW MCP(9/11) Power
BDW MCP(9/11) Power
BDW MCP(9/11) Power
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
LA-C281
LA-C281
LA-C281
Date: Sheet
Date: Sheet
Date: Sheet
1
12 50Friday, February 06, 2015
of
12 50Friday, February 06, 2015
of
12 50Friday, February 06, 2015
of
1.0
1.0
1.0
Page 13

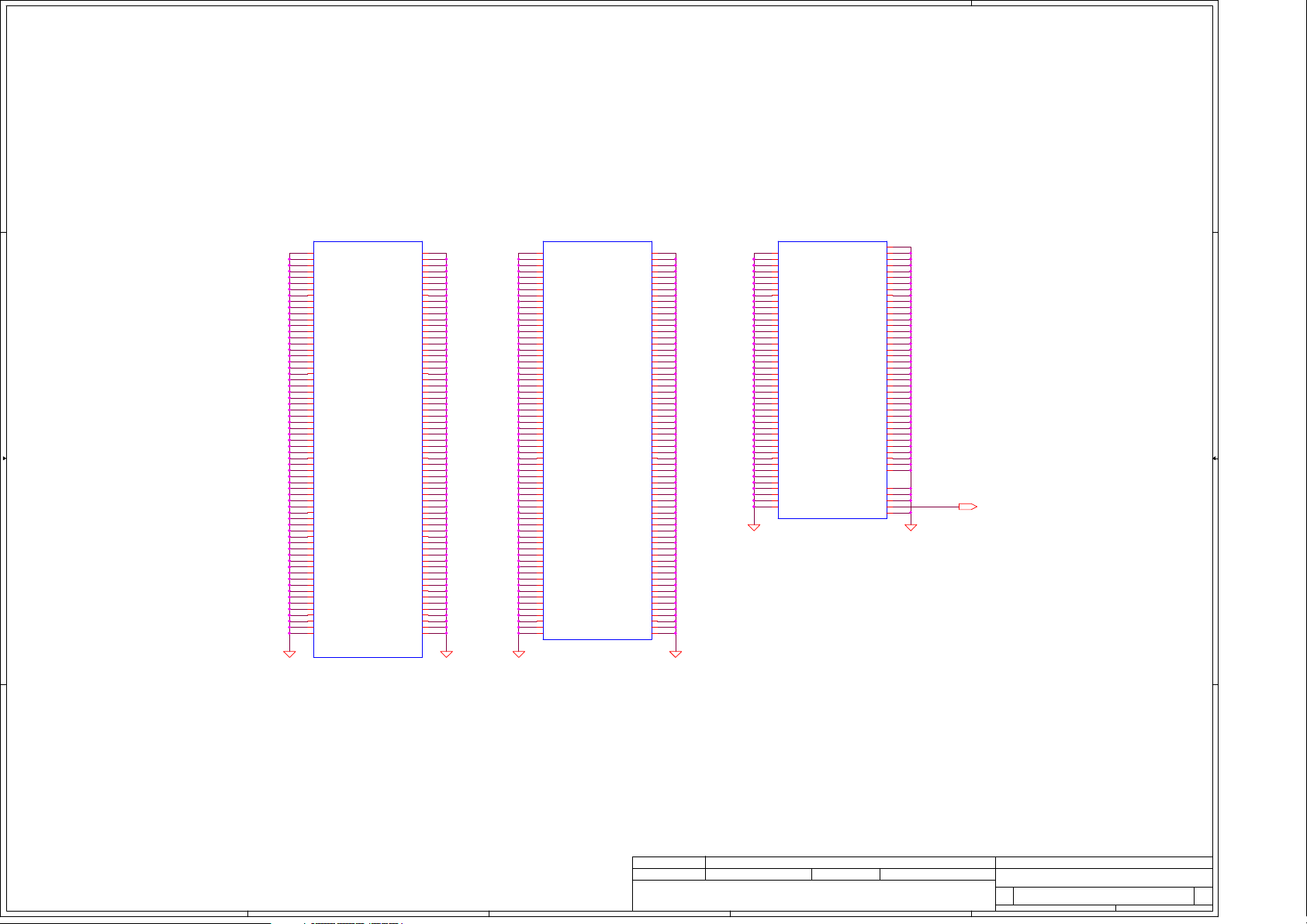

5
D D
4
3
2
1
BDW_ULT_DDR3L(Interleaved)
UC1N
A11
VSS
A14
VSS
A18
VSS
A24
VSS
A28
VSS
A32
VSS
A36
VSS
A40
VSS
A44
VSS
A48
VSS
A52
VSS
A56
VSS
AA1
VSS
AA58
VSS
AB10
VSS
AB20
VSS
C
B
AB22
VSS
AB7
VSS
AC61
VSS
AD21
VSS
AD3
VSS
AD63
VSS
AE10
VSS
AE5
VSS
AE58
VSS
AF11
VSS
AF12
VSS
AF14
VSS
AF15
VSS
AF17
VSS
AF18
VSS
AG1
VSS
AG11
VSS
AG21
VSS
AG23
VSS
AG60
VSS
AG61
VSS
AG62
VSS
AG63
VSS
AH17
VSS
AH19
VSS
AH20
VSS
AH22
VSS
AH24
VSS
AH28
VSS
AH30
VSS
AH32
VSS
AH34
VSS
AH36
VSS
AH38
VSS
AH40
VSS
AH42
VSS
AH44
VSS
AH49
VSS
AH51
VSS
AH53
VSS
AH55
VSS
AH57
VSS
AJ13
VSS
AJ14
VSS
AJ23
VSS
AJ25
VSS
AJ27
VSS
AJ29
VSS
BDW-ULT-DDR3L-IL_BGA1168
14 OF 19
AJ35
VSS
AJ39
VSS
AJ41
VSS
AJ43
VSS
AJ45
VSS
AJ47
VSS
AJ50
VSS
AJ52
VSS
AJ54
VSS
AJ56
VSS
AJ58
VSS
AJ60
VSS
AJ63
VSS
AK23
VSS
AK3
VSS
AK52
VSS
AL10
VSS
AL13
VSS
AL17
VSS
AL20
VSS
AL22
VSS
AL23
VSS
AL26
VSS
AL29
VSS
AL31
VSS
AL33
VSS
AL36
VSS
AL39
VSS
AL40
VSS
AL45
VSS
AL46
VSS
AL51
VSS
AL52
VSS
AL54
VSS
AL57
VSS
AL60
VSS
AL61
VSS
AM1
VSS
AM17
VSS
AM23
VSS
AM31
VSS
AM52
VSS
AN17
VSS
AN23
VSS
AN31
VSS
AN32
VSS
AN35
VSS
AN36
VSS
AN39
VSS
AN40
VSS
AN42
VSS
AN43
VSS
AN45
VSS
AN46
VSS
AN48
VSS
AN49
VSS
AN51
VSS
AN52
VSS
AN60
VSS
AN63
VSS
AN7
VSS
AP10
VSS
AP17
VSS
AP20
VSS
AP22
AP23
AP26
AP29
AP31
AP38
AP39
AP48
AP52
AP54
AP57
AR11
AR15
AR17
AR23
AR31
AR33
AR39
AR43
AR49
AR52
AT13
AT35
AT37
AT40
AT42
AT43
AT46
AT49
AT61
AT62
AT63
AU16
AU18
AU20
AU22
AU24
AU26
AU28
AU30
AU33
AU51
AU53
AU55
AU57
AU59
AV14
AV16
AV20
AV24
AV28
AV33
AV34
AV36
AV39
AV41
AV43
AV46
AV49
AV51
AV55
UC1O
VSS
VSS
VSS
VSS
AP3
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AR5
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AU1
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
BDW-ULT-DDR3L-IL_BGA1168
BDW_ULT_DDR3L(Interleaved)
15 OF 19
BDW_ULT_DDR3L(Interleaved)
UC1P
AV59
VSS
AV8
VSS
AW16
VSS
AW24
VSS
AW33
VSS
AW35
VSS
AW37
VSS
AW4
VSS
AW40
VSS
AW42
VSS
AW44
VSS
AW47
VSS
AW50
VSS
AW51
VSS
AW59
VSS
AW60
VSS
AY11
VSS
AY16
VSS
AY18
VSS
AY22
VSS
AY24
VSS
AY26
VSS
AY30
VSS
AY33
VSS
AY4
VSS
AY51
VSS
AY53
VSS
AY57
VSS
AY59
VSS
AY6
VSS
B20
VSS
B24
VSS
B26
VSS
B28
VSS
B32
VSS
B36
VSS
B4
VSS
B40
VSS
B44
VSS
B48
VSS
B52
VSS
B56
VSS
B60
VSS
C11
VSS
C14
VSS
C18
VSS
C20
VSS
C25
VSS
C27
VSS
C38
VSS
C39
VSS
C57
VSS
D12
VSS
D14
VSS
D18
VSS
D2
VSS
D21
VSS
D23
VSS
D25
VSS
D26
VSS
D27
VSS
D29
VSS
D30
VSS
D31
VSS
D33
VSS
D34
VSS
D35
VSS
D37
VSS
D38
VSS
D39
VSS
D41
VSS
D42
VSS
D43
VSS
D45
VSS
D46
VSS
D47
VSS
D49
VSS
D5
VSS
D50
VSS
D51
VSS
D53
VSS
D54
VSS
D55
VSS
D57
VSS
D59
VSS
D62
VSS
D8
VSS
E11
VSS
E17
VSS
F20
VSS
F26
VSS
F30
VSS
F34
VSS
F38
VSS
F42
VSS
F46
VSS
F50
VSS
F54
VSS
F58
VSS
F61
VSS
G18
VSS
G22
VSS
G3
VSS
G5
VSS
G6
VSS
G8
VSS
H13
VSS
BDW-ULT-DDR3L-IL_BGA1168
16 OF 19
VSS_SENSE
H17
VSS
H57
VSS
J10
VSS
J22
VSS
J59
VSS
J63
VSS
K1
VSS
K12
VSS
L13
VSS
L15
VSS
L17
VSS
L18
VSS
L20
VSS
L58
VSS
L61
VSS
L7
VSS
M22
VSS
N10
VSS
N3
VSS
P59
VSS
P63
VSS
R10
VSS
R22
VSS
R8
VSS
T1
VSS
T58
VSS
U20
VSS
U22
VSS
U61
VSS
U9
VSS
V10
VSS
V3
VSS
V7
VSS
W20
VSS
W22
VSS
Y10
VSS
Y59
VSS
Y63
VSS
V58
VSS
AH46
VSS
V23
VSS
E62
VSSSENSE
AH16
VSS
VSSSENSE <11,47>
C
B
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
5
4
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
BDW MCP(10/11) GND
BDW MCP(10/11) GND
BDW MCP(10/11) GND
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
LA-C281
LA-C281
LA-C281
Date: Sheet
Date: Sheet
Date: Sheet
1
13 50Friday, February 06, 2015
of
13 50Friday, February 06, 2015
of
13 50Friday, February 06, 2015
of
A
1.0
1.0
1.0
Page 14

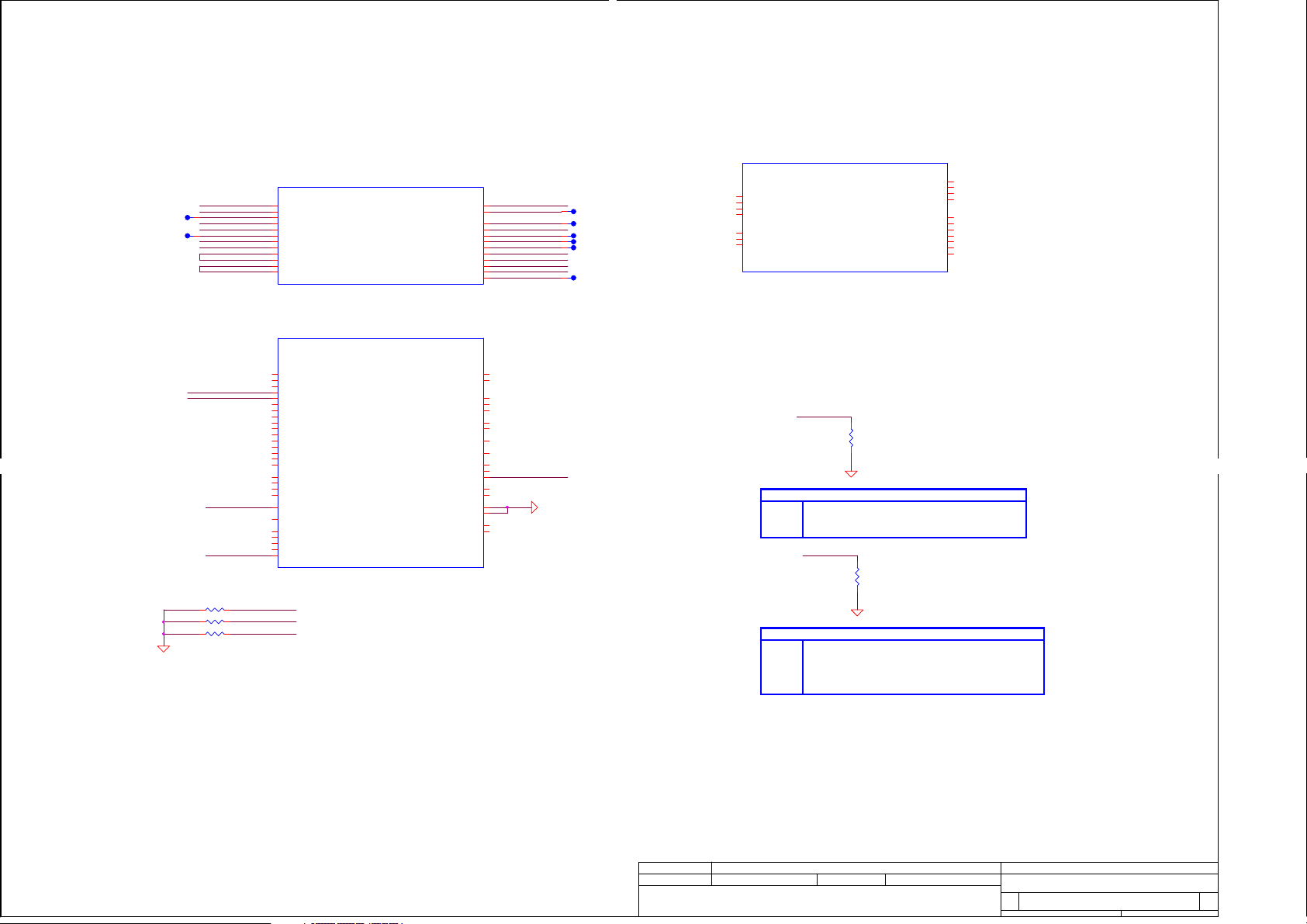

1
WWW.AliSaler.Com
UC1R
UC1Q
DC_TEST_AY2_AW2
DC_TEST_AY3_AW3
T23 @
DC_TEST_AY61_AW61
DC_TEST_AY62_AW62
T26 @
DC_TEST_A3_B3
DC_TEST_A61_B61
DC_TEST_B62_B63
DC_TEST_C1_C2
CFG3
CFG4
A
CFG_RCOMP
TD_IREF
2
R94 49.9_0402_1%
2
R95 49.9_0402_1%
2
R96 8.2K_0402_5%
AY2
DAISY_CHAIN_NCTF_AY2
AY3
DAISY_CHAIN_NCTF_AY3
AY60
DAISY_CHAIN_NCTF_AY60
AY61
DAISY_CHAIN_NCTF_AY61
AY62
DAISY_CHAIN_NCTF_AY62
B2
DAISY_CHAIN_NCTF_B2
B3
DAISY_CHAIN_NCTF_B3
B61
DAISY_CHAIN_NCTF_B61
B62
DAISY_CHAIN_NCTF_B62
B63
DAISY_CHAIN_NCTF_B63
C1
DAISY_CHAIN_NCTF_C1
C2
DAISY_CHAIN_NCTF_C2
BDW-ULT-DDR3L-IL_BGA1168
UC1S
AC60
CFG0
AC62
CFG1
AC63
CFG2
AA63
CFG3
AA60
CFG4
Y62
CFG5
Y61
CFG6
Y60
CFG7
V62
CFG8
V61
CFG9
V60
CFG10
U60
CFG11
T63
CFG12
T62
CFG13
T61
CFG14
T60
CFG15
AA62
CFG16
U63
CFG18
AA61
CFG17
U62
CFG19
V63
CFG_RCOMP
A5
RSVD
E1
RSVD
D1
RSVD
J20
RSVD
H18
RSVD
B12
TD_IREF
BDW-ULT-DDR3L-IL_BGA1168
1
CFG_RCOMP
1
OPI_COMP
1
TD_IREF
BDW_ULT_DDR3L(Interleaved)
DAISY_CHAIN_NCTF_A60
DAISY_CHAIN_NCTF_A61
DAISY_CHAIN_NCTF_A62
DAISY_CHAIN_NCTF_AV1
DAISY_CHAIN_NCTF_AW1
DAISY_CHAIN_NCTF_AW2
DAISY_CHAIN_NCTF_AW3
DAISY_CHAIN_NCTF_AW61
DAISY_CHAIN_NCTF_AW62
DAISY_CHAIN_NCTF_AW63
17 OF 19
BDW_ULT_DDR3L(Interleaved)
RESERVED
19 OF 19
DAISY_CHAIN_NCTF_A3
DAISY_CHAIN_NCTF_A4
RSVD_TP
RSVD_TP
RSVD_TP
RSVD_TP
RSVD
RSVD_TP
RSVD_TP
RSVD_TP
RSVD
RSVD
RSVD
PROC_OPI_RCOMP
RSVD
RSVD
RSVD
RSVD
VSS
VSS
A3
A4
A60
A61
A62
AV1
AW1
AW2
AW3
AW61
DC_TEST_AY61_AW61
AW62
DC_TEST_AY62_AW62
AW63
AV63
AU63
C63
C62
B43
A51
B51
L60
N60
W23
Y22
AY15
AV62
D58
P22
N21
P20
R20
DC_TEST_A3_B3
DC_TEST_A61_B61
DC_TEST_AY2_AW2
DC_TEST_AY3_AW3
OPI_COMP
AT2
RSVD
AU44
RSVD
T24@
T25@
T27@
T28@
T29@
T30@
AV44
RSVD
D15
RSVD
F22
RSVD
H22
RSVD
J21
RSVD
BDW-ULT-DDR3L-IL_BGA1168
BDW_ULT_DDR3L(Interleaved)
18 OF 19
CFG3
1
R92
1K_0402_1%
@
2
CFG4
1
R93
1K_0402_1%
2
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
N23
R23
T23
U10
AL1
AM11
AP7
AU10
AU15
AW14
AY14
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
BDW MCP(11/11) RSVD
BDW MCP(11/11) RSVD
BDW MCP(11/11) RSVD
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
LA-C281
LA-C281
LA-C281
Date: Sheet
Date: Sheet
Date: Sheet
14 50Friday, February 06, 2015
of
14 50Friday, February 06, 2015
of
14 50Friday, February 06, 2015
of
1.0
1.0
1.0

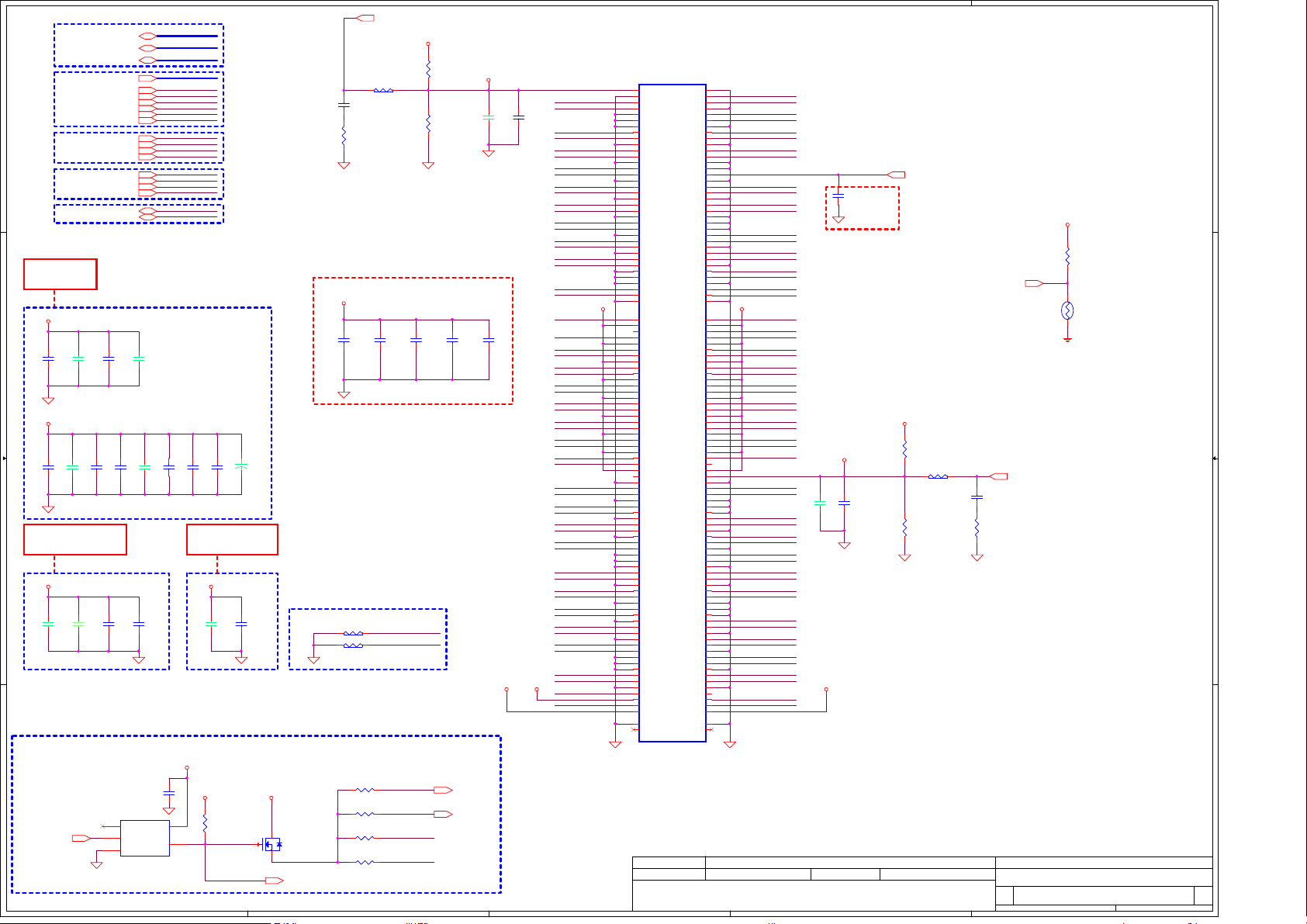

Page 15
A
DDR_A_D[0..63]<5>
DDR_A_DQS#[0..7]<5>
DDR_A_DQS[0..7]<5>
DDR_A_MA[0..15]<5>
DDR_A_BS0<5>
DDR_A_BS1<5>
DDR_A_BS2<5>
DDR_A_RAS#<5>
DDR_A_WE#<5>
1 1
+1.35V
2
3
1
2
+1.35V
10U_0603_6.3V6M
1
2
+0.675VS
@
1
2
DDR_A_CAS#<5>
M_CLK_DDR#0<5>
M_CLK_DDR0<5>
M_CLK_DDR#1<5>
M_CLK_DDR1<5>
DDR_CKE0_DIMMA<5>
DDR_CKE1_DIMMA<5>
DDR_CS0_DIMMA#<5>
DDR_CS1_DIMMA#<5>
PCH_SMB_DATA<7,16>
PCH_SMB_CLK<7,16>
1U_0402_6.3V6K
1U_0402_6.3V6K
C76
10U_0603_6.3V6M
C82
0.1U_0402_25V6
C94
1U_0402_6.3V6K
1
1
@
C77
2
2
10U_0603_6.3V6M
10U_0603_6.3V6M
@
C83
C84
1
1
2
2
0.1U_0402_25V6
1U_0402_6.3V6K
@
C95
1
1
2
2
DDR_A_BS0
DDR_A_BS1
DDR_A_BS2
DDR_A_RAS#
DDR_A_WE#
DDR_A_CAS#
M_CLK_DDR#0
M_CLK_DDR0
M_CLK_DDR#1
M_CLK_DDR1
DDR_CKE0_DIMMA
DDR_CKE1_DIMMA
DDR_CS0_DIMMA#
DDR_CS1_DIMMA#
PCH_SMB_DATA
PCH_SMB_CLK
1U_0402_6.3V6K
1
@
C78
C79
2
10U_0603_6.3V6M
10U_0603_6.3V6M
@
C85
1
2
C96
C87
C86
1
1
2
2
1U_0402_6.3V6K
1
C97
2
10U_0603_6.3V6M
10U_0603_6.3V6M
@
C88
C89
1
1
2
2
+3VS
2.2U_0402_6.3V6M
1
@
C98
2
1
+
C250
330U_D3_2.5VY_R6M
2
0.1U_0402_25V6
1
C99
2
ESD request DVT
R105 0_0402_5%@
R106 0_0402_5%@
+1.35V
1
C100
4
DDR_PG_CTRL<4>
From CPU
0.1U_0201_10V6K
U4
1
NC
2
A
3
GND
74AUP1G07GW_TSSOP5
A
+5VALW
2
1
R108
5
VCC
Y
220K_0402_5%
2
4
+1.35V
1
D
2
G
S
3
Q3
MESS138-G 1N SOT23-3
M_A_B_DIMM_ODT
DDR_VTT_PG_CTRL <42>
@
C320
ESD@
+1.35V
1
1
1
C72
0.022U_0402_16V7K@
2
1
R100
24.9_0402_1%
2
1
0.1U_0201_10V6K
2
R107
66.5_0402_1%
1
R109
66.5_0402_1%
1
R110
66.5_0402_1%
1
R111
66.5_0402_1%
1
B
+SM_VREF_DQ0 <5>
R98
0_0402_5%
1
@
1
0.1U_0201_10V6K
C321
ESD@
2
2
2
2
2
2
2
B
2
C322
ESD@
DDR_A_SA0
DDR_A_SA1
SA_ODT0
SA_ODT1
1
2
+1.35V
0.1U_0201_10V6K
1
R97
1.8K_0402_1%
2
1
R99
1.8K_0402_1%
2
C323
ESD@
+SM_VREF_DQ0_DIMM1
2.2U_0402_6.3V6M
1
2
@
1
1
0.1U_0201_10V6K
0.1U_0201_10V6K
C324
ESD@
2
2
+0.675VS
SB_ODT0 <16>
SB_ODT1 <16>
C
D
E
10mils
0.1U_0402_25V6
DDR_A_D0
DDR_A_D1
C74
1
C73
2
DDR_A_D2
DDR_A_D3
DDR_A_D8
DDR_A_D9
DDR_A_DQS#1
DDR_A_DQS1
DDR_A_D10
DDR_A_D11
DDR_A_D16
DDR_A_D17
DDR_A_DQS#2
DDR_A_DQS2
DDR_A_D18
DDR_A_D19
DDR_A_D24
DDR_A_D25
DDR_A_D26
DDR_A_D27
+1.35V
DDR_CKE0_DIMMA
DDR_A_BS2
DDR_A_MA12
DDR_A_MA9
DDR_A_MA8
DDR_A_MA5
DDR_A_MA3
DDR_A_MA1
M_CLK_DDR0
M_CLK_DDR#0
DDR_A_MA10
DDR_A_BS0
DDR_A_WE#
DDR_A_CAS#
DDR_A_MA13
DDR_CS1_DIMMA#
DDR_A_D32
DDR_A_D33
DDR_A_DQS#4
DDR_A_DQS4
DDR_A_D34
DDR_A_D35
DDR_A_D40
DDR_A_D41
DDR_A_D42
DDR_A_D43
DDR_A_D48
DDR_A_D49
DDR_A_DQS#6
DDR_A_DQS6
DDR_A_D50
DDR_A_D51
DDR_A_D56
DDR_A_D57
DDR_A_D58
DDR_A_D59
+3VS
DDR_A_SA0
DDR_A_SA1
JDIMM1
1
VREF_DQ
3
VSS
5
DQ0
7
DQ1
9
VSS
11
DM0
13
VSS
15
DQ2
17
DQ3
19
VSS
21
DQ8
23
DQ9
25
VSS
27
DQS1#
29
DQS1
31
VSS
33
DQ10
35
DQ11
37
VSS
39
DQ16
41
DQ17
43
VSS
45
DQS2#
47
DQS2
49
VSS
51
DQ18
53
DQ19
55
VSS
57
DQ24
59
DQ25
61
VSS
63
DM3
65
VSS
67
DQ26
69
DQ27
71
VSS
73
CKE0
75
VDD
77
NC
79
BA2
81
VDD
83
A12/BC#
85
A9
87
VDD
89
A8
91
A5
93
VDD
95
A3
97
A1
99
VDD
101
CK0
103
CK0#
105
VDD
107
A10/AP
109
BA0
111
VDD
113
WE#
115
CAS#
117
VDD
119
A13
121
S1#
123
VDD
125
TEST
127
VSS
129
DQ32
131
DQ33
133
VSS
135
DQS4#
137
DQS4
139
VSS
141
DQ34
143
DQ35
145
VSS
147
DQ40
149
DQ41
151
VSS
153
DM5
155
VSS
157
DQ42
159
DQ43
161
VSS
163
DQ48
165
DQ49
167
VSS
169
DQS6#
171
DQS6
173
VSS
175
DQ50
177
DQ51
179
VSS
181
DQ56
183
DQ57
185
VSS
187
DM7
189
VSS
191
DQ58
193
DQ59
195
VSS
197
SA0
199
VDDSPD
201
SA1
203
VTT
205
GND1
207
BOSS1
FOX_AS0A621-J4RB-7H
ME@
SP07000J520
DQS0#
DQS0
DQ12
DQ13
RESET#
DQ14
DQ15
DQ20
DQ21
DQ22
DQ23
DQ28
DQ29
DQS3#
DQS3
DQ30
DQ31
CKE1
CK1#
RAS#
ODT0
ODT1
VREF_CA
DQ36
DQ37
DQ38
DQ39
DQ44
DQ45
DQS5#
DQS5
DQ46
DQ47
DQ52
DQ53
DQ54
DQ55
DQ60
DQ61
DQS7#
DQS7
DQ62
DQ63
EVENT#
GND2
BOSS2
2
VSS
4
DQ4
DQ5
VSS
VSS
DQ6
DQ7
VSS
VSS
DM1
VSS
VSS
VSS
DM2
VSS
VSS
VSS
VSS
VSS
VDD
A15
A14
VDD
A11
A7
VDD
A6
A4
VDD
A2
A0
VDD
CK1
VDD
BA1
VDD
S0#
VDD
NC
VDD
VSS
VSS
DM4
VSS
VSS
VSS
VSS
VSS
VSS
DM6
VSS
VSS
VSS
VSS
VSS
SDA
SCL
VTT
DDR_A_D4
6
DDR_A_D5
8
10
DDR_A_DQS#0
12
DDR_A_DQS0
14
16
DDR_A_D6
18
DDR_A_D7
20
22
DDR_A_D12
24
DDR_A_D13
26
28
30
DDR3_DRAMRST#
32
34
DDR_A_D14
36
DDR_A_D15
38
40
DDR_A_D20
42
DDR_A_D21
44
46
48
50
DDR_A_D22
52
DDR_A_D23
54
56
DDR_A_D28
58
DDR_A_D29
60
62
DDR_A_DQS#3
64
DDR_A_DQS3
66
68
DDR_A_D30
70
DDR_A_D31
72
+1.35V
74
DDR_CKE1_DIMMA
76
78
DDR_A_MA15
80
DDR_A_MA14
82
84
DDR_A_MA11
86
DDR_A_MA7
88
90
DDR_A_MA6
92
DDR_A_MA4
94
96
DDR_A_MA2
98
DDR_A_MA0
100
102
M_CLK_DDR1
104
M_CLK_DDR#1
106
108
DDR_A_BS1
110
DDR_A_RAS#
112
114
DDR_CS0_DIMMA#
116
SA_ODT0
118
120
SA_ODT1
122
124
126
128
130
132
134
136
138
140
142
144
146
148
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
202
204
206
208
DDR_A_D36
DDR_A_D37
DDR_A_D38
DDR_A_D39
DDR_A_D44
DDR_A_D45
DDR_A_DQS#5
DDR_A_DQS5
DDR_A_D46
DDR_A_D47
DDR_A_D52
DDR_A_D53
DDR_A_D54
DDR_A_D55
DDR_A_D60
DDR_A_D61
DDR_A_DQS#7
DDR_A_DQS7
DDR_A_D62
DDR_A_D63
PCH_SMB_DATA
PCH_SMB_CLK
10mils
2.2U_0402_6.3V6M
+0.675VS
+VREF_CA
C91
1
2
@
1
C75
100P_0402_50V8J
2
0.1U_0402_25V6
C92
1
2
ESD@
DIMM_DRAMRST# <4,16>
+1.35V
1
R101
1.8K_0402_1%
R102
2
0_0402_5%
1
@
1
R103
1.8K_0402_1%
2
2
DDR_TEMP<25>
@
1
C93
0.022U_0402_16V7K
2
1
@
R104
24.9_0402_1%
2
+EC_VCCA
+SM_VREF_CA <5>
1
R1648
2
16.5K_0402_1%
1
RH202
100K_0402_1%_TSM0B104F4251RZ
2
ECAGND
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
C
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
D
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
DDR3L_DIMMA
DDR3L_DIMMA
DDR3L_DIMMA
LA-C281
LA-C281
LA-C281
E
15 50Friday, February 06, 2015
of
15 50Friday, February 06, 2015
of
15 50Friday, February 06, 2015
of
1.0
1.0
1.0
2
3
4
Page 16

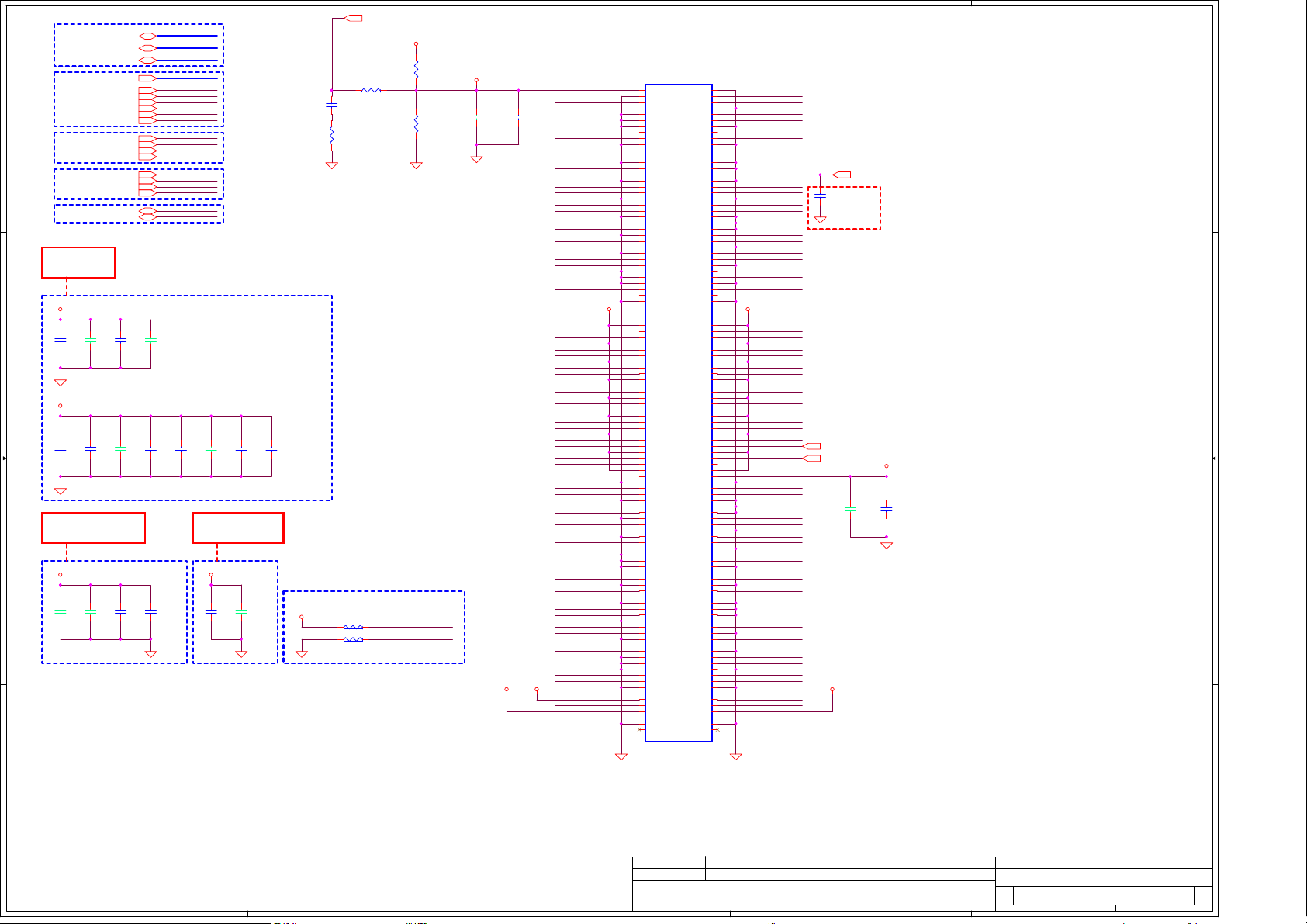

A
WWW.AliSaler.Com
DDR_B_D[0..63]<5>
DDR_B_DQS#[0..7]<5>
DDR_B_DQS[0..7]<5>
DDR_B_MA[0..15]<5>
DDR_B_BS0<5>
DDR_B_BS1<5>
DDR_B_BS2<5>
DDR_B_RAS#<5>
DDR_B_WE#<5>
1 1
+1.35V
2
+1.35V
+0.675VS
3
@
DDR_B_CAS#<5>
M_CLK_DDR#2<5>
M_CLK_DDR2<5>
M_CLK_DDR#3<5>
M_CLK_DDR3<5>
DDR_CKE2_DIMMB<5>
DDR_CKE3_DIMMB<5>
DDR_CS2_DIMMB#<5>
DDR_CS3_DIMMB#<5>
PCH_SMB_DATA<7,15>
PCH_SMB_CLK<7,15>
1U_0402_6.3V6K
1U_0402_6.3V6K
@
1
1
C105
C106
2
2
10U_0603_6.3V6M
10U_0603_6.3V6M
@
C112
C111
1
1
2
2
0.1U_0402_25V6
0.1U_0402_25V6
@
C122
C123
1
1
2
2
DDR_B_BS0
DDR_B_BS1
DDR_B_BS2
DDR_B_RAS#
DDR_B_WE#
DDR_B_CAS#
M_CLK_DDR#2
M_CLK_DDR2
M_CLK_DDR#3
M_CLK_DDR3
DDR_CKE2_DIMMB
DDR_CKE3_DIMMB
DDR_CS2_DIMMB#
DDR_CS3_DIMMB#
PCH_SMB_DATA
PCH_SMB_CLK
1U_0402_6.3V6K
1U_0402_6.3V6K
@
1
1
C108
C107
2
2
10U_0603_6.3V6M
10U_0603_6.3V6M
C113
C114
1
2
1U_0402_6.3V6K
1
C124
2
1
1
2
2
1U_0402_6.3V6K
1
C125
2
10U_0603_6.3V6M
10U_0603_6.3V6M
@
C115
C116
1
1
2
2
+3VS
0.1U_0402_25V6
C126
1
1
@
2
2
@
10U_0603_6.3V6M
10U_0603_6.3V6M
C117
C118
1
2
2.2U_0402_6.3V6M
C127
+3VS
R116 0_0402_5%@
R117 0_0402_5%@
1
C101
0.022U_0402_16V7K@
2
1
R115
24.9_0402_1%
2
1
1
B
+SM_VREF_DQ1 <5>
R113
0_0402_5%
1 2
@
2
2
+1.35V
1
2
1
2
DDR_B_SA1
DDR_B_SA0
R112
1.8K_0402_1%
R114
1.8K_0402_1%
+SM_VREF_DQ1_DIMM2
2.2U_0402_6.3V6M
1
C102
2
@
+0.675VS
10mils
0.1U_0402_25V6
1
C103
2
+3VS
DDR_B_D23
DDR_B_D17
DDR_B_D21
DDR_B_D18
DDR_B_D3
DDR_B_D2
DDR_B_DQS#0
DDR_B_DQS0
DDR_B_D0
DDR_B_D1
DDR_B_D12
DDR_B_D8
DDR_B_DQS#1
DDR_B_DQS1
DDR_B_D14
DDR_B_D15
DDR_B_D31
DDR_B_D25
DDR_B_D27
DDR_B_D24
DDR_CKE2_DIMMB
DDR_B_BS2
DDR_B_MA12
DDR_B_MA9
DDR_B_MA8
DDR_B_MA5
DDR_B_MA3
DDR_B_MA1
M_CLK_DDR2
M_CLK_DDR#2
DDR_B_MA10
DDR_B_BS0
DDR_B_WE#
DDR_B_CAS#
DDR_B_MA13
DDR_CS3_DIMMB#
DDR_B_D32
DDR_B_D35
DDR_B_DQS#4
DDR_B_DQS4
DDR_B_D36
DDR_B_D38
DDR_B_D40
DDR_B_D45
DDR_B_D43
DDR_B_D42
DDR_B_D52
DDR_B_D49
DDR_B_DQS#6
DDR_B_DQS6
DDR_B_D50
DDR_B_D53
DDR_B_D63
DDR_B_D62
DDR_B_D58
DDR_B_D59
DDR_B_SA0
DDR_B_SA1
+1.35V
C
JDIMM2
1
VREF_DQ
3
VSS
5
DQ0
7
DQ1
9
VSS
11
DM0
13
VSS
15
DQ2
17
DQ3
19
VSS
21
DQ8
23
DQ9
25
VSS
27
DQS1#
29
DQS1
31
VSS
33
DQ10
35
DQ11
37
VSS
39
DQ16
41
DQ17
43
VSS
45
DQS2#
47
DQS2
49
VSS
51
DQ18
53
DQ19
55
VSS
57
DQ24
59
DQ25
61
VSS
63
DM3
65
VSS
67
DQ26
69
DQ27
71
VSS
73
CKE0
75
VDD
77
NC
79
BA2
81
VDD
83
A12/BC#
85
A9
87
VDD
89
A8
91
A5
93
VDD
95
A3
97
A1
99
VDD
101
CK0
103
CK0#
105
VDD
107
A10/AP
109
BA0
111
VDD
113
WE#
115
CAS#
117
VDD
119
A13
121
S1#
123
VDD
125
TEST
127
VSS
129
DQ32
131
DQ33
133
VSS
135
DQS4#
137
DQS4
139
VSS
141
DQ34
143
DQ35
145
VSS
147
DQ40
149
DQ41
151
VSS
153
DM5
155
VSS
157
DQ42
159
DQ43
161
VSS
163
DQ48
165
DQ49
167
VSS
169
DQS6#
171
DQS6
173
VSS
175
DQ50
177
DQ51
179
VSS
181
DQ56
183
DQ57
185
VSS
187
DM7
189
VSS
191
DQ58
193
DQ59
195
VSS
197
SA0
199
VDDSPD
201
SA1
203
VTT
205
GND1
207
BOSS1
FOX_AS0A621-J4SB-7H
ME@
SP07000P110
DQS0#
DQS0
DQ12
DQ13
RESET#
DQ14
DQ15
DQ20
DQ21
DQ22
DQ23
DQ28
DQ29
DQS3#
DQS3
DQ30
DQ31
CKE1
CK1#
RAS#
ODT0
ODT1
VREF_CA
DQ36
DQ37
DQ38
DQ39
DQ44
DQ45
DQS5#
DQS5
DQ46
DQ47
DQ52
DQ53
DQ54
DQ55
DQ60
DQ61
DQS7#
DQS7
DQ62
DQ63
EVENT#
GND2
BOSS2
D
E
2
VSS
4
DQ4
DQ5
VSS
VSS
DQ6
DQ7
VSS
VSS
DM1
VSS
VSS
VSS
DM2
VSS
VSS
VSS
VSS
VSS
VDD
A15
A14
VDD
A11
A7
VDD
A6
A4
VDD
A2
A0
VDD
CK1
VDD
BA1
VDD
S0#
VDD
NC
VDD
VSS
VSS
DM4
VSS
VSS
VSS
VSS
VSS
VSS
DM6
VSS
VSS
VSS
VSS
VSS
SDA
SCL
VTT
DDR_B_D22
6
DDR_B_D16
8
10
DDR_B_DQS#2
12
DDR_B_DQS2
14
16
DDR_B_D19
18
DDR_B_D20
20
22
DDR_B_D4
24
DDR_B_D5
26
28
30
DDR3_DRAMRST#
32
34
DDR_B_D6
36
DDR_B_D7
38
40
DDR_B_D13
42
DDR_B_D9
44
46
48
50
DDR_B_D11
52
DDR_B_D10
54
56
DDR_B_D30
58
DDR_B_D26
60
62
DDR_B_DQS#3
64
DDR_B_DQS3
66
68
DDR_B_D29
70
DDR_B_D28
72
+1.35V
74
DDR_CKE3_DIMMB
76
78
DDR_B_MA15
80
DDR_B_MA14
82
84
DDR_B_MA11
86
DDR_B_MA7
88
90
DDR_B_MA6
92
DDR_B_MA4
94
96
DDR_B_MA2
98
DDR_B_MA0
100
102
M_CLK_DDR3
104
M_CLK_DDR#3
106
108
DDR_B_BS1
110
DDR_B_RAS#
112
114
DDR_CS2_DIMMB#
116
SB_ODT0
118
120
SB_ODT1
122
124
126
128
130
DDR_B_D33
132
DDR_B_D34
134
136
138
140
DDR_B_D39
142
DDR_B_D37
144
146
DDR_B_D44
148
DDR_B_D41
150
152
DDR_B_DQS#5
154
DDR_B_DQS5
156
158
DDR_B_D47
160
DDR_B_D46
162
164
DDR_B_D51
166
DDR_B_D55
168
170
172
174
DDR_B_D48
176
DDR_B_D54
178
180
DDR_B_D56
182
DDR_B_D57
184
186
DDR_B_DQS#7
188
DDR_B_DQS7
190
192
DDR_B_D60
194
DDR_B_D61
196
198
200
PCH_SMB_DATA
202
PCH_SMB_CLK
204
206
208
1
2
10mils
+0.675VS
C104
ESD@
100P_0402_50V8J
SB_ODT0 <15>
SB_ODT1 <15>
1
2
@
DIMM_DRAMRST# <4,15>
+VREF_CA
0.1U_0402_25V6
2.2U_0402_6.3V6M
C121
1
C120
2
2
3
4
A
4
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
B
C
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
D
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
DDR3L_DIMMB
DDR3L_DIMMB
DDR3L_DIMMB
LA-C281
LA-C281
LA-C281
16 50Friday, February 06, 2015
of
16 50Friday, February 06, 2015
of
16 50Friday, February 06, 2015
E
of
1.0
1.0
1.0

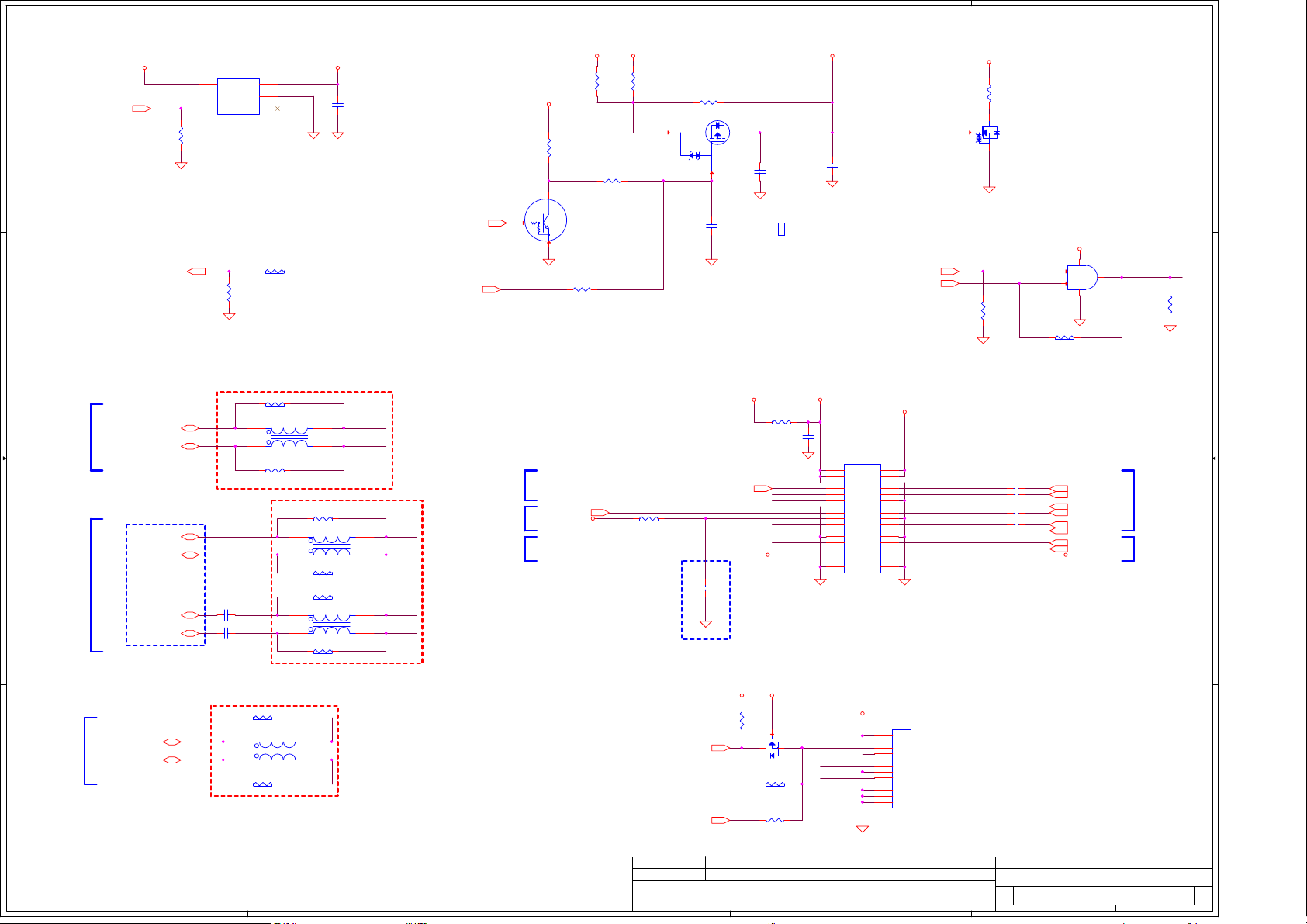

Page 17
5
4
3
2
1
+3VS
+5VS
1
1
3DCMOS@
R273
0_0603_5%
0_0603_5%
2
2
3
R336
3DCMOS@
1 2
100K_0402_5%
2
3DCMOS_GATE
R275 0_0603_5%@
ME2301DC-G_SOT23-3
S
G
2
12
1
C435
3DCMOS@
0.01U_0402_16V7K
2
Q4
12
R120
EDP_HPD<8>
100K_0402_5%
U5
5
4
G524B1T11U SOT-23-5
R128
IN
EN
1
2
OUT
GND
OC
1
R126 0_0402_5%@
1
2
3
+3VS
D D
C
PCH_ENVDD<8>
100K_0402_5%
+LCDVDD_CONN
2
+LCDVDD_CONN
1
C128
2
4.7U_0603_6.3V6K
EDP_HPD_R
CMOS@
R276
+5VALW
1
R316
3DCMOS@
10K_0402_5%
2
1
OUT
3DCMOS_ON#<9>
CMOS_ON#<25>
2
IN
GND
Q30
3
DRC2124E0L NPN MINI3-G3-B
R40 150K_0402_5%
3DCMOS@
CMOS@
1
+CMOSVDD
D
1
1
C129
0.1U_0201_10V6K
2
1
C130
10U_0603_6.3V6M
2
C435
CMOS@
0.1U_0402_25V6
S CER CAP 0.1U 25V K X5R 0402
SE00000G880
+CMOSVDD
1
R252
@
470_0402_5%
2
1
D
3DCMOS_GATE
@
ENBKL<8,25>
BKOFF#<25>
2
100K_0402_5%
Q28
@
2N7002K_SOT23-3
G
S
3
+3VS
@
5
U15
2
P
B
4
DISPOFF#
Y
1
A
G
2
R211
1
R123 0_0402_5%@
3
U74AHC1G08G-AL5-R_SOT353-5
2
1
R124
100K_0402_5%
2
1
2
1
R125 0_0402_5%@
L6
@EMI@
USB20_N5<10>
USB20_P5<10>
4
1
2
R127 0_0402_5%@
4
1
DLW21HN900HQ2L_4P
USB3_RX3_N<10>
USB3_RX3_P<10>
B
USB3_TX3_N<10>
USB3_TX3_P<10>
3DCMOS@
C194
0.1U_0201_10V6K
2
1
2
1
3DCMOS@
C204
0.1U_0201_10V6K
U3TXDN3_L
U3TXDP3_L
3
2
1
1
R43 0_0402_5%@
1
1
4
4
DLW21HN900HQ2L_4P
1
R44 0_0402_5%@
1
R45 0_0402_5%@
1
1
4
4
DLW21HN900HQ2L_4P
1
R48 0_0402_5%@
3
USB20_N5_R
2
USB20_P5_R
2
L23
@EMI@
2
U3RXDN3
2
3
U3RXDP3
3
2
2
L22
@EMI@
2
U3TXDN3
2
3
U3TXDP3
3
2
TS_DISABLE#<25>
+3VS
2
R270 0_0603_5%@
1
0.1U_0201_10V6K
B+
4.7U_0805_25V6-K
INVPWM<8>
+CMOSVDD
2
@
C242
1
R121
0_0603_5%
2
1
@
@
C133
DISPOFF#
EDP_HPD_R
+3VS_TS
USB20_P4_R
USB20_N4_R
USB20_P5_R
USB20_N5_R
+LEDVDD
1
2
JeDP1
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
31
GND
ACES_87242-3001-09
SP02000NB00
ME@
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
GND
+LCDVDD_CONN
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
EDP_AUXN_C
EDP_AUXP_C
EDP_TXP0_C
EDP_TXN0_C
EDP_TXP1_C
EDP_TXN1_C
2
1
C1340.1U_0201_10V6K
2
2
2
2
2
EDP_AUXN <4>
1
C1350.1U_0201_10V6K
EDP_AUXP <4>
1
C1360.1U_0201_10V6K
1
1
1
EDP_TXP0 <4>
C1370.1U_0201_10V6K
EDP_TXN0 <4>
C1380.1U_0201_10V6K
EDP_TXP1 <4>
C1390.1U_0201_10V6K
EDP_TXN1 <4>
DMIC_CLK <27>
DMIC_DAT <27>
+3VS
C
B
A
+3VS
2
R132 0_0402_5%@
USB20_N4<10>
USB20_P4<10>
R134 0_0402_5%@
5
1
L7
@EMI@
4
4
1
1
DLW21HN900HQ2L_4P
2
1
3
USB20_N4_R
3
2
USB20_P4_R
2
4
3
FW_UPDATE<7>
EC_FW_UPDATE<25>
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
+3VALW
1
R135
@
10K_0402_5%
Q8
@
2
G
2N7002H_SOT23-3
2
3
1
D
S
2
1
R64
@
0_0402_5%
2
1
R65 0_0402_5%@
Compal Secret Data
Compal Secret Data
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
+CMOSVDD
FW_UPDATE_R
U3RXDP3
U3RXDN3
U3TXDP3
U3TXDN3
Deciphered Date
Deciphered Date
Deciphered Date
2
JCMOS1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
GND
12
GND
ACES_50463-0104A-001
SP01001G000
ME@
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
LVDS/CAMERA
LVDS/CAMERA
LVDS/CAMERA
LA-C281
LA-C281
LA-C281
1
17 50Friday, February 06, 2015
17 50Friday, February 06, 2015
of
17 50Friday, February 06, 2015
of
of
A
1.0
1.0
1.0

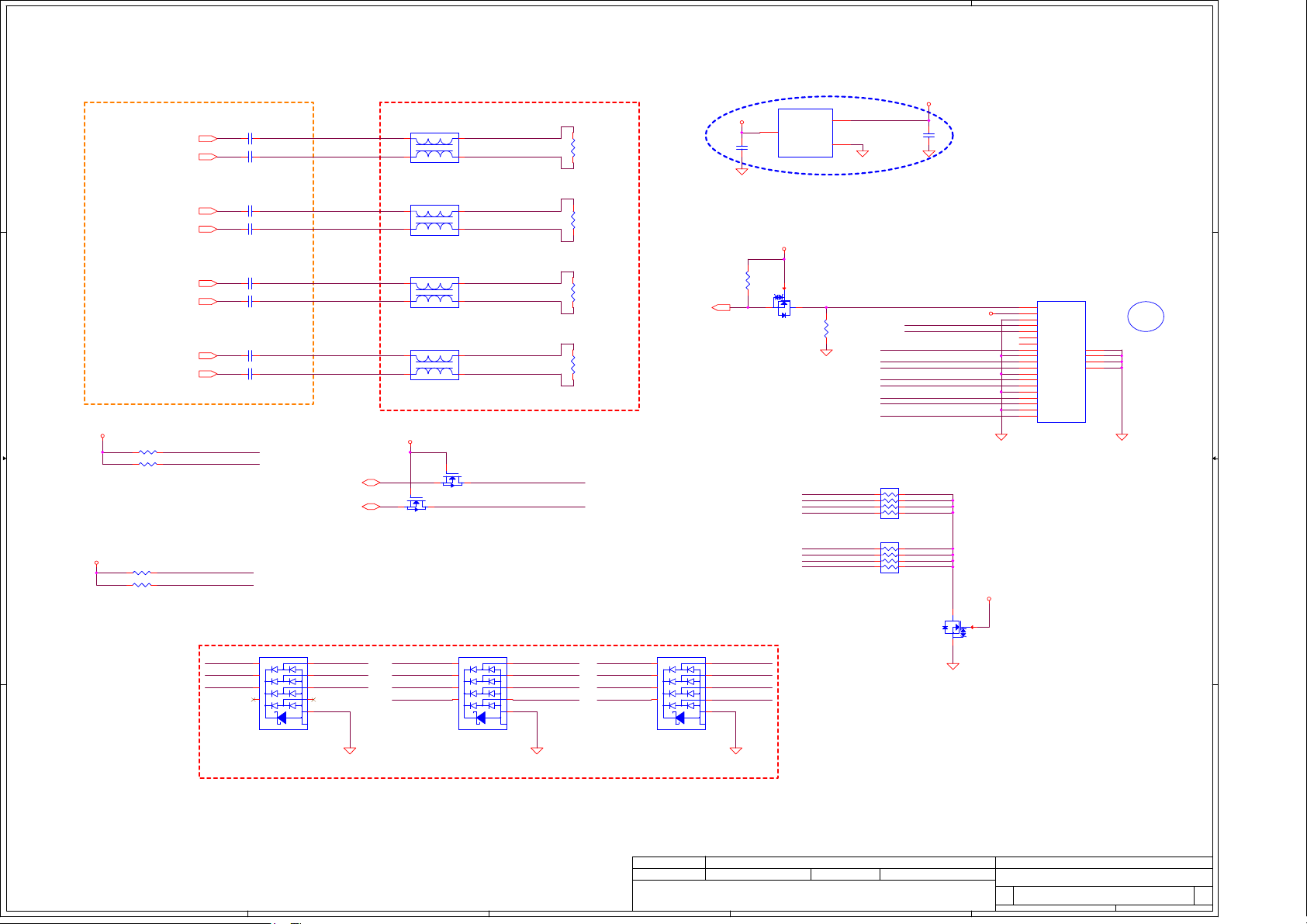

Page 18
5
WWW.AliSaler.Com
4
3
2
1
D D
HDMI_CLK+_CK<4>
HDMI_CLK-_CK<4>
2
1
C229 0.1U_0201_10V6K
HDMI@
2
1
C230 0.1U_0201_10V6K
HDMI@
HDMI_CLK+_CK_C
HDMI_CLK-_CK_C
HCM1012GH900BP_4P
1 2
L8
EMI@
34
HDMI_CLK+_CONN
HDMI_CLK-_CONN
1
2
R1658
150_0402_5%
@EMI@
U6
+5VS
1
IN
1
@
C141
0.1U_0201_10V6K
2
G5250Q1T73U SOT-23
+5V_Display
3
OUT
2
GND
0.1U_0201_10V6K
1
C140
2
HCM1012GH900BP_4P
2
1
HDMI_TX0+_CK<4>
HDMI_TX0-_CK<4>
HDMI_TX1+_CK<4>
HDMI_TX1-_CK<4>
C
+3VS
+5V_Display
B
1
R143 2.2K_0402_5%HDMI@
1
R144 2.2K_0402_5%HDMI@
1
R145 2.2K_0402_5%HDMI@
1
R146 2.2K_0402_5%HDMI@
HDMI_TX2+_CK<4>
HDMI_TX2-_CK<4>
2
2
2
2
C231 0.1U_0201_10V6K
HDMI@
2
1
C232 0.1U_0201_10V6K
HDMI@
2
1
C233 0.1U_0201_10V6K
HDMI@
2
1
C234 0.1U_0201_10V6K
HDMI@
2
1
C235 0.1U_0201_10V6K
HDMI@
2
1
C236 0.1U_0201_10V6K
HDMI@
HDMIDAT_NB
HDMICLK_NB
HDMIDAT_R
HDMICLK_R
@ESD@
9
HDMIDAT_R
HDMICLK_R
HDMI_DET
10
8
9
7
7
6
6 5
L05ESDL5V0NA-4_SLP2510P8-10-9
D1
1
2
4
3
8
HDMI_TX0+_CK_C
HDMI_TX0-_CK_C
HDMI_TX1+_CK_C
HDMI_TX1-_CK_C
HDMI_TX2+_CK_C
HDMI_TX2-_CK_C
HDMICLK_NB<8>
HDMIDAT_NB<8>
1
HDMIDAT_R
2
HDMICLK_R
4
HDMI_DET
5
3
4
1
L9
HCM1012GH900BP_4P
4
1
L10
HCM1012GH900BP_4P
4
1
L11
+3VS
5
4
Q6B
HDMI@
2N7002EDW_SOT363-6
HDMI_CLK-_CONN
HDMI_CLK+_CONN
HDMI_TX1-_CONN
HDMI_TX1+_CONN
3
HDMI_TX0+_CONN
2
3
2
3
2
Q6A
HDMI@
2
2N7002EDW_SOT363-6
6
@ESD@
9
10
8
9
7
7
6
6 5
HDMI_TX0-_CONN
HDMI_TX1+_CONN
HDMI_TX1-_CONN
HDMI_TX2+_CONN
HDMI_TX2-_CONN
D2
EMI@
EMI@
EMI@
1
3
L05ESDL5V0NA-4_SLP2510P8-10-9
1
1
2
2
4
4
5
3
3
8
HDMICLK_R
HDMIDAT_R
HDMI_CLK-_CONN
HDMI_CLK+_CONN
HDMI_TX1-_CONN
HDMI_TX1+_CONN
1
2
1
2
1
2
R1659
150_0402_5%
R1660
150_0402_5%
R1661
150_0402_5%
HDMI_TX0+_CONN
HDMI_TX0-_CONN
HDMI_TX2+_CONN
HDMI_TX2-_CONN
@EMI@
@EMI@
@EMI@
9
8
7
6
L05ESDL5V0NA-4_SLP2510P8-10-9
TMDS_B_HPD<8>
@ESD@
10
9
7
6 5
HDMI@
D3
1
2
4
3
8
R133
1M_0402_5%
1
HDMI_TX0+_CONN
2
HDMI_TX0-_CONN
4
HDMI_TX2+_CONN
5
HDMI_TX2-_CONN
3
+3VS
2
2
Q5
HDMI@
G
3
S
2N7002K_SOT23-3
1
D
HDMI_TX1+_CK_C
HDMI_TX1-_CK_C
HDMI_CLK+_CK_C
HDMI_CLK-_CK_C
HDMI_TX0+_CK_C
HDMI_TX0-_CK_C
HDMI_TX2+_CK_C
HDMI_TX2-_CK_C
2
R137
20K_0402_5%
1
HDMI@
RP29
5
6
7
8
470 +-5% 8P4R
HDMI@
RP30
5
6
7
8
470 +-5% 8P4R
HDMI@
4
3
2
1
4
3
2
1
HDMI_DET
+5V_Display
HDMIDAT_R
HDMICLK_R
HDMI_CLK-_CONN
HDMI_CLK+_CONN
HDMI_TX0-_CONN
HDMI_TX0+_CONN
HDMI_TX1-_CONN
HDMI_TX1+_CONN
HDMI_TX2-_CONN
HDMI_TX2+_CONN
1
D
S
3
+3VS
2
G
Q7
HDMI@
2N7002K_SOT23-3
JHDMI1
19
HP_DET
18
+5V
17
DDC/CEC_GND
16
SDA
15
SCL
14
Reserved
13
CEC
12
CK-
11
CK_shield
10
CK+
9
D0-
8
D0_shield
7
D0+
6
D1-
5
D1_shield
4
D1+
3
D2-
2
D2_shield
1
D2+
LCN_AUF05-1922S10-0013
ME@
DC232002J00
45@
ZZZ
HDMI Logo
20
GND
GND
GND
GND
RO0000003HM
21
22
23
1
C
B
A
5
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
4
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
HDMI CONN
HDMI CONN
HDMI CONN
LA-C281
LA-C281
LA-C281
1
18 50Friday, February 06, 2015
18 50Friday, February 06, 2015
of
18 50Friday, February 06, 2015
of
of
1.0
1.0
1.0

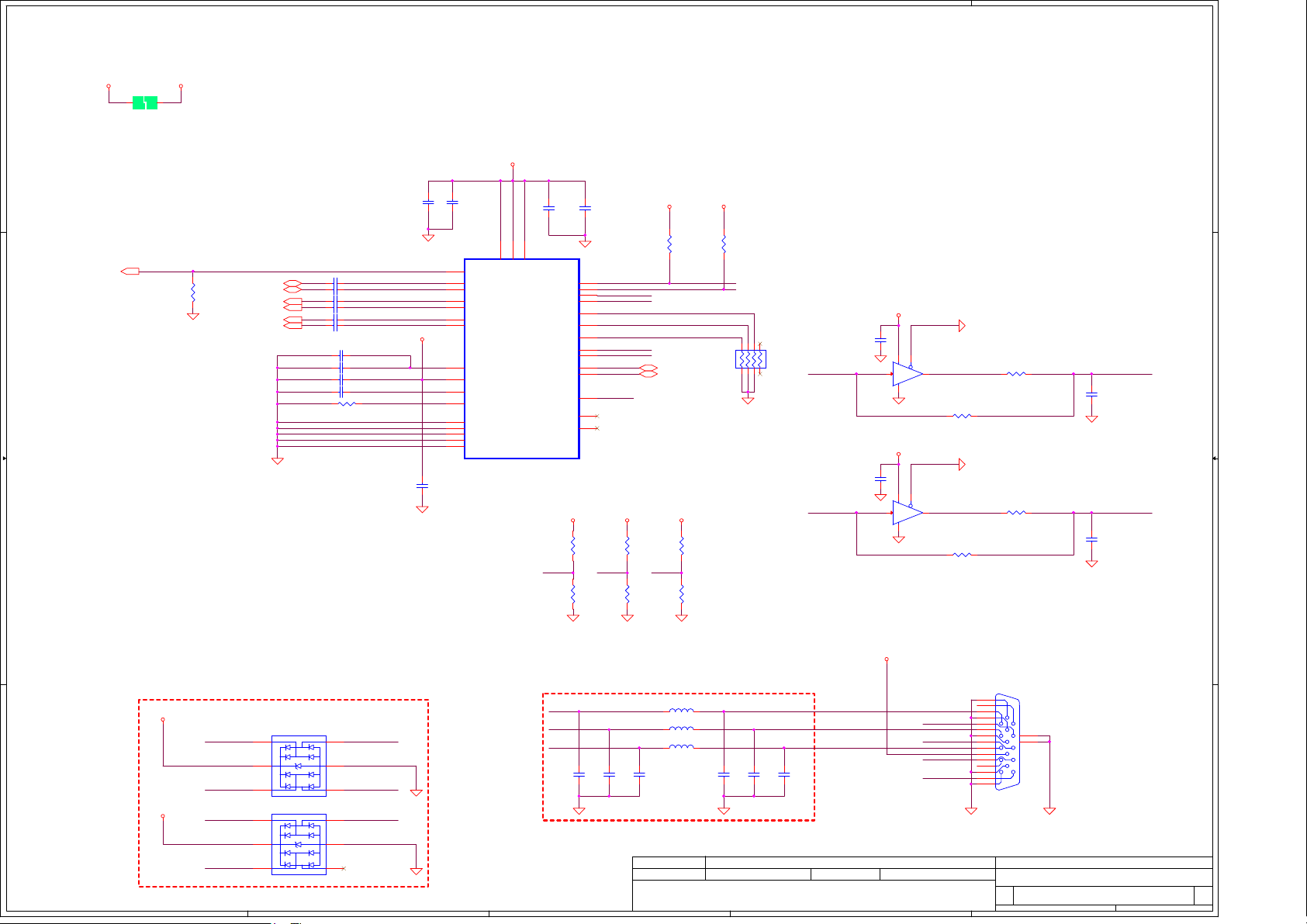

Page 19
5
+3VS +3VS_CRT
JP2
2
112
JUMP_43X39
D D
C
B
@
DDI1_HPD<8>
12
RT24
100K_0402_5%
DDI1_AUX_DN<8>
DDI1_AUX_DP<8>
CPU_DP1_P0< 4>
CPU_DP1_N0<4>
CPU_DP1_P1< 4>
CPU_DP1_N1<4>
CT37 0.1U_0201_10V6K
CT38 0.1U_0201_10V6K
CT39 0.1U_0201_10V6K
CT40 0.1U_0201_10V6K
CT41 0.1U_0201_10V6K
CT42 0.1U_0201_10V6K
CT43 2.2U_0402_6.3V6M
CT44 0.1U_0201_10V6K
CT45 0.1U_0201_10V6K
CT46 0.1U_0201_10V6K
RT15 12K_0402_1%
4
+3VS_CRT
2
2
CT34
CT33
1
1
0.1U_0201_10V6K
0.1U_0201_10V6K
5
UT1
+3VS_CRT
VCCK_12
VCCK_12
2
CT47
10U_0603_6.3V6M
1
1
HPD
27
AUX_N
26
AUX_P
29
LANE0P
30
LANE0N
31
LANE1P
32
LANE1N
19
VCCK_12
24
AVCC_33
25
AVCC_12
28
RRX
11
BLUE_N
13
GREEN_N
14
GND_DAC
16
RED_N
33
EPAD_GND
RTD2168-CG_QFN32_5X5
SA000077U00
DVCC_33
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
1
VGA_HPD_R
DDI1_AUX_C_DN
DDI1_AUX_C_DP
CPU_DP1_C_P0
CPU_DP1_C_N0
CPU_DP1_C_P1
CPU_DP1_C_N1
2
2
CT35
1
0.1U_0201_10V6K
20
9
VGA_SDA
DVCC_33
VGA_SCL
VDD_DAC_33
HSYNC
VSYNC
RED_P
GREEN_P
BLUE_P
POL1_SDA
POL2_SCL
SMB_SCL
SMB_SDA
LDO_EN
XI/CKIN
+3VS_CRT
POL2_SCL
XO
RT16
RT19
@
6
4
8
7
15
12
10
22
23
2
3
21
18
17
1
4.7K_0402_5%
2
1
4.7K_0402_5%
2
3
2
CT36
10U_0603_6.3V6M
1
CRT_DATA
CRT_CLK
HSYNC
VSYNC
POL1_SDA
POL2_SCL
EC_SMB_CK2
EC_SMB_DA2
LDO_EN
+3VS_CRT
POL1_SDA
1
RT17
@
2
4.7K_0402_5%
1
RT20
4.7K_0402_5%
2
+5V_Display
1
RT31
2.2K_0402_5%
2
EC_SMB_CK2 <7,22,25,31>
EC_SMB_DA2 <7,22,25,31>
+3VS_CRT
1
RT18
2
4.7K_0402_5%
LDO_EN
1
RT21
@
4.7K_0402_5%
2
+5V_Display
CRT_R
CRT_G
CRT_B
1
RT32
2.2K_0402_5%
2
8
1
6
7
3
2
5
RPT1
75_0804_8P4R_1%
4
0.1U_0201_10V6K
VSYNC
0.1U_0201_10V6K
HSYNC
2
+5VS
1
@
CT19
2
1
5
CT25
P
4
2
+5VS
1
@
2
2
CRT_VSYNC_1
OE#
Y
A
G
UT2
@
SN74AHCT1G125DCKR_SC70-5
3
RT9 36_0402_1%
5
1
P
4
CRT_HSYNC_1
OE#
Y
A
G
UT3
@
SN74AHCT1G125DCKR_SC70-5
3
RT11 36_0402_1%
2
1
2
1
1
RT8 36_0402_1%@
1
RT10 36_0402_1%@
2
2
1
CRT_VSYNC_2
1
CT20
@
10P_0402_50V8J
2
CRT_HSYNC_2
1
@
CT26
10P_0402_50V8J
2
C
B
+5V_Display
+5V_Display
DT1
@
CRT_CLK
A
+5V_Display
5
CRT_VSYNC_2
CRT_R_2
CRT_G_2
6
I/O4
5
VDD
4
I/O3
AZC099-04S.R7G_SOT23-6
DT2
6
I/O4
5
VDD
4
I/O3
AZC099-04S.R7G_SOT23-6
3
CRT_HSYNC_2
I/O2
2
GND
1
CRT_DATA
I/O1
@
3
CRT_B_2
I/O2
2
GND
1
I/O1
4
CRT_R
CRT_G
CRT_B
LT1
EMI@
BLM15BA220SN1D 0402
2
1
LT2
EMI@
BLM15BA220SN1D 0402
2
1
LT3
EMI@
BLM15BA220SN1D 0402
2
10P_0402_50V8J
1
EMI@
CT27
2
1
1
EMI@
EMI@
CT29
CT28
2
2
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
3
1
10P_0402_50V8J
10P_0402_50V8J
10P_0402_50V8J
1
EMI@
CT30
2
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
10P_0402_50V8J
1
EMI@
CT31
2
CRT_R_2
CRT_G_2
CRT_B_2
10P_0402_50V8J
1
EMI@
CT32
2
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
CRT_DATA
CRT_HSYNC_2
CRT_VSYNC_2
CRT_CLK
2
JCRT1
6
11
1
7
12
2
16
8
G
17
13
G
3
9
14
4
10
15
5
J-L_TNBNRACZZ013015
ME@
DC060008D00
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
CRT
CRT
CRT
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
LA-C281
LA-C281
LA-C281
Date: Sheet
Date: Sheet
Date: Sheet
1
19 50Friday, February 06, 2015
19 50Friday, February 06, 2015
19 50Friday, February 06, 2015
A
1.0
1.0
1.0
of
of
of

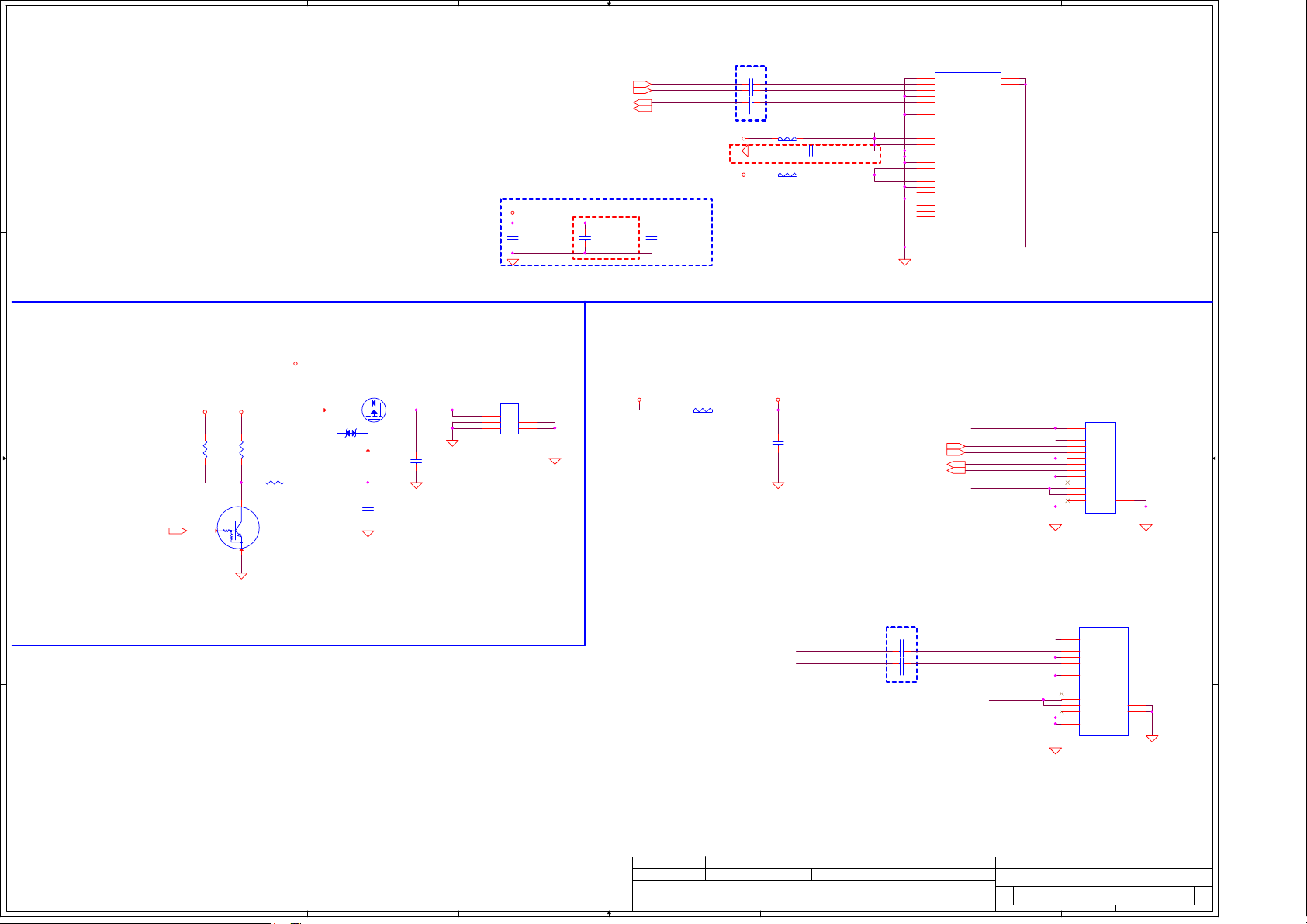

Page 20
A
WWW.AliSaler.Com
B
C
D
E
F
G
H
2
1
SATA_PTX_DRX_P0<6>
SATA_PTX_DRX_N0<6>
SATA_PRX_DTX_N0<6>
1 1
SATA_PRX_DTX_P0<6>
C1420.01U_0402_16V7K
12
C1430.01U_0402_16V7K
2
1
C144 0.01U_0402_16V7K
1 2
C145 0.01U_0402_16V7K
1 2
R141 @ 0_0805_5%
+3VS
1 2
R142 @ 0_0805_5%
+5VS
SATA_PTX_C_DRX_P0
SATA_PTX_C_DRX_N0
SATA_PRX_C_DTX_N0
SATA_PRX_C_DTX_P0
+3V_HDD
1 2
C149 0.1U_0402_25V6
@
+5V_HDD
+5V_HDD
1
@
C146
1000P_0402_50V7K
2
1
C147
0.1U_0402_25V6
2
1
@
C148
10U_0603_6.3V6M
2
JHDD1
1
GND
2
A+
3
A-
4
GND
5
B-
6
B+
7
GND
8
VCC3.3
9
VCC3.3
10
VCC3.3
11
GND
12
GND
13
GND
14
VCC5
15
VCC5
16
VCC5
17
GND
18
RESERVED
19
GND
20
VCC12
21
VCC12
22
VCC12
SANTA_193202-1
DC010008700
ME@
GND
GND
23
24
2
3
+5VS
Q18
KBL@
ME2301DC-G_SOT23-3
S
D
1
G
2
1
C434
@
2
0.01U_0402_16V7K
+5VS_KBL
1
C449
KBL@
1U_0402_6.3V6K
2
V0.3
KBL@
3
2
V0.3A
+5VS
+5VALW
KBL@
1
1
R337
R315
@
10K_0402_5%
2
V0.3A
KB_BL_PWM<25>
2
2
1
OUT
IN
GND
Q26
3
DRC2124E0L NPN MINI3-G3-B
V0.2
10K_0402_5%
R335
1
100K_0402_5%
KBL@
30mil
JKBL1
1
2
3
4
ACES_51512-0040N-P01
ME@
SP01001J100
+5VS
1
2
5
G1
3
6
G2
4
2
1
R147 @ 0_0805_5%
+5V_ODD
1
C150
10U_0603_6.3V6M
2
+5VS_KBL
SATA_PTX_DRX_P1<6>
SATA_PTX_DRX_N1<6>
SATA_PRX_DTX_N1<6>
SATA_PRX_DTX_P1<6>
+5V_ODD
JODD1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
15
13
GND
13
16
14
GND
14
JXT_FP202DH-014M10M
ME@
SP010021G00
JODD2
1
GND
2
A+
3
A-
4
GND
5
B-
6
B+
7
GND
8
DP
9
+5V
10
+5V
11
MD
12
GND
13
GND
SANTA_201304-1
ME@
DC01000AV00
14
GND
15
GND
SATA_PTX_DRX_P1
SATA_PTX_DRX_N1
SATA_PRX_DTX_N1
SATA_PRX_DTX_P1
1
C151 0.01U_0402_16V7KZ14@
1
C152 0.01U_0402_16V7KZ14@
1
C153 0.01U_0402_16V7KZ14@
1
C154 0.01U_0402_16V7KZ14@
2
2
2
2
SATA_PTX_C_DRX_P1_14
SATA_PTX_C_DRX_N1_14
SATA_PRX_C_DTX_N1_14
SATA_PRX_C_DTX_P1_14
+5V_ODD
2
3
4
A
B
4
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
C
D
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
E
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
F
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
HDD/ODD/KB_BL Connector
HDD/ODD/KB_BL Connector
HDD/ODD/KB_BL Connector
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
G
LA-C281
LA-C281
LA-C281
20 50Friday, February 06, 2015
of
20 50Friday, February 06, 2015
of
20 50Friday, February 06, 2015
of
H
1.0
1.0
1.0

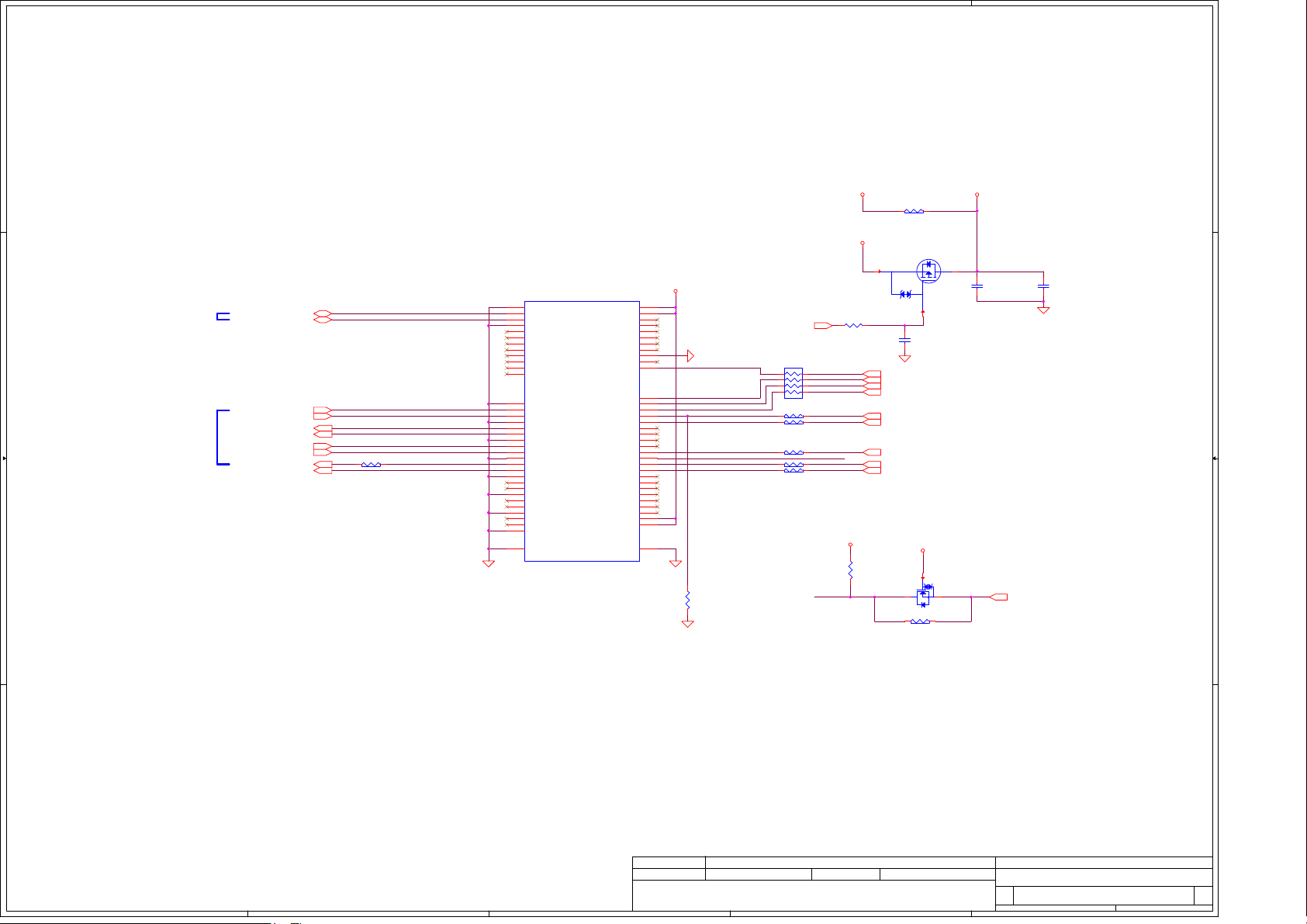

Page 21
A
1 1
B
C
D
E
2
2
2
G
2
D
1
ISCT@
Q11
ISCT@
2N7002K_SOT23-3
3
PCIRST#
S
+3VS_WLAN
1
2
C155
4.7U_0603_6.3V6K
PCIRST# < 8,22,25,26,30>
1
C156
0.1U_0201_10V6K
2
@
2
3
+3VS
1
R153 @ 0_0805_5%
JWLAN1
1
GND
BT
2
3
USB20_P6<10>
USB20_N6<10>
PCIE_PTX_C_DRX_P4<10>
PCIE_PTX_C_DRX_N4<10>
PCIE_PRX_DTX_P4<10>
PCIE_PRX_DTX_N4<10>
CLK_PCIE_WLAN<7>
CLK_PCIE_WLAN#<7>
WLANCLK_REQ#<7>
PCIE_WAKE#<8,25,26>
R158 0_0402_5%@
2
1
WLANCLK_REQ#_R
3
USB_D+
5
USB_D-
7
GND
9
SIDO_CLK
11
SDIO_CMD
13
SDO_DAT0
15
SDO_DAT1
17
SDO_DAT2
19
SDO_DAT3
21
SDIO_WAKE#
23
SDIO_RESET#
25
GND
27
PETP0
29
PETN0
31
GND
33
PERP0
35
PERN0
37
GND
39
REFCLKP0
41
REFCLKN0
43
GND
45
CLKEQ0#
47
PEWAKE0#
49
GND
51
RSRVD/PETP1
53
RSRVD/PETN1
55
GND
57
RSRVD/PERP1
59
RSRVD/PERN1
61
GND
63
RESERVED
65
RESERVED
67
GND
69
MTG77
LCN_DAN05-67306-0102
ME@
SP070013F00
PCM_SYNC
PCM_OUT
UART_WAKE#
UART_CTS
UART_RTS
RESERVED
RESERVED
RESERVED
W_DISABLE2#
W_DISABLE1#
RESERVED
RESERVED
RESERVED
RESERVED
3.3VAUX
3.3VAUX
LED1#
PCM_CLK
PCM_IN
LED2#
GND
UART_RX
UART_TX
COEX3
COEX2
COEX1
SUSCLK
PERST0#
I2C_DATA
I2C_CLK
ALERT
3.3VAUX
3.3VAUX
MTG76
+3VS_WLAN
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
100K_0402_5%
WLAN_PWR_ON#<25>
UART0_RX_R
UART0_TX_R
UART0_CTS_R
UART0_RTS_R
SUSCLK_R
WL_RST#
BT_DISABLE_R
2
R507
1
RP6
@
8
1
7
2
6
3
5
4
0_0804_8P4R_5%
2
1
R155 0_0402_5%@
R156 0_0402_5%@
R157 0_0402_5%@
R159 0_0402_5%@
R161 0_0402_5%@
2
1
2
1
2
1
2
1
WL_RST#
ISCT@
R154
150K_0402_5%
+3VS_WLAN
1
2
+3VALW
3
ISCT@
R163
100K_0402_5%
Q10
ISCT@
ME2301DC-G_SOT23-3
S
G
1
C157
0.1U_0201_10V6K
2
UART0_RX <9>
UART0_TX <9>
UART0_CTS <9>
UART0_RTS <9>
EC_TX <25>
EC_RX <25>
SUSCLK <8>
WLBT_OFF# <8,9>
EC_WL_OFF# <25>
+3VS
1
D
1
R164 0_0402_5%@
4
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
A
B
C
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
D
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Mini-Card/NEW Card/SIM
Mini-Card/NEW Card/SIM
Mini-Card/NEW Card/SIM
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
LA-C281
LA-C281
LA-C281
E
21 50Friday, February 06, 2015
of
21 50Friday, February 06, 2015
of
21 50Friday, February 06, 2015
of
4
1.0
1.0
1.0
Page 22

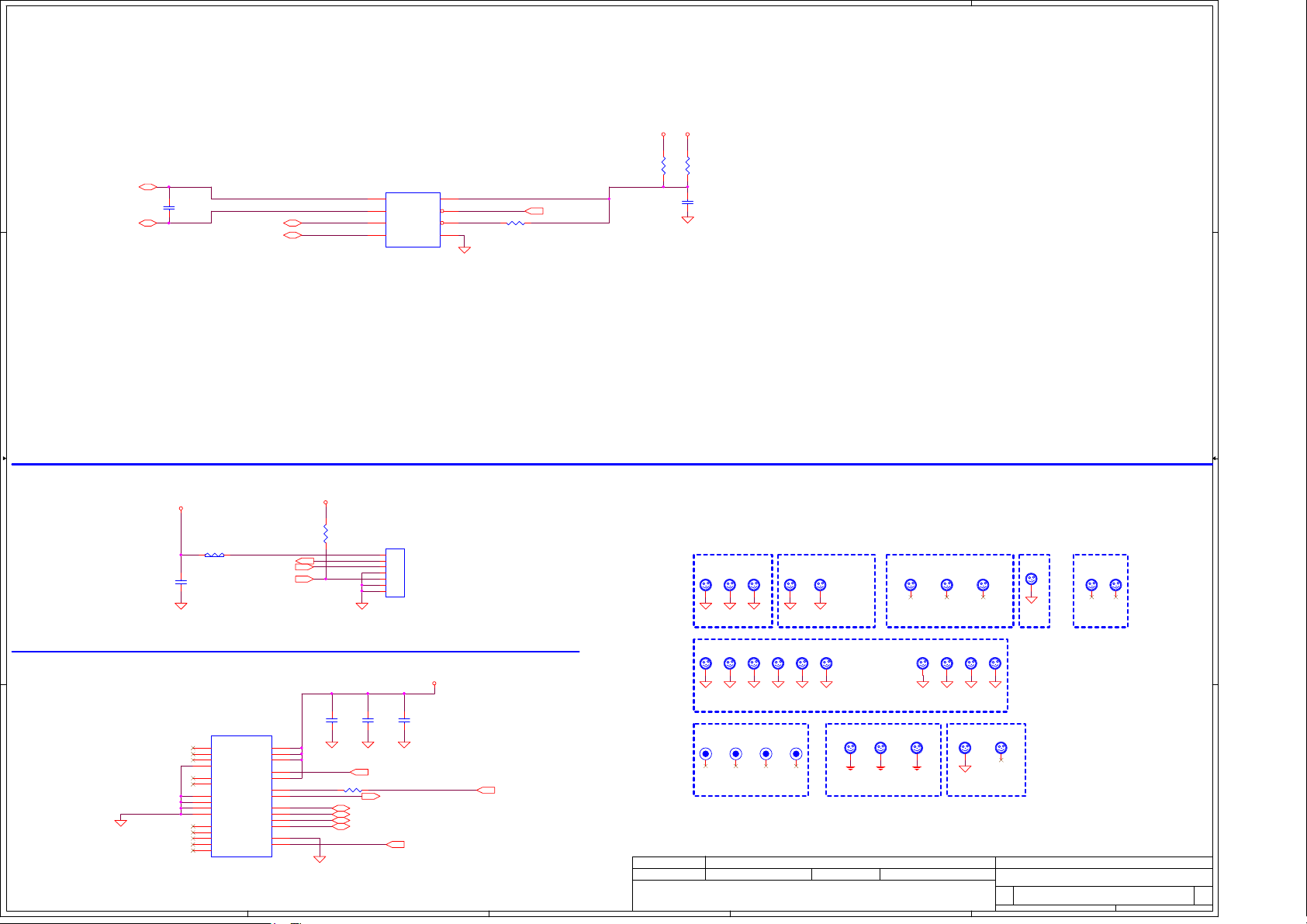

WWW.AliSaler.Com
5
4
3
2
1
D D
0_0402_5%
REMOTE1+<31>
C251
TROPO@
2200P_0402_50V7K
REMOTE1-<31>
C
B
1
2
+5VS
2
0_0603_5%
2
C162
10U_0603_6.3V6M
1
REMOTE1+
REMOTE1-
R168
@
+FAN
EC_SMB_CK2
EC_SMB_DA2
+3VS
1
2
R191
ADB@
10K_0402_5%
EC_SMB_CK2<7,19,25,31>
EC_SMB_DA2<7,19,25,31>
1
FAN_SPEED1<25>
EC_FAN_PWM1<25>
EC_FAN_REVERSE<25>
TROPO@
U17
2
D+
3
D-
8
SCL
7
SDA
F75397M_MSOP8
Address is 1001100xb
JFAN1
1
1
2
2
3
3
4
4
5
5
6
GND
7
GND
ACES_50278-00501-001
ME@
SP021308280
ALERT#
THERM#
1
VCC
6
THM_ALERT#
4
THERM#
5
GND
TROPO@
12
R3010K_0402_5%
THM_ALERT# <31>
+3V_Thermal
+3VS+3VGS
2
2
TROPO@
@
R193
R195
0_0402_5%
1
1
2
TROPO@
C175
0.1U_0201_10V6K
1
H1
HOLEA
1
H_4P0
H2
HOLEA
1
H_4P0
H3
HOLEA
1
H_4P0
H4
HOLEA
1
H_3P3
H5
HOLEA
1
H_3P3
H8
HOLEA
1
H_2P6X3P6N
H18
HOLEA
H_2P6N
H22
HOLEA
1
H_2P6X3P6N
H15
HOLEA
1
1
H_3P2
H_1P5N
H23
HOLEA
1
H24
HOLEA
H_1P5N
1
C
B
0.1U_0201_10V6K
1
LPC_FRAME#
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
2
R290 33_0402_5%TPM@
PCIRST#
U24
1
2
3
7
6
9
4
A
5
11
18
25
5
8
12
13
14
TPM@
LFRAME#
LPCPD#
LCLK
SIRQ
LAD0
LAD1
LAD2
LAD3
CLKRUN#
LRESET#
24
3V
10
3V
19
3V
22
28
21
27
26
23
20
17
15
16
NC
NC
NC
PP
NC
NC
GND
GND
GND
GND
NC
NC
NC
NC
NC
Z32H320TC-LPC-T28-233_TSSOP28
SA00007YP00
C297
TPM@
1
0.1U_0201_10V6K
1
C298
TPM@
2
LPC_FRAME# <7,25>
2
SERIRQ <8,9,25>
LPC_AD0 <7,25>
LPC_AD1 <7,25>
LPC_AD2 <7,25>
LPC_AD3 <7,25>
4
+3VS
0.1U_0201_10V6K
1
C299
TPM@
2
CK_LPC_TPM
PCIRST# < 8,21,25,26,30>
CK_LPC_TPM <7>
H6
HOLEA
1
H_6P0
FD1
1
H7
HOLEA
1
H_2P8
H9
H10
HOLEA
HOLEA
1
H_6P0
H_2P8
FD3
FD2
1
1
H12
H11
HOLEA
HOLEA
1
1
1
H_2P8
H_3P3
H13
FD4
1
HOLEA
1
LANGAN1
H_2P8
LANGAN1
H14
HOLEA
1
H_3P3
H16
HOLEA
LANGAN
H_3P3
H17
HOLEA
H_2P8
1
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
H19
HOLEA
1
H_2P8
H21
H20
HOLEA
HOLEA
1
1
1
H_2P8
H_2P8
H31
H30
HOLEA
HOLEA
1
1
H_2P6N
H_2P8
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Fintek-Thermal IC/FAN/screw
Fintek-Thermal IC/FAN/screw
Fintek-Thermal IC/FAN/screw
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
LA-C281
LA-C281
LA-C281
1
A
1.0
1.0
22 50Friday, February 06, 2015
22 50Friday, February 06, 2015
22 50Friday, February 06, 2015
1.0
of
of
of
Page 23
ON/OFF#<25>
TP_VCC
TP_CLK
TP_DATA
TP_L
TP_R
@
C166
LID_SW#<25>
1
0.1U_0201_10V6K
2
J1: TOP
J2: BOT
TP_CLK<25>
TP_DATA<25>
100P_0402_50V8J
+3VS
J1
2
1
SHORT PADS
J2
2
1
SHORT PADS
1
R258 0_0402_5%@
1
1
@
@
C164
C165
100P_0402_50V8J
2
2
ON/OFF#
2
@ESD@
D5
PACDN042Y3R_SOT23-3
1
@
C163
0.1U_0201_10V6K
2
3
2
1
0.1U_0201_10V6K
Z17@
SW5
EVQPLHA15_4P
6
5
4
2
TP_L
1
3
Z15@
SW1
EVQPLHA15_4P
6
5
4
2
TP_L
1
3
Z14@
SW3
EVQPLHA15_4P
6
5
4
2
TP_L
1
3
MESC5V02BD03_SOT23-3
1
@
C167
2
TP_VCC
TP_CLK
TP_DATA
TP_L
TP_R
6
5
4
3
ESD@
D24
Z17@
SW6
EVQPLHA15_4P
2
TP_R
1
+3VALW
2
@
R274
100K_0402_5%
1
ON/OFF#
LID_SW#
3
2
1
MESC5V02BD03_SOT23-3
RP33
0_0804_8P4R_5%
Z17@
RP34
0_0804_8P4R_5%
Z17@
RP33
1
2
3
4
0_0804_8P4R_5%
Z15@
RP34
1
2
3
4
0_0804_8P4R_5%
Z15@
RP35
1
2
3
4
0_0804_8P4R_5%
Z14@
RP36
1
2
3
4
0_0804_8P4R_5%
Z14@
5
4
3
+3VLP+3VALW
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
6
2
R170
100K_0402_5%
1
PWR_LED#
3
@
D26
1
Z15@
SW2
EVQPLHA15_4P
2
TP_R
1
2
Z15_VCC_Z14_R
Z15_CLK_Z14_L
Z15_DATA_Z14_GND
Z15_GND_Z14_DATA
Z15_L_Z14_CLK
Z15_R_Z14_VCC
Z15_R_Z14_VCC
Z15_L_Z14_CLK
Z15_GND_Z14_DATA
Z15_DATA_Z14_GND
Z15_CLK_Z14_L
Z15_VCC_Z14_R
4
3
JPWRB1
1
1
2
2
3
3
4
4
5
5
6
6
7
GND
8
GND
ACES_88058-060N
ME@
SP010010T00
6
5
Z14@
SW4
EVQPLHA15_4P
2
TP_R
1
KSI1
KSI7
KSI6
KSO9
KSI4
KSI5
KSO0
KSI2
KSI3
10
KSO5
11
KSO1
12
KSI0
13
KSO2
14
KSO4
15
KSO7
16
KSO8
17
KSO6
18
KSO3
19
KSO12
20
KSO13
21
KSO14
22
KSO11
23
KSO10
24
KSO15
25
KSO16
26
KSO17
27
28
29
30
PWR_LED#
BATT_CHG_LED#
BATT_LOW_LED#
JKB2
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
ACES_88514-3001
ME@
SP010011A00
31
GND
32
GND
CAPS_LED#<25>
NUM_LED#<25>
JTP1
1
1
2
2
3
3
4
4
5
5
6
6
7
GND
8
GND
ACES_88058-060N
ME@
SP010010T00
1
C131
ESD@
2
0.1U_0402_25V6
KSI[0..7]
KSO[0..17]
+3VS
2
R263 470_0402_5%
2
R264 470_0402_5%Z15@
1
C132
ESD@
2
0.1U_0402_25V6
Z17@
KSI[0..7] <25>
KSO[0..17] <25>
R264
470_0402_5%
1
1
PWR_LED#<25>
BATT_CHG_LED#<25>
BATT_LOW_LED#<25>
CAPS_LED#_RCAPS_LED#_R
NUM_LED#_R
+3VLP
2
R169
1
100K_0402_5%
SW8
2
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Issued Date
Issued Date
Issued Date
NOVO#
NOVO#<25>
Security Classification
Security Classification
Security Classification
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .
1
3
7
6
4
5
NTC325-EA1J-A160C_3P
SN100008N00
GND
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
+3VALW
+3VLP
JKB3
1
KSI1
1
2
KSI7
2
3
KSI6
3
4
KSO9
4
5
KSI4
5
6
KSI5
6
7
KSO0
7
8
KSI2
8
9
KSI3
9
10
KSO5
10
11
KSO1
11
12
KSI0
12
13
KSO2
13
14
KSO4
14
15
KSO7
15
16
KSO8
16
17
KSO6
17
18
KSO3
18
19
KSO12
19
20
KSO13
20
21
KSO14
21
22
KSO11
22
23
KSO10
23
24
KSO15
24
25
KSO16
25
26
KSO17
26
27
CAPS_LED#_R
CAPS_LED#
NUM_LED#_R
NUM_LED#
PWR_LED#
BATT_LOW_LED#
BATT_CHG_LED#
27
28
28
29
29
GND
30
30
GND
ACES_88514-3001
ME@
SP010011A00
LED1
Z15@
1
2
LTW-C193TS5-C_WHITE
LED2
Z15@
1
2
LTW-C193TS5-C_WHITE
LED3
Z15@
1
2
A
LTST-C191KFKT-2CA_ORANGE
LED4
Z14@
1
2
LTW-C193TS5-C_WHITE
LED5
Z14@
1
2
LTW-C193TS5-C_WHITE
LED6
Z14@
1
2
A
LTST-C191KFKT-2CA_ORANGE
JLED1
1
2
3
4
5
6
E-T_6915K-Q06N-00L
SP01001NO00
ME@
GND
Title
Title
Title

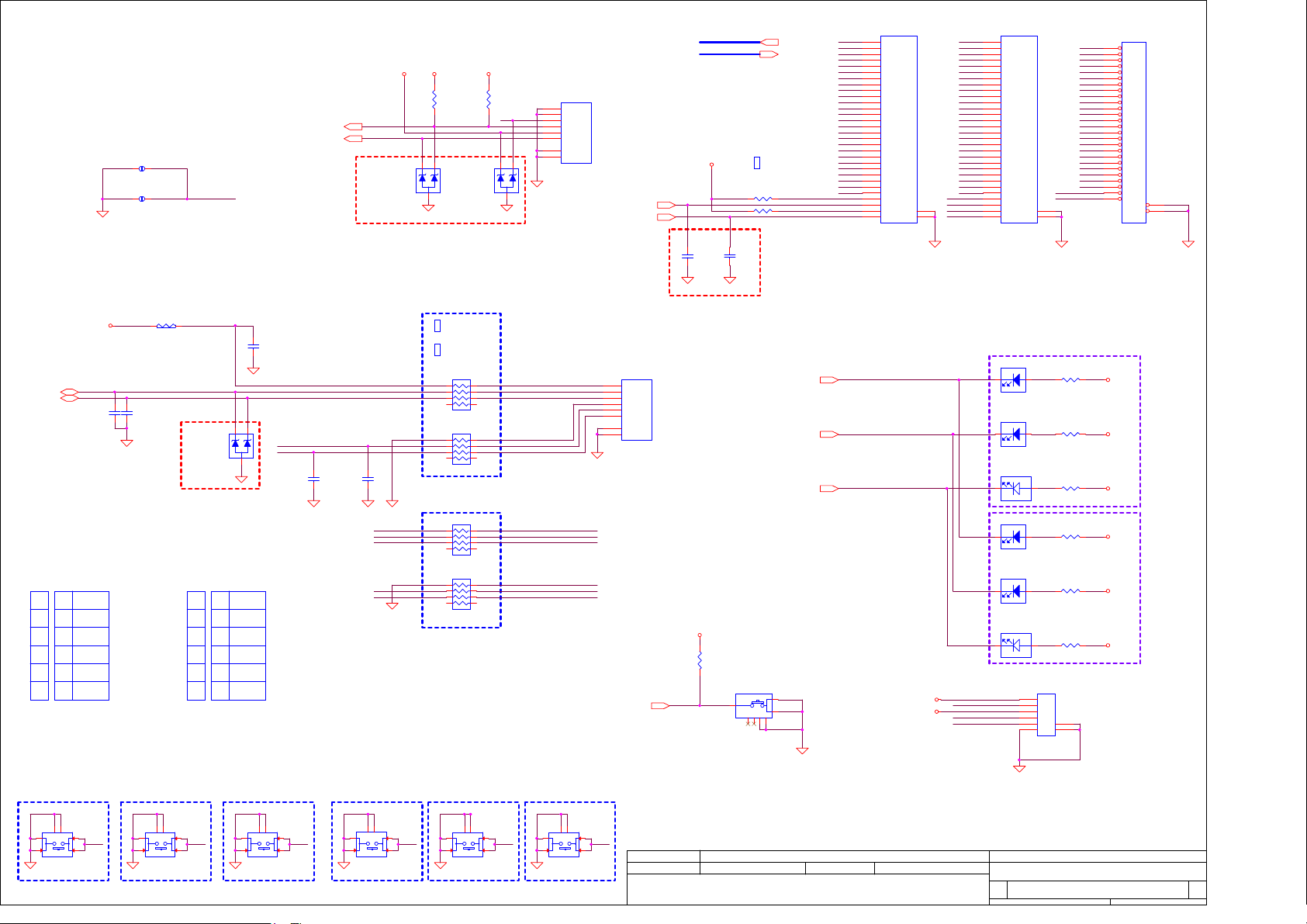

ROM/KBD/PWR/CR/LED/TP Conn.
ROM/KBD/PWR/CR/LED/TP Conn.
ROM/KBD/PWR/CR/LED/TP Conn.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
KSI1
KSI7
KSI6
KSO9
KSI4
KSI5
KSO0
KSI2
KSI3
KSO5
KSO1
KSI0
KSO2
KSO4
KSO7
KSO8
KSO6
KSO3
KSO12
KSO13
KSO14
KSO11
KSO10
KSO15
CAPS_LED#_R
CAPS_LED#
31
32
R171
Z15@
2
1
300_0402_1%
R173
Z15@
2
1
300_0402_1%
R172
Z15@
2
1
620_0402_5%
R176
Z14@
2
1
680_0402_1%
R174
Z14@
2
1
300_0402_1%
R175
Z14@
2
1
620_0402_5%
1
2
3
4
7
G1
5
8
G2
6
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
LA-C281
LA-C281
LA-C281
JKB1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
GND2
GND1
ACES_88514-02601-071
ME@
SP01000R500
+3VALW
+3VLP
+3VLP
+3VALW
+3VLP
+3VLP
23 50Friday, February 06, 2015
23 50Friday, February 06, 2015
23 50Friday, February 06, 2015
27
28
1.0
1.0
1.0
of
of
of

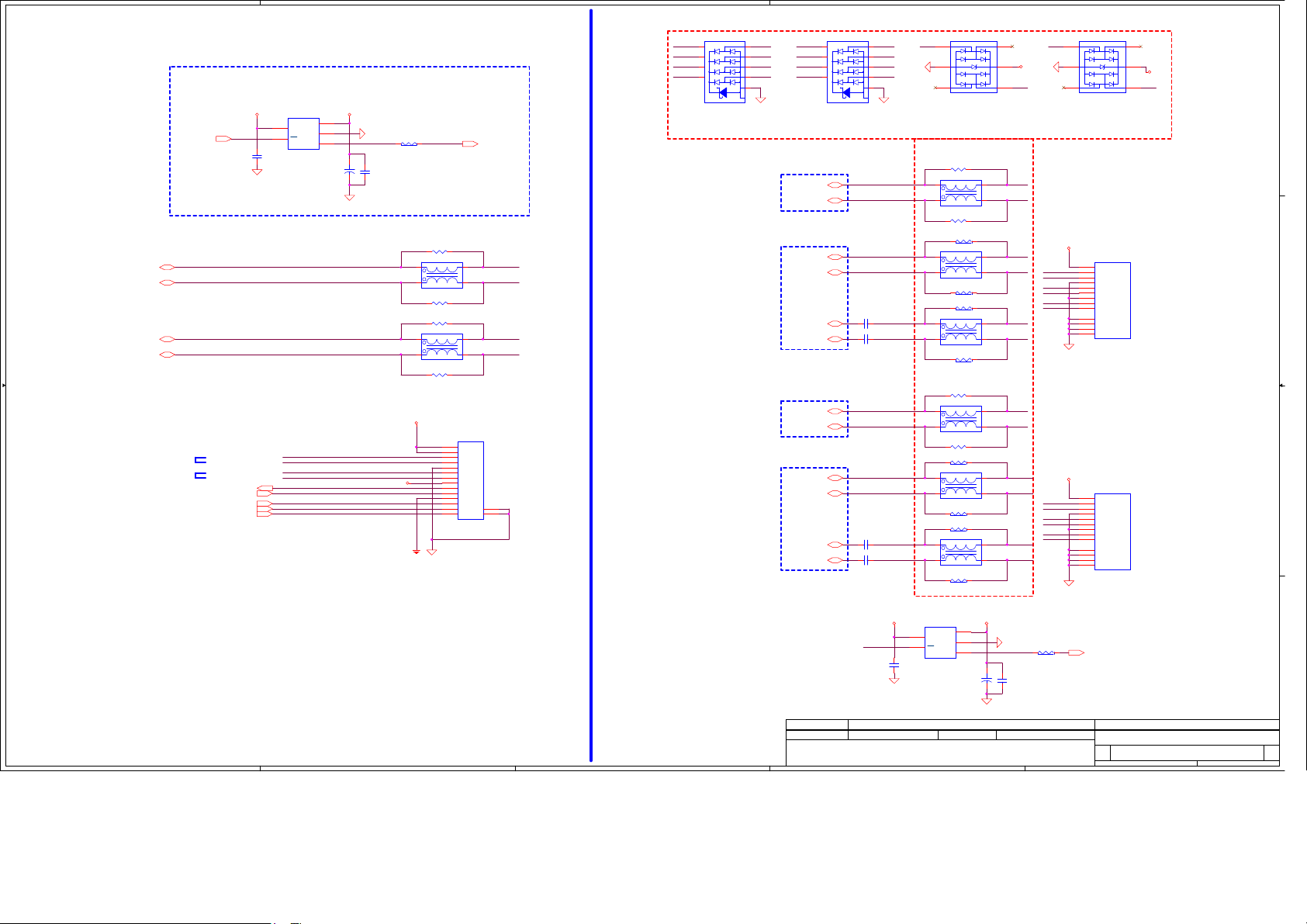

Page 24
5
WWW.AliSaler.Com
D D
USB_EN#<25>
0.1U_0201_10V6K
USB20_N2<10>
C
USB20_P2<10>
USB20_P3<10>
USB20_N3<10>
B
2A/Active Low
+5VALW +USB_VCCB
U8
OUT
5
IN
GND
4
EN
1
C195
2
S_A-P_CAP 220U 6.3V M 6.3X4.5 ESR18M
PLUG_IN<27>
HPOUT_R<27>
HPOUT_L<27>
HGNDA<27>
HGNDB<27>
OCB
SY6288D20AAC_SOT23-5
USB20_N2
USB20_P2
USB20_P3
USB20_N3
USB20_P3_R
USB20_N3_R
USB20_P2_R
USB20_N2_R
220U_6.3V_M
1
2
3
C170
100mil100mil
USB_OC1#_U8
1
+
2
4
1
@
C171
470P_0402_50V7K
2
R179
2
1
@
USB_OC1#
0_0402_5%
@EMI@
1
R1676 0_0402_5%
L14
1
1
2
2
PANASONIC EXC24CQ900U
@EMI@
1
R1677 0_0402_5%
@EMI@
1
R1678 0_0402_5%
PANASONIC EXC24CQ900U
2
2
1
1
L19
@EMI@
1
R1679 0_0402_5%
+USB_VCCB
100mil
+3VS
2
EMI@
4
4
3
3
2
2
3
3
4
4
EMI@
2
JIO1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
GND
13
14
GND
14
JXT_FP202DH-014M10M
ME@
SP010021G00
USB_OC1# <9,10>
USB20_N2_R
USB20_P2_R
USB20_P3_R
USB20_N3_R
15
16
3
U3RXDP1 U3RXDP2U3RXDP2
U3TXDN1
U3TXDP1
L05ESDL5V0NA-4_SLP2510P8-10-9
@
9
10
8
9
7
7
6
6 5
D6
1
2
4
3
2
D8
D7
@
1
2
U3RXDP1
4
U3TXDN1
5
U3TXDP1
3
8
9
U3RXDN2
10
8
7
U3TXDN2
6
U3TXDP2
L05ESDL5V0NA-4_SLP2510P8-10-9
9
7
6 5
1
U3RXDN2U3RXDN1U3RXDN1
1
2
2
4
U3TXDN2
4
5
U3TXDP2
3
3
8
USB20_N1<10>
USB20_P1<10>
USB3_RX2_N<10>
USB3_RX2_P<10>
C168
0.1U_0201_10V6K
2
1
USB3_TX2_N<10>
USB3_TX2_P<10>
2
1
C169
0.1U_0201_10V6K
U3TXDN2_L
U3TXDP2_L
USB20_N0<10>
USB20_P0<10>
USB3_RX1_N<10>
USB3_RX1_P<10>
C172
0.1U_0201_10V6K
2
1
USB3_TX1_N<10>
USB3_TX1_P<10>
2
1
C173
0.1U_0201_10V6K
U3TXDN1_L
U3TXDP1_L
@
3
U2DP1
I/O2
2
GND
1
I/O1
AZC099-04S.R7G_SOT23-6
@EMI@
2
1
R1664 0_0402_5%
PANASONIC EXC24CQ900U
2
2
1
1
L12
EMI@
@EMI@
2
1
R1665 0_0402_5%
1
R1666 0_0402_5%@
INPAQ HCM1012GD670A05P
2
2
1
1
L13
@EMI@
1
R1667 0_0402_5%@
1
R1668 0_0402_5%@
INPAQ HCM1012GD670A05P
2
2
1
1
L15
@EMI@
1
R1669 0_0402_5%@
@EMI@
2
1
R1670 0_0402_5%
PANASONIC EXC24CQ900U
2
2
1
1
L16
EMI@
@EMI@
2
1
R1671 0_0402_5%
2
1
R1672 0_0402_5%@
INPAQ HCM1012GD670A05P
2
2
1
1
L17
@EMI@
2
1
R1673 0_0402_5%@
2
1
R1674 0_0402_5%@
INPAQ HCM1012GD670A05P
2
2
1
1
L18
@EMI@
2
1
R1675 0_0402_5%@
6
I/O4
5
+USB3_VCCA
VDD
4
U2DN1
I/O3
3
U2DN2
3
4
U2DP2
4
2
3
U3RXDN2
3
4
4
U3RXDP2
2
2
3
U3TXDN2
3
4
4
U3TXDP2
2
3
U2DN1
3
4
U2DP1
4
3
U3RXDN1
3
4
U3RXDP1
4
3
U3TXDN1
3
4
U3TXDP1
4
U2DP2
U2DN2
U2DP2
U3RXDN2
U3RXDP2
U3TXDN2
U3TXDP2
U2DN1
U2DP1
U3RXDN1
U3RXDP1
U3TXDN1
U3TXDP1
+USB3_VCCA
+USB3_VCCA
@
3
I/O2
2
GND
1
I/O1
AZC099-04S.R7G_SOT23-6
JUSB1
1
VBUS
2
D-
3
D+
4
GND
5
STDA_SSRX-
6
STDA_SSRX+
7
GND
8
STDA_SSTX-
9
STDA_SSTX+
10
GND
11
GND
12
GND
13
GND
SINGA_2UB4039-200011F
ME@
DC23300AQ00
JUSB2
1
VBUS
2
D-
3
D+
4
GND
5
STDA_SSRX-
6
STDA_SSRX+
7
GND
8
STDA_SSTX-
9
STDA_SSTX+
10
GND
11
GND
12
GND
13
GND
SINGA_2UB4039-200011F
ME@
DC23300AQ00
1
D9
6
I/O4
5
VDD
+USB3_VCCA
4
U2DN2
I/O3
C
B
A
5
W=80mils W=80mils
USB_EN#
0.1U_0201_10V6K
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIV ISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIV ISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIV ISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
4
3
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
5
4
1
C196
2
S_A-P_CAP 220U 6.3V M 6.3X4.5 ESR18M
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2
2A/Active Low
+5VALW
+USB3_VCCA
U10
1
OUT
IN
2
GND
EN
3
OCB
SY6288D20AAC_SOT23-5
C178
220U_6.3V_M
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
1
+
2
USB_OC0#_R
1
@
C177
470P_0402_50V7K
2
1
R185
@
0_0402_5%
2
USB_OC0# <10>
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
Compal Electronics, Inc.
USB3.0/Left USB Ports
USB3.0/Left USB Ports
USB3.0/Left USB Ports
1
A
1.0
1.0
1.0
24 50Friday, February 06, 2015
24 50Friday, February 06, 2015
of
of
24 50Friday, February 06, 2015
of
Page 25

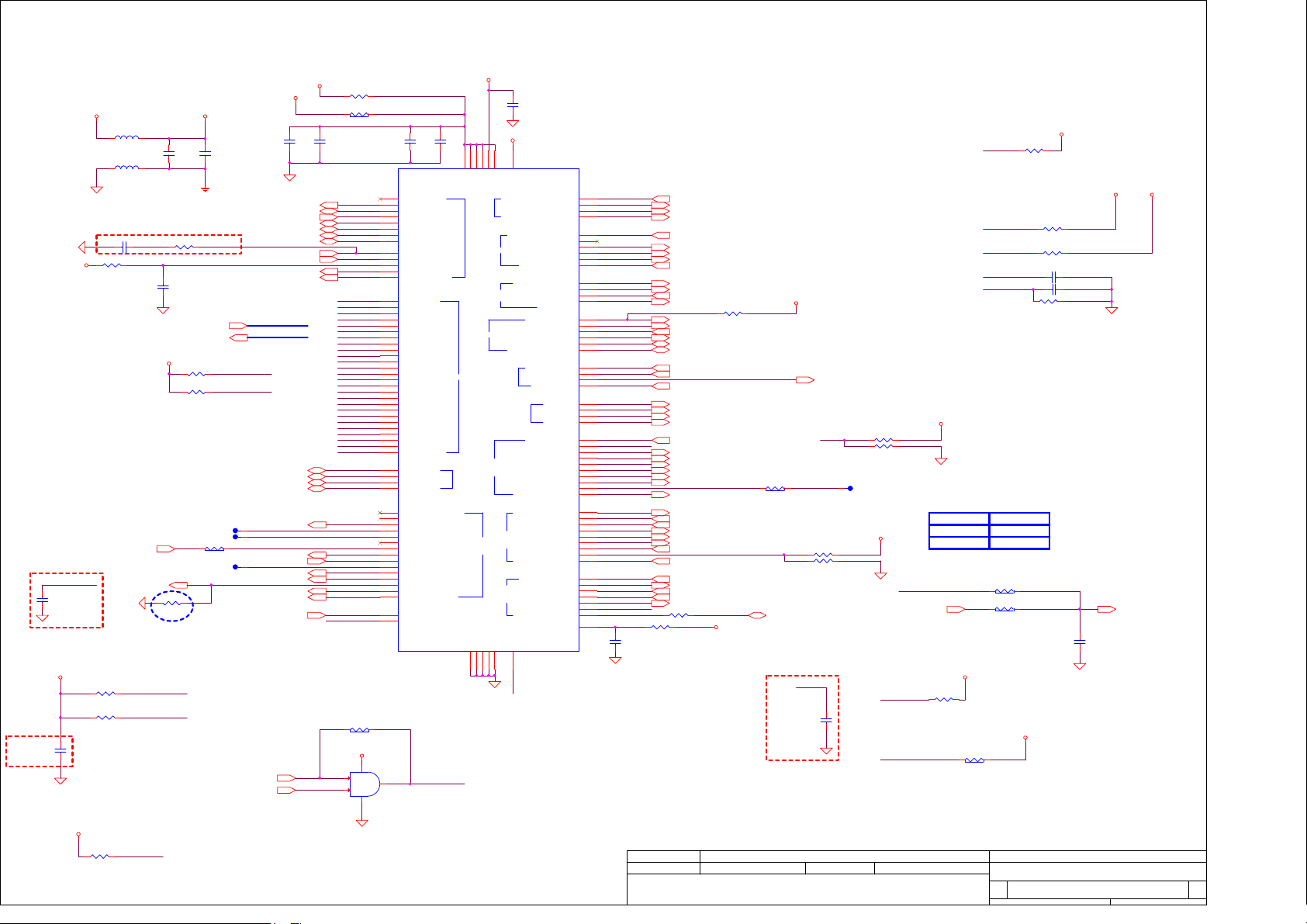

@EMI@
C197
0.1U_0201_10V6K
+3VALW_EC
PCH_PWROK
12
ESD@
C247
100P_0402_50V8J
+3VALW
1
2
+3VALW_EC
L20
FBMA-L11-160808-601LMT_2P
1 2
0.1U_0201_10V6K
1
L21
FBMA-L11-160808-601LMT_2P
EMI@
C186 22P_0402_50V8J
1
R192 47K_0402_5%
0.1U_0402_25V6
PCIE_WAKE#<8,21,26>
2
1
R212 1K_0402_5%
2
1
@
R196 10K_0402_5%
+3VS
2
1
R214 10K_0402_5%
1
C184
2
2
2
12
R190 10_0402_1%
2
2
C187
1
+3VALW_EC
PCH_PWROK<8>
1
R207
100K_0402_5%
EC_PCIE_WAKE#
PBTN_OUT#
FAN_SPEED1
ECAGND
EMI@
R201
1
R202
1
R215 0_0402_5%@
2
+EC_VCCA
ECAGND
1
KSO[0..17]<23>
KSI[0..7]<23>
1
1
C185
@
1000P_0402_50V7K
2
2
EC_SMB_CK1
2.2K_0402_5%
2
EC_SMB_DA1
2.2K_0402_5%
T31 @
T32 @
2
T33 @
PM_SLP_S4#<8>
PM_SLP_S5#<8>
+3VALW
+3VLP
0.1U_0201_10V6K
0.1U_0201_10V6K
1
C181
C180
2
KB_RST#<9>
SERIRQ<8,9,22>
LPC_FRAME#<7,22>
LPC_AD3<7,22>
LPC_AD2<7,22>
LPC_AD1<7,22>
LPC_AD0<7,22>
CK_LPC_KBC<7>
PCIRST#<8,21,22,26,30>
EC_SCI#<7,9>
ADP_ID_CLOSE<38>
KSO[0..17]
KSI[0..7]
EC_SMB_CK1<39,40>
EC_SMB_DA1<39,40>
EC_SMB_CK2<7,19,22,31>
EC_SMB_DA2<7,19,22,31>
3V/5VALW_PG<41>
KB_BL_PWM<20>
FAN_SPEED1<22>
EC_TX<21>
EC_RX<21>
NOVO#<23>
NUM_LED#<23>
PBTN_OUT#<8>
U74AHC1G08G-AL5-R_SOT353-5
R188 0_0603_5%@
R189 0_0603_5%@
1
2
EC_SMB_CK1
EC_SMB_DA1
EC_SMB_CK2
EC_SMB_DA2
EC_PCIE_WAKE#
EC_TX
EC_RX
PCH_PWROK
NOVO#
PM_SLP_S4#_R
R269 0_0402_5%@
@
U14
2
1
1 2
LPC_AD3
LPC_AD2
LPC_AD1
LPC_AD0
EC_RST#
EC_SCI#
KSI0
KSI1
KSI2
KSI3
KSI4
KSI5
KSI6
KSI7
KSO0
KSO1
KSO2
KSO3
KSO4
KSO5
KSO6
KSO7
KSO8
KSO9
KSO10
KSO11
KSO12
KSO13
KSO14
KSO15
KSO16
KSO17
NPCE288NA0DX_LQFP128_14X14
2
1
+3VS
5
2
P
B
Y
1
A
G
3
+3VALW_EC
C183
1000P_0402_50V7K
C182
1000P_0402_50V7K
1
2
@
@
U11
1
GA20/GPIO85
2
KBRST#/GPIO86
3
SERIRQ/GPIOF0
4
LFRAME#/GPIOF6
5
LAD3/GPIOF4
7
LAD2/GPIOF3
8
LAD1/GPIOF2
10
LPC & MISC
LAD0/GPIOF1
12
LCLK/GPIOF5
13
LRESET#/GPIOF7
37
EC_RST#
20
ECSCI#/GPIO45
38
GPIO11/CLKRUN
55
KSI0/GPIOA0
56
KSI1/GPIOA1
57
KSI2/GPIOA2
58
KSI3/GPIOA3
59
KSI4/GPIOA4/N2TCK
60
KSI5/GPIOA5/N2TMS
61
KSI6/GPIOA6
62
KSI7/GPIOA7
39
KSO0/GPOB0/SOUT_CR/JENK#
40
KSO1/GPIB1/TEST#
41
KSO2/GPIOB2/TRIST#
42
KSO3/GPIOB3/XORTR#
43
KSO4/GPOB4/SDP_VIS#
44
KSO5/GPIOB5/TDO
45
KSO6/GPIOB6/RDY#
46
KSO7/GPIOB7
47
KSO8/GPIOC0
48
KSO9/GPIOC1
49
KSO10&P80_CLK/GPIOC2
50
KSO11&P80_DAT/GPIOC3
51
KSO12/GPIO64/TCK
52
KSO13/GPIO63/TMS
53
KSO14/GPIO62/TDI
54
KSO15/GPIO61/XOR_OUT
81
KSO16/GPIO60
82
KSO17/GPIO57
77
GPIO17/SCL1/N2TCK
78
GPIO22/SDA1/N2TMS
79
GPIO73/SCL2
80
GPIO74/SDA2
6
GPIO024
14
LPCPD#/GPIO10
15
SMI#/GPIO65
16
GPIO34/1_WIRE/CIRRXL
17
GPIO01/TB2
18
GPIO43
19
GPIO42/CIRTX2
25
GPIO13/C_PWM
28
GPIO56/TA1
29
GPIO14/TB1
30
PORT80_DATA/GPIO83/SOUT_CR
31
PORT80_CLK/GPIO87/SIN_CR
32
GPIO27/RSMRST#
34
GPIO66/G_PWM
36
GPIO33/H_PWM
122
EXTCLKI/GPIO00
123
GPIO55/CLKOUT/IOX_DIN_DIO
4
PM_SLP_S4#_R
1
2
Int. K/B
Matrix
+3VLP
111
96
33
22
9
EC_VDD/VCC
EC_VDD/VCC
EC_VDD/VCC
EC_VDD/VCC
PWM Output
AD Input
DA Output
PS2 Interface
SPI Device Interface
SPI Flash ROM
GPIO
SM Bus
GPIO
GND/GND
GND/GND
GND/GND
94
35
24
11
@
1
C179
100P_0402_50V8J
2
+EC_VCCA
125
67
EC_VDD0
GPIO15/A_PWM
EC_VDD/VCC
GPIO21/B_PWM
EC_VDD/AVCC
GPIO32/D_PWM
GPIO45/E_PWM
GPIO31/SCL3/PSCKL1
GPIO23/SDA3/PSDAT1
GPIO47/SCL4/PSCKL2
GPIO53/SDA4/PSDAT2
GPIO50/PSCLK3
GPIO52/PSDAT3
GPIO16/VC_IN1
(F_SDI&F_SDIO1)GPIO80
(F_SDIO&F_SDIO0)GPIO8C6
(F_SCK)/GPIOC4
(F_CS1#)/GPIOC5
GPIO03/AD6/CIRRXM
GPIO07/AD7/CIRTX1
GPIO67/N2TMS
GPIO51/N2TCK
GPIO40/F_PWM
GPIO06/IOX_DOUT
GPIO81/F_WP#
GPIO84/IOX_SCLK
GPIO26/RSMRST#
GPIO20/TA2/IOX_DIN_DIO
GPIO72/VC_IN2
GPIO37/VC_OUT2
GPIO25/VC_OUT1
GPO
GPIO30/F_WP#
AC_IN/GPIO41/F_WP#
EC_ON/GPIO71
ON_OFFBTN#/GPIO70
GPI
GPIO82/IOX_LDSH_LIDIN
GPIO46/CIRRXM/PLCIN
GND0
GND/GND
AGND/AGND
69
113
ECAGND
GPIO90/AD0
GPIO91/AD1
GPIO92/AD2
GPIO93/AD3
GPIO05/AD4
GPIO04/AD5
GPIO94/DA0
GPIO95/DA1
GPIO96/DA2
GPIO97/DA3
GPIO02
GPIO75
GPIO76
GPIO36
GPIO35
GPIO77
GPIO44
GPIO12
VCORF
PECI
+5VALW
R194
2
1
USB_EN#
10K_0402_5%
+3VS
2
2
1
@
C191
47P_0402_50V8J
2
LA-C281
LA-C281
LA-C281
+3VS
H_PROCHOT# <4>
1.0
1.0
25 50Friday, February 06, 2015
25 50Friday, February 06, 2015
25 50Friday, February 06, 2015
1.0
of
of
of
21
23
BEEP#
26
27
63
64
65
66
75
ADP_ID
76
68
70
71
72
83
84
85
86
87
TP_CLK
88
TP_DATA
97
98
99
109
119
120
126
128
73
74
FAN_ID
89
90
91
92
93
95
SYSON
121
AC_BATT_R
127
100
101
102
103
104
105
BKOFF#
106
107
108
110
112
EC_ON
114
115
LID_SW#
116
SUSP#
117
NUVOTON_VTT
VTT
118
PECI
124
+V18R
1
2
4.7U_0603_6.3V6K
VCCST_PWRGD <11>
BEEP# <27>
EC_FAN_PWM1 <22>
EC_FAN_REVERSE <22>
VCIN1_BATT_TEMP <39,40>
ADP_I <39,40>
PMON_SKYLAKE <40>
ADP_ID <38>
VRAM_TEMP <35>
EC_CLEAR_CMOS <6>
TS_DISABLE# <17>
DGPU_PWR_EN <8,32,43,46>
EC_WL_OFF# <21>
1
EC_MUTE#
1
R209 0_0402_5%@
C192
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .
R198 10K_0402_5%@
EC_MUTE# <27>
USB_EN# < 24>
ADP_SET2
CMOS_ON# <17>
TP_CLK <23>
TP_DATA <23>
ENBKL <8,17>
SYS_PWROK <8>
VCIN0_PH1 <39>
EC_SPI_MISO <7>
EC_SPI_MOSI <7>
EC_SPI_CLK <7>
EC_SPI_CS0# <7>
DDR_TEMP <15>
WLAN_PWR_ON# < 21>
BATT_CHG_LED# <23>
CAPS_LED# <23>
PWR_LED# <23>
BATT_LOW_LED# <23>
SYSON <29,42>
EC_FW_UPDATE <17>
EC_RSMRST# <8>
ADP_SET1 <39>
VCIN1_ADP_PROCHOT <39>
VCOUT1_PROCHOT# <39,40>
VCOUT0_MAIN_PWR_ON <41>
BKOFF# <17>
PM_SLP_S3# <8>
1.05V_VS_PG_PWR <45>
VCIN1_AC_IN <31,40>
EC_ON <41>
ON/OFF# <23>
LID_SW# <23>
SUSP# <29,42,44,45>
2
1
R208 43_0402_1%
2
+3VALW_EC
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2
1
R165 0_0402_5%@
+3VALW
ME_EN <6>
FAN_ID
2
KBL@
1
R2000 10K_0402_5%
1
R2001 10K_0402_5%
NOKBL@
H_PECI <4>
SYSON
C193
0.1U_0201_10V6K
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
ADB@
1
R516 10K_0402_5%
1
R517 10K_0402_5%
NOADB@
T34 @
+3VALW
2
2
1
2
+3VALW
2
2
VCOUT1_PROCHOT#
VR_HOT#<47>
+3VALW
2
1
LID_SW#
R206
100K_0402_5%
NUVOTON_VTT
1
R210 0_0402_5%@
1
TP_CLK
R260 4.7K_0402_5%
1
R261 4.7K_0402_5%
TP_DATA
2
VCIN1_BATT_TEMP
VCIN1_AC_IN
1
R204 0_0402_5%@
1
R205 0_0402_5%@
2
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
1
C189 100P_0402_50V8J
2
1
C190 100P_0402_50V8J
2
1
R203 4.7K_0402_5%@
2
2
+1.05VS
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
BIOS & EC I/O Port
BIOS & EC I/O Port
BIOS & EC I/O Port
Page 26

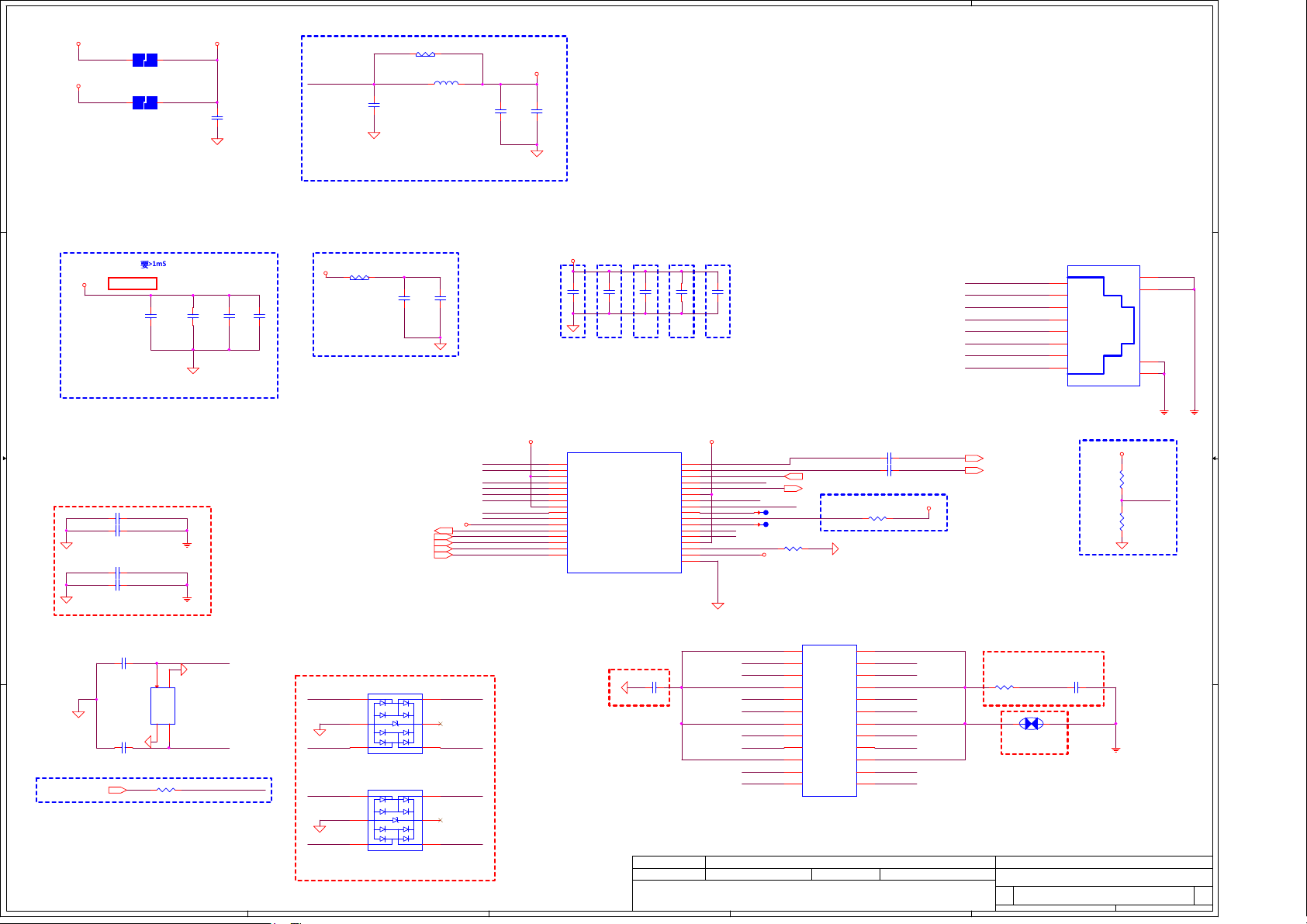

5
WWW.AliSaler.Com
4
3
2
1
+3VS
+3VALW
D D
112
JUMP_43X79
1
1
JUMP_43X79
J6
J7
2
+3V_LAN
2
=60mil60mil
W
+LAN_SROUT1.05
2
2
CL1
1U_0402_6.3V6K
1
@
CL15
8111GLDO@
0.1U_0201_10V6K
1 2
RL11 0_0603_5%@
1 2
2.2UH_NLC252018T-2R2J-N_5%
1
2
SWITCH@
LL1
CL16
SWITCH@
W=60mils
1
2
4.7U_0603_6.3V6K
+LAN_VDD
1
CL17
2
SWITCH@
0.1U_0201_10V6K
RJ-45 CONN.
+LAN_VDD
1
1
CL4
2
CL6
CL5
2
0.1U_0201_10V6K
0.1U_0201_10V6K
Pin3 Pin8 Pin22 Pin30 Pin22
+LAN_VDD
UL2
1
MDIP0
2
MDIN0
3
AVDD10
4
MDIP1
5
MDIN1
6
MDIP2
7
MDIN2
8
AVDD10
9
MDIP3
10
MDIN3
11
AVDD33
12
CLKREQB
13
HSIP
14
HSIN
15
REFCLK_P
16
REFCLK_N
RTL8111H-CG_QFN32_4X4SA000080P00
1
2
0.1U_0201_10V6K
PERSTB
ISOLATEB
LANWAKEB
DVDD10
VDDREG
REGOUT
LED1/GPO
CKXTAL1
CKXTAL2
AVDD10
AVDD33
CL7
HSOP
HSON
LED2
LED0
RSET
1
1
CL8
2
2
0.1U_0201_10V6K
1U_0402_6.3V6K
+LAN_VDD
2
1
LED1_GPIO
CL11 0.1U_0201_10V6K
2
1
CL12 0.1U_0201_10V6K
+3V_LAN
2
1
@
RL17 10K_0402_5%
17
PCIE_PRX_DTX_P3_C
18
PCIE_PRX_DTX_N3_C
19
PCIRST#
20
ISOLATE#
21
22
23
+LAN_VDDREG
24
+LAN_SROUT1.05
25
LED2
26
27
LED0
28
XTLO
29
XTLI
30
31
32
33
GND
TPL1
TPL2
+3V_LAN
2
PCIRST# < 8,21,22,25,30>
PCIE_WAKE# <8,21,25>
1
RL92.49K_0402_1%
RJ45_TX3-
RJ45_TX3+
RJ45_RX1-
RJ45_TX2-
RJ45_TX2+
RJ45_RX1+
RJ45_TX0-
RJ45_TX0+
PCIE_PRX_DTX_P3 <10>
PCIE_PRX_DTX_N3 <10>
+3V_LAN
C
要要要要
W=60mils
1
1
CL3
CL2
2
0.1U_0201_10V6K
1
@
@
CL21
CL20
2
2
4.7U_0603_6.3V6K
0.1U_0201_10V6K
RL1
+3V_LAN
1
2
4.7U_0603_6.3V6K
1
@
0_0603_5%
2
C
lose to Pin23
2
1
RL4 0.1U_0402_25V6EMI@
2
1
RL5 0.1U_0402_25V6EMI@
LANGAN
2
1
B
RL6 0.1U_0402_25V6EMI@
2
1
RL7 0.1U_0402_25V6EMI@
LANGAN1
PCIE_PTX_C_DRX_P3<10>
PCIE_PTX_C_DRX_N3<10>
+LAN_VDDREG
1
CL9
2
SWITCH@
LANCLK_REQ#<7>
CLK_PCIE_LAN<7>
CLK_PCIE_LAN#<7>
W=40mils
CL10
4.7U_0603_6.3V6K
SWITCH@
1
2
+3V_LAN
0.1U_0201_10V6K
LAN_MDIP0
LAN_MDIN0
LAN_MDIP1
LAN_MDIN1
LAN_MDIP2
LAN_MDIN2
LAN_MDIP3
LAN_MDIN3
JLAN1
8
PR4-
7
PR4+
6
PR2-
5
PR3-
4
PR3+
3
PR2+
2
PR1-
1
PR1+
SANTA_130460-3
DC234007K00
ME@
1K_0402_5%
15K_0402_5%
12
GND
11
GND
10
GND
9
GND
LANGAN1
LANGAN
+3VS
1
RL8
2
ISOLATE#
RL10
C
B
CL13
2
1
10P_0402_50V8J
NOGCLK@
10P_0402_50V8J
A
NOGCLK@
LAN_XTLI_GCLK<28>
CL14
1
2
1
RG6 0_0402_5%GCLK@
5
1
OSC
NC
2
4
YL1
NC
25MHZ_10PF_7V25000014
NOGCLK@
OSC
3
2
XTLO
LAN_MDIN3
XTLI
XTLI
LAN_MDIP3
LAN_MDIN1
LAN_MDIP1
@ESD@
DL1
1
I/O1
2
GND
3
I/O2
AZC099-04S.R7G_SOT23-6
SC300001G00
@ESD@
DL2
1
I/O1
2
GND
3
I/O2
AZC099-04S.R7G_SOT23-6
SC300001G00
4
+V_DAC
LAN_MDIP3
CL18
2
4
LAN_MDIP2
I/O3
5
VDD
6
LAN_MDIN2
I/O4
4
LAN_MDIP0
I/O3
5
VDD
6
LAN_MDIN0
I/O4
1
0.01U_0402_16V7K
EMI@
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
3
LAN_MDIN3
+V_DAC
LAN_MDIP2
LAN_MDIN2
+V_DAC
LAN_MDIP1
LAN_MDIN1
+V_DAC
LAN_MDIP0
LAN_MDIN0
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
TCT1
2
TD1+
3
TD1-
4
TCT2
5
TD2
6
TD2-
7
TCT3
8
TD3+
9
TD3-
10
TCT4
11
TD4+
12
TD4-
NS892407
Compal Secret Data
Compal Secret Data
Compal Secret Data
TL1
1
24
MCT1
23
MX1+
22
MX1-
21
MCT2
20
MX2+
19
MX2-
18
MCT3
17
MX3+
16
MX3-
15
MCT4
14
MX4+
13
MX4-
Deciphered Date
Deciphered Date
Deciphered Date
2
RJ45_TX3+
RJ45_TX3-
RJ45_TX2+
RJ45_TX2-
RJ45_RX1+
RJ45_RX1-
RJ45_TX0+
RJ45_TX0-
MCT
RL19
EMI@
2
1
75_0805_5%
2
DL3
BS4200N-C-LV_SMB-F2
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
CL19
EMI@
2
1
10P_0603_50V8-J
1
EMI@
LANGAN1
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
LAN RTL8111/8106
LAN RTL8111/8106
LAN RTL8111/8106
LA-C281
LA-C281
LA-C281
1
A
1.0
1.0
26 50Friday, February 06, 2015
26 50Friday, February 06, 2015
26 50Friday, February 06, 2015
1.0
of
of
of
Page 27

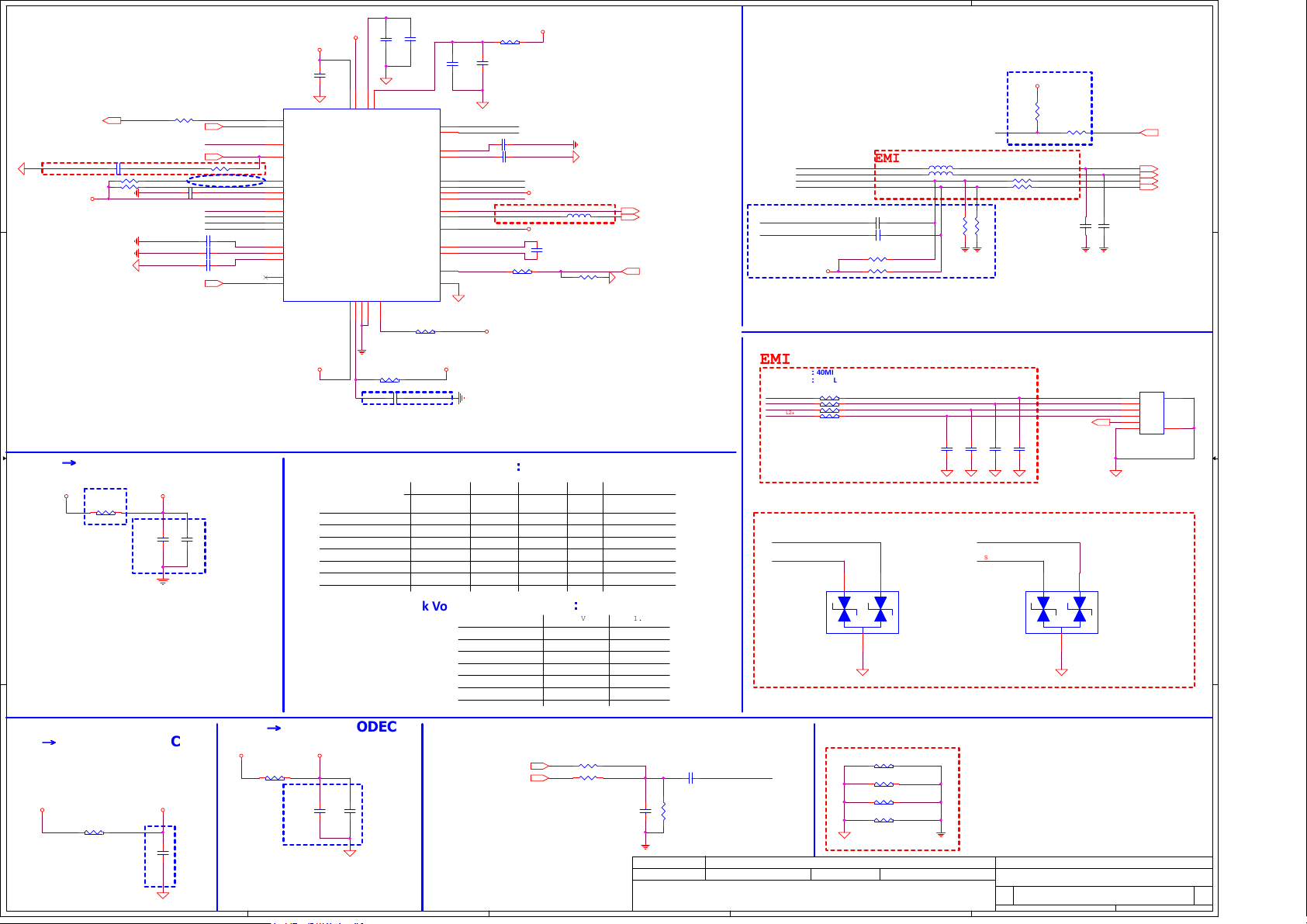

A
ALC3240
+1.8VS
2
CA17
4.7U_0603_6.3V6K
2
1
RA1233_0402_5%
2
1
1 2
1
1
1
2
0.1U_0201_10V6K
HDA_SDIN0_AUDIO
PC_BEEP
2
EXT_MIC_RING2
EXT_MIC_SLEEVE
SPK_L2+
SPK_L1SPK_R1SPK_R2+
CA262.2U_0402_6.3V6M
2
CA162.2U_0402_6.3V6M
2
CA132.2U_0402_6.3V6M
CA7
1
RA1033_0402_5% @EM I@
LDO1
LDO2
LDO3
11
13
14
15
23
35
36
37
38
21
32
10
ALC3240-CG_MQFN40_5X5
1 1
2
+5VS
3
HDA_SDIN0<6>
EMI
CA1222P_0402_50V8J @EMI@
1
RA6 2.2K_0402_5%
1
+MIC2-VREFO
RA7
→→→→
+5VDDA_CODEC
+5VS
RA4
0_0603_5%
2
1
@
HDA_SDOUT_AUDIO<6>
HDA_BITCLK_AUDIO<6>
2
2
2.2K_0402_5%
CA19 2.2U_0402_6.3V6M
HDA_SYNC_AUDIO<6>
+5VDDA_CODEC
1
CA11
2
1U_0402_6.3V6K
1
UA1
7
SDATA-IN
4
SDATA-OUT
PCBEEP
5
BCLK
MIC2-L(PORT-F-L)/RING
MIC2-R(PORT-F-R)/SLEEVE
MIC2-CAP
MIC2-VREFO
SPK-OUT-LP
SPK-OUT-LN
SPK-OUT-RN
SPK-OUT-RP
LDO1-CAP
LDO2-CAP
6
LDO3-CAP
DC DET
9
SYNC
+5VDDA_CODEC
AMD Carrizo
AMD Carrizo-L
Intel Broadwell
Intel Braswell
Intel Skylake
Intel Bay trail-M
+3VDD_CODEC
29
20
1
DVDD
CPVDD
AVDD1
AVDD2
33
RA5 0_0402_5%@
B
+5VS_PVDD+5VS_PVDD
2
1
CA1
CA3
1
2
0.1U_0201_10V6K
4.7U_0603_6.3V6K
+5VS_PVDD
39
34
HPOUT-L(PORT-I-L)
PVDD2
PVDD1
HPOUT-R(PORT-I-R)
VREF
CPVEE
LINE1-R(PORT-C-R)
LINE1-L(PORT-C-L)
LINE1-VREFO-L
HP/ LINE1-JD(JD1)
GPIO0/DMIC-DATA12
GPIO1/DMIC-CLK
DVDD-IO
CBN
CBP
PDB
THERMAL PAD
VD33STB
AVSS1
AVSS2
16
19
31
1
RA9 0_0402_5%@
2
1
2
1
CA8 1U_0402_6.3V6K
+1.5VS +1.8VS +3VS +5VS +3VALW
1.5V(S0) 1.8V(S0) 3.3V(S0) 5V(S0) 3.3V(S0~S5)
RA1
1
2
CA32
1
4.7U_0603_6.3V6K
25
26
CA27 1U_0402_6.3V6K
22
27
CPVEE
17
18
24
12
2
3
DMIC_CLK_R
8
28
30
40
41
2
+1.8VS
V
V
AMD Carrizo
AMD Carrizo-L
Intel Broadwell
Intel Braswell
Intel Skylake
Intel Bay trail-M
C
+5VS
1 2
@
0_0402_5%
CA2
0.1U_0201_10V6K
HP_OUTL
Headphone
1 2
12
CA20 1U_0402_6.3V6K
LINE1-R
LINE1-L
PLUG_IN_R
1
+3VALW
+LINE1-VREFO-R
+IOVDD_CODEC
@
1
CA15
1U_0402_6.3V6K
2
2
RA110_0402_5%
2
2
RA8 10K_0402_5%
@
EMI
1
LA1BLM15PX221SN1D_2P EMI@
1
：：：：
V
V
V VV V V
V
V V
V V VVV
V
V
：：：：
3.3V 1.5V
V V
V V
External DMIC
DMIC_DAT <17>
DMIC_CLK <17>
EC_MUTE# <25>
VV
VVVV
VVVV
V
V
V
V
Input
EXT_MIC_SLEEVE
W=40mils
EXT_MIC_RING2
W=40mils
HP_OUTL
HP_OUTR
LINE1-L
LINE1-R
+LINE1-VREFO-R
Output
EMI
SPK_R1-
LA5 0_0603_5%@
SPK_R2+
LA6 0_0603_5%@
LA7 0_0603_5%@
SPK_L1SPK_L2+
LA8 0_0603_5%@
SPK_R1-_CONN
SPK_R2+_CONN
D
E
place close audio codec
+IOVDD_CODEC
RA29 4.7K_0402_5%
RA32 4.7K_0402_5%
：：：：
：：：：
2
1
2
1
2
1
2
1
EMI
LA2 FBMA-L11-160808-121LMT_0603EMI@
LA3 FBMA-L11-160808-121LMT_0603EMI@
2
1
CA21 1U_0402_6.3V6K
2
1
CA22 1U_0402_6.3V6K
2
1
2
1
SPK_R1-_CONN
SPK_R2+_CONN
SPK_L1-_CONN
SPK_L2+_CONN
2
RA38
100K_0402_5%
1
PLUG_IN_RHP_OUTR
2
1
2
1
RA26
10K_0402_5%
1
CA28
2
1000P_0402_50V7K
EMI@
1 2
RA22 47_0402_5%EMI@
1 2
RA23 47_0402_5%EMI@
2
2
@
@
RA27
1
1
10K_0402_5%
1
1
CA29
EMI@
CA31
CA30
2
2
1000P_0402_50V7K
1000P_0402_50V7K
EMI@
EMI@
1 2
RA13 200K_0402_1%
Speaker_JBL<9>
1
2
1000P_0402_50V7K
CA33
HGNDB
HGNDAHGNDA
HPOUT_L
HPOUT_R
1
1
CA34
2
2
470P_0402_50V7K
470P_0402_50V7K
JSPK2
1
1
2
2
3
3
4
4
5
5
6
6
ACES_50278-00601-001
ME@
SP011310040
ESD protection needs to be placed near connector side
SPK_L2+_CONNSPK_L2+_CONN
SPK_L1-_CONNSPK_L1-_CONN
3
3
1
1
2
D4
@ESD@
2
L03ESDL5V0CG3-2_SOT-523-3
3
3
1
1
2
D10
@ESD@
2
L03ESDL5V0CG3-2_SOT-523-3
PLUG_IN <24>
HGNDB <24>
HGNDA <24>
HPOUT_L <24>
HPOUT_R < 24>
7
G1
8
G2
2
3
4
→→→→
+IOVDD_CODEC
+3VDD_CODEC
RA3
0_0603_5%
1
@
+3VS
→→→→
+3VDD_CODEC+3VDD_CODEC
+3VS
+IOVDD_CODEC
2
1
CA6
2
0.1U_0201_10V6K
A
RA2
0_0603_5%
1
@
+3VDD_CODEC
2
1
2
0.1U_0201_10V6K
1
CA5
CA4
2
1U_0402_6.3V6K
B
EMI
2
BEEP#<25>
HDA_SPKR<9>
1
RA35 47K_0402_5%
2
1
RA37 47K_0402_5%
100P_0402_50V8J
@ESD@
CA90
CA91
1U_0402_6.3V6K
2
1
1
1
RA39
27K_0402_5%
2
2
PC_BEEPPC_BEEP
RA21 0_0402_5%@
RA24 0_0402_5%@
RA25 0_0402_5%@
RA28 0_0402_5%@
GND
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
C
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
D
2
1
2
1
2
1
2
1
4
GNDA
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
Compal Electronics, Inc.
HD Audio Codec_ALC3240
HD Audio Codec_ALC3240
HD Audio Codec_ALC3240
LA-C281
LA-C281
LA-C281
E
27 50Friday, February 06, 2015
27 50Friday, February 06, 2015
27 50Friday, February 06, 2015
1.0
1.0
1.0
of
of
of

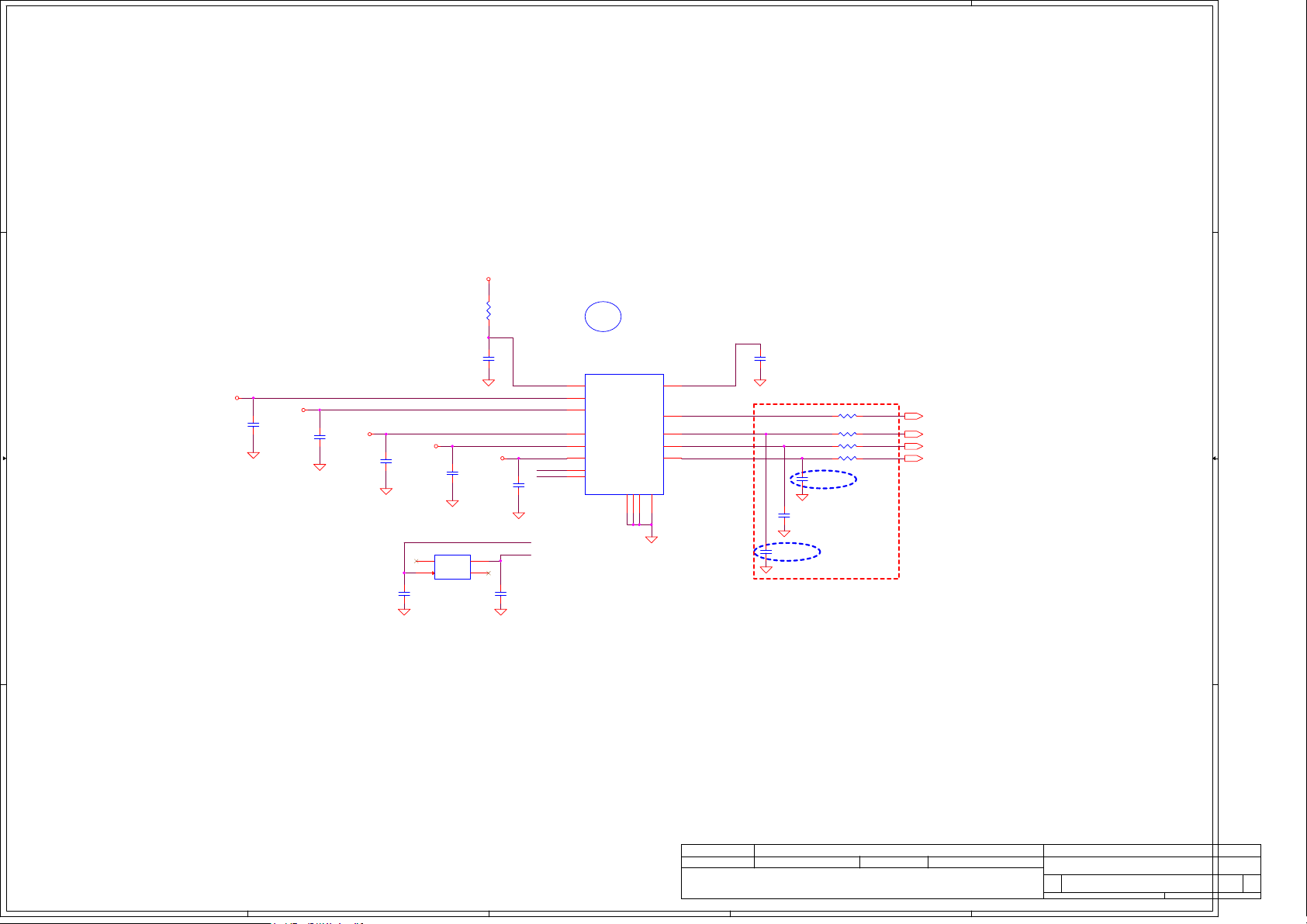

Page 28
5
WWW.AliSaler.Com
D D
C
+3VLP
0.1U_0201_10V6K
GCLK@
B
+3VALW
1
CG4
2
0.1U_0201_10V6K
CG10
GCLK@
1
2
+1.8VGS
CG1
0.1U_0201_10V6K
GCLKDIS@
12P_0402_50V8J
4
CL28
GCLK@
+3V_LAN
1
2
0.1U_0201_10V6K
1
2
330_0402_5%
GCLK@
22U_0603_6.3V6M
GCLK@
1
CG3
GCLK@
2
0.1U_0201_10V6K
YG1
4
OSC
NC
1
NC
OSC
25MHZ_10PF_7V25000014
GCLK@
+CHGRTC_R
RG1
CG5
+1.05VS
3
2
1
2
1
2
CG2
GCLK@
CLK_X1
CLK_X2
1
CL29
15P_0402_50V8J
GCLK@
2
GCLK_VRTC
CLK_X2
CLK_X1
1
2
SLG3NB3377VTR_TQFN16_2X3
3
UG1
SLG3NB3375VTR_TQFN16_2X3
GCLKUMA@
SA00006RE00
UG1
10
15
2
11
8
3
16
1
VRTC
V3.3A
VDD
VIOE_27M
VIO_25M
VIOE_24M
X2
X1
GCLKDIS@
SA00007VH00
GND1
4
32.768kHz
GND3
GND2
7
13
VOUT
27M
25M
24M
17
14
9
12
6
5
GND4
RTC_VOUT
CPU_RTCX1_GCLK_R
GPU_XTALIN_GCLK_R
LAN_XTLI_GCLK_R
CPU_XTAL24_IN_GCLK_R
1
CG11
2.2U_0402_6.3V6M
GCLK@
2
1
CG7
5P_0402_50V8C
@EMI@
2
1
RG4 0_0402_5%GCLK@
1
RG5 10_0402_5%GCLKDIS@
1
RG7 33_0402_5%GCLK@
1
RG8 0_0402_5%GCLK@
1
CG9
5P_0402_50V8C
@EMI@
2
1
CG8
5P_0402_50V8C
@EMI@
2
2
2
2
2
2
CPU_RTCX1_GCLK <6>
GPU_XTALIN_GCLK <31>
LAN_XTLI_GCLK <26>
CPU_XTAL24_GCLK <7>
1
C
B
A
5
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER TH IS SHEET NOR THE INFORMATION I T CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER TH IS SHEET NOR THE INFORMATION I T CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER TH IS SHEET NOR THE INFORMATION I T CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
4
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
GCLK
GCLK
GCLK
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
LA-C281
LA-C281
LA-C281
Date: Sheet
Date: Sheet
Date: Sheet
1
50Friday, February 06, 2015
28
of
50Friday, February 06, 2015
28
of
50Friday, February 06, 2015
28
of
1.0
1.0
1.0

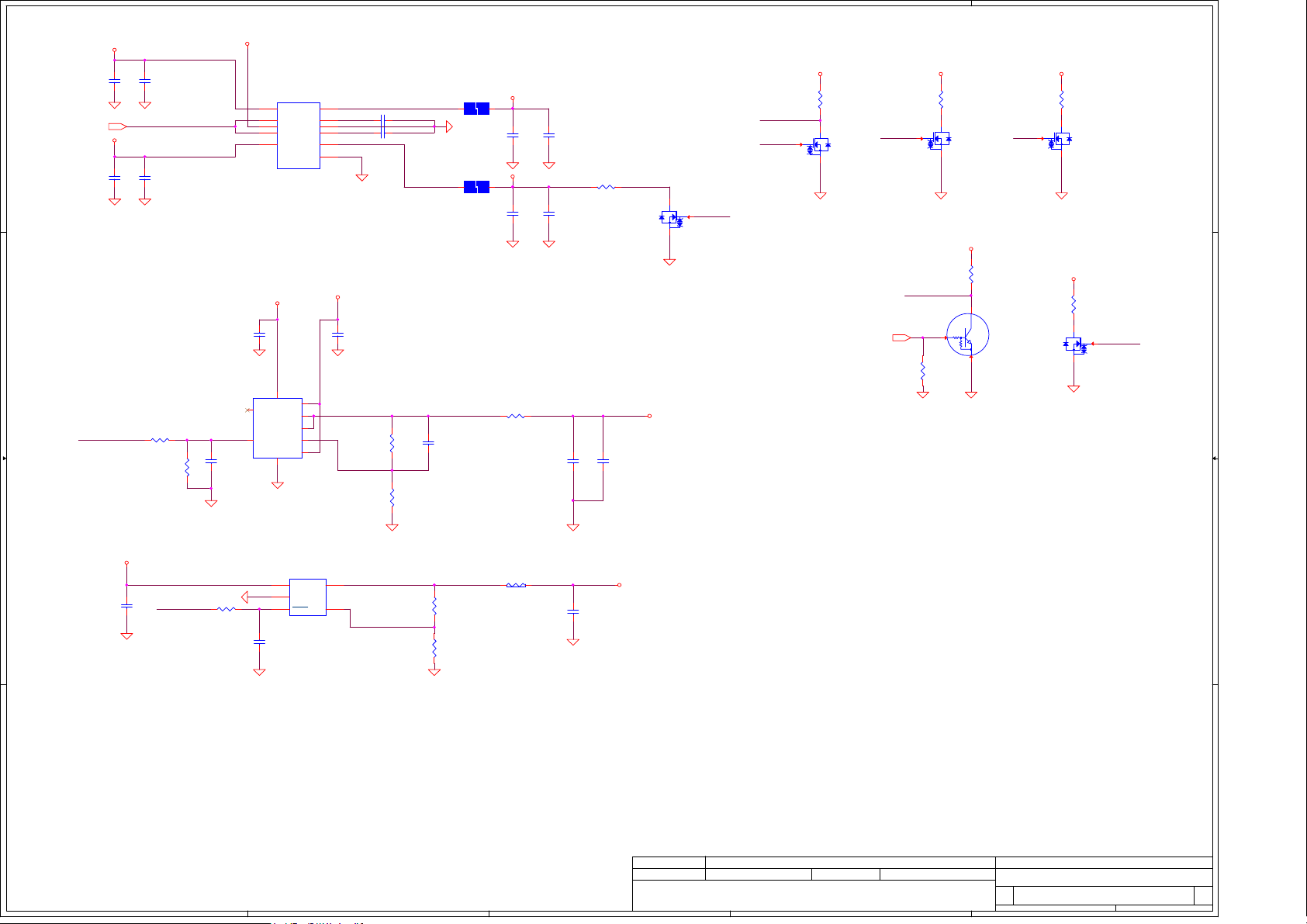

Page 29
A
B
C
D
E
+5VALW
10U_0603_6.3V6M
0.1U_0201_10V6K
1 1
2
SUSP#<25,42,44,45>
+3VALW
0.1U_0201_10V6K
SUSP#
C214
1
2
C205
1
2
R20 60.4K_0402_1%@
10U_0603_6.3V6M
C215
1
@
2
C206
1
@
2
1
R24
47K_0402_5%
2
1
@
2
+5VALW
U13
1
IN1
2
EN1
3
VBIAS
4
EN2
IN25OUT2
G5016KD1U_TDFN14-11_2X3
+5VALW
1
C450
@
1U_0402_6.3V6K
1
2
C21
@
7
8
0.1U_0402_25V6
2
6
VIN
POK
VOUT
VCNTL
VOUT
EN
VIN
GND
1
U25
@
SA00007IZ00
AP7175SP-13_SO-8EP-8
OUT1
GND PAD
FB
CT1
GND
CT2
+3VALW
5
4
3
2
9
10
+5VALW_5VS
9
C213 220P_0402_50V7K
8
7
C207 470P_0402_50V7K
6
+3VALW_3VS
11
1
C80
@
4.7U_0603_6.3V6K
2
Rup
R512
24K_0402_1%
Rdown
R513
19.1K_0402_1%
+5VS
J5
2
112
2
1
2
1
2
JUMP_43X79
J4
112
JUMP_43X79
10U_0603_6.3V6M
0.1U_0201_10V6K
C218
C217
1
1
@
2
2
+3VS
10U_0603_6.3V6M
0.1U_0201_10V6K
C211
C212
1
1
@
2
2
1
R235 470_0603_5%@
2
Ultra Low Dropout 0.23V(typical) at 3A Outp ut Current
2
@
1
R32 0_0402_5%@
1
1
C9
C20
2
2
@
@
0.1U_0402_25V6
1U_0402_6.3V6K
+3VALW_1.8VS
1
@
@
1
C452
0.01U_0402_16V7K
2
2
1
Vout=0.8V* (1+Rup/Rdown)
2
D
S
+1.8VS
1
G
Q14
3
2N7002K_SOT23-3
R229
470_0402_5%
2
G
+1.05VS
1
@
2
1
D
Q22
2N7002K_SOT23-3
S
3
@
+5VALW
1
R230
100K_0402_5%
SUSP
SUSP#
2
SUSP
@
@
2
1
D
2
Q23
@
2N7002K_SOT23-3
G
S
3
+0.675VS
1
R228
@
470_0402_5%
2
1
D
2
Q21
SUSP SUSP
G
2N7002K_SOT23-3
S
3
@
+5VALW
2
@
DRC2124E0L NPN MINI3-G3-B
SYSON<25,42>
SYSON#
@
1
R239
100K_0402_5%
2
R233
220K_0402_5%
1
Q24
1
OUT
2
IN
2N7002K_SOT23-3
GND
3
+1.35V
1
R234
470_0603_5%
@
2
1
D
2
Q25
@
S
SYSON#
G
3
2
+3VALW
3
1
SUSP#
C81
2
1U_0402_6.3V6K
4
A
R131
1
100K_0402_5%
2
1
C110
0.1U_0402_25V6
2
U26
1
IN
OUT
2
GND
3
SHDN
SET
G916T1UF_SOT23-5
5
4
Rdown
B
Rup
+3VALW_1.8VS_1
1
2
1
2
R51 0_0402_5%@
R514
44.2K_0402_1%
R515
100K_0402_1%
Vout=1.25V* (1+Rup/Rdown)
2
1
1
2
C109
@
4.7U_0603_6.3V6K
C
+1.8VS
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
D
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
Compal Electronics, Inc.
DC Interface
DC Interface
DC Interface
LA-C281
LA-C281
LA-C281
E
29 50Friday, February 06, 2015
29 50Friday, February 06, 2015
29 50Friday, February 06, 2015
of
of
of
3
4
1.0
1.0
1.0

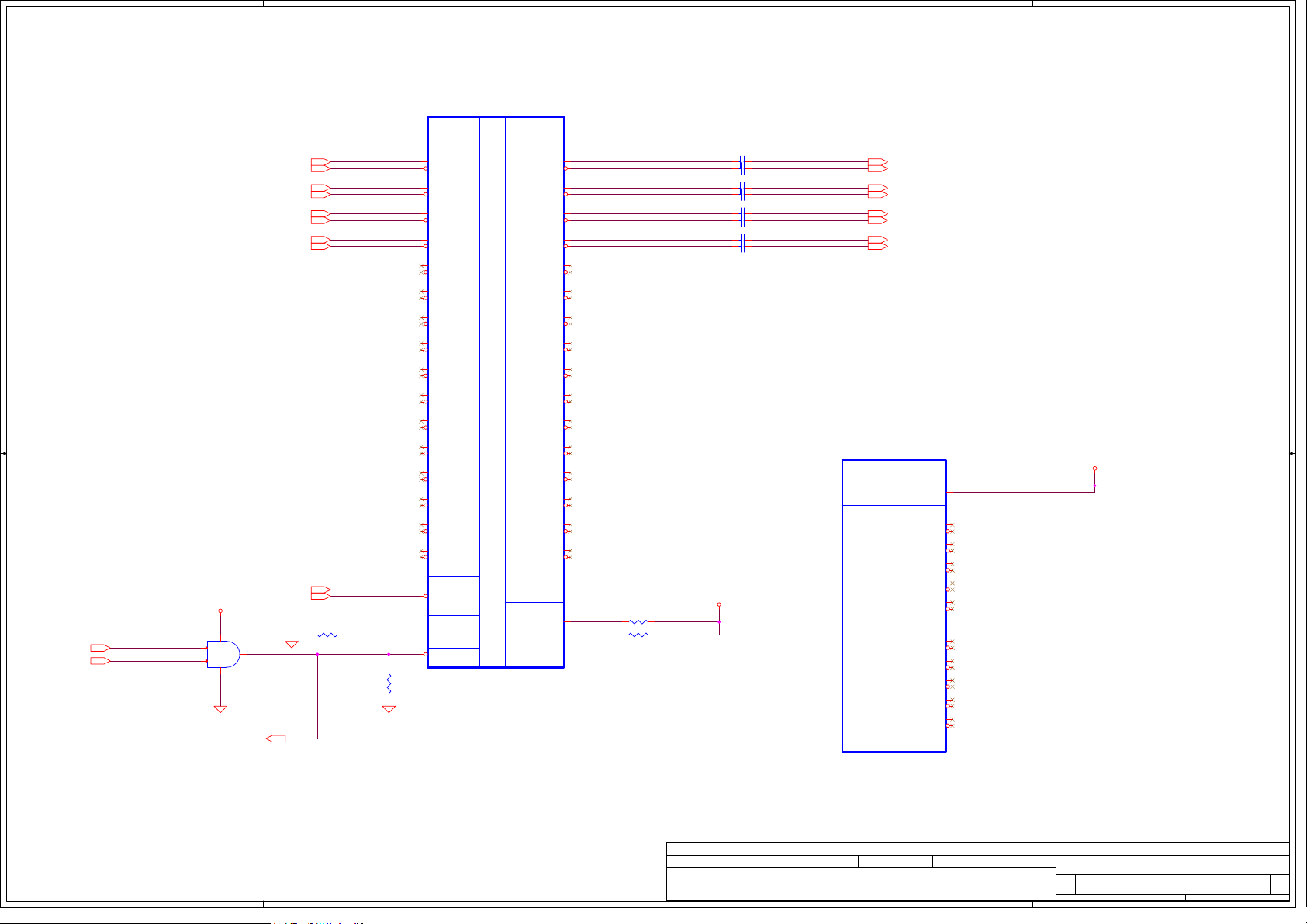

Page 30
1
WWW.AliSaler.Com
2
3
4
5
1
2
UV1A
AF30
PCIE_RX0P
AE31
PCIE_RX0N
AE29
PCIE_RX1P
AD28
PCIE_RX1N
AD30
PCIE_RX2P
AC31
PCIE_RX2N
AC29
PCIE_RX3P
AB28
PCIE_RX3N
AB30
PCIE_RX4P
AA31
PCIE_RX4N
AA29
PCIE_RX5P
Y28
PCIE_RX5N
Y30
PCIE_RX6P
W31
PCIE_RX6N
W29
PCIE_RX7P
V28
PCIE_RX7N
V30
NC#V30
U31
NC#U31
U29
NC#U29
T28
NC#T28
T30
NC#T30
R31
NC#R31
R29
NC#R29
P28
NC#P28
P30
NC#P30
N31
NC#N31
N29
NC#N29
M28
NC#M28
M30
NC#M30
L31
NC#L31
L29
NC#L29
K30
NC#K30
CLOCK
AK30
PCIE_REFCLKP
AK32
PCIE_REFCLKN
N10
TEST_PG
AL27
PERSTB
216-0864018 A0 MESO XT S3
PX@
PCI EXPRESS INTERFACE
PCIE_TX0P
PCIE_TX0N
PCIE_TX1P
PCIE_TX1N
PCIE_TX2P
PCIE_TX2N
PCIE_TX3P
PCIE_TX3N
PCIE_TX4P
PCIE_TX4N
PCIE_TX5P
PCIE_TX5N
PCIE_TX6P
PCIE_TX6N
PCIE_TX7P
PCIE_TX7N
NC#W24
NC#W23
CALIBRATION
PCIE_CALR_TX
PCIE_CALR_RX
NC#V27
NC#U26
NC#U24
NC#U23
NC#T26
NC#T27
NC#T24
NC#T23
NC#P27
NC#P26
NC#P24
NC#P23
NC#M27
NC#N26
A
PCIE_CTX_GRX_P0<10>
PCIE_CTX_GRX_N0<10>
PCIE_CTX_GRX_P1<10>
PCIE_CTX_GRX_N1<10>
PCIE_CTX_GRX_P2<10>
PCIE_CTX_GRX_N2<10>
PCIE_CTX_GRX_P3<10>
PCIE_CTX_GRX_N3<10>
B
C
CLK_PCIE_GPU<7>
+3VGS
PCIRST#<8,21,22,25,26>
DGPU_HOLD_RST#<8>
PCIRST#
DGPU_HOLD_RST#
MC74VHC1G08DFT2G_SC70-5
2
B
1
A
CLK_PCIE_GPU#<7>
5
UV2
PX@
P
4
Y
G
3
GPU_RST#<31>
RV2 1K_0402_5%PX@
CLK_PCIE_GPU
CLK_PCIE_GPU#
2
1
GPU_RST#
PX@
RV4
100K_0402_5%
AC Coupling Capacitor
PCIe Gen3: Recommended value is 220 nF
PCIe Gen1 and Gen2 only: Recommended value is 100 nF
2
+0.95VGS
1
CV10.1U_0201_10V6K PX@
2
1
CV20.1U_0201_10V6K PX@
2
1
CV30.1U_0201_10V6K PX@
12
CV40.1U_0201_10V6K PX@
2
1
CV50.1U_0201_10V6K PX@
2
1
CV60.1U_0201_10V6K PX@
2
1
CV70.1U_0201_10V6K PX@
2
1
CV80.1U_0201_10V6K PX@
UV1F
216-0864018 A0 MESO XT S3
PX@
AH30
AG31
AG29
AF28
AF27
AF26
AD27
AD26
AC25
AB25
Y23
Y24
AB27
AB26
Y27
Y26
W24
W23
V27
U26
U24
U23
T26
T27
T24
T23
P27
P26
P24
P23
M27
N26
Y22
AA22
PCIE_CRX_GTX_P0_C
PCIE_CRX_GTX_N0_C
PCIE_CRX_GTX_P1_C
PCIE_CRX_GTX_N1_C
PCIE_CRX_GTX_P2_C
PCIE_CRX_GTX_N2_C
PCIE_CRX_GTX_P3_C
PCIE_CRX_GTX_N3_C
1
RV1 1.69K_0402_1%PX@
1
RV3 1K_0402_1%PX@
2
2
PCIE_CRX_GTX_P0 <10>
PCIE_CRX_GTX_N0 <10>
PCIE_CRX_GTX_P1 <10>
PCIE_CRX_GTX_N1 <10>
PCIE_CRX_GTX_P2 <10>
PCIE_CRX_GTX_N2 <10>
PCIE_CRX_GTX_P3 <10>
PCIE_CRX_GTX_N3 <10>
VARY_BL
DIGON
TXCAP_DPA3P
TXCAM_DPA3N
TX0P_DPA2P
TX0M_DPA2N
TX1P_DPA1P
TX1M_DPA1N
TX2P_DPA0P
TX2M_DPA0N
NC_TXOUT_L3P
NC_TXOUT_L3N
TMDP
TXCBP_DPB3P
TXCBM_DPB3N
TX3P_DPB2P
TX3M_DPB2N
TX4P_DPB1P
TX4M_DPB1N
TX5P_DPB0P
TX5M_DPB0N
NC_TXOUT_U3P
NC_TXOUT_U3N
AB11
AB12
AL15
AK14
AH16
AJ15
AL17
AK16
AH18
AJ17
AL19
AK18
AH20
AJ19
AL21
AK20
AH22
AJ21
AL23
AK22
AK24
AJ23
A
B
+VGA_CORE
FOR TOPAS CORE POWER USE
C
D
1
D
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
2
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
4
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
Compal Electronics, Inc.
Meso XT_PCIE/DP
Meso XT_PCIE/DP
Meso XT_PCIE/DP
LA-C281
LA-C281
LA-C281
5
30 50Friday, February 06, 2015
of
30 50Friday, February 06, 2015
of
30 50Friday, February 06, 2015
of
1.0
1.0
1.0

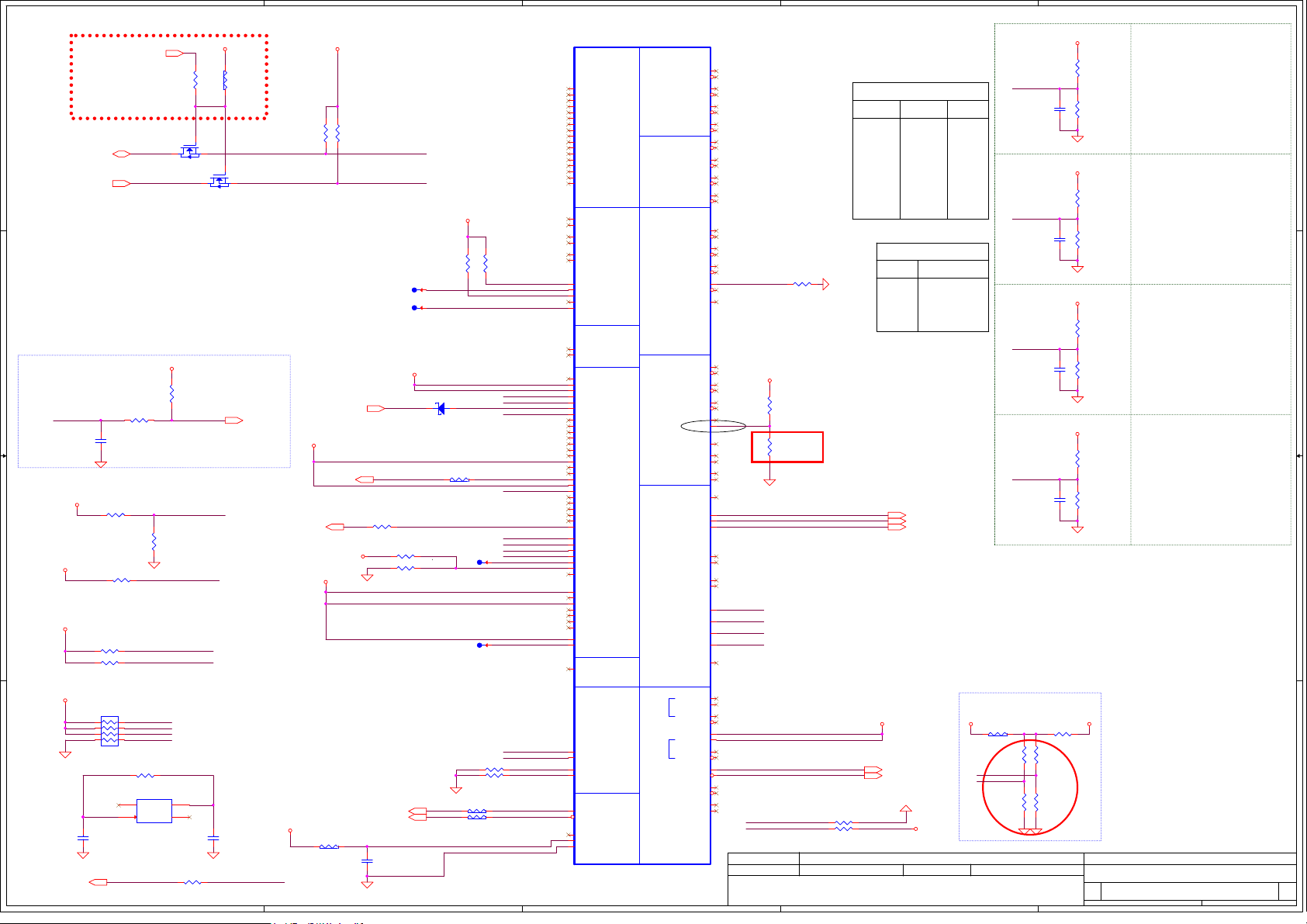

Page 31
1
2
3
4
5
2
1
2
1
CV30
@
CV31
@
PX@
CV32
2
1
2
1
+1.8VGS
1
PX@
RV12
8.45K_0 402_1%
2
1
1
PX@
RV7
2K_0402 _1%
2
2
0.68U_0402_10V
1
@
RV9
8.45K_0 402_1%
2
1
1
PX@
RV14
4.75K_0 402_1%
2
2
0.68U_0402_10V
+1.8VGS
1
@
RV57
8.45K_0 402_1%
2
1
1
PX@
RV19
4.75K_0 402_1%
2
2
0.68U_0402_10V
+1.8VGS
1
X76@
RV21
8.45K_0 402_1%
2
1
1
X76@
RV24
@
CV33
2K_0402 _1%
2
2
0.68U_0402_10V
+3VGS
RV207
2
1
@
0_0402_ 5%
RV208
10K_040 2_5%
@
PX@
RV205
10K_040 2_5%
Title
Title
Title
Size Document Numb er Rev
Size Document Numb er Rev
Size Document Numb er Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
Strap Name :
PS_0[1] ROM_CONFIG[0]
PS_0[2] ROM_CONFIG[1]
PS_0[3] ROM_CONFIG[2]
PS_0[4] N/A
PS_0[5] AUD_PORT_CONN_PINSTRAP[0]
Strap Name :
PS_1[1] STRAP_BIF_GEN3_EN_A
PS_1[2] TRAP_BIF_CLK_PM_EN
PS_1[3] N/A
PS_1[4] STRAP_TX_CFG_DRV_FULL_SWING
PS_1[5] STRAP_TX_DEEMPH_EN
Strap Name :
PS_2[1] N/A
PS_2[2] N/A
PS_2[3] STRAP_BIOS_ROM_EN
PS_2[4] STRAP_BIF_VGA_DIS
PS_2[5] N/A
Strap Name :
PS_3[1] BOARD_CONFIG[0] (Memory ID)
PS_3[2] BOARD_CONFIG[1] (Memory ID)
PS_3[3] BOARD_CONFIG[2] (Memory ID)
PS_3[4] AUD_PORT_CONN_PINSTRAP[1]
PS_3[5] AUD_PORT_CONN_PINSTRAP[2]
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Meso XT_MSIC
Meso XT_MSIC
Meso XT_MSIC
LA-C281
LA-C281
LA-C281
5
1.0
1.0
31 50Frid ay, February 06, 2015
31 50Frid ay, February 06, 2015
31 50Frid ay, February 06, 2015
1.0
of
of
of
+3VGS
1
1
RV202
RV203
45.3K_0 402_1%
2
2
VCIN1_AC_ IN<25,40>
+VGA_CORE
THM_ALERT#<22>
RV25 0_0402_ 5%
+3VGS
+VGA_CORE
TO EXTERNAL THERMAL SENSOR
2
1
LV4 0_040 2_5%@
VGA_SMB _DA3
VGA_SMB _CK3
TV23
TV18
+VGA_CORE
DV1
THM_ALERT#
2
1
@
1
@
RV26 5.11K_0 402_5%
1
PX@
RV27 1K_0402 _5%
REMOTE1+<22>
REMOTE1-<22>
1
CV21
1U_0402 _6.3V6K
PX@
2
2
RV16
4.7K_04 02_5%
PX@
1
FB_VDDCI
1
PLL_ANA LOG_IN
PX@
1
2
DB2J3140 0L SOD323 -2
1
RV251 0_0402_5 %@
2
2
RV248 0_0402_5%@
RV249 0_0402_5%@
Enable MLPS
+1.8VGS
2
1
2
TV24
TV25
1
RV29 10K_04 02_5%PX@
1
RV31 10K_04 02_5%PX@
1
1
2
RV11
4.7K_04 02_5%
PX@
1
VGA_SMB _DA3
VGA_SMB _CK3
GPU_GPIO 5
GPU_GPIO 6
GPUCLK_R EQ#_GPU
JTAG_TRSTB
JTAG_TDI
JTAG_TCK
JTAG_TMS
1
JTAG_TDO
TESTEN
1
PX_EN
XTALIN
XTALOUT
2
2
2
2
+TSVDD
THM_ALERT#_R
GPIO19_ CTF
THERM_D+
THERM_D-
UV1B
N9
DBG_DATA16
L9
DBG_DATA15
AE9
DBG_DATA14
Y11
DBG_DATA13
AE8
DBG_DATA12
AD9
DBG_DATA11
AC10
DBG_DATA10
AD7
DBG_DATA9
AC8
DBG_DATA8
AC7
DBG_DATA7
AB9
DBG_DATA6
AB8
DBG_DATA5
AB7
DBG_DATA4
AB4
DBG_DATA3
AB2
DBG_DATA2
Y8
DBG_DATA1
Y7
DBG_DATA0
W6
NC#W6
V6
NC#V6
AC6
NC#AC5
AC5
NC#AC6
AA5
NC#AA5
AA6
NC#AA6
U1
NC#U1
W1
NC#W1
U3
NC#U3
Y6
NC#Y6
AA1
NC#AA1
I2C
R1
SCL
R3
SDA
GENERAL PURPOSE I/O
U6
GPIO_0
U10
GPIO_1
T10
GPIO_2
U8
SMBDATA
U7
SMBCLK
T9
GPIO_5_AC_BATT
T8
GPIO_6
T7
GPIO_7_BLON
P10
GPIO_8_ROMSO
P4
GPIO_9_ROMSI
P2
GPIO_10_ROMSCK
N6
GPIO_11
N5
GPIO_12
N3
GPIO_13
Y9
GPIO_14_HPD2
N1
GPIO_15_PWRCNTL_0
M4
GPIO_16
R6
GPIO_17_THERMAL_INT
W10
GPIO_18
M2
GPIO_19_CTF
P8
GPIO_20_PWRCNTL_1
P7
GPIO_21
N8
GPIO_22_ROMCSB
AK10
GPIO_29
AM10
GPIO_30
N7
CLKREQB
L6
JTAG_TRSTB
L5
JTAG_TDI
L3
JTAG_TCK
L1
JTAG_TMS
K4
JTAG_TDO
K7
TESTEN
AF24
NC#AF24
AB13
GENERICA
W8
GENERICB
W9
GENERICC
W7
GENERICD
AD10
GENERICE
AJ9
NC#AJ9
AL9
NC#AL9
AC14
HPD1
AB16
PX_EN
AC16
DBG_VREFG
PLL/CLOCK
AM28
XTALIN
AK28
XTALOUT
AC22
XO_IN
AB22
XO_IN2
SEYMOUR/FutureASIC
T4
DPLUS
T2
DMINUS
R5
GPIO28_FDO
AD17
TSVDD
AC17
TSVSS
216-0864 018 A0 MES O XT S3
PX@
THERMAL
DVO
U?
DPA
DPB
DPC
AVSSN#AK26
AVSSN#AJ25
AVSSN#AG25
DAC1
FutureASIC/SEYMOUR/PARK
RSVD#AK12
GENLK_CLK
GENLK_VSYNC
SWAPLOCKA
SWAPLOCKB
DDC/AUX
DDCVGACLK
DDCVGADATA
3
NC#AF2
NC#AF4
NC#AG3
NC#AG5
NC#AH3
NC#AH1
NC#AK3
NC#AK1
NC#AK5
NC#AM3
NC#AK6
NC#AM5
NC#AJ7
NC#AH6
NC#AK8
NC#AL7
NC#V4
NC#U5
NC#W3
NC#V2
NC#Y4
NC#W5
NC#AA3
NC#Y2
NC#J8
HSYNC
VSYNC
RSET
AVDD
AVSSQ
VDD1DI
VSS1DI
CEC_1
RSVD#AL11
RSVD#AJ11
PS_0
PS_1
PS_2
PS_3
TS_A
DDC1CLK
DDC1DATA
AUX1P
AUX1N
DDC2CLK
DDC2DATA
AUX2P
AUX2N
NC#AD20
NC#AC20
NC#AE16
NC#AD16
AF2
AF4
AG3
AG5
AH3
AH1
AK3
AK1
AK5
AM3
AK6
AM5
AJ7
AH6
AK8
AL7
V4
U5
W3
V2
Y4
W5
AA3
PLL_ANA LOG_OUT
Y2
J8
AM26
R
AK26
AL25
G
AJ25
AH24
B
AG25
AH26
AJ27
AD22
AG24
AE22
Pull down for none OBFF design
AE23
AD23
AM12
AK12
AL11
AJ11
AL13
AJ13
AG13
AH12
AC19
AD19
AE17
AE20
AE19
AE6
AE5
AD2
AD4
AC11
AC13
AD13
AD11
AD20
GPU_VDD_ RUN_FB_L
AC20
GPU_VDD_ SEN
AE16
AD16
AC1
AC3
Security Classification
Security Classification
Security Classification
THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .
16.2K_0 402_1%
+3VGS
2
RV371
4.7K_04 02_5%
@
1
2
RV372
4.7K_04 02_5%
PX@
1
PS_0
PS_1
PS_2
PS_3
GPU_VDD_ RUN_FB_L
GPU_VDD_ SEN
Issued Date
Issued Date
Issued Date
1
PX@
RV17
RV30 10_040 2_5%PX @
RV32 10_040 2_5%PX @
R_pd (ohm)R_pu (ohm)
NC
8.45k
4.53k
6.98k
4.53k
3.24k
3.4k
4.75k
4.75k
2k
2k
4.99k
4.99k
5.62k
10k
NC
Bitd [3:1]
000
001
010
011
100
101
110
111
GPU_SVD
GPU_SVT
GPU_SVC
2
2
+VGA_CORE
Cap (nF) Bitd [5:4]
680nF
00
82nF
01
10nF 10
NC
11
GPU_SVD <46>
GPU_SVT <46>
GPU_SVC <46>
GPU_VDD_ RUN_FB_L <46>
GPU_VDD_ SEN <46>
+VGA_CORE
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
4
+1.8VGS
2
1
1
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
GPU_RST#<30>
@
0_0402_ 5%
A A
2N7002E DW 2N SOT-36 3-6
RV15
PX@
1K_0402 _5%
2
PX@
2
1 2
1
JTAG_TRSTB
JTAG_TDI
JTAG_TMS
JTAG_TCK
RV28
1M_0402 _5%
NOGCLKDIS @
YV1
NOGCLKDIS @
4
OSC
NC
1
OSC
SJ10000 FH00
RV253 0_0402_ 5%GCLK DIS@
1
6
+3VGS
2
1
RV22
10K_040 2_5%
NC
EC_SMB_D A2<7,19,22,25>
EC_SMB_C K2<7,19,22,25>
B
GPU_GPIO 6
+1.8VGS
C
D
+3VGS
+3VGS
+3VGS
8.2P_04 02_50V_NP O
GPU_XTALI N_GCLK<28>
RV58 10K_04 02_5%PX@
RV20 10K_04 02_5%@
XTALIN
2
CV19
NOGCLKDIS @
1
2N7002E DW 2N SOT-36 3-6
1
CV17
0.1U_020 1_10V6K
2
1
RV13
10K_040 2_5%
@
2
RV18 4.7K_04 02_5%PX@
1
1
VGA_AC_BATT
pull up
RPV1
@
1
2
3
4
10K_080 4_8P4R_5%
27MHZ 10P F X3G0270 00DA1H
GPU_XTALI N_GCLK
1
2
2
8
7
6
5
12
R56
2
QV9A
RV10
10K_040 2_5%
GPU_PROC HOT#
GPIO19_ CTF
THM_ALERT#
GPU_GPIO 5
JTAG_TDO
XTALOUT
3
2
1
+3VGS
1
2
1
5
3
QV9B
PX@
2
CV20
8.2P_04 02_50V_NP O
NOGCLKDIS @
1
2
R52
@
0_0402_ 5%
4
GPU_PROC HOT# <46>
XTALIN
45.3K_0 402_1%
GPUCLK_R EQ#<7>
+1.8VGS
PS_0[3:1]=001
PS_0[5:4]=11
PS_0
PS_1[3:1]=000
PS_1[5:4]=11
PS_1
PS_2[3:1]=000
PS_2[5:4]=00
PS_2
PS_3[3:1]=000
PS_3[5:4]=11
PS_3
OPTIAN FOR 3.3V tolerance VR,
Check with VR vendor
RV206
2
1
@
0_0402_ 5%
RV209
10K_040 2_5%
PX@
GPU_SVD
GPU_SVC
@
RV204
10K_040 2_5%
B
C
D

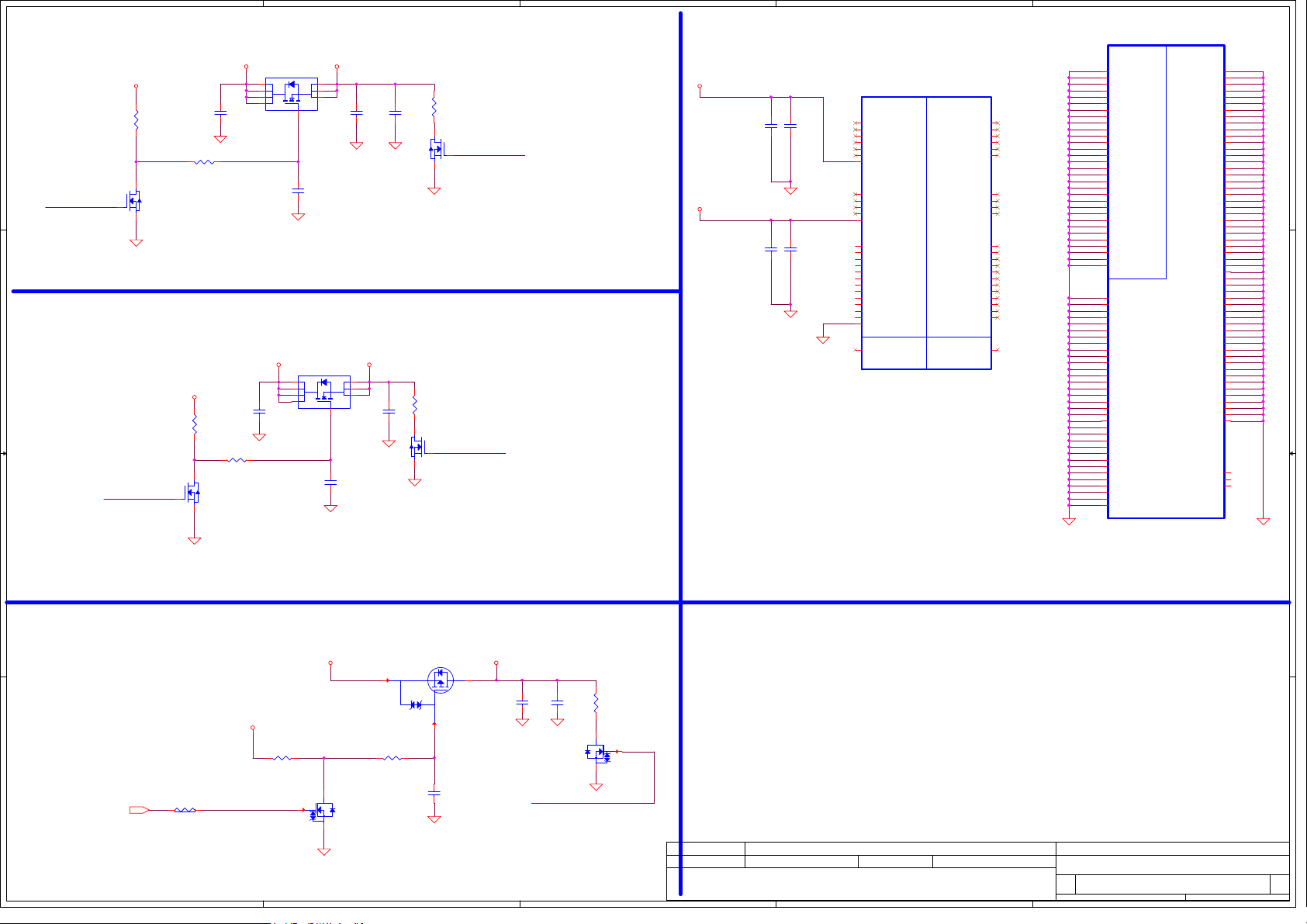

Page 32
1
WWW.AliSaler.Com
2
3
4
5
+1.35VS to +1.35VGS (6.234A)
+1.35V
UV14
1
CV25
0.1U_0201_10V6K
PX@
2
AO4478L_SO8
8
7
5
B+
1
A
DGPU_PWR_EN#
RV35
1M_0402_5%
PX@
2
RV60
1.35VSG_GATE_R 1.35VSG_GATE
6
2
1
QV10A
2N7002EDW 2N SOT-363-6
PX@
PX@
220K_0402_5%
+1.05VS to +0.95VGS
B
B+
1
RV59
200K_0402_5%
PX@
2
10K_0402_5%
6
DGPU_PWR_EN#
2
1
QV22A
2N7002EDW 2N SOT-363-6
PX@
RV61
PX@
0.1U_0201_10V6K
+1.05VS
CV44
1
2
PX@
DGPU_PWR_EN#_GATE
PX@
4
1
2
UV15
AO4354_SO8
8
7
6
5
+1.35VGS
1
2
36
10U_0603_6.3V6M
CV27
0.022U_0402_25V7K
PX@
PX@
4
1
CV35
0.1U_0402_25V6
PX@
2
1
2
1
2
3
CV26
PX@
+0.95VGS
1U_0402_6.3V6K
1U_0402_6.3V6K
1
2
CV22
1
2
PX@
2
CV34
RV239
10_0603_5%
@
1
PX@
3
QV22B
4
2N7002EDW 2N SOT-363-6
PX@
2
RV34
10_0603_5%
@
1
3
5
DGPU_PWR_EN#
QV10B
4
2N7002EDW 2N SOT-363-6
PX@
5
DGPU_PWR_EN#
+1.8VGS
+0.95VGS
UV1G
PX@
U?
?
NC/DP POWER
NC#AE11
NC#AF11
NC#AE13
NC#AF13
NC#AG8
NC#AG10
NC#AF6
NC#AF7
NC#AF8
NC#AF9
NC#AE1
NC#AE3
NC#AG1
NC#AG6
NC#AH5
NC#AF10
NC#AG9
NC#AH8
NC#AM6
NC#AM8
NC#AG7
NC#AG11
NC#AE10
AE11
AF11
AE13
AF13
AG8
AG10
AF6
AF7
AF8
AF9
AE1
AE3
AG1
AG6
AH5
AF10
AG9
AH8
AM6
AM8
AG7
AG11
AE10
1
1
CV2410U_0603_6.3V6M
CV231U_0402_6.3V6K
2
2
PX@
PX@
1
1
CV281U_0402_6.3V6K
CV290.1U_0201_10V6K
2
2
PX@
PX@
DP POWER
AG15
DP_VDDR#AG15
AG16
DP_VDDR#AG16
AF16
DP_VDDR#AF16
AG17
DP_VDDR#AG17
AG18
DP_VDDR#AG18
AG19
DP_VDDR#AG19
AF14
DP_VDDR#AF14
AG20
DP_VDDC#AG20
AG21
DP_VDDC#AG21
AF22
DP_VDDC#AF22
AG22
DP_VDDC#AG22
AD14
DP_VDDC#AD14
AG14
DP_VSSR
AH14
DP_VSSR
AM14
DP_VSSR
AM16
DP_VSSR
AM18
DP_VSSR
AF23
DP_VSSR
AG23
DP_VSSR
AM20
DP_VSSR
AM22
DP_VSSR
AM24
DP_VSSR
AF19
DP_VSSR
AF20
DP_VSSR
AE14
DP_VSSR
AF17
DPAB_CALR
216-0864018 A0 MESO XT S3
UV1E
AA27
GND
AB24
GND
AB32
GND
AC24
GND
AC26
GND
AC27
GND
AD25
GND
AD32
GND
AE27
GND
AF32
GND
AG27
GND
AH32
GND
K28
GND
K32
GND
L27
GND
M32
GND
N25
GND
N27
GND
P25
GND
P32
GND
R27
GND
T25
GND
T32
GND
U25
GND
U27
GND
V32
GND
W25
GND
W26
GND
W27
GND
Y25
GND
Y32
GND
M6
GND
N13
GND
N16
GND
N18
GND
N21
GND
P6
GND
P9
GND
R12
GND
R15
GND
R17
GND
R20
GND
T13
GND
T16
GND
T18
GND
T21
GND
T6
GND
U15
GND
U17
GND
U20
GND
U9
GND
V13
GND
V16
GND
V18
GND
Y10
GND
Y15
GND
Y17
GND
Y20
GND
R11
GND
T11
GND
AA11
GND
M12
GND
N11
GND
V11
GND
216-0864018 A0 MESO XT S3
PX@
U?
A3
GND
A30
GND
AA13
GND
AA16
GND
AB10
GND
AB15
GND
AB6
GND
AC9
GND
AD6
GND
AD8
GND
AE7
GND
AG12
GND
AH10
GND
AH28
GND
B10
GND
B12
GND
B14
GND
B16
GND
B18
GND
B20
GND
B22
GND
B24
GND
B26
GND
B6
GND
B8
GND
C1
GND
C32
GND
E28
GND
F10
GND
F12
GND
F14
GND
F16
GND
F18
GND
F2
GND
F20
GND
F22
GND
F24
GND
F26
GND
F6
GND
GND
?
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
VSS_MECH
VSS_MECH
VSS_MECH
F8
G10
G27
G31
G8
H14
H17
H2
H20
H6
J27
J31
K11
K2
K22
K6
A32
AM1
AM32
A
B
C
+3VS to +3VS_VGA (25mA)
+3VS
+5VALW
RV42
PX@
2
G
DGPU_PWR_EN#
1
D
S
3
20K_0402_5%
D
DGPU_PWR_EN<8,25,43,46>
RV264
2
1
@
DGPU_PWR_EN_3V3_MOS
0_0402_5%
1
QV18
PX@
2N7002K_SOT23-3
QV16
PX@
ME2301DC-G_SOT23-3
S
3
RV43
PX@
10K_0402_5%
2
G
2
1
2
D
1
PX@
CV38
0.1U_0402_25V6
+3VGS
4.7U_0603_6.3V6K
1
CV36
PX@
2
2N7002K_SOT23-3
DGPU_PWR_EN#
@
1U_0402_6.3V6K
1
CV37
2
QV17
@
1
2
1
D
S
3
@
RV40
470_0603_5%
2
G
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
4
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
Compal Electronics, Inc.
Meso XT_Power/GND
Meso XT_Power/GND
Meso XT_Power/GND
LA-C281
LA-C281
LA-C281
5
32 50Friday, February 06, 2015
of
32 50Friday, February 06, 2015
of
32 50Friday, February 06, 2015
of
C
D
1.0
1.0
1.0
Page 33
1
2
3
4
5
A
B
C
+1.35VGS
1
CV75
+
@
2
220U_B2_2.5VM_R35
1
1
1
1
CV74
CV88
2
2
@
PX@
10U_0603_6.3V6M
10U_0603_6.3V6M
10U_0603_6.3V6M
1
CV83
CV80
CV87
2
2
2
@
@
PX@
1U_0402_6.3V6K
10U_0603_6.3V6M
10U_0603_6.3V6M
1
1
1
CV78
CV77
CV76
2
PX@
CV79
2
2
PX@
PX@
PX@
1U_0402_6.3V6K
1U_0402_6.3V6K
1U_0402_6.3V6K
1
1
1
CV82
CV81
2
2
2
0.1U_0201_10V6K
0.1U_0201_10V6K
PX@
PX@
1U_0402_6.3V6K
1
1
CV86
2
PX@
+1.8VGS
1
CV85
CV84
2
2
0.1U_0201_10V6K
0.1U_0201_10V6K
PX@
PX@
1
CV89
2
0.1U_0201_10V6K
PX@
1
CV551U_0402_6.3V6K
+3VGS
2
PX@
1
CV561U_0402_6.3V6K
2
PX@
+1.8VGS
1
1
1
CV40
CV39
CV41
+1.8VGS
2
2
2
1U_0402_6.3V6K
PX@
PX@
PX@
10U_0603_6.3V6M
10U_0603_6.3V6M
1
1
CV42
CV43
+0.95VGS
2
2
PX@
1U_0402_6.3V6K
PX@
10U_0603_6.3V6M
1
1
CV90
CV46
2
2
0.1U_0201_10V6K
PX@
1U_0402_6.3V6K
PX@
UV1D
MEM I/O
H13
VDDR1
H16
VDDR1
H19
VDDR1
J10
VDDR1
J23
VDDR1
J24
VDDR1
J9
VDDR1
K10
VDDR1
K23
VDDR1
K24
VDDR1
K9
VDDR1
L11
VDDR1
L12
VDDR1
L13
VDDR1
L20
VDDR1
L21
VDDR1
L22
VDDR1
LEVEL
TRANSLATION
AA20
VDD_CT
AA21
VDD_CT
AB20
VDD_CT
AB21
VDD_CT
I/O
AA17
VDDR3
AA18
VDDR3
AB17
VDDR3
AB18
VDDR3
V12
VDDR4
Y12
VDDR4
U12
VDDR4
PLL
L8
MPLL_PVDD
H7
SPLL_PVDD
H8
SPLL_VDDC
J7
SPLL_PVSS
216-0864018 A0 MESO XT S3
PX@
U?
PCIE
PCIE_PVDD
NC#AB23
NC#AC23
NC#AD24
NC#AE24
NC#AE25
NC#AE26
NC#AF25
NC#AG26
PCIE_VDDC
PCIE_VDDC
PCIE_VDDC
PCIE_VDDC
PCIE_VDDC
PCIE_VDDC
PCIE_VDDC
PCIE_VDDC
PCIE_VDDC
PCIE_VDDC
PCIE_VDDC
PCIE_VDDC
VDDC
CORE
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
POWER
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
BIF_VDDC
BIF_VDDC
ISOLATED
CORE I/O
VDDCI
VDDCI
VDDCI
VDDCI
VDDCI
VDDCI
VDDCI
VDDCI
?
+PCIE_PVDD:
50mA (PCIE2.0)
100mA (PCIE3.0)
AM30
AB23
AC23
AD24
AE24
AE25
AE26
AF25
AG26
L23
L24
L25
L26
M22
N22
N23
N24
R22
T22
U22
V22
AA15
N15
N17
R13
R16
R18
Y21
T12
T15
T17
T20
U13
U16
U18
V21
V15
V17
V20
Y13
Y16
Y18
AA12
M11
N12
U11
R21
U21
M13
M15
M16
M17
M18
M20
M21
N20
+PCIE_VDDC: 1A
+1.8VGS
1
1
CV4710U_0603_6.3V6M
CV481U_0402_6.3V6K
2
2
PX@
PX@
1
1
CV4910U_0603_6.3V6M
CV501U_0402_6.3V6K
2
2
PX@
PX@
+VGA_CORE
+0.95VGS
1
1
1
CV541U_0402_6.3V6K
CV521U_0402_6.3V6K
CV511U_0402_6.3V6K
2
2
2
PX@
PX@
PX@
+0.95VGS
+VGA_CORE
A
B
C
1
CV621U_0402_6.3V6K
2
@
D
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
1
2
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
4
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
Compal Electronics, Inc.
Meso XT_Power
Meso XT_Power
Meso XT_Power
LA-C281
LA-C281
LA-C281
5
33 50Friday, February 06, 2015
of
33 50Friday, February 06, 2015
of
33 50Friday, February 06, 2015
of
D
1.0
1.0
1.0
Page 34
1
WWW.AliSaler.Com
1
2
1
2
12
1
2
1
PX@
RV50
5.1K_0402_1%
M_DA[63..0]<35,36>
M_MA[15..0]<35,36>
M_DQM[7..0]<35,36>
M_DQS[7..0]<35,36>
M_DQS#[7..0]<35,36>
1
PX@
CV65
1U_0402_6.3V6K
2
1
PX@
CV66
1U_0402_6.3V6K
2
1
2
68P_0402_50V8J
A A
+1.35VGS
PX@
RV44
40.2_0402_1%
B
PX@
RV48
C
DRAM_RST<35,36>
49.9_0402_1%
1
120P_0402_50V8J
PX@
CV68
2
100_0402_1%
40.2_0402_1%
100_0402_1%
PX@
RV49
10_0402_1%
2
1
2
PX@
RV46
PX@
RV45
PX@
RV47
+1.35VGS
CV67
@
M_DA[63..0]
M_MA[15..0]
M_DQM[7..0]
M_DQS[7..0]
M_DQS#[7..0]
1
2
2
RV52 120_0402_1%PX@
2
1
RV54 51.1_0402_1%@
1
RV55 51.1_0402_1%@
Route 50ohms single-ended/100ohm diff and keep short
debug only, for clock observation,if not need, DNI.
CV69 0.1U_0201_10V6K@
2
CV70 0.1U_0201_10V6K@
3
PX@
UV1C
M_DA0
M_DA1
M_DA2
M_DA3
M_DA4
M_DA5
M_DA6
M_DA7
M_DA8
M_DA9
M_DA10
M_DA11
M_DA12
M_DA13
M_DA14
M_DA15
M_DA16
M_DA17
M_DA18
M_DA19
M_DA20
M_DA21
M_DA22
M_DA23
M_DA24
M_DA25
M_DA26
M_DA27
M_DA28
M_DA29
M_DA30
M_DA31
M_DA32
M_DA33
M_DA34
M_DA35
M_DA36
M_DA37
M_DA38
M_DA39
M_DA40
M_DA41
M_DA42
M_DA43
M_DA44
M_DA45
M_DA46
M_DA47
M_DA48
M_DA49
M_DA50
M_DA51
M_DA52
M_DA53
M_DA54
M_DA55
M_DA56
M_DA57
M_DA58
M_DA59
M_DA60
M_DA61
M_DA62
M_DA63
+MVREFDA
+MVREFSA
2
1
DRST
2
1
2
1
K27
J29
H30
H32
G29
F28
F32
F30
C30
F27
A28
C28
E27
G26
D26
F25
A25
C25
E25
D24
E23
F23
D22
F21
E21
D20
F19
A19
D18
F17
A17
C17
E17
D16
F15
A15
D14
F13
A13
C13
E11
A11
C11
F11
A9
C9
F9
D8
E7
A7
C7
F7
A5
E5
C3
E1
G7
G6
G1
G3
J6
J1
J3
J5
K26
J26
J25
K25
L10
K8
L7
DQA0_0
DQA0_1
DQA0_2
DQA0_3
DQA0_4
DQA0_5
DQA0_6
DQA0_7
DQA0_8
DQA0_9
DQA0_10
DQA0_11
DQA0_12
DQA0_13
DQA0_14
DQA0_15
DQA0_16
DQA0_17
DQA0_18
DQA0_19
DQA0_20
DQA0_21
DQA0_22
DQA0_23
DQA0_24
DQA0_25
DQA0_26
DQA0_27
DQA0_28
DQA0_29
DQA0_30
DQA0_31
DQA1_0
DQA1_1
DQA1_2
DQA1_3
DQA1_4
DQA1_5
DQA1_6
DQA1_7
DQA1_8
DQA1_9
DQA1_10
DQA1_11
DQA1_12
DQA1_13
DQA1_14
DQA1_15
DQA1_16
DQA1_17
DQA1_18
DQA1_19
DQA1_20
DQA1_21
DQA1_22
DQA1_23
DQA1_24
DQA1_25
DQA1_26
DQA1_27
DQA1_28
DQA1_29
DQA1_30
DQA1_31
MVREFDA
MVREFSA
NC#J25
MEM_CALRP0
DRAM_RST
CLKTESTA
CLKTESTB
216-0864018 A0 MESO XT S3
U?
GDDR5/DDR3GDDR5/DDR3
MAA0_0/MAA_0
MAA0_1/MAA_1
MAA0_2/MAA_2
MAA0_3/MAA_3
MAA0_4/MAA_4
MAA0_5/MAA_5
MAA0_6/MAA_6
MAA0_7/MAA_7
MAA0_8/MAA_13
MAA0_9/MAA_15
MAA1_0/MAA_8
MAA1_1/MAA_9
MAA1_2/MAA_10
MAA1_3/MAA_11
MAA1_4/MAA_12
MAA1_5/MAA_BA2
MAA1_6/MAA_BA0
MAA1_7/MAA_BA1
MAA1_8/MAA_14
MAA1_9/RSVD
WCKA0_0/DQMA0_0
WCKA0B_0/DQMA0_1
WCKA0_1/DQMA0_2
WCKA0B_1/DQMA0_3
WCKA1_0/DQMA1_0
MEMORY INTERFACE
WCKA1B_0/DQMA1_1
WCKA1_1/DQMA1_2
WCKA1B_1/DQMA1_3
EDCA0_0/QSA0_0
EDCA0_1/QSA0_1
EDCA0_2/QSA0_2
EDCA0_3/QSA0_3
EDCA1_0/QSA1_0
EDCA1_1/QSA1_1
EDCA1_2/QSA1_2
EDCA1_3/QSA1_3
DDBIA0_0/QSA0_0B
DDBIA0_1/QSA0_1B
DDBIA0_2/QSA0_2B
DDBIA0_3/QSA0_3B
DDBIA1_0/QSA1_0B
DDBIA1_1/QSA1_1B
DDBIA1_2/QSA1_2B
DDBIA1_3/QSA1_3B
ADBIA0/ODTA0
ADBIA1/ODTA1
?
CLKA0
CLKA0B
CLKA1
CLKA1B
RASA0B
RASA1B
CASA0B
CASA1B
CSA0B_0
CSA0B_1
CSA1B_0
CSA1B_1
CKEA0
CKEA1
WEA0B
WEA1B
K17
M_MA0
J20
M_MA1
H23
M_MA2
G23
M_MA3
G24
M_MA4
H24
M_MA5
J19
M_MA6
K19
M_MA7
G20
M_MA13
L17
M_MA15
J14
M_MA8
K14
M_MA9
J11
M_MA10
J13
M_MA11
H11
M_MA12
G11
M_BA2
J16
M_BA0
L15
M_BA1
G14
M_MA14
L16
E32
M_DQM0
E30
M_DQM1
A21
M_DQM2
C21
M_DQM3
E13
M_DQM4
D12
M_DQM5
E3
M_DQM6
F4
M_DQM7
H28
M_DQS0
C27
M_DQS1
A23
M_DQS2
E19
M_DQS3
E15
M_DQS4
D10
M_DQS5
D6
M_DQS6
G5
M_DQS7
H27
M_DQS#0
A27
M_DQS#1
C23
M_DQS#2
C19
M_DQS#3
C15
M_DQS#4
E9
M_DQS#5
C5
M_DQS#6
H4
M_DQS#7
L18
VRAM_ODT0
K16
VRAM_ODT1
H26
M_CLK0
H25
M_CLK#0
G9
M_CLK1
H9
M_CLK#1
G22
M_RAS#0
G17
M_RAS#1
G19
M_CAS#0
G16
M_CAS#1
H22
M_CS0B#0
J22
M_CS0B#1
G13
M_CS1B#0
K13
M_CS1B#1
K20
M_CKE0
J17
M_CKE1
G25
M_WE#0
H10
M_WE#1
4
M_BA2 <35,36>
M_BA0 <35,36>
M_BA1 <35,36>
VRAM_ODT0 <35,36>
VRAM_ODT1 <35,36>
M_CLK0 <35,36>
M_CLK#0 <35,36>
M_CLK1 <35,36>
M_CLK#1 <35,36>
M_RAS#0 <35,36>
M_RAS#1 <35,36>
M_CAS#0 <35,36>
M_CAS#1 <35,36>
M_CS0B#0 <35>
M_CS0B#1 <36>
M_CS1B#0 <35>
M_CS1B#1 <36>
M_CKE0 <35,36>
M_CKE1 <35,36>
M_WE#0 <35,36>
M_WE#1 <35,36>
1
RV136 100_0402_1%PX@
1
RV138 100_0402_1%PX@
1
RV140 100_0402_1%PX@
1
RV142 100_0402_1%PX@
1
RV144 100_0402_1%PX@
1
RV146 100_0402_1%PX@
1
RV148 100_0402_1%PX@
1
RV150 100_0402_1%PX@
1
RV152 100_0402_1%PX@
1
RV154 100_0402_1%PX@
1
RV156 100_0402_1%PX@
1
RV158 100_0402_1%PX@
1
RV160 100_0402_1%PX@
1
RV162 100_0402_1%PX@
1
RV164 100_0402_1%PX@
1
RV166 100_0402_1%PX@
1
RV168 100_0402_1%PX@
1
RV170 100_0402_1%PX@
1
RV172 100_0402_1%PX@
1
RV174 100_0201_1%PX@
1
RV176 100_0201_1%PX@
1
RV178 100_0201_1%PX@
1
RV180 100_0201_1%PX@
1
RV182 100_0201_1%PX@
1
RV184 100_0201_1%PX@
1
RV186 100_0201_1%PX@
1
RV190 100_0201_1%PX@
1
RV188 100_0201_1%PX@
1
RV192 100_0201_1%PX@
1
RV194 100_0201_1%PX@
1
RV196 100_0201_1%PX@
1
RV198 100_0201_1%PX@
1
RV200 100_0201_1%PX@
5
+1.35VGS
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
M_MA0
M_MA1
M_MA2
M_MA3
M_MA4
M_MA5
M_MA6
M_MA7
M_MA8
M_MA9
M_MA10
M_MA11
M_MA12
M_MA13
M_MA14
M_MA15
M_BA0
M_BA1
M_BA2
VRAM_ODT0
VRAM_ODT1
M_RAS#0
M_RAS#1
M_CAS#0
M_CAS#1
M_CS0B#0
M_CS1B#0
M_CS0B#1
M_CS1B#1
M_CKE0
M_CKE1
M_WE#0
M_WE#1
1
RV137100_0402_1% PX@
2
1
RV139100_0402_1% PX@
2
1
RV141100_0402_1% PX@
2
1
RV143100_0402_1% PX@
2
1
RV145100_0402_1% PX@
2
1
RV147100_0402_1% PX@
2
1
RV149100_0402_1% PX@
2
1
RV151100_0402_1% PX@
2
1
RV153100_0402_1% PX@
2
1
RV155100_0402_1% PX@
2
1
RV157100_0402_1% PX@
2
1
RV159100_0402_1% PX@
2
1
RV161100_0402_1% PX@
2
1
RV163100_0402_1% PX@
2
1
RV165100_0402_1% PX@
2
1
RV167100_0402_1% PX@
2
1
RV169100_0402_1% PX@
2
1
RV171100_0402_1% PX@
2
1
RV173100_0402_1% PX@
2
1
RV175100_0201_1% PX@
2
1
RV177100_0201_1% PX@
2
1
RV179100_0201_1% PX@
2
1
RV181100_0201_1% PX@
2
1
RV183100_0201_1% PX@
2
1
RV185100_0201_1% PX@
2
1
RV187100_0201_1% PX@
2
1
RV191100_0201_1% PX@
2
1
RV189100_0201_1% PX@
2
1
RV193100_0201_1% PX@
2
1
RV195100_0201_1% PX@
2
1
RV197100_0201_1% PX@
2
1
RV199100_0201_1% PX@
2
1
RV201100_0201_1% PX@
B
C
Place close to GPU (within 25mm)
and place componment close to each other
D
1
D
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
2
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
4
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Meso XT_MEM
Meso XT_MEM
Meso XT_MEM
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
LA-C281
LA-C281
LA-C281
5
34 50Friday, February 06, 2015
of
34 50Friday, February 06, 2015
of
34 50Friday, February 06, 2015
of
1.0
1.0
1.0
Page 35
1
1
80.6_0402_1%
1
80.6_0402_1%
M_DA[63..0]
M_MA[15..0]
M_DQM[7..0]
M_DQS[7..0]
M_DQS#[7..0]
2
PX@
2
PX@
M_BA0<34,36>
M_BA1<34,36>
M_BA2<34,36>
M_CLK0<34,36>
M_CLK#0<34,36>
M_CKE0<34,36>
VRAM_ODT0<34,36>
M_CS0B#0<34>
M_RAS#0<34,36>
M_CAS#0<34,36>
M_WE#0<34,36>
DRAM_RST<34,36>
1
CV143
.01U_0402_16V7-K
PX@
2
PX@
RV67
243_0402_1%
VREFCA_UV3
VREFDQ_UV3
M_DQS2
M_DQS0
M_DQM2
M_DQM0
M_DQS#2
M_DQS#0
1
2
M_DA[63..0]<34,36>
M_MA[15..0]<34,36>
M_DQM[7..0]<34,36>
M_DQS[7..0]<34,36>
M_DQS#[7..0]<34,36>
A A
B
M_CLK0
RV71
M_CLK#0
RV72
UV3
M8
VREFCA
H1
N3
M_MA0
P7
M_MA1
P3
M_MA2
N2
M_MA3
P8
M_MA4
P2
M_MA5
R8
M_MA6
R2
M_MA7
T8
M_MA8
R3
M_MA9
L7
M_MA10
R7
M_MA11
N7
M_MA12
T3
M_MA13
T7
M_MA14 M_MA14
M7
M_MA15
M2
M_BA0
N8
M_BA1
M3
M_BA2
J7
M_CLK0
K7
M_CLK#0
K9
M_CKE0
K1
VRAM_ODT0
L2
M_CS0B#0
J3
M_RAS#0
K3
M_CAS#0
L3
M_WE#0
F3
C7
E7
D3
G3
B7
T2
L8
J1
L1
J9
L9
DQL0
VREFDQ
DQL1
DQL2
A0
DQL3
A1
DQL4
DQL5
A2
DQL6
A3
DQL7
A4
A5
A6
DQU0
A7
DQU1
A8
DQU2
A9
DQU3
A10/AP
DQU4
A11
DQU5
A12
A13
DQU6
A14
DQU7
A15/BA3
VDD
BA0
VDD
BA1
BA2
VDD
VDD
VDD
VDD
VDD
CK
VDD
CK
VDD
CKE/CKE0
ODT/ODT0
VDDQ
VDDQ
CS/CS0
VDDQ
RAS
VDDQ
CAS
VDDQ
WE
VDDQ
VDDQ
VDDQ
DQSL
VDDQ
DQSU
DML
VSS
DMU
VSS
VSS
VSS
VSS
DQSL
VSS
DQSU
VSS
VSS
VSS
VSS
RESET
VSS
VSS
ZQ/ZQ0
VSSQ
NC/ODT1
VSSQ
NC/CS1
NC/CE1
VSSQ
NCZQ1
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
96-BALL
SDRAM DDR3
H5TC2G63FFR-11C_FBGA96
X76@
2
UV4
M_MA0
M_MA1
M_MA2
M_MA3
M_MA4
M_MA5
M_MA6
M_MA7
M_MA8
M_MA9
M_MA10
M_MA11
M_MA12
M_MA13
M_MA15
M_BA0
M_BA1
M_BA2
M_CLK0
M_CLK#0
M_CKE0
VRAM_ODT0
M_CS0B#0
M_RAS#0
M_CAS#0
M_WE#0
M_DQS1
M_DQS3
M_DQM1
M_DQM3
M_DQS#1
M_DQS#3
DRAM_RST
1
2
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12
T3
A13
T7
A14
M7
A15/BA3
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE/CKE0
K1
ODT/ODT0
L2
CS/CS0
J3
RAS
K3
CAS
L3
WE
F3
DQSL
C7
DQSU
E7
DML
D3
DMU
G3
DQSL
B7
DQSU
T2
RESET
L8
ZQ/ZQ0
J1
NC/ODT1
L1
NC/CS1
J9
NC/CE1
L9
NCZQ1
96-BALL
SDRAM DDR3
H5TC2G63FFR-11C_FBGA96
X76@
E3
M_DA19
F7
M_DA21
F2
M_DA18
F8
M_DA22
H3
M_DA17
H8
M_DA23
G2
M_DA16
H7
M_DA20
M_DA4
C3
M_DA2
C8
M_DA7
C2
M_DA0
A7
M_DA5
A2
M_DA1
B8
M_DA6
A3
M_DA3
+1.35VGS
B2
D9
G7
K2
K8
N1
N9
R1
R9
+1.35VGS
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
PX@
RV68
243_0402_1%
VREFCA_UV4
VREFDQ_UV4
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3
B2
VDD
D9
VDD
G7
VDD
K2
VDD
K8
VDD
N1
VDD
N9
VDD
R1
VDD
R9
VDD
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
VSS
B3
VSS
E1
VSS
G8
VSS
J2
VSS
J8
VSS
M1
VSS
M9
VSS
P1
VSS
P9
VSS
T1
VSS
T9
VSS
B1
B9
D1
D8
E2
E8
F9
G1
G9
M_DA14
M_DA9
M_DA15
M_DA10
M_DA12
M_DA11
M_DA13
M_DA8
M_DA26
M_DA28
M_DA27
M_DA31
M_DA25
M_DA29
M_DA24
M_DA30
+1.35VGS
+1.35VGS
3
M_CLK1
M_CLK#1
RV75
RV76
1
80.6_0402_1%
1
80.6_0402_1%
4
UV5
M_MA0
M_MA1
M_MA2
M_MA3
M_MA4
M_MA5
M_MA6
M_MA7
M_MA8
M_MA9
M_MA10
M_MA11
M_MA12
M_MA13
M_MA14
M_MA15
M_BA0
M_BA1
M_BA2
M_CLK1
M_CLK#1
M_CKE1
VRAM_ODT1
M_CS1B#0
M_RAS#1
M_CAS#1
M_WE#1
M_DQS5
M_DQS4
M_DQM5
M_DQM4
M_DQS#5
M_DQS#4
DRAM_RST
1
2
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12
T3
A13
T7
A14
M7
A15/BA3
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE/CKE0
K1
ODT/ODT0
L2
CS/CS0
J3
RAS
K3
CAS
L3
WE
F3
DQSL
C7
DQSU
E7
DML
D3
DMU
G3
DQSL
B7
DQSU
T2
RESET
L8
ZQ/ZQ0
J1
NC/ODT1
L1
NC/CS1
J9
NC/CE1
L9
NCZQ1
96-BALL
SDRAM DDR3
H5TC2G63FFR-11C_FBGA96
X76@
VREFCA_UV5
VREFDQ_UV5
M_CLK1<34,36>
M_CLK#1<34,36>
M_CKE1<34,36>
VRAM_ODT1<34,36>
M_CS1B#0<34>
M_RAS#1<34,36>
M_CAS#1<34,36>
M_WE#1<34,36>
PX@
RV69
243_0402_1%
2
PX@
2
PX@
1
CV166
.01U_0402_16V7-K
PX@
2
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
E3
M_DA41
F7
M_DA46
F2
M_DA43
F8
M_DA44
H3
M_DA40
H8
M_DA45
G2
M_DA42
H7
M_DA47
D7
M_DA39
C3
M_DA35
C8
M_DA38
C2
M_DA32
A7
M_DA37
A2
M_DA33
B8
M_DA36
A3
M_DA34
B2
VDD
D9
VDD
G7
VDD
K2
VDD
K8
VDD
N1
VDD
N9
VDD
R1
VDD
R9
VDD
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
VSS
B3
VSS
E1
VSS
G8
VSS
J2
VSS
J8
VSS
M1
VSS
M9
VSS
P1
VSS
P9
VSS
T1
VSS
T9
VSS
B1
B9
D1
D8
E2
E8
F9
G1
G9
+1.35VGS
+1.35VGS
PX@
RV70
243_0402_1%
VREFCA_UV6
VREFDQ_UV6
M_MA0
M_MA1
M_MA2
M_MA3
M_MA4
M_MA5
M_MA6
M_MA7
M_MA8
M_MA9
M_MA10
M_MA11
M_MA12
M_MA13
M_MA14
M_MA15
M_BA0
M_BA1
M_BA2
M_CLK1
M_CLK#1
M_CKE1
VRAM_ODT1
M_CS1B#0
M_RAS#1
M_CAS#1
M_WE#1
M_DQS7
M_DQS6
M_DQM7
M_DQM6
M_DQS#7
M_DQS#6
DRAM_RST
1
2
M8
H1
N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7
M7
M2
N8
M3
J7
K7
K9
K1
L2
J3
K3
L3
F3
C7
E7
D3
G3
B7
T2
L8
J1
L1
J9
L9
5
UV6
VREFCA
DQL0
VREFDQ
DQL1
DQL2
A0
DQL3
A1
DQL4
DQL5
A2
DQL6
A3
DQL7
A4
A5
A6
DQU0
A7
DQU1
A8
DQU2
A9
DQU3
A10/AP
DQU4
A11
DQU5
A12
A13
DQU6
A14
DQU7
A15/BA3
VDD
BA0
VDD
BA1
BA2
VDD
VDD
VDD
VDD
VDD
CK
VDD
CK
VDD
CKE/CKE0
ODT/ODT0
VDDQ
VDDQ
CS/CS0
VDDQ
RAS
VDDQ
CAS
VDDQ
WE
VDDQ
VDDQ
VDDQ
DQSL
VDDQ
DQSU
DML
VSS
DMU
VSS
VSS
VSS
VSS
DQSL
VSS
DQSU
VSS
VSS
VSS
VSS
RESET
VSS
VSS
ZQ/ZQ0
VSSQ
NC/ODT1
VSSQ
NC/CS1
NC/CE1
VSSQ
NCZQ1
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
96-BALL
SDRAM DDR3
H5TC2G63FFR-11C_FBGA96
X76@
E3
M_DA58
F7
M_DA63
F2
M_DA59
F8
M_DA61
H3
M_DA57
H8
M_DA62
G2
M_DA56
H7
M_DA60
D7
M_DA55
C3
M_DA52
C8
M_DA51
C2
M_DA50
A7
M_DA53
A2
M_DA49
B8
M_DA54
A3
M_DA48
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
+1.35VGS
+1.35VGS
B
C
D
4.99K_0402_1%
PX@
4.99K_0402_1%
PX@
4.99K_0402_1%
PX@
4.99K_0402_1%
PX@
+1.35VGS
RV73
RV77
+1.35VGS
RV214
RV215
+1.35VGS
CV130
CV129
CV128
CV126
CV127
0.1U_0201_10V6K
0.1U_0201_10V6K
0.1U_0201_10V6K
0.1U_0201_10V6K
0.1U_0201_10V6K
1
1
1
1
@
@
@
@
@
2
2
2
2
+1.35VGS
CV146
1U_0402_6.3V6K
CV147
1U_0402_6.3V6K
CV148
1U_0402_6.3V6K
CV150
1U_0402_6.3V6K
CV149
1U_0402_6.3V6K
1
1
1
1
PX@
PX@
PX@
PX@
PX@
2
2
2
2
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Deciphered Date
4
CV133
CV131
0.1U_0201_10V6K
1
@
2
CV151
1U_0402_6.3V6K
1
PX@
2
CV134
CV132
0.1U_0201_10V6K
0.1U_0201_10V6K
0.1U_0201_10V6K
0.1U_0201_10V6K
1
1
2
1
2
1
1
@
@
@
2
2
2
1U_0402_6.3V6K
CV154
1U_0402_6.3V6K
CV152
1U_0402_6.3V6K
CV153
1U_0402_6.3V6K
1
1
1
PX@
PX@
PX@
2
2
2
CV135
CV136
0.1U_0201_10V6K
1
@
@
2
CV155
CV156
10U_0603_6.3V6M
1
PX@
PX@
2
4.99K_0402_1%
PX@
4.99K_0402_1%
PX@
4.99K_0402_1%
PX@
4.99K_0402_1%
PX@
+1.35VGS
RV210
RV211
+1.35VGS
RV219
RV218
1
2
VREFCA_UV5
1
1
CV224
0.1U_0201_10V6K
PX@
2
2
1
2
VREFDQ_UV5
1
1
CV228
0.1U_0201_10V6K
PX@
2
2
2
+1.35VGS
12
VREFCA_UV3
12
1
CV144
0.1U_0201_10V6K
PX@
2
12
VREFDQ_UV3
1
1
CV226
0.1U_0201_10V6K
PX@
2
2
1
4.99K_0402_1%
PX@
4.99K_0402_1%
PX@
4.99K_0402_1%
PX@
4.99K_0402_1%
PX@
RV74
RV78
RV217
RV216
1
2
12
+1.35VGS
1
2
12
VREFCA_UV4
1
CV145
0.1U_0201_10V6K
PX@
2
VREFDQ_UV4
1
CV227
0.1U_0201_10V6K
PX@
2
4.99K_0402_1%
PX@
4.99K_0402_1%
PX@
4.99K_0402_1%
PX@
4.99K_0402_1%
PX@
+1.35VGS
RV212
RV213
+1.35VGS
RV221
RV220
1
2
VREFCA_UV6
1
1
CV225
0.1U_0201_10V6K
PX@
2
2
1
2
VREFDQ_UV6
1
1
CV229
0.1U_0201_10V6K
PX@
2
2
VRAM_TEMP<25>
3
+EC_VCCA
1
R1649
2
16.5K_0402_1%
1
RH203
100K_0402_1%_TSM0B104F4251RZ
2
ECAGND
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FR OM THE CUSTODY OF THE COMPETENT DI VISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FR OM THE CUSTODY OF THE COMPETENT DI VISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FR OM THE CUSTODY OF THE COMPETENT DI VISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COM PAL ELECTRONICS, INC. NEITHER TH IS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COM PAL ELECTRONICS, INC. NEITHER TH IS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COM PAL ELECTRONICS, INC. NEITHER TH IS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIR D PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIR D PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIR D PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC.
+1.35VGS
CV137
CV138
0.1U_0201_10V6K
10U_0603_6.3V6M
0.1U_0201_10V6K
1
1
1
@
@
2
2
2
CV157
1U_0402_6.3V6K
CV159
1U_0402_6.3V6K
CV158
1U_0402_6.3V6K
1
1
1
PX@
PX@
PX@
2
2
2
Title
Title
Title
Meso XT_VRAM A Lower
Meso XT_VRAM A Lower
Meso XT_VRAM A Lower
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
CV141
10U_0603_6.3V6M
CV140
10U_0603_6.3V6M
CV180
1
PX@
2
CV160
1U_0402_6.3V6K
1
1
PX@
2
2
CV142
10U_0603_6.3V6M
1
1
1
PX@
PX@
PX@
2
2
2
CV164
1U_0402_6.3V6K
CV161
1U_0402_6.3V6K
CV162
1U_0402_6.3V6K
1
PX@
PX@
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
LA-C281
LA-C281
LA-C281
CV165
1U_0402_6.3V6K
CV163
1U_0402_6.3V6K
1
1
1
PX@
PX@
PX@
2
2
2
5
1
2
35 50Friday, February 06, 2015
35 50Friday, February 06, 2015
of
35 50Friday, February 06, 2015
of
of
C
D
1.0
1.0
1.0
Page 36
1
WWW.AliSaler.Com
1
80.6_0402_1%
1
80.6_0402_1%
12
12
M_DA[63..0]
M_MA[15..0]
M_DQM[7..0]
M_DQS[7..0]
M_DQS#[7..0]
2
PX@
2
PX@
VREFCA_UV7
1
CV185
0.1U_0201_10V6K
4GVRAM@
2
1
CV183
.01U_0402_16V7-K
PX@
2
M_BA0<34,35>
M_BA1<34,35>
M_BA2<34,35>
M_CLK0<34,35>
M_CLK#0<34,35>
M_CKE0<34,35>
VRAM_ODT0<34,35>
M_CS0B#1<34>
M_RAS#0<34,35>
M_CAS#0<34,35>
M_WE#0<34,35>
DRAM_RST<34,35>
4GVRAM@
243_0402_1%
RV86
4.99K_0402_1%
4GVRAM@
RV89
4.99K_0402_1%
4GVRAM@
RV79
+1.35VGS
12
1
2
VREFCA_UV7
VREFDQ_UV7
M_MA0
M_MA1
M_MA2
M_MA3
M_MA4
M_MA5
M_MA6
M_MA7
M_MA8
M_MA9
M_MA10
M_MA11
M_MA12
M_MA13
M_MA14
M_MA15
M_BA0
M_BA1
M_BA2
M_CLK0
M_CLK#0
M_CKE0
VRAM_ODT0
M_CS0B#1
M_RAS#0
M_CAS#0
M_WE#0
M_DQS2
M_DQS0
M_DQM2
M_DQM0
M_DQS#2
M_DQS#0
1
2
M8
H1
N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7
M7
M2
N8
M3
J7
K7
K9
K1
L2
J3
K3
L3
F3
C7
E7
D3
G3
B7
T2
L8
J1
L1
J9
L9
VREFCA_UV8
1
CV186
0.1U_0201_10V6K
4GVRAM@
2
UV7
VREFCA
DQL0
VREFDQ
DQL1
DQL2
A0
DQL3
A1
DQL4
DQL5
A2
DQL6
A3
DQL7
A4
A5
A6
DQU0
A7
DQU1
A8
DQU2
A9
DQU3
A10/AP
DQU4
A11
DQU5
A12
A13
DQU6
A14
DQU7
A15/BA3
VDD
BA0
VDD
BA1
BA2
VDD
VDD
VDD
VDD
VDD
CK
VDD
CK
VDD
CKE/CKE0
ODT/ODT0
VDDQ
VDDQ
CS/CS0
VDDQ
RAS
VDDQ
CAS
VDDQ
WE
VDDQ
VDDQ
VDDQ
DQSL
VDDQ
DQSU
DML
VSS
DMU
VSS
VSS
VSS
VSS
DQSL
VSS
DQSU
VSS
VSS
VSS
VSS
RESET
VSS
VSS
ZQ/ZQ0
VSSQ
NC/ODT1
VSSQ
NC/CS1
NC/CE1
VSSQ
NCZQ1
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
96-BALL
SDRAM DDR3
H5TC2G63FFR-11C_FBGA96
@
RV223
4.99K_0402_1%
4GVRAM@
RV222
4.99K_0402_1%
4GVRAM@
E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
+1.35VGS
M_DA[63..0]<34,35>
M_MA[15..0]<34,35>
M_DQM[7..0]<34,35>
M_DQS[7..0]<34,35>
M_DQS#[7..0]<34,35>
A A
B
M_CLK0
RV83
M_CLK#0
RV84
C
RV85
4.99K_0402_1%
4GVRAM@
RV88
4.99K_0402_1%
4GVRAM@
+1.35VGS
2
UV8
M_MA0
M_MA1
M_MA2
M_MA3
M_MA4
M_MA5
M_MA6
M_MA7
M_MA8
M_MA9
M_MA10
M_MA11
M_MA12
M_MA13
M_MA14
M_MA15
M_BA0
M_BA1
M_BA2
M_CLK0
M_CLK#0
M_CKE0
VRAM_ODT0
M_CS0B#1
M_RAS#0
M_CAS#0
M_WE#0
M_DQS1
M_DQS3
M_DQM1
M_DQM3
M_DQS#1
M_DQS#3
DRAM_RST
1
2
RV225
4GVRAM@
RV224
4GVRAM@
+1.35VGS
1
2
1
2
M8
H1
N3
N2
R8
R2
R3
R7
N7
M7
M2
N8
M3
K7
K9
K1
K3
C7
E7
D3
G3
B7
VREFCA
VREFDQ
A0
P7
A1
P3
A2
A3
P8
A4
P2
A5
A6
A7
T8
A8
A9
L7
A10/AP
A11
A12
T3
A13
T7
A14
A15/BA3
BA0
BA1
BA2
J7
CK
CK
CKE/CKE0
ODT/ODT0
L2
CS/CS0
J3
RAS
CAS
L3
WE
F3
DQSL
DQSU
DML
DMU
DQSL
DQSU
T2
RESET
L8
ZQ/ZQ0
J1
NC/ODT1
L1
NC/CS1
J9
NC/CE1
L9
NCZQ1
96-BALL
SDRAM DDR3
H5TC2G63FFR-11C_FBGA96
@
VREFCA_UV10
1
CV231
0.1U_0201_10V6K
4GVRAM@
2
M_DA21
M_DA19
M_DA22
M_DA18
M_DA20
M_DA16
M_DA23
M_DA17
M_DA2
M_DA4
M_DA0
M_DA7
M_DA3
M_DA6
M_DA1
M_DA5
+1.35VGS
+1.35VGS
1
2
VREFCA_UV9
1
1
CV230
0.1U_0201_10V6K
4GVRAM@
2
2
4GVRAM@
RV80
243_0402_1%
VREFCA_UV8
VREFDQ_UV8
4.99K_0402_1%
4.99K_0402_1%
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3
B2
VDD
D9
VDD
G7
VDD
K2
VDD
K8
VDD
N1
VDD
N9
VDD
R1
VDD
R9
VDD
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
VSS
B3
VSS
E1
VSS
G8
VSS
J2
VSS
J8
VSS
M1
VSS
M9
VSS
P1
VSS
P9
VSS
T1
VSS
T9
VSS
B1
B9
D1
D8
E2
E8
F9
G1
G9
M_DA9
M_DA14
M_DA10
M_DA15
M_DA11
M_DA12
M_DA8
M_DA13
M_DA28
M_DA26
M_DA31
M_DA27
M_DA30
M_DA24
M_DA29
M_DA25
+1.35VGS
+1.35VGS
3
M_CLK1
M_CLK#1
RV87
RV90
1
80.6_0402_1%
1
80.6_0402_1%
4
UV9
M_MA0
M_MA1
M_MA2
M_MA3
M_MA4
M_MA5
M_MA6
M_MA7
M_MA8
M_MA9
M_MA10
M_MA11
M_MA12
M_MA13
M_MA14
M_MA15
M_BA0
M_BA1
M_BA2
M_CLK1
M_CLK#1
M_CKE1
VRAM_ODT1
M_CS1B#1
M_RAS#1
M_CAS#1
M_WE#1
M_DQS5
M_DQS4
M_DQM5
M_DQM4
M_DQS#5
M_DQS#4
DRAM_RST
1
2
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12
T3
A13
T7
A14
M7
A15/BA3
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE/CKE0
K1
ODT/ODT0
L2
CS/CS0
J3
RAS
K3
CAS
L3
WE
F3
DQSL
C7
DQSU
E7
DML
D3
DMU
G3
DQSL
B7
DQSU
T2
RESET
L8
ZQ/ZQ0
J1
NC/ODT1
L1
NC/CS1
J9
NC/CE1
L9
NCZQ1
96-BALL
SDRAM DDR3
H5TC2G63FFR-11C_FBGA96
@
VREFCA_UV9
VREFDQ_UV9
M_CLK1<34,35>
M_CLK#1<34,35>
M_CKE1<34,35>
VRAM_ODT1<34,35>
M_CS1B#1<34>
M_RAS#1<34,35>
M_CAS#1<34,35>
M_WE#1<34,35>
4GVRAM@
RV81
243_0402_1%
2
PX@
2
PX@
1
CV187
.01U_0402_16V7-K
PX@
2
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
E3
M_DA44
F7
M_DA41
F2
M_DA45
F8
M_DA43
H3
M_DA47
H8
M_DA42
G2
M_DA46
H7
M_DA40
D7
M_DA35
C3
M_DA37
C8
M_DA32
C2
M_DA39
A7
M_DA34
A2
M_DA38
B8
M_DA33
A3
M_DA36
B2
VDD
D9
VDD
G7
VDD
K2
VDD
K8
VDD
N1
VDD
N9
VDD
R1
VDD
R9
VDD
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
VSS
B3
VSS
E1
VSS
G8
VSS
J2
VSS
J8
VSS
M1
VSS
M9
VSS
P1
VSS
P9
VSS
T1
VSS
T9
VSS
B1
B9
D1
D8
E2
E8
F9
G1
G9
+1.35VGS
0.1U_0201_10V6K
+1.35VGS
+1.35VGS
CV168
CV167
0.1U_0201_10V6K
1
@
@
2
CV171
CV169
CV170
0.1U_0201_10V6K
0.1U_0201_10V6K
0.1U_0201_10V6K
1
1
1
@
@
@
2
2
2
VREFCA_UV10
VREFDQ_UV10
4GVRAM@
RV82
243_0402_1%
CV174
CV172
CV173
0.1U_0201_10V6K
0.1U_0201_10V6K
0.1U_0201_10V6K
1
1
1
@
@
@
2
2
2
M_MA0
M_MA1
M_MA2
M_MA3
M_MA4
M_MA5
M_MA6
M_MA7
M_MA8
M_MA9
M_MA10
M_MA11
M_MA12
M_MA13
M_MA14
M_MA15
M_BA0
M_BA1
M_BA2
M_CLK1
M_CLK#1
M_CKE1
VRAM_ODT1
M_CS1B#1
M_RAS#1
M_CAS#1
M_WE#1
M_DQS7
M_DQS6
M_DQM7
M_DQM6
M_DQS#7
M_DQS#6
DRAM_RST
1
2
CV175
0.1U_0201_10V6K
1
@
2
M8
H1
N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7
M7
M2
N8
M3
J7
K7
K9
K1
L2
J3
K3
L3
F3
C7
E7
D3
G3
B7
T2
L8
J1
L1
J9
L9
CV176
CV177
0.1U_0201_10V6K
0.1U_0201_10V6K
1
1
1
@
@
2
2
2
5
UV10
VREFCA
DQL0
VREFDQ
DQL1
DQL2
A0
DQL3
A1
DQL4
DQL5
A2
DQL6
A3
DQL7
A4
A5
A6
DQU0
A7
DQU1
A8
DQU2
A9
DQU3
A10/AP
DQU4
A11
DQU5
A12
A13
DQU6
A14
DQU7
A15/BA3
VDD
BA0
VDD
BA1
BA2
VDD
VDD
VDD
VDD
VDD
CK
VDD
CK
VDD
CKE/CKE0
ODT/ODT0
VDDQ
VDDQ
CS/CS0
VDDQ
RAS
VDDQ
CAS
VDDQ
WE
VDDQ
VDDQ
VDDQ
DQSL
VDDQ
DQSU
DML
VSS
DMU
VSS
VSS
VSS
VSS
DQSL
VSS
DQSU
VSS
VSS
VSS
VSS
RESET
VSS
VSS
ZQ/ZQ0
VSSQ
NC/ODT1
VSSQ
NC/CS1
NC/CE1
VSSQ
NCZQ1
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
96-BALL
SDRAM DDR3
H5TC2G63FFR-11C_FBGA96
@
+1.35VGS
CV179
CV178
CV139
10U_0603_6.3V6M
0.1U_0201_10V6K
0.1U_0201_10V6K
1
1
1
4GVRAM@
@
@
2
2
2
E3
M_DA63
F7
M_DA58
F2
M_DA61
F8
M_DA59
H3
M_DA60
H8
M_DA56
G2
M_DA62
H7
M_DA57
D7
M_DA52
C3
M_DA55
C8
M_DA50
C2
M_DA51
A7
M_DA48
A2
M_DA54
B8
M_DA49
A3
M_DA53
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
10U_0603_6.3V6M
+1.35VGS
+1.35VGS
CV181
CV182
10U_0603_6.3V6M
CV184
10U_0603_6.3V6M
1
1
1
4GVRAM@
4GVRAM@
4GVRAM@
2
2
2
B
C
RV227
4.99K_0402_1%
4GVRAM@
RV226
4.99K_0402_1%
4GVRAM@
+1.35VGS
1
2
12
VREFDQ_UV8
1
CV232
0.1U_0201_10V6K
4GVRAM@
2
+1.35VGS
12
RV233
4.99K_0402_1%
D
4GVRAM@
RV232
4.99K_0402_1%
4GVRAM@
VREFDQ_UV7
1
1
CV235
0.1U_0201_10V6K
4GVRAM@
2
2
1
RV229
4.99K_0402_1%
4GVRAM@
RV228
4.99K_0402_1%
4GVRAM@
+1.35VGS
+1.35VGS
1
2
VREFDQ_UV9
1
1
CV233
0.1U_0201_10V6K
4GVRAM@
2
2
2
RV231
4.99K_0402_1%
4GVRAM@
RV230
4.99K_0402_1%
4GVRAM@
1
2
VREFDQ_UV10
1
1
CV234
0.1U_0201_10V6K
4GVRAM@
2
2
3
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FR OM THE CUSTODY OF THE COMPETENT DI VISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FR OM THE CUSTODY OF THE COMPETENT DI VISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FR OM THE CUSTODY OF THE COMPETENT DI VISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COM PAL ELECTRONICS, INC. NEITHER TH IS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COM PAL ELECTRONICS, INC. NEITHER TH IS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COM PAL ELECTRONICS, INC. NEITHER TH IS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIR D PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIR D PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIR D PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC.
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
+1.35VGS
CV189
1U_0402_6.3V6K
CV188
1U_0402_6.3V6K
1
4GVRAM@
4GVRAM@
2
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
4
CV207
CV196
CV192
1U_0402_6.3V6K
1U_0402_6.3V6K
CV191
1U_0402_6.3V6K
CV190
1U_0402_6.3V6K
1
2
1
1
1
4GVRAM@
4GVRAM@
4GVRAM@
2
2
2
1U_0402_6.3V6K
CV193
CV194
1U_0402_6.3V6K
1
4GVRAM@
2
1U_0402_6.3V6K
CV195
1U_0402_6.3V6K
1
1
1
4GVRAM@
4GVRAM@
4GVRAM@
2
2
2
1U_0402_6.3V6K
CV197
CV198
10U_0603_6.3V6M
CV199
1U_0402_6.3V6K
1
1
1
4GVRAM@
4GVRAM@
4GVRAM@
2
2
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Meso XT_VRAM A Upper
Meso XT_VRAM A Upper
Meso XT_VRAM A Upper
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
CV200
1U_0402_6.3V6K
1
4GVRAM@
2
1U_0402_6.3V6K
CV202
1U_0402_6.3V6K
CV201
1
1
4GVRAM@
4GVRAM@
2
2
LA-C281
LA-C281
LA-C281
5
1U_0402_6.3V6K
1
4GVRAM@
2
CV203
1U_0402_6.3V6K
CV205
1U_0402_6.3V6K
CV204
CV206
1U_0402_6.3V6K
1
1
1
1
4GVRAM@
4GVRAM@
4GVRAM@
4GVRAM@
2
2
36 50Friday, February 06, 2015
36 50Friday, February 06, 2015
of
36 50Friday, February 06, 2015
of
of
D
2
2
1.0
1.0
1.0
Page 37
5
4
3
2
1
Meso XT_VRAM_STRAP
X76@
UV3, UV4, UV5, UV6, UV7, UV8, UV9, UV10
Hynix 2G
SA00006E830
2GBytes
2GBytes
D D
2GBytes
HYN2@
256Mx16 H5TC4G63AFR-11C
Micron 2G
SA000077K10
MIC2@
256Mx16 MT41J256M16HA-093G:E
Samsung 2G
SA000076P10
SAM2@
256Mx16 K4W4G1646D-BC1A
Vendor
PS_3[ 3 ] PS_3[ 2 ]
ID
0
1
2
0 0
3
Hynix 4G
HYN4@
4GBytes
4GBytes
4GBytes
SA00006E830
256Mx16 H5TC4G63AFR-11C
Micron 4G
MIC4@
SA000077K10
256Mx16 MT41J256M16HA-093G:E
Samsung 4G
SAM4@
SA000076P10
256Mx16 K4W4G1646D-BC1A
4
5
1
6
PS_3[ 1 ]
00
00 1
1
0
1 0
0
110
001 4.99K4.5 3K
11
NC
3.24K
X76@
R_pdR_pu
RV24RV21
4.75K
2K8.45K
2K4.53K
4.99K6.9 8K
5.62K
10K3.4K
HYNIX 2G
UV3
4GBytes2GBytes
V4G@
4G VRAM
X7660638L10
RV21
HYN4@
4.53K_0402_1%
SD034453180
UV4
ZZZ3
RV24
HYN4@
4.99K_0402_1%
SD034499180
UV5
UV6
ZZZ2
V2G@
2G VRAM
X7660638L07
RV24
HYN2@
4.75K_0402_1%
UV4
SD034475180
UV5
UV6
HYNIX 4G
UV3
7
C
B
4.75K111 NC
HYN2@
H5TC4G63AFR-11C
SA00006E830
HYN2@
H5TC4G63AFR-11C
SA00006E830
Micron 2G
UV3
MIC2@
MT41J256M16HA-093G:E
SA000077K10
UV4
MIC2@
MT41J256M16HA-093G:E
SA000077K10
Samsung 2G
UV3
SAM2@
K4W4G1646D-BC1A
SA000076P10
UV4
SAM2@
K4W4G1646D-BC1A
SA000076P10
RV21
MIC2@
8.45K_0402_1%
SD000000680
RV21
SAM2@
4.53K_0402_1%
SD034453180
HYN2@
H5TC4G63AFR-11C
SA00006E830
RV24
MIC2@
2K_0402_1%
SD034200180
UV5
MIC2@
MT41J256M16HA-093G:E
SA000077K10
RV24
SAM2@
2K_0402_1%
SD034200180
UV5
SAM2@
K4W4G1646D-BC1A
SA000076P10
HYN2@
H5TC4G63AFR-11C
SA00006E830
UV6
MIC2@
MT41J256M16HA-093G:E
SA000077K10
UV6
SAM2@
K4W4G1646D-BC1A
SA000076P10
HYN4@
H5TC4G63AFR-11C
SA00006E830
UV7
HYN4@
H5TC4G63AFR-11C
SA00006E830
Micron 4G
UV3
MIC4@
MT41J256M16HA-093G:E
SA000077K10
UV7
MIC4@
MT41J256M16HA-093G:E
SA000077K10
UV4
MIC4@
MT41J256M16HA-093G:E
SA000077K10
UV8
MIC4@
MT41J256M16HA-093G:E
SA000077K10
Samsung 4G
UV3
SAM4@
K4W4G1646D-BC1A
SA000076P10
UV7
HYN4@
H5TC4G63AFR-11C
SA00006E830
UV8
HYN4@
H5TC4G63AFR-11C
SA00006E830
RV21
MIC4@
3.24K_0402_1%
SD034324180
RV21
SAM4@
3.4K_0402_1%
SD034340180
UV4
SAM4@
K4W4G1646D-BC1A
SA000076P10
UV8
HYN4@
H5TC4G63AFR-11C
SA00006E830
UV9
HYN4@
H5TC4G63AFR-11C
SA00006E830
RV24
MIC4@
5.62K_0402_1%
SD034562180
UV5
MIC4@
MT41J256M16HA-093G:E
SA000077K10
UV9
MIC4@
MT41J256M16HA-093G:E
SA000077K10
RV24
SAM4@
10K_0402_1%
SD034100280
UV5
SAM4@
K4W4G1646D-BC1A
SA000076P10
UV9
HYN4@
H5TC4G63AFR-11C
SA00006E830
UV10
HYN4@
H5TC4G63AFR-11C
SA00006E830
UV6
MIC4@
MT41J256M16HA-093G:E
SA000077K10
UV10
MIC4@
MT41J256M16HA-093G:E
SA000077K10
UV6
SAM4@
K4W4G1646D-BC1A
SA000076P10
UV10
C
B
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
5
4
3
2014/09/01 2015/09/01
2014/09/01 2015/09/01
2014/09/01 2015/09/01
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
SAM4@
K4W4G1646D-BC1A
SA000076P10
2
SAM4@
K4W4G1646D-BC1A
SA000076P10
SAM4@
K4W4G1646D-BC1A
SA000076P10
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
SAM4@
K4W4G1646D-BC1A
SA000076P10
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
VGA Notes List
VGA Notes List
VGA Notes List
LA-C281
LA-C281
LA-C281
1
37 50Friday, February 06, 2015
37 50Friday, February 06, 2015
37 50Friday, February 06, 2015
of
of
of
A
1.0
1.0
1.0
Page 38
5
WWW.AliSaler.Com
JDCIN1
1
APDIN
1
2
2
3
3
4
4
5
5
ACES_88299-0510
CONN@
D D
C
PF101
7A_32VDC_0437007.WRML
21
APDIN1
+3VALW
1
PC101
2
1000P_0402_50V7K
EMI@
PR101
@
0_0402_5%
1 2
1
PR102
750_0402_1%
PR103
100K_0402_5%
1
VIN
PR104
100K_0402_5%
4
PL101
EMI@
HCB2012KF-121T50_0805
1 2
PL102
EMI@
HCB2012KF-121T50_0805
1 2
1
PC102
2
100P_0402_50V8J
EMI@
PR1125
2
1
@
0_0402_5%
PQ101A
2N7002KDW-2N_SOT363-6
6
2
2
2
3
1
PQ101B
2
4
2N7002KDW-2N_SOT363-6
1
5
1
PC105
2
0.1U_0402_16V7K
PR1124
100K_0402_5%
3
2
1
ADP_ID
VIN
AC Adapter 90W 65W
R(K ohm) open 10
ADP_ID(V) 3.3 1.65
Detection voltage >2.64 1.32~1.98
1
1
PC103
2
1
2
PC104
2
100P_0402_50V8J
1000P_0402_50V7K
EMI@
EMI@
ADP_ID <25>
A/D
PC106
680P_0603_50V7K
1
2
ADP_ID_CLOSE <25>
+CHGRTC
PR105
1K_0603_5%
2
S SCH DIO BAS40CW SOT-323
+RTCBATT
PD101
2
1
3
PR106
1K_0603_5%
1
1
+CHGRTC_R
2
+3VLP
JBATT1
1
2
+
-
C
RTC Battery
B
A
5
LOTES_AAA-BAT-054-K01
CONN@
4
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELEC TRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELEC TRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELEC TRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
3
2011/06/24 2012/07/12
2011/06/24 2012/07/12
2011/06/24 2012/07/12
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
Custom
Custom
Custom
Date: Sheet
Date: Sheet
2
Date: Sheet
Compal Electronics, Inc.
Title
Title
Title
PWR DCIN / RTC Battery
PWR DCIN / RTC Battery
PWR DCIN / RTC Battery
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Z_BDW
1
38 50Friday, February 06, 2015
of
38 50Friday, February 06, 2015
of
38 50Friday, February 06, 2015
of
B
A
1.0
1.0
1.0
Page 39
5
JBAT1
VMB2
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
GND
D D
10
GND
11
GND
12
GND
SUYIN_125022HB008M200ZL
CONN@
EC_SMDA
EC_SMCA
12
PF201
F1206HB12V024TM 12A 24V UL FAST
1
2
PR201
100_0402_1%
PR211
100_0402_1%
PR212
1
200K_0402_1%
PR213
200K_0402_1%@
1
PR214
10K_0402_5%
21
2
2
4
EMI@
VMB
HCB2012KF-121T50_0805
1 2
EMI@
HCB2012KF-121T50_0805
1
1
PC201
EMI@
1000P_0402_50V7K
2
EC_SMB_CK1 <25,40>
EC_SMB_DA1 <25,40>
+3VLP
+3VALW
VCIN1_BATT_TEMP <25,40>
PL201
PL202
2
1
2
A/D
BATT+
PC202
EMI@
0.01U_0402_25V7K
3
PH201 under CPU botten side :
CPU thermal protection at 93 +-3 degree C
Recovery at 56 +-3 degree C
2
20120314
Change to +EC_VCCA from +3VLP
1
ADP_I<25,40>
C
VCOUT1_PROCHOT#<25,40>
VCIN1_ADP_PROCHOT<25>
1
@
2
2
PR216
PR217
10K_0402_1%
1
30K_0402_1%
1
PR223
2
75K_0402_1%
2
PR221
100K_0402_1%
1
VCIN0_PH1<25>
ADP_SET1 ADP_SET2
1
45W adapter 0
65W adapter
90W adapter
B
135W adapter
1
0
1 1
0
0
1
ADP_SET1<25>
135W: 150W active, 135W recovery
90W : 120W active, 90W recovery
65W : 85W active, 65W recovery
45W : 65W active, 45W recovery
2
G
ECAGND
D
PQ203
2N7002KW_SOT323-3
S
3
+EC_VCCA
1
PR215
14K_0402_1%
2
1
PH201
100K +-1% 0402 B25/50 4250K
2
ECAGND
C
B
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELEC TRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELEC TRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELEC TRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
5
4
3
2011/06/24 2012/07/12
2011/06/24 2012/07/12
2011/06/24 2012/07/12
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
Compal Electronics, Inc.
Title
Title
Title
PWR-BATTERY CONN/OTP
PWR-BATTERY CONN/OTP
PWR-BATTERY CONN/OTP
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Z_BDW
Date: Sheet
Date: Sheet
2
Date: Sheet
1
39 50Friday, February 06, 2015
of
39 50Friday, February 06, 2015
of
39 50Friday, February 06, 2015
of
A
1.0
1.0
1.0
Page 40
5
WWW.AliSaler.Com
PR314
@
1 2
1M_0402_1%
PQ301
MDU1512URH_PDFN56- 8-5
VIN
D D
5
12
PC303
1000P_0603_50V7
1
2
3
4
12
PR329
4.7_0603_1%
VIN
12
PR311
C
B
422K_0402_1%
1
1
PC315
2
PR313
2
66.5K_0402_1%
EC_SMB_DA1<25,39>
EC_SMB_CK1<25,39>
2200P_0402_25V7K
PMON_SKYLAKE<25>
VCOUT1_PROCHOT #<25,39>
2
G
PR315
@
1 2
3M_0402_5%
1
2
VIN
BA+
ADP_I< 25,39>
1
D
PQ307
@
S
3
2N7002KW_S OT323-3
PQ303
AON7506_PDFN33-8-5
1
2
3
4
1
PC301
2
PR301
0.047U_0603_25V7M
4.02K_0402_1%
PR308
1 2
4.02K_0402_1%
PD303
3
2
S SCH DIO BAS40C W SOT-323
1
DCHG_I
1
@
BQ24780VDD
1
PR319
100K_0402_1%
VCIN1_AC_IN<25,31>
Vin Dectector
Min. Typ Max.
L-->H 17.16V 17.63V 18.12V
A
H-->L 16.76V 17.22V 17.70V
VILIM = 20*ILIM*Rsr
ILIM = 3.3*100/(316+100)/20/0.01
= 3.966 A
2
12
PR325
120K_0402_1%
4
max Power loss 0.22W for 90W;0.12W for 65W system
SR rating: 1W
C
P3
VACP-VACN spec < 80.64mV
5
Rds(on) typ=35mohm max
Vgs=20V
Vds=30V
Id=10.6A (Ta=70C)
ACDRV
CMSRC
PR312
PC317100P_0603_50V8
PC318100P_0603_50V8
@
1
1
@
PR1126 0_0402_5%@
10_1206_5%
1
PC3131U_0603_25V6K
2
1
PR348
0_0402_5%
2
2
PR349
0_0402_5%
PC330 0.1U_0402_25V6
1
2
1
VCIN1_BATT_TEMP<25,39>
1
2
2
2
EC_SMB_DA1_1
EC_SMB_CK1_1
2
PMON_1
ACDRV
CMSRC
VCIN1_AC_IN
PR322
1
0_0402_5%@
PC310
0.1U_0603_25V7K
2
1
PU301
28
VCC
3
CMSRC
6
ACDET
11
SDA
12
SCL
5
ACOK
7
IADP
8
IDCHG
9
PMON
2
10
/PROCHOT
13
CMPIN
14
CMPOUT
15
/BATPRES
16
/TB_STAT
29
PWPD
BQ24780RUYR_W QFN28_4X4
PR302
0.01_1206_1%
1
2
PC311
1
0.1U_0402_25V6
ACP
2
4
ACP
ACDRV
3
4
3
2
ACN
PC329
@
1
1000P_0402_50V7K
1
ACN
REGN
BTST
HIDRV
PHASE
LODRV
GND
ILIM
SRP
SRN
BATDRV
BATSRC
EMI@
1UH_NRS4018T1R0NDGJ _3.2A_30%
1 2
PC312
0.01U_0402_25V7K
1 2
2
BQ24780VDD
2.2U_0805_25V6K
1
24
25
26
27
23
22
21
20
19
18
17
0_0603_5%
1
BST_CHG
PR326 10_0402_1%
1
PR328 10_0402_1%
1
BATSRC
PL301
SH00000YG00
PC314
2
PR317
2
DH_CHG
DL_CHG
PR321 316K_0402_1%
2
2
BATDRV
B+
1
2
Rds(on) = 30mohm max
Vgs = 20V
Vds = 30V
ID = 7A (Ta=70C)
PC316
0.047U_0603_25V7M
2
1
2
1
PR324 100K_0402_1%
2
1
PC323
2
1
0.1U_0402_25V6
1
PC324
2
0.1U_0402_25V6
2
Rds(on) = 35mohm max
Vgs = 20V
Vds = 30V
ID = 7.7A (Ta=70C)
1
1
PC306
PC307
2
EMI@
68P_0402_50V8J
@EMI@
LX_CHG
+3VLP
1
PC325
2
0.1U_0402_25V6
1
PC308
PC309
2
2
2200P_0402_50V7K
10U_0805_25V6K
10U_0805_25V6K
5
PR316
2
1
0_0603_5%
4
3
2
1
5
4
3
2
1
**Design Notes**
For 65 /90W system, 3S1P/3S2P battery
Maximum Charging current 3A
Maximum Battery discharge power 55W
#Register Setting
1. 0X12 bit2 set 1 (default 0) to enable turbo boost function
2. Disable turbo when AC only
#Circuit Design
1. ILIM pull high voltage need base on 3/5V enable control
2. Use 7X7 choke and 3X3 H/L side MOSFET
Charge current 3A
Power loss : 1.79W (H/S=0.227W,L/S=1.2738W,Choke=0.297W)
Power density : 0.61 (23X16)
#Protect function
1. ACOVP : VCC voltage > 24V
2. Charger timeout : No communication within 175s(default)
3. ACOC : 3.33 X Input current DAC setting (default:Disable)
4. CHGOCP : based on charge current setting
5. BATOVP : 103-106%
6. BATLOWV : 2.6V
7. TSHUT : 155C
8. IFAULT HI : 750mV (default:Disable)
9. IFAULT LOW : 230mV (default)
PQ302
AO4406AL_SO8
8
7
6
5
4
0.022U_0603_25V7K
1
PR303
2
4.02K_0402_1%
BATDRV
AON7408L_DFN8-5
PQ305
7X7X3
Isat: 6.5A
DCR: 33mohm
Power loss:0.297W
PL302
4.7UH_PCMB063T-4R 7MS_5.5A_20%
1
PQ306
2
AON7408L_DFN8-5
1
2
1
PR320
@EMI@
PC321
@EMI@
2
CHGCHG
4.7_1206_5%
680P_0603_50V7K
1
2
3
PC302
1 2
1
BA+
1
PR304
2
10_0402_1%
BATSRC
Support max discharge 6A(55W)
P
ower loss: 0.36W
CSR rating: 1W
VSRP-VSRN spec < 81.28mV
PR318
0.01_1206_1%
1
2
SRP
SRN
4
3
1
PC322
2
10U_0805_25V6K
BATT+
1
PC320
2
10U_0805_25V6K
C
B
A
5
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.
4
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.
2013/11/05 2015/11/05
2013/11/05 2015/11/05
2013/11/05 2015/11/05
3
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
BQ24780
BQ24780
BQ24780
Size D ocument Number Rev
Size D ocument Number Rev
Size D ocument Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
2
Date: Sheet
Z_BDW
40 50Friday, February 06, 2015
40 50Friday, February 06, 2015
40 50Friday, February 06, 2015
1
1.0
1.0
1.0
of
of
of
Page 41
A
B
C
D
E
Module model information
SY8208B_V2.mdd
1 1
2014.10.30 reserve for ESD
B+
HCB2012KF-121T50_0805
1
2
2
VCOUT0_MAIN_PWR_ON<25>
B+
PL403
EMI@
HCB2012KF-121T50_0805
3
2
1
PC416
Module model information
PU401
PL401
EMI@
2
1
PC1238
0.1U_0402_25V6
@EMI@
PC401
0.1U_0402_25V6
@EMI@
3V/5VALW_PG<25>
Check pull up resistor of SPOK at HW side
EC_ON<25>
5V_VIN
1
12
1
PC420
PC419
PC418
@
2
10U_0805_25V6K
2
10U_0805_25V6K
0.1U_0402_25V6
2200P_0402_50V7K
EMI@
@EMI@
1
2
PC405
2200P_0402_50V7K
EMI@
+3VLP
PR407
2.2K_0402_5%
1
PR408
@
1
0_0402_5%
1
2
1
2
5V_VCC
1
PC421
2
3V_VIN
1
1
@
2
2
PC406
10U_0805_25V6K
PR402
100K_0402_1%
1
2
2
3V5V_EN
1
PR410
PC414
2
1M_0402_1%
PU402
8
IN
9
GND
5
VCC
2
PG
SYX198CQNC_QFN10_3X3
4.7U_0603_6.3V6M
7
IN
8
IN
1
PC407
2
9
10U_0805_25V6K
GND
2
PG
SYX196BQNC_QFN10_3X3
2
EC VDD0 is +3VL, PC13 UNPOP
EC VDD0 is +3VALW, PC13 POP
EN1 and EN2 dont't floating
4.7U_0402_6.3V6M
1
EN1
3
EN2
6
BS
10
LX
4
OUT
7
LDO
5V LDO 150mA~300mA
Change 3V5V_EN to 3VALW_EN
EN1
EN2
BS
LX
OUT
LDO
3.3V LDO 150mA~300mA
5V_EN
5V_FB
1
BST_5V
VL
1
PC426
2
4.7U_0603_6.3V6M
EN1 and EN2 dont't floating
1
3
6
10
4
5
2.2_0603_5%
PR413
BST_3V
@
1
0_0402_5%
2
3V5V_EN
3V_FB
PR405
1
2.2_0603_5%
+3VLP
1
PC412
4.7U_0603_6.3V6M
2
PR415
2
PC417
0.1U_0603_25V7K
1
LX_5V
2
2
0.01U_0402_25V7K
PC404
2
1
0.1U_0603_25V7K
LX_3V
3V5V_EN
PC415
6800P_0402_25V7K
PR414
@EMI@
PC427
@EMI@
1K_0402_5%
2
1
1
1.5UH_PCMB053T-1R5MS_6A_20%
1
2
4.7_1206_5%
5V_SN
1
2
680P_0603_50V7K
PC403
1
1.5UH_PCMB053T-1R5MS_6A_20%
1
PR406
@EMI@
2
3V_SN
1
2
PC413
@EMI@
PR412
1
PR403
1K_0402_5%
2
1
PL402
2
1
4.7_1206_5%
680P_0603_50V7K
2
Vout is 4.998V~5.202V
TDC=6A
PL404
2
PR401
499K_0402_1%
2
ENLDO_3V5V
2
1
1
PR404
2
150K_0402_1%
B+
+3VALWP
1
2
2
PC408
22U_0603_6.3V6M
1
2
2
PC410
PC409
22U_0603_6.3V6M
PC411
22U_0603_6.3V6M
22U_0603_6.3V6M
1
1
Vout is 3.234V~3.366V
TDC=6A
PJ401
@
2
+3VALWP
1
1
JUMP_43X118
2
+5VALWP
1
1
2
2
PC422
22U_0603_6.3V6M
1
1
2
PC423
22U_0603_6.3V6M
1
2
2
PC425
PC424
22U_0603_6.3V6M
PC428
22U_0603_6.3V6M
22U_0603_6.3V6M
+5VALWP
PJ402
@
1
1
JUMP_43X118
2
+3VALW
2
+5VALW
SY8208C_V2.mdd
2
3
4
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELEC TRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELEC TRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELEC TRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
A
B
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
C
2011/06/24 2012/07/12
2011/06/24 2012/07/12
2011/06/24 2012/07/12
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
Compal Electronics, Inc.
Title
Title
Title
+3VALW/+5VALW
+3VALW/+5VALW
+3VALW/+5VALW
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
D
Date: Sheet
Z_BDW
41 50Friday, February 06, 2015
of
41 50Friday, February 06, 2015
of
41 50Friday, February 06, 2015
E
of
4
1.0
1.0
1.0
Page 42
5
WWW.AliSaler.Com
4
3
2
1
Module model information
RT8207M_V1.mdd For Single layer
T8207M_V2.mdd For Dual layer
R
D D
Pin19 need pull separate from +1.5VP.
If you have +1.5V and +0.75V sequence question,
PL501
EMI@
HCB2012 KF-121T50_080 5
B+
C
+1.35VP
1
1
2
2
PC521 22U_0603_6.3V6M
1
1
2
2
PC520 22U_0603_6.3V6M
PC518 22U_0603_6.3V6M
PC519 22U_0603_6.3V6M
2
1
1
2
1UH +-20% 11A 7X7X3 MOLDING
1
1
2
2
PC516 22U_0603_6.3V6M
PC517 22U_0603_6.3V6M
PC501
0.1U_0402_25V6
@EMI@
PL502
1
EMI@
EMI@
680P_04 02_50V7K
1.35V_B+
1
2
PC502
EMI@
2
4.7_1206 _5%
2200P_0402_50V7K
PR503
PC513
1
2
PC503
10U_0805_25V6K
AON7408 L_DFN8-5
1
2
1
AON7752 L_DFN8-5
2
1
2
PC504
10U_0805_25V6K
PQ501
PQ502
5
4
3
2
1
5
4
3
2
1
1
PC505
0.1U_060 3_25V7K
2
C
hange CS R to your estimation value
+5VALW
BST_1.35 V
PR504
5.1_0603 _5%
1
PC512
1U_0603 _10V6K
2
1
2
2.2_0603 _5%
1
PR502
22K_040 2_1%
1
1U_0603 _10V6K
VDD_1.35 V
5.1_0603 _5%
1
PR501
2
PC508
1
PR1127
2
DL_1.35V
CS_1.35V
2
2
+5VALW
B
Mode Level +0.75VSP VTTREF_1.5V
5 L off off
S
S3 L off on
S0 H on on
A
Note: S3 - sleep ; S5 - power off
MOSFET: 3x3 DFN
H/S Rds(on): 27mohm(Typ), 34mohm(Max)
Idsm: 7.5A@Ta=25C, 5.5A@Ta=70C
L/S Rds(on): 9.9mohm(Typ), 13mohm(Max)
Idsm: 13.5A@Ta=25C, 11A@Ta=70C
Choke: 7x7x3
Rdc=8.3mohm(Typ), 10mohm(Max)
Switching Frequency: 285kHz
Ipeak=10A
Iocp~13A
OVP: 110%~120%
MOSFET footprint: SIS412DN
2014/10/15 add PR1127 for module design
1.35V_B+
SYSON<25,29>
SUSP#<25,29,44,45>
DDR_VTT_PG_CTRL<15>
you can change from +1.5VP to +1.5VS.
BOOT_1.3 5V
DH_1.35V
SW_1 .35V
15
LGATE
14
PGND
13
CS
12
VDDP
11
VDD
PR507
470K_04 02_1%
1
PR509
@
1
0_0402_ 5%
0.1U_040 2_10V7K
17
16
PHASE
RT8207P GQW_W QFN20_3X3
PGOOD
9
10
TON_1.35V
2
2
PC514
@
PR510
@
1
0_0402_ 5%
PR505
@
1
0_0402_ 5%
UGATE
PU501
TON
2
2
18
BOOT
S5
8
EN_1.35V
1
2
19
20
VTT
VLDOIN
VTTGND
VTTSNS
GND
VTTREF
VDDQ
S3
FB
7
6
FB_1.35V
EN_0.675VSP
1
PC515
@
0.1U_040 2_10V7K
2
+0.675VSP
PAD
+1.35VP
+1.35VP
1
PC506
21
1
2
3
4
+VTTREF P
5
PR506
8.2K_040 2_1%
1
Change FB Rtop to 8.2K for 1.35V
1
PR508
10K_040 2_1%
2
2
+1.35VP
2
PJ501
@
1
1
JUMP_43 X118
PJ502
@
1
1
JUMP_43 X118
PJ503
1
1
JUMP_43 X39
10U_0805_10V6K
2
2
2
2
@
2
2
0.75Volt +/- 5%
TDC 0.7A
Peak Current 1A
1
PC507
2
10U_0805_10V6K
1
PC509
0.033U_0 402_16V7K
2
+1.35VP
+0.675VSP
+1.35V
+0.675VS
C
B
A
5
Security Class ification
Security Class ification
Security Class ification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
4
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
2011/06/ 24
2011/06/ 24
2011/06/ 24
3
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2012/07/ 12
2012/07/ 12
2012/07/ 12
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Doc ument Number Rev
Size Doc ument Number Rev
Size Doc ument Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
Compal Electronics, Inc.
RT8207M
RT8207M
RT8207M
Friday, February 06, 2015
Friday, February 06, 2015
Friday, February 06, 2015
Z_BDW
1
42 50
of
42 50
of
42 50
of
1.0Custom
1.0Custom
1.0Custom
Page 43
A
B
C
D
Module model information
APL5930_V1.mdd
1 1
1
1
2
2
1
2
1
100K_0402_5%
@
PR602
+5VALW
1
2
2
PC601
1U_0402_6.3V6K
PU601
AP7175SP-13_SO-8EP- 8
6
VCNTL
5
VOUT
VIN
9
VOUT
VIN
8
EN
7
POK
GND
1
Ultra Low Dropout 0.23V(typical) at 3A Output Current
3
4
2
FB
Rup
Rdown
1
PR603
2
1
19.1K_0402_1%
2
24K_0402_1%
PR605
1
2
PC603
0.01U_0402_25V7K
1
22U_0603_6.3V6M
2
+1.8VGSP
PC604
+1.8VGSP
PJ602
@
1
1
JUMP_43X79
2
2
+1.8VGS
2
+3VALW
JUMP_43X79
PJ601
@
PC602
4.7U_0805_6.3V6K
PR601
30K_0402_1%
2
DGPU_PWR_EN<8,25,32,46>
2
1
PR604
47K_0402_5%
+3VS
1
1
2
PC605
2
0.1U_0402_16V7K
Vout=0.8V* (1+Rup/Rdown)
3
4
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.
A
B
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.
2011/06/24 2012/07/12
2011/06/24 2012/07/12
2011/06/24 2012/07/12
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
C
Title
Title
Title
Size D ocument Number Rev
Size D ocument Number Rev
Size D ocument Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
+1.8VGS-+0.95VVGS
+1.8VGS-+0.95VVGS
+1.8VGS-+0.95VVGS
Z_BDW
D
43 50Friday, February 06, 2015
of
43 50Friday, February 06, 2015
of
43 50Friday, February 06, 2015
of
4
1.0
1.0
1.0
Page 44
A
WWW.AliSaler.Com
1 1
B
C
D
+3VALW
JUMP_43X79
PJ703
@
PC708
4.7U_0603_6.3V6K
PR707
100K_0402_5%
2
SUSP#<25,29,42,45>
2
1
PR709
47K_0402_5%
1
1
2
PC709
2
0.1U_0402_16V7K
+5VALW
1
1
2
2
1
2
1
PC707
1U_0402_6.3V6K
2
PU702
AP7175SP-13_SO-8EP- 8
6
VCNTL
5
VIN
9
VIN
8
EN
7
POK
GND
1
Ultra Low Dropout 0.23V(typical) at 3A Output Current
3
VOUT
4
VOUT
1
2
FB
Rup
Rdown
1
2
PC710
PR708
2
1.54K_0402_1%
1
PR710
2
1.74K_0402_1%
1
2
0.01U_0402_25V7K
+1.5VSP
PC711
22U_0603_6.3V6M
+1.5VSP
PJ704
1
1
JUMP_43X79
2
@
2
2
+1.5VS
Vout=0.8V* (1+Rup/Rdown)
3
4
A
4
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.
B
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.
2011/06/24 2012/07/12
2011/06/24 2012/07/12
2011/06/24 2012/07/12
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
C
Title
Title
Title
Size D ocument Number Rev
Size D ocument Number Rev
Size D ocument Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
+1.5VS
+1.5VS
+1.5VS
Z_BDW
D
1.0
1.0
44 50Friday, February 06, 2015
44 50Friday, February 06, 2015
44 50Friday, February 06, 2015
1.0
of
of
of
Page 45
5
D D
4
3
2
1
Module model information
SY8208D_V1.mdd
EN pin don't floating
If have pull down resistor at HW side, pls delete PR2
PR802
@
2
C
1M_0402_1%
PR803
PL801
EMI@
HCB2012KF-121T50_0805
2
1
3VLDO_1.05
1
PR806
0_0402_5%
@
2
ILMT_1.05V
12
PR808
@
0_0402_5%
B
The current limit is set to 8A, 12A or 16A when this pin
is pull low, floating or pull high
PC801
EMI@
1
2
2200P_0402_50V7K
1
PC805
PC806
2
@EMI@
10U_0805_25V6K
0.1U_0402_25V6
1
2
10U_0805_25V6K
1
PR801
10K_0402_5%
1
PC807
2
2
1.05V_VS_PG_PWR
B+_1.05V
1.05V_VS_PG_PWR<25>
ILMT_1.05V
PU801
8
EN
IN
BS
9
GND
3
ILMT
BYP
2
LDO
PG
SYX196DQNC_QFN10_3X3
1
PR805
2.2_0603_5%
1
LX_1.05V
PC813
0.1U_0603_25V7K
2
1
PC814
2
4.7U_0603_6.3V6K
4.7U_0603_6.3V6K
6
BST_1.05V
10
LX
4
FB
7
5
3VLDO_1.05
1
2
Pin 7 BYP is for CS.
Common NB can delete +3VALW and PC15
1
2
PC804
1
+3VALW
2
1
0_0402_5%
1
@
0.22U_0402_10V6K
2
PC802
SUSP# <25,29,42,44>
PR804
@EMI@
1UH +-20% 11A 7X7X3 MOLDING
4.7_1206_5%
1
1
PL802
2
SNB_1.05V
@EMI@
FB = 0.6V
Rdown
PC803
680P_0603_50V7K
2
1
2
1
Rup
PR807
2
1
PR809
20K_0402_1%
2
VFB=0.6V
Vout=0.6V* (1+Rup/Rdown)
1
1
2
2
PC809
PC808
15K_0402_1%
330P_0402_50V7K
Vout=1.05V
PJ801
2
+1.05VSP
1
2
1
JUMP_43X118 @
+1.05VS
TDC 8A
1
1
1
2
2
PC810
47U_0805_6.3V6M
2
PC811
47U_0805_6.3V6M
PC812
22U_0603_6.3V6M
22U_0603_6.3V6M
C
B
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
5
4
3
2011/06/24 2012/07/12
2011/06/24 2012/07/12
2011/06/24 2012/07/12
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
+1.05VS
+1.05VS
+1.05VS
Z_BDW
1
45 50Friday, February 06, 2015
of
45 50Friday, February 06, 2015
of
45 50Friday, February 06, 2015
of
A
1.0
1.0
1.0
Page 46
5
WWW.AliSaler.Com
4
3
2
1
+VGA_CORE
Module model information
I
SL62771_V1A.mdd for IC portion
ISL62771_V1B.mdd for SW portion
D D
PR946
@
Fsw=400K Hz
GPU_PROCHOT#<31>
+3VS
+3VGS
C
+1.8VGS
+1.5VS
DGPU_PWR_EN<8,25,32,43>
2014.10.15 reserve for RC delay
B
@
PR911
1
1
PR1123
@
PR912
@
1
0_0402_5%
PR914 0_0402_5%@
1
0.1U_0402_25V6K
PR932
@
1
0_0402_5%
100K_0402_1%
2
0_0402_5%
2
2
2
PC901
1
PR916
133K_0402_1%
1
2
ENABLE
1
2
GPU_SVC<31>
GPU_SVD<31>
1
GPU_SVT<31>
2
DGPU_PWROK< 8>
2
PC914
2
1000P_0402_50V7K
470K +-5% 0402 B25/50 4700K
PC1236
@
0.1U_0402_16V7K
PR901 100K_0402_1%
PR909 100K_0402_1%
PR919
27.4K_0402_1%
1
1
PH901
VSUM+
VSUM-
1 2
0_0402_5%
PR947
@
2
1
0_0402_5%
41
PU901
TP
1
2
1
1
1
PR937
0_0402_5%
2
2
+5VS
12
PR926
1
PH902
2
10K +-5% 0402 B25/50 4250K
12
PC928
0.1U_0603_50V7K
2.61K_0402_1%
2
2
@
IMON_NB
VDDIO
ENABLE
@
IMON
20K_0402_1%
1
2
PR944
1
1
PR927
11K_0402_1%
2
NTC_NB
2
IMON_NB
3
SVC
4
VR_HOT_L
5
SVD
6
VDDIO
7
SVT
8
ENABLE
9
PWROK
10
IMON
PR918
2
2
PR920
0_0402_5%
@
1
1
10K_0402_1%
PC961
VSUM-
2
0.22U_0402_10V6K
1
1
PC924
PC925
2
2
2014.09.22 modify from FAE
0.15U_0603_16V7K
0.047U_0402_25V7K
590_0402_1%
1
820P_0402_50V7K
PR934
@
100_0402_1%
2
1
PR1046 set 536 ohm to OCP 26.32A
PR945
41.2K_0402_1%
40
39
38
37
VSEN_NB
ISUMP_NB
ISUMN_NB
ISL62771HRTZ-T_TQFN40_5X5
NTC
ISEN2
ISEN1
11
12
14
13
ISEN2
ISEN1
1
PC962
2
0.22U_0402_10V6K
PR931
2
PC929
@
2
1
FB_NB
ISUMP
1
2
36
35
COMP_NB
ISUMN
16
15
1
2
PR902 10K_0402_1%
1
LGATE_NB1
PHASE_NB1
PR903 10K_0402_1%
1 2
UGATE_NB1
BOOT_NB1
31
32
34
33
BOOT_NB
LGATE_NB
BOOT2
PHASE_NB
UGATE_NB
PGOOD_NB
VSEN
RTN
18
17
PC921
@
330P_0402_50V7K
UGATE2
UGATE1
PGOOD
FB
COMP
20
19
PC919
1000P_0402_50V7K
1
1.21K_0402_1%
PHASE2
LGATE2
VDDP
LGATE1
PHASE1
BOOT1
2
1
VDD
PR924
2014.09.22 modify from FAE
1
PC930
2
0.01U_0402_50V7K
2
PR906
2
1
+5VALW
1_0402_5%
30
BOOT2
29
UGATE2
28
PHASE2
27
LGATE2
26
25
24
LGATE1
23
PHASE1
22
UGATE1
21
BOOT1
PR917
@
100K_0402_1%
2014.09.22 modify from FAE
PC920
2
PR933
0_0402_5%
PR935
0_0402_5%
2
2
2
330P_0402_50V7
PR925
137K_0402_1%
1
PR930
2K_0402_1%
1
PR922
301_0402_1%
1
@
1
@
1
PR913
1
1_0603_5%
1
2
PC912
+3VS
1U_0603_10V6K
1
2
DGPU_PWROK
32.4K_0402_1%
2
1
PC923
390P_0402_50V7K
2
2
1
PC926
330P_0402_50V7K
2
1
2
GPU_VDD_SEN <31>
GPU_VDD_RUN_FB_L <3 1>
+5VALW
2
1
2
@
1
PR923
PC913
1U_0603_10V6K
2
LGATE1
PHASE1
BOOT1
UGATE1
PR905
2.2_0603_1%
1 2
1 2
0_0402_5%
PR904
PC906
0.22U_0603_25V7K
2
1
1
2
1
2
LGATE2
PHASE2
PR928
2.2_0603_1%
1
BOOT2
1
UGATE2
+VGA_CORE
1
PC931
2
PR907
@EMI@
4.7_1206_5%
PC911
@EMI@
680P_0603_50V7K
PC922
0.22U_0603_25V7K
1
2
PR9210_0402_5%
2
1
1
PC932
2
2
2.2U_0402_6.3V6M
2.2U_0402_6.3V6M
PQ901
6
G2
7
S1/D2
5
S2
1
G1
4
S2
2
D1
3
S2
AON6932A_DFN5X6-8-7
SH00000NX00 (DCR:1.4± 5%)
PR938
10K_0402_1%
2
1
ISEN1
PR908
3.65K_0603_1%
2
1
VSUM+
PR910
1_0402_1%
2
1
VSUM-
1
PR929
4.7_1206_5%
2
1
PC927
680P_0603_50V7K
2
1
PC934
2
2.2U_0402_6.3V6M
@EMI@
@EMI@
PC935
7
1
2
1
2
2.2U_0402_6.3V6M
PQ902
S1/D2
G1
D1
AON6932A_DFN5X6-8-7
PC936
2
1
PC933
2
2.2U_0402_6.3V6M
GPU_B+
PL901
EMI@
HCB2012KF-121T50_0805
1 2
1
PC904
PC905
2
10U_0805_25V6K
1
+
PC910
2
1
1
PC917
2
2
10U_0805_25V6K
PL903
1
0.22UH_PCME064T-R22MS_28A_20%
2
1
1
PC943
2
2
2.2U_0402_6.3V6M
2.2U_0402_6.3V6M
1
2
10U_0805_25V6K
1
+
2
330U_D2_2V_Y
1
PC918
2
10U_0805_25V6K
4
3
10K_0402_1%
1
PC944
2
2.2U_0402_6.3V6M
+VGA_CORE
1
1
+
+
PC908
PC909
PC907
2
2
330U_D2_2V_Y
330U_D2_2V_Y
330U_2.5V_M
GPU_B+
+VGA_CORE
PR943
2
1
ISEN1
1
PC946
PC945
2
2.2U_0402_6.3V6M
2.2U_0402_6.3V6M
1
1
PC903
PC902
2
2
0.1U_0402_25V6
2200P_0402_50V7K
EMI@
@EMI@
4
1
PL902
0.22UH_PCME064T-R22MS_28A_20%
2
3
PR939
10K_0402_1%
1 2
ISEN2
1
6
G2
5
S2
4
S2
3
S2
1
1
PC938
PC937
2
2
2.2U_0402_6.3V6M
2.2U_0402_6.3V6M
2.2U_0402_6.3V6M
PC915
PC916
2
0.1U_0402_25V6
2200P_0402_50V7K
@EMI@
EMI@
PR940
10K_0402_1%
2
1
ISEN2
PR942
3.65K_0603_1%
2
1
VSUM+
PR941
1_0402_1%
2
1
VSUM-
1
1
1
PC939
2
2.2U_0402_6.3V6M
1
PC941
PC940
PC942
2
2
2
2.2U_0402_6.3V6M
2.2U_0402_6.3V6M
B+
A
MD Meso XT
TDC 36A, EDC 54A
OCP min 67.8A
C
B
A
5
1
1
1
1
PC947
PC948
2
PC949
2
2
10U_0603_6.3V6M
10U_0603_6.3V6M
10U_0603_6.3V6M
1
1
PC950
2
10U_0603_6.3V6M
1
PC952
PC951
2
2
2
10U_0603_6.3V6M
10U_0603_6.3V6M
1
1
PC954
PC953
1U_0402_6.3V6K
10U_0603_6.3V6M
1
PC955
PC956
2
2
2
1U_0402_6.3V6K
1U_0402_6.3V6K
1
1
PC957
2
1U_0402_6.3V6K
1
PC958
0.1U_0402_10V7K
1
PC959
PC960
2
2
2
0.1U_0402_10V7K
0.1U_0402_10V7K
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETE NT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETE NT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETE NT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELE CTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELE CTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELE CTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
4
3
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.
2011/06/24 2012/07/12
2011/06/24 2012/07/12
2011/06/24 2012/07/12
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
Compal Electronics, Inc.
PWR-+VGA_CORE
PWR-+VGA_CORE
PWR-+VGA_CORE
Z
_BDW
1
46 50Friday, February 06, 2015
of
46 50Friday, February 06, 2015
of
46 50Friday, February 06, 2015
of
1.0
1.0
1.0
Page 47
5
4
3
2
1
Module model information:
ISL95813 (for 15W & 28W CPU)
D D
Base on BDW PDDG Rev_0_73
15W
TDC 14A
Location
MAX 32A
Note
H-side MOS: MDV1525URH
Rds(on):
<10.1mohm@Vgs=10V
<14.0mohm@Vgs=4.5V
Id :24A@Vgs=10V
OCP 39A
L-side MOS: MDU1511RH
Rds(on):
<2.4mohm@Vgs=10V
<3.3mohm@Vgs=4.5V
Id :100A@Vgs=10V
Choke: 0.12UH (Size:7*7*3)
Rdc=0.62mohm +-5%
Heat Rating Current=41.5A
Saturation Current=41A
1
1
PC1106
PC1105
2
2
PC1104
1
EMI@
EMI@
0.01U_0402_50V7K
10U_0805_25V6K
2200P_0402_50V7K
PQ1102
MDU1511RH_POWERDFN56-8-5
2014.10.30 reser ve for ESD
PL1103
CPU_B+
1
1
1
PC1107
2
@RF@
1
2
1
2
+
2
PC1123
33U_25V_M
2
0.022U_0402_25V7K
PR1107
1
EMI@
4.7_1206_5%
2
PC1110
EMI@
680P_0603_50V7K
Title
Title
Title
ISL95813 for BDW-Y&U(15W/28W) CPU
ISL95813 for BDW-Y&U(15W/28W) CPU
ISL95813 for BDW-Y&U(15W/28W) CPU
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
EMI@
HCB2012KF-121T50_0805
@EMI@
HCB2012KF-121T50_0805
1
+
2
PL1102
.15UH 20% PCME064T-R15MS0R667 36A
1
2
SH000011P00
PR1109
3.65K_0603_1%
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
2
1
PL1104
2
1
33U_25V_M
PC1235
4
3
+CPU_CORE
Z_BDW
1
B+
1
2
PC1237
0.1U_0402_25V6
@EMI@
1.0
1.0
47 50Friday, February 06, 2015
47 50Friday, February 06, 2015
47 50Friday, February 06, 2015
1.0
of
of
of
Note:
VR_SVID_ALRT# Pull high on HW side
C
Note:
VR_HOT# Pull high on HW side
B
Over temperature protection:
OTP Setting: 100C active
Pin5 (NTC) voltage <0.88V, Protect
Pin5 (NTC) voltage >0.92v, recovery
A
Loadline=-2.0mv/A
PC1102
1U_0402_6.3V6K
1 2
PC1101
1000P_0402_50V7K
1
PR1106
97.6K_0402_1%
1
1
27.4K_0402_1%
1
12
PR1113
1.96K_0402_1%
1
2
PC1113
6800P_0402_25V7K
Follow intel guideline
PR1101
@
1.91K_0402_1%
2
1
2
2
PH1101
2
PR1111
2
1
33P_0402_50V8J
PC1112
2
1
1
1
PR1122
1.5K_0402_1%
2
PR1110
2
1
3.83K_0402_1%
1
PR1114
@
2
1
2
PC1114
@
PC1118
@
2
1
330P_0402_50V7K
PC1120
2
1
0.01U_0402_50V7K
PR1102130_0402_1%
2
PR110354.9_0402_1%
2
PU1101
VR_ON
IMON_CPU
VR_HOT_1#
NTC
COMP
1
PR1115
@
10_0402_1%
2K_0402_1%
2
1
2
PC1115
@
390P_0402_50V7K
330P_0402_50V7K
1
VR_ON
2
PGOOD
3
IMON
4
VR_HOT#
5
NTC
6
COMP
1
PR1116
2
Droop
1
PC1119
@
2
0.082U_0402_16V7K
VR_SVID_CLK
VR_SVID_ALRT#
19
21
20
PAD
SCLK
ALERT#
ISL95813HRZ-T_QFN20_3X4
RTN
FB
8
7
FB
1.27K_0402_1%
PRGM1
VR_SVID_DAT
17
18
SDA
PRGM1
ISUMP
ISUMN
9
10
ISUMN
ISUMP
4700P_0402_25V7K
LGATE
PHASE
UGATE
PRGM2
@
1
BOOT
PC1121
PR1104
1
90.9K_0402_1%
16
15
14
13
12
VCC
11
OCP Setting
PR1120
1
267_0402_1%
2
2
LAGTE
PHASE
UAGTE
BOOT
PRGM2
PR1112
1
PR1117
20M_0402_5%
2
PR1121
@
1
1.5K_0402_1%
Note:
PR1104=169K
=>Icc(max)=33A
fsw=700KHz
PR1108
2.2_0603_5%
1
1
2
1
2
124K_0402_1%
Note:
PR1112=124K
=>Slew rate=53mV/us
Vboot = 1.7V
2
2
PC1108
0.22U_0603_16V7K
2
1
+5VS
PC1111
0.1U_0402_25V6
RC Match
1
PC1116
0.033U_0402_25V7K
2
PR1105
0_0603_5%
1
2
PR1120
PR537
PC528
PR507
PR703
PC518
2
1
PC1117
0.1U_0402_16V4Z
2
1
PC1239
0.1U_0402_16V4Z
2
499 Ohm
1.27kOhm
0.022uF
90.9kOhm
93.1kOhm
0.1uF ( 0402 )
5
4
3
2
5
4
3
2
1
2
PQ1101
1
PQ1103
1
PR1119
11K_0402_1%
MDV1525URH_PDFN33-8-5
MDU1511RH_POWERDFN56-8-5
1
PR1118
4.42K_0402_1%
2
1
PH1102
10K +-5% 0402 B25/50 4250K
2
OCP
Droop
RC Match
PROG1
IMON
RC Filter
CPU_B+
PC1103
10U_0805_25V6K
4
@
1
2
5
3
2
+1.05VS
VR_SVID_DAT<11>
VR_SVID_ALRT#<11>
VR_SVID_CLK<11>
VR_ON<11>
+1.05VS
VGATE<11>
VR_HOT#<25>
1
2
PC1109
47P_0402_50V8J
VCCSENSE<11>
VSSSENSE<11,13>
470K +-5% 0402 B25/50 4700K
Local sense put on HW site
5
4
3
2
C
B
A
Page 48
5
WWW.AliSaler.Com
4
3
2
1
+CPU_CORE
24 X 22u/0603
D D
1
1
2
1
2
C
1
2
PC1202
PC1201
2
22U_0603_6.3V6M
22U_0603_6.3V6M
@
1
PC1211
PC1212
2
22U_0603_6.3V6M
@
PC1221
22U_0603_6.3V6M
1
PC1222
2
22U_0603_6.3V6M
22U_0603_6.3V6M
1
1
PC1204
PC1203
2
2
@
1
PC1213
2
1
PC1223
2
22U_0603_6.3V6M
@
22U_0603_6.3V6M
1
PC1214
2
22U_0603_6.3V6M
22U_0603_6.3V6M
1
PC1224
2
22U_0603_6.3V6M
22U_0603_6.3V6M
1
1
PC1205
2
2
22U_0603_6.3V6M
@
1
1
PC1215
2
2
22U_0603_6.3V6M
1
+
PC1234
@
330U_D2 _2VM_R9M
2
PC1206
22U_0603_6.3V6M
PC1216
22U_0603_6.3V6M
1
1
PC1208
PC1207
2
2
@
1
PC1217
2
22U_0603_6.3V6M
22U_0603_6.3V6M
1
PC1218
2
22U_0603_6.3V6M
22U_0603_6.3V6M
1
1
PC1210
PC1209
2
2
@
1
PC1219
2
22U_0603_6.3V6M
22U_0603_6.3V6M
1
PC1220
2
22U_0603_6.3V6M
22U_0603_6.3V6M
C
B
A
5
B
A
Security Class ification
Security Class ification
Security Class ification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
4
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
2011/06/24 2012/07/12
2011/06/24 2012/07/12
2011/06/24 2012/07/12
3
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
PWR-PROCESSOR_DECOUPLING
PWR-PROCESSOR_DECOUPLING
PWR-PROCESSOR_DECOUPLING
Size Doc ument Number Rev
Size Doc ument Number Rev
Size Doc ument Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
2
Date: Sheet
Z_BDW
48 50Friday, February 06, 2015
48 50Friday, February 06, 2015
48 50Friday, February 06, 2015
1
1.0
1.0
1.0
of
of
of
Page 49
5
4
3
2
Version change list (P.I.R. List) Page 1 of 1
for PWR
Reason for change PG# Modify List Date PhaseItem
1
1
D D
2
reserve VGA_CORE RC delay P46 2014.10.15 SIV
reserve 0.1uF for ESD P41/P47 add PC1237,PC1238 2014.10.30 SIV
add PC1236
3
4
6
7
8
C
9
10
11
12
13
14
C
B
B
15
16
17
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.
5
4
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.
2011/06/24 2012/07/12
2011/06/24 2012/07/12
2011/06/24 2012/07/12
3
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
Size D ocument Number Rev
Size D ocument Number Rev
Size D ocument Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
2
Date: Sheet
Compal Electronics, Inc.
PIR (PWR)
PIR (PWR)
PIR (PWR)
BE_BDW
49 50Friday, February 06, 2015
49 50Friday, February 06, 2015
49 50Friday, February 06, 2015
1
of
of
of
A
1.0
1.0
1.0
Page 50
5
WWW.AliSaler.Com
Version change list (P.I.R. List)
Item
1
HDMI Design add R1650,R1651,R1652,R1653,R1654,R1655,R1656,R1657,R1658,R1659,R1660,R1661
2
USB2.0 design for EMI request
3
D D
C
Change commom chock symbol for EMI request
4
Add FAN_ID for EC request P25 add R516 and R517
5
Audio design for EMI request add CA28,CA29,CA30,CA31
6
7
8
+1.35V design for EMI request
9
modify +MEM_GFX power sequence P32 change C901 from 0.01uF to 0.1uF
10
11
Change pcb foot print by DFX request P20,P24 change JIO1,JODD1,JHDMI pcb footprint 2014.12.08 SIT
12
Change for VGA power sequence P32 change CV35 value 2014.12.08 SIT
13
14
15
4
3
2
Page 1 of 1
PG# Modify List
P18
P24
P24
add R1676 and R1677
change L12~L18
P36
P36Audio design for EMI request change from RA19,RA20 to LA2,LA3
P36Audio design for EMI request
add LA1
P15 add C320~C324
delete RL18, add J6,J7P26LAN design change for wake on lan 2014.11.13 SIT
P27Change Audio PCBEEP SCH by verdor suggestion SIT2014.12.15add RA35,RA37,CA90,CA91,RA39 / DELETE CA23,CA24,RA36,RA34,CA25
P27Modify LED BOM setting modify LED1,LED2,LED3,LED4,LED5,LED6 BOM setting 2014.12.15 SIT
for HW
SIV2014.10.28P06Reserve clean CMOS circuit reserve R80,Q27
2014.10.28
2014.10.28
SIV
SIV
SIV2014.10.28
2014.10.29 SIV
2014.10.29
2014.10.29
2014.10.29
2014.10.29
2014.10.30
SIV
SIV
SIV
SIV
SIV
1
PhaseReason for change
16
17
18
19
20
21
22
B
23
24
25
26
27
28
29
30
C
B
A
5
A
Security Classification
Security Classification
Security Classification
Issued Date
Issued Date
Issued Date
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRON ICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
AND TRADE SECRET INFORMATION . THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .
4
3
2011/06/15 2012/07/11
2011/06/15 2012/07/11
2011/06/15 2012/07/11
Compal Secret Data
Compal Secret Data
Compal Secret Data
Deciphered Date
Deciphered Date
Deciphered Date
2
Compal Electronics, Inc.
Compal Electronics, Inc.
Compal Electronics, Inc.
Title
Title
Title
HW-PIR1
HW-PIR1
HW-PIR1
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
Date: Sheet
Date: Sheet
Date: Sheet
LA-C281P
LA-C281P
LA-C281P
1
50 50Friday, February 06, 2015
of
50 50Friday, February 06, 2015
of
50 50Friday, February 06, 2015
of
1.0
1.0
1.0
Loading...
