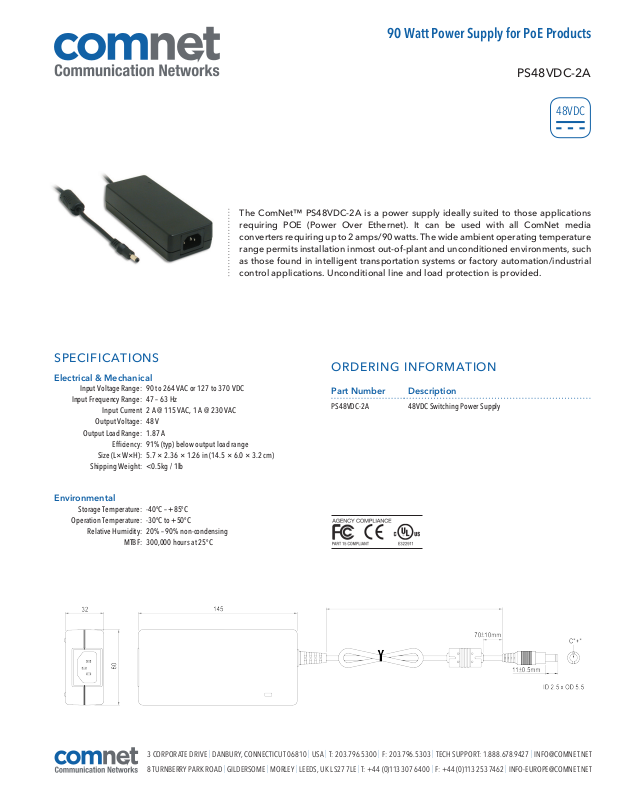

Comnet PS48V-2A Specsheet

90 Watt Power Supply for PoE Products

PS48VDC-2A

48VDC

The ComNet™ PS48VDC-2A is a power supply ideally suited to those applications
requiring POE (Power Over Ethernet). It can be used with all ComNet media
converters requiring up to 2 amps/90 watts. The wide ambient operating temperature
range permits installation inmost out-of-plant and unconditioned environments, such
as those found in intelligent transportation systems or factory automation/industrial
control applications. Unconditional line and load protection is provided.

SPECIFICATIONS

Electrical & Mechanical

Input Voltage Range:

Input Frequency Range:

Input Current

Output Voltage:

Output Load Range:

Efficiency:

Size (L×W×H):

Shipping Weight:

Environmental

Storage Temperature:

Operation Temperature:

Relative Humidity:

90 to 264 VAC or 127 to 370 VDC
47 – 63 Hz
2 A @ 115 VAC, 1 A @ 230 VAC
48 V

1.87 A
91% (typ) below output load range

5.7 × 2.36 × 1.26 in (14.5 × 6.0 × 3.2 cm)
<0.5kg / 1lb

-40ºC – +85ºC

-30ºC to +50ºC
20% – 90% non-condensing

MTBF:

300,000 hours at 25ºC

ORDERING INFORMATION

Part Number Description

PS48VDC-2A 48VDC Switching Power Supply
