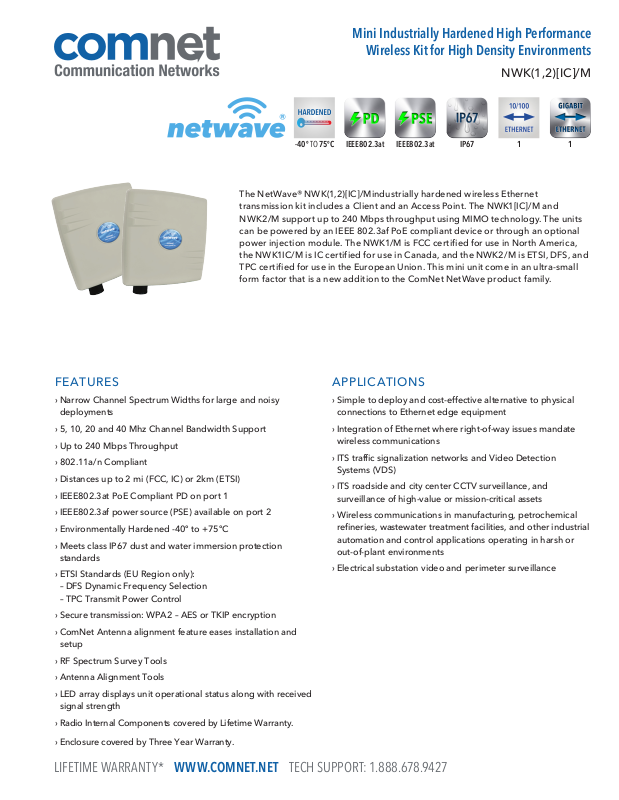

Comnet NWK1IC-M Specsheet

Mini Industrially Hardened High Performance

Wireless Kit for High Density Environments

NWK(1,2)[IC]/M

1 1IP67-40º TO 75ºC IEEE802.3atIEEE802.3at

The NetWave® NWK(1,2)[IC]/Mindustrially hardened wireless Ethernet
transmission kit includes a Client and an Access Point. The NWK1[IC]/M and
NWK2/M support up to 240 Mbps throughput using MIMO technology. The units
can be powered by an IEEE 802.3af PoE compliant device or through an optional
power injection module. The NWK1/M is FCC certified for use in North America,
the NWK1IC/M is IC certified for use in Canada, and the NWK2/M is ETSI, DFS, and
TPC certified for use in the European Union. This mini unit come in an ultra-small
form factor that is a new addition to the ComNet NetWave product family.

FEATURES

› Narrow Channel Spectrum Widths for large and noisy

deployments

› 5, 10, 20 and 40 Mhz Channel Bandwidth Support

› Up to 240 Mbps Throughput

› 802.11a/n Compliant

› Distances up to 2 mi (FCC, IC) or 2km (ETSI)

› IEEE802.3at PoE Compliant PD on port 1

› IEEE802.3af power source (PSE) available on port 2

› Environmentally Hardened -40º to +75ºC

› Meets class IP67 dust and water immersion protection

standards

› ETSI Standards (EU Region only):

– DFS Dynamic Frequency Selection
– TPC Transmit Power Control

› Secure transmission: WPA2 – AES or TKIP encryption

› ComNet Antenna alignment feature eases installation and

setup

› RF Spectrum Survey Tools

› Antenna Alignment Tools

› LED array displays unit operational status along with received

signal strength

› Radio Internal Components covered by Lifetime Warranty.

APPLICATIONS

› Simple to deploy and cost-effective alternative to physical

connections to Ethernet edge equipment

› Integration of Ethernet where right-of-way issues mandate

wireless communications

› ITS traffic signalization networks and Video Detection

Systems (VDS)

› ITS roadside and city center CCTV surveillance, and

surveillance of high-value or mission-critical assets

› Wireless communications in manufacturing, petrochemical

refineries, wastewater treatment facilities, and other industrial
automation and control applications operating in harsh or
out-of-plant environments

› Electrical substation video and perimeter surveillance

› Enclosure covered by Three Year Warranty.

LIFETIME WARRANTY* WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427

NWK(1,2)]IC]/M

A

SPECIFICATIONS

Mini Industrially Hardened High Performance

Wireless Kit for High Density Environments

Wireless Radio

EIRP NWK1[IC]/M (FCC, IC): Up to +36dBm for point

to multipoint deployments, +42dBm for point to
point deployments with MAC-lock feature enabled

NWK2/M (ETSI): +30dBm
RF Output +26dBm Rated Transmitter
Operational Frequency 5180MHz – 5825MHz, Region-dependent.

Not all frequencies are supported in all regions.

Contact ComNet for frequencies supported in your

region.
Bandwidths 5, 10, 20 and 40 MHz

Standard Internal Antenna

Antenna Internal 16dBi Dual Polarized Directional
Gain 16dBi
Azimuth 30º Horizontal/Vertical
Elevation 30º Horizontal/Vertical

Connectors

10/100/1000 Ethernet RJ-45, Sealed Cable Gland
Indicating LEDs Power On, Ethernet Link, Signal Strength

GENCY COMPLIANCE

Software Features

Addressing Static IP / DHCP Client / DHCP Server
SNMP V3
Telnet Server Syslog
Dynamic DNS 802.1q VLAN support
Embedded Firewall QoS support
Ability to Assign Static Routes NTP Client
Spanning Tree Protocol support

802.1x Port-Based Network Access Control
User-Configurable Watchdog and Auto-Reboot Mechanism
Multi-Level Configuration and Monitoring Login Accounts
User Configurable Long Range Parameters

Power

Operating Voltage 24 to 56 VDC
Power Consumption 5.5 W Max
PD Power IEEE802.3af PD compliant

Mechanical

Indicating LEDs Power On Ethernet Link Signal Strength
Size (L × W × H) 7.4 × 7.4 × 2.2 in (18.5 × 18.5 × 5.6 cm)
Shipping Weight <7.7 lb / 3.5 kg

Environmental

MTBF >100,000 hours
Operating Temp -40° C to +75° C
Storage Temp -40° C to +85° C
Relative Humidity 5% to 95%, non-condensing¹

Warranty

Internal Components Lifetime
Enclosure 3 Year

ORDERING INFORMATION

Part Number Description

NWK1/M Industrially Hardened Mini Point-to-Point Wireless Ethernet Kit, Suppor ts distances up to 2 mi/3.2 km, FCC certified for Nor th America

NWK2/M Industrially Hardened Mini Point-to-Point Wireless Ethernet Kit, Suppor ts distances up to 2 km/1.25 mi, ETSI certified for European Union

NWK1IC/M Industrially Hardened Mini Point-to-Point Wireless Ethernet Kit, Suppor ts distances up to 2 km/1.25 mi, IC cer tified for Canada

Included Accessories Pole Mounting Hardware Kit

Options
(Extra charge,
consult factor y)

NOTE: In a continuing effort to improve and advance technology, product specifications are subject to change without notice.

[1] Add suffix ‘/C’ for Conformally Coated Circuit Boards to ex tend to condensation conditions
PIM1 - Hardened 100 Mbps Power Injec tion Module supporting 24-48 VDC and 24 VAC Input
CWPOEIPS-15 - Commercial 15.4 W Midspan 100 Mbps Power Injec tion Module suppor ting 100-240 VAC and 48 VDC output
CNGE1IPS - Hardened 35 W Midspan 1 Gbps Power Injection Module for Passthrough PoE Applications supporting 90 -264 VAC Input and 56 VDC Output

TYPICAL APPLICATION

ComNet Managed

Switch with 30W PoE

Connected to Network

10/100/10 00

Ethernet

PoE

NWK1/M

(Access Point)

NW1K/M

(Client)

PIM or other
PSE device

Ethernet Ethernet

PoE

Legend

Wireless

CAT5

Power

IP Camera

Power

Ethernet
