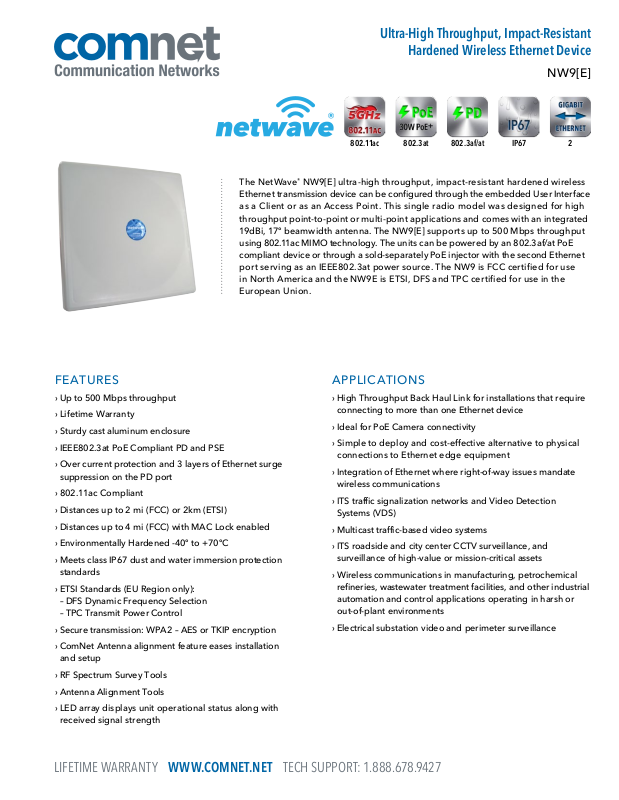

Comnet NW9, NW9E Specsheet

Ultra-High Throughput, Impact-Resistant

Hardened Wireless Ethernet Device

NW9[E]

2IP67802.3af/at802.3at802 .11ac

The NetWave
Ethernet transmission device can be configured through the embedded User Interface
as a Client or as an Access Point. This single radio model was designed for high
throughput point-to-point or multi-point applications and comes with an integrated
19dBi, 17º beamwidth antenna. The NW9[E] supports up to 500 Mbps throughput
using 802.11ac MIMO technology. The units can be powered by an 802.3af/at PoE
compliant device or through a sold-separately PoE injector with the second Ethernet
port serving as an IEEE802.3at power source. The NW9 is FCC certified for use
in North America and the NW9E is ETSI, DFS and TPC certified for use in the
European Union.

FEATURES

› Up to 500 Mbps throughput

› Lifetime Warranty

› Sturdy cast aluminum enclosure

› IEEE802.3at PoE Compliant PD and PSE

› Over current protection and 3 layers of Ethernet surge

suppression on the PD port

› 802.11ac Compliant

› Distances up to 2 mi (FCC) or 2km (ETSI)

› Distances up to 4 mi (FCC) with MAC Lock enabled

› Environmentally Hardened -40º to +70ºC

› Meets class IP67 dust and water immersion protection

standards

› ETSI Standards (EU Region only):

– DFS Dynamic Frequency Selection
– TPC Transmit Power Control

› Secure transmission: WPA2 – AES or TKIP encryption

› ComNet Antenna alignment feature eases installation

and setup

› RF Spectrum Survey Tools

› Antenna Alignment Tools

› LED array displays unit operational status along with

received signal strength

®

NW9[E] ultra-high throughput, impact-resistant hardened wireless

APPLICATIONS

› High Throughput Back Haul Link for installations that require

connecting to more than one Ethernet device

› Ideal for PoE Camera connectivity

› Simple to deploy and cost-effective alternative to physical

connections to Ethernet edge equipment

› Integration of Ethernet where right-of-way issues mandate

wireless communications

› ITS traffic signalization networks and Video Detection

Systems (VDS)

› Multicast traffic-based video systems

› ITS roadside and city center CCTV surveillance, and

surveillance of high-value or mission-critical assets

› Wireless communications in manufacturing, petrochemical

refineries, wastewater treatment facilities, and other industrial
automation and control applications operating in harsh or
out-of-plant environments

› Electrical substation video and perimeter surveillance

LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427

NW9[E]

SPECIFICATIONS

Ultra-High Throughput, Impact-Resistant

Hardened Wireless Ethernet Device

5GHz Wireless Radio

EIRP NW9 (FCC): Up to +36dBm for point to multipoint

deployments, +49dBm for point to point
deployments with MAC-lock feature enabled

NW9E (ETSI): +30dBm
RF Output +30dBm Rated Transmitter
Operational Frequency 5500GHz - 5825GHz, Region-dependent.

Not all frequencies are supported in all regions.

Contact ComNet for frequencies supported in your

region.
Bandwidths 10, 20, 40, and 80MHz

Internal Antenna

Antenna Internal 19dBi Dual Polarized Directional

Gain 19dBi

Azimuth 17º Horizontal/Vertical
Elevation 17º Horizontal/Vertical

IA870 Optional Internal Antenna

Antenna Internal 8dBi Dual Polarized Directional

Gain 8dBi

Azimuth 70º Horizontal/Vertical
Elevation 30º Horizontal/Vertical

Connectors

Gigabit Ethernet 2 × RJ-45, Sealed Cable Gland

Indicating LEDs Power On

Ethernet Link

Signal Strength

Software Features

Addressing Static IP / DHCP Client / DHCP Server
SNMP V3
Spanning Tree Protocol support
Telnet Server
Syslog

802.1x Port-Based Network Access Control
NTP Client
User-Configurable Watchdog and Auto-Reboot Mechanism
Multi-Level Configuration and Monitoring Login Accounts
User Configurable Long Range Parameters

Power

Operating Power 48 to 57 VDC @ 170 mA
Power Consumption 8 W Max (with no PD load connected to port 2)
PD Power IEEE802.3af/at PD compliant
PSE Power IEEE802.3at PSE compliant

Mechanical

Size (L × W × H) 10.27 × 10.27 × 1.38 in (26.1 × 26.1 × 3.5 cm)

Shipping Weight: <2 lbs / 0.9 kg

Environmental

MTBF >100,000 hours
Operating Temp -40° C to +70° C
Storage Temp -40° C to +85° C

NOTE: In a continuing effort to improve and advance technology,
product specifications are subject to change without notice.

ORDERING INFORMATION

Part Number Description

NW9

NW9E

Included Accessories
Options

Individual Hardened Single Radio, Two Gb Ethernet Ports, One internal 19dBi 17° beamwidth directional antenna, includes pole mounting assembly, Port
1 Supports 802.3af/at PD PoE Power, Port 2 provides IEEE802.3at PSE PoE Power, FCC certified for use in NA Region

Individual Hardened Single Radio, Two Gb Ethernet Ports, One internal 19dBi 17° beamwidth directional antenna, includes pole mounting assembly, Port
1 Supports 802.3af/at PD PoE Power, Port 2 provides IEEE802.3at PSE PoE Power, ETSI certified for use in EU Region

Mounting Hardware Kit (For Pole Mounting Only)
NWBKT - Articulating Wall or Pole Mounting Kit. Supports up to 3in/76mm diameter poles. (Sold Separately)
Add /IA870 for 8dBi/70ºb eamwidth internal antenna option (Recommended for multipoint Access Points. Extra charge, consult factory.)
CNGE1IPS - 35W PoE Injector (sold separately)
