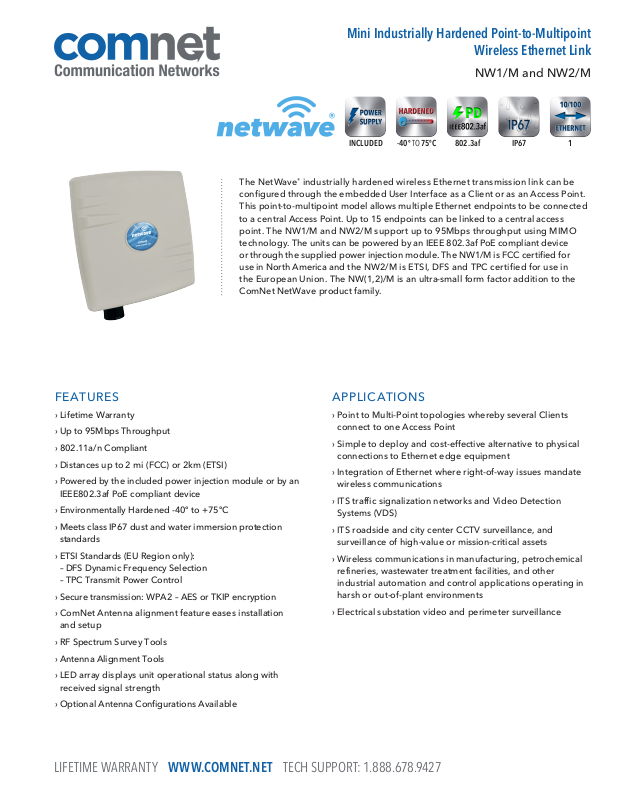

Mini Industrially Hardened Point-to-Multipoint
Wireless Ethernet Link
NW1/M and NW2/M
1IP67INCLUDED 802.3af-40º TO 75ºC
The NetWave® industrially hardened wireless Ethernet transmission link can be
configured through the embedded User Interface as a Client or as an Access Point.
This point-to-multipoint model allows multiple Ethernet endpoints to be connected
to a central Access Point. Up to 15 endpoints can be linked to a central access
point. The NW1/M and NW2/M support up to 95Mbps throughput using MIMO
technology. The units can be powered by an IEEE 802.3af PoE compliant device
or through the supplied power injection module. The NW1/M is FCC certified for
use in North America and the NW2/M is ETSI, DFS and TPC certified for use in
the European Union. The NW(1,2)/M is an ultra-small form factor addition to the
ComNet NetWave product family.
FEATURES
› Lifetime Warranty
› Up to 95Mbps Throughput
› 802.11a/n Compliant
› Distances up to 2 mi (FCC) or 2km (ETSI)
› Powered by the included power injection module or by an
IEEE802.3af PoE compliant device
› Environmentally Hardened -40º to +75ºC
› Meets class IP67 dust and water immersion protection
standards
› ETSI Standards (EU Region only):
– DFS Dynamic Frequency Selection
– TPC Transmit Power Control
› Secure transmission: WPA2 – AES or TKIP encryption
› ComNet Antenna alignment feature eases installation
and setup
› RF Spectrum Survey Tools
› Antenna Alignment Tools
› LED array displays unit operational status along with
received signal strength
› Optional Antenna Configurations Available
APPLICATIONS
› Point to Multi-Point topologies whereby several Clients
connect to one Access Point
› Simple to deploy and cost-effective alternative to physical
connections to Ethernet edge equipment
› Integration of Ethernet where right-of-way issues mandate
wireless communications
› ITS traffic signalization networks and Video Detection
Systems (VDS)
› ITS roadside and city center CCTV surveillance, and
surveillance of high-value or mission-critical assets
› Wireless communications in manufacturing, petrochemical
refineries, wastewater treatment facilities, and other
industrial automation and control applications operating in
harsh or out-of-plant environments
› Electrical substation video and perimeter surveillance
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
NW1/M and NW2/M
SPECIFICATIONS
Mini Industrially Hardened Point-to-Multipoint
Wireless Ethernet Link
Wireless Radio
EIRP NW1/M (FCC): Up to +36dBm for point to
multipoint deployments, +42dBm for point to
point deployments with MAC-lock feature enabled
NW2/M (ETSI): +30dBm
RF Output +26dBm Rated Transmitter
Operational Frequency 5180GHz - 5825GHz, Region-dependent.
Not all frequencies are supported in all regions.
Contact ComNet for frequencies supported in your
region.
Bandwidths 20 and 40MHz
Standard Internal Antenna
Antenna Internal 16dBi Dual Polarized Directional
Gain 16dBi
Azimuth 30º Horizontal/Vertical
Elevation 30º Horizontal/Vertical
IA870 Optional Internal Antenna
Antenna Internal 8dBi Dual Polarized Directional
Gain 8dBi
Azimuth 70º Horizontal/Vertical
Elevation 30º Horizontal/Vertical
Connectors
10/100 Ethernet RJ-45, Sealed Cable Gland
Indicating LEDs Power On, Ethernet Link, Signal Strength
Software Features
Addressing Static IP / DHCP Client / DHCP Server
SNMP V3
Telnet Server Syslog
Dynamic DNS 802.1q VLAN support
Embedded Firewall QoS support
Ability to Assign Static Routes NTP Client
Spanning Tree Protocol support
802.1x Port-Based Network Access Control
User-Configurable Watchdog and Auto-Reboot Mechanism
Multi-Level Configuration and Monitoring Login Accounts
User Configurable Long Range Parameters
Power
Operating Voltage 42 to 57 VDC
Power Consumption 5.5 W Max
PD Power IEEE802.3af PD compliant
Mechanical
Size (L × W × H) 7.4 × 7.4 × 2.2 in (18.5 × 18.5 × 5.6 cm)
Shipping Weight: <2lbs/0.9kg
Environmental
MTBF >100,000 hours
Operating Temp -40° C to +75° C
Storage Temp -40° C to +85° C
Relative Humidity 5% to 95%
NOTE: In a continuing effort to improve and advance technology,
product specifications are subject to change without notice.
ORDERING INFORMATION
Part Number Description
NW1/M Industrially Hardened Mini Point-to-Multipoint Wireless Ethernet Unit, Supports distances up to 2 mi/3.2 km, FCC certified for North America
NW2/M Industrially Hardened Mini Point-to-Multipoint Wireless Ethernet Unit, Supports distances up to 2 km/1.25 mi, ETSI certified for European Union
Included Accessories
Options
Power Kit with Power Supply and Passive Power Injector
Pole Mounting Hardware Kit
Add /IA870 for 8dBi/70º beamwidth internal antenna option (Recommended for multipoint Access Points. Extra charge, consult factory.)
Add ‘/C’ for Conformally Coated Circuit Boards (Extra charge, consult factory)
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
NW1/M and NW2/M
TYPICAL APPLICATION
Mini Industrially Hardened Point-to-Multipoint
Wireless Ethernet Link
Point-to-Multipoint Topology
PC NVR ComNet Gigabit
LEGEND
WIRELESS
CAT5
POWER
ETHERNET DATA
Managed Switch
with 30W PoE+
10/100 Ethernet
PoE
NW1/M/IA870
(Recommended
Access Point)
NW1/M (Client)
NW1/M (Client)
NW1/M (Client)
PIM or other
PSE device
Ethernet Ethernet
PoE
PIM or other
PSE device
Ethernet Ethernet
PoE
PIM or other
PSE device
Ethernet Ethernet
PoE
Power
IP Camera
Power
IP Camera
Power
IP Camera
Point-to-Point Topology Utilizing Dual Ports
NW1/M
10/100 Mbps
Ethernet
PoE
ComNet Managed
Switch with 30W PoE
Connected to Network
(Access Point)
NW1
(Client)
PIM or other
Ethernet
PoE
P1
P2
PSE device
Ethernet
Ethernet
Power
IP Camera
IP Camera
Power
