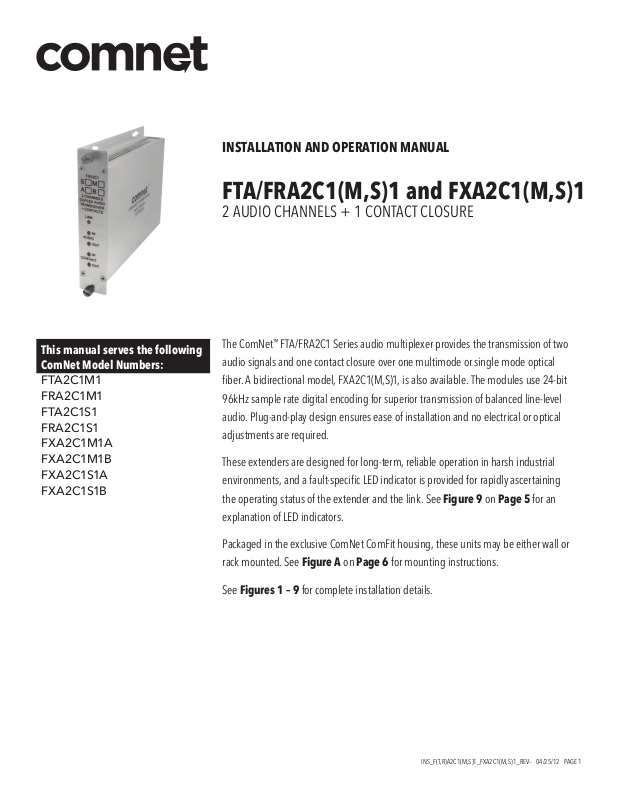

INSTALLATION AND OPERATION MANUAL

FTA/FRA2C1(M,S)1 and FXA2C1(M,S)1

2 AUDIO CHANNELS + 1 CONTACT CLOSURE

This manual serves the following
ComNet Model Numbers:

FTA 2C1M1
FR A2C1M1
FTA 2C1S1
FR A2C1S1
FXA2C1M1A
FXA2C1M1B
FXA2C1S1A
FXA2C1S1B

The ComNet™ FTA/FRA2C1 Series audio multiplexer provides the transmission of two
audio signals and one contact closure over one multimode or single mode optical

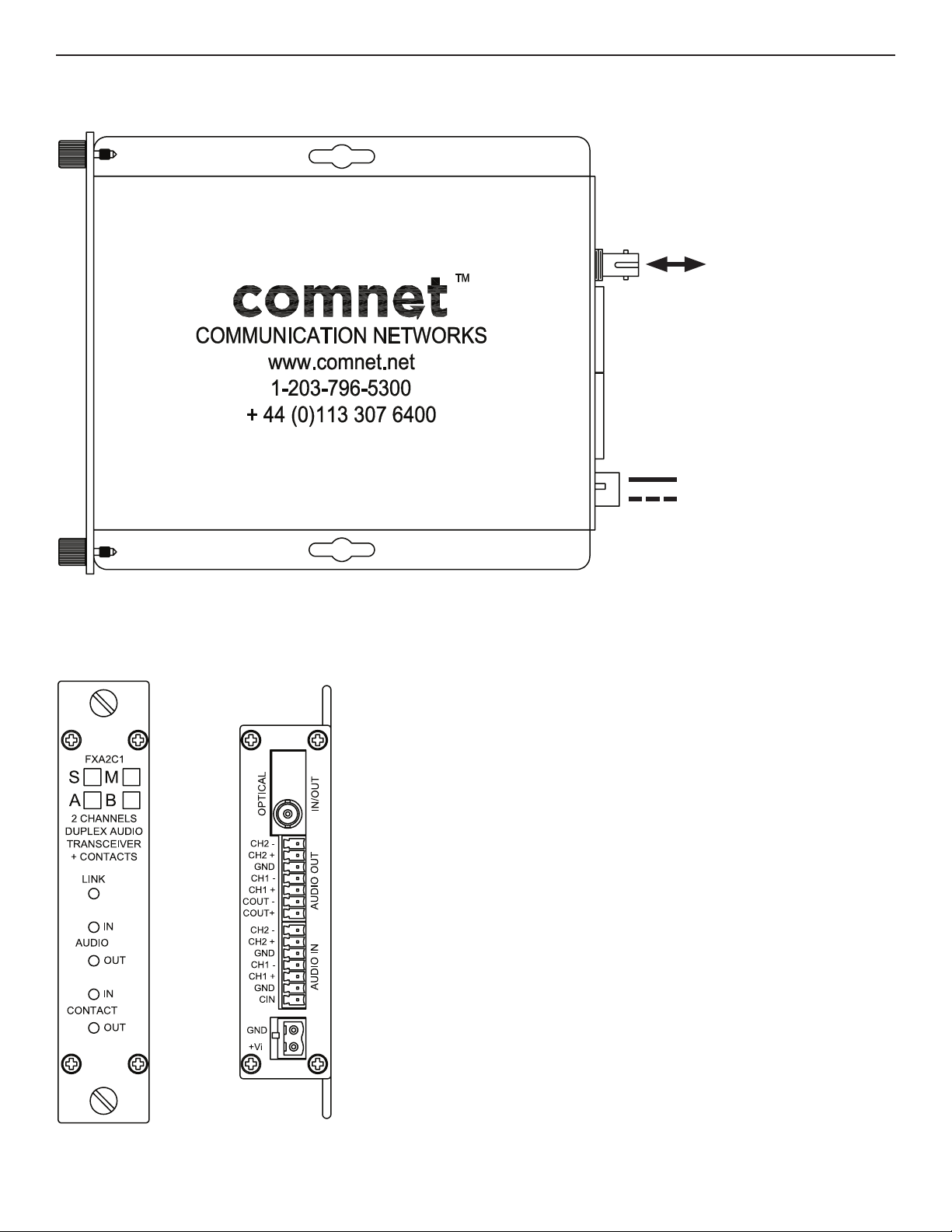

fiber. A bidirectional model, FXA2C1(M,S)1, is also available. The modules use 24-bit
96kHz sample rate digital encoding for superior transmission of balanced line-level
audio. Plug-and-play design ensures ease of installation and no electrical or optical
adjustments are required.

These extenders are designed for long-term, reliable operation in harsh industrial
environments, and a fault-specific LED indicator is provided for rapidly ascertaining
the operating status of the extender and the link. See Figure 9 on Page 5 for an
explanation of LED indicators.

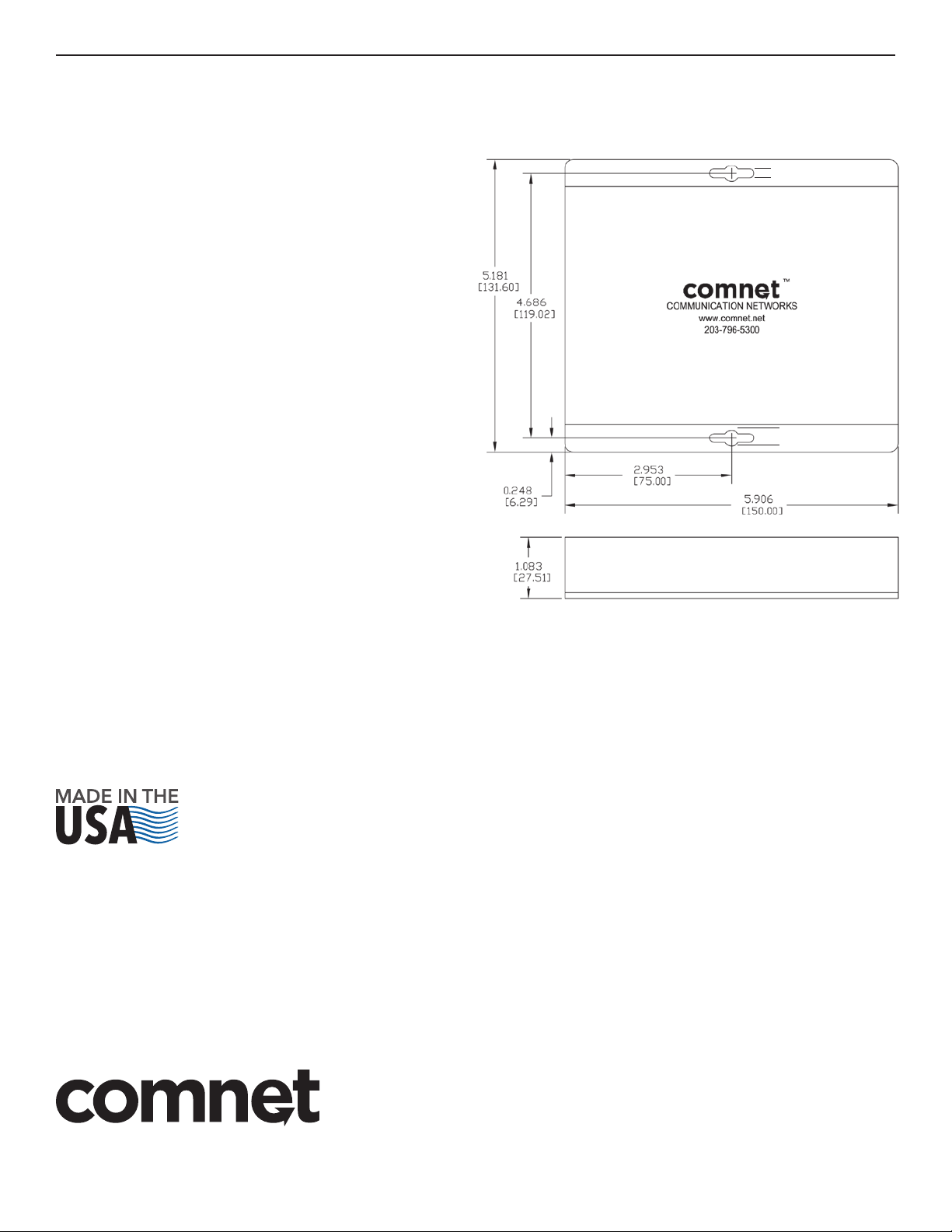

Packaged in the exclusive ComNet ComFit housing, these units may be either wall or
rack mounted. See Figure A on Page 6 for mounting instructions.

See Figures 1 – 9 for complete installation details.

INS_F(T,R)A2C1(M,S)1_FXA2C1(M,S)1_REV– 04/25/12 PAGE 1

INSTALLATION AND OPERATION MANUAL FTA/FRA2C1(M,S)1 AND FXA2C1(M,S)1

FIGURE 1 – FTA2C1 TRANSMITTER

MULTIMODE OR
SINGLE MODE
OPTICAL FIBER

BLACK
BLACK WITH WHITE STRIPE/RED

FIGURE 2 – FTA2C1 TRANSMITTER

REAR PANELFRONT PANEL

Power Supply: 8-15VDC @ 2W

Note: Remove Electrical Connector
for Rack Mount Units

INS_F(T,R)A2C1(M,S)1_FXA2C1(M,S)1_REV– 04/25/12 PAGE 2Tech SupporT: 1.888.678.9427
