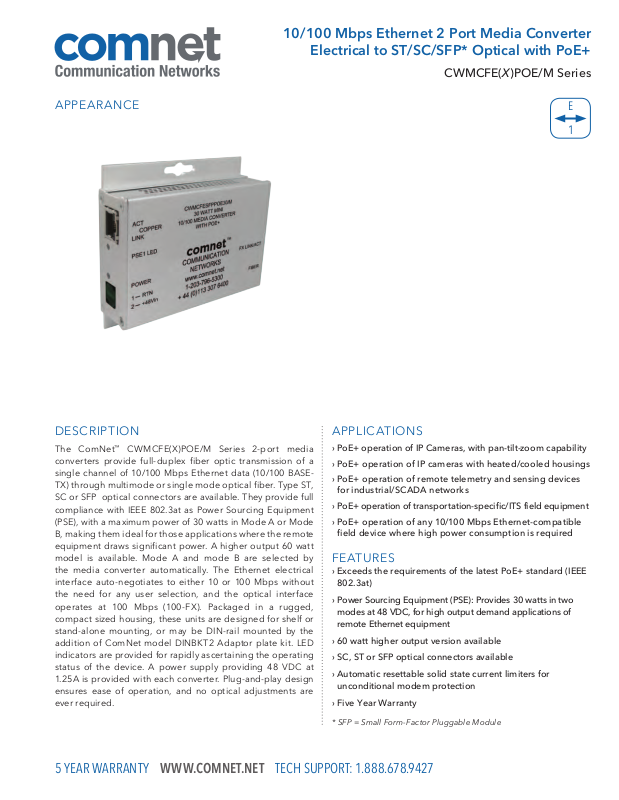

Comnet CWMCFESFPPoE60-m Specsheet
10/100 Mbps Ethernet 2 Port Media Converter
Electrical to ST/SC/SFP* Optical with PoE+
CWMCFE(X)POE/M Series
APPEARANCE
E
1
DESCRIPTION
The ComNet™ CWMCFE(X)POE/M Series 2-por t media
converters provide full-duplex fiber optic transmission of a
single channel of 10/100 Mbps Ethernet data (10/100 BASETX) through multimode or single mode optical fiber. Type ST,
SC or SFP optical connec tors are available. They provide full
compliance with IEEE 802.3at as Power Sourcing Equipment
(PSE), with a maximum power of 30 watts in Mode A or Mode
B, making them ideal for those applications where the remote
equipment draws significant power. A higher output 60 watt
model is available. Mode A and mode B are selected by
the media converter automatically. The Ethernet electrical
interface auto-negotiates to either 10 or 100 Mbps without
the need for any user selection, and the optical interface
operates at 100 Mbps (100-FX). Packaged in a rugged,
compact sized housing, these units are designed for shelf or
stand-alone mounting, or may be DIN-rail mounted by the
addition of ComNet model DINBKT2 Adaptor plate kit. LED
indicators are provided for rapidly ascer taining the operating
status of the device. A power supply providing 48 VDC at
1.25A is provided with each converter. Plug-and-play design
ensures ease of operation, and no optical adjustments are
ever required.
APPLICATIONS
› PoE+ operation of IP Cameras, with pan-tilt-zoom capability
› PoE+ operation of IP cameras with heated/cooled housings
› PoE+ operation of remote telemetry and sensing devices
for industrial/SCADA networks
› PoE+ operation of transportation-specific/ITS field equipment
› PoE+ operation of any 10/100 Mbps Ethernet-compatible
field device where high power consumption is required
FEATURES
› Exceeds the requirements of the latest PoE+ standard (IEEE
802.3at)
› Power Sourcing Equipment (PSE): Provides 30 watts in two
modes at 48 VDC, for high output demand applications of
remote Ethernet equipment
› 60 watt higher output version available
› SC, ST or SFP optical connectors available
› Automatic resettable solid state current limiters for
unconditional modem protection
› Five Year Warranty
* SFP = Small Form-Factor Pluggable Module
5 YEAR WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
CWMCFE(X)POE/M Series
SPECIFICATIONS
Data
Data Interface: Ethernet
Data Rate: 10/100 Mbps
IEEE 802.3 Compliant
Full Duplex or Half Duplex Electrical Port/
Full Duplex Optical Port
Fibers
ST, SC or SFP Dependent (Requires
selection of sold-separately SFP modules.
See ComNet data sheet for number and
description of SFP module options.)
Connectors
Optical: ST, SC or SFP
Power: Terminal Block
Electrical: RJ45
PoE Pin Assignment
RJ45 port supports IEEE802.3at
End-point Positive (VCC+): RJ45 pin 1, 2 or
4, 5 Negative (VCC-): RJ45 pin 3, 6 or 7,8
Data (1, 2, 3, 6)
10/100 Mbps Ethernet 2 Port Media Converter
Electrical to SC/ST/SFP* Optical with PoE+
Electrical & Mechanical
Power:
Surface Mount: 48VDC @ 1.25A
Current Protection: Automatic Resettable
Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm) (L×W×H)
Standard Size 3.3 x 2.5 x 1.1 in.,
(8.4 x 6.4 x 2.8 cm)
Shipping Weight: <2 lbs./0.9 kg
Environmental
MTBF: >100,000 hours
Operating Temp: 0˚ C to +50˚ C @ 30W or 60W PoE output
-20˚ C to +60˚ C @ 15W PoE output
Storage Temp: -40˚ C to +85˚ C
Relative Humidity: 0% to 95% (non-condensing)
† May be extended to condensation conditions
†
Max. PoE Current 600mA continuous
LED Indicators - Optical Link/Data Activity
- Power
- PoE
TYPICAL APPLICATIONS
E E + PoE
1 Fiber, ST
Multimode
2 km (1.2 mi)
E
CWMCFESFPPOE60/M
+ SFP-3
1 Fiber
Single Mode
Distance 20km (12.4 mi)
(Fiber Count, Type and Distance
are dependent on SFP selection)
CWMCFEST1BMPOE30/MCWMCFEST1AMPOE30/M
48V Power
Supply
CWMCFESFPPOE60/M
+ SFP-3
48V Power
Supply
E + PoE
+
+
E
CWMCFESC2SPOE30/M
2 Fiber, SC
Single Mode
60 km (37.3 mi)
CWMCFESC2SPOE30/M
48V Power
Supply
5 YEAR WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
E + PoE
OPTICAL FIBER
COPPER CABLE
+
