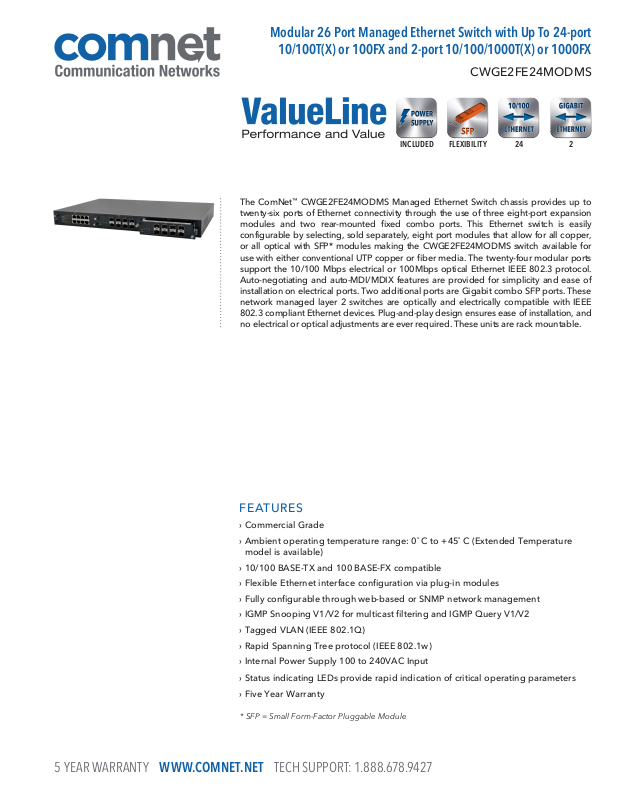

Modular 26 Port Managed Ethernet Switch with Up To 24-port
10/100T(X) or 100FX and 2-port 10/100/1000T(X) or 1000FX
CWGE2FE24MODMS
INCLUDED
The ComNet™ CWGE2FE24MODMS Managed Ethernet Switch chassis provides up to
twenty-six ports of Ethernet connectivity through the use of three eight-port expansion
modules and two rear-mounted fixed combo ports. This Ethernet switch is easily
configurable by selecting, sold separately, eight port modules that allow for all copper,
or all optical with SFP* modules making the CWGE2FE24MODMS switch available for
use with either conventional UTP copper or fiber media. The twenty-four modular ports
support the 10/100 Mbps electrical or 100Mbps optical Ethernet IEEE 802.3 protocol.
Auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of
installation on electrical ports. Two additional ports are Gigabit combo SFP ports. These
network managed layer 2 switches are optically and electrically compatible with IEEE
802.3 compliant Ethernet devices. Plug-and-play design ensures ease of installation, and
no electrical or optical adjustments are ever required. These units are rack mountable.
24 2FLEXIBILIT Y
FEATURES
› Commercial Grade
› Ambient operating temperature range: 0˚ C to +45˚ C (Extended Temperature
model is available)
› 10/100 BASE-TX and 100 BASE-FX compatible
› Flexible Ethernet interface configuration via plug-in modules
› Fully configurable through web-based or SNMP network management
› IGMP Snooping V1/V2 for multicast filtering and IGMP Query V1/V2
› Tagged VLAN (IEEE 802.1Q)
› Rapid Spanning Tree protocol (IEEE 802.1w)
› Internal Power Supply 100 to 240VAC Input
› Status indicating LEDs provide rapid indication of critical operating parameters
› Five Year Warranty
* SFP = Small Form-Factor Pluggable Module
5 YEAR WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
CWGE2FE24MODMS
SPECIFICATIONS
Modular 26 Port Managed Ethernet Switch with Up To 24-port
10/100T(X) or 100FX and 2-port 10/100/1000T(X) or 1000FX
Benefits
System Interface/Performance
RJ45 port support Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
Back-plane (Switching Fabric): 8.8Gbps
4Mbits Packet Buffer
K MAC Address Table
3-Slot Module Hot-Swappable
8 Port 10/100TX module
8-Por t 100Mbps SFP (SFP) module
VLAN Port Based VLAN
Support 802.1 Q Tag VLAN
X-Ring X-Ring, Dual Homing and Couple Ring Topology
Provides redundant backup feature and a
recovery time < 300ms
IEEE 802.3ad Port Trunk with LACP
Support up to 256 Policy ACL (Access Control List)
QoS (Quality of Service) Support IEEE 802.1p Class of Service,
Per port provides 4 priority queues
Port Base, Tag Base and Type of Service Priority
Support IEEE 802.1ab LLDP
Port Mirror: Monitor traffic in switched networks
TX Packet only
RX Packet only
Both of TX and RX Packet
System Event Log System Log (Local/Remote Server)
SMTP e-mail Alert
Security Port Security: MAC address entries/filter
IP Security: IP address security management to
prevent unauthorized intruder.
Login Security: IEE E802.1X/RADIUS
SNMP Trap Device cold star t
Power status
Authentication failure
Port Link up/Link down
IGMP with Query mode for Multi Media Application
TFTP Firmware Update and System Configure Restore and Backup
Broadcast/Multicast Packet Filter Control
IEEE 802.1w Rapid Spanning Tree
Standard Compliance
IEEE 802.3ad Port trunk with LACP
IEEE 802.1d Spanning tree protocol
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1q VLAN Tagging
IEEE 802.1x User authentication
IEEE 802.1ab LLDP
Hardware Specifications
Switch Architecture Back-plane (Switching Fabric): 8.8Gbps
Connector* RS232 console: Female DB-9
8-por t 10/100TX module: RJ45
8-por t 100 FX SFP module
2 Gbit Copper + 2 SFPCombo:
2 × RJ45 + 2 × 3.3v SFP built-in
Packet Buffer 4Mbits
Mac Address 8K MAC address table with auto learning function
Flash ROM 4Mbytes
DRAM 16Mbytes
Jumbo Frame 9022 bytes (Gigabit ports only)
LED System Power(Green )
8 10/100TX module: Link/Activity (Green), Full
duplex/collision(Amber)
8 100Base-FX module: Link (Green)/Activity (Blink)
SFP: Link/Activity(Green), 1000Mbps (Green)
Power Supply 100~240VAC, 50 /60Hz, 0.8A (maximum)
Power Consumption 50 Watts (maximum)
Operating Humidity 5% to 95% (Non-condensing)
Operating Temperature 0˚C to 45˚C
-40º to 75º C model available
Storage Humidity 5% to 95% (Non-condensing)
Storage Temperature -40˚C to 70˚C
Ventilation 2 × DC cooling fan with fail detection
Size (W × D × H) 17.3 × 11.0 × 1.7 in (44.0 × 28.0 × 4.4 cm)
Installation 19” Rack Mount
EMI FCC Class A, CE
Safet y UL, cUL, CE/EN60950-1
Software Features
Management SNMP v1 v2c, v3/ Web/Telnet/CLI/RMON1
Management
MIB RFC 3418 SNMP MIB, RFC 1213 MIBII, RFC 2011
MIB SNMP v2, RFC 1493 Bridge MIB, RFC 2674
VLAN, RFC 1215 Trap MIB, RFC 1643 Ethernet
like, RFC 1757 RMON1, RSTP MIB, LLDP MIB,
Private MIB
SNMP Trap Cold start trap, Link down/Link up trap,
Authentication fail trap, Fan fail trap, Power event
trap
X-Ring X-Ring, Dual Homing and Couple Ring Topology
Provides redundant backup feature and a
recovery time <300ms
Configuration Upload and Download
System quick installation and backup by TFTP
5 YEAR WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
CWGE2FE24MODMS
Modular 26 Port Managed Ethernet Switch with Up To 24-port
10/100T(X) or 100FX and 2-port 10/100/1000T(X) or 1000FX
Port Trunk Support IEEE802.3ad with LACP function. Up to
13 trunk groups, trunk member up to 4 ports and
include 2 uplink ports
Spanning Tree IEEE802.1d spanning Tree, IEEE802.1w Rapid
Spanning tree protocol
VLAN Port based VL AN, up to 256 groups
IEEE 802.1Q Tag VLAN
Static VLAN groups up to 256, Dynamic VLAN
group up to 2048, VLAN ID from 1 to 4094.
GVRP up to 256 groups
Quality of Service The quality of service determined by por t, Tag
and IPv4 Type of service, IPv4 Different Service
Class of Service Support IEEE802.1p class of service, per port
provides 4 priority queues
IGMP Supports IGMP V1 and V2 snooping.
IGMP Snooping for Multi-Media application,
IGMP group supports 256 groups and IGMP
query
Port Security Support 50 entries of MAC address for static MAC
and another 50 for MAC filter
Port Mirror Supports 3 mirroring types: RX, TX, Both packets
Bandwidth Control Per port support ingress rate limiting and egress
rate shaping control.
The rate limiting and rate shaping can be setting
from 0~100Mbps
Access Control List (ACL) Support up to 256 polic y control lists
IP Security Support IP address security to prevent
unauthorized intruder.
DHCP DHCP Client/Server
DNS Provides DNS client feature and supports primary
and Secondary DNS server
System Log Provides remote storage ability and view the log
by Web/Telnet/SNMP interface. Maximum entry
support 1000 records
SNTP Supports SNTP to synchronize system clock by
Internet
SMTP System suppor ts 6 mail account s and 1 Mail server
LLDP Supports IEEE 802.1ab Link Layer Discovery Protocol
Firmware Upgrade TFTP and Console firmware upgradeable
[1] Multimode fiber needs to meet or exceed fiber standard ITU-T
G.651. Single mode fiber needs to meet or exceed fiber standard
ITU-T G.652
ORDERING INFORMATION
Part Number Description
CWGE2FE24MODMS/Chassis 3 Slot Managed Switch – Chassis Only
CWGE2FE24MOD/8TX 8 port 10/100TX module with RJ45 receptacles
CWGE2FE24MOD/8SFP 8 port 100Mbps module with SFP receptacles
Included Accessories
Options
100-240VAC, 50/60Hz Internal Power Supply (CWGE2FE24MODMS/Chassis only)
/HT Extended operating temperature model available
