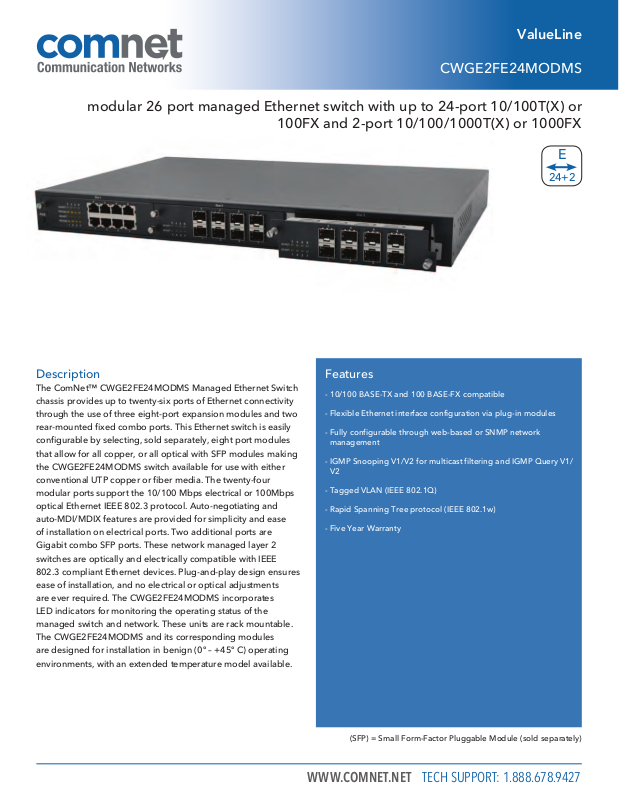

ValueLine

CWGE2FE24MODMS

modular 26 port managed Ethernet switch with up to 24-port 10/100T(X) or

100FX and 2-port 10/100/1000T(X) or 1000FX

24+2

Description

The ComNet™ CWGE2FE24MODMS Managed Ethernet Switch chassis provides up to twenty-six ports of Ethernet connectivity through the use of three eight-port expansion modules and two rear-mounted fixed combo ports. This Ethernet switch is easily configurable by selecting, sold separately, eight port modules that allow for all copper, or all optical with SFP modules making the CWGE2FE24MODMS switch available for use with either conventional UTP copper or fiber media. The twenty-four modular ports support the 10/100 Mbps electrical or 100Mbps optical Ethernet IEEE 802.3 protocol. Auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation on electrical ports. Two additional ports are Gigabit combo SFP ports. These network managed layer 2 switches are optically and electrically compatible with IEEE

802.3 compliant Ethernet devices. Plug-and-play design ensures ease of installation, and no electrical or optical adjustments are ever required. The CWGE2FE24MODMS incorporates LED indicators for monitoring the operating status of the managed switch and network. These units are rack mountable. The CWGE2FE24MODMS and its corresponding modules are designed for installation in benign (0º – +45º C) operating environments, with an extended temperature model available.

Features

- 10/100 BASE-TX and 100 BASE-FX compatible

- Flexible Ethernet interface configuration via plug-in modules

- Fully configurable through web-based or SNMP network management

- IGMP Snooping V1/V2 for multicast filtering and IGMP Query V1/ V2

- Tagged VLAN (IEEE 802.1Q)

- Rapid Spanning Tree protocol (IEEE 802.1w)

- Five Year Warranty

(SFP) = Small Form-Factor Pluggable Module (sold separately)

WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427

Page 2

ValueLine

CWGE2FE24MODMS

specifications

benefits

modular 26 port managed Ethernet switch with up to

24-port 10/100T(X) or 100FX and 2-port 10/100/1000T(X) or 1000FX

System Interface/Performance

- RJ45 port support Auto MDI/MDI-X Function

- Store-and-Forward Switching Architecture

- Back-plane (Switching Fabric): 8.8Gbps

- 4Mbits Packet Buffer

- 8K MAC Address Table

3-Slot Module Hot-Swappable

- 8 port 10/100TX module

- 8 port 100Mbps SFP (SFP) module

VLAN

- Port Based VLAN

- Support 802.1 Q Tag VLAN

- GVRP

X-Ring

- X-Ring, Dual Homing and Couple Ring Topology

- Provide redundant backup feature and the recovery time below 300ms

IEEE 802.3ad Port Trunk with LACP

Port Mirror: Monitor traffic in switched networks

- TX Packet only

- RX Packet only

- Both of TX and RX Packet

System Event Log

- System Log (Local/Remote Server)

- SMTP e-mail Alert

Security

- Port Security: MAC address entries/filter

- IP Security: IP address security management to prevent unauthorized intruder.

- Login Security: IEE E802.1X/RADIUS

SNMP Trap

- Device cold start

- Power status

- Authentication failure

- Port Link up/Link down

IGMP with Query mode for Multi Media Application

Support up to 256 Policy ACL (Access Control List)

QoS (Quality of Service)

- Support IEEE 802.1p Class of Service,

- Per port provides 4 priority queues

- Port Base, Tag Base and Type of Service Priority

Support IEEE 802.1ab LLDP

TFTP Firmware Update and System Configure Restore and Backup

Broadcast/Multicast Packet Filter Control

IEEE 802.1w Rapid Spanning Tree

STANDARD COMPLIANCE

- IEEE 802.3ad Port trunk with LACP

- IEEE 802.1d Spanning tree protocol

- IEEE 802.1w Rapid Spanning tree protocol

- IEEE 802.1p Class of service

- IEEE 802.1q VLAN Tagging

- IEEE 802.1x User authentication

- IEEE 802.1ab LLDP

WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427

Page 3

ValueLine

CWGE2FE24MODMS

specifications

hardware specifications

modular 26 port managed Ethernet switch with up to

24-port 10/100T(X) or 100FX and 2-port 10/100/1000T(X) or 1000FX

Switch Architecture Back-plane (Switching Fabric): 8.8Gbps

Connector* RS232 console: Female DB-9

8-port 10/100TX module: RJ45 8-port 100 FX SFP module 2 Gbit Copper + 2 SFPCombo: 2 × RJ45 + 2 × 3.3v SFP built-in

Packet Buffer 4Mbits

Mac Address 8K MAC address table with auto learning function

Flash ROM 4Mbytes

DRAM 16Mbytes

Jumbo Frame 9022 bytes (Gigabit ports only)

LED System Power(Green )

8 10/100TX module: Link/Activity (Green), Full duplex/ collision(Amber) 8 100Base-FX module: Link (Green)/Activity (Blink) SFP: Link/Activity(Green), 1000Mbps (Green)

Power Supply 100~240VAC, 50 /60Hz, 0.8A (maximum)

Power Consumption 50 Watts (maximum)

Operating Humidity 5% to 95% (Non-condensing)

Operating Temperature 0˚C to 45˚C

-40º to 75º C model available

Storage Humidity 5% to 95% (Non-condensing)

Storage Temperature -40˚C to 70˚C

Ventilation 2 × DC cooling fan with fail detection

Case Dimensions 440mm (W) × 280mm (D) × 44mm (H)

17.3" (W) × 11.0" (D) × 1.7" (H)

Installation 19" Rack Mount

EMI FCC Class A, CE

Safety UL, cUL, CE/EN60950-1

PART NUMBER

CWGE2FE24MODMS/Chassis

CWGE2FE24MOD/8TX

CWGE2FE24MOD/8SFP

Accessories

* Multimode fiber needs to meet or exceed fiber standard ITU-T G.651.

Single mode fiber needs to meet or exceed fiber standard ITU-T G.652

DESCRIPTION

3 Slot Managed Switch – Chassis Only

8 port 10/100TX module with RJ45 receptacles

8 port 100Mbps module with SFP receptacles

/HT Extended operating temperature model available 100-240VAC, 50/60Hz Power Supply (Included)

Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J In a continuing effort to improve and advance technology, product specifications are subject to change without notice.

WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427

Page 4

ValueLine

CWGE2FE24MODMS

specifications

software features

modular 26 port managed Ethernet switch with up to

24-port 10/100T(X) or 100FX and 2-port 10/100/1000T(X) or 1000FX

Management

SNMP v1 v2c, v3/ Web/Telnet/CLI/RMON1 Management

MIB

RFC 3418 SNMP MIB, RFC 1213 MIBII, RFC 2011 MIB SNMP v2, RFC 1493 Bridge MIB, RFC 2674 VLAN, RFC 1215 Trap MIB, RFC 1643 Ethernet like, RFC 1757 RMON1, RSTP MIB, LLDP MIB, Private MIB

SNMP Trap

Cold start trap, Link down/Link up trap, Authentication fail trap, Fan fail trap, Power event trap

X-Ring

X-Ring, Dual Homing and Couple Ring Topology Provide redundant backup feature and the recovery time below 300ms

Configuration upload and download

System quick installation and backup by TFTP

Port Trunk

Support IEEE802.3ad with LACP function. Up to 13 trunk groups, trunk member up to 4 ports and include 2 uplink ports

Port Security

Support 50 entries of MAC address for static MAC and another 50 for MAC filter

Port Mirror

Support 3 mirroring types: RX, TX and Both packet

Bandwidth Control

Per port support ingress rate limiting and egress rate shaping control. The rate limiting and rate shaping can be setting from 0~100Mbps

Access Control List (ACL)

Support up to 256 policy control lists

IP Security

Support IP address security to prevent unauthorized intruder.

DHCP

DHCP Client/Server

DNS

Provide DNS client feature and support primary and Secondary DNS server

Spanning Tree

IEEE802.1d spanning Tree, IEEE802.1w Rapid Spanning tree protocol

VLAN

Port based VLAN, up to 256 groups IEEE 802.1Q Tag VLAN Static VLAN groups up to 256, Dynamic VLAN group up to 2048, VLAN ID from 1 to 4094. GVRP up to 256 groups

Quality of Service

The quality of service determined by port, Tag and IPv4 Type of service, IPv4 Different Service

Class of Service

Support IEEE802.1p class of service, per port provides 4 priority queues

IGMP

Supports IGMP V1 and V2 snooping. IGMP Snooping for Multi-Media application, IGMP group supports 256 groups and IGMP query

System Log

Provide remote storage ability and also can view the log by Web/Telnet/ SNMP interface. Maximum entry support 1000 records

SNTP

Support SNTP to synchronize system clock by Internet

SMTP

System supports 6 mail accounts and 1 Mail server

LLDP

Support IEEE 802.1ab Link Layer Discovery Protocol

Firmware Upgrade

TFTP and Console firmware upgradeable
