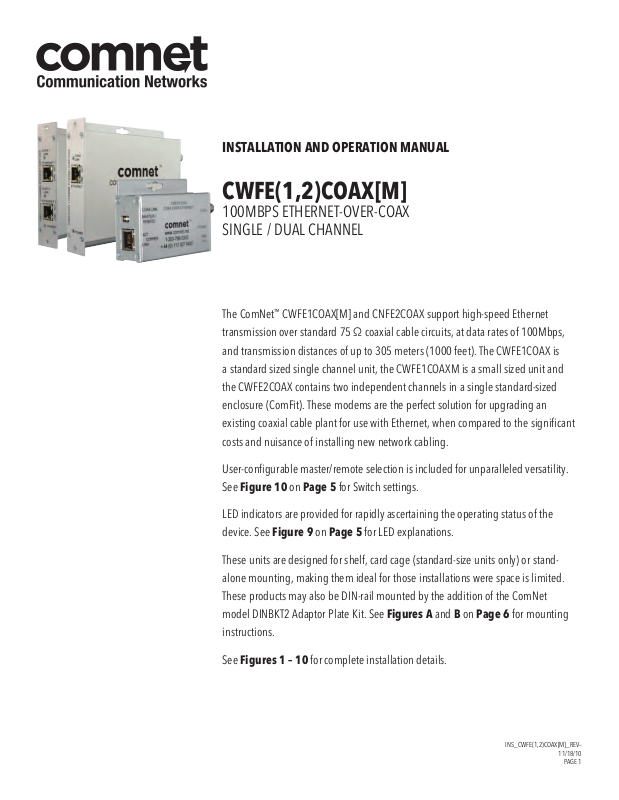

Comnet CWFE1COAX User Manual

INSTALLATION AND OPERATION MANUAL

CWFE(1,2)COAX[M]

100MBPS ETHERNET-OVER-COAX
SINGLE / DUAL CHANNEL

The ComNet™ CWFE1COAX[M] and CNFE2COAX support high-speed Ethernet
transmission over standard 75  coaxial cable circuits, at data rates of 100Mbps,
and transmission distances of up to 305 meters (1000 feet). The CWFE1COAX is
a standard sized single channel unit, the CWFE1COAXM is a small sized unit and
the CWFE2COAX contains two independent channels in a single standard-sized
enclosure (ComFit). These modems are the perfect solution for upgrading an
existing coaxial cable plant for use with Ethernet, when compared to the significant
costs and nuisance of installing new network cabling.

User-configurable master/remote selection is included for unparalleled versatility.
See Figure 10 on Page 5 for Switch settings.

LED indicators are provided for rapidly ascertaining the operating status of the
device. See Figure 9 on Page 5 for LED explanations.

These units are designed for shelf, card cage (standard-size units only) or stand­alone mounting, making them ideal for those installations were space is limited.
These products may also be DIN-rail mounted by the addition of the ComNet
model DINBKT2 Adaptor Plate Kit. See Figures A and B on Page 6 for mounting
instructions.

See Figures 1 – 10 for complete installation details.

INS_CWFE(1,2)COAX[M]_REV–

11/18/10

PAGE 1

INSTALLATION AND OPERATION MANUAL CWFE(1,2)COAX[M]

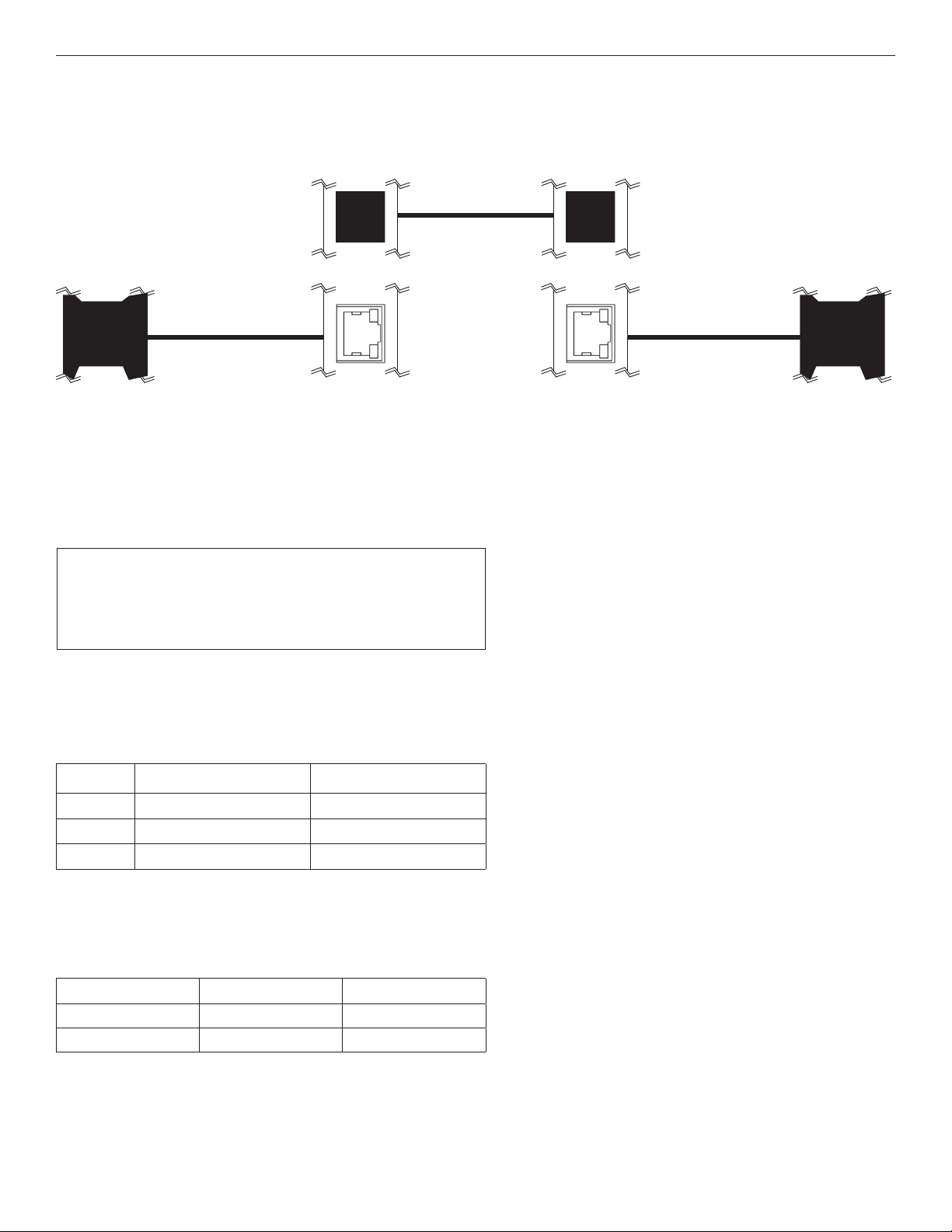

FIGURE 1 – CWFE1COAXM

COAX (75Ω)

CAT5e/6

FIGURE 2 – CWFE1COAXM

REAR PANELFRONT PANEL

BLACK

BLACK WITH WHITE STRIPE

Power Supply:
Surface Mount: 9–24VDC@120mA

NOTE: Remove Electrical

Connector for Rack Mount
Units

TECH SUPPORT: 1.888.678.9427

INS_CWFE(1,2)COAX[M]_REV–

11/18/10

PAGE 2
