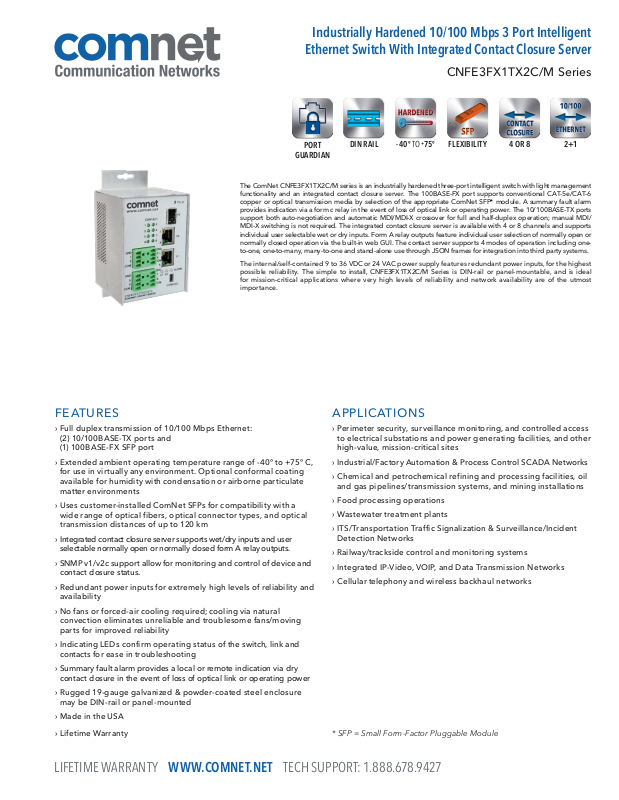

Industrially Hardened 10/100 Mbps 3 Port Intelligent
Ethernet Switch With Integrated Contact Closure Server
CNFE3FX1TX2C/M Series
PORT
GUARDIAN
The ComNet CNFE3FX1TX2C/M series is an industrially hardened three-port intelligent switch with light management
functionality and an integrated contact closure server. The 100BASE-FX port supports conventional CAT-5e/CAT-6
copper or optical transmission media by selection of the appropriate ComNet SFP* module. A summary fault alarm
provides indication via a form c relay in the event of loss of optical link or operating power. The 10/100BASE-TX ports
support both auto-negotiation and automatic MDI/MDI-X crossover for full and half-duplex operation; manual MDI/
MDI-X switching is not required. The integrated contact closure server is available with 4 or 8 channels and supports
individual user selectable wet or dry inputs. Form A relay outputs feature individual user selection of normally open or
normally closed operation via the built-in web GUI. The contact server supports 4 modes of operation including oneto-one, one-to-many, many-to-one and stand-alone use through JSON frames for integration into third party systems.
The internal/self-contained 9 to 36 VDC or 24 VAC power supply features redundant power inputs, for the highest
possible reliability. The simple to install, CNFE3FX1TX2C/M Series is DIN-rail or panel-mountable, and is ideal
for mission-critic al applications where very high levels of reliability and network availabili ty are of the utmost
importance.
FEATURES
› Full duplex transmission of 10/100 Mbps Ethernet:
(2) 10/10 0BA SE-T X po r t s and
(1) 100BASE-FX SFP port
› Extended ambient operating temperature range of -40º to +75º C,
for use in virtually any environment. Optional conformal coating
available for humidity with condensation or airborne particulate
matter environments
› Uses customer-installed ComNet SFPs for compatibility with a
wide range of optical fibers, optical connec tor types, and optical
transmission distances of up to 120 km
› Integrated contact closure server supports wet/dry inputs and user
selectable normally open or normally closed form A relay outputs.
› SNMP v1/v2c support allow for monitoring and control of device and
contact closure status.
› Redundant power inputs for extremely high levels of reliability and
availability
› No fans or forced-air cooling required; cooling via natural
convection eliminates unreliable and troublesome fans/moving
parts for improved reliability
› Indicating LEDs confirm operating status of the switch, link and
contacts for ease in troubleshooting
› Summary fault alarm provides a local or remote indication via dry
contact closure in the event of loss of optical link or operating power
› Rugged 19-gauge galvanized & powder-coated steel enclosure
may be DIN-rail or panel-mounted
› Made in the USA
› Lifetime Warranty
DIN RAIL -40º TO +75º
4 OR 8 2+1FLEXIBILIT Y
APPLICATIONS
› Perimeter security, surveillance monitoring, and controlled access
to electrical substations and power generating facilities, and other
high-value, mission-critical sites
› Industrial/Fac tor y Automation & Process Control SCADA Networks
› Chemical and petrochemical refining and processing facilities, oil
and gas pipelines/transmission systems, and mining installations
› Food processing operations
› Wastewater treatment plants
› ITS/Transportation Traffic Signalization & Surveillance/Incident
Detection Networks
› Railway/trackside control and monitoring systems
› Integrated IP-Video, VOIP, and Data Transmission Networks
› Cellular telephony and wireless backhaul networks
* SFP = Small Form-Factor Pluggable Module
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
CNFE3FX1TX2C/M Series
A
SPECIFICATIONS
Industrially Hardened 10/100 Mbps 3 Port Intelligent
Ethernet Switch With Integrated Contact Closure Server
Data
Data Interface Ethernet
Data Rate 10/100 Mbps
IEEE 802.3 Compliant
Full Duplex or Half Duplex Electrical Ports/Full
Duplex Optical Port
Contacts
Response Time 60ms when paired one-to-one (network dependent)
Input/Output Channels 4 or 8 (model dependent)
Inputs 4 or 8 Opto-Isolated Wet or Dry (model dependent)
Wet Input Voltage 9-50 VDC
Input Isolation 3000 VRMS
Outputs 4 or 8 Form A Contacts User Selectable Normally
Open or Normally Closed (model dependent)
Output Rating 60W @ 220 VDC or 250 VAC, non-resistive loads
Output Isolation 2500 VRMS
Fiber Connectors¹ Requires selection of sold-separately SFP
modules. See ComNet data sheet for number,
description, and compatibility of SFP modules
Connectors
Power 4-Position Screw Terminal Block
10/100BASE-TX 2 × RJ45
100BASE-FX 1 × SFP¹ pluggable optics
Requires selection of sold-separately SFP
modules. See ComNet data sheet for number,
description, and compatibility of SFP modules
Fault Relay 3-Position Screw Terminal Block
Contact Closure Screw Terminal Block
Console Mini USB
Summary Fault Alarm
Form C contacts for local or remote indication of loss of operating power, or loss
of optical link
Relay Contacts: Rated at 110 VDC @ 0.25A, non-inductive load; or
125 VAC @ 0.3A, non-inductive load
Management
SNMP SNMP V1/2c
HTTP Web GUI Configuration Interface
CLI Serial Command Line Interface
Switch Properties
Switching Latency 7 µs
Switching Bandwidth 600 Mbps
MAC Table 1K
Processing Store-and-Forward
Software Features
Contact Outputs Normally Open or Normally Closed
Contact Mapping
Port Configuration, Status, Statistics
SNMP
Enable/Disable Ports
Port Guardian Physical Port Lockout
IGMP Host capabilities
SNMP Trap
Static Multicast MAC Routing
Static MAC Lock Security
Active Ping Check with SNMP Trap, & Port Shutdown capability
Ethernet Standards
IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX and 100BASE-FX
IEEE 802.3x Flow Control and Back Pressure
Power
Power Consumption 5 W (max)
Power Input Dual 9 to 36 VDC or 24 VAC
Current Protection Automatic Resettable Solid-State Current Limiters
Mechanical
Indicator LEDs - Operating Power
- Contact State
- Fault
- RJ45 & SFP Link / Activity
Housing 19-Gauge galvanized steel, power-coated finish
Ingress Protection IP-30 Rated
Mounting Standard DIN-Rail or panel-mount. Panel-
mounting adapter included.
Dimensions
w/ wall mount adapter plate 5.4 × 2.7 × 2.9 in (13.7 × 6.7 × 7.4 cm)
w/ DIN rail mount clips 3.9 × 2.7 × 3.6 in (9.9 × 6.7 × 9.1 cm)
Weight (unpacked) 1.5lbs (0.68kg)
Circuit Board Meets IPC standards
Environmental
MTBF >100,000 hours
Operating Temperature -40˚C to +75˚C
Storage Temperature -40˚C to +85˚C
Operating Humidity 5% to 95% (Non-condensing)²
Contact Operations 1 × 10-6 minimum
[1] Multimode fiber needs to meet or exceed fiber standard ITU-T G.651.
Single mode fiber needs to meet or exceed fiber standard ITU-T G.652
GENCY COMPLIANCE
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
CNFE3FX1TX2C/M Series
OUTLINE AND INSTALLATION DRAWING
Industrially Hardened 10/100 Mbps 3 Port Intelligent
Ethernet Switch With Integrated Contact Closure Server
ORDERING INFORMATION
Part Number Description
CNFE3FX1TX2C8TX/M Industrially hardened 10/100 Mbps 3-Por t Intelligent Ethernet Switch With Contact Server, 8 Contact Inputs, 1 SFP FX + 2T X
CNFE3FX1TX2C8RX/M Industrially hardened 10/100 Mbps 3-Port Intelligent Ethernet Switch With Contac t Server, 8 Contact Outputs, 1 SFP FX + 2TX
CNFE3FX1TX2C4DX/M Industrially hardened 10/100 Mbps 3-Port Intelligent Ethernet Switch With Contact Server, 4 Contact Inputs & Outputs, 1 SFP FX + 2TX
Included Accessories Panel Mounting Adaptor Plate Kit with Mounting Hardware
Options DIN Rail Power supply (sold separately)
Note: In a continuing effort to improve and advance technology, product specifications are subject to change without notice.
DIN Rail mounting Adaptor Clip Kit with Mounting Hardware
User selection of ComNet SFP (see SFP Modules data sheet for product numbers and compatibility before ordering)
[2] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to humidity-with-condensation and airborne particulate matter environments
conditions (Extra charge, consult factory)
TYPICAL APPLICATIONS
Device to Device (8 CH Simplex)
Wet or Dry
Input
C8TX
MODEL
LAN/WAN
Network
C8RX
MODEL
Contact
Output
Device to Device (4 CH Duplex)
Wet or Dry
Input
Relay
Output
C4DX
MODEL
LAN/WAN
Network
C4DX
MODEL
Wet or Dry
Input
Relay
Output
3 CORPORATE DRIVE
|
DANBURY, CONNECTICUT 06810
8 TURNBERRY PARK ROAD
|
GILDERSOME
|
MORLEY
|
|
USA
T: 203.796.5300
|
LEEDS, UK LS27 7LE
|
F: 203.796.5303
|
T: +44 (0)113 307 6400
|
TECH SUPPORT: 1.888.678.9427
|
F: +44 (0)113 253 7462
|
INFO-EUROPE@COMNET.NET
|
INFO@COMNET.NET
13 Aug 2019© 2019 Communic ation Networ ks. All Right s Reserv ed. “ComNet ” and the “ComNe t Logo” are regis tered tra demarks of Comm unication Net works.
CNFE3FX1TX2C Series
TYPICAL APPLICATIONS (cont’d)
One to Many
Alarm
Wet or Dry
Input
Stand Alone Mode
Wet or Dry
Input
Relay
Output
C8TX
MODEL
C4DX
MODEL
Distribution
LAN/WAN
Network
LAN/WAN
Network
Industrially Hardened 10/100 Mbps 3 Port Intelligent
Ethernet Switch With Integrated Contact Closure Server
Contact
C8RX
Output
MODEL
Contact
C8RX
Output
Contact
C8RX
Output
MODEL
WEB PAGE CONTROL
SNMP
MODEL
C8RX
MODEL
Contact
Output
C8RX
MODEL
Contact
Output
Many Inputs to One Device
INPUT
CH 1
INPUT
CH 2
INPUT
CH 3
INPUT
CH 4
INPUT
CH 5
INPUT
CH 6
INPUT
CH 7
INPUT
CH 8
C8TX MODEL
C8TX MODEL
C8TX MODEL
C8TX MODEL
C8TX MODEL
C8TX MODEL
C8TX MODEL
C8TX MODEL
Many Inputs to One Output
INPUT
CH 1
INPUT
CH 1
INPUT
CH 1
INPUT
CH 1
INPUT
CH 1
INPUT
CH 1
INPUT
CH 1
INPUT
CH 1
C8TX MODEL
C8TX MODEL
C8TX MODEL
C8TX MODEL
C8TX MODEL
C8TX MODEL
C8TX MODEL
C8TX MODEL
LAN/WAN
Network
LAN/WAN
Network
3RD PARTY
SOFTWARE
C8RX
MODEL
C8RX
MODEL
Alarm or
Relay Output
Out 1
Out 2
Out 3
Out 4
Out 5
Out 6
Out 7
Out 8
Alarm or
Relay Output
Out 1
