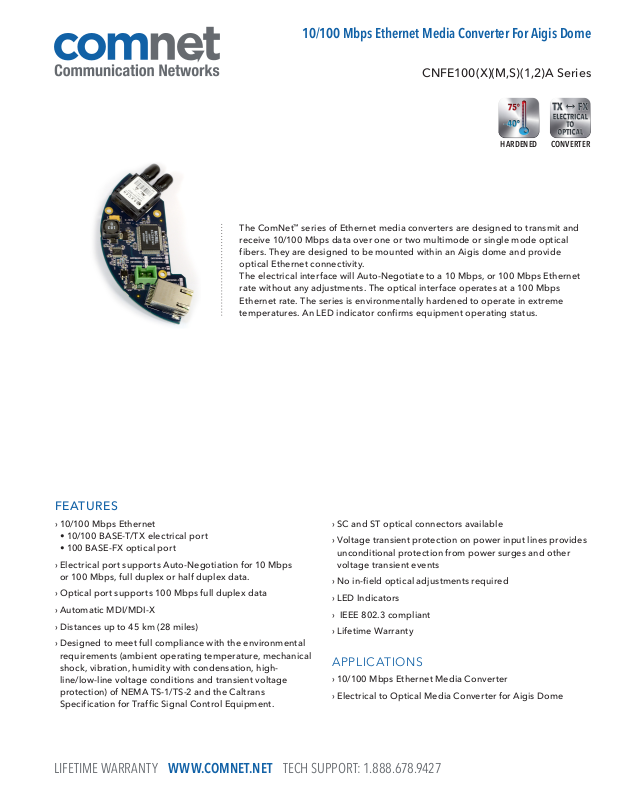

10/100 Mbps Ethernet Media Converter For Aigis Dome
CNFE100(X)(M,S)(1,2)A Series
CONVERTERHARDENED
The ComNet™ series of Ethernet media converters are designed to transmit and
receive 10/100 Mbps data over one or two multimode or single mode optical
fibers. They are designed to be mounted within an Aigis dome and provide
optical Ethernet connectivity.
The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet
rate without any adjustments. The optical interface operates at a 100 Mbps
Ethernet rate. The series is environmentally hardened to operate in extreme
temperatures. An LED indicator confirms equipment operating status.
FEATURES
› 10/100 Mbp s Ethernet
• 10/100 BASE-T/TX electrical port
• 100 BASE-FX optical port
› Electrical port supports Auto-Negotiation for 10 Mbps
or 100 Mbps, full duplex or half duplex data.
› Optical port supports 100 Mbps full duplex data
› Automatic MDI/MDI-X
› Distances up to 45 km (28 miles)
› Designed to meet full compliance with the environmental
requirements (ambient operating temperature, mechanical
shock, vibration, humidity with condensation, highline/low-line voltage conditions and transient voltage
protection) of NEMA TS-1/TS-2 and the Caltrans
Specification for Traffic Signal Control Equipment.
› SC and ST optical connectors available
› Voltage transient protection on power input lines provides
unconditional protection from power surges and other
voltage transient events
› No in-field optical adjustments required
› LED Indicators
› IEEE 802.3 compliant
› Lifetime Warranty
APPLICATIONS
› 10/100 Mbps Ethernet Media Converter
› Electrical to Optical Media Converter for Aigis Dome
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
CNFE100(X)(M,S)(1,2)A Series
SPECIFICATIONS
10/100 Mbps Ethernet Media Converter For Aigis Dome
Ethernet
Data Rate 10/100 Mbps
IEEE 802.3 Compliant
Full Duplex or Half Duplex Electrical Port/Full Duplex Optical
Port
Connectors
Optical ST or SC, 1 or 2 Fibers
Power Terminal Block
Electrical RJ45
LED Indicators
- Optical Link/Data Activity
- Power
Electrical & Mechanical
Current Protection Automatic Resettable Solid-State Current Limiters
Circuit Board Meets IPC Standard
Size (L×W×H) 2.9 ×2.8 ×1.5 in (7.4 ×7.1 ×3.8 cm)
Shipping Weight: <1 lb/0.45 kg
Environmental
MTBF >100,000 hours
Operating Temp -40˚ C to +75˚ C
Storage Temp -40˚ C to +85˚ C
Relative Humidity 0% to 95% (non-condensing)
1
Power
Operating Voltage Range 8 to 15 VDC
Power Consumption 4W
ORDERING INFORMATION
Optical
Part
Number Description Wavelength Connector
CNFE1002M1A-A 10/100 Mbps Ethernet 1310/1550 nm ST 1 Multimode 62.5/125µm 10 dB 3 km (1.9 miles)
Fibers
Required Fiber
Pwr
Budget
Max.
Distance
CNFE1002S1A-A 10/100 Mbps Ethernet 1310 /1550 nm ST 1 Single Mode 9/125µm 15 dB 37 km (23 miles)
CNFE10 03M2-A 10/100 Mbps Ethernet 1310 nm SC 2 Multimode 62.5/125µm 10 dB 3 km (1.9 miles)
CNFE10 03S2-A 10/100 Mbps Ethernet 1310 nm SC 2 Single Mode 9/125µm 15 dB 37 km (23 miles)
CNFE1004M1A-A 10/100 Mbps Ethernet 1310/1550 nm SC 1 Multimode 62.5/125µm 10 dB 3 km (1.9 miles)
CNFE1004S1A-A 10/100 Mbps Ethernet 1310/1550 nm SC 1 Single Mode 9/125µm 15 dB 37 km (23 miles)
CNFE10 05M2-A 10/100 Mbps Ethernet 1310 nm ST 2 Multimode 62.5/125µm 10 dB 3 km (1.9 miles)
CNFE10 05S2-A 10/100 Mbps Ethernet 1310 nm ST 2 Single Mode 9/125µm 15 dB 37 km (23 miles)
Options [1] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to condensation conditions (Extra charge, consult factory)
