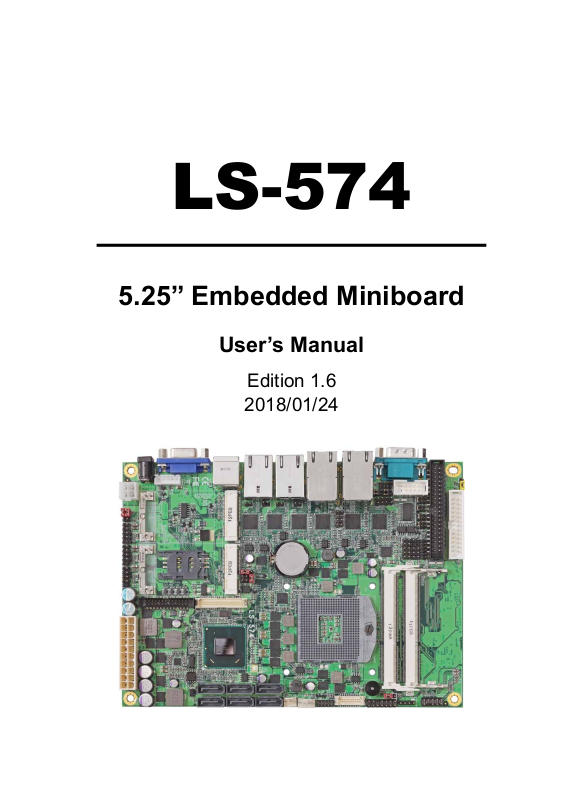

Page 1
LS-574
5.25” Embedded Miniboard
User’s Manual
Edition 1.6
2018/01/24
Page 2
Page 3
LS-574 User’s Manual
-1-
Copyright
Copyright 2011, all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice t o
make improvements to the products.
This document contains proprietary information and protected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of
their respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
Page 4
LS-574 User’s Manual
-2-

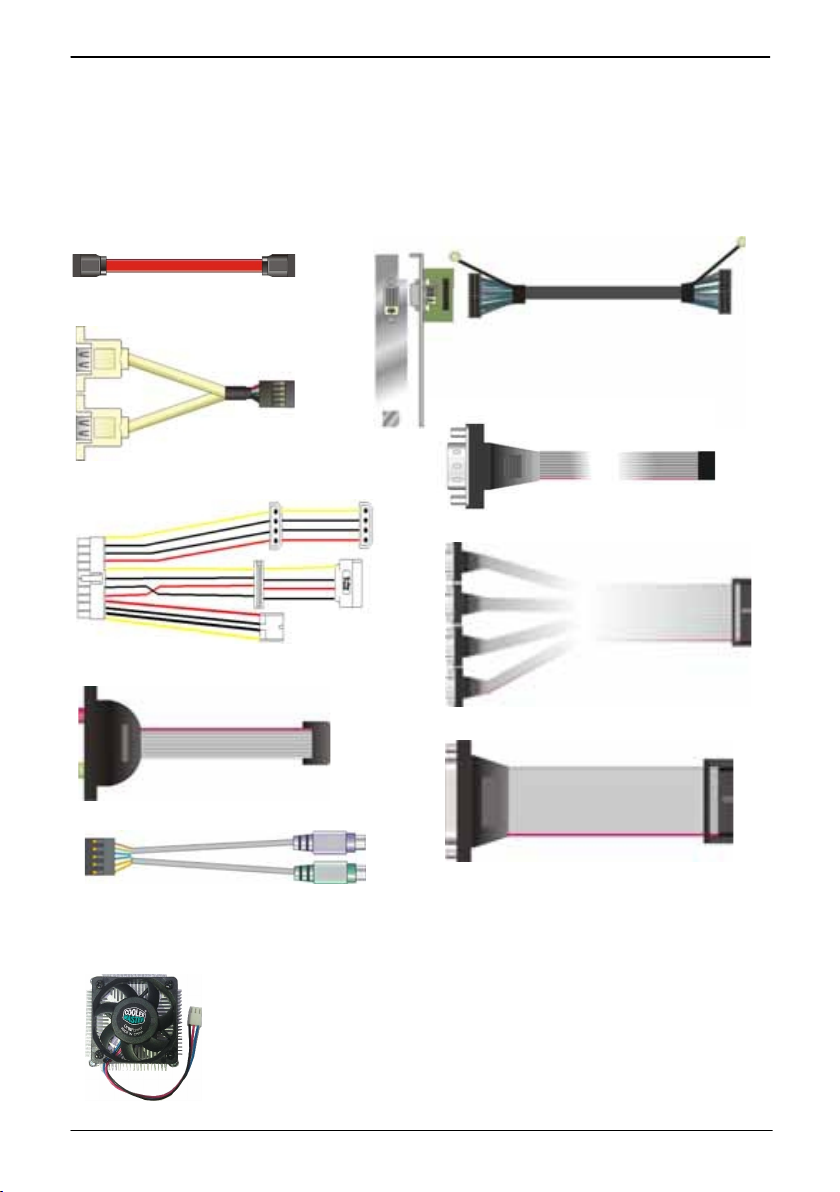

Packing List:
Please check the package content before you starting using the board.
Hardware:
LS-574 Embedded Miniboard x 1
Cable Kit:
SATA Cable x 2
(1040529)
USB Cable x 1
(1040173)
Printed Matters:
Driver CD (Including User’s Manual) x 1
CPU Cooler x 1
(OHS-P-M-H)/ (1190058)
DVI module with bracket x 1
(4120008021 & 1040075)
Printer Port Cable x 1
(1040028)
Power Output Cable x 1
(1040058)
COM port Cable x 1
(1040045)
Quad COM ports DB9 male Cable x 1
(1040197)
Audio Cable x 1
(1040121)
PS2 Cable x 1
(1040131)
Page 5
LS-574 User’s Manual
-3-
Index
Chapter 1 <Introduction>............................................................. 6
1.1 <Product Overview>..................................................................................... 6
1.2 <Product Specification>................................................................................ 7
1.3 <Mechanical Drawing>................................................................................. 8
1.4 <Block Diagram>.......................................................................................... 9
Chapter 2 <Hardware Setup>.................................................. 10
2.1 <Connector Location> ................................................................................ 10
2.2 <Jumper Location & Reference>................................................................ 11
2.3 <Connector Reference> ............................................................................. 12
2.3.1 <Internal Connectors> .............................................................. 12

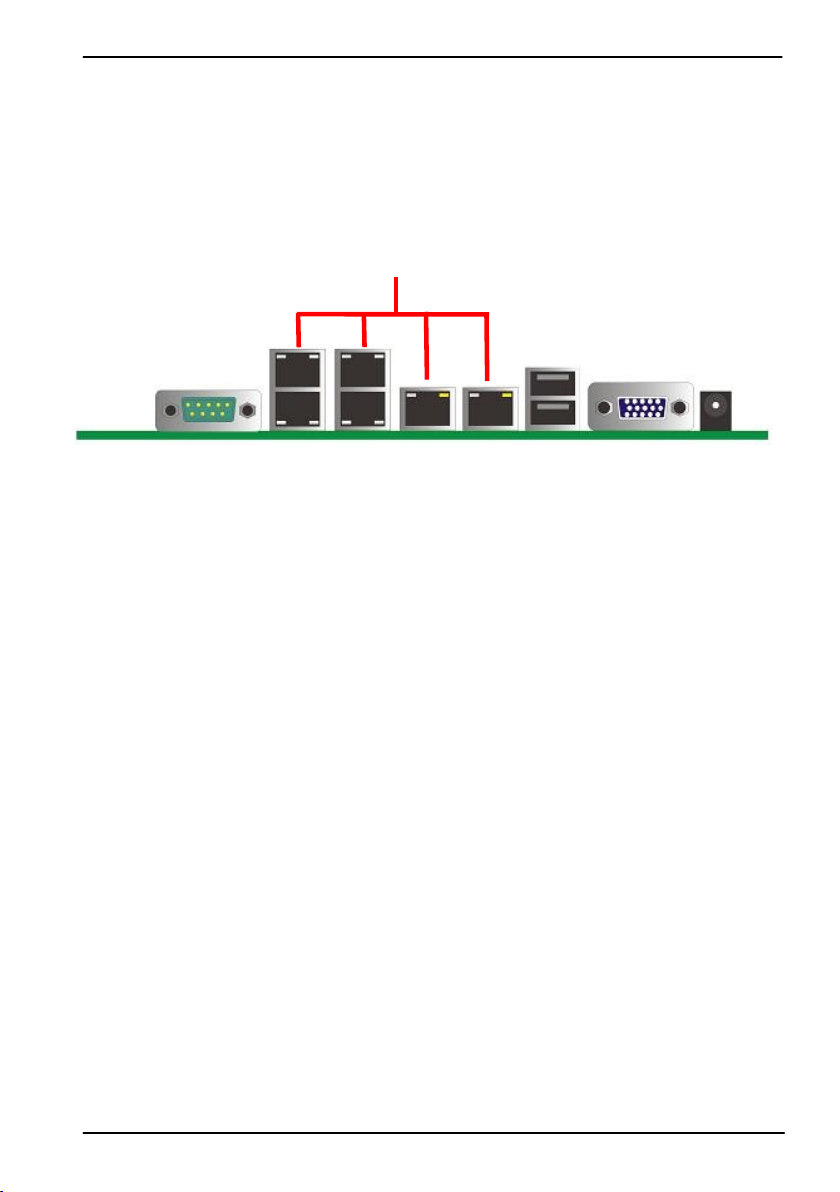

2.3.2 <External Connectors> ............................................................. 12
2.4 <CPU and Memory Setup> ........................................................................ 13
2.4.1 <CPU Setup> ............................................................................. 13

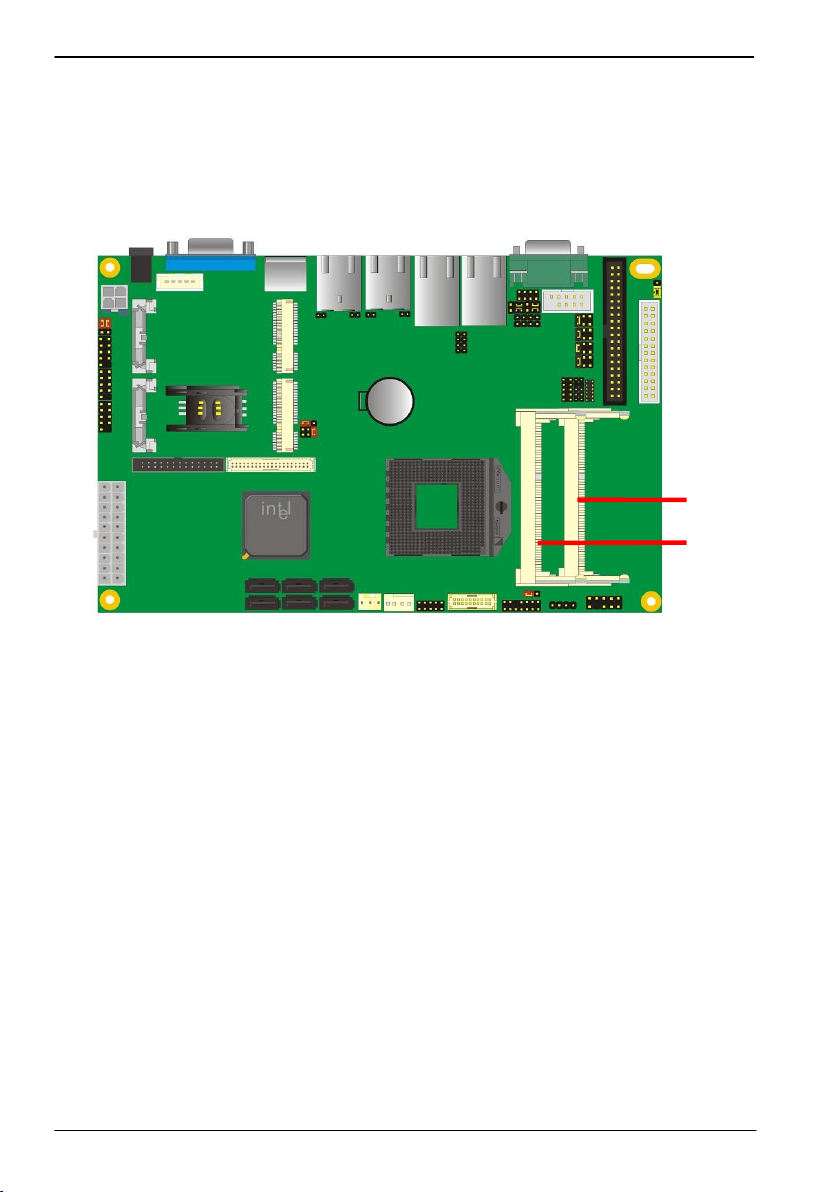

2.4.2 <Memory Setup> ....................................................................... 14

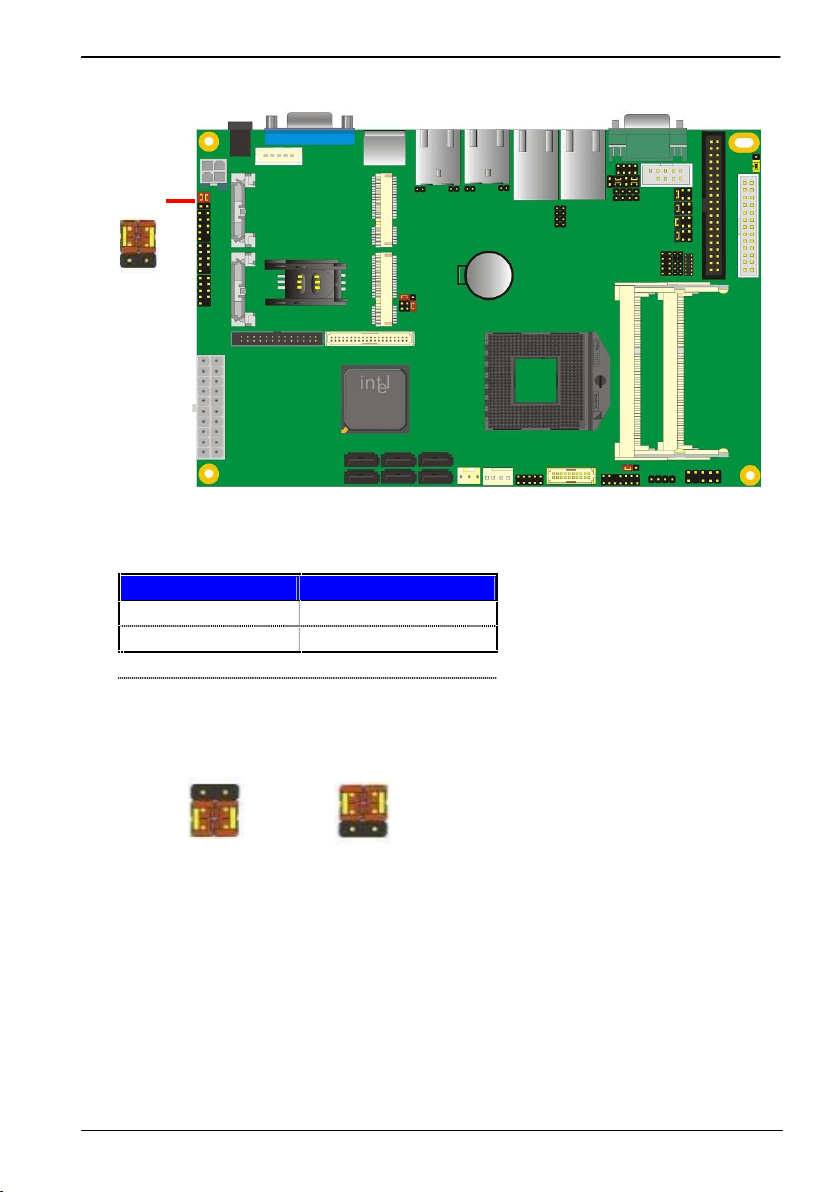

2.5 <CMOS & ATX Setup> ............................................................................... 15

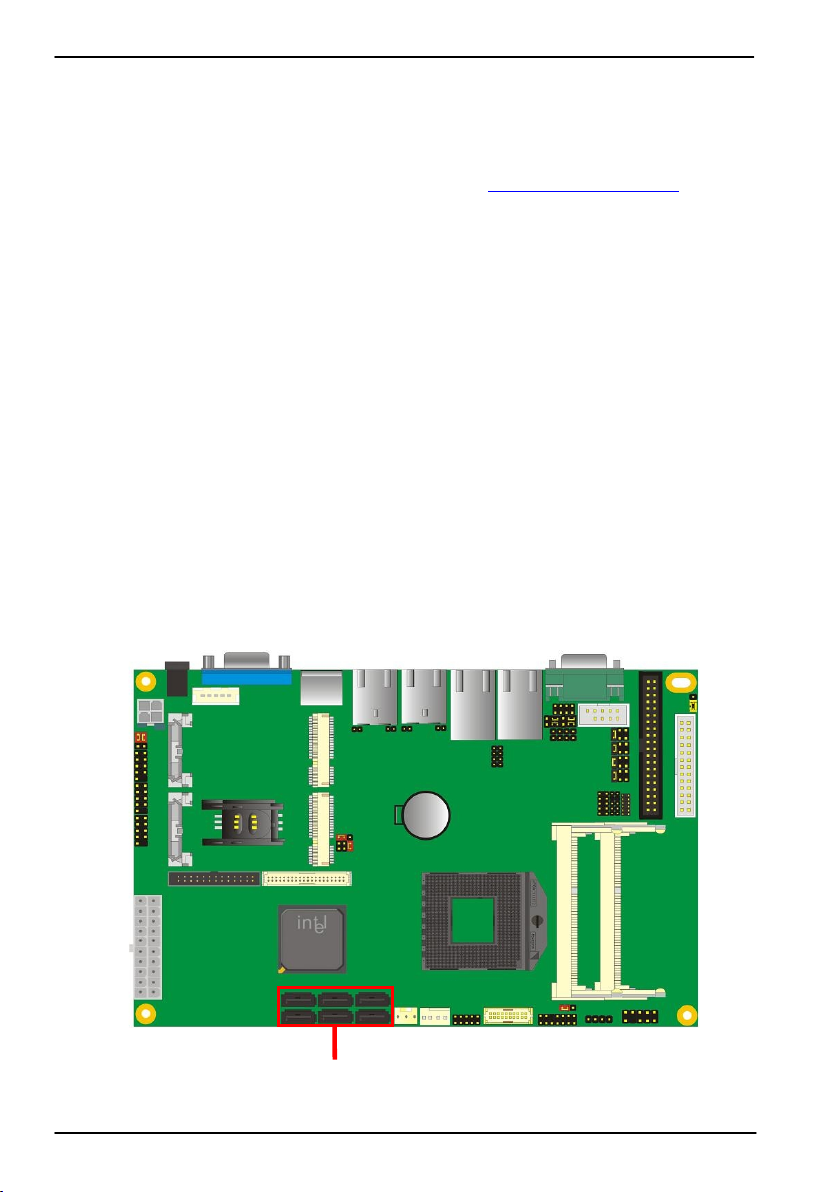

2.6 <Serial ATA Interface>................................................................................ 16
2.7 <Ethernet Interface>................................................................................... 17
2.8 <Onboard Display Interface> ..................................................................... 18
2.8.1 <Analog Display>....................................................................... 18

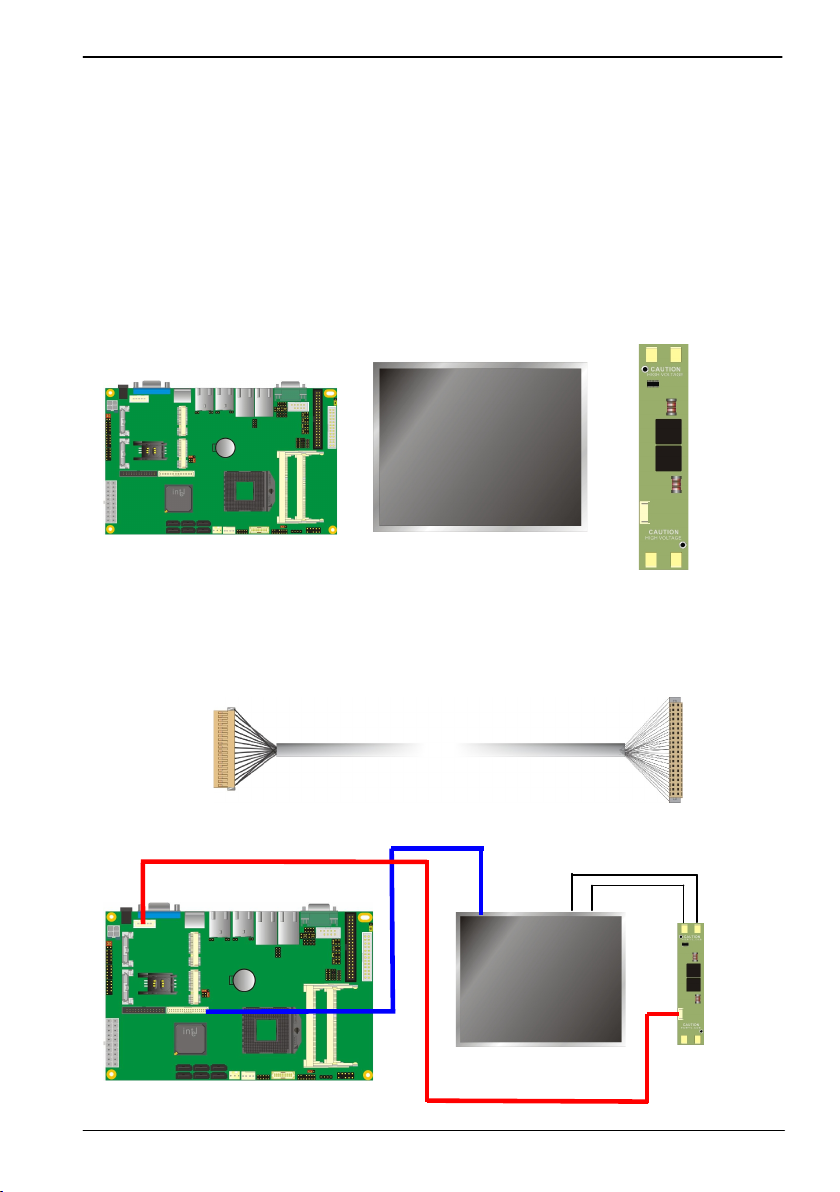

2.8.2 <Digital Display> ........................................................................ 19
2.8.3 <DVI Interface> .......................................................................... 24
2.9 <Integrated Audio Interface>...................................................................... 25
2.10 <USB Interface>....................................................................................... 27
2.11 <Serial Port>............................................................................................. 29

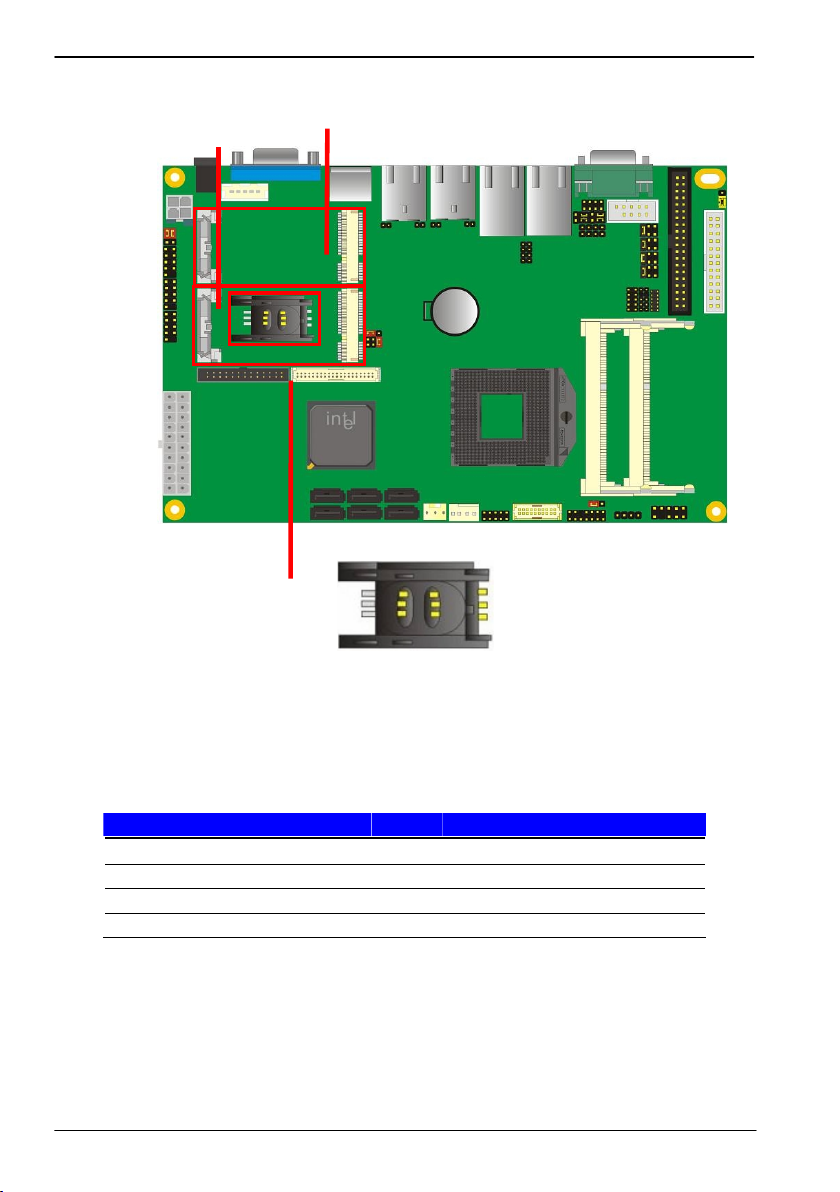

2.12 <PCIE Mini Card and SIM Interface> ....................................................... 33

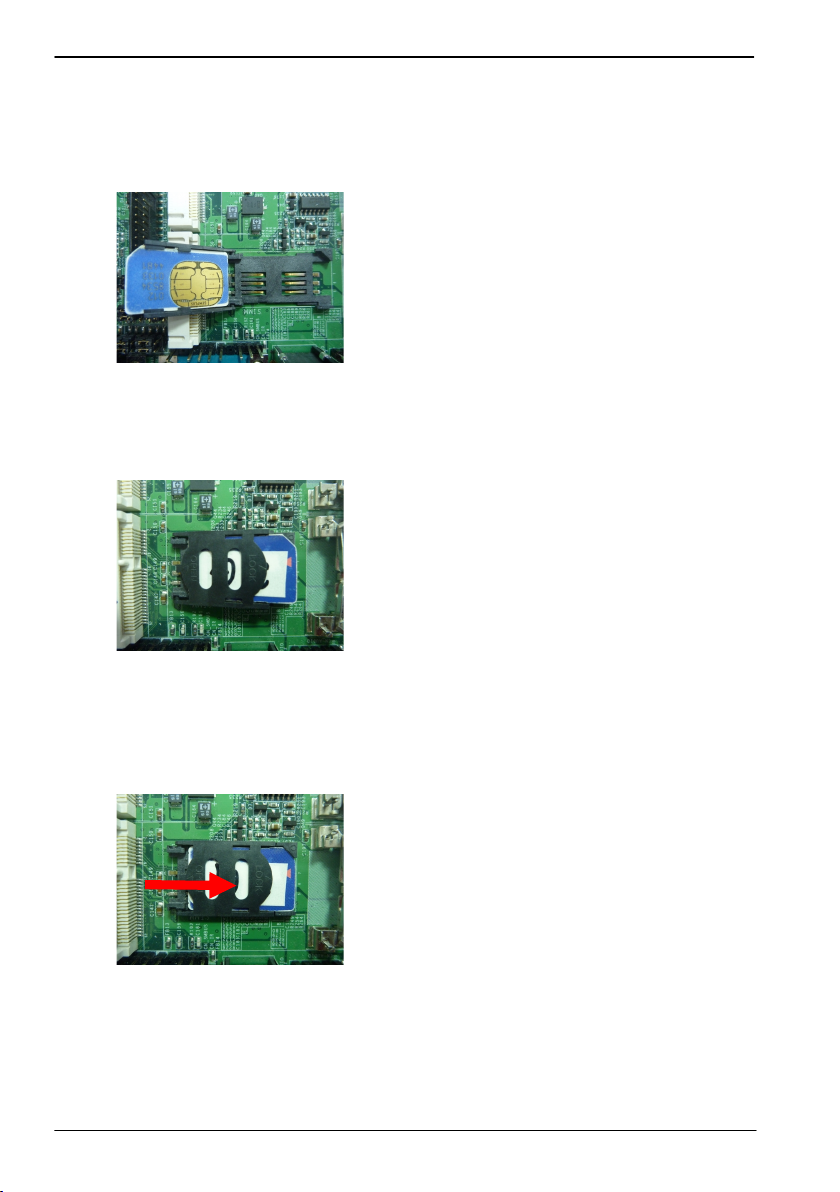

2.12.1 <SIM Setup> ............................................................................ 35

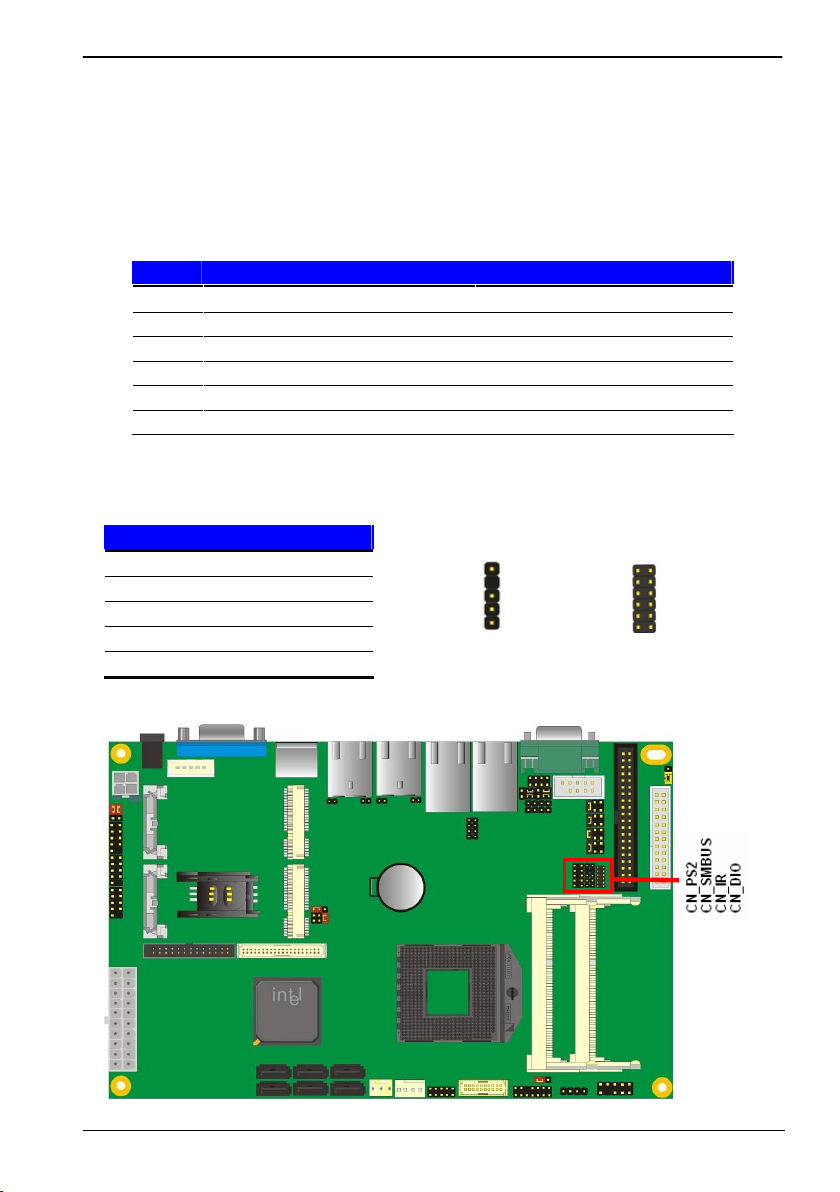

2.13 <GPIO and SMBUS Interface>................................................................. 37
2.14 <Power Supply and Fan Interface > ......................................................... 38
Page 6
LS-574 User’s Manual
-4-
2.14.1 <Power Input> ..........................................................................38
2.14.2 <Power Output> .......................................................................39
2.14.3 <Fan connector> ......................................................................40
2.15 <Switch and Indicator> .............................................................................41
Chapter 3 <System Setup>.......................................................42
3.1 <Audio Configuration> ................................................................................42
3.2 <Display Properties Setting> ......................................................................43
3.3 <SATA configuration> .................................................................................45

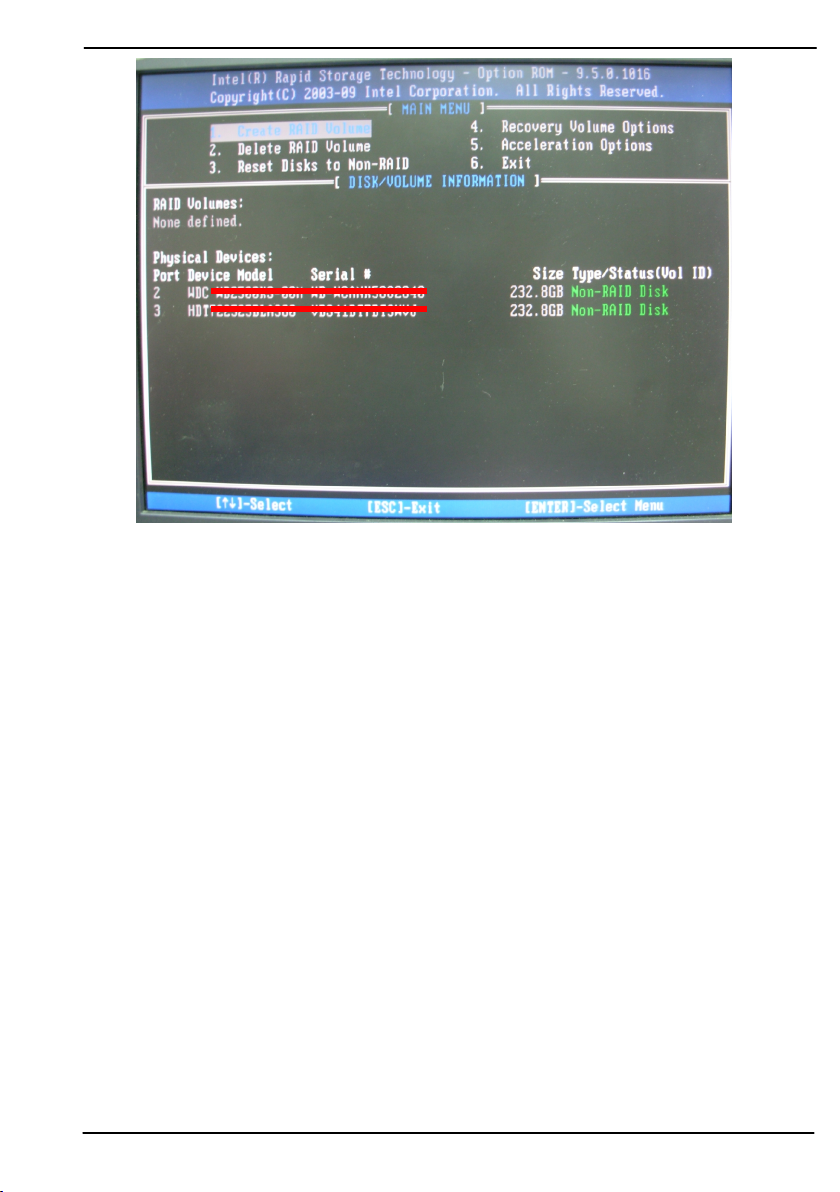

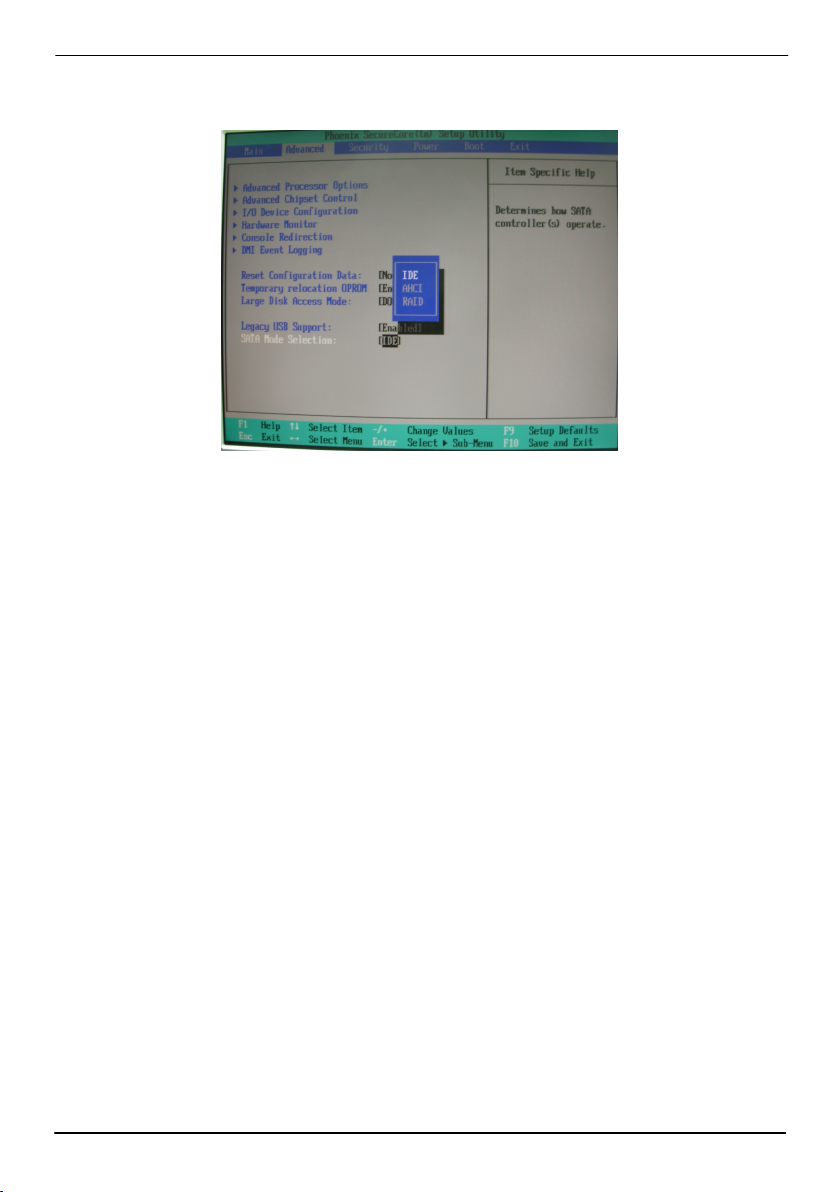

3.4 <SATA RAID Configuration> .......................................................................46
Chapter 4 <BIOS Setup>.............................................................48

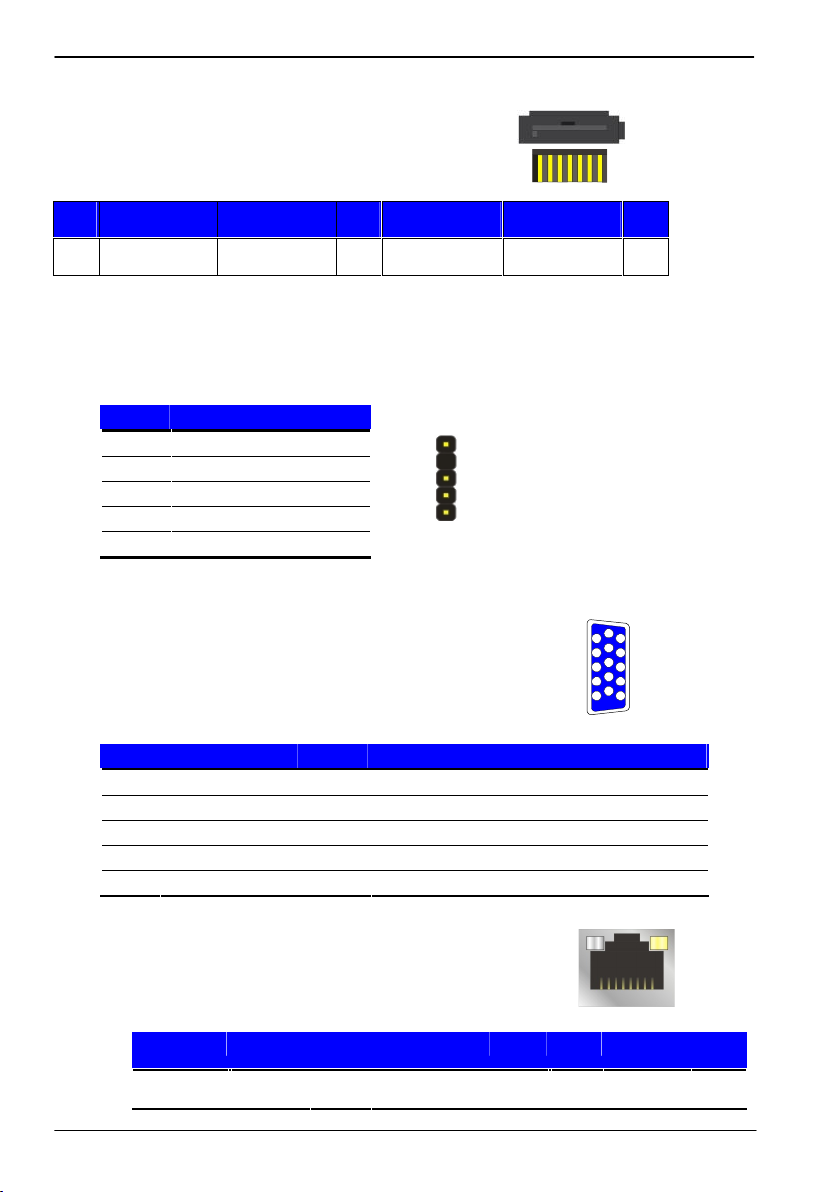

Appendix A <I/O Port Pin Assignment> ..........................50
A.1 <Serial ATA Port> .......................................................................................50
A.2 <IrDA Port>.................................................................................................50
A.3 <VGA Port> ................................................................................................ 50
A.4 <LAN Port>.................................................................................................50
A.5 <LAN LED Port>.........................................................................................51
A.6 <Parallel Port>............................................................................................51
Appendix B <Flash BIOS>.........................................................52
B.1 <Flash Tool> ............................................................................................... 52
B.2 <Flash BIOS Procedure> ...........................................................................52
Appendix C <System Resources> ......................................53

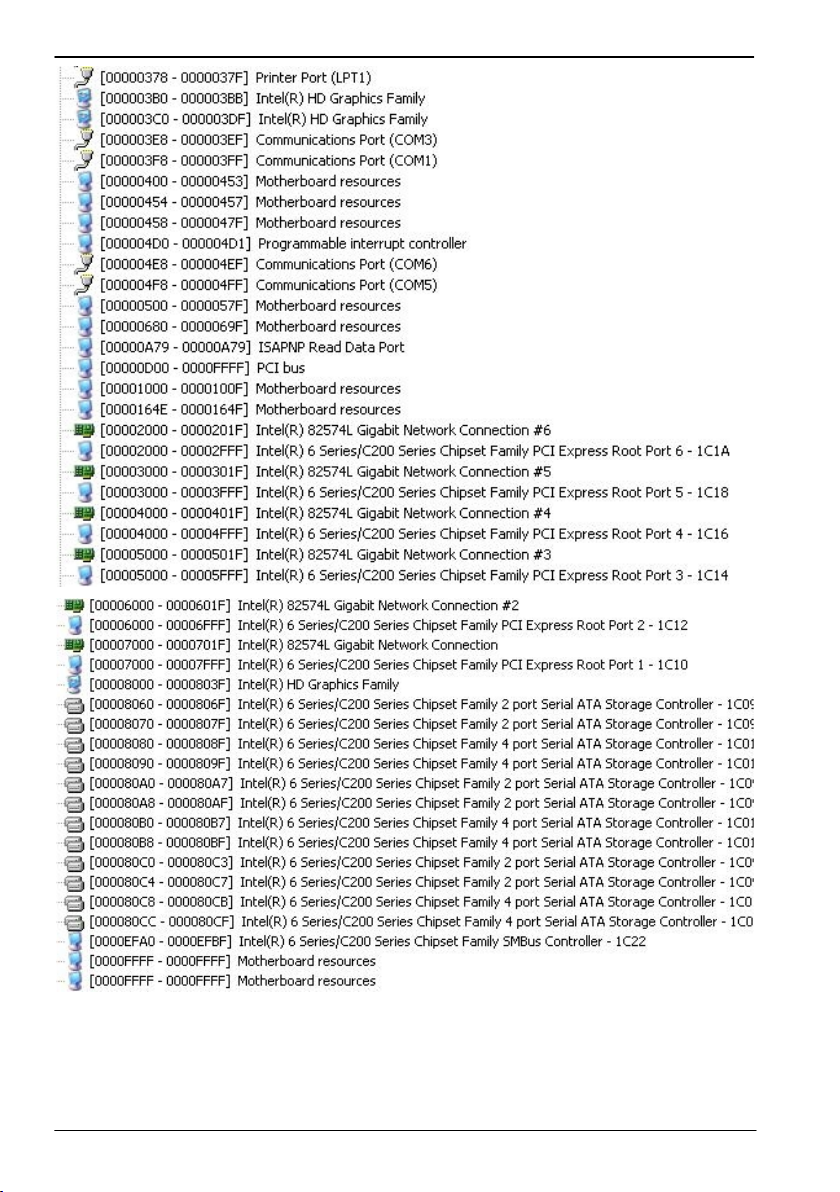

C.1 <I/O Port Address Map>............................................................................. 53
C.2 <Memory Address Map> ............................................................................55
C.3 <System DMA & IRQ Resources> .............................................................56
Appendix D <Programming GPIO’s>.................................57
Appendix E <Programming Watchdog Timer >.........58
Contact Information.......................................................................59
Page 7
LS-574 User’s Manual
-5-
(This page is left for blank)
Page 8
LS-574 User’s Manual
-6-
Chapter 1 <Introduction>
1.1 <Product Overview>
LS-574 the 2nd Generation Intel of the 5.25” Miniboard, supports 2nd Generation Intel®
Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor and features Intel
QM67 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio,
Serial ATA with RAID function for a system and Intel Gigabit LAN.
Intel Sandy Bridge Processor
The 2nd Generation Intel® Core™ processor family mobile is the next generation of
64-bit, multi-core mobile processor built on 32- nanometer process technology. Based
on a new micro-architecture.
New features for Intel QM67 chipset
The board integrates Intel QM67 chipset, supports integrated HD Graphics, built-in high
speed mass storage interface of Serial ATA interface with RAID function, High Definition
Audio with 2 channels surrounding sound.
All in One multimedia solution
Based on Intel QM67 chipset, the board provides high performance onboard graphics,
24-bit dual channel LVDS interface, DVI and 2 channels High Definition Audio, to meet
the very requirement of the multimedia application.
Flexible Extension Interface
The board provides, two mini-PCIE socket.
Page 9
LS-574 User’s Manual
-7-
1.2 <Product Specification>
General Specification
Form Factor
5.25-inch Embedded Miniboard
CPU
2nd Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron®
Mobile Processor
Package type: rPGA988B
Memory
2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB
Support Non-ECC, unbuffered memory only
Chipset
Intel QM67 Express chipset
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~255min/s
Power Management
Supports ACPI 3.0 compliant,
Serial ATA Interface
4 x serial ATAII interface with 300MB/s transfer rate
2 x serial ATAIII interface with 600MB/s transfer rate
Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology
VGA Interface
Onboard DSUB15 connector for VGA interface
LVDS Interface
Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V
supply
DVI Interface
Chrontel CH7318 Transmitter with 26-pin DVI connector
Audio Interface
Realtek ALC888 HD Audio
LAN Interface
6 x Intel 82574L Gigabit LAN
GPIO interface
Onboard programmable 8-bit Digital I/O interface
Extended Interface
2 x PCIE mini card socket,1 x SIM socket
Internal I/O Port
1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x Parallel, 1 x SMBUS,
1 x GPIO, 6 x USB2.0 ports, 1 x IrDA, 1 x DVI , 1 x LVDS, 1 x PS2
4 x Serial ATAII, 2 x Serial ATAIII, 1 x Front panel Audio and 1 x CDIN
External I/O Port
6 x LAN ports, 1 x VGA port, 2 x USB2.0 ports, 1 x RS232,
1 x DC connector
Power Requirement
Standard 20-Pin ATX power supply or 9~24V full range DC Input
Dimension
203mm x 146mm
Temperature
Operating within 0~60 centigrade
Storage within –20~85 centigrade
Ordering Code
LS-574TXD
Intel PGA988B+ QM67 Onboard VGA, LVDS, DVI, LAN, USB2.0, HD
Audio, SATAII ,SATAIII, SMBUS, LPC, SIM, GPIO
and PCI Express mini card.
The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT
Page 10
LS-574 User’s Manual
-8-

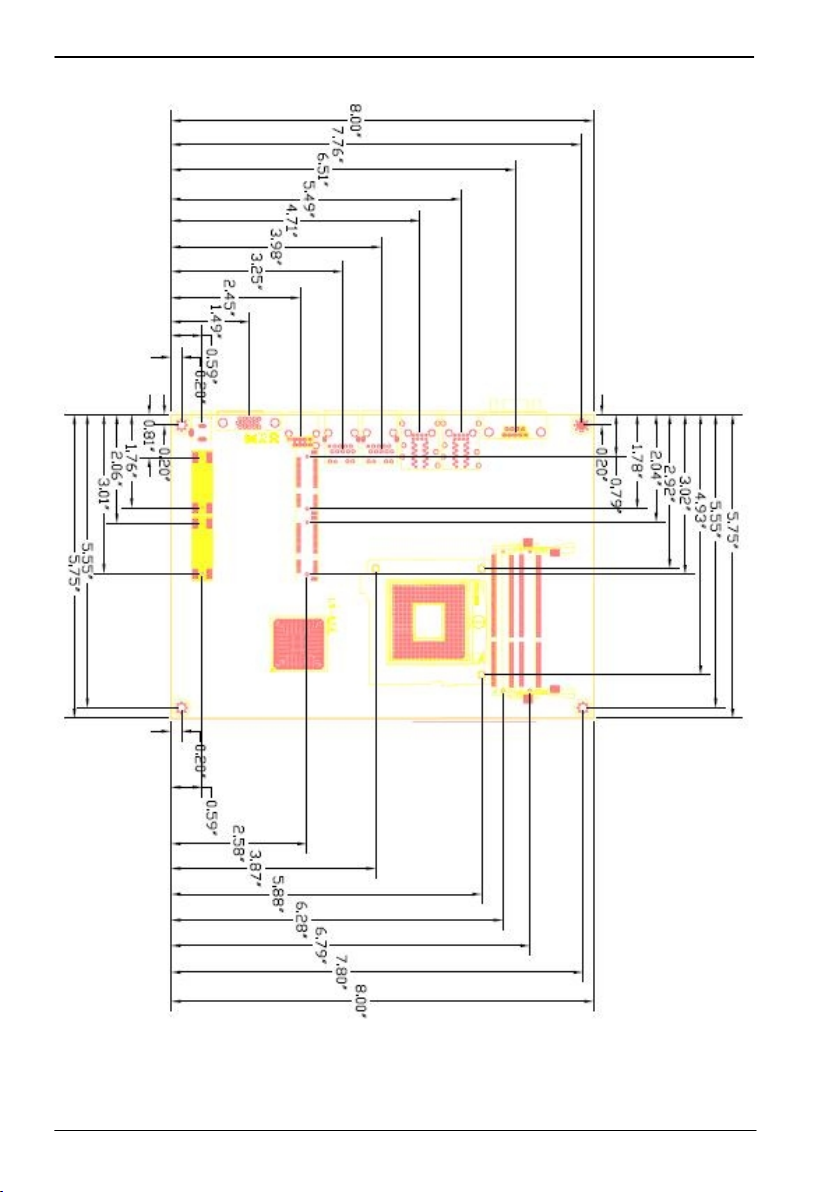

1.3 <Mechanical Drawing>
Unit: inch
Page 11
LS-574 User’s Manual
-9-

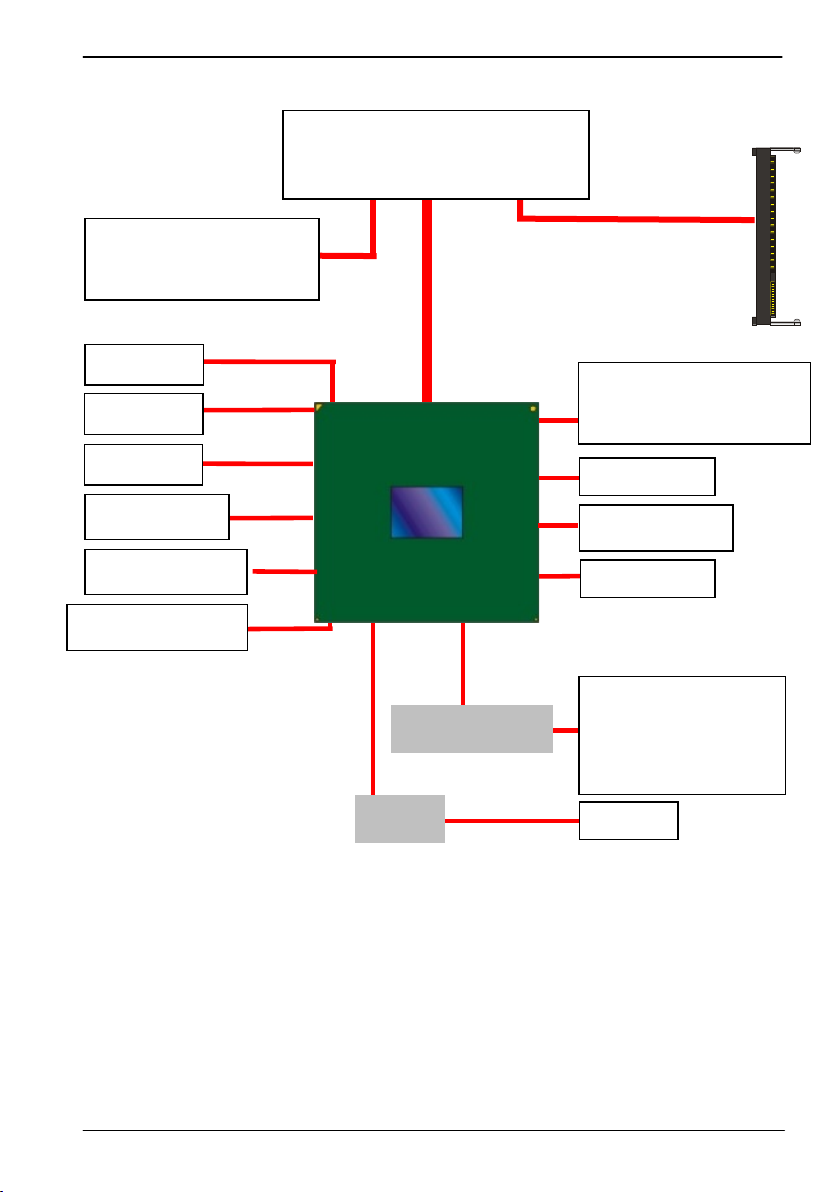

1.4 <Block Diagram>
QM67
W25X64 SPI
6 x Intel 82574L
1 x RS232/422/485
1 x COM & GPIO & IrDA
1 x LPT
2nd Generation Intel® Core™ i7,
Core™ i5, Core™ i3
and Celeron® Mobile Processor
2 x 204-pin DDR3
SO-DIMM
1066/1333/1600 MHz
up to 16GB
IO W83627DHG-P
1 x LVDS
4 x Serial ATAII
8 x USB 2.0
1 x PCI Express mini card
(MINI_CARD2)
1 x DVI
1 x CRT
2 x Serial ATAIII
4 x COM
ALC888 HD Audio
F81216
1 x PCI Express mini card
(MINI_CARD1)
Page 12
LS-574 User’s Manual
-10-
Chapter 2 <Hardware Setup>

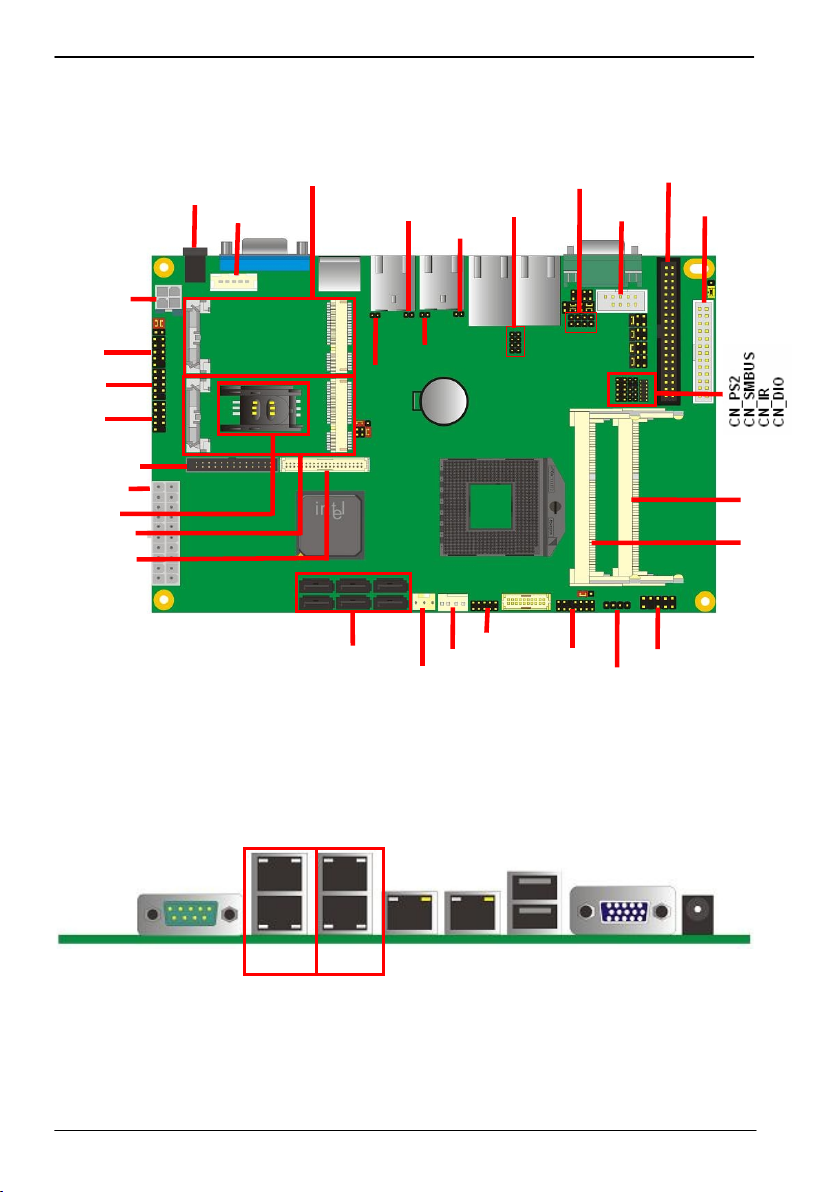

2.1 <Connector Location>
COM1 LAN-1_2 LAN-3_4 LAN5 LAN6 USB CRT DC_2P
JFRNT
ATX
CN_INV
SO-DIMM1
DC_IN
CD_IN
CPUFAN
CN_AUDIO
MINI_CARD1
SO-DIMM2
CN_DVI
SATA 6 / 4 / 2
SATA 5 / 3 / 1
MINI_CARD2
SIMM
COM2
COM3/4/5/6
CN_LPC
JSPD 2/1
JSPD3
JACT 2/1
JACT3
SYSFAN
CN_USB1
CN_USB2
CN_USB3
CN_LVDS
DC_2P
CN_LPT
JSPD4
JACT4
JSPD5
JACT5
JSPD6
JACT6
Page 13
LS-574 User’s Manual
-11-

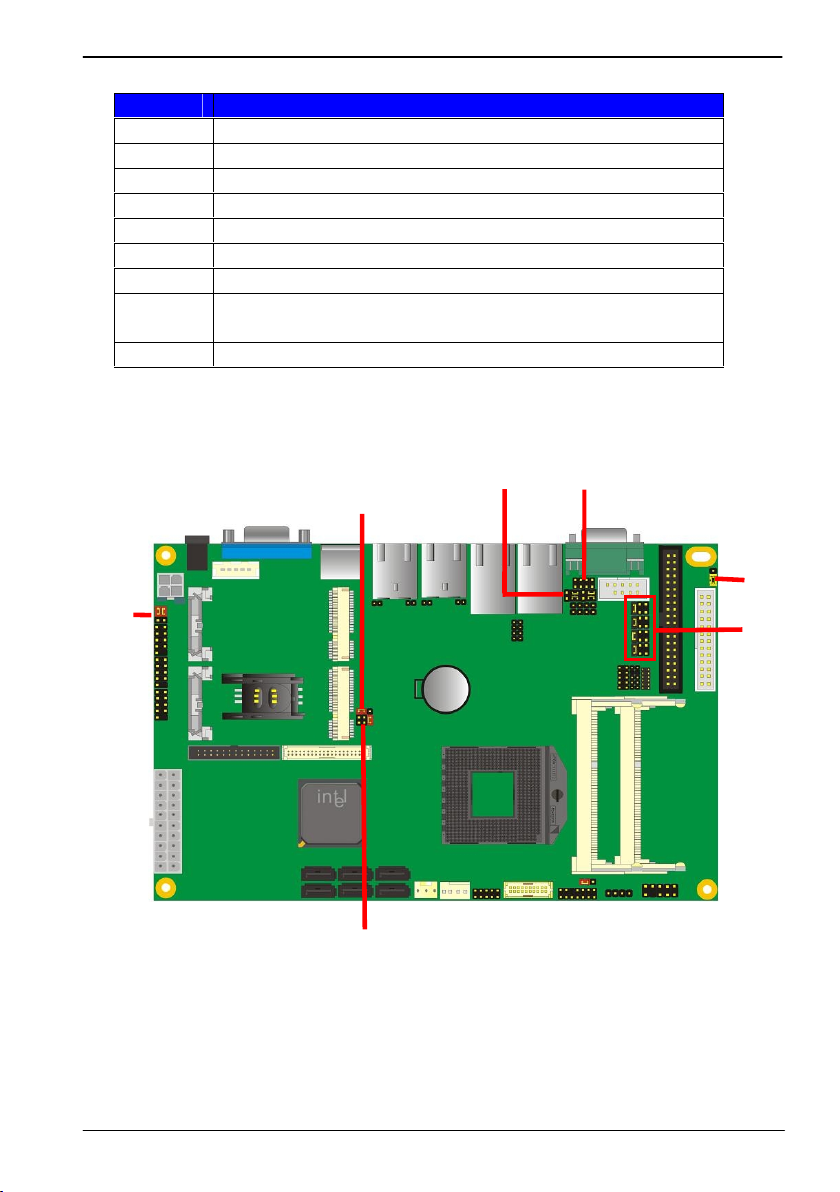

2.2 <Jumper Location & Reference>
Jumper
Function
JRTC
CMOS Operating/Clear Setting
JVLCD
Panel Voltage Setting
JAT
Power mode select
JP1
Com1 Voltage Setting (For Pin 9)
JP2
Com2 Voltage Setting (For Pin 9)
JP3
Com3 Voltage Setting (For Pin 9)
JP4
Com4 Voltage Setting (For Pin 9)
JCSEL1
JCSEL2

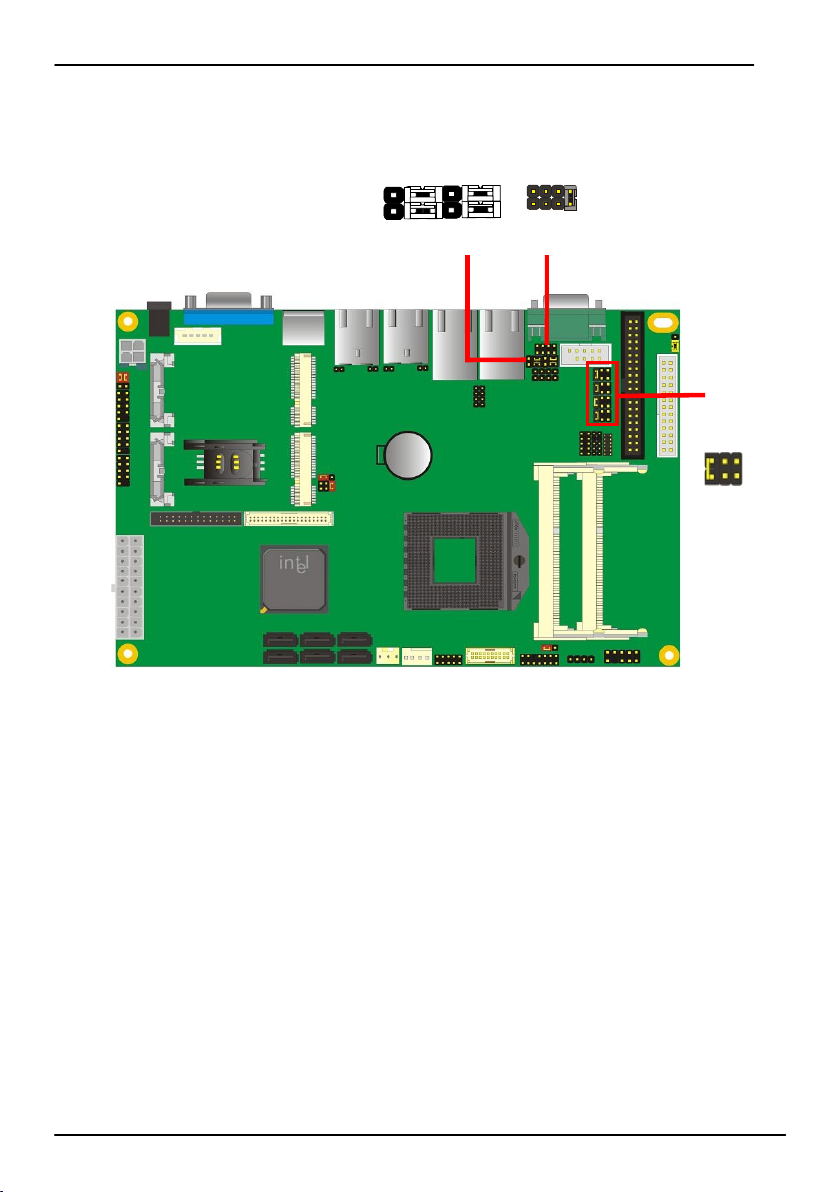

CN_COM2 RS-232 RS422 RS485 Setting
CN_IR IrDA Setting
JVUSB
USB Voltage Setting
JVLCD
JRTC
JAT
JP1
JP2
JVUSB
JP4
JP3
JCSEL1
JCSEL2
Page 14
LS-574 User’s Manual
-12-
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector
Function
Remark
CPU
Socket rPGA988B for PGA988 CPU
SO-DIMM 1/2
204 -pin DDR3 SO-DIMM socket
SATA 1/2
7-pin Serial ATAIII connector
SATA 3/4/5/6
7-pin Serial ATAII connector
DC_IN
DC 9~24V input connector
20-pin power input connector
ATX Mode
ATX
20-pin power output connector
DC Input Mode
CN_AUDIO
5 x 2-pin audio connector
CD_IN
4-pin CD-ROM audio input connector
CN_DIO
6 x 2-pin digital I/O connector
CN_USB 1/2/3
5 x 2-pin USB connector
CPUFAN
4-pin CPU cooler fan connector
SYSFAN
3-pin system cooler fan connector
CN_LVDS
20 x 2-pin LVDS connector
CN_INV
5-pin LCD inverter connector
CN_IR
5-pin IrDA connector
CN_COM 2
9-pin RS232/RS422/RS485
CN_COM 3/45/6
20 x 2-pin 4 x RS232
CN_LPC
5 x 2-pin LPC connector
CN_LPT
13 x 2-pin printer connector
JFRNT
14-pin front panel switch/indicator
connector
Mini-PCIE1/2
2 x 52-pin Mini-PCIE socket
JAT
Power mode select
JSPD
1/2/3/4/5/6
LAN Speed LED connector
JACT
1/2/3/4/5/6
LAN Activity LED connector

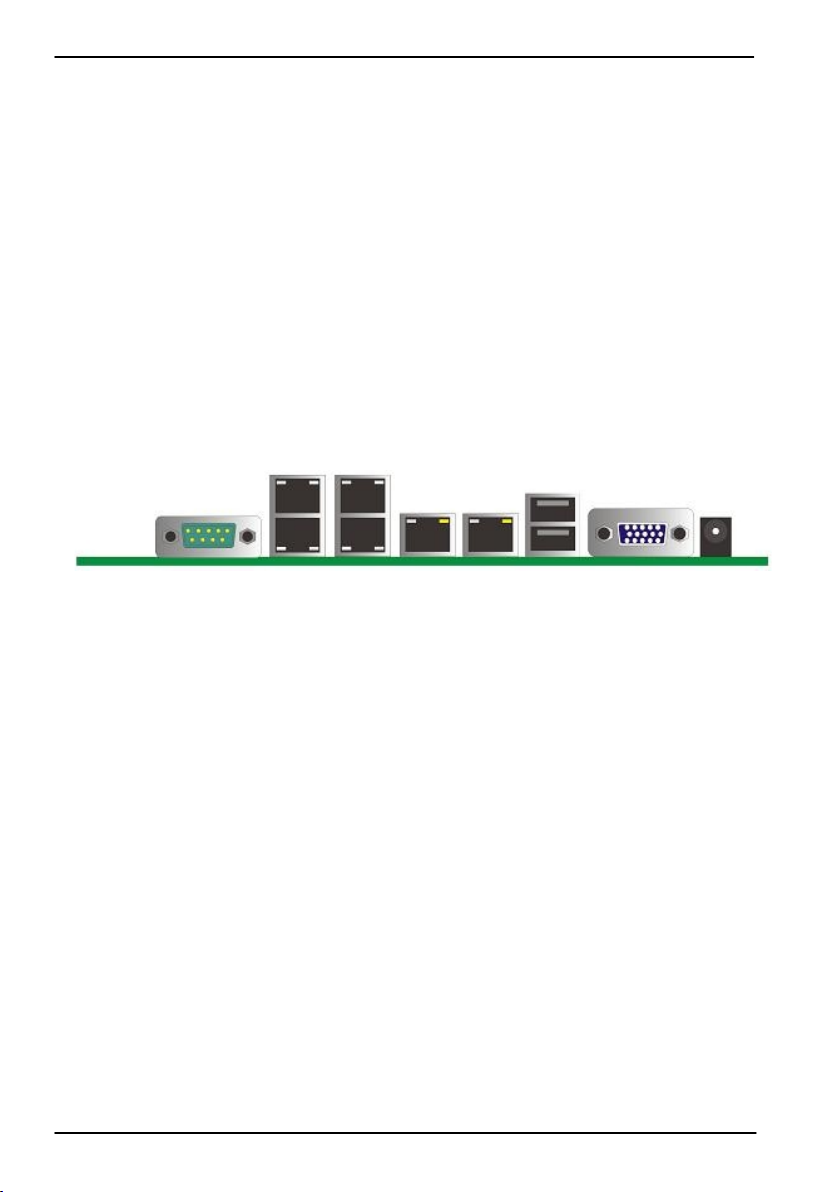

2.3.2 <External Connectors>
Connector
Function
Remark
COM1
DB9 Serial port connector
RJ45-1~6
6 x RJ45 LAN connector
USB
2 x USB 2.0 connector
CRT
DB15 VGA connector
DC_2P
DC 9~24V input jack
Page 15
LS-574 User’s Manual
-13-

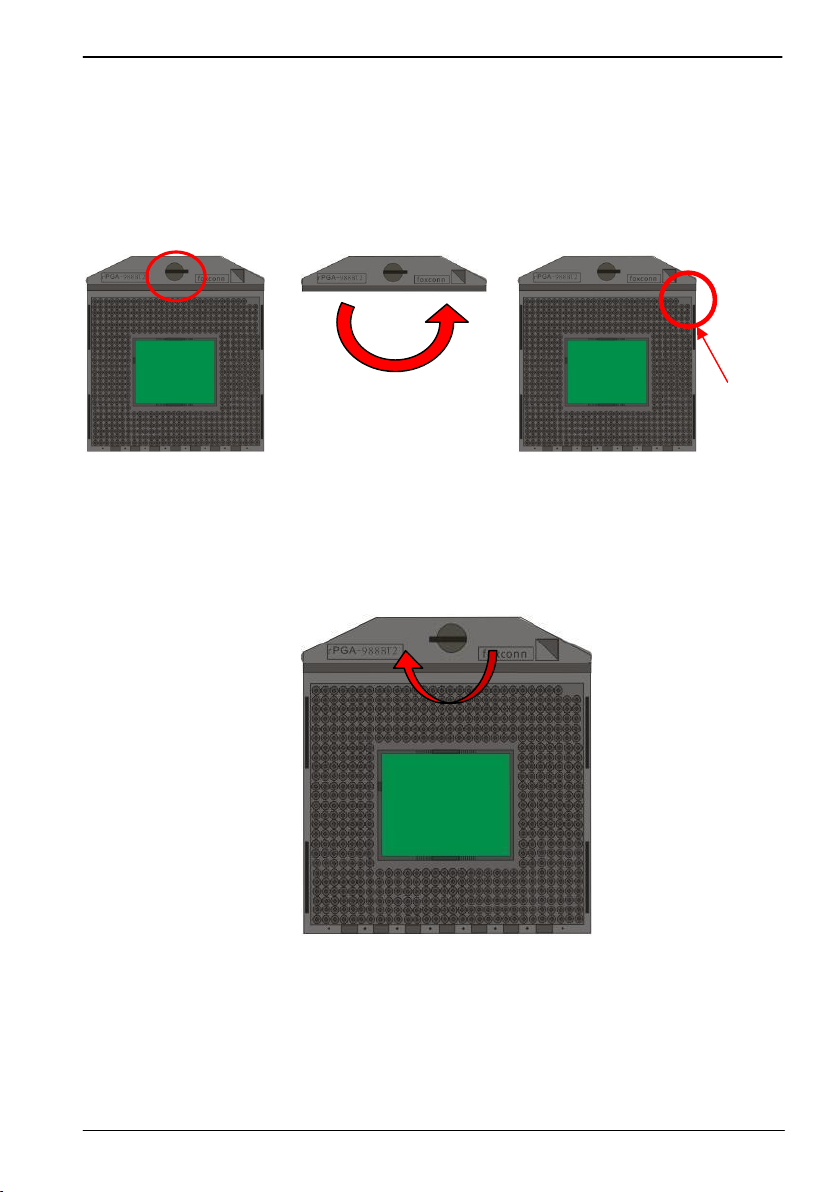

2.4 <CPU and Memory Setup>
2.4.1 <CPU Setup>
The board comes with the socket rPGA988 for Intel Sandy Bridge Processor, Please
follow the instruction to install the CPU properly.
1. Use the flat-type screw drive
to unlock the CPU socket
Unlock way
Check point
2. Follow the pin direction to install
the processor on the socket
3. Lock the socket
Socket CPU
Check point
Page 16
LS-574 User’s Manual
-14-
2.4.2 <Memory Setup>
The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3
memory module up to 16GB.
Support Non-ECC, unbuffered memory only.
SO-DIMM1
SO-DIMM2
Page 17
LS-574 User’s Manual
-15-

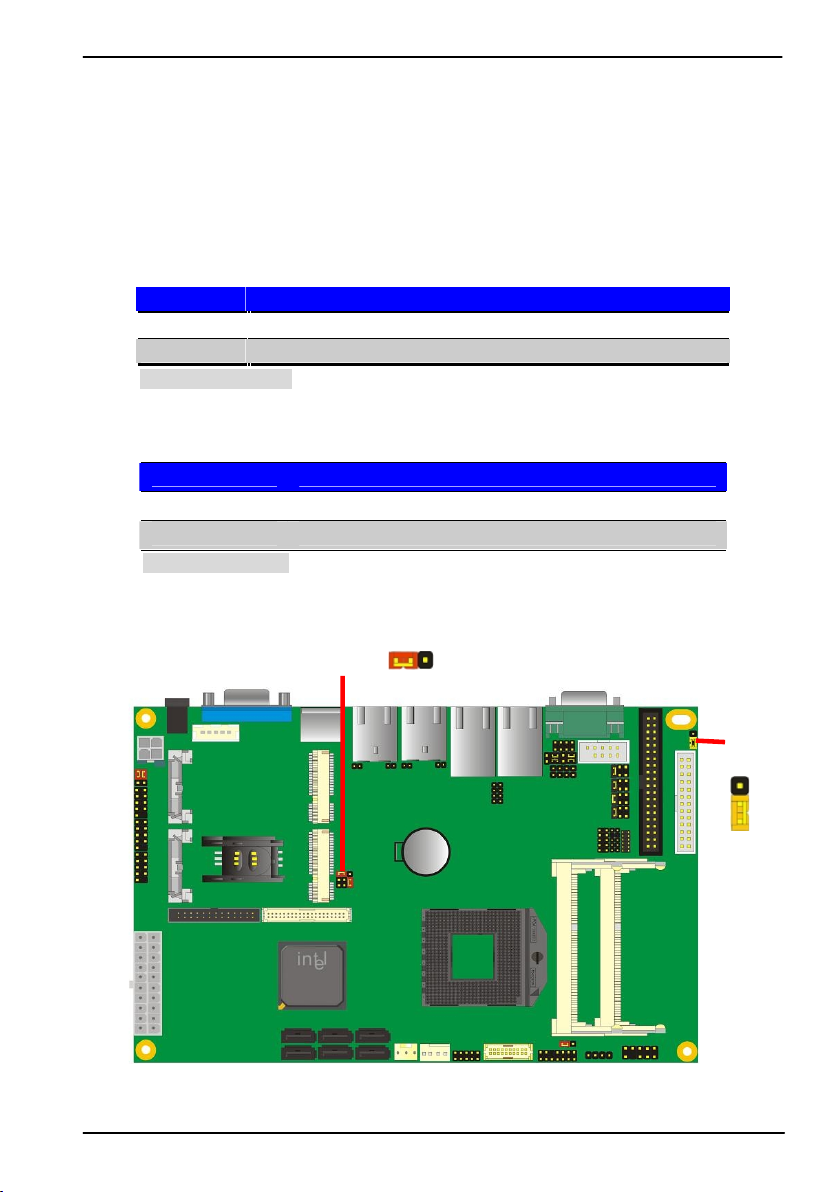

2.5 <CMOS & ATX Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due
to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS
to its default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC
Mode
1-2
Clear CMOS
2-3
Normal Operation
Default setting: 2-3
Jumper: JAT
Type: onboard 3-pin jumper
JAT
Mode
1-2
AT Mode
2-3
ATX Mode
Default setting:2-3
3 1
1
3
JRTC
JAT
Page 18
LS-574 User’s Manual
-16-
2.6 <Serial ATA Interface>
LS-574 has Four Serial ATA II (SATA Port3/4/5/6) & Two Serial ATA III (SATA Port1/2)
interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s
& Serial ATA III can be up to 600MB/s. Please go to http://www.serialata.org/ for more
about Serial ATA technology information. Based on Intel® PC H , it supports Intel® Matrix
Storage Technology with combination of RAID 0,1,5 and 10. The main features of
RAID on Intel® QM67 PCH are listed below:
1. Supports for up to RAID volumes on a single, two-hard drive RAID array.
2. Supports for two, two-hard drive RAID arrays on any of six Serial ATA ports.
3. Supports for Serial ATA ATAPI devices.
4. Supports for RAID spares and automatic rebuild.
5. Supports on RAID arrays, including NCQ and native hot plug.
For more information please visit Intel’s official website.
For more about the system setup for Serial ATA, please check the chapter of SATA
configuration.
SATA 6 / 4 / 2
SATA 5 / 3 / 1
Page 19
LS-574 User’s Manual
-17-
2.7 <Ethernet Interface>
The board integrates with Six Intel PCI Express Gigabit Ethernet controllers, as the PCI
Express x1 can speed up to 250MB/s of transfer rate instead of late PCI bus with
133MB/s of transfer rate. The Intel Gigabit Ethernet supports triple speed of
10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported.
RJ45 LAN connector
Page 20
LS-574 User’s Manual
-18-
2.8 <Onboard Display Interface>
Based on Intel Sandy Bridge CPU with built-in HD Graphic, the board provides one
DB15 connector on real external I/O port, one 40-pin LVDS interface with 5-pin LCD
backlight inverter connector and provides 26-pin DVI interface.
The board provides dual display function with clone mode and extended desktop mode
for CRT, LCD and DVI.
2.8.1 <Analog Display>
Please connect your CRT or LCD monitor with DB15 male connector to the onboard
DB15 female connector on rear I/O port .
CRT
Page 21
LS-574 User’s Manual
-19-
CN_INV
5 1
2.8.2 <Digital Display>
The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels,
supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter
connector and one jumper for panel voltage setting.
Effective patterns of connection: 1-2 / 3-4 / 5-6
Warning: others cause damages
JVLCD
CN_LVDS
1
2
345
6
125
6
2
1
40
39
Page 22
LS-574 User’s Manual
-20-
Connector: CN_INV Connector: JVLCD
Type: 5-pin LVDS Power Header Type: 6-pin Power select Header
Pin
Description
1
+12V
2
Reserved (Note)
3
GND
4
GND
5
ENABKL
Note:
Reserved for MB internal test
Please treat it as NC.
Connector: CN_LVDS
Type: onboard 40-pin connector for LVDS connector
Connector model:
E&T 3950-B40C-00R or similar (HIROSE DF13-40DP-1.25V compatible)
Pin
Signal
Pin
Signal
2
LCDVCC
1
LCDVCC
4
GND3GND
6
ATX0-
5
BTX0-
8
ATX0+
7
BTX0+
10
GND9GND
12
ATX1-
11
BTX1-
14
ATX1+
13
BTX1+
16
GND15GND
18
ATX2-
17
BTX2-
20
ATX2+
19
BTX2+
22
GND21GND
24
ACLK-
23
BTX3-
26
ACLK+
25
BTX3+
28
GND27GND
30
ATX3-
29
BCLK-
32
ATX3+
31
BCLK+
34
GND33GND
36
DDCPCLK
35
SMBCKL
38
DDCPDATA
37
SMBDATA
40
N/C39SPDIFO
Pin
Description
1-2
LCDVCC (3.3V)
3-4
LCDVCC (5V)
5-6
LCDVCC (12V)
Default: 1-2
Page 23
LS-574 User’s Manual
-21-
To setup the LCD, you need the component below:
1. A panel with LVDS interfaces.
2. An inverter for panel’s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignment of the connector to make a cable, because
every panel has its own pin assignment, so we do not provide a standard cable; please find
a local cable manufacture to make cables.
LCD Installation Guide:
1. Preparing the LS-574, LCD panel and the backlight inverter.
2. Please check the datasheet of the panel to see the voltage of the panel, and set
the jumper JVLCD to +12V or +5V or +3.3V.
3. You would need a LVDS type cable.
4. To connect all of the devices well.
For sample illustrator only
Panel side
Board side
Page 24
LS-574 User’s Manual
-22-

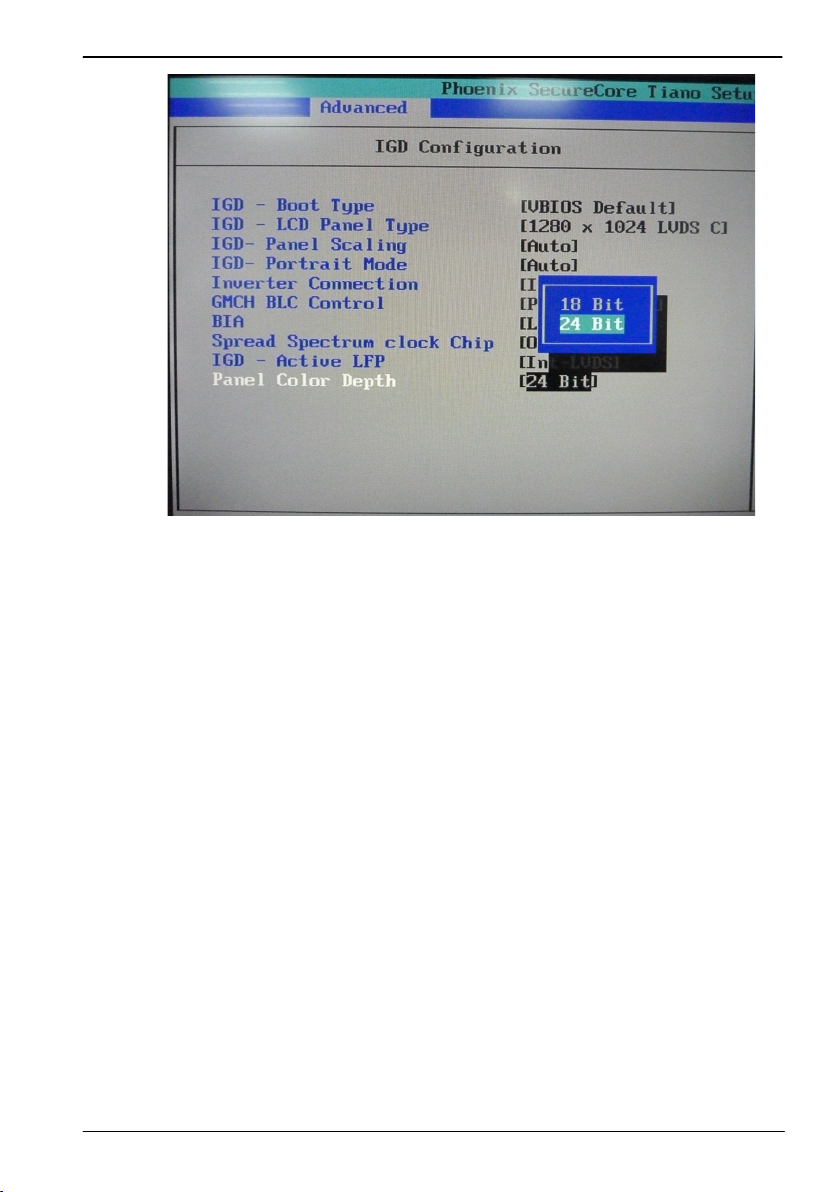

After setup the devices well, you need to select the LCD panel type in the BIOS.
The panel type mapping is list below:
BIOS panel type selection form (BIOS Version:1.0)
Single / Dual channel
Single / Dual channel
NO.
Output format
NO.
Output format
1
640 x 480
9
1680 x 1050
2
800 x 600
10
1920 x 1200
3
1024 x 768
11
1440 x 900
4
1280 x 1024
12
1600 x 900
5
1400 x 1050 Reduced Blanking
13
OEM Keep
6
1400 x 1050 non-Reduced Blanking
14
1280 x 800
7
1600 x 1200
15
1920 x 1080
8
1366 x 768
16
2048 x 1536
BIOS panel type selection form (BIOS Version:2.0)
Single / Dual channel
Single / Dual channel
NO.
Output format
NO.
Output format
1
640 x 480
9
1680 x 1050
2
800 x 600
10
1920 x 1200
3
1024 x 768
11
1440 x 900
4
1280 x 1024
12
1600 x 900
5
1400 x 1050 Reduced Blanking
13
800 x 480
6
1400 x 1050 non-Reduced Blanking
14
1280 x 800
7
1600 x 1200
15
1920 x 1080
8
1366 x 768
16
OEM Keep
Page 25
LS-574 User’s Manual
-23-
Page 26
LS-574 User’s Manual
-24-
2.8.3 <DVI Interface>
Connector: CN_DVI
Connector type: 26-pin header connector (pitch = 2.00mm)
Pin Number
Assignment
Pin Number
Assignment
1
TX1+
2
TX1-
3
Ground
4
Ground
5
TXC+
6
TXC-
7
Ground
8
PVDD
9
N/C10N/C
11
TX2+
12
TX2-
13
Ground
14
Ground
15
TX0+
16
TX0-
17
N/C
18
HPDET
19
DDCDATA
20
DDCCLK
21
GND22N/C
23
N/C24N/C
25
N/C26N/C
25261
2
CN_DVI
Page 27
LS-574 User’s Manual
-25-
CDIN
2.9 <Integrated Audio Interface>
The board integrates onboard audio interface with REALTEK ALC888 code, with Intel
next generation of audio standard as High Definition Audio, it offers more vivid sound
and other advantages than former HD audio compliance.
The main specifications of ALC888 are:
High-performance DACs with 100dB S/N ratio
2 DAC channels support 16/20/24-bit PCM format for 2 audio solution
16/20/24-bit S/PDIF-OUT supports 44.1K/48K/96kHz sample rate
Compatible with HD
Meets Microsoft WHQL/WLP 2.0 audio requirements
The board provides 2 channels audio phone jacks on rear I/O port, Line-in/MIC-in ports
for front I/O panel through optional cable.
1012
9
CN_AUDIO
4 1
Page 28
LS-574 User’s Manual
-26-
Connector: CN_AUDIO
Type: 10-pin (2 x 5) header (pitch = 2.54mm)
Pin
Description
Pin
Description
1
MIC_L
2
Ground
3
MIC_R
4
N/C
5
Speaker_R
6
MIC Detect
7
SENSE
8
N/C
9
Speaker_L
10
Speaker Detect
Connector: CDIN
Type: 4-pin header (pitch = 2.54mm)
Pin
Description
1
CD – Left
2
Ground
3
Ground
4
CD – Right
1012
9
4 1
Page 29
LS-574 User’s Manual
-27-

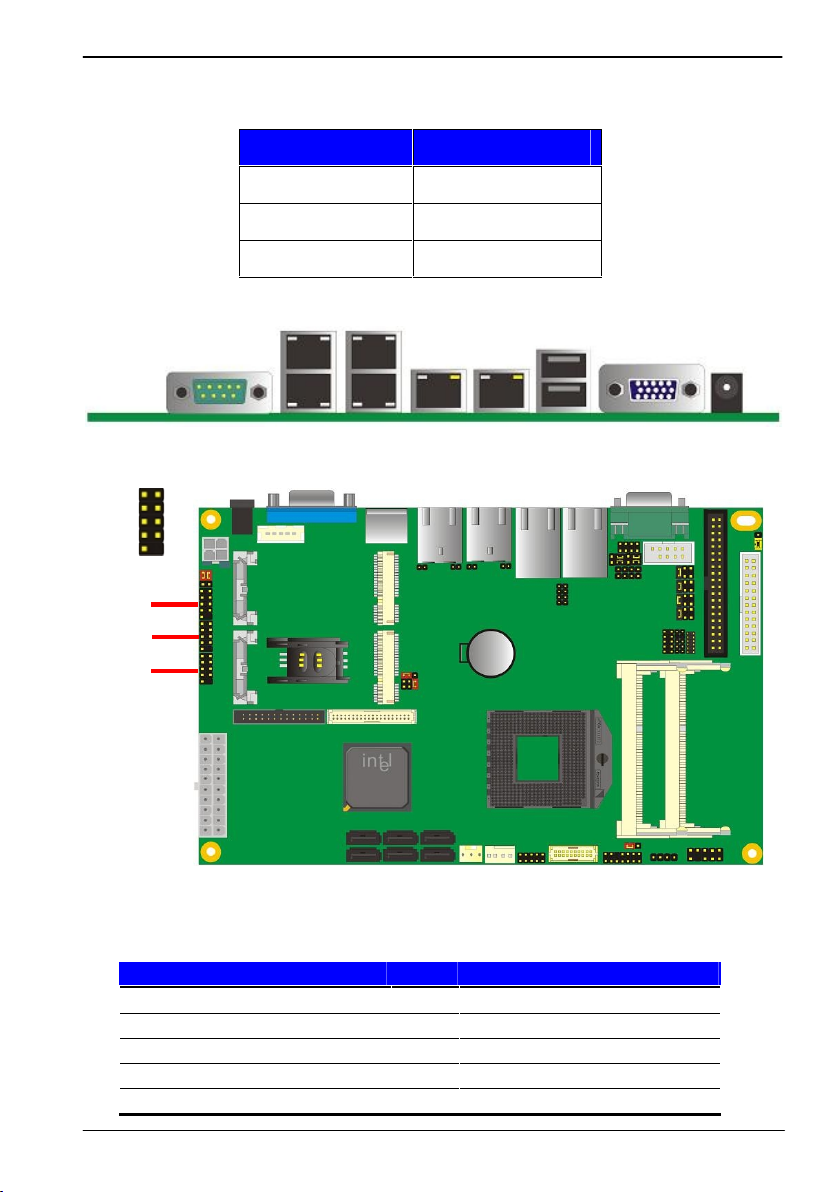

2.10 <USB Interface>
LS-574 integrates eight USB2.0 ports. The specifications of USB2.0 are listed below:
Interface
USB2.0
Controller
Intel® QM67
Transfer Rate
Up to 480Mb/s
Voltage
5V
Connector: CN_USB 1/2/3
Type: 10-pin (2 x 5) header (pitch = 2.54mm)
Pin
Description
Pin
Description
1
VCC (5V_SB/ 5V)
2
VCC (5V_SB/ 5V)
3
Data0-
4
Data15
Data0+
6
Data1+
7
Ground
8
Ground
9
Ground
10
N/C
USB
CN_USB1
CN_USB2
CN_USB3
192
10
Page 30
LS-574 User’s Manual
-28-
Connector: JVUSB
Type: 6-pin Power select jumper
Pin
Description
1-3 & 2-4
5V_SB
3-5 & 4-6
5V
Default: 1-3 & 2-4
Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6
Warning: others cause damages
JVUSB
2
6
1
5
2
6
2
6
1
5
1
5
Page 31
LS-574 User’s Manual
-29-

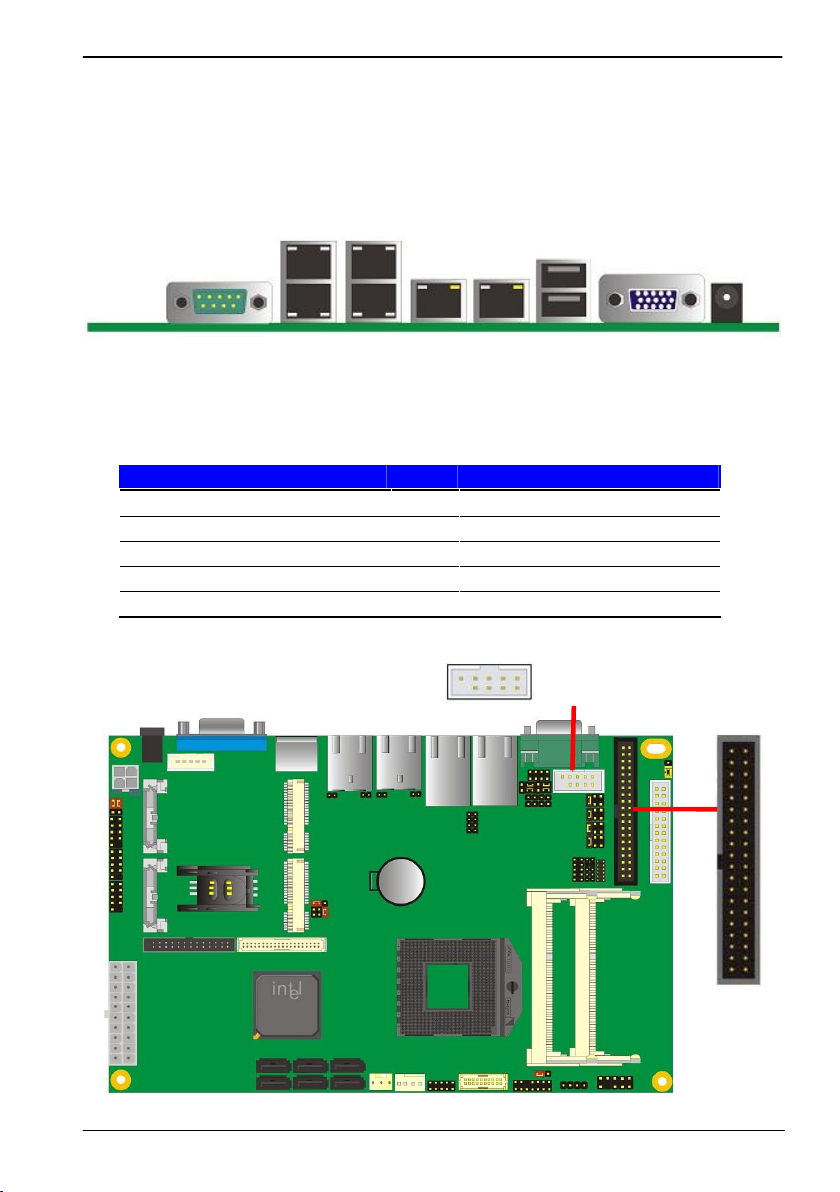

2.11 <Serial Port>
The board supports five RS232 serial port and one jumper selectable
RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure
the communicating modes for COM2.
Connector: COM1
Type: 9-pin D-sub male connector on bracket for COM1/3
Pin
Description
Pin
Description
1
DCD2RXD
3
TXD4DTR
5
GND6DSR
7
RTS8CTS
9RI10
N/C
COM1
COM2
COM3/4/5/6
1 2
39 40
9 1
10 2
Page 32
LS-574 User’s Manual
-30-
Connector: COM2
Type: 9-pin BOX header
Pin
Description
Pin
Description
1
DCD/422TX-/485-
2
RXD/422TX+/485+
3
TXD/422RX+
4
DTR/422RX5
GND6DSR
7
RTS8CTS
9RI10
N/C

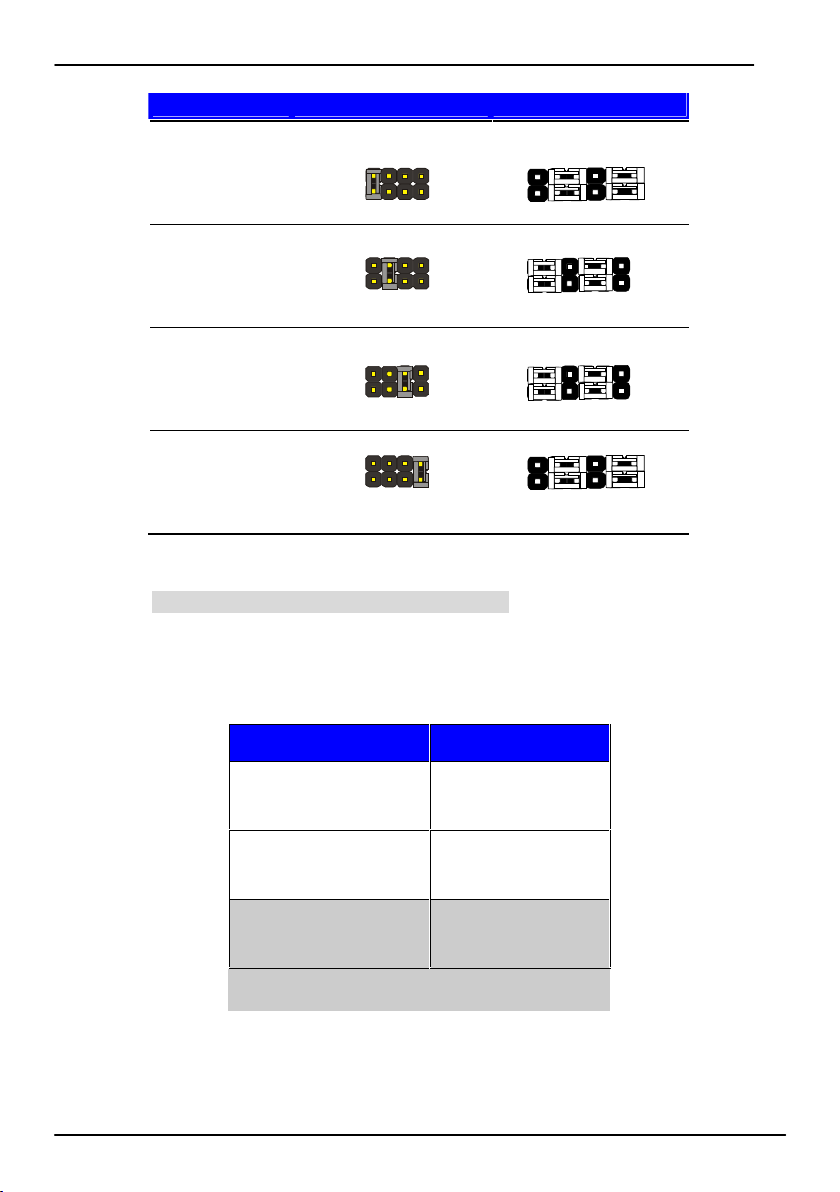

Setting RS-232 & RS-422 & RS-485 for COM2

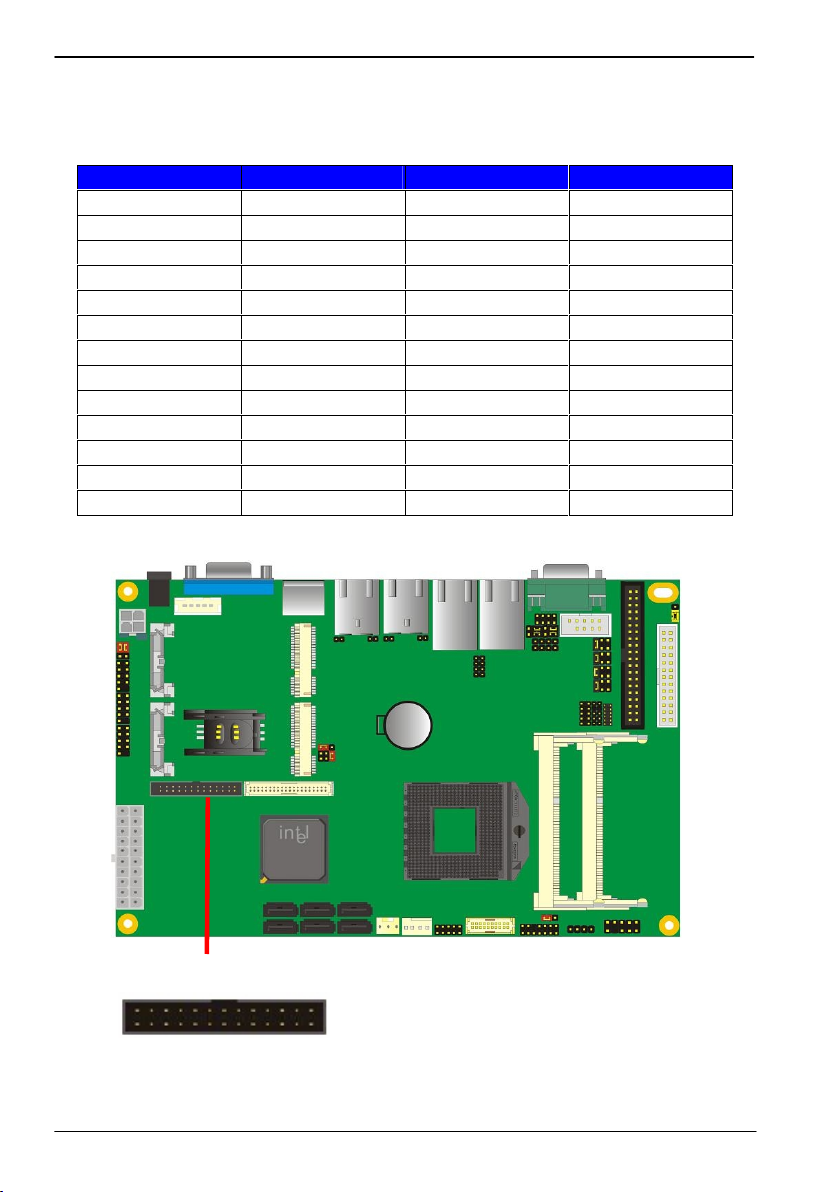

Connector: COM3/4/5/6
Type: 40-pin BOX header
Pin
Description
Pin
Description
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND1
6
DSR1
7
RTS1
8
CTS1
9
RI110N/C
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND2
16
DSR2
17
RTS2
18
CTS2
19
RI220N/C
21
DCD3
22
RXD3
23
TXD3
24
DTR3
25
GND3
26
DSR3
27
RTS3
28
CTS3
29
RI330N/C
31
DCD4
32
RXD4
33
TXD4
34
DTR4
35
GND4
36
DSR4
37
RTS4
38
CTS4
39
RI440N/C
Page 33
LS-574 User’s Manual
-31-
JCSEL1
JCSEL2
1
2
11
12
1
2
8
7
JP3
JP4
JP2
JP151
6
2
Page 34
LS-574 User’s Manual
-32-

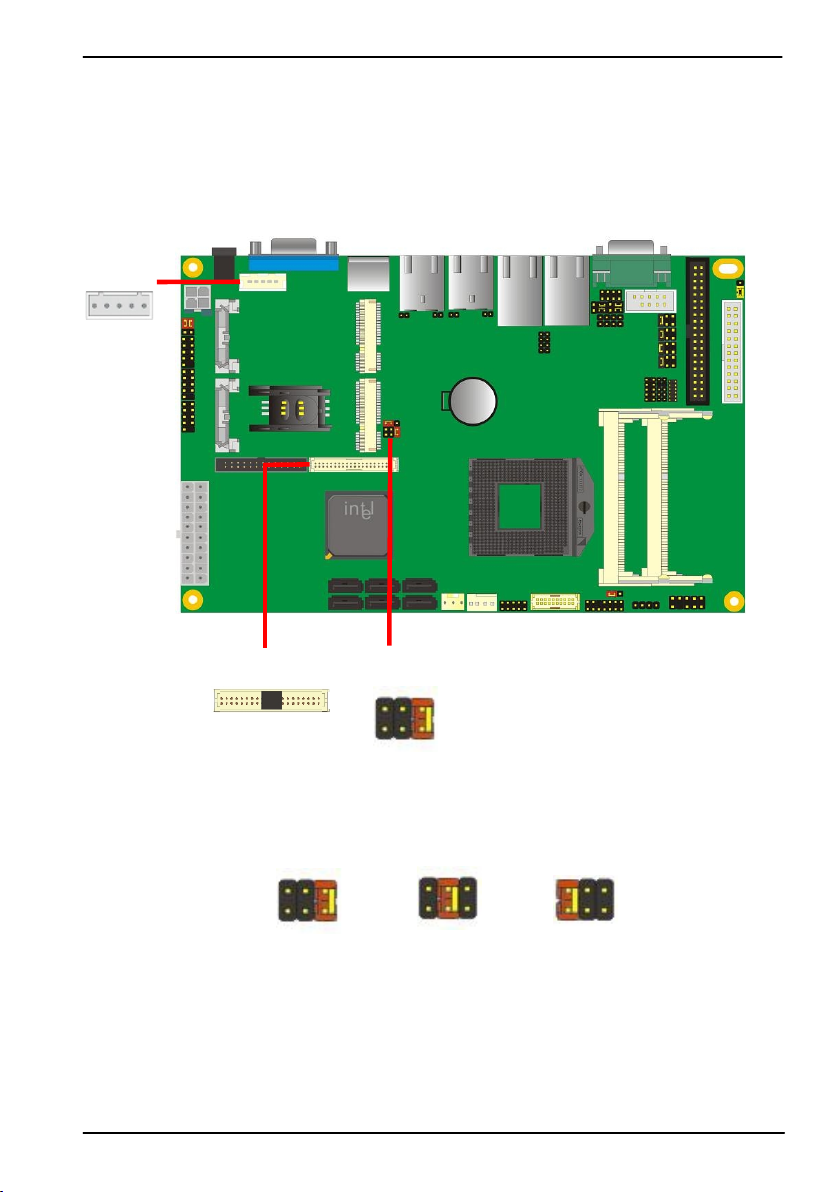

Jumper: JP1/JP2/JP3/JP4 (COM1/2/3/4)
Type: onboard 6-pin header
Function
JCSEL2
JCSEL1
IrDA
RS-422
RS-485
RS-232
Power Mode
JP1/2/3/4
Pin 9 with 5V Power
1-2
Pin 9 with 12V Power
3-4
Standard COM port
5-6
Default setting (5-6)
Default setting:
JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2)
1
2
8
7
1
2
8
7
128
7
1
2
8
7
1
2
11
12
1
2
11
12
1
2
11
12
1
2
11
12
Page 35
LS-574 User’s Manual
-33-
2.12 <PCIE Mini Card and SIM Interface>
The board provides two PCIE mini card sockets and a SIM socket.
MINI_CARD1 is the first Mini-PCIe slot for long size Mini-PCIe cards.
Please be noted that the MPX-SDVOD card must be placed in this slot. The
MPX-SDVOD card will not work if it is placed in other slot.
Please also be noted that this slot is the only slot for MPX-SDVOX card but a
customized BIOS is needed for the MPX-SDVOX card. Please contact Commell for
customized BIOS for your MPX-SDVOX card.
MINI_CARD2 is the second Mini-PCIe slot for long size Mini-PCIe cards.
However, if you are trying to use 3G Mini-PCIe card with a SIM card then place your 3G
Mini-PCIe card in this slot and put your SIM card into the SIM card socket beneath this
MINI_CARD2 support 3G PCIE Mini card with SIM
Page 36
LS-574 User’s Manual
-34-
Connector: SIMM
Type: 6-pin SIM socket
Pin
Description
Pin
Description
1
SIMVCC
2
SIMRST
3
SIMCLK
4
NC
5
GND6SIMVPP
7
SIMDATA
67513
2
MINI_CARD1
MINI_CARD2
SIMM
Page 37
LS-574 User’s Manual
-35-

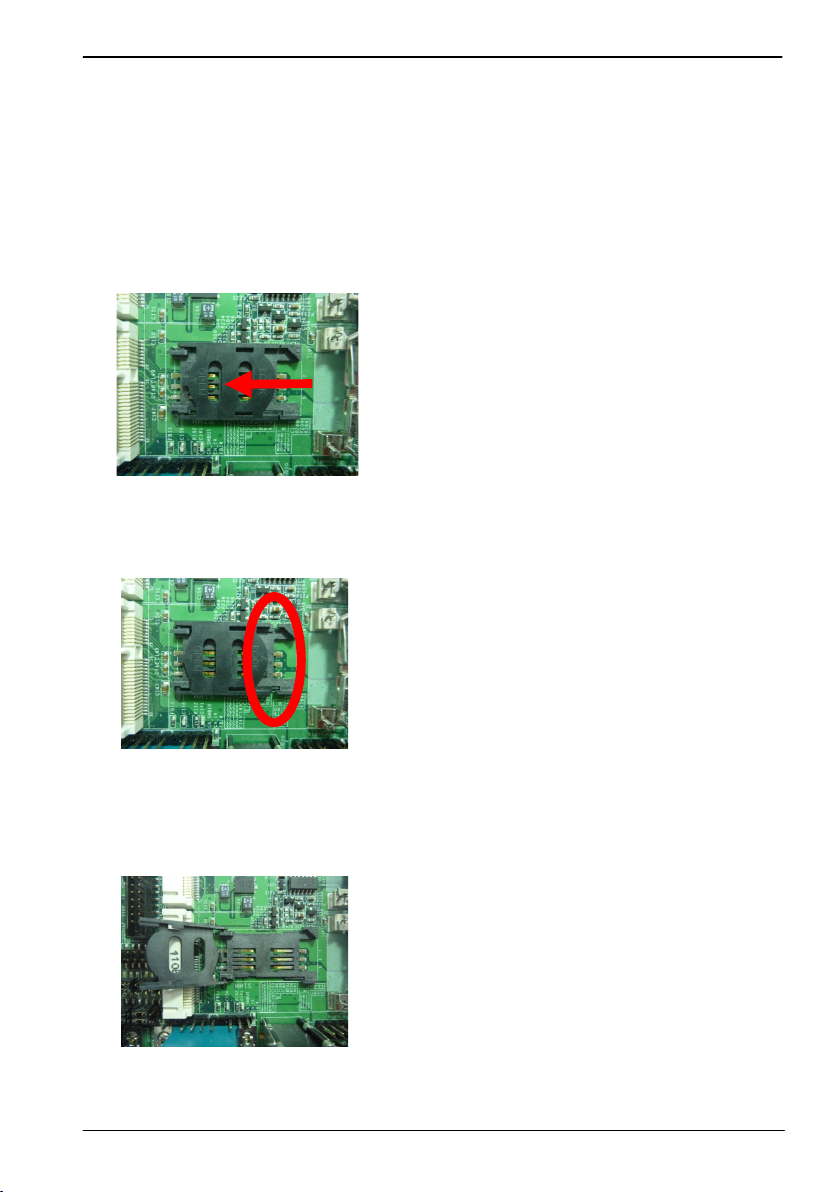

2.12.1 <SIM Setup>
Step1.
SIM card holder is marked by circle.
Slide the cap toward OPEN direction.
Step 2.
Make sure that the cap is now at the OPEN position.
Step 3.
Flip the cap up for inserting a SIM card into.
Page 38
LS-574 User’s Manual
-36-
Step 4.
Insert a SIM card as shown in the photo.
Be sure that the corner cut is on top and the golden pads are up.
Step 5.
Now, flip down the cap as shown in the photo.
Step 6.
Press down and slide the cap to the CLOSE position.
Be sure that the cap is tightly held with the socket.
Page 39
LS-574 User’s Manual
-37-

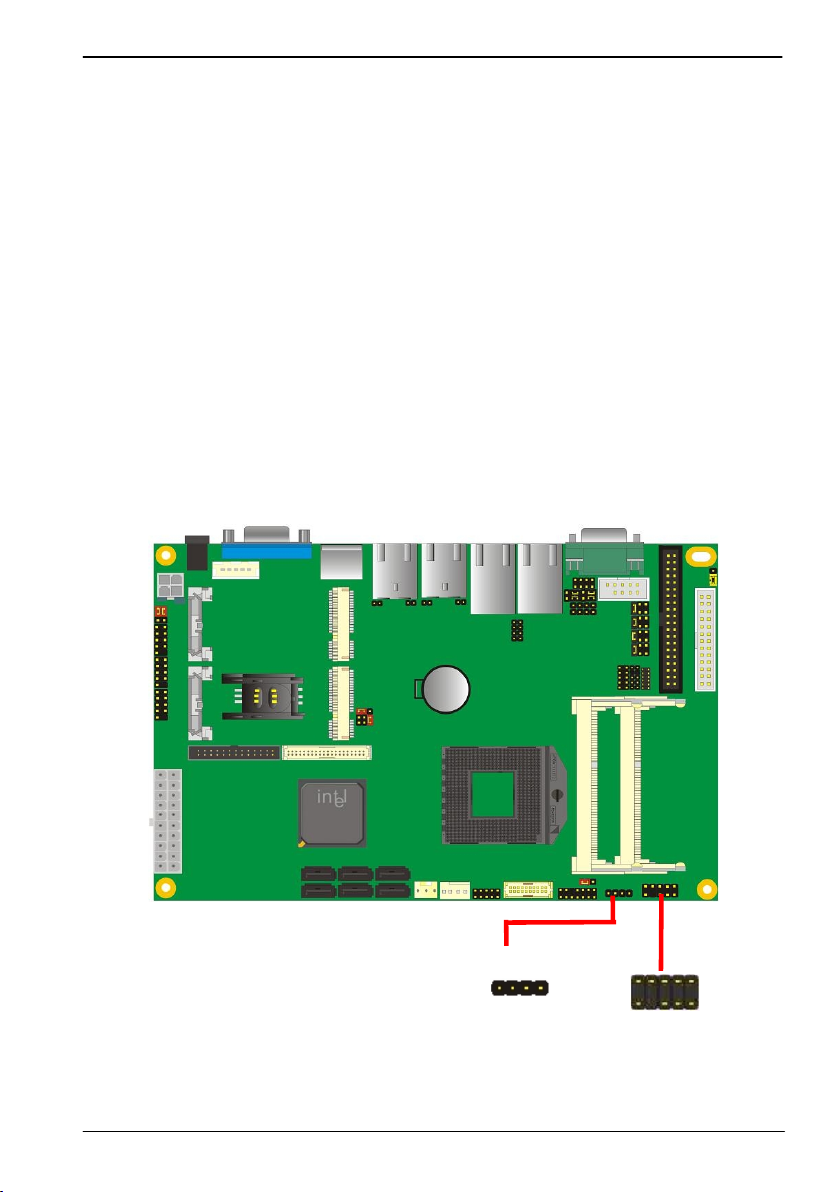

2.13 <GPIO and SMBUS Interface>
The board provides a programmable 8-bit digital I/O interface; you can use this general
purpose I/O port for system control like POS or KIOSK.
Connector: CN_DIO
Type: 12-pin (6 x 2) header (pitch = 2.0mm)
Pin
Description
Pin
Description
1
Ground
2
Ground
3
GP10
4
GP14
5
GP11
6
GP15
7
GP12
8
GP16
9
GP13
10
GP17
115V12
12V
Connector: CN_SMBUS
Type: 5-pin header for SMBUS Ports
Pin
Description
1
VCC
2
N/C
3
SMBDATA
4
SMBCLK
5
Ground
2
12
11
1
CN_DIO
CN_SMBUS
1
5
Page 40
LS-574 User’s Manual
-38-

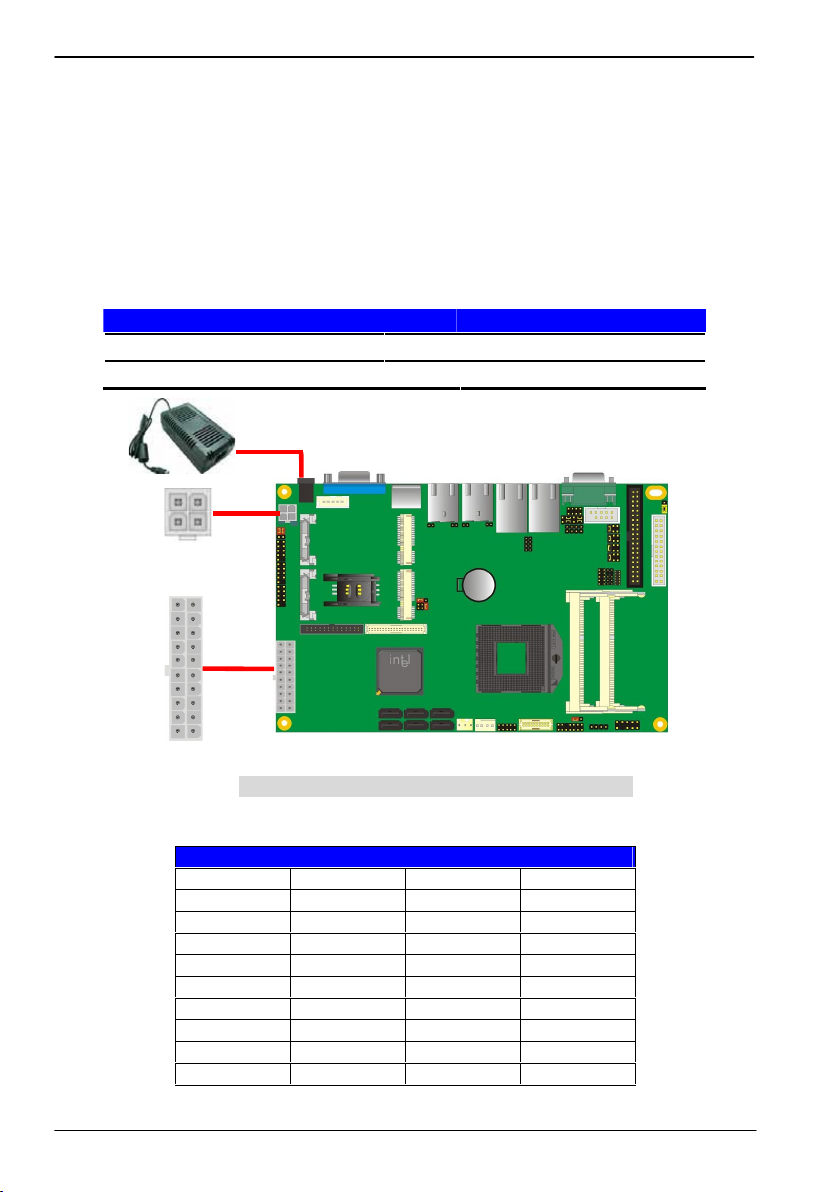

2.14 <Power Supply and Fan Interface >
2.14.1 <Power Input>
The board requires onboard 4-pin DC-input connector voltage range is from 9V to 24V,
or onboard 20-pin ATX2.0, for the input current, please take a reference of the power
consumption report on appendix.
Connector: DC_IN
Type: 4-pin DC power connector
Pin
Description
Pin
Description
1
Ground
2
Ground
3
+9~+24V
4
+9~+24V
Connector: ATX (It also can become Output when DC-IN be used)
Type: 20-pin ATX power connector
PIN assignment
1
3.3V113.3V
2
3.3V12-12V
3
GND13GND
45V14
-PSON
5
GND15GND
65V16
GND
7
GND17GND
8
PW_OK
18
N/C
9
5V_SB
19
5V
10
12V205V
DC_IN
DC adapter input
ATX
Page 41
LS-574 User’s Manual
-39-
2.14.2 <Power Output>
The board provides one 20-pin ATX connector for +5V/+12V output for powering your
HDD, CDROM or other devices.
Attention: When DC-IN had power supplied, the ATX become output !
Avoid DC-IN and ATX power supply input at the same time !
Connector: ATX (When DC-IN be used)
Type: 20-pin ATX connector for +5V/+12V Output
PIN assignment
1*11
*
2*12
*
3*13
*
45V14
*
5
GND15*
6*16
GND
7
GND17GND
8*18
*
9*19
*
10
12V205V
Note: Maximum output voltage: 12V/2A & 5V/3A
Page 42
LS-574 User’s Manual
-40-

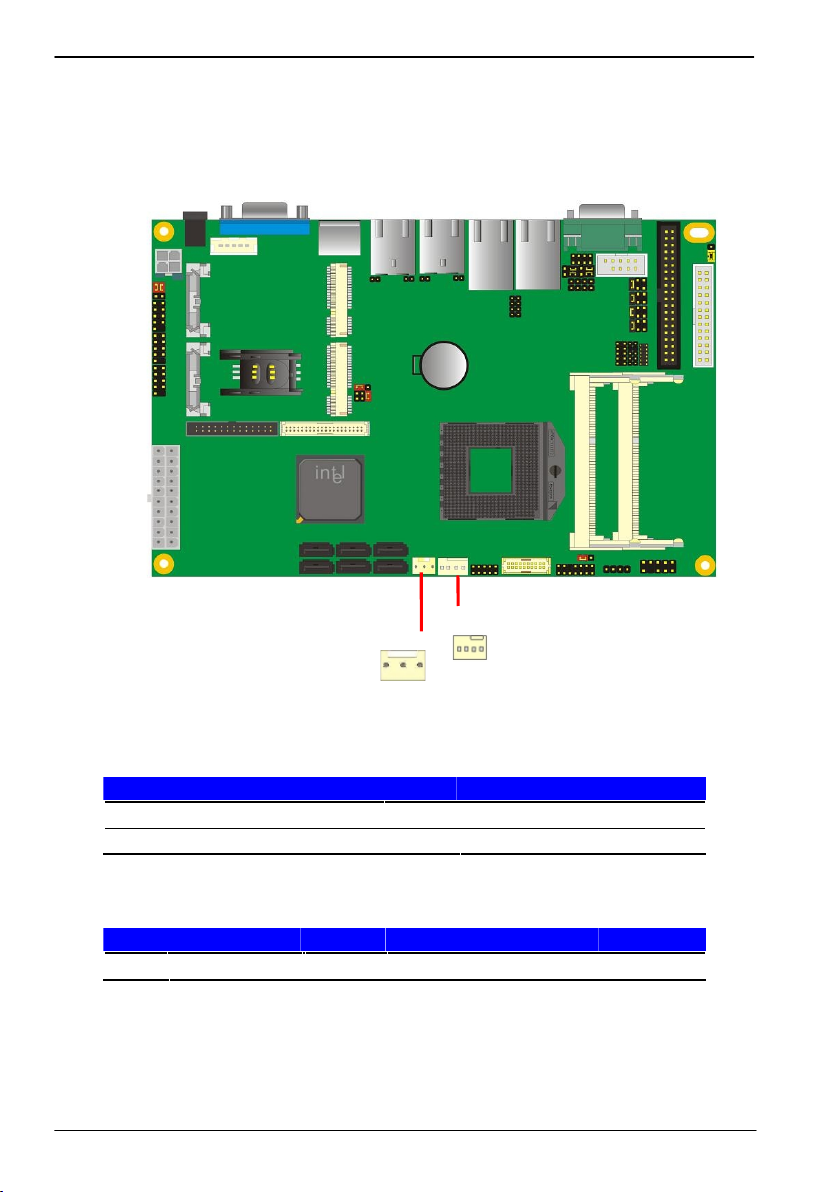

2.14.3 <Fan connector>
The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and
one 3-pin cooler fan connectors for system.
Connector: CPUFAN
Type: 4-pin fan wafer connector
Pin
Description
Pin
Description
1
Ground
2
+12V
3
Fan Speed Detection
4
Fan Control
Connector: SYSFAN
Type: 3-pin fan wafer connector
Pin
Description
Pin
Description
Pin
Description
1
Ground
2
+12V
3
Sense
SYSFAN
3 1
CPUFAN
4 1
Page 43
LS-574 User’s Manual
-41-

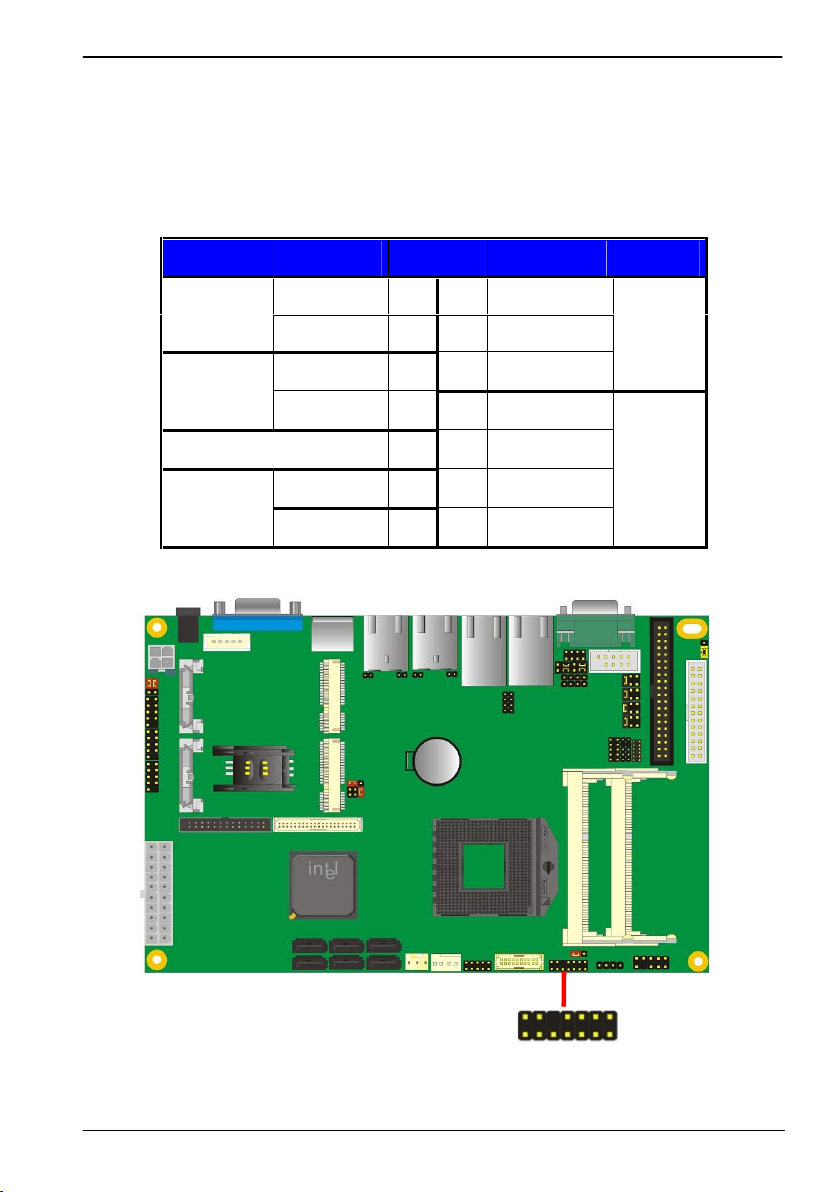

2.15 <Switch and Indicator>
The JFRNT provides front control panel of the board, such as power button, reset and
beeper, etc. Please check well before you connecting the cables on the chassis.
Connector: JFRNT
Type: onboard 14-pin (2 x 7) 2.54-pitch header
Function
Signal
PIN
Signal
Function
HDLED+
12PWRLED+
IDE LED
HDLED-
34N/C
Reset+
56PWRLED-
Power
LED
Reset
Reset-
78SPK+
N/C
910N/C
PWRBT+
1112N/C
Power
Button
PWRBT-
1314SPK-
Speaker
13 1
14 2
JFRNT
Page 44
LS-574 User’s Manual
-42-
Chapter 3 <System Setup>

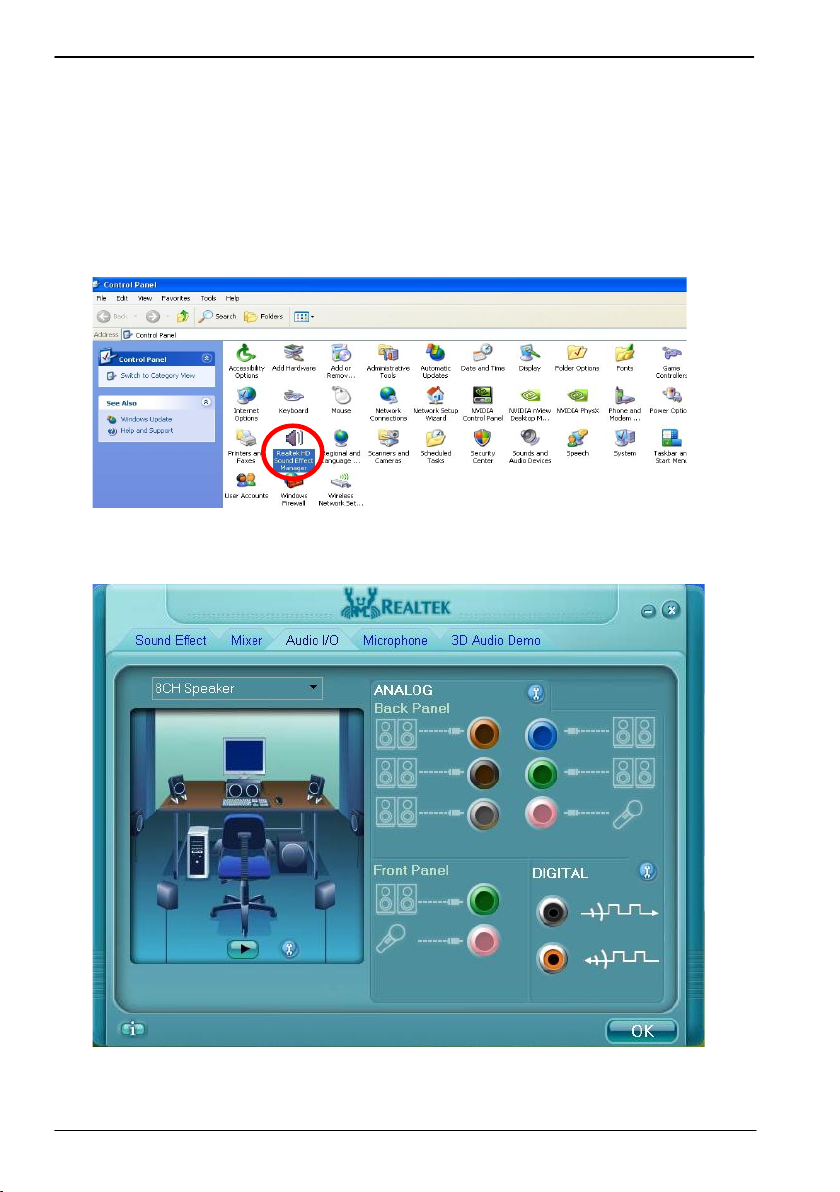

3.1 <Audio Configuration>
The board integrates Intel® QM67 with REALTEK® ALC888 code. It can support
2-channel sound under system configuration. Please follow the steps below to setup
your sound system.
1. Install REALTEK HD Audio driver.
2. Lunch the control panel and Sound Effect Manager.
3. Select Speaker Configuration
Page 45
LS-574 User’s Manual
-43-
3.2 <Display Properties Setting>
Based on Intel QM67 with HD Graphic, the board supports two DACs for display device as
different resolution and color bit.
Please install the Intel Graphic Driver before you starting setup display devices.
1. Click right button on the desktop to lunch display properties
2. Click Advanced button for more specificity setup.
Click Graphics Properties... for
advanced setup
Page 46
LS-574 User’s Manual
-44-
3. This setup options can let you define each device settings.
Click Monitor to setup the CRT
monitor for Resolution and
Refresh Rate
Click Intel® Dual Display
Clone to setup the dual
display mode as same screen
Page 47
LS-574 User’s Manual
-45-
3.3 <SATA configuration>
SATA Mode:
This option can let you select whether the Serial ATA hard drives would work under normal
IDE mode or RAID mode. The RAID mode need more than one HDD is applied.
Page 48
LS-574 User’s Manual
-46-
3.4 <SATA RAID Configuration>
The board integrates Intel® QM67 PCH with RAID function for Serial ATA drives, and
supports the configurations below:
RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W
performance. It needs two unused drives to build this operation.
RAID 1 (Mirroring): Copies the data from first drive to second drive for data security,
and if one drive fails, the system would access the applications to the workable drive. It
needs two unused drives or one used and one unused drive to build this operation. The
second drive must be the same or lager size than first one.
RAID 5 (striping with parity)
A RAID 5 array contains three or more hard drives where the data is divided into
manageable blocks called strips. Parity is a mathematical method for recreating data
that was lost from a single drive, which increases fault-tolerance. The data and parity
are striped across all the hard drives in the array. The parity is striped in a rotating
sequence to reduce bottlenecks associated with the parity calculations.
RAID 10 (RAID 0+1)
A RAID 10 array uses four hard drives to create a combination of RAID levels 0 and 1.
The data is striped across a two-drive array forming the RAID 0 component. Each of the
drives in the RAID 0 array is then mirrored by a RAID 1 component.
Intel Matrix Storage Technology: This technology would allow you to use RAID 0+1
mode on only two drives (4 drives needed on traditional RAID 0+1). It will create two
partitions on each hard drive to simulate RAID 0 and RAID 1. It also can let you modify
the partition size without re-formatted.
For more information of Intel Matrix Storage Technology, please visit Intel’s website.
If you need to install an operation system on the RAID set, please use the driver disk
attached in the package when it informs you to obtain the RAID drivers.
Page 49
LS-574 User’s Manual
-47-
Please press <CTRL+I> to enter the RAID configuration menu.
You can setup the RAID under operation system for Microsoft® Windows XP SP1 ,
please install the Intel® Application Accelerator Ver.4.5 later to support RAID
configuration with Intel® Matrix Storage Technology.
Page 50
LS-574 User’s Manual
-48-
Chapter 4 <BIOS Setup>
The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix
BIOS in the single board computer is a customized version of the industrial standard
BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU
architecture based processors and computers. The BIOS provides critical low-level
support for the system central processing, memory and I/O sub-systems.
The BIOS setup program of the single board computer let the customers modify the basic
configuration setting. The settings are stored in a dedicated battery-backed memory,
NVRAM, retains the information when the power is turned off. If the battery runs out of
the power, then the settings of BIOS will come back to the default setting.
The BIOS section of the manual is subject to change without notice and is provided here
for reference purpose only. The settings and configurations of the BIOS are current at
the time of print, and therefore they may not be exactly the same as that displayed on
your screen.
To activate CMOS Setup program, press ＜DEL＞ key immediately after you turn on the
system. The following message “Press DEL to enter SETUP” should appear in the lower
left hand corner of your screen. When you enter the CMOS Setup Utility, the Main Menu
will be displayed as Figure 4-1. You can use arrow keys to select your function, press
＜Enter＞ key to accept the selection and enter the sub-menu.
Figure 4-1 CMOS Setup Utility Main Screen
Page 51
LS-574 User’s Manual
-49-
(This page is left for blank)
Page 52
LS-574 User’s Manual
-50-
Appendix A <I/O Port Pin Assignment>
A.1 <Serial ATA Port>
Connector: SATA1/2/3/4/5/6
Type: 7-pin wafer connector
12345
6
7
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
A.2 <IrDA Port>
Connector: CN_IR
Type: 5-pin header for SIR Ports
A.3 <VGA Port>
Connector: CRT
Type: 15-pin D-sub female connector on bracket
Pin
Description
Pin
Description
Pin
Description
1
RED6Ground
11
N/C
2
GREEN
7
Ground
12
DDCDA
3
BLUE
8
Ground
13
HSYNC
4
N/C9N/C14VSYNC
5
Ground
10
Ground
15
DDCCLK
A.4 <LAN Port>
Connector: RJ45
Type: RJ45 connector with LED on bracket
Pin
Description
1
VCC
2
N/C
3
IRRX
4
Ground
5
IRTX
Pin12345678
Description
MI0+
MI0-
MI1+
MI2+
MI2-
MI1-
MI3+
MI3-
1
6
10
1
2
3
4
5
11
12
13
14
15
5
JCSEL1 must jump to “SIR”
7 1
8 1
Page 53
LS-574 User’s Manual
-51-

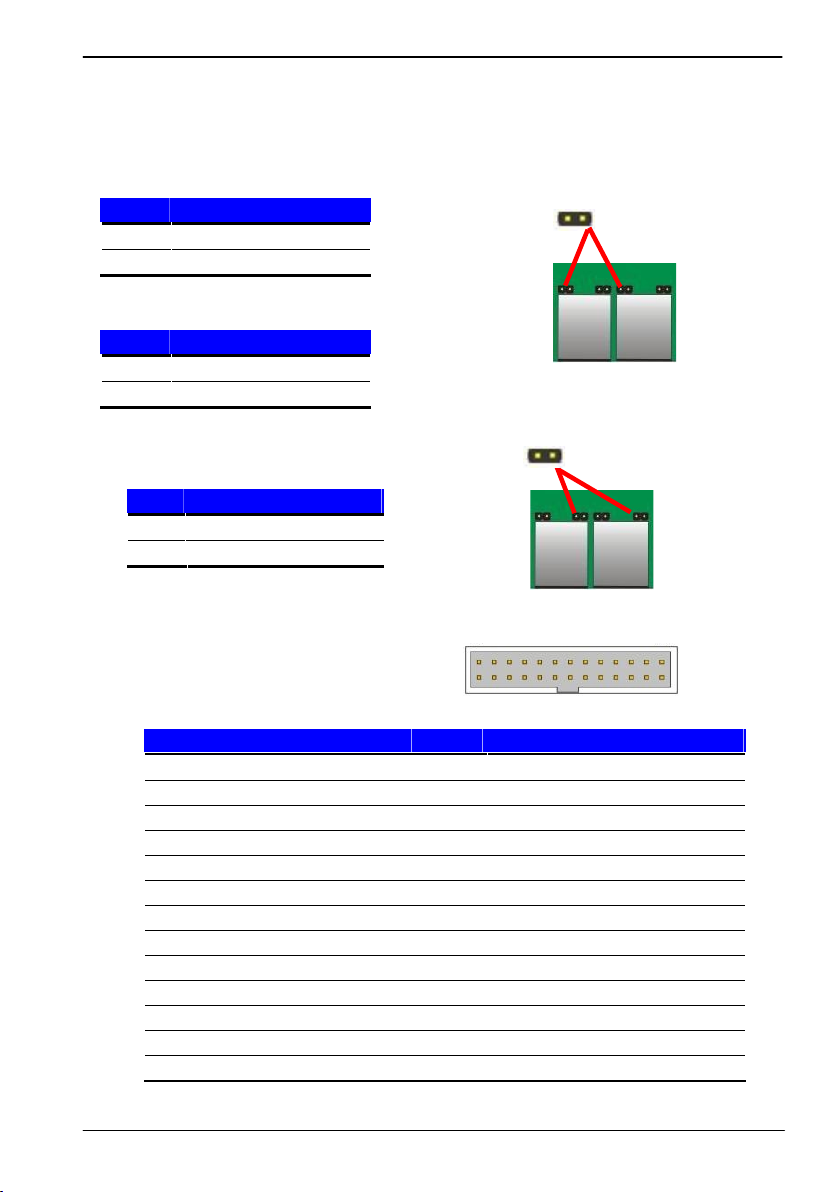

A.5 <LAN LED Port>
Connector: JSPD1/2
Type: 5-pin header for LAN Speed LED connector
When Lan speed 10/100Mbps
When Lan speed 1Gbps
Connector: JATC1/2
Type: 5-pin header for LAN Activity LED connector
A.6 <Parallel Port>
Connector: LPT
Type: 26-Pin box header
Pin
Description
Pin
Description
1
-PSTB
14
AFD2
PRO0
15
ERR3
PRO1
16
INT4
PRO2
17
SLIN5
PRO3
18
Ground
6
PRO4
19
Ground
7
PRO5
20
Ground
8
PRO6
21
Ground
9
PRO7
22
Ground
10
ACK-
23
Ground
11
BUSY
24
Ground
12PE25
Ground
13
SLCT
26
N/C
Pin
Description
1
LED2
LED+
Pin
Description
1
LED+
2
LED-
Pin
Description
1
LED-
2
LED+
1
2
1
2
1
13
14
26
Page 54
LS-574 User’s Manual
-52-
Appendix B <Flash BIOS>
B.1 <Flash Tool>
The board is based on Phoenix BIOS and can be updated easily by the BIOS auto
flash tool. You can download the tool online at the address below:
http://www.commell.com.tw/Support/Product%20Technical%20Support/LS-574
.htm
File name of the tool is “Phlash.exe”, it’s the utility that can write the data into the
BIOS flash ship and update the BIOS.
B.2 <Flash BIOS Procedure>
1. Please make a bootable floppy disk.
2. Get the last .bin files you want to update and copy it into the disk.
3. Copy Phlash16.exe to the disk.
4. Power on the system and flash the BIOS.
(Example: C:/Pflash XXX.bin /bbl /cvar /sa)
5. Restart the system.
Any question about the BIOS re-flash please contact your distributors or visit the
web-site at below:
http://www.commell.com.tw/Support/Support.htm
Page 55
LS-574 User’s Manual
-53-
Appendix C <System Resources>

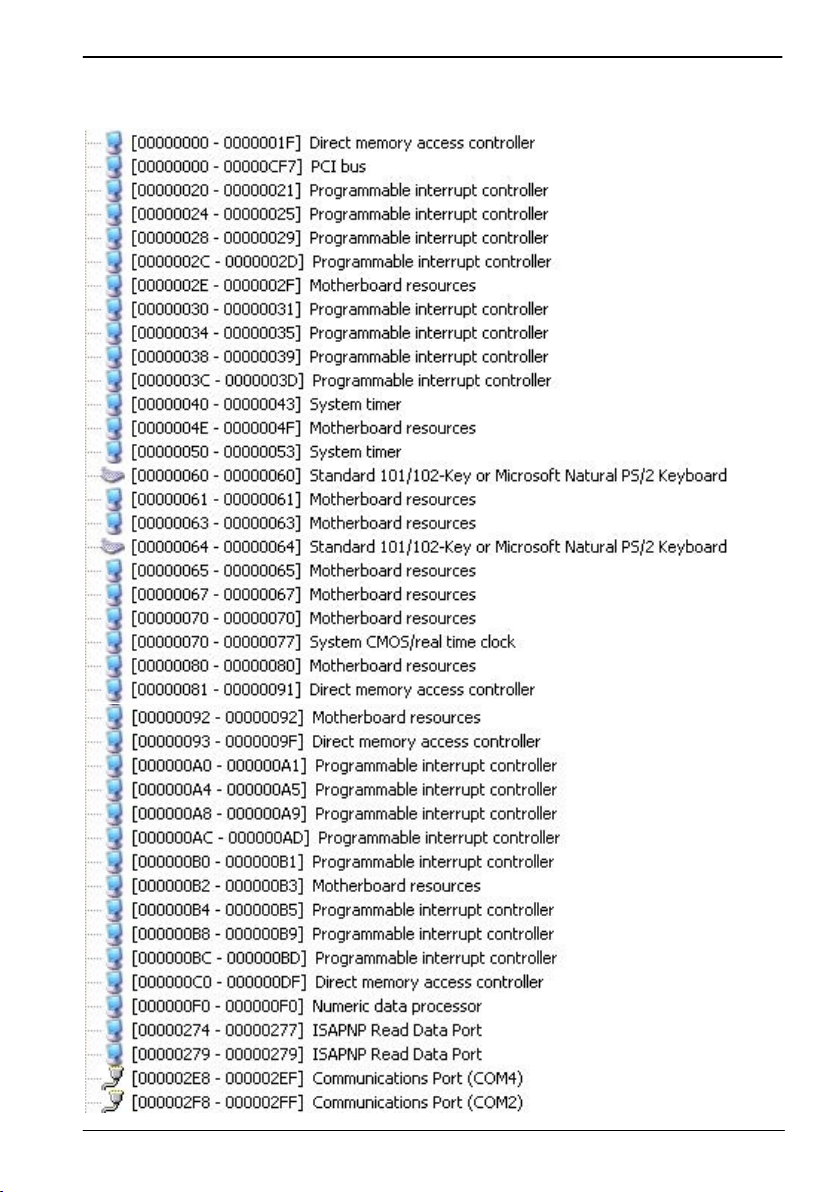

C.1 <I/O Port Address Map>
Page 56
LS-574 User’s Manual
-54-
Page 57
LS-574 User’s Manual
-55-

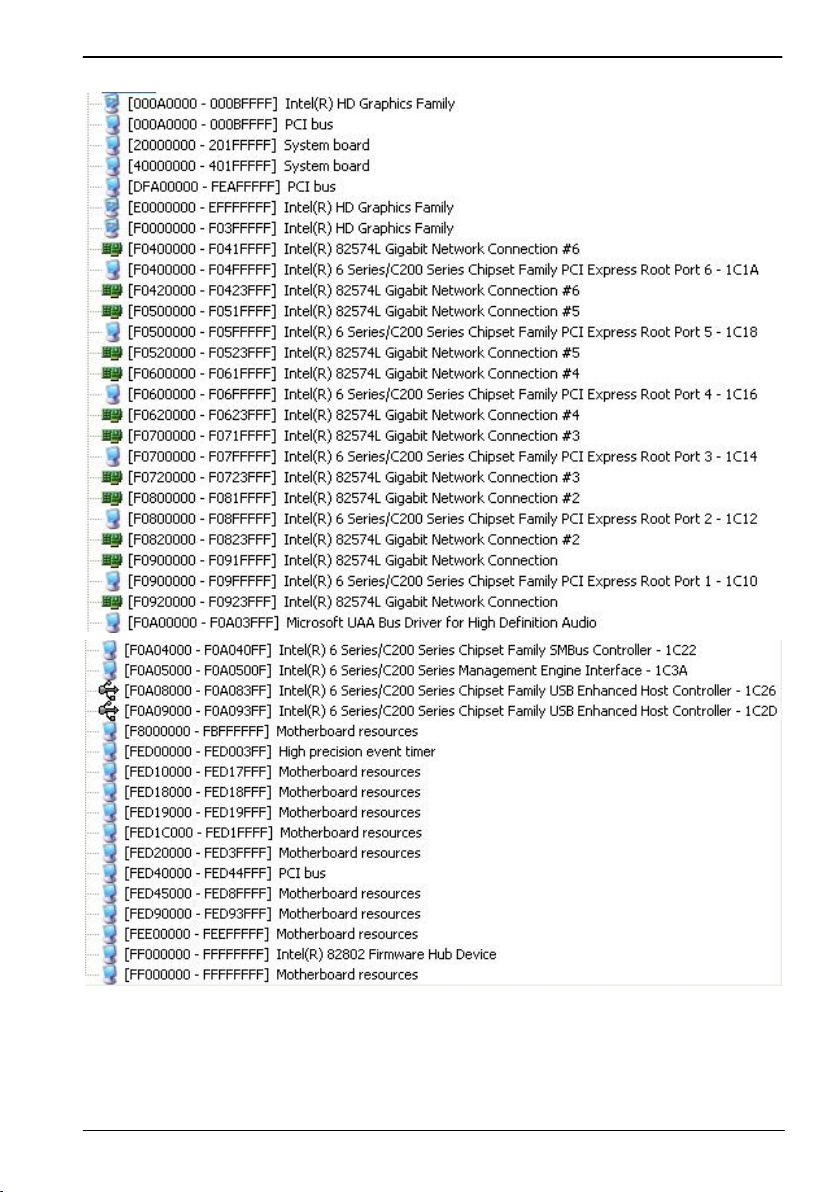

C.2 <Memory Address Map>
Page 58
LS-574 User’s Manual
-56-

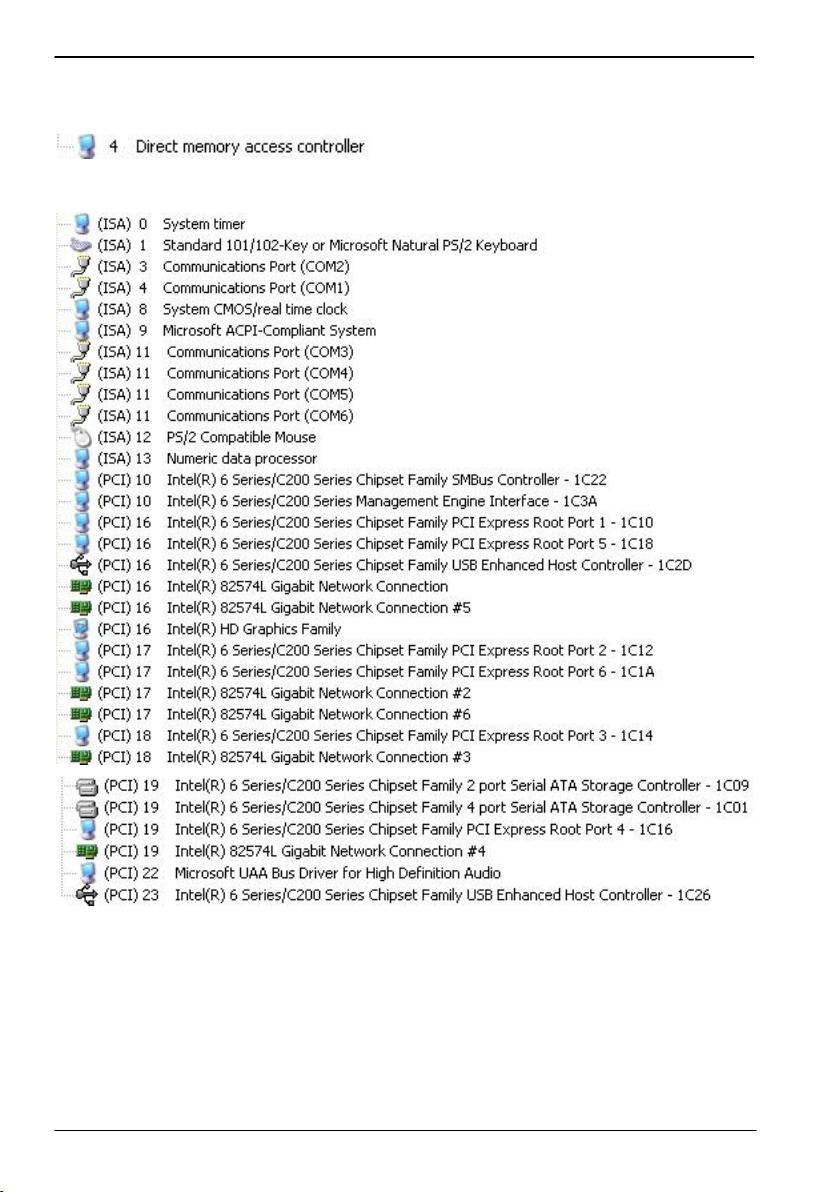

C.3 <System DMA & IRQ Resources>
DMA:
IRQ:
Page 59
LS-574 User’s Manual
-57-
Appendix D <Programming GPIO’s>
The GPIO’can be programmed with the MSDOS debug program using
simple IN/OUT commands.The following lines show an example how to
do this.
GPIO0…..GPIO7 bit0……bit7
-o 2 E 87 ;enter configuration
-o 2E 87
-o 2E 07
-o 2F 09 ;enale GPIO function
-o 2E 30
-o 2F 02 ;enable GPIO configuration
-o 2E F0
-o 2F xx ;set GPIO as input/output; set ‘1’ for input,’0’for
output
-o 2E F1
-o 2F xx ;if set GPIO’s as output,in this register its value can
be set
Optional :
-o 2E F2
-o 2F xx ; Data inversion register ; ‘1’ inverts the current valus
of the bits ,’0’ leaves them as they are
-o 2E 30
-o 2F 01 ; active GPIO’s
For further information, please refer to Winbond W83627DHG-P datasheet.
Page 60
LS-574 User’s Manual
-58-
Appendix E <Programming Watchdog Timer >
The watchdog timer makes the system auto-reset while it stops to work for a period.
The integrated watchdog timer can be setup as system reset mode by program.
Timeout Value Range
- 1 to 255
- Second or Minute
Program Sample
Watchdog timer setup as system reset with 5 second of timeout
2E, 87
2E, 87
2E, 07
2F, 08
Logical Device 8
2E, 30
Activate
2F, 01
2E, F5
Set as Second*
2F, 00
2E, F6
Set as 5
2F, 05
* Minute: bit 3 = 1; Second: bit 3 = 0

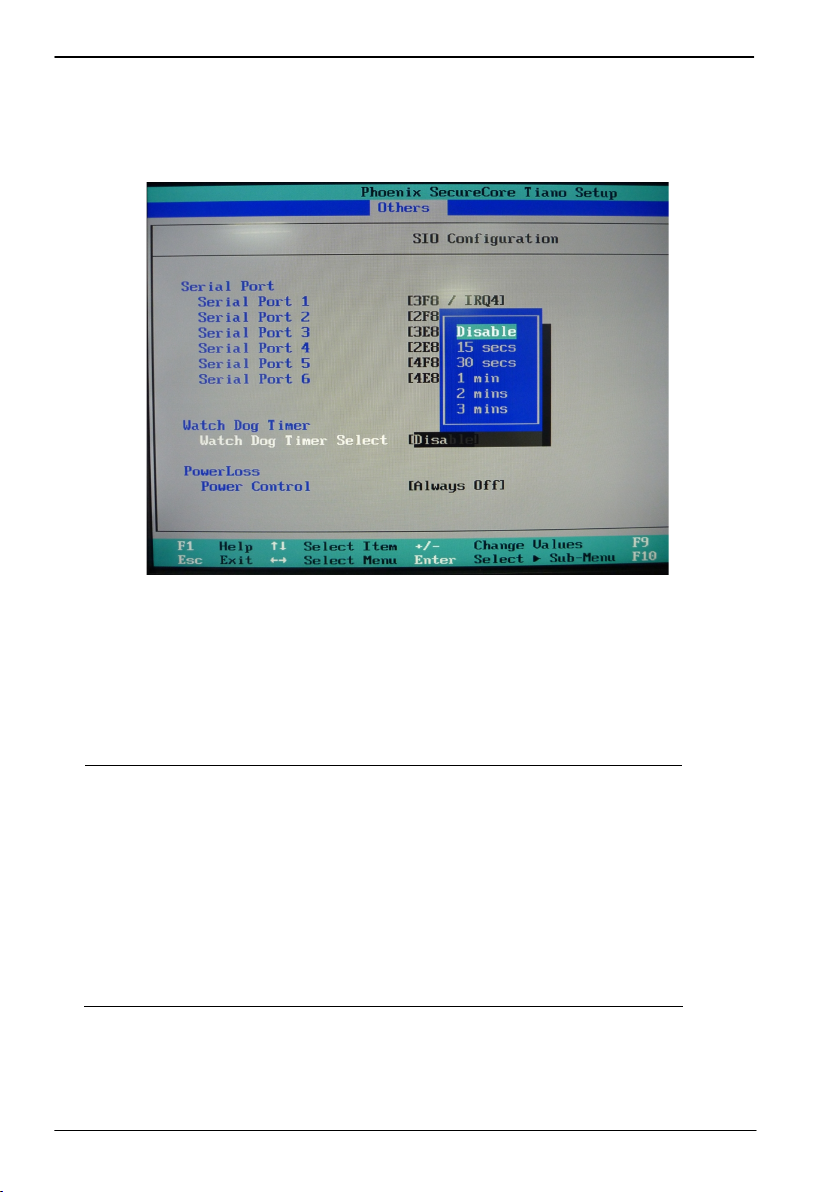

You can select Timer setting in the BIOS, after setting the time options, the system
will reset according to the period of your selection.
Page 61
LS-574 User’s Manual
-59-
Contact Information
Any advice or comment about our products and service, or
anything we can help you please don’t hesitate to contact with us.
We will do our best to support you for your products, projects and
business.
Taiwan Commate Computer Inc.
Address
19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New
Taipei City 22102, Taiwan
TEL
+886-2-26963909
FAX
+886-2-26963911
Website
TUhttp://www.commell.com.twUT
E-Mail
Loading...
