Page 1
LS-37L
3.5 inch Desktop Miniboard
User’s Manual
Edition 2.0
2022/11/15
Page 2
LS-37L User’s Manual
-1-
Copyright
Copyright 2021, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
Page 3
LS-37L User’s Manual
-2-

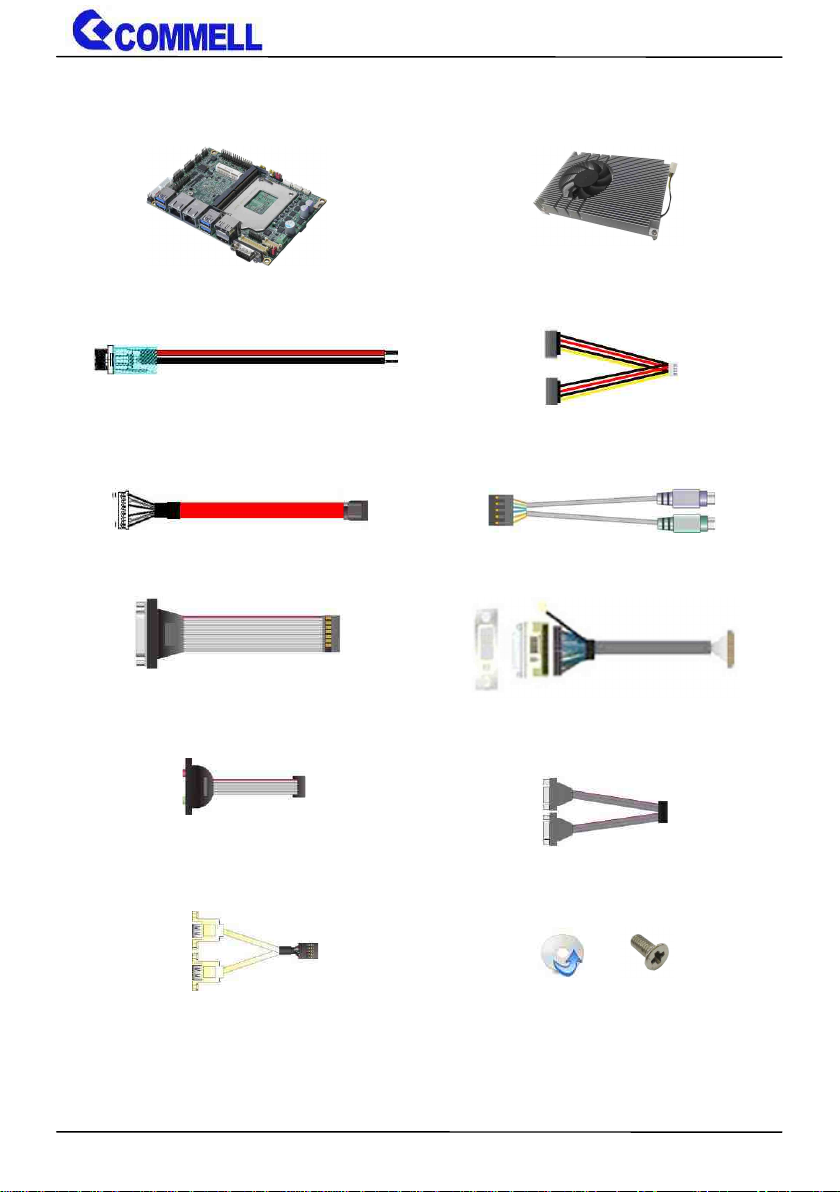

Packing List:
Please check the package content before you starting using the board.
1 x LS-37L 3.5 inch Miniboard
1 x VGA Cable
(OALVGA-SNB-7) / (1040557)
1 x SATA CABLE
(OALSATA3-H10-L35 / 1040523)
1 xUSB2.0 cable
(OALUSBA-3 / 1040173) (Optional)
1 x Audio cable
(OALPJ-HDUNB / 1040123)
1 x PS/2 Keyboard & Mouse cable
(OALPS2/KM / 1040131)
1 x Dual COM cable
(OALES-BKU2NB / 1040090)
1 x SATA Power Cable
(OALSATA15-2PJ / 1040613)
+
_
1 xDC Input Power Cable
(OALDC-B / 1040513)
1 x DVI module
(BADPDVI_A & OALDVI-DF13)
(4120008011 & 1040483)
1 x Cooler Fan
(OHSF-37L / 2181010033 )
1 x Driver CD and Mini card screw
(Including User’s Manual)
Page 4
LS-37L User’s Manual
-3-
Index
Chapter 1 <Introduction>...............................................................4
1.1 <Product Overview>............................................................4
1.2 <Product Specification> ......................................................5
1.3 <Block Diagram>.................................................................6
Chapter 2 <Hardware setup>.........................................................7
2.1 <Connector Location and Reference> ................................7
2.1.1 <Internal connectors list>..........................................8
2.1.2 <External connectors list>.........................................8
2.2 <CPU, Heatsink and Memory installation guide>................9
2.2.1 <CPU installation> ....................................................9
2.2.2 <Cooler Fan installation>........................................10
2.2.3 <Memory Setup> ....................................................12
2.3 <Jumper Location and Reference>...................................13
2.3.1 <Jumper list> ..........................................................13
2.3.2 <Clear CMOS and Power on type selection>..........14
2.4 <I/O interface> ..................................................................14
2.4.1 <Serial ATA interface>.............................................14
2.4.2 <Ethernet interface>................................................15
2.4.3 <Display interface> .................................................15
2.4.4 <Serial Port interface> ............................................18
2.4.5 <USB interface>......................................................21
2.4.6 <Audio interface>....................................................22
2.4.7 <Expansion slot>.....................................................23
2.4.8 <Front panel switch and indicator> .........................24
2.4.9 <GPIO and Other interface>...................................25
2.5 <Power supply> ................................................................27
2.5.1 <Power input>.........................................................27
2.5.2 <Power output>.......................................................28
Appendix A <Flash BIOS> ...........................................................29

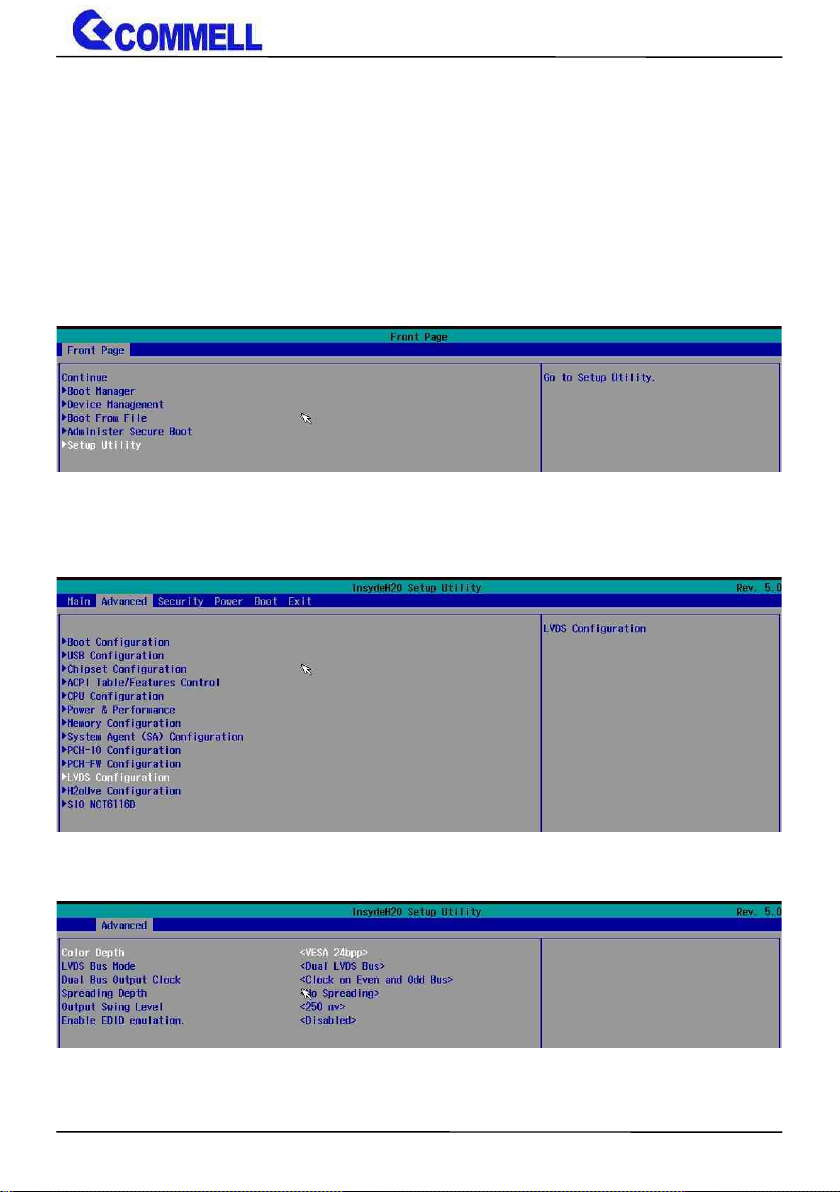

Appendix B <LCD Panel Type select>........................................30
Appendix C <Programmable Watch Dog Timer>.......................32

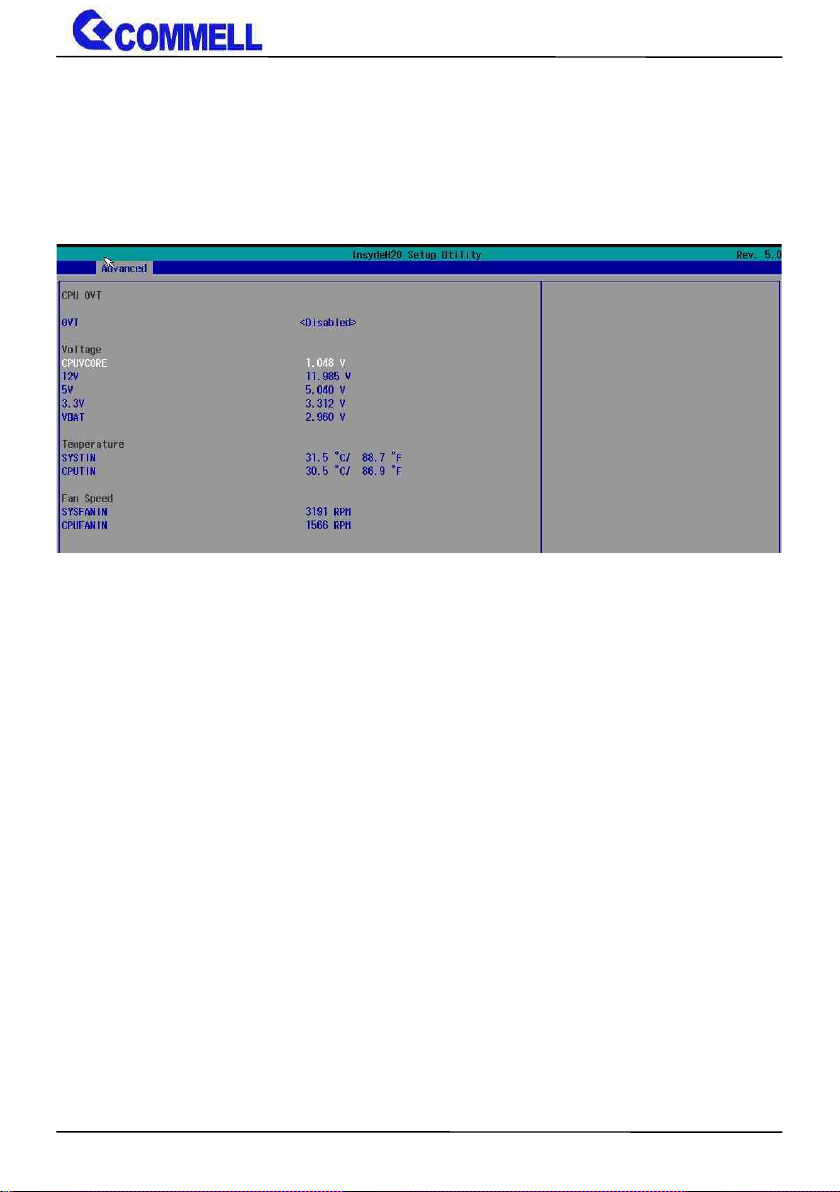

Appendix D <Hardware Monitor>................................................34

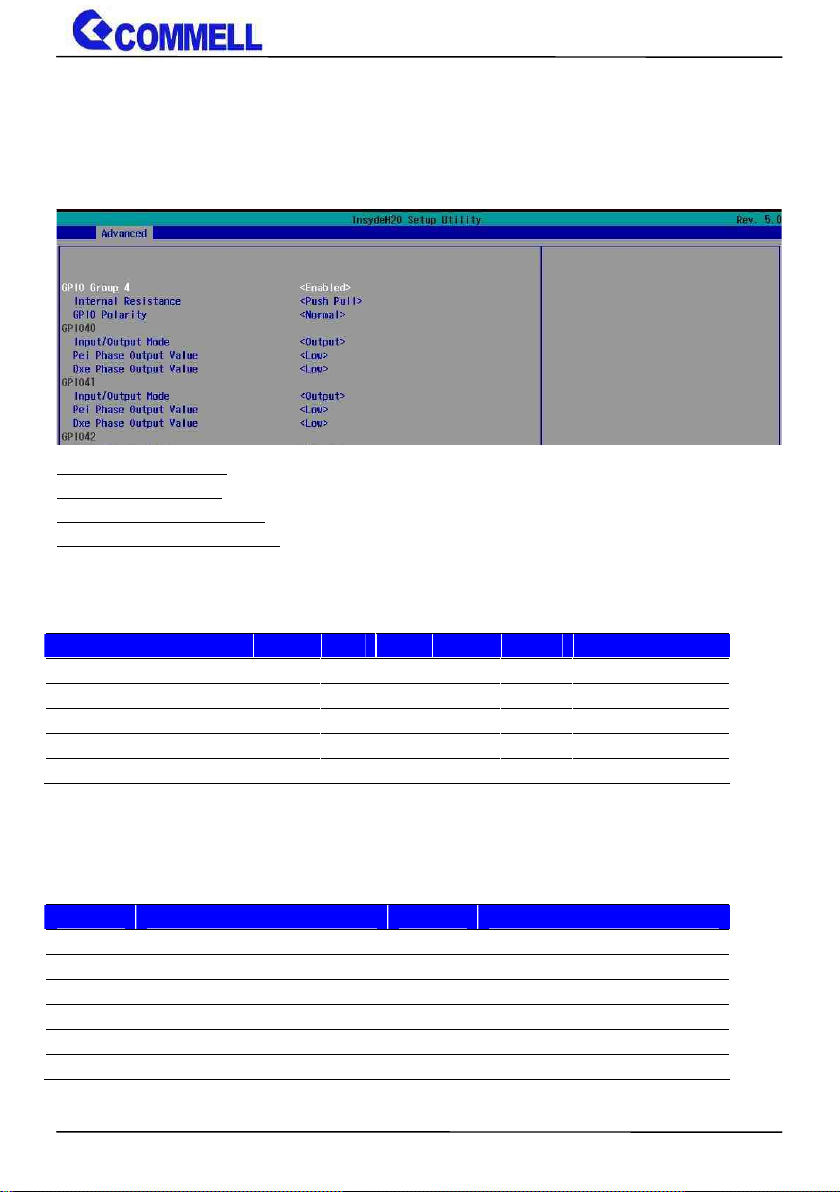

Appendix E <Programmable GPIO> ...........................................35
Appendix F <RAID Setting>.........................................................36
Appendix G <Setup ADP-3355,ADP-3460>.................................37
Contact information........................................................................37
Page 5
LS-37L User’s Manual
-4-
Chapter 1 <Introduction>
1.1 <Product Overview>
LS-37L is 3.5 inch Miniboard which supports 8th & 9th Gen Intel® Core™, Pentium® and
Celeron® processor families with Intel® Q370 Chipset, integrated HD Graphics , DDR4
memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3
Intel Coffee Lake-S Processor with Intel® Q370 Chipset
8th & 9th Gen Intel® Core™, Pentium® and Celeron® processor families are new
generation and multi-core processor built on 14 nanometer process.
It provides new Graphics support 3 independent displays, Memory is support up to 32GB of
DDR4, better performance, flexibility and more enhanced security that is suitable for a
variety of intelligent systems the ideal choice.
Flexible Expansion Interface
It includes 1 x Minicard slot, 2 x RS232/RS485/RS422, 4 x USB3.1 Gen2, and 4 x USB2.0.
Coffee Lake only support Windows10 64bit, Linux
Intel only supports Windows 10 64bit. It may lose some drivers if you use other Windows
version.
Page 6
LS-37L User’s Manual
-5-
1.2 <Product Specification>
System
Processor
Support 8th & 9th Gen Intel® Core™ Desktop Processors,
FCLGA1151 package(Support up to 65W TDP)(Note1)
Chipset
Intel® Q370
Memory
1 x DDR4 DIMM 2666 MHz up to 32GB,
Support Non-ECC, unbuffered memory
(i3, Pentium, Celeron CPU support 2400 MHz only)
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~ 255min/s
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Expansion
1 x MiniPCIe (support mSATA)
Graphics
Chipset
Intel® UHD Graphics
Display Interface
1 x DisplayPort(Optional), 1 x HDMI
1 x DVI, 1 x LVDS, 1 xVGA
LAN
Chip
1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT12.0)
1 x Intel® I210-AT Gigabit LAN
I/O
Serial ATA
2 x SATA3 interface with 600MB/s transfer rate
Audio
Realtek ALC262 HD Audio
Internal I/O
2 x SATA3, 4 x USB2.0
3 x RS232, 2 x RS232/485/422
1 x DVI, 1 x VGA , 1 x LVDS, 1 x LCD inverter,
1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBus
Rear I/O
1 x DisplayPort, 1 x HDMI
4 x USB3.1 Gen2, 2 x LAN, 1 x RS232
Mechanical & Environmental
Power Requirement
DC input 9~25V
Size
146mm x 101mm (L x W)
Temperature
Operating within 0°C~60°C (32°F~140°F)
Storage within -20°C~80°C (-4°F~176°F)
Relative Humidity
10%~90%, non-condensing
Note1: 8 cores TDP 65W CPU is not supported.(E.g. i7-9700E)
Page 7
LS-37L User’s Manual
-6-

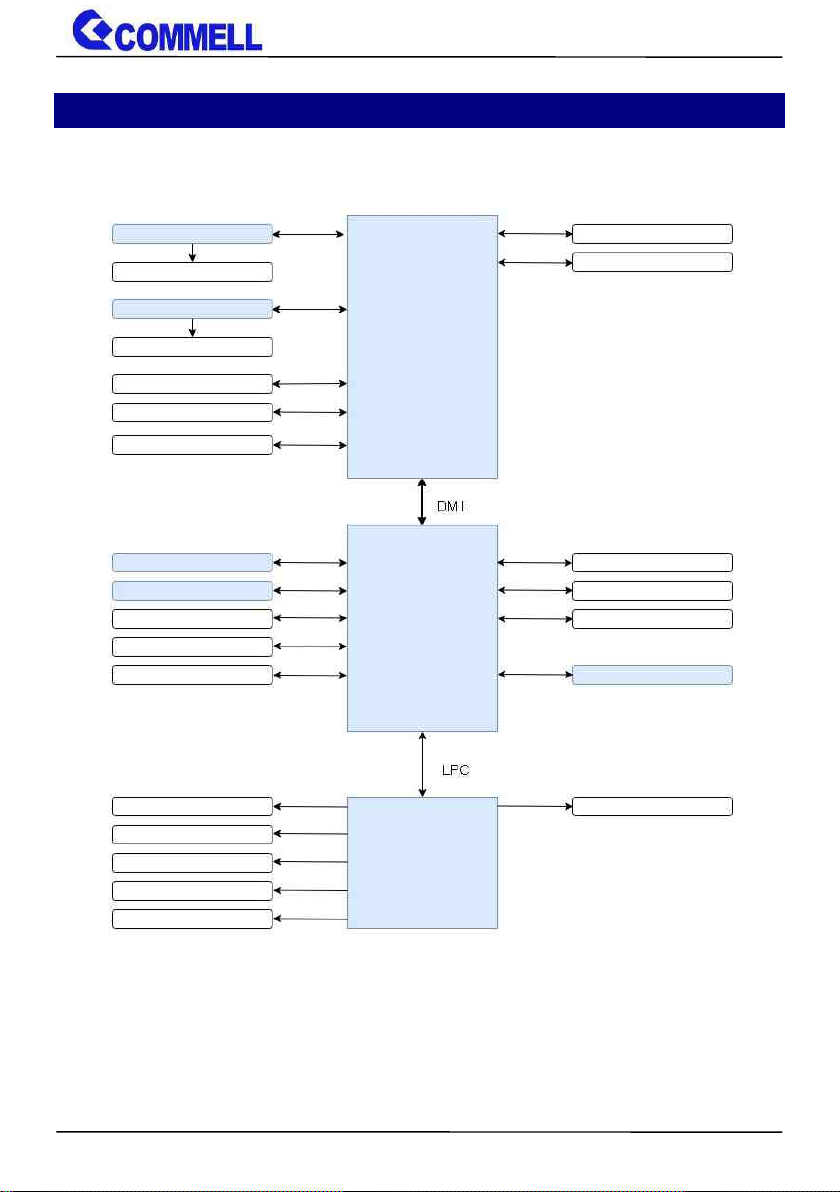

1.3 <Block Diagram>
CFL-S
8th & 9th Gen
Intel® Core™
Desktop
Processors
Q370
NCT6116D
DDR4 SO-DIMM 2666
DDR4 SO-DIMM 2666
PTN3460
LVDS
PTN3355
CRT
DP
HDMI
DVI
I219
I210
4 x USB3.1 Gen2
4 x USB2.0
SMBus
SPI
1 x MiniPCIe / mSATA
2 x SATA
ALC262
4 x RS232
2 x RS232/RS422/RS485
PS/2
GPIO
CPUFAN
SYSFAN
Page 8
LS-37L User’s Manual
-7-
Chapter 2 <Hardware setup>

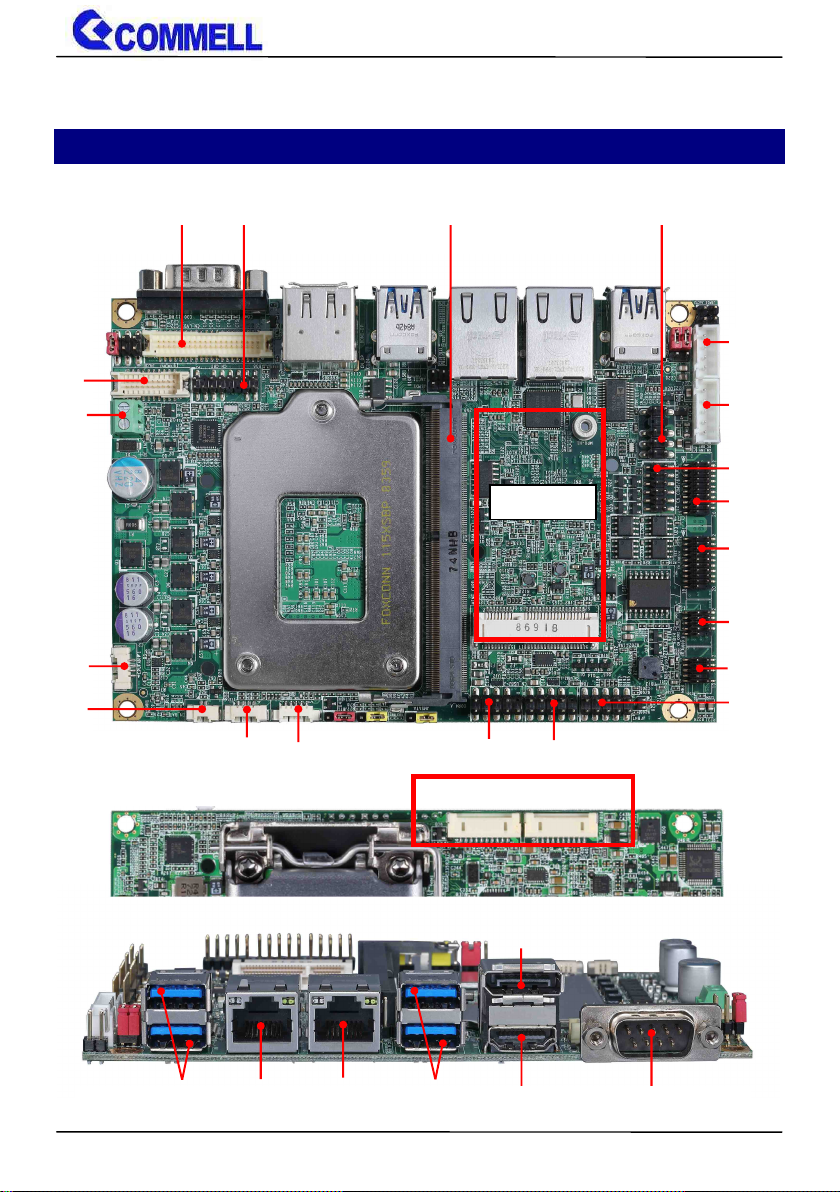

2.1 <Connector Location and Reference>
Display Port
USB3.1 Gen2 I210-AT I219-LM USB3.1 Gen2 HDMI COM1
CN_SATA3-1
CN_SATA3-2
CN_LVDS CN_CRT DDR4_A CN_PS2
MINI_CARD
CN_DVI
DC_IN
CPUFAN
CN_BAT
SYSFAN CN_SMBus CN_USB2-2 CN_USB2-1
DC_OUT
CN_INV
CN_DIO
CN_COM5/6
CN_COM3/4
CN_COM2
CN_AUDIO
JFRNT
Page 9
LS-37L User’s Manual
-8-
2.1.1 <Internal connectors list>
Connector
Function
DDR4_A
260-pin DDR4 SO-DIMM slot
CN_SATA3-1/2
10-pin Serial ATA3 connector
CN_AUDIO
5 x 2-pin audio pin header
CN_LVDS
20 x 2-pin LVDS connector
CN_INV
5-pin LCD inverter connector
CN_DVI
10 x 2-pin DVI connector
CN_CRT
16-pin VGA connector
CN_COM 3/4
20-pin RS232/RS422/485 connector
CN_COM 5/6
20-pin RS232 connector
CN_USB 2-1/2-2
5 x 2-pin USB2.0 pin header
CN_PS2
5 x 2-pin PS/2 pin header
CN_DIO
6 x 2-pin digital I/O connector
CN_SMBus
5-pin SMBus connector
CN_BAT
2-pin Battery connector
CPUFAN
4-pin CPU fan connector
SYSFAN
4-pin system fan connector
MINI_CARD
52-pin MiniPCIe card slot
JFRNT
14-pin front panel switch/indicator connector
DC_IN
2-pin power input Terminal Block
2.1.2 <External connectors list>
Connector
Function
Display Port
DisplayPort connector
HDMI
HDMI connector
USB3.1 Gen2 1/2
USB3.1 Gen2 connector
LAN 1/2
RJ45 connector
COM1
DB9 Serial port connector
Page 10
LS-37L User’s Manual
-9-
2.2 <CPU, Heatsink and Memory installation guide>

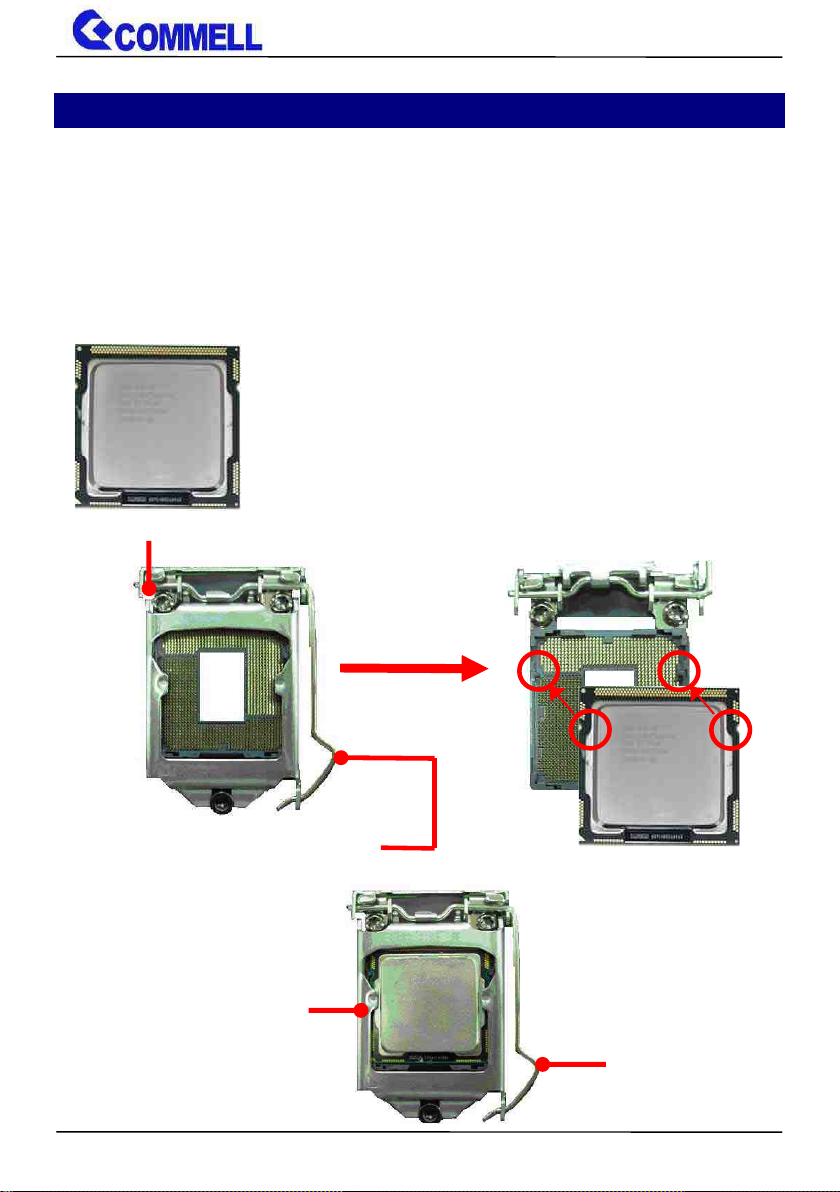

2.2.1 <CPU installation>
LS-37L has a LGA1151 CPU socket onboard; please check following steps to install the
processor properly.
Attention If LS-37L needs RMA, please Keep CPU socket cover on the CPU Socket.
Warning If CPU Socket internal Pin damage, We could not provide warranty.
1. Lift this bar
2. Uncover this plate
8th generation Intel® Core™, Pentium® and Celeron®
processor , FCLGA1151 package
Checked point
3. Place the CPU on the top of the pins
4. Cover this plate
5. Lock this bar
Page 11
LS-37L User’s Manual
-10-

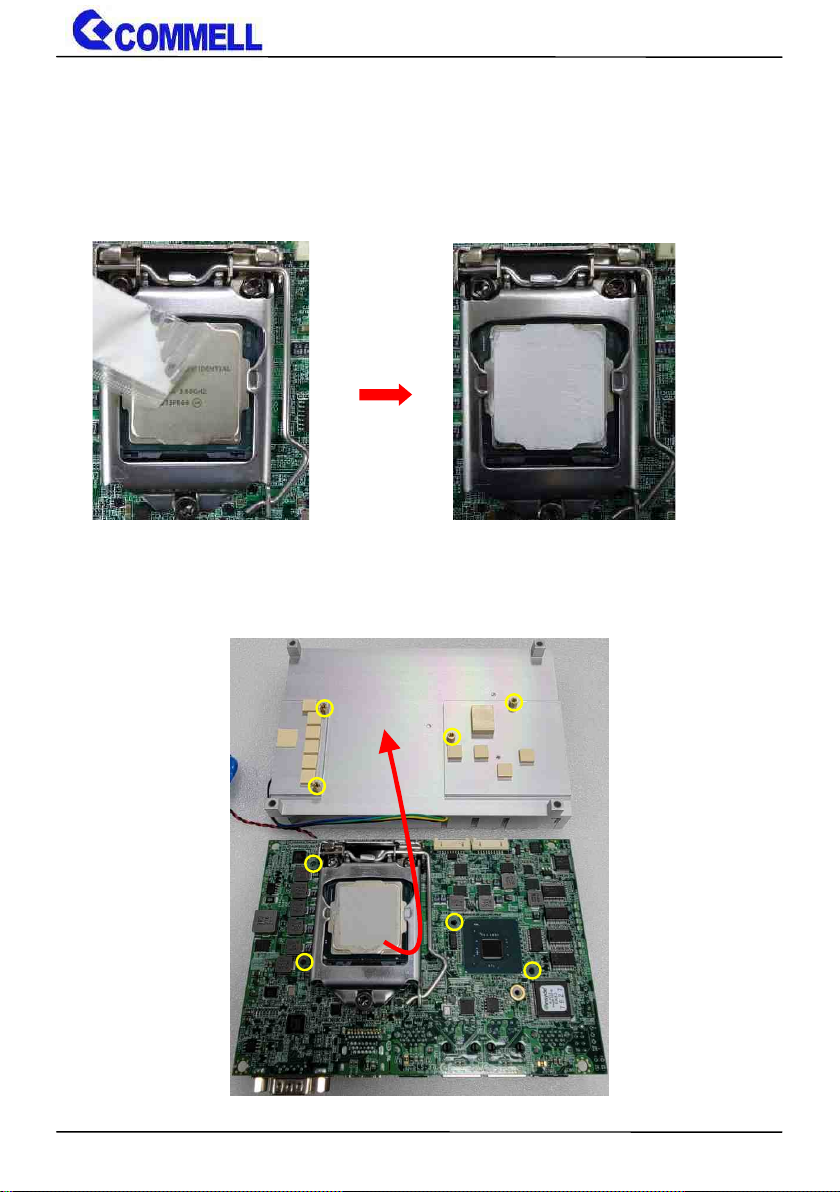

2.2.2 <Cooler Fan installation>
Step1. Apply Thermal Paste on the CPU.
Step2. Mount the Heatsink after aligning.
Page 12
LS-37L User’s Manual
-11-

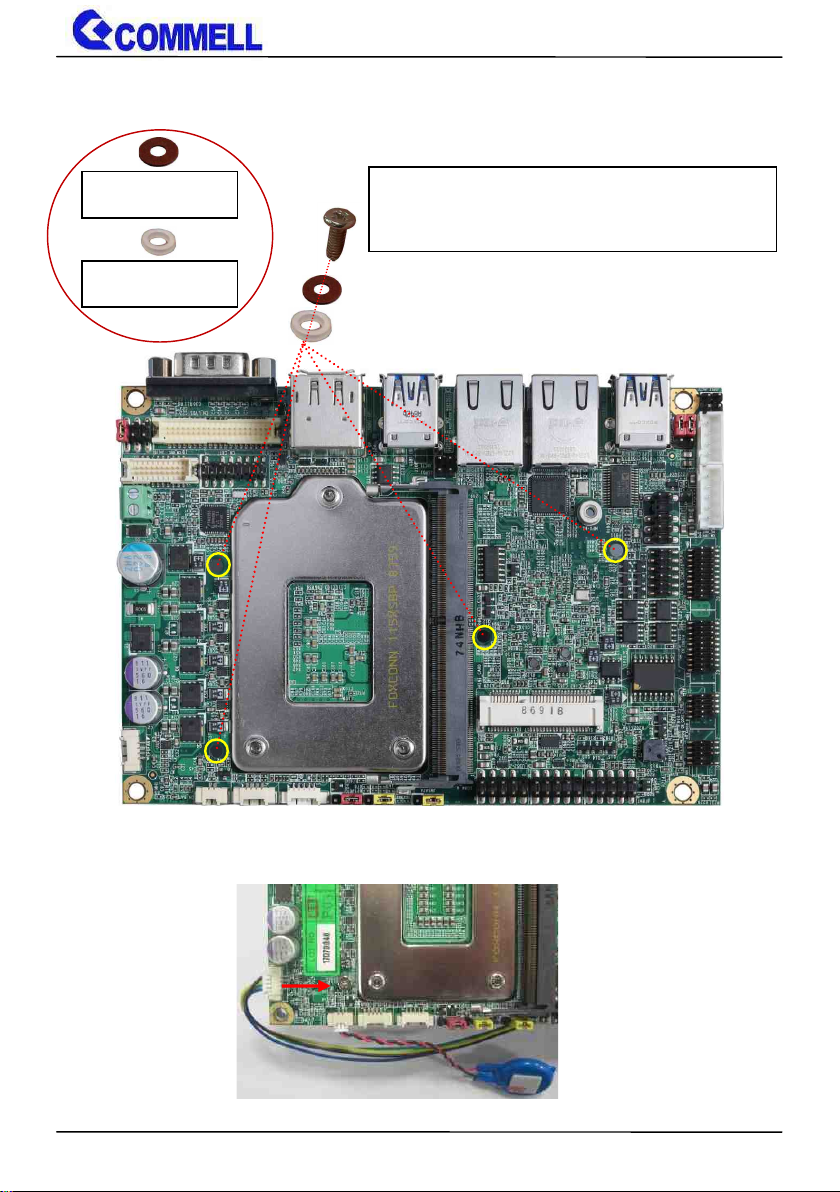

Step3. Screw on the Heatsink.
Step4. Install Fan, finish.
Tears the film
The suggestion screw torque of the
Heat Spreader/ Cooler is 1.2KGf‐cm
Red the film
Page 13
LS-37L User’s Manual
-12-

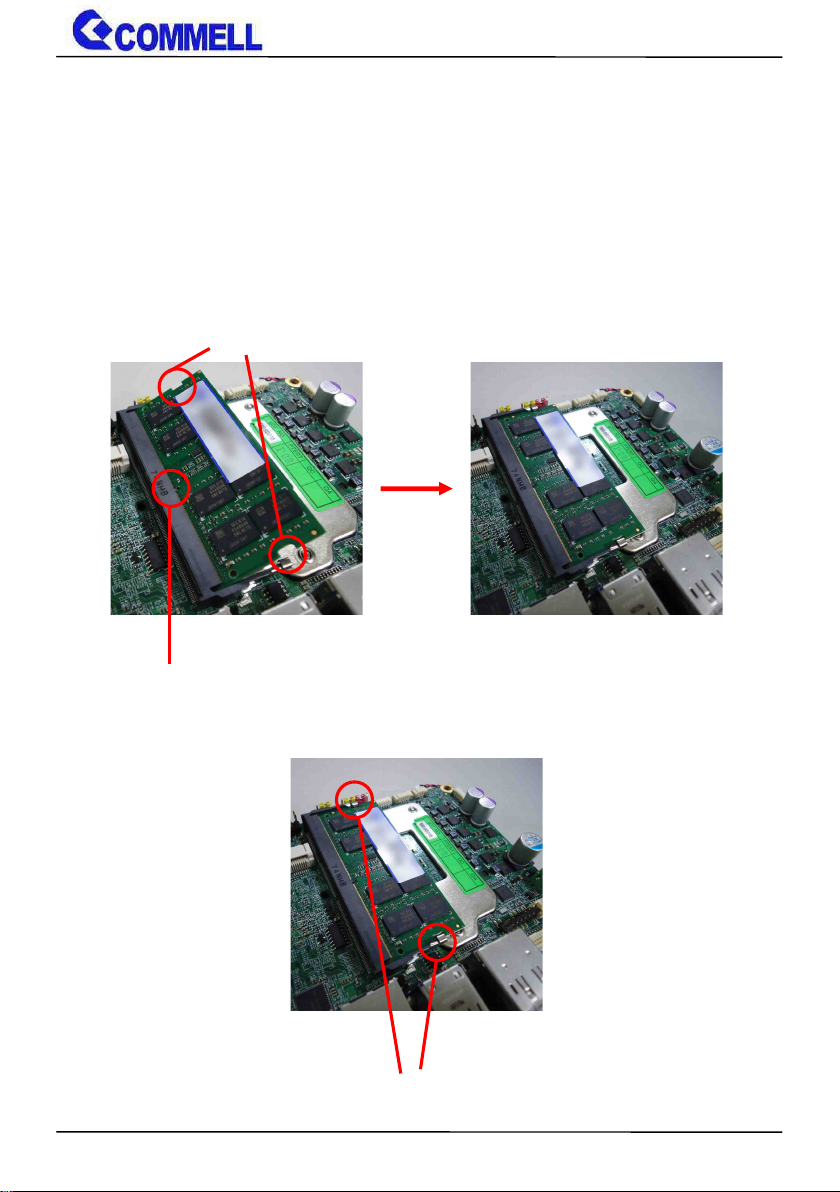

2.2.3 <Memory Setup>
LS-37L has 260-pin DDR4 DIMM support up to 32GB of memory capacity and 1.2 Voltage.
The memory frequency supports 2666 MHz. Only Non-ECC memory is supported.
In the process, the board must be powered off.
1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.
2. Then press down till lock into the mounting notch.
3. To remove the memory, push outward on both sides of the latch.
Press down
Mounting notch
KEY
LATCH
Page 14
LS-37L User’s Manual
-13-

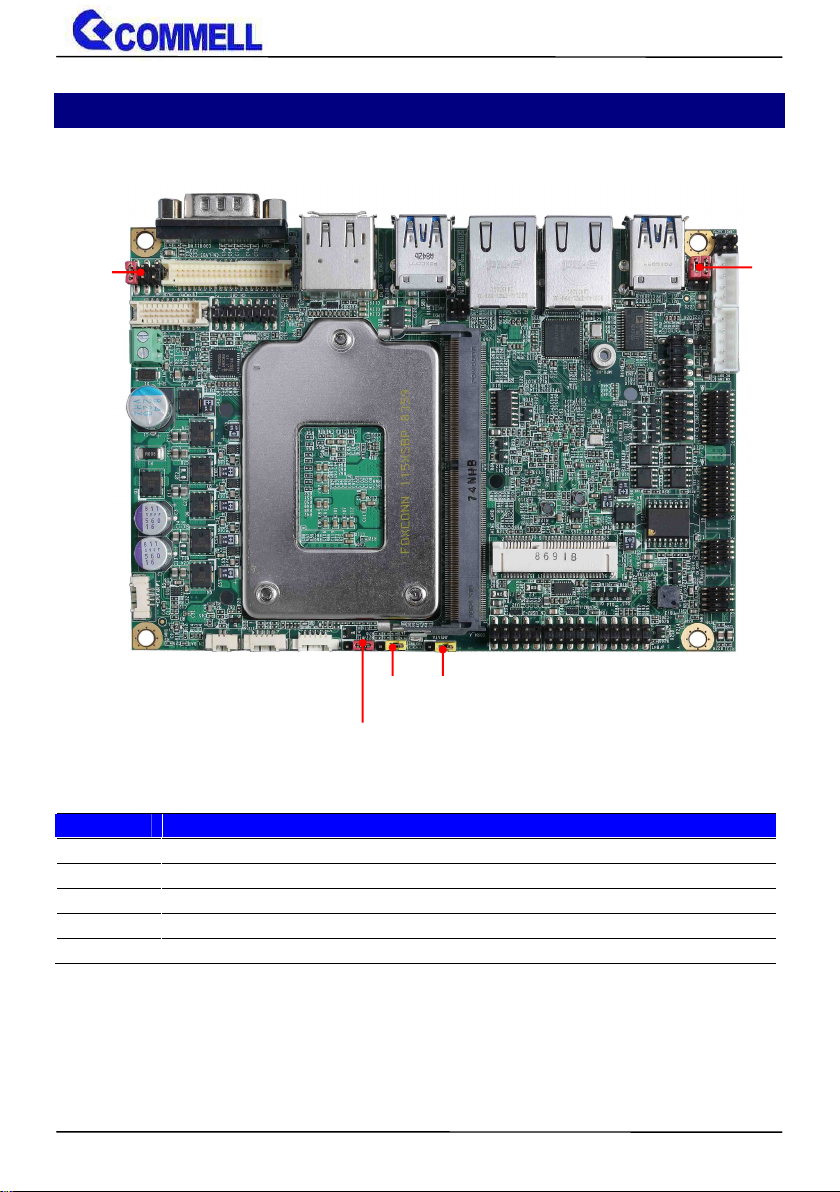

2.3 <Jumper Location and Reference>
2.3.1 <Jumper list>
Jumper
Function
JAT
Power mode select
JRTC
CMOS Normal/Clear Setting
JVLCD
Panel Voltage Setting
JMSATA
MiniCard mSATA Setting
JVUSB
USB Voltage Setting
JVLCD
JAT JMSATA
JRTC
JVUSB
Page 15
LS-37L User’s Manual
-14-

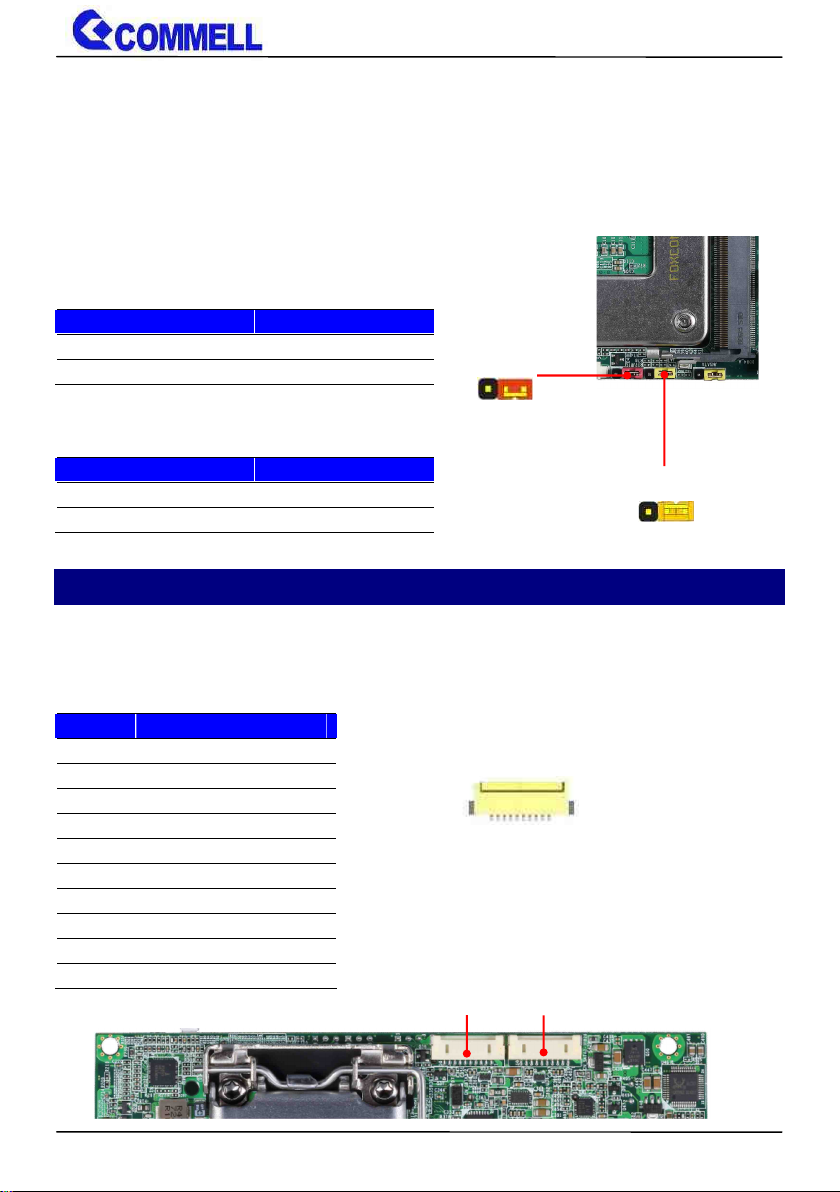

2.3.2 <Clear CMOS and Power on type selection>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
JAT: AT/ATX mode select jumper
Jumper settings
Function
1-2
AT mode
2-3
ATX mode (Default)
RJRTC: Clear CMOS data jumper
Jumper settings
Function
1-2
Clear CMOS
2-3
Normal (Default)
2.4 <I/O interface>
2.4.1 <Serial ATA interface>
CN_SATA3-1/2: SATA3 10-pin connector
Pin
Signal
1
GND
2
TX+
3
TX-
4
GND
5
NA
6
NA
7
GND
8
RX-
9
RX+
10
GND
CN_SATA3-2
JAT
1 3
JRTC
1 3
CN_SATA3-1/2
10
1
CN_SATA3-1
Page 16
LS-37L User’s Manual
-15-

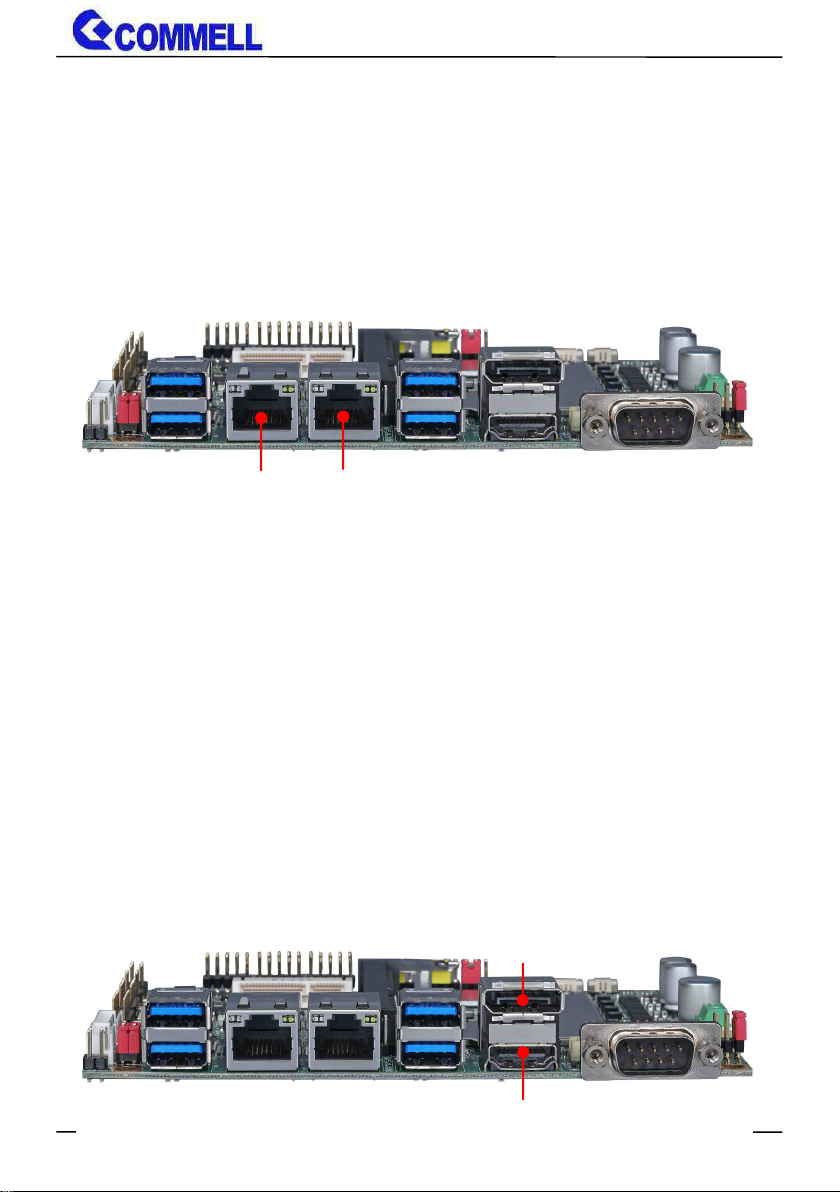

2.4.2 <Ethernet interface>
The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on
rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates,
with IEEE802.3 compliance and Wake-On-LAN supported.
2.4.3 <Display interface>
Based on the 8th & 9th Gen CPU with built-in HD Graphics 630, VGA and DVI up
to 1920x1080@60Hz, DisplayPort up to 4096x2304@60Hz , HDMI up to
4096x2304@24Hz on rear IO. About the internal Display, LVDS (PTN3460) up to
1920x1200@60Hz support 18/24-bit color depth and single/dual channel. About
select LCD Panel Type in BIOS, please refer Appendix B.
The built-in HD Graphics support triple display function with clone mode and
extended mode.
I210-AT I219-LM
Display Port
HDMI
Page 17
LS-37L User’s Manual
-16-
CN_CRT: VGA 16-pin connector (Pitch 2.00 mm)
Pin
Signal
Pin
Signal
1BR2
BG
3BB4
NC
5
IOGND1
6
IOGND1
7
IOGND1
8
IOGND1
9NC10
IOGND1
11NC12
5VCDA
13
5HSYNC
14
5VSYNC
15
5VCLK
16
NC
CN_DVI: DVI on board 20-pin connector
Pin
Signal
Pin
Signal
1
+5V2N/C
3
HPD4Ground
5
TMDSTX0N
6
TMDSTX0P
7
Ground
8
TMDSTX1N
9
TMDSTX1P
10
Ground
11
TMDSTX2N
12
TMDSTX2P
13
Ground14Ground
15
TMDSTXCP
16
Ground

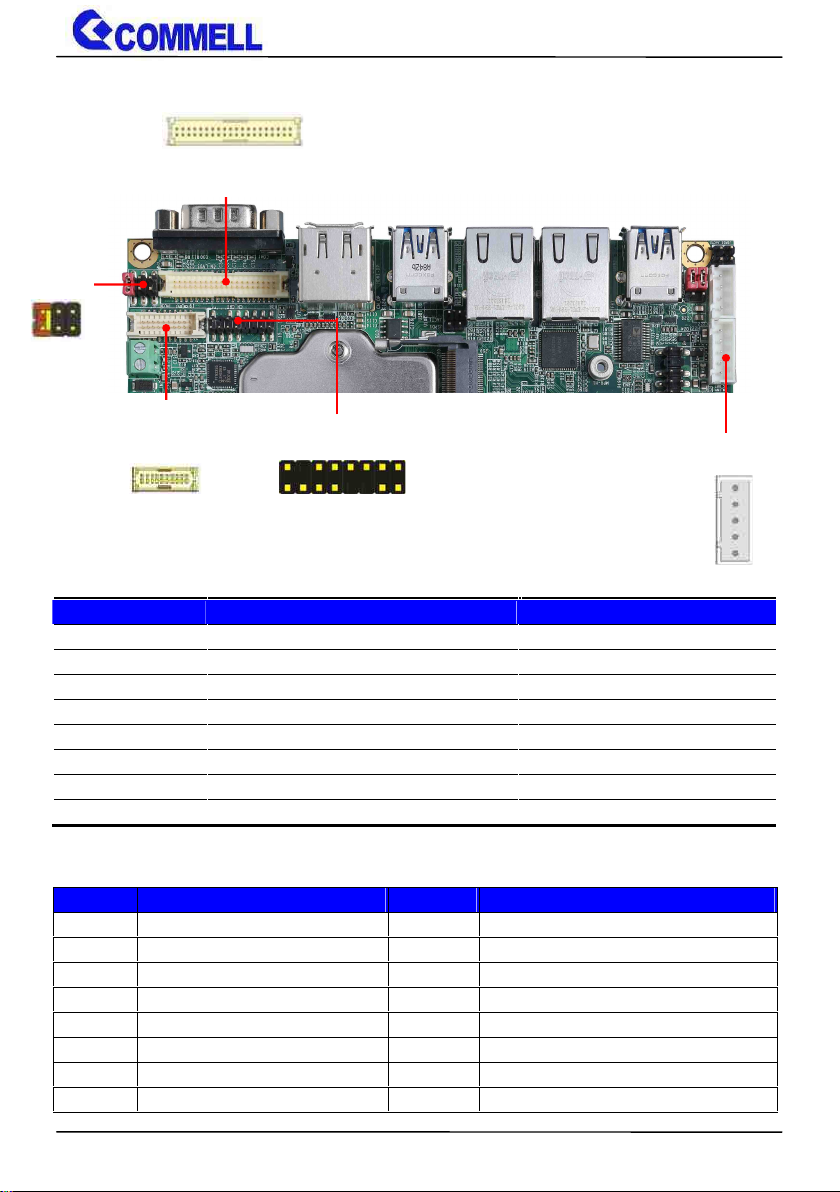

CN_LVDS
1
39
2
40
JVLCD
2
6
1
5
5
1
CN_INV
CN_CRT
15161
2
19201
2
CN_DVI
Page 18
LS-37L User’s Manual
-17-
17
DVI_DA18DVI_SL
19
N/C20N/C
CN_LVDS: LVDS 40-pin connector (Model: HIROSE DF13-40DP-1.25V compatible)
Pin
Signal
Pin
Signal
2
Set by JVLCD
1
Set by JVLCD
4
Detect (Active low)
3
GND
6
A_LVDS_0-
5
B_LVDS_0-
8
A_LVDS_0+
7
B_LVDS_0+
10
GND9GND
12
A_LVDS_1-
11
B_LVDS_1-
14
A_LVDS_1+
13
B_LVDS_1+
16
GND15GND
18
A_LVDS_2-
17
B_LVDS_2-
20
A_LVDS_2+
19
B_LVDS_2+
22
GND21GND
24
A_LVDS_CLK-
23
B_LVDS_3-
26
A_LVDS_CLK+
25
B_LVDS_3+
28
GND27GND
30
A_LVDS_3-
29
B_LVDS_CLK-
32
A_LVDS_3+
31
B_LVDS_CLK+
34
GND33GND
36
LVDS_DDCSCL
35
NC
38
LVDS_DDCSDA
37
NC
40NC39
NC
Pin4 only need to be connected to GND
CN_INV: LVDS 5-pin Backlight power connector
Pin
Signal
1
12V
2
Backlight Control
3
GND
4
GND
5
Enable Backlight
JVLCD: LVDS panel power select jumper
Jumper settings
Function
1-2
3.3V (Default)
2-3
5V
5-6
12V
Page 19
LS-37L User’s Manual
-18-

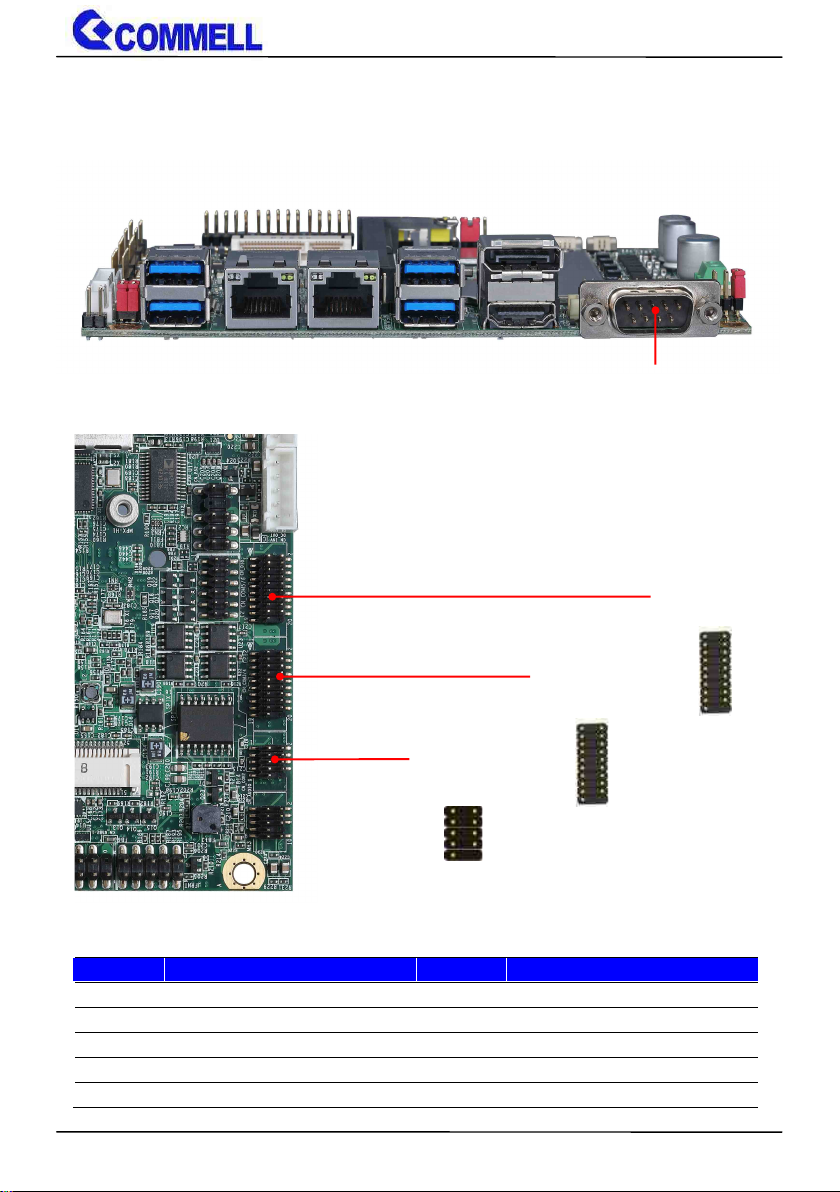

2.4.4 <Serial Port interface>
COM1: DB9 connector
Pin
Signal
Pin
Signal
1
DCD2RXD
3
TXD4DTR
5
GND6DSR
7
RTS8CTS
9
RI
COM1
20
19
2
1
CN_COM3/4
20
19
2
1
CN_COM5/6
CN_COM2
10
9
2
1
Page 20
LS-37L User’s Manual
-19-
COM2: RS232 9-pin header
Pin
Signal
Pin
Signal
1
DCD2RXD
3
TXD4DTR
5
GND6DSR
7
RTS8CTS
9
RI
COM3/4: RS232/422/485 20-pin header (Pitch 2.54 x 1.27mm)
Pin
Signal
Pin
Signal
1
DCD1/ 422TX-/ 485-
2
RXD1/ 422TX+/ 485+
3
TXD1
4
DTR1
5
GND
6
DSR1/ 422RX+
7
RTS1
8
CTS1/ 422RX-
9
RI110NC
11
DCD2/ 422TX-/ 485-
12
RXD2/ 422TX+/ 485+
13
TXD2
14
DTR2
15
GND
16
DSR2/ 422RX+
17
RTS2
18
CTS2/ 422RX-
19
RI220Key
COM3/4 RS-232/422/485 can set by BIOS.
You can find the setting from
On Front Page screen, click Setup Utility
On Advanced screen, click SIO NCT6116D
Then click RS232/RS422/RS485 Setting
RS232/RS422/RS485 Setting
Input
Disable
Input/Output mode
Output
Enable RS232/RS422/RS485 Setting
High
RS422/RS485
PEI Phase Output value
Low
RS232 (Default)
High
RS422/RS485
Dxe Phase Output value
(After PEI Phase)
Low
RS232 (Default)
PEI：Pre-EFI Initialization, DXE: Driver Execution Environment
Page 21
LS-37L User’s Manual
-20-
RS-485 cable modification:
CN_COM3/4 RTX- Data- : short Pin1& Pin8
CN_COM3/4 RTX+ Data+ : short Pin2& Pin6
CN_COM3/4 RTX- Data- : short Pin11& Pin18
CN_COM3/4 RTX+ Data+ : short Pin12& Pin16
COM5/6: RS232 20-pin header (Pitch 2.54 x 1.27mm)
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI110NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI220Key
Page 22
LS-37L User’s Manual
-21-

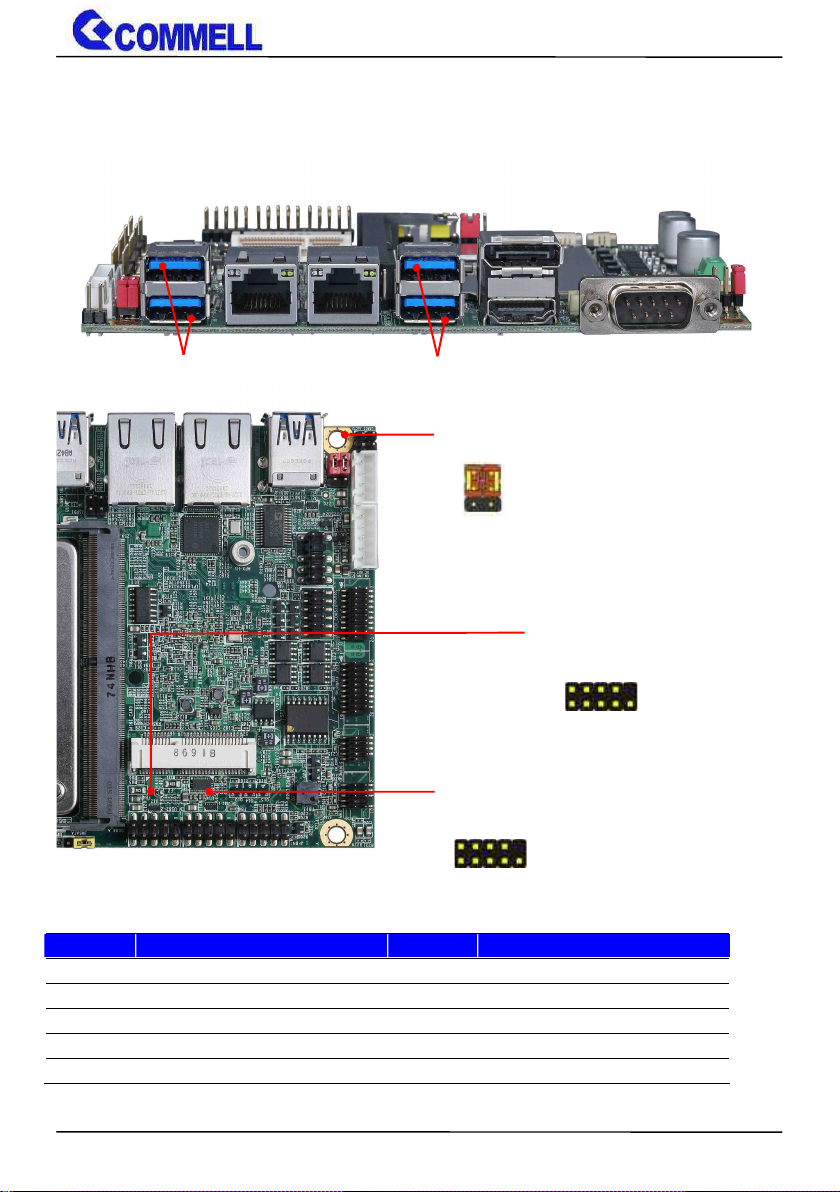

2.4.5 <USB interface>
CN_USB 2-1/2-2: USB2.0 10-pin header (Pitch 2.54 mm)
Pin
Signal
Pin
Signal
1
5VSB
2
5VSB
3
DATA0-
4
DATA1-
5
DATA0+
6
DATA1+
7
GND8GND
9
GND10Key
1 2
5 6
JVUSB
CN_USB2-1
2
9
10
1
CN_USB2-2
2
9
10
1
USB3.1 Gen2 (Left) USB3.1 Gen2 (Right)
Page 23
LS-37L User’s Manual
-22-
JVUSB: 6-pin Power select jumper
Pin
Description
1-3 & 2-4
5V_SB (Default)
3-5 & 4-6
5V
Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6
JVUSB can control USB3.1 Gen2 (Right) power.
2.4.6 <Audio interface>
CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
MIC_L
2
GND
3
MIC_R
4
NC
5
FP_OUT_R
6
MIC_DETECT
7
SENSE
8
Key
9
FP_OUT_L
10
FP_OUT_DETECT
CN_AUDIO
9
2
1
10
Page 24
LS-37L User’s Manual
-23-

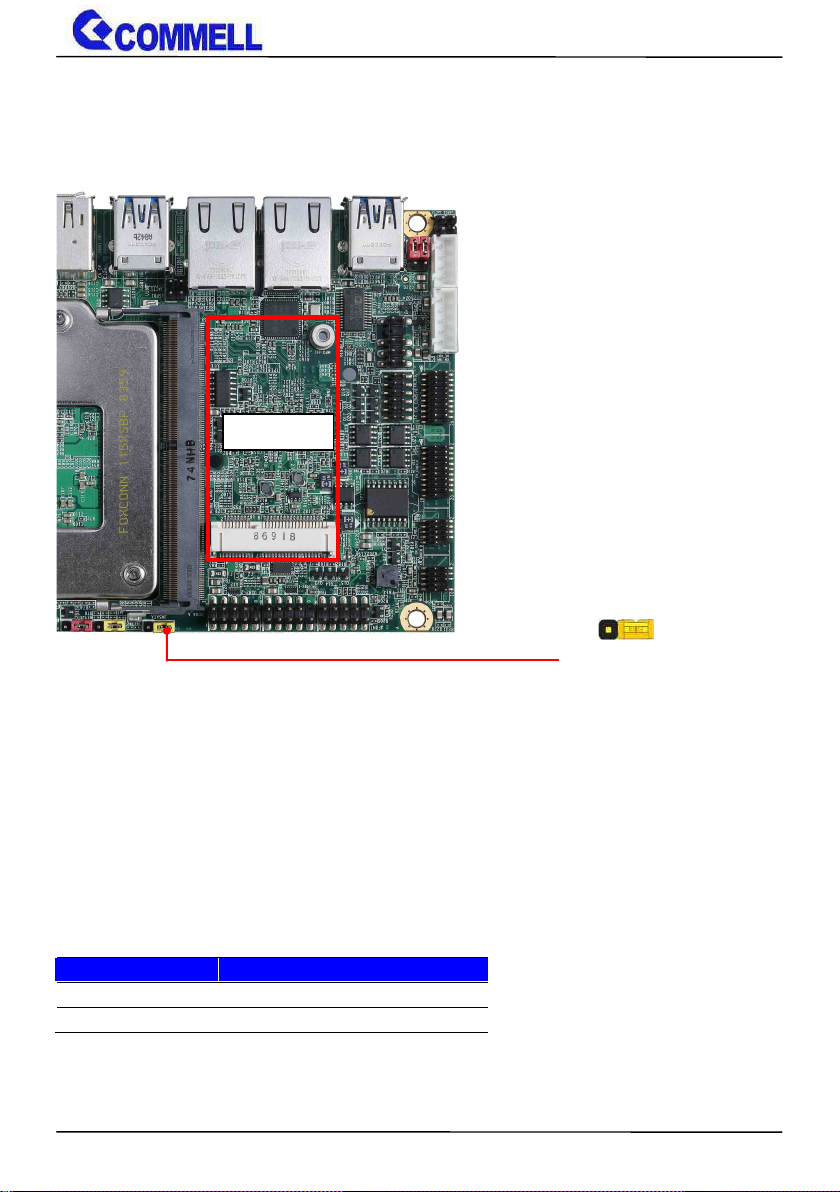

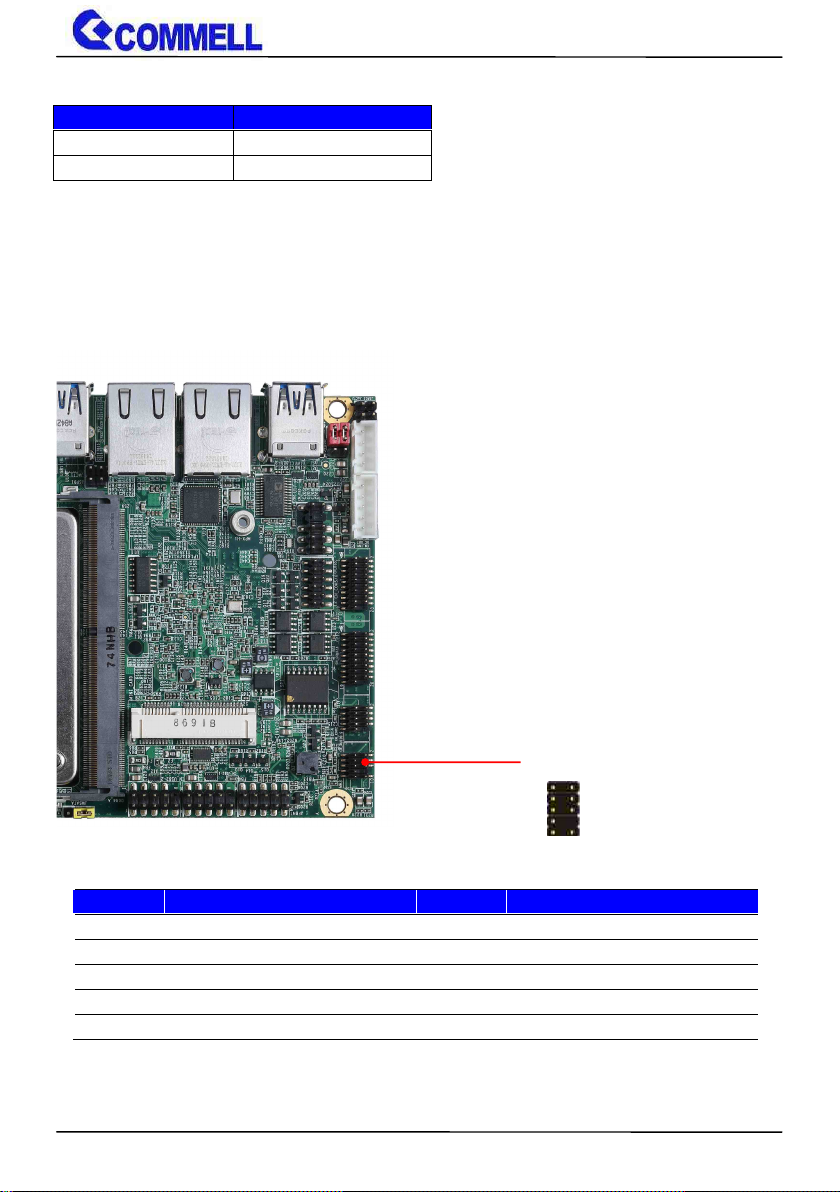

2.4.7 <Expansion slot>
MINI_CARD has some special design to compatible our mini-PCIe card.
(ex: MPX-574D2, MPX-210D2 etc)
MINI_CARD supports mSATA by JMSATA
JMSATA: Setting MINI_CARD to support PCIe/mSATA
Jumper settings
Function
1-2
Support mSATA
2-3
Normal operation (Default)
1
3
JMSATA
MINI_CARD
Page 25
LS-37L User’s Manual
-24-

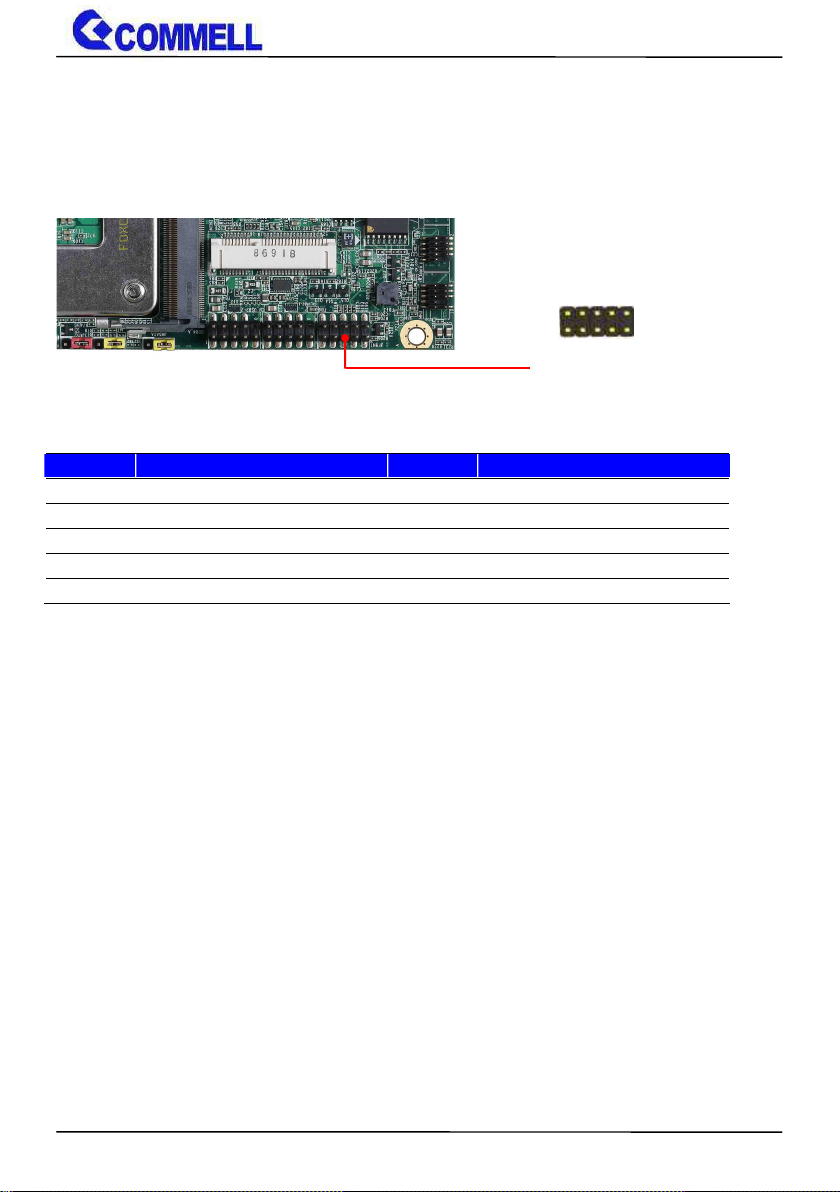

2.4.8 <Front panel switch and indicator>
JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
Power_ON-
2
Power_ON+
3
Speaker-
4
Speaker+
5
HDD_LED-
6
HDD_LED+
7
Power_LED-
8
Power_LED+
9
Reset+
10
Reset-
JFRNT
10
1
9
2
Page 26
LS-37L User’s Manual
-25-

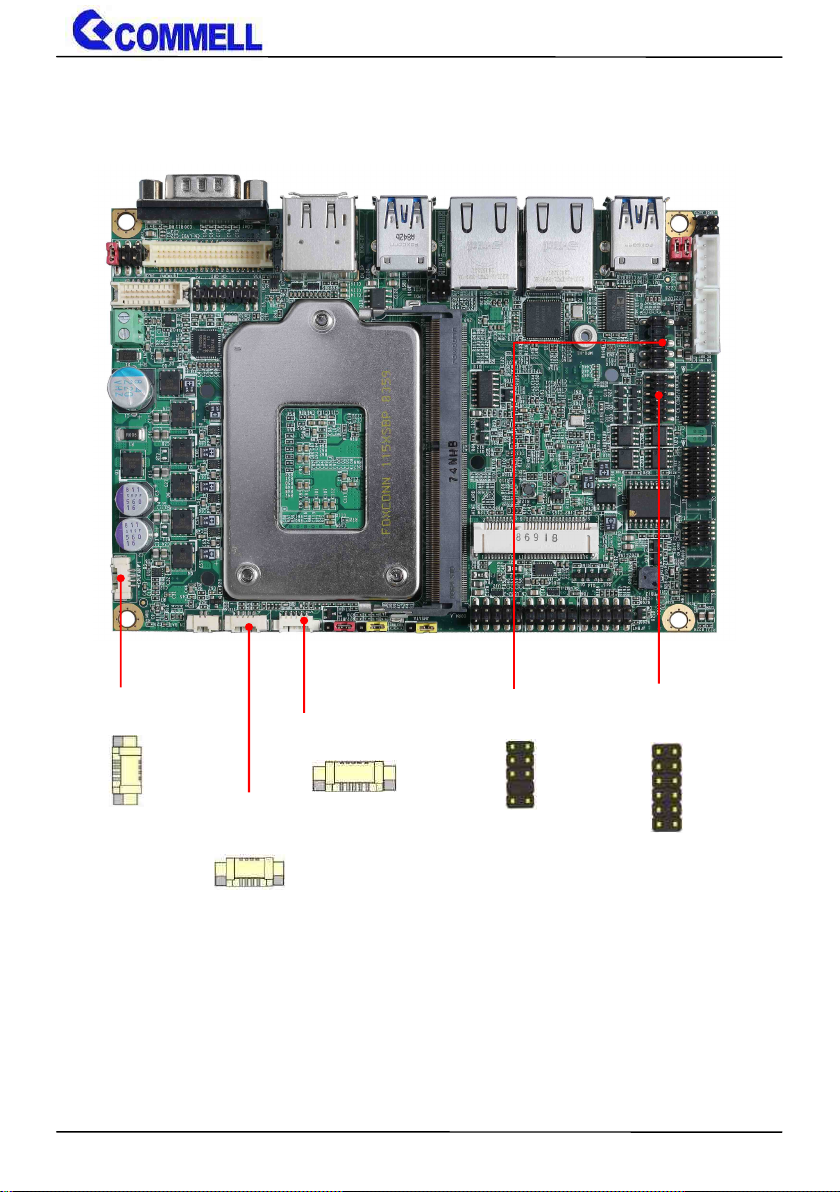

2.4.9 <GPIO and Other interface>
CN_PS2
CN_DIO
10
9
2
1
12111
2
CN_SMBus
1
5
SYSFAN
1 4
CPUFAN
1
4
Page 27
LS-37L User’s Manual
-26-
When using GPIO function
Press Delete to enter BIOS Setup menu
On Front Page screen, click Setup Utility
On Advanced screen, click SIO NCT6116D,then click GPIO 4 Configuration
Internal Resistance: Select output type, Push pull or Open drain
Input/Output mode: Select GPIO pin mode, Input or Output
PEI Phase output value: GPIO output value in BIOS PEI phase
DXE Phase output value: GPIO output value in BIOS DXE phase
As Input: TTL-level.
GPIO DC characteristics
Parameter
SYM
MIN
TYP
MAX
UNIT
Conditions
Input Low Voltage
VIL0.8
V
Input High Voltage
VIH2.0
V
Output Low Voltage
VOL0.4VIOL =12mA
Input High Leakage
I
LIH
+10μAVIN =3.3V
Input Low Leakage
I
LIL
-10μAVIN =0V
Please refer to Appendix E to program the configuration register
CN_DIO: GPIO 12-pin header (Pitch 2.00mm)
Pin
Signal
Pin
Signal
1
GND2GND
3
GPIO0
4
GPIO4
5
GPIO1
6
GPIO5
7
GPIO2
8
GPIO6
9
GPIO3
10
GPIO7
115V12
12V
Page 28
LS-37L User’s Manual
-27-
CN_PS/2: PS/2 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
KB_DATA
2
M_DATA
3NC4
NC
5
GND6GND
7
VCC8VCC
9
KB_CLK
10
M_CLK
CN_SMBus: SMBus 5-pin connector (Pitch 2.54mm)
Pin
Signal
1
5V
2
NC
3
SMBDAT
4
SMBCLK
5
GND
CPUFAN & SYSFAN: cooler fan 4-pin connector
Pin1234
Signal
GND
12V
Sensor
Control

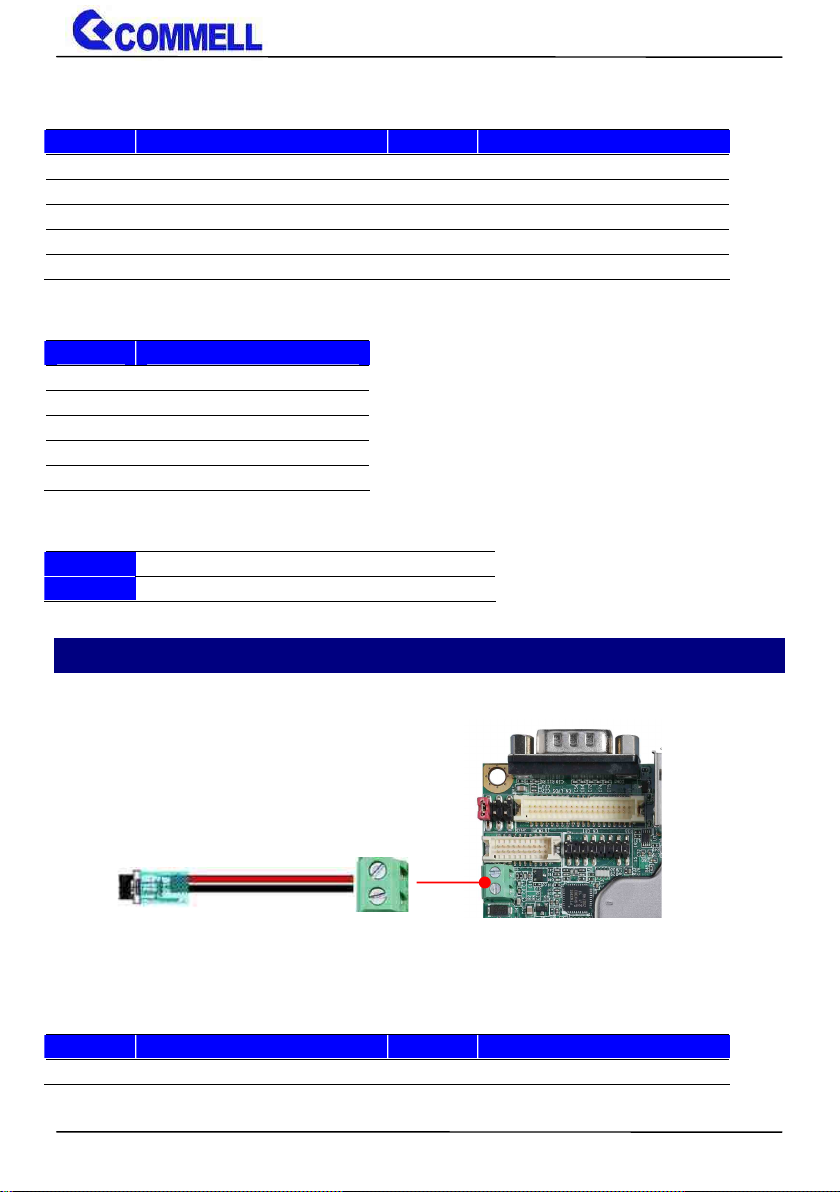

2.5 <Power supply>
2.5.1 <Power input>
DC_IN: Terminal Block 2-pin power connector
Pin
Signal
Pin
Signal
1
GND
3
Power in
The power support 9~25V wide voltage input.
DC_IN
1
3
+
_
Page 29
LS-37L User’s Manual
-28-

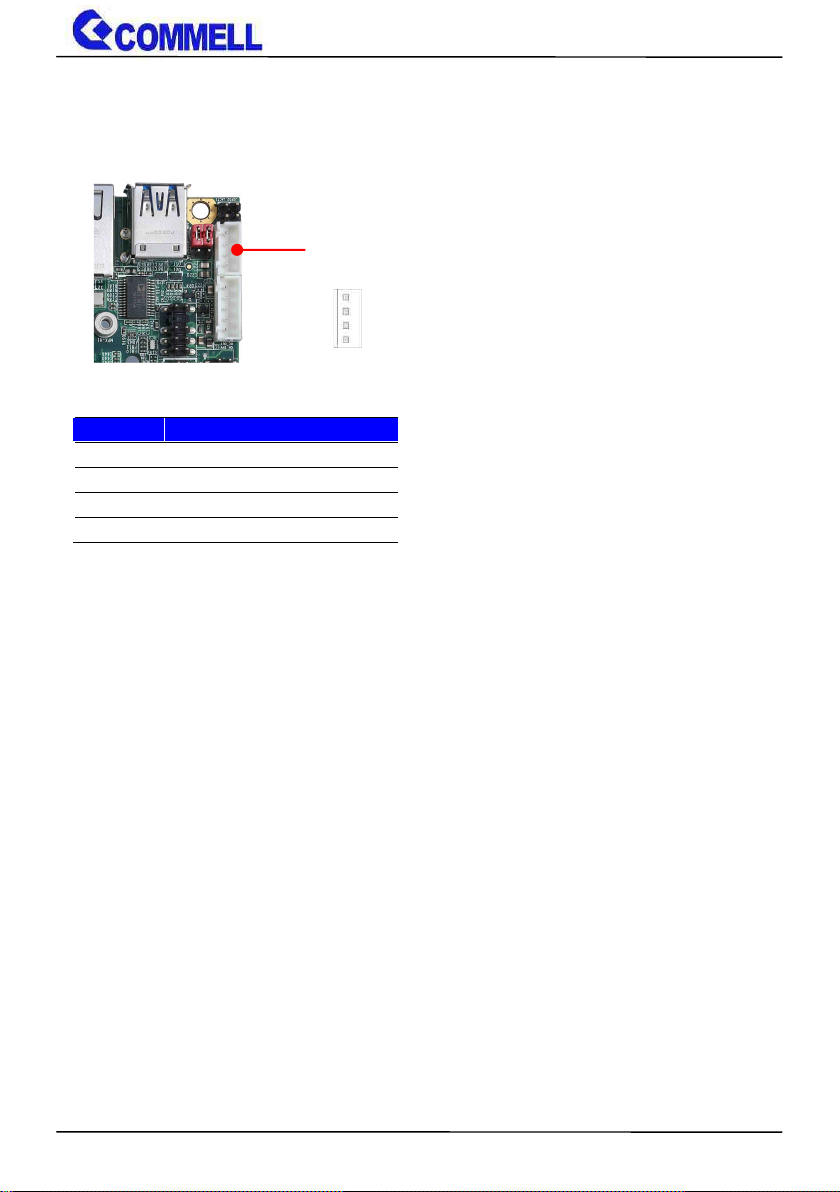

2.5.2 <Power output>
DC_OUT: SATA power 4-pin connector
Pin
Signal
1
12V
2
GND
3
GND
4
5V
DC_OUT
1
4
Page 30
LS-37L User’s Manual
-29-
Appendix A <Flash BIOS>
A.1 <Flash tool>
The board is based on Insyde BIOS and can be updated easily by the BIOS
auto flash tool. You can download the tool online at the address below:
FPT Tool
The tool’s file name is “FPT.exe”, it’s the utility that can write the data into the
BIOS flash chip and update the BIOS.
A.2 <Flash BIOS process>
1. Press Del to Enter BIOS Menu
2. On Front Page screen, click Setup Utility
3. On Advanced screen, click PCH-IO Configuration,then click Security
Configuration
4. Set BIOS Lock to [Disabled], then save changes.
5. Please make a boot-able Disk which could booting into DOS environment.
6. Un-zip attached files and copy it into boot-able Disk.
7. Power on the system and flash the BIOS under the DOS environment.
The instruction will be "C:/fpt_-savemac_-f_XXXX.BIN"
Note: a. Underscore means Space
b. xxxx.bin means the BIOS file that you want to update
8. Please turn off the system and clean CMOS by Jumper.
9. Turn on the system and update BIOS successful.
Page 31
LS-37L User’s Manual
-30-
Appendix B <LCD Panel Type select>
According your panel, it need to select the correct resolution in the BIOS.If there is
no fit your panel type, please feedback for us to make OEM modol.
Find the setting from
Front Page-> Setup Utility
Advanced LVDS Configuration
Set 18bit /24bit, Single /Dual channel in LVDS configuration
Page 32
LS-37L User’s Manual
-31-
Advanced SA configurationGraphics confuguration
LCD controlLCD Panel Type
There are 16 resolutions in LCD Panel Type. (For Dual boot and Legacy boot)
Page 33
LS-37L User’s Manual
-32-
Appendix C <Programmable Watch Dog Timer>
The watchdog timer makes the system auto-reset while it stops to work for a
period.The integrated watchdog timer can be setup as system reset mode by
program.You can select Timer setting in the BIOS, after setting the time options,
the system will reset according to the period of your selection.
Find the setting from
AdvancedSIO NCT6116D
Page 34
LS-37L User’s Manual
-33-
Timeout value range
1 to 255 Minute and Second
Program sample
Watchdog timer setup as system reset with 5 second of timeout
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 08 ;select Logical Device
-o 4E 30
-o 4F 01 ; activate WDTO# function
-o 4E F0
-o 4F 00 ;set “00” is second mode, set “08” is minute mode
-o 4E F1
-o 4F 05 ;00h: Timeout Disable
;01h: Timeout occurs after 1 minute only
;02h: Timeout occurs after 2 second/minute
;03h: Timeout occurs after 3 second/minute
;FFh: Timeout occurs after 255 second/minute
(The deviation is approx 1 second.)
For further information, please refer to Nuvoton NCT6116D datasheet
…
Page 35
LS-37L User’s Manual
-34-
Appendix D <Hardware Monitor>
Find the setting from
AdvancedSIO NCT6116DHardware Monitor
Page 36
LS-37L User’s Manual
-35-
Appendix E <Programmable GPIO>
The GPIO’ can be programmed with the MS-DOS debug program using simple
IN/OUT commands.
GPIO01234567
bit01234567
-o 4E 87 ;enter configuration
-o 4E 87
-o 4E 07
-o 4F 07 ;select Logical Device
-o 4E 30
-o 4F 10 ;activate GPIO function (The board use GPIO4)
-o 4E F0
-o 4F XX ;set “01” GPIO as input, set “00” GPIO as output
-o 4E F1
-o 4F XX ;if set GPIO as output, this register’s value can be set “00~ FF”
Optional
-o 4E F2
-o 4F XX ;set “01”, the respective bit are inverted (Both input and output)
;set “00”, the respective bit are normal
For further information, please refer to Nuvoton NCT6116D datasheet
Page 37
LS-37L User’s Manual
-36-

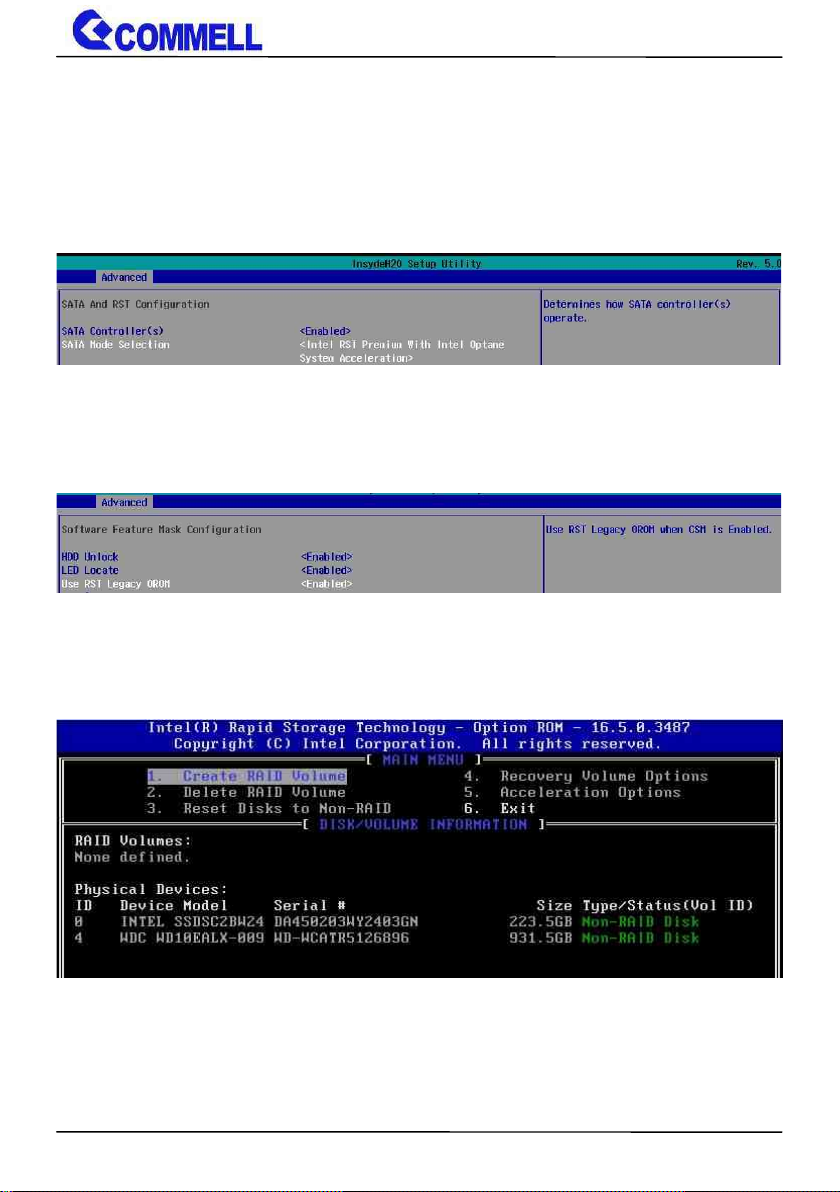

Appendix F <RAID Setting>
When use RAID function, it need to enter the BIOS set RAID mode first.
Advanced PCH-IO Configuration SATA and RST Configuration
SATA Mode Selection
Advanced PCH-IO Configuration SATA and RST Configuration
Software Feature Mask Configuration
Set Use RST Legacy OROM [Enable]
Then press F10 to save the setting.
At boot time, press <CTRL + I> to enter the RAID configuration menu.
Page 38
LS-37L User’s Manual
-37-
Appendix G <Setup ADP-3355,ADP-3460>
LS-37LT have a 2nd VGA or 2nd LVDS, it’s no need install extra driver.
For further information, please refer to the manual.
ADP-3355 manual Link
ADP-3460 manual Link
Contact information
Any advice or comment about our products and service, or anything we can help
you please don’t hesitate to contact with us. We will do our best to support you for
your products, projects and business.
Taiwan Commate computer Inc.
Address
19F., NO.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 22102, Taiwan.
TEL
+886-2-26963909
Website
www.commell.com.tw
E-mail
Commell is a brand name of Taiwan Commate computer Inc.
Loading...
